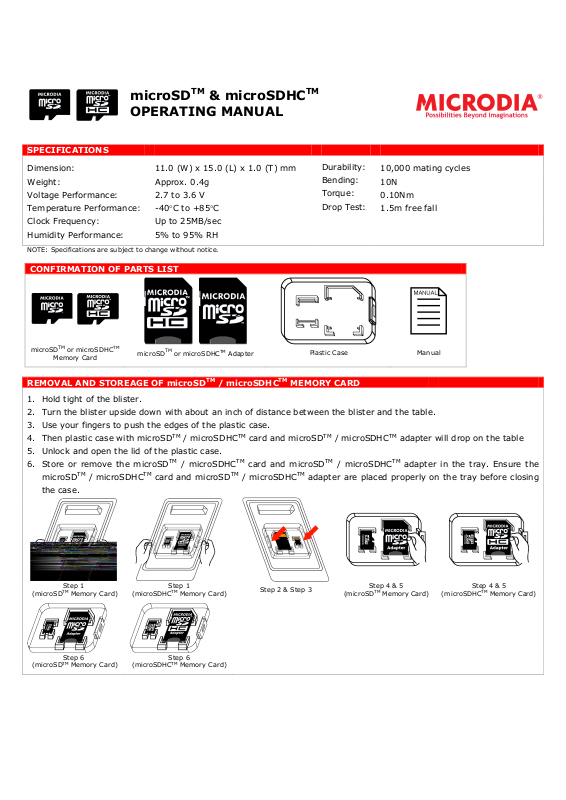

Microdia microSD 82 XTRA Plus User Manual

microSDTM & microSDHCTM

SPECIFICATIONS

Dimension: 11.0 (W) x 15.0 (L) x 1.0 (T) mm

Weight: Approx. 0.4g

Voltage Performance: 2.7 to 3.6 V

Temperature Performance:

Clock Frequency: Up to 25MB/sec

Humidity Performance: 5% to 95% RH

NOTE: Specifications are subject to change without notice.

CONFIRMATION OF PARTS LIST

microSDTM or microSDHCTM

Memory Card

REMOVAL AND STOREAGE OF microSDTM / microSDHCTM MEMORY CARD

1. Hold tight of the blister.

2. Turn the blister upside down with about an inch of distance between the blister and the table.

3. Use your fingers to push the edges of the plastic case.

4. Then plastic case with microSD

5. Unlock and open the lid of the plastic case.

6. Store or remove the microSD

TM

microSD

/ microSDHCTM card and microSDTM / microSDHCTM adapter are placed properly on the tray before closing

the case.

OPERATING MANUAL

-40°C to +85°C

microSD

TM

or microSDHCTM Adapter

TM

/ microSDHCTM card and microSDTM / microSDHCTM adapter will drop on the table

TM

/ microSDHCTM card and microSDTM / microSDHCTM adapter in the tray. Ensure the

Durability:

Bending:

Torque:

Drop Test:

10,000 mating cycles

10N

0.10Nm

1.5m free fall

Plastic Case Manual

(microSD

Step 1

TM

Memory Card)

(microSDHC

Step 1

TM

Memory Card)

Step 2 & Step 3

(microSD

Step 4 & 5

TM

Memory Card)

(microSDHC

Step 4 & 5

TM

Memory Card)

Step 6

TM

(microSD

Memory Card)

(microSDHC

Step 6

TM

Memory Card)

TM

TM

TM

cards.

PRECAUTIONS FOR HANDLING AND STORAGE

• Keep out of the reach of children. Get medical advice immediately if swallowed.

• Do not touch the interface pin directly by hands, metal or hard objects.

• Do not modify or disassemble the microSDTM / microSDHCTM card.

• Do not wet, heat/fire, impact, drop or bend the microSDTM / microSDHCTM.

• Do not use or store in a humid and dusty place; in hot place such as inside a hot car, under

a blazing sun, near fire, a stove, an air-conditioner outlet, etc.

• Do not expose to strong magnet fields, electrical noise and put near corrosive chemicals/gas.

This may cause damage through melting or the emission of heat/smoke or cause product

failure.

• Do not place in cooking appliances such as microwave ovens or high-pressure containers.

• Do not detach the label on the microSD

other stickers/labels on the microSD

TM

/ microSDHCTM cards and adapter. Do not attach

/ microSDHCTM card and adapter.

DATA PROTECTION

• MICRODIA microSD

back up all the data on your microSD

TM

/ microSDHCTM Memory Card comes pre-formatted. Make sure to

TM

/ microSDHCTM card before formatting.

• Slide down Write-Protect Switch to “LOCK” for preventing record/edit the card. Unlock the

card before reading/writing data.

• Do not remove microSD

TM

/ microSDHCTM card and switch off any equipment using the

card when data is being read, written and transferred. It can cause data to be destroyed.

• Insert the microSD

TM

/ microSDHCTM card firmly in the correct orientation. The product

will not operate correctly if it is inserted in an incorrect orientation or not inserted all the

way.

• Parental Guidance is needed when a child uses the microSD

/ microSDHC

Teach the child how to use and protect the product and insure that the child follows your

instructions.

Unlock

Lock
