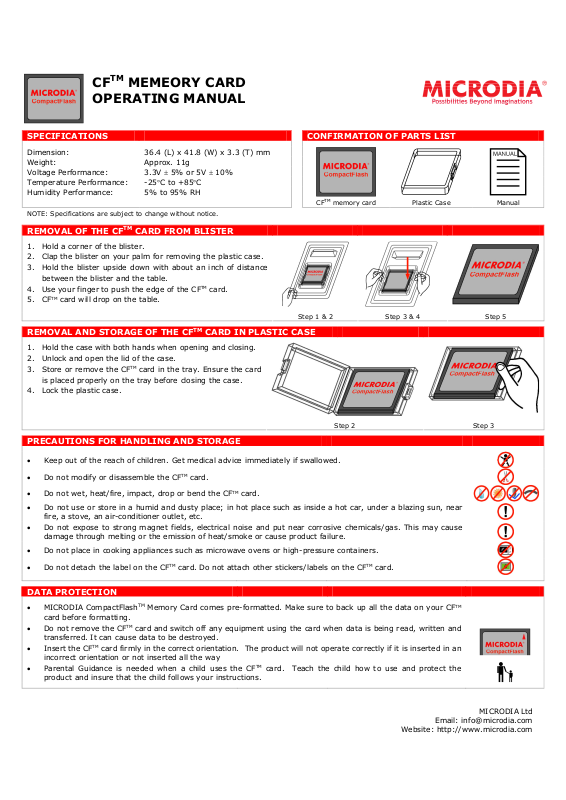

Microdia CF 82 XTRA Plus User Manual
CFTM MEMEORY CARD
OPERATING MANUAL
SPECIFICATIONS
Dimension: 36.4 (L) x 41.8 (W) x 3.3 (T) mm
Weight: Approx. 11g
Voltage Performance:
Temperature Performance:
Humidity Performance: 5% to 95% RH
NOTE: Specifications are subject to change without notice.
REMOVAL OF THE CFTM CARD FROM BLISTER
1. Hold a corner of the blister.
2. Clap the blister on your palm for removing the plastic case.
3. Hold the blister upside down with about an inch of distance
between the blister and the table.
4. Use your finger to push the edge of the CF
TM
5. CF
REMOVAL AND STORAGE OF THE CFTM CARD IN PLASTIC CASE
card will drop on the table.
1. Hold the case with both hands when opening and closing.
2. Unlock and open the lid of the case.
3. Store or remove the CF
is placed properly on the tray before closing the case.
4. Lock the plastic case.
3.3V ± 5% or 5V ± 10%
-25°C to +85°C
TM
card.
TM
card in the tray. Ensure the card
CONFIRMATION OF PARTS LIST
CFTM memory card Plastic Case Manual
Step 1 & 2 Step 3 & 4 Step 5
PRECAUTIONS FOR HANDLING AND STORAGE
Step 2 Step 3
• Keep out of the reach of children. Get medical advice immediately if swallowed.
• Do not modify or disassemble the CFTM card.
• Do not wet, heat/fire, impact, drop or bend the CFTM card.
• Do not use or store in a humid and dusty place; in hot place such as inside a hot car, under a blazing sun, near
fire, a stove, an air-conditioner outlet, etc.
• Do not expose to strong magnet fields, electrical noise and put near corrosive chemicals/gas. This may cause
damage through melting or the emission of heat/smoke or cause product failure.
• Do not place in cooking appliances such as microwave ovens or high-pressure containers.
• Do not detach the label on the CFTM card. Do not attach other stickers/labels on the CFTM card.
DATA PROTECTION
• MICRODIA CompactFlashTM Memory Card comes pre-formatted. Make sure to back up all the data on your CFTM
card before formatting.
• Do not remove the CFTM card and switch off any equipment using the card when data is being read, written and
transferred. It can cause data to be destroyed.
• Insert the CFTM card firmly in the correct orientation. The product will not operate correctly if it is inserted in an
incorrect orientation or not inserted all the way
• Parental Guidance is needed when a child uses the CFTM card. Teach the child how to use and protect the
product and insure that the child follows your instructions.
Email: info@microdia.com
MICRODIA Ltd
Website: http://www.microdia.com
