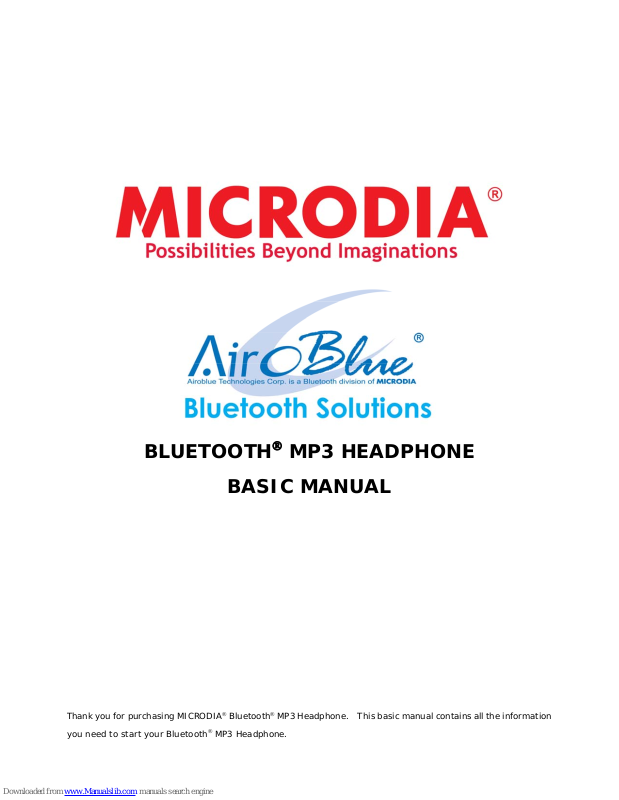

Page 1
BLUETOOTH® MP3 HEADPHONE
Thank you for purchasing MICRODIA
you need to start your Bluetooth
®
MP3 Headphone.
BASIC MANUAL
®
Bluetooth® MP3 Headphone. This basic manual contains all the information
Page 2
Bluetooth® MP3 Headphone Basic Manual
Charging battery
•
Charging with a USB cable
Connect a USB cable between a PC and the player. The player will be charged automatically while it is turned off
• Charging with an AC adapter
The player can be charged with an AC adaptor included in the package
Battery status
When the battery is low, there will be two indications show on the headphone. The battery icon on the LCD will be
show low power. When the operating headphone and the batt ery is low user will be able to hear warning beep
tone on the headphone.
Power on/off Bluetooth
®
MP3 Headphone
®
• Hold down [Play/Pause] for 3 seconds unt il the LCD display [Bluetooth MP3 Headphone] Bluet ooth
MP3
Headphone automatically will enter from the last selected mo de.
• To power off, hold down [Play/Pause] for 3 seconds until LCD gone blank then release the button.
®
Pair up with Bluetooth
mobile phone
1. Press mode button 3 seconds to en ter menu mode
2. Press [Play/Pause] button to the Bluetooth mode.
3. Use FF/RW button to select [discoverable] and press [Play/Pause] button
4. Once into the discoverable there will be Headphone and HiFi option.
5. Select Headphone and press play button. Then you will hear three short beeping sound.
®
6. Make sure turn on your Bluetooth
®
7. Set the Bluetoo th
MP3 Headphone to paring-ready status and follow the instruction of your mobile phone
MP3 Headphone and mobile phone.
to pair up
®
8. When the phone is success to pair up with Bluetooth
MP3 Headphone, key in [0000] as pin code on the
mobile phone
®
9. The Bluetooth
MP3 Headphone is ready to use
®
Using Bluetooth
MP3 Headphone as an individual MP3 Player
®
1. Within the Bluetooth
MP3 Headphone, there will be no embedded flash memory inside, the Bluetooth®
MP3 Headphone only can use SD/MMC card only.
2. Press and hold [Play/Pause] until your headphone turns on
®
3. After turn on the Bluetooth
MP3 Headphone, press [Mode] button if the Bluetooth® MP3 Headphone
content doesn’t appear repeat it until appears.
4. MP3 files in the SD card should be appearing on the LCD
5. After moving to a desired MP3 file by using the skip button, press the play button for playback
6. The selected MP3 file will play
7. When the skip button is used during playback, the previous file or next file will play
8. When the play/pause button is pressed, current playback song will stop
9. Press volume + to increase or volume – to decrease t he volume
10. After you hav e finished using y our player, pr ess and hold play/pa use button until y our headphone turns off .
Nov 2006 MICRODIA Ltd.
Page 3
Bluetooth® MP3 Headphone Basic Manual
Lock
T o prevent the Bluetooth
®
MP3 Headphone get turn on by accidentally, Bluetooth® MP3 Headphone has implement
lock up function
• To Lock
1. Press mode button for 3 seconds to enter main menu
2. There will be a function call [Button Lock]
3. Select [Button Lock] press Play button the whole buttons will lock
• To unlock
To unlock the Bluetooth
®
MP3 Headphone, user holds the [mode] button down, if the Bluetooth® MP3 Headphone
is in lock mode, it will unlock. If it is not in lock mode it will go to menu mode like normal.
Reset
®
If the stati c h as in ter fe re d w i th the Bl ue to o th
MP3 Headphone, please press volume up and FF button and mode
button to reset the headphone. The headphone will operate normally
Most problems or technical issues can be resolved by simply visiting our Support Section in MICRODIA
www.microdia.com
or send us an email to [email protected].
®
website,
Nov 2006 MICRODIA Ltd.
