Micro control systems MCS-WIRELESS-MODEM Installation And Reference Manual

5580 Enterprise Pkwy. Fort Myers, FL 33905
MCS-WIRELESS MODEM
Rev. 2.0 - 2016-02-09
Ofce: 239-694-0089 Fax: 239-694-0031
www.mcscontrols.com
Installation and
Reference Guide
MCS Total Solution for all your Control Needs
Package contains the parts shown below:
Dual Band - 800-1900 MHz Mini Magnet Mount Antenna with SMA Male Connector and 12.5­Foot RG174 Coax
Ethernet Cross Over Cable supplied
Energy Efcient and
RoHS Compliant
MCS-WIRELESS-MODEM REVISION 2.0
Revision/Disclaimer Page
Date Author Description of Changes
1/6/15 DEW Setup Manual
1/8/15 DEW Added wiring diagram
11-16-15 DEW Make corrections to 4g and photos
1-27-16 DEW Revisions
The MCS Commitment is to provide practical solutions for the industries
needs and to be both a leader and partner in the effective use of
microprocessor controls.
Micro Control Systems, Inc.
5580 Enterprise Parkway
Fort Myers, Florida 33905
PH:(239) 694-0089 FAX:(239) 694-0031
www.mcscontrols.com
All information contained within this document is considered to be proprietary information of Micro Control Systems, Inc. No information or data from this document shall be published, used, reproduced, transmitted, or disclosed to others out­side your organization without the prior expressed written consent of Micro Control Systems, Inc. This document and the information contained herein shall be treated as proprietary. Reasonable provisions shall be provided to ensure that this information remains proprietary by your employees, agents, and other personnel that may have access to this document. Copyright ©2016
2
MCS-WIRELESS-MODEM REVISION 2.0
Table of Contents
Chapter - 1. MCS-WIRELESS-MODEM INTERFACE .......................................................................4
Chapter - 2. INSTALL .................................................................................................................................. 5
2.2. LOCATION- DRY/INDOORS ........................................................................................................................5
2.1. ATTACHING THE MCS-WIRELESS-MODEM TO THE MOUNTING BRACKET .........................................5
Chapter - 3. REMOVING FROM MOUNTING BRACKET ............................................................... 6
3.1. Removing the MCS-WIRELESS-MODEM from the Mounting Bracket ........................................................6
Chapter - 4. BASIC SETUP .......................................................................................................................7
4.1. QUICK START ..............................................................................................................................................7
4.2. CONNECT TO MCS-MAGNUM ...................................................................................................................7
4.3. NETWORK ADDRESS ON MCS-MAGNUM ................................................................................................ 7
4.4. CONNECTING CROSS OVER CABLE ........................................................................................................ 7
4.5. POWER SUPPLY ........................................................................................................................................7
4.6. ACTIVATE YOUR MODEM ..........................................................................................................................7
Chapter - 5. MUPLIPLE CONNECTIONS ............................................................................................. 8
5.1. ETHERNET SWITCH (NOT SUPPLIED) .....................................................................................................8
5.2. CONNECTING TO MULTIPLE MCS-MAGNUMS ........................................................................................8
Chapter - 6. WIRING FOR MULTIPLE MCS-MAGNUMS ............................................................... 9
5.3. WIRING DIAGRAM ......................................................................................................................................9
Chapter - 7. EXTERNAL ANTENNA ....................................................................................................10
7.1. DUAL BAND ANTENNA BOOSTER ........................................................................................................... 10
3
MCS-WIRELESS-MODEM REVISION 2.0

Chapter - 1. MCS-WIRELESS-MODEM INTERFACE

MAIN MODEM
ANTENNA
CONNECTOR
POWER ON/OFF
POWER
LED
MODEM
LED
SIGNAL
STRENGTH
LEDS
Modem Antennas: The MCS-WIRELESS-MODEM comes with a ‘DUAL BAND -800-1900 MHz Mini Magnet Mount Antenna and is connected to the ‘MAIN MODEM ANTENNA CONNECTOR.
ETHERNET CONNECTIONS
ETHERNET
DATA SOURCE
(WAN DEFAULT
POWER
PLUG IN
COMPUTERS
OR LOCSAL DEVICES
(LAN DEFAULT
Power LED:
• Blue = On
• No light = Off Modem LED:
• Green = On and operating normally
• Blinking Green = Connecting
• Amber = No Cellular Connection
• Blinking Amber = Cellular data connection error
• No light = Off
Additional LED Indications:
Factory reset button detected Modem LEDs blink amber twice
Error during USB rmware upgrade Modem LEDs blink red
4
USB
(STANDARD-A)
RESET
MCS-WIRELESS-MODEM REVISION 2.0
2.2.1 Attaching the COR to the Mounting Bracket
1) Attach the bracket to the wall or other surface with screws.
NOTE: Screws are not provided because the type of screw required depends on the mounting surface.
2) Place the router’s edge against the bottom of the bracket.
3) Press the router down firmly, then push it inside the bracket. It should latch.

Chapter - 2. INSTALL

2.2. LOCATION- DRY/INDOORS

1) Attach the bracket to the wall (indoors, dry location) or other surface with screws.
NOTE: Screws are not provided because the type of screw required depends on the
mounting surface.

2.1. ATTACHING THE MCS-WIRELESS-MODEM TO THE MOUNTING BRACKET

2) Place the router’s edge against the bottom of the bracket.
3) Press the router down rmly, then push it inside the bracket.
It should latch.
5
MCS-WIRELESS-MODEM REVISION 2.0

Chapter - 3. REMOVING FROM MOUNTING BRACKET

3.1. Removing the MCS-WIRELESS-MODEM from the Mounting Bracket

From the top of the bracket, press down rmly on the router using your thumb(s) and pull the device
out.
6
MCS-WIRELESS-MODEM REVISION 2.0

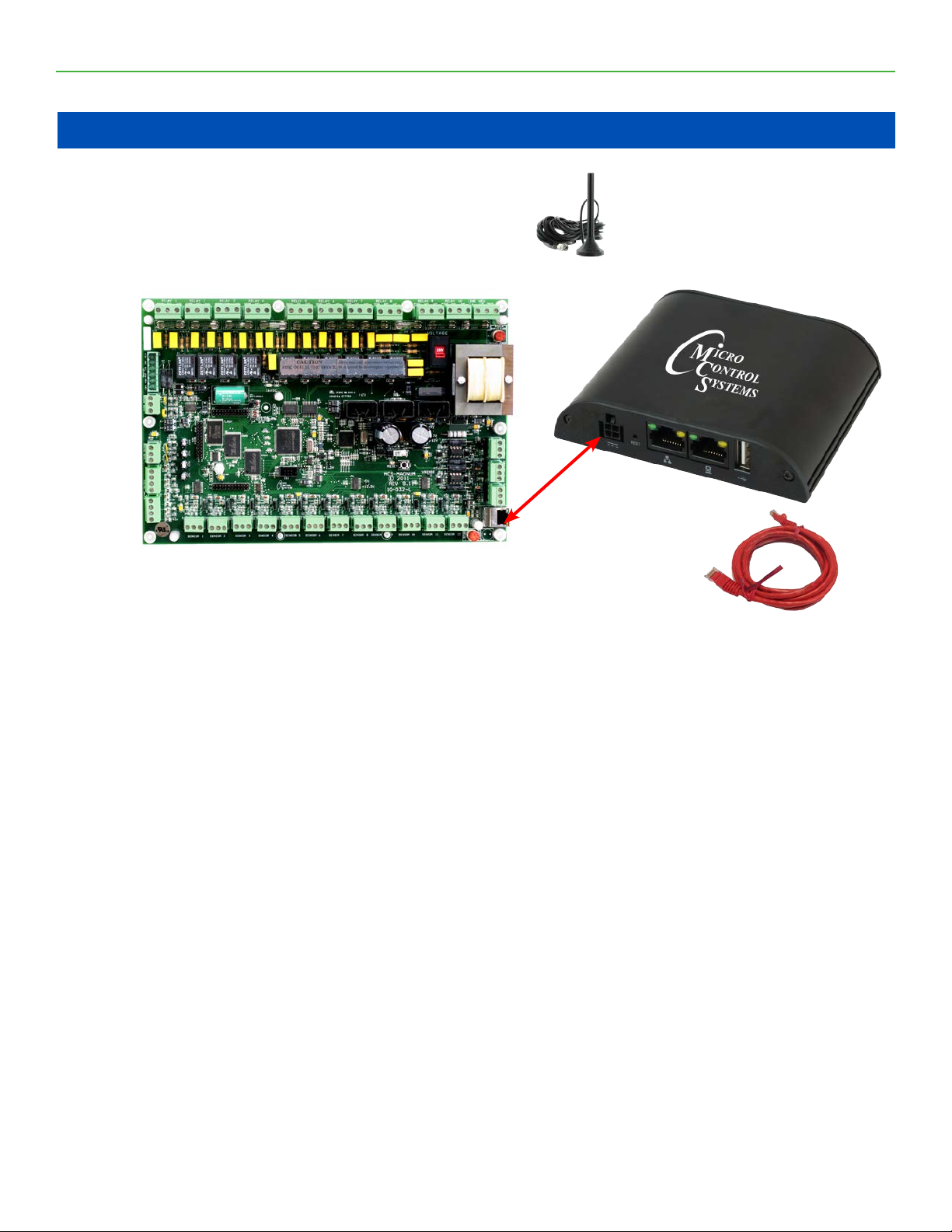

Chapter - 4. BASIC SETUP

4.1. QUICK START

Attach the Dual Band Antenna, thumb tight only.

4.2. CONNECT TO MCS-MAGNUM

4.3. NETWORK ADDRESS ON MCS-MAGNUM

THE NETWORK ADDRESS FOR YOUR
NEW MCS-WIRELESS-MODEM HAS BEEN
FACTORY SET AND IS SUPPLIED WITH THE UNIT.
YOU MUST SET THE NETWORK ADDRESS ON YOUR CONTROLLER TO MATCH THIS FACTORY ADDRESS.

4.4. CONNECTING CROSS OVER CABLE

Connect the end of the supplied CROSSOVER ETHERNET CABLE to the ETHERNET DATA SOURCE connector on the rear of the MCS-WIRELESS-MODEM and the other end to the IO port on the MCS-MAGNUM CONTROLLER.

4.5. POWER SUPPLY

Plug the power supply into an electrical outlet and connect it to the router.
Make sure the power is switched on.
O = OFF
I = ON

4.6. ACTIVATE YOUR MODEM

A wireless broadband data plan has been added to your MCS-WIRELESS-MODEM through Verizon Wireless. THIS IS A FACTORY PRE-INSTALL.
If there are any problems or questions about the intallation of the data plan, please consult MCS support at: support@mcscontrols.com
Ethernet Cross Over Cable supplied
7
MCS-WIRELESS-MODEM REVISION 2.0

Chapter - 5. MUPLIPLE CONNECTIONS

5.1. ETHERNET SWITCH (NOT SUPPLIED)

An Ethernet switch, provides a central connection in an Ethernet network in which each connected device has its own dedicated link with full bandwidth. Switches divide LAN data into smaller, easier-to-manage seg­ments and receive data from the controller. As a result, every port on the switch represents a dedicated 10- or 100-Mbps pathway. Because users connected to a switch do not have to share bandwidth, a switch offers relief from the network congestion a shared hub can cause.

5.2. CONNECTING TO MULTIPLE MCS-MAGNUMS

With the NEW MCS-WIRELESS-MODEM you can connect multiple MCS-MAGNUMS to the MCS-WIRE­LESS-MODEM using an Ethernet Switch (not supplied) that will enable you to communicate with each MCS-MAGNUM anywhere in the Continental United States as long as your MCS-WIRELESS-MODEM is hard wired to an existing ethernet network. (see wiring diagram on page 9).
8
MCS-WIRELESS-MODEM REVISION 2.0

Chapter - 6. WIRING FOR MULTIPLE MCS-MAGNUMS

5.3. WIRING DIAGRAM

9
MCS-WIRELESS-MODEM REVISION 2.0

Chapter - 7. EXTERNAL ANTENNA

7.1. DUAL BAND ANTENNA BOOSTER

REFER TO MCS-APP-112 FOR INSTALLATION OF THIS EXTERNAL ANTENNA ON OUR WEBSITE.
10
MCS-WIRELESS-MODEM REVISION 2.0
NOTES
11
