Micro control systems MCS-WIRELESS-3G Installation And Reference Manual

5580 Enterprise Pkwy. Fort Myers, FL 33905
www.mcscontrols.com
Installation and
Reference Guide
MCS Total Solution for all your Control Needs

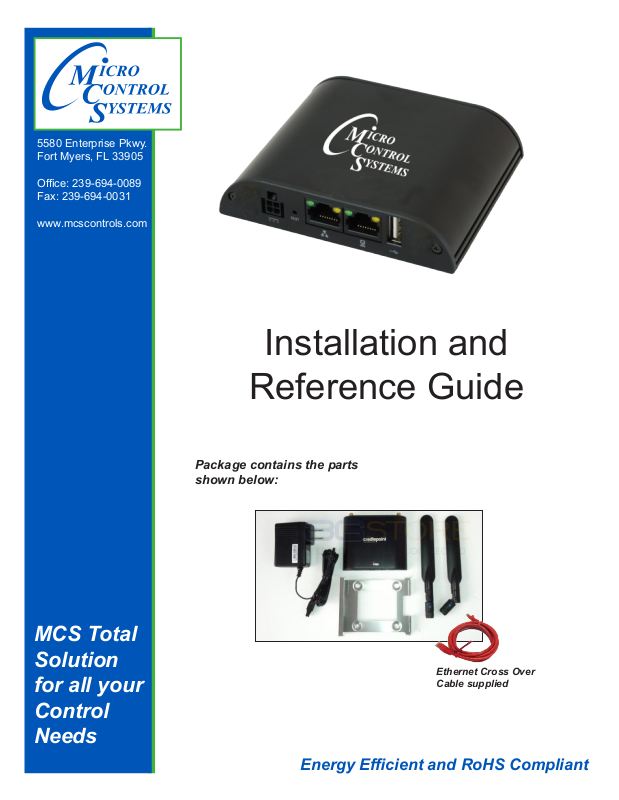

Package contains the parts shown below:
Ethernet Cross Over Cable supplied
Energy Efcient and RoHS Compliant
MCS-WIRELESS-3G REVISION 1
Revision/Disclaimer Page
Date Author Description of Changes
1/6/15 DEW Setup Manual
1/8/15 DEW Added wiring diagram
The MCS Commitment is to provide practical solutions for the industries
needs and to be both a leader and partner in the effective use of
microprocessor controls.
Micro Control Systems, Inc.
5580 Enterprise Parkway
Fort Myers, Florida 33905
PH:(239) 694-0089 FAX:(239) 694-0031
www.mcscontrols.com
All information contained within this document is considered to be proprietary information of Micro Control Systems, Inc. No information or data from this document shall be published, used, repro­duced, transmitted, or disclosed to others outside your organization without the prior expressed written consent of Micro Control Systems, Inc. This document and the information contained herein shall be treated as proprietary. Reasonable provisions shall be provided to ensure that this information remains proprietary by your employees, agents, and other personnel that may have access to this document. Copyright ©2014
2
MCS-WIRELESS-3G REVISION 1
Table of Contents
Disclaminer and Revison page ...........................................................................................................2
Table of Contents .................................................................................................................................3
1. MCS- WIRELESS-3G INTERFACE ....................................................................................4
2. INSTALLATION
2.1 Location ........................................................................................................................................5
2.2 Attaching MCS-WIRELESS-3G to mounting bracket ...................................................................5
3. REMOVING FROM THE MOUNTING BRACKET .........................................................6
4. BASIC SETUP
4.1 Quick Start ....................................................................................................................................7
4.2 Connect to Mcs-Magnum ..............................................................................................................7
4.3 Network Address on MCS-Magnum .............................................................................................7
4.4 Connection Cross Over Cable ......................................................................................................7
4.5 Power Supply ................................................................................................................................7
4.6 Activate your Modem ....................................................................................................................7
5. CONNECTIONS TO MULTIPLE MCS MAGNUMS
5.1 Ethernet Switch .............................................................................................................................8
5.2 Communicating with multiple MCS-MAGNUMS ...........................................................................8
6. WIRING FOR MULTIPLE MCS-MAGNUMS ....................................................................9
7. HIGH-GAIN EXTERNAL ANTENNA .................................................................................10
3
MCS-WIRELESS-3G REVISION 1
1. MCS-WIRELESS-3G INTERFACE
MAIN MODEM
ANTENNA
CONNECTOR
POWER ON/OFF
POWER
LED
MODEM
LED
SIGNAL
STRENGTH
LEDS
AUXILIARHY
MODEM
CONNECTOR
Modem Antennas: The MCS-WIRELESS-3G comes with two modem antennas to enhance reception for the embedded modem. These antennas are simple to attach and adjust.
ETHERNET CONNECTIONS
ETHERNET
DATA SOURCE
(WAN DEFAULT
POWER
PLUG IN
COMPUTERS
OR LOCSAL DEVICES
(LAN DEFAULT
Power LED:
(STANDARD-A)
• Blue = On
• No light = Off Modem LED:
• Green = On and operating normally
• Blinking Green = Connecting
• Amber = No Cellular Connection
• Blinking Amber = Cellular data connection error
• No light = Off
Additional LED Indications:
Factory reset button detected Modem LEDs blink amber twice Error during USB rmware upgrade Modem LEDs blink red
4
USB
RESET
MCS-WIRELESS-3G REVISION 1
2.2.1 Attaching the COR to the Mounting Bracket
1) Attach the bracket to the wall or other surface with screws.
NOTE: Screws are not provided because the type of screw required depends on the mounting surface.
2) Place the router’s edge against the bottom of the bracket.
3) Press the router down firmly, then push it inside the bracket. It should latch.
2. INSTALL
2.1 LOCATION- DRY/INDOORS
1) Attach the bracket to the wall (indoors, dry location) or other surface with screws. NOTE: Screws are not provided because the type of screw required depends on the mounting surface.
2.2. ATTACHING THE MCS-WIRELESS-3G TO THE MOUNTING BRACKET
2) Place the router’s edge against the bottom of the bracket.
3) Press the router down rmly, then push it inside
the bracket. It should latch.
5
MCS-WIRELESS-3G REVISION 1
3. REMOVING FROM MOUNTING BRACKET
3.1 Removing the MCS-WIRELESS-3G from the Mounting Bracket

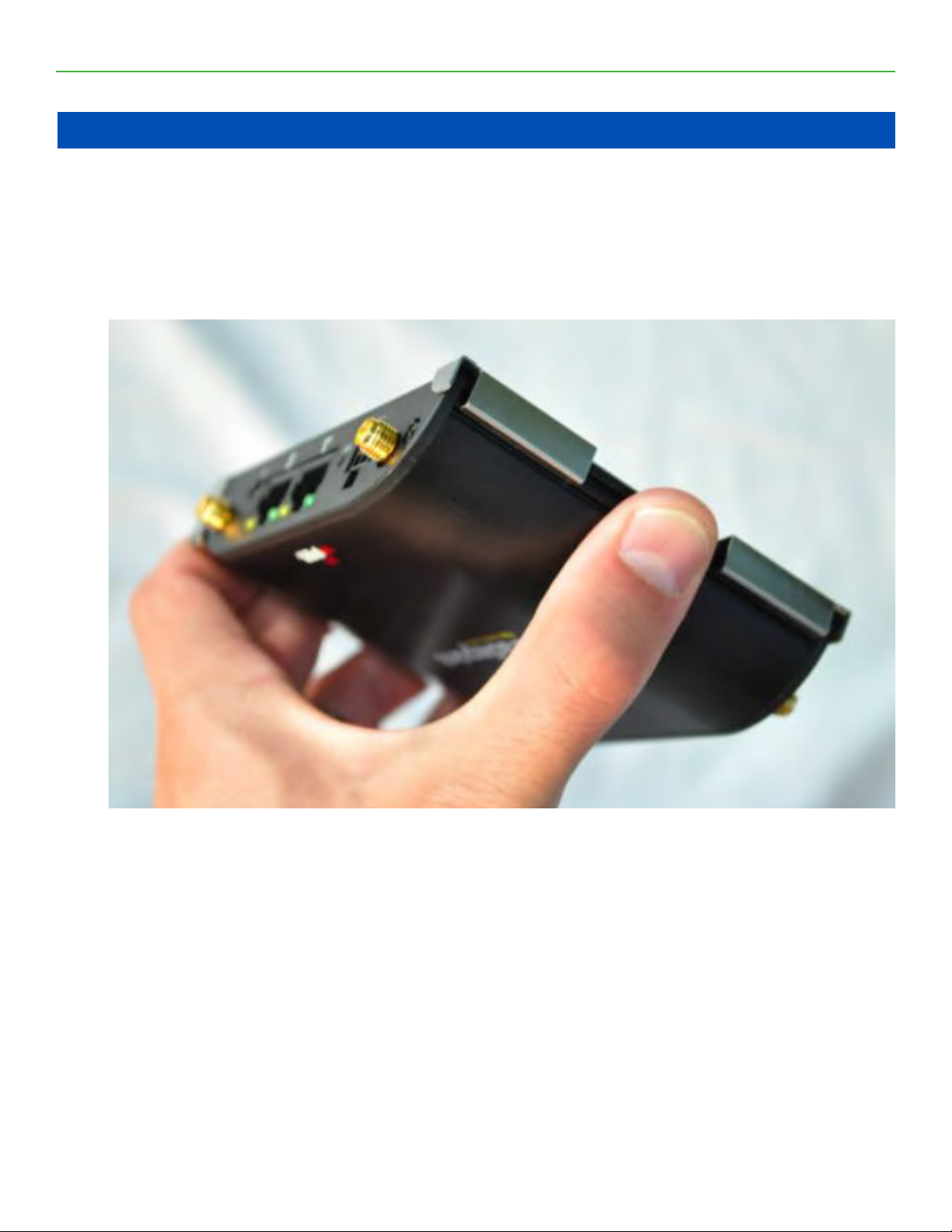

From the top of the bracket, press down rmly on the router using your thumb(s)
and pull the device out.
6
MCS-WIRELESS-3G REVISION 1
2. Plug the power supply into an electrical outlet and connect it to the router.
3. Make sure the power is switched on.
O = OFF I = ON
2. Plug the power supply into an electrical outlet and connect it to the router.
3. Make sure the power is switched on.
O = OFF I = ON
4. BASIC SETUP
4.1 QUICK START
Attach the modem antennas, thumb tight only.
4.2 CONNECT TO MCS-MAGNUM
4.3 NETWORK ADDRESS ON MCS-MAGNUM
THE NETWORK ADDRESS FOR YOUR
NEW MCS-WIRELESS-3G HAS BEEN FACTORY SET AND IS SUPPLIED WITH THE UNIT. YOU MUST SET THE NETWORK ADDRESS ON YOUR CONTROLLER TO MATCH THIS FACTORY ADDRESS.
4.4 CONNECTING CROSS OVER CABLE
Connect the end of the supplied CROSSOVER ETHERNET CABLE to the ETHERNET DATA SOURCE connector on the rear of the MCS-WIRELESS-3G and the other end to the IO port on the MCS-MAGNUM CONTROLLER.
4.5 POWER SUPPLY
Plug the power supply into an electrical outlet and connect it to the router. Make sure the power is switched on. O = OFF I = ON
4.6 ACTIVATE YOUR MODEM
Ethernet Cross Over Cable supplied
A wireless broadband data plan has been added to your MCS-WIRELESS-3G through Verizon Wireless. THIS IS A FACTORY PRE-INSTALL.
If there are any problems or questions about the intallation of the data plan, please consult MCS support at: support@mcscontrols.com
7
MCS-WIRELESS-3G REVISION 1
5. MUPLIPLE CONNECTIONS
5.1 ETHERNET SWITCH (NOT SUPPLIED)
An Ethernet switch, provides a central connection in an Ethernet network in which each
connected device has its own dedicated link with full bandwidth. Switches divide LAN data into smaller, easier-to-manage segments and receive data from the con­troller. As a result, every port on the switch represents a dedicated 10- or 100-Mbps pathway. Because users connected to a switch do not have to share bandwidth, a switch offers relief from the network congestion a shared hub can cause.
5.2 CONNECTING TO MULTIPLE MCS-MAGNUMS
With the NEW MCS-WIRELESS-3G you can connect multiple MCS-MAGNUMS to the MCS-WIRELESS-3G Modem using an Ethernet Switch (not supplied) that will enable you to communicate with each MCS-MAGNUM anywhere in the Continental
United States as long as your MCS-WIRELESS-3G is hard wired to an existing
ethernet network. (see wiring diagram on page 9).
8
MCS-WIRELESS-3G REVISION 1
6. WIRING FOR MULTIPLE MCS-MAGNUMS
6.3 WIRING DIAGRAM
9
MCS-WIRELESS-3G REVISION 1
7. OPTIONAL EXTERNAL ANTENNA
7.1 HIGH-GAIN EXTERNAL ANTENNA

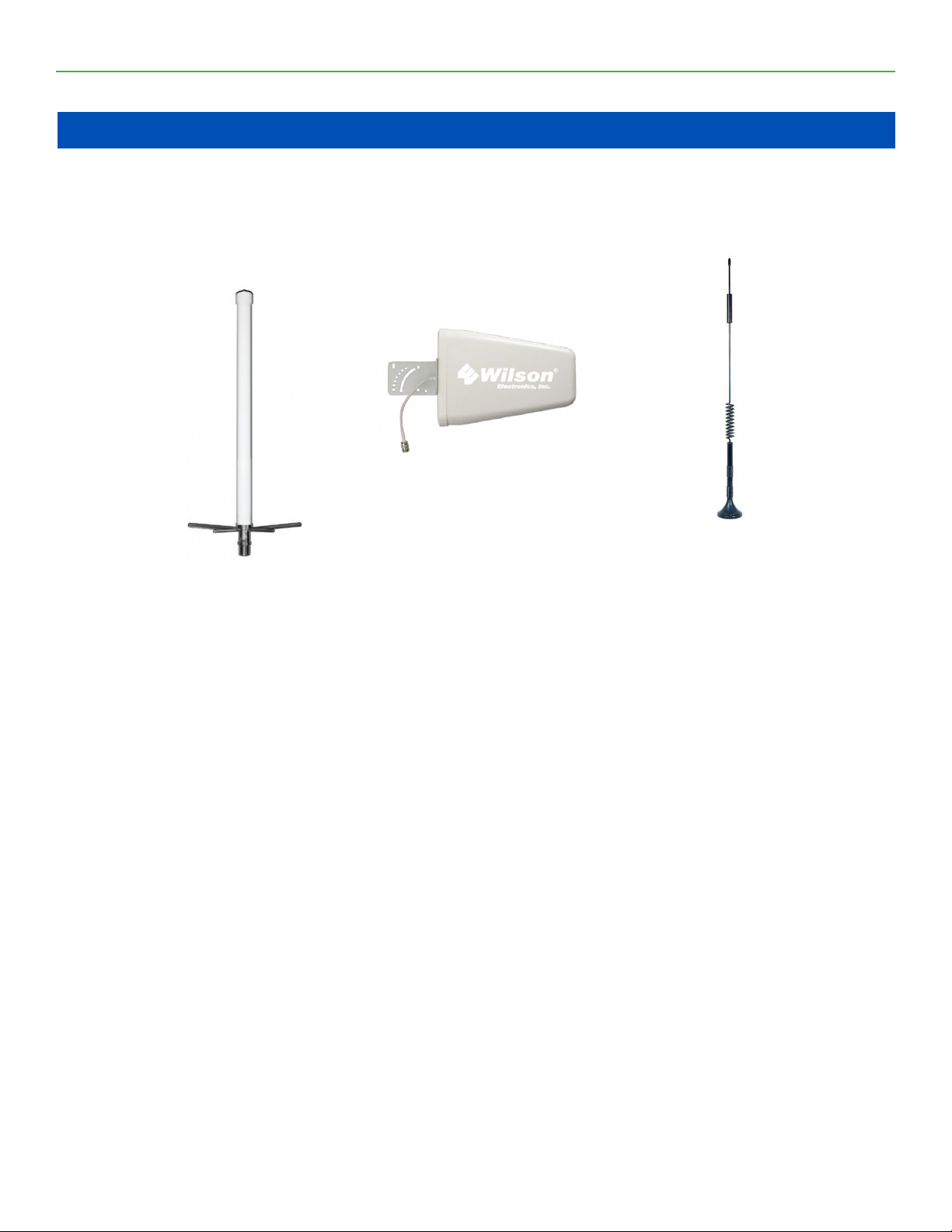

External Antennas are available where better reception is needed.
Email: support@mcscontrols.com for additional information
WIDE-BAND
OMMI-DIRECTIONAL
MUTI-BAND
OMMI-DIRECTIONAL
Dual-Band Omni-
Directional Antenna
10
MCS-WIRELESS-3G REVISION 1
NOTES
11
