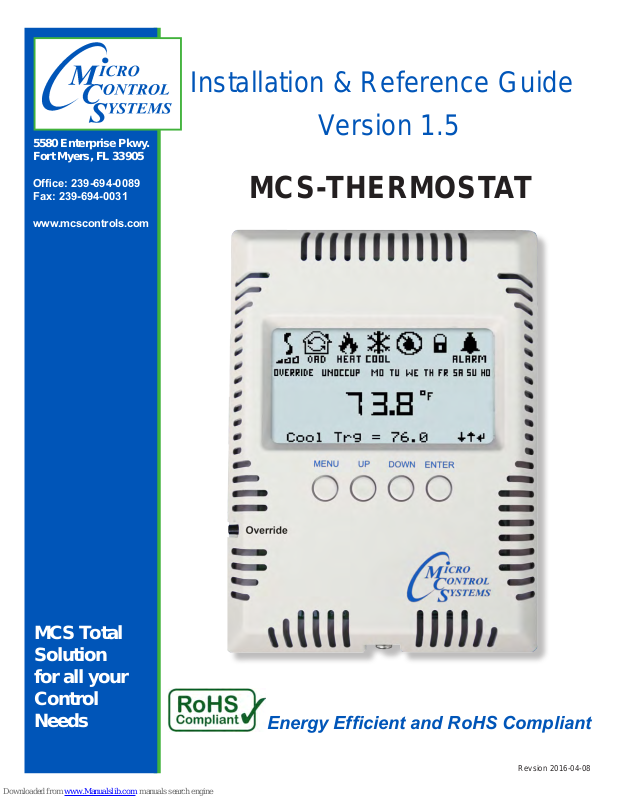

Micro control systems MCS-THERMOSTAT Installation And Reference Manual

5580 Enterprise Pkwy. Fort Myers, FL 33905
www.mcscontrols.com
Installation & Reference Guide
Version 1.5
MCS-THERMOSTAT
MCS Total Solution for all your Control Needs
Energy Efcient and RoHS Compliant
Revsion 2016-04-08
MCS-THERMOSTAT REVISION 1.5
Revision/Disclaimer Page
Date Author Description of Changes 5-16-14 KLM Restructured manual
5-18-14 JGW Added Stat Pictures and reworked 12-8-14 DEW Restructured Manual to Indesign 1-6-15 DEW Edits made as per Mac 1-7-15 DEW Edits per Brian, changed wiring dwg 1-8-15 DEW Edits made as per Brian 1-12-15 DEW Edits made as per Brian, setting menu\ 1-16-15 DEW Edits made 6-01-15 DEW Edits made to wiring and setup cong 6-25-26-15 DEW Edits made to Menu items 6-30-15 DEW Edits from JGW 7-01-02-15 DEW Edits from JGW and support 7-13-15 DEW Edits made to manual 7-30-15 DEW Edits made to manual 12-2/3-15 DEW Add run/stop feature, add new MicroMag board to wiring 01-4-16 DEW Add instructions for rmware update
04-08-16 DEW Add wiring and distance on installation page
The MCS Commitment is to provide practical solutions for the industries
needs and to be both a leader and partner in the effective use of
Microprocessor controls.
Micro Control Systems, Inc.
5580 Enterprise Parkway
Fort Myers, Florida 33905
PH:(239) 694-0089 FAX:(239) 694-0031
www.mcscontrols.com
All information contained within this document is considered to be proprietary information of Micro Control Systems, Inc. No information or data from this document shall be published, used, reproduced, transmitted, or disclosed to others outside your organization without the prior expressed written consent of Micro Control Systems, Inc. This document and the information contained herein shall be treated as proprietary. Reasonable provisions shall be provided to ensure that this information remains proprietary by your employees, agents, and other personnel that may have access to this document.Copyright ©2016
2
MCS-THERMOSTAT REVISION 1.5
Table of Contents
1. MCS Thermostat’s Interface ...............................................................................................................................5
2. Thermostat’s Display .............................................................................................................................................6
3. Icons Display .......................................................................................................................................................7
4. Installation ............................................................................................................................................................8
4.1. REQUIRED FOR INSTALLATION ................................................................................................................8
4.2. MOUNTING LOCATION ...............................................................................................................................8
5. Installation - Mounting ........................................................................................................................................9
5.1. UTILIZING J-BOX .........................................................................................................................................9
5.2. PUNCTURE SMALL HOLE ..........................................................................................................................9
5.3. OUTPUT WIRES ..........................................................................................................................................9
5.4. SCREWS ......................................................................................................................................................9
6. Wiring Instructions to MicroMag (Rev. 6.0 or less) .......................................................................................10
7. Wiring Instructions to MicroMag (Rev. 6.1 or greater) ..................................................................................11
8. Wiring Instructions to MAGNUM ......................................................................................................................12
9. Thermostat Menu Screens ................................................................................................................................13
9.1. SETUP (APPEARS FIRST TIME THERMOSTAT IS TURNED ON) ...........................................................13
9.1.1 Net Address (Factory Set At 1).............................................................................................................13
9.1.2 Units Degrees (F) Or (C) ......................................................................................................................13
9.1.3 Auth Level Setup .................................................................................................................................13
9.1.4 Sound Alarm Stat .................................................................................................................................13
9.1.5 Adjust Backlight ...................................................................................................................................13
9.1.6 Standby Backlight ................................................................................................................................13
9.1.7 Exit Setup Menu ...................................................................................................................................13
9.2. MAIN ...........................................................................................................................................................13
9.2.1 Unit Status ............................................................................................................................................13
9.2.2 Cong Menu .........................................................................................................................................13
9.2.3 Enter Password ....................................................................................................................................13
9.2.4 Unit (Run/Stop)* ................................................................................................................................13
9.2.5 Cool Setpoint........................................................................................................................................13
9.2.6 Heat Setpoint .......................................................................................................................................13
9.2.7 Humidity Setpoint .................................................................................................................................13
9.2.8 Co2 Setpoint ........................................................................................................................................13
9.2.9 Show Version Number .........................................................................................................................13
9.2.10 Time And Date .....................................................................................................................................13
9.2.1 1 Last Alarm ............................................................................................................................................13
9.2.12 Lockout Reset .....................................................................................................................................13
9.3. CONFIG MENU ..........................................................................................................................................13
9.3.1 Auth Level Setup ..................................................................................................................................13
9.3.2 Units - F/C ............................................................................................................................................13
9.3.3 Modify Schedules .................................................................................................................................13
9.3.4 Modify Holidays ....................................................................................................................................13
9.3.5 Temp Cal ..............................................................................................................................................13
9.3.6 Humidity Cal .........................................................................................................................................13
9.3.7 Display Test ..........................................................................................................................................13
9.3.8 Adjust Backlight....................................................................................................................................13
9.3.9 Standby Backlight ................................................................................................................................13
9.3.10 Adjust T ime ..........................................................................................................................................13
9.3.11 Adjust Date & Dow ...............................................................................................................................13
9.3.12 Thermostat Reset .................................................................................................................................13
3
MCS-THERMOSTAT REVISION 1.5
9.3.13 Sound Alarm Stat .................................................................................................................................13
10. SETUP (APPEARS FIRST TIME THERMOSTAT IS TURNED ON) ................................................14
10.1. NETWORK ADDRESS ...............................................................................................................................14
10.2. UNITS DEGREES ......................................................................................................................................14
10.3. AUTHORIZATION LEVEL SETUP .............................................................................................................14
Setup (continued) ..............................................................................................................................................15
10.4. SOUND ALARM STA T ................................................................................................................................15
10.5. ADJUST BACKLIGHT ................................................................................................................................15
10.6. STANDBY BACKLIGHT ..............................................................................................................................15
10.7. EXIT SETUP MENU ...................................................................................................................................15
11. Main Menu Settings ...........................................................................................................................................16
11.1. UNIT STATUS .............................................................................................................................................16
11.2. CONFIG MENU ..........................................................................................................................................16
11.3. ENTER PASSWORD ..................................................................................................................................16
11.4. UNIT STATUS (RUN/STOP) .......................................................................................................................16
11.5. COOL SET POINT ......................................................................................................................................16
11.6. HEAT SET POINT ......................................................................................................................................16
11.7. HUMIDITY SET POINT ..............................................................................................................................16
11.8. CO2 SETPOINT .........................................................................................................................................16
11.9. VERSION NUMBER ...................................................................................................................................16
1 1.10. TIME AND DATE ........................................................................................................................................16
1 1.1 1. LAST LOCKOUT ALARM ...........................................................................................................................16
11.12. LOCKOUT RESET .....................................................................................................................................16
12. CongMenuSettings ........................................................................................................................................17
12.1. AUTH LEVEL SETUP .................................................................................................................................17
12.2. UNIT = DEGREES .....................................................................................................................................17
12.3. MODIFY SCHEDULES ...............................................................................................................................17
12.3.1 SETTING EACH DAY OF THE WEEK .................................................................................................18
12.4. MODIFY HOLIDAYS ...................................................................................................................................19
12.5. TEMP CAL ..................................................................................................................................................19
12.6. HUMIDITY CAL ..........................................................................................................................................19
12.7. DISPLAY TEST ...........................................................................................................................................19
12.8. ADJUST BACKLIGHT ................................................................................................................................19
12.9. STANDBY BACKLIGHT ..............................................................................................................................19
12.10. ADJUST TIME ............................................................................................................................................19
12.11. ADJUST DATE ...........................................................................................................................................19
12.12. THERMOSTAT RESET ..............................................................................................................................19
12.13. SOUND ALARM .........................................................................................................................................19
13. Update Firmware on Thermostat .....................................................................................................................20
13.1. MCS-Thermostat rmware uploads ............................................................................................................20
14. Troubleshoot Section ........................................................................................................................................21
4
MCS-THERMOSTAT REVISION 1.5
1. MCS Thermostat’s Interface
The MCS-THERMOSTAT’S interface allows the viewing of 17 different parameters and has the ability to adjust 9 settings, including cooling & heating set points, operational schedules, holiday schedules, calibration and password protection.
Menu
Access the primary menu.
Override
Permits override Room is occupied Room is unoccupied.
Selection Up Button The primary means of cycling through the thermostat’s options, menus,
and settings- press the up button or down buttons to cycle thru the options.
Selection Down Button
Enter
Conrms changes and
adjustments.
5
MCS-THERMOSTAT REVISION 1.5
2. Thermostat’s Display (Display Test)
The LCD screen displays seven icons reporting operational mode, current status and alarms.
Unit is in HEATING mode
Indicates position of outside Air Damper
Indicates Speed of FAN (Low, Medium, High)
Unit is in COOLING mode
Unit is in DEHUMIDIFICATION
Thermostat is LOCKED
An ALARM is ACTIVE
Display shows current views, OCCUP (Occupied) UNOCCUP (Unoccupied) OVERRIDE
Display shows day of week, MO, TU, WE, TH, FR, SA, SU & HD (Holiday)
Display shows current sensor value and current Set Point
6
MCS-THERMOSTAT REVISION 1.5
3. Icons Display
Unit has an active alarm.
LOW MED HIGH
Unit is in cooling mode.
Unit is in dehumidication mode.
Evaporate fan is running (speed indicator low, medium, high).
Unit is in heating mode.
Outside air damper is closed.
Outside air damper is open.
Thermostat is locked-no changes allowed without Authorization.
MO -MONDAY FR-FRIDAY TU-TUESDAY SA-SATURDAY WE-WEDNESDAY SU-SUNDAY TH-THURSDAY
Up arrow key.
Down arrow key
Enter arrow key
Override button-takes unit out of unoccupied (set point based)
Unit is in unoccupied mode.
Day of week icons.
7
MCS-THERMOSTAT REVISION 1.5
4. Installation
The MCS-THERMOSTAT is powered by a +5vdc supply from an MCS controller via a two wire connection that can be wired with the communication network cabling. Improper wiring or installation may damage the thermostat. Wiring must conform to local and national electrical codes.
WARNING!
Before installing the thermostat, turn off all power to the unit. There may be more than one power disconnect. Electrical shock can cause personal injury or death.
NOTE: DO NOT INSTALL THE THERMOSTAT WHERE IT MAY BE AFFECTED
BY AIR FROM NEARBY DUCT WORK, ELECTRONIC EQUIPMENT, ETC.
4.1. REQUIRED FOR INSTALLATION
• An MCS-THERMOSTAT with a +5 volt power supply
• 1/4” Phillips screwdriver
• 5/64” athead screwdriver
• 2 ½ pan machine screws (included)
• 1 Wire cutter/stripper
• 4 Wire 22 to 20 awg Shielded Cable
• J-Box (USA or International)
4.2. MOUNTING LOCATION
Install the MCS-THERMOSTAT on an interior wall. Exterior walls that are poorly insulated can affect the Thermostat temperature and humidity readings and may lead
to wasted energy.
Install the MCS-THERMOSTAT away from drafts, direct sunlight or anything that
would cause the temperature to be articially high or low.
Install the MCS-THERMOSTAT so that it’s not blocked by doors or other obstructions.
The Thermostat should be mounted approximately 5’ (1.5m) above the oor.
4.3. WIRING AND DISTANCE
Use 4 wire 22 to 20 awg Shielded Cable for installation. The MCS-THERMOSTAT can be installed up to 1000 feet from the MCS CONTROLLER.
8
MCS-THERMOSTAT REVISION 1.5
International Style Junction Box USA Style Junction Box
International
US
A
Puncture a small hole in the grommet on the back side of the thermostat. You want the wires to be tight
so no air passes through affecting the thermostat’s reading. Push the output wires from the MCS
Controller through the rear hole of the MCS- Thermostat’s mounting plate. It may be good practice
Using a 1x4” Phillips screwdriver, insert one of ¼” machine screws into one of the mounting slots depending on the j-box you are utilizing and tighten the screw to hold the mounting wall plate into position
Screw the second ¼” machine screw into the lower mounting slot to secure the wall plate
.
International Style Junction Box USA Style Junction Box
International
US
A
Puncture a small hole in the grommet on the back side of the thermostat. You want the wires to be tight
so no air passes through affecting the thermostat’s reading. Push the output wires from the MCS
Controller through the rear hole of the MCS- Thermostat’s mounting plate. It may be good practice to wait until the wires are in position to be attached to the MCS-Thermostat before they are stripped or cut with a tool.
International Style Junction Box USA Style Junction Box
International
US
A
5. Installation - Mounting
5.1. UTILIZING J-BOX
MCS recommends you install the MCS-THERMOSTAT utilizing a J-Box. Prior to installing the MCS-THERMOSTAT punch out the corresponding mounting holes on the MCS-THERMOSTAT housing based on the J-box you are utilizing.
5.2. PUNCTURE SMALL HOLE
Puncture a small hole in the grommet on the back side of the thermostat. You want the wires to be tight so no air passes through affecting the thermostat’s reading.
5.3. OUTPUT WIRES
Push the output wires from the MCS Controller through the rear hole of the MCS-THERMOSTAT’S mounting plate.
It may be good practice to wait until the wires are in position to be attached to the MCS-THERMOSTAT before they are stripped or cut with a tool.
5.4. SCREWS
Using a ¼” Phillips screwdriver, insert one of ¼” machine screws into one of the mounting slots depending on the J-box you are utilizing and tighten the screw to hold the mounting wall plate into position.
Screw the second ¼” machine screw into the lower mounting slot to secure the wall plate.
9
MCS-THERMOSTAT REVISION 1.5
6. Wiring Instructions to MicroMag (Rev. 6.0 or less)
TURN POWER OFF TO CONTROLLER AND THERMOSTAT FIRST
Begin wiring (not supplied) from the MCS CONTROLLER to the MCS-THERMOSTAT as seen in the wiring diagram below.
ONE THERMOSTAT PER MCS-CONTROLLER
MicroMag
I/O port
G (MCS)
W (+)
MCS THERMOSTAT
Enlarged view of Thermostat block wiring
R (+5)
NOTE: Termination jumpers are used only on the
rst and last
boards on the network
B (GND)
MicroMag Sensors
5 Sensors available
Power for Thermostat
(can be wired to any empty sensor)
10
MCS-THERMOSTAT REVISION 1.5
7. Wiring Instructions to MicroMag (Rev. 6.1 or greater)
TURN POWER OFF TO CONTROLLER AND THERMOSTAT FIRST
Begin wiring (not supplied) from the MCS CONTROLLER to the MCS-THERMOSTAT
as seen in the wiring diagram below.
ONE THERMOSTAT PER MCS-CONTROLLER
MCS THERMOSTAT
G (MCS)
W (+)
MicroMag
I/O port
Enlarged view of Thermostat block wiring
R (+5)
NOTE: Termination jumpers are used only on the
rst and last
boards on the network
11
B (GND)
MicroMag Sensors
5 Sensors available
Power for Thermostat
(can be wired to any empty sensor)
MCS-THERMOSTAT REVISION 1.5
8. Wiring Instructions to MAGNUM
TURN POWER OFF TO CONTROLLER AND THERMOSTAT FIRST
Begin wiring (not supplied) from the MCS CONTROLLER to the MCS-THERMOSTAT as seen in the wiring diagram below.
ONE THERMOSTAT PER MCS-CONTROLLER
MCS THERMOSTAT
W (+)
G (MCS)
MAGNUM
I/O port
Enlarged view of Thermostat block wiring
R
(+5)
B
(GND)
NOTE: Termination jumpers are used only on the
rst and last
boards on the network
12
MAGNUM Sensors 12 Sensors available Power for Thermostat (can be wired to any empty sensor)
MCS-THERMOSTAT REVISION 1.5
9. Thermostat Menu Screens
Use ‘UP’  ‘DOWN’ and    ‘ENTER’ BUTTON TO MOVE BETWEEN SETTINGS
9.1. SETUP (APPEARS FIRST TIME THERMOSTAT IS TURNED ON)
9.1.1 Net Address (Factory Set At 1)
9.1.2 Units Degrees (F) Or (C)
9.1.3 Auth Level Setup
9.1.4 Sound Alarm Stat
9.1.5 Adjust Backlight
9.1.6 Standby Backlight
9.1.7 Exit Setup Menu
9.2. MAIN
SEE NEXT PAGE FOR DESCRIPTIONS
OF MENU ITEMS AND
AN EXAMPLE OF AUTHORIZATIONS LEVELS
9.2.1 Unit Status
9.2.2 CongMenu
9.2.3 Enter Password
9.2.4 Unit (Run/Stop)*
9.2.5 Cool Setpoint
9.2.6 Heat Setpoint
9.2.7 Humidity Setpoint
9.2.8 Co2 Setpoint
9.2.9 Show Version Number
9.2.10 Time And Date
9.2.11 Last Alarm
9.2.12 Lockout Reset
9.3. CONFIG MENU
9.3.1 Auth Level Setup
9.3.2 Units - F/C
9.3.3 Modify Schedules
9.3.4 Modify Holidays
9.3.5 Temp Cal
9.3.6 Humidity Cal
9.3.7 Display Test
9.3.8 Adjust Backlight
9.3.9 Standby Backlight
9.3.10 Adjust Time
9.3.11 Adjust Date & Dow
9.3.12 Thermostat Reset
9.3.13 Sound Alarm Stat
*NOTE: SOME MENU OPTIONS MAY NOT SHOW
ON YOUR THERMOSTAT LCD SCREEN.
THESE SELECTIONS MAY NOT BE SETUP IN THE
CONFIGURA TION FILE FOR YOUR CONTROLLER.
AFTER LAST SELECTION HAS BEEN MADE
CLICK ON ‘MENU” TO RETURN TO THE
‘UNIT STATUS SCREEN’
CLICK ON THERMOSTAT UPDATE
PRESS ENTER TO UPDATE.
THE THERMOSTAT WILL REBOOT
13
MCS-THERMOSTAT REVISION 1.5
10. SETUP (APPEARS FIRST TIME THERMOSTAT IS TURNED ON)
Occup
SETUP
Net Address:
NOTE: THIS MENU WILL APPEAR THE FIRST TIME YOU POWER UP THE THERMOSTAT.
ADDITIONAL CHANGES CAN BE MADE USING THE CONFIG MENU AFTER THE ‘INITAL SETUP’
SETTING UP THE THERMOSTAT FOR THE FIRST TIME
A T THIS POINT, YOU SHOULD HAVE WIRED THE THERMOSTAT TO THE MICROMAG OR MAGNUM controller. Turn power on to the MicroMag or MAGNUM, Thermostat will power up and enter the
‘SETUP MENU’. The following items will appear in the setup menu:
10.1. NETWORK ADDRESS
The Thermostat is factoy set to Network address one (1) This cannot be changed.
10.2. UNITS DEGREES
Allows the user to choose between Celsius and Fahrenheit. Directions: Use the Up/Down arrows to move between Celsius and Fahrenheit.
Press ‘Enter’ to select the desired unit degrees and the display will conrm the change.
10.3. AUTHORIZATION LEVEL SETUP
The user will be able to see all funtions of the thermostat if the controller’s conguration
le is setup to allow this. Some functions of the thermostat may be turned off in the
conguration le to help protect unathorized users from making changes.
Authorization Levels- The MicroMag and MAGNUM allow several levels of password protection that have been setup in your thermostat - ‘Service’, ‘Supvsr’ (Supervisor),
and ‘Factory.’ The Installer can setup the Authorization Levels at this time. This will allow a user with
the correct password to make changes.
OPERATION OF THE THERMOSTAT CAN BE CONTROLLED BY THESE LEVELS OF AUTHORIZATION. SEE EXAMPLE NEXT PAGE
14
MCS-THERMOSTAT REVISION 1.5
Setup (continued)
SAMPLE TO SHOW HOW TO USE AUTHORIZATION LEVELS FOR THE THERMOSTAT
FUNCTION VIEW SERVICE SUPVSR FACTORY Run/Stop Controller NO NO YES YES Lockout Reset NO YES YES YES Cong Menu NO YES YES YES Co2 Target NO YES YES YES Humidity Target NO YES YES YES Heat Target YES YES YES YES Cool Target YES YES YES YES Humidity Calibration NO YES YES YES Temp Calibration NO YES YES YES Modify Holiday Dates NO YES YES YES Modify Schedule and 24 hour clock NO YES YES YES
AS SHOWN IN THE ‘SAMPLE’ ABOVE AUTHORIZATION LEVEL ‘VIEW’ (DEFAULT) WILL HAVE THE LOWEST LEVEL OF ACCESS TO THE THERMOSTAT WHEREAS AUTHORIZATION LEVEL ‘FACTORY’ WILL HAVE THE HIGHEST AUTHORIZATION FOR MAKING CHANGES TO THE THERMOSTAT.
YOU CAN SET UP THE AUTHORIZATION LEVEL FOR EACH SELECTION SHOWN IN THE ‘CONFIG’ MENU SO A USER WILL BE LIMITED AS TO WHAT CHANGES THEY CAN MAKE.
10.4. SOUND ALARM STAT
Hit ‘ENTER’ - Allows the user to turn alarm on or off.
10.5. ADJUST BACKLIGHT
Allows the user to adjust the backlight setting from 25% to 100%.
10.6. STANDBY BACKLIGHT
Hit ‘ENTER’ - Allows user to make changes to the backlight - OFF or 25% to 100%
10.7. EXIT SETUP MENU
Press ENTER to exit the SETUP menu, all changes made in the SETUP settings will be saved in the MCS-THERMOSTAT non volatile ash memory.
YOUR THERMOSTAT IS SETUP AND READY FOR USE.
ADDITIONAL CHANGES CAN BE MADE USING THE CONFIG MENU
IF YOU ARE AUTHORIZED
15
MCS-THERMOSTAT REVISION 1.5
11. Main Menu Settings
CLICK ON MENU TO SEE THE SCREENS BELOW
AUTHORIZATION PASSWORD LEVEL MAY BE REQUIRED
NOTE: SOME MENU SELECTIONS WILL NOT SHOW ON YOUR THERMOSTAT LCD SCREEN, IF THEY ARE NOT SETUP IN THE CONFIGURATION FILE FOR YOUR CONTROLLER.
11.1. UNIT STATUS
Hit ‘ENTER’ shows status of thermostat.
11.2. CONFIG MENU
Hit ‘ENTER’ - Allows user to enter Cong Menu to make adjustment to the thermostat.
11.3. ENTER PASSWORD
Hit ‘ENTER’ - Authorization password level for the changes to the thermostat.
11.4. UNIT STATUS (RUN/STOP)
Hit ‘ENTER’ - Allows user to ‘RUN/STOP’ the unit controlling the thermostat. (This must be
conuredinyourcontrollerforviewingonyourthermostat).
11.5. COOL SET POINT
Hit ‘ENTER’ - Allows the user to SET THE COOL SET POINT FOR THE AREA.
11.6. HEAT SET POINT
Hit ‘ENTER’ - Allows the user to SET THE HEAT SET POINT FOR THE AREA.
11.7. HUMIDITY SET POINT
Hit ‘ENTER’ - Allows the user to SET THE HUMIDITY SET POINT FOR THE AREA.
11.8. CO2 SETPOINT
Hit ‘ENTER’ - Allows the user to SET THE C02 SET POINT FOR THE AREA.
11.9. VERSION NUMBER
Hit ‘ENTER’ - Shows current version of rmware the thermostat is using.
11.10. TIME AND DATE
Hit ‘ENTER’ - Shows current time and date of unit operating thermostat.
11.11. LAST LOCKOUT ALARM
Displays abbreviations for the last three alarms on the rst screen before ashing to a second
screen displaying the time/date of respective alarm. For example, in a displayed ‘LO DIS PSI’ alarm listing, the user interface would switch to a
screen displaying ‘Jan 31 12:10’ as the occurrence time for the rst ‘LO’ alarm before jumping
back to the ‘LO PSI LO’ alarm display and switching to a screen displaying ‘Feb 2 12:10’ as the occurrence time for the second ‘PSI’ alarm.
11.12. LOCKOUT RESET
Hit ‘ENTER’ - Allows used to reset lockout if authorized
.
16
MCS-THERMOSTAT REVISION 1.5
12. Cong Menu Settings
NOTE: IF THERMOSTAT SHOWS
Occup
MENU
Cong Menu
LOCKED ICON, NO CHANGES CAN BE SAVED UNTIL YOU BECOME AUTHORIZED
SHOWS UNLOCKED
Cong Menu
CLICK ON MENU - USE DOWN BUTTON TO SEE THE CONFIG MENU
AUTHORIZATION PASSWORD MAY BE REQUIRED
NOTE: SOME MENU SELECTIONS MAY NOT SHOW ON YOUR THERMOSTAT LCD SCREEN. THESE SELECTIONS MA Y NOT BE SETUP IN THE CONFIGURATION FILE FOR YOUR CONTR OLLER.
12.1. AUTH LEVEL SETUP
Occup
MENU
Authorization Levels- The thermostat allows three levels of passwords -
Service, Supervisor, and Factory.
12.2. UNIT = DEGREES
Hit ‘ENTER’ -Allows the user to change between Celsius and Fahrenheit. Directions: Use the Up/Down arrows to move between Celsius and Fahrenheit. Press
‘Enter’ to select the desired unit degrees and the display will conrm the change.
12.3. MODIFY SCHEDULES
Unlike Thermostats that are used at home and in an some ofce buildings, the MCS
Thermostat ‘SCHEDULES’ control the run/stop of the controller’s cool target and heat target setting only.
Think of the Thermostat ‘SCHEDULES’ as controlling whether a building or room is ‘OCCUPLIED or ‘UNOCCUPLIED’. We can still allow the building or room to be cooled or heated, but with target setting, we can lower (or raise) the temperature depending on whether the building or room is ‘OCCUPLIED’.
For example if you set ‘SCHEDULE ONE’ to start at 8:00am the thermostat will start either the cooling process or heating process of the unit based on the cooling/heating
targets that you have setup in the Thermostat or conguration of the controller. Setting
‘SCHEDULE ONE’ to end at 17:00 (5:00pm) the Thermostat can change how the building or room is heated or cooled.
The advantage of the MCS Thermostat is that you can override the target settings of the UNIT’S heating, cooling and humidity from the thermostat without the going to the actual unit. See an example of setting up the schedules and holidays on the next pages.
17
MCS-THERMOSTAT REVISION 1.5
Cong Menu (continued)
12.3.1 SETTING EACH DAY OF THE WEEK
Schedule setting start with Sunday as the rst day.
1. Press Menu button to ‘CONFIG MENU’, press ‘ENTER’
2. Use ‘DOWN’ to ‘MODIFY SCHEDULES’, press  ‘ENTER’
3. The first schedule day will appear on the screen ‘SUN Schedule 1 start’ press  ‘ENTER’ to accept this day.
4. The next screen display will show the Hour ‘BLINKING’ - enter the hour, press ‘ENTER’ to move to the minutes. After you set the minutes, press ‘ENTER’ to accept, the following screen will appear ‘Prs Enter to continue’. The information will be sent to the controller.
5. Be sure to set the ‘START and ‘END TIMES’ for each day for ‘SCHEDULE 1’ and for ‘SCHEDULE 2’ before proceeding to the next day on the Thermostat.
6. IF YOU DO NOT SEE THE ‘HOUR BLINKING’ YOU FORGOT TO PRESS ENTER FOR THE NEXT SCHEDULE DAY.
SHOWS SCHEDULE
Occup
FOR 24 HOUR
OPERATION
00:01
Sun Set Schedule 1 Start
Below is a screen shot from MCS-CONNECT showing what the schedule settings look like in the
conguration setup. Basically this is what you are setting up when you are setting the ‘SCHEDULES.
and HOLIDAYS’ times in the Thermostat.
Occup
23:59
Sun Set Schedule 1 End
HOLIDAY DATES
ARE SETUP IN
MCS-CONNECT
18
MCS-THERMOSTAT REVISION 1.5
12.4. MODIFY HOLIDAYS
These settings allows the user to adjust the thermostat’s “START and END’ times for holidays that
have been setup in the conguration le or thru MCS-CONNECT.
Press the Up/Down arrows and Enter buttons to make adjustments. See screen shot on previous page as an example.
12.5. TEMP CAL
Allows the user to make changes to the temperature setting of the Thermostat using a calibrated hand
held temperature meter to check the current temperature of the area.
Directions: Use the Up/Down arrows to move between the offset range. Press ‘Enter’ to select the
desired temperature offset and the display will conrm the change.
12.6. HUMIDITY CAL
Allows the user to make changes to the humidity setting of the Thermostat using a calibrated hand
held meter to check the current humidity of the area.
Directions: Use the Up/Down arrows to move between the offset range. Press ‘Enter’ to select the
desired temperature offset and the display will conrm the change.
12.7. DISPLAY TEST
Allows the user to test the thermostat to make sure all icons are working.
12.8. ADJUST BACKLIGHT
Allows the user to adjust the backlight setting from 25% to 100%.
12.9. STANDBY BACKLIGHT
Hit ‘ENTER’ - Allows user to make changes to the backlight - OFF or 25% to 100%
12.10. ADJUST TIME
Allows the user to change the displayed time from the MCS-THERMOSTAT.
Directions: Use the Up/Down arrows and Enter button to rst adjust the hour per a 24-hour
schedule (ex. 1:00am is 0100 and 1:00pm is 1300) and press ‘Enter’ to move on to the minutes. After adjusting the minutes, press ‘Enter’ to move on to the seconds. Press ‘Enter’ to complete the time adjustment.
12.11. ADJUST DATE
Allows the user to change the displayed date from the MCS-THERMOSTAT.
12.12. THERMOSTAT RESET
Hit ‘ENTER’ to update-’RESTARTING THE UNIT’
12.13. SOUND ALARM
Hit ‘ENTER’ - Allows the user to turn alarm on or off.
19
MCS-THERMOSTAT REVISION 1.5
13. Update Firmware on Thermostat
13.1. MCS-Thermostat rmware upload
Loading new ‘Firmware’ to the Thermostat (requires proper authorization) Consult support@mcscontrols.com for upgrading yourThermostatrmwareandacquiringthe
necessary TERMINAL BLOCK CABLE TO ATTACH TO THERMOSTAT.
1. REMOVE COVER FROM THERMOSTAT AND REMOVE THE WIRES FROM THE PLUS AND
MINUS FOR THE COMMUNICATION OF THE THERMOSTAT.
2. CONNECT THE TERMINAL BLOCK SUPPLIED TO THE THERMOSTAT- WHITE WIRE TO PLUS(+)
AND THE BLACK WIRE TO GROUND (-) .
Cable with terminal block
Enlarged view of Thermostat block wiring
3. USING A MCS-USB-RS485 CABLE (not supplied) PLUG
THE RS-485 END INTO THE SUPPLIED TERMINAL AND THE USB END INTO YOUR COMPUTER.
4. Open MCS-Connect and select Setup.
5. In the drop down menu select Communications.
20
MCS-THERMOSTAT REVISION 1.5
6. On the communications Setup Screen select the LOCAL Comm. COM port from your computer
and then set the baud rate to 38400. Press Save and click SERIAL to connect with the MCS-Thermostat.
7. When MCS-Connect screen opens a red line will appear on the site info showing the Software
information of the MCS-Thermostat.
8. Whileonthesiteinfoscreenpress‘LoadFirmware’andselectthelocationforthenewHexle
toloadthenewrmware.(suppliedbyMCS-SUPPORT)
9. Whenthermwarenishesdownloadingtothethermostat:
1. Remove the TERMINAL BLOCK wiring from the thermostat.
2. Re-connect the MCS-Thermostat to the MCS controller.
21
MCS-THERMOSTAT REVISION 1.5
14.
Troubleshoot Section
THERMOSTAT WILL NOT TURN ON OR COMMUNICATE WITH THE CONTROLLER
THERMOSTAT IS IN LOCKED MODE
THERMOST AT HEA TING AND COOLING IS NOT CORRECT TO ROOMS CONDITIONS
THERMOSTAT ICONS TEST
THERMOSTAT NOT WORK­ING- SHOWS UNOCCUPIED
Check to make sure you have the wiring correct to the Thermostat (see wiring in beginning of this install guide). Check to see that the Thermostat and Controllers are Terminated correct. In MCS-CONNECT or Keypad, check to see if the baud rate is correct(38,400)
MCS-THERMOSTAT remains in locked mode until the proper password is entered.
Press the Menu button until you see Password - press enter, than your rst password
number - press enter until the correct password has been entered. LOCKED ICON SHOULD SHOW UNLOCKED. Password Code will lock back in 2 minutes
Check the Setting Menu to make sure you have the proper Unit Degrees chosen -
Celsius or Fahrenheit.. Reset the Temp Calibration using the Cong Menu to adjust for
temperature variations.
To make sure all of your Thermostats Icons are working - Press Menu to get to the
Cong Menu using the up/down arrows until you see Display Test- press enter - all
icons should show on the screen.
OVERRIDE BUTTON ON LEFT SIDE OF UNIT IS SET TO UNOCCUPIED.
Max. LOCKOUTS PER DAY
THERMOSTAT STAYS IN HEATING OR COOLING MODE AND WON’T CHANGE
PASSWORDS RESET
Reset Lockouts – Does require being authorized. However only a limited number of Lockouts(6) can be reset in one day without a higher authorization level.
Check your Cooling and Heating Set Points - consult HVAC Technician
TO DISABLE THE CURRENT PASSWORD - AT THE MENU LEVEL, PRESS MENU UNTIL YOU SEE ENTER PASSWORD. ENTER A PASSWORD THAT IS NOT USED BY THE SYSTEM TO RELOCK THE UNIT SO UNAUTHORIZED CHANGES CANNOT BE MADE.
22
Loading...
