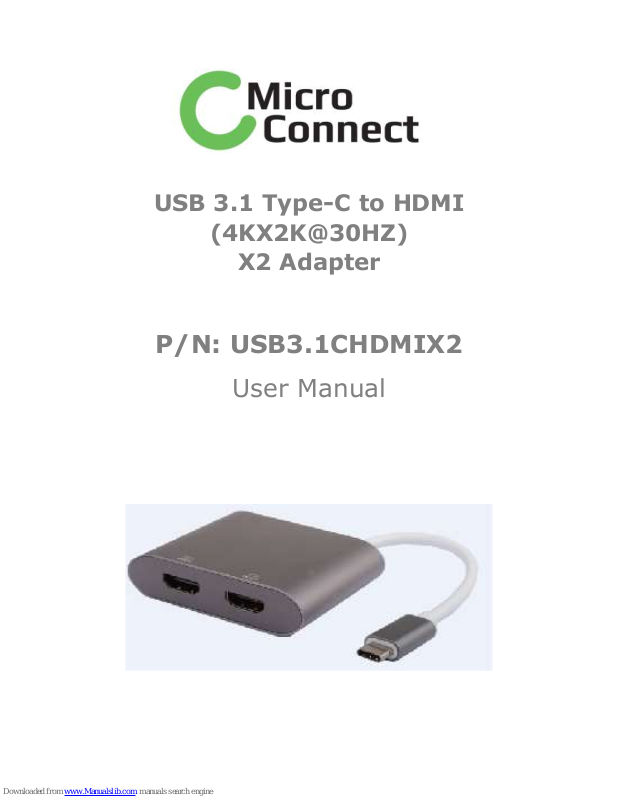

USB 3.1 Type-C to HDMI
(4KX2K@30HZ)
X2 Adapter
P/N: USB3.1CHDMIX2
User Manual
USB 3.1 Type-C to HDMIX2 Adapter
1
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting,
operating or using this product. Please keep this manual for future
reference.
1.0 INTRODUCTION
This is a Type-C to HDMI X2Adapter. It allows you to transmit signals
from a Type-C source to two high definition HDMI display (TV sets,
projectors, etc). It can work on Macbook or Google new Chromebook
Pixel and other USB-C supported devices
This Adapter owns both SST and MST functions which allow you to
enjoy one picture with dual monitors or independent pictures on each
monitor respectively.
Note:
1. If the source PC（e.g.Macbook）doesn’t support MST function, the
two connected HDMI displays only show the same picture
2. Type-C port of New Macbookpro supports MST function when
transmitting Thunderbolt signal and SST function when transmitting
Type-C signal. When connecting this product to Macbook Pro, Type-C
port transmits Type-C signal, so the two connected HDMI displays
only show the same picture when the host PC is Macbook Pro
2.0 FEATURES
Support Type-C input, 2 HDMI outputs
Type-C supports reversible plug
Support HDMI Resolution up to 4kx2k@30HZ
Support 2 HDMI ports show different pictures or videos
simultaneously
Support plug and play
Support MST and SST function
3.0 SPECIFICATIONS
Input/Output Connector
Input
USB-C Malex1
Output
HDMI Femalex2
Resolution
USB 3.1 Type-C to HDMIX2 Adapter
2
HDMI
4KX2K@30Hz
Physical
Weight
77.5g
Size
66x54x15.5(mm)
Environmental
Operating Temperature
0℃~45℃
Operating Humidity
10% ~ 85 % RH (no condensation)
Storage Temperature
-10℃~ 70℃
Storage Humidity
5% ~ 90 % RH (no condensation)
Power Requirement
Power Source
Bus Power
Warranty
Limited Warranty
1 Year
Regulatory Approvals
Certifications
FCC, CE
Accessory Adapter
User Manual
English Version
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make sure the following items are contained in the shipping carton:
Main unit x1
User Manual x1
5.0 OPERATION
1) Connect the USB-C male port of this product to computer
2) Connect 2 HDMI ports of this product to 2 HDMI monitors
USB 3.1 Type-C to HDMIX2 Adapter
3
6.0 CONNECTION DIAGRAM
