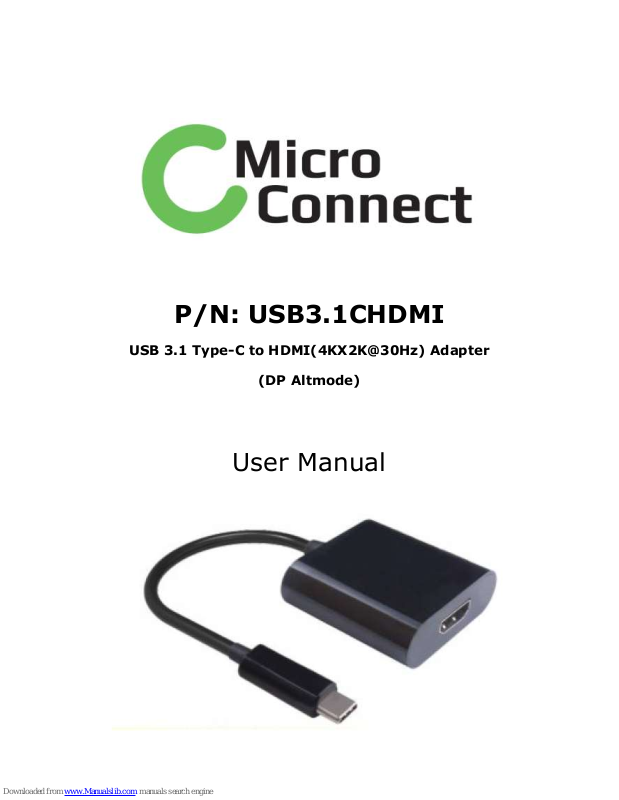

P/N: USB3.1CHDMI
USB 3.1 Type-C to HDMI(4KX2K@30Hz) Adapter
(DP Altmode)
User Manual
USB 3.1 Type-C to HDMI Adapter (DP Altmode)
Contents
1.0 INTRODUCTION .............................................. 1
2.0 FEATURES ...................................................... 1
3.0 SPECIFICATIONS ............................................ 1
4.0 PACKAGE CONTENTS ....................................... 2
5.0 OPERATION .................................................... 2
6.0 CONNECTION DIAGRAM ................................... 3
USB 3.1 Type-C to HDMI Adapter (DP Altmode)
1
USB 3.1 Type-C to HDMI
Adapter
(DP Altmode)
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting,
operating or using this product. Please keep this manual for future
reference.
1.0 INTRODUCTION
This USB-C to HDMI Adapter (DP Altmode) allows you to connect an
extra monitor with HDMI port to your new Macbook or Chromebook.
You can watch videos or slideshows together on the big screen.
2.0 FEATURES
Supports USB-C input and HDMI output
Supports content protection of HDCP 2.2
Supports HDMI resolution max to 4K x 2K@30Hz
Supports HDMI bandwidth max to 18Gbps
USB bus power (no external power supply)
3.0 SPECIFICATIONS
Input/Output Connector
Input
USB-C Male x1
Output
HDMI Female x1
Resolutions(HDTV)
Resolutions
480i/480P/720P/1920X1080/1920
X1200/3840X2160@30Hz
Warranty
Limited Warranty
1 Year
Environmental
Operating Temperature
0 ℃ to +45℃
Operating Humidity
10% to 85 % RH (no condensation)
USB 3.1 Type-C to HDMI Adapter (DP Altmode)
2
Storage Temperature
-10℃ to +70℃
Storage Humidity
5% to 90 % RH (no condensation)
Regulatory Approvals
Certifications
FCC,CE
Power Requirement
Power Source
USB Bus Power
Accessories Adapter
User Manual
English Version
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make sure the following items are contained in the shipping carton:
Main unit x1
User Manual x1
5.0 OPERATION
① Connect USB-C port of this product to the Type-C host
② Connect HDMI output of this product to HDTV with one HDMI cable
Note:
When connecting the adapter to Macbook, as Macbook doesn’t
support 4kx2k@60Hz, the sink display whose max resolution is
4kx2k@60Hz will not have image, then you need to adjust the
resolution of the display to 4kx2k@30Hz manually so as to make it
work normally.
USB 3.1 Type-C to HDMI Adapter (DP Altmode)
3
6.0 CONNECTION DIAGRAM
