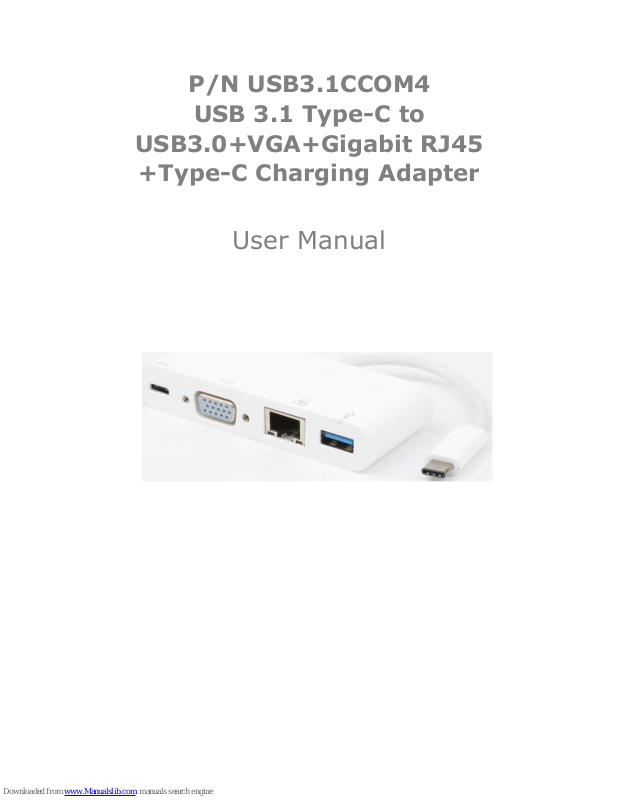

Micro Connect USB3.1CCOM4 User Manual

P/N USB3.1CCOM4
USB 3.1 Type-C to
USB3.0+VGA+Gigabit RJ45
+Type-C Charging Adapter
User Manual
USB 3.1 Type-C to USB3.0+VGA +RJ45 +Type-C Charging Adapter
Contents
1.0 INTRODUCTION .............................................. 1
2.0 FEATURES ...................................................... 1
3.0 SPECIFICATIONS ............................................ 2
4.0 PACKAGE CONTENTS ....................................... 2
5.0 OPERATION .................................................... 2
6.0 CONNECTION DIAGRAM ................................... 3
USB 3.1 Type-C to USB3.0+VGA +RJ45 +Type-C Charging Adapter
1
USB 3.1 Type-C to USB3.0+
VGA+Gigabit Ethernet+Type-C
Charging Adapter
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference.
1.0 INTRODUCTION
This is a USB-C to USB 3.0 with Gigabit Ethernet, VGA and USB-C charging port hub. The USB 3.0 port allows you to connect a USB device to a host computer or another hub, the USB-C female port can charge for the host computer, VGA port allows you to connect a VGA monitor so that you can watch videos or slideshows on a big screen and the host computer can easily connect to the network through the Gigabit Ethernet port. It can work on Macbook or Google new Chromebook Pixel and other USB-C supported devices.
2.0 FEATURES
Support USB-C, VGA, USB3.0, Gigabit Ethernet port Support USB 3.0 super speed (5Gbps) transmission, downward
compatible with USB2.0
USB 3.0 port supports to charge and transmit data for the USB
device simultaneously
Support BC1.2, the power of USB-A port can be up to 7.5W
(5V/1.5A)
Support VGA resolution up to 1080P@60Hz Support 10/100 /1000Mbps bandwidth Support twisted pair crossover detection and auto-correction USB-C charging port supports to charge for Macbook or Google
new Chromebook Pixel and other USB-C supported devices and supply power for the hub
Multiple USB-C interfaces support plug and play, hot swap
USB 3.1 Type-C to USB3.0+VGA +RJ45 +Type-C Charging Adapter
2
3.0 SPECIFICATIONS
Input/Output Connector
Input
USB-C Male x1 USB-C Female x1for charging
Output
VGA Female x1 USB 3.0 Femalex1 RJ45X1
Physical
Weight
46.9g
Size
95x41x17(mm)
Frequency
Vertical Frequency Range
50/60Hz
Video Amplifier Bandwidth
Up to 2.25Gbps/225MHz
Resolutions
Resolutions
Up to 1920x1200@60HZ
Warranty
Limited Warranty
1 Year
Environmental
Operating Temperature
0 ℃ to +45
Operating Humidity
10% to 85 % RH (no condensation)
Storage Temperature
-10℃ to +80
Storage Humidity
5% to 90 % RH (no condensation)
Power Supply
USB3.0 Port
UP to 7.5W (5V/1.5A)
USB-C Female Port
Up to 60W (20V/3A)
Regulatory Approvals
Certifications
FCCCE
Accessories
User Manual
English Version
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make sure the following items are contained in the shipping carton:
Main unit x1 User Manual x1
5.0 OPERATION
1) Connect the USB-C male port of this product to computer 2 Connect VGA output of this product to HDTV with one VGA cable
USB 3.1 Type-C to USB3.0+VGA +RJ45 +Type-C Charging Adapter
3
3) Connect the USB 3.0 output of this product to a USB 3.0/2.0 device
4) Connect Gigabit Ethernet port of this product to Ethernet Router with an Ethernet cable
5) Automatically or manually set IP address of computer
6) Connect the USB-C charging port, it can charge for the host computer and support this adapter to work simultaneously
Note:
1. When connecting the USB-C male port of the adapter to Chromebook,
the mouse to be connected to the USB 3.0 port will not work
immediately, it will have seconds’ delay. This problem also occurs in
other similar type-c adapter (including Apple original 3 in 1 Adapter) when connected to Chromebook.
2. When connecting this product to Chromebook, the VGA video signal
may not appear on the screen of the VGA monitor under certain resolutions
3. When plugging in and out the PD Adapter, the connected USB devices
will get disconnected flashily and then reconnect in a few seconds, so to prevent possible data loss or corruption, avoid disconnecting the PD Adapter from AC power while transferring data
6.0 CONNECTION DIAGRAM
