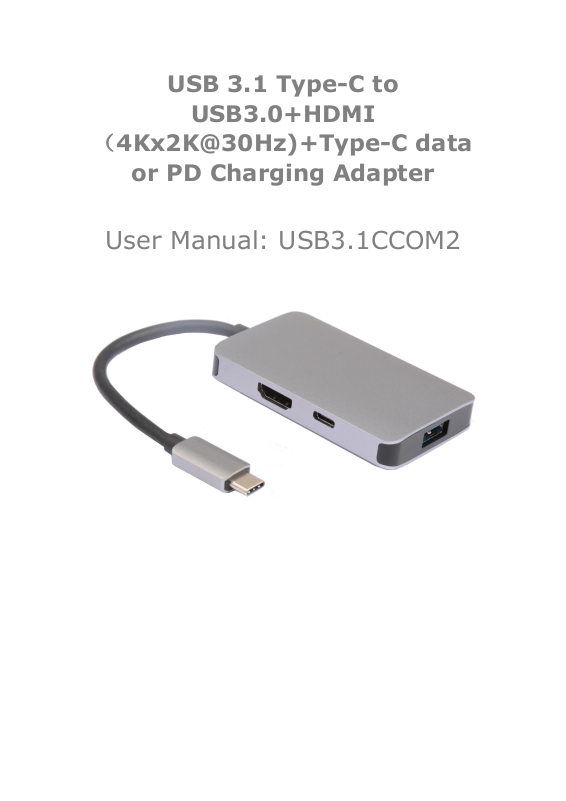

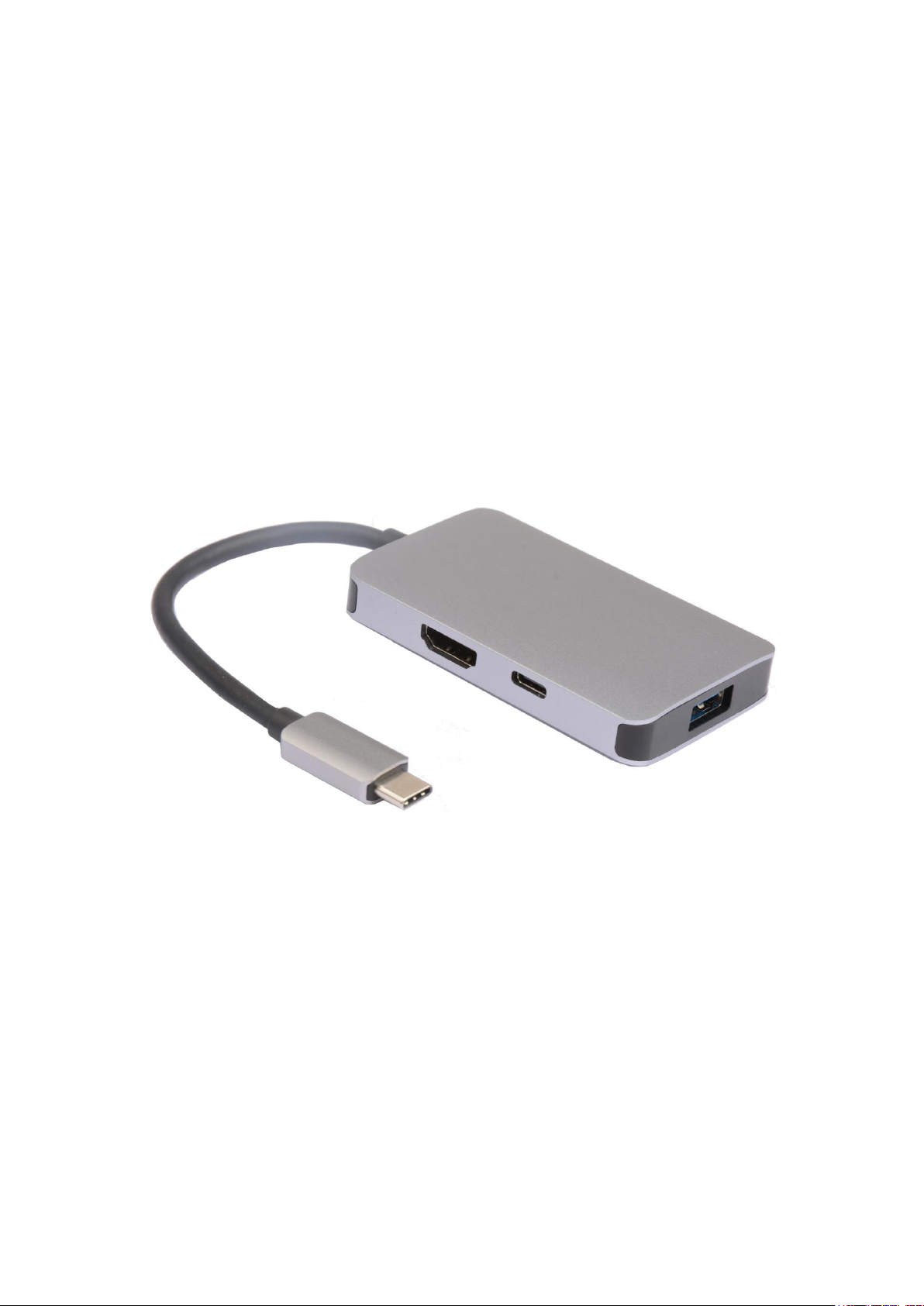

MicroConnect USB3.1CCOM2 User Manual

USB 3.1 Type-C to
USB3.0+HDMI
4Kx2K@30Hz)+Type-C data
or PD Charging Adapter
User Manual: USB3.1CCOM2
USB 3.1 Type-C to USB3.0+HDMI4KX2K@30HZ) +Type-C data and charging Adapter
Contents
1.0 INTRODUCTION ............................................................. 1
2.0 ADVANTAGES .................................................................. 1
3.0 FEATURES ......................................................................... 2
4.0 SPECIFICATIONS ........................................................... 3
5.0 PACKAGE CONTENTS ................................................... 3
6.0 OPERATION ...................................................................... 3
7.0 CONNECTION DIAGRAM ............................................. 4
USB 3.1 Type-C to USB3.0+HDMI4KX2K@30HZ) +Type-C data and charging Adapter
1
USB 3.1 Type-C to USB3.0+
HDMI (4KX2K@30HZ)+Type-C
data and charging Adapter
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting,
operating or using this product. Please keep this manual for future
reference.
1.0 INTRODUCTION
This is a USB-C to USB 3.0HDMI and Type-C data or charging port
hub. The USB3.0 port allows you to connect a USB device or another
hub to the host computer; the USB-C female port supports both PD
Charging and data; and the HDMI port (DP Altmode) allows you to
connect an HDMI monitor so that you can watch videos or slideshows
on a big screen. It can work on 2017 New Macbook Pro or Google new
Chromebook Pixel and other USB-C devices that support DP Alt mode
2.0 ADVANTAGES
Higher Power Conversion Efficiency
High Power Conversion Efficiency means low power consumption and low heating
98.2%@Vin=5V 92.5% @Vin=20V
More Advanced Power Management
The power can guarantee uninterrupted working of USB-A SSD and U Disk when the vin is in 920V, so the connected USB device will not
get disconnected while plugging in and out the PD Adapter from the Type-C charging port. Supported USB device current is as follows: 1.5A on PD 3.0 device
USB 3.1 Type-C to USB3.0+HDMI4KX2K@30HZ) +Type-C data and charging Adapter
2
Note:
1) When the current of the connected USB device is higher than the
above listed current, the USB device will get disconnected while plugging the PD Adapter and reconnect in a few seconds
2) When working on PD 2.0 supported host PC, the connected USB-A
device will get disconnected while plugging out the Type-C PD Adapter and then reconnect in a few seconds
Support Fast role swap of PD 3.0
The connected device will not get disconnected while plugging in and out PD Adapter when working on PD 3.0 device
3.0 FEATURES
Support USB-C male input and HDMI output, USB-A
downstream data and charging and USB-C female upstream PD Charging or downstream data and charging port
USB-C Female
As USB-C upstream charging port (connecting USB-C
Power Adapter): When connecting PD Adapter:
it supports PD Charging with power up to 100W (20V/5A) When connecting ordinary USB-C Power Adapter: the max power of this port depends on how much power the connected USB-C Power Adapter can supply
As USB-C downstream port (connecting USB-C device):
It supports to transmit data up to 5Gbps and charge for the connected USB–C devices (the total output of the USB-C and USB-A port depends on the host PC, eg: USB-A and USB-C share max 1.5A on Macbook, max 900mA on Chromebook
USB-A
Support max 5Gbps data transmission Support BC1.2, with max 7.5W(5V/1.5A) downstream
charging
HDMI
Support HDMI resolution up to 4KX2K@30Hz Multiple USB-C interfaces support plug and play, hot swap
Easy to use and carry
USB 3.1 Type-C to USB3.0+HDMI4KX2K@30HZ) +Type-C data and charging Adapter
3
4.0 SPECIFICATIONS
Input/Output Connector
Input
USB-C Male x1
Output
HDMI Female x1 USB-C Female x1 (for data or Charging) USB-A Femalex1
Physical
Weight
52.5g
Size
75*45*9(mm)
Resolutions
Resolutions
Up to 4KX2K@30HZ
Warranty
Limited Warranty
25 year
Environmental
Operating Temperature
0 ℃ to +45
Operating Humidity
10% to 85 % RH (no condensation)
Storage Temperature
-10℃ to +70
Storage Humidity
5% to 90 % RH (no condensation)
Power Supply
USB3.0 Port
Max 5Gbps data transmission Max 7.5W downstream charging
USB-C Female
Max 5Gbps data transmission Or max 100W PD Charging
Regulatory Approvals
Certifications
FCC,CE
Accessory Adapter
User Manual
English Version
5.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
Main unit x1 User Manual x1
6.0 OPERATION
1) Connect the USB-C male port of this product to Type-C host (Macbook Pro, Macbook , chromebook)
2) Connect HDMI output of this product to HDTV with one HDMI cable
3) Connect the USB-A of this product to a USB 3.0/2.0 device
4)
USB-C female port as charging port:
USB 3.1 Type-C to USB3.0+HDMI4KX2K@30HZ) +Type-C data and charging Adapter
4
Connect the USB-C charging port to USB-C Power Adapter (including PD Adpater), it can charge for the host computer and support this adapter to work simultaneously
USB-C female port as data port:
Connect the USB-C output of this product to a USB-C device
7.0 CONNECTION DIAGRAM
