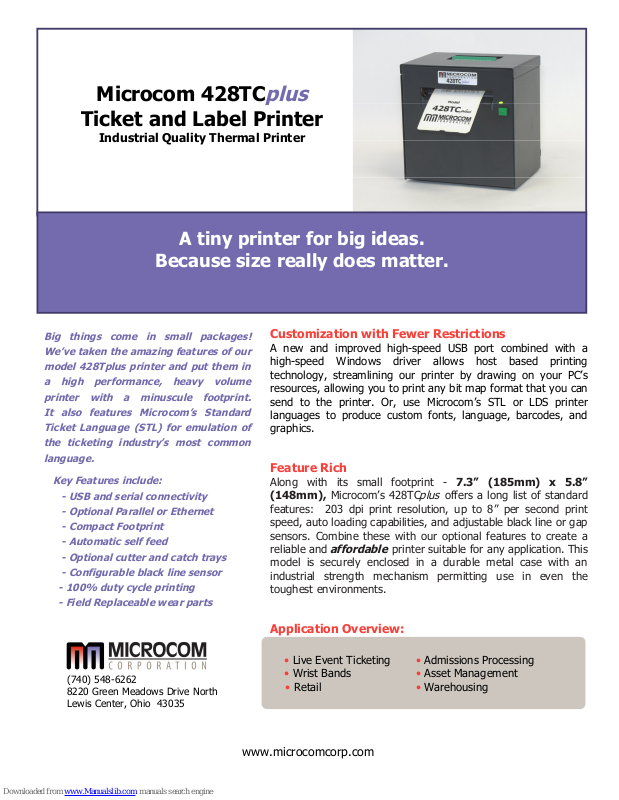

Page 1
Microcom 428TC
Customization with Fewer Restrictions
speed USB port combined with a
speed Windows driver allows host based printing
wing on your PC’s
resources, allowing you to print any bit map format that you can
send to the printer. Or, use Microcom’s STL or LDS printer
languages to produce custom fonts, language, barcodes, and
7.3” (185mm) x 5.8”
offers a long list of standard
203 dpi print resolution, up to 8” per second print
speed, auto loading capabilities, and adjustable black line or gap
bine these with our optional features to create a
printer suitable for any application. This
model is securely enclosed in a durable metal case with an
industrial strength mechanism permitting use in even the
www.microcomcorp.c
om
Ticket and Label Printer
Industrial Quality Thermal Printer
A tiny printer for big ideas.
Because size really does matter.
Big things come in
We’ve taken the ama
model 428Tplus printer and put them
plus
A new and improved highhightechnology, streamlining our printer by dra
printer with a minuscule footprint.
It also features Microcom’s
Ticket Language (STL) for emulation
the ticketing industry’s most common
language.
Key Features include:
- USB and serial connectivity
- Optional Parallel or Ethernet
- Compact Footprint
- Automatic self feed
- Optional cutter and catch trays
- Configurable black line sensor
- 100% duty cycle printing
- Field Replaceable wear parts
(740) 548-6262
8220 Green Meadows Drive North
Lewis Center, Ohio 43035
graphics.
Feature Rich
Along with its small footprint (148mm), Microcom’s 428TC
features:
sensors. Com
reliable and
toughest environments.
affordable
plus
Application Overview:
• Live Event Ticketing • Admissions Processing
• Wrist Bands • Asset Management
• Retail • Warehousing
Initial
Block:
Page 2
Microcom 428TCplus
Optional Features
• Industrial Quality Rotary Cutter
• Parallel
• Ethernet
• Wristband Media Handling kit
• Cash Drawer Interface
• Catch Tray
(740) 548-6262
8220 Green Meadows Drive North
Lewis Center, Ohio 43035
Microcom can be found on the Internet at
www.microcomcorp.com
References in this publication to Microcom
Corporation products or services do not
imply that we intend to make them
available in all countries.
This product is RoHS compliant.
Initial
Block:
Microcom 428TCplus Ticket and Label Printer
For more information please visit www.microcomcorp.com
Performance Summary ◊◊◊
—203 or 300 dpi resolution
—Up to 8” per second print speed
—Auto loading capability
—Microsoft Windows® OS compatible
—Microcom Hi-Speed USB Windows Driver, Microcom LDS or STL Programming Languages
—Adjustable black line sensor configurable to sense left or right edge, bottom or top of media.
—Industrial cabinet
—USB 2.0 compatible and RS232 interface
—Optional Centronics parallel and Ethernet communication ports
—Optional high reliability rotary cutter
—Software controlled print contrast adjustments
—Self-centering and locking media guides
Bar Codes ◊◊◊
—Code 39 —Modified Plessy —Code 128 —Code 93 —Interleaved 2 of 5
—UPC-A —UPC-E —EAN-8 —EAN-13 —EAN-UCC 128
—Postnet —Codabar —And More
2D Symbologies
Fonts ◊◊◊
—PDF-417 —Maxicode —RSS-14 —And More
—7 Resident including OCR-A and OCR-B
—Downloadable font support
—All fonts expandable in height and width up to 255X and 255Y
—0, 90, 180 and 270 degrees font and bar code printing
Printing ◊◊◊
—Direct Thermal on demand label/ticket and batch mode printing
—1” Wristband printing with option kit
—Prints on roll or fan-folded media
—Stock up to 11 mils thick and 2”- 4.375” wide
Memory ◊◊◊
—512K Flash memory for code and resident font storage
—8MB Flash for label data storage and downloadable font and graphic storage (non-volatile)
—512K SRAM for variable storage (volatile)
Physical Dimensions ◊◊◊
Height Width Depth Weight
Environmental Conditions ◊◊◊
7.4” (188mm) 7.3” (185mm) 5.8” (148mm) 10.2 lbs. (4.6 kg)
—Relative humidity: 10-85% non-condensing
—Operation Temperature: 40° to 104° F (5° to 40° C)
—Power supply: Internal Supply with Auto-Sensing; 90-264 VAC, 3.5/1.5 A, 47-63 Hz
Compliance ◊◊◊
—Approved: RoHS, FCC Class A and CE
—Pending: Designed to meet CUL
Warranty ◊◊◊
—One year limited warranty
© Copyright 2012 Microcom Corporation. All rights reserved.
Microcom Corporation reserves the right to make improvements to their products at any time without prior notice.
The information contained herein is subject to change without notice. Microcom Corporation shall not be liable for
technical or editorial omissions contained herein. Reproduction, adaptation or translation without prior written
permission is prohibited, except as allowed under the copyright laws. All company and product names are
trademarks or registered trademarks of their respective owner.
830014-0000
