Microcom 226 User Manual

MODEL 226 / 426
DIRECT THERMA L PRINTER
USER’S GUIDE
PART NUMBER 880018-0110
Revised: December 13, 2004 CPC © Copyright 2004 by Microcom Corporation, Lewis Center, Ohio – All rights reserved. Printed in the United States of America
This Page Intentionally Left Blank
This Page Intentionally Left Blank
Proprietary Statement
This manual contains information proprietary to Microcom Corporation. This information is intended solely for the use of parties operating and maintaining such equipment described herein.
Product Enhancements
Microcom Corporation is committed to the continual improvement of performance and quality in our products. For this reason, specifications are subject to change without notice.
Liability Disclaimer
Microcom Corporation makes every effort to assure that all information and specifications contained in this manual are accurate; however, mistakes are sometimes made. Microcom Corporation shall not be liable for any damages resulting in the use or misuse of this product. The exclusion or limitation involving consequential or incidental damage does not apply to all states; therefore limitation mentioned above may or may not apply.
FCC Compliance Statement
This equipment is tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions contained in this manual, may cause harmful interference to radio communications.
HyperTerminal® and HyperAccess® are trademarks of Hilgraeve Inc. Centronics® is a registered trademark of Data Computer Corporation. HP® and LaserJet II® are trademarks of Hewlett-Pack ard Company. Arial® is a registered trademark of The Monotype Corporation. TrueType® is a registered trademark of Apple Computer, Inc. Microsoft®, Windows®, Windows NT® are registered trademarks of Microsoft Corporation.
Other products and company names mentioned herein may be trademarks of their respective owners.
Table of Contents
Introduction ................................................................................................. 1
Chapter 1: Printer Specifications .............................................................. 3
1.1 General Specifications.........................................................................................3
1.2 Printing Specifications.........................................................................................3
1.3 Media Specifications............................................................................................4
Chapter 2: Features and Options.............................................................. 5
2.1 Fonts ...................................................................................................................5
2.2 Graphics..............................................................................................................5
2.3 Bar codes............................................................................................................5
2.4 Special Features .................................................................................................5
2.5 Options................................................................................................................6
Chapter 3: Getting Started .........................................................................7
3.1 Unpacking and Inspection...................................................................................7
3.2 Connecting the Printer.........................................................................................8
3.2.1 Printer Power.................................................................................................8
3.2.2 Communication Interfaces.............................................................................8
3.3 Loading Media.....................................................................................................9
3.4 Front Panel Button and Indicator Light..............................................................10
3.4.1 Front Panel Button.......................................................................................11
3.4.2 Indicator Light..............................................................................................11
Chapter 4: Printer Modes .........................................................................13
4.1 Idle Mode...........................................................................................................13
4.2 Halted Mode......................................................................................................13
4.2.1 Enquiry Responses .....................................................................................13
4.2.2 Fatal Error Responses.................................................................................16
4.2.3 Basic Status Responses..............................................................................20
4.3 Paused Mode....................................................................................................25
4.4 Diagnostic Mode................................................................................................25
4.4.1 Entering Diagnostic Mode...........................................................................26
226/426 User’s Guide i
4.1.2 Status Label.................................................................................................26
Chapter 5: Communications.................................................................... 29
5.1 RS-232 Serial....................................................................................................29
5.1.1 RS-232 Printer Cables.................................................................................30
5.2 10BASE-T Ethernet...........................................................................................30
5.3 160P Stacker / Auxiliary Interface......................................................................30
Chapter 6: Maintenance and Adjustments............................................. 33
6.1 Maintenance Schedule......................................................................................33
6.2 Thermal Printer Card.........................................................................................34
6.3 Internal Cleaning................................................................................................37
6.4 Print head Maintenance.....................................................................................38
6.5 Cleaning the Dr ive Roller...................................................................................39
6.6 Exterior Cleaning...............................................................................................40
6.7 Gap Detector Adjustment ..................................................................................40
6.8 Auxiliary Button..................................................................................................41
6.9 Flash Memory Update.......................................................................................41
3.2 MCA Compressed File Recovery.......................................................................43
Chapter 7: Troubleshooting..................................................................... 45
7.1 Troubleshooting Tips.........................................................................................45
Appendix A ................................................................................................ 47
Limited Warranty........................................................................................................47
Appendix B ................................................................................................ 49
Return Material Authorization (RMA) Procedure ........................................................49
Glossary..................................................................................................... 51
Index........................................................................................................... 55
User Notes ................................................................................................. 59
ii 226/426 User’s Guide
List of Tables
Table 1 General Specifications...............................................................................3
Table 2 Printing Specifications...............................................................................3
Table 3 Media Specifications..................................................................................4
Table 4 Front Panel Button Description................................................................11
Table 5 Indicator Light Description.......................................................................11
Table 6 Enquiry Responses .................................................................................16
Table 7 RS-232 Cable Configurations.................................................................. 29
Table 8 Recommended Maintenance Schedule...................................................33
226/426 User’s Guide iii
iv 226/426 User’s Guide
List of Figures
Figure 1 426 Front Angled View.............................................................................vi
Figure 2 426 Rear Angled View..............................................................................vi
Figure 3 Standard Printer Accessories.................................................................... 7
Figure 4 Connecting the Printer...............................................................................8
Figure 5 Tag Bracket...............................................................................................9
Figure 6 Loading Media...........................................................................................9
Figure 7 Front Panel Button and Indicator Light....................................................10
Figure 8 ^D960)1 or ^K Test Pattern .....................................................................26
Figure 9 ^D323-List Enablements Example...........................................................26
Figure 10 ^D326-List Settings Example................................................................27
Figure 11 ^D325-List Selections Example............................................................27
Figure 12 ^D324-List Statistics Example..............................................................28

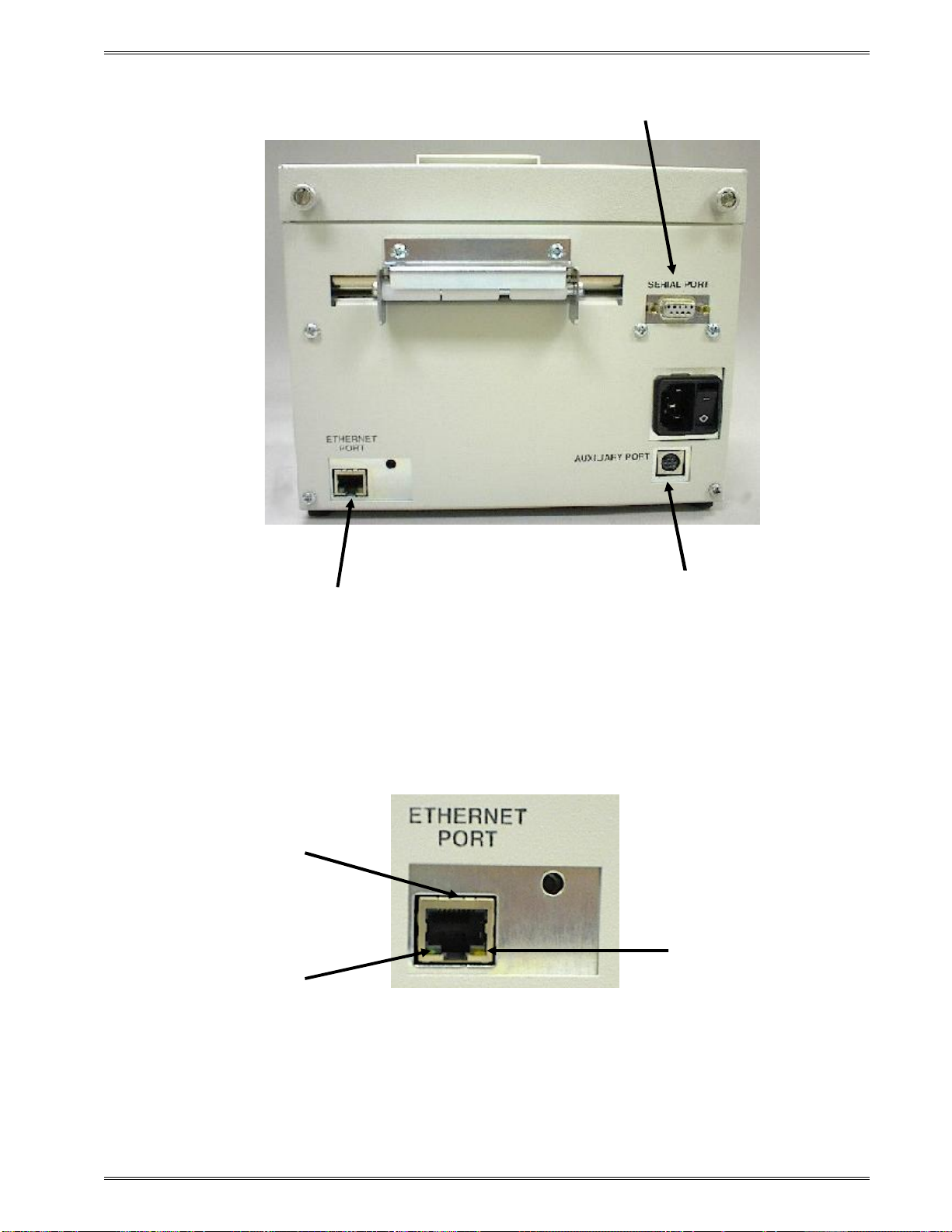

Figure 12 426 Interface Connections....................................................................31
Figure 13 Ethernet Port - 10BASE-T....................................................................31
Figure 14 Insertion of Thermal Cleaning Card......................................................35
Figure 15 Thermal Card Removal ........................................................................35
Figure 16 Removal of top cover............................................................................36
Figure 17 Unlatching of Print head.......................................................................36
Figure 18 Internal Cleaning..................................................................................37

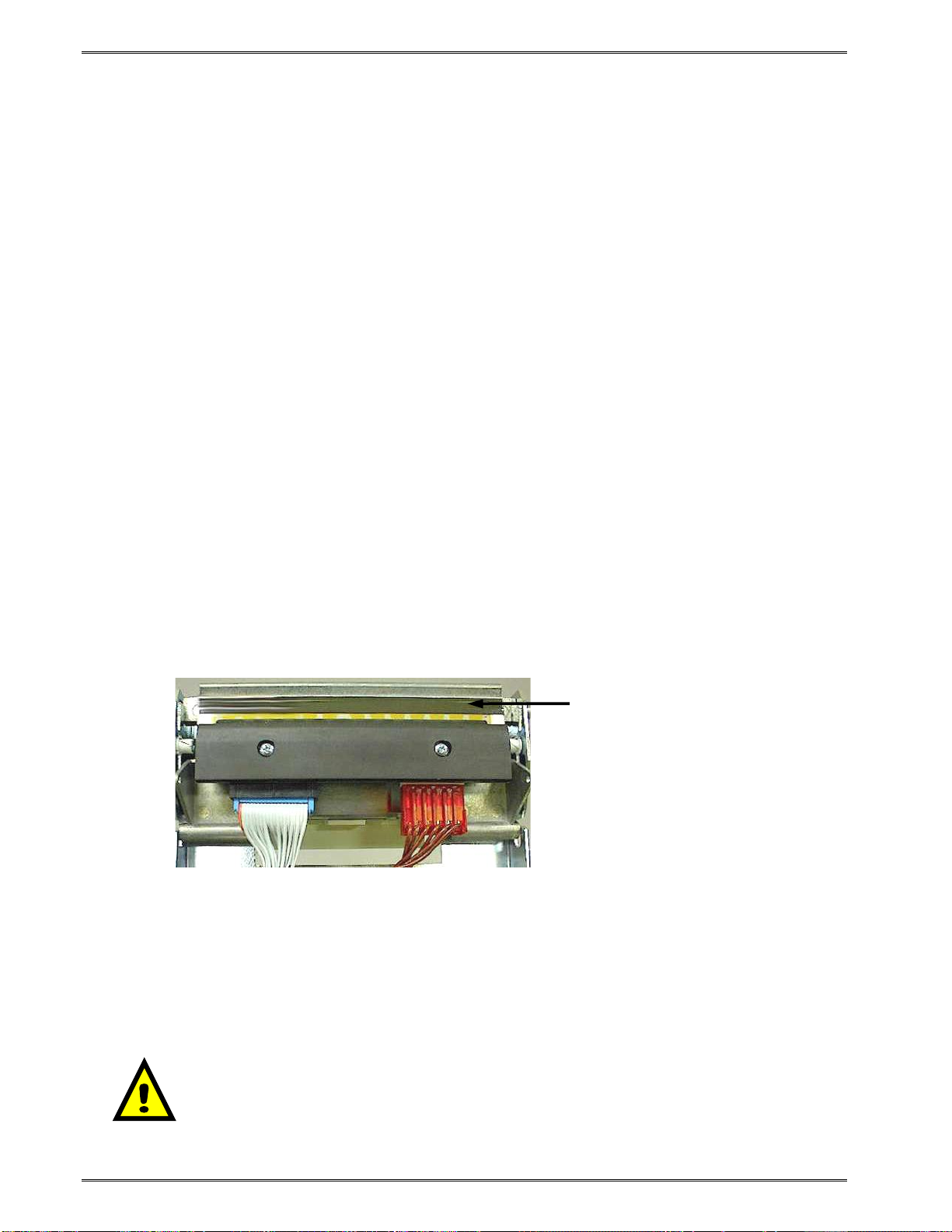

Figure 19 Print head Thermal Elements...............................................................38
Figure 20 Gap Detector........................................................................................40
Figure 21 Auxiliary Button.....................................................................................41
226/426 User’s Guide v
Figure 1 426 Front Angled View
Figure 2 426 Rear Angled View
vi 226/426 User’s Guide
Introduction
The Models 226 and 426 are high performance, Direct Thermal tag/label printers that are
economically priced to fit everyone’s budget. The extensive list of standard features
combined with an easy to operate and maintain design provides continuous and reliable printing at true high volume throughput. The Model 226 printer is a smaller version of the Model 426 with the only differences being the AC power plug orientation, the print head size and the lack of the Auxiliary Port.
This manual provides the information needed to operate and maintain the printers on a daily basis. The resident Label Design Software II (LDSII) is a powerful and easy-to-use control language that allows the creation of custom label formats. The software is ASCII text based and can be interfaced to PC’s, mini-computers, main frames, and other special purpose machines. The LDSII language uses inches as the default unit of measure but may be set to use millimeters. All commands and parameters, unless noted otherwise, should be entered using the selected unit of measure. The conversion values for the printer, using the standard 203 dpi print head, are 8 dots per millimeter , 203 dots per inch, or 0.0049” per dot. Refer to the LDSII Programming Guide (part# 880019-xxxx) for additional informati on regarding LDSII programming instructions where the –xxxx represents the latest version.
Among many other features, LDSII supports downloadable graphics and fonts, serial numbering, flexible character spacing, reverse video, resident fonts and many of the most popular bar code symbologies. Bitmapped fonts and bar codes may be multiplied in size in the X and Y directions while being printed in 0, 90, 180, and 270 degree rotations. Graphic images and custom designed label formats may also be stored in the printer’s flash memory for high-speed access to achieve greater throughput performance.
The printers are capable of printing on most types of labels, pre-printed tickets, fax papers, and tag stocks or varying thickness. The printers are also capable of detecting many registration marks that enable it to print using media that contains die-cut, blow-hole, black­line sense marks and continuous media. The printers also provides three different cutter types; full guillotine, full/partial guillotine and rotary cutter. These cutter options provide a means of cutting media of varying thickness to handle even the most demanding applications.
Many printer applications use the same label format, but change the data on every label. This is not a problem for the 226/426 printers, data may be changed without downloading the same fixed format or fixed data field. This, along with the available serial communication speeds, increases data access time and productivity. Providing the user with high performance desired for a low cost.
Contact Microcom Corporation about the availability of Windows® drivers and WYSIWYG (What You See Is What You Get) software packages which allow quick and easy on-screen label designing.
226/426 User’s Guide 1
2 226/426 User’s Guide
Chapter 1: Printer Specifications
1.1 General Specifications
Width 226 - 6.6” (167mm); 426 - 8.5” (216mm) Height 226 - 6.9” (175mm); 426 - 6.9” (175mm) Depth 226 - 4.8” (122mm); 426 - 4.8” (122mm) Weight 226 - 6 lbs (2.7kg); 426 - 7.8 lbs. (3.5kg) Electrical Auto-sensing 120/230 VAC ; 50-60 Hz 4 Amps maximum Temperature 40° F – 77° F (5° C – 25° C) Operating Humidity 10% – 85%, non-condensing SRAM Memory 16MB Flash Memory 4MB Agency Approvals CUL, CE, and complies with FCC Class A. Interface Communications
RS-232 Serial Network Connectivity
RS-232, 9 pin D-Sub connector (DCE) 10BASE-T Flow Control: XON, XOFF, and CTS Parity: Odd, Even, and None Protocols: TCP/IP Data Bits: 7 or 8
Table 1 General Specifications
Hosts: Windows® NT, 95, 98, and 2000
1.2 Printing Specifications
Print Type Direct Thermal Print Resolution
Maximum Print Speed
Maximum Print Width
Print Length
Table 2 Printing Specifications
203 DPI (8 dots/mm) 300 DPI (11.808 dots/mm) – option on 426 only.
6”/sec. (152mm/sec.) 4”/sec. (102mm/sec.) with optional 300 DPI
226 - 2.205 inches or 448 dots (56 mm) 426 - 4.1 inches or 832 dots (104mm) 426 - 4.26 inches or 1280 dots (108mm) with 300 DPI
50” (1270mm) using standard memory 25” (635mm) with optional 300 DPI print head
226/426 User’s Guide 3
Printer Specifications Chapter 1
1.3 Media Specifications
Media Types Maximum Media Thickness
Maximum Media Width
Table 3 Media Specifications
The 426P printer is optimally configured with a fixed tag bracket to assist in the installation
of direct thermal rolled or fanfold tag stock. The printer m ay use many other types of media
with varying widths using the standard paper line guides.
*NOTE: The printer may print on thicker media types depending on the pliability of the material, however this requires testing and eval uation. Contact your authorized Microcom Corporation representative for additional infor mation regarding testing and evaluation of thicker media types.
**NOTE: The printer’s media path has a maximum width of 4.5” while the actual printable
width will vary depending on the print head installed.
Continuous, die-cut, preprinted and tag stock either rolled or fanfold.
.010” (.25mm) * see note below.
4.5” (114.3mm) ** see note below.
4 226/426 User’s Guide
2.1 Fonts
19 smooth bitmapped alphanumeric fonts from 6pt to 28pt including OCR-A
and OCR-B.
Downloadable font support. Bitmapped fonts expandable in height and width. Reverse image printing. Rotated: 0º, 90º, 180º, and 270º.
Chapter 2: Features and Options
2.2 Graphics
Lines and boxes. Direct Monochrome BMP image support. Store fonts, scripts and/or graphics. Rotated: 0º, 90º, 180º, and 270º.
2.3 Bar codes
One-dimensional: Code 39, Interleaved 2 of 5, Code 128 (A, B, C and Auto),
Code 93, Codabar, Modified Plessey, UPC-A, UPC-E, EAN 8, EAN 13, UCC/EAN 128, and Postnet.
Two-dimensional: PDF-417 and Data Matrix Rotated: 0º, 90º, 180º, and 270º.
2.4 Special Features
Durable steel case that protects your investment, even in harsh environments. Head lift lever for easy media loading. Rotating head mechanism for easy print head cleaning.
226/426 User’s Guide 5
Features and Options Chapter 2
Adjustable media guides for easy label centering or fixed tag bracket. Software controlled contrast adjustm ent. Downloadable monochrome BMP image support. Internal statistical counters for inches and labels printed. Remote printer interrogation. Ethernet capability. Detects label gap, blackline, and blowhole using reflective and transmissive
sensors.
Field incrementing, decrementing and serialization. Powerful Label Design Software (LDSII) that is easy to master. Auto-sensing 100-240 VAC 50-60 Hz Internal power supplies.
2.5 Options
 Full or partial cutter available in 3” (76.2 mm) or 4” (101.6 mm) versions. 4” (101.6 mm) Rotary cutter available for the 426.  Model 160P vertical media stacker for the 426.  Catch Tray for the 426.  Configurable sensor (Input 1) that may be customized for different
applications.
External media supply holder (8” (203mm) o.d. maximum). 300 DPI (11.8 dots/mm) resolution print head for the 426. Pinch Roller for Peel-n-Dispense operation. Cleaning kit.
6 226/426 User’s Guide
Chapter 3: Getting Started
3.1 Unpacking and Inspection
The printer has been packaged to help reduce the damage that may occur during the shipment of product.
Inspect the shipping container(s) for signs of damage. If damage is evident, contact the shipping company immediately to file a damage claim.
After the printer is removed from the container(s), verify that all the parts are present and in good condition (see Figure 3).
The foam and shipping container(s) should be kept and used if the printer is to be shipped. Additional shipping materials may be ordered by contacting the Microcom Corporation Service Department in the event the printer needs to be shipped at a later date and the original packaging materials were not saved.
Figure 3 Standard Printer Accessories
226/426 User’s Guide 7
Getting Started Chapter 3
AC Power Connection
10BASE
-
T Ethernet
3.2 Connecting the Printer
Refer to Figure 4 below for proper connections.
3.2.1 Printer Power
The printers use a universal auto-sensing internal power supply that operates in the 100­240 VAC; 50-60 Hertz range. The three-prong female end of the power cord plugs into the mating connector located on the back of the printer. The Model 226 printer’s AC power connection is the same internally but rotated 90° counter clockwise externally.
Note: Verify that the printer’s ON/OFF switch is switched to OFF before plugging the power cord into an electrical outlet.
3.2.2 Communication Interfaces
The printers may be interfaced to PC’s, mini-computers, main frames, and special purpose machines. This printer offers standard serial RS-232 and 10BASE-T Ethernet.
Auxiliary Port - only available
on the Model 426
Figure 4 Connecting the Printer
RS-232 Serial Port
8 226/426 User’s Guide
Chapter 3 Getting Started
3.3 Loading Media
The 426P printer has been designed to make loading fanfold or continuous media a simple process. With the fixed Tag bracket installed, no adjustments are needed when installing media, thus reducing down time. Follow the instructions below to properly load the media.
1. Feed the media below the Line Guide Idler (see Figure 5.), located on the back of the printer, until you feel resistance.
2. Push down on the Head Lift Lever and continue feeding the media until it passes through to the front of the printer (see Figure 6.).
Media
Line Guide Idler
Figure 5 Tag Bracket
Note: The Tag bracket has a fixed opening of 3.37” (85.73mm).
Figure 6 Loading Media
Media Path
Head Lift Lever
Line Guide Idler
226/426 User’s Guide 9
Getting Started Chapter 3
3.4 Front Panel Button and Indicator Light
The front panel button and the indicator light (see Figure 7) are used to identify and perform many functions. This section provides a brief description of the standard configuration to familiarize you with the basic function of the button and light. Refer to Chapter 4: Printer Modes for more detailed information. The font panel button is configurable by using the
“^D541)” command, so this section only discusses the standard configuration. Refer to the
LDSII Programming Guide for additional information regarding the button use.
Figure 7 Front Panel Button and Indicator Light
Front Panel Button and indicator
10 226/426 User’s Guide
Chapter 3 Getting Started
3.4.1 Front Panel Button
Operation Description
A button press while the printer is idle or paused will reprint the
Printing a
label.
last label or after a cold start, a power up label will print.
Note: If a power up label has not been enabled or if one does not
exist, the printer will print a blank label.
Printer Pause.
Feeding
Labels.
A brief-button press while printing will cause the printer to pause.
Note: Press the button again to continue printing.
Hold the button down while the printer is idle to feed labels. The
printer will continue feeding labels until the button is released.
Table 4 Front Panel Button Description
3.4.2 Indicator Light
Light Color Description
Solid Green. Indicates that the power is on, the printer is in a ready state, and
is either in LOCKOUT or BASIC access levels.
Solid Am ber.
Solid Red.
Indicates that the printer is busy or is in a tag/tear mode other
Indicates that the printer is either in SERVICE, FACTORY, or
than Advance When Idle (3).
DEVELOPER access levels.
Flashing
Amber.
Indicates an error has occurred. The printer will r emain in this
Flashing
Red.
Note: Refer to Chapter 7: Troubleshooting for helpful hints.
Alternating
Green/Amber.
Alternating
Amber/Red.
226/426 User’s Guide 11
Indicates that the printer is Initializing the RAM memory.
Indicates that the printer is updating or loading a new code
Table 5 Indicator Light Description
Indicates that the printer is paused.
state until the condition is removed.
revision to Flash memory.
12 226/426 User’s Guide
Chapter 4: Printer Modes
4.1 Idle Mode
Idle Mode is when the printer is not printing and has no pending activity. The indicator light is green, which indicates that the printer is ready to receive label scripts and/or commands. The front panel button has a couple of different functions while in the Idle Mode. Pressing the button will reprint the last label or the power-up label if the printer was recently turned on and no formats were sent to the printer. If no power up label exists, or if powers up labels are not enabled, then the printer prints a blank label. Pressing and holding the button in, causes the printer to feed labels until the button is released.
4.2 Halted Mode
Halted Mode is when the printer has stopped due to an error condition that needs immediate attention. The indicator light flashes red when the printer enters the Halted Mode. The printer remains in this mode until the error is corrected. The error is cleared by pressing the front panel button after the condition causing the error is removed. If it is not possible for the printer to execute the previous information, the printer will enter the Paused
Mode (see Paused Mode below for additional information). Refer to Chapter 7: Troubleshooting for information on how to correct error conditions.
4.2.1 Enquiry Responses
Enquiry responses provide a method of determining the current status of the printer as well
as identifying different error conditions. This is possible by sending either the “Ctrl+E”
combination, issuing the “^D327)” command, or by enabling any of the auto-reporti ng
commands; Refer to the ^D72x series commands. Fatal error responses are triggered from the printer to the host when they occur and halt the printers operation until resolved. Status responses do not halt the printers operation but are simply a status of the printer’s current state.
Refer to the table below and the following sections for more information about the various types of responses.
226/426 User’s Guide 13
Printer Modes Chapter 4
Byte Mode
Responses
Text and Verbose Mode Responses Definition
(ASCII Hex)
0x01 >STOCK OUT< Out of Media
0x02 >STOCK OVERADVA NCED<
0x03 >STOCK JAMMED< Media is jammed.
0x04 >INCORRECT STOCK<
0x06 >OK<
0x10 >CUTTER JAMMED< The cutter has jammed.
0x11 >CUTTER INOPERATIVE< The cutter is not detected
0x12
0x13
0x15 >OPERATION FAILED<
0x1C >MISSING LABEL<
>CUTTER WATCHDOG STOPPED
CUTTER<
>CUTTER WATCHDOG
WON’T RESET<
Excess media past LPD
preventing a TOF operation.
Problem encountered trying to
realign media.
ACK message used with the
^D726)1 command.
The software shut the cutter off
for safety issues.
The software cannot reset the
cutter after a stopped condition.
The operation failed to execute
properly.
Generated if more than one die-
cut label has been detected.
0x1D >INCOMPLETE FORM<
0x20 >CATCH TRAY FULL<
0x21 >INPUT 1<
0x22 >INPUT 2<
0x30 >SCRIPT ERROR<
0x31 >INVALID PARAMETER<
0x32 >PARSER ERROR<
0x40 >COMM ERROR<
0x51 >FLASH ERROR<
0x80 >RESTARTED<
A complete script did not print on
a >STOCK OUT< condition.
The PMH has reached its
capacity.
The Input 1 sensor has been
actuated.
The Input 2 sensor has been
actuated.
An error with the script has been
detected.
The printer has detected an
invalid parameter.
An error with the printer’s parser
has occurred.
A Communication error has
been detected.
The flash memory has
encountered an error.
The printer has been powered
on or the power has been reset.
14 226/426 User’s Guide
Chapter 4 Printer Modes
Byte Mode
Responses
Text and Verbose Mode Responses Definition
(ASCII Hex)
0x81 >READY<
0x82 >BUSY< The printer is currently busy.
0x83 >PAUSED< The printer has been paused.
0x84 >PRINTING< The printer is currently printing.
0x85 >FEEDING<
0x86 >LABEL/TAG PRESENT<
0x87 >STOCK ADVANCED< The media has been advanced.
0x8A >FLASH DEFRAGMENTING<
0x8F >STOCK NOT LOADED<
0x90 >RETRACTION DELAY<
The printer is in ready to receive
data.
The printer is currently feeding
media.
Media has been presented in a
dispense mode.
Flash file system is optimizing
memory.
The printer was powered up with
out media installed.
The retraction has been
delayed.
0x91 >PRINT DELAY< The printing has been delayed.
0xB0 >FLASH MEMORY LOW<
0xC0 >BUTTON 1 TAPPED<
0xC1 >BUTTON 1 HELD< The print button has been held.
0xD0 >TEMPERATURE OUT OF RANGE<
0xD1 >NONEXISTENT COMMAND<
0xD2 >INCOMPLETE COMMAND<
0xD3 >ZIP FILE ERROR<
0xD4 >FILE CONVERSION ERROR<
0xD5 >UNSUPPORTED FILE TYPE<
The Flash memory file space is
95% full.
The print button has been
pressed.
The print head temperature is
out of operating range.
The received command does not
exist.
The received command is not
complete.
The received Zipped file has an
error.
The file was not converted
properly.
The received file is not
recognized.
0xD6 >FILE NOT FOUND<
The requested file does not exist
or cannot be found.
226/426 User’s Guide 15
Printer Modes Chapter 4
Byte Mode
Responses
Text and Verbose Mode Responses Definition
(ASCII Hex)
0xD7 >INADEQUATE ACCESS MODE<
0xD9 >FILE IS READ ONLY<
0xDA >INADEQUATE FLAS H SPACE<
0xDB >I/O FAILURE<
0xDC >FONT/GRAPHIC NOT FOUND<
0xE1 >SWITCH 0 ACTUATED< Switch 0 has been actuated.
0xE2 >SWITCH 1 ACTUATED< Switch 1 has been actuated.
0xE3 >SWITCH 2 ACTUATED> Switch 2 has been actuated.
0xE4 >TOF SWITCH ACTUATED<
0xF0 >FIELD OFF IMAGE<
0xF1 >COMPOSITION ERROR<
Incorrect password to a higher
access level.
File is read only and cannot be
deleted.
Cannot save an item to the flash
memory due to lack of space.
The Input/Output circuitry has
failed.
The requested file does not exist
or cannot be found.
The TOF switch has been
actuated.
An image placemen t
coordinates exceed the print
head or form size.
A script cannot be printed onto a
label due to i ncorrect size.
0xF2 >GRAPHIC TOO LARGE<
0xFF >POWERED DOWN<
The sent graphic exceeds the
available memory.
The printer’s power has been
removed.
Table 6 Enquiry Responses
4.2.2 Fatal Error Responses
Fatal error responses are enquiry responses that halt the printer’s current operation and
cause the indicator light or LED to flash RED in color. A fatal error condition persists until the condition causing the error is removed and the error is cleared. These enquiry responses are sent from the printer to the host, when the appropriate condition occurs, by issuing the “Ctrl+E” (^E) combination or by issuing the queued “^D327)1” command. The printer may be configured to automatically reports errors and status messages by using the ^D72x series commands. The following sections provide further explanations of the various fatal error responses. Refer to the ^D550) command regarding the types of enquiry response sets.
16 226/426 User’s Guide
Chapter 4 Printer Modes
NOTE: The following section titles are the responses that the printer will generate once the
associating condition occurs and the printer processes an enquiry command. The first
response (between and including the “>” and “<” characters) is generated if text and verbose responses have been enabled using the ^D550) command. The ASCII hex value listed between the parenthesis characters, indicate the enquiry response if byte mode has
been enabled.
4.2.2.1 >STOCK OUT< (01)
The “>STOCK OUT<” error response is generated when the printer runs out of stock or
media while in text and verbose modes. If the printer is configured for byte responses, the code ASCII 0x01 will be issued from the printer in response to an enquiry command.
4.2.2.2 >STOCK OVERADVANCED< (02)
This error response is typically generated when the printer has an excess amount of media fed out of the printer and a Top-of-Form operation is executed. If the printer is configured for byte responses, the code ASCII 0x02 will be issued from the printer in response to an enquiry command.
4.2.2.3 >STOCK JAMMED< (03)
The “>STOCK JAMMED<” error response indicates that media is jammed and requires
correction before the printer can continue printing while in text and verbose modes. A stock jam condition may be detected by two separate methods depending if the printer is configured with a Label Present Detector or LPD. If the printer is configured for byte responses, the code ASCII 0x03 will be issued from the printer in response to an enquiry command.
When the printer is configured with an LPD and selected by the “^D509)” command, a stock
jam is detected by the LPD when the leading edge of the media did not arrive after the motor stepped through the Print head to LPD distance (“^D643) command”) plus 0.2 inches. This detection method does not work if media is not detected at the LPD once printing starts and is used in conjunction with the “^D311)” TOF command.
When the printer is configured without an LPD, not selected by the “^D509)” command, or if media is blocking a configured LPD once printing commences, a stock jam condition is detected using the registration mark detectors. The stock jam condition is reported when a registration mark does not arri ve after the entire script repeat distance plus 0.2 inches.
4.2.2.4 >INCORRECT STOCK< (04)
This error response is generated when the printer detects a registration mark that is too high or too short or if the registration mark is detected too soon or too late. The >INCORRECT STOCK< message is generated once this condition exists when the printer is configured for text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0x04 will be issued from the printer in response to an enquiry command.
226/426 User’s Guide 17
Printer Modes Chapter 4
4.2.2.5 >CUTTER JAMMED< (10)
The “>CUTTER JAMMED<” error response is generated when the cutter is in a jammed
condition and cannot complete a full cycle while in text and verbose modes. If the printer is configured for byte responses, the code ASCII 0x10 wil l be issued from the printer in response to an enquiry command.
4.2.2.6 >CUTTER INOPERATIVE< (11)
This error response is typically generated if the cutter is not detected by the printer while in text and verbose modes. If the printer is configured for byte responses, the code ASCII 0x11 will be issued from the printer in response to an enquiry command.
4.2.2.7 >CUTTER WATCHDOG STOPPED CUTTER< (12)
This error response is generated when the cutter cannot complete a full rotation and has typically jammed while in text and verbose modes. The cutter watchdog timer wil l disable the power to the cutter to prevent damage from occurring. The printer power should to be cycled to properly clear this error after the jam has been cleared from the cutter blades. If the printer is configured for byte responses, the code ASCII 0x12 will be issued from the printer in response to an enquiry command.
4.2.2.8 >CUTTER WATCHDOG WON”T RESET< (13)
This error response is generated when the cutter watchdog timer cannot be reset and the printer power is required to be cycled to clear this error while in text and verbose modes. The cutter watchdog timer will disabl e the power to the cutter to prevent damage from occurring. The printer power should to be cycled to properly clear this error after the jam has been cleared from the cutter blades. If the printer is configured for byte responses, the code ASCII 0x13 will be issued from the printer in response to an enquiry command.
4.2.2.9 >OPERATION FAILED< (15)
The “>OPERATION FAILED<” response is generated when the current operation could not
be completed while in text or verbose response modes. If the printer is configured for byte responses, the code ASCII 0x15 will be issued from the printer in response to an enquiry command.
4.2.2.10 >MISSING LABEL< (1C)
The “>MISSING LABEL<” response indicates that the printer has detected only the backing
material when using die-cut media indicating a missing label while in text or verbose response modes. If the printer is configured for byte responses, the code ASCII 0x1C i s issued from the printer in response to an enquiry command.
4.2.2.11 >INCOMPLETE FORM< (1D)
The “>INCOMPLETE FORM<” response indicates that the printer did not complete the
current script while in text or verbose response modes. If the printer i s configured for byte responses, the code ASCII 0x1D is issued from the printer in response to an enquiry
18 226/426 User’s Guide
Chapter 4 Printer Modes
command. This response appears in conjunction with the >STOCK OUT< error and a printer configured with the “^D581)2” Finish Label command.
4.2.2.12 >CATCH TRAY FULL< (20)
The “>CATCH TRAY FULL<” response is generated when the optional Catch Tray has
reached its capacity while in text or verbose response modes. If the printer is configured for byte responses, the code ASCII 0x20 is issued from the printer in response to an enquiry command.
4.2.2.13 >SCRIPT ERROR< (30)
The “>SCRIPT ERROR<” response is generated when a script contains an error and cannot
be processed while in text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0x30 will be issued from the printer in response to an enquiry command.
4.2.2.14 >INVALID PARAMETER< (31)
This error response indicates that a received command contains an invalid parameter or illegal structure while in tex t and verbose response sets. If the printer is configured for byte responses, the code ASCII 0x31 will be issued from the printer in response to an enquiry command.
4.2.2.15 >PARSER ERROR< (32)
The “>PARSER ERROR<” indicates that the printer has detected an internal error with the
parser while in text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0x32 will be issued from the printer in response to an enquiry command.
4.2.2.16 >COMM ERROR< (40)
The “>COMM ERROR<” indicates that the printer has detected a communication error while
in text or verbose response modes. If the printer is configured for byte responses, the code ASCII 0x40 is issued from the printer in response to an enquiry command. This error response is generated if the serial communication timeout period of 10 seconds plus 100 times the transfer has occurred.
4.2.2.17 >FLASH ERROR< (51)
The “>FLASH ERROR<” indicates that an error has occurred with the flash memory while in text and verbose response sets. The printer power should be cycled in the event that this error message has been received. If the printer is configured for byte responses, the code ASCII 0x51 will be issued from the printer in response to an enquiry command.
226/426 User’s Guide 19
Printer Modes Chapter 4
4.2.3 Basic Status Responses
Basic status responses are enquiry responses that are not immediate. These enquiry responses are sent from the printer to the host, when the appropriate condition occurs, by
issuing the “Ctrl+E” (^E) combination or by issuing the “^D327)” command. The following
sections provide further explanations of the non-immediate basic status responses. Refer to the ^D550) command regarding the types of enquiry response sets.
NOTE: The following section titles are the responses that the printer will generate once the
associating condition occurs. The first response (between and including the “>” and “<”
characters) is generated if text and verbose responses have been enabled using the ^D550)
command. The ASCII hex value listed between the parenthesis characters, indicate the
enquiry response if byte mode has been enabled.
4.2.3.1 >OK< (06)
The “>OK<” response is generated in conjunction with the “^D726)1” command and
indicates that a command completed successfully while in text or verbose response modes. If the printer is configured for byte responses, the code ASCII 0x06 is issued from the printer in response to an enquiry command.
4.2.3.2 >INPUT 1< (21)
The “>INPUT 1<” response indicates that the INPUT 1 sensor option is tripped whi le in text or verbose response modes. If the printer is configured for byte responses, the code ASCII 0x21 is issued from the printer in response to an enquiry command. This sensor and response is intended to provide the user with the flexibility for custom configurations.
4.2.3.3 >INPUT 2< (22)
The “>INPUT 2<” response indicates that the INPUT 2 sensor option is tripped while in text
or verbose response modes. If the printer is configured for byte responses, the code ASCII 0x22 is issued from the printer in response to an enquiry command. This sensor and response is intended to provide the user with the fl exibility for custom configurations.
4.2.3.4 >RESTARTED< (80)
The “>RESTARTED<” response is issued the first time the printer’s status is queried after a
power up or reset condition while in verbose and/or semi byte responses. If the printer is configured for byte responses, the code ASCII 0x80 will be issued from the printer in response to an enquiry command.
4.2.3.5 >REA DY < (81)
The “>READY<” response indicates that the printer is in the normal operating state and that
it is ready to accept data while in text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0x81 will be issued from the printer in response to an enquiry command.
20 226/426 User’s Guide
Chapter 4 Printer Modes
4.2.3.6 >BUSY< (82)
The “>BUSY<” response indicates that the printer is performing an operation that prevents
the printer from accepti ng data while in text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0x82 will be issued from the printer in response to an enquiry command.
4.2.3.7 >PA US ED< (83)
The “>PAUSED<” response indicates that the printer’s printing capabilities have been paused while in text and verbose response sets.. The printer will continue to receive data while in the >PAUSED< state. The printer may be put into the paused condition by either
issuing the “Ctrl+X” combination or by pressing the print button while the printer is printing.
Issuing the “Ctrl+X” combination or pressing the print button a second time will cause the
printer to resume. If the printer is configured for byte responses, the ASCII code 0x83 will be issued from the pr inter in response to an enquiry command.
4.2.3.8 >PRINTING< (84)
The “>PRINTING<” response indicates that the printer is currently printing while in text and
verbose response sets. If the printer is configured for byte responses, the code ASCII 0x84 will be issued from the printer in response to an enquiry command.
4.2.3.9 >FEEDING< (85)
The “>FEEDING<” response indicates that the printer is currently feeding media while in text
and verbose response sets. If the printer is configured for byte responses, the code ASCII 0x85 will be issued from the printer in response to an enquiry command.
4.2.3.10 >LABEL/TAG PRESENT< (86)
This response indicates that media is blocking the Label Present Sensor (LPS) and protruding out the front of the printer. If the printer is configured for byte responses, the code ASCII 0x86 will be issued from the printer in response to an enquiry command.
4.2.3.11 >STOCK ADVANCED< (87)
The “>STOCK ADVANCED<” response indicates that the media has been advanced after
printing when a Dispense Mode (^D597) command) is being used while in text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0x87 will be issued from the printer in response to an enquiry command.
4.2.3.12 >FLASH DEFRAGMENTING< (8A)
The “>FLASH DEFRAGMENTING<” response indicates that the printer is optimizing the
flash memory and is not currently available while in text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0x8A will be issued from the printer in response to an enquiry command.
226/426 User’s Guide 21
Printer Modes Chapter 4
4.2.3.13 >STOCK NOT LOADED< (8F)
The “>STOCK NOT LOADED<” response indicates that media is not being detected in the
printer on power up while in text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0x8F is issued from the printer in response to an enquiry command. This message persists until media is detected at the registration mark sensors but does not prevent commands from being processed.
4.2.3.14 >RETRA CTION DELAY< (90)
The “>RETRACTION DELAY<” response indicates that the printer has been configured
with a delay before retracting, refer to the ^D641) command, while in text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0x90 will be issued from the printer in response to an enquiry command.
4.2.3.15 >PRINT DELAY< (91)
The “>PRINT DELAY<” response indicates that the printer has been configured with a delay
between labels, refer to the ^D640) command, while in text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0x91 will be issued from the printer in response to an enquiry command.
4.2.3.16 >FLASH MEMORY LOW< (B0)
The “>FLASH MEMORY LOW<” response indicates that the user storage area of the flash memory is 95% full while in text and verbose response sets. This message will continue to be received until files are removed from flash memory or until the printer performs garbage collecting and defragmenting. If the printer is configured for byte responses, the code ASCII 0xB0 will be issued from the printer in response to an enquiry command.
4.2.3.17 >BUTTON 1 TAPPED< (C0)
The “>BUTTON 1 TAPPED<” response occurs when the ^D541) command is configured for
the “tapped” response while in text and verbose response sets. This may be used for
custom configuration and definition of the print button press or tapped condition. If the printer is configured for byte responses, the code ASCII 0xC0 will be issued from the printer in response to an enquiry command.
4.2.3.18 >BUTTON 1 HELD< (C1)
The “>BUTTON 1 HELD<” response occurs when the ^D541) command is configured for the “held” response while in text and verbose response sets. This may be used for custom
configuration and definition of the print button held condition. If the printer is configured for byte responses, the code ASCII 0xC1 will be issued from the printer in response to an enquiry command.
4.2.3.19 >TEMPERATURE OUT OF RANGE< (D0)
The “>TEMPERATURE OUT OF RANGE<” response indicates that the printer’s print head
is not within the proper operating range while in text and verbose response sets. This response will not allow the printer to print until the print head returns to the proper operating
22 226/426 User’s Guide
Chapter 4 Printer Modes
range. If the printer is configured for byte responses, the code ASCII 0xD0 will be issued from the printer in response to an enquiry command.
4.2.3.20 >NONEXISTENT COMMAND< (D1)
The “>NONEXISTENT COMMAND<” response indicates that the printer has received data
that is in the LDSII command structure that does not exist or has not yet been implemented while in text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0xD1 will be issued from the printer in response to an enquiry command.
4.2.3.21 >INCOMPLETE COMMAND< (D2)
The “>INCOMPLETE COMMAND<” response indicates that the printer has received a
command that does not contain all of the required parameters for proper operation while in text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0xD2 will be issued from the printer in response to an enquiry command.
4.2.3.22 >ZIP FILE ERROR< (D3)
The “>ZIP FILE ERROR<” response indicates that the printer has received a zip file that is
either not complete or that the file contains errors while in text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0xD3 will be issued from the printer in response to an enquiry command.
4.2.3.23 >FILE CONVERSION ERROR< (D4)
This enquiry response indicates that the printer encountered an error while performing an internal conversion of the received file while in text and verbose modes. If the printer is configured for byte responses, the code ASCII 0xD4 will be issued from the printer in response to an enquiry command.
4.2.3.24 >UNSUPPORTED FILE TYPE< (D5)
This enquiry response i ndicates that the printer does not recognize the type of the received file while in text and verbose modes. If the printer is configured for byte responses, the code ASCII 0xD5 will be issued from the printer in response to an enquiry command.
4.2.3.25 >FILE NOT FOUND< (D6)
The “>FILE NOT FOUND<” response typically indicates that the printer is being instructed to
recall and process a file that does not exist in the printer’s memory while in text and verbose response sets. If the printer is configured for byte responses, the code ASCII 0xD6 will be issued from the printer in response to an enquiry command.
4.2.3.26 >INADEQUA TE ACCESS MODE< (D7)
This enquiry response is typically issued when the user is attempting to issue a persistent command that is not allowed by the current access mode level or is attempting to enter an access mode that has a higher security level. If the printer is configured for byte responses, the code ASCII 0xD7 will be issued from the pri nter in response to an enquiry command.
226/426 User’s Guide 23
Printer Modes Chapter 4
4.2.3.27 >FILE IS READ ONLY< (D9)
This enquiry response typicall y indicates that a save or delete command is being issued to the printer and that the file is a protected file stored in the printer. If the printer is configured for byte responses, the code ASCII 0xD9 will be issued from the pri nter in response to an enquiry command.
4.2.3.28 >INADEQUA TE FLASH SPACE< (DA)
This enquiry response i ndicates that the available flash memory is less than the total size of a file being saved to flash memory. If the printer is configured for byte responses, the code ASCII 0xDA will be issued from the printer in response to an enquiry command.
4.2.3.29 >I/O FAILURE< (DB)
This enquiry response i ndicates that the printer has a failure with either the I/O hardware or with the I/O firmware. If the printer is configured for byte responses, the code ASCII 0xDB will be issued from the printer in response to an enquiry command.
4.2.3.30 >FONT/GRAPHIC NOT FOUND< (DC)
This enquiry response typicall y indicates that a font being specified a script file does not exist in flash memory. If the printer is configured for byte responses, the code ASCII 0xDC will be issued from the printer in response to an enquiry command.
4.2.3.31 >SWITCH 0 ACTUATED< (E1)
This enquiry response typicall y indicates that switch 0 is actuated while in text or verbose response sets. If the printer is configured for byte responses, the code ASCII 0xE1 is issued from the printer in response to an enquiry command.
4.2.3.32 >SWITCH 1 ACTUATED< (E2)
This enquiry response typicall y indicates that switch 1 is actuated while in text or verbose response sets. If the printer is configured for byte responses, the code ASCII 0xE2 is issued from the printer in response to an enquiry command.
4.2.3.33 >SWITCH 2 ACTUATED< (E3)
This enquiry response typicall y indicates that switch 2 is actuated while in text or verbose response sets. If the printer is configured for byte responses, the code ASCII 0xE3 is issued from the printer in response to an enquiry command.
4.2.3.34 >TOF SWITCH ACTUATED< (E4)
This enquiry response typicall y indicates that the Top-Of-Form (TOF) switch is actuated while in text or verbose response se ts. If the printer is configured for byte responses, the code ASCII 0xE4 is issued from the printer in response to an enquiry command.
24 226/426 User’s Guide
Chapter 4 Printer Modes
4.2.3.35 >FIELD OFF IMAGE< (F0)
The “>FIELD OFF IMAGE<” response indicates that a fields size and placement coordinates will not allow the field to fit on the print image or script layout while in text and verbose modes. The given field that is being placed off the image will not be printed on to the media. If the printer is configured for byte responses, the code ASCII 0xF0 wil l be issued from the printer in response to an enquiry command.
4.2.3.36 >COMPOSITION ERROR< (F1)
This enquiry response i s typically issued when the printer detects that the installed media is not the proper size for the given script file. If the printer is configured for byte responses, the code ASCII 0xF1 wil l be issued from the printer in response to an enquiry command.
4.2.3.37 >GRAPHIC TOO LARGE< (F2)
This enquiry response i ndicates that the graphic sent to the pri nter is larger than the available memory while in text or verbose response sets. If the printer is configured for byte responses, the code ASCII 0xF2 is issued from the printer in response to an enquiry command.
4.2.3.38 >POWERED DOWN< (FF)
The “>POWERED DOWN<” response indicates that the printer’s power has been
interrupted while in text and verbose modes. If the printer is configured for byte responses, the code ASCII 0xFF will be issued from the printer in response to an enquiry command. This message also indicates that the printer was successful writing pending updates to flash on a power loss situation.
4.3 Paused Mode
Paused Mode is when the printer has pending activity and has stopped, but is not in an error condition. The indicator light is flashing amber in color when the printer is in Paused Mode. The printer enters the Paused Mode by issuing the ^X command or by pressing the front panel button while the printer is printing. The printer will remain paused until the ^X is reissued, the button is pressed again, or the printer power is cycled. Additional examples of the printers Paused Mode includes a label script that does not include a print command, or after the printer fails to execute the pending data after an error condition.
4.4 Diagnostic Mode
Diagnostic Mode temporarily powers the printer using factory default parameters while
printing out the printer’s current configuration on what is called the Status Label. This information is used to help diagnose and troubleshoot printer configuration issues. The default baud rate is set to 9600 and is used when entering the diagnostic mode. The printer continues using the factory default parameters until printer power is cycled. The printer will then return to the previous configuration in use before entering the diagnostic mode.
226/426 User’s Guide 25
Printer Modes Chapter 4
4.4.1 Entering Diagnostic Mode
To enter the di agnostic mode, press and hold the print button in while turni ng on the printer. Release the button after the status light indicator starts to blink and the printer will power up into diagnostic mode.
4.1.2 Status Label
The printer will print the Status label after the printer performs a powered up and enters the diagnostic mode. The status label prints out the reports that are generated by the ^D323), ^D326), ^D325), and ^D324) commands.
Figure 8 ^D960)1 or ^K Test Pattern
Enablements (D323 or <Ctrl> Y)
User Interface
Software flow control: (D770) enabled Hardware flow control: (D771) disabled Format Operational Auto power-up label: (D720) disabled Auto top-of-form alignment: (D722) disabled Auto media sizing: (D723) disabled Auto alignment after error: (D724) disabled Cutter: (D740) disabled PMH: (D741) disabled
Figure 9 ^D323-List Enablements Example
26 226/426 User’s Guide
Chapter 4 Printer Modes
Settings (D326 or <Ctrl> V) Operational
Print Speed: (D635) 6.0 ips Detector mode: (D636) 0 (none) Slew Speed: (D645) 6.0 ips Darkness: (D690) 75 (Dark) Retraction delay: (D641) 0.5 sec. Print delay: (D640) 0.0 sec. Labels printed: (D655) 42 Distances Label wi dth (LSX): (D631) 3.34 inches Label height (LSY): (D632) 1.5.12 inches Reg. mark height (GAP): (D633) 0.148 inches To reg’n mark (DRM): (D634) 0.0 inches X offset (OFX): (D637) 0.0 inches Y offset (OFY): (D638) 0.0 inches Dist. Past Gap (DPG): (Auto) 1.225 inches Activate Gap Det (AGD) (Auto) 0.0 inches
Advance/retract: (D642) 0.512 inches Serial port settings (D670) 9600,N,8,1 Ethernet Active at 10/100 MAC: 0x000257795634 Printer IP: (D675) 192.168 .200.3 Server/Host IP: (D675) 192.168.200.1 Gateway IP: (D675) 192.168.200.1 Broadcast Mask: (D675) 192.168.200.255 Net Mask: (D675) 255.255.255.0 USB port settings Not installed Thresholds Gap: 29 Black line: 98 Stock: 110 High head temperature: 147 Low head temperature: 24 PWM periods Gap: 64 Black line: 41 Label Present: 64 Stacker: 64 NOTE: Some items may not be correct until after a scripted label is printed or Auto-size (D310) is run.
Figure 10 ^D326-List Settings Example
Selections (D325 or <Ctrl> U)
Operational
Dispense mode: (D597) 3 Emulation: (D501) Microcom 426 Cutter Type: (D506) NONE PMH Type: (D507) NONE Button Mode: (D541) 1 Response Mode: (D550) verbose Automatic responses: (D580) Errors Power-up label: (D586) 1 Detector mode: (D636) 0 (none)
General
Measurement units: (D564) 1 (inches) Speed units: (D565) 1 (ips) Temperature units: (565) 1 (Fahrenheit)
Figure 11 ^D325-List Selections Example
226/426 User’s Guide 27
Printer Modes Chapter 4
Statistics (D324 or <Ctrl> W) Identity Model number: (D501) Microcom 426 Language: (Auto) LDS2 Serial number: 01234567890 Accumulated operation Labels printed: (D655) 44 Inches printed: 97 inches (246 cm) Total inches run: 109 inches (276 cm) Power on time: 2 hours Printhead Width: (D910) 4.094 inches Resolution: (D910) 203.2 dpi Temperature: 80 Fahrenheit Cutter Detected at power-up: false Type installed: (D506) NONE Operation enabled: (D740) false Total cycle count: 0 PMH Type installed: (D507) NONE Operation enabled: (D741) false Flash Installed: 4 MB Available in file area: 964 KB RAM: Installed: 16.0 MB Available: 5.39 MB Code: Revision: 1.02.030521b Part number: 950000-0102 Size: 1851552 Checksum: 0x88c1777 CRC32: 0x70c6cc74 Bootloader revision: 1.04 .030519b Analog PIC revision: 4.5
Figure 12 ^D324-List Statistics Example
28 226/426 User’s Guide
Chapter 5: Communications
5.1 RS-232 Serial
The printers provide a 9 pin female D-Sub connector, on the rear panel, for RS-232 serial communication. The printer is configured as DCE (Data Circuit-terminating Equipment) so a NULL modem cable is not necessary. A serial data cable is required to use serial communications, refer to Table 7 below for correct cable configurations.
The factory settings, unless otherwise requested, are set at 9600 baud, 8 data bits, 1 stop bit, and no parity with both hardware and software handshaking. The baud rate is user selectable from 1200 to 115,200 and uses software XON/XOFF flow control and/or hardware CTS handshaki ng.
9 to 9 Pin Cable 9 to 25 Pin Cable
DE-9
State
XX 1 DCD DCD XX 2 TXD RXD XX 3 RXD TXD 3 XX 3 RXD TXD 2
HI 4 DTR DSR
LO 5 GND GND
HI 6 DSR DTR 6 HI 6 DSR DTR 6
DC 7 RTS CTS 7 DC 7 RTS CTS 4
XX 8 CTS RTS 8 XX 8 CTS RTS 5
HI 9 +5V +5V 9 HI 9 +5V -
Pin#
Signals /
Directions
PC DE-9 Pin#
1 HI 1 DCD DCD 8 2 XX 2 TXD RXD 3
4 HI 4 DTR DSR 20 5 LO 5 GND GND 7
State
DE-9
Pin#
Signals / Directions
PC DB-25 Pin#
DC = DO NOT CARE XX = INDETERMINATE
Table 7 RS-232 Cable Configurations
If XON/XOFF handshaking is used, only signals RXD, TXD, and GND are required for proper operation. If the hardware handshaki ng is used the CTS and RTS signals are required. The other signals are offered in the event that the host computer requires them.
226/426 User’s Guide 29
Communications Chapter 5
5.1.1 RS-232 Printer Cables
The printers use standard cables that may be purchased through Microcom Corporation or a local computer supply company. A NULL-modem cable is not required because the printer is configured as DCE.
For a 25-pin serial communication port – Use a 25-pin female to 9-pin male cable.
For a 9-pin serial communication port – Use a 9-pin female to 9-pin male cable.
CAUTION: Connection of a serial port to a parallel port may
result in damage to the printer and / or computer.
5.2 10BASE-T Ethernet
Refer to Figure 13.
The printers provide an auto-sensing, auto switching 10BASE-T Fast Ethernet port with full duplex operation capability.
(A) = RJ45 connector for Ethernet port connection. (B) = Solid green light i ndicates that a connection i s present. (C) = Flashing yellow light indicates that the port has acti vity.
5.3 160P St acker / Auxiliary Interface
The 426 printer provides an 8 pin Mini-din connector on the rear panel for auxiliary interfaces. This port can be used to power and operate the 160P stacker as well as other auxiliary functions. For more information about the 160P, please consult the 160P Stacker
User Guide part number 880021-0100.
NOTE: The Auxiliary Interface or Port is not available on the Model 226 printer.
30 226/426 User’s Guide
Chapter 5 Communications
Auxiliary Port
10BASE-T Ethernet Port
Figure 12 426 Interface Connections
(A)
(B)
Figure 13 Ethernet Port - 10BASE-T
RS-232 Serial Port
(C)
226/426 User’s Guide 31
32 226/426 User’s Guide
Chapter 6: Maintenance and Adjustments
6.1 Maintenance Schedule
It is important to note that optimum print quality and print head life is achieved by maintaining a clean printer and print head. A Microcom Corporation approved cleaning kit (part # 040005-0000) is available. Contact your sales representative for purchasing information.
AREA METHOD INTERVAL
Foam tipped swab, cotton
tipped swab, or thermal
Print head
Drive Roller
Peel Edge
Interior Cleaning
Exterior Cleaning
Table 8 Recommended Maintenance Schedule
CAUTION: Microcom Corporation will not be held responsible for
damage caused by any non-approved solvent, cleaning material
and/or method and the use of such non-approved materials and /or
methods may void appropriate expressed or implied warranties.
printer cleaning card
dampened with Isopropyl
Alcohol.
See section 6.4
Foam tipped swab, cotton
tipped swab, thermal
printer cleaning card, or
lint-free cloth dampened
with Isopropyl Alcohol
See Section 6.5
Foam tipped swab, cotton
tipped swab, thermal
printer cleaning card, or
lint-free cloth dampened
with Isopropyl Alcohol
See section 6.3
Compressed air, soft-
bristle brush, and/or lint-
free cloth dampened with
Isopropyl Alcohol.
See section 6.3
Lint-free cloth dampened with a mild, non-abrasive general purpose cleaner.
See section 6.6
After every roll of media
or every 512 feet of tag
stock or fanfold media.
After every roll of media
or every 512 feet of tag
stock or fanfold media.
As Needed.
As Needed.
As Needed.
226/426 User’s Guide 33
Maintenance and Adjustments Chapter 6
6.2 Thermal Printer Card
Decline in print quality, voids, or drop out areas in bar codes and/or gr aphics may indicate that the print head is dirty and needs to be cleaned. The necessary cleaning materials can be purchased through Microcom Corporation by contacting your sales representative and ordering the Cleaning Kit, part # 040005-0000. The print head should be cleaned after every roll of media or after every 512 feet (a typical stack of tag or fanfold media is about 3200 tags).
A thermal printer card is the quickest and easiest way to clean the print head, drive roller, and peel edge all at the same time. Follow the steps below for the proper cleaning procedure.
1. Remove any installed media.
2. Dampen both sides of one end of the c leaning card with isopropyl alc ohol.
3. While pushing down on the Head Lift Lever, insert the card into the front of the printer between the print head and the peel edge (See Figure 14).
4. Continue inserting the card until you fee l resistance, now release the Head Lift Lever.
5. Using both hands, slowly pull the card out of the printer at a 45º down angle (See Figure 15).
6. Repeat as necessary
7. Reinstall media.
Thermal cleaning cards should not be used more than three times each and extremely dirty
cards should be disposed of immediately.
CAUTION: Never touch or clean the print head with any abrasive
solvents and/or with any metal or sharp object.
34 226/426 User’s Guide
Chapter 6 Maintenance and Adjustments
Figure 14 Insertion of Thermal Cleaning Card
Figure 15 Thermal Card Removal
226/426 User’s Guide 35
Maintenance and Adjustments Chapter 6
(A)
Figure 16 Removal of top cover
CAUTION: Unplug the power cord before removing the printer
covers to avoid possible personal injury or damage to the printer.
(A)
Figure 17 Unlatching of Print head
36 226/426 User’s Guide
Chapter 6 Maintenance and Adjustments
Roller
6.3 Internal Cleaning
The overall internal cleaning of the printer is important to hel p reduce the dust and other contaminates residing in the printer. Contaminates may attach to the print head or drive roller and affect the printer’s performance. Refer to Figure 18 for common areas needing cleaned.
1. Remove any installed media.
2. Turn the printer power OFF.
3. Unplug and remove the power cord.
4. Loosen captive screw (A on Figure 16) and remove the top cover from the printer.
5. Using the two Head Release Levers (See Figure 17), unlatch and r aise the print head.
6. Basic internal cleaning can be done using a combination of compressed air, soft­bristle brushes, foam/cotton tipped swabs, and/or lint-free cloths dampened in alcohol. Using any combination of these materials, remove dust or other contaminants from the printer. See section 6.4 for the proper print head maintenance procedure.
7. When finished, latch the print head completely and reinstall the top cover and media.
8. Reattach the power cord and turn the printer power ON.
Print head Elements
Driver
Media Path
Peel Edge
Figure 18 Internal Cleaning
CAUTION: Unplug the power cord before removing the printer
covers to avoid possible personal injury or damage to the printer.
226/426 User’s Guide 37
Maintenance and Adjustments Chapter 6
6.4 Print head Maintenance
If print quality has not improved after cleaning using a thermal cleaning card or if one is not available, foam or cotton tipped swabs dampened in isopropyl alcohol may be used. Refer to Figure 19 and follow the steps below for the proper cleaning procedure.
1. Remove any installed media.
2. Turn the power to the printer OFF.
3. Unplug and remove the power cord.
4. Loosen captive screw (A on Figure 16) and remove the top cover from the printer.
5. Using the two Head Release Levers (Figure 17), unlatch and raise the print head.
6. With a foam or cotton tipped swab dampened in isopropyl alcohol, clean the thermal elements by gently rubbing the swab down the length of the print head. Allow for the alcohol to evaporate then repeat if necessary.
7. The Drive Roller, Peel Edge, and other basic internal cleaning may also be performed at this time. See the appropriate sections for more information.
8. Latch the print head completely and reinstall the top cover and medi a.
9. Reattach the power cord and turn the printer power ON.
Figure 19 Print head Thermal Elements
Thermal elements are located in the black area running the entire width of the print head.
CAUTION: When performing maintenance inside the printer,
always make sure that the print head is latched completely before
installing the top cover. Failure to do so may result in damage to
the print head.
38 226/426 User’s Guide
Chapter 6 Maintenance and Adjustments
6.5 Cleaning the Drive Roller
Maintaining a clean drive roller not only helps to extend the life of the roller but also helps to reduce print quality issues and media slips that may occur due to dust, label adhesive and other forms of contamination. The drive roller should be cleaned after every roll of media or after every 512 feet (a typical stack of tag or fanfold media is about 3200 tags). See the previous section Thermal Printer Card for a quick and easy way to clean the drive roller or follow the steps below.
1. Remove any installed media.
2. Turn the printer power OFF.
3. Unplug and remove the power cord.
4. Loosen captive screw (A on Figure 16) and remove the top cover from the printer.
5. Using the two Head Release Levers (Figure 17), unlatch and raise the print head.
6. With a lint-free cloth dampened in alcohol, clean the drive roller. Manually rotate the drive roller by the drive gear located to the left (from the front of the printer) or by manually rotating the drive roller itself to clean the entire drive roller surface.
7. Print head, Peel Edge, and Internal cleaning may also be performed at this time, see the appropriate sections for more informati on.
8. Latch the print head completely and reinstall the top cover and medi a.
9. Reattach the power cord and turn the printer power ON.
CAUTION: Isopropyl Alcohol should be used to clean the drive
roller. The use of other cleaning solvents or materials is not
recommended and may degrade the performance of the drive roller.
226/426 User’s Guide 39
Maintenance and Adjustments Chapter 6
6.6 Exterior Cleaning
Although cleaning the exterior surfaces does not affect the printer’s performance, it will help the overall appearance of the printer. The use of any mild, non-abrasive general purpose cleaner with a lint-free cloth may be used to clean the exterior surfaces. This cleaning should be performed on an as needed basis.
6.7 Gap Detector Adjustment
Refer to Figure 20. The gap detector assembly is centered in the media path at the factory and should work for almost every type of media. For applications (for example - media that has a Blowhole gap, whi ch is offset) the gap detector can be adjusted as needed. To adjust the gap detector, simply move the assembly to the desired location. Care should be taken to assure that the top and bottom sensors are aligned with each other. If the sensors are not aligned properly, the gap detector may not work properly.
Figure 20 Gap Detector
40 226/426 User’s Guide
Chapter 6 Maintenance and Adjustments
6.8 Auxiliary Button
The auxiliary button is used for factory adjustments and updating the flash memory.
Press and hold the Auxiliary Button in while powering up the printer.
Figure 21 Auxiliary Button
6.9 Flash Memory Update
This method is used to update the firmware stored in flash memory. To update the printer’s
firmware the following are required: a compressed MCB or MCA (ZIP file), a host computer equipped with a RS-232 serial port, and a Terminal Emulation Program (i.e., HyperAccess, HyperTerminal, Procomm Plus, Tera Term Pro...). The printer is configured at the factory with serial parameters of 9600,n, 8,1 and the terminal emulation program will need the serial parameters set to 9600,n, 8, 1.
It is a good idea to completely read through the procedure before an update attempt is
made. Do not send any unnecessary characters or remove the printer’s power during the
update or the printer may become i noperable. Refer to section 3.2 in the event the printer does not function properly after an update and the printer has become inoperable.
1. Make sure the RS-232 serial connection is made between the host and the printer including the proper Baud rate.
2. It is recommended to use the fastest Baud rate up to 115200 to reduce transfer time.
Refer to the “^D670)” command regarding the printer’s serial port parameters. If the
printer does not update properly, use a slower Baud rate to transfer the update.
3. Contact the Microcom Corporation support de partment and/or visit the following web address www.microcomcorp.com to acquire the desired MCA file.
226/426 User’s Guide 41
Maintenance and Adjustments Chapter 6
4. Issue the “^D945)?” command and retain the resulting listing for comparison after flash update.
5. The printer’s power should be cycled or a “^D390)” reset command issued to assure that the printer has completed any necessary memory management tasks before updating the code.
6. Send the MCA file to the printer in compressed form (ZIP).
7. After the printer has identified the MCA file, the following dialog will be reported to the
host: “File received. Unzipping. Please Wait… This dialog is only reported if the printer is set to use the VERBOSE response set. Refer to the “^D550)” command for
additional information regarding the printer response sets.
8. After the file has been unzipped and the checksum verified, the following dialog is reported to the host: “Unzipped. CRC Okay: 0x36410D55 (The checksum shown is for demonstration purposes only. The checksum will reflect the MCA files internal checksum and report any differences automatically.) This dialog is only reported if
the printer is set to use the VERBOSE response set. Refer to the “^D550)” command
for additional information regarding the printer response sets.
9. Sample MCA update dialog is reported to the host and is listed below. If the MCB code is being updated, the same dialog format would be reported with the word “application” being changed to “bootloader” as the only difference.
Application file recognized.
Erasing old application...............................
Saving new application........................................ (The periods are status indicators)
Booting application now . . . (The periods are status indicators)
10. If problems are experienced during the update and the printer has lost the previous application, refer to the following section regarding the recovery file update.
11. After the code has been successfully updated, the “^D391)1”, “^D392)1”, and
“^D390)1” commands must be sent to complete the update process. The “^D391)1” and “^D392)1” commands force setting to factory defaults while the “^D390)1” resets
the printer and automatically issues an enquiry command on reboot.
12. Once the printer reboots, any custom confi guration file and/or commands must be sent to the printer to verify that all commands are set to the desired values before using with the intended application.
13. The “^D945)?” command may now be issued to compare against the previous listing to assist in determining what commands were changed in the update process.
CAUTION: Do not send any unnecessary characters or turn the printer off during the flash memory update. Failure to observe this precaution
may result in the printer becoming inoperable.
42 226/426 User’s Guide
Chapter 6 Maintenance and Adjustments
3.2 MCA Compressed File Recovery
The printer’s firmware can typically be recovered using this method in the event that during
the MCA update the printer has become unstable. Using this method is only intended to
provide a recovery method and is not intended to update the software stored in the printer’s
flash memory. This method requires the use of a compressed MCA code file, a host computer equipped with a RS-232 serial port, and a Terminal Emulation Program (i.e., HyperAccess, HyperTerminal, Procomm Plus, Tera Term Pro...).
It is a good idea to completely read through the procedure before an update attempt is made. Do not send any unnecessary characters or remove the printer’s power during the update or the printer may become inoperable.
1. Make sure the RS-232 serial connection is made between the host and the printer including the proper Baud rate.
2. Contact Microcom Corporation support department and/or visit www.microcomcorp.com to acquire the desired MCA code file.
3. Start the terminal emulation program and set the serial parameters to 115200,n,8,1.
4. While pressing the Auxiliary button (see Figure 21) turn the printer power switch on. Note: To press the Auxiliary button, use a ballpoint pen and gently press and hold the switch in.
5. Immediately after applying printer power, observe the terminal window and follow the sample dialog below. The bold italics text denotes informational comments or instructions and is not part of the printer’s update dialog.
Found rear button pressed. Load an application, now? (y/n) [n]:
Enter “y” to load new code  
Request received
Okay. You may send a zi pped application file now (e.g., MCA_version.zip).
Start of transfer r eco gnized................................
File received Unzipping. Please stand by (approx. 54 seconds) . . .
Unzipped. CRC32 okay: 0x3fd1bf94
Application file recognized.
Erasing old application....................................
Saving new application...................................................................
Now booting to the new firmware
226/426 User’s Guide 43
Maintenance and Adjustments Chapter 6
Note: The printer takes approximately 5 minutes to read the read and copy the new
code. If a power loss occurs during this t ime the printer will revert back to the
previous code and the update process will have to be restarted.
6. The flash me mory has been recovered and the firmware may be upgraded usi ng the procedure outlined in section 3.1.
Note: The emulation program used to transfer the MCA file via the serial port must be
capable of sending Binary data, (i.e., Tera Term Pro) for proper t ransfer to occur. If
the transfer was not successful the emulation program used, may not have the ability
to transfer Binary data.
CAUTION: Do not send any unnecessary characters or turn the printer off during the flash memory update. Failure to observe this precaution
may result in the printer becoming inoperable.
44 226/426 User’s Guide
Chapter 7: Troubleshooting
7.1 Troubleshooting Tips
The printer fails to turn “ON” and the indicator light located on the front panel fails to light:
Verify that the power cord is connected to the printer as well as the AC outlet. Verify that the printer power switch is in the “ON” position. Verify that the AC outlet is functioning properly. Contact your Service Representative.
The printer has no serial communication:
Verify that the serial cable is properly connected to the printer and an available
serial port on the host computer.
Verify that the host serial port is functioning properly. Verify that the printer and the host serial port parameters are set exactly the
same.
Contact your Service Representative.
Vertical blank or light lines appear on printed areas:
Clean the print head. Print head may need replaced. Contact your Service Representative.
The front panel indicator light is solid amber in color:
Indicates that the printer is paused or a tag/tear mode is being used. Press the front panel button, light should turn green and resume printing if the
printer is paused.
Remove the tag, the light should turn green if a tag/tear mode is enabled Contact your Service Representative.
226/426 User’s Guide 45
Troubleshooting Chapter 7
The front panel light is flashing red in color:
The printer has an error and requires service before printing will continue. Verify that media is loaded in the printer properly. Press the front panel button to attem pt to clear the error. Refer to the LDSII Programming Guide for information on the Enquiry
Command to help identify the error condition.
Cycle power to reset the printer.
The front panel indicator light is solid red in color:
Generally due to a power fail error. Verify that the AC line-voltage is present at the AC outlet. The printer may be in Admi nistration Mode, refer to the LDSII Programmi ng
Guide for additional information.
Cycle power.
During download the indicator light flashes red in color:
The scri pt file or format contains an illegal operation / command. Refer to the LDSII Programming Guide and check script file. Verify that the printer is properly configured for the type of download being
sent.
The printer has a cutter but it does not cycle:
Refer to the LDSII Programming Guide. Verify that the cutter has been selected (^D506) and is enabled (^D740). Verify that the printer is properly configured to use a dispense m ethod
(^D597).
46 226/426 User’s Guide
Appendix A
Limited Warranty
Microcom Corporation printers, excluding thermal print heads, which are warranted separately below, are warranted against defects in material and workmanship for twelve (12) months from the date of original shipment by Microcom Corporation. This warranty does not cover normal wear and tear and shall be null and void if the printer is modified, improperly installed or used, damaged by accident or neglect, or in the event any parts are improperly installed or replaced by the user.
The thermal print head is covered by a limited warranty of three (3) months or 500,000 linear inches to be free from defects in material and workmanship. The length of media run through the printer may be verified using the printer’s internal statistical counter. Although the user is not required to purchase Microcom Corporation brand supplies, to the extent it is determined that the use of other supplies (such as non-approved label stock, ribbons, and cleaning solutions) shall have caused any defects in the thermal print head for which the warranty claim is made, the user shall be responsible for Microcom Corporation’s customary charges for labor and materials to repair such defects.
MICROCOM CORPORATION’S SOLE OBLIGATION UNDER THIS WARRANTY SHALL
BE TO FURNISH PARTS AND LABOR FOR THE REPAIR OR REPLACEMENT OF PRODUCTS FOUND TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIP DURING THE WARRANTY PERIOD.
Except for the express warranties stated, Microcom Corporation disclaims all warranties on products, including all implied warranties of merchantability and fitness for a particular purpose. The stated warranties and remedi es are in lieu of all other warranties, obligations or liabilities on the part of Microcom Corporation for any damages, including, but not li mited to, special, indirect, or consequential damages arising out of or in conjunction with the sale, use, or performance of these products.
MICROCOM CORPORATION SHALL NOT, UNDER ANY CIRCUMSTANCES WHATSOEVER, BE LIABLE TO THE BUYER OR ANY OTHER PARTY FOR LOST PROFITS, DIMINUTION OF GOODWILL OR ANY OTHER SPECIAL OR CONSEQUENTIAL DAMAGES WHATSOEVER WITH RESPECT TO ANY CLAIM
HEREUNDER. IN ADDITION, MICROCOM CORPORATION’S LIABILITY FOR
WARRANTY CLAIMS SHALL OT, IN ANY EVENT, EXCEED THE INVOICE PRICE OF THE PRODUCT CLAIMED TO BE DEFECTIVE, NOR SHALL MICROCOM COPRORATION BE LIABLE FOR DELAYS IN THE REPLACEMENT OR REPAIR OF PRODUCTS.
226/426 User’s Guide 47
48 226/426 User’s Guide
Appendix B
Return Material Authorization (RMA) Procedure
A Return Material Authorization (RMA) number must be obtained prior to the return of
printer’s and/or materials to the Microcom Corporation Service Department. The purpose of
the RMA number is to provide effective tracking and control of returned printers and/or materials. Microcom Corporation is not responsible or accountable for printers and/or materials returned without proper authorization.
Shipping Charges: The return of printers and/or materials to Microcom Corporation for repair should be
returned freight and insurance prepaid. Microcom Corporation will pay the return shipping charges (standard ground service) on all warranty repairs; an Expedited service is paid at the customer’s expense. The return of non-warranty repairs to printers and/or materials is shipped by the customer’s choice of shipping carrier and delivery service.
Receiving a Return Material Authorization (RMA) number:
1. To receive an RMA number, either complete the online RMA request form located on the World Wide Web (www.microcomcorp.com) or contact the Microcom Corporation Service Department and provide the representative with the following information.
- Company name.
- Contact name and phone number.
- Model number.
- Printer serial number.
- A detailed description of the problem.
- Service option requested (1 Day, 3 Day, 5 Day, or Standard turnaround).
- Purchase Order Number.
2. The shipping label should contain the following information:
Microcom Corporation Attn: Service Dept. RMA# <place RMA number here> 8220 Green Meadows Dr. N. Lewis Center, Oh 43035 USA
3. Return the defective item(s) for repair to the address listed above, freight and insurance prepaid.
4. Upon receipt of an RMA number, the customer contact is notified by a Microcom Corporation representative regarding repair c harges, at which time the ship method is determined. Items returned for repair with inadequate packaging material are returned to the customer in Microcom Corporation approved packaging at the customer’s expense.
226/426 User’s Guide 49
50 226/426 User’s Guide
Glossary
Alphanumeric - A term used to identify characters consisting of letters, numbers, and other symbols such as punctuation marks and mathematical symbols.
Bar code - Alphanumeric characters that are represented using a system of printed lines, which can be read by a computer.
Black-line - A registration mar k, typically a black line on the underside of certain media that is used to identify the starting position of a label.
Blow-hole - A registration mark, typically a notch or cutout in certain media that is used to identify the starting position of a label.
Continuous media - Media that contains no gap and continues as one piece of media. CTS (Clear to Send) - A handshaking signal used to provide information when a DCE or
modem is ready to receive data in an RS-232 communication link. Used in conjunction with RTS.
Cutter - An optional device, mounted on the printer, used to cut media into custom sized labels after printing
DCE (Data-Circuit-terminating Equipment - The modem or printer end of an RS-232 serial communication link. Modem serial ports and other peripherals are typically configured as DCE.
Die-cut media - Media that is cut using a die to form individual labels that have a start and stop point. Typically, the excess material surrounding the label is removed from the backing material.
Direct thermal - Method of printing with a special heat-sensitive media that directly contacts heat elements of a ther mal print head. (See Thermal print head)
DPI (Dots Per Inch) - A unit of measure term that identifies the print resolution capability. Drive roller - Platen roller located below the print head that is used to drive media through
the printer. DSR (Data Set Ready) - A handshaking signal used to provide information about the status
of an RS-232 serial communication link. Used in conjunction wi th DTR. DTE (Data Terminal Equipment) - The terminal or computer end of an RS-232 serial
communication link. Serial ports on computers are typically configured as DTE. DTR (Data Terminal Ready) - A handshaking signal used to provide information about the
status of the communication line connected to the DCE end of an RS-232 link. Used in conjunction with DSR.
226/426 User’s Guide 51
Ethernet - A fast and capable serial interface used by many networks for connecting host computers to various peripherals.
Fanfold media - Die-cut or tag media that is folded into stacks. Flash memory - Memory that is used to store font, graphics and label formats. This is a
non-volatile type of memory; information stored is saved even when the printer power is turned off.
GND (Signal Ground) - The ground terminal of a power supply’s output, and all points that connect to it. This is an essential signal in an RS-232 serial communication link that is used to reduce noise spikes, which can cause a receiver to misread logic levels. Also known as SG and SGND.
Guillotine Cutter – A cutter that has a blade that cuts perpendicular to the media path. Kiosk – A small structure or stand used to dispense items.. LDSII (Label Design Software II) - This is the r esident control software language that is
used to develop label formats and controls the full function of the printer. LPS (Label Present Sensor) - This sensor, when enabled, detects when media is present.
Also referred to as LTS (Label Taken Sensor).
Platen - Roller that is located below the print head, which the media r ests upon. (See Drive roller)
Rolled media - Media that is rolled onto a core, which is typically cardboard in nature. Rotary Cutter – A cutter that has multiple angled blades mounted to a shaft that cut media
by rotating the shaft. RS-232 - A popular and inexpensive asynchronous serial interface used for connecting host
computers to various peripherals. RTS (Request To Send) - A handshaking signal used to provide information when a DTE or
terminal has data to send in an RS-232 communication link. Used in conjunction with CTS. RXD (Receive Data) - An essential signal that carries data from the DCE to the DTE for 2-
way RS-232 serial communication. Also known as RX and RD. SRAM (Synchronous Random Access Memory) - Memory used to store formats while
printing. This is volatile memory; information stored in this memory is not saved when the printer power is turned off.
Tag stock - Media that typically has no adhesive backing, thicker in nature, and generally is a fanfold type media.
Thermal print head - A print head that uses thermal technology, to heat individual elements or dots to produce images. Also referred to as print head in this manual.
52 226/426 User’s Guide
TXD (Transmit Data) - An essential signal that carries data from the DTE to the DCE for 2­way RS-232 serial communication. Also known as TX and TD.
USB (Universal Serial Bus) - A high-speed asynchronous serial interface, typically transfers up to 12M bits/second, used for connecting host computers to various peripherals.
226/426 User’s Guide 53
Index
A
Agency Approvals................................................................ ................................ ................................ ................................ .............3
Auxiliary Interface ................................................................................................................................ ..........................................30
B
Bar codes ................................ ................................ ..........................................................................................................................5
C
Cleaning Kit................................................................................................ ................................ ................................ ................ 6, 34
Communication
RS-232 Serial.............................................................................................................................................................................. 29
Connections
Communication Interfaces................................ ................................ .............................................................................................8
Printer Power................................................................................................................................................................ ................8
D
Data Bits................................................................ ...........................................................................................................................3
Depth................................................................................................................................................................................................ 3
Drive Roller................................................................................................................................................................ .........33, 38, 39
E
Electrical................................................................ ................................ ................................ ........................................................... 3
Enquiry........................................................................................................................................................................................... 13
Ethernet............................................................................................................................................................................3, 8, 30, 52
F
Features ................................ ............................................................................................................................................................5
Flash Memory................................................................................................................................................................................. 41
Flow Control............................................................................................................................................................................... 3, 29
Fonts................................................................................................ ................................ ................................ ................................ . 5
Front Panel Button.....................................................................................................................................................10, 11, 13, 25, 45
G
Gap Detector................................ ................................ ................................ ................................ ...................................................40
Glossary.......................................................................................................................................................................................... 51
Graphics........................................................................................................................................................................................1, 5
H
Head Lift Lever................................ ........................................................................................................................................... 9, 34
Head Release Levers ............................................................................................................................................................37, 38, 39
Height............................................................................................................................................................................................... 3
Hosts................................................................................................................................ ................................ ................................ . 3
I
Indicator Light ....................................................................................................................................................10, 11, 13, 25, 45, 46
Inspection ................................................................................................................................ ................................ ......................... 7
Interface Communications
Network Connectivity ................................................................................................................................ ................................ ...3
Serial................................................................................................................................................................ ............................ 3
Isopropyl Alcohol................................................................................................ ................................ ......................................34, 38
226/426 User’s Guide 55
L
Label Design Software II................................................................................................................................ ................................ ...1
Limited Warranty ................................ ................................ ................................ ................................ ............................................47
Line Guide Idler ................................ ................................ ................................ ................................ ................................................ 9
M
Maintenance
Auxiliary Button ................................................................................................................................ ................................ ......... 41
Drive Roller................................................................................................................................................................................39
Exterior................................................................................................................................................................ ....................... 40
Gap Adjustment.......................................................................................................................................................................... 40
Interior........................................................................................................................................................................................37
Printhead ................................................................................................................................................................ .................... 38
Schedule................................................................................................................................................................ ..................... 33
Thermal Card..............................................................................................................................................................................34
Media
Loading ........................................................................................................................................................................................9
Maximum Thickness................................................................................................................................................................ .....4
Maximum Width...........................................................................................................................................................................4
Types............................................................................................................................................................................................4
Memory
Flash................................................................................................ ................................ ............................................................. 3
SDRAM........................................................................................................................................................................................3
O
Operation
Front Panel Button................................................................................................ ......................................................................11
Halted Mode............................................................................................................................................................................... 13
Idle Mode ...................................................................................................................................................................................13
Indicator Light ................................................................................................ ................................ ............................................11
Paused Mode...............................................................................................................................................................................25
Options ............................................................................................................................................................................................. 6
P
Packaging ......................................................................................................................................................................................... 7
Parity................................................................................................................................................................ ................................ 3
Peel Edge.............................................................................................................................................................................33, 38, 39
Print Length................................................................................................................................ ................................ ...................... 3
Print Resolution.................................................................................................................................................................................3
Print Speed................................................................................................................................................................ ........................ 3
Print Type................................................................ ................................ ................................ ................................ ......................... 3
Print Width ....................................................................................................................................................................................... 3
Printer Modes
Halted......................................................................................................................................................................................... 13
Idle................................................................................................................................ .............................................................13
Paused................................................................................................ ................................ ........................................................25
Printhead................................................................................................................................ .....5, 6, 33, 34, 37, 38, 39, 45, 47, 51, 52
Protocols...........................................................................................................................................................................................3
R
Repairs................................................................................................ ................................ ............................................................49
Return Material Authorization ......................................................................................................................................................... 49
RS-232 Cable................................................................................................ ............................................................................ 29, 30
S
Serial ................................ ................................ ...................................................................................................................41, 43, 44
Service................................................................ ............................................................................................................................49
Shipping Damage..............................................................................................................................................................................7
Specifications
General................................................................................................ ................................ ................................ ......................... 3
Media................................................................................................................................................................ ........................... 4
Printing................................................................ ................................ ................................ ................................ ......................... 3
T
Tag bracket ................................ ................................ ................................ ................................ ....................................................... 9
Temperature......................................................................................................................................................................................3
Thermal Printer Card....................................................................................................................................................................... 34
Troubleshooting ................................ ................................ ................................ ................................ ..............................................45
U
Unpacking.........................................................................................................................................................................................7
W
Warranty......................................................................................................................................................................................... 47
Weight..............................................................................................................................................................................................3
Width................................................................................................................................................................................................ 3
226/426 User’s Guide 57
User Notes
226/426 User’s Guide 59
Loading...
