 2001 Microchip Technology Inc. DS30292C

PIC16F87X

Data Sheet

28/40-Pin 8-Bit CMOS FLASH

Microcontrollers

DS30292C - page ii  2001 Microchip Technology Inc.

“All rights reserved. Copyright © 2001, Microchip Technology Incorporated, USA. Information contained in this publication regarding device applications and the like is intended through suggestion only and may be superseded by updates. No representation or warranty is given and no liability is assumed by Microchip Technology Incorporated with respect to the accuracy or use of such information, or infringement of patents or other intellectual property rights arising from such use or ot herwise. Use of Microchip’s products as critical components in life support systems is not authorized except with express written approval by Microchip. No licenses are conveyed, implicitly or otherwise, under any intellectual property rights. The Microchip logo and name are registered trademarks of Microchip Technology Inc. in the U.S.A. and other countries. All rights reserved. All other trademarks mentioned herein are the property of their respective companies. No licenses are conveyed, implicitly or otherwise, under any intellectual property rights.”

Trademarks

The Microchip name, logo, PIC, PICmicro, PICMASTER, PICSTART, PRO MATE, K

EELOQ, SEEVAL, MPLAB and The

Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

Total Endurance, ICSP, In-Circuit Serial Programming, FilterLab, MXDEV, microID, FlexROM, fuzzyLAB, MPASM, MPLINK, MPLIB, PICDEM, ICEPIC, Migratable Memory, FanSense, ECONOMONITOR and SelectMode are trademarks of Microchip Technology Incorporated in the U.S.A.

Serialized Quick T erm Programming (SQTP) is a service mark of Microchip Technology Incorporated in the U.S.A.

All other trademarks mentioned herein are property of their respective companies.

Microchip received QS-9000 quality system certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona in July 1999. The Company’s quality system processes and procedures are QS-9000 compliant for its PICmicro

8-bit MCUs, KEELOQ

code hoppin g devices, Serial EEPROMs and microperipheral products. In addition, Microchip’s quality system for the design and manufacture of development systems is ISO 9001 certified.

 2001 Microchip Technology Inc. DS30292C-page 1

PIC16F87X

Devices Included in this Data Sheet:

Microcontroller Core Features:

• High performance RISC CPU

• Only 35 single word instructions to learn

• All single cycle instructions except for program

branches which are two cycle

• Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle

• Up to 8K x 14 words of FLASH Program M em ory,

Up to 368 x 8 bytes of Data Memory (RAM) Up to 256 x 8 bytes of EEPROM Data Memory

• Pinout compatible to the PIC16C73B/74B/76/77

• Interrupt capability (up to 14 sources)

• Eight level deep hardware stack

• Direct, indirect and relative addressing modes

• Power-on Reset (POR)

• Power-up Timer (PWRT) and

Oscillator Start-up Timer (OST)

• Watchdog Timer (WDT) with its own on-chip RC

oscillator for reliable operation

• Programmable code protection

• Power saving SLEEP mode

• Selectable oscillator options

• Low power, high speed CMOS FLASH/EEPROM

technology

• Fully static design

• In-Circuit Serial Programming (ICSP) via two

pins

• Single 5V In-Circuit Seria l Programming capability

• In-Circuit Debugging via two pins

• Processor read/write access to program memory

• Wide operating voltage range: 2.0V to 5.5V

• High Sink/Source Current: 25 mA

• Commercial, Industria l and Extended temp erature

ranges

• Low-power consumption:

- < 0.6 mA typical @ 3V, 4 MHz

-20 µA typical @ 3V, 32 kHz

-< 1 µA typical standby current

Pin Diagram

Peripheral Features:

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler,

can be incremented during SLEEP via external crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• Two Capture, Compare, PWM modules

- Capture is 16-bit, max. resolution is 12.5 ns

- Compare is 16-bit, max. resolution is 200 ns

- PWM max. resolution is 10-bit

• 10-bit multi-channel Analog-to-Digital converter

• Synchronous Serial Port (SSP) with SPI



(Master

mode) and I

2C

(Master/Slave)

• Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address detection

• Parallel Slave Port (PSP) 8-bits wide, with external RD

, WR and CS controls (40/44-pin only)

• Brown-out detection circuitry for Brown-out Reset (BOR)

• PIC16F873

• PIC16F874

• PIC16F876

• PIC16F877

RB7/PGD RB6/PGC RB5 RB4 RB3/PGM RB2

RB1 RB0/INT VDD VSS RD7/PSP7 RD6/PSP6 RD5/PSP5 RD4/PSP4 RC7/RX/DT RC6/TX/CK RC5/SDO RC4/SDI/SDA RD3/PSP3 RD2/PSP2

MCLR/VPP

RA0/AN0 RA1/AN1

RA2/AN2/VREF-

RA3/AN3/VREF+

RA4/T0CKI

RA5/AN4/SS

RE0/RD/AN5

RE1/WR/AN6

RE2/CS/AN7

VDD VSS

OSC1/CLKIN

OSC2/CLKOUT

RC0/T1OSO/T1CKI

RC1/T1OSI/CCP2

RC2/CCP1

RC3/SCK/SCL

RD0/PSP0 RD1/PSP1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21

PIC16F877/874

PDIP

28/40-Pin 8-Bit CMOS FLASH Microcontrollers

PIC16F87X

DS30292C-page 2  2001 Microchip Technology Inc.

Pin Diagrams

PIC16F876/873

10 11

2 3 4 5 6

12 13 14

22 21

MCLR/VPP

RA0/AN0 RA1/AN1

RA2/AN2/V

REF-

RA3/AN3/V

REF+

RA4/T0CKI

RA5/AN4/SS

VSS

OSC1/CLKIN

OSC2/CLKOUT

RC0/T1OSO/T1CKI

RC1/T1OSI/CCP2

RC2/CCP1

RC3/SCK/SCL

RB7/PGD RB6/PGC RB5 RB4 RB3/PGM RB2 RB1 RB0/INT V

VSS RC7/RX/DT RC6/TX/CK RC5/SDO RC4/SDI/SDA

10 11 12 13 14 15 16 17

181920212223242526

65432

PIC16F877

RA4/T0CKI

RA5/AN4/SS

RE0/RD/AN5

OSC1/CLKIN

OSC2/CLKOUT

RC0/T1OSO/T1CK1

RE1/WR

/AN6

RE2/CS

/AN7

VSS

RB3/PGM RB2 RB1 RB0/INT V

VSS RD7/PSP7 RD6/PSP6 RD5/PSP5 RD4/PSP4 RC7/RX/DT

RA3/AN3/VREF+

RA2/AN2/V

REF-

RA1/AN1

RA0/AN0

MCLR

/VPP

RB7/PGD

RB6/PGC

RB5

RB4

RC6/TX/CK

RC5/SDO

RC4/SDI/SDA

RD3/PSP3

RD2/PSP2

RD1/PSP1

RD0/PSP0

RC3/SCK/SCL

RC2/CCP1

RC1/T1OSI/CCP2

10 11

2 3 4 5 6

1819202122

121314

4443424140

363435

PIC16F877

RA3/AN3/VREF+

RA2/AN2/V

REF-

RA1/AN1

RA0/AN0

MCLR

/VPP

RB7/PGD

RB6/PGC

RB5

RB4

RC6/TX/CK

RC5/SDO

RC4/SDI/SDA

RD3/PSP3

RD2/PSP2

RD1/PSP1

RD0/PSP0

RC3/SCK/SCL

RC2/CCP1

RC1/T1OSI/CCP2

NC RC0/T1OSO/T1CKI OSC2/CLKOUT OSC1/CLKIN V

VDD RE2/AN7/CS RE1/AN6/WR RE0/AN5/RD RA5/AN4/SS RA4/T0CKI

RC7/RX/DT

RD4/PSP4 RD5/PSP5 RD6/PSP6 RD7/PSP7

VDD

RB0/INT

RB1 RB2

RB3/PGM

PLCC

QFP

PDIP, SOIC

PIC16F874

 2001 Microchip Technology Inc. DS30292C-page 3

PIC16F87X

Key Features

PICmicro™ Mid-Range Reference

Manual (DS3 3023)

PIC16F873 PIC16F874 PIC16F876 PIC16F877

Operating Frequency DC - 20 MHz DC - 20 MHz DC - 20 MHz DC - 20 MHz

RESETS (and Delays) POR, BOR

(PWRT, OST)

POR, BOR

(PWRT, OST)

POR, BOR

(PWRT, OST)

POR, BOR

(PWRT, OST)

FLASH Program Memory

(14-bit words)

4K 4K 8K 8K

Data Memory (bytes) 192 192 368 368

EEPROM Data Memory 128 128 256 256

Interrupts 13 14 13 14

I/O Ports Ports A,B,C Ports A,B,C,D,E Ports A,B,C Ports A,B,C,D,E

Timers 3333

Capture/Compa re/PW M Mo dul es 2 2 2 2

Serial Communications MSSP, USART MSSP, USART MSSP, USART MSSP, USART

Parallel Communications — PSP — PSP

10-bit Analog-to-Digital Module 5 input channels 8 input channels 5 input channels 8 input channels

Instruction Set 35 instructions 35 instructions 35 instructions 35 instructions

PIC16F87X

DS30292C-page 4  2001 Microchip Technology Inc.

Table of Contents

1.0 Device Overview................................................................................................................................................... 5

2.0 Memory Organization.......................................................................................................................................... 11

3.0 I/O Ports.............................................................................................................................................................. 29

4.0 Data EEPROM and FLASH Program Memory.................................................................................................... 41

5.0 Timer0 Module.................................................................................................................................................... 47

6.0 Timer1 Module.................................................................................................................................................... 51

7.0 Timer2 Module.................................................................................................................................................... 55

8.0 Capture/Compare/PWM Modules....................................................................................................................... 57

9.0 Master Synchronous Serial Port (MSSP) Module............................................................................................... 65

10.0 Addressable Universal Synchronous Asynchronous Receiver Transmitter (USART) ........................................ 95

11.0 Analog-to-Digital Converter (A/D) Module......................................................................................................... 111

12.0 Special Features of the CPU............................................................................................................................. 119

13.0 Instruction Set Summary................................................................................................................................... 135

14.0 Development Support ....................................................... ...... ...... ..... ...... ......................................................... 143

15.0 Electrical Characteristics................................................................................................................................... 149

16.0 DC and AC Characteristics Graphs and Tables................................................................................................ 177

17.0 Packaging Information ...................................................................................................................................... 189

Appendix A: Revision History .................................................................................................................................... 197

Appendix B: Device Differences ................................................................................................................................ 197

Appendix C: Conversion Considerations................................................................................................................... 198

Index .......................................................................................................................................................................... 199

On-Line Support......................................................................................................................................................... 207

Reader Response...................................................................................................................................................... 208

PIC16F87X Product Identification System................................................................................................................. 209

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and enhanced as new volumes and updates are introduced.

If you have any questions or co mm ents regarding this publication, please contact the Marketing Communications Department via E-mail at docerrors@mail.microchip.com or fax the Reader Response Form in the back of this data sheet to (480) 792-4150. We welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page. The last character of the literature number is the version number, (e.g., DS30000A is version A of document DS30000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:

• Microchip’s Worldwide Web site; http://www.microchip.com

• Your local Microchip sales office (see last page)

• The Microchip Corporate Literature Center; U.S. FAX: (480) 792-7277

When contacting a sales office or the literature center, please specify which device, revision of silicon and data sheet (include literature number) you are using.

Customer Notification System

 2001 Microchip Technology Inc. DS30292C-page 5

PIC16F87X

1.0 DEVICE OVERVIEW

This document contains device specific information. Additional information may be found in the PICmicro™ Mid-Range Reference Manual (DS33023), which may be obtained from your local Microchip Sales Representative or downloaded from the Microchip website. The Reference Manual should be considered a complementary document to this data sheet, and is highly recommended reading for a better understanding of the device architecture and operation of the peripheral modules.

There are four devices (PIC16F873, PIC16F874, PIC16F876 and PIC16F877) covered by this data sheet. The PIC16F876/873 devices come in 28-pin packages and the PIC16F877/874 devices come in 40-pin packages. The Parallel Slave Port is not implemented on the 28-pin devic es .

The following device bloc k diagrams are s orted by pin number; 28-pin for Figure 1-1 and 40-pin for Figure 1-2. The 28-pin and 40-pin pin outs are listed in Table 1- 1 and Table 1-2, respectively.

FIGURE 1-1: PIC16F873 AND PIC16F876 BLOCK DIAGRAM

FLASH

Program

Memory

Data Bus

Program

Bus

Instruction reg

Program Counter

8 Level Stack

(13-bit)

RAM

File

Registers

Direct Addr

RAM Addr

(1)

Addr MUX

Indirect

Addr

FSR reg

STATUS reg

MUX

ALU

W reg

Power-up

Timer

Oscillator

Start-up Timer

Power-on

Reset

Watchdog

Timer

Instruction

Decode &

Control

Timing

Generation

OSC1/CLKIN OSC2/CLKOUT

MCLR

VDD, VSS

PORTA

PORTB

PORTC

RA4/T0CKI RA5/AN4/SS

RB0/INT

RC0/T1OSO/T1CKI RC1/T1OSI/CCP2 RC2/CCP1

RC3/SCK/SCL RC4/SDI/SDA RC5/SDO RC6/TX/CK RC7/RX/DT

Brown-out

Reset

Note 1: Higher order bits are from the STATUS register.

USART

CCP1,2

Synchronous

10-bit A/DTimer0 Timer1 Timer2

Serial Port

RA3/AN3/VREF+

RA2/AN2/VREF-

RA1/AN1

RA0/AN0

Data EEPROM

RB1 RB2 RB3/PGM RB4 RB5 RB6/PGC RB7/PGD

Device

Program

FLASH

Data Memory

Data

EEPROM

PIC16F873 4K 192 Bytes 128 Bytes PIC16F876 8K 368 Bytes 256 Bytes

In-Circuit

Debugger

Low Voltage

Programming

PIC16F87X

DS30292C-page 6  2001 Microchip Technology Inc.

FIGURE 1-2: PIC16F874 AND PIC16F877 BLOCK DIAGRAM

FLASH Program

Memory

Data Bus

Program

Bus

Instruction reg

Program Counter

8 Level Stack

(13-bit)

RAM

File

Registers

Direct Addr

RAM Addr

(1)

Addr MUX

Indirect

Addr

FSR reg

STATUS reg

MUX

ALU

W reg

Power-up

Timer

Oscillator

Start-up Timer

Power-on

Reset

Watchdog

Timer

Instruction

Decode &

Control

Timing

Generation

OSC1/CLKIN OSC2/CLKOUT

MCLR

VDD, VSS

PORTA

PORTB

PORTC

PORTD

PORTE

RA4/T0CKI RA5/AN4/SS

RC0/T1OSO/T1CKI RC1/T1OSI/CCP2 RC2/CCP1 RC3/SCK/SCL RC4/SDI/SDA RC5/SDO RC6/TX/CK RC7/RX/DT

RE0/AN5/RD RE1/AN6/WR

RE2/AN7/CS

Brown-out

Reset

Note 1: Higher order bits are from the STATUS register.

USART

CCP1,2

Synchronous

10-bit A/DTimer0 Timer1 Timer2

Serial Port

RA3/AN3/VREF+

RA2/AN2/VREF-

RA1/AN1

RA0/AN0

Parallel Slave Port

Data EEPROM

RB0/INT RB1 RB2 RB3/PGM RB4 RB5 RB6/PGC RB7/PGD

Device

Program

FLASH

Data Memory

Data

EEPROM

PIC16F874 4K 192 Bytes 128 Bytes PIC16F877 8K 368 Bytes 256 Bytes

In-Circuit

Debugger

Low-Voltage

Programming

RD0/PSP0 RD1/PSP1 RD2/PSP2 RD3/PSP3 RD4/PSP4 RD5/PSP5 RD6/PSP6 RD7/PSP7

 2001 Microchip Technology Inc. DS30292C-page 7

PIC16F87X

T ABLE 1-1: PIC16F873 AND PIC16F876 PINOUT DESCRIPTION

Pin Name

DIP

Pin#

SOIC

Pin#

I/O/P Type

Buffer

Type

Description

OSC1/CLKIN 9 9 I ST/CMOS

(3)

Oscillator crystal input/external clock source input.

OSC2/CLKOUT 10 10 O — Oscillator crystal output. Connects to crystal or resonator in

crystal oscillator mode. In RC mode, the OSC2 pin outputs CLKOUT which has 1/4 the frequency of OSC1, and denotes the instruction cycle rate.

MCLR

/VPP 1 1 I/P ST Master Clear (Reset) input or programming voltage input. This

pin is an active low RESET to the device.

PORTA is a bi-directional I/O port. RA0/AN0 2 2 I/O TTL RA0 can also be analog input0. RA1/AN1 3 3 I/O TTL RA1 can also be analog input1. RA2/AN2/V

REF- 4 4 I/O TTL RA2 can also be analog input2 or negative analog

reference voltage.

RA3/AN3/V

REF+ 5 5 I/O TTL RA3 can also be analog input3 or positive analog

reference voltage.

RA4/T0CKI 6 6 I/O ST RA4 can also be the clock input to the Timer0

module. Output is open drain type.

RA5/SS

/AN4 7 7 I/O TTL RA5 can also be analog input4 or the slave select

for the synchronous serial port.

PORTB is a bi-directional I/O port. PORTB can be software

programmed for internal weak pull-up on all inputs. RB0/INT 21 21 I/O TTL/ST

(1)

RB0 can also be the external interrupt pin. RB1 22 22 I/O TTL RB2 23 23 I/O TTL RB3/PGM 24 24 I/O TTL RB3 can also be the low voltage programming input. RB4 25 25 I/O TTL Interrupt-on-change pin. RB5 26 26 I/O TTL Interrupt-on-change pin. RB6/PGC 27 27 I/O TTL/ ST

(2)

Interrupt-on-change pin or In-Circuit Debugger pin. Serial

programming clock. RB7/PGD 28 28 I/O TTL/ ST

(2)

Interrupt-on-change pin or In-Circuit Debugger pin. Serial

programming data.

PORTC is a bi-directional I/O port.

RC0/T1OSO/T1CKI 11 11 I/O ST RC0 can also be the Timer1 oscillator output or Timer1

clock input. RC1/T1OSI/CCP2 12 12 I/O ST RC1 can also be the Timer1 oscillator input or Capture2

input/Compare2 output/PWM2 output. RC2/CCP1 13 13 I/O ST RC2 can also be the Capture1 input/Compare1 output/

PWM1 output. RC3/SCK/SCL 14 14 I/O ST RC3 can also be the synchronous serial clock input/output

for both SPI and I

C modes.

RC4/SDI/SDA 15 15 I/O ST RC4 can also be the SPI Data In (SPI mode) or

data I/O (I

C mode). RC5/SDO 16 16 I/O ST RC5 can also be the SPI Data Out (SPI mode). RC6/TX/CK 17 17 I/O ST RC6 can also be the USART Asynchronous Transmit or

Synchronous Clock.

RC7/RX/DT 18 18 I/O ST RC7 can also be the USART Asynchronous Rece ive or

Synchronous Data.

SS 8, 19 8, 19 P — Ground reference for logic and I/O pins.

DD 20 20 P — Positive supply for logic and I/O pins.

Legend: I = input O = output I/O = input/output P = power

— = Not used TTL = TTL input ST = Schmitt Trigger input

Note 1: This buffer is a Schmitt Trigger input when configured as the external interrupt.

2: This buffer is a Schmitt Trigger input when used in Serial Programming mode. 3: This buffer is a Schmitt Trigger input when configured in RC oscillator mode and a CMOS input otherwise.

PIC16F87X

DS30292C-page 8  2001 Microchip Technology Inc.

TABLE 1-2: PIC16F874 AND PIC16F877 PINOUT DESCRIPTION

Pin Name

DIP

Pin#

PLCC

Pin#

QFP Pin#

I/O/P

Type

Buffer

Type

Description

OSC1/CLKIN 13 14 30 I ST/CMOS

(4)

Oscillator crystal input/external clock source input.

OSC2/CLKOUT 14 15 31 O — Oscillator crystal output. Connects to crystal or resonator

in crystal oscillator mode. In RC mode, OSC2 pin outputs CLKOUT which has 1/4 the frequency of OSC1, and denotes the instruction cycle rate.

MCLR

/VPP 1 2 18 I/P ST Master Clear (Reset) input or programming voltage input.

This pin is an active low RESET to the device.

PORTA is a bi-directional I/O port. RA0/AN0 2 3 19 I/O TTL RA0 can also be analog input0. RA1/AN1 3 4 20 I/O TTL RA1 can also be analog input1. RA2/AN2/V

REF- 4 5 21 I/O TTL RA2 can also be analog input2 or negative

analog reference voltage.

RA3/AN3/V

REF+ 5 6 22 I/O TTL RA3 can also be analog input3 or positive

analog reference voltage.

RA4/T0CKI 6 7 23 I/O ST RA4 can also be the clock input to the Timer0 timer/

counter. Output is open drain type.

RA5/SS/

AN4 7 8 2 4 I/O TTL RA5 can also be analog input4 or the slave select for

the synchronous serial port.

PORTB is a bi-directional I/O port. PORTB can be soft-

ware programmed for internal weak pull-up on all inputs. RB0/INT 33 36 8 I/O TTL/ST

(1)

RB0 can also be the external interrupt pin. RB1 34 37 9 I/O TTL RB2 35 38 10 I/O TTL RB3/PGM 36 39 11 I/O TTL RB3 can also be the low voltage programming input. RB4 37 41 14 I/O TTL Interrupt-on-change pin. RB5 38 42 15 I/O TTL Interrupt-on-change pin. RB6/PGC 39 43 16 I/O TTL/ST

(2)

Interrupt-on-change pin or In-Circuit Debugger pin.

Serial programming clock. RB7/PGD 40 44 17 I/O TTL/ST

(2)

Interrupt-on-change pin or In-Circuit Debugger pin.

Serial programming data. Legend: I = input O = output I/O = input/output P = power

— = Not used TTL = TTL input ST = Schmitt Trigger input

Note 1: This buffer is a Schmitt Trigger input when configured as an external interrupt.

2: This buffer is a Schmitt Trigger input when used in Serial Programming mode. 3: This buffer is a Schmitt Trigger input when configured as general purpose I/O and a TTL input when used in the Parallel

Slave Port mode (for interfacing to a microprocessor bus).

4: This buffer is a Schmitt Trigger input when configured in RC oscillator mode and a CMOS input otherwise.

 2001 Microchip Technology Inc. DS30292C-page 9

PIC16F87X

PORTC is a bi-directional I/O port.

RC0/T1OSO/T1CKI 15 16 32 I/O ST RC0 can also be the Timer1 oscillator output or a

Timer1 clock input.

RC1/T1OSI/CCP2 16 18 35 I/O ST RC1 can also be the Timer1 oscillator input or

Capture2 input/Compare2 output/PWM2 output.

RC2/CCP1 17 19 36 I/O ST RC2 can also be the Capture1 input/Compare1

output/PWM1 output.

RC3/SCK/SCL 18 20 37 I/O ST RC3 can also be the synchronous serial clock input/

output for both SPI and I

C modes.

RC4/SDI/SDA 23 25 42 I/O ST RC4 can also be the SPI Data In (SPI mode) or

data I/O (I

C mode). RC5/SDO 24 26 43 I/O ST RC5 can also be the SPI Data Out (SPI mode). RC6/TX/CK 25 27 44 I/O ST RC6 can also be the USART Asynchronous Transmit

or Synchronous Clock.

RC7/RX/DT 26 29 1 I/O S T RC7 can also be the USART Asynchronous Receive

or Synchronous Data.

PORTD is a bi-directional I/O port or parallel slave port when interfacing to a microprocessor bus.

RD0/PSP0 19 21 38 I/O ST/TTL

(3)

RD1/PSP1 20 22 39 I/O ST/TTL

(3)

RD2/PSP2 21 23 40 I/O ST/TTL

(3)

RD3/PSP3 22 24 41 I/O ST/TTL

(3)

RD4/PSP4 27 30 2 I/O ST/TTL

(3)

RD5/PSP5 28 31 3 I/O ST/TTL

(3)

RD6/PSP6 29 32 4 I/O ST/TTL

(3)

RD7/PSP7 30 33 5 I/O ST/TTL

(3)

PORTE is a bi-directional I/O port.

RE0/RD

/AN5 8 9 25 I/O ST/TTL

(3)

RE0 can also be read control for the parallel slave port, or analog input5.

RE1/WR

/AN6 9 10 26 I/O ST/TTL

(3)

RE1 can also be write control for the parallel slave port, or analog input6.

RE2/CS

/AN7 10 11 27 I/O ST/TTL

(3)

RE2 can also be select control for the parallel slave port, or analog input7.

SS 12,31 13,34 6,29 P — Ground reference for logic and I/O pins.

DD 11,32 12,35 7,28 P — Positive supply for logic and I/O pins.

NC — 1,17,28,4012,13,

33,34

— These pins are not internally connected. These pins

should be left unconnected.

T ABLE 1-2: PIC16F874 AND PIC16F877 PINOUT DESCRIPTION (CONTINUED)

Pin Name

DIP

Pin#

PLCC

Pin#

QFP Pin#

I/O/P Type

Buffer

Type

Description

Legend: I = input O = output I/O = input/output P = power

— = Not used TTL = TTL input ST = Schmitt Trigger input

Note 1: This buffer is a Schmitt Trigger input when configured as an external interrupt.

Slave Port mode (for interfacing to a microprocessor bus).

4: This buffer is a Schmitt Trigger input when configured in RC oscillator mode and a CMOS input otherwise.

PIC16F87X

DS30292C-page 10  2001 Microchip Technology Inc.

NOTES:

 2001 Microchip Technology Inc. DS30292C-page 11

PIC16F87X

2.0 MEMORY ORGANIZATION

There are three memory blocks in each of the PIC16F87X MCUs. The Program Memory and Data Memory have separate buses so that concurrent access can oc cur and is detailed in this section. T he EEPROM data memory block is detailed in Se ction 4.0.

Additional informa tion on devi ce memory may be found in the PICmicro Mid-Range Reference Manual, (DS33023).

FIGURE 2-1: PIC16F877/876 PROGRAM

MEMORY MAP AND STACK

2.1 Program Memory Organization

The PIC16F87X devic es have a 13-bit p rogram counter capable of addressing an 8K x 14 program memory space. The PIC16F877/876 devices have 8K x 14 words of FLASH program memory, and the PIC16F873/874 devices have 4K x 14. Accessing a location above the ph ysicall y implemente d address w ill cause a wraparound.

The RESET vector is at 0000h and the interrupt vector is at 0004h.

FIGURE 2-2: PIC16F874/873 PROGRAM

MEMORY MAP AND STACK

PC<12:0>

0000h

0004h

0005h

Stack Level 1

Stack Level 8

RESET Vector

Interrupt Vector

On-Chip

CALL, RETURN RETFIE, RETLW

1FFFh

Stack Level 2

Program

Memory

Page 0

Page 1

Page 2

Page 3

07FFh

0800h

0FFFh

1000h

17FFh

1800h

PC<12:0>

0000h

0004h

0005h

Stack Level 1

Stack Level 8

RESET Vector

Interrupt Vector

On-Chip

CALL, RETURN RETFIE, RETLW

1FFFh

Stack Level 2

Program

Memory

Page 0

Page 1

07FFh

0800h

0FFFh

1000h

PIC16F87X

DS30292C-page 12  2001 Microchip Technology Inc.

2.2 Data Memory Organization

The data memory is partitioned into multiple banks which contain the General Purpose Registers and the Special Function Registers. Bits RP1 (STATUS<6>) and RP0 (STATUS<5>) are the bank select bits.

Each bank extends up to 7Fh (128 bytes). The lower locations of each bank are reserved for the Special Function Registers. Above the Special Function Registers are General Purpose Registers, implemented as static RAM. All implemented banks contain Special Function Registers. Some frequently used Special Function Registers from one bank may be mirrored in another bank for code reduction and quicker access.

2.2.1 GENERAL PURPOSE REGISTER FILE

The register file can be acces sed either directly, or indirectly through the File Select Register (FSR).

RP1:RP0 Bank

00 0 01 1 10 2 11 3

Note: EEPROM Data Memory de scription can b e

found in Section 4.0 of this data sheet.

 2001 Microchip Technology Inc. DS30292C-page 13

PIC16F87X

FIGURE 2-3: PIC16F877/876 REGISTER FILE MAP

Indirect addr.

(*)

TMR0

PCL

STATUS

FSR PORTA PORTB PORTC

PCLATH INTCON

PIR1

TMR1L TMR1H T1CON

TMR2

T2CON

SSPBUF

SSPCON

CCPR1L

CCPR1H

CCP1CON

OPTION_REG

PCL

ST ATUS

FSR TRISA TRISB TRISC

PCLATH INTCON

PIE1

PCON

PR2

SSPADD

SSPSTAT

00h 01h 02h 03h 04h 05h 06h 07h 08h 09h 0Ah 0Bh 0Ch 0Dh 0Eh 0Fh 10h 11h 12h 13h 14h 15h 16h 17h 18h 19h 1Ah 1Bh 1Ch 1Dh 1Eh 1Fh

80h 81h 82h 83h 84h 85h 86h 87h 88h 89h 8Ah 8Bh 8Ch 8Dh 8Eh 8Fh 90h 91h 92h 93h 94h 95h 96h 97h 98h 99h 9Ah 9Bh 9Ch 9Dh 9Eh 9Fh

20h

A0h

7Fh

FFh

Bank 0

Bank 1

Unimplemented data memory locations, read as ’0’.

* Not a physical register.

Note 1: These registers are not implemented on the PIC16F876.

2: These registers are reserved, maintain these registers clear.

File

Address

Indirect addr.

(*)

Indirect addr.

(*)

PCL

ST ATUS

FSR

PCLATH

INTCON

PCL

ST ATUS

FSR

PCLATH INTCON

100h 101h 102h 103h 104h 105h 106h 107h 108h 109h 10Ah 10Bh 10Ch 10Dh 10Eh 10Fh 110h 111h 112h 113h 114h 115h 116h 117h 118h 119h 11Ah 11Bh 11Ch 11Dh 11Eh 11Fh

180h 181h 182h 183h 184h 185h 186h 187h 188h 189h 18Ah 18Bh 18Ch 18Dh 18Eh 18Fh 190h 191h 192h 193h 194h 195h 196h 197h 198h 199h 19Ah 19Bh 19Ch 19Dh 19Eh 19Fh

120h

1A0h

17Fh

1FFh

Bank 2

Bank 3

Indirect addr.

(*)

PORTD

(1)

PORTE

(1)

TRISD

(1)

ADRESL

TRISE

(1)

TMR0

OPTION_REG

PIR2

PIE2

RCST A

TXREG

RCREG CCPR2L CCPR2H

CCP2CON

ADRESH ADCON0

TXSTA

SPBRG

ADCON1

General Purpose Register

1EFh 1F0h

accesses 70h - 7Fh

EFh F0h

accesses

70h-7Fh

16Fh 170h

accesses

70h-7Fh

General Purpose Register

TRISB

PORTB

96 Bytes

80 Bytes 80 Bytes 80 Bytes

16 Bytes

SSPCON2

EEDATA

EEADR

EECON1 EECON2

EEDATH

EEADRH

Reserved

(2)

Reserved

(2)

File

Address

File

Address

File

Address

File

Address

PIC16F87X

DS30292C-page 14  2001 Microchip Technology Inc.

FIGURE 2-4: PIC16F874/873 REGISTER FILE MAP

Indirect addr.

(*)

TMR0

PCL

ST ATUS

FSR PORTA PORTB

PORTC

PCLATH INTCON

PIR1

TMR1L

TMR1H T1CON

TMR2

T2CON

SSPBUF

SSPCON

CCPR1L

CCPR1H

CCP1CON

OPTION_REG

PCL

ST ATUS

FSR TRISA TRISB TRISC

PCLATH INTCON

PIE1

PCON

PR2

SSPADD

SSPSTAT

00h 01h 02h 03h 04h 05h 06h 07h 08h 09h 0Ah 0Bh 0Ch 0Dh 0Eh 0Fh 10h 11h 12h 13h 14h 15h 16h 17h 18h 19h 1Ah 1Bh 1Ch 1Dh 1Eh 1Fh

80h 81h 82h 83h 84h 85h 86h 87h 88h 89h 8Ah 8Bh 8Ch 8Dh 8Eh 8Fh 90h 91h 92h 93h 94h 95h 96h 97h 98h 99h 9Ah 9Bh 9Ch 9Dh 9Eh 9Fh

20h

A0h

7Fh

FFh

Bank 0

Bank 1

Indirect addr.

(*)

Indirect addr.

(*)

PCL

STATUS

FSR

PCLATH

INTCON

PCL

STATUS

FSR

PCLATH INTCON

100h 101h 102h 103h 104h 105h 106h 107h 108h 109h 10Ah 10Bh

180h 181h 182h 183h 184h 185h 186h 187h 188h 189h 18Ah 18Bh

17Fh

1FFh

Bank 2

Bank 3

Indirect addr.

(*)

PORTD

(1)

PORTE

(1)

TRISD

(1)

ADRESL

TRISE

(1)

TMR0

OPTION_REG

PIR2

PIE2

RCST A

TXREG

RCREG

CCPR2L

CCPR2H

CCP2CON

ADRESH ADCON0

TXSTA

SPBRG

ADCON1

General Purpose Register

1EFh 1F0h

accesses

A0h - FFh

16Fh 170h

accesses

20h-7Fh

TRISB

PORTB

96 Bytes

SSPCON2

10Ch 10Dh 10Eh 10Fh 110h

18Ch 18Dh 18Eh 18Fh 190h

EEDATA

EEADR

EECON1 EECON2

EEDATH EEADRH

Reserved

(2)

Reserved

(2)

Unimplemented data memory locations, read as ’0’.

* Not a physical register.

Note 1: These registers are not implemented on the PIC16F873.

2: These registers are reserved, maintain these registers clear.

120h

1A0h

File

Address

File

Address

File

Address

File

Address

 2001 Microchip Technology Inc. DS30292C-page 15

PIC16F87X

2.2.2 SPECIAL FUNCTION REGISTERS

The Special Function Registers are registers used by the CPU and peripheral modules for controlling the desired operation of the device. These registers are implemented as static RAM. A list of these registers is given in Table 2-1.

The Special Function Registers can be classified into two sets: core (CPU) and peripheral. Those registers associated with the core functions are described in detail in this section. Those related to the operation of the peripheral features are described in detail in the peripheral features section.

TABLE 2-1: SPECIAL FUNCTION REGISTER SUMMARY

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Details

page:

Bank 0

00h

(3)

INDF Addressing this location uses contents of FSR to address data memory (not a physical register) 0000 0000 27

01h TMR0 Timer0 Module Register

xxxx xxxx 47

02h

(3)

PCL Program Counter (PC) Least Significant Byte 0000 0000 26

03h

(3)

STATUS IRP RP1 RP0 TO PD ZDCC0001 1xxx 18

04h

(3)

FSR Indirect Data Memory Address Pointer xxxx xxxx 27

05h PORTA

— — PORTA Data Latch when written: PORTA pins when read --0x 0000 29

06h PORTB PORTB Data Latch when written: PORTB pins when read

xxxx xxxx 31

07h PORTC PORTC Data Latch when written: PORTC pins when read

xxxx xxxx 33

08h

(4)

PORTD PORTD Data Latch when written: PORTD pins when read xxxx xxxx 35

09h

(4)

PORTE — — — — — RE2 RE1 RE0 ---- -xxx 36

0Ah

(1,3)

PCLATH — — — Write Buffer for the upper 5 bits of the Program Counter ---0 0000 26

0Bh

(3)

INTCON GIE PEIE T0IE INTE RBIE T0IF INTF RBIF 0000 000x 20

0Ch PIR1 PSPIF

(3)

ADIF RCIF TXIF SSPIF CCP1IF TMR2IF TMR1IF 0000 0000 22

0Dh PIR2

— (5) — EEIF BCLIF — — CCP2IF -r-0 0--0 24

0Eh TMR1L Holding register for the Least Significant Byte of the 16-bit TMR1 Register

xxxx xxxx 52

0Fh TMR1H Holding register for the Most Significant Byte of the 16-bit TMR1 Register

xxxx xxxx 52

10h T1CON

— — T1CKPS1 T1CKPS0 T1OSCEN T1SYNC TMR1CS TMR1ON --00 0000 51

11h TMR2 Timer 2 Module Register

0000 0000 55

12h T2CON

— TOUTPS3 TOUTPS2 TOUTPS1 TOUTPS0 TMR2ON T2CKPS1 T2CKPS0 -000 0000 55

13h SSPBUF Synchronous Serial Port Rece i ve Buffer/Transmit Registe r

xxxx xxxx 70, 73

14h SSPCON WCOL SSPOV SSPEN CKP SSPM3 SSPM2 SSPM1 SSPM0

0000 0000 67

15h CCPR1L Capture/Compare/PWM Register1 (LSB)

xxxx xxxx 57

16h CCPR1H Capture/Compare/PWM Register1 (MSB)

xxxx xxxx 57

17h CCP1CON

— — CCP1X CCP1Y CCP1M3 CCP1M2 CCP1M1 CCP1M0 --00 0000 58

18h RCSTA SPEN RX9 SREN CREN ADDEN FERR OERR RX9D

0000 000x 96

19h TXREG USART Transmit Data Register

0000 0000 99

1Ah RCREG USART Receive Data Register

0000 0000 101

1Bh CCPR2L Capture/Compare/PWM Register2 (LSB)

xxxx xxxx 57

1Ch CCPR2H Capture/Compare/PWM Register2 (MSB)

xxxx xxxx 57

1Dh CCP2CON

— — CCP2X CCP2Y CCP2M3 CCP2M2 CCP2M1 CCP2M0 --00 0000 58

1Eh ADRESH A/D Result Register High Byte

xxxx xxxx 116

1Fh ADCON0 ADCS1 ADCS0 CHS2 CHS1 CHS0 GO/DONE

— ADON 0000 00-0 111

Legend:

x = unknown, u = unchanged, q = value depends on condition, - = unimplemented, read as '0', r = reserved.

Shaded locations are unimplemented, read as ‘0’.

Note 1: The upper byte of the program counter is not directly accessible. PCLATH is a holding register for the PC<12:8> whose

contents are transferred to the upper byte of the program counter.

2: Bits PSPIE and PSPIF are reserved on PIC16F873/876 devices; always maintain these bits clear. 3: These registers can be addressed from any bank. 4: PORTD, PORTE, TRISD, and TRISE are not physically implemented on PIC16F873/876 devices; read as ‘0’. 5: PIR2<6> and PIE2<6> are reserved on these devices; always maintain these bits clear.

PIC16F87X

DS30292C-page 16  2001 Microchip Technology Inc.

Bank 1

80h

(3)

INDF Addressing this location uses contents of FSR to address data memory (not a physical register) 0000 0000 27

81h OPTION_REG RBPU

INTEDG T0CS T0SE PSA PS2 PS1 PS0 1111 1111 19

82h

(3)

PCL Program Counter (PC) Least Significant Byte 0000 0000 26

83h

(3)

STATUS IRP RP1 RP0 TO PD ZDCC0001 1xxx 18

84h

(3)

FSR Indirect Data Memory Address Pointer xxxx xxxx 27

85h TRISA

— — PORTA Data Direction Register --11 1111 29

86h TRISB PORTB Data Direction Register

1111 1111 31

87h TRISC PORTC Data Direction Register

1111 1111 33

88h

(4)

TRISD PORTD Data Direction Register 1111 1111 35

89h

(4)

TRISE IBF OBF IBOV PSPMODE — PORTE Data Direction Bits 0000 -111 37

8Ah

(1,3)

PCLATH — — — Write Buffer for the upper 5 bits of the Program Counter ---0 0000 26

8Bh

(3)

INTCON GIE PEIE T0IE INTE RBIE T0IF INTF RBIF 0000 000x 20

8Ch PIE1 PSPIE

(2)

ADIE RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE 0000 0000 21

8Dh PIE2

— (5) — EEIE BCLIE — — CCP2IE -r-0 0--0 23

8Eh PCON

— — — — — — POR BOR ---- --qq 25 8Fh — Unimplemented — — 90h — Unimplemented — — 91h SSPCON2 GCEN ACKSTAT ACKDT ACKEN RCEN PEN RSEN SEN

0000 0000 68

92h PR2 Timer2 Period Register

1111 1111 55

93h SSPADD Synchronous Serial Port (I

C mode) Address Register 0000 0000 73, 74

94h SSPSTAT SMP CKE D/A

PSR/WUA BF 0000 0000 66 95h — Unimplemented — — 96h — Unimplemented — — 97h — Unimplemented — — 98h TXSTA CSRC TX9 TXEN SYNC

— BRGH TRMT TX9D 0000 -010 95

99h SPBRG Baud Rate Generator Register

0000 0000 97

9Ah — Unimplemented — — 9Bh — Unimplemented — — 9Ch — Unimplemented — — 9Dh — Unimplemented — — 9Eh ADRESL A/D Result Register Low Byte

xxxx xxxx 116

9Fh ADCON1 ADFM

— — — PCFG3 PCFG2 PCFG1 PCFG0 0--- 0000 112

TABLE 2-1: SPECIAL FUNCTION REGISTER SUMMARY (CONTINUED)

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR, BOR

Details

page:

Legend: x = unknown, u = unchanged, q = value depends on condition, - = unimplemented, read as '0', r = reserved.

Shaded locations are unimplemented, read as ‘0’.

Note 1: The upper byte of the program counter is not directly accessible. PCLATH is a holding register for the PC<12:8> whose

contents are transferred to the upper byte of the program counter.

 2001 Microchip Technology Inc. DS30292C-page 17

PIC16F87X

Bank 2 100h

(3)

INDF Addressing this location uses contents of FSR to address data memory (not a physical register) 0000 0000 27

101h TMR0 Timer0 Module Register

xxxx xxxx 47

102h

(3)

PCL Program C ounter’s (PC) Least Significant Byte 0000 0000 26

103h

(3)

STATUS IRP RP1 RP0 TO PD ZDCC0001 1xxx 18

104h

(3)

FSR Indirect Data Memory Address Pointer xxxx xxxx 27 105h — Unimplemented — — 106h PORTB PORTB Data Latch when written: PORTB pins when read

xxxx xxxx 31

107h — Unimplemented — — 108h — Unimplemented — — 109h — Unimplemented — — 10Ah

(1,3)

PCLATH — — — Write Buffer for the upper 5 bits of the Program Counter ---0 0000 26 10Bh

(3)

INTCON GIE PEIE T0IE INTE RBIE T0IF INTF RBIF 0000 000x 20 10Ch EEDATA EEPROM Data Regist er Low Byte

xxxx xxxx 41

10Dh EEADR EEPROM Address Register Low Byte

xxxx xxxx 41

10Eh EEDATH

— — EEPROM Data Register High Byte xxxx xxxx 41

10Fh EEADRH

— — — EEPROM Address Register High Byte xxxx xxxx 41 Bank 3 180h

(3)

INDF Addressing this location uses contents of FSR to address data memory (not a physical register) 0000 0000 27

181h OPTION_REG RBPU INTEDG T0CS T0SE PSA PS2 PS1 PS0

1111 1111 19

182h

(3)

PCL Program Counter (PC) Least Significant Byte 0000 0000 26

183h

(3)

STATUS IRP RP1 RP0 TO PD ZDCC0001 1xxx 18

184h

(3)

FSR Indirect Data Memory Address Pointer xxxx xxxx 27 185h — Unimplemented — — 186h TRISB PORTB Data Direction Register

1111 1111 31

187h — Unimplemented — — 188h — Unimplemented — — 189h — Unimplemented — — 18Ah

(1,3)

PCLATH — — — Write Buffer for the upper 5 bits of the Program Counter ---0 0000 26 18Bh

(3)

INTCON GIE PEIE T0IE INTE RBIE T0IF INTF RBIF 0000 000x 20 18Ch EECON1 EEPGD

— — — WRERR WREN WR RD x--- x000 41, 42

18Dh EECON2 EEPROM Control Register2 (not a physical register)

---- ---- 41

18Eh — Reserved maintain clear 0000 0000 — 18Fh — Reserved maintain clear 0000 0000 —

TABLE 2-1: SPECIAL FUNCTION REGISTER SUMMARY (CONTINUED)

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Details

page:

Legend:

x = unknown, u = unchanged, q = value depends on condition, - = unimplemented, read as '0', r = reserved.

Shaded locations are unimplemented, read as ‘0’.

Note 1: The upper byte of the program counter is not directly accessible. PCLATH is a holding register for the PC<12:8> whose

contents are transferred to the upper byte of the program counter.

PIC16F87X

DS30292C-page 18  2001 Microchip Technology Inc.

2.2.2.1 STATUS Register

The STATUS register contains the arithmetic status of the ALU, the RESET statu s and the b ank sele ct bit s for data memory.

The STATUS register can be the destination for any instruction, as with any other register. If the STATUS register is the destination for an instruction that affects the Z, DC or C bits, then the write to these three bits is disabled. These bit s are set or cleared ac cording to the device logic. Furthermore, the TO

and PD bits are not writable, therefore, the result of an instruction with the STAT US register as destinatio n may be different th an intended.

For example, CLRF STATUS will clear the upper three bits and set the Z bit. T his leaves the STATUS register as 000u u1uu (where u = unchanged).

It is recommended, therefore, that only BCF, BSF, SWAPF and MOVWF instructions are used to alter the STATUS register, because these instructions do not affect the Z, C or D C bits from the ST ATUS register. For other instructions not affecting any status bits, see the “Instruction Set Summary."

Note: The C and DC bits operate as a borrow

and digit borrow bit, respectively, in subtraction. See the SUBLW and SUBWF instructions for examples.

R/W-0 R/W-0 R/W-0 R-1 R-1 R/W-x R/W-x R/W-x

IRP RP1 RP0 TO

PD ZDCC

bit 7 bit 0

bit 7 IRP: Register Bank Select bit (used for indirect addressing)

1 = Bank 2, 3 (100h - 1FFh) 0 = Bank 0, 1 (00h - FFh)

bit 6-5 RP1:RP0: Register Bank Select bits (used for direct addressing)

11 = Bank 3 (180h - 1FFh) 10 = Bank 2 (100h - 17Fh) 01 = Bank 1 (80h - FFh) 00 = Bank 0 (00h - 7Fh)

Each bank is 128 bytes

bit 4 TO

: Time-out bit

1 = After power-up, CLRWDT instruction, or SLEEP instruction 0 = A WDT time-out occurred

bit 3 PD

: Power-down bit

1 = After power-up or by the CLRWDT instruction 0 = By execution of the SLEEP instruction

bit 2 Z: Zero bit

1 = The result of an arithmetic or logic operation is zero 0 = The result of an arithmetic or logic operation is not zero

bit 1 DC: Digit carry/borrow

bit (ADDWF, ADDLW,SUBLW,SUBWF instructions)

(for borrow, the polarity is reversed)

1 = A carry-out from the 4th low order bit of the result occurred 0 = No carry-out from the 4th low order bit of the result

bit 0 C: Carry/borrow

bit (ADDWF, ADDLW,SUBLW,SUBWF instructions)

1 = A carry-out from the Most Significant bit of the result occurred 0 = No carry-out from the Most Significant bit of the result occurred

Note: For borrow

, the polarity is reversed. A subtraction is executed by adding the two’s complement of the second operand. For rotate (RRF, RLF) instructions, this bit is loaded with either the high, or low order bit of the source register.

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2001 Microchip Technology Inc. DS30292C-page 19

PIC16F87X

2.2.2.2 OPTION_REG Register

The OPTION_R EG Regis ter is a readabl e and w rit able register , which cont ains various contr ol bits to conf igure the TMR0 prescaler/WDT postscaler (single assignable register k nown als o as th e presca ler), the Externa l INT Interrupt, TMR0 and the w eak pul l-up s on POR TB.

Note: To achieve a 1:1 prescaler assignment for

the TMR0 register, assign the prescaler to the Watchdog Timer.

R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 RBPU INTEDG T0CS T0SE PSA PS2 PS1 PS0

bit 7 bit 0

bit 7 RBPU

: PORTB Pull-up Enable bit

1 = PORTB pull-ups are disabled 0 = PORTB pull-ups are enabled by individual port latch values

bit 6 INTEDG: Interrupt Edge Select bit

1 = Interrupt on rising edge of RB0/INT pin 0 = Interrupt on falling edge of RB0/INT pin

bit 5 T0CS: TMR0 Clock Source Select bit

1 = Transition on RA4/T0CKI pin 0 = Internal instruction cycle clock (CLKOUT)

bit 4 T0SE: TMR0 Source Edge Select bit

1 = Increment on high-to-low transition on RA4/T0CKI pin 0 = Increment on low-to-high transition on RA4/T0CKI pin

bit 3 PSA: Prescaler Assignment bit

1 = Prescaler is assigned to the WDT 0 = Prescaler is assigned to the Timer0 module

bit 2-0 PS2:PS0: Prescaler Rate Select bits

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

Note: When using low volt age ICSP p rogramming (LVP) and the pull-ups on PORTB are enabled, bit3

in the TRISB register m ust be c leared to disa ble th e pull -up on R B3 and ensu re the p roper op eration of the device

000 001 010 011 100 101 110 111

1 : 2 1 : 4 1 : 8 1 : 16 1 : 32 1 : 64 1 : 128 1 : 256

1 : 1 1 : 2 1 : 4 1 : 8 1 : 16 1 : 32 1 : 64 1 : 128

Bit Value TMR0 Rate WDT Rate

PIC16F87X

DS30292C-page 20  2001 Microchip Technology Inc.

2.2.2.3 INTCON Register

The INTCON Register is a readabl e and writ able register, which contains various enable and flag bits for the TMR0 register overflow, RB Port change and External RB0/INT pin interrupts.

Note: Interrupt flag bits are set when an interru pt

condition occurs, re gar dless of the state of its corresponding enable bit or the global enable bit, GIE (INTCON<7>). User software should ensure the appropriate interrupt flag bits are clear prior to enabling an interrupt.

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-x

GIE PEIE T0IE INTE RBIE T0IF INTF RBIF

bit 7 bit 0

bit 7 GIE: Global Interrupt Enable bit

1 = Enables all unmasked interrupts 0 = Disables all interrupts

bit 6 PEIE: Peripheral Interrupt Enable bit

1 = Enables all unmasked peripheral interrupts 0 = Disables all peripheral interrupts

bit 5 T0IE: TMR0 Overflow Inte rrupt Enable bit

1 = Enables the TMR0 interrupt 0 = Disables the TMR0 inte rrupt

bit 4 INTE: RB0/INT External Interrupt Enable bit

1 = Enables the RB0/INT external interrupt 0 = Disables the RB0/INT external interrupt

bit 3 RBIE: RB Port Change Interrupt Enable bit

1 = Enables the RB port change interrupt 0 = Disables the RB port change interrupt

bit 2 T0IF: TMR0 Overflow Interrupt Flag bit

1 = TMR0 register has overflowed (must be cleared i n software) 0 = TMR0 register did not overflow

bit 1 INTF: RB0/INT External Interrupt Flag bit

1 = The RB0/INT external interrupt occurred (m ust be cleared in software) 0 = The RB0/INT external interrupt did not occur

bit 0 RBIF: RB Port Change Interrupt Flag bit

1 = At least one of the RB7:R B4 pins changed state; a m is m atc h condition will continue t o se t

the bit. Reading PORTB will end the mismatch condition and allow the bit to be cleared (must be cleared in software).

0 = None of the RB7:RB4 pins have changed state

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2001 Microchip Technology Inc. DS30292C-page 21

PIC16F87X

2.2.2.4 PIE1 Register

The PIE1 register cont ains the ind ividual enable b its for the peripheral interrupts.

Note: Bit PEIE (INTCON<6>) must be set to

enable any peripheral interrupt.

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PSPIE

(1)

ADIE RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE

bit 7 bit 0

bit 7 PSPIE

(1)

: Parallel Slave Port Read/Write Interrupt Enable bit

1 = Enables the PSP read/write interrupt 0 = Disables the PSP read/write interrupt

bit 6 ADIE: A/D Converter Interrupt Enable bit

1 = Enables the A/D converter interrupt 0 = Disables the A/D converter interrupt

bit 5 RCIE: USART Receive Interrupt Enable bit

1 = Enables the USART receive interrupt 0 = Disables the USART receive interrupt

bit 4 TXIE: USART Transmit Interrupt Enable bit

1 = Enables the USART transmit interrupt 0 = Disables the USART transmit interrupt

bit 3 SSPIE: Synchronous Serial Port Interrupt Enable bit

1 = Enables the SSP interrupt 0 = Disables the SSP interrupt

bit 2 CCP1IE: CCP1 Interrupt Enable bit

1 = Enables the CCP1 interrupt 0 = Disables t he CCP1 interrupt

bit 1 TMR2IE: TMR2 to PR2 Match Interrupt Enable bit

1 = Enables the TMR2 to PR2 match interrupt 0 = Disables the TMR2 to PR2 match interrupt

bit 0 TMR1IE: TMR1 Overflow Interrupt Enable bit

1 = Enables the TMR1 overflow interrupt 0 = Disables the TMR1 overflow interrupt

Note 1: PSPIE is reserved on PIC16F873/876 devices; always maintain this bit clear.

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

PIC16F87X

DS30292C-page 22  2001 Microchip Technology Inc.

2.2.2.5 PIR1 Register

The PIR1 register contains the individual flag bits for the peripheral interrupts.

Note: Interrupt flag bits are set when an interrupt

condition occurs, regardless of the state of its corresponding enable bit or the global enable bit, GIE (INTCON<7>). User software should en sure the approp riate interrup t bits are cle ar pri or to en ab li ng an i nte rru pt.

R/W-0 R/W-0 R-0 R-0 R/W-0 R/W-0 R/W-0 R/W-0

PSPIF

(1)

ADIF RCIF TXIF SSPIF CCP1IF TMR2IF TMR1IF

bit 7 bit 0

bit 7 PSPIF

(1)

: Parallel Slave Port Read/Write Interrupt Flag bit

1 = A read or a write operation has taken place (must be cleared in software) 0 = No read or write has occurred

bit 6 ADIF: A/D Converter Interrupt Flag bit

1 = An A/D conversion completed 0 = The A/D conv ersion is not complete

bit 5 RCIF: USART Receive Interrupt Flag bit

1 = The USART receive buffer is full 0 = The USART receive buffer is empty

bit 4 TXIF: USART Transmit Interrupt Flag bit

1 = The USART transmit buffer is empty 0 = The USART transmit buffer is full

bit 3 SSPIF: Synchronous Serial Port (SSP) Interrupt Flag

1 = The SSP interrupt condition has occurred, and must be cle ared in software b efore returning

from the Interrupt Service Routine. The conditions that will set this bit are:

• SPI

- A transmission/reception has taken place.

• I

C Slave

- A transmission/reception has taken place.

• I

C Master

- A transmission/reception has taken place.

- The initiated START condition was completed by the SSP module.

- The initiated STOP condition was completed by the SSP module.

- The initiated Restart condition was completed by the SSP module.

- The initiated Acknowledge condition was completed by the SSP module.

- A START condition occ urred whil e the SSP module was idle (Mul ti-Master sy stem).

- A STOP condition occurred while the SSP m odu le w as i dle (M ult i-M as ter sy ste m).

0 = No SSP interrupt condition has occurred.

bit 2 CCP1IF: CCP1 Interrupt Flag bit

Capture mode:

1 = A TMR1 register capture occurred (must be cleared in software) 0 = No TMR1 register capture occurred

Compare mode:

1 = A TMR1 register compare m a tch occurred (must be cl eared in software) 0 = No TMR1 register compare match occurred

PWM mode: Unused in this mode

bit 1 TMR2IF: TMR2 to PR2 Match Interrupt Flag bit

1 = TMR2 to PR2 match occurred (must be cleared in software) 0 = No TMR2 to PR2 match occurred

bit 0 TMR1IF: TMR1 Overflow Interrupt Flag bit

1 = TMR1 register overflowed (must be cleared in software) 0 = TMR1 register did not overflow

Note 1: PSPIF is reserved on PIC16F873/876 devices; always maintain this bit clear.

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2001 Microchip Technology Inc. DS30292C-page 23

PIC16F87X

2.2.2.6 PIE2 Register

The PIE2 register cont ains the ind ividual enable b its for the CCP2 peripheral interrupt, the SSP bus collision interrupt, and the EEPROM write operation interrupt.

U-0 R/W-0 U-0 R/W-0 R/W-0 U-0 U-0 R/W-0

— Reserved — EEIE BCLIE — — CCP2IE

bit 7 bit 0

bit 7 Unimplemented: Read as '0' bit 6 Reserved: Always maintain this bit clear bit 5 Unimplemented: Read as '0' bit 4 EEIE: EEPROM Write Operation Interrupt Enable

1 = Enable EE Write Interrupt 0 = Disable EE Write Interru pt

bit 3 BCLIE: Bus Collision Interrupt Enable

1 = Enable Bus Collision Interrupt 0 = Disable Bus Collision Interrupt

bit 2-1 Unimplemented: Read as '0' bit 0 CCP2IE: CCP2 Interrupt Enable bit

1 = Enables the CCP2 interrupt 0 = Disables t he CCP2 interrupt

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

PIC16F87X

DS30292C-page 24  2001 Microchip Technology Inc.

2.2.2.7 PIR2 Register

The PIR2 register contains the flag bits for the CCP2 interrupt, the SSP bus collision interrupt and the EEPROM write operation interrupt.

Note: Interrupt flag bits are set when an interru pt

U-0 R/W-0 U-0 R/W-0 R/W-0 U-0 U-0 R/W-0

— Reserved — EEIF BCLIF — — CCP2IF

bit 7 bit 0

bit 7 Unimplemented: Read as '0' bit 6 Reserved: Always maintain this bit clear bit 5 Unimplemented: Read as '0' bit 4 EEIF: EEPROM Write Operation Interrupt Flag bit

1 = The write operation completed (must be cleared in software) 0 = The write operation is not complete or has not been started

bit 3 BCLIF: Bus Collision Interrupt Flag bit

1 = A bus collision has occurred in the SSP, when configured for I2C Master mode 0 = No bus collision has occurred

bit 2-1 Unimplemented: Read as '0' bit 0 CCP2IF: CCP2 Interrupt Flag bit

Capture mode:

1 = A TMR1 register capture occurred (must be cleared in software) 0 = No TMR1 register capture occurred

Compare mode:

1 = A TMR1 register compare match occurred (must be cleared in software) 0 = No TMR1 register compare match occurred

PWM mode: Unused

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2001 Microchip Technology Inc. DS30292C-page 25

PIC16F87X

2.2.2.8 PCON Register

The Power Control (PCON) Register contains flag bits to allow differentiation between a Power-on Reset (POR), a Brown-out Reset (BOR), a Watchdog Reset (WDT), and an external MCLR

Reset.

Note: BOR is unknown on P OR. It mus t be set by

the user and checked on subsequent RESETS to see if BOR is clear, indicating a brown-out has occurre d. The BOR st atus bit is a “don’t care” and is not pre dic t able if the brown-out circuit is disabled (by clearing the BODEN bit in the configuration word).

U-0 U-0 U-0 U-0 U-0 U-0 R/W-0 R/W-1

— — — — — —PORBOR

bit 7 bit 0

bit 7-2 Unimplemented: Read as '0' bit 1 POR

: Power-on Reset Status bit

1 = No Power-on Reset occurred 0 = A Power-on Reset occurred (must be set in software after a Power-on Reset occurs)

bit 0 BOR

: Brown-out Reset Status bit

1 = No Brown-out Reset occurred 0 = A Brown-out Reset occurred (must be set in software after a Brown-out Reset occurs)

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

PIC16F87X

DS30292C-page 26  2001 Microchip Technology Inc.

2.3 PCL and PCLATH

The program counter (PC) is 13-bits wid e. The low byte comes from the PCL register, which is a readable and writable register. The upper bits (PC<12:8>) are not readable, but are indirectly writable through the PCLA TH reg ister. On any RESET, the upper bits of the PC will be cleared. Fig ure2-5 shows the two situations for the loading of th e PC. The up per ex ample in the fi gure shows how the PC is loaded on a write to PCL (PCLATH<4:0> → PCH). The lower exampl e i n th e fi gure shows how the PC is load ed during a CALL or GOTO instruction (PCLATH<4:3> → PCH).

FIGURE 2-5: LOADING OF PC IN

DIFFERENT SITUATIONS

2.3.1 COMPUTED GOTO

A computed GOTO is accomplish ed b y a dding an offset to the progr am counter (ADDWF PCL). When doing a table read using a computed GOTO method, care should be exercise d if the t able loca tion c rosse s a PCL memory boundary (each 256 byte block). Refer to the application note, “Implementing a Table Read" (AN556).

2.3.2 STACK

The PIC16F87X family has an 8-level deep x 13-bit wide hardware stack. The stack sp ace is not part of either program or data space and the stack pointer is not readable or writable. The PC is PUSHed onto the stack when a CALL instruction is executed, or an interrupt causes a branch. The stack is POPed in the event of a RETURN,RETLW or a RETFIE instruction execution. PCLATH is not affected by a PUSH or POP operation.

The stack operates as a circular buf fer . This means that after the st ack h as be en PU SHed ei ght ti mes, th e nin th push overwrites the v alue tha t was stor ed fro m the first push. The tenth push ov erw ri tes the second push (and so on).

2.4 Program Memory Paging

All PIC16F87X devices are capable of addressing a continuous 8K word block of program memory. The CALL and GOTO instructions provide only 11 bits of address to allow branching within any 2K program memory page. When doing a CALL or GOTO instruction, the upper 2 bits of the address are provided by PCLATH<4:3>. When doing a CALL or GOTO instruction, the user must ensu re tha t the p a ge s ele ct bits are programmed so that the desired program memory page is addressed. If a return from a CALL instruction (or interrupt) is execute d, the entire 13-bit PC is popped off the stack. Therefore, manipulation of the PCLA TH<4:3> bits is not required for the return instructions (which POPs the address from the stack).

Example 2-1 shows the calling of a subroutine in page 1 of the program memory . Thi s example as sumes that PCLATH is saved and restored by the Interrupt Service Routine

(if interrupts are used).

EXAMPLE 2-1: CALL OF A SUBROUTINE

IN PAGE 1 FROM PAGE 0

12 8 7 0

PCLATH<4:0>

PCLATH

Instruction with

ALU

GOTO,CALL

Opcode <10:0>

12 11 10 0

PCLATH<4:3>

PCH PCL

PCLATH

PCH PCL

PCL as Destination

Note 1: There are no status bits to indicate stack

overflow or stack underflow conditions.

2: There are no instructions/mnemonics

called PUSH or POP. These are actions that occur from the execution of the CALL, RETURN, RETLW and RETFIE instructions, or the vectoring to an interrupt address.

Note: The contents of the PCLATH register are

unchanged after a RETURN or RETFIE instruction is executed. The user must rewrite the contents of the PCLATH register for any subsequent subroutine calls or

GOTO instructions.

ORG 0x500 BCF PCLATH,4 BSF PCLATH,3 ;Select page 1

;(800h-FFFh)

CALL SUB1_P1 ;Call subroutine in

: ;page 1 (800h-FFFh) : ORG 0x900 ;page 1 (800h-FFFh)

SUB1_P1

: ;called subroutine

;page 1 (800h-FFFh) : RETURN ;return to

;Call subroutine

;in page 0

;(000h-7FFh)

 2001 Microchip Technology Inc. DS30292C-page 27

PIC16F87X

2.5 Indirect Addressing, INDF and FSR Registers

The INDF register is not a physica l register. Addressing the INDF register will cause indirect addressing.

Indirect addressing is possible by using the INDF register. Any instruc tion using the INDF register actual ly accesses the register pointed to by the File Sele ct Register, FSR. Reading the INDF register itself, indirectly (FSR = ’0’) will read 00h. Writing to the INDF register indirectly result s in a no operation (although st atus bits may be affected ). An eff ective 9- bit add ress is obt ained by concatenating the 8 -bit FSR regi ster and the IRP bit (STATUS<7>), as shown in Figure 2-6.

A simple program to clear RAM locations 20h-2Fh using indirect addressing is shown in Example 2-2.

EXAMPLE 2-2: INDIRECT ADDRESSING

FIGURE 2-6: DIRECT/INDI RECT ADDRESS ING

MOVLW 0x20 ;initialize pointer MOVWF FSR ;to RAM

NEXT CLRF INDF ;clear INDF register

INCF FSR,F ;inc pointer BTFSS FSR,4 ;all done? GOTO NEXT ;no clear next

CONTINUE

: ;yes continue

Note 1: For register file map detail, see Figure 2-3.

Data Memory

(1)

Indirect AddressingDirect Addressing

Bank Select Location Select

RP1:RP0 6

From Opcode

IRP F SR register

Bank Select

Location Select

00 01 10 11

Bank 0 Bank 1 Bank 2 Bank 3

FFh

80h

7Fh

00h

17Fh

100h

1FFh

180h

PIC16F87X

DS30292C-page 28  2001 Microchip Technology Inc.

NOTES:

 2001 Microchip Technology Inc. DS30292C-page 29

PIC16F87X

3.0 I/O PORTS

Some pins for th ese I/O ports are mul tiplexed with an alternate function for the peripheral features on the device. In general, when a peripheral is enabled, that pin may not be used as a general purpose I/O pin.

Additional inform atio n o n I / O ports may be foun d i n th e PICmicro™ Mid-Range Reference Manual, (DS33023).

3.1 PORTA and the TRISA Register

PORTA is a 6-bit wide, bi-directional port. The corresponding data direction register is TRISA. Setting a TRISA bit (= 1) will make the correspondin g PORTA pin an input (i.e., put the corresponding output driver in a Hi-Impedance mode). Clearing a TRISA bit (= 0) will make the correspondin g PORTA pin an output (i.e., put the contents of the output latch on the selected pin).

Reading the PORTA register reads the status of the pins, whereas writing to i t will wri te to th e po rt lat ch. All write operations are read-modify-write operations. Therefore, a write to a port implies that the port pins are read, the value is modified and then written to the port data latch.

Pin RA4 is multiplexed with the Timer0 module clock input to become the RA4/T0CKI pin. The RA4/T0CKI pin is a Schmitt Trigger input and an open d rain o utput. All other PORTA pins have TTL input levels and full CMOS output drivers.

Other PORTA pins are multiplexed with analog inputs and analog V

REF input. The operation of each pin is

selected by clearing/setting the control bits in the ADCON1 register (A/D Control Register1).

The TRISA register controls the direction of the RA pins, even when they ar e be ing us ed as ana lo g inp uts. The user must ensure the bit s in the TRISA regi ster are maintained se t when using th em as analog inputs.

EXAMPLE 3-1: INITIALIZING PORTA

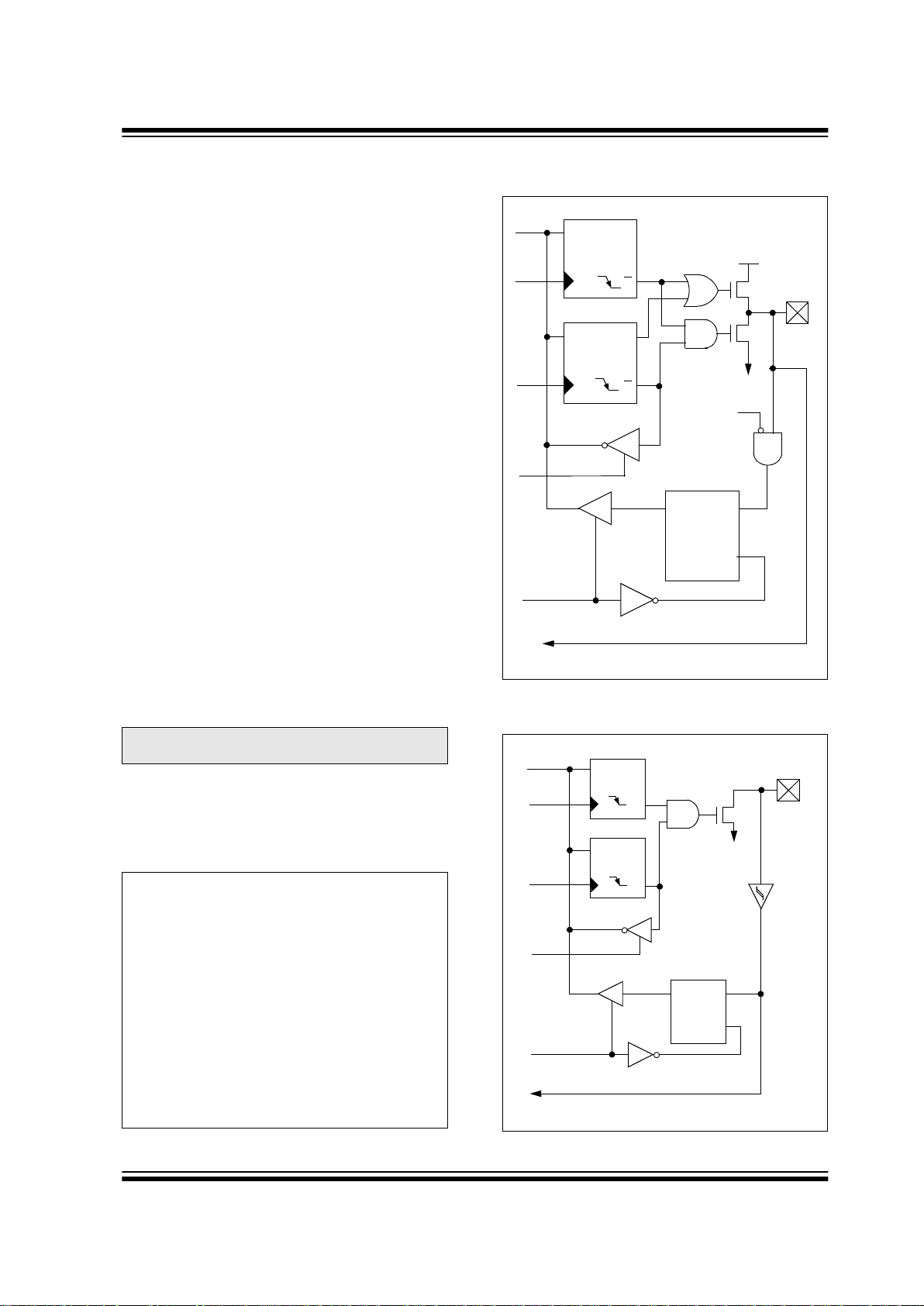

FIGURE 3-1: BLOCK DIAGRAM OF

RA3:RA0 AND RA5 PINS

FIGURE 3-2: BLOCK DIAGRAM OF

RA4/T0CKI PIN

Note: On a Power-on Reset, these pi ns are con-

figured as analog inputs and read as '0'.

BCF STATUS, RP0 ; BCF STATUS, RP1 ; Bank0 CLRF PORTA ; Initialize PORTA by

; clearing output

; data latches BSF STATUS, RP0 ; Select Bank 1 MOVLW 0x06 ; Configure all pins MOVWF ADCON1 ; as digital inputs MOVLW 0xCF ; Value used to

; initialize data

; direction MOVWF TRISA ; Set RA<3:0> as inputs

; RA<5:4> as outputs

; TRISA<7:6>are always

; read as ’0’.

Data Bus

WR Port

WR TRIS

Data Latch

TRIS Latch

RD Port

VDD

I/O pin

(1)

Note 1: I/O pins have protection diodes to VDD and VSS.

Analog Input Mode

TTL Input Buffer

To A/D Converter

TRIS

Data Bus

WR Port

WR TRIS

RD Port

Data Latch

TRIS Latch

Schmitt Trigger Input Buffer

I/O pin

(1)

TMR0 Clock Input

Note 1: I/O pin has protection diodes to VSS only.

TRIS

PIC16F87X

DS30292C-page 30  2001 Microchip Technology Inc.

TABLE 3-1: PORTA FUNCTIONS

TABLE 3-2: SUMMARY OF REGISTERS ASSOCIATED WITH PORTA

Name Bit# Buffer Function

RA0/AN0 bit0 TTL Input/output or analog input. RA1/AN1 bit1 TTL Input/output or analog input. RA2/AN2 bit2 TTL Input/output or analog input. RA3/AN3/V

REF bit3 TTL Input/output or analog input or VREF.

RA4/T0CKI bit4 ST Input/output or external clock input for Timer0. Output is open drain type. RA5/SS

/AN4 bit5 TTL Input/output or slave select input for synchronous serial port or analog input.

Legend: TTL = TTL input, ST = Schmitt Trigger input

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on al l

other

RESETS

05h PORTA

— — RA5 RA4 RA3 RA2 RA1 RA0

--0x 0000 --0u 0000

85h TRISA — — PORT A Dat a Di rec tio n Regis ter

--11 1111 --11 1111

9Fh ADCON1 ADFM — — — PCFG3 PCFG2 PCFG1 PCFG0

--0- 0000 --0- 0000

Legend: x = unknown, u = unchanged, - = unimplemented locations read as '0'.

Shaded cells are not used by PORTA.

Note: When using the SSP module in SPI Slave mode and SS enabled, the A/D converter must be set to one of

the following modes, where PCFG3:PCFG0 = 0100,0101, 011x, 1101, 1110, 1111.

 2001 Microchip Technology Inc. DS30292C-page 31

PIC16F87X

3.2 PORTB and the TRISB Register

PORTB is an 8-bit wide, bi-directional port. The corresponding data direction register is TRISB. Setting a TRISB bit (= 1) will mak e the corresponding PORTB pin an input (i.e., put the corresponding output driver in a Hi-Impedance mode). Clearing a TRISB bit (= 0) will make the corresponding POR TB pin an output (i.e., put the contents of the output latch on the selected pin).

Three pins of PORTB are multiplexed with the Low Voltage Programming function: RB3/PGM, RB6/PGC and RB7/PGD. The alternate functions of these pins are described in the S p ec ial Features Section.

Each of the PORTB pins has a we ak inte rnal pul l-up. A single control bit can turn on all the pull-ups. This is performed by clearing bit RBPU

(OPTION_REG<7>). The weak pull-up is automatically turned off when the port pin is configured as an output. The pull-ups are disabled on a Power-on Reset.

FIGURE 3-3: BLOCK DIAGRAM OF

RB3:RB0 PINS

Four of the PORTB pins, RB7:RB4, have an interrupton-change feature. Only pins configured as inputs can cause this interrupt to occur (i.e., any RB7:RB4 pin configured as an output is excluded from the interrupton-change comparison). The input pins (of RB7:RB4) are compared with the old value latched on the last read of PORTB. The “mismatch” outputs of RB7:RB4 are OR’ed together to generate the RB Port Change Interrupt with flag bit RBIF (INTCON<0>).

This interrupt can wake the device from SLEEP. The user, in the Interrupt Service Routine, can clear the interrupt in the following manner:

a) Any read or write of PORTB. This will end the

mismatch condition.

b) Clear flag bit RBIF. A mismatch c ond it i on w i ll cont i n ue t o s et fl ag bi t RB IF.

Reading PORTB will end the mismatch condition and allow flag bit RBIF to be cleared.

The interrupt-on-change feature is recommended for wake-up on key depression operation and operations where PORTB is only used for the interrupt-on-change feature. Polling of PORTB is not recommended while using the interrupt-on-change feature.

This interrupt-on-mismatch feature, together with software configureable pull-ups on these four pins, allow easy interface to a keypad and make it possible for wake-up on key depression. Refer to the Embedded Control Handbook, “Implementing Wake-up on Key Strokes” (AN552).

RB0/INT is an ext ernal i nterrupt input pin a nd is confi gured using the INTEDG bit (OPTION_REG<6>).

RB0/INT is discussed in detail in Section 12.10.1.

FIGURE 3-4: BLOCK DIAGRAM OF

RB7:RB4 PINS

Data Latch

RBPU

(2)

Data Bus

WR Port

WR TRIS

RD TRIS

RD Port

Weak Pull-up

RD Port

RB0/INT

I/O pin

(1)

TTL Input Buffer

Schmitt Trigger Buffer

TRIS Latch

Note 1: I/O pins have diode protection to V

DD and VSS.

2: To enable weak pull-ups, set the appropriate TRIS

bit(s) and clear the RBPU

bit (OPTION_REG<7>).

RB3/PGM

Data Latch

From other

RBPU

(2)

I/O

Data Bus

WR Port

WR TRIS

Set RBIF

TRIS Latch

RD TRIS

RD Port

RB7:RB4 pins

Weak Pull-up

RD Port

Latch

TTL Input Buffer

(1)

Buffer

RB7:RB6

Note 1: I/O pins have diode protection to V

DD and VSS.

2: To enable weak pull-u ps, set the appropriate TRIS

bit(s) and clear the RBPU

bit (OPTION_REG<7>).

In Serial Programming Mode

PIC16F87X

DS30292C-page 32  2001 Microchip Technology Inc.

TABLE 3-3: PORTB FUNCTIONS

TABLE 3-4: SUMMARY OF REGISTERS ASSOCIATED WITH PORTB

Name Bit# Buffer Function

RB0/INT bit0 TTL/ST

(1)

Input/output pin or external interrupt input. Internal software

programmable weak pull- up. RB1 bit1 TTL Input/output pin. Internal software programmable weak pull-up. RB2 bit2 TTL Input/output pin. Internal software programmable weak pull-up. RB3/PGM

(3)

bit3 TTL Input/output pin or programming pin in LVP mode. Internal software

programmable weak pull- up. RB4 bit4 TTL Input/output pin (wit h interru pt-on-change) . Inter nal sof tware pro grammabl e

weak pull-up. RB5 bit5 TTL Input/output pin (wit h interru pt-on-change) . Inter nal sof tware pro grammabl e

weak pull-up. RB6/PGC bit6 TTL/ST

(2)

Input/output pin (with interrupt-on-change) or In-Circuit Debugger pin.

Internal software programmable weak pull-up. Serial programming clock. RB7/PGD bit7 TTL/ST

(2)

Input/output pin (with interrupt-on-change) or In-Circuit Debugger pin.

Internal software programmable weak pull-up. Serial programming data. Legend: TTL = TTL input, ST = Schmitt Trigger input

Note 1: This buffer is a Schmitt Trigger input when configured as the external interrupt.

2: This buffer is a Schmitt Trigger input when used in Serial Programming mode. 3: Low Voltage ICSP Programming (LVP) is enabled by default, which disables the RB3 I/O function. LVP

must be disabled to enable RB3 as an I/O pin and allow maximum compatibility to the other 28-pin and 40-pin mid-range devices.

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on

all other

RESETS

06h, 106h PORTB RB7 RB6 RB5 RB4 RB3 RB2 RB1 RB0

xxxx xxxx uuuu uuuu

86h, 186h TRISB PO RTB Data Direction Register

1111 1111 1111 1111

81h, 181h OPTION_REG RBPU INTEDG T0CS T0SE PSA PS2 PS1 PS0

1111 1111 1111 1111

Legend: x = unknown, u = unchanged. Shaded cells are not used by PORTB.

 2001 Microchip Technology Inc. DS30292C-page 33

PIC16F87X

3.3 PORTC and the TRISC Register

PORTC is an 8-bit wide, bi-directional port. The corresponding data direction register is TRISC. Setting a TRISC bit (= 1) will make the corresponding PORTC pin an input (i.e., put the corresponding output driver in a Hi-Impedance mode). Clearing a TRISC bit (= 0) will make the corresponding PO RTC pin an output (i.e., p ut the contents of the output latch on the selected pin).

PORTC is multip lexed with s everal periphe ral function s (Table 3-5). PORTC pins have Schmitt Trigger input buffers.

When the I

C module is enabled, the PORTC<4:3>

pins can be configured with normal I

C levels, or with

SMBus levels by using the CKE bit (SSPSTAT<6>). When enabling peripheral functions, care should be

taken in defining TRIS bit s fo r each POR T C pi n. Som e peripherals override the TRIS bit to make a pin an output, while other peripherals override the TRIS bit to make a pin an input. Since the TRIS bit override is in effect while the peripheral is enabled, read-modifywrite instru ctions (BSF, BCF, XORWF) with TRISC as destination, should be avoided. The user should refer to the corresponding peripheral section for the correct TRIS bit settings.

FIGURE 3-5: PORTC BLOCK DIAGRAM

(PERIPHERAL OUTPUT OVERRIDE) RC<2:0>, RC<7:5>

FIGURE 3-6: PORTC BLOCK DIAGRAM

(PERIPHERAL OUTPUT OVERRIDE) RC<4:3>

Port/Peripheral Select

(2)

Data Bus WR

Port

WR TRIS

Data Latch

TRIS Latch

Schmitt Trigger

Peripheral Data Out

QD Q

VSS

Port

Peripheral OE

(3)

Peripheral Input

I/O pin

(1)

Note 1: I/O pins have diode protection to VDD and VSS.

2: Port/Peripheral select signal selects between port

data and peripheral output.

3: Peripheral OE (output enable) is only activated if

peripheral select is active.

TRIS

Port/Peripheral Select

(2)

Data Bus WR

Port

WR TRIS

Data Latch

TRIS Latch

Schmitt Trigger

Peripheral Data Out

QD Q

Vss

Port

Peripheral OE

(3)

SSPl Input

I/O pin

(1)

Note 1: I/O pins have diode protection to VDD and VSS.

2: Port/Peripheral select signal selects between port data

and periph eral output.

3: Peripheral OE (output enable) is only activated if

peripheral select is active.

CKE

SSPSTAT<6>

Schmitt Trigger with SMBus levels

TRIS

PIC16F87X

DS30292C-page 34  2001 Microchip Technology Inc.

TABLE 3-5: PORTC FUNCTIONS

TABLE 3-6: SUMMARY OF REGISTERS ASSOCIATED WITH PORTC

Name Bit# Buffer Type Function

RC0/T1OSO/T1CKI bit0 ST Input/output port pin or Timer1 oscillator output/Timer1 clock input. RC1/T1OSI/CCP2 bit1 ST Input/output port pin or Timer1 oscillator input or Capture2 input/

Compare2 output/PWM2 output.

RC2/CCP1 bit2 ST Input/output port pin or Capture1 input/Compare1 output/

PWM1 output.

RC3/SCK/SCL bit3 ST RC3 can also be the synchronous serial clock for both SPI

and I

C modes.

RC4/SDI/SDA bit4 ST RC4 can also be the SPI Data In (SPI mode) or data I/O (I

C mode). RC5/SDO bit5 ST Input/output port pin or Synchronous Serial Port data output. RC6/TX/CK bit6 ST Input/output port pin or USART Asynchronous Transmit or

Synchronous Clock.

RC7/RX/DT bit7 ST Input/output port pin or USART Asynchronous Receive or

Synchronous Data.

Legend: ST = Schmitt Trigger input

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 B it 1 Bit 0

Value on:

POR, BOR

Value on all

other

RESETS

07h PORTC RC7 RC6 RC5 RC4 RC3 RC2 RC1 RC0

xxxx xxxx uuuu uuuu

87h TRISC PORTC Data Direction Register

1111 1111 1111 1111

Legend: x = unknown, u = unchanged

 2001 Microchip Technology Inc. DS30292C-page 35

PIC16F87X

3.4 PORTD and TRISD Registers

PORTD and TRISD are not implemented on the PIC16F873 or PIC16F876.

PORTD is an 8-bit port with Schmitt Trigger input buffers. Each pin is in dividually co nfigureable as an in put or output.

PORTD can be configured as an 8-bit wide microprocessor port (parallel slave p ort) by setting c ontrol bit PSPMODE (TRISE<4>). In this mode, the input buf fers are TTL.

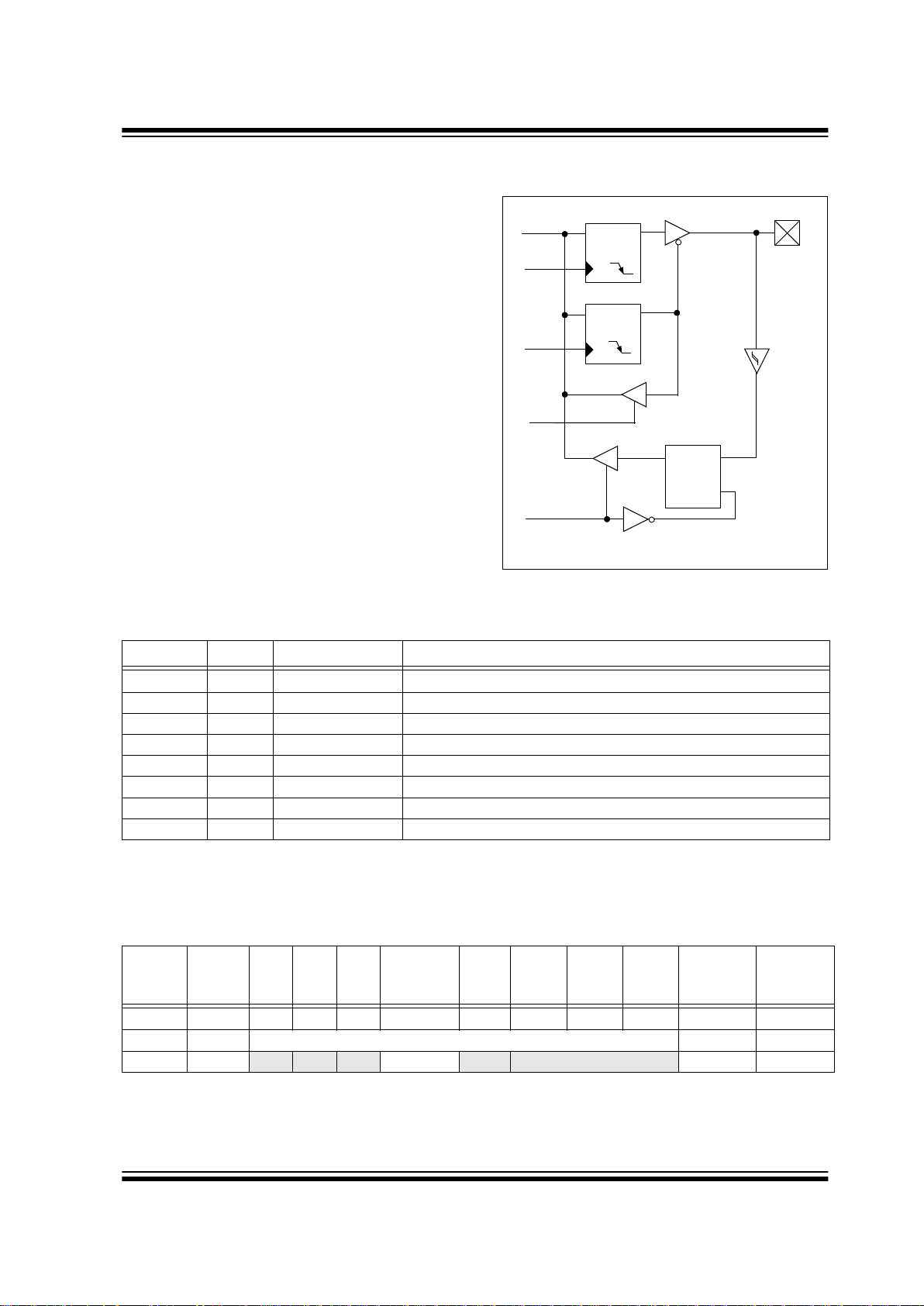

FIGURE 3-7: PORTD BLOCK DIAGRAM

(IN I/O PORT MODE)

TABLE 3-7: PORTD FUNCTIONS

TABLE 3-8: SUMMARY OF REGISTERS ASSOCIATED WITH PORTD

Data Bus

WR Port

WR TRIS

RD Port

Data Latch

TRIS Latch

Schmitt Trigger Input Buffer

I/O pin

(1)

Note 1: I/O pins have protection diodes to VDD and VSS.

TRIS

Name Bit# Buffer Type Function

RD0/PSP0 bit0 ST/TTL

(1)

Input/output port pin or parallel slave port bit0.

RD1/PSP1 bit1 ST/TTL

(1)

Input/output port pin or parallel slave port bit1.

RD2/PSP2 bit2 ST/TTL

(1)

Input/output port pin or parallel slave port bit2.

RD3/PSP3 bit3 ST/TTL

(1)

Input/output port pin or parallel slave port bit3.

RD4/PSP4 bit4 ST/TTL

(1)

Input/output port pin or parallel slave port bit4.

RD5/PSP5 bit5 ST/TTL

(1)

Input/output port pin or parallel slave port bit5.

RD6/PSP6 bit6 ST/TTL

(1)

Input/output port pin or parallel slave port bit6.

RD7/PSP7 bit7 ST/TTL

(1)

Input/output port pin or parallel slave port bit7.

Legend: ST = Schmitt Trigger input, TTL = TTL input

Note 1: Input buffers are Schmitt Triggers when in I/O mode and TTL buffers when in Parallel Slave Port mode.

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR, BOR

Value on

all other

RESETS

08h PORTD RD7 RD6 RD5 RD4 RD3 RD2 RD1 RD0

xxxx xxxx uuuu uuuu

88h T RISD PORTD Data Direction Register

1111 1111 1111 1111

89h TRISE IBF OBF IBOV PSPMODE — POR T E Dat a Di rect ion Bits

0000 -111 0000 -111

Legend: x = unknown, u = unchanged, - = unimplemented, read as '0'. Shaded cells are not used by PORTD.

PIC16F87X

DS30292C-page 36  2001 Microchip Technology Inc.

3.5 PORTE and TRISE Register

PORTE and TRISE are not implemented on the PIC16F873 or PIC16F876.

PORTE has three pins (RE0/RD

/AN5, RE1/WR/AN6,

and RE2/CS

/AN7) which are ind iv idu all y co nfi gure abl e as inputs or outputs. These pins have Schmitt Trigger input buffers.

The PORTE pins become the I/O control inputs for the microprocessor port when bit PSPMODE (TRISE<4>) is set. In this mode, the user must make certain that the TRISE<2:0> bits are set, and that the pins are configured as digital input s. Also ensure that ADCON1 is co nfigured for digital I/O. In this mode, the input buffers are T TL.

PORTE pins are multiplexed with analog inputs. When selected for analog input, these pin s will read as ’0’s.

TRISE controls the direction of the RE pins, even when they are being used as analog inputs. The user must make sure to keep the pins configured as inputs when using them as analog inputs.

FIGURE 3-8: PORTE BLOCK DIAGRAM

(IN I/O PORT MODE)

TABLE 3-9: PORTE FUNCTIONS

TABLE 3-10: SUMMARY OF REGISTERS ASSOCIATED WITH PORTE

Note: On a Power-on Reset, these pi ns are con-

figured as analog inputs, and read as ‘0’.

Data Bus

WR Port

WR TRIS

RD Port

Data Latch

TRIS Latch

Schmitt Trigger Input Buffer

I/O pin

(1)

Note 1: I/O pins have pr otection diodes to VDD and VSS.

TRIS

Name Bit# Buffer Ty pe Function

RE0/RD

/AN5 bit0 ST/TTL

(1)

I/O port pin or read control input in Parallel Slave Port mode or analog input: RD

1 =Idle 0 = Read operation. Contents of PORTD register are output to PORTD

I/O pins (if chip selected)

RE1/WR

/AN6 bit1 ST/TTL

(1)

I/O port pin or write contr ol input in Parallel Slave Port mode or analog input: WR

1 =Idle 0 = Write operation. Value of PORTD I/O pins is latched into PORTD

RE2/CS

/AN7 bit2 ST/TTL

(1)

I/O port pin or ch ip sele ct co ntrol in put in Para llel Sl ave Port mod e or an alog in put: CS

1 = Device is not selected 0 = Device is selected

Legend: ST = Schmitt Trigger input, TTL = TTL input

Note 1: Input buffers are Schmitt Triggers when in I/O mode and TTL buffers when in Parallel Slave Port mode.

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Val ue on:

POR, BOR

Value on all other RESETS

09h PORTE

— — — — — RE2 RE1 RE0 ---- -xxx ---- -uuu 89h TRISE IBF OBF IBOV PSPMODE — PORTE Data Direction Bits 0000 -111 0000 -111 9Fh ADCON1 ADFM — — — PCFG3 PCFG2 PCFG1 PCFG0 --0- 0000 --0- 0000

Legend: x = unknown, u = unchanged, - = unimplemented, read as ’0’. Shaded cells are not used by PORTE.

 2001 Microchip Technology Inc. DS30292C-page 37

PIC16F87X

R-0 R-0 R/W-0 R/W-0 U-0 R/W-1 R/W-1 R/W-1 IBF OBF IBOV PSPMODE

— Bit2 Bit1 Bit0

bit 7 bit 0

Parallel Slave Port Status/Control Bits:

bit 7 IBF: Input Buffer Full Status bit

1 = A word has been received and is waiting to be read by the CPU 0 = No word has been received

bit 6 OBF: Output Buffer Full Status bit

1 = The output buffer still holds a previously written word 0 = The output buffer has been read

bit 5 IBOV: Input Buffer Overflow Detect bit (in Microprocessor mode)

1 = A write occurred when a previously input word has not been read (must be cleared in

software)

0 = No overflow occurred

bit 4 PSPMODE: Parallel Slave Port Mode Select bit

1 = PORTD functions in Parallel Slave Port mode 0 = PORTD functions in general purpose I/O mode

bit 3 Unimplemented: Read as '0'

PORTE Data Direction Bits:

bit 2 Bit2: Direction Control bit for pin RE2/CS/AN7

1 = Input 0 = Output

bit 1 Bit1: Direction Control bit for pin RE1/WR

/AN6

1 = Input 0 = Output

bit 0 Bit0: Direction Control bit for pin RE0/RD

/AN5

1 = Input 0 = Output

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

PIC16F87X

DS30292C-page 38  2001 Microchip Technology Inc.

3.6 Parallel Slave Port

The Parallel Slave Port (PSP) is not implemented on the PIC16F873 or PIC16F876.

PORTD operates as an 8 -bit wide Parallel Slav e Port or microprocessor port, when control bit PSPMODE (TRISE<4>) is set. I n Sl av e mo de, it is asynchronously readable and writa ble by the ex ternal world throu gh RD control input pin RE0/RD and WR control input pin RE1/WR

The PSP can directly interfac e to an 8-bit micr oproce ssor data bus. The external microprocessor can read or write the PORTD latch as an 8-bit latch. Setting bit PSPMODE enables port pin RE0/RD

to be the RD input, RE1/WR to be the WR input and RE2/CS to be the CS

(chip select) input. Fo r this function ality , th e corresponding data direction bits of the TRISE register (TRISE<2:0>) must be configured as inputs (set). The A/D port configuration bits PCFG3:PCFG0 (ADCON1<3:0>) must be set to configure pins RE2:RE0 as digital I/O.

There are actually two 8-bit latches: one for data output, and one for data input. The user writes 8-bit data to the PORTD data latch and reads data from the port pin latch (note that they have the same address). In thi s mode, the TRISD registe r is ignore d, since the externa l device is controlling the direction of data flow.

A write to the PSP occurs when both the CS

and WR lines are first detected low. When either the CS or WR lines become high (l evel triggered) , the Input Buffe r Full (IBF) status flag bit (TRISE<7>) is set on the Q4 clock cycle, following the next Q2 cycle, to signal the write is complete (Figure 3-10). The interrupt flag bit PSPIF (PIR1<7>) is also set on the same Q4 clock cycle. IBF can only be cleare d by reading the PORTD i npu t l atc h. The Input Buffer Overflow (IBOV) status flag bit (TRISE<5>) is set if a second write to the PSP is attempted w hen the pre vious byte has not bee n read out of the b uffer.

A read from the PSP occurs when both the CS

and RD lines are first detected low. The Output Buffer Full (OBF) status flag bit (TRISE<6>) is cleared immediately (Figure 3-11), indicating that the PORTD latch is waiting to be read by the ext ernal bus. Whe n eithe r the CS

or RD pin becomes high ( level triggered), the interrupt flag bit PSPIF is set on the Q4 clock cycle, following the next Q2 cycle, indicating that the read is complete. OBF remains low until data is written to PORTD by the user firmware.

When not in PSP mode, the I B F an d OBF b it s are hel d clear. However, if flag bit IBOV was previously set, it must be cleared in firmware.

An interrupt is generated and latched into flag bit PSPIF when a read or write operation is completed. PSPIF must be cleared by the user in fi rmware and th e interrupt can be disabled by clearing the interrupt enable bit PSPIE (PIE1<7>).

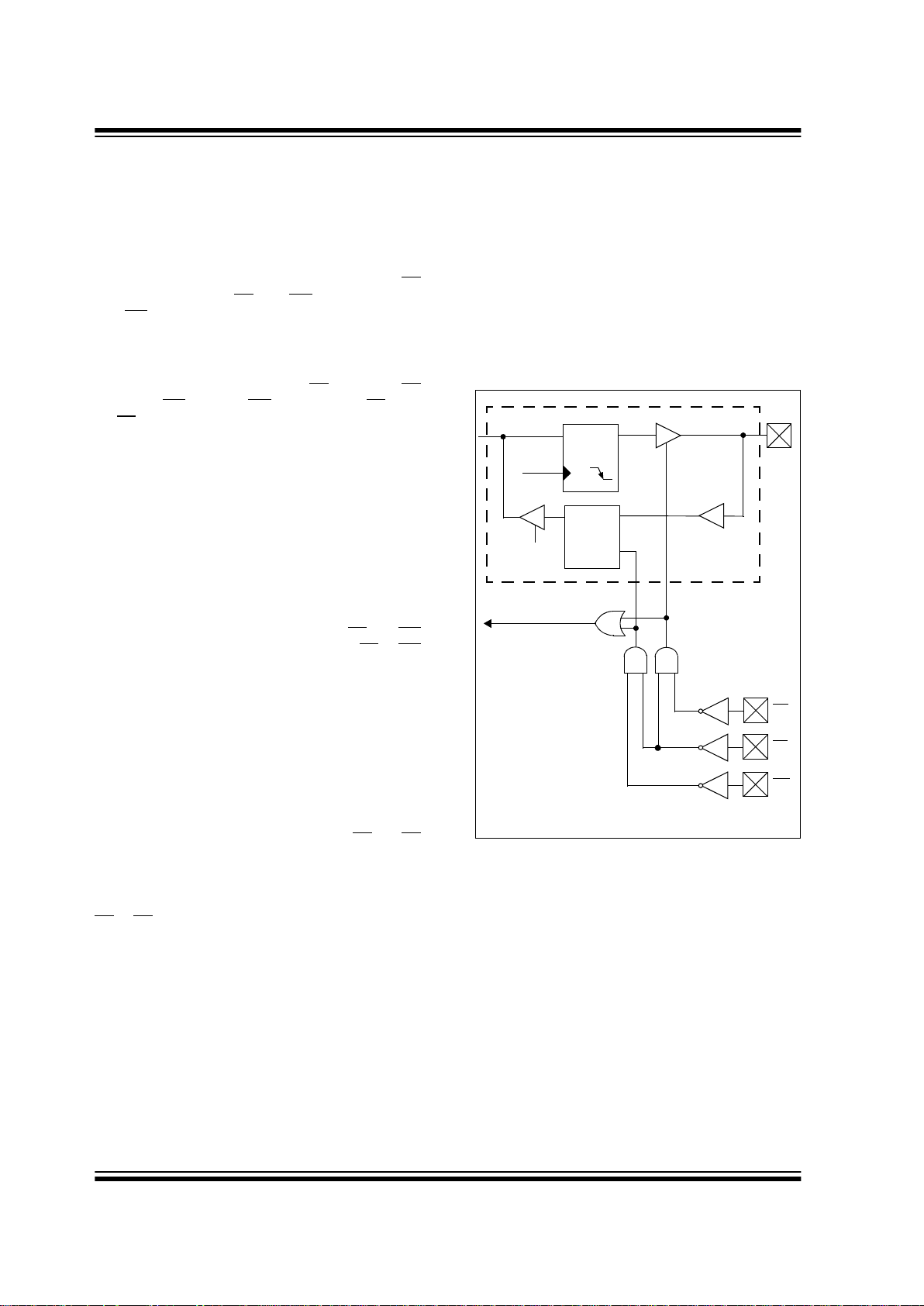

FIGURE 3-9: PORTD AND PORTE

BLOCK DIAGRAM (PARALLEL SLAVE PORT)

Data Bus

WR Port

RDx

Port

One bit of PORTD

Set Interrupt Flag PSPIF(PIR1<7>)

Read

Chip Select

Write

TTL

Note 1: I/O pins have protection diodes to V

DD and VSS.

 2001 Microchip Technology Inc. DS30292C-page 39

PIC16F87X

FIGURE 3-10: PARALLEL SLAVE PORT WRITE WAVEFORMS

FIGURE 3-11: PARALLEL SLAVE PORT READ WAVEFORMS

TABLE 3-11: REGISTERS ASSOCIATED WITH PARALLEL SLAVE PORT

Q1 Q2 Q3 Q4CSQ1 Q2 Q3 Q4 Q1 Q2 Q3 Q4

WR RD

IBF

OBF

PSPIF

PORTD<7:0>

Q1 Q2 Q3 Q4CSQ1 Q2 Q3 Q4 Q1 Q2 Q3 Q4

IBF

PSPIF

OBF

PORTD<7:0>

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on :

POR, BOR

Value on

all other

RESETS

08h PORTD Port Data Latch when written: Port pins when read

xxxx xxxx uuuu uuuu

09h PORTE — — — — — RE2 RE1 RE0 ---- -xxx ---- -uuu 89h TRISE IBF OBF IBOV PSPMODE — PORTE Data Direction Bits 0000 -111 0000 -111 0Ch PIR1 PSPIF

(1)

ADIF RCIF TXIF SSPIF CCP1IF TMR2IF TMR1IF 0000 0000 0000 0000

8Ch PIE1 PSPIE

(1)

ADIE RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE 0000 0000 0000 0000 9Fh ADCON1 ADFM — — — PCFG3 PCFG2 PCFG1 PCFG0 --0- 0000 --0- 0000 Legend: x = unknown, u = unchanged, - = unimplemented, read as '0'. Shaded cells are not used by the Parallel Slave Port.

Note 1: Bits PSPIE and PSPIF are reserved on the PIC16F873/876; always maintain these bits clear.

PIC16F87X

DS30292C-page 40  2001 Microchip Technology Inc.

NOTES:

 2001 Microchip Technology Inc. DS30292C-page 41

PIC16F87X

4.0 DATA EEPROM AND FLASH PROGRAM MEMORY

The Data EEPROM and FLASH Program Memory are readable and writab le during no rmal operati on over the entire V

DD range. These operat ions take place on a sin-

gle byte for Data EEPROM memory and a single word for Program memory. A write operation causes an erase-then-write operation to take place on the specified byte or word. A bulk erase operation may not be issued from user code (which includes removing code protection).

Access to program memory all ows for che cksum calc ulation. The values written to program memory do not need to be valid instructions. Therefore, up to 14-bit numbers can be stored in memory for use as calibration parameters, serial numbers, packed 7-bit ASCII, etc. Executing a program memory location containing data that form an invalid instruction, results in the execution of a NOP instruction.

The EEPROM Data memory is rated for high erase/ write cycles (specification D120). The FLASH program memory is rated much lower (specification D130), because EEPROM data memory can be used to store frequently updated valu es. An on-chip timer controls the write time and it w ill vary w ith v olt age and tempe rature, as well as from chip to chip. Please refer to the specifications for exact limits (specifications D122 and D133).

A byte or word write automatically erases the location and writes the new value (erase before write). Writing to EEPROM data memory does not impact the operation of the device. Writing to program memory will cease the execution of instructions until the write is complete. The program memory cannot be accessed during the write. During the write operation, the oscillator continues to run, the peripherals continue to function and interrupt events will be detected and essentially “queued” until the write is complete. When the write completes, the next instruction in the pipeline is executed and the branch to the interrupt vector will take place, i f the i nte rrupt is enabled and oc cu rred during the write.

Read and write access to both memories take place indirectly through a set of Special Function Registers (SFR). The six SFRs used are:

• EEDATA

• EEDATH

• EEADR

• EEADRH

• EECON1

• EECON2

The EEPROM data memory allows byte read and write operations without interfering with the normal operation of the microcontroller. When interfacing to EEPROM data memory, the EEADR register holds the address to be accessed. Depending on the operation, the EEDATA register holds the data to be written, or the data read, at the address in EEADR. The PIC16F873/874 devices have 128 bytes of EEPROM data memory and therefore, require that the MSb of EEADR remain clear. The EEPROM data memory on these devices do not wrap around to 0, i.e., 0x80 in the EEADR does not map to 0x00. The PIC16F876/877 devices have 256 bytes of EEPROM data memory and therefore, uses all 8-bits of the EEADR.

The FLASH program memory allows non-intrusive read access, but write operations cause the device to stop executing instructions, until the write completes. When interfacing to the program memory, the EEADRH:EEADR registers form a two-byte word, which holds the 13-bit address of the memory location being accessed. The register combination of EEDATH:EEDATA holds the 14-bit data for writes, or reflects the val ue of program m emory after a read operation. Just as in EEPROM data memory accesses, the value of the EEADRH:EEADR registers must be within the valid range of program memory, depending on the device: 0000h to 1FFFh for the PIC16F873/874, or 0000h to 3FFFh for the PIC16F876/877. Addresses outside of this ran ge do no t wrap around t o 0000h (i.e., 4000h does not map to 0000h on the PIC16F877).

4.1 EECON1 and EECON2 Registers

The EECON1 register is the control register for configuring and initiatin g the access. The EECON2 reg ister is not a physically implemented register, but is used exclusively in the memory write sequence to prevent inadvertent writes.

There are many bits used to control the read and write operations to EEPROM data and FLASH program memory. The EEPGD bit determines if the access will be a program or data memory access. When clear, any subsequent operations will work on the EEPROM data memory. When set, all subsequent operations will operate in the program memory.

Read operations only us e one additio nal bit, RD, whic h initiates the read operation from the desired memory location. Once this bit is set, the value of the desired memory location will be available in the data registers. This bit cannot be cleared by firmware. It is automatically cleared at the end of the read operation. For EEPROM data memory reads, the data will be available in the EEDATA register in the very next i nstruc tion cycle after the RD bit is set. For program memory reads, the data will be loaded into the EEDATH:EEDATA registers, following the second instruction after the RD bit is set.

PIC16F87X

DS30292C-page 42  2001 Microchip Technology Inc.

Write operations hav e two control bit s, WR and WREN, and two status bits, WRERR and EEIF. The WREN bit is used to enable or disable the write operation. When WREN is clear, the write operation will be disabled. Therefore, the WREN bit must be set befo re ex ec utin g a write operation. The WR bit is used to initi ate the write operation. It also is automatically cleared at the end of the write operation. The interrupt flag EEIF is used to determine when the memory write comple tes. Th is fla g must be cleared in software before setting the WR bit. For EEPROM data memory, once the WREN bit and the WR bit have been set, the desired memory addres s in EEADR will be erased, followed by a write of the da ta in EEDATA. This operation takes place in parallel with the microcontroller continuing to execute normally. When the write is c omplete, the EEIF flag bit will be set. For program memory, once the WREN bit and the WR bit have been set, the m icrocontr oller will cease to ex e-

cute instructions. T he de sired mem ory loca tion poi nted to by EEADRH:EEADR will be erased. Then, the data value in EEDATH:EEDATA will be programmed. When complete, the EEIF flag bi t will be set and the microcontroller will continue to execute code.

The WRERR bit is used to indicate when the PIC16F87X device has be en re se t during a write operation. WRERR should be cleared after Power-on Reset. Thereafter, it should be checked on any other RESET. The WRERR bit is set when a write operation is interrupted by a MCLR

Reset, or a WDT Time-out Reset, during normal oper ation. In these situati ons, following a RESET , the user should check the WRERR bit and rewrite the memory locati on, if set. The c ontents of the data registers, address registers and EEPGD bit are not affected by either MCLR

Reset, or WDT Time-

out Reset, during normal operation.

R/W-x U-0 U-0 U-0 R/W-x R/W-0 R/S-0 R/S-0

EEPGD — — — WRERR WREN WR RD

bit 7 bit 0

bit 7 EEPGD: Program/Data EEPROM Select bit

1 = Accesses program memory 0 = Accesses data memory

(This bit cannot be changed while a read or write operati on is in prog res s) bit 6-4 Unimplemented: Read as '0' bit 3 WRERR: EEPROM Error Flag bit

1 = A write operation is prematurely termina ted

(any MCLR

Reset or any WDT Reset during normal operation)

0 = The write operation completed bit 2 WREN: EEPROM Write Enable bit

1 = Allows write cycles

0 = Inhibits write to the EEPROM

bit 1 WR: Write Control bit

1 = Initiates a write cycle. (The bit is cleared by hardware once write is complete. The WR bit

can only be set (not cleared) in software.)

0 = Write cycle to the EEPROM is complete bit 0 RD: Read Control bit

1 = Initiates an EEPROM read. (RD is cleared in hardware. The RD bit can only be set (not

cleared) in software.)

0 = Does not initiate an EEPROM read

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2001 Microchip Technology Inc. DS30292C-page 43

PIC16F87X

4.2 Reading the EEPROM Data Memory

Reading EEPROM data memory only requires that the desired address to access be written to the EEADR register and clear the EEPGD bit. After the RD bit is set, data will be av ailable in the EEDATA register on the very next instruction cycle. EEDATA will hold this value until another read ope ration is initiated or unt il it is written by firmware.

The steps to reading the EEPROM data memory are:

1. Write the address to EEDATA. Make sure that

the address is not larger than the memory size of the PIC16F87X device.

2. Clear the EEPGD bit to point to EEPROM data

memory.

3. Set the RD bit to start the read operation.

4. Read the data from the EEDATA register.

EXAMPLE 4-1: EEPROM DATA READ

4.3 Writing to the EEPROM Data Memory

There are many steps in writing to the EEPROM data memory . Both address and dat a valu es must be writte n to the SFRs. The EEPGD bit must be cleared, and the WREN bit must be set, t o enab le wr ites. The WREN b it should be kept clear at all times, ex cept when writing to the EEPROM data. The WR bit can only be set if the WREN bit wa s set in a previous operation, i.e., they both cannot be set in the same operation. The WREN bit should then be cleared by firmware after the write. Clearing the WREN bit before the write actually completes will not terminate the write in progress.

Writes to EEPROM data memory must also be prefaced with a special sequence of instructions, that prevent inadvertent wri te operations . This is a s equence of five instructions that mus t be executed without in terruptions. The firmware should verify that a write is not in progress, before starting another cycle.

The steps to write to EEPROM data memory are:

1. If step 10 is not implemented, check the WR bit to see if a write is in progress.

2. Write the address to EEADR. Make sure that the address is not larger than the memory size of the PIC16F87X device.

3. Write the 8-bit data value to be programmed in the EEDATA register.

4. Clear the EEPGD bit to point to EEPROM data memory.

5. Set the WREN bit to enable program operati ons.

6. Disable interrupts (if enabled).

7. Execute the special five instruction sequence:

• Write 55h to EECON2 in two step s (first to W ,

then to EECON2)

• Write AAh to EECON2 in two steps (first to

W, then to EECON2)

• Set the WR bit

8. Enable interrupts (if using interrupts).

9. Clear the WREN bit to disable program operations.

10. At the completion of the write cycle, the WR bit is cleared and the EEIF interrupt flag bit is set. (EEIF must be cleared by firmware.) If step 1 is not implemented, then firmware should check for EEIF to be set, or WR to clear , to indica te the end of the program cycle.

EXAMPLE 4-2: EEPROM DATA WRITE

BSF STATUS, RP1 ; BCF STATUS, RP0 ;Bank 2 MOVF ADDR, W ;Write address MOVWF EEADR ;to read from BSF STATUS, RP0 ;Bank 3 BCF EECON1, EEPGD ;Point to Data memory BSF EECON1, RD ;Start read operation BCF STATUS, RP0 ;Bank 2

MOVF EEDATA, W ;W = EEDATA

BSF STATUS, RP1 ; BSF STATUS, RP0 ;Bank 3 BTFSC EECON1, WR ;Wait for GOTO $-1 ;write to finish BCF STATUS, RP0 ;Bank 2 MOVF ADDR, W ;Address to MOVWF EEADR ;write to MOVF VALUE, W ;Data to MOVWF EEDATA ;write BSF STATUS, RP0 ;Bank 3 BCF EECON1, EEPGD ;Point to Data memory BSF EECON1, WREN ;Enable writes ;Only disable interrupts BCF INTCON, GIE ;if already enabled, ;otherwise discard MOVLW 0x55 ;Write 55h to MOVWF EECON2 ;EECON2 MOVLW 0xAA ;Write AAh to MOVWF EECON2 ;EECON2 BSF EECON1, WR ;Start write operation ;Only enable interrupts BSF INTCON, GIE ;if using interrupts, ;otherwise discard BCF EECON1, WREN ;Disable writes

PIC16F87X

DS30292C-page 44  2001 Microchip Technology Inc.

4.4 Reading the FLASH Program Memory

Reading FLASH program memory is much like that of EEPROM data memory , only two NOP instructions must be inserted afte r the RD bit is se t. These two i nstruction cycles that t he NOP instructions execute, will be used by the micro contr olle r to r ead th e data out of prog ram memory and insert the value into the EEDATH:EEDATA registers. Data will be available following the second NOP instruction. EEDATH and EEDATA will hold their value until another read operation is initiated, or until they are written by firmware.

The steps to rea din g t he FLASH pro gram m emory a re:

1. Write the address to EEADRH:EEADR. Make

sure that the address is not larger than the memory size of the PIC16F87X device.

2. Set the EEPGD bit to point to FLASH program

memory.

3. Set the RD bit to start the read operation.

4. Execute two NOP instructions to allow the micro-

controller to read out of program memory.

5. Read the data from the EEDATH:EEDATA

registers.

EXAMPLE 4-3: FLASH PROGRAM READ

4.5 Writing to the FLASH Program Memory

Writing to FLASH program memory is unique, in that the microcontroller does not execute instructions while programming is taking place. The oscillator continues to run and all peripherals continue to operate and queue interrupts, if enabled. Once the write operation completes (specification D133), the processor begins executing code from where it left off. The other important difference when writing to FLASH program memory, is that the WRT configuration bit, when clear, prevents any writes to program memory (see Table 4-1).

Just like EEPROM data memory, there are many steps in writing to the FLASH program mem ory . Bot h address and data values must be written to the SFRs. The EEPGD bit must be set, and the WREN bit must be set to enable writes. The WREN bit shou ld be k ept cl ear at all times, except when writing to the FLASH Program memory. The WR bit can only be set if the WREN bit was set in a previous operation, i.e., they both cannot be set in the same operation. The WREN bit should then be cleared by firmwa re after the writ e. Clearing the WREN bit before the write actually completes will not terminate the write in progress.

Writes to program memory must also be prefaced with a special sequence of instructions that prevent inadvertent write operations. This is a sequence of five instructio ns t hat mu st be e xe cu t ed w ith ou t i nte r ru pt i on for each byte w ritte n. Th ese ins tructi ons m ust then be followed by two NOP instructions to allow the microcontroller to setup for th e write op eratio n. Onc e the wri te is complete, the execution of instructions starts with the instruction after the second NOP.

The steps to write to program memory are:

1. Write the address to EEADRH:EEADR. Make

sure that the address i s not larger than the m emory size of the PIC16F87X device.

2. Write the 14-bit data value to be prog ram med i n

the EEDATH:EEDATA registers.

3. Set the EEPGD bit to point to FLASH program

memory.

4. Set the WREN bit to enable program operati ons.

5. Disable interrupts (if enabled).

6. Execute the special five instruction sequence:

• Write 55h to EECON2 in two step s (fir st to W , then to EECON2)

• Write AAh to EECON2 in two steps (first to W ,

then to EECON2)

• Set the WR bit

7. Execute two NOP instruction s to allow the mic rocontroller to setup for write operation.

8. Enable interrupts (if using interrupts).

9. Clear the WREN bit to disable program operations.

BSF STATUS, RP1 ; BCF STATUS, RP0 ;Bank 2 MOVF ADDRL, W ;Write the MOVWF EEADR ;address bytes MOVF ADDRH,W ;for the desired MOVWF EEADRH ;address to read BSF STATUS, RP0 ;Bank 3 BSF EECON1, EEPGD ;Point to Program memor

BSF EECON1, RD ;Start read operation NOP ;Required two NOPs NOP ; BCF STATUS, RP0 ;Bank 2 MOVF EEDATA, W ;DATAL = EEDATA MOVWF DATAL ; MOVF EEDATH,W ;DATAH = EEDATH MOVWF DATAH ;

 2001 Microchip Technology Inc. DS30292C-page 45

PIC16F87X

At the completion of the write cycle, the WR bit is cleared and the EEIF interrupt flag bit is set. (EEIF must be cleared by firmware. ) Since the microcont roller does not execute in structions duri ng the write cy cle, the firmware does not necessarily have to check either EEIF, or WR, to determine if the write had finished.

EXAMPLE 4-4: FLASH PROGRAM WRI TE

4.6 Write Verify

The PIC16F87X device s do not automaticall y verify the value written during a write operation. Depending on the application, good programming practice may dictate that the value written to memory b e verified against the original value. This should be used in applications where excessive writes can stress bits near the specified endurance limit s.

4.7 Protection Against Spurious

Writes

There are conditions when the device may not want to write to the EEPROM data memory or FL ASH program memory. To protect against these spurious write conditions, various mechanisms have been built into the PIC16F87X devices. On power-up, the WREN bit is cleared and the Power-up Timer (if enabled) prevents writes.

The write initiate sequence, and the WREN bit together, help prevent any accidental writes during brown-out, power glitches, or firmware malfunction.

4.8 Operation While Code Protected

The PIC16F87 X de vi ce s ha ve t w o c ode pr o tec t mec ha nisms, one bit for EEPROM dat a memory and two bit s for FLASH program memory. Data can be read and written to the EEPROM data memory, regardless of the state of the code protection bit, CPD. When code protection is enabled and CPD cleared, external access via ICSP is disabled, regardless of the sta te of the prog ram memory code protect bits. This prevents the contents of EEPROM data memory fro m bei ng rea d o ut of the de vice.

The state of the program memory code protect bits, CP0 and CP1, do not affect the execution of instructions out of program mem ory. The PIC16F87X devices can always read the values in program memory, regardless of the state of the code protect bits. However , the st a te of th e c ode prote ct bit s an d the WRT bit will have diffe rent effects on wr iting to prog ram memory. Table 4-1 shows the effect of the code protect bits and the WRT bit on program memory.

Once code protection has been enabled for either EEPROM data memory or FLASH program memory, only a full erase of the entire device will disable code protection.

BSF STATUS, RP1 ; BCF STATUS, RP0 ;Bank 2 MOVF ADDRL, W ;Write address MOVWF EEADR ;of desired MOVF ADDRH, W ;program memory MOVWF EEADRH ;location MOVF VALUEL, W ;Write value to MOVWF EEDATA ;program at MOVF VALUEH, W ;desired memory MOVWF EEDATH ;location BSF STATUS, RP0 ;Bank 3 BSF EECON1, EEPGD ;Point to Program memory BSF EECON1, WREN ;Enable writes ;Only disable interrupts BCF INTCON, GIE ;if already enabled, ;otherwise discard MOVLW 0x55 ;Write 55h to MOVWF EECON2 ;EECON2 MOVLW 0xAA ;Write AAh to MOVWF EECON2 ;EECON2 BSF EECON1, WR ;Start write operation NOP ;Two NOPs to allow micro NOP ;to setup for write ;Only enable interrupts BSF INTCON, GIE ;if using interrupts, ;otherwise discard

BCF EECON1, WREN ;Disable writes

PIC16F87X

DS30292C-page 46  2001 Microchip Technology Inc.

4.9 FLASH Program Memory Write Protection

The configuration word contains a bit that write protects the FLASH program memory, called WRT. This bit can only be accessed when programming the PIC16F87X device via ICSP. Once write protection is enabled, only an erase of the entire device will disable it. When enabled, write protec tion prevent s any writes to FLASH program memory. Write protection does not affect program memory reads.

TABLE 4-1: READ/WRITE STATE OF INTERNAL FLASH PROGRAM MEMORY

TABLE 4-2: REGISTERS ASSOCIATED WITH DATA EEPROM/PROGRAM FLASH

Configuration Bits

Memory Location

Internal

Read

Internal

Write

ICSP Read ICSP Write

CP1 CP0 WRT

00x All program mem ory Yes No No No 010 Unprotected areas Yes No Yes No 010 Protected areas Yes No No No 011 Unprotected areas Yes Yes Yes No 011 Protected areas Yes No No No 100 Unprotected areas Yes No Yes No 100 Protected areas Yes No No No 101 Unprotected areas Yes Yes Yes No 101 Protected areas Yes No No No 110 All program memory Yes No Yes Yes 111 All program mem o ry Yes Yes Yes Yes

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR, BOR

Val ue on all other

RESETS

0Bh, 8Bh, 10Bh, 18Bh

INTCON GIE PEIE

T0IE INTE RBIE T0IF INTF RBIF

0000 000x 0000 000u

10Dh EEADR EEPROM Addr ess Register, Low Byte

xxxx xxxx uuuu uuuu

10Fh EEADRH — — — EEPROM Address, High Byte

xxxx xxxx uuuu uuuu

10Ch EEDATA EEPROM Data Register, Low Byte

xxxx xxxx uuuu uuuu

10Eh EEDATH — — EEPROM Data Register, High Byte

xxxx xxxx uuuu uuuu

18Ch EECON1 EEPGD — — — WRERR WREN WR RD

x--- x000 x--- u000

18Dh EECON2 EEPROM Control Register2 (not a physical register)

——

8Dh PIE2

— (1) — EEIE BCLIE — — CCP2IE

-r-0 0--0 -r-0 0--0

0Dh PIR2 — (1) — EEIF BCLIF — — CCP2IF

-r-0 0--0 -r-0 0--0

Legend: x = unknown, u = unchanged, r = reserved, - = unimplemented, read as '0'.

Shaded cells are not used during FLASH/EEPROM access.

Note 1: These bits are reserved; always maintain these bits clear.

 2001 Microchip Technology Inc. DS30292C-page 47

PIC16F87X

5.0 TIMER0 MODULE

The Timer0 module timer/co unter has the followi ng features:

• 8-bit timer/counter

• Readable and writable

• 8-bit software programmable prescaler

• Internal or external clock select

• Interrupt on overflow from FFh to 00h

• Edge select for external clock

Figure 5-1 is a block diagram of the T imer0 m odule and the prescaler shared with the WDT.

Additional information on the Timer0 module is available in the PICmicro™ Mid-Range MCU Family Reference Manual (DS33023).

Timer mode is selected by clearing bit T0CS (OPTION_REG<5>). In Timer mode, the Timer0 module will increment ev ery ins tru cti on c y cle (without prescaler). If the TMR0 register is written, the increment is inhibited for the following two instruction cycles. The user can work around this by writing an adjusted value to the TMR0 register.

Counter mode is selected by setting bit T0CS (OPTION_REG<5>). In Counter mode, Timer0 will increment either on every rising, or falling edge of pin RA4/T0CKI. The incrementing edge is determined by the Timer0 Source Edge Select bit, T0SE (OPTION_REG<4>). Clearing bit T0SE selects the rising edge. Restrictions on the external clock input are discussed in detail in Section 5.2.

The prescaler is mutually exclusively shared between the Timer0 mo du le and t he W a tchdo g Timer. The prescaler is not readabl e or w rit able. Sectio n 5.3 details the operation of the prescaler.

5.1 Timer0 Interrupt

The TMR0 interrupt is generated when the TMR0 register overflows from FFh to 00h. This overflow sets bit T0IF (INTCON<2>). The interrupt can be masked by clearing bit T0IE (INTCON<5>). Bit T0IF must be cleared in softw are by the T imer0 mo dule Interrupt Service Routine before re-enabling this interrupt. The TMR0 interrupt cannot awaken the processor from SLEEP, since the timer is shut-off during SLEEP.

FIGURE 5-1: BLOCK DIAGRAM OF THE TIMER0/WDT PRESCALER

RA4/T0CKI

T0SE

U X

CLKOUT (= F

OSC/4)

SYNC

Cycles

TMR0 Reg

8-bit Prescaler

8 - to - 1MUX

M U

M U X

Watchdog

Timer

PSA

WDT

Time-out

PS2:PS0

Note: T0CS, T0SE, PSA, PS2:PS0 are (OPTION_REG<5:0>).

PSA

WDT Enable bit

M U

Data Bus

Set Flag Bit T0IF

on Overflow

PSA

T0CS

PRESCALER

PIC16F87X

DS30292C-page 48  2001 Microchip Technology Inc.

5.2 Using Timer0 with an External Clock

When no pres caler is us ed, t he ex ternal clock inpu t is the same as the prescaler outp ut. Th e synch ron iz atio n of T0CKI with the internal phase clocks is accomplished by sampli ng the prescale r output on the Q2 and Q4 cycles of the internal phase clocks. Therefore, it is necessary f or T 0 CK I t o be hi g h f or a t le as t 2Tosc (and a small RC delay of 20 ns) and low for at least 2Tosc (and a small RC delay of 20 ns). Refer to the electrical specification of the desired device.

5.3 Prescaler

There is only on e presca ler avai lable, w hich i s mutuall y exclusively sha red between the T imer0 mod ule and the Watchdog Timer. A prescaler assignment for the

Timer0 m odule means that t here is no presc aler fo r the Watchdog Timer, and vice-versa. This prescaler is not readable or writable (see Figure 5-1).

The PSA and PS2:PS0 bits (OPTION_REG<3:0>) determine the prescaler assignment and pre scale ratio.

When assigned to the Timer0 module, all instructions writing to the TMR0 register ( e.g. CLRF

1, MOVWF 1,

BSF

1,x.. ..etc.) will clear the pre scaler . When assi gned

to WDT, a CLRWDT instruction will clea r the prescaler along with the Watchdog Timer. The prescaler is not readable or writable.

Note: Writing to TMR0, when the prescaler is

assigned to T imer0, will clear the pre scaler count, but will not change the prescaler assignment.

R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 RBPU

INTEDG T0CS T0SE PSA PS2 PS1 PS0

bit 7 bit 0

bit 7 RBPU bit 6 INTEDG bit 5 T0CS: TMR0 Clock Source Select bit

1 = Transition on T0CKI pin 0 = Internal instruction cycle clock (CLKOUT)

bit 4 T0SE: TMR0 Source Edge Select bit

1 = Increment on high-to-low transition on T0CKI pin 0 = Increment on low-to-high transition on T0CKI pin

bit 3 PSA: Prescaler Assignment bit

1 = Prescaler is assigned to the WDT 0 = Prescaler is assigned to the Timer0 module

bit 2-0 PS2:PS0: Prescaler Rate Select bits

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

000 001 010 011 100 101 110 111

1 : 2 1 : 4 1 : 8 1 : 16 1 : 32 1 : 64 1 : 128 1 : 256

1 : 1 1 : 2 1 : 4 1 : 8 1 : 16 1 : 32 1 : 64 1 : 128

Bit Value TMR0 Rate WDT Rate

Note: To avoid an unintended device RESET, the instruction sequence shown in the PICmicro™ Mid-Ra nge MCU

Family Reference Manual (DS33023) must be executed when changing the prescaler assignment from Timer0 to the WDT. This sequence must be followed even if the WDT is disabled.

 2001 Microchip Technology Inc. DS30292C-page 49

PIC16F87X

T ABLE 5-1: REGISTERS ASSOCIATED WITH TIMER0

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on

all other

RESETS

01h,101h TMR0 Timer0 Module’s Register

xxxx xxxx uuuu uuuu

0Bh,8Bh, 10Bh,18Bh

INTCON GIE PEIE T0IE INTE RBIE T0IF INTF RBIF

0000 000x 0000 000u

81h,181h OPTION_REG RBPU INTEDG T0CS T0SE PSA PS2 PS1 PS0

1111 1111 1111 1111

Legend: x = unknown, u = unchanged, - = unimplemented locations read as '0'.

Shaded cells are not used by T ime r0.

PIC16F87X

DS30292C-page 50  2001 Microchip Technology Inc.

NOTES:

 2001 Microchip Technology Inc. DS30292C-page 51

PIC16F87X

6.0 TIMER1 MODULE

The Timer1 mod ule is a 16-bi t tim er/c ou nter c onsis tin g of two 8-bit registers (TMR1H and TMR1L), which are readable and writable. The TMR1 Register pair (TMR1H:TMR1L) increments from 0000h to FFFFh and rolls over to 0000 h. The TMR1 Interrupt , if enabled, is generated on overflow, which is latched in interrupt flag bit TMR1IF (PIR1<0>). This interrupt can be enabled/disabled by setting/clearing TMR1 interrupt enable bit TMR1IE (PIE1<0>).

Timer1 can operate in one of two modes:

• As a timer

• As a counter

The operating mode is determined by the clock select bit, TMR1CS (T1CON<1>).

In Timer mode, Timer1 increments every instruction cycle. In Counter mode, it increments on every rising edge of the external clock input.

Timer1 can be enabled/disabled by setting/clearing control bit TMR1ON (T1CON<0> ) .

Timer1 also has an internal “RESET input”. This RESET can be generated by either of the two CCP modules (Section 8.0). Register 6-1 shows the Timer1 control register.

When the Timer1 oscillator is enabled (T1OSCEN is set), the RC1/T1OSI/CCP2 and RC0/T1OSO/T1CKI pins become inputs. That is, the TRISC<1:0> value is ignored, and these pins read as ‘0’.

Additional information on timer modules is available in the PICmicro™ Mid-Range MCU Family Reference Manual (DS33023).

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

— — T1CKPS1 T1CKPS0 T1OSCEN T1SYNC TMR1CS TMR1ON

bit 7 bit 0

bit 7-6 Unimplemented: Read as '0' bit 5-4 T1CKPS1:T1CKPS0: Timer1 Input Clock Prescale Select bits

11 = 1:8 Prescale value 10 = 1:4 Prescale value 01 = 1:2 Prescale value 00 = 1:1 Prescale value

bit 3 T1OSCEN: Timer1 Oscillator Enable Control bit

1 = Oscillator is enabled 0 = Oscillator is shut-off (the oscillator i nverter is turned off to eliminate power drain)

bit 2 T1SYNC

: Timer1 External Clock Input Synchronization Control bit

When TMR1CS = 1:

1 = Do not synchronize external clock input 0 = Synchronize external clo ck input

When TMR1CS = 0

This bit is ignored. Timer1 uses the internal clock when TMR1CS = 0.

bit 1 TMR1CS: Timer1 Clock Source Select bit

1 = External clock from pin RC0/T1OSO/T1CKI (on the rising edge) 0 = Internal clock (FOSC/4)

bit 0 TMR1ON: Timer1 On bit

1 = Enables Timer1 0 = Stops Timer1

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

PIC16F87X

DS30292C-page 52  2001 Microchip Technology Inc.

6.1 Timer1 Operation in Timer Mode

Timer mode is selected by clearing the TMR1CS (T1CON<1>) bit. In this mode, the input clock to the timer is F

OSC/4. The synchronize control bit T1SYNC

(T1CON<2>) has no effect, since the internal clock is always in sync.

6.2 Timer1 Counter Operation

Timer1 may operate in either a Synchronous, or an Asynchronous mode, depending on the setting of the TMR1CS bit.

When Timer1 is being incremented via an external source, increment s occur on a rising edg e. After T imer1 is enabled in Coun ter mode, the module must fi rst have a falling edge before the counter begins to increment.

FIGURE 6-1: TIMER1 INCREMENTING EDGE

6.3 Timer1 Operation in Synchronized Counter Mode

Counter mode is selected by setting bit TMR1CS. In this mode, the timer increm ents on every rising edg e of clock input on pin RC1/T1OSI/CCP2, when bit T1OSCEN is set, or on pin R C0/T1 OSO/T 1CKI, w hen bit T1OSCEN is cleared.

If T1SYNC is cleared, the n the external cl ock input is synchronized with internal phase clocks. The synchronization is done after the prescaler stage. The prescaler stage is an asynchronous ripple-counter.

In this configuration, during SLEEP mode, Timer1 will not increment even if the external clock is present, since the synchronization circuit is shut-off. The prescaler, however, will continue to increment.

FIGURE 6-2: TIMER1 BLOCK DIAGRAM

T1CKI (Default High)

T1CKI (Default Low)

Note: Arrows indicate counter increments.

TMR1H

TMR1L

T1OSC

T1SYNC

TMR1CS

T1CKPS1:T1CKPS0

Q Clock

T1OSCEN Enable

Oscillator

(1)

FOSC/4 Internal

Clock

TMR1ON

On/Off

Prescaler

1, 2, 4, 8

Synchronize

det

Synchronized

Clock Input

RC0/T1OSO/T1CKI

RC1/T1OSI/CCP2

(2)

Note 1: When the T1OSCEN bit is cleared, the inverter is turned off. This eliminates power drain.

Set Flag bit TMR1IF on Overflow

TMR1

 2001 Microchip Technology Inc. DS30292C-page 53

PIC16F87X

6.4 Timer1 Operation in Asynchronous Counter Mode

If control bit T1SYNC (T1CON<2>) is set, the external clock input is not synchronized. The timer continues to increment asynchronous to the internal phase clocks. The timer will continue to run during SLEEP and can generate an interrupt-on-overflow, which will wake-up the processor. However, special precautions in software are needed to read/write the time r (Section 6.4.1).

In Asynchronous Counter mode, Timer1 cannot be used as a time-base for capture or compare operations.

6.4.1 READING AND WRITING TIMER1 IN

ASYNCHRONOUS COUNTER MODE

Reading TMR1H or TMR1L while the timer is running from an external asynchronous clock, will guarantee a valid read (taken care of in hardware). However, the user should keep i n mind that r eadin g the 16-bit time r in two 8-bit values it se lf, poses certain problem s, s inc e the timer may overflow between the reads.

For writes, it is recomm ended that the us er simply stop the timer and write the desired values. A write contention may occur by writing to the timer registers, while the register is incrementing. This may produce an unpredictable value in t he timer register.

Reading the 16-bit value requires some care. Examples 12-2 and 12-3 i n the PICmicro™ Mid-R ang e MCU Family Reference Manual (DS33023) show how to read and write Timer1 when it is running in Asynchronous mode.

6.5 Timer1 Oscillator

A crystal oscillator ci rcuit is built-in betwee n pins T1OSI (input) and T1OSO (amplifier output). It is enabled by setting control bit T1OSCEN (T 1CON<3>). The oscill ator is a low power oscillator, rated up to 200 kHz. It will continue to run during SLEEP. It is primarily intended for use with a 32 kHz crystal. Table 6-1 shows the capacitor selection for the Timer1 oscillator.

The Timer1 oscillator is identical to the LP oscillator. The user must provide a so f tw ar e tim e de lay to en sure proper oscillator start-up.

T ABLE 6-1: CAPACITOR SELECTION FOR

THE TIMER1 OSCILLATOR

6.6 Resetting Timer1 using a CCP Trigger Output

If the CCP1 or CCP2 module is config ured in C omp are mode to generate a “special event trigger” (CCP1M3:CCP1M0 = 1011), this signal will reset Timer1.

Timer1 mu st be confi gured fo r either T ime r or Synchr onized Counter mode to take advantage of this feature. If Timer1 is running in Asynchronous Counter mode, this RESET operation may not work.

In the event that a write to Timer1 coincide s with a special event trigger from CCP1 or CCP2, the write will take precedence.

In this mode of ope ration, the CCPRxH:C CPRx L regis ter pair effectively becomes the period register for Timer1.

Osc Type Freq. C1 C2

LP 32 kHz 33 pF 33 pF

100 kHz 15 pF 15 pF 200 kHz 15 pF 15 pF

These values are for design guidance only.

Crystals Tested:

32.768 kHz Epson C-001R32.768K-A ± 20 PPM 100 kHz Epson C-2 100.00 KC-P ± 20 PPM 200 kHz STD XTL 200.000 kHz ± 20 PPM

Note 1: Higher capacitance increases the stability

of oscillator , b ut also inc reases th e start-u p time.

2: Since each resonat or/crystal has its own

characteristics, the u ser shoul d consult th e resonator/crystal manufacturer for appropriate values of external components.

Note: The special event triggers from the CCP1

and CCP2 modules will not set interrupt flag bit TMR1IF (PIR1<0>).

PIC16F87X

DS30292C-page 54  2001 Microchip Technology Inc.

6.7 Resetting of Timer1 Register Pair (TMR1H, TMR1L)

TMR1H and TMR1L registers are not rese t to 00h on a POR, or any other RESET, except by the CCP1 and CCP2 special event triggers.

T1CON register is reset to 00h on a Power-on Reset, or a Brown-out Reset, which shuts off the timer and leaves a 1:1 prescale. In all other RESETS, the register is unaffected.

6.8 Timer1 Prescaler

The prescaler counter is cleared on writes to the TMR1H or TMR1L registers.

TABLE 6-2: REGISTERS ASSOCIATED WITH TIMER1 AS A TIMER/COUNTER

Address Name Bit 7 Bit 6 Bit 5 B it 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other RESETS

0Bh,8Bh, 10Bh, 18Bh

INTCON GIE PEIE

T0IE INTE RBIE T0IF INTF RBIF

0000 000x 0000 000u

0Ch PIR1 PSPIF

(1)

ADIF RCIF TXIF SSPIF CCP1IF TMR2IF TMR1IF

0000 0000 0000 0000

8Ch PIE1 PSPIE

(1)

ADIE RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE

0000 0000 0000 0000

0Eh TMR1L Holding Register for the Least Significant Byte of the 16-bit TMR1 Register

xxxx xxxx uuuu uuuu

0Fh TMR1H Holding Register for the Most Significant Byte of the 16-bit TMR1 Register

xxxx xxxx uuuu uuuu

10h T1CON — — T1CKPS1 T1CKPS0 T1OSCEN T1SYNC TMR1CS TMR1ON

--00 0000 --uu uuuu

Legend: x = unknown, u = unchanged, - = unimplemented, read as '0'. Shaded cells are not used by the Timer1 module. Note 1: Bits PSPIE and PSPIF are reserved on the PIC16F873/876; always maintain these bits clear.

 2001 Microchip Technology Inc. DS30292C-page 55

PIC16F87X

7.0 TIMER2 MODULE

Timer2 is an 8-bit timer with a prescaler and a postscaler. It can be used as the PW M time-base fo r the PWM mode of the CCP module (s). The TMR2 register is readable and writable, and is cleared on any device RESET.

The input clock (F

OSC/4) has a prescale option of 1:1,

1:4, or 1:16, selected by control bits T2CKPS1:T2CKPS0 (T2CON<1:0>).

The Timer2 module has an 8-bit period register, PR2. Timer2 increments from 00h until it matches PR2 and then resets to 00h on the next increment cycle. PR2 is a readable and writable register. The PR2 register is initialized to FFh upon RESET.

The match output of TMR2 goes through a 4-bit postscaler (which gives a 1:1 to 1:16 scaling inclusive) to generate a TMR2 interrupt (latched in flag bit TMR2IF, (PIR1<1>)).

Timer2 c an b e s hu t-off by clearing c ont rol bi t TMR2ON (T2CON<2>), to minimize power consumption.

the PICmicro™ Mid-Range MCU Family Reference Manual (DS33023).

FIGURE 7-1: TIMER2 BLOCK DIAGRAM

Comparator

TMR2

Sets Flag

TMR2 Reg

Output

(1)

RESET

Postscaler

Prescaler

PR2 Reg

OSC/4

1:1 1:16

1:1, 1:4, 1:16

bit TMR2IF

Note 1:TMR2 register output can be software selected by the

SSP module as a baud clock.

T2OUTPS3:

T2OUTPS0

T2CKPS1:

T2CKPS0

U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

— TOUTPS3 TOUTPS2 TOUTPS1 TOUTPS0 TMR2ON T2CKPS1 T2CKPS0

bit 7 bit 0

bit 7 Unimplemented: Read as '0' bit 6-3 TOUTPS3:TOUTPS0: Timer2 Output Postscale Select bits

0000 = 1:1 Postscale 0001 = 1:2 Postscale 0010 = 1:3 Postscale

•

1111 = 1:16 Postscale

bit 2 TMR2ON: Timer2 On bit

1 = Timer2 is on 0 = Timer2 is off

bit 1-0 T2CKPS1:T2CKPS0: Timer2 Clock Prescale Select bits

00 = Prescaler is 1 01 = Prescaler is 4 1x = Prescaler is 16

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

PIC16F87X

DS30292C-page 56  2001 Microchip Technology Inc.

7.1 Timer2 Prescaler and Postscaler

The prescaler and postscaler counters are cleared when any of the following occurs:

• a write to the TMR2 register

• a write to the T2CON register

• any device RESET (POR, MCLR

Reset, WDT

Reset, or BOR)

TMR2 is not cleared when T2CON is written.

7.2 Output of TMR2

The output of TMR2 (before the post scaler) is fed to the SSP module, which optionally uses it to generate shift clock.

TABLE 7-1: REGISTERS ASSOCIATED WITH TIMER2 AS A TIMER/COUNTER

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR, BOR

Value on all other RESETS

0Bh,8Bh, 10Bh,18Bh

INTCON GIE PEIE

T0IE INTE RBIE T0IF INTF RBIF 0000 000x 0000 000u

0Ch PIR1 PSPIF

(1)

ADIF RCIF TXIF SSPIF CCP1IF TMR2IF TMR1IF 0000 0000 0000 0000

8Ch PIE1 PSPIE

(1)

ADIE RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE 0000 0000 0000 0000 11h TMR2 Timer2 Module’s Register 0000 0000 0000 0000 12h T2CON — TOUTPS3 TOUTPS2 TOUTPS1 TOUTPS0 TMR2ON T2CKPS1 T2CKPS0 -000 0000 -000 0000 92h PR2 Timer2 Period Register 1111 1111 1111 1111 Legend: x = unknown, u = unchanged, - = unimplemented, read as '0'. Shaded cells are not used by the Timer2 module.

Note 1: Bits PSPIE and PSPIF are reserved on the PIC16F 873/876; always maintain these bits clear.

 2001 Microchip Technology Inc. DS30292C-page 57

PIC16F87X

8.0 CAPTURE/COMPARE/PWM MODULES

Each Capture/Compare/PWM (CCP) module contains a 16-bit register which can operate as a:

• 16-bit Capture register

• 16-bit Compare register

• PWM Master/Slave Duty Cycle register

Both the CCP1 and CCP2 modules are identical in operation, with the e xception being the operation of the special event trigg er. Table 8-1 and Ta ble 8-2 show the resources and interactions of the CCP module(s). In the following sections, the operation of a CCP module is described with respect to CCP1. CCP2 operates the same as CCP1, except where noted.

CCP1 Module: Capture/Compare/PWM Register1 (CCPR1) is com-

prised of two 8-bit registers: CCPR1L (low byte) and CCPR1H (high byte). The CCP1CON register controls the operation of CCP1. The special event trigger is generated by a compare match and will reset Timer1.

CCP2 Module: Capture/Compare/PWM Register2 (CCPR2) is com-

prised of tw o 8-bit registers: CCPR2L (low byte) a nd CCPR2H (high byte). The CCP2CON register controls the operation of CCP2. The special event trigger is generated by a compare match and will reset Timer1 and start an A/D conversion (if the A/D module is enabled).

Additional information on CCP modules is available in the PICmicro™ Mid-Range MCU Family Reference Manual (DS33023) and in application note AN594, “Using the CCP Modules” (DS00594).

TABLE 8-1: CCP MODE - TIMER

RESOURCES REQUIRED

TABLE 8-2: INTERACTION OF TWO CCP MODULES

CCP Mode Timer Resource

Capture

Compare

PWM

Timer1 Timer1 Timer2

CCPx Mode CCPy Mode Interaction

Capture Capture Same TMR1 time-base Capture Compare The compare should be configured for the special event trigger, which clears TMR1

Compare Compare The compare(s) should be configured for the special event trigger, which clears TMR1

PWM PWM The PWMs will have the same frequency and update rate (TMR2 interrupt) PWM Capture None PWM Compare None

PIC16F87X

DS30292C-page 58  2001 Microchip Technology Inc.

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

— — CCPxX CCPxY CCPxM3 CCPxM2 CCPxM1 CCPxM0

bit 7 bit 0

bit 7-6 Unimplemented: Read as '0' bit 5-4 CCPxX:CCPxY: PWM Least Significant bits

Capture mode

Unused Compare mode:

Unused PWM mode:

These bits are the two LSbs of the PWM duty cycle. The eight MSbs are found in CCPRxL.

bit 3-0 CCPxM3:CCPxM0: CCPx Mode Select bits

0000 =Capture/Compare/PWM disabled (resets CCPx module) 0100 =Capture mode, every falling edge 0101 =Capture mode, every rising edge 0110 =Capture mode, every 4th rising edge 0111 =Capture mode, every 16th rising edge 1000 =Compare mode, set output on match (CCPxIF bit is set) 1001 =Compare mode, clear output on match (CCPxIF bit is set) 1010 =Compare mode, generate software interrupt on match (CCPxIF bit is set, CCPx pin is

unaffected)

1011 = Compare mode, trigger spe cial event (CCPxIF bit i s set, CCPx pin is unaf fected); CCP1

resets TMR1; CCP2 resets TMR1 and starts an A/D conv ersion (if A/D module is enabled)

11xx =PWM mode

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2001 Microchip Technology Inc. DS30292C-page 59

PIC16F87X

8.1 Capture Mode

In Capture mode, CCPR1H:CCPR1L captures the 16-bit value of the TMR1 r egister wh en an eve nt occurs on pin RC2/CCP1. An even t is defined as on e of the following:

• Every falling edge

• Every rising edge

• Every 4th rising edge

• Every 16th rising edge

The type of event is configured by control bits CCP1M3:CCP1M0 (CCPxCON<3:0>). When a capture is made, the interrupt request flag bit CCP1IF (PIR1<2>) is set. The interrupt flag must be cleared in software. If another capture occurs before the value in register CCPR1 is read, th e old ca ptured v alue is overwritten by the new value.

8.1.1 CCP PIN CONFIGURATION

In Capture mode, the RC 2/ CCP 1 pin sh oul d b e co nfi gured as an in put by setting the TRISC<2> bit.

FIGURE 8-1: CAPTURE MODE

OPERATION BLOCK DIAGRAM

8.1.2 TIMER1 MODE SELECTION

Timer1 must be running in Timer mode, or Synchronized Counter mode, for the CCP module to use the capture feature. In Asynchronous Counter mode, the capture operation may not work.

8.1.3 SOFTWARE INTERRUPT

When the Capture mode is changed, a false capture interrupt may be generated. The user should keep bit CCP1IE (PIE1<2>) clear to avoid false interrupts and should clear the flag bit CCP1IF, following any such change in operating mode.

8.1.4 CCP PRESCALER

There are four prescaler settings, specified by bits CCP1M3:CCP1M0. Whenever the CCP module is turned off, or the CCP module is not in Capture mode, the prescaler counter is cleared. Any RESET will clear the prescaler counter.

Switching from one capture prescaler to another may generate an interrupt. Also, the prescaler counter will not be cleared, therefore, the first cap ture may be from a non-zero prescaler. Example8-1 shows the recommended method for switching between capture prescalers. This example also clears the prescaler counter and will not generate the “false” interrupt.

EXAMPLE 8-1: CHANGING BETWEEN

CAPTURE PRESCALERS

Note: If the RC2/CCP1 pin is configured as an

output, a write t o the port c an cau se a capture condition.

CCPR1H CCPR1L

TMR1H TMR1L

Set Flag bit CCP1IF

(PIR1<2>)

Capture Enable

CCP1CON<3:0>

RC2/CCP1

Prescaler ÷ 1, 4, 16

and

edge detect

CLRF CCP1CON ; Turn CCP module off MOVLW NEW_CAPT_PS ; Load the W reg with

; the new prescaler ; move value and CCP ON

MOVWF CCP1CON ; Load CCP1CON with this

; value

PIC16F87X

DS30292C-page 60  2001 Microchip Technology Inc.

8.2 Compare Mode

In Compare mo de, th e 16- bit CCP R1 re gist er valu e is constantly compared against the TMR1 register pair value. When a match occurs, the RC2/C CP 1 pin is:

• Driven high

• Driven low

• Remains unchanged

The action on the pin is based on the value of control bits CCP1M3:CCP1M0 (CCP1CON<3:0>). At the same time, interrupt flag bit CCP1IF is set.

FIGURE 8-2: COMPARE MODE

OPERATION BLOCK DIAGRAM

8.2.1 CCP PIN CONFIGURATION

The user must configure the RC2/CCP1 pin as an output by clearing the TRISC<2> bit.

8.2.2 TIMER1 MODE SELECTION

Timer1 must be running in Timer mode, or Synchronized Counter mode, if the CCP module is using the compare feature. In Asynchronous Counter mode, the compare operation may not work.

8.2.3 SOFTWARE INTERRUPT MODE

When Generate Sof tware Interrupt mod e is chosen, the CCP1 pin is not affecte d. The CCPIF bit is set, caus ing a CCP interrupt (if enabled).

8.2.4 SPEC IAL EVENT TRIGGER

In this mode, an internal hardware trigger is gene rated, which may be used to initiate an action.

The special event trigger output of CCP1 resets the TMR1 regist er pai r. This al lows the CCPR 1 re gis ter t o effectively be a 16-b it programm able period registe r for Timer1.

The special event trigger output of CCP2 resets the TMR1 register pai r and starts an A/D conversion (if the A/D module is enabled).

Note: Clearing the CCP1CON register will force

the RC2/CCP1 compare output latch to the default low level. This is not the PORTC I/O data latch.

CCPR1H CCPR1L

TMR1H TMR1L

Comparator

Output

Logic

Special Event Trigger

Set Flag bit CCP1IF (PIR1<2>)

Match

RC2/CCP1

TRISC<2>

CCP1CON<3:0> Mode Select

Output Enable

Special event trigger will:

reset Timer1, but not set interrupt flag bit TMR1IF (PIR1<0>), and set bit GO/DONE (ADCON0<2>).

Note: The special event trigger from the

CCP1and CCP2 modul es w ill not set int errupt flag bit TMR1IF (PIR1<0>).

 2001 Microchip Technology Inc. DS30292C-page 61

PIC16F87X

8.3 PWM Mode (PWM)

In Pulse Width Mo dulation mode, the CCPx pin produces up to a 10-bit resolution PWM output. Since the CCP1 pin is multiplexed with the PORTC data latch, the TRISC<2> bit must be cleared to make the CCP1 pin an output.

Figure 8-3 shows a simplified block diagram of the CCP module in PWM mode.

For a step-by-step proc edure on how to set up the C CP module for PWM operation, see Section 8.3.3.

FIGURE 8-3: SIMPLIFIED PWM BLOCK

DIAGRAM

A PWM output (Figure 8-4) has a time-base (period) and a time that the output stays high (duty cycle). The frequency of the PWM is the inverse of the period (1/period).

FIGURE 8-4: PWM OUTPUT

8.3.1 PWM PERIO D

The PWM period is specifi ed by writin g to the PR2 register. The PWM period can be calculated using the following formula:

PWM period = [(PR2) + 1] • 4 • T

OSC •

(TMR2 prescal e va lu e)

PWM frequency is defined as 1 / [PWM period]. When TMR2 is equal to PR2, t he following three event s

occur on the next increment cy cle:

• TMR2 is cleared

• The CCP1 pin is set (exception: if PWM duty

cycle = 0%, the CCP1 pin will not be set)

• The PWM duty cycle is latc hed from CCP R1L into CCPR1H

8.3.2 PWM DUTY CYCLE

The PWM duty cycle is specified by writing to the CCPR1L register and to the CCP1CON<5:4> bits. Up to 10-bit re sol ut i on is av ai l abl e. T he CCP R1 L c on tai ns the eight MSbs and the CCP1CON<5:4> contains the two LSbs. This 10-bit value is represented by CCPR1L:CCP1CON<5:4>. The following equation is used to calculate the PWM duty cycle in time:

PWM duty cycle =(CCPR1L:CCP1CON<5:4>) •

OSC • (TMR2 prescale value)

CCPR1L and CCP1CON<5:4> can be written to at any time, but the duty cycle value is not latched into CCPR1H until after a match between PR2 and TMR2 occurs (i.e., the period is complete). In PWM mode, CCPR1H is a read-only register.

The CCPR1H register and a 2-bit internal latch are used to double buffer th e PWM duty cycle. Thi s doubl e buffering is essential for glitch-free PWM operation.

When the CCPR 1H and 2 -bit latch match T MR2, con catenated with an internal 2-b it Q clo ck, or 2 bits of the TMR2 presc aler, the CCP1 pin is cl eared.

The maximum PWM resolution (bits) for a given PWM frequency is given by the formula:

Note: Clearing the CCP1CON register will force

the CCP1 PWM output latch to the default low level. This is not the PORTC I/O data latch.

CCPR1L

CCPR1H (Slave)

Comparator

TMR2

Comparator

PR2

(Note 1)

Duty Cycle Registers

CCP1CON<5:4>

Clear Timer, CCP1 pin and latch D.C.

TRISC<2>

RC2/CCP1

Note 1: The 8-bit timer is concatenated w ith 2-bit internal Q

clock, or 2 bits of the prescaler, to create 10-bit timebase.

Period

Duty Cycle

TMR2 = PR2

TMR2 = Duty Cycle

TMR2 = PR2

Note: The Timer2 pos t sc al er (s ee Sec ti on 7.1) is

not used in the determination of the PWM frequency. The pos tscaler co uld be used to have a servo update rate at a different frequency than the PWM output.

Note: If the PWM duty cycle value is longer than

the PWM period, the CCP1 pin will not be cleared.

log(

FPWM

log(2)

OSC

)

bits

Resolution

PIC16F87X

DS30292C-page 62  2001 Microchip Technology Inc.

8.3.3 SETUP FOR PWM OPERATION

The following steps should be taken when configuring the CCP module for PWM operation:

1. Set the PWM period by writing to the PR2 register.

2. Set the PWM duty cycle by writing to the CCPR1L register and CCP1CON<5:4> bits.

3. Make the CCP1 pin an output by clearing the TRISC<2> bit.

4. Set the TMR2 prescale value a nd enable T imer2 by writing to T2CON.

5. Configure the CCP1 module for PWM o peration.

TABLE 8-3: EXAMPLE PWM FREQUENCIES AND RESOLUTIONS AT 20 MHz

TABLE 8-4: REGISTERS ASSOCIATED WITH CAPTURE, COMPARE, AND TIMER1

PWM Frequency 1.22 kHz 4.88 kHz 19.53 kHz 78.12kHz 156.3 kHz 208.3 kHz

Timer Prescaler (1, 4, 16) 16 4 1 1 1 1 PR2 Value 0xFFh 0xFFh 0xFFh 0x3Fh 0x1Fh 0x17h Maximum Resolution (bits) 10 10 10 8 7 5.5

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on :

POR,

BOR

Value on

all other

RESETS

0Bh,8Bh, 10Bh, 18Bh

INTCON GIE PEIE

T0IE INTE RBIE T0IF INTF RBIF 0000 000x 0000 000u

0Ch PIR1 PSPIF

(1)

ADIF RCIF TXIF SSPIF CCP1IF TMR2IF TMR1IF 0000 0000 0000 0000 0Dh PIR2 — — — — — — — CCP2IF ---- ---0 ---- ---0 8Ch PIE1 PSPIE

(1)

ADIE RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE 0000 0000 0000 0000 8Dh PIE2 — — — — — — — CCP2IE ---- ---0 ---- ---0 87h TRISC PORTC Data Direction Register 1111 1111 1111 1111 0Eh TMR1L Holding Register for the Least Significant Byte of the 16-bit TMR1 Register xxxx xxxx uuuu uuuu 0Fh TMR1H Holding Register for the Most Significant Byte of the 16-bit TMR1 Register xxxx xxxx uuuu uuuu 10h T1CON — — T1CKPS1 T1CKPS0 T1OSCEN T1SYNC TMR1CS TMR1ON --00 0000 --uu uuuu 15h CCPR1L Capture/Compare/PWM Register1 (LSB) xxxx xxxx uuuu uuuu 16h CCPR1H Capture/Compare/PWM Register1 (MSB) xxxx xxxx uuuu uuuu 17h CCP1CON — — CCP1X CCP1Y CCP1M3 CCP1M2 CCP1M1 CCP1M0 --00 0000 --00 0000 1Bh CCPR2L Capture/Compare/PWM Register2 (LSB) xxxx xxxx uuuu uuuu 1Ch CCPR2H Capture/Compare/PWM Register2 (MSB) xxxx xxxx uuuu uuuu 1Dh CCP2CON — — CCP2X CCP2Y CCP2M3 CCP2M2 CCP2M1 CCP2M0 --00 0000 --00 0000 Legend: x = unknown, u = unchanged, - = unimplemented, read as '0'. Shaded cells are not used by Capture and Timer1.

Note 1: The PSP is not implemented on the PIC16F873/876; always maintain these bits clear.

 2001 Microchip Technology Inc. DS30292C-page 63

PIC16F87X

TABLE 8-5: REGISTERS ASSOCIATED WITH PWM AND TIMER2

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on

all other

RESETS

0Bh,8Bh, 10Bh, 18Bh

INTCON GIE PEIE

T0IE INTE RBIE T0IF INTF RBIF 0000 000x 0000 000u

0Ch PIR1 PSPIF

(1)

ADIF RCIF TXIF SSPIF CCP1IF TMR2IF TMR1IF 0000 0000 0000 0000 0Dh PIR2 — — — — — — — CCP2IF ---- ---0 ---- ---0 8Ch PIE1 PSPIE

(1)

ADIE RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE 0000 0000 0000 0000 8Dh PIE2 — — — — — — — CCP2IE ---- ---0 ---- ---0 87h TRISC PORTC Data Direct i on Re gi s ter 1111 1111 1111 1111 11h TMR2 Timer2 Module’s Register 0000 0000 0000 0000 92h PR2 Timer2 Modul e’s Period Register 1111 1111 1111 1111 12h T2CON — TOUTPS3 TOUTPS2 TOUTPS1 TOUTPS0 TMR2ON T2CKPS1 T2CKPS0 -000 0000 -000 0000 15h CCPR1L Captur e /Co mp ar e/P WM Re gis ter 1 (L SB) xxxx xxxx uuuu uuuu 16h CCPR1H Capt ur e/ Compare/PWM Reg is ter 1 (MS B) xxxx xxxx uuuu uuuu 17h CCP1CON — — CCP1X CCP1Y CCP1M3 CCP1M2 CCP1M1 CCP1M0 --00 0000 --00 0000 1Bh CCPR2L Capture/Co mp ar e/ P WM Re gis t er2 (L SB) xxxx xxxx uuuu uuuu 1Ch CCPR2H Capture/Compare/PWM Reg is ter 2 (MS B) xxxx xxxx uuuu uuuu 1Dh CCP2CON — — CCP2X CCP2Y CCP2M3 CCP2M2 CCP2M1 CCP2M0 --00 0000 --00 0000 Legend: x = unknown, u = unchanged, - = unimplemented, read as '0'. Shaded cells are not used by PWM and Timer2.

Note 1: Bits PSPIE and PSPIF are reserved on the PIC16F873/876; always maintain these bits clear.

PIC16F87X

DS30292C-page 64  2001 Microchip Technology Inc.

NOTES:

 2001 Microchip Technology Inc. DS30292C-page 65

PIC16F87X

9.0 MASTER SYNCHRONOUS SERIAL PORT (MSSP) MODULE

The Master Synchronous Serial Port (MSSP) module is a serial interface, useful for communicating with other peripheral or microc ontroll er dev ices. Th ese p eriphera l devices may be serial EEPROMs, shift registers, display drivers, A/D converters, etc. The MSSP module can operate in one of two modes:

• Serial Peripheral Interface (SPI)

• Inter-Integrated Circuit (I

Figure 9-1 shows a block diagram for the SPI mode, while Figure 9-5 and Figure 9-9 show the block diagrams for the two different I

C modes of operation.

The Application Note AN734, “Using the PICmicro

SSP for Slave I2CTM Communication” describes the slave operation of the MSSP module on the PIC16F87X devices. AN735, “Using the PICmicro

MSSP Module for I2CTM Communications” describes the master operation of the MSSP module on the PIC16F87X devices.

PIC16F87X

DS30292C-page 66  2001 Microchip Technology Inc.

R/W-0 R/W-0 R-0 R-0 R-0 R-0 R-0 R-0

SMP CKE D/A

PSR/WUA BF

bit 7 bit 0

bit 7 SMP

: Sample bi t

SPI Master mode:

1 = Input data sampled at end of data output time 0 = Input data sampled at middle of data output time

SPI Slave mode: SMP must be cleared when SPI is used in slave mode In I

C Master or Slave mode:

1 = Slew rate control disabled for standard speed mode (100 kHz and 1 MHz) 0 = Slew rate control enabled for high speed mode (400 kHz)

bit 6 CKE: SPI Clock Edge Select (Figure 9-2, Figure 9-3 and Figure 9-4)

SPI mode: For CKP = 0

1 = Data transmitted on rising edge of SCK 0 = Data transmitted on falling edge of SCK

For CKP = 1

1 = Data transmitted on falling edge of SCK 0 = Data transmitted on rising edge of SCK

In I

C Master or Slave mode:

1 = Input levels conform to SMBus spec 0 = Input levels conform to I

C specs

bit 5 D/A: Data/Address

bit (I2C mode only)

1 = Indicates that the last byte received or transmitted was data 0 = Indicates that the last byte received or transmitted was address

bit 4 P: STOP bit

C mode only. This bit is cleared when the MSSP module is disabled, SSPEN is cleared.)

1 = Indicates that a STOP bit has been detected last (this bit is ’0’ on RESET) 0 = STOP bit was not detected last

bit 3 S: START bit

C mode only. This bit is cleared when the MSSP module is disabled, SSPEN is cleared.)

1 = Indicates that a START bit has been detected last (this bit is ’0’ on RESET) 0 = START bit was not detected last

bit 2 R/W: Read/Write bit Information (I

C mode only)

This bit holds the R/W bit information following the last address match. This bit is only valid from the address match to the next START bit, STOP bit or not ACK

bit.

In I

C Slave mode:

1 = Read 0 = Write

In I

C Master mode:

1 = Transmit is in progress 0 = Transmit is not in progress

Logical OR of this bit with SEN, RSEN, PEN, RCEN, or ACKEN will indicate if the MSSP is in I DLE mode.

bit 1 UA: Update Address (10-bit I

C mode only)

1 = Indicates that the user needs to update the address in the SSPADD register 0 = Address does not need to be updated

bit BF: Buffer Full Status bit

Receive (SPI and I

C modes):

1 = Receive complete, SSPBUF is full 0 = Receive not complete, SSPBUF is empty

Transmit (I

C mode only):

1 = Data transmit in progress (does not include the ACK and STOP bits), SSPBUF is full 0 = Data transmit complete (does not include the ACK and STOP bits), SSPBUF is empty

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2001 Microchip Technology Inc. DS30292C-page 67

PIC16F87X

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

WCOL SSPOV SSPEN CKP SSPM3 SSPM2 SSPM1 SSPM0

bit 7 bit 0

bit 7 WCOL: Write Collision Detect bit

Master mode:

1 = A write to SSPBUF was attempted while the I2C conditions were not valid 0 = No collision

Slave mode:

1 = SSPBUF register is written while still transmitting the previous word (must be cleared in

software)

0 = No collision

bit 6 SSPOV: Receive Overflow Indicator bit

In SPI mode:

1 = A new byte is received while SSPBUF holds previous data. Data in SSPSR is lost on overflow. In Slave

mode, the user must read the SSPBUF, even if only transmitting data, to avoid overflows. In Master mode, the overflow bit is not set, since each operation is initiated by writing to the SSPBUF register. (Must be cleared in software.)

0 = No overflow

In I

C mode:

1 = A byte is received while the SSPBUF is holding the previous byte. SSPOV is a "don’t care" in Transmit

mode. (Must be cleared in software.)

0 = No overflow

bit 5 SSPEN: Sy nchronous Serial Port Enable bit

In SPI mode

When enabled, these pins must be properly configured as input or output

1 = Enables serial port and configures SCK, SDO, SDI, and SS as the source of the serial port pins 0 = Disables serial port and configures these pins as I/O port pins

In I

C mode,

When enabled, these pins must be properly configured as input or output

1 = Enables the serial port and configures the SDA and SCL pins as the source of the serial port pins 0 = Disables serial port and configures these pins as I/O port pins

bit 4 CKP: Clock Polarity Select bit

In SPI mode:

1 = Idle state for clock is a high level 0 = Idle state for clock is a low level

In I

C Slave mode:

SCK release control

1 = Enable clock 0 = Holds clock low (clock stretch). (Used to ensure data setup time.)

In I

C Master mode:

Unused in this mode

bit 3-0

SSPM3:SSPM0: Synchronous Serial Port Mode Select bits

0000 = SPI Master mode, clock = FOSC/4 0001 = SPI Master mode, clock = FOSC/16 0010 = SPI Master mode, clock = FOSC/64 0011 = SPI Master mode, clock = TMR2 output/2 0100 = SPI Slave mode, clock = SCK pin. SS pin control enabled. 0101 = SPI Slave mode, clock = SCK pin. SS pin control disabled. SS can be used as I/O pin. 0110 = I

C Slave mode, 7-bit address

0111 = I

C Slave mode, 10-bit address

1000 = I

C Master mode, clock = FOSC / (4 * (SSPADD+1))

1011 = I

C Firmware Controlled Master mode (slave idle)

1110 = I

C Firmware Controlled Master mode, 7-bit address with STAR T and STOP bit interrupts enabled

1111 = I

C Firmware Controlled Master mode, 10-bit address with START and STOP bit interrupts enabled

1001, 1010, 1100, 1101 = Reserved

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

PIC16F87X

DS30292C-page 68  2001 Microchip Technology Inc.

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

GCEN ACKSTAT ACKDT ACKEN RCEN PEN RSEN SEN

bit 7 bit 0

bit 7 GCEN: General Call Enable bit (In I

C Slave mode only)

1 = Enable interrupt when a general call address (0000h) is received in the SSPSR 0 = General call address disabled

bit 6 ACKSTAT: Acknowledge Status bit (In I

C Master mode only)

In Master Transmit mode:

1 = Acknowledge was not received from slave 0 = Acknowledge was received from slave

bit 5 ACKDT: Acknowledge Data bit (In I

C Master mode only)

In Master Receive mode: Value that will be transmitted when the user initiates an Acknowledge sequence at the end of a receive.

1 = Not Acknowledge 0 = Acknowledge

bit 4 ACKEN: Acknowledge Sequence Enable bit (In I

C Master mode only)

In Master Receive mode: 1 = Initiate Acknowledge sequence on SDA and SCL pins and transmit ACKDT data bit.

Automatically cleared by hardware.

0 = Acknowledge sequence idle

bit 3 RCEN: Receive Enable bit (In I

C Master mode only)

1 = Enables Receive mode for I

0 = Receive idle

bit 2 PEN: STOP Condition Enable bit (In I

C Master mode only)

SCK Release Control:

1 = Initiate STOP condition on SDA and SCL pins. Automatically cleared by hardware. 0 = STOP condition idle

bit 1 RSEN: Repeated START Condition Enable bit (In I

C Master mode only)

1 = Initiate Repeated START cond ition on SDA and SCL pins. Automatically cleared by hardware. 0 = Repeated START condition idle

bit 0 SEN: START Conditi on Enab le bit (In I2C Master mode only)

1 = Initiate START condition on SDA and SCL pins. Automatically cleared by hardware. 0 = START condition idle

Note: For bits ACKEN, RCEN, PEN, RSEN, SEN: If the I

C module is not in the IDLE mode, this bit may no t b e s et (no s poo lin g), an d the SSPBUF may not be writte n (or writes to the SSPBUF are disabled).

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2001 Microchip Technology Inc. DS30292C-page 69

PIC16F87X

9.1 SPI Mode

The SPI mode allow s 8 bits of data to be sync hronously transmitted and received simultaneously. All four modes of SPI are supported. To accomplish communication, typically three pins are used:

• Serial Data Out (SDO)

• Serial Data In (SDI)

• Serial Clock (SCK)

Additionally, a fourth pin may be used when in a Slave mode of operation:

• Slave Select (SS

)

When initializing the SPI, several options need to be specified. This is done by pro gramming the ap propriate control bits (SSPCON<5:0> and SSPSTAT<7:6>). These control bits allow the following to be specified:

• Master mode (SCK is the clock output)

• Slave mode (SCK is the clock input)

• Clock Polarity (Idle state of SCK)

• Data input sample phase

(middle or end of data output time)

• Clock edge (output data on rising/falling edge of SCK)

• Clock Rate (Master mode only)

• Slave Select mode (Slave mode only)

Figure 9-4 shows the block diagram of the MSSP module when in SPI mode.

To enable the serial port, MSSP Enable bit, SSPEN (SSPCON<5>) must be set. T o reset or rec onfigure SPI mode, clear bit SSPEN, re-initialize the SSPCON registers, and then set bit SSPEN. This configures the SDI, SDO, SCK and SS

pins as serial port pins. Fo r the pins to behave as the serial port function, some must have their data direction bits (in the TRIS register) appropriately programmed. That is:

• SDI is automatically c on trolled by the SPI module

• SDO must have TRISC<5> cleared

• SCK (Master mode) must have TRISC<3>

cleared

• SCK (Slave mode) must have TRISC<3> set

• SS

must have TRISA<5> set and register ADCON1 (see Section11.0: A/D Mo dule) must be set in a way that pin RA5 is confi gured a s a dig it al I/O

Any serial port function that is not desired may be overridden by programming the corresponding data direction (TRIS) register to the opposite value.

FIGURE 9-1: MSSP BLOCK DIAGRAM

(SPI MODE)

Read Write

Internal

Data Bus

SSPSR Reg

SSPM3:SSPM0

bit0

Shift

Clock

Control Enable

Edge

Select

Clock Select

TMR2 Output

OSC

Prescaler

4, 16, 64

Edge

Select

Data to TX/RX in SSPSR

Data Direction bit

SMP:CKE

SDI

SDO

SCK

SSPBUF Reg

PIC16F87X

DS30292C-page 70  2001 Microchip Technology Inc.

9.1.1 MASTER MODE

The master can initiate the data transfer at any time because it controls the SCK. The master determines when the slave (Processor 2, Figure 9-5) is to broadcast data by the software protoc ol.

In Master mode, the data is transmitted/received as soon as the SSPBUF register is written to. If the SPI module is only going to receive, the SDO output could be disabled (programmed as an input). The SSPSR register will conti nue to shif t in the signa l present on th e SDI pin at the programmed clock rate. As each byte is received, it will be loaded into the SSPBUF register as if a normal received byte (interrupts and status bits appropriately set). This could be useful in receiver applications as a “line activity monitor”.

The clock polarity is selected by appropriately programming bit CKP (SSPCON<4>). This then, would give waveforms for SPI communication as shown in

Figure 9-6, Figure 9-8 and Figure 9-9, where the MSb is transmitted first. In Master mode, the SPI clock rate (bit rate) is user programmable to be one of the following:

• F

OSC/4 (or TCY)

• F

OSC/16 (or 4 • TCY)

• FOSC/64 (or 16 • TCY)

• Timer2 output/2

This allows a maximu m bit clock freq uency (at 20 MHz) of 5.0 MHz.

Figure 9-6 shows the waveforms for Master mode. When CKE = 1, the SDO data is valid before there is a clock edge on SCK. The change of the input sample is shown based on the state of the SMP bit. The time when the SSPBUF is loaded with the received data is shown.

FIGURE 9-2: SPI MODE TIMING, MASTER MODE

SCK (CKP = 0,

SDI (SMP = 0)

SSPIF

bit7 bit6 bit5

bit4

bit3

bit2

bit1 bit0

SDI (SMP = 1)

SCK (CKP = 0,

SCK (CKP = 1,

SDO

bit7

bit7 bit0

bit0

CKE = 0)

CKE = 1)

CKE = 0)

CKE = 1)

 2001 Microchip Technology Inc. DS30292C-page 71

PIC16F87X

9.1.2 SLAVE MODE

In Slave mode, t he data is transmi tted and r eceived as the external clock pulses ap pea r on SCK . When th e last bit is latched, the interrupt flag bit SSPIF (PIR1<3>) is set.

While in Slave mode, the external clock is supplied by the external clock source on the SCK pin. This external clock must meet the minimum high and low times as specified in the electrical specifications.

While in SLEEP mode, the slave can transmit/receive data. When a byte is received, the device will wake-up from SLEEP.

FIGURE 9-3: SPI MODE TIMING (SLAVE MODE WITH CKE = 0)

FIGURE 9-4: SPI MODE TIMING (SLAVE MODE WITH CKE = 1)

Note 1: When the SPI module is in Slave

mode with SS

pin control enabled (SSPCON<3:0> = 0100), the SPI module will reset if the SS pin is set to VDD.

2: If the SPI is used in Slave mode with

CKE = ’1’, then SS

pin control must be

enabled.

SCK (CKP = 0)

SDI (SMP = 0)

SSPIF

bit7

bit6 bit5

bit4

bit3

bit2

bit1 bit0

SCK (CKP = 1)

SDO

bit7 bit0

SS (optional)

SCK (CKP = 0)

SDI (SMP = 0)

SSPIF

bit7

bit6 bit5

bit4

bit3

bit2

bit1 bit0

SCK (CKP = 1)

SDO

bit7 bit0

PIC16F87X

DS30292C-page 72  2001 Microchip Technology Inc.

TABLE 9-1: REGISTERS ASSOCIATED WITH SPI OPERATION

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR, BOR

Value on:

MCLR

, WDT

0Bh, 8Bh, 10Bh,18Bh

INTCON GIE PEIE

T0IE INTE RBIE T0IF INTF RBIF 0000 000x 0000 000u

0Ch PIR1 PSPIF

(1)

ADIF RCIF TXIF SSPIF CCP1IF TMR2IF TMR1IF 0000 0000 0000 0000

8Ch PIE1 PSPIE

(1)

ADIE RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE 0000 0000 0000 0000 13h SSPBUF Synchronous Serial Port Receive Buffer/Transmit Register xxxx xxxx uuuu uuuu 14h SSPCON WCOL SSPOV SSPEN CKP SSPM3 SSPM2 SSPM1 SSPM0 0000 0000 0000 0000

94h SSPSTA T SMP CKE D/A P S R/W UA BF 0000 0000 0000 0000 Legend: x = unknown, u = unchanged, - = unimplemented, read as ’0’. Shaded cells are not used by the SSP in SPI mode.

Note 1: These bits are reserved on PCI16F873/876 devices; always maintain these bits clear.

 2001 Microchip Technology Inc. DS30292C-page 73

PIC16F87X

9.2 MSSP I2C Operation

The MSSP module in I2C mode, fully implements all master and slav e functions (incl uding general call support) and provides int errupts on ST AR T and STO P bits in hardware, to determine a free bus (multi-master function). The MSSP modul e impl emen ts the st and ard m ode specification s, as wel l as 7-bit and 10 -bit addre ssing.

Refer to Application Note AN578, "Use of the SSP

Module in the I

C Multi-Master Environment."

A "glitch" filter is on the SCL and SDA pins when the pin is an input. This fil ter operates in both the 100 kH z an d 400 kHz modes. In the 10 0 kHz mode, whe n these pins are an output, there is a sle w rate control of the pin that is independent of device frequency.

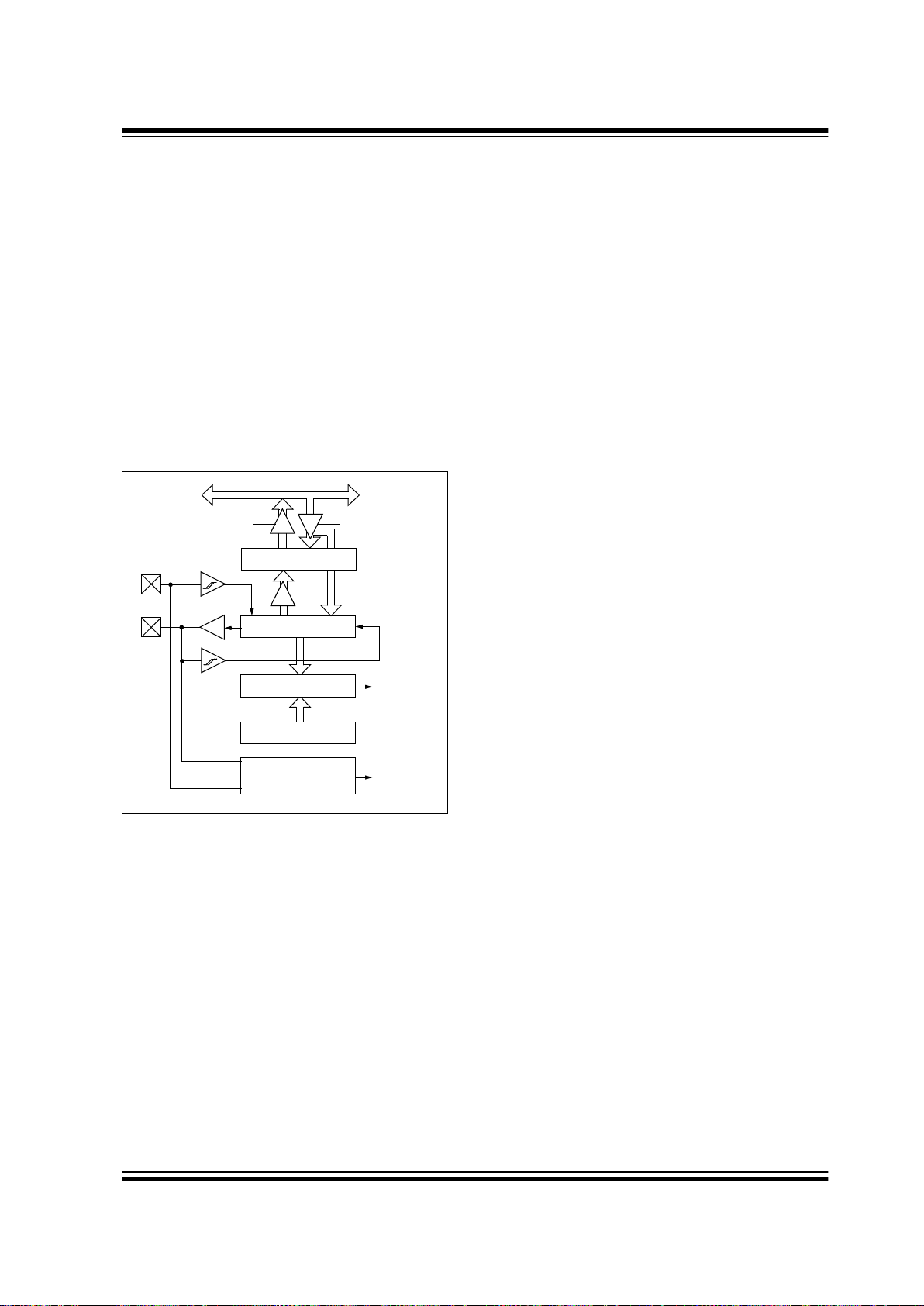

FIGURE 9-5: I2C SLAVE MODE BLOCK

DIAGRAM

Two p ins a re use d for dat a tra nsfer. These a re the SCL pin, which is the clock, and the SDA pin, which is the data. The SDA and SCL pins are automatically configured when the I

C mode is enabled. The SSP module functions are enabled by setting SSP Enable bit SSPEN (SSPCON<5>).

The MSSP module has six registers for I

C operation.

They are the:

• SSP Control Register (SSPCON)

• SSP Control Register2 (SSPCON2)

• SSP Status Register (SSPSTAT)

• Serial Receive/Transmit Buffer (SSPBUF)

• SSP Shift Register (SSPSR) - Not directly

accessible

• SSP Address Register (SSPADD)

The SSPCON register allows control of the I

C operation. Four mode selection bits (SSPCON<3:0>) allow one of the following I

C modes to be selected:

• I

C Slave mode (7-bit address)

• I

C Slave mode (10-bit address)

• I2C Master mode, clock = OSC/4 (SSPADD +1)

• I

C firmware modes (provided for compatibility to

other mid-range product s)

Before selecting any I

C mode, the SCL and SDA pins must be programmed to inputs by setting the appropriate TRIS bits. Selecting an I

C mode by setting the SSPEN bit, enables the SCL and SDA pins to be used as the clock and data lines in I

C mode. Pu ll- u p res i stors must be provided externally to the SCL and SDA pins for the proper operation of the I2C module.

The CKE bit (SSPSTAT<6:7>) sets the levels of the SDA and SCL pins in either Master or Slave mode. When CKE = 1, the levels will conform to the SMBus specification. W hen C KE = 0 , th e le ve ls w ill co nfo r m to the I

C specification.

The SSPSTAT register gives the status of the data transfer. This information includes detection of a START (S) or STOP (P) bit, specifies if the received byte was data or address, if the next byte is the completion of 10-bit address, and if this will be a read or write data transfer.

SSPBUF is the register to which the transfer data is written to, or read from. The SSPSR register shifts the data in or ou t of the de vice. In re ceive oper ations , the SSPBUF and SSPSR create a doubled buffered receiver . This allo ws reception of the next by te to begin before reading the last by te of receiv ed data. Wh en the complete byte is received, it is transferred to the SSPBUF register and flag bit SSPIF is set. If another complete byte is received before the SSPBUF register is read, a receiver overflow has occurred and bit SSPOV (SSPCON<6>) is set and the byte in the SSPSR is lost.

The SSPADD register holds the slave address. In 10-bit mode, the use r needs to write the hi gh byte of the address (1111 0 A9 A8 0). Following the high byte address match, the l ow byte of the address needs to be loaded (A7:A0).

Read Write

SSPSR Reg

Match Detect

SSPADD Reg

START and

STOP bit Detect

SSPBUF Reg

Internal

Data Bus

Addr Match

Set, Reset S, P bits

(SSPSTAT Reg)

SCL

Shift

Clock

MSb

LSb

SDA

PIC16F87X

DS30292C-page 74  2001 Microchip Technology Inc.

9.2.1 SLAVE MODE

In Slave mode, the SCL and SDA pins must be confi gured as inputs. The MSSP module will override the input state with the output data, when required (slavetransmitter).

When an address is matched, or the data transfer af ter an address m atch i s re ceiv ed, the ha rd ware autom ati cally will generate the Acknowledge (ACK

) pulse, and then load the SSPBUF register with th e re ce ived v alu e currently in the SSPSR register.

There are certain conditions that will cause the MSSP module not to give thi s ACK

pulse. These are if either

(or both): a) The buffer full bit BF (SSPSTAT<0>) was set

before the transfer was received.

b) The overflow bit SS POV (SSPCON<6>) was set

before the transfer was received.

If the BF bit is set, the SSPSR register value is not loaded into the SSPBUF, but bit SSPIF and SSPOV are set. Table 9-2 shows what happens when a data transfer byte is received, given the status of bits BF and SSPOV. The shaded cells show the condition where user software d id no t prope rly c lear th e ove rflow cond ition. Flag bit BF is cleared by read ing the SSPBUF register, while bit SSPOV is cleared through software.

The SCL clock input must have a minimum high and low time for proper operation. The high and low times of the I

C specification, as well as the requirement of the MSSP module, is shown in timing parameter #100 and parameter #101 of the electrical specifications.

9.2.1.1 Addressing

Once the MSSP module has been enabled, it waits for a ST AR T condi tion to o ccur. Following the START co ndition, the 8-bits are shif ted into the SSPSR register. All incoming bits are sampled with the rising edge of the clock (SCL) line. The value of register SSPSR<7:1> is compared to the value of the SSPADD register. The address is compared on the falling edge of the eighth clock (SCL) pulse. If the addresses match, and the BF and SSPOV bits are clear, the following events occur:

a) The SSPSR register value is loaded into the

SSPBUF register on the falling edge of the 8th SCL pulse.

b) The buffer full bit, BF, is set on the falling edge

of the 8th SCL pulse. c) An ACK pulse is generated. d) SSP interrupt flag bit, SSPIF (PIR1<3>), is set

(interrupt is generated if enabled) on the falling

edge of the 9th SCL pulse. In 10-bit address mode, two address bytes need to be

received by the slave. The five Most Significant bits (MSbs) of the first address byte specify if this is a 10-bit address. Bit R/W

(SSPSTA T<2>) must specify a write so

the slave device will receive the second address byte.

For a 10-bit address, the first byte would equal ‘1111 0 A9 A8 0’, where A9 and A8 are the two MSbs of the address. The sequence of events for a 10-bit address is as follows, with steps 7-9 for slave-transmitter:

1. Receive first (high) byte of Address (bits SSPIF, BF and UA (SSPSTAT<1>) are set).

2. Update the SSPADD register with the second (low) byte of Address (clears bit UA and releases the SCL line).

3. Read the SSPBUF register (clears bit BF) and clear flag bit SSPIF.

4. Receive second (low) byte of Address (bits SSPIF, BF and UA are set).

5. Update the SSPADD register wi th the firs t (hig h) byte of Address. This will clear bit UA and release th e SCL line.

6. Read the SSPBUF register (clears bit BF) and clear flag bit SSPIF.

7. Receive Repeated Start condition.

8. Receive first (high) byte of Address (bits SSPIF and BF are set).

9. Read the SSPBUF register (clears bit BF) and clear flag bit SSPIF.

9.2.1.2 Slave Reception

When the R/W bit of the address byte is clear and an address match occurs, the R/W

bit of the SSPSTAT register is cleared. Th e receive d addre ss is loa ded in to the SSPBUF register.

When the address byte overflow condition exists, then no Acknowledge (ACK

) pulse is given. An overflow condition is defined as either bit BF (SSPSTAT<0>) is set, or bit SSPOV (SSPCON<6>) is set. This i s an error condition due to user firmware.

An SSP interrupt is generated for each data transfer byte. Flag bit SSPIF (PIR1<3>) must be cleared in sof tware. The SSPSTAT register is used to determine the status of the received byte.

Note: Following the Repeated START condition

(step 7) in 10-bit mode, the user only needs to match the fi rst 7-bit ad dress. The user does not update the SSPADD for the second half of the address.

Note: The SSPBUF will be loaded if the SSPOV

bit is set and the BF flag is cleared. If a read of the SSPBUF was performed, but the user did not clear the state of the SSPOV bit before the next receive occurred, the ACK

is not sent and the

SSPBUF is updated.

 2001 Microchip Technology Inc. DS30292C-page 75

PIC16F87X

T ABLE 9-2: DATA TRANSFER RECEIVED BYTE ACTIONS

9.2.1.3 Slave Transmission

When the R/W bit of the incoming address byte is set and an address match occurs, the R/W

bit of the SSPSTAT register is set. The received address is loaded into the SSPBUF register. The ACK

pulse will be sent on the ninth bit, and the SCL pin is held low. The transmit data must be loaded into the SSPBUF register, which also loads the SSPSR register. Then, the SCL pin should be enabled by setting bit CKP (SSPCON<4>). The master must monitor the SCL pin prior to asserting another clock pulse. The slave devices may be holding off the master by stretching the clock. The eight data bits are shifted out on the falling edge of the SCL input. This ensures that the SDA signal is valid during the SCL high time (Figure 9- 7).

An SSP interrupt is generated for each data transfer byte. The SSPIF flag bit must be cleared in software and the SSPST AT register is used to determine the st atus of the byte tran sf er. The SSPIF fl ag bit is set on the falling edge of the ninth clock pulse.

As a slave-transmitter, the ACK

pulse from the master receiver is latched on the rising edge of the ninth SCL input pulse. If the SDA line is high (not ACK), then the data transfer is c omple te. Whe n the n ot ACK

is latched by the slave, the sl av e logic is reset and t he s la ve the n monitors for another occ urrence of the START bit. If the SDA line was low (ACK

), the transmit data must be loaded into the SSPBUF register, which also loads the SSPSR register. Then the SCL pin should be enabled by setting the CKP bit.

FIGURE 9-6: I2C WAVEFORMS FOR RECEPTION (7-BIT ADDRESS)

Status Bits as Data

Transfer is Received

SSPSR

→ SSPBUF

Generate ACK

Pulse

Set bit SSPIF

(SSP Interrupt occurs

if enabled)

BF SSPOV

0 0 Yes Yes Yes 1 0 No No Yes 1 1 No No Yes 0 1 Yes No Yes

Note: Shaded cells show the conditions where the user software did not properly clear the overflow condition.

D3D4

D6D7

A7 A6 A5 A4

A3 A2 A1SDA

SCL

1234

123

Bus Master Terminates Transfer

Bit SSPOV is set because the SSPBUF register is still full.

Cleared in software

SSPBUF register is read

ACK

Receiving Data

D3D4

D6D7

ACK

R/W=0

Receiving Address

SSPIF

BF (SSPSTAT<0>)

SSPOV (SSPCON<6>)

ACK

ACK is not sent.

Not

PIC16F87X

DS30292C-page 76  2001 Microchip Technology Inc.

FIGURE 9-7: I2C WAVEFORMS FOR TRANSMISSION (7-BIT ADDRESS)

9.2.2 GENERAL CALL ADDRESS SUPPORT

The addressing procedure for the I2C bus is such that the first byte after the START condition usually determines which device will be the slave addressed by the master. The exception is the gene ral call address, which can address all devices. When this address is used, all devices should, in theory , respond with an acknowledge.

The general call address is one of eight addresses reserved for specific purposes by the I

C protocol. It

consists of all 0’s with R/W

= 0.

The general call address is recognized when the General Call Enable bit (GCEN) is enabled (SSPCON2<7> is set). Following a START bit detect, 8 bits are shifted into SSPSR and the address is compared against SSPADD. It is also compared to the general call address and fixed in hardware.

If the general call address matches, the SSPSR is transferred to the SSPBUF, the BF flag is set (eighth bit), and on the falling edge of the ninth bit (ACK

bit),

the SSPIF flag is set. When the interrupt is serv ic ed, the s ou rce for the inter-

rupt can be checked by reading the contents of the SSPBUF to determine if the address was device specific, or a general call address.

In 10-bit mode, the SSPADD is required to be updated for the second half of the address to match , and the UA bit is set (SSPSTAT<1>). If the general call address is sampled when GCEN is set, while the slave is configured in 10-bit address mode, then the second half of the address is not ne ce ss ary, the UA bit will not be se t, and the slave will begin receiving data after the Acknowledge (Figure9-8).

FIGURE 9-8: SLAVE MODE GENERAL CALL ADDRESS SEQUENCE (7 OR 10-BIT MODE)

SDA

SCL

SSPIF BF (SSPSTAT<0>)

CKP (SSPCON<4>)

A7 A6 A5 A4 A3 A2 A1

ACK

D7 D6 D5 D4 D3 D2 D1 D0

Not ACK

Transmitting Data

R/W

= 1

Receiving Address

123456789 123456789

Cleared in software

SSPBUF is written in software

From SSP Interrupt

Service Routine

Set bit after writing to SSPBUF

Data in sampled

SCL held low while CPU

responds to SSPIF

(the SSPBUF must be written to, before the CKP bit can be set)

R/W

= 0

SDA

SCL

SSPIF

SSPOV

Cleared in software SSPBUF is read

R/W

= 0

ACK

General Call Address

Address is compared to General Call Address

GCEN

Receiving data

ACK

123456789123456789

D7 D6 D5 D4 D3 D2 D1 D0

after ACK, set interrupt flag

’0’

’1’

(SSPSTAT <0>)

(SSPCON<6>)

(SSPCON2<7>)

 2001 Microchip Technology Inc. DS30292C-page 77

PIC16F87X

9.2.3 SLEEP OPERATION

While in SLEEP mode, the I2C module can receive addresses or data. When an address match or complete byte transfer occurs, wake the processor from SLEEP (if the SSP interrupt is enabled).

9.2.4 EFFECTS OF A RESET

A RESET disables the SSP module and terminates the current transfer.

TABLE 9-3: REGISTERS ASSOCIATED WITH I2C OPERATION

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR, BOR

Value on:

MCLR,

WDT

0Bh, 8Bh, 10Bh,18Bh

INTCON GIE PEIE

T0IE INTE RBIE T0IF INTF RBIF 0000 000x 0000 000u

0Ch PIR1 PSPIF

(1)

ADIF RCIF TXIF SSPIF CCP1IF TMR2IF TMR1IF 0000 0000 0000 0000

8Ch PIE1 PSPIE

(1)

ADIE RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE 0000 0000 0000 0000 0Dh PIR2 — (2) — EEIF BCLIF — — CCP2IF -r-0 0--0 -r-0 0--0 8Dh PIE2 — (2) — EEIE BCLIE — — CCP2IE -r-0 0--0 -r-0 0--0 13h SSPBUF Synchronous Serial Port Receive Buffer/Transmit Register xxxx xxxx uuuu uuuu 14h SSPCON WCOL SSPOV SSPEN CKP SSPM3 SSPM2 SSPM1 SSPM0 0000 0000 0000 0000 91h SSPCON2 GCEN ACKSTAT ACKDT ACKEN RCEN PEN RSEN SEN 0000 0000 0000 0000

93h SSPADD I2C Slave Address/Master Baud Rate Register 0000 0000 0000 0000 94h SSPSTAT SMP CKE D/A PSR/WUA BF 0000 0000 0000 0000

Legend: x = unknown, u = unchanged, - = unimplemented, read as '0'. Shaded cells are not used by the SSP in I2C mode.

Note 1: These bits are reserved on PIC16F873/876 devices; always maintain these bits clear.

2: These bits are reserved on these devices; always maintain these bits clear.

PIC16F87X

DS30292C-page 78  2001 Microchip Technology Inc.

9.2.5 MASTER MODE

Master mode of operation is supported by interrupt generation on the detection of the START and STOP conditions. The STOP (P) and START (S) bits are cleared from a RESET, or when the MSSP module is disabled. Control of the I

C bus may be tak en when the P bit is set, or the bus is idle, with bo th the S and P bit s clear.

In Master mode, the SCL and SDA lines are manipulated by the MSSP hardware.

The following events will cause the SSP Interrupt Flag bit, SSPIF, to be set (an SSP interrupt will occur if enabled):

• START condition

• STOP condition

• Data transfer byte transmitted/received

• Acknowledge transmit

• Repeated START

FIGURE 9-9: SSP BLOCK DIAGRAM (I2C MASTER MODE)

9.2.6 MULTI-MASTER MODE

In Multi-Master mode, the interrupt generation on the detection o f the START and STOP conditions al lows the determination of when the bus is free. The STOP (P) and START (S) bits are cleared from a RESET or when the MSSP module is disabled. Contro l of the I

C bus may be taken when bit P (SSPSTAT<4>) is set, or the bus is idle with both the S and P bits clear. When the bus is busy, enabling the SSP Interrupt will generate the interrupt when the STOP condition occurs.

In Multi-Master operation, the SDA line must be monitored for arbitration to see if the signal level is the expected output leve l. This chec k is performe d in hardware, with the result placed in the BCLIF bit.

The states where arbitration can be lost are:

• Address Trans fer

• Data Transfer

• A START Condition

• A Repeated START Condition

• An Acknowledge Condition

Read Write

SSPSR

START bit, STOP bit,

SSPBUF

Internal

Data Bus

Set/Reset, S, P, WCOL (SSPSTAT)

Shift

Clock

MSb

LSb

SDA

Acknowledge

Generate

SCL

SCL in Bus Collision

SDA in

Receive Enable

Clock Cntl

Clock Arbitrate/WCOL Detect

(hold off clock source)

SSPADD<6:0>

Baud

Set SSPIF, BCLIF

Reset ACKSTAT, PEN (SSPCON2)

Rate Generator

SSPM3:SSPM0,

START bit Detect,

STOP bit Detect

Write Collision Detect

Clock Arbitration

State Counter for

end of XMIT/RCV

 2001 Microchip Technology Inc. DS30292C-page 79

PIC16F87X

9.2.7 I2C MASTER MODE SUPPORT

Master mode is enabled by setting and clearing the appropriate SSPM bits in SSPCON and by setting the SSPEN bit. Once Master mode is enabled, the user has six options:

• Assert a START condition on SDA and SCL.

• Assert a Repeated START condition on SDA and

SCL.

• Write to the SSPBUF register initiating transmission of data/address.

• Generate a STOP condition on SDA and SCL.

• Configure the I

C port to receive data.

• Generate an Acknowled ge conditi on at the end of a received byte of data.

9.2.7.1 I2C Master Mode Operation

The master device generates all of the serial clock pulses and the START and STOP conditions. A transfer is ended with a STOP condition or with a Repeated START condition. Since the Re peated START condition is also the be ginning of the next seri al tran sfer, the I

C bus will not be released.

In Master Transmitter mode, serial data is output through SDA, while SCL outputs the serial cl ock. The first byte transmitted con tains the slave addres s of the receiving device (7 bit s) and t he Re ad/W rite (R/W

) bit. In this case ,

the R/W

bit will be logic '0'. Serial data is transmitted 8 bits at a time. After each byte is transmitted, an Acknowledge bit is received. START and STOP conditions are output to indicate the beginning and the end of a serial transfer.

In Master Receive mode, the firs t byte transmitt ed contains the slave address of the transmitting device (7 bits) and the R/W

bit. In this case, the R/W bit will be logic '1'. Thus, the first byte transmitted is a 7-bit slave address foll owed by a '1' to in dicat e recei ve bit. Serial data is receiv ed vi a SDA, whi le SC L outp uts th e ser ial clock. Serial dat a is rec eived 8 bits at a time. Aft er each byte is received, an Acknowledge bit is transmitted. START and STOP conditions indicate the beginning and end of transmission.

The baud rate generator used for SPI mode operation is now used to set the SCL clock frequency for either 100 kHz, 400 kHz, or 1 MHz I

C operation. The baud rate generator reload value is contained in the lower 7 bits of the SSPADD register. The baud rate generator will automatically begin counting on a write to the

SSPBUF. Once the given operation is complete (i.e., transmission of the last d ata bit is followed b y ACK), the internal clock will automatically stop counting and the SCL pin will remain in its last state.

A typical transmit sequence would go as follows: a) User generates a START condition by setting

the START enable bit (SEN) in SSPCON2.

b) SSPIF is set. The module will wait the required

start time before any other operation takes place. c) User loads SSPBUF with address to transmit. d) Address is s hi f ted o ut the SD A p in un til al l 8 bits

are transmitted. e) MSSP module shifts in the ACK bit from the

slave device and writes its value into the

SSPCON2 register (SSPCON2<6>). f) MSSP module generates an interrupt at t he end

of the ninth clock cycle by setting SSPIF. g) User loads SSPBUF with eight bits of data. h) DA T A is shifted out the SDA pin unti l all 8 bits are

transmitted. i) MSSP module shifts in the ACK bit from the

slave device, and writes its value into the

SSPCON2 register (SSPCON2<6>). j) MSSP module generates an interru pt at the en d

of the ninth clock cycle by setting the SSPIF bit. k) User generates a STOP conditi on by setting the

STOP enable bit, PEN, in SSPCON2. l) Interrupt is generated once the STOP condition

is complete.

9.2.8 BAUD RATE GENERATOR

In I2C Master mode, the reload value for the BRG is located in the lower 7 bits of the SSPADD register (Figure 9-10). When the BRG is loaded with this value, the BRG counts down to 0 and stops until another reload has taken place. The BRG count is decremented twice per instruction cycle (T

CY), on the Q2 and Q4 clock.

In I

C Master mode, the BRG is reloaded automatically. If clock arbitration is taking place, the BRG will be reloaded when the SCL pin is sampled high (Figure 9-11).

FIGURE 9-10: BAUD RATE GENERATOR

BLOCK DIAGRAM

Note: The MSSP Module, when configure d in I2C

Master mode, does not allow queueing of events. For instance, the user is not allowed to initiate a START condition and immediately write the SSPBUF register to initiate transmission before the START condition is complete. In this case, the SSPBUF will not be written to and the WCOL bit will be set, indicating that a write to the SSPBUF did not occur.

Note: Baud Rate = FOSC / (4 * (SSPADD + 1) )

SSPM3:SSPM0

BRG Down Counter

CLKOUT

OSC/4

SSPADD<6:0>

SSPM3:SSPM0

SCL

Reload Control

Reload

PIC16F87X

DS30292C-page 80  2001 Microchip Technology Inc.

FIGURE 9-11: BAUD RATE GENERATOR TIMING WITH CLOCK ARBITRATION

9.2.9 I

C MASTER MODE START

CONDITION TIMING

To initiate a START condition, the user sets the ST AR T condition enable bit, SEN (SSPCON2<0>). If the SDA and SCL pins are samp led hig h, th e ba ud ra te g ene rator is reloaded with the contents of SSPADD<6:0> and starts its c oun t. If SCL and SDA are both s am pl ed hig h when the baud rate generator times out (T

BRG), the

SDA pin is driven low. The action of the SDA being driven low while SCL is high is the START condition, and causes the S bit (SSPSTAT<3>) to be set. Following this, the baud rate generator is reloaded with the contents of SSPADD<6:0> and resumes its count. When the baud rate generator times out (T

BRG), the

SEN bit (SSPCON2<0>) will be automatically cleared by hardware. The baud rate generator is suspended, leaving the SDA li ne held low , and the START condition is complete.

9.2.9.1 WCOL Status Flag

If the user writes the SSPBUF when a START sequence is in progress, then WCOL is set and the contents of the bu ffe r are un chang ed (the w rite doe sn ’t occur).

FIGURE 9-12: FIRST START BIT TIMING

SDA

SCL

SCL de-asserted but slave holds

DX-1DX

BRG

SCL is sampled high, reload takes place, and BRG starts its count

03h 02h 01h 00h (hold off) 03h 02h

Reload

BRG Value

SCL low (clock arbitration)

SCL allowed to transition high

BRG decrements (on Q2 and Q4 cycles)

Note: If, at the beginning of ST ART condition, the

SDA and SCL pins are already sampled low, or if during t he START condition the SCL line is sampled low before the SDA line is driven low, a bus collision occurs, the Bus Collision Interrupt Flag (BCLIF) is set, the START condition is aborted, and the I

C module is reset into its IDLE state.

Note: Because queueing of events is not

allowed, writing to the lower 5 bits of SSPCON2 is disabled until the START condition is complete .

SDA

SCL

TBRG

1st Bit

2nd Bit

TBRG

SDA = 1,

At completion of START bit,

SCL = 1

Write to SSPBUF occurs here

TBRG

Hardware clears SEN bit

TBRG

Write to SEN bit occurs here

Set S bit (SSPSTAT<3>)

and sets SSPIF bit

 2001 Microchip Technology Inc. DS30292C-page 81

PIC16F87X

9.2.10 I2C MASTER MODE REPEATED START CONDITION TIMING

A Repeated START condition occurs when the RSEN bit (SSPCON2<1>) is programmed high and the I

C module is in the IDLE state. When the RSEN bit is set, the SCL pin is asserted low. When the SCL pin is sampled low, the baud rate generator is loaded with the contents of SSPADD<6:0> and begins counting. The SDA pin is released (brought high) for one baud rate generator count (T

BRG). When the baud rate generator

times out, if SD A is s ampl ed hi gh, th e SCL pin w ill be de-asserted (brought high). When SCL is sampled high the baud rate generat or is reloaded with the content s of SSPADD<6:0> and begins counting. SDA and SCL must be sampled high for one T

BRG. This action is then

followed by assertion of the SDA pin (SDA is low) for one T

BRG, while SCL is high. Following thi s, t he RSEN

bit in the SSPCON2 register will be automatically cleared and the baud rate generator will not be reloaded, leaving the SDA pin held low. As soon as a ST ART cond ition is det ected on the SDA and SCL p ins, the S bit (SSPSTAT<3>) will be set. The SSPIF bit will not be set until the ba ud rate generator has timed out.

Immediately following the SSPIF bit getting set, the user may write the SSPBUF with the 7-bit address in 7-bit mode, or the default first address in 10-bit mode. After the first eight bits are transmitted and an ACK is received, the user may then transmit an additional eig ht bits of address (1 0-bit mod e), or ei ght bi ts o f dat a (7-b it mode).

9.2.10.1 WCOL Status Flag

If the user writes the SSPBUF when a Repeated ST ART seq uence is i n progress, the n WCOL is s et and the contents of the buffer are unchanged (the write doesn’t occur).

FIGURE 9-13: REPEAT START CONDITION WAVEFORM

Note 1: If RSEN is programmed while any other

event is in progress, it will not take effect.

2: A bus collision during the Repeated

START condition occurs if:

• SDA is sampled low when SCL goes from low to high.

• SCL goes low before SDA is asserted low . This may in dicate that another master is attempting to transmit a data "1".

Note: Because queueing of events is not

allowed, writing of the lower 5 bits of SSPCON2 is disabled until the Repeated START condition is complete.

SDA

SCL

Sr = Repeated START

Write to SSPCON2

Write to SSPBUF occurs here

Falling edge of ninth clock

End of Xmit

At completion of START bit, hardware clears RSEN bit

1st bit

Set S (SSPSTAT<3>)

BRG

SDA = 1,

SCL (no change)

SCL = 1

occurs here

TBRG TBRG

TBRG

and sets SSPIF

PIC16F87X

DS30292C-page 82  2001 Microchip Technology Inc.

9.2.11 I2C MASTER MODE TRANSMISSION

Transmission of a data byte, a 7-bit address, or either half of a 10-bit address, is accomplished by simply writing a value to SSPBUF register. This action will set th e Buffer Full flag (BF) and allow the baud rate generator to begin counting and s tart the next trans mission. Eac h bit of address/data will be shifted out onto the SDA pin after the falling edg e of SCL is asserted (see data hold time spec). SCL is held low for one baud rate gen erator rollover count (T

BRG). Data should be valid before SCL

is released high (see data setup time spec). When the SCL pin is r eleased high, i t is hel d that w ay for T

BRG.

The data on the SDA pin must remain stable for that duration and some hold ti me af ter the next falling edge of SCL. After the eighth bit is shifted out (the falling edge of the eighth clo ck), the BF f lag is cl eared and th e master releases SDA allowing the slave device being addressed t o res p on d wi th an ACK

bit during the ninth bit time, if an address match occurs or if data was received properly. The status of ACK is read into the ACKDT on the falling edge of the ninth clock. If the master receives an Acknowledge, the Acknowledge Status bit (ACKSTAT) is cleared. If not, the bit is set. After the ninth clock, the SSPIF is set and the master clock (baud rate gene rator ) is sus pe nded until the next data byte is loaded into the SSPBUF, leaving SCL low and SDA unchanged (Figure 9-14).

After the write to the SSPBUF, each bit of address will be shifted out on the fal ling edge of SCL, un til all seve n address bits and the R/W

bit are complet ed. On the falling edge of the eighth clock, the master will de-assert the SDA pin, allowing the slave to respond with an Acknowledge. On th e falling edge of the ninth clock, th e master will sample the SDA pin to see if the address was recognized by a slave. The status of the ACK bit is loaded into the ACKSTAT status bit (SSPCON2<6>). Following t he falli ng edge o f the nint h clock transmission of the address, the SSPIF is set, the BF flag is cleared, and the baud rate generator is turned off until another write to the SSPBUF t ak es p lace, ho ldi ng SCL low and allowing SDA to float.

9.2.11.1 BF Status Flag

In Transmit mode, the BF bit (SSPSTAT<0>) is set when the CPU writes to SSPBUF and is cleared when all 8 bits are shifted out.

9.2.11.2 WCOL Status Flag

If the user writes the SSPBUF when a transmit is already in progress (i.e., SSPSR is still shifting out a data byte), then WCOL is set and the contents of the buffer are unchanged (the write doesn’t occur).

WCOL must be cleared in software.

9.2.11.3 ACKSTAT Status Flag

In Transmit mod e, the ACKSTAT bit (SSPCON2<6>) is cleared when the slave has sent an Acknowledge (ACK

= 0), and is set when the sl ave does not Ackno wl-

edge (ACK

= 1). A slave sends an Acknowledge when it has recognized its address (including a general call), or when the slave has properly received its data.

 2001 Microchip Technology Inc. DS30292C-page 83

PIC16F87X

FIGURE 9-14: I2C MASTER MODE TIMING (TRANSMISSION, 7 OR 10-BIT ADDRESS)

SDA

SCL

SSPIF

BF (SSPSTAT<0>)

SEN

A7 A6 A5 A4 A3 A2 A1 ACK = 0 D7D6D5D4D3D2D1D0

ACK

Transmitting Data or Second Half

R/W

= 0Transmit Address to Slave

123456789 123456789

Cleared in software service routine

SSPBUF is written in software

From SSP interrupt

After START condition SEN, cleared by hardware.

SSPBUF written with 7-bit address and R/W

start transmit

SCL held low

while CPU

responds to SSPIF

SEN = 0

of 10-bit address

Write SSPCON2<0> SEN = 1

START condition begins

From slave clear ACKSTA T bit SSPCON2<6>

ACKSTAT in

SSPCON2 = 1

Cleared in software

SSPBUF written

PEN

Cleared in software

R/W

PIC16F87X

DS30292C-page 84  2001 Microchip Technology Inc.

9.2.12 I2C MASTER MODE RECEPTION

Master mode recepti on is enab led by progra mmin g the Receive Enable bit, RCEN (SSPCON2<3>).

The baud rate genera tor b egi ns cou nti ng, and on each rollover, the state of the SCL pin changes (high to low/ low to high), and data is shifted into the SSPSR. After the falling edge of the eighth clock, the receive enable flag is automatically cleared, the contents of the SSPSR are loaded into the SSPBUF, the BF flag is set, the SSPIF is set, and the baud rate generator is suspended from counting, holding SCL low. The SSP is now in IDLE state, awaiting the next command. When the buffer is read by the CPU, the BF flag is automatically cleared. The us er can then s end an Acknowl edge bit at the end of reception, by setting the Acknowledge Sequence Enable bit, ACKEN (SSPCON2<4>).

9.2.12.1 BF Status Flag

In receive operation, BF is se t when an address or data byte is loaded into SSPBUF from SSPSR. It is cleared when SSPBUF is read.

9.2.12.2 SSPOV Status Flag

In receive operation, SSPOV is set when 8 bits are received into the SSPSR, and the BF flag i s already set from a previous reception.

9.2.12.3 WCOL Status Flag

If the user writes the SSPBUF when a receive is already in progress (i.e., SSPSR is s till shifting in a dat a byte), then WCOL is set and the contents of the buffer are unchanged (the write doesn’t occur).

Note: The SSP module must be in a n IDL E sta t e

before the RCEN bit is set, or the RCEN bit will be disregarded.

 2001 Microchip Technology Inc. DS30292C-page 85

PIC16F87X

FIGURE 9-15: I2C MASTER MODE TIMING (RECEPTION, 7-BIT ADDRESS)

6 5

D3D4

D6D7

A7 A6 A5 A4

A3 A2 A1

SDA

SCL

678 9

1234

Bus Master

terminates

transfer

ACK

Receiving Data from Slave

D3D4

D6D7

ACK

R/W = 1

Transmit Address to Slave

SSPIF

ACK is not sent

Write to SSPCON2<0> (SEN = 1)

Write to SSPBUF occurs here

ACK from Slave

Master configured as a receiver

by programming SSPCON2<3>, (RCEN = 1)

PEN bit = 1

written here

Data shifted in on falling edge of CLK

Cleared in software

Start XMIT

SEN = 0

SSPOV

SDA = 0, SCL = 1

while CPU

(SSPSTAT<0>)

ACK

Last bit is shifted into SSPSR and

contents are unloaded into SSPBUF

Cleared in software

Set SSPIF interrupt

at end of receive

Set P bit

(SSPSTA T<4>)

and SSPIF

Cleared in

software

ACK from Master

Set SSPIF at end

Set SSPIF interrupt

at end of acknowledge

sequence

Set SSPIF interrupt

at end of Acknow-

ledge sequence

of receive

Set ACKEN to start Acknowledge sequence

SSPOV is set because

SSPBUF is still full

SDA = ACKDT = 1

RCEN cleared

automatically

RCEN = 1 start

next receive

Write to SSPCON2<4>

to start Acknowledge sequence

SDA = ACKDT (SSPCON2<5>) = 0

RCEN cleared

automatically

responds to SSPIF

ACKEN

Begin START Condition

Cleared in software

SDA = ACKDT = 0

PIC16F87X

DS30292C-page 86  2001 Microchip Technology Inc.

9.2.13 ACKNOWLEDGE SEQUENCE TIMING

An Acknowledge sequence is enabled by setting the Acknowledge Sequence Enable bit, ACKEN (SSPCON2<4>). When this bit is set, the SCL pin is pulled low and the content s of the Acknowledge data bit is presented on the SD A pin . If t he user wishes to generate an Acknowledge, the ACKDT bit should be cleared. If not, the user should set the ACKDT bit before starting an Acknowledge sequence. The baud rate generator then counts for one rollover period (T

BRG), and the SCL pin is de-asserted high. When the

SCL pin is sampled high (clock arbitration), the baud

rate generator cou nts for T

BRG. The SCL pin is t hen

pulled low. Following this, the AC KEN b it is au to mat ically cleared, the baud rate generator is turned off, and the SSP module then goes into IDLE mode (Figure 9-16).

9.2.13.1 WCOL Status Flag

If the user writes the SSPBUF when an Acknowledge sequence is in progress , the WCOL is set and the contents of the buffer are unchanged (the write doesn’t occur).

FIGURE 9-16: ACKNOWLEDGE SEQUENCE WAVEFORM

Note: TBRG = one baud rate generator period.

SDA

SCL

Set SSPIF at the end

Acknowledge sequence starts here,

Write to SSPCON2

ACKEN automatically cleared

Cleared in

TBRG

of receive

ACK

ACKEN = 1, ACKDT = 0

SSPIF

software

Set SSPIF at the end of Acknowledge sequence

Cleared in software

 2001 Microchip Technology Inc. DS30292C-page 87

PIC16F87X

9.2.14 STOP CONDITION TIMING

A STOP bit is asserted on the SDA pin at the end of a receive/tr ansmi t by s etti ng the Stop Sequen ce E nable bit, PEN (SSPCON2<2>). At the end of a receive/ transmit, the SCL line is held low after the falling edge of the ninth clock. When the PEN bit is set, the master will assert the SDA line lo w . Whe n the SDA line is sampled low, the baud rate generator is reloaded and counts down to 0. When the baud rate generator times out, the SCL pin will be brought high, and one T

BRG

(baud rate generator rollover count) later, the SDA pin will be de-asserted. When th e SDA pin is sam pled high

while SCL is high, the P bit (SSPSTAT<4>) is set. A T

BRG later, the PEN bit is cleared and the SSPIF bit is

set (Figure 9-17). Whenever the firmware decides to take control of the

bus, it will firs t determine if the bus i s bu sy b y ch eck in g the S and P bits in the SSPSTAT register. If the bus is busy, then the CPU can be interrupted (notified) when a STOP bit is detected (i.e., bus is free).

9.2.14.1 WCOL Status Flag

If the user writes the SS PBUF when a ST OP se quence is in progress, then WCOL is set an d the content s of the buffer are unchanged (the write doesn’t occ ur) .

FIGURE 9-17: STOP CONDITION RECEIVE OR TRANSMIT MODE

SCL

SDA

SDA asserted low before rising edge of clock

Write to SSPCON2

Set PEN

Falling edge of

SCL = 1 for T

BRG, followed by SDA = 1 for TBRG

9th clock

SCL brought high after T

BRG

Note: TBRG = one baud rate generator period.

BRG

TBRG

after SDA sampled high. P bit (SSPSTAT<4>) is set.

BRG

to setup STOP condition

ACK

BRG

PEN bit (SSPCON2<2>) is cleared by hardware and the SSPIF bit is set

PIC16F87X

DS30292C-page 88  2001 Microchip Technology Inc.

9.2.15 CLOCK ARBITRATION

Clock arbitration occurs when the master, during any receive, transmit, or Repeated START/STOP condition, de-asserts th e SCL pin (SCL allowed to fl oat high). When the SCL pin is allowed to float hig h, the baud rate generator (BRG) is suspended from counting until the SCL pin is actually sample d hi gh. When the SCL pin is sampled high, the baud rate gen erator is reloa ded wi th the contents of SSPADD<6:0> and begins counting. This ensures that the SCL high time will always be at least one BRG rollover c ount in the e vent that the clock is held low by an external device (Figure 9-18).

9.2.16 SLEEP OPERATIO N

While in SLEEP mode, the I2C module can receive addresses or data, and when an address match or complete byte transfer occurs, wake the processor from SLEEP (if the SSP interrupt is enabled).

9.2.17 EFFECTS OF A RESET

A RESET disables the SSP module and terminates the current transfer.

FIGURE 9-18: CLOCK ARBITRATION TIMING IN MASTER TRANSMIT MODE

SCL

SDA

BRG overflow, Release SCL,

If SCL = 1, Load BRG with SSPADD<6:0>, and start count

BRG overflow occurs, Release SCL, Slave device holds SCL low

SCL = 1, BRG starts counting clock high interval

SCL line sampled once every machine cycle (T

OSC • 4).

Hold off BRG until SCL is sampled high.

TBRG

to measure high time interval

 2001 Microchip Technology Inc. DS30292C-page 89

PIC16F87X

9.2.18 MULTI -MASTER COMMUNICATION, BUS COLLISION, AND BUS ARBITRATION

Multi-Master mode support is achieved by bus arbitration. When the master outputs address/data bits onto the SDA pin, arbitration takes place when the master outputs a ’1’ on SDA, by letting SDA float high and another master asserts a ’0’. When the SCL pi n fl oats high, data should be stable. If the expected data on SDA is a ’1’ a nd the da ta s ampl ed on the SD A pin = ’0’, a bus collision has t ak en plac e. The master will set the Bus Collision Interrupt Flag, BCLIF and reset the I

port to its IDLE state (Figure 9-19). If a transmit was in progress when the bus collision

occurred, the transmission is halted, the BF flag is cleared, the SDA and SCL lines are de-asserted, and the SSPBUF can be wr itten t o. When the u ser se rvices the bus collision Interrupt Service Routine, and if the I

C bus is free, the user can res ume commu nication b y

asserting a START condition.

If a START, Repeated START, STOP, or Acknowledge condition was in progress when the bus collision occurred, the condition is aborted, the SDA and SCL lines are de-assert ed, and t he respe ctiv e contro l bit s in the SSPCON2 register are cleared. When the user s ervices the bus collision Interrupt Service Routine, and if the I

C bus is free, the use r can resume communicatio n

by asserting a START condition. The master will continue to monitor the SDA and SCL

pins and if a STOP condition occurs, the SSPIF bit will be set.

A write to the SSPBUF will start the transmission of data at the first data bit, regardless of where the transmitter left off when the bus collision occurred.

In Multi-Master mode, the interrupt generation on the detection of START and STOP conditions allows the determination of whe n the bus is free. Cont rol of the I

C bus can be taken when the P bit is set in the SSPSTAT register, or the bus is idle and the S and P bits are cleared.

FIGURE 9-19: BUS COLLISION TIMING FOR TRANSMIT AND ACKNOWLEDGE

SDA

SCL

BCLIF

SDA released

SDA line pulled low by another source

Sample SDA. While SCL is high, data doesn’t match what is driven

Bus collision has occurred.

Set bus collision interrupt

by the master.

by master

Data changes while SCL = 0

PIC16F87X

DS30292C-page 90  2001 Microchip Technology Inc.

9.2.18.1 Bus Collision During a START Condition

During a START condition, a bus collision occurs if: a) SDA or SCL are s ampled low a t the beginning of

the START condition (Figure 9-20).

b) SCL is sampl ed l ow be fore SD A is asse rted low

(Figure 9-21).

During a START condition, both the SDA and the SCL pins are monitored. If e ither the SDA pi n or

the SCL pin

is already low, then these events all occur:

• the START condition is aborted,

• and

the BCLIF flag is set,

• and the SSP module is reset to its IDLE state

(Figure 9-20).

The START condition begins with the SDA and SCL pins de-asserted. When the SDA pin is sampled high, the baud rate generator is loaded from SSPADD<6:0> and counts down to 0. If the SCL pin is sampled low while SDA is high, a bus collision occurs, because it is assumed that another master is attempting to drive a data '1' during the START condition.

If the SDA pin is sampled low during this count, the BRG is reset and the SDA line is asserted early (Figure 9-22). If, however, a '1' is sampled on the SDA pin, the SDA pin is asserted low at the end of the BRG count. The baud rate generator is then reloaded and counts down to 0. During this time, if the SCL pins are sampled as '0', a bus collision does not occur. At the end of the BRG count, the SCL pin is asserted low.

FIGURE 9-20: BUS COLLISION DURING START CONDITION (SDA ONLY)

Note: The reason that bus collis ion is no t a fact or

during a START condition is that no two bus masters can assert a START condi tion at the exact same time. Therefore, one master will always assert SDA before the other . This con dition does not cause a bus collision, becau se the two master s must be allowed to arbitrate t he first add ress following the START condition. If the address is the same, arbitration must be allowed to continue into the data portion, Repeated START, or STOP conditions.

SDA

SCL

SEN

SDA sampled low before

SDA goes low before the SEN bit is set.

S bit and SSPIF set because

SSP module reset into IDLE state.

SEN cleared automatically because of bus collision.

S bit and SSPIF set because

Set SEN, enable START

condition if SDA = 1, SCL = 1

SDA = 0, SCL = 1.

BCLIF

SSPIF

SDA = 0, SCL = 1.

SSPIF and BCLIF are cleared in software

Set BCLIF,

Set BCLIF.

START condition.

 2001 Microchip Technology Inc. DS30292C-page 91

PIC16F87X

FIGURE 9-21: BUS COLLISION DURING START CONDITION (SCL = 0)

FIGURE 9-22: BRG RESET DUE TO SDA COLLISION DURING START CONDITION

SDA

SCL

SEN

Bus collision occurs, Set BCLIF

SCL = 0 before SDA = 0,

Set SEN, enable START sequence if SDA = 1, SCL = 1

TBRG

SDA = 0, SCL = 1

BCLIF

SSPIF

Interrupts cleared in software

Bus collision occurs, Set BCLIF

SCL = 0 before BRG time-out,

’0’

SDA

SCL

SEN

Set S

Set SEN, enable START sequence if SDA = 1, SCL = 1

Less than T

BRG

TBRG

SDA = 0, SCL = 1

BCLIF

SSPIF

Interrupts cleared in software

Set SSPIF

SDA = 0, SCL = 1

SDA pulled low by other master. Reset BRG and assert SDA.

SCL pulled low after BRG Time-out

Set SSPIF

’0’

PIC16F87X

DS30292C-page 92  2001 Microchip Technology Inc.

9.2.18.2 Bus Collision During a Repeated START Condition

During a Repeated START condition, a bus collision occurs if:

a) A low level is sampled on SDA when SCL goes

from low level to high level.

b) SCL goes low before SDA is asserted low, indi-

cating that another m aster is attem pting to transmit a data ’1’.

When the user de-asserts SDA and the pin is allowed to float high, the BRG is loaded with SSPADD<6:0> and counts down to 0. The SCL pin is then de-a sserted, and when sampled high, the SDA pin is sampled. If SDA is low, a bus collision has occurred (i.e., another master is attempting to transmit a data’0’). If, however,

SDA is sampled high, the BRG is reloaded and begins counting. If SDA goes from high to low befo re the BRG times out, no bus collision occurs, because no two masters can assert SDA at exactly the same time.

If, however , SCL goes from hig h to low before the BRG times out and SDA has not already been asserted, a bus collision occurs. In this case, another master is attempting to transmit a data’1’ during the Repeated START condition.

If at the end of the BRG time-out, both SCL and SDA are still high, the SDA pin is driven low, the BRG is reloaded and begins counting. At the end of the count, regardless of the status of the SCL pin, the SCL pin is driven low and the Repeated START condition is complete (Figure 9-23).

FIGURE 9-23: BUS COLLISION DURING A REPEATED START CONDITION (CASE 1)

FIGURE 9-24: BUS COLLISION DURING REPEATED START CONDITION (CASE 2)

SDA

SCL

RSEN

BCLIF

SSPIF

Sample SDA when SCL goes high. If SDA = 0, set BCLIF and release SDA and SCL.

Cleared in software

’0’ ’0’

SDA

SCL

BCLIF

RSEN

SSPIF

Interrupt cleared in software

SCL goes low before SDA, Set BCLIF. Release SDA and SCL.

TBRG TBRG

’0’

 2001 Microchip Technology Inc. DS30292C-page 93

PIC16F87X

9.2.18.3 Bus Collision During a STOP Condition

Bus collision occurs during a STOP condition if: a) After the SDA pin has been de-asserted and

allowed to float high, SDA is sampled low after the BRG has timed out.

b) After the SCL pin is de-asserted, SCL is sam-

pled low before SDA goes high.

The STOP condition begins with SDA asserted low. When SDA is sampled low, the SCL pin is allowed to float. When the p in i s sa mple d hi gh (c loc k ar bit rati on), the baud rate generator is loaded with SSPADD<6:0> and counts down to 0. After the BRG times out, SDA i s sampled. If SDA is sampled low, a bus collision has occurred. This is due to another master attempting to drive a data ’0’. If the SCL pin is s ampled low before SDA is allowed to float hi gh, a bus collis ion occurs. This is a case of another master attempting to drive a data ’0’ (Figure 9-25).

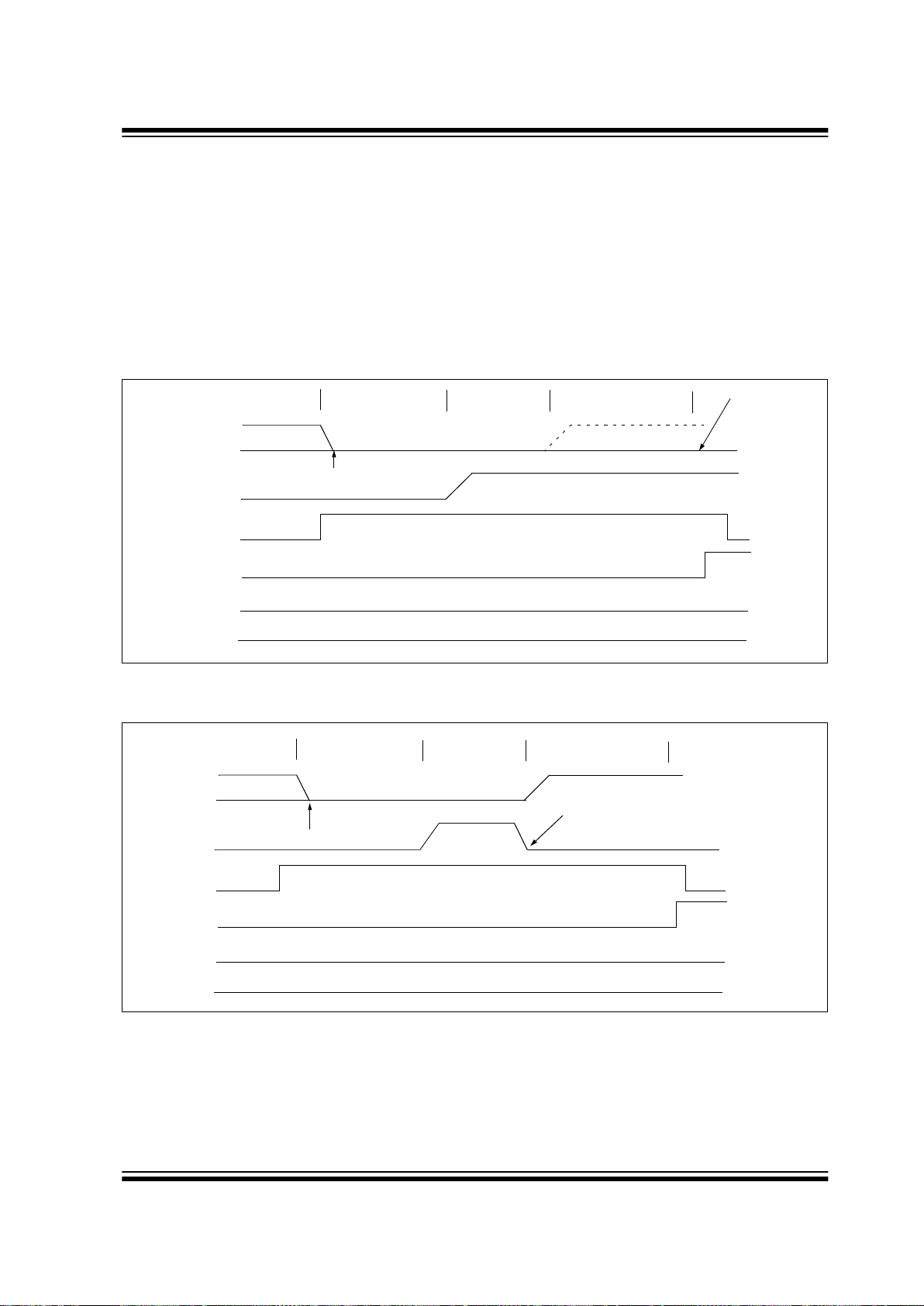

FIGURE 9-25: BUS COLLISION DURING A STOP CONDITION (CASE 1)

FIGURE 9-26: BUS COLLISION DURING A STOP CONDITION (CASE 2)

SDA

SCL

BCLIF

PEN

SSPIF

TBRG TBRG TBRG

SDA asserted low

SDA sampled low after T

BRG,

Set BCLIF

’0’ ’0’

SDA

SCL

BCLIF

PEN

SSPIF

TBRG TBRG TBRG

Assert SDA

SCL goes low before SDA goes high, Set BCLIF

’0’

PIC16F87X

DS30292C-page 94  2001 Microchip Technology Inc.

9.3 Connection Considerations for I

C Bus

For standard-mode I2C bus devices, the values of resistors R

and Rs in Figure 9-27 depend on the fol-

lowing parameters:

• Supply voltage

• Bus capacitance

• Number of con nected devices

(input current + leakage current)

The supply voltage limits the minimum value of resistor

due to the specified minimum sink current of 3 mA at

OL max = 0.4V, for the specified output stages.

For

example, with a supply voltage of V

DD = 5V±10% and

OL max = 0.4V at 3 mA, R

min = (5.5-0.4)/0.003 = 1.7 kΩ.

DD as a function of R

is shown in Figure 9-27 . The

desired noise margin of 0.1V

DD for the low level limits

the maximum value of R

. Series resistors are optional

and used to improve ESD susceptibility. The bus capacitance is the total capacitance of wire,

connections, an d pins. This capacit ance limit s the m aximum value of R

due to the specified rise time

(Figure 9-27). The SMP bit is the slew rate control enabled bit. This bit

is in the SSPSTAT register, and controls the slew rate of the I/O pins when in I

C mode (master or slave).

FIGURE 9-27: SAMPLE DEVICE CONFIGURATION FOR I2C BUS

VDD + 10%

SDA SCL

DEVICE

Cb=10 - 400 pF

Note: I2C devices with input levels related to VDD must have one com mon supply line to which the pull-up resistor is also

connected.

 2001 Microchip Technology Inc. DS30292C-page 95

PIC16F87X

10.0 ADDRESSABLE UNIVERSAL SYNCHRONOUS ASYNCHRONOUS RECEIVER T RANSMITTER (USART)

The Universal Synchronous Asynchronous Receiver Transmitter (USART) module is one of the two serial I/O modules . (USA RT is als o know n as a Se rial Communications Interface or SCI.) The USART can be configured as a full duplex asynchronous system that can communicate with pe ripheral devi ces s uch as CR T terminals and perso nal comp uters, or it can be configure d as a half duplex s yn chr onous system that can co mm unicate with periphera l de vi ces su ch as A/D or D/A integrated circuits, serial EEPROMs etc.

The USART can be configured in the following modes:

• Asynchronous (full duplex)

• Synchronous - Master (half duplex)

• Synchronous - Slave (half duplex)

Bit SPEN (RCSTA<7>) and bits TRISC<7:6> have to be set in order to configure pins RC6/TX/CK and RC7/RX/DT as the Universal Synchronous Asynchronous Receiver Transmitter.

The USART module also has a multi-processor communication capability using 9-bit address detection.

R/W-0 R/W-0 R/W-0 R/W-0 U-0 R/W-0 R-1 R/W-0 CSRC TX9 TXEN SYNC — BRGH TRMT TX9D

bit 7 bit 0

bit 7 CSRC: Clock Source Select bit

Asynchrono us mode: Don’t care

Synchronous mode:

1 = Master mode (clock generated internally from BRG) 0 = Slave mode (clock from external source)

bit 6 TX9: 9-bit Transmit Enable bit

1 = Selects 9-bit transmission 0 = Selects 8-bit transmission

bit 5 TXEN: Transmit Enable bit

1 = Transmit enabled 0 = Transmit disabled

Note: SREN/CREN overrides TXEN in SYNC mode.

bit 4 SYNC: USART Mode Select bit

1 = Synchronous mode 0 = Asynchronous mode

bit 3 Unimplemented: Read as '0' bit 2 BRGH: High Baud Rate Select bit

Asynchrono us mode:

1 = High speed 0 = Low speed

Synchronous mode: Unused in this mode

bit 1 TRMT: Transmit Shift Register Status bit

1 = TSR empty 0 = TSR full

bit 0 TX9D: 9th bit of Transmit Data, can be parity bit

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

PIC16F87X

DS30292C-page 96  2001 Microchip Technology Inc.

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R-0 R-0 R-x

SPEN RX9 SREN CREN ADDEN FERR OERR RX9D

bit 7 bit 0

bit 7 SPEN: Serial Port Enable bit

1 = Serial port enabled (configures RC7/RX/DT and RC6/TX/CK pins as serial port pins) 0 = Serial port disabled

bit 6 RX9: 9-bit Receive Enable bit

1 = Selects 9-bit reception 0 = Selects 8-bit reception

bit 5 SREN: Single Receive Enable bit

Asynchrono us mode: Don’t care

Synchronous mode - master:

1 = Enables single receive 0 = Disables single receive

This bit is cleared after reception is complete. Synchronous mode - slave:

Don’t care

bit 4 CREN: Continuous Receive Enable bit

Asynchrono us mode:

1 = Enables continuous receive 0 = Disables continuous rec eive

Synchronous mode:

1 = Enables continuous receive until enable bit CREN is cleared (CREN overrides SREN) 0 = Disables continuous rec eive

bit 3 ADDEN: Address Detect Enable bit

Asynchrono us mode 9-bit (RX9 = 1): 1 = Enables address detection, enables interrupt and load of the receive buffer when

RSR<8> is set

0 = Disables address detection, all bytes are received, and ninth bit can be used as parity bit

bit 2 FERR: Framing Error bit

1 = Framing error (can be updated by reading RCREG register and receive next valid byte) 0 = No framing error

bit 1 OERR: Overrun Error bit

1 = Overrun error (can be cleared by clearing bit CREN) 0 = No overrun error

bit 0 RX9D: 9th bit of Received Data (can be parity bit, but must be calculated by user firmware)

Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

- n = Value at POR ’1’ = Bit is set ’0’ = Bit is cleared x = Bit is unknown

 2001 Microchip Technology Inc. DS30292C-page 97

PIC16F87X

10.1 USART Baud Rate Generator (BRG)

The BRG supports both the Asynchronous and Synchronous modes of the USART. It is a dedicated 8-bit baud rate generator. The SPBRG register controls the period of a free running 8-bit timer. In Asynchronous mode, bit BRGH (TXSTA<2>) also controls the baud rate. In Synchronous mode, bit BRGH is ignored. Table 10-1 shows the formula for computation of the baud rate for differen t US ART modes which only apply in Master mode (internal clock).

Given the desired baud rate and F

OSC, the nearest

integer value for the SPBRG register can be calculated using the formula in Table 10-1. From this, the error in baud rate can be determined.

It may be advantageous to use the high baud rate (BRGH = 1), even for slower baud clocks. This is because the F

OSC/(16(X + 1)) equation can reduce the

baud rate error in some cases. Writing a new value to the SPBRG register causes the

BRG timer to be reset (or cleared). This ensures the BRG does not wait for a timer overflow before outputting the new baud rate.

10.1.1 SAMPLING

The data on the RC7/RX/D T pin is sampled three times by a majority detect circuit to determine if a high or a low level is present at the RX pin.

TABLE 10-1: BAUD RATE FORMULA

TABLE 10-2: REGISTERS ASSOCIATED WITH BAUD RATE GENERATOR

SYNC BRGH = 0 (Low Speed) BRGH = 1 (High Speed)

0 1

(Asynchronous) Baud Rate = F

OSC/(64(X+1))

(Synchronous) Baud Rate = F

OSC/(4(X+1))

Baud Rate = F

OSC/(16(X+1))

N/A

X = value in SPBRG (0 to 255)

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on :

POR,

BOR

Val ue on

all other

RESETS

98h TXSTA

CSRC TX9 TXEN SYNC — BRGH TRMT TX9D 0000 -010 0000 -010 18h RCSTA SPEN RX9 SREN CREN ADDEN FERR OERR RX9D 0000 000x 0000 000x 99h SPBRG Baud Rate Generat or Register 0000 0000 0000 0000 Legend: x = unknown, - = unimplemented, read as '0'. Shaded cells are not used by the BRG.

PIC16F87X

DS30292C-page 98  2001 Microchip Technology Inc.

TABLE 10-3: BAUD RATES FOR ASYNCHRONOUS MODE (BRGH = 0)

BAUD

RATE

(K)

OSC = 20 MHz FOSC = 16 MHz FOSC = 10 MHz

KBAUD%ERROR

SPBRG

value

(decimal)

KBAUD%ERROR

SPBRG

value

(decimal)

KBAUD%ERROR

SPBRG

value

(decimal)

0.3------- --

1.2 1.221 1.75 255 1.202 0.17 207 1.202 0.17 129

2.4 2.404 0.17 129 2.404 0.17 103 2.404 0.17 64

9.6 9.766 1.73 31 9.615 0.16 25 9.766 1.73 15

19.2 19.531 1.72 15 19.231 0.16 12 19.531 1.72 7

28.8 31.250 8.51 9 27.778 3.55 8 31.250 8.51 4

33.6 34.722 3.34 8 35.714 6.29 6 31.250 6.99 4

57.6 62.500 8.51 4 62.500 8.51 3 52.083 9.58 2

HIGH 1.221 - 255 0.977 - 255 0.610 - 255

LOW 312.500 - 0 250.000 - 0 156.250 - 0

BAUD

RATE

(K)

OSC = 4 MHz FOSC = 3.6864 MHz

KBAUD

ERROR

SPBRG

value

(decimal) KBAUD

ERROR

SPBRG

value

(decimal)

0.3 0.300 0 207 0.3 0 191

1.2 1.202 0.17 51 1.2 0 47

2.4 2.404 0.17 25 2.4 0 23

9.6 8.929 6.99 6 9.6 0 5

19.2 20.833 8.51 2 19.2 0 2

28.8 31.250 8.51 1 28.8 0 1

33.6 - - - - - -

57.6 62.500 8.51 0 57.6 0 0

HIGH 0.244 - 255 0.225 - 255

LOW 62.500 - 0 57.6 - 0

TABLE 10-4: BAUD RATES FOR ASYNCHRONOUS MODE (BRGH = 1)

BAUD

RATE

(K)

OSC = 20 MHz FOSC = 16 MHz FOSC = 10 MHz

KBAUD%ERROR

SPBRG

value

(decimal)

KBAUD%ERROR

SPBRG

value

(decimal)

KBAUD%ERROR

SPBRG

value

(decimal)

0.3---------

1.2---------

2.4 - - - - - - 2.441 1.71 255

9.6 9.615 0.16 129 9.615 0.16 103 9.615 0.16 64

19.2 19.231 0.16 64 19.231 0.16 51 19.531 1.72 31

28.8 29.070 0.94 42 29.412 2.13 33 28.409 1.36 21

33.6 33.784 0.55 36 33.333 0.79 29 32.895 2.10 18

57.6 59.524 3.34 20 58.824 2.13 16 56.818 1.36 10

HIGH 4.883 - 255 3.906 - 255 2.441 - 255

LOW 1250.000 - 0 1000.000 0 625.000 - 0

BAUD

RATE

(K)

OSC = 4 MHz FOSC = 3.6864 MHz

KBAUD

ERROR

SPBRG

value

(decimal) KBAUD

ERROR

SPBRG

value

(decimal)

0.3------

1.2 1.202 0.17 207 1.2 0 191

2.4 2.404 0.17 103 2.4 0 95

9.6 9.615 0.16 25 9.6 0 23

19.2 19.231 0.16 12 19.2 0 11

28.8 27.798 3.55 8 28.8 0 7

33.6 35.714 6.29 6 32.9 2.04 6

57.6 62.500 8.51 3 57.6 0 3

HIGH 0.977 - 255 0.9 - 255

LOW 250.000 - 0 230.4 - 0

Microchip Technology Inc PIC16F873-04-L, PIC16F873-04-P, PIC16F873-04-PQ, PIC16F873-04-PT, PIC16F873-04-SO Datasheet

Specifications and Main Features

Frequently Asked Questions

User Manual
