1997 Microchip Technology Inc.
Preliminary
DS21223A-page 1
M
25AA640/25LC640/25C640
DEVICE SELECTION TABLE
FEATURES
• Low power CMOS technology
- Write current: 3 mA typical
- Read current: 500 µ A typical
- Standby current: 500 nA typical
• 8192 x 8 bit organization
• 32 byte page
• Write cycle time: 5ms max.
• Self-timed ERASE and WRITE cycles
• Block write protection
- Protect none, 1/4, 1/2, or all of array
• Built-in write protection
- Power on/off data protection circuitry
- Write enable latch
- Write protect pin
• Sequential read
• High reliability
- Endurance: 1M cycles (guaranteed)
- Data retention: > 200 years
- ESD protection: > 4000 V
• 8-pin PDIP, SOIC, and TSSOP packages
• Temperature ranges supported:
DESCRIPTION
The Microchip Technology Inc. 25AA640/25LC640/
25C640 (25xx640
*
) is a 64K bit serial Electrically Erasable PROM. The memory is accessed via a simple
Serial Peripheral Interface (SPI) compatible serial bus.
The bus signals required are a clock input (SCK) plus
separate data in (SI) and data out (SO) lines. Access to
the device is controlled through a chip select (CS
) input.
Communication to the device can be paused via the
hold pin (HOLD
). While the device is paused, transitions on its inputs will be ignored, with the exception of
chip select, allowing the host to service higher priority
interrupts.
PACKAGE TYPES
BLOCK DIAGRAM
Part
Number
V
CC
Range
Max Clock
Frequency
Temp
Ranges
25AA640 1.8-5.5V 1 MHz C,I
25LC640 2.5-5.5V 2 MHz C,I
25C640 4.5-5.5V 3 MHz C,I,E
- Commercial: (C) 0 ° C to +70 ° C
- Industrial: (I) -40 ° C to +85 ° C
- Automotive: (E) (25C640) -40 ° C to +125 ° C
25xx640
TSSOP
1
2
3
4
8
7
6
5
SCK
SI
V
SS
WP
HOLD
VCC
CS
SO
25xx640
PDIP/SOIC
1
2
3
4
8
7
6
5
V
CC
HOLD
SCK
SI
CS
SO
WP
VSS
SI
SO
SCK
CS
HOLD
WP
Status
Register
I/O Control
Memory
Control
Logic
X
Dec
HV Generator
EEPROM
Array
Page Latches
Y Decoder
Sense Amp.
R/W Control
Logic
VCC
VSS
64K SPI
™
Bus Serial EEPROM
*25xx640 is used in this document as a generic part number for the 25AA640/25LC640/25C640 devices.
SPI is a trademark of Motorola.
25AA640/25LC640/25C640
DS21223A-page 2
Preliminary
1997 Microchip Technology Inc.
1.0 ELECTRICAL
CHARACTERISTICS
1.1 Maxim
um Ratings*
Vcc...................................................................................7.0V
All inputs and outputs w.r.t. Vss.................. -0.6V to Vcc+1.0V
Storage temperature.......................................-65˚C to 150˚C
Ambient temperature under bias..................... -65˚C to 125˚C
Soldering temperature of leads (10 seconds).............+300˚C
ESD protection on all pins.................................................4kV
*Notice: Stresses above those listed under ‘Maximum ratings’ may
cause permanent damage to the device. This is a stress rating only and
functional operation of the device at those or any other conditions
above those indicated in the operational listings of this specification is
not implied. Exposure to maximum rating conditions for an extended
period of time may affect device reliability
TABLE 1-1: PIN FUNCTION TABLE
FIGURE 1-1: AC TEST CIRCUIT
1.2 A
C Test Conditions
Name Function
CS
Chip Select Input
SO Serial Data Output
SI Serial Data Input
SCK Serial Clock Input
WP
Write Protect Pin
V
SS
Ground
V
CC
Supply Voltage
HOLD
Hold Input
AC Waveform:
V
LO
= 0.2V
V
HI
= V
CC
- 0.2V (Note 1)
V
HI
= 4.0V (Note 2)
Timing Measurement Reference Level
Input 0.5 V
CC
Output 0.5 V
CC
Note 1: For V
CC
≤
4.0V
2:
For V
CC
> 4.0V
VCC
SO
100 pF
1.8 K
2.25 K
TABLE 1-2: DC CHARACTERISTICS
All parameters apply over the
specified operating ranges
unless otherwise noted.
Commercial (C): Tamb = 0 ° C to +70 ° C
V
CC
= 1.8V to 5.5V
Industrial (I): Tamb = -40 ° C to +85 ° C V
CC
= 1.8V to 5.5V
Automotive (E): Tamb = -40 ° C to +125 ° C V
CC
= 4.5V to 5.5V (25C640 only)
Parameter Symbol Min Max Units Test Conditions
High level input voltage
V
IH
1 2.0 V
CC
+1 V V
CC
≥ 2.7V (Note)
V
IH
2 0.7 V
CC
V
CC
+1 V V
CC
< 2.7V (Note)
Low level input voltage
V
IL
1 -0.3 0.8 V V
CC
≥ 2.7V (Note)
V
IL
2 -0.3 0.3 V
CC
V V
CC
< 2.7V (Note)
Low level output voltage
V
OL
— 0.4 V I
OL
= 2.1 mA
V
OL
— 0.2 V I
OL
= 1.0 mA, V
CC
< 2.5V
High level output voltage V
OH
V
CC
-0.5 — V I
OH
=-400 µ A
Input leakage current I
LI
-10 10
µ
A CS
= V
CC
, V
IN
= V
SS
TO
V
CC
Output leakage current I
LO
-10 10
µ
A CS
= V
CC
, V
OUT
= V
SS
TO
V
CC
Internal Capacitance
(all inputs and outputs)
C
INT
— 7 pF T
AMB
= 25˚C, CLK = 1.0 MHz,
V
CC
= 5.0V (Note)
Operating Current
I
CC
Read —
—
1
500
mA
µ
A
V
CC
= 5.5V; F
CLK
=3.0 MHz; SO = Open
V
CC
= 2.5V; F
CLK
=2.0 MHz; SO = Open
I
CC
Write —
—
5
3
mAmAV
CC
= 5.5V
V
CC
= 2.5V
Standby Current I
CCS
—
—
5
1
µ A µ
A
CS
= Vcc = 5.5V, Inputs tied to V
CC
or V
SS
CS = Vcc = 2.5V, Inputs tied to V
CC
or V
SS
Note: This parameter is periodically sampled and not 100% tested.
25AA640/25LC640/25C640
1997 Microchip Technology Inc.
Preliminary
DS21223A-page 3
TABLE 1-3: AC CHARACTERISTICS
All parameters apply over the
specified operating ranges
unless otherwise noted.
Commercial (C): Tamb = 0 ° C to +70 ° C V
CC
= 1.8V to 5.5V
Industrial (I): Tamb = -40 ° C to +85 ° C V
CC
= 1.8V to 5.5V
Automotive (E): Tamb = -40 ° C to +125°C V
CC = 4.5V to 5.5V (25C640 only)
Parameter Symbol Min Max Units Test Conditions
Clock Frequency FCLK —
—
—
3
2
1
MHz
MHz
MHz
VCC = 4.5V to 5.5V
VCC = 2.5V to 4.5V
VCC = 1.8V to 2.5V
CS Setup Time TCSS 100
250
500
—
—
—
ns
ns
ns
VCC = 4.5V to 5.5V
VCC = 2.5V to 4.5V
VCC = 1.8V to 2.5V
CS Hold Time TCSH 150
250
475
—
—
—
ns
ns
ns
VCC = 4.5V to 5.5V
VCC = 2.5V to 4.5V
VCC = 1.8V to 2.5V
CS Disable Time TCSD 500 — ns
Data Setup Time TSU 30
50
50
—
—
—
ns
ns
ns
VCC = 4.5V to 5.5V
VCC = 2.5V to 4.5V
VCC = 1.8V to 2.5V
Data Hold Time THD 50
100
100
—
—
—
ns
ns
ns
VCC = 4.5V to 5.5V
VCC = 2.5V to 4.5V
VCC = 1.8V to 2.5V
CLK Rise Time TR — 2 µs (Note 1)
CLK Fall Time TF — 2 µs (Note 1)
Clock High Time THI 150
250
475
—
—
—
ns
ns
ns
VCC = 4.5V to 5.5V
VCC = 2.5V to 4.5V
VCC = 1.8V to 2.5V
Clock Low Time TLO 150
250
475
—
—
—
ns
ns
ns
VCC = 4.5V to 5.5V
VCC = 2.5V to 4.5V
V
CC = 1.8V to 2.5V
Clock Delay Time TCLD 50 — ns
Clock Enable Time TCLE 50 — ns
Output Valid from
Clock Low
TV —
—
—
150
250
475
ns
ns
ns
VCC = 4.5V to 5.5V
VCC = 2.5V to 4.5V
VCC = 1.8V to 2.5V
Output Hold Time THO 0 — ns (Note 1)
Output Disable Time TDIS —
—
—
200
250
500
ns
ns
ns
VCC = 4.5V to 5.5V (Note 1)
VCC = 2.5V to 4.5V (Note 1)
VCC = 1.8V to 2.5V (Note 1)
HOLD Setup Time THS 100
100
200
—
—
—
ns
ns
ns
VCC = 4.5V to 5.5V
VCC = 2.5V to 4.5V
VCC = 1.8V to 2.5V
HOLD Hold Time THH 100
100
200
—
—
—
ns
ns
ns
VCC = 4.5V to 5.5V
VCC = 2.5V to 4.5V
VCC = 1.8V to 2.5V
HOLD Low to Output High-Z THZ 100
150
200
—
—
—
ns
ns
ns
VCC = 4.5V to 5.5V (Note 1)
VCC = 2.5V to 4.5V (Note 1)
VCC = 1.8V to 2.5V (Note 1)
HOLD High to Output Valid THV 100
150
200
—
—
—
ns
ns
ns
VCC = 4.5V to 5.5V
VCC = 2.5V to 4.5V
VCC = 1.8V to 2.5V
Internal Write Cycle Time TWC — 5 ms
Endurance — 1M — E/W Cycles (Note 2)
Note 1: This parameter is periodically sampled and not 100% tested.
2: This parameter is not tested but guaranteed by characterization. For endurance estimates in a specific application, please
consult the Total Endurance Model which can be obtained on Microchip’s BBS or website.
25AA640/25LC640/25C640
DS21223A-page 4 Preliminary 1997 Microchip Technology Inc.
FIGURE 1-2: HOLD TIMING
FIGURE 1-3: SERIAL INPUT TIMING
FIGURE 1-4: SERIAL OUTPUT TIMING
CS
SCK
SO
SI
HOLD
THH
THS THS THH
THVTHZ
don’t care
TSU
high impedance
n+2 n+1 n n-1
n
n+2 n+1 n
n
n-1
CS
SCK
SI
SO
TCSS
THDTsu
TF
TR
TCSD
TCLD
TCSH
LSB in
MSB in
high impedance
TCLE
Mode 1,1
Mode 0,0
CS
SCK
SO
TLO
THI
THO
TV
MSB out
LSB out
TCSH
TDIS
don’t care
SI
Mode 1,1
Mode 0,0
25AA640/25LC640/25C640
1997 Microchip Technology Inc. Preliminary DS21223A-page 5
2.0 PIN DESCRIPTIONS
2.1 Chip Select (CS)
A low level on this pin selects the device. A high level
deselects the device and forces it into standby mode.
However, a programming cycle which is already initiated or in progress will be completed, regardless of the
CS
input signal. If CS is brought high during a program
cycle, the device will go in standby mode as soon as
the programming cycle is complete. As soon as the
device is deselected, SO goes to the high impedance
state, allowing multiple parts to share the same SPI
bus. A low to high transition on CS
after a valid write
sequence initiates an internal write cycle. After powerup, a high to low transition on CS
is required prior to
any sequence being initiated.
2.2 Serial Input (SI)
The SI pin is used to transfer data into the device. It
receives instructions, addresses, and data. Data is
latched on the rising edge of the serial clock.
2.3 Serial Output (SO)
The SO pin is used to transfer data out of the 25xx640.
During a read cycle, data is shifted out on this pin after
the falling edge of the serial clock.
2.4 Serial Clock (SCK)
The SCK is used to synchronize the communication
between a master and the 25xx640. Instructions,
addresses, or data present on the SI pin are latched
on the rising edge of the clock input, while data on the
SO pin is updated after the falling edge of the clock
input.
2.5 Write Protect (WP)
This pin is used in conjunction with the WPEN bit in the
status register to prohibit writes to the non-volatile bits
in the status register. When WP
is low and WPEN is
high, writing to the non-volatile bits in the status register is disabled. All other operations function normally.
When WP
is high, all functions, including writes to the
non-volatile bits in the status register operate normally.
If the WPEN bit is set, WP
low during a status register
write sequence will disable writing to the status register. If an inter nal write cycle has already begun, WP
going low will have no effect on the write.
The WP
pin function is blocked when the WPEN bit in
the status register is low . This allows the user to install
the 25AA640/25LC640/25C640 in a system with WP
pin grounded and still be able to write to the status register. The WP
pin functions will be enabled when the
WPEN bit is set high.
2.6 Hold (HOLD)
The HOLD pin is used to suspend transmission to the
25xx640 while in the middle of a serial sequence without having to re-transmit the entire sequence over at a
later time. It must be held high any time this function is
not being used. Once the device is selected and a
serial sequence is underway, the HOLD
pin may be
pulled low to pause further serial communication without resetting the serial sequence. The HOLD
pin must
be brought low while SCK is low, otherwise the HOLD
function will not be invoked until the next SCK high to
low transition. The 25xx640 must remain selected during this sequence. The SI, SCK, and SO pins are in a
high impedance state during the time the part is
paused and transitions on these pins will be ignored.
To resume serial communication, HOLD
must be
brought high while the SCK pin is low, otherwise serial
communication will not resume. Lowering the HOLD
line at any time will tri-state the SO line.
25AA640/25LC640/25C640
DS21223A-page 6 Preliminary 1997 Microchip Technology Inc.
3.0 FUNCTIONAL DESCRIPTION
3.1 PRINCIPLES OF OPERATION
The 25xx640 is a 8192 byte Serial EEPROM designed
to interface directly with the Serial Peripheral Interface
(SPI) port of many of today’s popular microcontroller
families, including Microchip’s PIC16C6X/7X microcontrollers. It may also interface with microcontrollers
that do not have a built-in SPI port by using discrete
I/O lines programmed properly with the software.
The 25xx640 contains an 8-bit instruction register. The
part is accessed via the SI pin, with data being clocked
in on the rising edge of SCK. The CS
pin must be low
and the HOLD
pin must be high for the entire opera-
tion.
Table 3-1 contains a list of the possible instruction
bytes and format for device operation. All instructions,
addresses, and data are transferred MSB first, LSB
last.
Data is sampled on the first rising edge of SCK after
CS
goes low. If the clock line is shared with other
peripheral devices on the SPI bus, the user can assert
the HOLD
input and place the 25xx640 in ‘HOLD’
mode. After releasing the HOLD
pin, operation will
resume from the point when the HOLD
was asserted.
3.2 Read Sequence
The part is selected by pulling CS low. The 8-bit read
instruction is transmitted to the 25xx640 followed by the
16-bit address with the three MSB’s of the address
being don’t care bits. After the correct read instruction
and address are sent, the data stored in the memory at
the selected address is shifted out on the SO pin. The
data stored in the memory at the next address can be
read sequentially by continuing to provide clock pulses .
The internal address pointer is automatically incremented to the next higher address after each byte of
data is shifted out. When the highest address is
reached (1FFFh), the address counter rolls over to
address 0000h allowing the read cycle to be continued
indefinitely. The read operation is terminated by raising
the CS
pin (Figure 3-1).
3.3 Write Sequence
Prior to any attempt to write data to the 25xx640 array
or status register, the write enable latch must be set b y
issuing the WREN instruction (Figure 3-4). This is
done by setting CS
low and then clocking out the
proper instruction into the 25xx640. After all eight bits
of the instruction are transmitted, the CS
must be
brought high to set the write enable latch. If the write
operation is initiated immediately after the WREN
instruction without CS
being brought high, the data will
not be written to the array because the write enable
latch will not have been properly set.
Once the write enable latch is set, the user may proceed by setting the CS
low, issuing a write instruction,
followed by the address, and then the data to be written. Up to 32 bytes of data can be sent to the 25xx640
before a write cycle is necessary . The only restriction is
that all of the bytes must reside in the same page. A
page address begins with XXX0 0000 and ends with
XXX1 1111. If the internal address counter reaches
XXX1 1111 and the clock continues, the counter will
roll back to the first address of the page and overwrite
any data in the page that may have been written.
For the data to be actually written to the array, the CS
must be brought high after the least significant bit (D0)
of the n
th
data byte has been clocked in. If CS is
brought high at any other time, the write operation will
not be completed. Refer to Figure 3-2 and Figure 3-3
for more detailed illustrations on the byte write
sequence and the page write sequence respectively.
While the write is in progress, the status register may
be read to check the status of the WPEN, WIP, WEL,
BP1, and BP0 bits (Figure 3-6). A read attempt of a
memory array location will not be possible during a
write cycle. When the write cycle is completed, the
write enable latch is reset.
TABLE 3-1: INSTRUCTION SET
Instruction Name Instruction Format Description
READ 0000 0011 Read data from memory array beginning at selected address
WRITE 0000 0010 Write data to memory array beginning at selected address
WREN 0000 0110 Set the write enable latch (enable write operations)
WRDI 0000 0100 Reset the write enable latch (disable write operations)
RDSR 0000 0101 Read status register
WRSR 0000 0001 Write status register
25AA640/25LC640/25C640
1997 Microchip Technology Inc. Preliminary DS21223A-page 7
FIGURE 3-1: READ SEQUENCE
FIGURE 3-2: BYTE WRITE SEQUENCE
FIGURE 3-3: PAGE WRITE SEQUENCE
SO
SI
SCK
CS
0 2 3 4 5 6 7 8 9 10 11 21 22 23 24 25 26 27 28 29 30 311
0 100000 1 15 14 13 12 2 1 0
7 6 5 4 3 2 1 0
instruction 16 bit address
data out
high impedance
SO
SI
CS
0 000000 1 15 14 13 12 2 1 0 7 6 5 4 3 2 1 0
instruction 16 bit address data byte
high impedance
Twc
SI
CS
9 10 11 21 22 23 24 25 26 27 28 29 30 31
0 000000 1 15 14 13 12
2 1 0 7 6 5 4 3 2 1 0
instruction 16 bit address data byte 1
SCK
0 2 3 4 5 6 71
8
SI
CS
41 42 43 46 47
7 6 5 4 3 2 1 0
data byte n (32 max)
SCK
32 34 35 36 37 38 3933
40
7 6 5 4 3 2 1 0
data byte 3
7 6 5 4 3 2 1 0
data byte 2
44 45
25AA640/25LC640/25C640
DS21223A-page 8 Preliminary 1997 Microchip Technology Inc.
3.4 Write Enable (WREN) and Write
Disable (WRDI)
The 25xx640 contains a write enable latch. See
Table 3-3 for the Write Protect Functionality Matrix.
This latch must be set before any write operation will
be completed internally. The WREN instruction will set
the latch, and the WRDI will reset the latch.
The following is a list of conditions under which the
write enable latch will be reset:
• Power-up
• WRDI instruction successfully executed
• WRSR instruction successfully executed
• WRITE instruction successfully executed

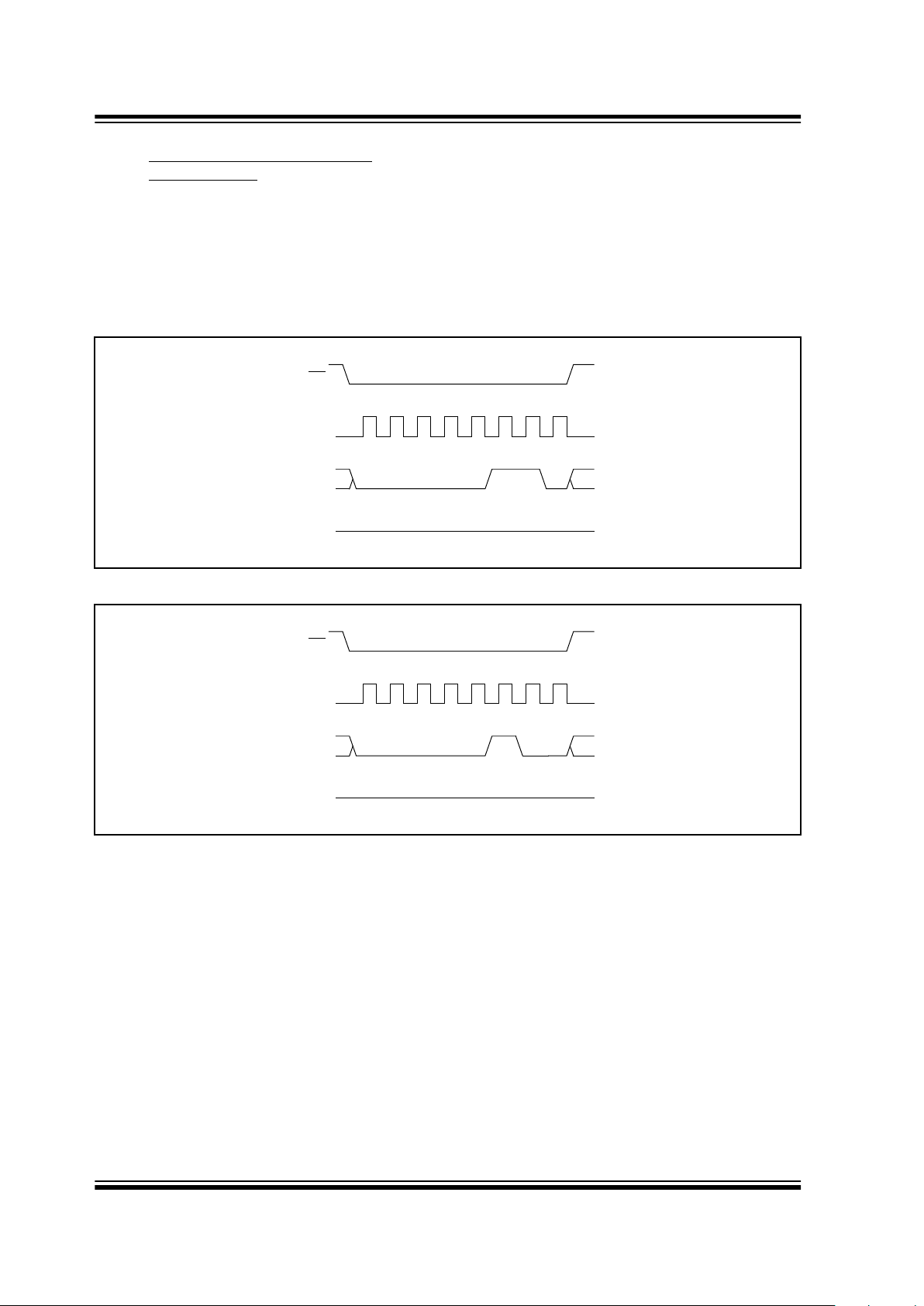

FIGURE 3-4: WRITE ENABLE SEQUENCE
FIGURE 3-5: WRITE DISABLE SEQUENCE
SCK
0 2 3 4 5 6 71
SI
high impedance
SO
CS
0 10 0 0 0 01
SCK
0 2 3 4 5 6 71
SI
high impedance
SO
CS
0 10 0 0 0 01
0
25AA640/25LC640/25C640
1997 Microchip Technology Inc. Preliminary DS21223A-page 9
3.5 Read Status Register (RDSR)
The RDSR instruction provides access to the status
register. The status register may be read at any time,
even during a write cycle. The status register is formatted as follows:
The Write-In-Process (WIP) bit indicates whether the
25xx640 is busy with a write operation. When set to a
‘1’ a write is in progress, when set to a ‘0’ no write is in
progress. This bit is read only.
The Write Enable Latch (WEL) bit indicates the status
of the write enable latch. When set to a ‘1’ the latch
allows writes to the array and status register, when set
to a ‘0’ the latch prohibits writes to the array and status
register. The state of this bit can always be updated via
the WREN or WRDI commands regardless of the state
of write protection on the status register. This bit is
read only.
The Block Protection (BP0 and BP1) bits indicate
which blocks are currently write protected. These bits
are set by the user issuing the WRSR instruction.
These bits are non-volatile.
See Figure 3-6 for RDSR timing sequence
3.6 Write Status Register(WRSR)
The WRSR instruction allows the user to select one of
four levels of protection for the array by writing to the
appropriate bits in the status register. The array is
divided up into four segments. The user has the ability
to write protect none, one, two, or all four of the segments of the array. The partitioning is controlled as
illustrated in Table 3-2.
The Write Protect Enable (WPEN) bit is a non-volatile
bit that is available as an enable bit for the WP
pin.
The Write Protect (WP
) pin and the Write Protect
Enable (WPEN) bit in the status register control the
programmable hardware write protect feature. Hardware write protection is enabled when WP
pin is low
and the WPEN bit is high. Hardw are write protection is
disabled when either the WP
pin is high or the WPEN
bit is low. When the chip is hardware write protected,
only writes to non-volatile bits in the status register are
disabled. See Table 3-3 for a matrix of functionality on
the WPEN bit.
See Figure 3-7 for WRSR timing sequence
TABLE 3-2: ARRAY PROTECTION
FIGURE 3-6: READ STATUS REGISTER SEQUENCE
FIGURE 3-7: WRITE STATUS REGISTER SEQUENCE
7 6 5 4 3 2 1 0
WPEN X X X BP1 BP0 WEL WIP
BP1 BP0
Array Addresses
Write Protected
0 0 none
0 1
upper 1/4
(1800h - 1FFFh)
1 0
upper 1/2
(1000h - 1FFFh)
1 1
all
(0000h - 1FFFh)
SO
SI
CS
9 10 11 12 13 14 15
1 100000 0
7 6 5 4 2 1 0
instruction
data from status register
high impedance
SCK
0 2 3 4 5 6 71
8
3
SO
SI
CS
9 10 11 12 13 14 15
0 100000 0
7 6 5 4 2 1 0
instruction data to status register
high impedance
SCK
0 2 3 4 5 6 71
8
3
25AA640/25LC640/25C640
DS21223A-page 10 Preliminary 1997 Microchip Technology Inc.
3.7 Data Protection
The following protection has been implemented to prevent inadvertent writes to the array:
• The write enable latch is reset on power-up.
• A write enable instruction must be issued to set
the write enable latch.
• After a byte write, page write, or status register
write, the write enable latch is reset.
• CS
must be set high after the proper number of
clock cycles to start an internal write cycle.
• Access to the array during an internal write cycle
is ignored and programming is continued.
3.8 Power On State
The 25xx640 powers on in the following state:
• The device is in low power standb y mode (CS
=1).
• The write enable latch is reset.
• SO is in high impedance state.
• A high to low transition on CS
is required to enter
the active state.
.
TABLE 3-3: WRITE PROTECT FUNCTIONALITY MATRIX
WPEN WP WEL Protected Blocks Unprotected Blocks Status Register
X X 0 Protected Protected Protected
0 X 1 Protected Writable Writable
1 Low 1 Protected Writable Protected
X High 1 Protected Writable Writable
25AA640/25LC640/25C640
1997 Microchip Technology Inc. Preliminary DS21223A-page 11
25AA640/25LC640/25C640 PRODUCT IDENTIFICATION SYSTEM
To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office.
Sales and Support
Package:
P = Plastic DIP (300 mil Body), 8-lead
SN = Plastic SOIC (150 mil Body), 8-lead
ST = TSSOP, 8-lead
Temperature
Range:
Blank = 0°C to +70°C
I = –40°C to +85°C
E = –40°C to +125°C
Devices:
25AA640 64K bit 1.8V SPI Serial EEPROM
25AA640T 64K bit 1.8V SPI Serial EEPROM Tape and Reel
25AA640X 64K bit 1.8V SPI Serial EEPROM
in alternate pinout (ST only)
25AA640XT 64K bit 1.8V SPI Serial EEPROM
in alternate pinout Tape and Reel (ST only)
25LC640 64K bit 2.5V SPI Serial EEPROM
25LC640T 64K bit 2.5V SPI Serial EEPROM Tape and Reel
25LC640X 64K bit 2.5V SPI Serial EEPROM
in alternate pinout (ST only)
25LC640XT 64K bit 2.5V SPI Serial EEPROM
in alternate pinout Tape and Reel (ST only)
25C640 64K bit 5.0V SPI Serial EEPROM
25C640T 64K bit 5.0V SPI Serial EEPROM Tape and Reel
25C640X 64K bit 5.0V SPI Serial EEPROM
in alternate pinout (ST only)
25C640XT 64K bit 5.0V SPI Serial EEPROM
in alternate pinout Tape and Reel (ST only)
25xx640 — /P
Data Sheets
Products supported by a preliminary Data Sheet may have an errata sheet describing minor operational differences and recommended workarounds. To determine if an errata sheet exists for a particular device, please contact one of the following:
1. Your local Microchip sales office.
2. The Microchip Corporate Literature Center U.S. FAX: (602) 786-7277.
3. The Microchip’s Bulletin Board, via your local CompuServe number (CompuServe membership NOT required).
Information contained in this publication regarding device applications and the like is intended for suggestion only and may be superseded by updates. No representation or
warranty is given and no liability is assumed by Microchip Technology Incorporated with respect to the accuracy or use of such information, or infringement of patents or other
intellectual property rights arising from such use or otherwise. Use of Microchip’s products as critical components in life support systems is not authorized except with express
written approval by Microchip. No licenses are convey ed, implicitly or otherwise, under any intellectual property rights. The Microchip logo and name are registered trademarks
of Microchip Technology Inc. in the U.S.A. and other countries. All rights reserved. All other trademarks mentioned herein are the property of their respective companies.
DS21223A-page 12
1997 Microchip Technology Inc.
M
All rights reserved. © 1997, Microchip Technology Incorporated, USA. 9/97 Printed on recycled paper.
AMERICAS
Corporate Office
Microchip T echnology Inc.
2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: 602-786-7200 Fax: 602-786-7277
Technical Support:
602 786-7627
Web:
http://www.microchip.com
Atlanta
Microchip T echnology Inc.
500 Sugar Mill Road, Suite 200B
Atlanta, GA 30350
Tel: 770-640-0034 Fax: 770-640-0307
Boston
Microchip T echnology Inc.
5 Mount Royal Avenue
Marlborough, MA 01752
Tel: 508-480-9990 Fax: 508-480-8575
Chicago
Microchip T echnology Inc.
333 Pierce Road, Suite 180
Itasca, IL 60143
Tel: 630-285-0071 Fax: 630-285-0075
Dallas
Microchip T echnology Inc.
14651 Dallas Parkway, Suite 816
Dallas, TX 75240-8809
Tel: 972-991-7177 Fax: 972-991-8588
Dayton
Microchip T echnology Inc.
Two Prestige Place, Suite 150
Miamisburg, OH 45342
Tel: 937-291-1654 Fax: 937-291-9175
Los Angeles
Microchip T echnology Inc.
18201 Von Karman, Suite 1090
Irvine, CA 92612
Tel: 714-263-1888 Fax: 714-263-1338
New Y ork
Microchip T echnology Inc.
150 Motor Parkway, Suite 416
Hauppauge, NY 11788
Tel: 516-273-5305 Fax: 516-273-5335
San Jose
Microchip T echnology Inc.
2107 North First Street, Suite 590
San Jose, CA 95131
Tel: 408-436-7950 Fax: 408-436-7955
Toronto
Microchip T echnology Inc.
5925 Airport Road, Suite 200
Mississauga, Ontario L4V 1W1, Canada
Tel: 905-405-6279 Fax: 905-405-6253
ASIA/PACIFIC
Hong Kong
Microchip Asia Pacific
RM 3801B, To wer Two
Metroplaza
223 Hing Fong Road
Kwai Fong, N.T., Hong Kong
Tel: 852-2-401-1200 Fax: 852-2-401-3431
India
Microchip T echnology Inc.
India Liaison Office
No. 6, Legacy, Convent Road
Bangalore 560 025, India
Tel: 91-80-229-4036 Fax: 91-80-559-9840
Korea
Microchip T echnology Korea
168-1, Youngbo Bldg. 3 Floor
Samsung-Dong, Kangnam-Ku
Seoul, Korea
Tel: 82-2-554-7200 Fax: 82-2-558-5934
Shanghai
Microchip T echnology
RM 406 Shanghai Golden Bridge Bldg.
2077 Yan’an Road West, Hong Qiao District
Shanghai, PRC 200335
Tel: 86-21-6275-5700
Fax: 86 21-6275-5060
Singapore
Microchip T echnology Taiwan
Singapore Branch
200 Middle Road
#07-02 Prime Centre
Singapore 188980
Tel: 65-334-8870 Fax: 65-334-8850
Taiwan, R.O.C
Microchip T echnology Taiwan
10F-1C 207
Tung Hua North Road
T aipei, Taiwan, ROC
Tel: 886 2-717-7175 Fax: 886-2-545-0139
EUROPE
United Kingdom
Arizona Microchip Technology Ltd.
Unit 6, The Courtyard
Meadow Bank, Furlong Road
Bourne End, Buckinghamshire SL8 5AJ
Tel: 44-1628-851077 Fax: 44-1628-850259
France
Arizona Microchip Technology SARL
Zone Industrielle de la Bonde
2 Rue du Buisson aux Fraises
91300 Massy, France
Tel: 33-1-69-53-63-20 Fax: 33-1-69-30-90-79
Germany
Arizona Microchip Technology GmbH
Gustav-Heinemann-Ring 125
D-81739 Müchen, Germany
Tel: 49-89-627-144 0 Fax: 49-89-627-144-44
Italy
Arizona Microchip Technology SRL
Centro Direzionale Colleoni
Palazzo Taurus 1 V. Le Colleoni 1
20041 Agrate Brianza
Milan, Italy
Tel: 39-39-6899939 Fax: 39-39-6899883
JAPAN
Microchip Technology Intl. Inc.
Benex S-1 6F
3-18-20, Shinyokohama
Kohoku-Ku, Yokohama-shi
Kanagawa 222 Japan
Tel: 81-45-471- 6166 Fax: 81-45-471-6122
8/29/97
W
ORLDWIDE
S
ALES
& S
ERVICE
Loading...
