ZENA™ WIRELESS ADAPTER

USER ’S GUIDE

Table of Contents

Preface ........................................................................................................................... 5

Chapter 1. Overview

1.1 Introduction .....................................................................................................9

1.2 ZENA Wireless Adapter Package Contents ................................................... 9

1.3 ZENA Wireless Adapter Description ..............................................................9

Chapter 2. Getting Started

2.1 Introduction ...................................................................................................11

2.2 Installation .................................................................................................... 11

2.3 Using ZENA Wireless Adapter with the Wireless Development Studio ........ 14

Appendix A. ZENA™ Wireless Adapter Construction Details

A.1 Introduction .................................................................................................. 15

A.2 ZENA Wireless Adapter Schematic .............................................................15

A.3 ZENA Wireless Adapter PCB Layout ...........................................................18

A.4 ZENA Wireless Adapter Bill of Materials ......................................................22

Worldwide Sales and Service ....................................................................................23

ZENA™ Wireless Adapter User’s Guide

NOTES:

ZENA™ WIRELESS ADAPTER

USER ’S GUIDE

Preface

NOTICE TO CUSTOMERS

All documentation becomes dated, and this manual is no exception. Microchip tools and documentation are constantly evolving to meet customer needs, so some actual dialogs and/or tool descriptions may differ from those in this document. Please refer to our web site (www.microchip.com) to obtain the latest documentation available.

Documents are identified with a “DS” number. This number is located on the bottom of each page, in front of the page number. The numbering convention for the DS number is “DSXXXXXA”, where “XXXXX” is the document number and “A” is the revision level of the document.

For the most up-to-date information on development tools, see the MPLAB Select the Help menu, and then Topics to open a list of available on-line help files.

IDE on-line help.

INTRODUCTION

This chapter contains general information that will be useful to know before using the ZENA™ Wireless Adapter. Items discussed in this chapter include:

• Document Layout

• Conventions Used in this Guide

• Warranty Registration

• Recommended Reading

• The Microchip Web Site

• Development Systems Customer Change Notification Service

• Customer Support

• Document Revision History

DOCUMENT LAYOUT

This document describes how to use the ZENA™ Wireless Adapte r. The manual layout is as follows:

• Chapter 1. “Overvi ew ” – This chapter provides a brief overview of the ZENA Wireless Adapter, including kits contents and features.

• Chapter 2. “Get ti ng Started” – This chapter describes how to start using your ZENA™ Wireless Adapter.

• Appendix A. “ZENA™ Wireless Adapter Construction Details” – This appendix contains the schematics, PCB layout and bill of materials.

ZENA™ Wireless Adapter User’s Guide

CONVENTIONS USED IN THIS GUIDE

This manual uses the following documentation conventions:

DOCUMENTATION CONVENTIONS

Description Represents Examples

Arial font:

Italic characters Referenced books MPLAB

Emphasized text ...is the only compiler...

Initial caps A window the Output window

A dialog the Settings dialog A menu selection select Enable Programmer

Quotes A field name in a window or

dialog

Underlined, italic text with right angle bracket

Bold characters A dialog button Click OK

N‘Rnnnn A number in verilog format,

Text in angle brackets < > A key on the keyboard Press <Enter>, <F1>

Courier New font:

Plain Courier New Sample source code #define START

Italic Courier New A variable argument file.o, where file can be

Square brackets [ ] Optional arguments mcc18 [options] file

Curly brackets and pipe character: { | }

Ellipses... Replaces repeated text var_name [,

A menu path File>Save

A tab Click the Power tab

where N is the total number of digits, R is the radix and n is a digit.

Filenames autoexec.bat File paths c:\mcc18\h Keywords _asm, _endasm, static Command-line options -Opa+, -Opa- Bit values 0, 1 Constants 0xFF, ‘A’

Choice of mutually exclusive arguments; an OR selection

Represents code supplied by user

IDE User’s Guide

“Save project before build”

4‘b0010, 2‘hF1

any valid filename

[options] errorlevel {0|1}

var_name...] void main (void)

{ ... }

WARRANTY REGISTRATION

Please complete the enclosed Warran ty Registration Card and mail it promptly. Sending in the Warranty Registration Card entitles users to receive new product updates. Interim software releases are available at the Microchip web site.

Chapter 1. Overview

1.1 INTRODUCTION

The ZENA Wireless Adapter is a multi-function USB wireless adapter connecting USB-equipped desktop or notebook computers with Microchip wireless products for development or application uses. As a development tool, the ZENA Wireless Adapter can be used as a protocol analyzer or as a diagnostic tool. It can also be used to connect the computer as a wireless node to the network for application uses. The ZENA Wireless Adapter is capable of performing a variety of functions and each function can be programmed into the adapter using the built in USB boot loader.

Additional software and firmware updates can be downloaded from the Microchip website: http://www.microchip.com/zena.

This chapter discusses:

• ZENA Wireless Adapter Package Contents

• ZENA Wireless Adapter Description

1.2 ZENA WIRELESS ADAPTER PACKAGE CONTENTS

USER ’S GUIDE

Depending on the frequency and device type ZENA Wireless Adapter ordere d, the package may contain one of the following listed in Table 1-1.

TABLE 1-1: ZENA™ WIRELESS ADAPTER

Description Part Number

ZENA Wireless Adapter – 2.4 GHz MRF24J40 AC182015-1

1.3 ZENA WIRELESS ADAPTER DESCRIPTION

The ZENA Wireless Adapter is shown in Figure 1-1.

FIGURE 1-1: ZENA™ WIRELESS ADAPTER

The ZENA Wireless Adapter plugs into the computers USB slot either directly or using an extension cable. The LED indicates operatio n status.

ZENA™ Wireless Adapter User’s Guide

1.4 REGULATORY STATEMENTS

1.4.1 United States

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digit al device, pursuant to part 15 of the FCC Rules. These limits are desig ned to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate rad io frequ ency ener gy, and if not installed a nd used in accordance with the instructions, may cause harmful interference to radio communications. However , there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to r adio or television reception, which can be determined by turning the equipme nt OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

1.4.2 Canada

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

2.1 INTRODUCTION

The ZENA Wireless Adapter is a flexible, multipurpose device. Firmware applications can be updated from a computer application program such as the Wireless Development Studio.

The ZENA Wireless Adapter is preprogrammed with a MiWi™ Wireless Protocol Sniffer application. This allows the user to display MiWi Wireless Protocol packets in a graphical format in the Wireless Development Studio.

ZENA Wireless Adapter software and firmware updates can be downloaded from the Microchip website http://www.microchip.com/zena.

2.2 INSTALLATION

2.2.1 Installing the Wireless Development Studio

The Wireless Development Studio can be downloaded from the Microchip website:

http://www.microchip.com/wds. Install the program following the installation

instructions that come with the package.

ZENA™ WIRELESS ADAPTER

USER ’S GUIDE

Chapter 2. Getting Started

2.2.2 Installing USB Drivers

The ZENA Wireless Adapter has been designed to communicate with the Microchip MPLABComm driver which is based on the libusb-win32 (for Windows) and libusb ( for Mac and Linux operating systems) libraries. The USB Drivers come with the Wireless Development Studio. To install the USB drivers, follow the sections below for the operating system of choice.

Note: If MPLAB X is installed, the required USB drivers may alread y be inst alled.

ZENA™ Wireless Adapter User’s Guide

2.2.2.1 INSTALLING THE USB DRIVER FOR WINDOWS® 2000/XP/VISTA/7

To Install the USB Driver for windows, perform the following tasks:

1. Plug in the ZENA Wireless Adapter into a USB port. Windows will prompt for a

hardware installation as shown in Figure 2-1.

FIGURE 2-1: FOUND NEW HARDWARE WIZARD WINDOW

OSs

2. Select I

Windows will search and install the driver automatically as shown in Figure 2-2.

FIGURE 2-2: INSTALLING THE DRIVER

3. If Windows is unable to find the hardware for the device then click B

select the option I

The driver is located in the

nstall the software automatically (Recommended) and then click Next.

ack and

nstall from a list or specific location (Advanced).

Wireless Development Studio\Driver\Inf\folder.

Getting Started

4. After installing the driver, Windows prompts the following DLLs:

WinUSBCoInstaller2.dll, WdfCoInstaller01009.dll and WUDFUpdate_01009.dll as shown in Figure 2-3.

• If installing in a Windows 32 bit system, point the folder location to

“C:\Windows\system32”

• If installing in a Windows 64-bit system, point the folder location to

“C:\Windows\SysWOW64”.

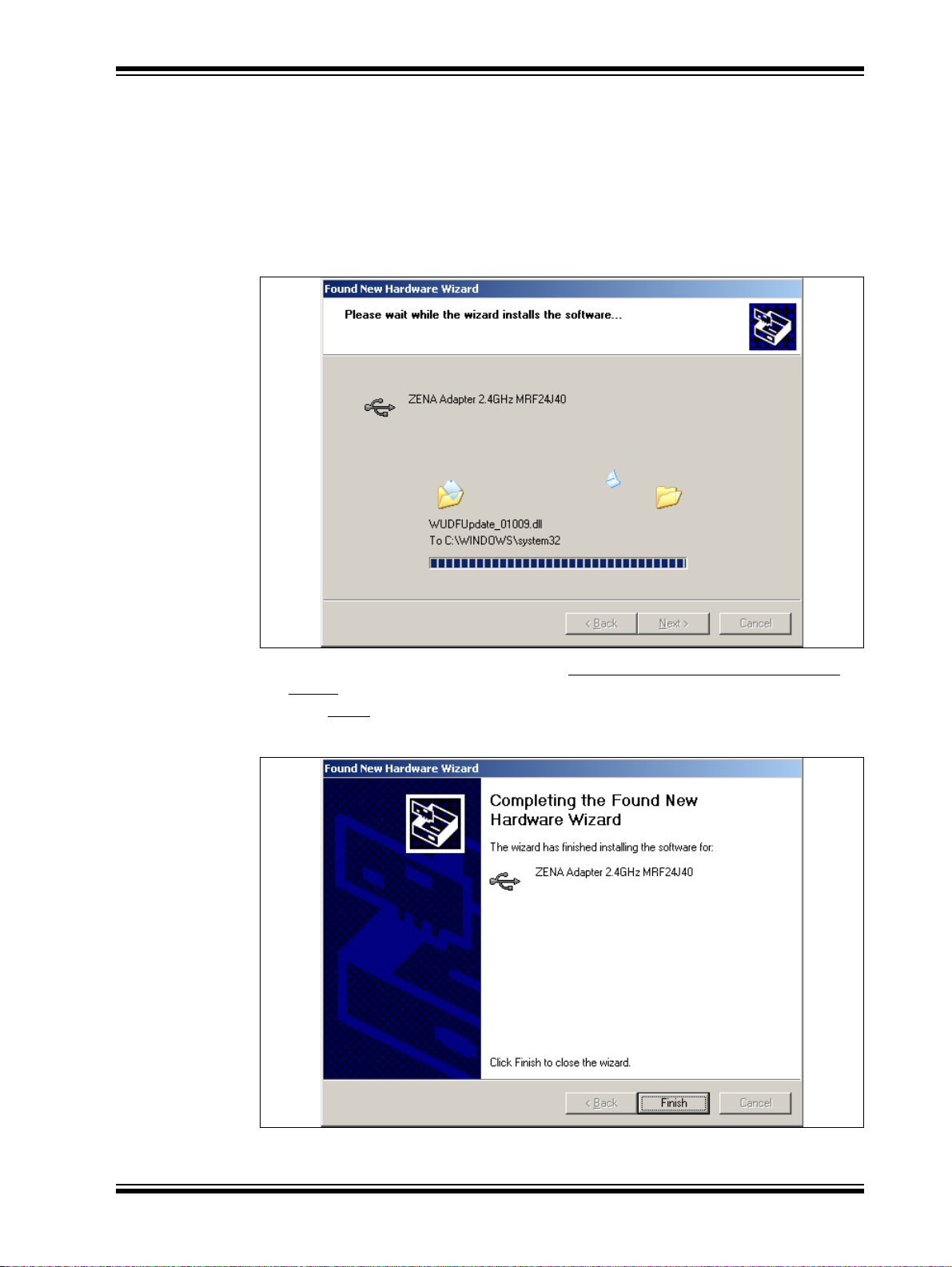

FIGURE 2-3: INSTALLING DYNAMIC LINKED LIBRARIES (DLLs)

5. After installing the driver and DLLs, the C Wizard appears on the screen as shown in Figure 2-4.

6. Click F

FIGURE 2-4: COMPLETING THE FOUND NEW HARDWARE WIZARD

inish to complete the installation.

ompleting the Found New Hardware

ZENA™ Wireless Adapter User’s Guide

2.2.2.2 INSTALLING THE USB DRIVER FOR MAC OR LINUX OSs The ZENA Wireless Adapter uses the libUSB drivers. When installing the USB drivers

on a Mac or Linux computer, the installer will place the USB drivers in the proper location.

2.3 USING ZENA WIRELESS ADAPTER WITH THE WIRELESS DEVELOPMENT STUDIO

To use the ZENA Wireless Adapter with the Wireless Development Studio, it must first be selected as the source device by performing the following tasks:

1. From the main window, select Sniffer The Packet List window will appear.

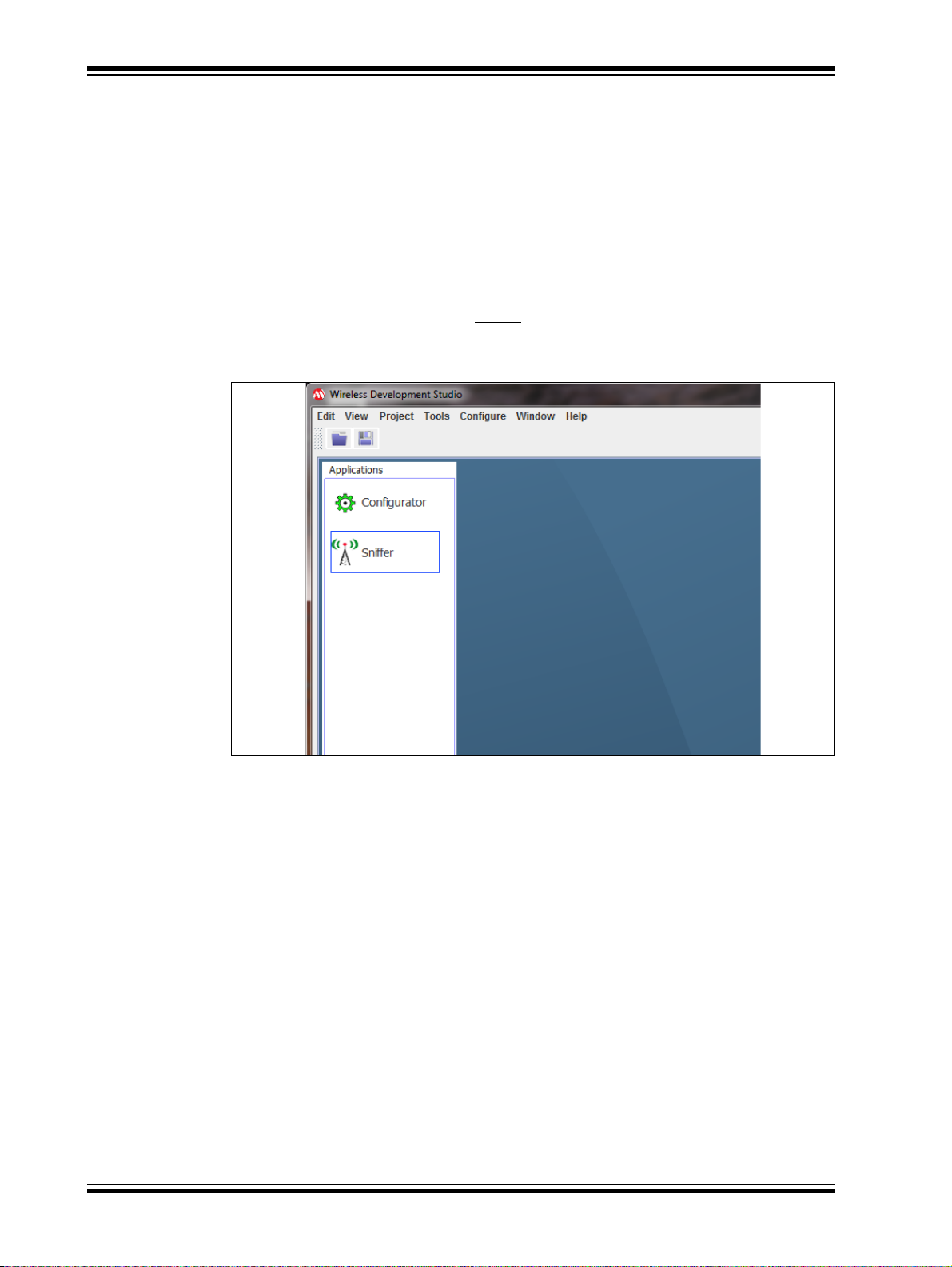

FIGURE 2-5: SNIFFER APPLICATION SELECTION

as the active application, see Figure 2-5.

Getting Started

2. From the Packet List window, select ZENA Wireless Adapter from the Source

drop-down box, see Figure 2-6.

FIGURE 2-6: WIRELESS DEVELOPMENT STUDIO SOURCE SELECTION

Note: If multiple ZENA Wireless Adapters are plugged in, they can be individually

chosen by serial number.

For more information on running the Wireless Development Studio, see the Wireless Development Studio help.

ZENA™ Wireless Adapter User’s Guide

NOTES:

ZENA™ WIRELESS ADAPTER

USER ’S GUIDE

Appendix A. ZENA™ Wireless Adapter Construction Details

A.1 INTRODUCTION

This appendix provides the ZENA™ Wireless Adapter schematics, PCB layout and Bill of Materials (BOM).

A.2 ZENA WIRELESS ADAPTER SCHEMATIC

Figure A-1 and Figure A-2 illustrates the ZENA Wireless Adapter Schematics

FIGURE A-1: ZENA™ WIRELESS ADAPTER SCHEMATIC

ZENA™ Wireless Adapter User’s Guide

FIGURE A-2: ZENA™ WIRELESS ADAPTER SCHEMATIC

ZENA™ Wireless Adapter Construction Details

ZENA™ Wireless Adapter User’s Guide

A.3 ZENA WIRELESS ADAPTER PCB LAYOUT

The ZENA Wireless Adapter PCB is a 4-layer, high temperature FR4, 0.031 inch, plated through hole construction. Figure A-3 through Figure A-8 show the PCB layers.

Figure A-3 illustrates the ZENA Wireless Adapter top silk screen

FIGURE A-3: TOP SILKSCREEN

ZENA™ Wireless Adapter Construction Details

Figure A-4 illustrates the ZENA Wireless Adapter top copper.

FIGURE A-4: LAYER 1 — TOP COPPER

Figure A-5 illustrates the ZENA Wireless Adapter Ground Plane.

FIGURE A-5: LAYER 2 — GROUND PLANE

ZENA™ Wireless Adapter User’s Guide

Figure A-6 illustrates the ZENA Wireless Adapter Power Plane.

FIGURE A-6: LAYER 3 — POWER PLANE

Figure A-7 illustrates the ZENA Wireless Adapter bottom copper.

FIGURE A-7: LAYER 4 — BOTTOM COPPER

ZENA™ Wireless Adapter Construction Details

Figure A-8 illustrates the ZENA Wireless Adapter bottom silkscreen.

FIGURE A-8: BOTTOM SILKSCREEN

ZENA™ Wireless Adapter User’s Guide

A.4 ZENA WIRELESS ADAPTER BILL OF MATERIALS

Table A-1 provides a detailed description of the ZENA Wireless Adapter Bill of

Materials (BOM).

TABLE A-1: BILL OF MATERIALS

Qty Designator Value Description Manufacturer

2 C2, C3 22 pF Capacitor, Ceramic,

SMT 0603

6 C4, C5, C6, C8,

C10, C11

2 C7, C9 1 µF Capacitor, Ceramic,

1 C1 10 µF Capacitor, Ceramic,

1 DS1 Green Diode, Light Emitting,

1 DS2 Red Diode, Light Emitting,

1 J1 — Connector, Plug USB

2 R1, R2 470 ohms Resistor , Thin Film File,

1 R3 10K ohms Resistor, Thin Film File,

1 U1 — PIC18F26J50-I/SS Microchip Technology PIC18F26J50-I/SS 1 U2 — MRF24J40MA Microchip Technology MRF24J40MA-I/RM 1 U3 — MCP1700T-3302E Microchip Technology MCP1700T-3302E/TT 1 U4 — 25LC256-I/SN Micro c hip Technology 25LC256-I/SN 1 U5 — 25AA02E48-I/SN Microchip Technology 25AA02E48-I/SN 1 X1 8 MHz Crystal, SMT, 8 MHz Abracon ABMM-8.000MHZ-B2-T 1 @DS1 and DS2 — Light Pipe, Vertical,

1 Enclosure — Enclosure, USB

0.1 µF Capacitor, Ceramic, 16V, ±10%, X7R, SMT 0603

6.3V, ±10%, X5R, SMT 0603

6.3V, ±20%, X5R, SMT 0805

Green

Red

4Pos RT Ang SMD

SMT 0603

0.300" round

Device,

Murata Electronics North America

OSRAM LG Q971-KN-1-0-20-R18

OSRAM LS Q976-NR-1-0-20-R18

Molex 480371000

Stackpole Electronics RMCF0603JT470R

Stackpole Electronics RMCF0603JT10K0

Bivar Inc. VLP-300-R

New Age Enclosures P-201005

Manufacturer Part

Number

GRM1885C1H220JA01D

GRM188R71C104KA01D

GRM188R60J105KA01D

GRM21BR60J106ME19L

Worldwide Sales and Service

AMERICAS

Corporate Office

2355 West Chandler Blvd. Chandler, AZ 85224-6199 Tel: 480-792-7200 Fax: 480-792-7277 Technical Support:

http://www.microchip.com/ support

Web Address:

www.microchip.com

Atlanta

Duluth, GA Tel: 678-957-9614 Fax: 678-957-1455

Boston

Westborough, MA Tel: 774-760-0087 Fax: 774-760-0088

Chicago

Itasca, IL Tel: 630-285-0071 Fax: 630-285-0075

Cleveland

Independence, OH Tel: 216-447-0464 Fax: 216-447-0643

Dallas

Addison, TX Tel: 972-818-7423 Fax: 972-818-2924

Detroit

Farmington Hills, MI Tel: 248-538-2250 Fax: 248-538-2260

Indianapolis

Noblesville, IN Tel: 317-773-8323 Fax: 317-773-5453

Los Angeles

Mission Viejo, CA Tel: 949-462-9523 Fax: 949-462-9608

Santa Clara

Santa Clara, CA Tel: 408-961-6444 Fax: 408-961-6445

Toronto

Mississauga, Ontario, Canada Tel: 905-673-0699 Fax: 905-673-6509

ASIA/PACIFIC

Asia Pacific Office

Suites 3707-14, 37th Floor Tower 6, The Gateway Harbour City, Kowloon Hong Kong Tel: 852-2401-1200 Fax: 852-2401-3431

Australia - Sydney

Tel: 61-2-9868-6733 Fax: 61-2-9868-6755

China - Beijing

Tel: 86-10-8569-7000 Fax: 86-10-8528-2104

China - Chengdu

Tel: 86-28-8665-5511 Fax: 86-28-8665-7889

China - Chongqing

Tel: 86-23-8980-9588 Fax: 86-23-8980-9500

China - Hangzhou

Tel: 86-571-2819-3180 Fax: 86-571-2819-3189

China - Hong Kong SAR

Tel: 852-2401-1200 Fax: 852-2401-3431

China - Nanjing

Tel: 86-25-8473-2460 Fax: 86-25-8473-2470

China - Qingdao

Tel: 86-532-8502-7355 Fax: 86-532-8502-7205

China - Shanghai

Tel: 86-21-5407-5533 Fax: 86-21-5407-5066

China - Shenyang

Tel: 86-24-2334-2829 Fax: 86-24-2334-2393

China - Shenzhen

Tel: 86-755-8203-2660 Fax: 86-755-8203-1760

China - Wuhan

Tel: 86-27-5980-5300 Fax: 86-27-5980-5118

China - Xian

Tel: 86-29-8833-7252 Fax: 86-29-8833-7256

China - Xiamen

Tel: 86-592-2388138 Fax: 86-592-2388130

China - Zhuhai

Tel: 86-756-3210040 Fax: 86-756-3210049

ASIA/PACIFIC

India - Bangalore

Tel: 91-80-3090-4444 Fax: 91-80-3090-4123

India - New Delhi

Tel: 91-11-4160-8631 Fax: 91-11-4160-8632

India - Pune

Tel: 91-20-2566-1512 Fax: 91-20-2566-1513

Japan - Yokohama

Tel: 81-45-471- 6166 Fax: 81-45-471-6122

Korea - Daegu

Tel: 82-53-744-4301 Fax: 82-53-744-4302

Korea - Seoul

Tel: 82-2-554-7200 Fax: 82-2-558-5932 or 82-2-558-5934

Malaysia - Kuala Lumpur

Tel: 60-3-6201-9857 Fax: 60-3-6201-9859

Malaysia - Penang

Tel: 60-4-227-8870 Fax: 60-4-227-4068

Philippines - Manila

Tel: 63-2-634-9065 Fax: 63-2-634-9069

Singapore

Tel: 65-6334-8870 Fax: 65-6334-8850

Taiwan - Hsin Chu

Tel: 886-3-6578-300 Fax: 886-3-6578-370

Taiwan - Kaohsiung

Tel: 886-7-213-7830 Fax: 886-7-330-9305

Taiwan - Taipei

Tel: 886-2-2500-6610 Fax: 886-2-2508-0102

Thailand - Bangkok

Tel: 66-2-694-1351 Fax: 66-2-694-1350

EUROPE

Austria - Wels

Tel: 43-7242-2244-39 Fax: 43-7242-2244-393

Denmark - Copenhagen

Tel: 45-4450-2828 Fax: 45-4485-2829

France - Paris

Tel: 33-1-69-53-63-20 Fax: 33-1-69-30-90-79

Germany - Munich

Tel: 49-89-627-144-0 Fax: 49-89-627-144-44

Italy - Milan

Tel: 39-0331-742611 Fax: 39-0331-466781

Netherlands - Drunen

Tel: 31-416-690399 Fax: 31-416-690340

Spain - Madrid

Tel: 34-91-708-08-90 Fax: 34-91-708-08-91

UK - Wokingham

Tel: 44-118-921-5869 Fax: 44-118-921-5820

05/02/11

Microchip Technology Zena User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter 1. Overview

1.1 INTRODUCTION

1.2 ZENA WIRELESS ADAPTER PACKAGE CONTENTS

TABLE 1-1: ZENA™ WIRELESS ADAPTER

1.3 ZENA WIRELESS ADAPTER DESCRIPTION

FIGURE 1-1: ZENA™ WIRELESS ADAPTER

1.4 REGULATORY STATEMENTS

1.4.1 United States

1.4.2 Canada

2.1 INTRODUCTION

2.2 INSTALLATION

2.2.1 Installing the Wireless Development Studio

Chapter 2. Getting Started

2.2.2 Installing USB Drivers

FIGURE 2-1: FOUND NEW HARDWARE WIZARD WINDOW

FIGURE 2-2: INSTALLING THE DRIVER

FIGURE 2-3: INSTALLING DYNAMIC LINKED LIBRARIES (DLLs)

FIGURE 2-4: COMPLETING THE FOUND NEW HARDWARE WIZARD

2.2.2.2 INSTALLING THE USB DRIVER FOR MAC OR LINUX OSs The ZENA Wireless Adapter uses the libUSB drivers. When installing the USB drivers

2.3 USING ZENA WIRELESS ADAPTER WITH THE WIRELESS DEVELOPMENT STUDIO

FIGURE 2-5: SNIFFER APPLICATION SELECTION

FIGURE 2-6: WIRELESS DEVELOPMENT STUDIO SOURCE SELECTION

Appendix A. ZENA™ Wireless Adapter Construction Details

A.1 INTRODUCTION

A.2 ZENA WIRELESS ADAPTER SCHEMATIC

FIGURE A-1: ZENA™ WIRELESS ADAPTER SCHEMATIC

FIGURE A-2: ZENA™ WIRELESS ADAPTER SCHEMATIC

A.3 ZENA WIRELESS ADAPTER PCB LAYOUT

FIGURE A-3: TOP SILKSCREEN

FIGURE A-4: LAYER 1 — TOP COPPER

FIGURE A-5: LAYER 2 — GROUND PLANE

FIGURE A-6: LAYER 3 — POWER PLANE

FIGURE A-7: LAYER 4 — BOTTOM COPPER

FIGURE A-8: BOTTOM SILKSCREEN

A.4 ZENA WIRELESS ADAPTER BILL OF MATERIALS

TABLE A-1: BILL OF MATERIALS
