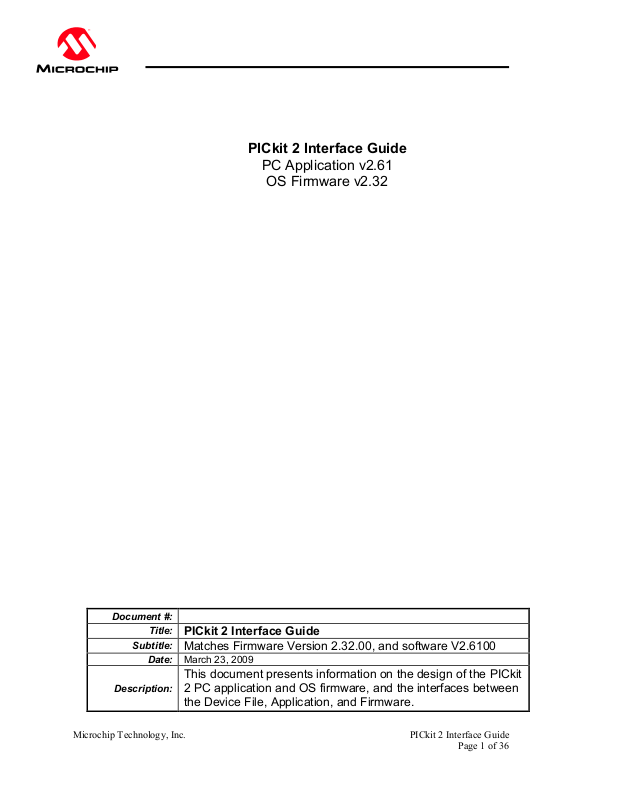

PICkit 2 Interface Guide
PC Application v2.61
OS Firmware v2.32
Document #:
Title:
Subtitle:
Date: March 23, 2009
PICkit 2 Interface Guide
Matches Firmware Version 2.32.00, and software V2.6100
This document presents information on the design of the PICkit
Description:
2 PC application and OS firmware, and the interfaces between
the Device File, Application, and Firmware.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 1 of 36
1.0 INTRODUCTION ...........................................................................................................................................3
2.0 GUIDING DESIGN GOALS ..........................................................................................................................3
3.0 ARCHITECTURE OVERVIEW ...................................................................................................................3
4.0 BOOTLOADER...............................................................................................................................................3
5.0 PROGRAMMER FIRMWARE .....................................................................................................................4
5.1 FIRMWARE COMMANDS..................................................................................................................................4
5.2 S
CRIPTING ....................................................................................................................................................10
6.0 PC APPLICATION .......................................................................................................................................18
6.1 APPLICATION MENUS ...................................................................................................................................18
6.2 S
6.3 PC A
6.4 H
6.5 H
6.6 R
6.7 W
6.8 V
6.9 E
6.10 B
TATUS WINDOW .........................................................................................................................................20
PPLICATION STARTUP...........................................................................................................................20
EX FILE IMPORT .........................................................................................................................................21
EX FILE EXPORT.........................................................................................................................................21
EAD DEVICE...............................................................................................................................................21
RITE DEVICE .............................................................................................................................................22
ERIFY DEVICE ............................................................................................................................................23
RASE DEVICE..............................................................................................................................................23
LANK CHECK..............................................................................................................................................24
7.0 DEVICE FILE ...............................................................................................................................................30
7.1 FAMILY PARAMETERS ..................................................................................................................................31
7.2 P
7.3 S
ART PARAMETERS ......................................................................................................................................32
CRIPT DEFINITIONS.....................................................................................................................................36
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 2 of 36
1.0 Introduction
This document covers design and theory of the PICkit 2 version 2 firmware and PC application software. Version 2
implements a script-based design to allow maximum flexibility for programming any type of device without
requiring frequent, part-specific changes and updates. All part-specific information is kept in a device file, allowing
new parts and families with new algorithms to be implemented without frequent changes to the software or
firmware.
2.0 Guiding Design Goals
The guiding design goals of the version 2 firmware
1. Allow the firmware and software to be as generic as possible so adding new part & family support requires
little to no changes.
2. Remain compatible with bootloader commands for the existing Pk2.
3. All device specific information should be kept in the device file.
4. The scripting and firmware should be flexible enough to allow other tasks besides programming to be
accomplished, such as ICD.
3.0 Architecture Overview
The PICkit 2 is organized into 4 functional blocks.
1. Bootloader
2. Programmer Firmware
3. PC Application
4. Device File
The Bootloader is designed to be autonomous i.e. does not require programmer firmware for operation.
The Programmer firmware, however, has its own USB stack, and does not rely on the bootloader for communication
while running. This allows the USB stack used during normal execution to be updated over USB using the
bootloader.
The programmer firmware is largely a script execution engine, with basic commands for management of scripts and
data. Data is program code, EE contents, and other information for which the programmer only acts as a conduit.
The PC application is responsible for the user interface portion of the system. Its function is to respond to user
requests by packaging data and scripts for execution by the firmware.
The device file contains all scripts and descriptions of each part supported. It is divided into 3 main sections. The
first is the family description section, which sets up some parameters common to all family members. The second is
the part description section, with an entry for each part supported. This description references scripts contained in
the third section, and defines membership in a family defined in section 1. The third section contains an indexed
listing of all scripts used by the supported parts.
4.0 Bootloader
- TBD - .
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 3 of 36
5.0 Programmer Firmware
The firmware consists largely of commands to store and retrieve data from 2 data buffers, and to store and execute
scripts from an indexable script buffer.
The names & uses of the buffers are:
Download Data Buffer
256 byte circular buffer. Stores data sent by the PC host for use by script commands. This is
where code and data to be programmed by a script is stored. The write pointer is advanced by
USB commands that write to the buffer, and the read pointer is advanced by scripts that use the
data.
Upload Data Buffer
128 byte circular buffer. Data retrieved by a script is stored here to be read over USB by the PC
host. Data and code read from a part by a script is stored here. The write pointer is advanced by
scripts that place data into the buffer, and the read pointer is advanced by USB commands to
retrieve the data.
Script Buffer
768 byte indexed buffer. This buffer stores up to 32 scripts of variable sizes up to 768 bytes total.
The Script Index Table stores the beginning location and length of each script 1 through 32.
Currently scripts are limited in length to 62 bytes as that is the longest script than can be sent
via a DOWNLOAD_SCRIPT command in a 64-byte USB packet.
5.1 Firmware Commands
A command packet starts with the command byte and is followed by the command data bytes in order starting with
data[1]. Response data bytes are returned via USB starting at data[1].
Any command not defined is treated as a “No Operation”.
Byte
ID
ENTER_BOOTLOADER
0x5A
0xA0
Microchip Technology, Inc. PICkit 2 Interface Guide
NO_OPERATION
FIRMWARE_VERSION
- Read firmware version
SETVDD
- Set Target VDD voltage
VDDLim is error detection
threshold voltage.
Command Name Data
Length
command: 0 Transfers operation to bootloader.0x42
response: 0
command: 0 Command processor skips and goes to next
response: 0
command: 00x76
response: 3 data[1] = Major version
command: 3 data[1] = CCPL
response: 0
Data Description
command byte.
data[2] = Minor version
data[3] = Dot version
When received as the first byte in a USB
packet, exits PK2GO mode.
data[2] = CCPH
= [((Vdd * 32) + 10.5) << 6]
data[3] = VDDLim
= (Vfault / 5) * 255
typ. Vfault = 0.7*Vdd
data[3] is calibrated using the factors sent via
SET_VOLTAGE_CALS (0xB0)
Page 4 of 36
0xA1
SETVPP
- Set Target VPP voltage
VPPLim is error detection
threshold voltage.
READ_STATUS
- Read status word. StatusHigh
and StatusLow 7:4 are cleared
after a read.
READ_VOLTAGES
- Read Vdd & Vpp voltages
command: 3 data[1] = CCPR2L = 0x40
data[2] = VPPADC
= [Vpp * 18.61]
data[3] = VPPLim
= [Vfault * 18.61]
typ. Vfault = 0.7*Vpp
data[2] & data[3] are calibrated using the
factors in
response: 0
command: 00xA2
response: 2 data[1] = Status Low
<7> unused
<6> 1 = PICkit 2 button pressed
<5> 1 = VppError (Vpp < Vfault)
<4> 1 = VddError (Vdd < Vfault)
<3> 1 = Vpp On
<2> 1 = Vpp GND On
<1> 1 = Vdd On
<0> 1 = Vdd GND On
data[2] = Status High
<7> 1 = Download Buffer Overflow
<6> 1 = Script Buffer Overflow, invalid
Script length or index
<5> 1 = Run Script on Empty Script
<4> 1 = Script abort- download empty
<3> 1 = Script abort- upload full
<2> 1 = ICD transfer timeout/Bus Error
<1> 1 = UART Mode enabled
<0> 1 = PICkit 2 reset since last
Status Read.
NOTE: Turns BUSY_LED off.
command: 00xA3
response: 4 data[1] = VDDADCLow
data[2] = VDDADCHigh
Vdd = (VDDADC / 65536) * 5 V
data[3] = VPPADCLow
data[4] = VPPADCHigh
Vpp = (VDDADC / 65536) * 13.7 V
SET_VOLTAGE_CALS (0xB0)
VDDADC and VPPADC value are calibrated
using the values in
SET_VOLTAGE_CALS (0xB0)
0xA4
0xA5
Microchip Technology, Inc. PICkit 2 Interface Guide
DOWNLOAD_SCRIPT
- Stores a script in the Script
Buffer. Any existing script at
The script# will be replaced.
RUN_SCRIPT*
- Runs a script from the Script
Buffer.
command: 2+N data[1] = Script # (0-31)
data[2] = Script Length N
data[3] = Script byte 1
xxx
data[N+2] = Script byte N
response: 0
command: 2 data[1] = Script # (0-31)
data[2] = Run 1 – 256 times
(0x00 = 256x, 0x01 = 1x, 0xFF = 255x)
response: 0
Page 5 of 36
0xA6
hs of all loaded
0xA8
EXECUTE_SCRIPT*
- Executes the included script.
CLR_DOWNLOAD_BUFFER
- Empties the Download Buffer
DOWNLOAD_DATA
- Adds data to end of buffer
CLR_UPLOAD_BUFFER
- Empties the Upload Buffer
UPLOAD_DATA
- Read data from Upload Buffer
CLR_SCRIPT_BUFFER
- Empties the Script Buffer
UPLOAD_DATA_NOLEN
- Read data from Upload
Buffer, no preceding length
byte.
command: 1+N data[1] = Script Length N
data[2] = Script byte 1
xxx
data[N+1] = Script byte N
response: 0
command: 00xA7
response: 0
command: 1+N data[1] = Data Length N
data[2] = Data byte 1
xxx
data[N+1] = Data byte N
response: 0
command: 00xA9
response: 0
command: 00xAA
response: 1+N data[1] = Data Length N
data[2] = Data byte 1
xxx
data[N+1] = Data byte N
command: 00xAB
response: 0
command: 00xAC
response: N data[1] = Data byte 1
xxx
data[N] = Data byte N
0xAD
0xAE
END_OF_BUFFER
RESET
- Resets the PICkit 2
SCRIPT_BUFFER_CHKSM
- Read checksums of the
script buffer
command: 0 Indicates end of commands in USB 64-byte
report buffer.
response: 0
command: 0 Any other commands in the buffer after the
RESET will not be executed.
response: 0
command: 00xAF
response: 4 data[1] = LengthSumL
data[2] = LengthSumH
- 16-bit sum of the lengt
scripts
data[3] = BufferSumL
data[4] = BufferSumH
- 16-bit sum of all used bytes in script
buffer
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 6 of 36
0xB0
0xB1
0xB2
0xB3
0xB5
SET_VOLTAGE_CALS
- Sets the calibration factors
for VDD setpoints and ADC
conversions.
- Stored in internal EE and
used on subsequent resets.
WR_INTERNAL_EE
- Writes data to internal
EEPROM
RD_INTERNAL_EE
- Read data from internal
EEPROM
ENTER_UART_MODE
- Puts the PICkit 2 into
UART Mode.
- Scripts will not execute in
UART Mode.
EXIT_UART_MODE
- Returns PICkit 2 to normal
mode.
ENTER_LEARN_MODE
- Puts PICkit 2 into “Learn”
mode, where commands,
scripts, and data are stored
in the external EEPROM.
command: 4 data[1] = adc_calfactorL
data[2] = adc_calfactorH
CalibratedResult =
(ADRES * adc_calfactor) >> 8
data[3] = vdd_offset (signed 2’s comp)
data[4] = vdd_calfactor
Calibrated CCP value =
(((CCP >> 6) + vdd_offset) *
vdd_calfactor) >>1
Default (uncalibrated) values:
data[1] = 0x00, data[2] = 0x01, data[3] =
0x00, data[4] = 0x80,
response: 0
command: 2 + N data[1] = Start Address
data[2] = Data Length N (Max N=32)
data[3] = Data byte 1
xxx
data[N+2] = Data byte N
First data byte written at Start Address.
Additional bytes are written at subsequent
addresses.
response: 0
command: 1 data[1] = Start Address
data[2] = Data Length N (Max N=32)
First data byte read from Start Address.
Additional bytes are read at subsequent
addresses.
response: N data[1] = Data byte 1
xxx
data[N] = Data byte N
command: 2 data[1] = BaudValueL
data[2] = BaudValueH
BaudValue = 65536 – [((1/BAUD) – 3e-6) /
1.67e-7]
Where BAUD = 1200, 2400, etc to
maximum 57600.
response: 0
command: 00xB4
response: 0
command: 4 data[1] = 0x50
data[2] = 0x4B
data[3] = 0x32
data[4] = 0 : 128K EEPROM
1 : 256K EEPROM
First 3 bytes are command “key” value to
prevent accidental mode entry.
response: 0
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 7 of 36
0xB7
samples to be taken after the trigger, minus 1.
EXIT_LEARN_MODE
- Returns PICkit 2 to normal
mode.
ENABLE_PK2GO_MODE
- Returns PICkit 2 to normal
mode.
command: 00xB6
response: 0
command: 2 data[1] = 0x50
data[2] = 0x4B
data[3] = 0x32
data[4] = 0 : 128K EEPROM
1 : 256K EEPROM
0xB8
LOGIC_ANALYZER_GO
- Logic Analyzer function.
- NOTE: clears script buffer
First 3 bytes are command “key” value to
prevent accidental mode entry. 4
th
what EEPROMs to use (2 x 24LC512 vs 2 x
24LC1025).
PK2GO Mode is exited by the reception of a
FIRMWARE_VERSION command in the
first byte of a USB packet.
response: 0
command: 7 data[1] = 0 : Falling Edge Triggers
1 : Rising Edge Triggers
data[2] = TrigMask – ‘1’ bit for active Ch
data[3] = TrigStates – Edge bits 2
data[4] = EdgeMask – ‘1’ bit for edge Ch
data[5] = TrigCount ‘0’ = 256 counts
data[6] = PostTrigCountL
data[7] = PostTrigCountH
data[8] = SampleRateFactor
0 : 1 MHz
1 : 500 kHz
3 : 250 kHz
9 : 100 kHz
19 : 50 kHz
39 : 25 kHz
99 : 10 kHz
199 : 5 kHz
byte tells
nd
state
Microchip Technology, Inc. PICkit 2 Interface Guide
Mask/State bits:
Ch1 = bit 2
Ch2 = bit 3
Ch3 = bit 4
Unused Mask/State bits should be ‘0’
PostTrigCount is the number of extra
Min value is 1. Max is 65279
response: 2 data[1] = TrigLocL
data[2] = TrigLocH
bit 7 = 1 : trigger is in swapped sample
bit 6 = 1 : trigger is an abort
!! Add 1 to get the actual address !!
TrigLoc is an address 0x600 to 0x7FF. On
an abort, the address is invalid
Page 8 of 36
0xB9
LEARNING MODE META-COMMANDS
These commands are only valid in Learning Mode.
COPY_RAM_UPLOAD
- Copies 128 bytes of RAM
to the Upload buffer starting
at the given address.
0x80 READ_OSCCAL Command: 2 data[1] = OSCCAL Address Low
0x81 WRITE_OSCCAL Command: 2 data[1] = OSCCAL Address Low
0x82 START_CHECKSUM Command: 2 data[1] = Format
0x83 VERIFY_CHECKSUM Command: 2 data[1] = Checksum Low
command: 2 data[1] = StartAddressL
data[2] = StartAddressH
bits 15-12 of StartAddress are ignored.
response: 0
data[2] = OSCCAL Address High
Reads & stores the device OSCCAL value
data[2] = OSCCAL Address High
Writes the device OSCCAL value stored by
READ_OSCCAL
data[2] = 0
Format = 0 for most devices
= 1 for Baseline / Midrange flash
= 2 for Baseline / Midrange EE
Begin calculating a checksum on the upload
buffer.
data[2] = Checksum High
Compares calculated checksum against
included checksum.
0x84 CHECK_DEVICE_ID Command: 2 data[1] = DeviceIDMaskL
data[2] = DeviceIDMaskH
data[3] = DeviceIDValueL
data[4] = DeviceIDValueH
Checks that the target Device ID matches the
argument value.
0x85 READ_BANDGAP Command: 0 Reads the bandgap of 12F629 family devices
0x86 WRITE_CFG_BANDGAP Command: 0 Writes the Config word of 12F629 family
devices with the read badgap value.
0x87 CHANGE_CHKSM_FRMT Command: 2 data[1] = Format
data[2] = 0
Format = 0 for most devices
= 1 for Baseline / Midrange flash
= 2 for Baseline / Midrange EE
* If a script attempts to use data from the download buffer and it is empty, the script will abort and generate a status
error. If a script attempts to place data in the upload buffer and it is full, the script will abort and generate a status
error.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 9 of 36
5.1.1 Command USB Responses
Each command that provides a response will generate a separate USB read packet with only the data from that
command. Each packet is set up as a blocking USB read. Thus, multiple commands may be stacked into a single
USB Write packet, but a seperate USB read must be completed to retrieve the result for each command that returns a
response. The response packets will be read in the order in which the commands appear in the Write packet.
Results from multiple commands in a single Write packet are not appended to a single Read packet.
This allows data to immediately available from a command after it has executed, without waiting for the entire USB
Write packet to be processed. Data can be read as it is available even if a script with a long execution time (such as
bulk erase) appears later in the command list.
5.1.2 UART Mode
UART Mode allows the PICkit 2 to be used as a simple UART.
ICSPCLK = TX (data transmitted from the PICkit 2)
ICSPDAT = RX (data received from target UART)
Signal levels are inverted (ie Start Bit = GND) logic level signals between GND and VDD.
A bit in the high status byte returned by the READ_STATUS command allows determination if the PICkit 2 is in
UART Mode or not.
Restrictions:
VPP will be shut off when UART mode is entered.
Scripts will not be run in UART mode if script commands are received.
The PICkit 2 VDD pin needs to be connected to the target VDD so the ICSP signals are clamped to the
proper voltage, regardless of whether PICkit 2 is powering the target or not.
In UART mode, any data written to the Download Data Buffer will be transmitted on the TX pin at the specified
baud rate.
Any received data on the RX pin will be placed in the Upload Data Buffer. The PC host should poll the buffer for
data using the UPLOAD_DATA command. The Length byte in the response packet allows determination if any
data was received.
Note that the Upload Data Buffer may be overrun if the host does not keep up with the received data rate. Overflow
data will be lost.
Data Buffers should be cleared before putting the unit in UART Mode
The BUSY LED acts as an activity light (for both RX and TX).
Baud rates faster than 38400 may not work reliably.
5.1.3 Unit IDs
A PICkit 2 unit may be assigned a unique Unit ID string of up to 15 characters. This string is stored in 16 bytes of
internal EEPROM on the PICkit 2 PIC18F2550. A value string is always preceded by the char byte ‘#’ to indicate a
valid string. If this first byte is not ‘#’, the Unit ID is assumed to be blank.
Starting with PICkit 2 Firmware v2.32.00, the Unit ID is returned in the PICkit 2USB Descriptor for Serial Number
String. This allows the Unit ID to be read from the USB descriptors without sending any HID commands, so
software may detect and list all attached PICkit 2 units without risking corrupting any current communications with
a PICkit 2 unit if it were to send HID commands.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 10 of 36
5.2 Scripting
Execution of a script will abort on the following conditions:
- Script is attempting to use bytes from the Download Data Buffer and the buffer is empty.
- Script is attempting to store bytes in the Upload Data Buffer, and the buffer is full.
- ICD Timeout or BusError bit is set.
RUN_SCRIPT and EXECUTE_SCRIPT commands will be ignored when any of StatusHigh bits 7:1 are set (i.e. a
script error exists) until the error is acknowledge and cleared by a READ_STATUS command.
Some script control bytes require arguments. Argument bytes follow the control byte directly, in the order given in
the table. All undefined byte values will be interpreted as “no operation.”
ID Control Byte Arguments Description.
0xFF VDD_ON - Turns on VDD PFET pass transistor.
0xFE VDD_OFF - Turns off VDD PFET pass transistor.
0xFD VDD_GND_ON - Turns on VDD NFET ground.
0xFC VDD_GND_OFF - Turns off VDD NFET ground.
0xFB VPP_ON - Turns on VPP PNP pass transistor.
0xFA VPP_OFF - Turns off VPP PNP pass transistor.
0xF9 VPP_PWM_ON - Start up VPP PWM. Allow 100ms to
come up to voltage.
0xF8 VPP_PWM_OFF - Shut down VPP PWM. Q4 is off
(VPP_PUMP low).
0xF7 MCLR_GND_ON - Turns on VPP NPN ground.
0xF6 MCLR_GND_OFF - Turns off VPP NPN ground.
0xF5 BUSY_LED_ON - Turns on BUSY LED
0xF4 BUSY_LED_OFF - Turns off BUSY LED
0xF3 SET_ICSP_PINS arg[1] = pin states
<7 – 4> unused
<3> PGD logic level
<2> PGC logic level
<1> 1= PGD input, 0= output
<0> 1= PGC input, 0= output
0xF2 WRITE_BYTE_LITERAL arg[1] = Byte to be sent Clocks out the following byte on PGC,
0xF1 WRITE_BYTE_BUFFER - Clocks out the next byte from the
0xF0 READ_BYTE_BUFFER - Clocks in a byte of data and stores it in
Sets the logic level and direction of the
ICSP pins. The logic level is always set
first, before the direction takes effect.
PGD. Byte is shifted LSB first.
PGD and PGC must be set to outputs
before calling.
Downstream Data Buffer and advances
the read pointer. Byte is shifted LSB
first. **
PGD and PGC must be set to outputs
before calling.
the Upstream Data Buffer, advancing
the write pointer. Byte is shifted in LSB
first. **
PGC must be set to output. PGD is
automatically set an input, and restored
to previous state after read.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 11 of 36
0xEF READ_BYTE - Clocks a byte of data, but throws it away
(does not place in buffer).
PGC must be set to output. PGD is
automatically set an input, and restored
to previous state after read.
0xEE WRITE_BITS_LITERAL arg[1] = N bits (1-8)
arg[2] = literal
0xED WRITE_BITS_BUFFER arg[1] = N bits (1-8) Clocks out the first N LSbits of the next
0xEC READ_BITS_BUFFER arg[1] = N bits (1-8) Clocks in the first N LSbits into the next
0xEB READ_BITS arg[1] = N bits (1-8) Clocks in N bits, but throws away the
0xEA SET_ICSP_SPEED arg[1] = rate Rate byte gives the clock period in
0xE9 LOOP arg[1] = Index offset to loop to
arg[2] = Loop iterations
0xE8 DELAY_LONG arg[1] = Length of delay Each unit of delay is 5.46ms. ‘0’= 256
0xE7 DELAY_SHORT arg[1] = Length of delay Each unit of delay is 21.3us. ‘0’= 256
0xE6 IF_EQ_GOTO* arg[1] = Byte for comparison
arg[2] = Index offset for goto.
0xE5 IF_GT_GOTO* arg[1] = Byte for comparison
arg[2] = Index offset for goto.
Microchip Technology, Inc. PICkit 2 Interface Guide
Clocks out the first N LSbits of ‘literal’
PGD and PGC must be set to outputs
before calling.
Set PGD, delay, PGC=1,delay, PGC=0
byte in the Downstream Data Buffer and
increments the read pointer.
PGD and PGC must be set to outputs
before calling.
Set PGD, delay, PGC=1,delay, PGC=0
byte in the Upstream Data Buffer and
increments the write pointer.
PGC must be set to output. PGD is
automatically set an input, and restored
to previous state after read.
results.
PGC must be set to output. PGD is
automatically set an input, and restored
to previous state after read.
multiples of 1us.
The index offset is unsigned (always
backwards), and is the number of bytes
back from the 0xE9 control byte to loop.
Value ‘1’ will loop to the byte prior to
the 0xE9.
number of times the script loop is
executed again. ‘0’=256x
NOTE: LOOP commands may NOT be
nested, but may be nested with a
LOOPBUFFER command.
units.
units.
If the last byte stored in the Upload
buffer is equal to arg[1], then script
execution will branch to the offset from
the GOTO control byte given by arg[2].
The branch offset is signed 2’s
complement.
If the last byte stored in the Upload
buffer is greater than arg[1], then script
execution will branch to the offset from
the GOTO control byte given by arg[2].
The branch offset is signed 2’s
complement. The compare is unsigned.
Loop iterations gives the
Page 12 of 36
0xE4 GOTO_INDEX* arg[1] = Index offset for goto Branch to the given offset from the
GOTO control byte. The branch offset
is signed 2’s complement.
0xE3 EXIT_SCRIPT - The script stops executing immediately.
Normally, execution ends when the end
of the script is reached.
0xE2 PEEK_SFR arg[1] = 8 LSbs of SFR address The contents of the given SFR are
placed in the Upload Buffer
0xE1 POKE_SFR arg[1] = 8 LSbs of SFR address
arg[2] = byte to write to SFR
0xE0 ICDSLAVE_RX - Handles the ICD handshake and
0xDF ICDSLAVE_TX_LIT*** arg[1] = byte to be transmitted Handles the ICD handshake and allows
0xDE ICDSLAVE_TX_BUF*** - Handles the ICD handshake and allows
0xDD LOOPBUFFER arg[1] = Index offset to loop to The index offset is unsigned (always
0xDC ICSP_STATES_BUFFER - Puts the ICSP pin states in the Upload
0xDB POP_DOWNLOAD - Reads and discards a byte from the
0xDA COREINST18 arg[1] = lsb
arg[2] = msb
0xD9 COREINST24 arg[1] = low byte
arg[2] = mid byte
arg[3] = upper byte
0xD8 NOP24 Shifts out 22 bits of zeroes.
0xD7 VISI24 Shifts out 4 bits b0001, a byte of zeroes,
Writes the given literal into the given
SFR.
receives a byte of data from the DE,
which is placed in the Upload Buffer.
the argument byte to be clocked out by
the DE.
the next byte in the download buffer to
be clocked out by the DE.
backwards), and is the number of bytes
back from the 0xDD control byte to
loop. Value ‘1’ will loop to the byte
prior to the 0xDD.
iterations is taken from the download
buffer as a word – the LSB is first in the
buffer. 0x0000 = NO iterations. This is
different from the LOOP command.
These bytes are read from the download
buffer when the LOOPBUFFER control
byte is first reached.
NOTE: LOOPBUFFER commands may
NOT be nested, but may be nested with
a LOOP command. – provided
interation values exist in the download
buffer for each LOOP iteration.
buffer.
<7 – 2> unused = 0
<1> PGD pin, 1= high, 0=low
<0> PGC pin, 1= high, 0=low
Download Buffer.
Shifts out 4 bits of zeroes, followed by
arg1 then arg2
Shifts out 4 bits of zeroes, followed by
arg1, arg2, then arg3.
then shifts in 2 bytes into the upload
buffer.
The number of loop
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 13 of 36
0xD6 RD2_BYTE_BUFFER - Clocks in a byte of data and stores it in
the Upstream Data Buffer, advancing
the write pointer. Byte is shifted in LSB
first. Data is latched on rising edge of
clock
PGC must be set to output. PGD is
automatically set an input, and restored
to previous state after read.
0xD5 RD2_BITS_BUFFER arg[1] = N bits (1-8) Clocks in the first N LSbits into the next
byte in the Upstream Data Buffer and
increments the write pointer. Data is
latched on rising edge of clock
PGC must be set to output. PGD is
automatically set an input, and restored
to previous state after read.
0xD4 WRITE_BUFWORD_W arg[1] = PIC24 W register # Forms & clocks 16-bit core instruction
0x2xxyyn : MOV #xxyy, Wn
Where n= arg1
yy = first byte in download buffer
xx = next byte in download buffer
(includes SIX command)
0xD3 WRITE_BUFBYTE_W arg[1] = PIC24 W register # Forms & clocks 16-bit core instruction
0x200yyn : MOV #00yy, Wn
Where n= arg1
yy = first byte in download buffer
(includes SIX command)
0xD2 CONST_WRITE_DL arg[1] = byte constant Writes arg[1] byte to the Download
Buffer.
0xD1 WRITE_BITS_LIT_HLD arg[1] = N bits (1-8)
arg[2] = literal
0xD0 WRITE_BITS_BUF_HLD arg[1] = N bits (1-8) Clocks out the first N LSbits of the next
Clocks out the first N LSbits of ‘literal’
PGD and PGC must be set to outputs
before calling.
Differs from WRITE_BITS_LITERAL
in that the instead of setting data, delay,
clock high, delay, clock low, this routine
works as setting data, clock high, delay,
clock low, delay. – for when hold time
after clock falls is important.
byte in the Downstream Data Buffer and
increments the read pointer.
PGD and PGC must be set to outputs
before calling.
Differs from WRITE_BITS_BUFFER
in that the instead of setting data, delay,
clock high, delay, clock low, this routine
works as setting data, clock high, delay,
clock low, delay. – for when hold time
after clock falls is important.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 14 of 36
0xCF SET_AUX arg[1] = pin state
<7 – 2> unused
<1> AUX logic level
<0> 1=AUX input, 0=output
0xCE AUX_STATE_BUFFER - Puts the AUX pin state in the Upload
0xCD I2C_START - Set pins prior PGC=outpt 1, AUX = inpt
0xCC I2C_STOP - Set pins prior PGC=output, AUX = inpt
0xCB I2C_WR_BYTE_LIT arg[1] = Byte to be sent [Set pins prior PGC=output, AUX = inpt
0xCA I2C_WR_BYTE_BUF - [Setup applies]
0xC9 I2C_RD_BYTE_ACK - [Setup applies]
0xC8 I2C_RD_BYTE_NACK - [Setup applies]
0xC7 SPI_WR_BYTE_LIT arg[1] = Byte to be sent [Set pins prior PGC = output 0, PGD =
0xC6 SPI_WR_BYTE_BUF - [Setup applies]
0xC5 SPI_RD_BYTE_BUF - [Setup applies]
Sets the logic level and direction of the
AUX pin. The logic level is always set
first, before the direction takes effect.
buffer.
<7 – 1> unused = 0
<0>AUX pin, 1= high, 0=low
PGC = SCL (push-pull)
AUX = SDA (open drain)
Creates a START condition on the bus
lines. (Sets SCL first)
(Assumes SDA is high)
PGC = SCL (push-pull)
AUX = SDA (open drain)
Creates a STOP condition on the bus
lines. (Clears SDA, SCL first)
PGC = SCL (push-pull)
AUX = SDA (open drain)]
Writes byte MSb first to bus. If no
ACK, sets “Bus Error” in
READ_STATUS
Writes byte from download buffer MSb
first to bus. If no ACK, sets “Bus Error”
in READ_STATUS
Reads a byte from bus, MSb first, in to
upload buffer. Generates an ACK.
Reads a byte from bus, MSb first, in to
upload buffer. Does not generate an
ACK.
input, AUX = output 0
PGC = SCK
PGD = SI
AUX = SO
Byte to be sent is clocked out MSb first,
with MSB bit clock edge the first rising
edge.
Byte to be sent from download buffer is
clocked out MSb first, with MSb bit
clock edge the first rising edge.
Byte is read MSb first, with first byte
clocked in on first rising edge of clock.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 15 of 36
0xC4 SPI_RDWR_BYTE_LIT arg[1] = Byte to be sent [Setup applies]
Write byte is clocked out MSb first,
with MSB bit clock edge the first rising
edge.
Read byte is read MSb first, with first
byte clocked in on first rising edge of
clock, into upload buffer.
0xC3 SPI_RDWR_BYTE_BUF - [Setup applies]
Write byte from download buffer is
clocked out MSb first, with MSB bit
clock edge the first rising edge.
Read byte is read MSb first, with first
byte clocked in on first rising edge of
clock, into upload buffer.
0xC2 ICDSLAVE_RX_BL - Handles the ICD handshake and
receives a byte of data from the DE,
which is placed in the Upload Buffer.
0xC1 ICDSLAVE_TX_LIT_BL arg[1] = byte to be transmitted Handles the ICD handshake and allows
the argument byte to be clocked out by
the DE.
0xC0 ICDSLAVE_TX_BUF_BL- Handles the ICD handshake and allows
the next byte in the download buffer to
be clocked out by the DE.
0xBF MEASURE_PULSE - Measure up to 700ms positive pulse on
PGD pin (must be set as input
previously). Pulse must start within
700ms of measure start or it times out.
Pulse length is stored in UploadBuffer
as a Word in 21.333us increments. If
value is zero, no pulse detected. If value
is 0xFFFF pulse is longer than 700ms.
Measurement offset of up to +12/-16
counts.
0xBE UNIO_TX arg[1] = Device Address
arg[2] = N bytes to transmit
0xBD UNIO_TX_RX arg[1] = Device Address
arg[2] = N bytes to transmit
arg[3] = X bytes to receive
0xBC JT2_SETMODE arg[1] = number of bits
arg[2] = TMS value
Transmits N bytes from DL buffer on
AUX pin, after transmitting a Start
Header (with TSS) & Device Address.
NoMAKs the last byte. AUX pin set to
output at start, input when done. If
NoSAK received on transmit byte, sets
status bit ICD transfer timeout/Bus
Error. Bytes sent MSb first
Transmits N bytes from DL buffer on
AUX pin, after transmitting a Start
Header (with TSS) & Device Address.
AUX pin set to output at atart, input
when done. Then receives X bytes into
UL buffer, NoMaks the last byte. If
NoSAK received, sets status bit ICD
transfer timeout/Bus Error. Bytes
received MSb first
JTAG 2-Wire SetMode([1]’[2])
Bits in arg[2] sent LSb first. TDI = 0.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 16 of 36
0xBB JT2_SENDCMD arg[1] = Command Value Executes JTAG 2-Wire Send Comand
with 5 bit command in 5 LSbs of arg[1]
0xBA JT2_XFERDATA8_LIT arg[1] = byte value to transfer Uses the XferData pseudo op to send 8
bits of data. Received data is placed in
the Upload Buffer.
0xB9 JT2_XFERDATA32_LIT arg[1] = LSB of value to transfer
arg[2] =2
arg[3] = 3
nd
rd
byte
byte
Transmits the given 32-bit value and
places the received 32-bit value in the
Upload buffer, LSB first.
arg[4] = MSB
0xB8 JT2_XFRFASTDAT_LIT arg[1] = LSB of value to transfer
arg[2] =2
arg[3] = 3
nd
rd
byte
byte
Transmits the given 32-bit literal value.
If PrAcc= 0, sets Status -> BusError
arg[4] = MSB
0xB7 JT2_XFRFASTDAT_BUF - Transmits a 32-bit value from the
Download Buffer.
If PrAcc= 0, sets Status -> BusError
0xB6 JT2_XFERINST_BUF - Completes the XferInstruction pseudo
op. 32-bit <instruction> is pulled from
the Download Buffer.
0xB5 JT2_GET_PE_RESP - Completes the GET PE RESPONSE
pseudo op and places the 32-bit value in
the Upload Buffer.
0xB4 JT2_WAIT_PE_RESP - Completes the GET PE RESPONSE
pseudo op but dumps the received data.
0xB3 JT2_PE_PROG_RESP Completes the GET PE RESPONSE
pseudo op but dumps the received data
and skips the “Tell CPU to execute inst”
commands.
*GOTO statements may NOT be placed within LOOPs.
** It is expected that for writes of baseline and midrange 12/14-bit instructions will be packaged by the host
software into a word with start and stop bits, which will be split between 2 subsequent bytes. On reads, the host
software will need to unpack the instructions from two subsequent bytes which include start and stop bits.
*** These routines leave ICSPDAT pin (RA2) as an output in the state of the last bit transmitted. This is so that
very slow debug targets will not miss the last bit.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 17 of 36
6.0 Programmer-To-Go
Target blinks twice = ready to program / last operation successful
Busy blinks quickly constantly – Vdd and/or Vpp error
Busy blinks repeating:
2 – DeviceID error
3 – Verify error.
4 – internal error (unrecoverable)
7.0 PC Application
The PC application loads the Device File into memory during startup. All families are loaded into an array of
structures, indexed by family ID. All part parameters are loaded into a linked list of structures. All scripts loaded
into an array which is indexed by script number.
NOTE: All references in following sections to “Check for connected device” include checks for voltage errors and
self-powered/unpowered target devices.
7.1 Application Menus
PC application menus and menu items:
File
Import File - Loads memory arrays from hex file
Export File - Saves memory arrays into hex file
1 C:\TEMP\project.hex - up to 4 hex file “history” documents
Exit - Quits Application
Device Family
< Dynamic> - menu generated when loading the Device File.
Will have 1 entry for each device family supported.
Clicking a family entry looks for an attached device in that family.
Programmer
Read Device - Reads memory from attached device.
Write Device - Performs Chip Erase & writes GUI memory arrays to attached device.
Verify - Compares device memory with GUI memory arrays.
Erase - Performs Chip Erase.
Blank Check - Compares device memory with blank memory arrays.
Verify On Write - Check/Uncheck. If checked, verifies immediately after write.
Hold Device in Reset - Check/Uncheck. When checked, sets nMCLR/VPP pin = GND.
When unchecked, tri-states the pin.
Write on PICkit Button - Check/Uncheck. When checked, a Write can be initiated by
pressing the PICkti 2 button.
Manual Device Select - Sets the “Part Detect” property of all families to False
PICkit 2 Programmer-To-Go - Opens the Programmer-To-Go wizard
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 18 of 36
Tools
Enable Code Protect - Enables Code protect bits in configuration.
Enable Data Protect - Enables Data protect bits in configuration.
OSCCAL - Only enabled for devices with an OSCCAL instruction at the end of
Program Memory.
Set Manually - Erases device and sets OSCCAL instruction to given value.
Auto Regerate - Downloads and runs a calibration program on the target PIC
Target VDD Source - (submenu)
Auto-Detect - PICkit 2 checks for powered/unpowered target on each operation.
Force PICkit 2 - PICkit 2 always attempts to power the device
Force Target - PICkit 2 always assumes the target is self-powered.
Calibrate VDD & Set Unit ID… - Opens a wizard to allow calibration of PICkit 2 voltages, and set
a Unit ID (Identifying string for PICkit 2 unit.)
Use VPP First Program Entry - For applicable families, use an alternate Program Entry script which
applies VPP before VDD
Fast Programming - When unchecked, uses slower programming.
UART Tool - Switches the application to the UART tool GUI.
Logic Tool - Switched the application to the Logic Tool GUI
Check Communication - Looks for PICkit 2 and a target device.
Troubleshoot… - Opens a wizard to exercise the PICkit 2 pins for operational
and connectivity troubleshooting.
Download PICkit 2 Operating System- Downloads firmware to PICkit 2 using bootloader
View
Help
Single Window - The default & legacy view format
Multi-Window - Displays memories in separate windows. Enables following:
Show Program Memory - Toggles whether Program Memory window is displayed or not
Show EEPROM Data - Toggles whether EEPROM Data window is displayed or not
Associate / Memory Displays in Front
- When enabled, memory windows move with main window, and
minimize, and come to front together. Memory windows will always
display in front of Main window (as they are owned by it)
PICkit 2 User’s Guide - Launches PDF file.
44-Pin Demo Board Guide - Launches PDF file
LPC Demo Board Guide - Launches PDF file.
PICkit 2 on the web - Opens www.microchip.com/pickit2
ReadMe - Launches Readme.txt file.
About - Pops dialog with license agreement and GUI, Device File, &
firmware versions.
in a browser
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 19 of 36
7.2 Status Window
The GUI Status window lists the following information, some of which may be only appear for relevant parts. Other
times it will not be visible.
Label Example Notes
Device PIC16F629 “Not Present” if no device detected.
User ID’s 7F 7F 7F 7F Visible if
Displays 7 LSBs of each word as 2 char hex
Checksum NNNN Sum of program memory plus masked config words.
Config Words 1234 1234 1234 1234 Displays up to 8 config words, based on
1234 1234 1234 Config1 is upper left, Config 2 is directly to the right.
Each word displayed as 4 character hex.
OSCCAL 3444 Visible if
Displays last word of program memory as 4 char hex.
BandGap 3000 Visible if
< > <01> Revision brackets display revision code for active device
(excludes baseline). Only visible if REVS: is added
to INI file.
UserIDWords > 0
ConfigWords.
OsccalSave = ‘Y’
BandGapMask > 0000.
7.3 PC Application Startup
On startup, the PC application performs the following tasks:
1. Look for PICkit2. If not found, display an error and disable all functions. If found, check firmware version
is minimum required. If not, disable all functions except to download new firmware.
2. Check the device file version for minimum. If not valid or no device file, display error and disable all
functions.
3. Load Device File. When loading the Device File, the PC application loads the families in index order.
Each becomes a menu option under Menu “Device Family”, with the menu text being
duplicate
status window. Ex “Midrange Device Configuration.”
4. Search for Devices. The GUI will search for devices in order of the
device is found, the application will default to last the family setting from the INI file.
5. Initialize all memory arrays. Program memory blank value set according to device family found.
6. Set form appropriately for family and device found.
FamilyIDs will overwrite earlier entries. The FamilyName parameter is also used to title the
SearchPriority family parameter. If no
FamilyName. Any
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 20 of 36
7.4 Hex File Import
Menu option
File -> Import File
On selection, this menu item will:
1. Bring up dialog to select file
2. Load all data with addresses from (0) to (
3. Load all data with addresses from (
4. Load all data with addresses from (
memory array.
5. Load all data with addresses from (
memory array.
6. Update “Source” line on GUI.
7. Close file & clean up.
ProgMem – 1) into the program memory array.
EEAdr) to (EEAdr + EEMem) into the EE data array.
UserIDAddr) to (UserIDAddr + UserIDWords) into the User ID
ConfigAddr) to (ConfigAddr + ConfigWords) into the configuration
7.5 Hex file Export
Menu option
File -> Export File
On selection, this menu item will:
1. Bring up dialog to select file name & location.
2. Save data from program memory array to addresses (0) to (
3. Save data from the EE data array to addresses (
4. Save data from the User ID memory array to addresses (
5. Save data from the configuration memory array to addresses (
6. Close file & clean up.
EEAdr) to (EEAdr + EEMem.
ProgMem – 1).
UserIDAddr) to (UserIDAddr + UserIDWords).
ConfigAddr) to (ConfigAddr + ConfigWords).
7.6 Read Device
Menu option
Programmer -> Read Device
“Read” Button
1. Check for a connected device in the currently selected Device Family. If none found, abort and update
status.
2. Read program memory into program memory array using
ProgMemRdScript, and ProgExitScript.
3. If
EEMem > 0, read EE data in to EE data array using ProgEntryScript, EERdPrepScript, EERdScript, and
ProgExitScript.
4. If
UserIDWords > 0, read User IDs using ProgEntryScript, UserIDRdPrepScript, UserIDRdScript, and
ProgExitScript.
5. If
ConfigWords > 0, read configuration words using ProgEntryScript, ConfigRdPrepScript,
ConfigRdScript, and ProgExitScript.
6. Update status & “Source” line on GUI.
Microchip Technology, Inc. PICkit 2 Interface Guide
ProgEntryScript, ProgMemRdPrepScrpt,
Page 21 of 36
7.7 Write Device
Menu option
Programmer -> Write Device
“Write” Button
1. Check for a connected device in the currently selected Device Family. If none found, abort and update
status.
2. Check for
3. Check for date-time change on hex file, if loaded. If so, reload file.
4. If
OsscalSave = ‘Y’, read OSCCAL from ProgMem-1 using ProgEntryScript, OSCCALRdScript, and
ProgExitScript.
5. Store OSCCAL into last word of program memory array.
6. If
BandGapMask > 0, read BandGap config word using ProgEntryScript, ConfigRdPrepScript,
ConfigRdScript, and ProgExitScript.
7. Store BandGap bits in first word of configuration array.
8. Perform a chip erase using
9. Going backwards from ProgMem in the program memory array, find the last non-blank memory address.
10. Write program memory array contents up to the last address found in (4) using
ProgMemWrPrpScrpt, ProgMemWrScript, and ProgExitScript. A 3-byte address is always sent as the first
bytes in the download buffer for each execution of the script.
11. If
EEMem = 0, skip steps 11 & 12.
12. Going backwards from
13. Write EE data array contents up the address found in (11) using
EEWrScript, and ProgExitScript.
14. If UserIDWords = 0, skip step 15.
15. Write User ID words using
16. Verify device Code, EE, & UserIDs.
17. If verify fails, display error section & address and abort.
18. If menu Tools->Code Protect Device is selected, apply
19. If (
20. Write configuration words using
ProgExitScript.
21. Display “write successful”
VddErase. If Vdd below, pop warning allowing user to continue or cancel.
ProgEntryScript, ChipEraseScript, and ProgExitScript
ProgEntryScript,
EEMem in the EE data array, find the last non-blank EE byte address.
ProgEntryScript, EEWrPrepScript,
ProgEntryScript, UserIDWrPrepScript, UserIDWrScript, and ProgExitScript.
CPMask to CPConfig to enable all CP bits
ConfigWords = 0) OR (ConfigAddr < ProgMem), skip step 20.
ProgEntryScript, ConfigWrPrepScript, ConfigWrScript, and
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 22 of 36
7.8 Verify Device
Menu option
Programmer -> Read Device
“Read” Button
1. Check for a connected device in the currently selected Device Family. If none found, abort and update
status.
2. Read part code memory up to
ProgMemRdPrepScrpt, ProgMemRdScript, and ProgExitScript.
3. If a mismatch is found, display error and memory address and abort.
EEMem = 0, skip steps 5 & 6.
4. If
5. Read part EE data and compare to EE data array using
ProgExitScript.
6. If a mismatch is found, display error and EE address and abort.
7. If
UserIDWords = 0, skip steps 8 & 9
8. Read User IDs using and compare to User ID array using
UserIDRdScript, and ProgExitScript
9. If a mismatch is found, display error and abort.
10. If (
11. Read configuration words and compare to config array using
12. If a mismatch is found, display error and abort.
13. Display “verify successful”
ConfigWords = 0) OR (Verify Device is called from Write Device) skip steps 11 & 12.
ConfigWrScript, and ProgExitScript.
VerifyStop and compare to program memory array using ProgEntryScript,
ProgEntryScript, EERdPrepScript, EERdScript, and
ProgEntryScript, UserIDRdPrepScript,
ProgEntryScript, ConfigRdPrepScript,
7.9 Erase Device
Menu option
Programmer -> Erase
“Erase” Button
1. Check for a connected device in the currently selected Device Family. If none found, abort and update
status.
2. Perform a chip erase using
3. Set all memory arrays to erased values (BlankValue for program memory array).
4. Set “Source” line to “None”
ProgEntryScript, ChipEraseScript, and ProgExitScript
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 23 of 36
7.10 Blank Check
Menu option
Programmer -> Blank Check
“Blank Check” Button
1. Check for a connected device in the currently selected Device Family. If none found, abort and update
status.
2. Read part code memory up to
ProgMemRdPrepScrpt, ProgMemRdScript, and ProgExitScript.
3. If a mismatch is found, display “Program Memory not blank” and abort.
EEMem = 0, skip steps 5 & 6.
4. If
5. Read part EE data and compare to 0xFF using
ProgExitScript
6. If a mismatch is found, display “Program Memory not blank” and abort.
7. If
UserIDWords = 0, skip steps 8 & 9
8. Read User IDs using and compare to User ID array using
UserIDRdScript, and ProgExitScript
9. If a mismatch is found, display “User IDs not blank” and abort.
10. If (
11. Read configuration words and compare to
12. If a mismatch is found, display “Configuration not blank” and abort.
13. Display “Device is Blank.”
ConfigWords = 0) skip steps 11 & 12.
ConfigWrScript, and ProgExitScript.
VerifyStop and compare to BlankValue using ProgEntryScript,
ProgEntryScript, EERdPrepScript, EERdScript, and
ProgEntryScript, UserIDRdPrepScript,
ConfigMasks using ProgEntryScript, ConfigRdPrepScript,
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 24 of 36
7.11 INI file
The PC Application uses a text .ini file. This file will be read at startup, and saved when the application is closed. If
no file exists at startup, then all parameters will default. (The file may simply be deleted when the application is
closed to restore all settings to defaults.)
The parameters in the file allow various GUI options to be “remembered” from one session to another.
Comments are indicated with a semicolon. The following comments will be present at the start of the file:
Application version, date & time saved.
Parameters:
All parameters are four characters followed by a colon. The colon is followed by a space and the value.
ADET: <Y, N>
- ‘Y’ (default) to auto-detect parts of applicable families
- ‘N’ to disable auto-detect, and select all parts manually.
PDET: <Y, N>
- ‘Y’ (default) to auto-detect parts on starting application
- ‘N’ to disable auto-detect on startup (If ADET = N, this is set to N)
LFAM: <family string from device file>
- last family used. If no part is found on startup, will default to LFAM
VRFW: <Y, N>
- ‘Y’ if verify on write menu option is checked.
WRBT: <Y, N>
- ‘Y’ if write on button menu option is checked.
MCLR: <Y, N>
- ‘Y’ if Hold Device in Reset menu option is checked.
TVDD: <Auto, PICkit, Target>
- which Target VDD Source option is selected.
FPRG: <Y, N>
- ‘Y’ if Fast Programming is checked.
PCLK:< 2 - 16>
-
SET_ICSP_SPEED argument for “slow” (Fast Programming unchecked)
PASC: <B, Y, N>
- ‘Y’ if program memory view is hex & word ASCII
- ‘B’ if program memory view is hex & byte ASCII
EASC: <B, Y, N>
- ‘Y’ if EEPROM memory view is hex & word ASCII
- ‘B’ if program memory view is hex & byte ASCII
EDIT: <Y, N>
- ‘Y’ to allow editing of program and EE memory data.
REVS: <Y>
- When label exists, it enables display of device revision <nn> in Status Window. Delete label to disable.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 25 of 36
SETV: <x.y>
- VDD set value; only gets restored on startup where LFAM is the startup family (ie not if a part
in a different family is detected). ‘x’ is volts, ‘y’ is tenths of volts.
CLBF: <Y, N>
- ‘N’ if “Programmer -> Clear Memory Buffers on Erase” is unchecked.
PE33: <Y, N>
- ‘Y’ to use PIC24H/dsPIC33 Programming Executive.
- ‘N’ to strictly use ICSP
PE24: <Y, N>
- ‘Y’ to use PIC24F Programming Executive.
- ‘N’ to strictly use ICSP
CFGU: <0, 1, R>
- ‘0’ for unimplemented Config bits displayed as 0
- ‘1’ for unimplemented Config bits displayed as 1
- ‘R’ for unimplemented Config bits displayed as read
LVPE: <Y, N>
- ‘Y’ if LVP is enabled
DVER: <Y, N>
- ‘Y’ to verify a device in Manual Select Mode
HEX1: <path to hex file>
- first hex file history. Blank if none.
HEX2: <path to hex file>
- second hex file history. Blank if none.
HEX3: <path to hex file>
- third hex file history. Blank if none.
HEX4: <path to hex file>
- last hex file history. Blank if none.
TMEN: <Y, N, - >
- When this label exists, it enables Test Memory
- ‘Y’ open Test Memory window on startup
- ‘N’ or no argument: do not open Test Memory window on startup.
TMWD: <16 – 1024>
-
Only has meaning if TMEN present
- Number of Test Memory words
TMIE: <Y, N>
-
Only has meaning if TMEN present
- State of Test Memory Import-Export Checkbox.
SDAT: <Y, N>
- ‘Y’ on startup, display a device file selection dialog
- ‘N’ or label doesn’t exist: do not open selection dialog, use “PK2DeviceFile.dat”
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 26 of 36
The following parameters are for the UART Tool:
UABD: <baud rate string>
- Last selected baud rate. Blank if none.
UAHX: <Y, N>
- Y if in Hex mode, N if ASCII mode.
UAS1: <macro string 1>
- Macro/Hex string. Blank if none.
UAS2: <macro string 2>
- Macro/Hex string. Blank if none.
UAS3: <macro string 3>
- Macro/Hex string. Blank if none.
UAS4: <macro string 4>
- Macro/Hex string. Blank if none.
UACL: <Y, N>
- Y if Append CR & LF checked.
UAWR: <Y, N>
- Y if Wrap checked.
UAEC: <Y, N>
- Y if Echo On checked.
These parameters are for window views:
MWEN: <Y, N>
- Y if Multi Window view enabled.
MWLX: <0 – 9999>
-
Location of the main window, X co-ord.
MWLY: <0 – 9999>
-
Location of the main window, Y co-ord.
MWFR: <Y, N>
- Y to set up multi-window forms so they are associated and memory displays always in front.
- N to set up to main window is always behind.
PMEN: <Y, N>
- Y if program memory window enabled (open).
PMLX: <0 – 9999>
-
Location of the program memory window, X co-ord.
PMLY: <0 – 9999>
-
Location of the program memory window, Y co-ord.
PMSX: <0 – 9999>
-
Size of the program memory window, X co-ord.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 27 of 36
PMSY: <0 – 9999>
- Size of the program memory window, Y co-ord.
EEEN: <Y, N>
- Y if eeprom memory window enabled (open).
EELX: <0 – 9999>
-
Location of the eeprom memory window, X co-ord.
EELY: <0 – 9999>
- Location of the eeprom memory window, Y co-ord.
EESX: <0 – 9999>
-
Size of the eeprom memory window, X co-ord.
EESY: <0 – 9999>
- Size of the eeprom memory window, Y co-ord.
These parameters are for the Logic Tool:
LTAM: <Y, N>
- Y if analyzer is active mode
LTZM: <0 – 3>
-
Zoom level
LTT1: <0 – 5>
Channel 1 trigger setting
-
LTT2: <0 – 5>
-
Channel 2 trigger setting
LTT3: <0 – 5>
- Channel 3 trigger setting
LTTC: <1-256>
- trigger count setting
LTSR: <0 – 7>
sample rate setting
-
LTTP: <0 – 5>
-
trigger position
LTCE: <Y, N>
- Y if cursors are enabled
LTCX: <0 – 4095>
- X cursor position.
LTCY: <0 – 4095>
- Y cursor position.
The following parameters are for Programmer-To-Go:
PTGM: <0 – 5>
- 0 = 128K PICkit 2 unit
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 28 of 36
- 1 = 256K upgraded PICkit 2 unit
- 2 = 512K 3
- 3 = 1MB 3
- 4 = 2MB 3
- 5 = 4MB 3
rd
party unit
rd
party unit
rd
party unit
rd
party unit
The following parameters are for Alert Sounds:
SDSP: <Y, N>
- Y success alert sound enabled
SDWP: <Y, N>
- Y warning alert sound enabled
SDEP: <Y, N>
- Y error alert sound enabled
SDSF: <path to wav file>
- success wav file path & name
SDWF: <path to wav file>
- warning wav file path & name
SDEF: <path to wav file>
- error wav file path & name
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 29 of 36
8.0 Device File
The device file is divided into 4 main sections. The first section gives general information about the device file
itself. The second section lists and defines device families, which contain parameters common to all parts in the
family. The third section contains parameters for each supported part, including which family a part belongs to.
The final section defines scripts that may be referred to in each part’s parameters.
NOTE: This section contains a listing of parameters and descriptions of their function. It is not intended to describe
the binary file format or order of parameters in such file. See the Source Code for file structure information.
8.1 Device File Parameters
Parameter
Name
VersionMajor 0-99 ‘1’ Device File major version
VersionMinor 0-99 ‘0’ Device File minor version.
VersionDot 0-99 ‘2’ Device File development version.
VersionNotes String ‘Initial Release’ Text notes for version
NumberFamilies Integer ‘5’ The number of Family Parameter sets in
NumberParts Integer ‘187’ The number of Part Parameter sets in the
NumberScripts Integer ‘170’ The number of Scripts in the device file.
Compatibility 0-255 ‘1’ A number that allows the PC Application
Range Examples Description
the device file.
device file
to determine if it can use this Device File
version.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 30 of 36
8.2 Family Parameters
Parameter
Name
FamilyID 0-255 ‘1’ Each family has a unique ID that is used to
FamilyType 0-255 ‘3’ This is actually used as the “Device
SearchPriority 0-255 ‘2’ This is the order in which the GUI will
FamilyName String ‘PIC18_J_’, ‘Baseline’,
Vpp float “12.0” Vpp voltage. If set to zero (0), then Vpp =
ProgEntryScript 0-65535 ‘1’ Number of script to enter programming
ProgEntryVPPScript 0-65535 ‘1’ Number of script to enter programming
ProgExitScript 0-65535 ‘2’ Number of script to exit programming
ReadDevIDScript 0-65535 ‘5’ Number of script used for reading the
DeviceIDMask Up to 8 hex
BlankValue Up to 8 hex
BytesPerLocation 0-255 ‘2’ # bytes per memory array location.
AddressIncrement Byte ‘2’ Address increment per array location.
ProgMemHexBytes byte ‘4’ # bytes in hex file per array location.
EEMemHexBytes byte ‘1’ # bytes in hex file per array location.
EEMemBytesPerWordbyte ‘2’ # bytes per EE location for script data
EEMemAddressInc byte ‘1’ For display purposes, the address per
UserIDHexBytes byte ‘2’ # bytes per UserID location in the hex file.
UserIDBytes byte ‘2’ # bytes per User ID location in part.
ProgMemShift byte ‘1’ # bits positions to left shift program
PartDetect Y/N Y Autodetects a part and verifies the ID when
Range Examples Description
reference it in the Part Parameter section.
Family” menu display order in the GUI,
with ‘0’ being the first displayed family.
search for parts on startup. Lower numbers
first.
The text appears both on the GUI and as a
‘EEPROMS/24LCxx’
‘3FF0’ Mask of significant bits in Device ID
characters
‘3FFF’ The value of a word in an erased part.
characters
menu selection under “Device Family”.
“submenus” of families can be created
under the “Device Family” menu by using
a “/” slash to separate the submenu name
from the family name.
VDD.
mode.
mode VPP first.
mode.
device ID.
word. Usually masks out the version bits.
handling purposes (ex 16F is 2, 18F is 1)
location (word).
memory word before downloading, and
right shift after uploading. (for Midrange,
which data includes start/stop bits.)
an operation is selected if ‘Y’.
When ‘N’, detection and ID checking is
disabled. Instead a combo box list of
available parts is displayed.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 31 of 36
TestMemoryStart Unsigned Integer Not presently used
TestMemoryLength Unsigned Integer Not presently used
8.3 Part Parameters
There should be one “default” parameter set for each device family. This part will have a PartID of ‘0000’ and a
PartName of “Not Present.”
Any script number value of ‘0’ will be interpreted as the part does not use that script (no script assigned).
Parameter
Name
PartName 20 chars max ‘PIC18F24J10’ The name of the part to appear in the
Family 0-255 ‘4’ This part uses the common parameters
DeviceID Up to 8 hex
ProgramMem 0 to 262144
EEMem 0 to 4096
EEAddr unsigned int ‘2100’ Starting address of EE data in a hex file.
ConfigWords 0-255 ‘4’ Number of configuration words.
ConfigAddr unsigned int ‘1FFC’ Starting address of configuration words
UserIDWords 0 to 255 ‘0’ Number of User ID words. ‘0’ indicates
UserIDAddr unsigned int ‘2000’ Starting address of User ID words in a
BandGapMask Up to 8 hex
ConfigMasks Up to 8 hex
Range Examples Description
GUI
defined in the family section. (points to a
Family Parameter set FamilyID)
‘1D00’ The part’s unique device ID. Rev bits
characters
‘8192’ Size of program memory in words.
Words
‘256’ Size of integrated EEPROM in words.
Words
‘3000’ A mask for Config bits to be saved
characters
‘04E1.0FC7.0100.0000’ Mask for configuration bits. The leftcharacter
words
are set to zero.
(8bit = 1byte/word, 16b = 2bytes/word)
‘0’ indicates no EEPROM.
in a hex file. If less than ProgMem, the
words will also be placed in the Program
Memory array.
no User ID words.
hex file.
across erases. Always applies to first
config word. If 0000, then it is ignored.
most word is the least significant config
word. The number of words should
match
ConfigWords
For 10F/12F/16F Devices with
“OsccalSave = Y”
Word 8 is used as an OSSCAL mask to
verify a valid instruction. Ex “0x0C00”
for baseline devices.
Word 7 is used as the configuration
value during a “regenerate OSCCAL”
operations.
For Baseline Devices
Word 6 is used as a configuration word
“OR” mask, to set bits on Import (for
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 32 of 36
16F5x devices.)
For PIC18F Devices:
The last Config mask (mask8) is used as
a “Programmer-To-Go” checksum
adjustment for checksum verification to
account for masked off but active
configs bits in some devices.
For
Serial EEPROM Devices,
ConfigWords should be set to zero.
The words have the following meaning:
Word1 : 1 = I2C, 2=SPI, 3= Microwire,
4 = UNIO
Word2 : address bytes mask
Word3 : number address bits
Word4 : I2C number active Ax pins
ConfigBlank Up to 8 hex
character
words
CPMask Up to 8 hex
characters
CPConfig 0-255 ‘3’ The number of the configuration word to
Config9Mask 16 bits Mask for devices with 9th Config bit
Config9Blank 16 bits Blank for devices with 9th Config bit
OsccalSave Y / N ‘N’ If ‘Y’, then the last program memory
IgnoreAddress Unsigned int Starting Address (in hex file) of section
IgnoreBytes ushort Starting from IgnoreAddress the number
VddMin 2.5 – 5.0 ‘2.5’ Minimum Vdd supported for the part.
VddMax 2.5 – 5.0 ‘5.0’ Maximum Vdd supported for the part.
VddErase 2.5 – 5.0 ‘4.5’ Minimum Vdd supported for bulk erases.
CalibrationWords 0-255 Number of calibration words following
ChipErasePrepScript 0-65535 Script run before Chip Erase Script if
ChipEraseScript 0-65535 ‘12’ Number of script used to perform a chip
ProgMemAddrSetScript 0-65535 ‘31’ Number of script for setting Program
ProgMemAddrBytes 1-256 ‘3’ Length of address sent down in bytes for
ProgMemRdScript 0-65535 ‘13’ Number of script used to read program
ProgMemRdWords 1-256 ‘32’ The number of words read by one
EERdPrepScript 0-65535 ‘32’ Number of script intended as one-time
‘04E1.0FC7.0100.0000’ Value of the configuration words after a
Chip Erase has been performed. The
number of words should match
ConfigWords
‘0400’ Mask for the code protect bits in the
config word given by
which
CPMask applies.
location is saved across erase cycles.
of hex file to be ignored – For sections
that aren’t used so they don’t generate an
“Hex file too large” warning.
of hex file bytes to ignore.
config words in configuration memory.
preset (non-zero)
erase.
Memory address.
ProgMemAddrSetScript
memory.
execution of the script.
setup or preparation for reading EE Data.
CPConfig.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 33 of 36
EERdScript 0-65535 ‘15’ Number of script used to read EEPROM
data.
EERdLocations 1-256 ‘4’ The number of memory locations read
by one execution of the script.
UserIDRdPrepScript 0-65535 ‘33’ Number of script intended as one-time
setup or preparation for reading UserIDs.
UserIDRdScript 0-65535 ‘16’ Number of script used to read the
UserID words. Should return
UserIDWords number of words.
ConfigRdPrepScript 0-65535 ‘34’ Number of script intended as one-time
setup or preparation for reading
configuration words.
ConfigRdScript 0-65535 ‘17’ Number of script used to read
Configuration words. Should return
ConfigWords number of words.
ProgMemWrPrepScript 0-65535 ‘35’ Number of script intended as one-time
setup or preparation for writing program
memory.
ProgMemWrScript 0-65535 ‘20’ Number of script used to write program
memory.
ProgMemWrWords 1-256 ‘32’ The number of words written by one
execution of the script.
ProgMemPanelBufs 1-256 ‘4’ Not presently used
ProgMemPanelOffset unsigned int ‘4096’ Not presently used
EEWrPrepScript 0-65535 ‘36’ Number of script intended as one-time
setup or preparation for writing EE data.
EEWrScript 0-65535 ‘21’ Number of script used to write EEPROM
data.
EEWrLocations 0-255 ‘1’ The number of locations written by one
execution of the script. Bytes for 8bit,
words for 16-bit
UserIDWrPrepScript 0-65535 ‘37’ Number of script intended as one-time
setup or preparation for writing UserIDs.
UserIDWrScript 0-65535 ‘22’ Number of script used to write the
UserID words. Should write
UserIDWords number of words.
ConfigWrPrepScript 0-65535 ‘37’ Number of script intended as one-time
setup or preparation for writing
configuration words.
ConfigWrScript 0-65535 ‘23’ Number of script used to write
Configuration words. Should write
ConfigWords number of words.
OSCCALRdScript 0-65535 ‘30’ Number of script used to read OSCCAL
byte.
OSCCALWrScript 0-65535 ‘31’ Number of script used to write OSCCAL
byte (after erase).
ProgMemEraseScript 0-65535 ‘32’ Number of script to erase program
memory only
EEMemEraseScript 0-65535 ‘33’ Number of script to erase EE memory
only
ConfigMemEraseScript 0-65535 ‘34’ Number of script to erase configuration
memory only.
DPMask 16-bit Mask for the EE data protect bits in the
config word given by
CPConfig.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 34 of 36
WriteConfigOnErase Y/N Some parts (some 18F, dsPIC33)do not
erase Config to default values on Bulk
Erase, so default config values must be
written on erase
BlankChkSkipUsrIDs Y/N Some parts (dsPIC33) do not erase User
IDs to blank on Bulk Erase, so skip them
on Blank Check.
TestMemoryRdScript 0-65535 Number of script to read words from
Test Memory
TestMemoryRdWords 0-65535 # words read by TestMemoryRdScript
EERowEraseScript 0-65535 Script for row erasing EE Data memory
(needed for dsPIC30). Used for low Vdd
programming. Note script advances PC
by EERowEraseWords on each
execution.
EERowEraseWords 0-65535 Number of words (locations) erased by
one executiong of EERowEraseScript
ExportToMPLAB Y/N Meta-data only used by Device File
Editor
DebugHaltScript Only used by MPLAB
DebugRunScript Only used by MPLAB
DebugStatusScript Only used by MPLAB
DebugReadExecVerScript Only used by MPLAB
DebugSingleStepScript Only used by MPLAB
DebugBulkWrDataScript Only used by MPLAB
DebugBulkRdDataScript Only used by MPLAB
DebugWriteVectorScript Only used by MPLAB
DebugReadVectorScript Only used by MPLAB
DebugRowEraseScript 0-65535 Script for row erasing program memory.
Used for low Vdd programming. Note
script advances PC by
DebugRowEraseWords on each
execution.
DebugRowEraseWords 0-65535
DebugReserved5 (Emulation Wr) Only used by MPLAB
DebugReserved6 (Emulation Rd) Only used by MPLAB
LVPScript Script used for Low-Voltage-
Programming program entry. If no
script assigned (=0), then the part does
not support LVP.
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 35 of 36
8.4 Script Definitions
Parameter
Name
ScriptNumber 1-65536 ‘121’ Essentially, its array index number + 1
ScriptName String Text name of the script
ScriptVersion 0-65535 ‘2’ Version of the script itself. Should be
ScriptLength 0-61 ‘37’ Length of script in terms of array
Comment String Text comments related to the script
Script ushort Array Array containing script elements (control bytes and arguments). The
Range Examples Description
(0 reserved for no script)
incremented on changes.
elements. Presently must not exceed 61.
first element to execute is in array position [0].
The control bytes and arguments are stored in the low byte of each
array element.
The upper byte is used for tags:
0xAA = Control Byte (as opposed to argument byte)
0xBB = Display argument byte as hexadecimal
0x00 = Display argument byte as decimal
Microchip Technology, Inc. PICkit 2 Interface Guide
Page 36 of 36
Loading...
