MRF24J40MC

Data Sheet

2.4 GHz IEEE Std. 802.15.4™ RF

Transceiver Module with PA/LNA External

Antenna Connector

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.

• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.

• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property.

• Microchip is willing to work with the customer who is concerned about the integrity of their code.

• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Microchip devices in life support and/or safety applications is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights.

Trademarks

The Microchip name and logo, the Microchip logo, dsPIC, K

EELOQ, KEELOQ logo, MPLAB, PIC, PICmicro, PICSTART,

PIC

logo, rfPIC and UNI/O are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

FilterLab, Hampshire, HI-TECH C, Linear Active Thermistor, MXDEV, MXLAB, SEEVAL and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Analog-for-the-Digital Age, Application Maestro, CodeGuard, dsPICDEM, dsPICDEM.net, dsPICworks, dsSPEAK, ECAN, ECONOMONITOR, FanSense, HI-TIDE, In-Circuit Serial Programming, ICSP, Mindi, MiWi, MPASM, MPLAB Certified logo, MPLIB, MPLINK, mTouch, Octopus, Omniscient Code Generation, PICC, PICC-18, PICDEM, PICDEM.net, PICkit, PICtail, REAL ICE, rfLAB, Select Mode, Total Endurance, TSHARC, UniWinDriver, WiperLock and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

All other trademarks mentioned herein are property of their respective companies.

Printed on recycled paper.

ISBN:

Microchip received ISO/TS-16949:2002 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and T empe, Arizona; Gresham, Oregon and design centers in California and India. The Company’s quality system processes and procedures are for its PIC devices, Serial EEPROMs, microperipherals, nonvolatile memo ry and analog products. In addition, Microchip’s quality system for the desig n and manufacture of development systems is ISO 9001:2000 certified.

MCUs and dsPIC® DSCs, KEELOQ

code hopping

MRF24J40MC

2 3 4 5 6

GND

RESET

WAKE

SDO

SDI

SCK

GND

INT

12 11 GN D

2.4 GHz IEEE Std. 802.15.4™ RF Transceiver Module with PA/LNA and External Antenna Connector

Features:

• IEEE Std. 802.15.4™ Compliant RF Transceiver

• Supports ZigBee®, MiWi™ Development Environment Proprietary Wireless Networking Protocols

• Small 0.9" x 1.3" (22.9 mm x 33.0 mm), Surface Mountable – Pin Compatible with MRF24J40MB

• Integrated Crystal, Internal Voltage Regulator, Matching Circuitry, Power Amplifier, Low Noise Amplifier

• External antenna connector: ultra miniature coaxial (U.FL), 50Ω

• Easy Integration into Final Product – Minimize Product Development, Quicker Time to Market

• Radio Regulation Certified for United States (FCC), Canada (IC), Europe (ETSI) and Australia/New Zealand (C-TICK)

• Compatible with Microchip microcontroller families (PIC16F, PIC18F, PIC24F/H, dsPIC33 and PIC32)

• Range up to 4000 ft.

Operational:

• Operating Voltage: 2.7V – 3.6V (3.3V typical)

• Temperature Range: –40°C to +85°C Industrial

• 4-Wire Serial Peripheral Interface (SPI)

• Low-Current Consumption:

- 25 mA (typical) in RX mode

- 120 mA (typical) in TX mode

-5 μA (typical) in Sleep mode

RF/Analog Features:

• ISM Band 2.405 GHz – 2.475 GHz Operation

• Data Rate: 250 kbps

• -108 dBm Typical Sensitivity with –23 dBm Maximum Input Level

• +19 dBm Typical Output Power with 56 dB TX Power Control Range

• Integrated Low Phase Noise VCO, Frequency Synthesizer and PLL Loop Filter

• Digital VCO and Filter Calibration

• Integrated RSSI ADC and I/Q DACs

• Integrated LDO

• High Receiver RSSI Dynamic Range

MAC/Baseband Features:

• Hardware CSMA-CA Mechanism, Automatic ACK Response and FCS Check

• Independent Beacon, Transmit and GTS FIFO

• Supports all CCA modes and RSS/LQI

• Automatic Packet Retransmit Capable

• Hardware Security Engine (AES-128) with CTR, CCM and CBC-MAC modes

• Supports Encryption and Decryption for MAC Sub layer and Upper Layer

Pin Diagram:

MRF24J40MC

1.0 Device Overview .......................................................................................................................................................................... 3

2.0 Circuit Description ...................................................................................................................................................................... 11

3.0 Regulatory Approval ................................................................................................................................................................... 17

4.0 Electrical Characteristics ........................................................................................................................................................... 25

Appendix A: Revision History............................................................................................................................................................... 27

The Microchip Web Site ....................................................................................................................................................................... 29

Customer Change Notification Service ................................................................................................................................................ 29

Customer Support ................................................................................................................................................................................ 29

Reader Response ................................................................................................................................................................................ 30

Product Identification System............................................................................................................................................................... 31

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via E-mail at docerrors@microchip.com or fax the Reader Response Form in the back of this data sheet to (480) 792-4150. We welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page. The last character of the literature number is the version number, (e.g., DS30000A is version A of document DS30000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:

• Microchip’s Worldwide Web site; http://www.microchip.com

• Your local Microchip sales office (see last page) When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you are

using.

Customer Notification System

MRF24J40MC

Antenna

U.FL

Physical

MAC

Interface

Power

Management

SPI

20 MHz

Crystal

Digital

I/O

Power

PIC18FXXXX IEEE Std. 802.15.4™ Module

MRF24J40

LNA

Connector

1.0 DEVICE OVERVIEW

The MRF24J40MC is a 2.4 GHz IEEE Std. 802.15.4™ compliant, surface mount module with integrated crystal, internal voltage regulator, matching circuitry, Power Amplifier (PA), Low Noise Amplifier (LNA) with 50Ω external antenna connector. The MRF24J40MC module operates in the non-licensed 2.4 GHz frequency band. The integrated module design frees the integrator from extensive RF and antenna design, and regulatory compliance testing, allowing quicker time to market.

The MRF24J40MC module is compatible with Microchip’s ZigBee Environment software stacks. The MiWi Development Environment software stack is available as a free download, including source code, from the Microchip web site: http://www.microchip.com/wireless.

The MRF24J40MC module has received regulatory approvals for modular devices in the United States (FCC) and Canada (IC). Modular approval removes the need for expensive RF and antenna design, and allows the end user to place the MRF24J40MC module inside a finished product and not require regulatory testing for an intentional radiator (RF transmitter). To maintain

, and MiWi™ Development

conformance, refer to module settings in Section 3.1.1,

MRF24J40MC SETTINGS for the United States and Section 3.2.1, MRF24J40MC SETTINGS for Canada.

The MRF24J40MC module has been tested and conforms to ETS EN 300 328 V1.7.1 (2006-10) European Standards. The module tests can be applied toward final product certification and Declaration of Conformity (DoC). To maintain conformance, refer to module settings in Section , . Additional testing may be required depending on the end application.

1.1 Interface Description

Figure 1-1 shows a simplified block diagram of the

MRF24J40MC module. The module is based on the Microchip Technology MRF24J40 IEEE 802.15.4™

2.4 GHz RF Transceiver IC. The module interfaces to

many popular Microchip PIC through a 4-wire SPI interface, interrupt, wake, reset, power and ground, as shown in Figure 1-2. Table 1-1 provides the pin descriptions.

Serial communication and module configuration for the MRF24J40MC module are documented in the

“MRF24J40 IEEE 802.15.4™ 2.4 GHz RF Transceiver Data Sheet” (DS39776). Refer to the “MRF24J40 Data

microcontrollers

FIGURE 1-1: PIC18FXXXX BLOCK DIAGRAM

TABLE 1-1: PIN DESCRIPTION

Pin Symbol T ype Description

1 GND Ground

2 RESET

Legend: Pin type abbreviation: D = Digital, I = Input, O = Output

Ground

Global hardware Reset pin

MRF24J40MC

SDO

I/O

SDI

SCK

INTX

MRF24J40MC

SDI

SDO

SCK

INT

I/O

WAKE

VIN

GND

PIC

MCU

I/O

RESET

TABLE 1-1: PIN DESCRIPTION

Pin Symbol T ype Description

3 WAKE DI External wake-up trigger

4 INT DO Interrupt pin to microcontroller

5 SDI DI Serial interface data input

6 SCK DI Serial interface clock

7 SDO DO Serial interface data output from MRF24J40

8CS

9 NC — No connection

10 V

IN Power Power supply

11 GND Ground Ground

12 GND Ground Ground

Legend: Pin type abbreviation: D = Digital, I = Input, O = Output

FIGURE 1-2: MICROCONTROLLER TO MRF24J40MC INTERFACE

Serial interface enable

MRF24J40MC

1.2 Mounting Details

The MRF24J40MC is a surface mountable module. Module dimensions are shown in Figure 1-3. The module Printed Circuit Board (PCB) is 0.032" thick with castellated mounting points on the edge. Figure 1-4 is a recommended host PCB footprint for the MRF24J40MC .

FIGURE 1-3: MODULE DETAILS

The MRF24J40MC has 50Ω ultra miniature coaxial (U.FL) connector.

MRF24J40MC

FIGURE 1-4: RECOMMENDED PCB FOOTPRINT

MRF24J40MC

MRF24J40

GPIO1

GPIO2

U.FL

Connector

Balun

RFP

RFN

PA uPG2250T5N

LNA

RF Switch

UPG2179TB

RF Switch

UPG2179TB

LNA uPC8233TK

V2 V1

GPIO3

Voltage Regulator

TC1187VCT713

OUT

SHDN

50 ohm

1.3 Operation

The MRF24J40MC module is based on the Microchip Technology MRF24J40 2.4 GHz IEEE 802.15.4 RF Transceiver IC. Serial communication and

configuration are documented in the “MRF24J40 Data Sheet” (DS39776).

This section emphasizes operational settings that are unique to the MRF24J40MC module design that must be followed for proper operation.

1.3.1 PA/LNA CONTROL

Operation of the PA U3 and LNA U2 is controlled by the MRF24J40 internal RF state machine through RF switches, U1 and U4, and the GPIO1 and GPIO2 pins on the MRF24J40. Figure 1-5 shows the PA/LNA block diagram. Figure 2-2 is the schematic diagram for the module.

FIGURE 1-5: PA/LNA BLOCK DIAGRAM

The internal RF state machine is configured for the PA/ LNA mode by setting TESTMODE (0x22<2:0>) = 111. Pins GPIO1 and GPIO2 control the RF switches, PA and LNA automatically when the MRF24J40 receives and transmits data.

Note: A complete explanation of the operation of

the PA/LNA control is documented in the

“MRF24J40 Data Sheet” (DS39776),

Section 4.2 “External PA/LNA Control”.

Voltage regulator U5 supplies a regulated 2.2V to the PA. This provides a stable voltage to the PA over the V

voltage range of the module. U5 is enabled or shutdown from GPIO3. Ensure that the GPIO3 direction has been set to output (TRISGP3 (0x34<3>) = 1). Setting a logic high (GPIO3 (0x33<3>) = 1) enables the voltage regulator and supplies voltage to the PA. Setting a logic low (GPIO3 (0x33<3>) = 0) will shutdown the voltage regulator, disabling the PA, and provides the lowest shutdown current.

MRF24J40MC

1.3.2 ENERGY DETECTION (ED)

Before performing an energy detection (see Section

3.6.1 “RSSI Firmware Request (RSSI Mode 1)” in the

“MRF24J40 Data Sheet” (DS39776)), perform the

following steps:

1. Configure the internal RF state machine to normal operation (TESTMODE (0x22F<2:0>)

2. Configure GPIO2 and GPIO1 direction for output (TRISGP2 (0x34<2>) = 1 and TRISGP1 (0x34<1>) = 1).

3. Set GPIO2 (0x33<2>) = 1 and GPIO1 (0x32<1>) = 0. This enables the LNA and disables the PA.

4. Perform the energy detection following the steps in Section 3.6.1 “RSSI Firmware Request (RSSI

Mode 1)” in the “MRF24J40 Data Sheet”

(DS39776).

Note: The LNA will amplify the received signal.

The RSSI value will include the receive signal strength plus the LNA amplification.

= 000).

1.3.3 SLEEP

To get the lowest power consumption from the MRF24J40MC module during Sleep, it is necessary to disable the PA, PA voltage regulator and LNA. To do this, perform the following steps:

1. Configure the internal RF state machine to normal

operation (TESTMODE (0x22F<2:0>) = 000).

2. Configure the GPIO3, GPIO2 and GPIO1

direction for output (TRISGP3 (0x34<3>) = 1, TRISGP2 (0x34<2>) = 1 and TRISGP1 (0x34<1>) = 1).

3. Set GPIO2 (0x33<2>) = 0 and GPIO1 (0x32<1>) = 0. This disables the LNA and the PA.

4. Set GPIO3 (0x33<3>) = 0. This shuts down the voltage regulator U5 that supplies 2.2 volts to the PA.

5. Put the MRF24J40 to Sleep following the steps

in the “MRF24J40 Data Sheet” (DS39776).

When waking the module, re-enable the PA/LNA mode.

MRF24J40MC

1.3.4 TRANSMIT POWER SETTINGS

Table 1-2 lists the power settings in register RFCON3

(0x203<7:3>) and the output power at antenna connector J1.

TABLE 1-2: TRANSMIT POWER SETTINGS

RFCON3 (0x203<7:3>) MRF24J40 Power Setting Output Power

11111 –36.3 –26.4 11110 –34.9 –25.2 11101 –33.7 –24.1 11100 –32.8 –23.4 11011 –31.9 –22.7 11010 –31.2 –22.4 11001 –30.5 –21.9 11000 –30.0 –21.6 10111 –26.3 –15.7 10110 –24.9 –14.5 10101 –23.7 –13.7 10100 –22.8 –12.9 10011 –21.9 –12.3 10010 –21.2 –11.8 10001 –20.5 –11.5 10000 –20.0 –11.1 01111 –16.3 –6.6 01110 –14.9 –5.5 01101 –13.7 –4.7 01100 –12.8 –4.0 01011 –11.9 –3.4 01010 –11.2 –2.9 01001 –10.5 –2.5 01000 –10.0 –2.0 00111 –6.3 10.7 00110 –4.9 18.0 00101 –3.7 18.5

Note 1: Typical output power at antenna connector J1, Channel 11, 50Ω impedance.

(1)

(dBm)

Note: Refer to Section 3.0, Regulatory Approval

for the required maximum power setting necessary to maintain certification requirements for each country the module will be used.

MRF24J40MC

NOTES:

MRF24J40MC

2.0 CIRCUIT DESCRIPTION

The MRF24J40MC is a 2.4 GHz IEEE Std. 802.15.4™ compliant surface mount module with integrated crystal, internal voltage regulator, matching circuitry, power amplifier, low noise amplifier with 50Ω external antenna connector.

The MRF24J40MC module interfaces to many popular Microchip PIC microcontrollers through a 4-wire SPI Interface, interrupt, wake, reset, power and ground. An example application schematic is illustrated in

Figure 2-1.

Serial communications and register definitions for the MRF24J40MC module are documented in the

“MRF24J40 IEEE 802.15.4™ 2.4 GHz RF Transceiver

Data Sheet” (DS39776). Refer to the “MRF24J40 Data Sheet” for specific serial interface protocol and register

definitions. Also, see Section 1.3, Operation for specific register settings that are unique to the MRF24J40MC module.

2.1 External Antenna

The MRF24J40MC module has a 50Ω ultra miniature coaxial (U.FL) connector to connect to an external 2.4 GHz antenna. The choice of antenna is limited to the antenna types the module has been tested with. Refer to the respective country in Section 3.0, Regulatory

Approval for a list of tested and approved antenna

types that may be used with the MRF24J40MC module.

2.2 Module Schematic

A schematic diagram of the module is illustrated in

Figure 2-2 and the Bill of Materials (BOM) is shown in Table 2-1.

The MRF24J40MC module is based on the Microchip Technology MRF24J40 IEEE 802.15.4™ 2.4 GHz RF Transceiver IC (U6). The Serial I/O (SCK, SDI, SDO and CS to the module pins. The SDO signal is tri-state buffered by U7 to solve a silicon errata, where the SDO signal does not release to a high-impedance state, after the CS

Crystal, X1, is a 20 MHz crystal with a frequency tolerance of ±10 ppm @ 25°C to meet the IEEE Std.

802.15.4 symbol rate tolerance of ±40 ppm.

A balun is formed by components: L11, L12, L13, C25, C27 and C31. L12 is also a pull-up for the RFP and RFN pins on the MRF24J40. C25 also acts as a DC block capacitor. RF switches, U1 and U2, switch between the power amplifier, U3, when transmitting and low noise amplifier, U2, when receiving. A band-pass filter FL1 is placed after the PA U3 to reduce harmonics. The remaining passive components provide bias and decoupling.

), RESET, WAKE and INT pins are brought out

pin returns to its inactive state.

FIGURE 2-1: MRF24J40MC APPLICATION SCHEMATIC

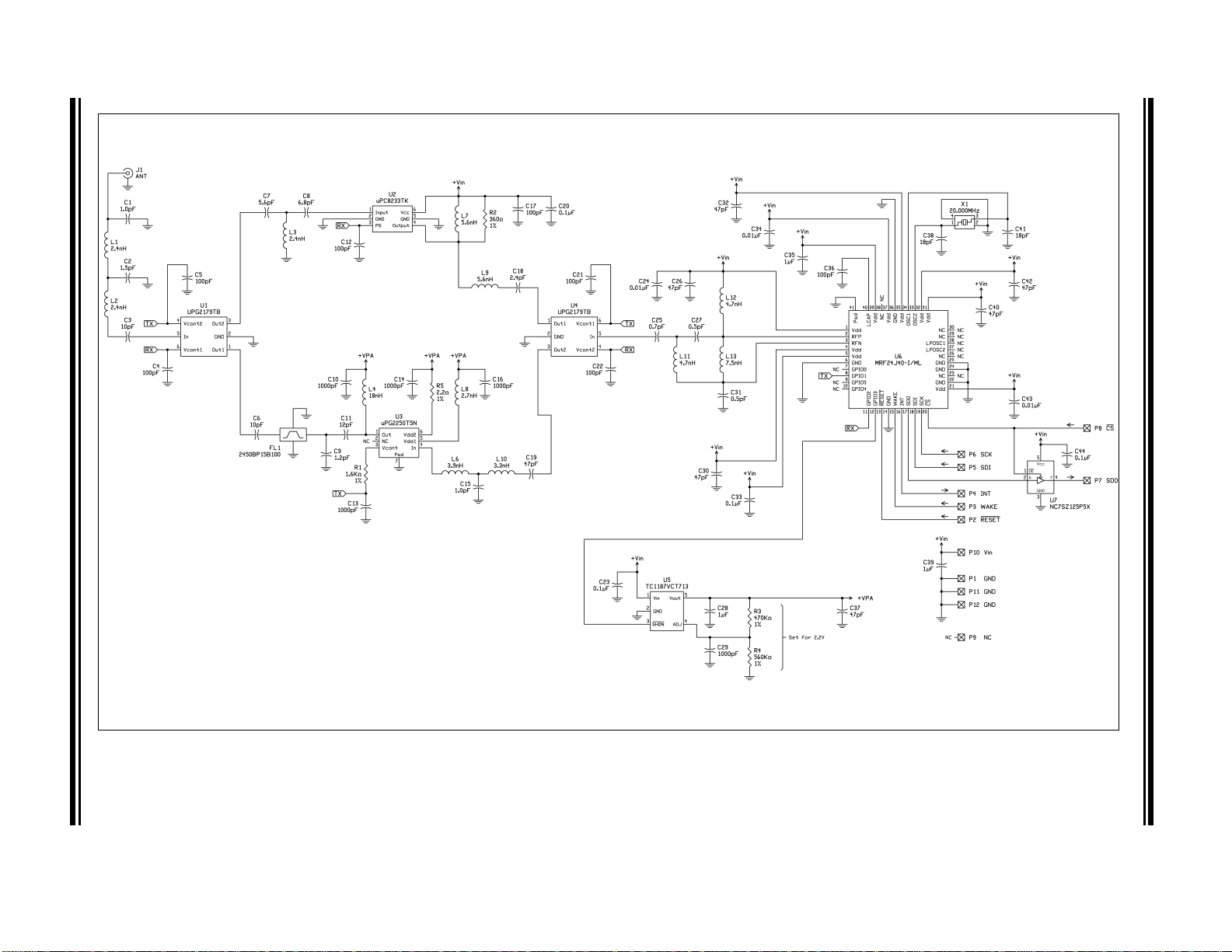

FIGURE 2-2: MRF24J40MC SCHEMATIC

MRF24J40MC

TABLE 2-1: MRF24J40MC BILL OF MATERIALS

Designator Value Description Manufacturer Part Number Comments

C27, C31 0.5 pF Capacitor, Ceramic, 50V,

±0.1 pF, UHI Q NP0,

SMT 0402

C25 0.7 pF Capacitor, Ceramic, 50V,

±0.1 pF, UHI Q NP0,

SMT 0402

C1, C15 1.0 pF Capacitor, Ceramic, 50V,

±0.25 pF, HI-Q C0G, SMT

0402

C9 1.2 pF Capacitor, Ceramic, 50V,

±0.1 pF, UHI Q NP0,

SMT 0402

C2 1.5 pF Capacitor, Ceramic, 50V,

±0.25 pF, HI-Q C0G, SMT

0402

C18 2.4 pF Capacitor, Ceramic, 50V,

±-0.25 pF, HI-Q C0G,

SMT 0402

C7 5.6 pF Capacitor, Ceramic, 50V,

±0.25 pF, HI-Q C0G, SMT

0402

C8 6.8 pF Capacitor, Ceramic, 50V,

±0.25 pF, HI-Q C0G, SMT

0402

C3, C6 10 pF Capacitor, Ceramic, 50V,

±5%, HI-Q C0G, SMT

0402

C11 12 pF Capacitor, Ceramic, 50V,

±5%, HI-Q C0G, SMT

0402

C38, C41 18 pF Capacitor, Ceramic, 50V,

±5%, C0G, SMT 0402

C19, C26, C30, C32, C37, C40,

C42

C4, C5, C12,

C17, C21,

C22, C36

C10, C13, C14, C16,

C29

C24, C34,

C43

C20, C23,

C33, C44

C28, C35,

C39

FL1 — Filter, Bandpass, 2.4 GHz Johanson Technology 2450BP15B100E —

J1 — Connector, Receptical,

47 pF Capacitor, Ceramic, 50V,

±5%, C0G, SMT 0402

100 pF Capacitor, Ceramic, 50V,

±5%, C0G, SMT 0402

1000 pF Capacitor, Ceramic, 50V,

±10%, X7R, SMT 0402

0.01 μF Capacitor, Ceramic, 25V, ±10%, X7R, SMT 0402

0.1 μF Capacitor, Ceramic, 10V, ±10%, X5R, SMT 0402

1 μF Capacitor, Ceramic, 6.3V,

±20%, X5R, SMT 0402

Ultra-mini coax SMD

Johanson Technology 500R07S0R5BV4T do not

substitute

Johanson Technology 500R07S0R7BV4T do not

substitute

Murata Electronics GJM1555C1H1R0

CB01D

Johanson Technology 500R07S1R2BV4T do not

Murata Electronics GJM1555C1H1R5

CB01D

Murata Electronics GJM1555C1H2R4

CB01D

Murata Electronics GJM1555C1H5R6

CB01D

Murata Electronics GJM1555C1H6R8

CB01D

Murata Electronics GJM1555C1H100J

B01D

Murata Electronics GJM1555C1H120J

B01D

Murata Electronics GRM1555C1H180

JZ01D

Murata Electronics GRM1555C1H470

JZ01D

Murata Electronics GRM1555C1H101

JZ01D

Murata Electronics GRM155R71H102

KA01D

Murata Electronics GRM155R71E103

KA01D

Murata Electronics GRM155R61A104

KA01D

Murata Electronics GRM155R60J105

ME19D

Hirose Electric Co Ltd U.FL-R-SMT(10) —

—

substitute

—

do not

substitute

—

MRF24J40MC

TABLE 2-1: MRF24J40MC BILL OF MATERIALS (CONTINUED)

Designator Value Description Manufacturer Part Number Comments

L1, L2, L3 2.4 nH Inductor, Ceramic, ±0.3

nH, SMT 0402

L8 2.7 nH Inductor, Ceramic, ±0.3

nH, SMT 0402

L10 3.3 nH Inductor, Ceramic, ±0.3

nH, SMT 0402

L6 3.9 nH Inductor, Ceramic, ±0.3

nH, SMT 0402

L11, L12 4.7 nH Inductor, Ceramic, ±0.3

nH, SMT 0402

L7, L9 5.6 nH Inductor, Ceramic, ±0.3

nH, SMT 0402

L13 7.5 nH Inductor, Ceramic, ±5%,

SMT 0402

L4 18 nH Inductor, Ceramic, ±5%,

SMT 0402

R5 2.2 ohms Resistor, 1%, ±100

ppm/C, SMT 0402

R2 360 ohms Resistor, 1%, ±100

ppm/C, SMT 0402

R1 1.60 kohms Resistor, 1%, ±100

ppm/C, SMT 0402

R3 470 kohms Resistor, 1%, ±100

ppm/C, SMT 0402

R4 560 kohms Resistor, 1%, ±100

ppm/C, SMT 0402

U6 MRF24J40 Transceiver, 2.4 GHz,

IEEE 802.15.4 QFN

U7 NC7SZ125P5X Buffer, Tri-State, SC-70-5 Fairchild

U5 TC1187VCT713 Regulator, LDO Microchip Technology

U1, U4 UPG2179TB Switch, RF, SPDT,

6-SMINI

U2 UPC8233TK Amplifier, Low-noise,

6MINIMOLD

U3 UPG2250T5N Amplifier, RF, 6-TSON CEL/NEC UPG2250T5N-E2-

X1 20.000 MHz Crystal, 20.000 MHz, 3.5

x 2.5 mm SMD

Johanson Technology L-07C2N4SV6T do not

substitute

Johanson Technology L-07C2N7SV6T do not

substitute

Johanson Technology L-07C3N3SV6T do not

substitute

Johanson Technology L-07C3N9SV6T do not

substitute

Johanson Technology L-07C4N7SV6T do not

substitute

Johanson Technology L-07C5N6SV6T do not

substitute

Johanson Technology L-07C7N5JV6T do not

substitute

Johanson Technology L-07C18NJV6T do not

substitute

Vishay/Dale CRCW04022R00F

KED

Panasonic – ECG ERJ-2RKF3600X —

Panasonic – ECG ERJ-2RKF1601X —

Yageo RC0402FR-07470

Panasonic – ECG ERJ-2RKF5603X —

Microchip Technology

Inc.

Semiconductor

Inc.

CEL/NEC UPG2179TB-E4-A —

CEL/NEC UPC8233TK-A —

Abracon ABM8-156-20.000

MRF24J40-I/ML —

NC7SZ125P5X —

TC1187VCT713 —

MHz

—

MRF24J40MC

2.3 Printed Circuit Board

The MRF24J40MC module PCB is constructed with high temperature FR4 material, four layers and

0.032 inches thick. The layers are illustrated in

Figure 2-3 through Figure 2-7. The stack up of the PCB

is illustrated in Figure 2-9.

FIGURE 2-3: TOP SILK SCREEN

FIGURE 2-5: LAYER 2 – GROUND

PLANE

FIGURE 2-6: LAYER 3 – POWER

PLANE

FIGURE 2-4: TOP COPPER

MRF24J40MC

Top Copper

Ground Plane

Power Plane

Bottom Copper

1/2 oz. Copper

8 mil FR4

12 mil FR4

8 mil FR4

0.032”

±0.005”

FIGURE 2-7: BOTTOM COPPER FIGURE 2-8: BOTTOM SILK SCREEN

FIGURE 2-9: PCB LAYER STACK UP

MRF24J40MC

Contains Transmitter Module FCC ID: OA3MRF24J40MC

-or-

Contains FCC ID: OA3MRF24J40MC

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

3.0 REGULATORY APPROVAL

The MRF24J40MC module has received regulatory approvals for modular devices in the United States and Canada. Modular approval allows the end user to place the MRF24J40MC module inside a finished product and not require regulatory testing for an intentional radiator (RF transmitter), provided no changes or modifications are made to the module circuitry. Changes or modifications could void the user’s authority to operate the equipment. The end user must comply with all of the instructions provided by the Grantee, which indicate installation and/or operating conditions necessary for compliance.

The MRF24J40MC module has been tested and conforms to EN 300 328 V1.7.1 (2006-10), European Standards. The module tests can be applied toward final product certification and Declaration of Conformity (DoC). Additional testing may be required depending on the end application.

The integrator is still be responsible for testing the end product for any additional compliance requirements required with this module installed (digital device emission, PC peripheral requirements, etc.) in the specific country that the end device will be marketed.

Annex F of the IEEE Std. 802.15.4 document has a good summary of regulatory requirements in various countries concerning IEEE Std. 802.15.4 devices. The standard can be downloaded from the IEEE Standards web page:

http://standards.ieee.org/getieee802/802.15.html.

For more information on details on regulatory compliance, refer to the specific country radio regulations in the following sections.

The MRF24J40MC module has been labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the finished product into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording as following:

The user’s manual should include the following statement:

3.1 United States

The MRF24J40MC has received Federal Communications Commission (FCC) CFR47 Telecommunications, Part 15 Subpart C “Intentional Radiators” 15.247 and modular approval in accordance with FCC Public Notice DA 00-1407 Released: June 26, 2000, Part 15 Unlicensed Modular Transmitter Approval. The MRF24J40MC module can be integrated into a finished product without obtaining subsequent and separate FCC certification.

MRF24J40MC

To satisfy FCC RF Exposure requirements for mobile and base station transmission devices, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during operation. To ensure compliance, operation at closer than this distance is not recommended.

The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

3.1.1 MRF24J40MC SETTINGS

To meet the FCC requirements, the following settings must be observed by the integrator:

• The MRF24J40MC transmit power setting shall not exceed 18.5 dBm (RFCON3 0x203<7:3> =

00101). Refer to Section 1.3.4, Transmit Power

Settings.

• Only channels 11 through 25 may be selected (RFCON0 0x200).

3.1.2 APPROVED EXTERNAL ANTENNA

TYPES

To maintain modular approval in the United States, only the antenna types that have been tested shall be used. It is permissible to use different antenna manufacturer provided the same antenna type, antenna gain (equal to or less than), and MRF24J40MC power setting is used for the same antenna type tested.

Testing of the MRF24J40MC module was performed with the antenna types listed in Table 3-1

3.1.3 RF EXPOSURE

All transmitters regulated by FCC must comply with RF

exposure requirements. OET Bulletin 65 “Evaluating

Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields” provides

assistance in determining whether proposed or existing transmitting facilities, operations or devices comply with limits for human exposure to RF fields adopted by the Federal Communications Commission (FCC). The bulletin offers guidelines and suggestions for evaluating compliance.

If appropriate, compliance with exposure guidelines for mobile and unlicensed devices can be accomplished by the use of warning labels and by providing users with information concerning minimum separation distances from transmitting structures and proper installation of antennas.

The following statement must be included as a CAUTION statement in manuals and OEM products to alert users of FCC RF Exposure compliance:

If the MRF24J40MC module is used in a portable application (antenna is less than 20 cm from persons during operation), the integrator is responsible for performing Specific Absorption Rate (SAR) testing in accordance with FCC rules 2.1091.

3.1.4 HELPFUL WEB SITES

Federal Communications Commission (FCC)

http://www.fcc.gov

TABLE 3-1: APPROVED EXTERNAL ANTENNA TYPES

T ype Manufacture Part Number Gain Output Power

Whip, Dipole Aristotle Enterprises Inc. RFA-02-5-F7H1-70B-150 5 dBi 18.5 dBm

Note 1: Typical output power at antenna connector J1, Channel 11, 50Ω impedance.

MRF24J40MC

Contains transmitter module IC: 7693A-24J40MC

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

3.2 Canada

The MRF24J40MC module has been certified for use in Canada under Industry Canada (IC) Radio Standards Specification (RSS) RSS-210 and RSS-Gen. Modular approval permits the installation of a module in a host device without the need to recertify the device.

Labeling Requirements for the Host Device (from Section 3.2.1, RSS-Gen, Issue 3, December 2010):

The host device shall be properly labeled to identify the module within the host device.

The Industry Canada certification label of a module shall be clearly visible at all times when installed in the host device, otherwise the host device must be labeled to display the Industry Canada certification number of the module, preceded by the words “Contains transmitter module”, or the word “Contains”, or similar wording expressing the same meaning, as follows:

User Manual Notice for License-Exempt Radio Apparatus (from Section 7.1.3 RSS-Gen, Issue 3, December 2010):

User manuals for license-exempt radio apparatus shall contain the following or equivalent notice in a conspicuous location in the user manual or alternatively on the device or both.

3.2.2 APPROVED EXTERNAL ANTENNA TYPES

Transmitter Antenna (from Section 7.1.2 RSS-Gen, Issue 3, December 2010):

The MRF24J40MC module can only be sold or operated with antennas with which it was approved. Transmitter may be approved with multiple antenna types. An antenna type comprises antennas having similar in-band and out-of-band radiation patterns. Testing shall be performed using the highest gain antenna of each combination of transmitter and antenna type for which approval is being sought, with the transmitter output power set at the maximum level. Any antenna of the same type having equal or lesser gain as an antenna that had been successfully tested with the transmitter, will also be considered approved with the transmitter, and may be used and marketed with the transmitter.

When a measurement at the antenna connector is used to determine RF output power, the effective gain of the device's antenna shall be stated, based on measurement or on data from the antenna manufacturer. For transmitters of output power greater than 10 milliwatts, the total antenna gain shall be added to the measured RF output power to demonstrate compliance to the specified radiated power limits. User manuals for transmitters shall display the following notice in a conspicuous location:

3.2.1 MRF24J40MC SETTINGS

To meet Industry Canada (IC) requirements, the following settings must be observed by the integrator:

• The MRF24J40MC transmit power setting shall not exceed 18.5 dBm (RFCON3 0x203<7:3> =

00101). Refer to

Settings.

• Only channels 11 through 25 may be selected (RFCON0 0x200).

Section 1.3.4, Transmit Power

The above notice may be affixed to the device instead of displayed in the user manual.

MRF24J40MC

This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

User manuals for transmitters equipped with detachable antennas shall also contain the following notice in a conspicuous location.

Immediately following the above notice, the manufacturer shall provide a list of all antenna types approved for use with the transmitter, indicating the maximum permissible antenna gain (in dBi) and required impedance for each.

Approved external antenna types for the MRF24J40MC module are listed in Table 3-2.

3.2.3 HELPFUL WEB SITES

Industry Canada: http://www.ic.gc.ca/

TABLE 3-2: APPROVED EXTERNAL ANTENNA TYPES

Type Manufacture Part Number Gain Output Power

Whip, Dipole Aristotle Enterprises Inc. RFA-02-5-F7H1-70B-150 5 dBi 18.5 dBm 23.5 dBm

Note 1: Typical output power at antenna connector J1, Channel 11, 50Ω impedance

(1)

E.I.R.P.

MRF24J40MC

3.3 Europe

The MRF24J40MC module conforms to the emission standards summarized in Table 3-3. The module tests can be applied toward product Declaration of Conformity (DoC).

Note: To maintain conformance tested ETSI

standards, the module shall not be modified and settings in Section 1.3,

Operation must be observed.

The European Standards do not provide a modular approval similar to the USA (FCC) and Canada (IC). However, the completed compliance testing can be used as part of the customer’s application for product compliance approvals. The module test report data can be used as part of the customer’s product test plan and can significantly lower customer’s compliance burden.

Depending on the end application, additional testing may be required. The integrator is responsible for testing the end product for any additional compliance requirements that become necessary with this module installed (for example, digital device emission, PC peripheral requirements and so on) in the specific country where end device is marketed)

TABLE 3-3: EMISSIONS STANDARDS TESTED

Specification

Emission Standards

EN 300 328 V1.7.1 (2006-10) 4.3.1 Maximum Transmit Power 5.7.2

EN 300 328 V1.7.1 (2006-10) 4.3.2 Maximum EIRP Spectral Density 5.7.3

EN 300 328 V1.7.1 (2006-10) 4.3.3 Frequency Range 5.7.4

EN 300 328 V1.7.1 (2006-10) 4.3.6 Transmitter Spurious Emissions 5.7.5

EN 300 328 V1.7.1 (2006-10) 4.3.7 Receiver Spurious Emissions 5.7.6

T est Method

MRF24J40MC

3.3.1 MRF24J40MC SETTINGS

To meet ETSI requirements, the following settings must be observed by the integrator:

• The MRF24J40MC transmit power setting shall not exceed 10.7 dBm (RFCON3 0x203<7:3> =

00111). Refer to Section 1.3.4, Transmit Power Settings. This is to meet the requirements of ETSI EN 300 328 v1.7.1 (2006-10), Maximum e.i.r.p. spectral density limit, Section 4.3.2.2, “For wideband modulations other then FHSS (DSSS, OFDM, etc.), the maximum e.i.r.p. spectral density is limited to 10 mW per MHz”.

• Only channels 11 through 25 may be selected (RFCON0 0x200).

3.3.2 APPROVED EXTERNAL ANTENNA

TYPES

The MRF24J40MC module was tested with the antenna types listed in Table 3-4. In order to use the emissions testing listed in Table 3-3, the same antenna type, antenna gain (equal to or less than), and MRF24J40MC power setting as listed in Table 3-4 should be used. Additional emissions testing will be required by the integrator for any antenna types not tested with the module and listed in Table 3-4.

3.3.3 HELPFUL WEB SITES

A helpful document that can be used as a starting point in understanding the use of Short Range Devices (SRD) in Europe is the European Radio Communications Committee (ERC) Recommendation 70-03 E, downloadable from the European Radio Communications Office (ERO): http://www.ero.dk/. Radio and Telecommunications Terminal Equipment (R&TTE):

http://ec.europa.eu/enterprise/rtte/index_en.htm

European Conference of Postal and Telecommunications Administrations (CEPT): http://www.cept.org

European Telecommunications Standards Institute (ETSI): http://www.etsi.org

European Radio Communications Office (ERO):

http://www.ero.dk

TABLE 3-4: APPROVED EXTERNAL ANTENNA TYPES

T ype Manufacture Part Number Gain Output Power

Whip, Dipole Aristotle Enterprises Inc. RFA-02-5-F7H1-70B-150 5 dBi 10.7 dBm

Note 1: Typical output power at antenna connector J1, Channel 11, 50Ω impedance.

(1)

MRF24J40MC

3.4 Australia/New Zealand

The MRF24J40MC module conforms to compliance levels 1, 2 and 3 in Australia and levels of conformity 1, 2 and 3 in New Zealand as required by notices under:

• Section 182 of the Australian Radiocommunications Act 1992;

• Section 407 of the Australian Telecommunications Act 1997; and

• Section 134 of the New Zealand Radiocommunications Act 1989.

3.4.2 APPROVED EXTERNAL ANTENNA TYPES

The MRF24J40MC module was tested with the antenna types listed in Table 3-5. In order to use the emissions testing listed in Table 3-3, the same antenna type, antenna gain (equal to or less than), and MRF24J40MC power setting as listed in Table 3-5 should be used. Additional emissions testing will be required by the integrator for any antenna types not tested with the module and listed in Table 3-5.

3.4.3 HELPFUL WEBSITES

3.4.1 MRF24J40MC SETTINGS

To meet ETSI requirements, the following settings must be observed by the integrator:

• The MRF24J40MC transmit power setting shall not exceed 10.7 dBm (RFCON3 0x203<7:3> =

00111). Refer to

Settings. This is to meet the requirements of ETSI

EN 300 328 v1.7.1 (2006-10), Maximum e.i.r.p. spectral density limit, Section 4.3.2.2, “For wide band modulations other then FHSS (DSSS, OFDM, etc.), the maximum e.i.r.p. spectral density is limited to 10 mW per MHz”.

• Only channels 11 through 25 may be selected (RFCON0 0x200).

Section 1.3.4, Transmit Power

Australian Communications and Media Authority – Radiocommunications (Short Range Devices) Standard:

http://www.acma.gov.au/WEB/STANDARD/pc=PC_10 0141

TABLE 3-5: APPROVED EXTERNAL ANTENNA TYPES

T yp e Manufacture Part Number Gain Output Power

Whip, Dipole Aristotle Enterprises Inc. RFA-02-5-F7H1-70B-150 5 dBi 10.7 dBm

Note 1: Typical output power at antenna connector J1, Channel 11, 50Ω impedance.

(1)

MRF24J40MC

NOTES:

MRF24J40MC

4.0 ELECTRICAL CHARACTERISTICS

TABLE 4-1: RECOMMENDED OPERATING CONDITIONS

Parameters Min Typ Max Units

Ambient Operating Temperature –40 — +85 °C

Supply Voltage for RF, Analog and Digital Circuits

Supply Voltage for Digital I/O 2.7 3.3 3.6 V

Input High Voltage (VIH) 0.5 x VDD — VDD + 0.3 V

Input Low Voltage (VIL) –0.3 — 0.2 x VDD V

TABLE 4-2: CURRENT CONSUMPTION

(TA = 25°C, VDD = 3.3V)

Chip Mode Condition Min Typ Max Units

Sleep Sleep Clock and PA voltage

regulator Disabled

TX At Maximum Output Power — 120 mA — mA

RX — — 25 mA — mA

2.7 — 3.6 V

—5 μA— μA

TABLE 4-3: RECEIVER AC CHARACTERISTICS

Typical values are at TA = 25°C, VDD = 3.3V, LO Frequency = 2.445 GHz

Parameters Condition Min Typ Max Units

RF Input Frequency

RF Sensitivity — — –108 — dBm

Maximum RF Input 50Ω ——–23dBm

LO Leakage Measured at Balun Matching

Input Return Loss 50Ω –8 –12 — dB

Noise Figure (including matching)

Adjacent Channel Rejection

Alternate Channel Rejection

RSSI Range — — 50 — dB

RSSI Error — –5 — 5 dB

Compatible to

IEEE Std. 802.15.4™, 2003

Network Input at Frequency,

2.405 GHz – 2.48 GHz

— — 1.8 — dB

@ ±5 MHz 30 — — dB

@ ±10 MHz 40 — — dB

2.405 — 2.480 GHz

—–60—dBm

MRF24J40MC

TABLE 4-4: TRANSMITTER AC CHAR ACTERISTICS

Typical values are at TA = 25°C, VDD = 3.3V, LO Frequency = 2.445 GHz

Parameters Condition Min Typ Max Units

RF Carrier Frequency

Maximum RF Output Power

RF Output Power Control Range

TX Gain Control Resolution

Carrier Suppression — — –0 — dBc

TX Spectrum Mask for O-QPSK Signal

TX EVM — — 15 — %

Note 1: Output power at antenna connector J1.

Programmed by Register — 1.25 — dB

Offset Frequency >3.5 MHz,

at 0 dBm Output Power

— 2.405 — 2.475 GHz

50Ω —19

——56—dB

–33 — — dBm

(1)

—dBm

APPENDIX A: REVISION HISTORY

Revision A (February 2011)

This is the initial release of the document.

MRF24J40MC

NOTES:

MRF24J40MC

THE MICROCHIP WEB SITE

Microchip provides online support via our WWW site at

www.microchip.com. This web site is used as a means

to make files and information easily available to customers. Accessible by using your favorite Internet browser, the web site contains the following information:

• Product Support – Data sheets and errata,

application notes and sample programs, design resources, user’s guides and hardware support documents, latest software releases and archived software

• General Technical Support – Frequently Asked

Questions (FAQ), technical support requests, online discussion groups, Microchip consultant program member listing

• Business of Microchip – Product selector and

ordering guides, latest Microchip press releases, listing of seminars and events, listings of Microchip sales offices, distributors and factory representatives

CUSTOMER CHANGE NOTIFICATION SERVICE

CUSTOMER SUPPORT

Users of Microchip products can receive assistance through several channels:

• Distributor or Representative

• Local Sales Office

• Field Application Engineer (FAE)

• Technical Support

• Development Systems Information Line

Customers should contact their distributor, representative or field application engineer (FAE) for support. Local sales offices are also available to help customers. A listing of sales offices and locations is included in the back of this document.

T echnical support is available through the web site at: http://support.microchip.com

Microchip’s customer notification service helps keep customers current on Microchip products. Subscribers will receive e-mail notification whenever there are changes, updates, revisions or errata related to a specified product family or development tool of interest.

To register, access the Microchip web site at

www.microchip.com, click on Customer Change

Notification and follow the registration instructions.

MRF24J40MC

TO: Technical Publications Manager

RE: Reader Response

Total Pages Sent ________

From:

Name

Company

Address

City / State / ZIP / Country

Telephone: (_______) _________ - _________

Application (optional):

Would you like a reply? Y N

Device: Literature Number:

Questions:

FAX: (______) _________ - _________

DS00000AMRF24J40MC

READER RESPONSE

It is our intention to provide you with the best documentation possible to ensure successful use of your Microchip product. If you wish to provide your comments on organization, clarity, subject matter, and ways in which our documentation can better serve you, please FAX your comments to the Technical Publications Manager at (480) 792-4150.

Please list the following information, and use this outline to provide us with your comments about this document.

1. What are the best features of this document?

2. How does this document meet your hardware and software development needs?

3. Do you find the organization of this document easy to follow? If not, why?

4. What additions to the document do you think would enhance the structure and subject?

5. What deletions from the document could be made without affecting the overall usefulness?

6. Is there any incorrect or misleading information (what and where)?

7. How would you improve this document?

MRF24J40MC

Device MRF24J40MC: 2.4 GHz IEEE Std. 802.15.4 RF Transceiver

Module with PA/LNA External Antenna Connector

Temperature Range

I = -40ºC to +85ºC (Industrial)

Example:

a) PIC18F1220/1320-I/MQ: Industrial

temperature, tray.

b) MRF24J40MCT-I/RM: Industrial

temperature, tape and reel.

PART NO

Device

Module

Modul e

Type

Tape and

Reel

-X

Temperature

Range

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, for example, on pricing or delivery, refer to the factory or the listed sales office.

Worldwide Sales and Service

AMERICAS

Corporate Office

2355 West Chandler Blvd. Chandler, AZ 85224-6199 Tel: 480-792-7200 Fax: 480-792-7277 Technical Support:

http://support.microchip.com

Web Address:

www.microchip.com

Atlanta

Duluth, GA Tel: 678-957-9614 Fax: 678-957-1455

Boston

Westborough, MA Tel: 774-760-0087 Fax: 774-760-0088

Chicago

Itasca, IL Tel: 630-285-0071 Fax: 630-285-0075

Cleveland

Independence, OH Tel: 216-447-0464 Fax: 216-447-0643

Dallas

Addison, TX Tel: 972-818-7423 Fax: 972-818-2924

Detroit

Farmington Hills, MI Tel: 248-538-2250 Fax: 248-538-2260

Kokomo

Kokomo, IN Tel: 765-864-8360 Fax: 765-864-8387

Los Angeles

Mission Viejo, CA Tel: 949-462-9523 Fax: 949-462-9608

Santa Clara

Santa Clara, CA Tel: 408-961-6444 Fax: 408-961-6445

Toronto

Mississauga, Ontario, Canada Tel: 905-673-0699 Fax: 905-673-6509

ASIA/PACIFIC

Asia Pacific Office

Suites 3707-14, 37th Floor Tower 6, The Gateway Harbour City, Kowloon Hong Kong Tel: 852-2401-1200 Fax: 852-2401-3431

Australia - Sydney

Tel: 61-2-9868-6733 Fax: 61-2-9868-6755

China - Beijing

Tel: 86-10-8528-2100 Fax: 86-10-8528-2104

China - Chengdu

Tel: 86-28-8665-5511 Fax: 86-28-8665-7889

China - Chongqing

Tel: 86-23-8980-9588 Fax: 86-23-8980-9500

China - Hong Kong SAR

Tel: 852-2401-1200 Fax: 852-2401-3431

China - Nanjing

Tel: 86-25-8473-2460 Fax: 86-25-8473-2470

China - Qingdao

Tel: 86-532-8502-7355 Fax: 86-532-8502-7205

China - Shanghai

Tel: 86-21-5407-5533 Fax: 86-21-5407-5066

China - Shenyang

Tel: 86-24-2334-2829 Fax: 86-24-2334-2393

China - Shenzhen

Tel: 86-755-8203-2660 Fax: 86-755-8203-1760

China - Wuhan

Tel: 86-27-5980-5300 Fax: 86-27-5980-5118

China - Xian

Tel: 86-29-8833-7252 Fax: 86-29-8833-7256

China - Xiamen

Tel: 86-592-2388138 Fax: 86-592-2388130

China - Zhuhai

Tel: 86-756-3210040 Fax: 86-756-3210049

ASIA/PACIFIC

India - Bangalore

Tel: 91-80-3090-4444 Fax: 91-80-3090-4123

India - New Delhi

Tel: 91-11-4160-8631 Fax: 91-11-4160-8632

India - Pune

Tel: 91-20-2566-1512 Fax: 91-20-2566-1513

Japan - Yokohama

Tel: 81-45-471- 6166 Fax: 81-45-471-6122

Korea - Daegu

Tel: 82-53-744-4301 Fax: 82-53-744-4302

Korea - Seoul

Tel: 82-2-554-7200 Fax: 82-2-558-5932 or 82-2-558-5934

Malaysia - Kuala Lumpur

Tel: 60-3-6201-9857 Fax: 60-3-6201-9859

Malaysia - Penang

Tel: 60-4-227-8870 Fax: 60-4-227-4068

Philippines - Manila

Tel: 63-2-634-9065 Fax: 63-2-634-9069

Singapore

Tel: 65-6334-8870 Fax: 65-6334-8850

Taiwan - Hsin Chu

Tel: 886-3-6578-300 Fax: 886-3-6578-370

Taiwan - Kaohsiung

Tel: 886-7-213-7830 Fax: 886-7-330-9305

Taiwan - Taipei

Tel: 886-2-2500-6610 Fax: 886-2-2508-0102

Thailand - Bangkok

Tel: 66-2-694-1351 Fax: 66-2-694-1350

EUROPE

Austria - Wels

Tel: 43-7242-2244-39 Fax: 43-7242-2244-393

Denmark - Copenhagen

Tel: 45-4450-2828 Fax: 45-4485-2829

France - Paris

Tel: 33-1-69-53-63-20 Fax: 33-1-69-30-90-79

Germany - Munich

Tel: 49-89-627-144-0 Fax: 49-89-627-144-44

Italy - Milan

Tel: 39-0331-742611 Fax: 39-0331-466781

Netherlands - Drunen

Tel: 31-416-690399 Fax: 31-416-690340

Spain - Madrid

Tel: 34-91-708-08-90 Fax: 34-91-708-08-91

UK - Wokingham

Tel: 44-118-921-5869 Fax: 44-118-921-5820

08/04/10

Microchip Technology MRF24J40MC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Features:

Operational:

RF/Analog Features:

MAC/Baseband Features:

Pin Diagram:

Table of Contents

Most Current Data Sheet

Errata

Customer Notification System

1.0 DEVICE OVERVIEW

1.1 Interface Description

FIGURE 1-1: PIC18FXXXX BLOCK DIAGRAM

TABLE 1-1: PIN DESCRIPTION

FIGURE 1-2: MICROCONTROLLER TO MRF24J40MC INTERFACE

1.2 Mounting Details

FIGURE 1-3: MODULE DETAILS

FIGURE 1-4: RECOMMENDED PCB FOOTPRINT

1.3 Operation

1.3.1 PA/LNA CONTROL

FIGURE 1-5: PA/LNA BLOCK DIAGRAM

1.3.2 ENERGY DETECTION (ED)

1.3.3 SLEEP

1.3.4 TRANSMIT POWER SETTINGS

TABLE 1-2: TRANSMIT POWER SETTINGS

2.0 CIRCUIT DESCRIPTION

2.1 External Antenna

2.2 Module Schematic

FIGURE 2-1: MRF24J40MC APPLICATION SCHEMATIC

FIGURE 2-2: MRF24J40MC SCHEMATIC

TABLE 2-1: MRF24J40MC BILL OF MATERIALS

2.3 Printed Circuit Board

FIGURE 2-3: TOP SILK SCREEN

FIGURE 2-4: TOP COPPER

FIGURE 2-9: PCB LAYER STACK UP

3.0 REGULATORY APPROVAL

3.1 United States

3.1.1 MRF24J40MC SETTINGS

3.1.3 RF EXPOSURE

3.1.4 HELPFUL WEB SITES

TABLE 3-1: APPROVED EXTERNAL ANTENNA TYPES

3.2 Canada

3.2.2 APPROVED EXTERNAL ANTENNA TYPES

3.2.1 MRF24J40MC SETTINGS

3.2.3 HELPFUL WEB SITES

TABLE 3-2: APPROVED EXTERNAL ANTENNA TYPES

3.3 Europe

TABLE 3-3: EMISSIONS STANDARDS TESTED

3.3.1 MRF24J40MC SETTINGS

3.3.3 HELPFUL WEB SITES

TABLE 3-4: APPROVED EXTERNAL ANTENNA TYPES

3.4 Australia/New Zealand

3.4.2 APPROVED EXTERNAL ANTENNA TYPES

3.4.3 HELPFUL WEBSITES

3.4.1 MRF24J40MC SETTINGS

TABLE 3-5: APPROVED EXTERNAL ANTENNA TYPES

4.0 ELECTRICAL CHARACTERISTICS

TABLE 4-1: RECOMMENDED OPERATING CONDITIONS

TABLE 4-2: CURRENT CONSUMPTION

TABLE 4-3: RECEIVER AC CHARACTERISTICS

TABLE 4-4: TRANSMITTER AC CHAR ACTERISTICS

APPENDIX A: REVISION HISTORY

Revision A (February 2011)

THE MICROCHIP WEB SITE

CUSTOMER CHANGE NOTIFICATION SERVICE

CUSTOMER SUPPORT

READER RESPONSE

PRODUCT IDENTIFICATION SYSTEM
