Microchip Technology MCP7386X User Manual

© 2006 Microchip Technology Inc. DS51475C

MCP7386X

Battery Charger

Evaluation Board

User’s Guide

DS51475C-page ii © 2006 Microchip Technology Inc.

Information contained in this publication regarding device
applications and the like is provided only for your convenience
and may be superseded by updates. It is your responsibility to
ensure that your application meets with your specifications.
MICROCHIP MAKES NO REPRESENTATIONS OR
WARRANTIES OF ANY KIND WHETHER EXPRESS OR
IMPLIED, WRITTEN OR ORAL, STATUTORY OR
OTHERWISE, RELATED TO THE INFORMATION,
INCLUDING BUT NOT LIMITED TO ITS CONDITION,
QUALITY, PERFORMANCE, MERCHANTABILITY OR
FITNESS FOR PURPOSE. Microchip disclaims all liability
arising from this information and its use. Use of Microchip
devices in life support and/or safety applications is entirely at
the buyer’s risk, and the buyer agrees to defend, indemnify and
hold harmless Microchip from any and all damages, claims,
suits, or expenses resulting from such use. No licenses are
conveyed, implicitly or otherwise, under any Microchip
intellectual property rights.

Trademarks

The Microchip name and logo, the Microchip logo, Accuron,
dsPIC, K

EELOQ, microID, MPLAB, PIC, PICmicro, PICSTART,

PRO MATE, PowerSmart, rfPIC and SmartShunt are
registered trademarks of Microchip Technology Incorporated
in the U.S.A. and other countries.

AmpLab, FilterLab, Migratable Memory, MXDEV, MXLAB,
SEEVAL, SmartSensor and The Embedded Control Solutions
Company are registered trademarks of Microchip Technology
Incorporated in the U.S.A.

Analog-for-the-Digital Age, Application Maestro, CodeGuard,
dsPICDEM, dsPICDEM.net, dsPICworks, ECAN,
ECONOMONITOR, FanSense, FlexROM, fuzzyLAB,
In-Circuit Serial Programming, ICSP, ICEPIC, Linear Active
Thermistor, Mindi, MiWi, MPASM, MPLIB, MPLINK, PICkit,
PICDEM, PICDEM.net, PICLAB, PICtail, PowerCal,
PowerInfo, PowerMate, PowerTool, REAL ICE, rfLAB,
rfPICDEM, Select Mode, Smart Serial, SmartTel, Total
Endurance, UNI/O, WiperLock and ZENA are trademarks of
Microchip Technology Incorporated in the U.S.A. and other
countries.

SQTP is a service mark of Microchip Technology Incorporated
in the U.S.A.

All other trademarks mentioned herein are property of their
respective companies.

© 2006, Microchip Technology Incorporated, Printed in the
U.S.A., All Rights Reserved.

Printed on recycled paper.

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.

• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the
intended manner and under normal conditions.

• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our
knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data
Sheets. Most likely, the person doing so is engaged in theft of intellectual property.

• Microchip is willing to work with the customer who is concerned about the integrity of their code.

• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not
mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our
products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts
allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Microchip received ISO/TS-16949:2002 certification for its worldwide
headquarters, design and wafer fabrication facilities in Chandler and
Tempe, Arizona, Gresham, Oregon and Mountain View, California. The
Company’s quality system processes and procedures are for its
PICmicro

®

8-bit MCUs, KEELOQ

®

code hopping devices, Serial
EEPROMs, microperipherals, nonvolatile memory and analog
products. In addition, Microchip’s quality system for the design and
manufacture of development systems is ISO 9001:2000 certified.

MCP7386X EVALUATION

BOARD USER’S GUIDE

© 2006 Microchip Technology Inc. DS51475C-page iii

Table of Contents

Preface ........................................................................................................................... 1

Chapter 1. Product Overview

1.1 Introduction and Highlights ............................................................................. 5

1.2 What is the MCP7386X Battery Charger Evaluation Board? ......................... 5

1.3 What the MCP7386X Battery Charger Evaluation Board Includes ................ 5

Chapter 2. Installation and Operation

2.1 Features ......................................................................................................... 7

2.2 Getting Started ............................................................................................... 7

2.3 Detailed Description ....................................................................................... 8

Appendix A. Schematic and Layouts

A.1 Introduction .................................................................................................. 11

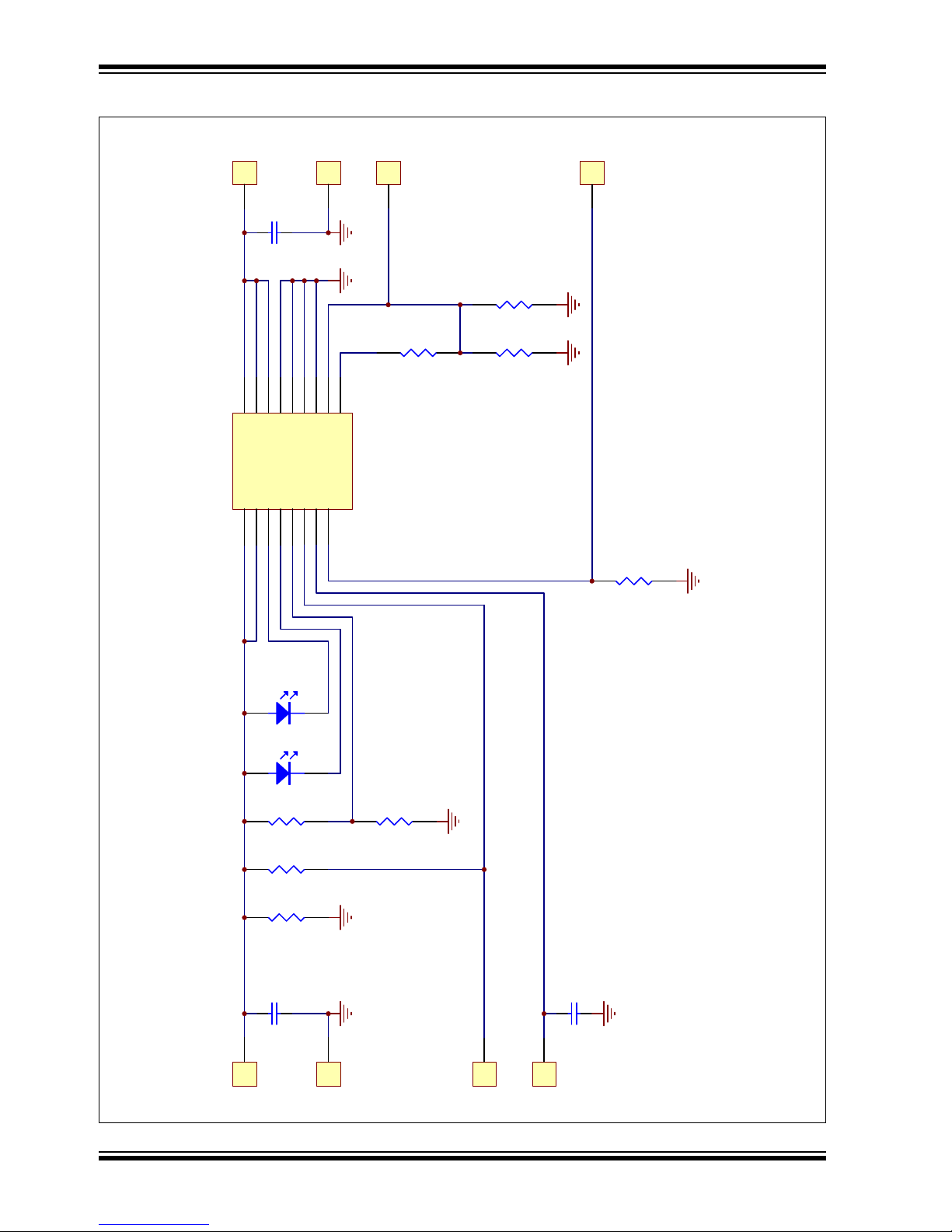

A.2 Board Schematic ........................................................................................ 12

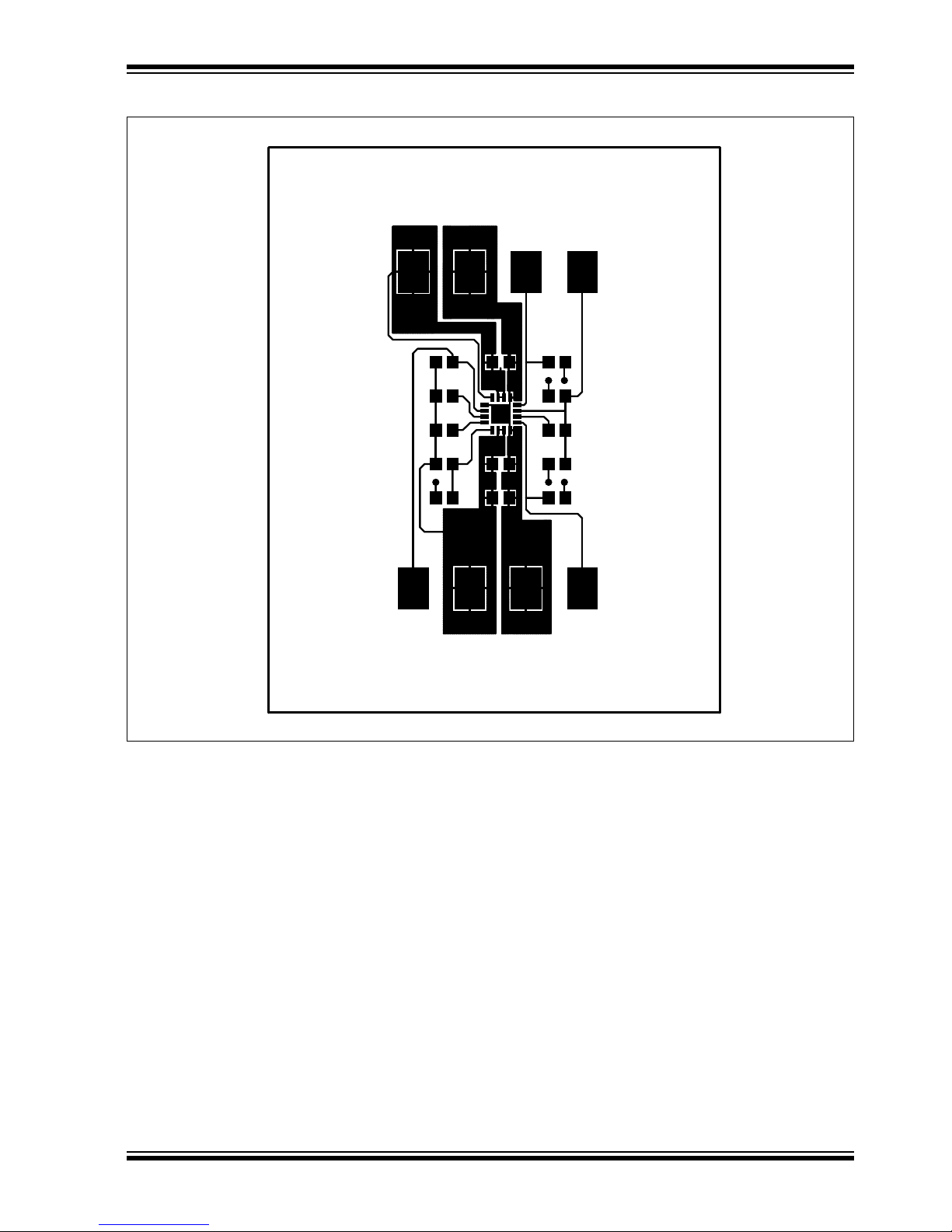

A.3 Board – Top Layer ..................................................................................... 13

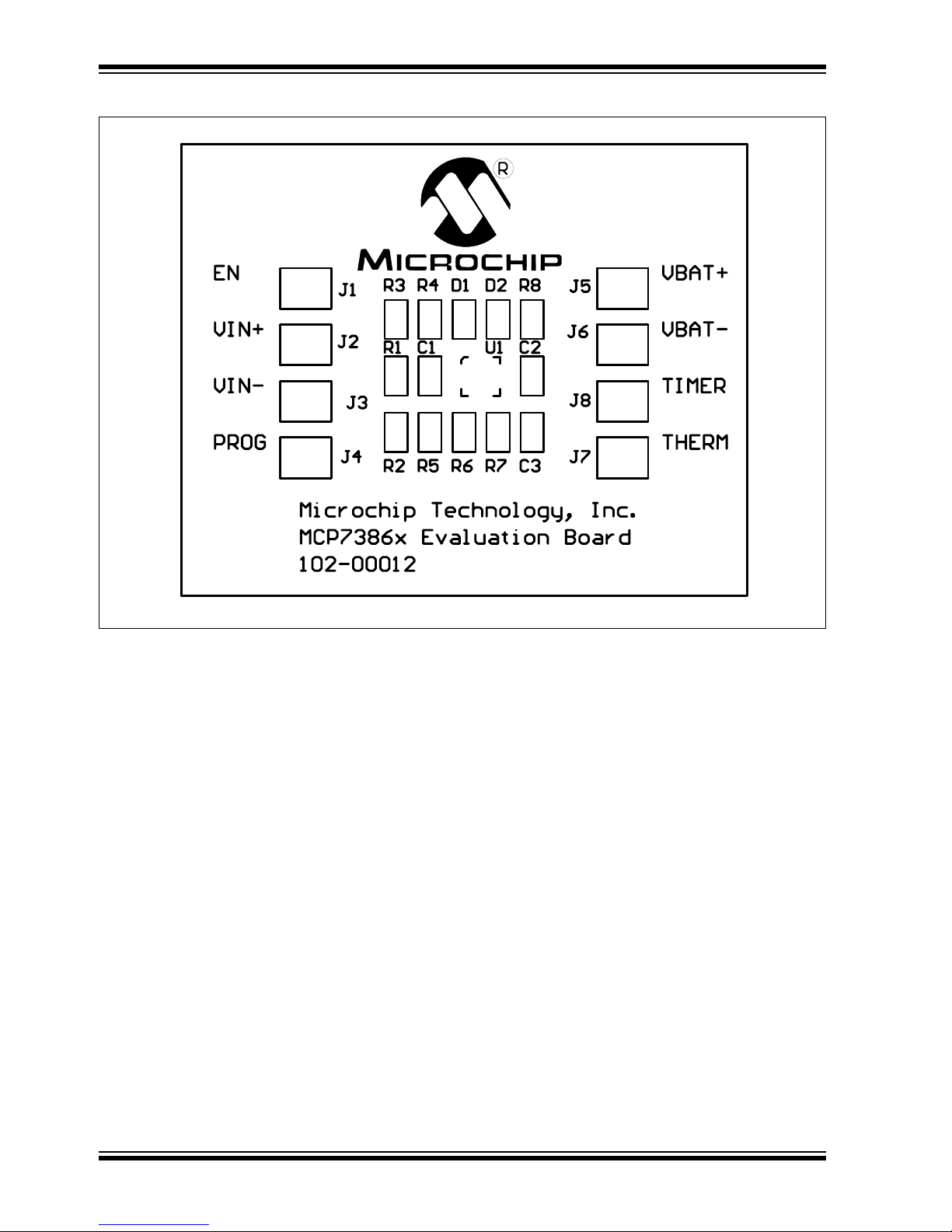

A.4 Board – Silk Screen Layer ......................................................................... 14

A.5 Board – Bottom Layer ................................................................................ 15

Appendix B. Bill Of Materials (BOM)

Worldwide Sales and Service .................................................................................... 18

MCP7386X Evaluation Board User’s Guide

DS51475C-page iv © 2006 Microchip Technology Inc.

NOTES:

MCP7386X EVALUATION

BOARD USER’S GUIDE

© 2006 Microchip Technology Inc. DS51475C-page 1

Preface

INTRODUCTION

This chapter contains general information that will be useful to know before using the
MCP7386X Battery Charger Evaluation Board. Items discussed in this chapter include:

• Document Layout

• Conventions Used in this Guide

• Recommended Reading

• The Microchip Web Site

• Customer Support

• Document Revision History

DOCUMENT LAYOUT

This document describes how to use the MCP7386X Battery Charger Evaluation Board
as a development tool to emulate and debug firmware on a target board. The manual
layout is as follows:

• Chapter 1. “Product Overview” – Important information about the MCP7386X
Battery Charger Evaluation Board.

• Chapter 2. “Installation and Operation” – For users evaluating the
MCP73861/2/3/4 devices, this chapter describes how to use the various features
of the hardware.

• Appendix A. “Schematic and Layouts” – Shows the schematic and layout
diagrams for the MCP7386X Battery Charger Evaluation Board.

• Appendix B. “Bill Of Materials (BOM)” – Lists the parts used to build the
MCP7386X Battery Charger Evaluation Board.

NOTICE TO CUSTOMERS

All documentation becomes dated, and this manual is no exception. Microchip tools and
documentation are constantly evolving to meet customer needs, so some actual dialogs
and/or tool descriptions may differ from those in this document. Please refer to our web site
(www.microchip.com) to obtain the latest documentation available.

Documents are identified with a “DS” number. This number is located on the bottom of each
page, in front of the page number. The numbering convention for the DS number is
“DSXXXXXA”, where “XXXXX” is the document number and “A” is the revision level of the
document.

MCP7386X Evaluation Board User’s Guide

DS51475C-page 2 © 2006 Microchip Technology Inc.

CONVENTIONS USED IN THIS GUIDE

This manual uses the following documentation conventions:

RECOMMENDED READING

This user's guide describes how to use the MCP7386X Battery Charger Evaluation
Board. Other useful documents are listed below. The following Microchip documents
are available and recommended as supplemental reference resources.

MCP73861/2/3/4 Data Sheet, “Advanced Single or Dual-Cell, Fully-Integrated
Li-Ion/Li-Polymer Charge Management Controllers” (DS21893)

This data sheet provides detailed information regarding the MCP73861 Advanced
Single or Dual-Cell, Fully-Integrated, Lithium-Ion/Lithium-Polymer Charge
Management Controllers.

DOCUMENTATION CONVENTIONS

Description Represents Examples

Arial font:

Italic characters Referenced books MPLAB® IDE User’s Guide

Emphasized text ...is the only compiler...

Initial caps A window the Output window

A dialog the Settings dialog
A menu selection select Enable Programmer

Quotes A field name in a window or

dialog

“Save project before build”

Underlined, italic text with
right angle bracket

A menu path File>Save

Bold characters A dialog button Click OK

A tab Click the Power tab

Text in angle brackets < > A key on the keyboard Press <Enter>, <F1>

Courier New font:

Plain Courier New Sample source code #define START

Filenames autoexec.bat
File paths c:\mcc18\h
Keywords _asm, _endasm, static
Command-line options -Opa+, -Opa-
Bit values 0, 1
Constants 0xFF, ‘A’

Italic Courier New A variable argument file.o, where file can be

any valid filename

Square brackets [ ] Optional arguments mcc18 [options] file

[options]

Curly brackets and pipe
character: { | }

Choice of mutually exclusive
arguments; an OR selection

errorlevel {0|1}

Ellipses... Replaces repeated text var_name [,

var_name...]

Represents code supplied by
user

void main (void)
{ ...
}

Preface

© 2006 Microchip Technology Inc. DS51475C-page 3

THE MICROCHIP WEB SITE

Microchip provides online support via our web site at www.microchip.com. This web
site is used as a means to make files and information easily available to customers.
Accessible by using your favorite Internet browser, the web site contains the following
information:

• Product Support – Data sheets and errata, application notes and sample
programs, design resources, user’s guides and hardware support documents,
latest software releases and archived software

• General Technical Support – Frequently Asked Questions (FAQs), technical
support requests, online discussion groups, Microchip consultant program
member listing

• Business of Microchip – Product selector and ordering guides, latest Microchip
press releases, listing of seminars and events, listings of Microchip sales offices,
distributors and factory representatives

CUSTOMER SUPPORT

Users of Microchip products can receive assistance through several channels:

• Distributor or Representative

• Local Sales Office

• Field Application Engineer (FAE)

• Technical Support

• Development Systems Information Line

Customers should contact their distributor, representative or field application engineer
(FAE) for support. Local sales offices are also available to help customers. A listing of
sales offices and locations is included in the back of this document.

Technical support is available through the web site at: http://support.microchip.com

DOCUMENT REVISION HISTORY

Revision C (July 2006)

• Add disclaimer to Bill of Materials regarding RoHS-Compliant part numbers.

Revision B (September 2005)

• Added References to MCP73861/2/3/4.

Revision A (June 2004)

• Initial Release of this Document.

MCP7386X Evaluation Board User’s Guide

DS51475C-page 4 © 2006 Microchip Technology Inc.

NOTES:

MCP7386X EVALUATION

BOARD USER’S GUIDE

© 2006 Microchip Technology Inc. DS51475C-page 5

Chapter 1. Product Overview

1.1 INTRODUCTION

This chapter provides an overview of the MCP7386X Battery Charger Evaluation Board
and covers the following topics:

• What is the MCP7386X Battery Charger Evaluation Board?

• What the MCP7386X Battery Charger Evaluation Board Includes

1.2 WHAT IS THE MCP7386X BATTERY CHARGER EVALUATION BOARD?

The MCP7386X Battery Charger Evaluation Board is an evaluation and demonstration
tool for Microchip Technology’s MCP7386X Advanced Single or Dual-Cell,
Fully-Integrated, Lithium-Ion/Lithium-Polymer Charge Management Controllers. The
design provides for dynamic versatility while being able to handle accurate
measurements.

When connected, this evaluation board allows for the evaluation of the MCP7386X
devices in a variety of applications.

1.3 WHAT THE MCP7386X BATTERY CHARGER EVALUATION BOARD
INCLUDES

This MCP7386X Battery Charger Evaluation Board Kit includes:

• The MCP7386X Battery Charger Evaluation Board

• MCP73861 Device (Installed)

• Analog and Interface Products Demonstration Boards CD-ROM (DS21912)

- MCP7386X Battery Charger Evaluation Board User’s Guide

MCP7386X Evaluation Board User’s Guide

DS51475C-page 6 © 2006 Microchip Technology Inc.

NOTES:

MCP7386X EVALUATION

BOARD USER’S GUIDE

© 2006 Microchip Technology Inc. DS51475C-page 7

Chapter 2. Installation and Operation

2.1 FEATURES

The MCP7386X Battery Charger Evaluation Board has the following features:

• Evaluation of MCP7386X devices in 4 x 4, 16-lead QFN packages

• Simple, stand-alone operation or microcontroller-compatible

• Powered from external bench supply or wall cube

• Surface-mount design

• Fully assembled and tested

2.2 GETTING STARTED

The MCP7386X Battery Charger Evaluation Board is a fully-functional, assembled and
tested surface-mount board for evaluation of Microchip’s MCP7386X Advanced Single
or Dual-Cell, Fully Integrated Lithium-Ion/Lithium-Polymer Charge Management
Controllers. The following steps provide simple, stand-alone operation. Refer to
Figure 2-1 for the setup configuration diagram. The setup configuration diagram
depicts evaluation of the installed MCP73861 for single-cell applications.

1. Connect an external bench supply or wall cube to the surface-mount test points
provided. The input voltage source should be in the range of 5V to 12V. Refer to
Section 2.3.1 “Input Source” for details on the input source requirements.

2. Connect a single-cell Lithium-Ion or Lithium-Polymer battery pack to the circuit
for evaluation.

3. Connect an external battery pack thermistor to the J7 (THERM) input. The
thermistor should be connected from J7 (THERM) to J6 (V

BAT

–). If continuous
cell temperature monitoring is not desired, place a 10 kΩ resistor from THERM
to V

BAT

–, or populate R5 with a 10 kΩ resistor.

4. Turn on the bench supply or plug in the wall cube.

5. A green LED (D

1

) provides status during the charge cycle. A red LED (D2)
indicates a Fault condition. Refer to the MCP73861/2/3/4 data sheet (DS21893)
for details.

Note: Observe correct polarity of connection. Positive terminal connects to J2

(V

IN

+); negative terminal connects to J3 (VIN–).

Note: Observe correct polarity of connection. Positive terminal connects to J5

(V

BAT

+); negative terminal connects to J6 (V

BAT

–).

MCP7386X Evaluation Board User’s Guide

DS51475C-page 8 © 2006 Microchip Technology Inc.

FIGURE 2-1: Setup Configuration Diagram.

2.3 DETAILED DESCRIPTION

The MCP7386X Battery Charger Evaluation Board is set up to evaluate simple,
stand-alone, linear charging of single/dual-cell Lithium-Ion/Lithium-Polymer battery
packs. The reference design provides constant current charging, followed by constant
voltage charging with automatic charge termination. As provided, the MCP7386X
Battery Charger Evaluation Board is set for a fast charge, constant current level of

1.2A, typical for single-cell applications. The MCP73861 is provided in a 4 x 4, 16-lead
QFN package and is equipped with shutdown control, status indicator, fault indicator,
safety timer and a continuous cell temperature monitor. For dual-cell applications, the
MCP73862 or MCP73864 can be substituted for the MCP73861. Refer to the
MCP73861/2/3/4 data sheet (DS21893) for details on the individual device features.

2.3.1 Input Source

The MCP7386X Battery Charger Evaluation Board is designed to provide a fast charge
current of 1.2A, typical. The input source should provide a voltage in the range of 5V to
12V. The input source should be capable of providing a minimum of 7.5W.

Lower peak currents can be obtained by adjusting the value of the charge programming
resistors (R

2

). A corresponding lower-power input source may then be utilized. Refer
to the MCP73861/2/3/4 data sheet (DS21893) for details on determining the
appropriate programming resistor.

2.3.2 Safety Timer Periods

The MCP7386X Battery Charger Evaluation Board can be used with a variety of battery
packs. As provided, the MCP7386X Battery Charger Evaluation Board is set up to
perform well with single-cell, 1000 mAh battery packs. Battery packs with alternative
capacities and various charge currents can be implemented. The safety timer periods
may need to be adjusted in order to ensure a full charge. The safety timer periods can
be adjusted by changing the capacitance of C

3

. Refer to the MCP73861/2/3/4 data

sheet (DS21893) for details on determining the appropriate timer capacitance.

2.3.3 Disable Control

The MCP7386X Battery Charger Evaluation Board is designed to provide stand-alone
operation. The installed MCP73861 device is enabled whenever the input source is
present. To disable charging, a jumper can be placed between J1, EN and J3 (V

IN

–).

+

-

Single
Lithium-Ion
Cell

Unregulated

Wall Cube

Installation and Operation

© 2006 Microchip Technology Inc. DS51475C-page 9

2.3.4 Battery Headers

Independent battery connections are provided. The battery pack positive terminal
should be connected to J5 (V

BAT

+). The battery pack negative terminal should be

connected to J6 (V

BAT

–). In addition, a connection is provided for a nominal 10 kΩ at
+25°C NTC thermistor, situated in the battery pack for temperature sensing. When the
cell temperature is between -5°C and +55°C, installed resistors provide a charging
window when a thermistor with a sensitivity index (β) of 3982 is utilized. Charging is
inhibited when the cell temperature deviates outside the preset window. The resistor
values can be adjusted to provide the desired charging window for a variety of
thermistors. Refer to the MCP73861/2/3/4 data sheet (DS21893) for details.

2.3.5 Device Support Options

The MCP7386X Battery Charger Evaluation Board supports the entire MCP7386X
family. The MCP7386X Battery Charger Evaluation Board is provided with one
reference design utilizing the MCP73861. Alternate devices can be substituted in
order to evaluate the different MCP7386X family options.

2.3.6 Microcontroller Option

Connection points provide easily-accessible locations for interface to a host
microcontroller. The host microcontroller can be used to disable the charger, monitor
charge status or terminate a charge.

2.3.7 Output Voltage Options

The MCP7386X Battery Charger Evaluation Board is provided with a
Constant-Voltage mode output voltage of 4.2V per cell, the evaluation of which can be
achieved by moving resistor R

4

to R3, or by shorting the R3 pads.

Note: Improper connection of the battery may result in damage to the battery

and increase the possibility of personal injury. It is also important to avoid
shorting the battery terminals together.

MCP7386X Evaluation Board User’s Guide

DS51475C-page 10 © 2006 Microchip Technology Inc.

NOTES:

MCP7386X EVALUATION

BOARD USER’S GUIDE

© 2006 Microchip Technology Inc. DS51475C-page 11

Appendix A. Schematic and Layouts

A.1 INTRODUCTION

This appendix contains the following schematics and layouts for the MCP7386X
Evaluation Board:

• Board Schematic

• Board – Top Layer

• Board – Silk Screen Layer

• Board – Bottom Layer

MCP7386X Evaluation Board User’s Guide

DS51475C-page 12 © 2006 Microchip Technology Inc.

A.2 BOARD SCHEMATIC

C1

4.7uF

C2

4.7uF

R8

100k

R6

6.19k

C3

0.1uF

D2

RED

1

J8

TIMER

1

J7

THERM

1

J6

VBAT-

1

J4

PROG

1

J1

EN

D1

GREEN

R4

100k

R7

7.32k

VSS1

4

TIMER

8

VDD1

2

EN

14

VDD23STAT1

16

VBAT2

11

VBAT1

10

PROG

5

THERM

7

STAT215VSET

1

THREF

6

VSS2

13

VBAT3

12

9

EXPAD

17

U1

MCP73861/QFN(16)

1

J5

VBAT+

R1

1.50k

R5

DNP

1

J2

VIN+

1

J3

VIN-

R2

0

R3

DNP

VSS3

Schematic and Layouts

© 2006 Microchip Technology Inc. DS51475C-page 13

A.3 BOARD – TOP LAYER

MCP7386X Evaluation Board User’s Guide

DS51475C-page 14 © 2006 Microchip Technology Inc.

A.4 BOARD – SILK SCREEN LAYER

Schematic and Layouts

© 2006 Microchip Technology Inc. DS51475C-page 15

A.5 BOARD – BOTTOM LAYER

MCP7386X Evaluation Board User’s Guide

DS51475C-page 16 © 2006 Microchip Technology Inc.

NOTES:

MCP7386X EVALUATION

BOARD USER’S GUIDE

© 2006 Microchip Technology Inc. DS51475C-page 17

Appendix B. Bill Of Materials (BOM)

TABLE B-1: BILL OF MATERIALS (BOM)

Qty Designator Description Manufacturer Part Number

2 C1, C2 4.7 µF, X5R Ceramic, 16V, 0805 Panasonic

®

ECJ-2FB1C475K

1 C3 0.1 µF, X7R Ceramic, 16V, 0805 Panasonic ECJ-2VB1C104K

1 D1 Green LED, 0805 Lumex

®

Opto/

Components Inc.

SML-LXT0805GW

1 D2 Red LED, 0805 Lumex Opto/

Components Inc.

SML-LXT0805SRW

8 J1 - J8 Surface-Mount Test Point, 5016 Keystone

®

Electronics

5016

1R1 1.5kΩ, 1/8W, Chip Resistor, 0805 Panasonic ERJ-6GEYJ152V

1R2 0Ω Jumper, 0805 Panasonic ERJ-6GEY0R00V

0 R3, R5 DNP, 0805

2 R4, R8 100 kΩ, 1/10W, Chip Resistor, 0805 Panasonic ERJ-6ENF1003V

1R6 6.19kΩ, 1/10W, Chip Resistor, 0805 Panasonic ERJ-6ENF6191V

1R7 7.32kΩ, 1/10W, Chip Resistor, 0805 Panasonic ERJ-6ENF7321V

1 U1 Single-Cell Lithium-Ion Charger, 4X4QFN16 Microchip

Technology Inc.

MCP73861-I/MLG

Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM

used in manufacturing uses all RoHS-compliant components.

DS51475C-page 18 © 2006 Microchip Technology Inc.
