INTRODUCTION
This chapter contains general information that will be useful to know before using the
MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board. Items discussed
in this chapter include:
• Document Layout
• Conventions Used in this Guide
• Recommended Reading
• The Microchip Web Site
• Customer Support
• Document Revision History
DOCUMENT LAYOUT
This document describes how to use the MCP73113 OVP Single-Cell Li-Ion Battery
Charger Evaluation Board. The manual layout is as follows:
• Chapter 1. “Product Overview” – Importa nt information about the MCP73113
OVP Single-Cell Li-Ion Battery Charger Evaluation Board.
• Chapter 2. “Installation and Operation” – Includes instructions on how to get
started with this user’s guide and a description of the user’s guide.

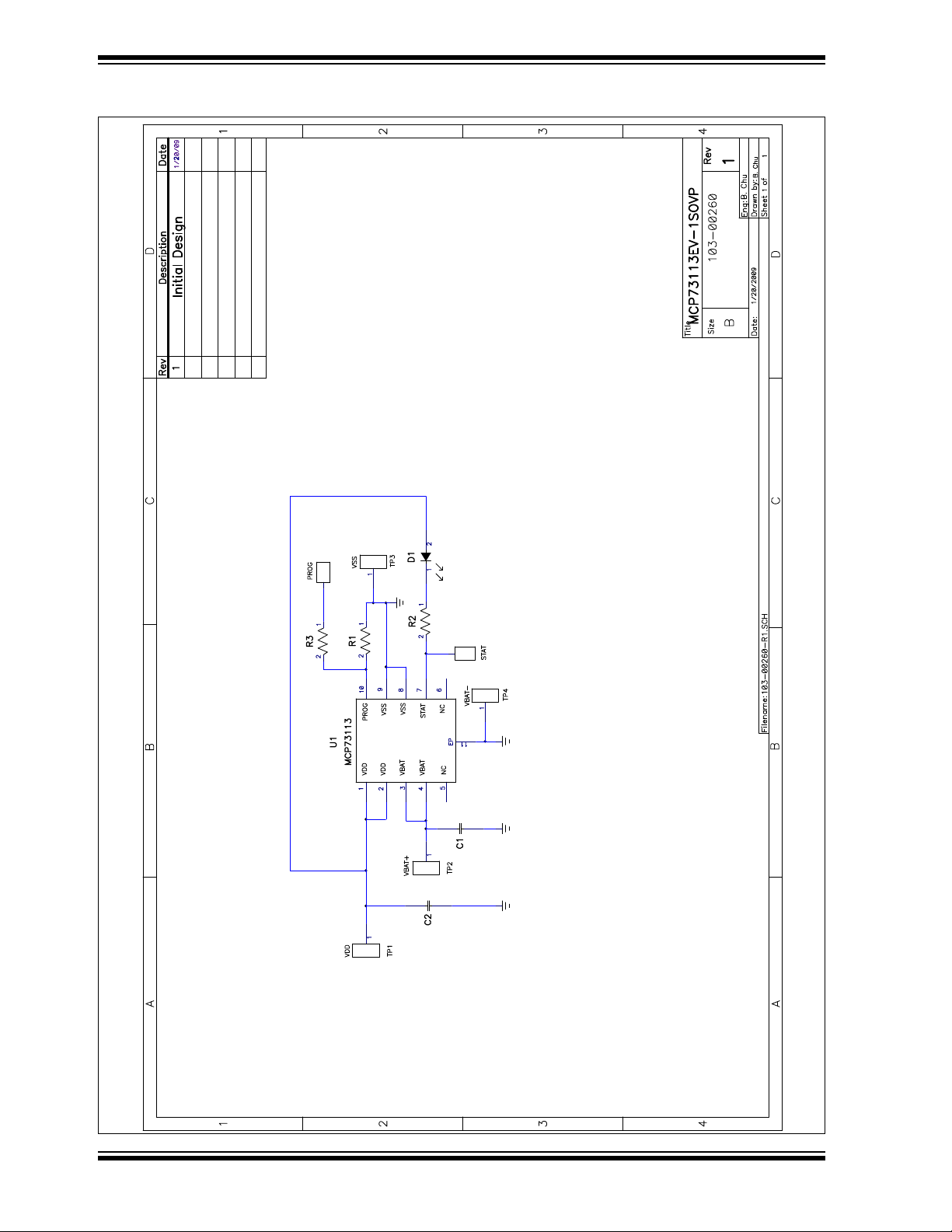

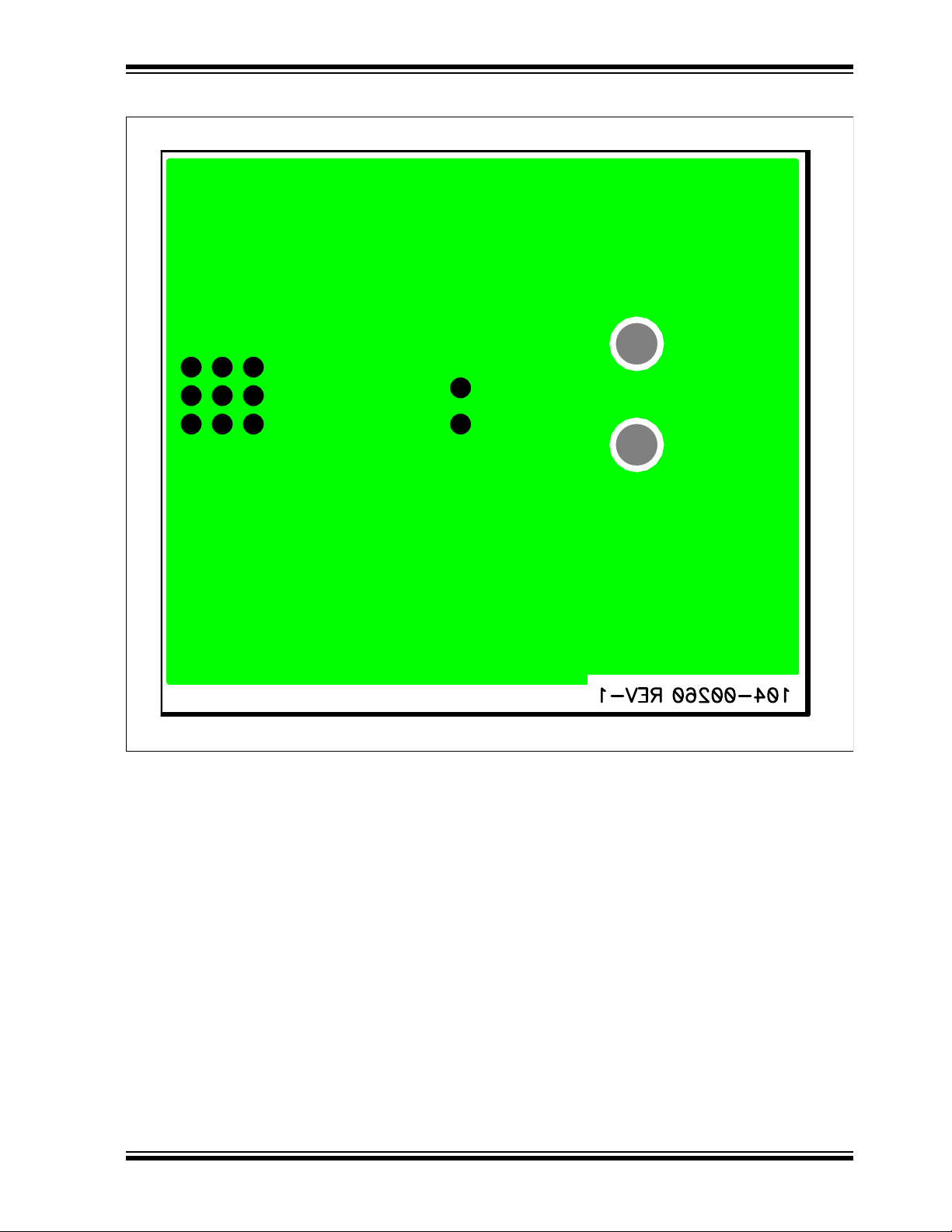

• Appendix A. “Schematic and Layouts” – Shows the schematic and layout
diagrams for the MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation
Board.
• Appendix B. “Bill Of Materials (BOM)” – Lists the parts used to build the
MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board.
Choice of mutually exclusive
arguments; an OR selection
Represents code supplied by
user
“Save project before build”
‘b00100, ‘b10
any valid filename
0xFFFF, 0x007A
[options]
errorlevel {0|1}
var_name...]
void main (void)
{ ...
}
RECOMMENDED READING
This user's guide describes how to use MCP73113 OVP Single-Cell Li-Ion Battery
Charger Evaluation Board. The following Microchip document is recommended as
supplemental reference resources.
MCP73113 Data Sheet, “Single-Cell Li-Ion / Li-Polymer Battery Charge
Management Controller with Input Overvoltage Protection”, DS22183
This data sheet provides detailed information rega rding the MCP73113 product family.
Microchip provides online support via our web site at www.microchip.com. This web
site is used as a means to make files and information easily available to customers.
Accessible by using your favorite Internet browser , the web site contains the following
information:
• Product Support – Data sheets and errata, application notes and sample
programs, design resources, user’s guides and hardware support documents,
latest software releases and archived software
• General Technical Support – Frequently Asked Questions (FAQs), technical
support requests, online discussion groups, Microchip consultant program
member listing
• Business of Microchip – Product selector and ordering guides, latest Microchip
press releases, listing of seminars and events, listings of Microchip sales offices,
distributors and factory representatives
CUSTOMER SUPPORT
Users of Microchip products can receive assistance through several channels:
• Distributor or Representative
• Local Sales Office
• Field Application Engineer (FAE)
• Technical Support
• Development Systems Information Line
Customers should contact their distributor, representative or field application engineer
(FAE) for support. Lo cal sales offices are also available to help customers. A listing of
sales offices and locations is included in the back of this document.
Technical support is available through the web site at: http://support.microchip.com.
The MCP73113 product family is highly integrated linear charge management
controllers for single-cell Li-Ion and Li-Polymer batteries. The MCP73113 product
family operates with minimum external components, which is ideal for use in
space-limited and cost-effective applications. The input over voltage protection and
battery short circuit protection offer designers a secondary protection in addition to the
Li-Ion battery protection circuit.

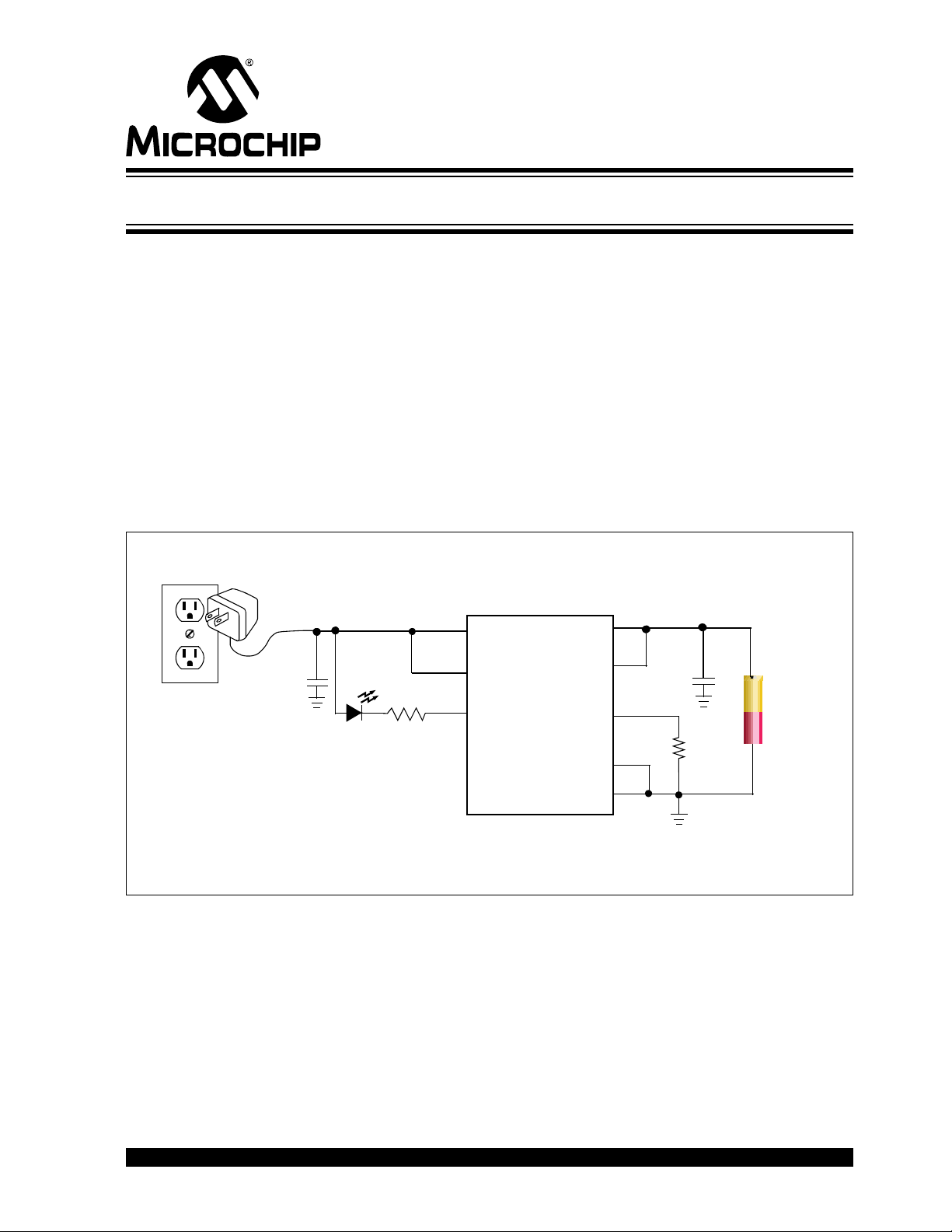

This chapter provides an overview of the MCP73113 OVP Single-Cell Li-Ion Battery
Charger Evaluation Board and covers the following topics:
• “What is the MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation
Board?”
1.2WHAT IS THE MCP73113 OVP SINGLE-CELL LI-ION BATTERY CHARGER
EVALUATION BOARD?
The MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board
demonstrates the features of Microchip’s MCP731 13 “Single-Cell Li-Ion / Li-Polymer Battery Charge Management Controller with Input Overvoltage Protection”.
The MCP73113 OVP Single-Cell Li-Ion Battery Charge r Evaluation Board is desig ned
with two charging current. The default value is 500 mA and when PROG via is tied to
ground, the two parallel resistors output 1000 mA charging current to a Li-Ion battery.
One blue LED status output allows the user to learn if the MCP73113 is in charging
state or not.
Note:Please refer to Table 2-1 for Charge Status Outputs and Table 2-2 for
Charge Current Setups.
The MCP73113 OVP Single-Cell Li-Ion Battery Charger Evalu ation Board comes with
an installed MCP731 13 device in 3mm x 3mm DFN package. The facto ry preset battery
regulation voltage is 4.20V with precondition, termination and auto recharge features.
The MCP73113 OVP Single-Cell Li-Ion Battery Charge r Evaluation Board is designed
to observe the performance and features on the circuit s via multiple test points. Circuits
can also be implemented into suitable applications without additional work.
The MCP73113 is a highly integrated Li-Ion battery charge management controller for
use in space-limited and cost-sensitive applications. The MCP73113 provides specific
charge algorithms for Li-Ion / Li-Polymer batteries to achieve optimal capacity and
safety in the shortest charging time possible. Along with its small physical size, the low
number of external components makes the MCP73113 ideally suitable for portable
applications.
The absolute maximum voltage, up to 18V, allows the use of MCP73113 in harsh
environments, such as low cost wall wart.
The MCP73113 employs a constant current / constant voltage charge algorithm. The
various charging voltage regulations provide design engineers flexibility to use in
different applications. The fast charge, constant current value is set with one external
resistor from 130 mA to 1100 mA. The MCP73113 limits the charge current based on
die temperature during high power or high ambient co nditions. This thermal regulation
optimizes the charge cycle time while maintaining device reliability.
The PROG pin of the MCP73113 also serves as enable pin. When high impedance is
applied, the MCP73113 will be in standby mode.
Typica l applications fo r the r eference desig n are Smart Phon es, PDA, Portab le Media
Players, MP3 Players, Digital Cameras, Handheld Medical devices, Bluetooth
headsets and Portable Communicators.
MCP73113 OVP SINGLE-CELL LI-ION
BATTERY CHARGER EVALUATION
BOARD USER’S GUIDE
2.2FEATURES
The MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board has the
following features:
• 6.5V Input Over Voltage Protection
• 10% Preconditioning of deeply depleted cells
• 32-Minute Preconditioning Timer
• 6-Hour Safety Timer
• 10% Automatic Charge Termination
• 500 mA and 1000 mA Preset Fast Charge Current
• Automatic Recharge
• Thermal Regulation
• One Blue LED indicates charge status
• Small DFN packages with Exposed Pad as additional heat sink
The MCP73113 OVP Single-Cell Li-Ion Battery Charger Evaluation Board is fully
assembled and tested for charging a single-cell Li-Ion or Li-Polymer battery.
2.3.1Power Input and Output Connection
2.3.1.1POWERING THE MCP73113 OVP SINGLE-CELL LI-ION BATTERY
CHARGER EVALUATION BOARD
1. Connect the positive battery terminal to V
V
.
BAT-
2. Connect the 5V DC power supply Negative Terminal to V
3. Connect the 5V DC power supply Positive Terminal to V
4. It should initiate the battery charging cycle when the power sou rce is present and
V
is below recharge threshold. For example, when V
BAT
to be lower than 3.99V to initiate the charge cycle.
Note:The Li-Ion battery pack can be replaced with test circuit or electronic load
that can sink current with DC power supply. Refer to Figure 2-3.
5. The charging status table is available in Table 2-2.
6. The fast charge current is preset at 500 mA and can be increased to 1A by
connecting PROG via to ground.
Note:Fast Charge Current can be programmed with various resistors based on
The components listed in this Bill of Materials are representative of the PCB assembly. The
released BOM used in manufacturing uses all RoHS-compliant components.
