MCP212X

Developer’s Daughter Board

User’s Guide

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.

• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.

• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property.

• Microchip is willing to work with the customer who is concerned about the integrity of their code.

• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Microchip devices in life support and/or safety applications is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights.

Trademarks

The Microchip name and logo, the Microchip logo, Accuron, dsPIC, K

EELOQ, microID, MPLAB, PIC, PICmicro,

PICSTART, PRO MATE, PowerSmart, rfPIC and SmartShunt are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

AmpLab, FilterLab, Migratable Memory, MXDEV, MXLAB, SEEVAL, SmartSensor and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Analog-for-the-Digital Age, Application Maestro, CodeGuard, dsPICDEM, dsPICDEM.net, dsPICworks, ECAN, ECONOMONITOR, FanSense, FlexROM, fuzzyLAB, In-Circuit Serial Programming, ICSP, ICEPIC, Linear Active Thermistor, Mindi, MiWi, MPASM, MPLIB, MPLINK, PICkit, PICDEM, PICDEM.net, PICLAB, PICtail, PowerCal, PowerInfo, PowerMate, PowerTool, REAL ICE, rfLAB, rfPICDEM, Select Mode, Smart Serial, SmartTel, Total Endurance, UNI/O, WiperLock and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

All other trademarks mentioned herein are property of their respective companies.

Printed on recycled paper.

Microchip received ISO/TS-16949:2002 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona, Gresham, Oregon and Mountain View, California. The Company’s quality system processes and procedures are for its PICmicro EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip’s quality system for the design and manufacture of development systems is ISO 9001:2000 certified.

8-bit MCUs, KEELOQ

code hopping devices, Serial

MCP212X DEVELOPER’S

DAUGHTER BOARD USER’S GUIDE

Table of Contents

Preface ........................................................................................................................... 1

Introduction............................................................................................................ 1

Document Layout .................................................................................................. 2

Conventions Used in this Guide ............................................................................ 3

Recommended Reading........................................................................................ 4

The Microchip Web Site ........................................................................................ 5

Customer Support ................................................................................................. 5

Document Revision History ................................................................................... 5

Chapter 1. Product Overview ....................................................................................... 7

1.1 Introduction ..................................................................................................... 7

1.2 What is the MCP212X Developer’s Daughter Board? .................................... 7

1.3 What the MCP212X Developer’s Daughter Board Kit Includes ...................... 8

Chapter 2. Installation and Operation ......................................................................... 9

2.1 Introduction ..................................................................................................... 9

2.2 Features ....................................................................................................... 10

2.3 Getting Started ............................................................................................. 11

2.4 Making a Demo System ............................................................................... 16

2.5 MCP212X Developer’s Daughter Board Description .................................... 18

Appendix A. Schematic and Layouts ........................................................................ 21

A.1 Introduction .................................................................................................. 21

A.2 Schematics and PCB Layout ....................................................................... 21

A.3 Board Schematic – Page 1 ........................................................................ 22

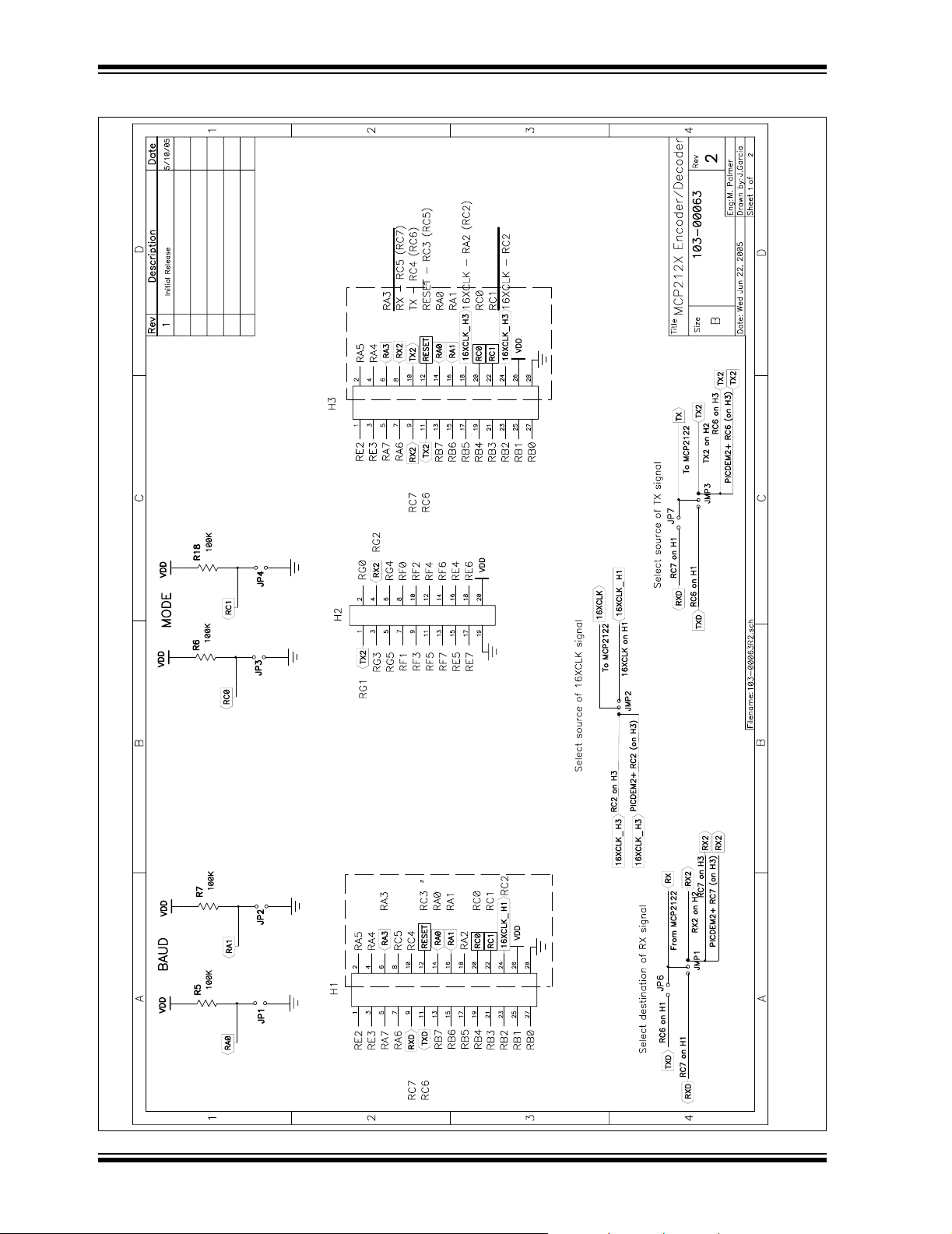

A.4 Board Schematic – Page 2 ........................................................................ 23

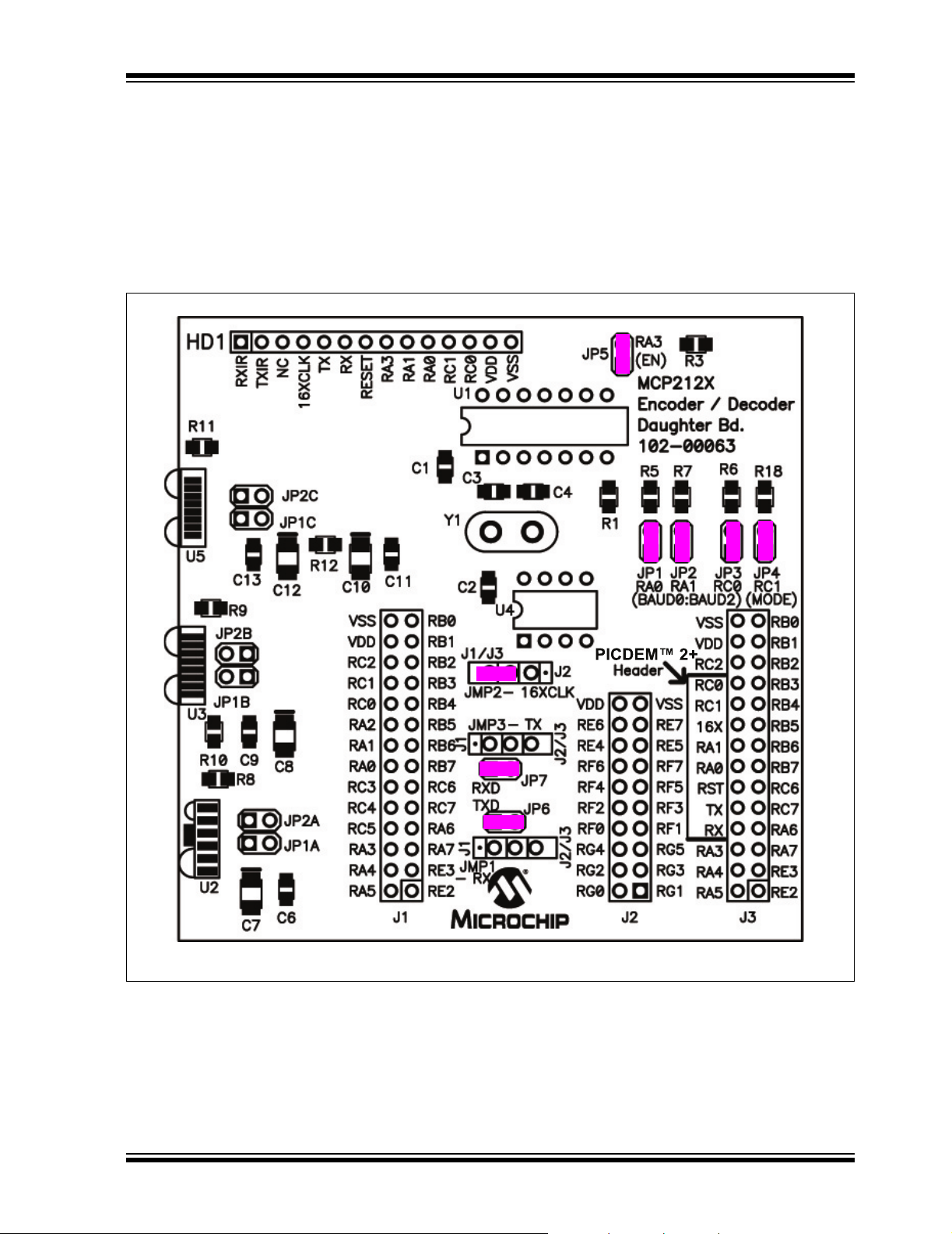

A.5 Board Layout – Component Layer ............................................................. 24

A.6 Board Layout – Top Layer .......................................................................... 25

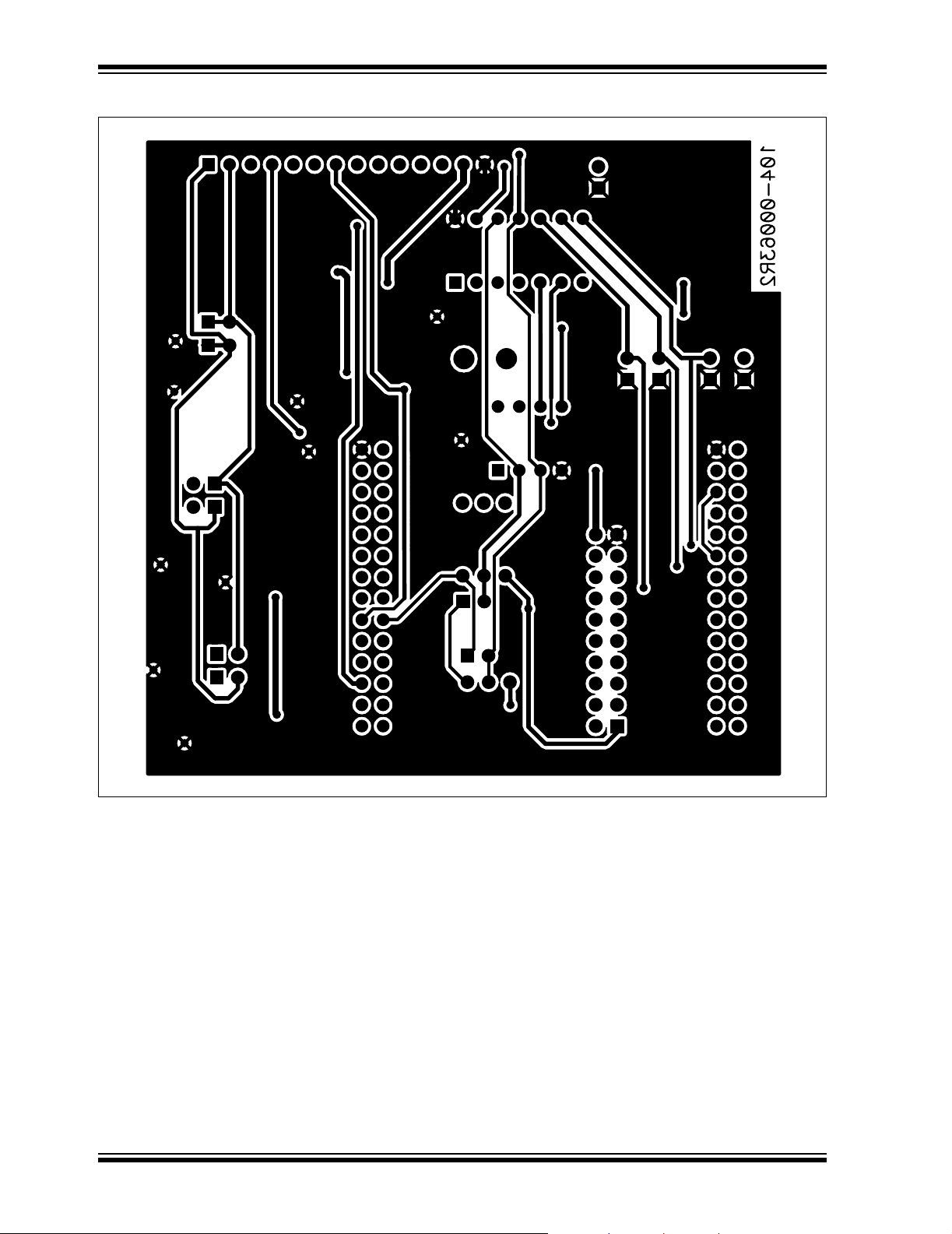

A.7 Board Layout – Bottom Layer .................................................................... 26

Appendix B. Bill Of Materials (BOM) ......................................................................... 27

Appendix C. Board Testing ........................................................................................ 29

C.1 What is Tested ............................................................................................. 29

C.2 What is NOT Tested .................................................................................... 29

Appendix D. Using the MCP212X Developer’s Daughter Board with the

PICDEM™ HPC Explorer Demo Board ................................................ 31

D.1 demonstration using two PICDEM™ HPC Explorer Demo Boards ............. 31

MCP212X Developer’s Daughter Board User’s Guide

Appendix E. Using the MCP212X Developer’s Daughter Board with the

PICDEM™ FS USB Demo Board ...........................................................37

E.1 Demonstration with the PICDEM FS USB Demo Board .............................. 37

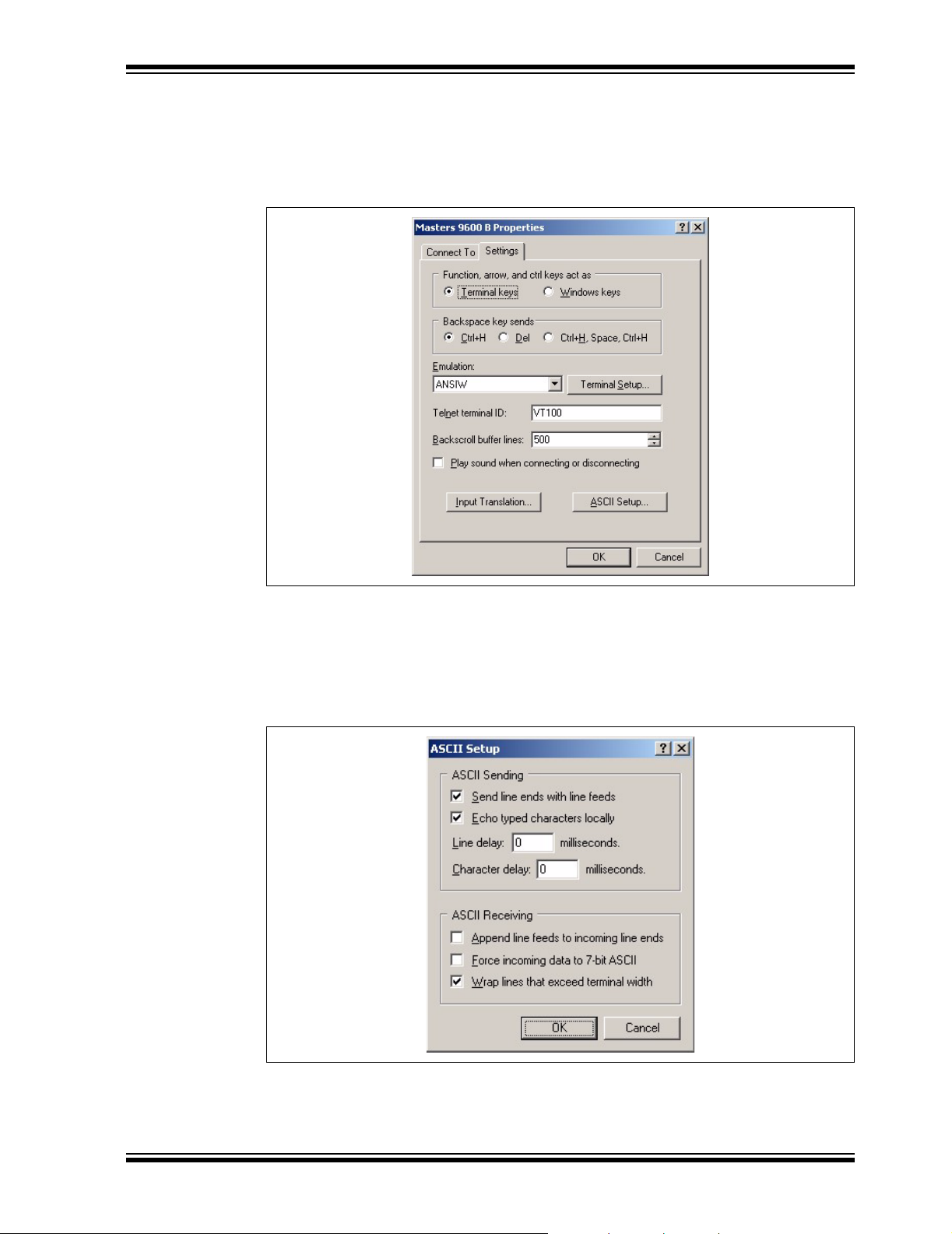

Appendix F. Configuring the HyperTerminal® Program ..........................................41

F.1 Configuring the Hyperterminal® Program .................................................... 41

Worldwide Sales and Service .....................................................................................46

MCP212X DEVELOPER’S

DAUGHTER BOARD USER’S GUIDE

Preface

NOTICE TO CUSTOMERS

All documentation becomes dated, and this manual is no exception. Microchip tools and documentation are constantly evolving to meet customer needs, so some actual dialogs and/or tool descriptions may differ from those in this document. Please refer to our web site (www.microchip.com) to obtain the latest documentation available.

Documents are identified with a “DS” number. This number is located on the bottom of each page, in front of the page number. The numbering convention for the DS number is “DSXXXXXA”, where “XXXXX” is the document number and “A” is the revision level of the document.

INTRODUCTION

This chapter contains general information that will be useful to know before using the MCP212X Developer’s Daughter Board. Items discussed in this chapter include:

• Document Layout

• Conventions Used in this Guide

• Recommended Reading

• The Microchip Web Site

• Customer Support

• Document Revision History

MCP212X Developer’s Daughter Board User’s Guide

DOCUMENT LAYOUT

This document describes how to use the MCP212X Developer’s Daughter Board. The manual layout is as follows:

• Chapter 1. “Product Overview” – Important information about the MCP212X

Developer’s Daughter Board.

• Chapter 2. “Installation and Operation” – Includes a detailed description of

each function, as well as instructions on how to get started with this daughter board.

• Appendix A. “Schematic and Layouts” – Shows the schematic and layout

diagrams for the MCP212X Developer’s Daughter Board.

• Appendix B. “Bill Of Materials (BOM)” – Lists the parts used to build the

MCP212X Developer’s Daughter Board.

• Appendix C. “Board Testing” – Discusses the testing of the MCP212X

Developer’s Daughter Board in several configurations.

• Appendix D. “Using the MCP212X Developer’s Daughter Board with the PICDEM™ HPC Explorer Demo Board” – Shows how the MCP212X Developer’s Daughter Board can be demonstrated using the PICDEM™ HPC Explorer Demo Board.

• Appendix E. “Using the MCP212X Developer’s Daughter Board with the PICDEM™ FS USB Demo Board” – Shows how the MCP212X Developer’s Daughter Board can be demonstrated using the PICDEM™ FS USB Demo Board.

• Appendix F. “Configuring the HyperTerminal configuration of the HyperTerminal program used to demonstrate the MCP212X Developer’s Daughter Board system.

Program” – Shows the

CONVENTIONS USED IN THIS GUIDE

This manual uses the following documentation conventions:

DOCUMENTATION CONVENTIONS

Description Represents Examples

Arial font:

Italic characters Referenced books MPLAB® IDE User’s Guide

Initial caps A window the Output window

Quotes A field name in a window or

Underlined, italic text with right angle bracket

Bold characters A dialog button Click OK

N‘Rnnnn A number in verilog format,

Text in angle brackets < > A key on the keyboard Press <Enter>, <F1>

Courier New font:

Plain Courier New Sample source code #define START

Italic Courier New A variable argument file.o, where file can be

Square brackets [ ] Optional arguments mcc18 [options] file

Curly brackets and pipe character: { | }

Ellipses... Replaces repeated text var_name [,

Preface

Emphasized text ...is the only compiler...

A dialog the Settings dialog A menu selection select Enable Programmer

“Save project before build”

dialog A menu path File>Save

A tab Click the Power tab

4‘b0010, 2‘hF1 where N is the total number of digits, R is the radix and n is a digit.

Filenames autoexec.bat File paths c:\mcc18\h Keywords _asm, _endasm, static Command-line options -Opa+, -Opa- Bit values 0, 1 Constants 0xFF, ‘A’

any valid filename

[options]

Choice of mutually exclusive arguments; an OR selection

Represents code supplied by user

errorlevel {0|1}

var_name...]

void main (void)

{ ...

}

MCP212X Developer’s Daughter Board User’s Guide

THE MICROCHIP WEB SITE

Microchip provides online support via our web site at www.microchip.com. This web site is used as a means to make files and information easily available to customers. Accessible by using your favorite Internet browser, the web site contains the following information:

• Product Support – Data sheets and errata, application notes and sample

programs, design resources, user’s guides and hardware support documents, latest software releases and archived software

• General Technical Support – Frequently Asked Questions (FAQs), technical

support requests, online discussion groups, Microchip consultant program member listing

• Business of Microchip – Product selector and ordering guides, latest Microchip

press releases, listing of seminars and events, listings of Microchip sales offices, distributors and factory representatives

CUSTOMER SUPPORT

Users of Microchip products can receive assistance through several channels:

• Distributor or Representative

• Local Sales Office

• Field Application Engineer (FAE)

• Technical Support

• Development Systems Information Line

Customers should contact their distributor, representative or field application engineer (FAE) for support. Local sales offices are also available to help customers. A listing of sales offices and locations is included in the back of this document.

Technical support is available through the web site at: http://support.microchip.com

Preface

DOCUMENT REVISION HISTORY

Revision B (July 2006)

• Add disclaimer to Bill of Materials regarding RoHS-Compliant part numbers.

Revision A (August 2005)

• Initial Release of this Document.

MCP212X Developer’s Daughter Board User’s Guide

NOTES:

MCP212X DEVELOPER’S

DAUGHTER BOARD USER’S GUIDE

Chapter 1. Product Overview

1.1 INTRODUCTION

This chapter provides an overview of the MCP212X Developer’s Daughter Board and covers the following topics:

• What is the MCP212X Developer’s Daughter Board?

• What the MCP212X Developer’s Daughter Board kit includes

1.2 WHAT IS THE MCP212X DEVELOPER’S DAUGHTER BOARD?

The MCP212X Developer’s Daughter Board is used to evaluate and demonstrate the MCP2122 or MCP2120 IrDA

Standard Encoder/Decoder device. This allows the system designer to implement a low-cost, wireless IR port in any application providing support for IrDA standard bit encoding/decoding.

The MCP212X Developer’s Daughter Board is designed to interface to several of the “new” low-cost PICmicro

microcontroller-based demonstration (demo) boards, or to be interfaced into your application. Multiple header interfaces are available that allow support for the many different PICDEM™ Demo Boards, as well as being easily jumpered into systems for development purposes. Table 1-1 shows some of the PICDEM demo boards that are supported.

Depending on the features of the PICmicro Microcontroller Unit (MCU) and the selected demo board, the MCP2122 TX and RX signals can either be connected (jumpered) directly to the RS-232 line driver or to the PICmicro MCU’s RX and TX signals. The PICmicro MCU could process that data and then send it out of the UART.

TABLE 1-1: PICDEM™ DEMO BOARD SUPPORT

Name

PICDEM™ HPC Explorer Board

PICDEM™ LCD DM163028 DS51536 PIC18F8490 J1, J2 Y Y

PICDEM™ Full-Speed USB DM163025 DS51526 PIC18F4550 J3 Y N/A

PICDEM™ 2 Plus DM163022 DS51275 PIC16F877,

User Embedded System N/A — — HD1 Y —

Note 1: Other boards may also be supported. Please refer to the MCP212X Developer’s Daughter Board and

desired PICDEM™ Demo Board documentation to determine if the boards you are using are supported.

2: For proper orientation of the daugter board to the PICDEM™ demo board, Revision 5 of the PICDEM™

HPC Explorer Board is recommended. Revision 4 will function, but the direction of the optical transceiver will be facing the same side as the serial port connector.

3: The MCP212X Developer’s Daughter Board allows the MCP212X TX and RX signals to be routed to

different header connections. This may allow the system to support multiple configurations, such as being either connected to the PICmicro communicate via the DB-9 connector).

Order

Number

(2)

DM183022 DS51540 PIC18F8722 J1, J2 Y Y

Literature #

MCU USART or to the RS-232 driver (allows the MCP212X to directly

(1)

Host Controller

(PICmicro® MCU)

Supported

PIC18F452

Header(s)

Used

J3 Y N

TX/RX Signals to

Host

Controller

RS-232

(3)

MCP212X Developer’s Daughter Board User’s Guide

1.3 WHAT THE MCP212X DEVELOPER’S DAUGHTER BOARD KIT INCLUDES

This MCP212X Developer’s Daughter Board Kit includes:

• The MCP212X Developer’s Daughter Board (with MCP2122 installed)

• A MCP2120 sample device

• MCP212X Developer’s Daughter Board User’s Guide (Electronic version on CD-ROM)

• PICDEM™ HPC Explorer Board firmware (on CD-ROM)

• PICDEM™ USB Board firmware (on CD-ROM)

• Analog and Interface Products Demonstration Boards CD-ROM (DS21912)

Chapter 2. Installation and Operation

2.1 INTRODUCTION

This chapter discusses the operation of the MCP212X Developer’s Daughter Board and how it can be used in conjunction with some of Microchip’s low-cost PICDEM™ Demo Boards or easily connected to your system.

When the MCP212X Developer’s Daughter Board is used in conjunction with one of the low-cost PICDEM™ Demo Boards, it demonstrates the implementation of an embedded system with an IrDA A second encoder/decoder system is required to demonstrate system operation.

The Host UART interface includes only the TX and RX signals. A discussion of the Host UART interface is given in the following application note:

•AN946, “Interfacing the MCP2122 to the Host Controller” (DS00946)

MCP212X DEVELOPER’S

DAUGHTER BOARD USER’S GUIDE

standard physical layer interface (encoder/decoder).

MCP212X Developer’s Daughter Board User’s Guide

2.2 FEATURES

The MCP212X Developer’s Daughter Board has the following features:

• Dual Header to connect to:

- PICDEM™ HPC Explorer Demo Board

- PICDEM™ LCD Demo Board

• Header to connect to:

- PICDEM™ Full-Speed USB Demo Board

- PICDEM™ 2 Plus Demo Board

• Header to easily connect to the user’s embedded system

• Installed optical transceiver circuit using:

-Vishay

• Footprint for optional optical transceiver circuits using:

- Vishay TFDU 4100

- Agilent

• Jumpers to select connection point (header) for the following signals:

-TX

-RX

-16XCLK

• Jumpers to “swap” TX and RX so that the MCP2120 can directly communicate over the PICDEM™ HPC Explorer Board’s DB-9 connector

• Jumpers which can be used by the PICDEM demo board firmware program to determine the mode of operation

• 8-pin DIP socket for the installation of the MCP2122

• 14-pin DIP socket for the installation of the MCP2120

• MCP2120’s crystal is socketed to allow ease of crystal selection

TFDU 4300

HSDL 3000

TABLE 2-1: PICDEM™ DEMO BOARD SUPPORT

PICmicro®

MCU Demo

Board Name

PICDEM™ HPC Explorer

PICDEM™ LCD DM163028 PIC18F8490 UART Yes DS51536 MCU firmware could support:

PICDEM™ Full-Speed USB

PICDEM™ 2 Plus

Part #

DM183022 PIC18F8722 UART Yes DS51540 MCU firmware could support:

DM163025 PIC18F4550 USB — DS51526 MCU firmware could support:

DM163022 PIC16F877/

PICmicro

MCU

PIC18F452

MCU

Interface

to PC

UART — DS51275 MCU firmware could support:

MCP2122

RX/TX direct

access to DB9

User’s

Guide Lit. #

Comment

• MCP2122 → MCU

• MCP2122 → PC

(UART)

• MCP2122 → MCU → PC (UART)

• MCP2122 → MCU

• MCP2122 → PC (UART)

• MCP2122 → MCU → PC (UART) DB-9 does not have CTS signal

• MCP2122 → MCU

• MCP2122 → MCU → PC (USB)

• MCP2122 → MCU

2.3 GETTING STARTED

This section presents an overview of the following system blocks:

• The MCP212X Developer’s Daughter Board Hardware

• The MCP212X Developer’s Daughter Board Firmware

2.3.1 The MCP212X Developer’s Daughter Board Hardware Overview

The major components for the MCP212X Developer’s Daughter Board are:

1. MCP2122 device (U4).

2. MCP2120 device socket (U1).

3. Optical transceiver (U5 – Vishay TFDU 4300).

4. Headers H1 and H2.

5. Header H3.

6. Header HD1.

7. Jumpers to route the TX, RX and 16XCLK signals.

8. Jumpers to select the baud rate and mode.

9. Footprint for two different optional optical transceiver circuits (Vishay TFDU 4100 and Agilent HSDL 3000).

10. MCP2120 crystal (Y2).

The MCP212X Developer’s Daughter Board is assembled and tested to allow for the evaluation and demonstration of the MCP2122 or MCP2120 features. A schematic of the circuit, as well as the corresponding PCB layout, is shown in Appendix A. “Schematic and Layouts”. Appendix B. “Bill Of Materials (BOM)” shows two tables; the first is the components that are installed, while the second lists the optional components that are not installed.

The component layout floor plan is shown in Figure 2-1.

Installation and Operation

MCP212X Developer’s Daughter Board User’s Guide

FIGURE 2-1: MCP212X DEVELOPER’S DAUGHTER BOARD COMPONENT FLOOR PLAN

Installation and Operation

2.3.2 Jumper Settings

Figure 2-2 shows the component layout for the MCP212X Developer’s Daughter Board and the operation of the JMP1/JP6, JMP2 and JMP3/JP7 jumpers. These jumpers determine the connections between the MCP2120’s RX, TX and 16XCLK signals, as well as the header’s RX, TX and 16XCLK signals.

FIGURE 2-2: JMP1/JP6, JMP2 AND JMP3/JP7 CONFIGURATIONS

16XCLK Source

16XCLK is from the J1-RC2 pin

16XCLK is from the J3-RC2 pin or J3-16X

JMP1/JP6 (RX) Selections

RX to H1-RC7 (RXD)

RX to H2-RG2 (RX2), RX to H3-RC7 (RXD), and RX to H3-RX

RX to H1-RC6 (TXD) (DB-9 to PC)

JMP3/JP7 (TX) Selections

TX to H1-RC6 (TXD)

TX to H2-RG1 (TX2), TX to H3-RC6 (TXD), and TX to H3-TX

TX to H1-RC7 (RXD) (DB-9 to PC)

MCP212X Developer’s Daughter Board User’s Guide

Figure 2-3 shows the component layout for the MCP212X Developer’s Daughter Board and the operation of the JP1, JP2, JP3 and JP4 jumpers. When the jumper is open, the signal is pulled high. When the jumper is shorted, the signal is pulled to ground. JP1 is connected to the header’s RA0 signal, JP2 is connected to the header’s RA1 signal, JP3 is connected to the header’s RC0 signal and JP4 is connected to the header’s RC1 signal. These signals are also connected to the MCP2120’s BAUD and MODE pins.

FIGURE 2-3: JP1, JP2, JP3 AND JP4 CONFIGURATIONS

Baud Rate Selection JP1 JP2 JP3

9600 Baud

19200 Baud

38400 Baud

All Other Settings

57600 Baud

115200 Baud

Not Defined

Mode Selection

MCP212X communicates with DB-9 (PC)

MCP212X communicates with PIC18F8722

Note 1: This is the firmware operation for

00063 HPC.asm when used w/ the PICDEM™ HPC Explorer Demo Board.

(1)

Installation and Operation

A description of the MCP212X Developer’s Daughter Board jumpers is given in Ta bl e 2- 2.

TABLE 2-2: JUMPER DESCRIPTIONS AND SETTINGS

Jumper # Description Comment

JP1A:JP2A To connect TXIR/RXIR of MCP2122 to TXD/RXD of

U5 (HSDL 3000) S = TXIR/RXIR connected to TXD/RXD O = TXIR/RXIR Not connected to TXD/RXD

JP1B:JP2B To connect TXIR/RXIR of MCP2122 to TXD/RXD of

U5 (TFDU 4100) S = TXIR/RXIR connected to TXD/RXD O = TXIR/RXIR Not connected to TXD/RXD

JP1C:JP2C To connect TXIR/RXIR of MCP2122 to TXD/RXD of

U5 (TFDU 4300) S = TXIR/RXIR connected to TXD/RXD O = TXIR/RXIR Not connected to TXD/RXD

JP1 Hardware control of Header RA0 signal and MCP2120

BAUD0 signal S = Signal Connected to V O = Signal Connected to VDD

JP2 Hardware control of Header RA1 signal and MCP2120

BAUD1 signal S = Signal Connected to VSS O = Signal Connected to VDD

JP3 Hardware control of Header RC0 signal and MCP2120

BAUD2 signal S = Signal Connected to V O = Signal Connected to VDD

JP4 Hardware control of Header RC1 signal and MCP2120

MODE signal S = Signal Connected to V O = Signal Connected to VDD

JP5 Hardware control of Header RA3 signal and MCP2120 EN

signal S = Signal Connected to VSS O = Signal Connected to VDD

JMP1 Connects MCP2120 RX signal to either Header 1’s RX

signal or Header 2/Header 3 RX signals

JP6 Connects MCP2120 RX signal to Header 1’s TX signal Used when the MCP2120

JMP2 Connects MCP2120 16XCLK signal to either Header 1’s

16XCLK signal or to Header 2/Header 3’s 16XCLK signals

JMP3 Connects MCP2120 TX signal to Header 1’s TX

signal or Header 2/Header 3 TX signals

JP7 Connects MCP2120 TX signal to Header 1’s RX

signal

Legend: S = Jumper is shorted (Closed) O = Jumper is Open Note 1: The MCP2120’s RX signal is either connected via JMP1 or JP6 (but not both at the same time).

2: The MCP2120’s TX signal is either connected via JMP3 or JP7 (but not both at the same time).

By default not installed.

By default not installed. PCB traces short these jumpers (bottom of PCB)

Note 1

communicates directly from the DB-9 connector. (Note 1)

Note 2

Used when the MCP2120 communicates directly from the DB-9 connector. (Note 2)

MCP212X Developer’s Daughter Board User’s Guide

2.4 MAKING A DEMO SYSTEM

The MCP212X Developer’s Daughter Board requires a clock source and either a Host Controller or a UART circuit. To demonstrate the board, the easiest method is to use one of the compatible PICDEM™ Demo Boards. A good choice is the PICDEM™ HPC Explorer Demo Board. This allows the MCP2120 device to interface to either:

• PIC18F8722’s EUSART1

• PIC18F8722’s EUSART2

• PICDEM™ HPC Explorer Demo Board’s DB-9 connector (MAX3232C)

Additional instructions for performing a demo using the PICDEM™ HPC Explorer Demo Board are shown in Appendix D. “Using the MCP212X Developer’s Daughter

Board with the PICDEM™ HPC Explorer Demo Board”. Appendix E. “Using the MCP212X Developer’s Daughter Board with the PICDEM™ FS USB Demo Board”

supplies instructions for performing a demo using the PICDEM™ FS USB Demo Board. Appendix F. “Configuring the HyperTerminal configuring the HyperTerminal program on the PC.

System Requirements

Table 2-3 shows the requirements for a system that can be used to demonstrate the MCP212X Developer’s Daughter Board.

System Setup

The system setup requires a PC with two serial communication ports (UARTs) and HyperTerminal, the system application program. Two PICDEM™ HPC Explorer Demo Boards and two MCP212X Daughter Boards are then needed.

Program” may be useful for

Note: The MCP2122 may be installed in U4, or the MCP2120 may be installed in

U1. However, these devices should not be installed at the same time.

Figure 2-4 shows a system block diagram.

TABLE 2-3: SYSTEM HARDWARE REQUIREMENTS

Qty Hardware Purpose

1 PC with 2 serial ports The PC will “talk” to each PICDEM™ HPC Explorer Demo Board

(Encoder/Decoder board) via the serial port and an instance of the HyperTerminal® program. For consistency, COM 1 will be used to talk to the “System #1” PICDEM™ HPC Explorer Demo Board. Com 2 will be used to communicate to the “System #2” PICDEM™ HPC Explorer Demo Board.

2 Serial Cables To connect the PC serial ports to each PICDEM™ HPC Explorer Demo

Board’s serial port.

2 PICDEM™ HPC Explorer Boards The MCP212X Developer’s Daughter Board will be installed into this board

for testing.

2 MCP2120 Daughter Boards This board will be used to communicate with the system under test.

2 2 PICDEM™ HPC Explorer Demo

Board Power Supplies (9V DC)

Used to power each of the PICDEM™ HPC Explorer Demo Boards.

FIGURE 2-4: SYSTEM BLOCK DIAGRAM

Installation and Operation

HyperTerminal Program Window A

(Com 1)

HyperTerminal Program Window B

Note 1: Only required if data is

communicated with the PC. Some program modes “respond” to received data (data not sent to PC).

(Com 2)

(1)

2.4.1 The PICDEM™ Demo Board Firmware Overview

Two firmware programs are supplied with this board. 00063 - HPC.asm is for the PICDEM™ HPC Explorer Demo Board, while 00063 - FS USB.asm is for the PICDEM™ FS USB Demo Board.

The PICDEM™ HPC Explorer Demo Board supports two modes of operation: the Direct-to-PC and Echo modes.

In Direct-to-PC mode, the data byte communicates between the MCP2120 and the PICDEM™ HPC Explorer Demo Board’s DB-9 connector (does not communicate with the PIC18F8722). The PIC18F8722 is only used for the 16XCLK signal (for the specified baud rate).

In Echo mode, the data byte that is received is “echoed” in the opposite case (lowercase → uppercase and uppercase → lowercase).

The PICDEM™ FS USB Demo Board only supports Echo mode.

The source code for these programs are available for download from the Microchip web site (www.microchip.com), as well as being available on the CD-ROM supplied with the MCP212X Developer’s Daughter Board.

To use these programs, it is required that the MPLAB and that one of Microchip’s development tools are available to program the board (such as MPLAB

ICD 2).

Com 1

System #1 PICDEM™ HPC Explorer Demo Board plus MCP212X Daughter Boards

IDE be installed on a computer

Com 2

System #2 PICDEM™ HPC Explorer Demo Board plus MCP212X Daughter Boards

(1)

MCP212X Developer’s Daughter Board User’s Guide

2.5 MCP212X DEVELOPER’S DAUGHTER BOARD DESCRIPTION

The following sections describe each element of this daughter board in further detail.

2.5.1 Power

The MCP212X Developer’s Daughter Board is powered by a 5V supply. This voltage supply may be sourced via the PCB headers.

When the device is used in conjunction with the appropriate PICDEM™ Demo Board, the power is supplied via the connector interface. If the MCP212X Developer’s Daughter Board is jumpered into an application circuit via the HD1 connector, the device power supply must be brought over as well.

2.5.2 MCP212X IrDA® Standard Encoder/Decoder Device

This demo board highlights the MCP2122 device (U4) and MCP2120 device (U1) to demonstrate the implementation of an IR port in an embedded system application. The MCP2120 device handles the encoding/decoding of the UART/IR bit stream.

Further Host Controller interface information is available in the device documentation:

• MCP2122 Data Sheet, “Infrared Encoder/Decoder” (DS21894)

• MCP2120 Data Sheet, “Infrared Encoder/Decoder” (DS21618)

• AN946, “Interfacing the MCP2122 to the Host Controller” (DS00946)

2.5.2.1 MCP2122 OPERATION

The MCP2122 (U4) implements an IrDA standard encoder/decoder. The baud rate is determined by the frequency of the 16XCLK input.

The key signals for the MCP2122-to-microcontroller (Host UART) interface are shown in Table 2-4. The key signals for the MCP2122-to-IR transceiver circuit are shown in Ta bl e 2- 5.

TABLE 2-4: MCP2122 HOST UART INTERFACE PINS

Name

TX 2 I TTL Asynchronous receive; from Host Controller UART

RX 3 O — Asynchronous transmit; to Host Controller UART

16XCLK 1 I TTL 16 x Clock

Legend: TTL = TTL compatible input ST = Schmitt Trigger input with CMOS levels

Number

(PDIP)

I = Input O = Output

Type

Buffer

Typ e

Description

TABLE 2-5: MCP2122 IR INTERFACE PINS

Pin Name

TXIR 2 O — Asynchronous transmit to IrDA

RXIR 3 I ST Asynchronous receive from infrared transceiver

Legend: A = Analog P = Power

Number

(PDIP)

I = Input O= Output

Type

Buffer

Type

transceiver

Description

standard

In addition to the signals described in Table 2-4 and Table 2-5, the MCP2120 RESET input is connected to the RESET output of the Host Controller.

Installation and Operation

2.5.2.2 MCP2120 OPERATION

The MCP2120 (U1) implements an IrDA standard encoder/decoder. The baud rate is determined by the device frequency and the state of the BAUD2:BAUD0 pins. The MCP2120 also has a Software Baud Rate mode which controls the baud rate via the Host Controller software.

The key signals for the MCP2120-to-microcontroller (Host UART) interface are shown in Table 2-6. The key signals for the MCP2120-to-IR transceiver circuit are shown in Ta bl e 2- 7.

TABLE 2-6: MCP2120 HOST UART INTERFACE PINS

Name

TX 12 I TTL Asynchronous receive; from Host Controller UART

RX 11 O — Asynchronous transmit; to Host Controller UART

BAUD0 10 I TTL BAUD2:BAUD0 specifies the Baud rate of the

BAUD1 9 I TTL

BAUD3 8 I TTL

MODE 7 I TTL Selects the device mode (Data/Command) for

Legend: TTL = TTL compatible input ST = Schmitt Trigger input with CMOS levels

Number

(PDIP)

I = Input O = Output

Type

Buffer

Typ e

device, or if the device operates in Software Baud Rate mode

Software Baud Rate operation

Description

TABLE 2-7: MCP2120 IR INTERFACE PINS

Pin Name

TXIR 6 O — Asynchronous transmit to IrDA

RXIR 5 I ST Asynchronous receive from an infrared transceiver

Legend: A = Analog P = Power

Number

(PDIP)

I = Input O = Output

Type

Buffer

Type

transceiver

Description

standard

In addition to the signals described in Table 2-6 and Table 2-7, the MCP2120 RESET input is connected to the RESET output of the Host Controller. The EN input can be either hard-wired or controlled by the Host Controller.

MCP212X Developer’s Daughter Board User’s Guide

2.5.3 IR Transceiver Circuit

The IR transceiver circuit uses a Vishay® TFDU 4300 integrated optical transceiver.

Footprints for an optional optical transceiver are implemented. These footprints are for the Vishay TFDU 4100 and the Agilent three implementations to be installed, but with only one connected to the MCP2120 TXIR and RXIR pins.

2.5.4 Signal Header

To allow easy access to many of the system signals, a header (HD1) was placed on one of the edges of the board. This allows the signals from the MCP2120 to be easily accessed and connected into an existing application for initial development or proof-of-concept.

FIGURE 2-5: 14-PIN SIGNAL INTERFACE HEADER HD1

HD1

TXIR

RXIR

16XCLK

HSDL-3000. Jumpers are used to allow all

RA3

RESET

RA1

RA0

RC1

RC0

VDD

VSS

DAUGHTER BOARD USER’S GUIDE

Appendix A. Schematic and Layouts

A.1 INTRODUCTION

This appendix contains the following schematics and layouts for the MCP212X Developer’s Daughter Board:

• Board Schematic – Headers and Jumpers

• Board Schematic – Circuitry

• Board – Component Layer

• Board – Top Layer

• Board – Bottom Layer

A.2 SCHEMATICS AND PCB LAYOUT

The layer order is shown in Figure A-1.

FIGURE A-1: LAYER ORDER

MCP212X DEVELOPER’S

Top Layer

Bottom Layer

MCP212X Developer’s Daughter Board User’s Guide

A.3 BOARD SCHEMATIC – PAGE 1

PICDEM™ 2+

Daughter Board PICtail™

PICtail™ Daughter Board

A.4 BOARD SCHEMATIC – PAGE 2

Schematic and Layouts

VSS

OSC2

VDD4R

OSC1/CLKI

BAUD1

BAUD2

BAUD0

ES E T

TXIR

MODE

RXIR

MCP212X Developer’s Daughter Board User’s Guide

A.5 BOARD LAYOUT – COMPONENT LAYER

A.6 BOARD LAYOUT – TOP LAYER

Schematic and Layouts

MCP212X Developer’s Daughter Board User’s Guide

A.7 BOARD LAYOUT – BOTTOM LAYER

MCP212X DEVELOPER’S

DAUGHTER BOARD USER’S GUIDE

Appendix B. Bill Of Materials (BOM)

The MCP212X Developer’s Daughter Board allows the MCP2120 or MCP2122 device to be evaluated. The board also allows the customer to evaluate the operation of one of three optical tranceiver devices.

Table B-1 shows the components that are installed in the MCP212X Developer’s Daughter Board PCB, while Table B-2 shows the components that are NOT installed on the MCP212X Developer’s Daughter Board PCB.

TABLE B-1: BOM – COMPONENTS INSTALLED

Qty Reference Description Manufacturer Part Number

4 C1, C2, C11, C13 0.1 µF (SMT) Panasonic® - ECG ECJ-2VB1C104K

2 C3, C4 18 pF (SMT) Yageo America 0805CG180J9B200

2 C10, C12 4.7 µF/16V (SMT) Panasonic - ECG ECS-T1AY475R

1 H1, H3 2x14 Male connector Header Jameco Valuepro 2012-254-2X14SG

1 H2 2x10 Male connector Header Jameco Valuepro 7000-2X10SG

1 HD1 1x14 Male connector Header Jameco Valuepro 7000-1x14SG

3 JMP1, JMP2, JMP3 1x3 Jumper Stakes (Male) Jameco Valuepro 7000-1x3SG

7 JP1, JP2, JP3, JP4,

JP5, JP6, JP7

2 R1, R3 10 kΩ (SMT) Panasonic - ECG ERJ-6ENF1002V

4 R5, R6, R7, R18 100 kΩ (SMT) Panasonic - ECG ERJ-6ENF1003V

1 R12 47Ω (SMT) Panasonic - ECG ERJ-6ENF47R5V

1 U1 14-pin DIP Socket Microchip

1 U4 8-pin DIP Socket Jameco Valuepro 6100-14

1 MCP2122 (provided) Jameco Valuepro 6100-8

1 U5 TFDU-4300 Microchip

2 Y1 Crystal Sockets pin Manufacturing Corp 0667-0-15-01-30-27-10-0

1 7.3728 MHz Crystal (Through hole) CTS Frequency

1 — PCB 105-00063 (R2 or greater) Microchip

8 — Jumper Shunt (used on JP1, JP2,

Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM

used in manufacturing uses all RoHS-compliant components.

1x2 Jumper Stakes (Male) Jameco Valuepro 7000-1x2SG

Technology Inc.

MP073

Controls

Technology Inc.

Jameco Valuepro 2012JH

JP3, JP4, JP5, JP6, JP7 and JMP2)

MCP212X Developer’s Daughter Board User’s Guide

TABLE B-2: BOM – OPTIONAL COMPONENTS, NOT INSTALLED

Qty Reference Description Manufacturer Part Number

0 C6 0.47 µF (SMT)

0 C7 6.8 µF Tantalium (SMT)

0 C8 4.7 µF/16V (SMT)

0 C9 0.1 µF (SMT) Panasonic - ECG ECJ-2VB1C104K

0 JP1A, JP1B, JP1C,

JP2A, JP2B, JP2C

0R8 6.8Ω (SMT)

0R9 14Ω (SMT)

0 R10 47Ω (SMT)

0R11 0Ω (SMT)

1 U1 MCP2120 (In the Sample Pack) Microchip

0 U2 HSDL-3000 Agilent

0 U3 TFDU-4100 Vishay

0 — Jumper Shunt (used on JP1A and

1x2 Jumper Stakes (Male) Jameco Valuepro 7000-1x2SG

MCP2120-I/P

Technology Inc.

Jameco Valuepro 2012JH JP2A, or JP1B and JP2B, or JP1C and JP2C)

HSDL-3000

TFDU-4100

MCP212X DEVELOPER’S

DAUGHTER BOARD USER’S GUIDE

Appendix C. Board Testing

The MCP212X Developer’s Daughter Board can be used in multiple configurations. Only a subset of these configurations will be tested. The tests were performed at 9600 baud. Other baud rates were not tested.

TABLE C-1: MCP212X DEVELOPER’S DAUGHTER BOARD TESTED CONFIGURATIONS

JP3:JP2:JP1 JP4 JP5

S:S:S O S 2-3 2-3 (JMP1) 2-3 (JMP3) 9600 baud, MCP2122 to PIC18F8772

S:S:S S S 2-3 S (JP6) S (JP7) 9600 baud, MCP2122 to DB9 (PC) on

Legend: O = Jumper is “Open” S = Jumper is “Shorted”

1-2 = Pin 1 is shorted to Pin 2 (of 3 pin header) 2-3 = Pin 2 is shorted to Pin 3 (of 3 pin header)

JMP2

(16XCLK)

JMP1/JP6

(MCP212x RX

Destination)

JMP3/JP7

(MCP212x TX

Destination)

Comment

UART2 on Header 2 (Echo mode)

Header 1

C.1 WHAT IS TESTED

The following portions of the board are tested:

• MCP2122

• TFDU-4300 and circuitry

• Header 1 – TXD and RXD signals

• Header 1 – 16XCLK signal

• Header 2 – TX2 and RX2 signals

•JP4

•JP6

•JP7

C.2 WHAT IS NOT TESTED

The following portions of the board are NOT tested:

• MCP2120 and crystal circuitry

• TFDU-4100 and circuitry

• HSDL-3000 and circuitry

• Header 3

• JP1, JP2, JP3 and JP5

• JMP2 (P1 – P2)

• JMP1 (P1 – P2)

• JMP3 (P1 – P2)

• Header HD1

MCP212X Developer’s Daughter Board User’s Guide

NOTES:

MCP212X DEVELOPER’S

DAUGHTER BOARD USER’S GUIDE

Appendix D. Using the MCP212X Developer’s Daughter

Board with the PICDEM™ HPC Explorer Demo Board

D.1 DEMONSTRATION USING TWO PICDEM™ HPC EXPLORER DEMO BOARDS

To perform a demonstration of the MCP212X Developer’s Daughter Board, two systems are needed. Each system is a MCP212X Developer’s Daughter Board (MCP212XEV-DB) plus the PICDEM™ HPC Explorer Demo Board (DM183022). Figure D-1 shows a block diagram of the demonstation system.

FIGURE D-1: SYSTEM BLOCK DIAGRAM

HyperTerminal Program Window A

(Com 1)

HyperTerminal Program Window B

(Com 2)

The firmware for these demos is available on the Microchip web site, as well as on the AIPD Evaluation Board CD-ROM. The filename is 00063 - HPC.asm. This code must be programmed into the PICDEM™ HPC Explorer Demo Board’s PIC18F8722 for demo operation. This code supports two demos. The demo executed is dependent on the state of the JP4 jumper.

Note: Other PICDEM™ Demo Boards may be used, but appropriate firmware

Com 1

System #1 PICDEM™ HPC Explorer Demo Board plus MCP212X Developer’s Daughter Boards

needs to be installed to demonstrate the system.

System #2 PICDEM™ HPC Explorer Demo Board plus MCP212X Developer’s Daughter Boards

Com 2

MCP212X Developer’s Daughter Board User’s Guide

The crystal frequency of the PICDEM™ Demo Board determines the error rates for the EUSART baud rates, as well as the 16XCLK generation (for the MCP2122). So for the PICDEM™ HPC Explorer Demo Board, the default crystal is 10 MHz (does have a 4x PLL). Therefore, the 16XCLK frequency for 115200 baud has an error outside usable limits for IrDA Table D-1). The demo will be limited to 9600 baud. Table D-2 shows the SPBRG values for the EUSART at the same crystal frequencies.

standard communication for both 10 MHz and 40 MHz operation (see

TABLE D-1: PR VALUES FOR PWM

Desired

Baud Rate

9600 153,600 64 -0.16% 32 1.36% 23 0% 15 -1.73%

19200 307,200 32 1.36% 15 -1.73% 11 0% 7 -1.73%

38400 614,400 15 -1.73% 7 -1.73% 5 0% 3 -1.73%

57600 921,600 10 1.36% 4

115200 1,843,200 4 -8.51% 2 -35.6% 1 0% 1 32.18%

Note 1: Shaded values indicate a % error that is larger than should be used.

2: The following shows the PICDEM™ Demo Board device frequencies:

3: CCP Duty Cycle should be approximately 50% of the PR value.

16XCLK

PICDEM™ HPC Explorer Demo Board has a 10 MHz crystal installed (4xPLL -> 40 MHz). PICDEM™ FS USB Demo Board has a 20 MHz crystal installed. PICDEM™ 2 Plus Demo Board has a 4 MHz crystal installed. PICDEM™ LCD has a socket for an external canned oscillator (also has an internal 8 MHz RC).

@ 40 MHz

(3)

TABLE D-2: SPBRG VALUES FOR EUSART

Desired

Baud Rate

9600 225 -1.73% 129 -0.16% 95 0% 64 -0.16%

19200 129 -0.16% 64 -0.16% 47 0% 32 1.36%

38400 64 -0.16% 32 1.36% 23 0% 15 -1.73%

57600 42 -0.94% 21 1.36% 15 0% 10 1.36%

115200 21 1.36% 10 1.36% 7 0% 4

Note 1: Shaded values indicate a % error that is larger than should be used.

2: The following shows the PICDEM™ Demo Board device frequencies:

3: SYNC = 0, BRGH = 1, BRG16 = 0.

@ 40 MHz

SPBRG

(3)

(2)

%Error SPBRG

(1)

(2)

%Error PR

(1)

@ 20 MHz

(3)

@ 20 MHz

(3)

(2)

%Error PR

-8.51% 3 0% 2 9.58%

(2)

%Error SPBRG

@ 14.759 MHz

(3)

@ 14.759 MHz

(3)

%Error SPBRG

(2)

%Error PR

(2)

@ 10 MHz

(3)

%Error

(3)

%Error

-8.51%

(2)

Using the MCP212X Developer’s Daughter Board

with the PICDEM™ HPC Explorer Demo Board

D.1.1 Demo #1 Operation

In Demo #1, the MCP212X Developer’s Daughter Board will communicate directly to the PICDEM™ HPC Explorer Demo Board’s DB-9 connector (and then to the PC). The PICDEM™ HPC Explorer Demo Board is used to determine the communication baud rate (9600) via the JP3, JP2 and JP1 jumper states. Given this state, the PICmicro MCU can then supply the 16XCLK frequency to the MCP2122. Power is supplied over the J1 and J2 interface headers. Jumper JP4 is used to select which demonstration program to run. Figure D-2 shows the jumper configuration for Demo #1.

FIGURE D-2: DEMO #1 CONFIGURATION

MCP212X Developer’s Daughter Board User’s Guide

Table D-3 shows the steps for Demo #1 operation.

TABLE D-3: DEMO #1 STEPS

Step Action Result

1 Place both devices on a flat surface about 25 cm (10”)

apart, with the IR ports facing each other.

2 On the System #1 Unit:

The jumpers must be configured as in Figure D-3.

3 On the System #1 Unit:

Apply power to the unit via the 9V power supply.

4 On the System #1 Unit:

Connect the PC serial port cable that is connected to COM1.

5 On the System #2 Unit:

Insert the MCP212X Developer’s Daughter Board into the PICDEM™ HPC Explorer Demo Board. Ensure that the jumpers are configured as in Figure D-2.

6 On the System #2 Unit:

Apply power to the unit via the 9V power supply.

7 On the System #2 Unit:

Connect the PC serial port cable that is connected to COM2.

8 On the System #1 Unit:

Depress and release Switch 2 (S2 – M

9 On the System #2 Unit:

Depress and release Switch 2 (S2 – M

10 On the PC:

Open the HyperTerminal COM 1. Ensure that the window indicates that the HyperTerminal program is connected.

11 On the PC:

In the HyperTerminal program COM1 window, type alpha-numeric characters (such as “123456 asdfg”).

12 On the PC:

In the HyperTerminal program COM2 window, depress the Return key and type alpha-numeric characters (such as “7890 hjkl;”).

13 On the System #2 Unit:

Power-down the board and remove the tested MCP212x Daughter Board.

14 Go to Step #5 —

program window for

CLR).

—

On the System #1 Unit:

The green power LED (D) will turn on.

—

Test unit will echo the received Alpha character (changing the case; upper to lower and lower to upper).

On the System #2 Unit:

The green power LED (D) will turn on.

—

On the PC:

In the HyperTerminal program COM 2 window, the same characters should be displayed (“123456 asdfg”).

On the PC:

In the HyperTerminal program COM 1 window, the same characters should be displayed (“7890 hjkl;”) on the line below the “123456 asdfg” characters.

—

Using the MCP212X Developer’s Daughter Board

with the PICDEM™ HPC Explorer Demo Board

D.1.2 Demo #2 Operation

In Demo #2, the System 2 unit will echo any alpha character received, changing the case of the character (lowercase to uppercase/uppercase to lowercase). The System 1 unit is connected to the PC, while the System 2 unit is not connected, though it still needs to be powered. The PICDEM™ HPC Explorer Demo Board is used to determine the communication baud rate (9600) via the JP3, JP2 and JP1 jumper states. Given this state, the PICmicro MCP2122. Power is supplied over the J1 and J2 interface headers. Jumper JP4 is used to select which demo program to run. Figure D-3 shows the jumper configuration for Demo #2.

Table D-3 shows the steps for Demo #2.

FIGURE D-3: DEMO #2 CONFIGURATION

MCU can then supply the 16XCLK frequency to the

MCP212X Developer’s Daughter Board User’s Guide

TABLE D-4: DEMO #2 STEPS

Step Action Result

1 Place both devices on a flat surface about 25 cm (10”)

apart, and with the IR ports facing each other.

2 On the System #1 Unit:

The jumpers must be configured as in Figure D-3.

3 On the System #1 Unit:

Apply power to the unit via the 9V power supply.

4 On the System #1 Unit:

Connect the PC serial port cable that is connected to COM1.

5 On the System #2 Unit:

Insert the MCP212X Developer’s Daughter Board into the PICDEM™ HPC Explorer Demo Board. Ensure that the jumpers are configured as in Figure D-2.

6 On the System #2 Unit:

Apply power to the unit via the 9V power supply.

7 On the System #1 Unit:

Depress and release Switch 2 (S2 – M

8 On the System #2 Unit:

Depress and release Switch 2 (S2 – M

9 On the PC:

Open the HyperTerminal COM 1. Ensure that the window indicates that the HyperTerminal program is connected

10 On the PC:

In the HyperTerminal program window, type an “a”.

11 On the PC:

Type some additional alpha characters into the HyperTerminal program window.

12 On the System #2 Unit:

Power down the board and remove the tested MCP212X Developer’s Daughter Board.

13 Go to Step #5 —

program window for

CLR).

—

On the System #1 Unit:

The green power LED (D) will turn on.

—

Test unit will echo the received Alpha character (changing the case; uppercase to lowercase and lowercase to uppercase)

On the System #2 Unit:

The green power LED (D) will turn on. —

—

On the PC:

The HyperTerminal window will display an “aA”.

On the PC:

The typed alpha character will echo where the case has changed; lowercase -> uppercase and uppercase -> lowercase.

—

MCP212X DEVELOPER’S

DAUGHTER BOARD USER’S GUIDE

Appendix E. Using the MCP212X Developer’s Daughter

Board with the PICDEM™ FS USB Demo Board

E.1 DEMONSTRATION WITH THE PICDEM FS USB DEMO BOARD

To perform a demonstration of the MCP212X, two systems are needed. One system will operate as an encoder/decoder passing information to the PC. This system may be either the:

• MCP212X Developer’s Daughter Board (MCP212XEV-DB) plus the PICDEM™ HPC Explorer Demo Board (DM183022) or

• MCP2120 Developer’s Board (DM163008)

The second system is a MCP212X Developer’s Daughter Board (MCP212XEV-DB) plus the PICDEM™ FS USB Demo Board (DM163025). This system operates in a stand-alone mode and will “echo” the characters it receives (changing the case of the received alpha character). Figure E-1 shows a block diagram of the demonstration system.

FIGURE E-1: SYSTEM BLOCK DIAGRAM

HyperTerminal Program Window A

(Com 1)

Com 1

System #1 PICDEM™ HPC Explorer Demo Board + MCP212X Developer’s Daughter Boards

The firmware for these demos is available on the Microchip web site, as well as on the AIPD Evaluation Board CD-ROM. The file name is 00063 - FS USB.asm. This code must be programmed into the PICDEM™ FS USB Demo Board’s PIC18F4550 for demo operation. This code requires the JP4 jumper to be in the documented state.

Note: Other PICDEM™ Demo Boards may be used, but appropriate firmware

needs to be installed to demonstrate the system.

System #2 PICDEM™ FS USB Demo Board + MCP212X Developer’s Daughter Boards

MCP212X Developer’s Daughter Board User’s Guide

The crystal frequency of the PICDEM™ Demo Board determines the error rates for the EUSART baud rates, as well as the 16XCLK generation (for the MCP2122). So, for the PICDEM™ FS USB Demo Board, the default crystal is 20 MHz. The 16XCLK frequency for 115200 and 57600 baud has an error outside usable limits for IrDA standard communication for 20 MHz operation (see Table E-1). Therefore, the demo will be limited to 9600 baud. Table E-2 shows the SPBRG values for the EUSART at the same crystal frequencies.

TABLE E-1: PR VALUES FOR PWM

Desired

Baud Rate

9600 153,600 64 -0.16% 32 1.36% 23 0% 15 -1.73%

19200 307,200 32 1.36% 15 -1.73% 11 0% 7 -1.73%

38400 614,400 15 -1.73% 7 -1.73% 5 0% 3 -1.73%

57600 921,600 10 1.36% 4

115200 1,843,200 4 -8.51% 2 -35.6% 1 0% 1 32.18%

Note 1: Shaded values indicate a % error that is larger then should be used.

2: The following shows the PICDEM™ Demo Board device frequencies:

3: CCP duty cycle should be approximately 50% of the PR value.

16XCLK

PICDEM™ HPC Explorer Demo Board has a 10 MHz crystal installed (4xPLL -> 40 MHz), PICDEM™ FS USB Demo Board has a 20 MHz crystal installed, PICDEM™ 2 Plus Demo Board has a 4 MHz crystal installed, PICDEM™ LCD has a socket for an external canned oscillator (also has an internal 8 MHz RC).

@ 40 MHz

(3)

TABLE E-2: SPBRG VALUES FOR EUSART

Desired

Baud Rate

9600 225 -1.73% 129 -0.16% 95 0% 64 -0.16%

19200 129 -0.16% 64 -0.16% 47 0% 32 1.36%

38400 64 -0.16% 32 1.36% 23 0% 15 -1.73%

57600 42 -0.94% 21 1.36% 15 0% 10 1.36%

115200 21 1.36% 10 1.36% 7 0% 4

Note 1: Shaded values indicate a % error that is larger then should be used.

2: The following shows the PICDEM™ Demo Board device frequencies:

3: SYNC = 0, BRGH = 1, BRG16 = 0.

@ 40 MHz

SPBRG

(3)

(2)

%Error SPBRG

(1)

(2)

%Error PR

(1)

@ 20 MHz

(3)

@ 20 MHz

(3)

(2)

%Error PR

-8.51% 3 0% 2 9.58%

(2)

%Error SPBRG

@ 14.759 MHz

(3)

@ 14.759 MHz

(3)

%Error SPBRG

(2)

%Error PR

(2)

@ 10 MHz

(3)

%Error

(3)

%Error

-8.51%

(2)

Using the MCP212X Developer’s Daughter Board

with the PICDEM™ FS USB Demo Board

E.1.1 Demo #1 Operation

In Demo #1, the System 2 unit will echo any alpha character received, changing the case of the character (lowercase to uppercase/uppercase to lowercase). The System 1 unit is connected to the PC, while the System 2 unit is not connected, though it still needs to be powered. The PICDEM™ FS USB Demo Board is used to determine the communication baud rate (9600) via the JP3, JP2 and JP1 jumper states. Given this state, the PICmicro Power is supplied over the J3 interface header. Jumper JP4 is used to select which demo program to run. Figure E-2 shows the jumper configuration for Demo #1.

Table E-3 shows the steps for Demo #1.

FIGURE E-2: DEMO #1 CONFIGURATION

MCU can then supply the 16XCLK frequency to the MCP2122.

TABLE E-3: DEMO #1 TEST STEPS

Step Action Result

1 Place both devices on a flat surface about 25 cm (10”)

apart, with the IR ports facing each other.

—

MCP212X Developer’s Daughter Board User’s Guide

TABLE E-3: DEMO #1 TEST STEPS

Step Action Result

2 On the System #1 Unit:

The jumpers must be configured as in Figure E-2.

3 On the System #1 Unit:

Apply power to the unit via the 9V power supply.

4 On the System #1 Unit:

Connect the PC serial port cable that is connected to COM1.

5 On the System #2:

Insert the MCP212X Developer’s Daughter Board into the PICDEM™ HPC Explorer Demo Board. Ensure that the jumpers are configured as shown in Figure E-2.

6 On the System #2:

Apply power to the unit via the 9V power supply.

7 On the System #1 Unit:

Depress and release Switch 2 (S2 – M

8 On the System #2:

Depress and release Switch 2 (S2 – M

9 On the PC:

Open the HyperTerminal COM 1. Ensure that the window indicates that the HyperTerminal program is connected.

10 On the PC:

In the HyperTerminal program window, type an “a”.

11 On the PC:

Type some additional alpha characters in the HyperTerminal program window.

12 On the System #2:

Power down the board and remove the tested MCP212X Developer’s Daughter Board.

13 Go to Step #5 —

program window for

CLR).

—

On the System #1 Unit:

The green power LED (D) will turn on.

—

System #2 will echo the received alpha character (changing the case; uppercase to lowercase and lowercase to uppercase).

On the System #2:

The green power LED (D) will turn on. —

—

On the PC:

The HyperTerminal program window will display an “aA”.

On the PC:

The typed alpha character will echo where the case has changed; lowercase -> uppercase and uppercase -> lowercase.

—

MCP212X DEVELOPER’S

DAUGHTER BOARD USER’S GUIDE

Appendix F. Configuring the HyperTerminal® Program

F.1 CONFIGURING THE HyperTerminal® PROGRAM

To ensure that the PC is able to communicate to the PICDEM™ HPC Explorer Demo Board, the HyperTerminal program must be properly configured. This section describes the configuration that the HyperTerminal program should be in.

The screen-shots shown in Figure F-1 through Figure F-6 show the settings of the HyperTerminal program in the Windows

You should save each configuration of the HyperTerminal program in order to easily distinguish which HyperTerminal program window is “tacking” with which PICDEM™ HPC Explorer Board.

After opening the HyperTerminal program window, select Call -> Disconnect. In the lower-left corner, the HyperTerminal program window will indicate “Disconnected”. Next, in the HyperTerminal program window, select File -> Properties. The window in Figure F-2 is shown. Ensure that the appropriate COM port is selected for both the “Golden” unit and the “Testing” unit. Then select the Configure button.

operating system.

FIGURE F-1: HyperTerminal

PROGRAM MAIN WINDOW

MCP212X Developer’s Daughter Board User’s Guide

FIGURE F-2: HyperTerminal® PROGRAM PROPERTIES

CONNECT TO WINDOW

This will open up the Port Settings window. The port settings should be configured as shown in Figure F-3. After configuring the port settings, select OK. The Figure F-2 window will be shown. Select the Settings tab.

FIGURE F-3: HyperTerminal

CONFIGURATION WINDOW

PROGRAM PROPERTIES

Configuring the HyperTerminal® Program

The window will now look as shown in Figure F-4. Ensure that your settings match the settings shown. Select the ASCII Setup button. This will open the ASCII Setup window (Figure F-5).

FIGURE F-4: HyperTerminal

SETTINGS WINDOW

Ensure that your settings match the settings shown. Select the OK button. The window in Figure F-4 will again be shown. Select the Input Translation button. This will open the Translation Button window (Figure F-6). Click OK and close each window. After these “property” windows are closed, you may wish to save each configuration with a name that you can remember (one for COM1 and the other for COM2).

PROGRAM PROPERTIES

FIGURE F-5: HyperTerminal

PROGRAM ASCII SETUP WINDOW

MCP212X Developer’s Daughter Board User’s Guide

FIGURE F-6: HyperTerminal® PROGRAM INPUT TRANSLATION WINDOW

NOTES:

Configuring the HyperTerminal® Program

WORLDWIDE SALES AND SERVICE

AMERICAS

Corporate Office

2355 West Chandler Blvd. Chandler, AZ 85224-6199 Tel: 480-792-7200 Fax: 480-792-7277 Technical Support: http://support.microchip.com Web Address: www.microchip.com

Atlanta

Alpharetta, GA Tel: 770-640-0034 Fax: 770-640-0307

Boston

Westborough, MA Tel: 774-760-0087 Fax: 774-760-0088

Chicago

Itasca, IL Tel: 630-285-0071 Fax: 630-285-0075

Dallas

Addison, TX Tel: 972-818-7423 Fax: 972-818-2924

Detroit

Farmington Hills, MI Tel: 248-538-2250 Fax: 248-538-2260

Kokomo

Kokomo, IN Tel: 765-864-8360 Fax: 765-864-8387

Los Angeles

Mission Viejo, CA Tel: 949-462-9523 Fax: 949-462-9608

Santa Clara

Santa Clara, CA Tel: 408-961-6444 Fax: 408-961-6445

Toronto

Mississauga, Ontario, Canada Tel: 905-673-0699 Fax: 905-673-6509

ASIA/PACIFIC

Asia Pacific Office

Suites 3707-14, 37th Floor Tower 6, The Gateway Habour City, Kowloon Hong Kong Tel: 852-2401-1200 Fax: 852-2401-3431

Australia - Sydney

Tel: 61-2-9868-6733 Fax: 61-2-9868-6755

China - Beijing

Tel: 86-10-8528-2100 Fax: 86-10-8528-2104

China - Chengdu

Tel: 86-28-8676-6200 Fax: 86-28-8676-6599

China - Fuzhou

Tel: 86-591-8750-3506 Fax: 86-591-8750-3521

China - Hong Kong SAR

Tel: 852-2401-1200 Fax: 852-2401-3431

China - Qingdao

Tel: 86-532-8502-7355 Fax: 86-532-8502-7205

China - Shanghai

Tel: 86-21-5407-5533 Fax: 86-21-5407-5066

China - Shenyang

Tel: 86-24-2334-2829 Fax: 86-24-2334-2393

China - Shenzhen

Tel: 86-755-8203-2660 Fax: 86-755-8203-1760

China - Shunde

Tel: 86-757-2839-5507 Fax: 86-757-2839-5571

China - Wuhan

Tel: 86-27-5980-5300 Fax: 86-27-5980-5118

China - Xian

Tel: 86-29-8833-7250 Fax: 86-29-8833-7256

ASIA/PACIFIC

India - Bangalore

Tel: 91-80-4182-8400 Fax: 91-80-4182-8422

India - New Delhi

Tel: 91-11-4160-8631 Fax: 91-11-4160-8632

India - Pune

Tel: 91-20-2566-1512 Fax: 91-20-2566-1513

Japan - Yokohama

Tel: 81-45-471- 6166 Fax: 81-45-471-6122

Korea - Gumi

Tel: 82-54-473-4301 Fax: 82-54-473-4302

Korea - Seoul

Tel: 82-2-554-7200 Fax: 82-2-558-5932 or 82-2-558-5934

Malaysia - Penang

Tel: 60-4-646-8870 Fax: 60-4-646-5086

Philippines - Manila

Tel: 63-2-634-9065 Fax: 63-2-634-9069

Singapore

Tel: 65-6334-8870 Fax: 65-6334-8850

Taiwan - Hsin Chu

Tel: 886-3-572-9526 Fax: 886-3-572-6459

Taiwan - Kaohsiung

Tel: 886-7-536-4818 Fax: 886-7-536-4803

Taiwan - Taipei

Tel: 886-2-2500-6610 Fax: 886-2-2508-0102

Thailand - Bangkok

Tel: 66-2-694-1351 Fax: 66-2-694-1350

EUROPE

Austria - Wels

Tel: 43-7242-2244-3910 Fax: 43-7242-2244-393

Denmark - Copenhagen

Tel: 45-4450-2828 Fax: 45-4485-2829

France - Paris

Tel: 33-1-69-53-63-20 Fax: 33-1-69-30-90-79

Germany - Munich

Tel: 49-89-627-144-0 Fax: 49-89-627-144-44

Italy - Milan

Tel: 39-0331-742611 Fax: 39-0331-466781

Netherlands - Drunen

Tel: 31-416-690399 Fax: 31-416-690340

Spain - Madrid

Tel: 34-91-708-08-90 Fax: 34-91-708-08-91

UK - Wokingham

Tel: 44-118-921-5869 Fax: 44-118-921-5820

07/21/06

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Microchip: MCP212XEV-DB

Microchip Technology MCP212X User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

INTRODUCTION

DOCUMENT LAYOUT

CONVENTIONS USED IN THIS GUIDE

RECOMMENDED READING

THE MICROCHIP WEB SITE

CUSTOMER SUPPORT

DOCUMENT REVISION HISTORY

Chapter 1. Product Overview

1.1 INTRODUCTION

1.2 WHAT IS THE MCP212X DEVELOPER’S DAUGHTER BOARD?

1.3 WHAT THE MCP212X DEVELOPER’S DAUGHTER BOARD KIT INCLUDES

Chapter 2. Installation and Operation

2.1 INTRODUCTION

2.2 FEATURES

2.3 GETTING STARTED

2.4 MAKING A DEMO SYSTEM

2.5 MCP212X DEVELOPER’S DAUGHTER BOARD DESCRIPTION

Appendix A. Schematic and Layouts

A.1 INTRODUCTION

A.2 SCHEMATICS AND PCB LAYOUT

Appendix B. Bill Of Materials (BOM)

Appendix C. Board Testing

C.1 WHAT IS TESTED

C.2 WHAT IS NOT TESTED

E.1 DEMONSTRATION WITH THE PICDEM FS USB DEMO BOARD

Appendix F. Configuring the HyperTerminal® Program

F.1 CONFIGURING THE HyperTerminal® PROGRAM

WORLDWIDE SALES AND SERVICE
