Microchip Technology MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User guide

MCP1630V
Bidirectional 4 Cell
Li-Ion Charger Reference Design
User’s Guide
© 2006 Microchip Technology Inc. DS51641A
Note the following details of the code protection feature on Microchip devices:
Microchip products meet the specification contained in their particular Microchip Data Sheet.
Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.
There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
Microchip is willing to work with the customer who is concerned about the integrity of their code.
Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”
Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.
Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Microchip devices in life support and/or safety applications is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights.
Trademarks
The Microchip name and logo, the Microchip logo, Accuron, dsPIC, K
EELOQ, microID, MPLAB, PIC, PICmicro, PICSTART,
PRO MATE, PowerSmart, rfPIC and SmartShunt are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.
AmpLab, FilterLab, Migratable Memory, MXDEV, MXLAB, SEEVAL, SmartSensor and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A.
Analog-for-the-Digital Age, Application Maestro, CodeGuard, dsPICDEM, dsPICDEM.net, dsPICworks, ECAN, ECONOMONITOR, FanSense, FlexROM, fuzzyLAB, In-Circuit Serial Programming, ICSP, ICEPIC, Linear Active Thermistor, Mindi, MiWi, MPASM, MPLIB, MPLINK, PICkit, PICDEM, PICDEM.net, PICLAB, PICtail, PowerCal, PowerInfo, PowerMate, PowerTool, REAL ICE, rfLAB, rfPICDEM, Select Mode, Smart Serial, SmartTel, Total Endurance, UNI/O, WiperLock and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.
SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.
All other trademarks mentioned herein are property of their respective companies.
© 2006, Microchip Technology Incorporated, Printed in the U.S.A., All Rights Reserved.
Printed on recycled paper.
Microchip received ISO/TS-16949:2002 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona, Gresham, Oregon and Mountain View, California. The Company’s quality system processes and procedures are for its PIC 8-bit MCUs, KEELOQ microperipherals, nonvolatile memory and analog products. In addition, Microchip’s quality system for the design and manufacture of development systems is ISO 9001:2000 certified.
®
code hopping devices, Serial EEPROMs,
DS51641A-page ii © 2006 Microchip Technology Inc.
®
MCP1630V BIDIRECTIONAL 4 CELL
LI-ION CHARGER REFERENCE
DESIGN USER’S GUIDE
Table of Contents
Preface ........................................................................................................................... 1
Introduction............................................................................................................ 1
Document Layout .................................................................................................. 1
Conventions Used in this Guide ............................................................................ 2
Recommended Reading........................................................................................ 2
The Microchip Web Site ........................................................................................ 3
Customer Support ................................................................................................. 3
Document Revision History ................................................................................... 3
Chapter 1. Product Overview ........................................................................................ 5
1.1 Introduction ..................................................................................................... 5
1.2 What is the MCP1630V Bidirectional 4 Cell Li-Ion Charger
Reference Design? ................................................................................... 6
1.3 What the MCP1630V Bidirectional 4 Cell Li-Ion Charger
Reference Design kit includes .................................................................. 6
Chapter 2. Installation and Operation .......................................................................... 7
2.4 Introduction ..................................................................................................... 7
2.5 Features ......................................................................................................... 7
2.6 Getting Started ............................................................................................... 8
Appendix A. Schematics and Board Layouts............................................................ 11
A.1 Introduction .................................................................................................. 11
A.2 Schematic - Sheet 1 ................................................................................... 12
A.3 Schematic - Sheet 2 ................................................................................... 13
A.4 Board – Top Silk Layer ............................................................................... 14

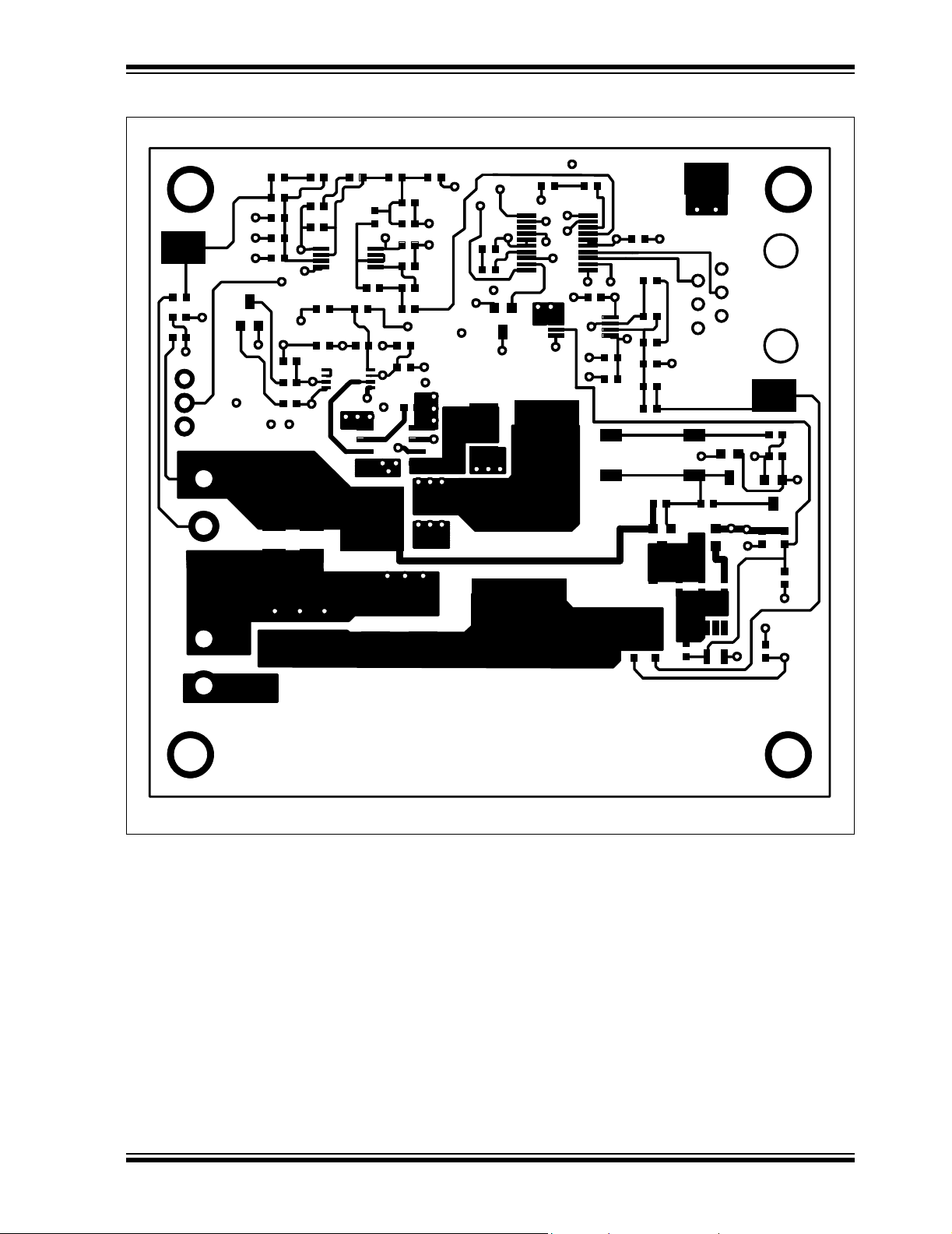

A.5 Board – Top Metal Layer ............................................................................ 15

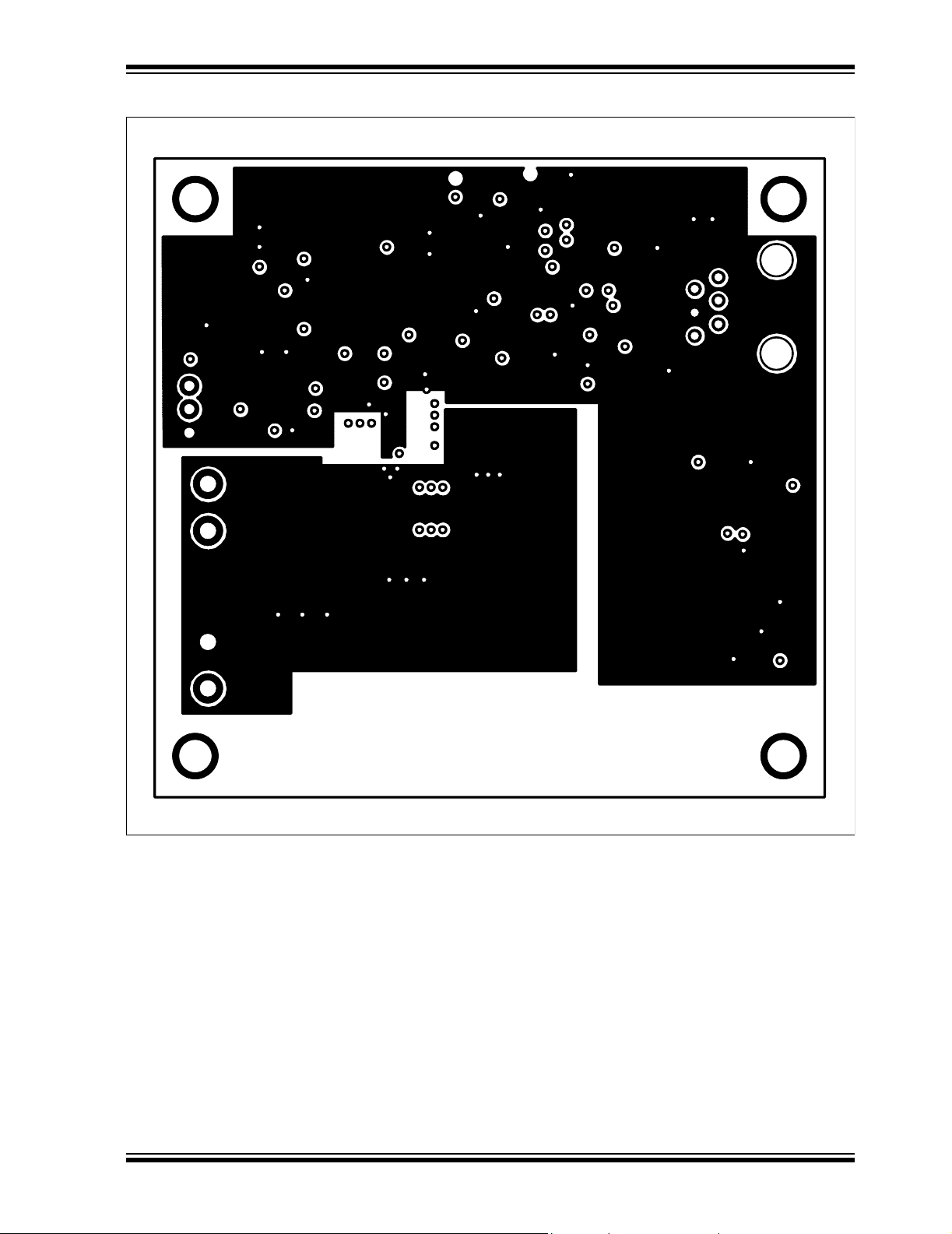

A.6 Board – Mid Layer1 .................................................................................... 16
A.7 Board – Mid Layer2 .................................................................................... 17

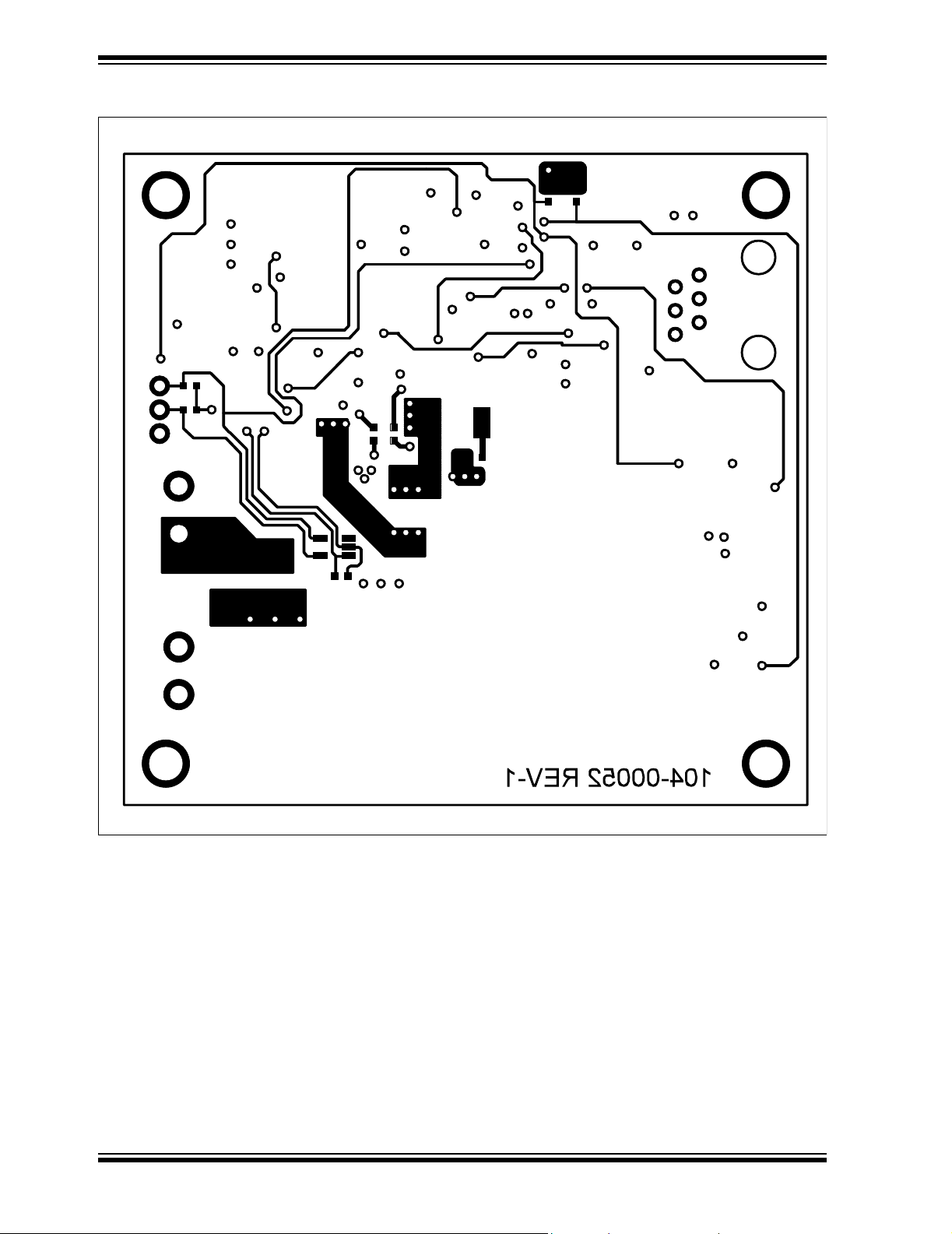

A.8 Board – Metal Layer ................................................................................... 18

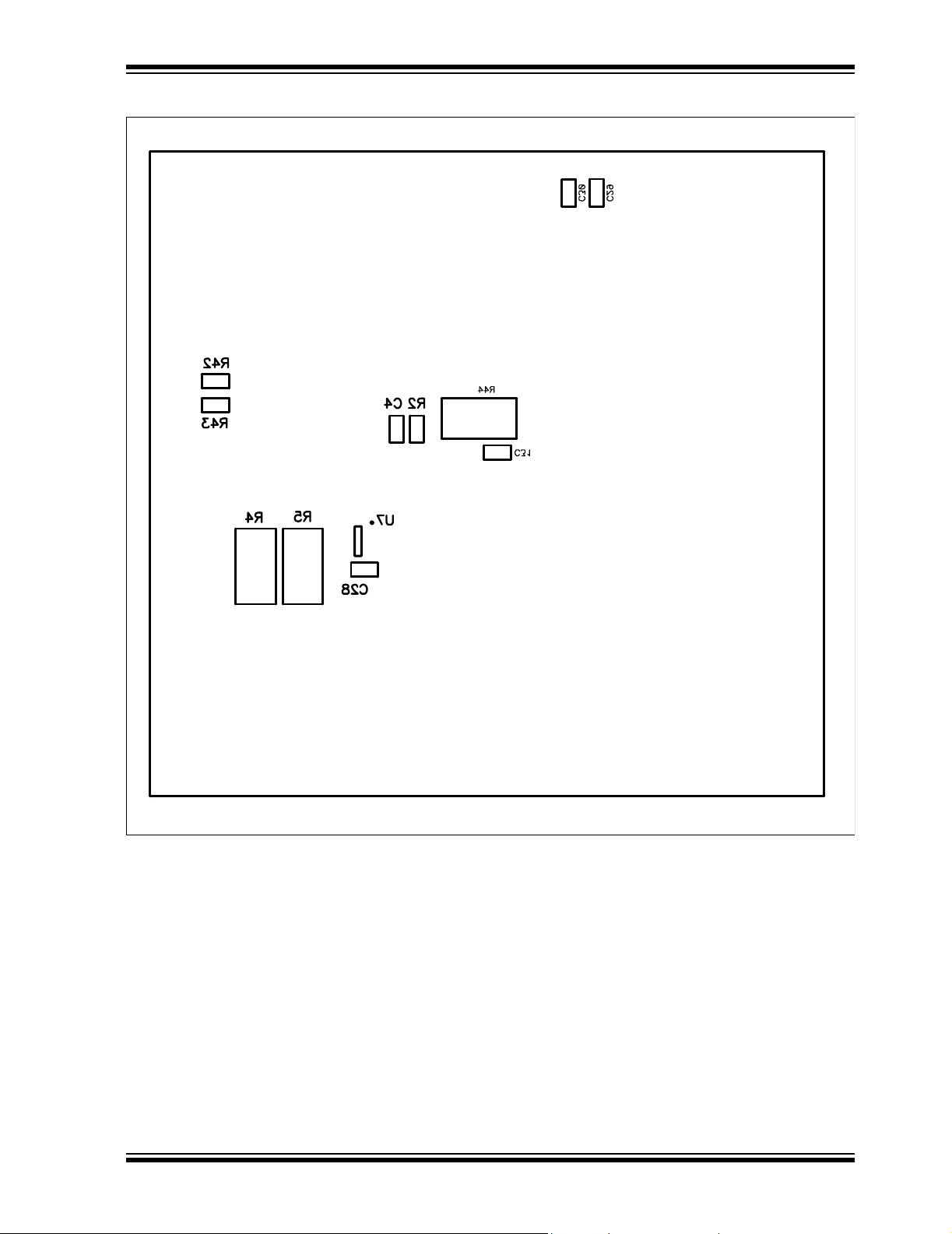

A.9 Board – Bottom Silk Layer ......................................................................... 19
Appendix B. Bill Of Materials (BOM) .......................................................................... 21
Appendix C. Firmware ................................................................................................. 23
C.1 Device Firmware - Flowchart ....................................................................... 23
C.2 Device Firmware - Flowchart (Continued) ................................................... 24
Worldwide Sales and Service .................................................................................... 26
© 2006 Microchip Technology Inc. DS51641A-page iii
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide
NOTES:
DS51641A-page iv © 2006 Microchip Technology Inc.
MCP1630V BIDIRECTIONAL 4 CELL
LI-ION CHARGER REFERENCE
DESIGN USER’S GUIDE

Preface

NOTICE TO CUSTOMERS
All documentation becomes dated, and this manual is no exception. Microchip tools and documentation are constantly evolving to meet customer needs, so some actual dialogs and/or tool descriptions may differ from those in this document. Please refer to our web site (www.microchip.com) to obtain the latest documentation available.
Documents are identified with a “DS” number. This number is located on the bottom of each page, in front of the page number. The numbering convention for the DS number is “DSXXXXXA”, where “XXXXX” is the document number and “A” is the revision level of the document.
For the most up-to-date information on development tools, see the MPLAB Select the Help menu, and then Topics to open a list of available on-line help files.
®
IDE on-line help.

INTRODUCTION

This chapter contains general information that will be useful to know before using the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design. Items discussed in this chapter include:
• Document Layout
• Conventions Used in this Guide
• Recommended Reading
• The Microchip Web Site
• Customer Support
• Document Revision History

DOCUMENT LAYOUT

This document describes how to use the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design as a development tool to emulate and debug firmware on a target board. The manual layout is as follows:
Chapter 1. “Product Overview”– Important information about the MCP1630V
Bidirectional 4 Cell Li-Ion Charger Reference Design.
Chapter 2. “Installation and Operation” – Includes instructions on how to get
started with this user’s guide and a description of the user’s guide.
Appendix A. “Schematics and Board Layouts” – Shows the schematic and
layout diagrams for the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design.
Appendix B. “Bill Of Materials (BOM)” – Lists the parts used to build the
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design.
Appendix C. “Firmware” – Provides information about the application firmware
and where the source code can be found.
© 2006 Microchip Technology Inc. DS51641A-page 1
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide

CONVENTIONS USED IN THIS GUIDE

This manual uses the following documentation conventions:
DOCUMENTATION CONVENTIONS
Description Represents Examples
Arial font:
Italic characters Referenced books MPLAB® IDE User’s Guide
Emphasized text ...is the only compiler...
Initial caps A window the Output window
A dialog the Settings dialog A menu selection select Enable Programmer
Quotes A field name in a window or
dialog
Underlined, italic text with right angle bracket
Bold characters A dialog button Click OK
N‘Rnnnn A number in verilog format,
Text in angle brackets < > A key on the keyboard Press <Enter>, <F1>
Courier New font:
Plain Courier New Sample source code #define START
Italic Courier New A variable argument file.o, where file can be
Square brackets [ ] Optional arguments mcc18 [options] file
A menu path File>Save
A tab Click the Power tab
where N is the total number of digits, R is the radix and n is a digit.
Filenames autoexec.bat File paths c:\mcc18\h Keywords _asm, _endasm, static Command-line options -Opa+, -Opa- Bit values 0, 1 Constants 0xFF, ‘A’
“Save project before build”
4‘b0010, 2‘hF1
any valid filename
[options]

RECOMMENDED READING

This user's guide describes how to use MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design. The following Microchip documents are available and recommended as supplemental reference resources.
MCP1630/MCP1630V Data Sheet, "High-Speed, Microcontroller-Adaptable, Pulse Width Modulator" (DS21896)
This data sheet provides detailed information regarding the MCP1630/MCP1630V, product family.
PIC16F88 Data Sheet, "20-Pin Flash-Based, 8-Bit CMOS Microcontrollers with Nano Watt Technology” (DS30487)
This data sheet provides detailed information regarding the PIC16F88 product family.
APEC Conference Paper, "Bi-Directional Power System for Laptop Computers", 2005
This paper provides detailed information about powering laptop computers using 4 series cell Li-Ion batteries with a bidirectional laptop computer.
DS51641A-page 2 © 2006 Microchip Technology Inc.

THE MICROCHIP WEB SITE

Microchip provides online support via our web site at www.microchip.com. This web site is used as a means to make files and information easily available to customers. Accessible by using your favorite Internet browser, the web site contains the following information:
Product Support – Data sheets and errata, application notes and sample
programs, design resources, user’s guides and hardware support documents, latest software releases and archived software
General Technical Support – Frequently Asked Questions (FAQs), technical
support requests, online discussion groups, Microchip consultant program member listing
Business of Microchip – Product selector and ordering guides, latest Microchip
press releases, listing of seminars and events, listings of Microchip sales offices, distributors and factory representatives

CUSTOMER SUPPORT

Users of Microchip products can receive assistance through several channels:
• Distributor or Representative
• Local Sales Office
• Field Application Engineer (FAE)
• Technical Support
Customers should contact their distributor, representative or field application engineer (FAE) for support. Local sales offices are also available to help customers. A listing of sales offices and locations is included in the back of this document.
Technical support is available through the web site at: http://support.microchip.com
Preface

DOCUMENT REVISION HISTORY

Revision A (November 2006)
• Initial Release of this Document.
© 2006 Microchip Technology Inc. DS51641A-page 3
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide
NOTES:
DS51641A-page 4 © 2006 Microchip Technology Inc.

Chapter 1. Product Overview

1.1 INTRODUCTION

As high power portable applications continue to gain in popularity, more innovative techniques are needed to charge the batteries while also providing a low regulated voltage to the system’s high end digital electronics. For example, laptop computers, portable test equipment, portable printers, etc., all require more power than a single or two cell Li-Ion battery pack can efficiently store. As a result, three or four series Li-Ion cell packs are used to store the necessary that power these high end applications. The result is a high dc voltage used to store the energy requiring a difficult high voltage to low voltage dc-dc conversion. The MCP1630V Bidirectional 4 Cell Li-Ion Charger Ref­erence Design can be used to evaluate a design that boosts a low source voltage to charge four Li-Ion series cells while providing energy to the system simultaneously. When the source is removed, the same power train used to charge the battery pack provides a low regulated voltage to operate the system.
This chapter covers the following topics.
• What is the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design?
• What the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design Kit includes.
MCP1630V BIDIRECTIONAL 4 CELL
LI-ION CHARGER REFERENCE
DESIGN USER’S GUIDE
Wide Range ac Input (85 Vrms to 240 Vrms)
Low Voltage
dc Output (+7.0V)
AC/DC
Converter
FIGURE 1-1: MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design shown in Laptop Computer system level block diagram.
+
-
DC/DC
Converter
+3.3V
+1.XV
DC/DC
Converter
4 Cell Li-Ion
Battery Pack
dc-Bus
MCP1630V
Bidirectional
Charger and
DC/DC Converter
© 2006 Microchip Technology Inc. DS51641A-page 5
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide

1.2 WHAT IS THE MCP1630V BIDIRECTIONAL 4 CELL LI-ION CHARGER REFERENCE DESIGN?

The MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design demonstrates the use of a bidirectional buck-boost converter used to charge multiple series cell Li-Ion batteries with the presence of an input source (boost) and provide a regulated output voltage when the input source is removed (buck). The board also serves as a platform to evaluate the MCP1630V device.
The MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design inputs were developed to be easily attached to the I/O of a PIC the oscillator (OSC_IN) and reference voltage (V flexible and adaptable power system. The power system switching frequency and maximum duty cycle are set using the hardware PWM of the MCU. The reference input to the high speed analog PWM can be external, a D/A Converter (DAC) output or as simple as an I/O output from the MCU. This enables the power system to adapt to external signals and variables in order to optimize performance and facilitate calibration.
This board utilizes Microchip's MCP1630V (high-speed PIC MCU PWM MSOP8) with the PIC16F88 (Flash MCU) in a four cell Li-Ion charger combined with a synchronous buck regulator. Under normal operation, the input supply can range between 6.5V and
7.0V. The converter is capable of charging four Li-Ion cells connected in series when the 6.5V input is present and regulating the bulk input voltage to 6.0V when the input source voltage is removed by stepping, (bucking), down the battery pack voltage.
®
Microcontroller. The MCU supplies
) to the MCP1630V creating a
REF

1.3 WHAT THE MCP1630V BIDIRECTIONAL 4 CELL LI-ION CHARGER REFERENCE DESIGN KIT INCLUDES

This MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design kit includes:
• MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design
• Analog and Interface Products Demonstration Boards CD-ROM (DS21912)
- MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide (DS51641)
DS51641A-page 6 © 2006 Microchip Technology Inc.

Chapter 2. Installation and Operation

2.4 INTRODUCTION

The MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design demonstrates Microchip's high speed pulse width modulator (PWM) used in a four cell Li-Ion battery charger combined power supply application. When used in conjunction with a micro­controller, the MCP1630V will control the power system duty cycle to provide regulated output voltage or current. The PIC16F88 microcontroller oscillator output is used to pro­vide pulses at switching frequency of 500 kHz. The MCP1630V generates duty cycle based on various external inputs. External signals include the input oscillator pulses from PIC16F88, the reference voltage and the feed back voltage. The output signal is a square wave pulse provided to the synchronous gate drive input. They synchronous gate driver is used to turn on and off the upper buck MOSFET and lower synchronous MOSFET.
The PIC16F88 microcontroller is programmable, allowing the user to modify or develop their own firmware routines to further evaluate the MCP1630V in this application.
MCP1630V BIDIRECTIONAL 4 CELL
LI-ION CHARGER REFERENCE
DESIGN USER’S GUIDE

2.5 FEATURES

The MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design has the following features:
• Four Cell Li-Ion Battery Charger, operates stand alone. (Additional firmware
• Charges four cell Li-Ion battery pack from 6.5V to 7.0V Input (complete
• Regulates input dc bus voltage, (steps battery pack voltage down), to 6.0V when
• ON/OFF button used to enable and disable system, low I
• Output over-voltage protection in the event of open battery connections
• High efficiency over entire operating input voltage range (94% typical)
• PIC16F88 is used to generate ref Voltage and Oscillator signal at 500 kHz
• Proprietary features can be added by modifying the firmware contained in the
• Factory programmed source code is available
added allows the charger to communicate with smart battery packs)
precondition, constant current and constant voltage charge algorithm in firmware)
input source is removed (providing uninterrupted power source for system)
drain on the battery
when disabled (< 10 µA)
frequency at maximum duty cycle
PIC16F88
Q
© 2006 Microchip Technology Inc. DS51641A-page 7
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide

2.6 GETTING STARTED

The MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design is fully assembled and tested for charging a four series cell Li-Ion battery pack (Battery Pack should have internal overvoltage, overcurrent and overtemperature protection). The board requires the use of an external input voltage source (+7.0V) for charging.
2.6.1 Power Input and Output Connection
2.6.1.1 POWERING THE MCP1630V BIDIRECTIONAL 4 CELL LI-ION CHARGER REFERENCE DESIGN
1. Connect the positive side of the +6.5V to +7.0V input to J2 Pin 2, connect the
negative side (or ground) to Pin 1 of J2. This source voltage should not exceed
7.0 and be rated for 8A minimum supply current.
2. Connect the positive side of the Four cell Li-Ion battery pack voltage to J1 Pin 1,
connect the battery pack return to the negative side of J1 Pin 2.
Note: Both supplies should have a separate isolated return (ground), there is a
current sense resistor between the +7.0V (V returns. If the returns are connected, the charge current can not be controlled.
) and +14V(V
BULK
BATT
) supply
3. Once the SW1 push button is pressed, the MCP1630V Bidirectional 4 Cell Li-Ion
Charger Reference Design is powered. When powered, a charge cycle will start automatically if the 7.0V is connected and all preconditions are meet, (see Appendix C. “Firmware”).
4. LED D3 will be illuminated when the board is running, (charging or bucking).
5. LED D5 will flash only when a charge cycle is in progress.
6. Again, a subsequent pressing of the SW1 push button during normal operation
of the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design will power-off the converter.
LOCATIONS
FOR
D3 D5
CONN ICD 2
+14 V
BAT
SW1
I
SWITCH
+7V
FIGURE 2-2: Board Top Assembly and Connections
DS51641A-page 8 © 2006 Microchip Technology Inc.
Installation and Operation
2.6.1.2 APPLYING BATTERY TO MCP1630V BIDIRECTIONAL 4 CELL LI-ION CHARGER REFERENCE DESIGN
A four cell battery pack (with internal protection) is connected to the J1 connector before applying input power and pressing SW1 to start the charge cycle. Once the battery pack is connected, SW1 can be pressed to start the synchronous buck converter (assuming there is no 7.0V input applied to J2). With the battery pack connected, the source for J2 can be “hot” plugged in and out, a voltage will always be present on J2 until SW1 is pressed shutting off the converter.
2.6.1.3 ALTERNATIVE BATTERY PACK SIMULATOR
As an alternative to the four cell Li-Ion battery pack, a battery pack simulation circuit can be used, (Figure 2-3). This simulation circuit consists of an adjustable metal wound power load resistor (10Ω, 100W), Aluminum Electrolytic Capacitor (3,300 µF 25V) and Schottky Diode (10V, 30V). For evaluating the bidirectional converter design, the bat­tery simulator circuit is recommended. When using the battery pack simulator, the operating point for charging and discharging can be easily be adjusted using the V power supply and load resistor value.
2.6.1.4 LED STATUS INDICATION
Two LED’s are connected to the I/O of the PIC16F88 to provide status of the charger. LED D3 provides indication that the converter is running while LED D5 flashing provides indication that the converter is charging. With a 6.5V to 7.0V source applied to J2 while the converter is running, a charge cycle is initiated. Once the charge cycle is complete, the charger will continue to operate providing 0 mA of current to the battery. If the source is removed from J2, the converter will regulate the V
BULK
to 6.0V with a load up to 6A.
BATT
voltage
Evaluating the Application
The best way to evaluate the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design is to operate the bidirectional power system over a wide range using the battery pack simulator. The simulator consists of a 10 voltage source. When configured as shown in Figure 2-3, the circuit will simulate a battery. The load
resistor is used to sink current from the charger while a large capacitor
is used to simulate the battery voltage (V operating points in the charge cycle can be evaluated.
Once evaluated using the battery pack simulator, the bi-directional reference design can be used to run charge and discharge cycles using a four cell Li-ion battery pack. If using an actual Li-ion battery pack, it must have the proper protection features including, (overvoltage, overcurrent, overtemperature, etc.).
Ω power resistor, diode and variable
). By adjusting the V
SIM
voltage, different
SIM
© 2006 Microchip Technology Inc. DS51641A-page 9
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide
J1-1
+V
BATT
+
SIM
V
-
+12V to +17.5V
-V
3,300 µF
J1-2
BATT
10Ω
FIGURE 2-3: Battery Simulator Circuit.
Firmware
The PIC16F88 comes pre programmed with firmware to operate the system as described above. The file listing and firmware flow diagram are shown in Appendix
C. “Firmware”.
Programming
Header J4 is provided for In-Circuit Serial Programming™ (ICSP™). This is an optional feature since the demo board comes preprogrammed with firmware to operate the system. The PIC16F88 can be reprogrammed with the Baseline Flash Microcontroller Programmer (BFMP).
DS51641A-page 10 © 2006 Microchip Technology Inc.

Appendix A. Schematics and Board Layouts

A.1 INTRODUCTION

This appendix contains the following schematics and layouts for the MCP1630V Bidi­rectional 4 Cell Li-Ion Charger Reference Design:
• Board – Schematic Sheet 1
• Board – Schematic Sheet 2
• Board – Top Silk Layer
• Board – Top Metal Layer
• Board – Internal MidLayer 1
• Board – Internal MidLayer 2
• Board – Metal Layer
• Board – Bottom Silk Layer
MCP1630V BIDIRECTIONAL 4 CELL
LI-ION CHARGER REFERENCE
DESIGN USER’S GUIDE
© 2006 Microchip Technology Inc. DS51641A-page 11
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide
A.2 SCHEMATIC - SHEET 1
2
DS51641A-page 12 © 2006 Microchip Technology Inc.
A.3 SCHEMATIC - SHEET 2
Schematics and Board Layouts
© 2006 Microchip Technology Inc. DS51641A-page 13
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide
A.4 BOARD – TOP SILK LAYER
BOARD
DS51641A-page 14 © 2006 Microchip Technology Inc.
A.5 BOARD – TOP METAL LAYER
Schematics and Board Layouts
© 2006 Microchip Technology Inc. DS51641A-page 15
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide
A.6 BOARD – MID LAYER1
DS51641A-page 16 © 2006 Microchip Technology Inc.
A.7 BOARD – MID LAYER2
Schematics and Board Layouts
MIDLAYER2
© 2006 Microchip Technology Inc. DS51641A-page 17
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide
A.8 BOARD – METAL LAYER
DS51641A-page 18 © 2006 Microchip Technology Inc.
Schematics and Board Layouts
A.9 BOARD – BOTTOM SILK LAYER
© 2006 Microchip Technology Inc. DS51641A-page 19
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide
NOTES:
DS51641A-page 20 © 2006 Microchip Technology Inc.
MCP1630V BIDIRECTIONAL 4 CELL
LI-ION CHARGER REFERENCE
DESIGN USER’S GUIDE

Appendix B. Bill Of Materials (BOM)

TABLE B-1: BILL OF MATERIALS (BOM)
QTY
2 C1, C2 CAP CER 10UF 25V X5R 1210 Taiyo Yuden
2 C3, C17 CAP CERM.22UF 10% 10V X7R 0603 AVX Corporation 0603ZC224KAT2A
2 C4, C29 CAP CERAMIC 1.0UF 10V X5R 0603 Kemet
2 C5, C6 CAP TANT 100UF 10V 20% POLY SMD EPCOS Inc. B76010V1079M055
12 C7, C11, C13,
1 C8 CAP CERM 8200PF 10% 50V X7R
1 C9 CAP CER 2200PF 50V C0G 5% 0603 TDK Corporation C1608C0G1H222J
1 C10 CAP CERAMIC 330PF 50V NP0 0603 Kemet Electronics Corp C0603C331J5GACT
1 C12 CAP 3300PF 50V CERAMIC X7R 0603 Kemet Electronics Corp C0603C332K5RACTU
2 C14 CAP CERAMIC 120PF 50V NP0 0603 Kemet Electronics Corp C0603C121J5GACTU
1 C15 CAP CERAMIC 100PF 50V NP0 0603 Kemet Electronics Corp C0603C101J5GACTU
1 C23 CAP CERAMIC 180PF 50V NP0 0603 Kemet Electronics Corp C0603C181J5GACTU
1 C24 CAP CERAMIC 10PF 50V NP0 0603 Kemet Electronics Corp C0603C100J5GACTU
1 C30 CAP 10000PF 50V CERAMIC X7R
1 C31 CAP 1500PF 50V CERAMIC X7R 0603 Kemet Electronics Corp C0603C152K5RACTU
2 D1 DIODE SCHOTTKY 30V 200MW
1 D2 IC ADJ SHUNT REGULATOR
2 D3, D5 LED 660NM SUPER RED DIFF
1 F1 FUSE 5.0A 32V FAST SMD 0603 Tyco
2 J1, J2 CONN TERM BLOCK 2POS 5MM PCB Phoenix Contact 1715022
1 J3 CONN MOD JACK 6-6 RT/A PCB 50AU Tyco Electronics/Amp 5555165-1
1 J4 CONN HEADER VERT 3POS.100 TIN Tyco Electronics/Amp 640454-3
1 L1 INDUCTOR POWER HI CURR 10UH
1 Q1 MOSFET N-CH 30V 35A DPAK International Rectifier IRLR3303PBF
1 Q2 MOSFET N-CH 30V 91A DPAK International Rectifier IRLR8103VPBF
4 Q3, Q6, Q7, Q8MOSFET N-CH 30V 1.2A SSOT3 Fairchild Semiconductor NDS351AN
Reference
Designator
C16, C18, C19, C20, C21, C22, C26, C28
Description Manufacturer Part Number
®
®
Electronics Corp C0603C105K8PACTU
CAP .10UF 10V CERAMIC X7R 0603 Kemet Electronics Corp C0603C104K8RACTU
AVX Corporation 06035C822KAT2A
0603
Kemet Electronics Corp C0603C103K5RACTU
0603
Diodes Inc. BAT42W-7-F
SOD123
Texas Instruments TL431IDBVR
SOT-23-5
®
0603SMD
SMD
Lumex Components Inc
Raychem Circuit Protection
Coiltronics/Div of Cooper/Bussmann
Opto/
®
Electronics/
TMK325BJ106MN-T
SML-LX0603SRW-TR
0603SFF500F/32-2
HC1-100-R
Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM
used in manufacturing uses all RoHS-compliant components.
© 2006 Microchip Technology Inc. DS51641A-page 21
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide
TABLE B-1: BILL OF MATERIALS (BOM) (CONTINUED)
QTY
1 Q4 MOSFET P-CH 30V 610MA SOT-23 International Rectifier IRLML5103TRPBF
1 Q5 TRANSISTOR GP NPN AMP SOT-23 Fairchild Semiconductor®MMBT3904
0 R1, R21 SMT0603 RESISTOR
1 R2 RES 499K OHM 1/10W 1% 0603 SMD Panasonic
2 R3, R33 RES 9.53K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF9531V
2 R4, R5 RESISTOR .100 OHM 1W 1% 2512 Panasonic - ECG ERJ-L1WKF10CU
5 R6, R7, R13,
1 R8 RES 1.50K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1501V
6 R9, R15, R19,
1 R10 RES 1.00K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1001V
3 R11, R42, R43 RES 47.5K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF4752V
1 R12, R17 RES 15.0K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1502V
1 R14 RES 6.98K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF6981V
2 R16, R32 RES 49.9K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF4992V
3 R18, R40, R45 RES 2.00K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF2001V
1 R20 RES 150 OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1500V
3 R23, R34, R37 RES 7.87K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF7871V
1 R24 RESISTOR 1.20M OHM 1/10W 1%
1 R25 RES 30.1K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF3012V
3 R26, R27 RES 4.99K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF4991V
1 R28 RES 43.2K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF4322V
1 R30 RES 14.7K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1472V
1 R31 RES 24.9K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF2492V
1 R35 RES 1.62K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1621V
1 R36 RES 221K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF2213V
1 R44 RES 3.3 OHM 1W 1% 2512 SMD Panasonic - ECG ERJ-1TRQF3R3U
1 SW1 SWITCH TACT 6MM 260GF SMT E-Switch TL3301NF260QG
6 TP1, TP2, TP3,
1 U1 IC DRIVER MOSFET DUAL SYNC
1 U2 MCP1630V HIGH SPEED ANALOG
2 U3, U4 DUAL10MHz AMPLIFIER 8 PIN
1 U5 IC MCU FLASH 4KX14 EEPROM
1 U7 IC DGTL THERM SENSOR 5V
Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM
Reference
Designator
Description Manufacturer Part Number
DO NOT POPULATE
RES 10.0K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1002V
R29, R39
RES 10.0K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1002V
R22, R38
0603
PC TEST POINT COMPACT SMT Keystone Electronics
TP4, TP5, TP6
8SOIC
PWM
TSSOP PACKAGE
20SSOP
SOT23A-5
used in manufacturing uses all RoHS-compliant components.
——
®
- ECG ERJ-3EKF4993V
Panasonic - ECG ERJ-3EKF1204V
®
5016
Intersil ISL6207CBZ
Microchip Technology Inc. MCP1630V-E/MS
Microchip Technology Inc. MCP6022-I/ST
Microchip Technology Inc. PIC16F88T-I/SS
Microchip Technology Inc. TC74A5-5.0VCTTR
DS51641A-page 22 © 2006 Microchip Technology Inc.
MCP1630V BIDIRECTIONAL 4 CELL
LI-ION CHARGER REFERENCE

Appendix C. Firmware

C.1 DEVICE FIRMWARE - FLOWCHART

For the latest copy of the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide firmware, visit our web site at www.microchip.com.
DESIGN USER’S GUIDE
Charge States
Idle = 0 mA P.C. = Pre-Charge C.C. = Constant Current C.V. = Constant Voltage
Yes
Set State to
P. C .
B
V
V
BATT
BATT
START
Initialize Ports, ADC, PWM, etc.
Read ADC Inputs V
and V
BATT
Yes
>12.8V
<16.3V
No
Yes
Is Charge
State @ Idle?
Is Charge
State @ P.C.?
Is Charge
State @ C.C.
BULK
No
No
Yes
V
BATT
No
> 12.8V
A
Yes
Set State to
C.C
Set State to
C.V.
B
Yes
V
Inc. I
to I
BATT
BATT
MAX
>16.8V
No
No
Is Charge
State @ C.V.
No
B
Yes
V
BATT
No
B
> 16.8V
C
Yes
Dec. I
BATT
FIGURE C-1: Firmware Flowchart, page 1.
© 2006 Microchip Technology Inc. DS51641A-page 23
MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide

C.2 DEVICE FIRMWARE - FLOWCHART (CONTINUED)

For the latest copy of the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User’s Guide firmware, visit our web site atwww.microchip.com
C
Shutdown
End
Yes
Yes
Set Charge
to Idle
B
Is SW1
Pressed?
No
Is
<12.8V
V
BATT
<6.5V
V
BULK
No
A
Yes
I
BATT
< 100 mA
No
FIGURE C-2: Firmware Flowchart, page 2.
DS51641A-page 24 © 2006 Microchip Technology Inc.
NOTES:
Firmware
© 2006 Microchip Technology Inc. DS51641A-page 25

WORLDWIDE SALES AND SERVICE

AMERICAS
Corporate Office
2355 West Chandler Blvd. Chandler, AZ 85224-6199 Tel: 480-792-7200 Fax: 480-792-7277 Technical Support: http://support.microchip.com Web Address: www.microchip.com
Atlanta
Alpharetta, GA Tel: 770-640-0034 Fax: 770-640-0307
Boston
Westborough, MA Tel: 774-760-0087 Fax: 774-760-0088
Chicago
Itasca, IL Tel: 630-285-0071 Fax: 630-285-0075
Dallas
Addison, TX Tel: 972-818-7423 Fax: 972-818-2924
Detroit
Farmington Hills, MI Tel: 248-538-2250 Fax: 248-538-2260
Kokomo
Kokomo, IN Tel: 765-864-8360 Fax: 765-864-8387
Los Angeles
Mission Viejo, CA Tel: 949-462-9523 Fax: 949-462-9608
Santa Clara
Santa Clara, CA Tel: 408-961-6444 Fax: 408-961-6445
Toronto
Mississauga, Ontario, Canada Tel: 905-673-0699 Fax: 905-673-6509
ASIA/PACIFIC
Asia Pacific Office
Suites 3707-14, 37th Floor Tower 6, The Gateway Habour City, Kowloon Hong Kong Tel: 852-2401-1200 Fax: 852-2401-3431
Australia - Sydney
Tel: 61-2-9868-6733 Fax: 61-2-9868-6755
China - Beijing
Tel: 86-10-8528-2100 Fax: 86-10-8528-2104
China - Chengdu
Tel: 86-28-8665-5511 Fax: 86-28-8665-7889
China - Fuzhou
Tel: 86-591-8750-3506 Fax: 86-591-8750-3521
China - Hong Kong SAR
Tel: 852-2401-1200 Fax: 852-2401-3431
China - Qingdao
Tel: 86-532-8502-7355 Fax: 86-532-8502-7205
China - Shanghai
Tel: 86-21-5407-5533 Fax: 86-21-5407-5066
China - Shenyang
Tel: 86-24-2334-2829 Fax: 86-24-2334-2393
China - Shenzhen
Tel: 86-755-8203-2660 Fax: 86-755-8203-1760
China - Shunde
Tel: 86-757-2839-5507 Fax: 86-757-2839-5571
China - Wuhan
Tel: 86-27-5980-5300 Fax: 86-27-5980-5118
China - Xian
Tel: 86-29-8833-7250 Fax: 86-29-8833-7256
ASIA/PACIFIC
India - Bangalore
Tel: 91-80-4182-8400 Fax: 91-80-4182-8422
India - New Delhi
Tel: 91-11-4160-8631 Fax: 91-11-4160-8632
India - Pune
Tel: 91-20-2566-1512 Fax: 91-20-2566-1513
Japan - Yokohama
Tel: 81-45-471- 6166 Fax: 81-45-471-6122
Korea - Gumi
Tel: 82-54-473-4301 Fax: 82-54-473-4302
Korea - Seoul
Tel: 82-2-554-7200 Fax: 82-2-558-5932 or 82-2-558-5934
Malaysia - Penang
Tel: 60-4-646-8870 Fax: 60-4-646-5086
Philippines - Manila
Tel: 63-2-634-9065 Fax: 63-2-634-9069
Singapore
Tel: 65-6334-8870 Fax: 65-6334-8850
Taiwan - Hsin Chu
Tel: 886-3-572-9526 Fax: 886-3-572-6459
Taiwan - Kaohsiung
Tel: 886-7-536-4818 Fax: 886-7-536-4803
Taiwan - Taipei
Tel: 886-2-2500-6610 Fax: 886-2-2508-0102
Thailand - Bangkok
Tel: 66-2-694-1351 Fax: 66-2-694-1350
EUROPE
Austria - Wels
Tel: 43-7242-2244-39 Fax: 43-7242-2244-393
Denmark - Copenhagen
Tel: 45-4450-2828 Fax: 45-4485-2829
France - Paris
Tel: 33-1-69-53-63-20 Fax: 33-1-69-30-90-79
Germany - Munich
Tel: 49-89-627-144-0 Fax: 49-89-627-144-44
Italy - Milan
Tel: 39-0331-742611 Fax: 39-0331-466781
Netherlands - Drunen
Tel: 31-416-690399 Fax: 31-416-690340
Spain - Madrid
Tel: 34-91-708-08-90 Fax: 34-91-708-08-91
UK - Wokingham
Tel: 44-118-921-5869 Fax: 44-118-921-5820
10/19/06
DS51641A-page 26 © 2006 Microchip Technology Inc.
Loading...
