MCP1602

Evaluation Board

User’s Guide

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.

• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.

• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property.

• Microchip is willing to work with the customer who is concerned about the integrity of their code.

• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Microchip devices in life support and/or safety applications is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights.

Trademarks

The Microchip name and logo, the Microchip logo, Accuron, dsPIC, K

EELOQ, KEELOQ logo, microID, MPLAB, PIC, PICm i-

cro, PICSTAR T, PRO MATE, rfPIC and SmartShunt are registered trademarks of Microchip T echnology Incorporated in the U.S.A. and other countries.

AmpLab, FilterLab, Linear Active Thermistor, Migratable Memory, MXDEV, MXLAB, SEEVAL, SmartSensor and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Analog-for-the-Digital Age, Application Maestro, CodeGuard, dsPICDEM, dsPICDEM.net, dsPICworks, dsSPEAK, ECAN, ECONOMONITOR, FanSense, FlexROM, fuzzyLAB, In-Circuit Serial Programming, ICSP , ICEPIC, Mindi, MiWi, MP ASM, MPLAB Certified logo, MPLIB, MPLINK, PICkit, PICDEM, PICDEM.net, PICLAB, PICtail, PowerCal, PowerInfo, PowerMate, PowerTool, REAL ICE, rfLAB, Select Mode, Smart Serial, SmartTel, Total Endurance, UNI/O, WiperLock and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip T echnology Incorporated in the U.S.A.

All other trademarks mentioned herein are property of their respective companies.

Printed on recycled paper.

Microchip received ISO/TS-16949:2002 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and T empe, Arizona; Gresham, Oregon and design centers in California and India. The Company’s quality system processes and procedures are for its PIC devices, Serial EEPROMs, microperipherals, nonvolatile memo ry and analog products. In addition, Microchip’s quality system for the desig n and manufacture of development systems is ISO 9001:2000 certified.

MCUs and dsPIC® DSCs, KEELOQ

code hopping

MCP1602 EVALUATION BOARD

USER ’S GUIDE

Table of Contents

Preface ........................................................................................................................... 1

Introduction............................................................................................................1

Document Layout..................................................................................................1

Conventions Used in this Guide............................................................................ 2

Recommended Reading........................................................................................2

The Microchip Web Site........................................................................................3

Customer Support.................................................................................................3

Document Revision History................................................................................... 3

Chapter 1. Product Overview

1.1 Introduction .....................................................................................................5

1.2 What is the MCP1602 Evaluation Board? ...................................................... 6

1.3 What the MCP1602 Evaluation Board kit includes ......................................... 6

Chapter 2. Installation and Operation

2.1 Introduction .....................................................................................................7

2.2 Features .........................................................................................................7

2.3 Getting Started ...............................................................................................8

Appendix A. Schematic and Layouts

A.1 Introduction ..................................................................................................11

A.2 Board – Schematic .......................................................................................12

A.3 Board – Top Layer .......................................................................................13

A.4 Board – Top Metal Layer ............................................................................. 14

A.5 Board – Bottom Layer ................................................................................. 15

Appendix B. Bill Of Materials (BOM)

Worldwide Sales and Service ....................................................................................18

MCP1602 Evaluation Board User’s Guide

NOTES:

MCP1602 EVALUATION BOARD

USER ’S GUIDE

Preface

NOTICE TO CUSTOMERS

All documentation becomes dated, and this manual is no exception. Microchip tools and documentation are constantly evolving to meet customer needs, so some actual dialogs and/or tool descriptions may differ from those in this document. Please refer to our web site (www.microchip.com) to obtain the latest documentation available.

Documents are identified with a “DS” number. This number is located on the bottom of each page, in front of the page number. The numbering convention for the DS number is “DSXXXXXA”, where “XXXXX” is the document number and “A” is the revision level of the document.

For the most up-to-date information on development tools, see the MPLAB Select the Help menu, and then Topics to open a list of available on-line help files.

IDE on-line help.

INTRODUCTION

This chapter contains general information that will be useful to know before using the MCP1602 Evaluation Board. Items discussed in this chapter include:

• Document Layout

• Conventions Used in this Guide

• Recommended Reading

• The Microchip Web Site

• Customer Support

• Document Revision History

DOCUMENT LAYOUT

This document describes how to use the MCP1602 Evalu a tio n Boa rd as a development tool. The manual layout is as follows:

• Chapter 1. “Product Overview” – Important information about the MCP1602 Evaluation Board.

• Chapter 2. “Installation and Operation” – Includes instructions on how to get started with this user’s guide and a description of the user’s guide.

• Appendix A. “Schematic and Layouts” – Shows the schematic and layout diagrams for the MCP1602 Evaluation Board.

• Appendix B. “Bill Of Materials (BOM)” – Lists the parts used to build the MCP1602 Evaluation Board.

MCP1602 Evaluation Board User’s Guide

CONVENTIONS USED IN THIS GUIDE

This manual uses the following documentation conventions:

DOCUMENTATION CONVENTIONS

Description Represents Examples

Arial font:

Italic characters Referenced books MPLAB® IDE User’s Guide

Emphasized text ...is the only compiler...

Initial caps A window the Output window

A dialog the Settings dialog A menu selection select Enable Programmer

Quotes A field name in a window or

dialog

Underlined, italic text with right angle bracket

Bold characters A dialog button Click OK

N‘Rnnnn A number in verilog format,

Text in angle brackets < > A key on the keyboard Press <Enter>, <F1>

Courier New font:

Plain Courier New Sample source code #define START

Italic Courier New A variable argument file.o, where file can be

Square brackets [ ] Optional arguments mcc18 [options] file

Curly brackets and pipe character: { | }

Ellipses... Replaces repeated text var_name [,

A menu path File>Save

A tab Click the Power tab

where N is the total number of digits, R is the radix and n is a digit.

Filenames autoexec.bat File paths c:\mcc18\h Keywords _asm, _endasm, static Command-line options -Opa+, -Opa- Bit values 0, 1 Constants 0xFF, ‘A’

Choice of mutually exclusive arguments; an OR selection

Represents code supplied by user

“Save project before build”

4‘b0010, 2‘hF1

any valid filename

[options] errorlevel {0|1}

var_name...] void main (void)

{ ... }

THE MICROCHIP WEB SITE

Microchip provides online support via our web site at www.microchip.com. This web site is used as a means to make files and information easily available to customers. Accessible by using your favorite Internet browser , the web site contains the following information:

• Product Support – Data sheets and errata, application notes and sample programs, design resources, user’s guides and hardware support documents, latest software releases and archived software

• General Technical Support – Frequently Asked Questions (FAQs), technical support requests, online discussion groups, Microchip consultant program member listing

• Business of Microchip – Product selector and ordering guides, latest Microchip press releases, listing of seminars and events, listings of Microchip sales offices, distributors and factory representatives

CUSTOMER SUPPORT

Users of Microchip products can receive assistance through several channels:

• Distributor or Representative

• Local Sales Office

• Field Application Engineer (FAE)

• Technical Support

Customers should contact their distributor, representative or field application engineer (FAE) for support. Lo cal sales offices are also available to help customers. A listing of sales offices and locations is included in the back of this document.

Technical support is available through the web site at: http://support.microchip.com

Preface

DOCUMENT REVISION HISTORY

Revision A (November 2007)

• Initial Release of this Document.

MCP1602 Evaluation Board User’s Guide

NOTES:

Chapter 1. Product Overview

1.1 INTRODUCTION

The MCP1602 Evaluation Board demonstrates the features and capabilities of Microchip’s MCP1602 Evaluation Board 500 mA PFM/PWM Synchronous Buck Regulator. The MCP1602 is a step-down (Buck) switching regulator with a Power-Good monitor to provide a highly integrated solution for systems that requir e supply voltage between 0.8V to 4.5V. The MCP1602 requires input voltage range from 2.7V to 5.5V. The MCP1602 Evaluation Board includes a MCP1602 circuit tha t has a Shut down feature and a 4-position Dip Switch to select between differe nt output voltages. MCP1602 Evaluation Board is available in 0.8V, 1.2V, 1.8V , 2.5V and 3.3V. Additional test points are available on the MCP1602 Evaluation Board for reviewing the performances and features of MCP1602 Evaluation Board.

This chapter covers the following topics:

• What is the MCP1602 Evaluation Board?

• What the MCP1602 Evaluation Board Kit includes

MCP1602 EVALUATION BOARD

USER ’S GUIDE

FIGURE 1-1: MCP1602 Typical Applications With Adjustable Output Voltage.

MCP1602 Evaluation Board User’s Guide

1.2 WHAT IS THE MCP1602 EVALUATION BOARD?

The MCP1602 Evaluation Board demonstrates the use of PFM/PWM Synchronous Buck Controller that regulates output voltages from 0.8V to 4.5V with Adjustable version or 1.2V, 1.5V, 1.8V, 2.5V and 3.3V with Fixed-Output version.

The MCP1602 Evaluation Board Evaluation Board is setup to evaluate simple DC-to-DC conversion. This board utilizes Microchip's MCP1602 Evaluation Board (PFM/PWM Synchronous Buck Regulator) that effectively step s down from V regulated V PG pin. The MCP1602 on the MCP1602 Evaluation Board is enabled and can be turned off by pulling the

The MCP1602 Evaluation Board is designed to observe the per formance and features on the circuit via multiple test points. Users can also discover the compact size of the layout in addition to the device itself. The circuit can also be implemented into su itable applications without extra work.

1.3 WHAT THE MCP1602 EVALUATION BOARD KIT INCLUDES

This MCP1602 Evaluation Board Kit includes:

• MCP1602 Evaluation Board, 102-00120

• MCP1602 Device with adjustable output voltage (Installed)

• Analog and Interface Products Demonstration Boards CD-ROM (DS21912)

- MCP1602 Evaluation Board User’s Guide, DS51691

- MCP1602 Evaluation Board Data Sheet, “2..0 MHz, 500 mA Synchronous Buck Regulator with Power-Good”, DS22061

. The Power Good function can be observed via the output signal o n the

OUT

SHDN pin low.

Chapter 2. Installation and Operation

2.1 INTRODUCTION

The MCP1602 Evaluation Board demonstrates Microchip's MCP1602 device. This device is a 500 mA, 2.0 MHz PFM/PWM Step-Down DC/DC Regulators With Power-Good feature. It is available in adjustable and fixed outputs.The MCP1602 features Shutdown, Power-Good Monitor, Output Short Circuit Protection and Overtemperature Protection.

The device requires only minimum components to implement a complete Step-Down DC/DC Circuit. The MCP1602 is designed to operate in PFM (Pulse Frequency Modulation) and PWM (Pulse Width Modulation) modes with various load conditions that is ideal for battery-powered portable applications.

The MCP1602 Evaluation Board provides five regulated output voltages for evaluation. Available output voltages are: 0.8V, 1.2V, 1.8V, 2.5V and 3.3V.

Typica l applications for the MCP1602 device are: PDAs, Portable Computer s, Portable Media Players, USB-Powered Systems, Digital Cameras, Handheld Medi cal Instruments, Ultra-Mobile PCs and Portable Communicators.

MCP1602 EVALUATION BOARD

USER ’S GUIDE

2.2 FEATURES

The MCP1602 Evaluation Board has the following features:

• Adjustable Output Voltages: 0.8V, 1.2V, 1.8V, 2.5V and 3.3V

• Input Voltage Range: 2.7V to 5.5V

• Shutdown Test Point

• Power-Good Test Point

• Easy V

•L

setup with Slide Style Dip Switch

OUT

Test Point for switching behavior observation.

MCP1602 Evaluation Board User’s Guide

2.3 GETTING STARTED

The MCP1602 Evaluation Board is fully assembled and tested for generating a regulated 0.8V, 1.2V, 1.8V, 2.5V and 3.3V output voltage from the MCP1602 device with a 2.7V to 5.5V input voltage source for V

2.3.1 Power Input and Output Connection

2.3.1.1 POWERING THE MCP1602 EVALUATION BOARD

> V

OUT

1. Connect the negative terminal of the DC power supply to P

2. Connect the positive terminal of the DC power supply to V

3. Connect the positive terminal of the multimeter to V to P

. The multimeter should display a regulated output voltage.

GND

and the negative terminal

OUT

GND

4. Adjust the DIP Switch to the desired value and the multimeter should read the desired output voltage. Refer to Table 2-1 for the voltage regulation.

Note: The number labels on the DIP SWITCH may have slightly different way to

demonstrate the mark, but will not affect the performance of the board.

5. The SHDN Board. To enter the shutdown mode, drive the SHDN

6. The L variable load that is connected to V

pin defaults to the enabled position on the MCP1602 Evaluation

pin low.

pin is available to observe the switching waveforms. By adjusting a

, the transitions between PFM/PWM can

OUT

be easily observed.

7. The PG pin is available to monitor the Power-Good signal.

Installation and Operation

OFF

FIGURE 2-1: Board Top Assembly.

TABLE 2-1: OUTPUT VOLTAGE REGULATION DIP POSITION

Voltage (V)1234

0.8V OFF OFF OFF OFF

1.2V ON OFF OFF OFF

1.8V OFF ON OFF OFF

2.5V OFF OFF ON OFF

3.3V OFF OFF OFF ON

MCP1602 Evaluation Board User’s Guide

NOTES:

Appendix A. Schematic and Layouts

A.1 INTRODUCTION

This appendix contains the following schematics and layouts for the MCP1602 Evaluation Board:

• Board – Schematic Sheet

• Board – Top Layer

• Board – Top Metal Layer

• Board – Bottom Layer

MCP1602 EVALUATION BOARD

USER ’S GUIDE

MCP1602 Evaluation Board User’s Guide

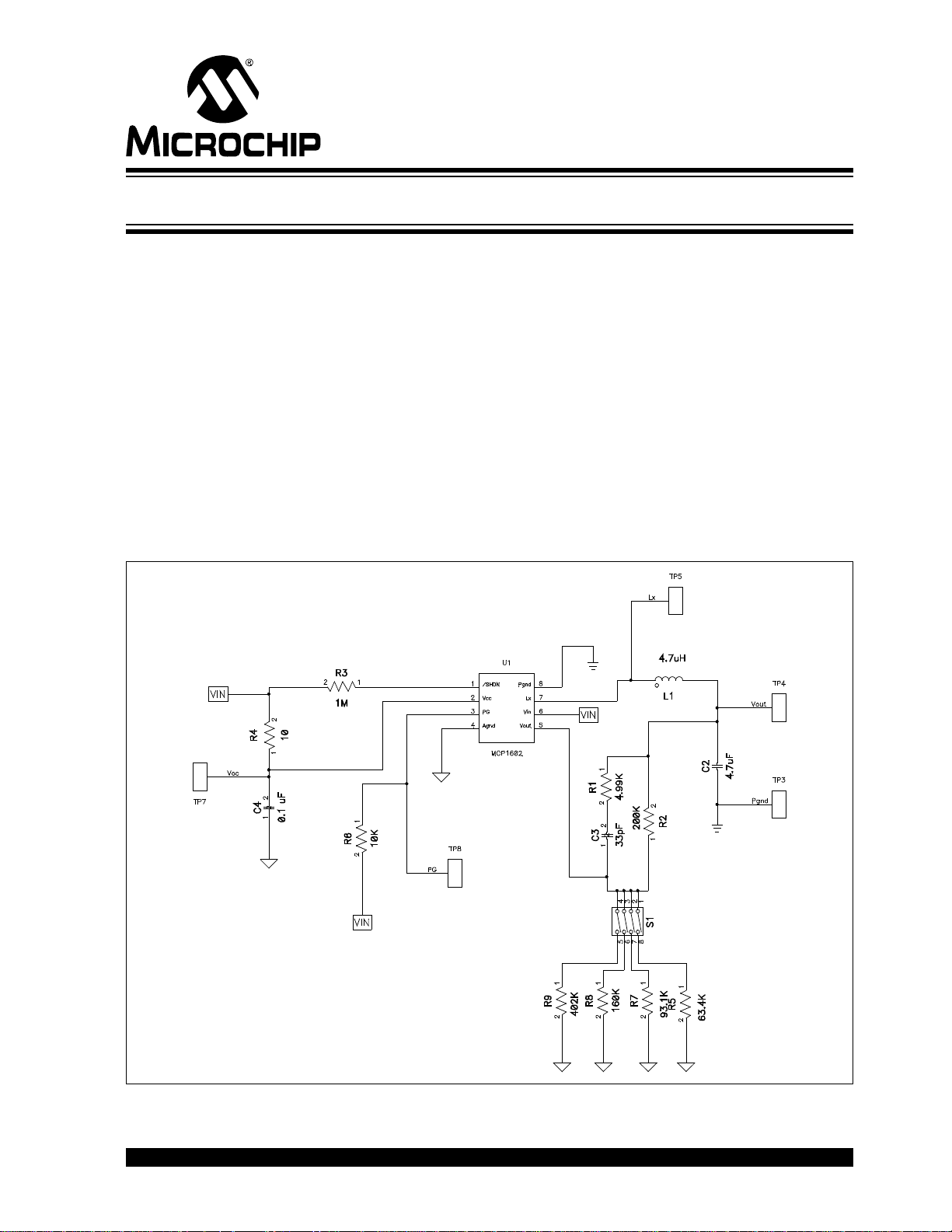

A.2 BOARD – SCHEMATIC

A.3 BOARD – TOP LAYER

OFF

Schematic and Layouts

MCP1602 Evaluation Board User’s Guide

A.4 BOARD – TOP METAL LAYER

A.5 BOARD – BOTTOM LAYER

Schematic and Layouts

MCP1602 Evaluation Board User’s Guide

NOTES:

MCP1602 EVALUATION BOARD

USER ’S GUIDE

Appendix B. Bill Of Materials (BOM)

TABLE B-1: BILL OF MATERIALS (BOM)

Qty Reference Description Manufacturer Part Number

2 C1, C2 CAP CERAMIC 4.7 μF 16V X5R 0805 Panasonic® - ECG ECJ-2FB1C475K 1 C3 CAP CERAMIC 33 pF 25V NP0 0201 Panasonic - ECG ECJ-ZEC1E330J 1 C4 CAP CERAMIC .1 μF 16V X7R 0603 Panasonic - ECG ECJ-1VB1C104K 1 R1 RES 4.99K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF4991V 1 R2 RES 200K OHM 1/10W 5% 0603 SMD Panasonic - ECG ERJ-3GEYJ204V 1 R3 RES 1.00M OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1004V 1 R4 RES 10.0 OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF10R0V 1 R5 RES 63.4K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF6342V 1 R6 RES 10.0K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1002V 1 R7 RES 93.1K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF9312V 1 R8 RES 160K OHM 1/10W 5% 0603 SMD Panasonic - ECG ERJ-3GEYJ164V 1 R9 RES 402K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF4023V 1 S1 SWITCH DIP SPST SEALED 4POS

SMD

1 L1 INDUCTOR POWER SHIELD 4.7μH

SMD

8 TP1, TP2, TP3,

TP4, TP5, TP6, TP7, TP8

1 U1 500 mA PFM/PWM Synchronous Buck

1 --- Printed Circu it Board — 104-00120-R1

Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM

used in manufacturing uses all RoHS-compliant components.

PC Test Point Compact SMT Keystone Electronics

Regulator

Copal Electronics Inc SD04H1SB

Coiltronics SD18-4R7-R

5016

Microchip Technology, Inc MCP1602-ADJI/MF

WORLDWIDE SALES AND SERVICE

AMERICAS

Corporate Office

2355 West Chandler Blvd. Chandler, AZ 85224-6199 Tel: 480-792-7200 Fax: 480-792-7277 Technical Support: http://support.microchip.com Web Address: www.microchip.com

Atlanta

Duluth, GA Tel: 678-957-9614 Fax: 678-957-1455

Boston

Westborough, MA Tel: 774-760-0087 Fax: 774-760-0088

Chicago

Itasca, IL Tel: 630-285-0071 Fax: 630-285-0075

Dallas

Addison, TX Tel: 972-818-7423 Fax: 972-818-2924

Detroit

Farmington Hills, MI Tel: 248-538-2250 Fax: 248-538-2260

Kokomo

Kokomo, IN Tel: 765-864-8360 Fax: 765-864-8387

Los Angeles

Mission Viejo, CA Tel: 949-462-9523 Fax: 949-462-9608

Santa Clara

Santa Clara, CA Tel: 408-961-6444 Fax: 408-961-6445

Toronto

Mississauga, Ontario, Canada Tel: 905-673-0699 Fax: 905-673-6509

ASIA/PACIFIC

Asia Pacific Office

Suites 3707-14, 37th Floor Tower 6, The Gateway Harbour City, Kowloon Hong Kong Tel: 852-2401-1200 Fax: 852-2401-3431

Australia - Sydney

Tel: 61-2-9868-6733 Fax: 61-2-9868-6755

China - Beijing

Tel: 86-10-8528-2100 Fax: 86-10-8528-2104

China - Chengdu

Tel: 86-28-8665-5511 Fax: 86-28-8665-7889

China - Fuzhou

Tel: 86-591-8750-3506 Fax: 86-591-8750-3521

China - Hong Kong SAR

Tel: 852-2401-1200 Fax: 852-2401-3431

China - Nanjing

Tel: 86-25-8473-2460 Fax: 86-25-8473-2470

China - Qingdao

Tel: 86-532-8502-7355 Fax: 86-532-8502-7205

China - Shanghai

Tel: 86-21-5407-5533 Fax: 86-21-5407-5066

China - Shenyang

Tel: 86-24-2334-2829 Fax: 86-24-2334-2393

China - Shenzhen

Tel: 86-755-8203-2660 Fax: 86-755-8203-1760

China - Shunde

Tel: 86-757-2839-5507 Fax: 86-757-2839-5571

China - Wuhan

Tel: 86-27-5980-5300 Fax: 86-27-5980-5118

China - Xian

Tel: 86-29-8833-7252 Fax: 86-29-8833-7256

ASIA/PACIFIC

India - Bangalore

Tel: 91-80-4182-8400 Fax: 91-80-4182-8422

India - New Delhi

Tel: 91-11-4160-8631 Fax: 91-11-4160-8632

India - Pune

Tel: 91-20-2566-1512 Fax: 91-20-2566-1513

Japan - Yokohama

Tel: 81-45-471- 6166 Fax: 81-45-471-6122

Korea - Daegu

Tel: 82-53-744-4301 Fax: 82-53-744-4302

Korea - Seoul

Tel: 82-2-554-7200 Fax: 82-2-558-5932 or 82-2-558-5934

Malaysia - Kuala Lumpur

Tel: 60-3-6201-9857 Fax: 60-3-6201-9859

Malaysia - Penang

Tel: 60-4-227-8870 Fax: 60-4-227-4068

Philippines - Manila

Tel: 63-2-634-9065 Fax: 63-2-634-9069

Singapore

Tel: 65-6334-8870 Fax: 65-6334-8850

Taiwan - Hsin Chu

Tel: 886-3-572-9526 Fax: 886-3-572-6459

Taiwan - Kaohsiung

Tel: 886-7-536-4818 Fax: 886-7-536-4803

Taiwan - Taipei

Tel: 886-2-2500-6610 Fax: 886-2-2508-0102

Thailand - Bangkok

Tel: 66-2-694-1351 Fax: 66-2-694-1350

EUROPE

Austria - Wels

Tel: 43-7242-2244-39 Fax: 43-7242-2244-393

Denmark - Copenhagen

Tel: 45-4450-2828 Fax: 45-4485-2829

France - Paris

Tel: 33-1-69-53-63-20 Fax: 33-1-69-30-90-79

Germany - Munich

Tel: 49-89-627-144-0 Fax: 49-89-627-144-44

Italy - Milan

Tel: 39-0331-742611 Fax: 39-0331-466781

Netherlands - Drunen

Tel: 31-416-690399 Fax: 31-416-690340

Spain - Madrid

Tel: 34-91-708-08-90 Fax: 34-91-708-08-91

UK - Wokingham

Tel: 44-118-921-5869 Fax: 44-118-921-5820

10/05/07

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Microchip: MCP1602EV

Microchip Technology MCP1602 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

INTRODUCTION

DOCUMENT LAYOUT

CONVENTIONS USED IN THIS GUIDE

RECOMMENDED READING

THE MICROCHIP WEB SITE

CUSTOMER SUPPORT

DOCUMENT REVISION HISTORY

Chapter 1. Product Overview

1.1 INTRODUCTION

1.2 WHAT IS THE MCP1602 EVALUATION BOARD?

1.3 WHAT THE MCP1602 EVALUATION BOARD KIT INCLUDES

Chapter 2. Installation and Operation

2.1 INTRODUCTION

2.2 FEATURES

2.3 GETTING STARTED

Appendix A. Schematic and Layouts

A.1 INTRODUCTION

Appendix B. Bill Of Materials (BOM)

WORLDWIDE SALES AND SERVICE
