Advance Information
BM71 Regulatory Compliance Information
BM71 Regulatory Compliance Information
Revision 0.4
Dec’ 2015
Revision 0.4 12/2015
Advance Information
BM71 Regulatory Compliance Information
This document covers the Regulatory Compliance information which is part of the
BM71 Module datasheet and related documents shared with customers.
Revision 0.4 12/2015
Advance Information
BM71 Regulatory Compliance Information
1.0 ANTENNA
1.1 Antenna Characteristics
1.1.1 CERAMIC CHIP ANTENNA
The BM71 module contains an integral ceramic chip antenna.
The Figure 1-1 illustrates the antenna performance of the module.
FIGURE 1-1: BM71 ANTENNA RADIATION PATTERN
Frequency 2442 MHz
Max Gain 0.1 dBi
Efficiency 42.7%
Revision 0.4 12/2015
Advance Information
BM71 Regulatory Compliance Information
APPENDIX A: CERTIFICATION
Note: This device has no been au orized as
required by the rules of the ederal Communications Commission This device is
no and may not be, offered or sale or
leas or sold or leased, until au orization
is obtained
BM71 module regulatory approval status:
• BT SIG/QDID:74246
• United States/FCC ID: A8TBM71S2
• Canada/IC ID: 12246A-BM71S2
HVIN: BM71BLES1FC2
• Europe/CE: In Progress
• Japan/MIC: 005-101150

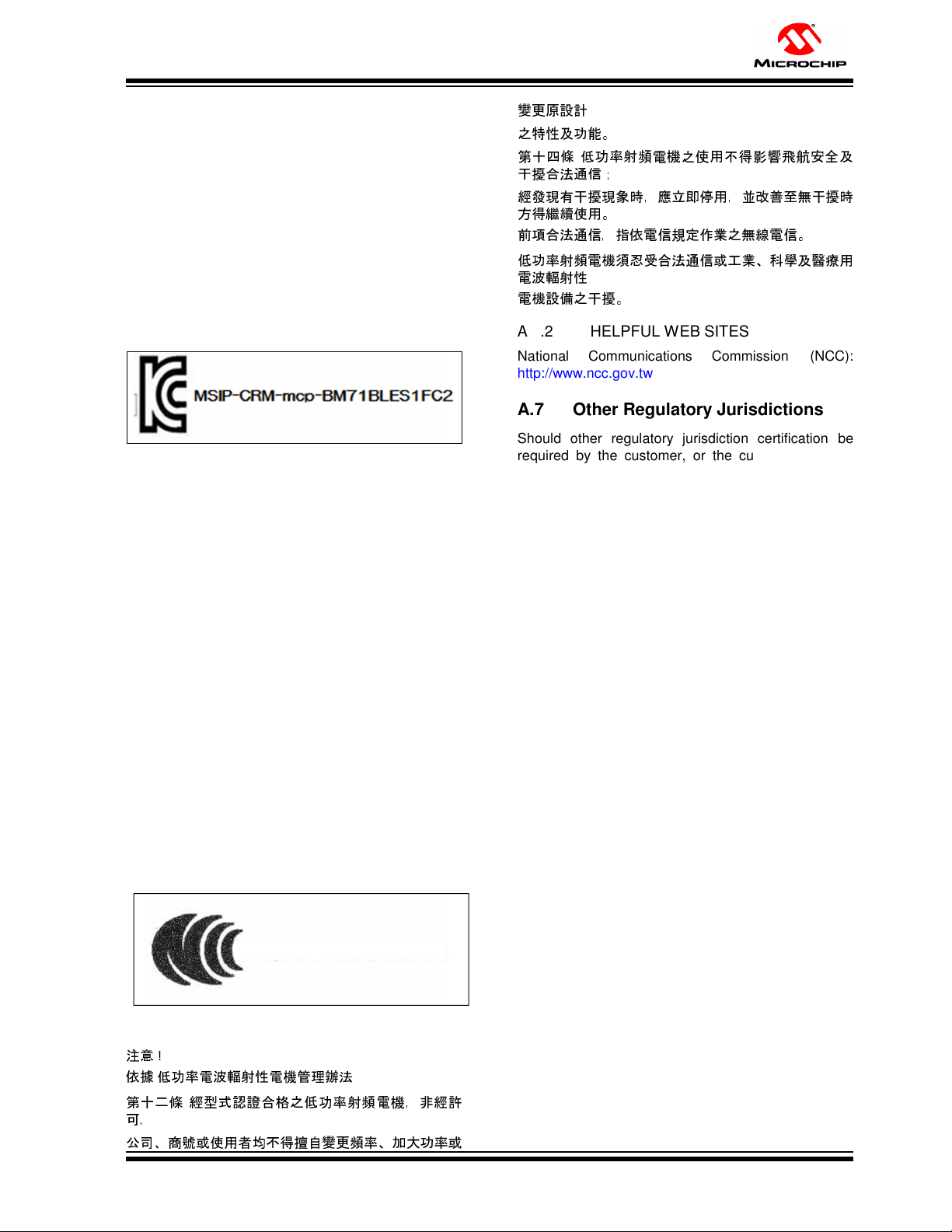

• Korea/KCC: MSIP-CRM-mcp-BM71BLES1FC2
• Taiwan/NCC No: In Progress
A.1
This section outlines the regulatory information for the
BM71 module for the following countries:
• United States
• Canada
• Europe
• Japan
• Korea
• Taiwan
A.1.1
The BM71 module is in progress to receive Federal
Communications Commission (FCC) CFR47 Telecommunications, Part 15 Subpart C "Intentional Radiators"
modular approval in accordance with Part 15.212 Modular Transmitter approval. Modular approval allows the
end user to integrate the BM71 module into a finished
product without obtaining subsequent and separate
FCC approvals for intentional radiation, provided no
changes or modifications are made to the module circuitry. Changes or modifications could void the user's
authority to operate the equipment. The end user must
comply with all of the instructions provided by the
Grantee, which indicate installation and/or operating
conditions necessary for compliance.
The finished product is required to comply with all applicable FCC equipment authorizations regulations,
requirements and equipment functions not associated
with the transmitter module portion. For example, compliance must be demonstrated to regulations for other
transmitter components within the host product; to
requirements for unintentional radiators (Part 15 Subpart B "Unintentional Radiators"), such as digital
REGULATORY APPROVAL
UNITED STATES
NOTICES
devices, computer peripherals, radio receivers, etc.;
and to additional authorization requirements for the
non-transmitter functions on the transmitter module
(i.e., Verification, or Declaration of Conformity) (e.g.,
transmitter modules may also contain digital logic functions) as appropriate.
A.1.2
LABELING AND USER
INFORMATION REQUIREMENTS
The BM71 module has to be labeled with its own FCC
ID number, and if the FCC ID is not visible when the
module is installed inside another device, then the outside of the finished product into which the module is
installed must also display a label referring to the
enclosed module. This exterior label can use wording
as follows:
Contains Transmitter Module FCC ID:
A8TBM71S2
or
Contains FCC ID: A8TBM71S2
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation
Due to the limited module size (9.0 x 11.5mm) the
FCC Identifier is displayed in the Datasheet only and
cannot be displayed on the module label.
Revision 0.4 12/2015
Advance Information
BM71 Regulatory Compliance Information
A user's manual for the finished product should
include the following statement:
is equipment has been tested and found o comply
wi he limi for a Class B digi l device pursuan o
pa 15 of the FCC Rule These limi s are designed
provide reasonable protection agains ha ul
in erence in a residential ins allation. his equipment generate uses and can radiate radio frequency energy and if no ins alled and used in
accordance wi h he in ru ions may cause harmful
in erence to radio communic ions However
ere is no guaran ee hat in nce will not occur
in a par icular in lla ion his equipmen does
cause harmful in nce to radio or television
recep io which can be determined by urning the
equipment of and on, the user is encouraged to ry to
corre the in erence by one or more o the following measures
• Reorien or reloca e he receiving an enn
• ncrease the separation between he equipment
and receiver
• Connec he equipmen in an outlet on a circui
di eren from hat which the receiver is conne ed.
• Consult he dealer or an experienced radio
chnician for help.
Additional information on labeling and user information
requirements for Part 15 devices can be found in KDB
Publication 784748 available at the FCC Office of
Engineering and Technology (OET) Laboratory Division
Knowledge Database (KDB)
http://apps.fcc.gov/oetcf/kdb/index.cfm.
A.1.3
All transmitters regulated by FCC must comply with RF
exposure requirements. KDB 447498 General RF
Exposure Guidance provides guidance in determining
whether proposed or existing transmitting facilities,
operations or devices comply with limits for human
exposure to Radio Frequency (RF) fields adopted by
the Federal Communications Commission (FCC).
From the FCC Grant: Output power listed is conducted.
This grant is valid only when the module is sold to OEM
integrators and must be installed by the OEM or OEM
integrators. This transmitter is restricted for use with
the specific antenna(s) tested in this application for
Certification and must not be co-located or operating in
conjunction with any other antenna or transmitters
within a host device, except in accordance with FCC
multi-transmitter product procedures.
RF EXPOSURE
A.1.4
Federal Communications Commission (FCC):
http://www.fcc.gov
FCC Office of Engineering and Technology (OET) Laboratory Division Knowledge Database (KDB):
http://apps.fcc.gov/oetcf/kdb/index.cfm
HELPFUL WEB SITES
Revision 0.4 12/2015
Advance Information
BM71 Regulatory Compliance Information
A.2
The BM71 module certification is in progress for use in
Canada under Industry Canada (IC) Radio Standards
Specification (RSS) RSS-247 and RSS-Gen. Modular
approval permits the installation of a module in a host
device without the need to recertify the device.
Certification details:
IC Certification Number: 12246A-BM71S2
HVIN: BM71BLES1FC2
A.2.1
Canada
LABELING AND USER
INFORMATION REQUIREMENTS
Labeling Requirements for the Host Device (from Section 3.1, RSS-Gen, Issue 4, November 2014): The host
device shall be properly labeled to identify the module
within the host device.
The Industry Canada certification label of a module
shall be clearly visible at all times when installed in the
host device, otherwise the host device must be labeled
to display the Industry Canada certification number of
the module, preceded by the words "Contains transmitter module", or the word "Contains", or similar wording
expressing the same meaning, as follows:
Co ains transmitter module
Due to the limited module size (9.0 x 11.5mm) the IC
identifier is displayed in the Datasheet only and
cannot be displayed on the module label.
User Manual Notice for License-Exempt Radio Apparatus (from Section 8.4, RSS-Gen, Issue 4, November
2014): User manuals for license-exempt radio appara-
tus shall contain the following or equivalent notice in a
conspicuous location in the user manual or alternatively on the device or both:
is device complies wi ndu Canada
license-exem R andard(s) pera ion is subje to the ollowing two condi ions (1) this device
may not cause interferenc and (2) this device mu
accept any interference including in nce h
ay cause undesired operation o the device
Le présen appareil es con orme aux CNR d dustrie Canada applicables aux appareils radio exemp s
de licence L'exploi ation es autorisée aux deux conditions suivant (1) l appareil ne doit pas produire
de brouillage, (2) l'utilisateur de l appareil doit
accepter out brouillage radioélec rique subi même
si le brouillage es susceptible d'en comprome re le
nctionneme
Transmitter Antenna (from Section 8.3, RSS-Gen,
Issue 4, November 2014): User manuals for transmitters shall display the following notice in a conspicuous
location:
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type
and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec
une antenne d'un type et d'un gain maximal (ou
inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il
faut choisir le type d'antenne et son gain de sorte que
la puissance isotrope rayonnée équivalente (p.i.r.e.)
ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
The above notice may be affixed to the device instead
of displayed in the user manual.
Revision 0.4 12/2015
Advance Information
BM71 Regulatory Compliance Information
A.2.2
All transmitters regulated by IC must comply with RF
exposure requirements listed in RSS-102 - Radio Frequency (RF) Exposure Compliance of Radio communication Apparatus (All Frequency Bands).
A.2.3
Industry Canada: http://www.ic.gc.ca/
A.3
The BM71 module is in progress to be an R&TTE
Directive assessed radio module that is CE marked
and has been manufactured and tested with the intention of being integrated into a final product.
The BM71 module has been tested to R&TTE Directive
1999/5/EC Essential Requirements for Health and
Safety (Article (3.1(a)), Electromagnetic Compatibility
(EMC) (Article 3.1(b)), and Radio (Article 3.2) and are
summarized in Table A-1. A Notified Body Opinion can
be arranged on request.
The R&TTE Compliance Association provides guidance on modular devices in “Technical Guidance Note
01” document available for download from the following
location: http://www.rtteca.com/html/down-
load_area.htm.
RF EXPOSURE
HELPFUL WEB SITES
Europe
Note: o main ain conformance to the testing
li ed in Table A-1 European Compliance
es ing the module shall be ins alled in
accordance wi the in allation in
ons in this data sheet and shall no be
modified
When integra ing a radio module into a
comple ed produc he in grator
becomes the manuf urer of the final
produ and is therefore responsible for
demons ng compliance of the final
produ wi h the essen ial requirements of
the R&TTE Direc ive
A.3.1
LABELING AND USER
INFORMATION REQUIREMENTS
The label on the final product which contains the BM71
module must follow CE marking requirements. The
R&TTE Compliance Association Technical Guidance
Note 01 provides guidance on final product CE marking.
A.3.2
From R&TTE Compliance Association document Technical Guidance Note 01.
ANTENNA REQUIREMENTS
Provided the integrator installing an assessed
radio module with an integral or specific antenna
and installed in conformance with the radio module manufacturer's installation instructions
requires no further evaluation.Under Article 3.2
of the R&TTE Directive and does not require further involvement of an R&TTE Directive Notified
Body for the final product. [Section 2.2.4]
The European Compliance Testing listed in Table A-1
was performed using the integral ceramic chip
antenna.
Revision 0.4 12/2015
Advance Information
Health
EN62479:2010
-
EN301489
-1
V1.9.2
EN301489
-17
V2.2.1
Radio
EN300328
V1.9.1
3(2)
-
Body
-
BM71 Regulatory Compliance Information
TABLE A-1: EUROPEAN COMPLIANCE TESTING
Certification
Standards
Article Laboratory Report Number
Date
Safety
EMC
Notified
A.3.3
A document that can be used as a starting point in
understanding the use of Short Range Devices (SRD)
in Europe is the European Radio Communications
Committee (ERC) Recommendation 70-03 E, which
can be downloaded from the European Radio Communications Office (ERO) at: http://www.ero.dk/. Additional helpful web sites are:
• Radio and Telecommunications Terminal Equipment (R&TTE):
http://ec.europa.eu/enterprise/rtte/index_en.htm
• European Conference of Postal and Telecommunications Administrations (CEPT):
http://www.cept.org
• European Telecommunications Standards Institute (ETSI):
http://www.etsi.org
• European Radio Communications Office (ERO):
http://www.ero.dk
• The Radio and Telecommunications Terminal
Equipment Compliance Association (R&TTE CA):
http://www.rtteca.com
EN60950-1:2006/A11:2010/A1:2010/
A12:2011/A2:2013
-
HELPFUL WEB SITES
A.4
The BM71 module has received type certification and
is labeled with its own technical conformity mark and
certification number as required to conform to the technical standards regulated by the Ministry of Internal
Affairs and Communications (MIC) of Japan pursuant
to the Radio Act of Japan.
Integration of this module into a final product does not
require additional radio certification provided installation instructions are followed and no modifications of
the module are allowed. Additional testing may be
required:
• If the host product is subject to electrical appli-
Japan
ance safety (for example, powered from an AC
mains), the host product may require Product
Safety Electrical Appliance and Material (PSE)
testing. The integrator should contact their conformance laboratory to determine if this testing is
required.
3(1)(a)
3(1)(b)
TUV
Rheinland
• There is an voluntary Electromagnetic Compatibility (EMC) test for the host product administered
by VCCI: http://www.vcci.jp/vcci_e/index.html
A.4.1
LABELING AND USER
10053210 001
10053433 001
10052964 001
10053433 001
-
-
-
INFORMATION REQUIREMENTS
The label on the final product which contains the BM71
module must follow Japan marking requirements. The
integrator of the module should refer to the labeling
requirements for Japan available at the Ministry of
Internal Affairs and Communications (MIC) website.
The BM71 module is labeled with its own technical con-
formity mark and certification number. The final product
in which this module is being used must have a label
attach on the top side of module and another one
referring to the type certified module inside:
A.4.2
Ministry of Internal Affairs and Communications (MIC):
http://www.tele.soumu.go.jp/e/index.htm
Association of Radio Industries and Businesses
(ARIB): http://www.arib.or.jp/english/
A.5
The BM71 module has received certification of conformity in accordance with the Radio Waves Act. Integration of this module into a final product does not require
additional radio certification provided installation
instructions are followed and no modifications of the
module are allowed.
HELPFUL WEB SITES
Korea
Revision 0.4 12/2015
Advance Information
BM71 Regulatory Compliance Information
A.5.1
LABELING AND USER
INFORMATION REQUIREMENTS
The label on the final product which contains the BM71
module must follow KC marking requirements. The
integrator of the module should refer to the labeling
requirements for Korea available on the Korea Communications Commission (KCC) website.
The BM71 module due to the limited size(9.0 x
11.5mm) the KC mark and identifier is displayed in the
Datasheet only and cannot be displayed on the
module label. .
The final product requires the KC mark and certificate
number of the module:
變更原設計
之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及
干擾合法通信；
經發現有干擾現象時，應立即停用，並改善至無干擾時
方得繼續使用。
前項合法通信，指依電信規定作業之無線電信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用
電波輻射性
電機設備之干擾。
A.6.2
National Communications Commission (NCC):
http://www.ncc.gov.tw
HELPFUL WEB SITES
A.7 Other Regulatory Jurisdictions
A.5.2
Korea Communications Commission (KCC):
http://www.kcc.go.kr
National Radio Research Agency (RRA):
http://rra.go.kr
HELPFUL WEB SITES
A.6
The BM71 module has pending compliance approval in
accordance with the Telecommunications Act. Customers seeking to use the compliance approval in their
product should contact Microchip Technology sales or
distribution partners to obtain a Letter of Authority.
Integration of this module into a final product does not
require additional radio certification provided installation instructions are followed and no modifications of
the module are allowed.
A.6.1
Taiwan
LABELING AND USER
INFORMATION REQUIREMENTS
The BM71 module due to the limited size(9.0 x
11.5mm) the NCC mark and identifier is displayed in
the Datasheet only and cannot be displayed on the
module label :
LABEL
Should other regulatory jurisdiction certification be
required by the customer, or the customer need to
recertify the module for other reasons, contact Microchip for the required utilities and documentation.
The user's manual should contain below warning (for
RF device) in traditional Chinese:
注意
!
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許
可，
公司、商號或使用者均不得擅自變更頻率、加大功率或
Revision 0.4 12/2015
Advance Information
BM71 Regulatory Compliance Information
Appendix B: Labelling Considerations
BM71 module, due to the module dimension limitation, could not add the certificate ID on module directly, we
would like to apply for your permission to add the certificate ID on the Datasheet and alternatively on the
shipping package instead of on module.
Description：
1. BM71 Module dimension
Area A: 1.5X8.5mm2
Area B: 7.7X6.1mm2, this is a shielding case with a label for BT address and date code
Area C: 3.5X8.5mm2
Area D: 2.1X6.35mm2 and 1.4X3.6mm2, the area is not complete and continuous.
Form factor
2. According the description above, due to the dimension limitation, we could not find out an area good to print a
clear certificate ID or logo.
3. We would apply for your kindly permission to allow Microchip to ship the module by the new approach, in
appendix I, to add the certificate ID on the anti-static bag, the out pack of the module tray。
4. Appendix B-1 is one of the proposal.
Revision 0.4 12/2015
Advance Information
BM71 Regulatory Compliance Information

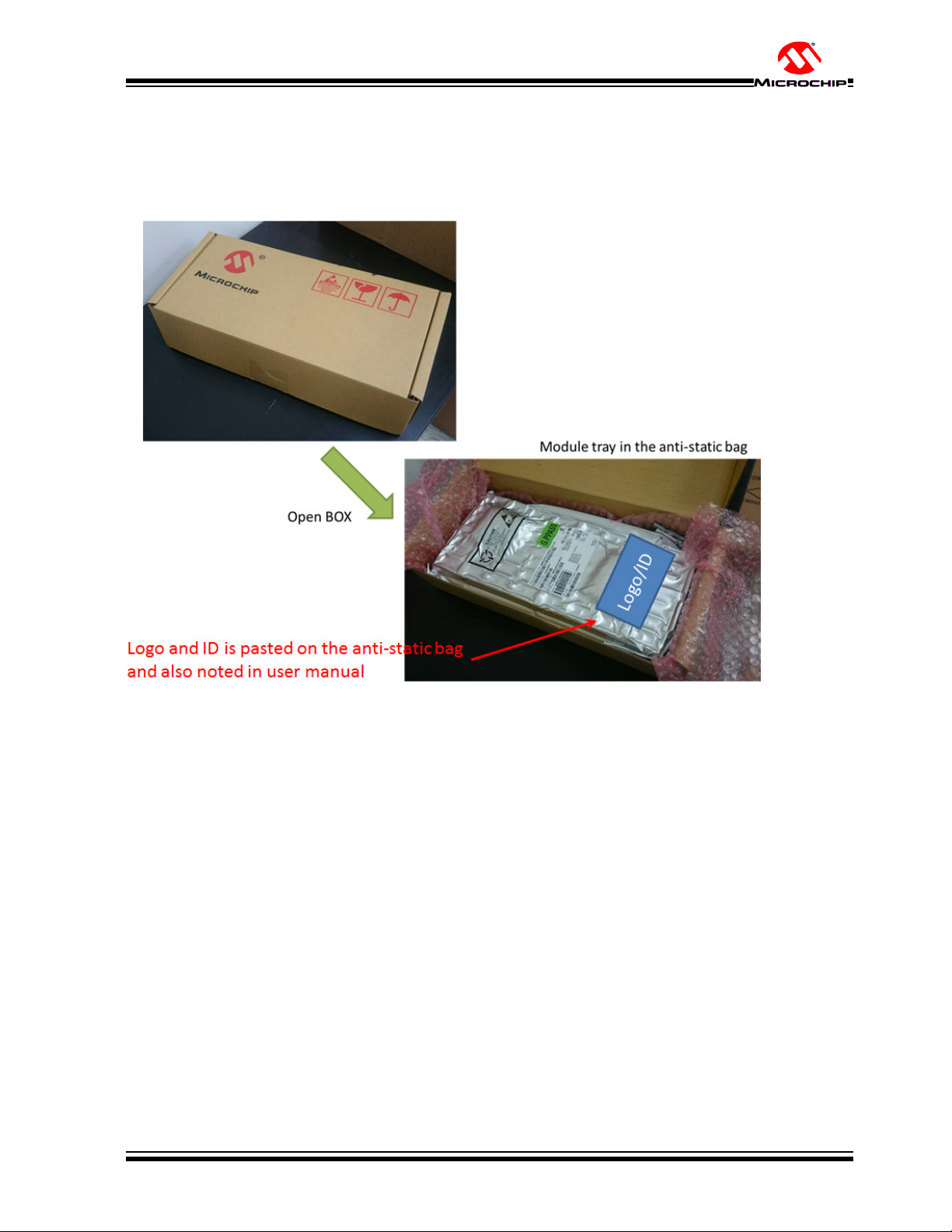

Appendix B-1
There is an anti-static bag outside the module tray, we suggest adding the certificate ID on the bag, it is very clear for the
custom and government to check the ID, and we will also add the certificate ID information in the module user manual to
avoid any possible confusion by the user.
Revision 0.4 12/2015
Loading...
