rfRXD0420/0920

UHF ASK/FSK/FM Receiver

Features:

• Low cost single conversion superheterodyne
receiver architecture

• Compatible with rfPIC™ and rfHCS series of RF
transmitters

®

• Easy interface to PICmicro
(MCU) and K

EELOQ

®

microcontroller

decoders

• VCO phase locked to quartz crystal reference:

- Narrow receiver bandwidth

- Maximizes range and interference immunity

• Selectable LNA gain control for improved dynamic
range

• Selectable IF bandwidth via external ceramic IF
filter

• Received Signal Strength Indicator (RSSI) for
signal strength indication (FSK, FM) and ASK
demodulation

• FSK/FM quadrature (phase coincidence) detector
demodulator

• 32-Lead LQFP package

UHF ASK/FSK Receiver:

• Single frequency receiver set by crystal frequency

• Receive frequency range:

Device Frequency Range

rfRXD0420 300 MHz to 450 MHz

rfRXD0920 800 MHz to 930 MHz

• Maximum data rate:

- ASK: 80 Kbps NRZ

- FSK: 40 Kbps NRZ

• IF frequency range: 455 kHz to 21.4 MHz

• RSSI range: 70 dB

• Frequency deviation range: ±5 kHz to ±120 kHz

• Maximum FM modulation frequency: 15 kHz

Pin Diagram:

LNA

LNA

LQFP

V

SS

GAIN

OUT

1IF

IN

V

SS

1IF+

1IF­V

DD

VDD

LNAINVSSLF

323130

1
2
3

rfRXD0420

4
5

rfRXD0920

6
7
8

101112

9

2IFINVSS

1IFOUT

29

FBC1

ENRX

28

13

14

VDD

FBC2

VDD

272526

15

2IF

OUT

XTAL

16

DEM

IN

SS

V

24
23
22
21
20
19
18
17

DEM
DEM

SS

V

RSSI
OPA+
OPA-

OPA

DD

V

Applications:

• Wireless remote command and control

• Wireless security systems

• Remote Keyless Entry (RKE)

• Low power telemetry

• Low power FM receiver

• Home automation

• Remote sensing

Bi-CMOS Technology:

• Wide operating voltage range

• Low current consumption in Active and Standby
modes

- rfRXD0420

- 8.2 mA (typical, LNA High Gain mode)

- <100 nA standby

- rfRXD0920

- 9.2 mA (typical, LNA High Gain mode)

- <100 nA standby

• Wide temperature range:

- Industrial: -40°C to +85°C

OUT
OUT

­+

 2003 Microchip Technology Inc. Preliminary DS70090A-page 1

rfRXD0420/0920

1.0 DEVICE OVERVIEW

The rfRXD0420/0920 are low cost, compact single
frequency short-range radio receivers requiring only a
minimum number of external components for a
complete receiver system. The rfRXD0420 covers the
receive frequency range of 300 MHz to 450 MHz and
the rfRXD0920 covers 800 MHz to 930 MHz. The
rfRXD0420 and rfRXD0920 share a common architec­ture. They can be configured for Amplitude Shift Keying
(ASK), Frequency Shift Keying (FSK), or FM modula­tion. The rfRXD0420/0920 are compatible with rfPIC™
and rfHCS series of RF transmitters.

• High frequency stability over temperature and
power supply variations

• Low spurious signal emission

• High large-signal handling capability with
selectable LNA gain control for improved dynamic
range

• Selectable IF bandwidth via external low cost
ceramic IF filter. The IF Frequency range is
selectable between 455 kHz to 21.4 MHz. This
facilitates the use of readily available low cost

10.7 MHz ceramic IF filters in a variety of
bandwidths.

• ASK or FSK for digital data reception

• FM modulation for analog signal reception

• FSK/FM demodulation using quadrature detector
(phase coincidence detector)

• Received Signal Strength Indication (RSSI) for
signal strength indication and ASK detection

• Wide supply voltage range

• Low active current consumption

• Very low standby current

The rfRXD0420/0920 is a single conversion superhet­erodyne architecture. A block diagram is illustrated in
Figure 1-1. The rfRXD0420/0920 consists of:

• Low-noise amplifier (LNA) - Gain selectable

• Mixer for down-conversion of the RF signal to the
Intermediate Frequency (IF) followed by an IF
preamplifier

• Fully integrated Phase-Locked Loop (PLL)
frequency synthesizer for generation of the Local
Oscillator (LO) signal. The frequency synthesizer
consists of:

- Crystal oscillator

- Phase-frequency detector and charge pump

- High-frequency Voltage Controlled Oscillator

(VCO)

- Fixed feedback divider

- rfRXD0420 = divide by 16

- rfRXD0920 = divide by 32

• IF limiting amplifier to amplify and limit the IF
signal and for Received Signal Strength Indication
(RSSI) generation

• Demodulator (DEMOD) section consists of a
phase detector (MIXER2) and amplifier creating a
quadrature detector (also known as a phase
coincidence detector) to demodulate the IF signal
in FSK and FM modulation applications

• Operational amplifier (OPA) that can be config­ured as a comparator for ASK or FSK data
decision or as a filter for FM modulation.

• Bias circuitry for bandgap biasing and circuit
shutdown

DS70090A-page 2 Preliminary  2003 Microchip Technology Inc.

FIGURE 1-1: rfRXD0420/0920 BLOCK DIAGRAM

-

19

OPA-

OPA

OPA

18

VDD

17

DEM

IN

1615

2IF

OUT

VDD

14

FBC2

+-

DEMOD

OPA+

MIXER2

rfRXD0420/0920

20

21

RSSI

VSS

22

DEM

OUT+

+-

OUT-

DEM

24 23

FBC1

IN

2IF

VSS

10

OUT

1IF

VDD

8

IF Preamp

1IF-

76 9 11 12 13

1IF+

VSS

5

MIXER1

1IF

IN

LNA

OUT

34

GAIN

LNA

2

VSS

1

DD

V

32

with RSSI

IF Limiting Amplifier

Frequency

Synthesizer

16: rfRXD0420

32: rfRXD0920

Fixed Divide by

LNA

IN

LNA

31

Crystal

Oscillator

and

Charge Pump

Phase Detector

Voltage

Oscillator

Controlled

SS

V

30

Bias

VSS

25

XTAL

VDD

27

ENRX

28

LF

29 26

 2003 Microchip Technology Inc. Preliminary DS70090A-page 3

rfRXD0420/0920

TABLE 1-1: rfRXD0420/0920 PINOUT I/O DESCRIPTION

Pin Name Pin Number Pin Type Buffer Type Description

LNA

GAIN 2 I CMOS LNA gain control (with hysteresis)

OUT 3 O Analog LNA output (open collector)

LNA

IN 4 I Analog 1st IF stage input

1IF

1IF+ 6 -- Analog MIXER1 bias (open collector)

1IF- 7 -- Analog MIXER1 bias (open collector)

OUT 9 O Analog 1st IF stage output

1IF

IN 11 I Analog 2nd IF stage input

2IF

FBC1 12 -- Analog Limiter IF Amplifier external feedback capacitor

FBC2 13 -- Analog Limiter IF Amplifier external feedback capacitor

OUT 15 O Analog 2nd IF stage output

2IF

DEM

IN 16 I Analog Demodulator input

OPA 18 O Analog Operational amplifier output

OPA- 19 I Analog Operational amplifier input (negative)

OPA+ 20 I Analog Operational amplifier input (positive)

RSSI 21 O Analog Received signal strength indicator output

OUT+ 23 O Analog Demodulator output (positive)

DEM

OUT- 24 O Analog Demodulator output (negative)

DEM

XTAL 26 I Analog Crystal oscillator input

ENRX 28 I CMOS Receiver enable input

LF 29 I Analog External loop filter connection. Common node of

charge pump output and VCO tuning input.

IN 31 I Analog LNA input

LNA

V

DD 8, 14, 17, 27, 32 P Positive supply

SS 1, 5, 10, 25, 30 P Ground reference

V

Legend: I = Input, O = Output, I/O = Input/Output, P = Power, CMOS = CMOS compatible input or output

DS70090A-page 4 Preliminary  2003 Microchip Technology Inc.

rfRXD0420/0920

A

2.0 CIRCUIT DESCRIPTION

This section gives a circuit description of the internal
circuitry of the rfRXD0420/0920 receiver. External
connections and components are given in the
APPLICATION CIRCUITS section.

2.1 Bias Circuitry

Bias circuitry provides bandgap biasing and circuit
shutdown capabilities. The ENRX (Pin 28) modes are
summarized in Table 2-1. The ENRX pin is a CMOS
compatible input and is internally pulled down to Vss.

TABLE 2-1: BIAS CIRCUITRY CONTROL

(1)

ENRX

0 Standby mode

1 Receiver enabled

Note 1: ENRX has internal pull-down to Vss

2.2 Frequency Synthesizer

The Phase-locked Loop (PLL) frequency synthesizer
generates the Local Oscillator (LO) signal. It consists
of:

• Crystal oscillator

• Phase-frequency detector and charge pump

• Voltage Controlled Oscillator (VCO)

• Fixed feedback divider:

- rfRXD0420 = divide by 16

- rfRXD0920 = divide by 32

Description

The PLL consists of a phase-frequency detector,
charge pump, voltage-controlled oscillator (VCO), and
fixed divide-by-16 (rfRXD0420) or divide-by-32
(rfRXD0920) divider. The rfRXD0420/0920 employs a
charge pump PLL that offers many advantages over
the classical voltage phase detector PLL: infinite pull-in
range and zero steady state phase error. The charge
pump PLL allows the use of passive loop filters that are
lower cost and minimize noise. Charge pump PLLs
have reduced flicker noise thus limiting phase noise.

An external loop filter is connected to pin LF (Pin 29).
The loop filter controls the dynamic behavior of the
PLL, primarily lock time and spur levels. The applica­tion determines the loop filter requirements.

The VCO gain for the rfRXD0420/0920 receivers are
listed in Table 2-2.

TABLE 2-2: PLL PARAMETERS

Device

K

VCO

(1)

rfRXD0420 250 MHz/V at

433 MHz

rfRXD0920 300 MHz/V at

868 MHz

Note 1: Typical value

The LF pin is illustrated in Figure 2-2.

(1)

ICP

Divider

60 µA16

60 µA32

FIGURE 2-2: BLOCK DIAGRAM OF LOOP

FILTER PIN

2.2.1 CRYSTAL OSCILLATOR

The internal crystal oscillator is a Colpitts type oscilla­tor. It provides the reference frequency to the PLL. A
crystal is normally connected to the XTAL (Pin 26) and
ground. The internal capacitance of the crystal oscilla­tor is 15 pF. Alternatively, a signal can be injected into
the XTAL pin from a signal source. The signal should
be AC coupled via a series capacitor at a level of
approximately 600 mV

.

pp

The XTAL pin is illustrated in Figure 2-1.

FIGURE 2-1: BLOCK DIAGRAM OF

XTAL PIN

VDD

VDD VDD

XTAL

26

VSS

50 kΩ

30 pF

30 pF

VSS VSS

40 µ

VDD

LF

29

VSS

200 Ω

400 Ω

4 pF

VSS

VSS

2.3 Low Noise Amplifier

The Low-Noise Amplifier (LNA) is a high-gain amplifier
whose primary purpose is to lower the overall noise
figure of the entire receiver thus enhancing the receiver
sensitivity. The LNA is an open-collector cascode
design. The benefits of a cascode design are:

• high gain with low noise

• high-frequency

• wide bandwidth

• low effective input capacitance with stable input
impedance

• high output resistance

• high reverse isolation that provides improved
stability and reduces LO leakage

 2003 Microchip Technology Inc. Preliminary DS70090A-page 5

rfRXD0420/0920

Approximate LNA noise figures are listed in Table 2-3.

TABLE 2-3: LNA NOISE FIGURES

Device

Noise Figure

rfRXD0420 TBD

rfRXD0920 TBD

Note 1: Approximate value

LNA

IN (Pin 31) has an input impedance of approxi-

mately 26 Ω || 2 pF single-ended.

OUT (Pin 3) has an open-collector output and is

LNA
pulled up to V

DD via a tuned circuit.

Important: To ensure LNA stability the V

must be connected to a low impedance ground.

The LNA pins are illustrated in Figure 2-3.

(1)

SS pin (Pin 1)

FIGURE 2-3: BLOCK DIAGRAM OF LNA

PINS

LNA

VSS

V

VSS

OUT

3

DD

VSS

1

LNA

31

1.6V

0.8V

VDD

5 kΩ

IN

VSS

The gain of the LNA can be selected between High and
Low Gain modes by the LNA

GAIN pin (Pin 2). LNAGAIN

is a CMOS input with hysteresis. Table 2-4 summarizes
the voltage levels and modes for LNA gain.

In the High Gain mode the LNA operates normally. In
Low Gain mode the gain of the LNA is reduced approx­imately 25 dB, reduces total supply current, and
increases maximum input signal levels (see Electrical
Characteristics section for values).

TABLE 2-4: LNA GAIN CONTROL

LNAGAIN Description

< 0.8 V High Gain mode

> 1.4 V Low Gain mode

The 1IF+ (Pin 6) and 1IF- (Pin 7) are bias connections
to the MIXER1 balanced collectors. Both pins are
open-collector outputs and are individually pulled up to

DD by a load resistor. The MIXER1 bias pins are illus-

V
trated in Figure 2-5.

1IF

OUT (Pin 9) has an approximately 330 Ω single-

ended output impedance. The 330 Ω impedance
provides a direct match to low cost ceramic IF filters.
The 1IF

OUT pins is illustrated in Figure 2-6.

FIGURE 2-4: BLOCK DIAGRAM OF MIXER1

PIN

1IF

4

VDD

IN

VSS

13 Ω

13 Ω

500 µA

VSS

FIGURE 2-5: BLOCK DIAGRAM OF MIXER1

BIAS PINS

VDD VDD

VSS

20 pF

500 µA

1IF-

7

VSS

1IF+

6

20 pF

VSS

500 µA

VSS

FIGURE 2-6: BLOCK DIAGRAM OF IF

PREAMP PIN

VDD VDD

6.8 kΩ

130 Ω

230 µA

VSS

1IF

9

VDD

OUT

VSS

2.5 IF Limiting Amplifier with RSSI

2.4 MIXER1 and IF Preamp

MIXER1 performs down-conversion of the RF signal to
the Intermediate Frequency (IF) and is followed by an

The IF Limiting Amplifier amplifies and limits the IF
signal at the 2IF

IN pin (Pin 11). It also generates the

Received Signal Strength Indicator (RSSI) signal
(Pin 21).

IF preamplifier.

IN (Pin 4) has an approximately 33 Ω single-ended

1IF
input impedance. The 1IF

IN pin is illustrated in Figure 2-

4.

2.5.1 IF LIMITING AMPLIFIER

Magnitude control circuitry is used in the last stage of
the receiver to keep the signal constant for demodula­tion. It can consist of a limiting or Automatic Gain
Control (AGC) amplifier. A limiting amplifier is

DS70090A-page 6 Preliminary  2003 Microchip Technology Inc.

rfRXD0420/0920

employed in this design because it can handle a larger
dynamic range while consuming less power with simple
circuitry than AGC circuitry.

The internal resistance of the 2IF

IN pin is approximately

2.2 kΩ. In order to terminate ceramic IF filters whose
output impedance is 330 Ω, a 390 Ω resistor can be
paralleled to the 2IF

IN and FBC2 pins.

FBC1 (Pin 12) and FBC2 (Pin 13) are connected to
external feedback capacitors.

The IF Limiting Amplifier pins are illustrated in
Figures 2-7 and 2-8.

FIGURE 2-7: BLOCK DIAGRAM OF IF

LIMITING AMPLIFIER INPUT
PINS

2IF

11

FBC2

13

VDD

IN

VSS

VDD

VSS

2.2 kΩ

2.2 kΩ

200 µA

Vss

VDD

FBC1

12

VSS

FIGURE 2-8: BLOCK DIAGRAM OF IF

LIMITING AMPLIFIER OUTPUT
PIN

VDD

VDD

OUT

2IF

15

VSS

40 µA

VSS

2.5.2 RECEIVED SIGNAL STRENGTH
INDICATOR (RSSI)

The RSSI signal is proportional to the log of the signal
at 2IF

IN. The 2IFIN input RSSI range is approximately

40 µV to 160 mV. The slope of the RSSI output is
approximately 26 mV/dB of RF signal.

The RSSI output has an internal 36 kΩ resister to Vss
fed by a current source. This resistor converts the
RSSI current to voltage.

For Amplitude Shift Keying (ASK) demodulation, RSSI
is compared to a reference voltage (static or dynamic).
Post detector filtering is easily implemented by
connecting a capacitor to ground from the RSSI pin
effectively creating an RC filter with the internal 36 kΩ
resistor.

For FSK and FM demodulation, the RSSI represents
the received signal strength of the incoming RF signal.

The RSSI pin is illustrated in Figure 2-9.

FIGURE 2-9: BLOCK DIAGRAM OF RSSI

PIN

VDD

RSSI

21

50 Ω

VSS

I (Pi)

36 kΩ

VSS

2.6 Demodulator

The demodulator (DEMOD) section consists of a phase
detector (MIXER2) and amplifier creating a quadrature
detector (also known as a phase coincidence detector)
to demodulate the IF signal in FSK and FM modulation
applications. The quadrature detector provides all the
IF functions required for FSK and FM demodulation
with only a few external parts.

The in-phase signal comes directly from the output of
the IF limiting amplifier to MIXER2. The quadrature
signal is created by an external tuned circuit from the
output of the IF limiting amplifier (2IF
coupled to the MIXER2 DEM
impedance of the DEM

IN (Pin 16) input. The input

IN pin is approximately 47 kΩ.

The external tuned circuit can be constructed from sim­ple inductor-capacitor (LC) components but will require
one of the elements to be tunable. A no-tune solution
can be constructed with a ceramic discriminator.

The output voltage of the DEMOD amplifier (DEMout+
and DEMout-, Pins 23 and 24) depends on the peak
deviation of the FSK or FM signal and the Q of the
external tuned circuit. DEMout+ and DEMout- are high
impedance outputs with only a 20 µA current capability.

The Demodulator pins are illustrated in Figures 2-10
and 2-11.

FIGURE 2-10: BLOCK DIAGRAM OF

DEMODULATOR INPUT PIN

VDD

VDD VDD

DEM

IN

16

VSS

OUT, Pin 15) AC-

47 kΩ

 2003 Microchip Technology Inc. Preliminary DS70090A-page 7

rfRXD0420/0920

FIGURE 2-11: BLOCK DIAGRAM OF

DEMODULATOR OUTPTUT
PINS

VDD

VSS

V

VSS

50 Ω

20 µA20 µA

VSS VSS

DD

50 Ω

20 µA20 µA

VSS VSS

DEM

OUT+

23

DEM

OUT-

24

2.7 Operational Amplifier

The internal operational amplifier (OPA) can be
configured as a comparator for ASK or FSK or as a filter
for FM modulation applications.

The Op Amp pins are illustrated in Figures 2-12 and
2-13.

FIGURE 2-12: BLOCK DIAGRAM OF OP AMP

INPUT PINS

VDD

VDD VDD

OPA-

19

50 Ω 50 Ω

VSS VSS

20 µA

OPA+

20

FIGURE 2-13: BLOCK DIAGRAM OF OP AMP

OUTPUT PIN

VDD

OPA

18

VSS

VDD

50 Ω

VSS

DS70090A-page 8 Preliminary  2003 Microchip Technology Inc.

rfRXD0420/0920

)

3.0 APPLICATION CIRCUITS

This section provides general information on applica­tion circuits for the rfRXD0420/0920 receiver. The
following connections and external components
provide starting points for designs and list the minimum
circuitry recommended for general purpose
applications.

Performance of the radio system (transmitter and
receiver) is affected by component selection and the
environment in which it operates. Each system design
has its own unique requirements. Specifications for a
particular design requires careful analysis of the appli­cation and compromises for a practical implementation.

3.1 General

This subsection lists connections and components that
are common between applications. The following
subsections give specific circuit connections and
components for ASK, FSK and FM applications.

3.1.1 BYPASS CAPACITORS

Bypass capacitors should be placed as physically close
as possible to V
respectively. Additional bypassing and board level low­pass filtering of the power supply may be required
depending on the application.

3.1.2 FREQUENCY PLANNING

The rfRXD0420/0920 receivers are single-conversion
superheterodyne architecture with a single IF
frequency. The receive frequency is set by the crystal
frequency (f
a majority of applications an external crystal is
connected to XTAL (Pin 26). Figure 3-1 illustrates an
example circuit with an optional trim capacitor.

FIGURE 3-1: XTAL EXAMPLE CIRCUIT

DD pins 8, 14, 17, 27 and 32

) and intermediate frequency (fif). For

XTAL

WITH OPTIONAL TRIM
CAPACITOR

XTAL

26

C TRIM

(OPTIONAL

X1

effect the trim capacitor has on the receive frequency
for the rfRXD0420 at 433.92 MHz. Keep in mind that
this graph represents one example circuit and the
actual results depends on the crystal and PCB layout.

FIGURE 3-2: RECEIVE FREQUENCY VS.

TRIM CAPACITANCE

434.10

434.05

434.00

433.95

433.90

433.85

433.80

Receive Frequency (MHz)

433.75

82 pF

0 ohms

68 pF

56 pF

47 pF

Trim Capacitor (pF)

39 pF

33 pF

27 pF

22 pF

18 pF

15 pF

12 pF

10 pF

5 pF

Note that a 0 Ω resistor, in the lower left of the graph,
represents an infinite capacitance. This will be the
lowest frequency obtainable for the crystal and PCB
combination.

Calculation of the crystal frequency requires knowl­edge of the receive frequency (f
frequency (f

). Figure 3-3 is a worksheet to assist the

if

) and intermediate

rf

designer in calculating the crystal frequency. Table 3-1
lists crystal frequencies for popular receive frequen­cies. Table 3-2 lists crystal parameters required for
ordering crystals. For background information on
crystal selection see Application Note AN826, Crystal
Oscillator Basics and Crystal Selection for rfPIC
PICmicro

®

Devices.

TM

and

TABLE 3-1: CRYSTAL FREQUENCIES FOR

POPULAR RECEIVE
FREQUENCIES

Receive

Frequency

rfRXD0420

315 MHz 20.35625 MHz

433.92 MHz 26.45125 MHz

rfRXD0920

868.3 MHz 26.8 MHz

915 MHz 28.259375 MHz

(1) Low-side injection (2) High-side injection

Crystal

Frequency

(2)

(1)

(1)

(1)

TABLE 3-2: CRYSTAL PARAMETERS

Parameter Value

The crystal load capacitance should be specified to
include the internal load capacitance of the XTAL pin of
15 pF plus PCB stray capacitance (approximately 2 to
3 pF). A trim capacitor can be used to trim the crystal
on frequency within the limitations of the crystal’s trim
sensitivity and pullability. Figure 3-2 illustrates the

 2003 Microchip Technology Inc. Preliminary DS70090A-page 9

Frequency: (see Figure 3-1)

Mode: Fundamental

Load Capacitance: 15-20 pF

ESR: 60 Ω Maximum

These values are for design guidance only.

rfRXD0420/0920

FIGURE 3-3: FREQUENCY PLANNING WORKSHEET

Step 1: Identify receive (f

= ____________________

f

rf

f

= ____________________

if

Step 2: Calculate crystal frequencies for high- and low-side injection:

High-side Injection

f

lo-HIGH

=

=

= f

f

XTAL-HIGH

Low-side Injection

f

XTAL-LOW

Step 3: Calculate Local Oscillator (LO) frequencies (f

High-side Injection

Low-side Injection

) and IF frequency (fif).

rf

( f

+ f

rf

PLL divide ratio 16 if rfRXD0420

( f

- f

rf

PLL divide ratio 16 if rfRXD0420

XTAL-HIGH

)

if

)

if

x PLL Divide Ratio

=

=

( _________ + _________ )

32 if rfRXD0920

( _________ - _________ )

32 if rfRXD0920

) using f

lo

= _________ x

XTAL-HIGH

f

rf

f

x PLL divide ratio

XTAL

= _______________

= _______________

and f

XTAL-LOW

16 if rfRXD0420

32 if rfRXD0920

f

f

lo

:

= _____________

if

= f

f

lo-LOW

Step 4: Select high-side injection (f

that is between the ranges of:

Step 5: From the chosen injection mode in Step 4, write the selected crystal frequency (f

injection mode.

f

XTAL

Step 6: Calculate image frequency (f

if High-side Injection

f

rf-image

if Low-side Injection

f

rf-image

Note: Image frequency should be sufficiently filtered by the preselector for the application.

XTAL-LOW

= ____________________ High-side Injection Low-side Injection

= frf + (2 x fif)

= frf - (2 x fif)

x PLL Divide Ratio

) or low-side injection (f

lo-HIGH

Device LO Frequency Range

rfRXD0420 300 to 430 MHz

rfRXD0920 800 to 915 MHz

rf-image

= ___________ + ( 2 x ___________ ) = ______________

= ___________ - ( 2 x ___________ ) = ______________

= _________ x

) for the Injection mode chosen:

16 if rfRXD0420

32 if rfRXD0920

) that corresponds to the LO frequency

lo-LOW

(circle one)

= _____________

) and circle

XTAL

DS70090A-page 10 Preliminary  2003 Microchip Technology Inc.

rfRXD0420/0920

3.1.3 PLL LOOP FILTER

An external PLL loop filter is connected to pin LF
(Pin 29). The loop filter controls the dynamic behavior
of the PLL, primarily lock time and spur levels. Gener­ally, the PLL lock time is a small fraction of the overall
receiver start-up time (see Electrical Characteristics
Section). The crystal oscillator is the largest contributor
to start-up time. Thus, for the majority of applications,
design loop filter values for a wide loop bandwidth to
suppress noise. Figure 3-4 illustrates an example filter
circuit for a wide frequency range suitable for a majority
of applications.

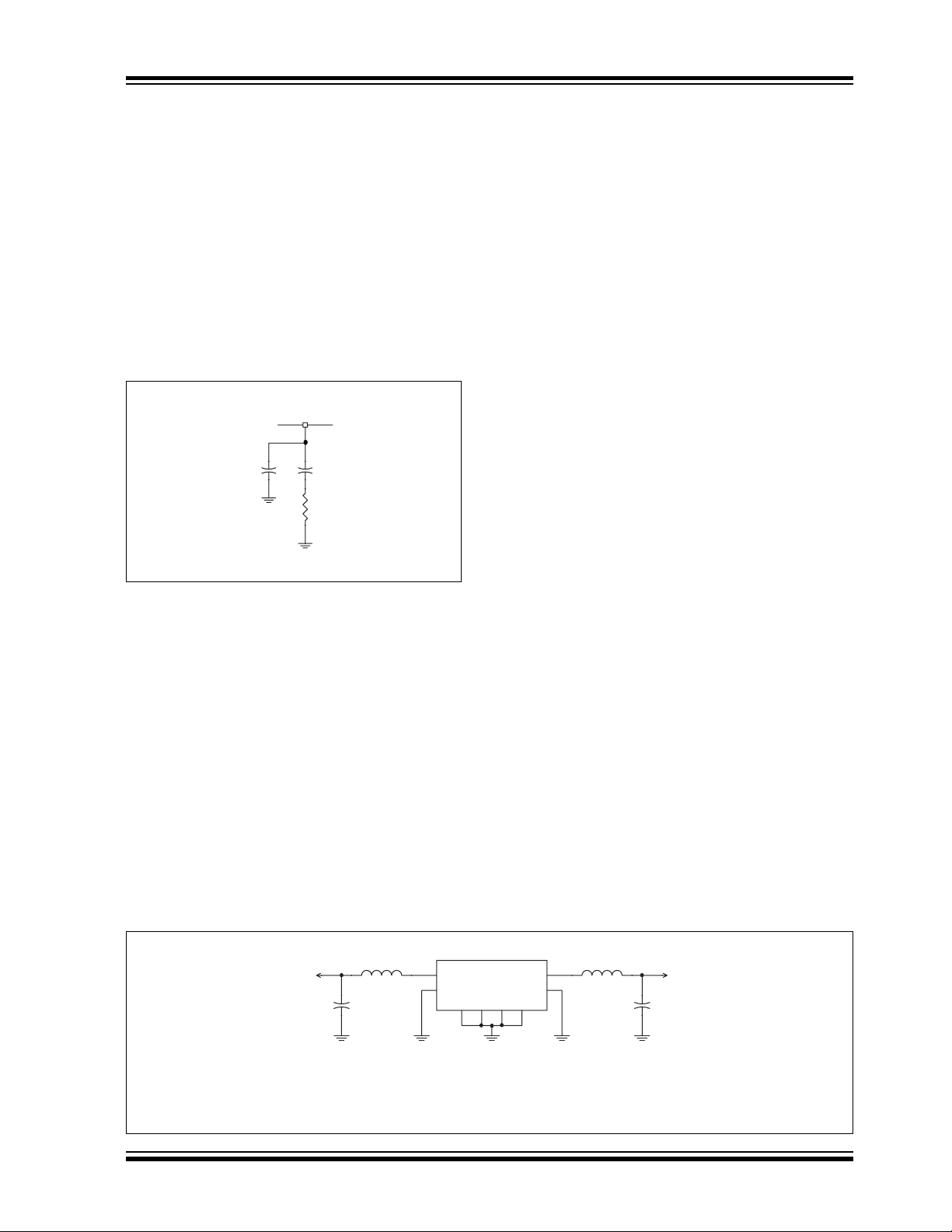

FIGURE 3-4: PLL LOOP FILTER EXAMPLE

CIRCUIT

LF

29

C2

C1
1000 pFOPTIONAL

R1
10 kΩ

3.1.4 PRESELECTOR

Receiver performance is heavily influenced by the
preselector (also known as the front-end filter). The
purpose of the preselector is to filter unwanted signals
and noise from entering the receiver.

The most important unwanted signal is the image
frequency (f
image frequency calculated in Figure 3-3 as this will be
the frequency that needs to be filtered out by the
preselector.

The preselector can be designed using a simple LC
filter or a Surface Acoustic Wave (SAW) filter. A simple
LC filter provides a low cost solution but will have the
least effect filtering the image frequency. A SAW filter
can effectively filter the image frequency with a
minimum of 40 dB attenuation.

). Pay particular attention to the

rf-image

The SAW filter has the added advantage of filtering
wide-band noise and improving the signal-to-noise
ratio (SNR) of the receiver.

SAW filters require impedance matching. Refer to the
manufacturers' data sheet and application notes for
SAW filter pinouts, specified impedances and recom­mended matching circuits. Figure 3-5 shows a SAW
filter example circuit.

A secondary purpose of the preselector is to provide
impedance matching between the antenna and LNA
(Pin 31).

3.1.5 ANTENNA

Receiver performance and device packaging influence
antenna selection. There are many third-party anten­nas to choose from. Third-party antennas typically
have an impedance of 50 Ω. The preselector compo­nents should be chosen to match the impedance of the
antenna to the LNA

IN (Pin 31) impedance of

26 Ω || 2 pF.

The designer can chose to use a simple wire antenna.
The length of the wire should be one-quarter the wave­length (λ) of the receive frequency. For example, the
wavelength of 433.92 MHz is:

λ = c / f

λ = 3 x 10

where c = 3 x 108 m/s

rf

8

m/s / 433.92 x 106 Hz

λ = 0.69 m

therefore

0.25λ = 17.3 cm or 6.8 inches

Finally, the wire antenna should be impedance
matched to the preselector. The typical impedance of a
one-quarter wavelength wire antenna is 36 Ω.

3.1.6 LNA GAIN

For a majority of applications, LNAGAIN can be tied to
Vss (ground) enabling High Gain mode. If the applica­tion requires short range communications, LNA
can be tied to VDD (pulled up) enabling Low Gain mode.

More Information on LNA

GAIN operation can be found

in the Circuit Description section.

GAIN

IN

FIGURE 3-5: SAW FILTER EXAMPLE CIRCUIT

L1 L2

C1 C2

2

Input

1

Input Gnd

Note: Refer to SAW filter manufacturer’s data sheet for pin outs

and values for impedance matching components.

 2003 Microchip Technology Inc. Preliminary DS70090A-page 11

SAW FilterF1

Output

Output Gnd

Case Gnd

3478

5

6

LNAINAntenna

rfRXD0420/0920

3.1.7 LNA TUNED CIRCUIT

The LNAOUT (Pin 3) has an open-collector output. It is
pulled up to V

IN (Pin 4) via a series decoupling capacitor. The

to 1IF

IN input impedance is approximately 33 Ω || 1.5 pF.

1IF

Important: To ensure LNA stability the V

DD via a tuned circuit. It is also connected

SS pin (Pin 1)

must be connected to a low impedance ground.

As shown in Figure 3-6, components C1 and L1 make
up the tuned circuit and provide collector current via
pull-up. Together with decoupling capacitor C2, they
provided impedance matching between the LNA and
MIXER1. To a lesser extent, C1, L1, and C2 provide
band-pass filtering at the receive frequency (f

).

rf

Component values depend on the selected receive
frequency. The challenge is to design the circuit with
the fewest components setting Q as high as possible
as limited by component tolerances. For a majority of
applications it is best to design a wide bandwidth tuned
circuit to account for manufacturing and component
tolerances. The best approach is to design the tuned
circuit using a filter simulation program. Table 3-3 lists
example component values for popular receive
frequencies.

FIGURE 3-6: LNA OUTPUT TO MIXER1

EXAMPLE CIRCUIT.

VDD

C Bypass

C1C2L1

34

OUT

LNA

IN

1IF

TABLE 3-3: LNA TUNED CIRCUIT EXAMPLE

COMPONENT VALUES

f

rf

315 MHz 7.0 pF 22 nH 6.0 pF

433.92 MHz 3.0 pF 15 nH 6.0 pF

868.3 MHz 2.0 pF 7.6 nH 3.0 pF

915 MHz 2.0 pF 6.8 nH 3.0 pF

These values are for design guidance only.

C1 L1 C2

3.1.8 MIXER1 BIAS

The 1IF+ (Pin 6) and 1IF- (Pin 7) are bias connections
to the MIXER1 balanced collectors. Both pins are
open-collector outputs and are individually pulled up to

DD by a load resistor. Figure 3-7 shows a MIXER1

V
bias example circuit.

FIGURE 3-7: MIXER1 BIAS EXAMPLE

CIRCUIT

VDDVDD

R1

470 Ω

1IF+

R2
470 Ω

76

1IF-

3.1.9 INTERMEDIATE FREQUENCY (IF)
FILTER

The IF filter defines the overall adjacent signal selectiv­ity of the receiver. For a majority of applications, low­cost 10.7 MHz ceramic IF filters are used. These are
available in a variety of bandwidths and packages.

IF filter bandwidth selection is a function of:

• modulation (ASK, FSK or FM)

• signal bandwidth

• frequency and temperature tolerances of the

transmitter and receiver components

The typical input and output impedance of ceramic
filters is 330 Ω. 1IF

OUT (Pin 9) has an approximately

330 Ω single-ended output impedance and provides a
direct match to the ceramic IF filter. The internal resis­tance of the 2IF

IN (Pin 11) is approximately 2.2 kΩ. In

order to terminate ceramic IF filters a 390 Ω resistor
can be paralleled to the 2IF

IN and FBC2 (Pin 13).

Figure 3-8 shows an example circuit schematic using a

10.7 MHz ceramic IF filter.

3.1.10 IF LIMITING AMPLIFIER EXTERNAL
FEEDBACK CAPACITORS

FBC1 (Pin 12) and FBC2 (Pin 13) are connected to
external feedback capacitors. Figure 3-8 shows
component values and connections for these
capacitors.

DS70090A-page 12 Preliminary  2003 Microchip Technology Inc.

rfRXD0420/0920

+

-

FIGURE 3-8: IF FILTER, LIMITING AMPLIFIER AND DEMODULATOR BLOCK DIAGRAM

24

23

OUT-

OUT+

DEM

DEM

-

+

DEMOD

DEM

IN

21

RSSI

1615

2IF

OUT

13

FBC2

1000 pF

Capacitors

External Feedback

2.2 kΩ

2.2 kΩ390 Ω

33000 pF

12

11

FBC1

1000 pF

MIXER2

-

+

IN

2IF

R1

50 Ω

with RSSI

IF Limiting Amplifier

R2

36 kΩ

10.7 MHz

Ceramic Filter

9

OUT

1IF

IF Preamp

 2003 Microchip Technology Inc. Preliminary DS70090A-page 13

rfRXD0420/0920

+

-

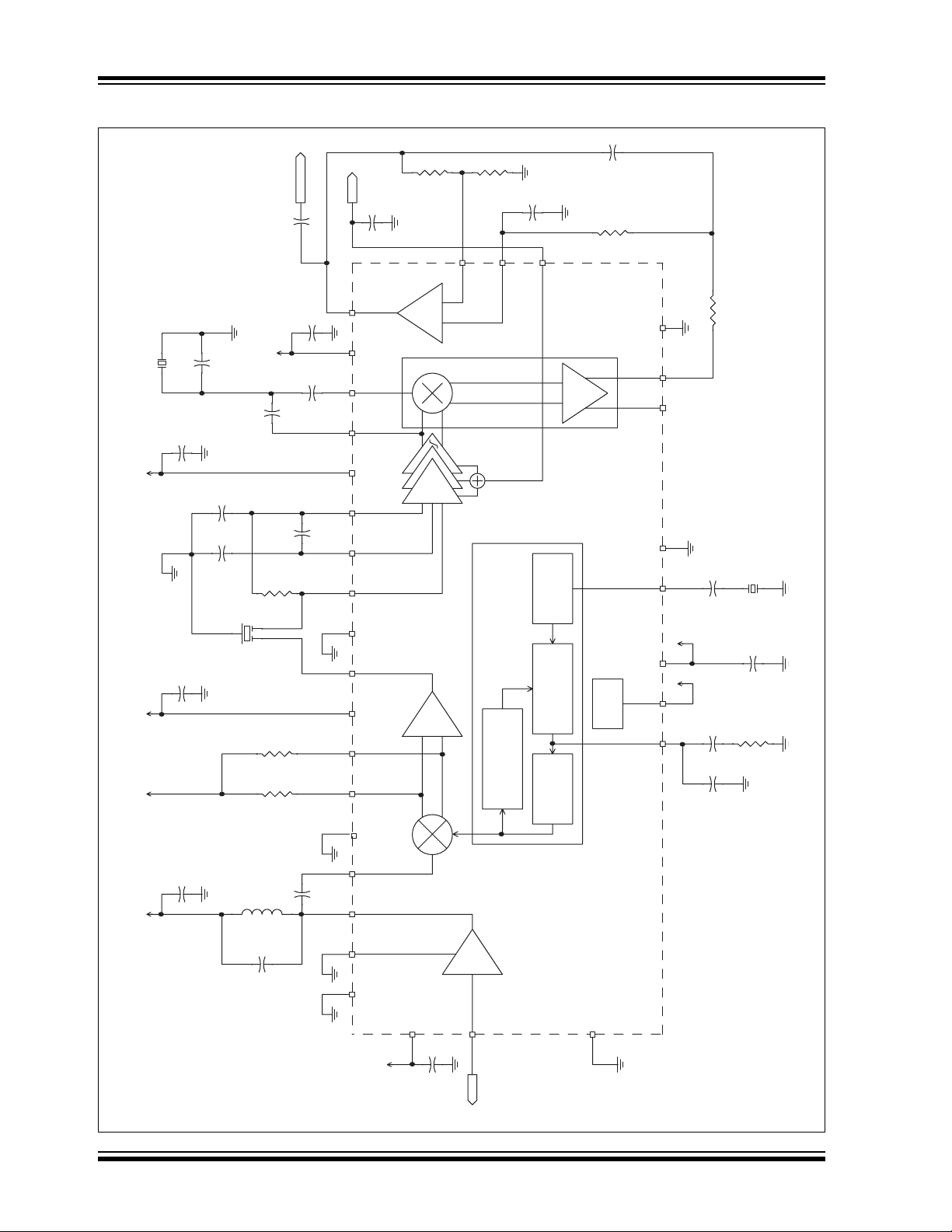

FIGURE 3-9: ASK APPLICATION CIRCUIT

RxDATA

OPA

C4

+V+V

C7

330pF

330pF

1000 pF

C13

NC NC

18

VDD

17

IN

1615

OUT

VDD

14

DEM

2IF

FBC2

OPA

DEMOD

C2

47000 pF

OPA-

+-

MIXER2

C1

RSSI

21

1800 pF

+

-

OUT+

OUT-

VSS

22

DEM

DEM

24 23

NC NC

R1

100 kΩ

20

19

OPA+

+V+V +V

C16

C18

330 pF

330 pF

C12

1000 pF

F2

R2

390 Ω

10.7 MHz

R4

470 Ω

R5

470 Ω

L3

C15

C8

C17

33000 pF

FBC1

2IF

IN

VSS

10

OUT

1IF

VDD

8

IF Preamp

1IF-

76 9 11 12 13

1IF+

VSS

5

MIXER1

1IF

IN

LNA

OUT

34

LNA

GAIN

2

VSS

1

DD

V

32

with RSSI

IF Limiting Amplifier

Frequency

Synthesizer

16: rfRXD0420

32: rfRXD0920

Fixed Divide by

LNA

IN

LNA

31

Crystal

Oscillator

and

Charge Pump

Phase Detector

Voltage

Oscillator

Controlled

SS

V

30

Bias

VSS

25
XTAL

VDD

27

ENRX

28
LF

29 26

+V+V

C9

OPTIONAL

X1

CRYSTAL TRIM CAPACITOR

C3

330 pF

C11

1000pF

R3

10 kΩ

C10

OPTIONAL

CAPACITOR

LOOP FILTER

+V

C14

330 pF

ANT

TO ANTENNA

MATCHING

NETWORK

DS70090A-page 14 Preliminary  2003 Microchip Technology Inc.

rfRXD0420/0920

3.2 Amplitude Shift Keying (ASK)

Figure 3-9 illustrates an example ASK applications cir­cuit.

The IF Limiting Amplifier with RSSI is used as an ASK
detector. The RSSI signal is post detector filtered and
then compared to a reference voltage to determine if
the incoming RF signal is a logical one or zero. The
reference voltage can be configured as a dynamic
voltage level determined by the incoming RF signal
strength or by a predetermined fixed level.

3.2.1 RSSI POST DETECTOR FILTERING

The RSSI signal is low-passed filtered to remove high
frequency and pulse noise to aid the decision making
process of the comparator and increase the sensitivity
of the receiver. The RSSI signal low-pass filter is a RC
filter created by the RSSI output impedance of 36 kΩ
and capacitor C1. Setting the time constant (RC = τ) of
the RC filter depends on the signal period and when the
signal decision will be made.

3.2.1.1 Signal Period

Optimum sensitivity of the receiver with reasonable
pulse distortion occurs when the RC filter time constant
is between 1 and 2 times the signal period. If the time
constant of the RC filter is set too short, there is little
noise filtering benefit. However, if the time constant of
the RC filter is set too long, the data pulses will become
elongated causing inter-symbol interference.

3.2.1.2 Signal Decision

If the bit decision occurs in the center of the signal
period (such as K
times the RC filter time constant should be set at less
than or equal to half the signal period. Figure 3-10 illus­trates this method. The top trace represents the
received on-off keying (OOK) signal. The bottom trace
shows the RSSI signal after the RC low-pass filter.

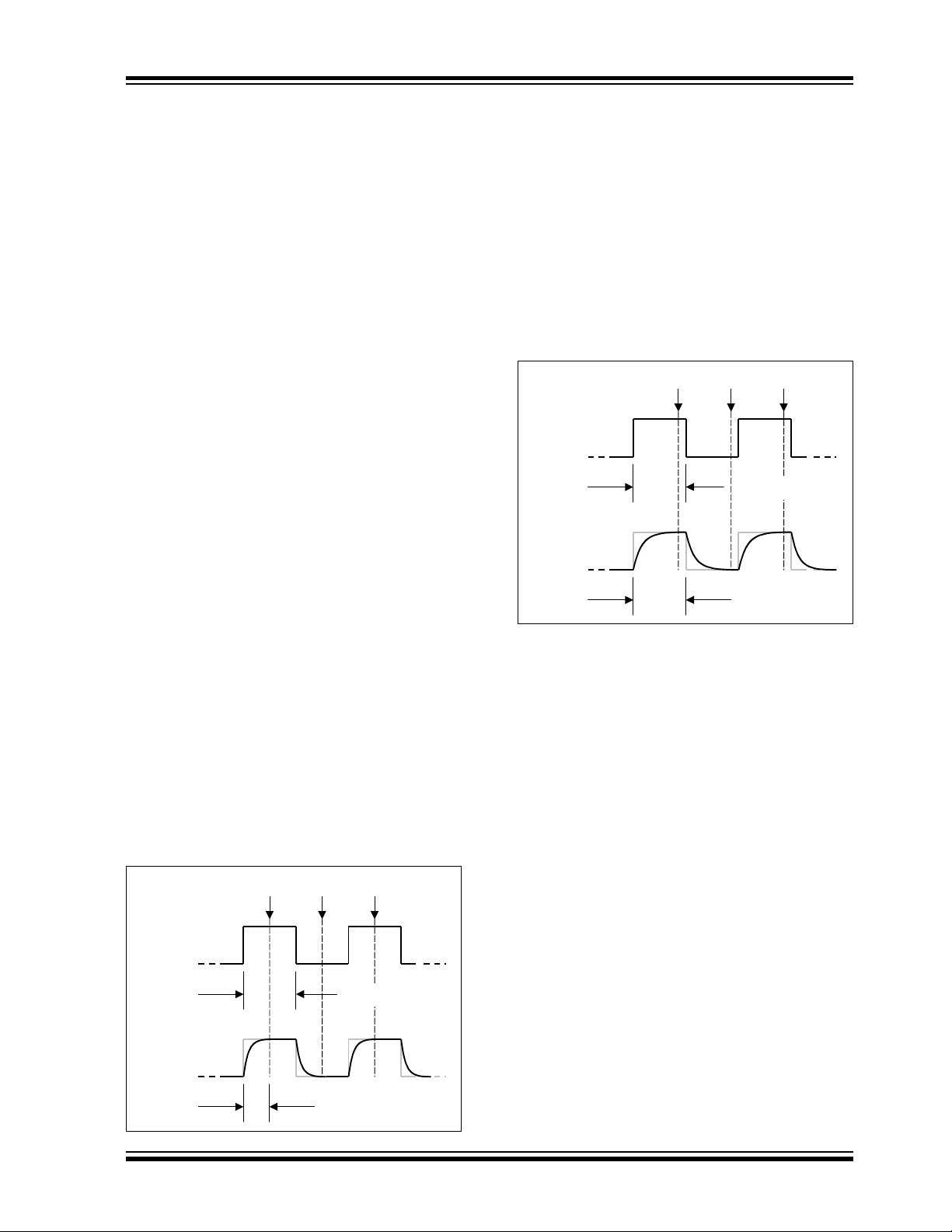

FIGURE 3-10: CENTER SIGNAL PERIOD

OOK Signal

RSSI Signal

EELOQ decoders), then one or two

DECISION RSSI LOW-PASS
FILTERED

Signal Decision

Signal Period

1τ to 2τ

If the bit decision occurs near the end of the signal
period, then the time constant should be set at less
than or equal to the signal period. Figure 3-11
illustrates this method.

Once the signal decision time and time period of the
signal period are known, then capacitor C1 can be
selected. Once C1 is selected, the designer should
observe the RSSI signal with an oscilloscope and
perform operational and/or bit error rate testing to
confirm receiver performance.

FIGURE 3-11: NEAR END OF THE SIGNAL

PERIOD DECISION RSSI LOW­PASS FILTERED

Signal Decision

OOK Signal

Signal Period

RSSI Signal

1τ to 2τ

3.2.2 COMPARATOR

The internal operational amplifier is configured as a
comparator. The RSSI signal is applied to OPA+ (Pin

20) and compared with a reference voltage on OPA­(Pin 19) to determine the logic level of the received
signal. The reference voltage can be dynamic or static.

The choice of dynamic versus static reference voltage
depends in part on the ratio of logical ones versus
zeros of the data (this can also be thought of as the AC
content of the data). Provided the ratio has an even
number of logical ones versus zeros, a dynamic refer­ence voltage can be generated with a simple low-pass
filter. The advantage of the dynamic reference voltage
is the increased receiver sensitivity compared to a fixed
reference voltage. However, the comparator will output
random data. The decoder (for example, a pro­grammed PICmicro MCU or K
distinguish between random noise and valid data.

The choice of a static reference voltage depends in part
on the DC content of the data. That is, the data has an
uneven number of logical ones versus zeros. The
disadvantage of the static reference voltage is
decreased receiver sensitivity compared to a dynamic
reference voltage. In this case, the comparator will
output data without random noise.

EELOQ decoder) must

 2003 Microchip Technology Inc. Preliminary DS70090A-page 15

rfRXD0420/0920

3.2.2.1 DYNAMIC REFERENCE VOLTAGE

A dynamic reference voltage can be derived by averag­ing the received signal with a low-pass filter. The exam­ple ASK application circuit shown in Figure 3-9, the
low-pass filter is formed by R1 and C2. The output of
the low-pass filter is then fed to OPA-.

The setting of the R1-C2 time constant depends on the
ratio of logical ones versus zeros and a trade off in
stability versus receiver reaction time. If the received
signal has an even number of logical ones versus
zeros, the time constant can be set relatively short.
Thus the reference voltage can react quickly to
changes in the received signal amplitude and differ­ences in transmitters. However, it may not be as stable
and can fluctuate with the ratio of logical ones and
zeros. If the time constant is set long, the reference
voltage will be more stable. However, the receiver
cannot react as quickly upon the reception of a
received signal.

Selection of component values for R1 and C2 is an
iterative process. First start with a time constant
between 10 to 100 times the signal rate. Second, view
the reference voltage against the RSSI signal to
determine if the values are suitable. Figure 3-12 is an
oscilloscope screen capture of an incoming RF square
wave modulated signal (ASK on-off keying). The top
trace is the data output of OPA (Pin 18). The two
bottom traces are the RSSI signal (Pin 21, bottom
square wave) and generated reference voltage (Pin 19,
bottom trace centered in the RSSI square wave). The
goal is to select values for R1 and C2 such that the
reference voltage is in the middle of the RSSI signal.
This reference voltage level provides the optimum data
comparison of the incoming data signal.

3.2.2.2 STATIC REFERENCE VOLTAGE

A static reference voltage can be derived by a voltage
divider network.

FIGURE 3-12: RSSI AND REFERENCE VOLTAGE COMPARISON

OPA

(Pin 18)

OPA-

(Pin 19)

RSSI

(Pin 21)

DS70090A-page 16 Preliminary  2003 Microchip Technology Inc.

FIGURE 3-13: FSK APPLICATION CIRCUIT

RxDATA

OPA

C4

330 pF

18

680 pF

VDD

17

IN

DEM

DEMOD

1615

2IF

OUT

VDD

14

FBC2

1000 pF

C13

+V

C33

C32

1.0 pF

F3

C31

10-12 pF

C7

330 pF

OPA

+-

19

OPA-

MIXER2

OPA+

rfRXD0420/0920

RSSI

C30

330 pF

20

21

RSSI

VSS

22

DEM

OUT+

+-

OUT-

DEM

24 23

low-pass capacitors

dependent on signal rate

NOTE: Demodulator output

C2

10-47 pF

C1

10-47 pF

+V +V

+V+V

C16

330 pF

C18

330 pF

C12

1000 pF

F2

10.7 MHz

L3

C15

R2

R4

R5

390 Ω

470 Ω

470 Ω

C8

C17

33000 pF

FBC1

2IF

IN

VSS

10

1IF

OUT

VDD

8

IF Preamp

1IF-

76 9 11 12 13

1IF+

VSS

5

MIXER1

1IF

IN

LNA

OUT

34

GAIN

LNA

2

VSS

1

DD

V

32

with RSSI

IF Limiting Amplifier

Frequency

Synthesizer

16: rfRXD0420

32: rfRXD0920

Fixed Divide by

LNA

IN

31

LNA

Crystal

Oscillator

and

Charge Pump

Phase Detector

Voltage

Oscillator

Controlled

SS

V

30

Bias

VSS

25

XTAL

VDD

27

ENRX

28
LF

29 26

+V+V

C9

OPTIONAL

X1

CRYSTAL TRIM CAPACITOR

C3

330 pF

C11

1000 pF

R3

10 kΩ

C10

OPTIONAL

CAPACITOR

LOOP FILTER

+V

C14

330 pF

ANT

TO ANTENNA

MATCHING

NETWORK

 2003 Microchip Technology Inc. Preliminary DS70090A-page 17

rfRXD0420/0920

3.3 Frequency Shift Keying (FSK)

Figure 3-13 illustrates an example FSK application
circuit.

3.3.1 IF FILTER CONSIDERATIONS

As mentioned in the Section 3.1 above, IF filter band­width selection is a function of:

• modulation (ASK, FSK or FM)

• signal bandwidth

• frequency and temperature tolerances of the
transmitter and receiver components

The occupied bandwidth of binary FSK signals is 2
times the peak frequency deviation plus 2 times the
signal bandwidth. For example, if the data rate is 2400
bits per second Manchester encoded, the signal band­width is 4800 baud or 1200 Hz, and if the peak
frequency deviation is 24 kHz, the minimum bandwidth
of the IF filter is:

IF BW

IF BW

Add to this value the frequency and temperature
tolerances of the transmitter and receiver components.

FSK signals are more sensitive to group delay varia­tions of the IF filter. Therefore, a filter with a low group
delay variation should be used. As an alternative, a
filter with wider than required bandwidth can be used
because the group delay variation in the center of the
bandpass will be relatively constant.

3.3.2 FSK DETECTOR

The demodulator (DEMOD) section consists of a phase
detector (MIXER2) and amplifier creating a quadrature
detector (also known as a phase coincidence detector)
to demodulate the IF signal in FSK and FM modulation
applications. The in-phase signal comes directly from
the output of the IF limiting amplifier to MIXER2. The
quadrature signal is created by an external tuned circuit
from the output of the IF limiting amplifier (2IF

15) AC-coupled to the MIXER2 DEM

3.3.2.1 LC Discriminator

The external tuned circuit can be constructed from
simple inductor-capacitor (LC) components. This type
circuit produces and excellent output. However, one of
the elements (L or C) must be tunable. Figure 3-14
illustrates an example LC discriminator circuit using a
tunable capacitor. A similar circuit with a tunable induc­tor is also possible. Resistor R1 = 4.7 kΩ reduces the
Q of the circuit so that frequency deviations of up to 75
kHz can be demodulated.

= (2 x 2400) + (2 x 24000)

min

= 52800 Hz

min

OUT, Pin

IN (Pin 16) input.

FIGURE 3-14: LC DISCRIMINATOR

EXAMPLE CIRCUIT

R1

4.7 kΩ

C3

0-56 pF

C1

1.0 pF

OUT

2IF

1615

C2
680 pF

IN

DEM

L1

3.3 µH

3.3.2.2 Ceramic Discriminator

A no-tune solution can be constructed with a ceramic
discriminator. Figure 3-15 illustrates an example
ceramic discriminator circuit.

The ceramic discriminator acts as a parallel tuned
circuit at the IF frequency (for example, 10.7 MHz). The
parallel capacitor C3 tunes the ceramic resonator. The
high Q of this circuit enables higher output of the detec­tor for small frequency deviations. However, smaller
frequency deviations require better frequency
tolerances at the transmitter and receiver.

In order to detect wider deviation or off-frequency
signals, the detector bandwidth has to be increased.
This can be accomplished by reducing the Q of the
tuned circuit. One method is to parallel a resistor
across the ceramic discriminator. A second is to
increase the value of the coupling capacitor C1
increasing the load on the detector. The result of
reducing the Q of the discriminator will be that the
detector output will be smaller.

FIGURE 3-15: CERAMIC DISCRIMINATOR

EXAMPLE CIRCUIT

C2
680 pF

IN

DEM

F1

C3

10-12 pF

CERAMIC DISCRIMINATOR

C1

1.0 pF

1615

OUT

2IF

DS70090A-page 18 Preliminary  2003 Microchip Technology Inc.

3.3.3 POST DETECTOR FILTERING

Care should be taken in selecting the values of capac­itors C1 and C2 (Figure 3-13) so that the output of the
detector is not distorted and receiver sensitivity
improved. These values are chosen depending on the
data signal rate.

Generally, if the data signal rate is fast then the filter
time constant can be set short. Conversely, if the signal
rate is slow, the filter time constant can be set long. The
designer should observe the output of the detector with
an oscilloscope and perform operational and/or bit
error rate testing to confirm receiver performance.

3.3.4 COMPARATOR

The output of the DEMOD amplifier (DEMOUT+ and

OUT-, Pins 23 and 24) depends on the peak

DEM
deviation of the FSK or FM signal and the Q of the
external tuned circuit. DEMout+ and DEMout- are high
impedance outputs with only a 20 µA current capability.
The capacitance on these pins limit the maximum data
signal rate. The nominal output voltage of these pins is

1.23V.

rfRXD0420/0920

 2003 Microchip Technology Inc. Preliminary DS70090A-page 19

rfRXD0420/0920

+

-

FIGURE 3-16: FM APPLICATION CIRCUIT

+V

+V+V +V

RxAudio

C4

1000 pF

C13

1000 pF

F1

+V

C33

1.0 pF

C8

R2

390 Ω

10.7 MHz

R4

470 Ω

R5

470 Ω

C17

L3

C15

C32

F3

C31

10-12 pF

C4

330 pF

C12

C16

330 pF

C1

330 pF

330 pF

680 pF

33000 pF

RSSI

C30

330 pF

OPA

18

VDD

17

DEM

IN

1615

2IF

OUT

VDD

14

FBC2

FBC1

2IF

IN

VSS

10

1IF

OUT

VDD

8

1IF-

76 9 11 12 13

1IF+

VSS

5

1IF

IN

LNA

OUT

34

GAIN

2

VSS

1

OPA

DEMOD

IF Preamp

MIXER1

LNA

DD

V

32

R30

6.8 kΩ

19

OPA-

+-

MIXER2

with RSSI

IF Limiting Amplifier

LNA

IN

LNA

31

R31

C34

100 pF

12 kΩ

20

RSSI

OPA+

Frequency

Synthesizer

Phase Detector

16: rfRXD0420

32: rfRXD0920

Fixed Divide by

Voltage

21

+

-

Crystal

Oscillator

and

Charge Pump

Oscillator

Controlled

C35

100 pF

R32

33 kΩ

VSS

22

OUT+

OUT

-

24 23

VSS

25

XTAL

VDD

27

Bias

SS

V

30

28

LF

29 26

DEM

DEM

+V+V

ENRX

NC

R33

33 kΩ

CRYSTAL TRIM CAPACITOR

C9

OPTIONAL

X1

C3

330 pF

C11

1000 pF

R3

10 kΩ

C18

OPTIONAL

CAPACITOR

LOOP FILTER

+V

C14

330 pF

ANT

TO ANTENNA

MATCHING

NETWORK

DS70090A-page 20 Preliminary  2003 Microchip Technology Inc.

3.4 Frequency Modulation (FM)

Figure 3-16 illustrates an example FM application
circuit.

3.4.1 FSK DETECTOR

FM demodulation is performed in the same manner as
described in the FSK section above.

3.4.2 OPERATIONAL AMPLIFIER

The internal operational amplifier is configured as an
active low-pass filter.

FM audio is typically de-emphasized. It is recom­mended that de-emphasis circuitry be connected at the
output of the operational amplifier rather than the
output of the detector.

rfRXD0420/0920

 2003 Microchip Technology Inc. Preliminary DS70090A-page 21

rfRXD0420/0920

4.0 ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings

Supply voltage...................................................................................................................................................0 to +7.0V

Input voltage...........................................................................................................................................-0.3 to V

Input RF level .........................................................................................................................................................10dBm

Storage temperature .................................................................................................................................... -40 to +125C

† NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at those or any other conditions above those
indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for
extended periods may affect device reliability.

CC+0.3V

DS70090A-page 22 Preliminary  2003 Microchip Technology Inc.

4.1 DC Characteristics: rfRXD0420
(Industrial)

rfRXD0420/0920

DC CHARACTERISTICS

Param

No.

Sym Characteristic Min Typ

V

CC Supply Voltage 2.5 — 5.5 V f

STBY Standby Current 100 nA ENRX = 0

I

CC Supply Current 5.0 6.5 8.0 mA LNAGAIN = 1

I

OPA Op Amp input voltage offset -20 — 20 mV

V

OPA Op Amp input current offset -50 — 50 nA

I

BIAS Op Amp input bias current -100 100 nA

I

RSSI RSSI voltage 0.5 1.0 1.5 V LNAGAIN = 1

V

Standard Operating Conditions (unless otherwise stated)

Operating Temperature -40°C ≤ T

†

Max Units Conditions

2.7 — 5.5 V f

6.5 8.2 10.0 mA LNA

1.25 1.9 2.45 V LNA

A ≤ +85°C

< 400 MHz

rf

> 400 MHz

rf

GAIN = 0

GAIN = 0

* These parameters are characterized but not tested.

†

Data in “Typ” column is at 3V, 23°C unless otherwise stated. These parameters are for design guidance only and
are not tested.

4.2 AC Characteristics: rfRXD0420
(Industrial)

AC CHARACTERISTICS

Standard Operating Conditions (unless otherwise stated)

Operating Temperature -40°C ≤ T

A ≤ +85°C

Param

No.

Sym Characteristic Min Typ

FSK Start-up time - FSK/FM 0.9 ms ENRX = 0 to 1

T

ASK Start-up time - ASK R1xC1

T

†

Max Units Conditions

ms Note 1

+T

FSK

Sensitivity - Narrowband FSK -111 dBm Note 2
Sensitivity - Wideband FSK -104 dBm Note 3
Sensitivity - Narrowband ASK -109 dBm Note 4
Sensitivity - Wideband ASK -106 dBm Note 5

Input RF level maximum FSK/

0 dBm LNA

GAIN = 1

FM

Input RF level maximum ASK -10 dBm LNA

GAIN = 1

* These parameters are characterized but not tested.

†

Data in “Typ” column is at 3V, 23°C, frf = 433.6 MHz, IF = 10.7 MHz unless otherwise stated. These parameters
are for design guidance only and are not tested.

Note 1: Dependant on ASK detector time constant.

2: IF bandwidth = 40 kHz, ∆f = +/- 15 kHz, BER <= 3 x 10
3: IF bandwidth = 150 kHz, ∆f = +/- 50 kHz, BER <= 3 x 10
4: IF bandwidth = 40 kHz, BER <= 3 x 10
5: IF bandwidth = 150 kHz, BER <= 3 x 10

-3

-3

-3

-3

 2003 Microchip Technology Inc. Preliminary DS70090A-page 23

rfRXD0420/0920

4.3 DC Characteristics: rfRXD0920
(Industrial)

DC CHARACTERISTICS

Param

No.

Sym Characteristic Min Typ

V

CC Supply Voltage 2.5 — 5.5 V f

STBY Standby Current 100 nA ENRX = 0

I

CC Supply Current 6.0 7.5 9.0 mA LNAGAIN = 1

I

OPA Op Amp input voltage offset -20 — 20 mV

V

OPA Op Amp input current offset -50 — 50 nA

I

BIAS Op Amp input bias current -100 100 nA

I

RSSI RSSI voltage 0.5 1.0 1.5 V LNAGAIN = 1

V

Standard Operating Conditions (unless otherwise stated)

Operating Temperature -40°C ≤ T

†

Max Units Conditions

3.3 — 5.5 V f

7.5 9.2 11.0 mA LNA

1.25 1.9 2.45 V LNA

A ≤ +85°C

< 900 MHz

rf

> 900 MHz

rf

GAIN = 0

GAIN = 0

* These parameters are characterized but not tested.

†

Data in “Typ” column is at 3V, 23°C unless otherwise stated. These parameters are for design guidance only and
are not tested.

4.4 AC Characteristics: rfRXD0920
(Industrial)

AC CHARACTERISTICS

Standard Operating Conditions (unless otherwise stated)

Operating Temperature -40°C ≤ T

A ≤ +85°C

Param

No.

Sym Characteristic Min Typ

FSK Start-up time - FSK/FM 0.9 ms ENRX = 0 to 1

T

ASK Start-up time - ASK R1xC1

T

†

Max Units Conditions

ms Note 1

+ T

FSK

Sensitivity - Narrowband FSK -109 dBm Note 2
Sensitivity - Wideband FSK -102 dBm Note 3
Sensitivity - Narrowband ASK -108 dBm Note 4
Sensitivity - Wideband ASK -104 dBm Note 5

Input RF level maximum FSK/

0dBmLNA

GAIN = 1

FM

Input RF level maximum ASK -10 dBm LNA

GAIN = 1

* These parameters are characterized but not tested.

†

Data in “Typ” column is at 3V, 23°C, frf = 433.6 MHz, IF = 10.7 MHz unless otherwise stated. These parameters
are for design guidance only and are not tested.

Note 1: Dependant on ASK detector time constant.

2: IF bandwidth = 40 kHz, ∆f = +/- 15 kHz, BER <= 3 x 10
3: IF bandwidth = 150 kHz, ∆f = +/- 50 kHz, BER <= 3 x 10
4: IF bandwidth = 40 kHz, BER <= 3 x 10
5: IF bandwidth = 150 kHz, BER <= 3 x 10

-3

-3

-3

-3

DS70090A-page 24 Preliminary  2003 Microchip Technology Inc.

5.0 PACKAGING INFORMATION

5.1 Package Marking Information

rfRXD0420/0920

32-Lead LQFP

XXXXXXXXXXXX
XXXXXXXXXXXX
XXXXXXXXXXXX

YYWWNNN

Legend: XX...X Customer specific information*

Y Year code (last digit of calendar year)
YY Year code (last 2 digits of calendar year)
WW Week code (week of January 1 is week ‘01’)
NNN Alphanumeric traceability code

Example

rfRXD0420

02123ABC

Note: In the event the full Microchip part number cannot be marked on one line, it will

be carried over to the next line thus limiting the number of available characters
for customer specific information.

* Standard PICmicro device marking consists of Microchip part number, year code, week code, and

traceability code. For PICmicro device marking beyond this, certain price adders apply. Please check
with your Microchip Sales Office. For QTP devices, any special marking adders are included in QTP
price.

 2003 Microchip Technology Inc. Preliminary DS70090A-page 25

rfRXD0420/0920

5.2 Package Details

The following section gives the technical details of the package.

32-Lead Plastic Low Profile Quad Flat Package (LQ) 7 x 7 x 1.4 mm Body

Not available at this time.

DS70090A-page 26 Preliminary  2003 Microchip Technology Inc.

rfRXD0420/0920

ON-LINE SUPPORT

Microchip provides on-line support on the Microchip
World Wide Web site.

The web site is used by Microchip as a means to make
files and information easily available to customers. To
view the site, the user must have access to the Internet
and a web browser, such as Netscape
Internet Explorer. Files are also available for FTP
download from our FTP site.

Connecting to the Microchip Internet Web Site

The Microchip web site is available at the following
URL:

www.microchip.com

The file transfer site is available by using an FTP
service to connect to:

ftp://ftp.microchip.com

The web site and file transfer site provide a variety of
services. Users may download files for the latest
Development Tools, Data Sheets, Application Notes,
User's Guides, Articles and Sample Programs. A vari­ety of Microchip specific business information is also
available, including listings of Microchip sales offices,
distributors and factory representatives. Other data
available for consideration is:

• Latest Microchip Press Releases

• Technical Support Section with Frequently Asked
Questions

• Design Tips

• Device Errata

• Job Postings

• Microchip Consultant Program Member Listing

• Links to other useful web sites related to
Microchip Products

• Conferences for products, Development Systems,
technical information and more

• Listing of seminars and events

®

or Microsoft

SYSTEMS INFORMATION AND
UPGRADE HOT LINE

The Systems Information and Upgrade Line provides
system users a listing of the latest versions of all of
Microchip's development systems software products.

®

Plus, this line provides information on how customers
can receive the most current upgrade kits.The Hot Line
Numbers are:

1-800-755-2345 for U.S. and most of Canada, and

1-480-792-7302 for the rest of the world.

092002

 2003 Microchip Technology Inc. Preliminary DS70090A-page 27

rfRXD0420/0920

READER RESPONSE

It is our intention to provide you with the best documentation possible to ensure successful use of your Microchip prod­uct. If you wish to provide your comments on organization, clarity, subject matter, and ways in which our documentation
can better serve you, please FAX your comments to the Technical Publications Manager at [phone].

Please list the following information, and use this outline to provide us with your comments about this document.

To :

RE: Reader Response

From:

Application (optional):

Would you like a reply? Y N

Device:

Questions:

1. What are the best features of this document?

2. How does this document meet your hardware and software development needs?

3. Do you find the organization of this document easy to follow? If not, why?

Technical Publications Manager

Name

Company

Address

City / State / ZIP / Country

Telephone: (_______) _________ - _________

rfRXD0420/0920

Literature Number:

Total Pages Sent ________

FAX: (______) _________ - _________

DS70090A

4. What additions to the document do you think would enhance the structure and subject?

5. What deletions from the document could be made without affecting the overall usefulness?

6. Is there any incorrect or misleading information (what and where)?

7. How would you improve this document?

DS70090A-page 28 Preliminary  2003 Microchip Technology Inc.

rfRXD0420/0920

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office.

PART NO. X /XX XXX

Device

Device rfRXD0420-I/LQ UHF ASK/FSK/FM Receiver

Temperature Range I = -40°C to +85°C

Package LQ = LQFP32

Pattern Special Requirements

Range

rfRXD0920-I/LQ UHF ASK/FSK/FM Receiver
rfRXD0420T-I/LQ UHF ASK/FSK/FM Receiver
(Tape & Reel)
rfRXD0920T-I/LQ UHF ASK/FSK/FM Receiver
(Tape & Reel)

PatternPackageTemperature

Examples:

a) rfRXD0420-I/LQ = Industrial temp, LQFP

package

b) rfRXD0920-I/LQ = Industrial temp, LQFP

package

Sales and Support

Data Sheets

Products supported by a preliminary Data Sheet may have an errata sheet describing minor operational differences and recom­mended workarounds. To determine if an errata sheet exists for a particular device, please contact one of the following:

1. Your local Microchip sales office

2. The Microchip Corporate Literature Center U.S. FAX: [phone]

3. The Microchip Worldwide Site (www.microchip.com)

Please specify which device, revision of silicon and Data Sheet (include Literature #) you are using.

New Customer Notification System

Register on our web site (www.microchip.com/cn) to receive the most current information on our products.

 2003 Microchip Technology Inc. Preliminary DS70090A-page29

rfRXD0420/0920

NOTES:

DS70090A-page30 Preliminary  2003 Microchip Technology Inc.

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.

• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the
intended manner and under normal conditions.

• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our
knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip's Data
Sheets. Most likely, the person doing so is engaged in theft of intellectual property.

• Microchip is willing to work with the customer who is concerned about the integrity of their code.

• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not
mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our
products. Attempts to break microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts
allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device
applications and the like is intended through suggestion only
and may be superseded by updates. It is your responsibility to
ensure that your application meets with your specifications. No
representation or warranty is given and no liability is assumed by
Microchip Technology Incorporated with respect to the accuracy
or use of such information, or infringement of patents or other
intellectual property rights arising from such use or otherwise.
Use of Microchip’s products as critical components in life
support systems is not authorized except with express written
approval by Microchip. No licenses are conveyed, implicitly or
otherwise, under any intellectual property rights.

Trademarks

The Microchip name and logo, the Microchip logo, K

EELOQ,

MPLAB, PIC, PICmicro, PICSTART, PRO MATE and
PowerSmart are registered trademarks of Microchip Technology
Incorporated in the U.S.A. and other countries.

FilterLab, microID, MXDEV, MXLAB, PICMASTER, SEEVAL
and The Embedded Control Solutions Company are registered
trademarks of Microchip Technology Incorporated in the U.S.A.

Accuron, dsPIC, dsPICDEM.net, ECONOMONITOR,
FanSense, FlexROM, fuzzyLAB, In-Circuit Serial Programming,
ICSP, ICEPIC, microPort, Migratable Memory, MPASM, MPLIB,
MPLINK, MPSIM, PICC, PICkit, PICDEM, PICDEM.net,
PowerCal, PowerInfo, PowerTool, rfPIC, Select Mode,
SmartSensor, SmartShunt, SmartTel and Total Endurance are
trademarks of Microchip Technology Incorporated in the U.S.A.
and other countries.

Serialized Quick Turn Programming (SQTP) is a service mark of
Microchip Technology Incorporated in the U.S.A.

All other trademarks mentioned herein are property of their
respective companies.

© 2003, Microchip Technology Incorporated, Printed in the
U.S.A., All Rights Reserved.

Printed on recycled paper.

Microchip received QS-9000 quality system
certification for its worldwide headquarters,
design and wafer fabrication facilities in
Chandler and Tempe, Arizona in July 1999
and Mountain View, California in March 2002.
The Company’s quality system processes and
procedures are QS-9000 compliant for its
PICmicro
devices, Serial EEPROMs, microperipherals,
non-volatile memory and analog products. In
addition, Microchip’s quality system for the
design and manufacture of development
systems is ISO 9001 certified.

®

8-bit MCUs, KEELOQ

®

code hopping

 2003 Microchip Technology Inc. Preliminary DS70090A - page 31

WORLDWIDE SALES AND SERVICE

AMERICAS

Corporate Office

2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: [phone] Fax: [phone]
Technical Support: 480-792-7627
Web Address: http://www.microchip.com

Rocky Mountain

2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: [phone] Fax: [phone]

Atlanta

3780 Mansell Road, Suite 130
Alpharetta, GA 30022
Tel: [phone] Fax: [phone]

Boston

2 Lan Drive, Suite 120
Westford, MA 01886
Tel: [phone] Fax: [phone]

Chicago

333 Pierce Road, Suite 180
Itasca, IL 60143
Tel: [phone] Fax: [phone]

Dallas

4570 Westgrove Drive, Suite 160
Addison, TX 75001
Tel: [phone] Fax: [phone]

Detroit

Tri-Atria Office Building
32255 Northwestern Highway, Suite 190
Farmington Hills, MI 48334
Tel: [phone] Fax: [phone]

Kokomo

2767 S. Albright Road
Kokomo, Indiana 46902
Tel: [phone] Fax: [phone]

Los Angeles

18201 Von Karman, Suite 1090
Irvine, CA 92612
Tel: [phone] Fax: [phone]

San Jose

Microchip Technology Inc.
2107 North First Street, Suite 590
San Jose, CA 95131
Tel: [phone] Fax: [phone]

Tor ont o

6285 Northam Drive, Suite 108
Mississauga, Ontario L4V 1X5, Canada
Tel: [phone] Fax: [phone]

ASIA/PACIFIC

Australia

Microchip Technology Australia Pty Ltd
Suite 22, 41 Rawson Street
Epping 2121, NSW
Australia
Tel: [phone] Fax: [phone]

China - Beijing

Microchip Technology Consulting (Shanghai)
Co., Ltd., Beijing Liaison Office
Unit 915
Bei Hai Wan Tai Bldg.
No. 6 Chaoyangmen Beidajie
Beijing, 100027, No. China
Tel: [phone] Fax: [phone]

China - Chengdu

Microchip Technology Consulting (Shanghai)
Co., Ltd., Chengdu Liaison Office
Rm. 2401-2402, 24th Floor,
Ming Xing Financial Tower
No. 88 TIDU Street
Chengdu 610016, China
Tel: [phone] Fax: [phone]

China - Fuzhou

Microchip Technology Consulting (Shanghai)
Co., Ltd., Fuzhou Liaison Office
Unit 28F, World Trade Plaza
No. 71 Wusi Road
Fuzhou 350001, China
Tel: [phone] Fax: [phone]

China - Hong Kong SAR

Microchip Technology Hongkong Ltd.
Unit 901-6, Tower 2, Metroplaza
223 Hing Fong Road
Kwai Fong, N.T., Hong Kong
Tel: [phone] Fax: [phone]

China - Shanghai

Microchip Technology Consulting (Shanghai)
Co., Ltd.
Room 701, Bldg. B
Far East International Plaza
No. 317 Xian Xia Road
Shanghai, 200051
Tel: [phone] Fax: [phone]

China - Shenzhen

Microchip Technology Consulting (Shanghai)
Co., Ltd., Shenzhen Liaison Office
Rm. 1812, 18/F, Building A, United Plaza
No. 5022 Binhe Road, Futian District
Shenzhen 518033, China
Tel: [phone] Fax: [phone]

China - Qingdao

Rm. B503, Fullhope Plaza,
No. 12 Hong Kong Central Rd.
Qingdao 266071, China
Tel: [phone] Fax: [phone]

India

Microchip Technology Inc.
India Liaison Office
Divyasree Chambers
1 Floor, Wing A (A3/A4)
No. 11, O’Shaugnessey Road
Bangalore, 560 025, India
Tel: [phone] Fax: [phone]

Japan

Microchip Technology Japan K.K.
Benex S-1 6F
3-18-20, Shinyokohama
Kohoku-Ku, Yokohama-shi
Kanagawa, 222-0033, Japan
Tel: [phone] Fax: [phone]

Korea

Microchip Technology Korea
168-1, Youngbo Bldg. 3 Floor
Samsung-Dong, Kangnam-Ku
Seoul, Korea 135-882
Tel: [phone] Fax: [phone]

Singapore

Microchip Technology Singapore Pte Ltd.
200 Middle Road
#07-02 Prime Centre
Singapore, 188980
Tel: [phone] Fax: [phone]

Tai wan

Microchip Technology (Barbados) Inc.,
Taiwan Branch
11F-3, No. 207
Tung Hua North Road
Taipei, 105, Taiwan
Tel: [phone] Fax: [phone]

EUROPE

Austria

Microchip Technology Austria GmbH
Durisolstrasse 2
A-4600 Wels
Austria
Tel: [phone]
Fax: [phone]

Denmark

Microchip Technology Nordic ApS
Regus Business Centre
Lautrup hoj 1-3
Ballerup DK-2750 Denmark
Tel: [phone] Fax: [phone]

France

Microchip Technology SARL
Parc d’Activite du Moulin de Massy
43 Rue du Saule Trapu
Batiment A - ler Etage
91300 Massy, France
Tel: [phone] Fax: [phone]

Germany

Microchip Technology GmbH
Steinheilstrasse 10
D-85737 Ismaning, Germany
Tel: [phone] Fax: [phone]

Italy

Microchip Technology SRL
Centro Direzionale Colleoni
Palazzo Taurus 1 V. Le Colleoni 1
20041 Agrate Brianza
Milan, Italy
Tel: [phone] Fax: [phone]

United Kingdom

Microchip Ltd.
505 Eskdale Road
Winnersh Triangle
Wokingham
Berkshire, England RG41 5TU
Tel: [phone] Fax: [phone]

12/05/02

DS70090A-page 32 Preliminary  2003 Microchip Technology Inc.
