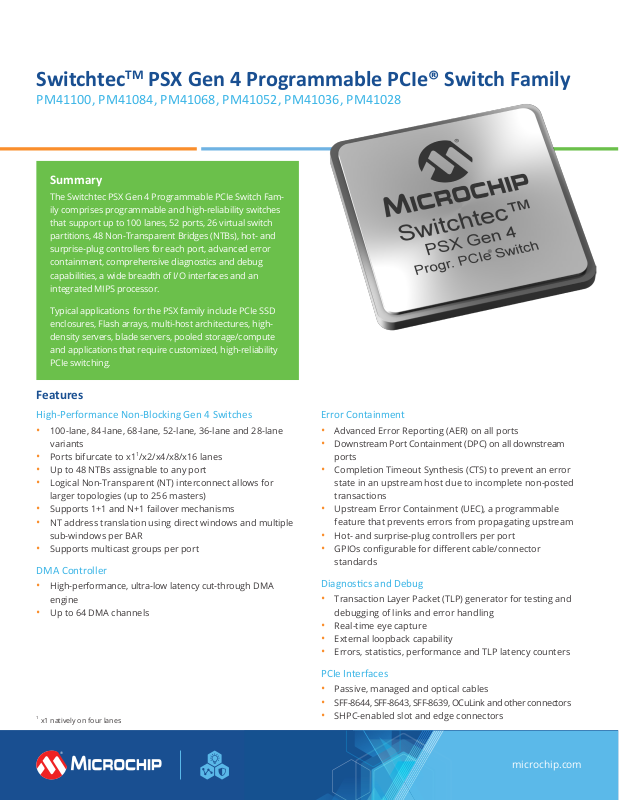

SwitchtecTM PSX Gen 4 Programmable PCIe® Switch Family

PM41100, PM41084, PM41068, PM41052, PM41036, PM41028

Summary

The Switchtec PSX Gen 4 Programmable PCIe Switch Fam­ily comprises programmable and high-reliability switches
that support up to 100 lanes, 52 ports, 26 virtual switch
partitions, 48 Non-Transparent Bridges (NTBs), hot- and
surprise-plug controllers for each port, advanced error
containment, comprehensive diagnostics and debug
capabilities, a wide breadth of I/O interfaces and an
integrated MIPS processor.

Typical applications for the PSX family include PCIe SSD
enclosures, Flash arrays, multi-host architectures, high­density servers, blade servers, pooled storage/compute
and applications that require customized, high-reliability
PCIe switching.

Features

High-Performance Non-Blocking Gen 4 Switches

• 100-lane, 84-lane, 68-lane, 52-lane, 36-lane and 28-lane

variants

• Ports bifurcate to x1

• Up to 48 NTBs assignable to any port

• Logical Non-Transparent (NT) interconnect allows for

larger topologies (up to 256 masters)

• Supports 1+1 and N+1 failover mechanisms

• NT address translation using direct windows and multiple

sub-windows per BAR

• Supports multicast groups per port

DMA Controller

• High-performance, ultra-low latency cut-through DMA

engine

• Up to 64 DMA channels

1

x1 natively on four lanes

1

/x2/x4/x8/x16 lanes

Error Containment

• Advanced Error Reporting (AER) on all ports

• Downstream Port Containment (DPC) on all downstream

ports

• Completion Timeout Synthesis (CTS) to prevent an error

state in an upstream host due to incomplete non-posted
transactions

• Upstream Error Containment (UEC), a programmable

feature that prevents errors from propagating upstream

• Hot- and surprise-plug controllers per port

• GPIOs congurable for dierent cable/connector

standards

Diagnoscs and Debug

• Transaction Layer Packet (TLP) generator for testing and

debugging of links and error handling

• Real-time eye capture

• External loopback capability

• Errors, statistics, performance and TLP latency counters

PCIe Interfaces

• Passive, managed and optical cables

• SFF-8644, SFF-8643, SFF-8639, OCuLink and other connectors

• SHPC-enabled slot and edge connectors

microchip.com

Highlights

• High-reliability PCIe: robust error containment, hot- and

surprise-plug controllers per port, end-to-end data
integrity protection, ECC protection on RAMs, high-quality,
low-power SERDES

• PSX Software Development Kit (SDK): enables customer-

dierentiated solutions in areas such as error contain­ment and surprise-plug

• Integrated enclosure management processor, I/O in-

terfaces, and SDK for enclosure management rmware

development

• Comprehensive diagnostics and debugging: PCIe genera-

tor and analyzer, per-port performance and error coun­ters, multiple loopback modes and real-time eye capture

• Signicant power, cost and board space savings with

support for:

• Up to 52 ports, 48 NTBs, and 26 virtual switch parti-

tions

• Flexible x1

no restrictions on conguring ports as either up­stream or downstream, or on mapping ports to NTBs

• NVMe-MI enclosure management:

• Integrated NVMe controller

• In-band management supporting SES and native

NVMe enclosure management stack

• Out-of-band management supporting MCTP through

I2C

• Secure system solution with boot image authentication

1

, x2, x4, x8, and x16 port bifurcation with

High-Speed I/O

• PCIe Gen 4 16 GT/s

• Supports PCIe-compliant link training and manual PHY

conguration

• Manual PHY conguration for optical

Power Management

• Active State Power Management (ASPM)

• Software-controlled power management

ChipLink Diagnosc Tools

• Extensive debug, diagnostics, conguration and analysis

tools with an intuitive GUI

• Access to conguration data, management capabilities

and signal integrity analysis tools (such as real-time eye
capture)

• Connects to device over in-band PCIe or sideband signals

(UART, TWI and EJTAG)

Evaluaon Kit

The PM42100-KIT Switchtec Gen 4 PCIe Switch Evaluation Kit
is a device evaluation environment that supports multiple
interfaces.

Example Applicaon

Host

Host

Peripheral I/O Interfaces

• Up to 11 Two-Wire Interfaces (TWIs) with SMBus support

• Up to 4 SFF-8485-compliant SGPIO ports

• Up to 103 GPIO pins

• 10/100 Ethernet MAC port (MII/RMII) (PSX

100x/84x/68xG4)

• 16-bit parallel local bus interface with ECC protection

• Up to 4 UARTs

• JTAG and EJTAG interface

x16

Switchtec

TM

PSX 100xG4

PM41100

NVMe

SSD

NVMe

SSD

x2/x4 x2/x4

NVMe

SSD

x16

Switchtec

PSX 100xG4

PM41100

Ordering Informaon

Product Part Numbers Lanes

PSX 100xG4 Gen 4 Programmable PCIe® Switch PM41100B1-FEI 100 52/48 26 52 40 mm × 40 mm

PSX 84xG4 Gen 4 Programmable PCIe Switch PM41084B1-FEI 84 44/42 22 44 40 mm × 40 mm

PSX 68xG4 Gen 4 Programmable PCIe Switch PM41068B1-FEI 68 36/34 18 36 40 mm × 40 mm

PSX 52xG4 Gen 4 Programmable PCIe Switch PM41052B1-F3EI 52 28/26 14 28 29 mm × 29 mm

PSX 36xG4 Gen 4 Programmable PCIe Switch PM41036B1-F3EI 36 20/18 10 20 29 mm × 29 mm

PSX 28xG4 Gen 4 Programmable PCIe Switch PM41028B1-F3EI 28 16/14 8 16 29 mm × 29 mm

PSX 52xG4 Gen 4 Programmable PCIe Switch,

Automotive Qualied

PSX 36xG4 Gen 4 Programmable PCIe Switch,

Automotive Qualied

PSX 28xG4 Gen 4 Programmable PCIe Switch,

Automotive Qualied

1

x1 natively on four lanes

PM44052B1-FEIP 52 28/26 14 28 29 mm x 29 mm

PM44036B1-FEIP 36 20/18 10 20 29 mm x 29 mm

PM44028B1-FEIP 28 16/14 8 16 29 mm x 29 mm

Ports/

NTBs

Partitions

Hot-plug

Controllers

Package
