PIC18F2480/2580/4480/4580

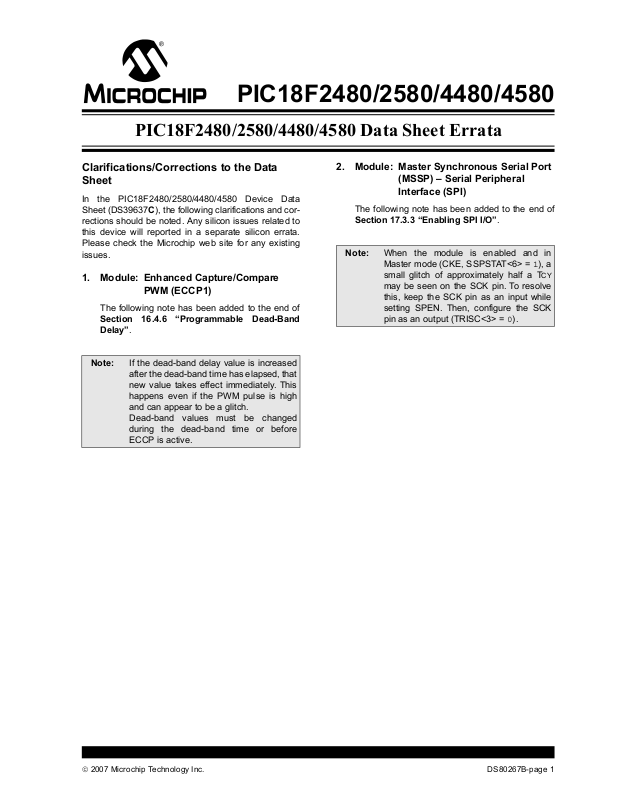

PIC18F2480/2580/4480/4580 Data Sheet Errata

Clarifications/Corrections to the Data Sheet

In the PIC18F2480/2580/4480/4580 Device Data Sheet (DS39637C), the following clarifications and corrections should be noted. Any silicon issues related to this device will reported in a separate silicon errata. Please check the Microchip web site for any existing issues.

1. Module: Enhanced Capture/Compare PWM (ECCP1)

The following note has been added to the end of

Section 16.4.6 “Programmable Dead-Band Delay”.

Note: If the dead-band delay value is increased

after the dead-band time has elapsed, that new value takes effect immediately. This happens even if the PWM pulse is high and can appear to be a glitch. Dead-band values must be changed during the dead-band time or before ECCP is active.

2. Module: Master Synchronous Serial Port (MSSP) – Serial Peripheral Interface (SPI)

The following note has been added to the end of

Section 17.3.3 “Enabling SPI I/O”.

Note: When the module is enabled and in

Master mode (CKE, SSPSTAT<6> = 1), a small glitch of approximately half a T may be seen on the SCK pin. To resolve this, keep the SCK pin as an input while setting SPEN. Then, configure the SCK pin as an output (TRISC<3> = 0).

PIC18F2480/2580/4480/4580

REVISION HISTORY

Rev A Document (03/2006)

Original version of this document. Includes Data Sheet Clarification issue 1 (Flash Program Memory – Erase Block), 2 (Flash Program Memory – Pointer Boundaries), 3 (Figure 6-2: Table Write Operation), 4 (Section 6.2.4 Table Pointer Boundaries) 5 (Section 6.5 Writing to Flash Program Memory) 6 (Section 6.5.1 Flash Program Memory Write Sequence) and 7 (Example 6-3: Writing to Flash Program Memory).

Rev B Document (11/2007)

Removed Data Sheet Clarification issues 1-7 (Flash Program Memory) and added new issues 1 (ECCP1) and 2 (MSSP – SPI).
