MICROCHIP MPLAB Instructions

Download

dsPIC

MPLAB Starter Kit for

Digital Signal Controllers

User’s Guide

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.

• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.

• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property.

• Microchip is willing to work with the customer who is concerned about the integrity of their code.

• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Microchip devices in life support and/or safety applications is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights.

Trademarks

The Microchip name and logo, the Microchip logo, Accuron, dsPIC, K

EELOQ, KEELOQ logo, MPLAB, PIC, PICmicro,

PICSTART, PRO MATE, rfPIC and SmartShunt are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

AmpLab, FilterLab, Linear Active Thermistor, MXDEV, MXLAB, SEEVAL, SmartSensor and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Analog-for-the-Digital Age, Application Maestro, CodeGuard, dsPICDEM, dsPICDEM.net, dsPICworks, dsSPEAK, ECAN, ECONOMONITOR, FanSense, In-Circuit Serial Programming, ICSP, ICEPIC, Mindi, MiWi, MPASM, MPLAB Certified logo, MPLIB, MPLINK, mTouch, PICkit, PICDEM, PICDEM.net, PICtail, PowerCal, PowerInfo, PowerMate, PowerTool, REAL ICE, rfLAB, Select Mode, Total Endurance, UNI/O, WiperLock and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

All other trademarks mentioned herein are property of their respective companies.

Printed on recycled paper.

Microchip received ISO/TS-16949:2002 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona; Gresham, Oregon and design centers in California and India. The Company’s quality system processes and procedures are for its PIC devices, Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip’s quality system for the design and manufacture of development systems is ISO 9001:2000 certified.

MCUs and dsPIC® DSCs, KEELOQ

code hopping

MPLAB STARTER KIT FOR

dsPIC

DIGITAL SIGNAL CONTROLLERS

USER’S GUIDE

Table of Contents

Preface ........................................................................................................................... 1

Chapter 1. Introduction

1.1 Overview ........................................................................................................ 7

1.2 Operational Requirements ............................................................................. 8

1.3 Board Setup ................................................................................................... 8

Chapter 2. Speech Record and Playback Demo

2.1 Running the Demo ......................................................................................... 9

2.2 Understanding the Demo ............................................................................. 10

2.3 Examining Demo Software Flow .................................................................. 11

Chapter 3. Develop an Application

3.1 Installing the Hardware and Software .......................................................... 15

3.2 Setting Up an Example Application for Debug ............................................. 16

3.3 Running the Example Application ................................................................ 17

3.4 Debugging the Example Application ............................................................ 17

3.5 Programming the Debugged Application ...................................................... 20

3.6 Creating Other dsPIC DSC Applications ...................................................... 20

3.7 Determining Device Support and Reserved Resources ............................... 20

3.8 Troubleshooting ............................................................................................ 21

3.9 Settings Dialog, Info Tab .............................................................................. 21

Chapter 4. Hardware

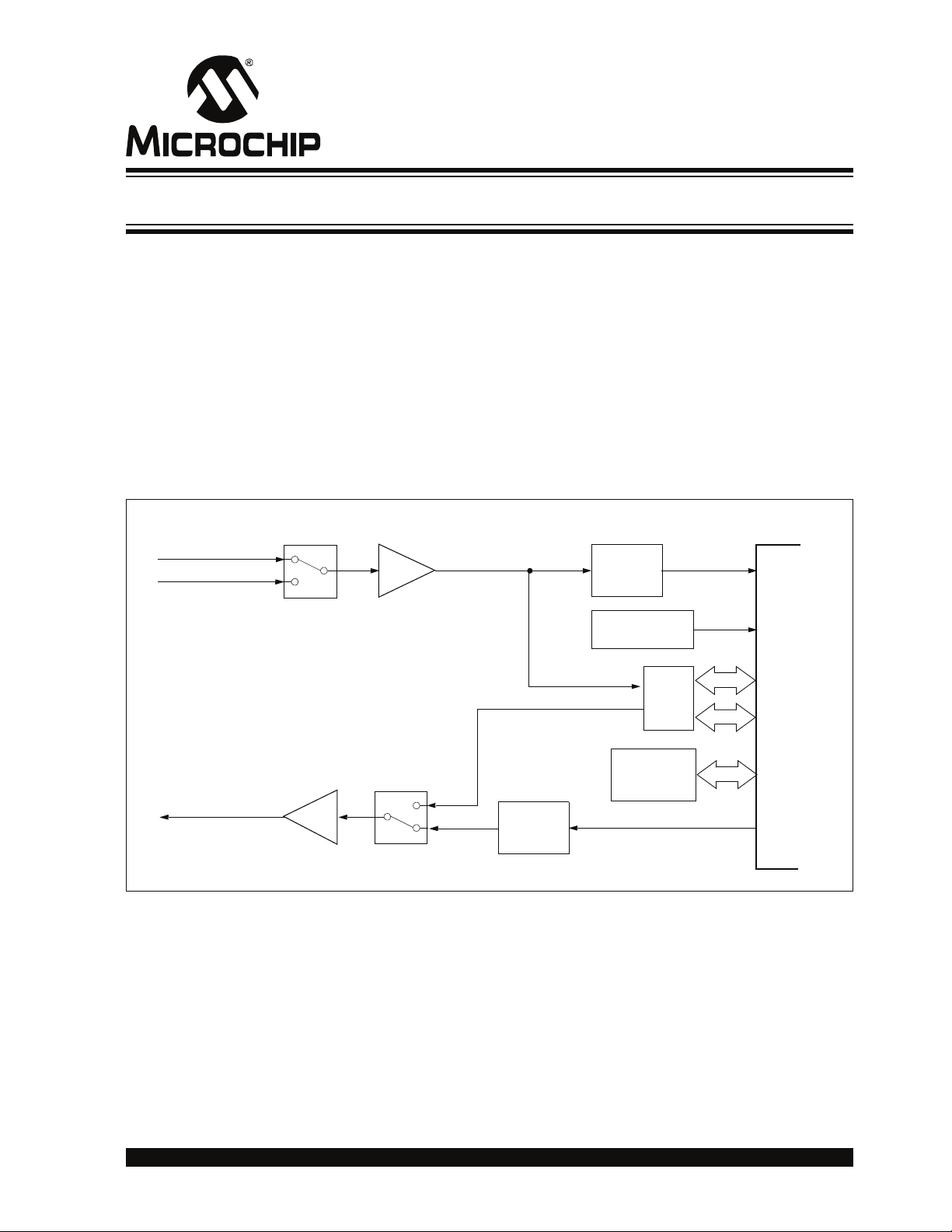

4.1 Audio Functional Overview ........................................................................... 23

4.2 Debug Functional Overview ......................................................................... 25

4.3 Board Components ...................................................................................... 26

Appendix A. Schematics

Figure A-1: Debug Input and Control Schematic – Part 1 .................................. 31

Figure A-2: Debug Input and Control Schematic – Part 2 .................................. 32

Figure A-3: USB Interface/Target Power Switching Schematic ......................... 32

Figure A-4: Speech Processing Schematic ........................................................ 33

Figure A-5: Flash Memory Schematics .............................................................. 33

Figure A-6: Output Compare Module PWM Filters Schematic ........................... 34

Figure A-7: Audio Codec Schematic .................................................................. 34

Figure A-8: Audio Input Schematic ..................................................................... 34

Figure A-9: Audio Output Schematic .................................................................. 35

Figure A-10: User LEDs, User Switches and Temp Sensor Schematics ........... 35

Index ............................................................................................................................. 37

Worldwide Sales and Service .................................................................................... 38

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

NOTES:

MPLAB STARTER KIT FOR

dsPIC

DIGITAL SIGNAL CONTROLLERS

USER’S GUIDE

Preface

NOTICE TO CUSTOMERS

All documentation becomes dated, and this manual is no exception. Microchip tools and documentation are constantly evolving to meet customer needs, so some actual dialogs and/or tool descriptions may differ from those in this document. Please refer to our web site (www.microchip.com) to obtain the latest documentation available.

Documents are identified with a “DS” number. This number is located on the bottom of each page, in front of the page number. The numbering convention for the DS number is “DSXXXXXA”, where “XXXXX” is the document number and “A” is the revision level of the document.

For the most up-to-date information on development tools, see the MPLAB Select the Help menu, and then Topics to open a list of available online help files.

IDE online help.

INTRODUCTION

This chapter contains general information that will be useful to know before you use the MPLAB Starter Kit for dsPIC include:

• Document Layout

• Conventions Used in this Guide

• Warranty Registration

• Recommended Reading

• The Microchip Web Site

• Development Systems Customer Change Notification Service

• Customer Support

• Document Revision History

DOCUMENT LAYOUT

This document describes how to use the starter kit as a development and demonstrative tool for dsPIC33F device’s speech and audio processing capabilities. The manual layout is as follows:

• Chapter 1. Introduction – This chapter introduces the starter kit and provides an

overview of its features.

• Chapter 2. Speech Record and Playback Demo – This chapter describes a

simple program that demonstrates how to use the starter kit for speech capture and playback.

• Chapter 3. Develop an Application – This chapter describes how to debug

application software on the starter kit using MPLAB

Digital Signal Controllers. Items discussed in this chapter

IDE.

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

• Chapter 4. Hardware – This chapter provides a functional overview of the starter

kit and identifies the major hardware components.

• Appendix A. Schematics – This appendix provides detailed schematic diagrams

of the starter kit.

CONVENTIONS USED IN THIS GUIDE

This manual uses the following documentation conventions:

DOCUMENTATION CONVENTIONS

Description Represents Examples

Arial font:

Italic characters Referenced books MPLAB

Emphasized text ...is the only compiler...

Initial caps A window the Output window

A dialog the Settings dialog A menu selection select Enable Programmer

Quotes A field name in a window or

dialog

Underlined, italic text with right angle bracket

Bold characters A dialog button Click OK

N‘Rnnnn A number in verilog format,

Text in angle brackets < > A key on the keyboard Press <Enter>, <F1>

Courier New font:

Plain Courier New Sample source code #define START

Italic Courier New A variable argument file.o, where file can be

Square brackets [ ] Optional arguments mcc18 [options] file

Curly brackets and pipe character: { | }

Ellipses... Replaces repeated text var_name [, var_name...]

A menu path File>Save

A tab Click the Power tab

where N is the total number of digits, R is the radix and n is a digit.

Filenames autoexec.bat File paths c:\mcc18\h Keywords _asm, _endasm, static Command-line options -Opa+, -Opa- Bit values 0, 1 Constants 0xFF, ‘A’

Choice of mutually exclusive arguments; an OR selection

Represents code supplied by user

“Save project before build”

4‘b0010, 2‘hF1

any valid filename

[options] errorlevel {0|1}

void main (void) { ... }

IDE User’s Guide

WARRANTY REGISTRATION

Please complete the enclosed Warranty Registration Card and mail it promptly. Sending in the Warranty Registration Card entitles you to receive new product updates. Interim software releases are available at the Microchip web site.

Chapter 1. Introduction

Thank you for purchasing Microchip Technology's MPLAB Starter Kit for dsPIC® Digital Signal Controllers. This kit is intended to introduce and demonstrate the features of the dsPIC33F Digital Signal Controllers (DSCs), and, in particular, some of the speech and audio processing capabilities of dsPIC DSC devices. The starter kit demonstrates a low-cost yet effective software technique for processing acceptable voice-quality audio. Also, the board includes a 24-bit audio codec for high-quality audio applications. In addition, the starter kit has on-board in-circuit debug circuitry so that you may develop and debug your own application.

This chapter introduces the starter kit and provides an overview of its features. Topics covered include:

•Overview

• Operational Requirements

• Board Setup

1.1 OVERVIEW

The MPLAB Starter Kit for dsPIC Digital Signal Controllers connects directly to the USB port on a computer. The PC USB connection supplies communications and power to the board.

The starter kit includes debug and programmer circuitry that allows applications to be programmed onto the board’s dsPIC33F device and then debugged, all using MPLAB IDE.

Audio input signals from an external microphone or audio equipment are routed to the ADC module in the on-board dsPIC33F device for software processing. Alternatively, applications can use the audio codec for converting the audio signal.

Output signals can be generated by the dsPIC33F device’s Output Compare module as a Pulse-Width Modulated (PWM) digital waveform. This PWM signal is converted to an analog signal by a low-pass filter on the starter kit board. Alternatively, applications can output audio data using the audio codec. The output audio signal is then amplified using a headphone amplifier circuit for playback on a headphone.

In addition to the Recommended Reading listed in the Preface, the following manufacturers’ data sheets are also recommended as reference sources:

• National Semiconductor Corporation Data Sheet, LM4811 Boomer

• Wolfson Microelectronics Data Sheet, WM8510 Mono CODEC with Speaker

Audio Power Amplifier Series Dual 105mW Headphone Amplifier with Digital Volume Control and Shutdown Mode (DS200061)

Driver, Production Data December 2006, Rev. 4.1

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

1.2 OPERATIONAL REQUIREMENTS

To communicate with and program the MPLAB Starter Kit for dsPIC Digital Signal Controllers, the following hardware and software requirements must be met:

• PC compatible system

• An available USB port on PC or powered USB hub

• CD-ROM drive

• Windows Operating Systems * Only initial testing has been performed on 32-bit Vista for this release. 64-bit Vista is not supported at this time.

• Headphones (not included) – See Section 4.3.2.9 “Headphone Output Jack (J8)” for requirements.

• Microphone (not included) – See Section 4.3.2.10 “Line/Microphone Input

Phone Jack (J9)” for requirements.

1.3 BOARD SETUP

Figure 1-1 is a drawing of a set up MPLAB Starter Kit for dsPIC Digital Signal Controllers. A microphone and headphone will need to be connected to the board (not included). The USB connection provides communication and power to the board. The demonstration software on the dsPIC33F device plays back speech stored on the board’s serial Flash memory and allows recording and playback of recorded speech.

2000 SP4, Windows XP SP2, and Windows Vista™ (32-Bit)*

FIGURE 1-1: MPLAB STARTER KIT FOR dsPIC

CONTROLLERS SETUP

USB

Starter Kit

dsPIC33F

MPLAB® IDE

DIGITAL SIGNAL

Headphone (not included)

Microphone (not included)

Chapter 2. Speech Record and Playback Demo

This chapter describes the Speech Record and Playback Demonstration application that is preloaded on the dsPIC33F device. This application demonstrates how to use the starter kit for speech capture, speech playback, speech encoding and decoding, and using the serial Flash memory to store speech samples. Topics covered include:

• Running the Demo

• Understanding the Demo

• Examining Demo Software Flow

• Other Demo Code Examples

2.1 RUNNING THE DEMO

To run the demo, follow these basic steps:

1. Connect a microphone to socket J9. Connect a headphone to socket J8. Ensure that potentiometer R56 is set to the factory setting, i.e., the arrow on the potentiometer points to the arrow on the board.

2. Power up the starter kit by connecting the board to the USB port of a computer.

You should briefly see a pop-up balloon in the system tray (lower right of desktop) that states (1) new hardware has been found, (2) drivers are being installed, and (3) new hardware is ready for use. If you do not see these messages and then the starter kit does not work, try reconnecting the USB. If this does not work, see Section 3.8 “Troubleshooting”.

3. When powered up, the application will repeatedly play back an introductory message.

To use the application, follow these steps:

1. To record speech, press switch S1 and wait till the Red LED turns off (the serial Flash memory is being erased) and the Yellow LED turns on. The application will now record the microphone audio signals and store them in the serial Flash memory.

2. Press switch S2 to playback and listen to the stored speech samples. The Green LED turns on during playback.

3. Pressing switch S1 again erases the serial Flash memory and prepares the system for another recording.

dsPIC

MPLAB STARTER KIT FOR

DIGITAL SIGNAL CONTROLLERS

USER’S GUIDE

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

2.2 UNDERSTANDING THE DEMO

The dsPIC33F device on the starter kit is pre-programmed with a Speech Record and Playback Demonstration application. The CD that accompanies the starter kit contains the application code. As shown in Figure 2-1, this sample application uses the board to capture an input microphone signal using the audio codec. The application program running on the device does the following:

• Reads an introductory speech message stored on the serial Flash memory and uses the audio codec to play back the audio signal.

• If speech recording is desired, the application compresses the incoming digital signal from 16 bits to 8 bits using the G.711 μ-law encoding algorithm and stores the encoded speech samples on the serial flash memory.

• If playback is desired, the application reads the serial Flash memory device and decodes the read samples using the G.711 μ-law decoding algorithm. The application then uses the audio codec to play back the speech signal.

FIGURE 2-1: SPEECH RECORD AND PLAYBACK DEMO OVERVIEW

STARTER KIT BOARD

dsPIC33F

Data

AUDIO

CODEC

Control

DCI

C™

G.711

μ-LAW

ENCODE

G.711

μ-LAW

DECODE

SPI

Serial Flash Memory

The board also features circuitry for audio playback using the Pulse-Width Modulation technique. This technique can be used to implement a low-cost audio playback system. For a demo of this technique, access the starter kit’s CD-ROM.

The demo program consists of three basic software elements: WM8510 Codec Driver, G.711 Speech Encoder and Decoder, and Serial Flash Memory Driver.

2.2.1 WM8510 Codec Driver

The WM8510 Codec Driver configures the WM8510 audio codec and provides an interface for reading and writing audio data to the codec. The driver is implemented in WM8510CodecDrv.c and the interface is defined in WM8510CodecDrv.h. The driver uses the DCI module on the dsPIC33F device module to process data and the I module as a codec control bus. The demo application configures the codec for a 8 KHz sampling rate.

C™

Speech Record and Playback Demo

2.2.2 G.711 Speech Encoder and Decoder

The G.711 Encoder and Decoder implement the ITU-T G.711 Speech Compression algorithm. This algorithm is an example of a waveform coder and provides a compression ratio of 2:1. The algorithm is implemented in G711.s and its interface is defined by G711.h

2.2.3 Serial Flash Memory Driver

The Serial Flash Memory driver uses the SPI peripheral on the dsPIC33F device to interface with the external serial Flash memory device. The driver requires a buffer for its operation and this buffer must be allocated by the application. The driver allows the application to perform operations such as read, chip erase, sector erase and status check.

2.3 EXAMINING DEMO SOFTWARE FLOW

The Speech Record and Playback Demonstration application uses the WM8510 codec, G.711 speech encoding and decoding libraries, and the serial Flash memory drivers to read, output and store speech signals with the starter kit. The application will encode a microphone signal, store the encoded samples in serial flash memory and play back the decoded samples to a headphone output. The G.711 μ-law algorithm is used for encoding and decoding speech samples. Figure 2-2 and Figure 2-3 are flow charts of the demo application.

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

FIGURE 2-2: APPLICATION FLOW CHART – PART ONE

START

Initialize Audio Codec Driver

Initialize Flash Memory Driver

Start Audio Codec Driver

Start Flash Memory Driver

Record = 1?

Yes

Is Flash Erased?

Yes

Yellow LED On

Read Codec Data

G.711 μ-Law Encode

Store In Flash

Output Audio Data

Is Flash Full?

Erase Flash

Red LED On

Playback = 1?

Yes

Play back

Intro Message

Yes

*Refer to the corresponding letter in Figure 2-3: “Application Flow Chart – Part Two” for the continuation of the flow chart.

Speech Record and Playback Demo

FIGURE 2-3: APPLICATION FLOW CHART – PART TWO

Read Serial Flash

Green LED On

G.711 μ-Law Decode

Output Audio Data to Codec

Yes

End of Message?

Rewind Playback

Pointer

Switch 1 Active?

Switch 2 Active?

Yes

Record = 1

Stop Playback

Yes

Playback = 1

Stop Record

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

2.4 OTHER DEMO CODE EXAMPLES

The starter kit software CD includes other demo code examples.

The SASK Record Play Demo with Intro Code Example demonstrates the low-cost speech capture and playback option. It uses the dsPIC DSC 12-bit ADC to capture speech samples. The data is stored in the serial Flash memory. The application then uses the Output Compare module in Pulse-Width Modulation (PWM) mode to generate a PWM signal representing the speech signal.

Note: Jumper J6 should in the OCPWM position to use this demo.

The SASK Intro Speech Prog code example can be used to program the introductory message into the serial Flash. This is useful in a case where the entire serial Flash has been erased and it is desirable to set up the introductory message again.

Note: The SASK Intro Speech Prog code example performs a full chip erase on

the serial Flash. In order to prevent accidental serial Flash chip erase when the board is taken in and out of Reset, erase the dsPIC33F program Flash via MPLAB IDE after the running the SASK Intro Speech Prog code example. Refer to the readme.txt files in the project folder for more details.

MPLAB STARTER KIT FOR

dsPIC

DIGITAL SIGNAL CONTROLLERS

USER’S GUIDE

Chapter 3. Develop an Application

The MPLAB Starter Kit for dsPIC® Digital Signal Controllers may be used with MPLAB IDE, the free integrated development environment available on Microchip’s website. MPLAB IDE allows the starter kit to be used as an in-circuit debugger as well as a programmer for the featured device.

In-circuit debugging allows you to run, examine and modify your program for the device embedded in the starter kit hardware. This greatly assists you in debugging your firmware and hardware together.

Special starter kit software interacts with the MPLAB IDE application to run, stop and single-step through programs. Breakpoints can be set and the processor can be reset. Once the processor is stopped, the register’s contents can be examined and modified.

For more information on how to use MPLAB IDE, reference the following documentation:

• MPLAB

This chapter includes the following:

• Installing the Hardware and Software

• Setting Up an Example Application for Debug

• Running the Example Application

• Debugging the Example Application

• Programming the Debugged Application

• Creating Other dsPIC DSC Applications

• Determining Device Support and Reserved Resources

• Troubleshooting

• Settings Dialog, Info Tab

IDE User’s Guide (DS51519)

IDE Quick Start Guide (DS51281)

IDE On-line Help

3.1 INSTALLING THE HARDWARE AND SOFTWARE

To install the hardware:

If you have not already set up the hardware to run the demo, follow these steps:

2. Power up the starter kit by connecting the board to the USB port of a computer.

3. When powered up, the application will repeatedly play back an introductory message.

To install the software:

Run CD-ROM enclosed with the starter kit and install software as directed.

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

3.2 SETTING UP AN EXAMPLE APPLICATION FOR DEBUG

The MPLAB IDE software that is installed on your PC by the starter kit CD-ROM automatically opens an example application that you may use to examine debug features of the starter kit.

To prepare the application for debug:

1. Launch MPLAB IDE. The example application project and related workspace will open. For information on projects and workspaces, see the MPLAB IDE documentation mentioned at the beginning of this chapter.

2. Select Project>Build All visible in the Build tab of the Output window.

3. Select Debugger>Select Tool>Starter Kits kit debug features (Figure 3-1): (1) the status bar will show Starter Kits as the debug tool, (2) a Starter Kit debug toolbar will be added, (3) the Debugger menu will change to add Starter Kit debug functions and (4) the Output window will display communication status between MPLAB IDE and the stater kit on the Starter Kit Debugger tab.

Also, several device resources are used for debug. For details, see

Section 3.7 “Determining Device Support and Reserved Resources”.

FIGURE 3-1: STARTER KIT AS DEBUG TOOL

to build the application code. The build’s progress will be

. MPLAB IDE will change to add starter

4. Select Debugger>Program DCS device on the starter kit. The debug programming progress will be visible in the Starter Kit tab of the Output window.

Note: Debug executive code is automatically programmed in the upper program

memory of the starter kit device when the starter kit is selected as a debugger. Debug code must be programmed into the target device to use the in-circuit debugging capabilities of the starter kit.

to program the application code into the dsPIC33F

3.3 RUNNING THE EXAMPLE APPLICATION

The starter kit executes in either real-time (Run) or steps (Step Into, Step Over, Animate.) Real-time execution occurs when you select Run in MPLAB IDE. Once the device code is halted, either by Halt or a breakpoint, you can step.

The following toolbar buttons can be used for quick access to commonly used debug operations:

Debugger Menu Toolbar Buttons

Run

Halt

Animate

Step Into

Step Over

Reset

To see how these options function, do the following:

1. Select Debugger>Reset>Processor Reset

program.

2. Select Debugger>Run

operates.

3. Select Debugger>Halt

green solid arrow will mark the line of code in the File window where the program halted.

4. Select Debugger>Step Into

cution once. The green solid arrow will move down one line of code in the File window. Click the button several times to step through some code.

5. Select Debugger>Reset>Processor Reset

program again. The arrow will disappear, meaning the device is reset.

or click the Run button. Observe how the application

or click the Halt button to stop the program execution. A

or click the Step Into button to step the program exe-

Develop an Application

or click the Reset button to reset the

click the Reset button to reset the

3.4 DEBUGGING THE EXAMPLE APPLICATION

For the example code given, everything works fine. However, when you are developing code, it will likely not work the first time and need to be debugged. MPLAB IDE provides an editor and several debug features such as breakpoints and Watch windows to aid in application code debugging.

This section includes:

• Editing Application Code

• Using Breakpoints and Mouseovers

• Using Watch Windows

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

3.4.1 Editing Application Code

To view application code so it may be edited, do one of the following:

•Select Edit>New

existing code file.

• Double click on a file in the Project window to open an existing code file. See an

example Project window in Figure 3-2.

FIGURE 3-2: EXAMPLE PROJECT

to create new code or Edit>Open to search for and open an

Existing Code File

For more information on using the editor to create and edit code, see MPLAB Editor Help.

3.4.2 Using Breakpoints and Mouseovers

To set a breakpoint in code:

1. Double Click in the Gutter – Double click in the window gutter next to the line of code where you want the breakpoint. Double click again to remove the breakpoint.

Note: Double click must be set up for breakpoints. See Edit>Properities

ASM/C/BAS File Type tab, checkbox for “Double-click Toggles Breakpoint”.

2. Pop-up Menu – Place the cursor over the line of code where you want the breakpoint. Then, right click to pop up a menu and select “Set Breakpoint”. Once a breakpoint is set, “Set Breakpoint” will become “Remove Breakpoint” and “Disable breakpoint”. Other options on the pop-up menu under Breakpoints are for deleting, enabling or disabling all breakpoints.

3. Breakpoint Dialog – Open the Breakpoint dialog (Debugger>Breakpoints set, delete, enable or disable breakpoints. See MPLAB IDE Help for more information on this dialog.

) to

Develop an Application

A breakpoint set in code will appear as a red hexagon with a “B” as shown in Figure 3-3.

FIGURE 3-3: EXAMPLE BREAKPOINT

Once code is halted, hovering over variables pops up the current value of those variables (see Figure 3-3.)

Note: This feature must be set up. See Edit>Proper

“Enable Variable Mouseover Values” checkbox.

ties, Tooltips tab, check the

3.4.3 Using Watch Windows

To use a Watch window:

1. The Watch window is made visible on the desktop by selecting View>Watch

contains four selectable Watch views (via tabs) in which to view variables (SFRs, symbols and absolute addresses).

2. Select an SFR or Symbol from the list and click the related Add button to add it

to the Watch window. Or click in the “Address” column and enter an absolute address.

A Watch window populated with an SFRs and Symbols will look like Figure 3-4. For more on using Watch windows, see MPLAB IDE Help.

FIGURE 3-4: EXAMPLE WATCH

. It

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

3.5 PROGRAMMING THE DEBUGGED APPLICATION

When the program is successfully debugged and running, the next step is to program the device for stand-alone operation in the finished design. When doing this, the resources reserved for debug are released for use by the application. To program the application, use the following steps:

1. Disable Starter Kits as a debug tool by selecting Debugger>Select Tool>None

2. Select Starter Kits as the programmer in the Programmer>Select Programmer menu.

3. Select Programmer>Program

Now the starter kit will run independently.

3.6 CREATING OTHER dsPIC DSC APPLICATIONS

This starter kit is just one way to use Microchip dsPIC DSCs in an application. Other tools and resources exist to support these devices.

• dsPIC DSC Demo Boards – Many boards are available for developing applica-

tions. See our website (http://www.microchip.com/) under Design>Development Tools>Demo Boards>dsPIC DSC.

• MPLAB C30 C Compiler, Full Version – More optimization options than the stu-

dent version for full-scale development. See http://www.microchip.com/c30.

• Application Notes – Example applications with code for using dsPIC DSC fea-

tures. See our website (http://www.microchip.com/) under Design>App Notes & Source Code>16-bit PIC MCUs & dsPIC DSCs.

3.7 DETERMINING DEVICE SUPPORT AND RESERVED RESOURCES

Due to the built-in in-circuit debugging capability of ICD devices and the ICSP™ function offered by the debugger, the starter kit uses some on-chip resources when debugging. It also uses program memory and file register locations in the target device during debugging. These locations are not available for use by user code. In the MPLAB IDE, registers marked with an “R” in register displays represent reserved registers.

For information on device resources that are needed for in-circuit debugging, please refer to the MPLAB ICD 2 Help, found in MPLAB IDE under Help>Topics reserved resource information found under “Resources Used By MPLAB ICD 2” is the same for the starter kit.

. The device

3.8 TROUBLESHOOTING

Debug Connection Problems

While using the starter kit as a debugger, you may get the error “Unable to Enter Debug Mode” when programming the device. This can result from communication being lost between the starter kit and MPLAB IDE. To resolve this:

1. Unplug the USB cable from the starter kit.

2. Plug the USB cable back into the starter kit.

MPLAB IDE should automatically reconnect to the starter kit. If this does not work, do the following:

1. Check the USB connection between the PC and starter kit at both ends.

2. If using a USB hub, make sure it is powered.

3. Make sure the USB port is not in use by another device.

Programming Problems

If during the course of developing your own application you can no longer program the device on the starter kit, you may have set device configuration bits to code protect or some other state that prevents programming. To view the settings of the configuration bits, select Configure>Configuration Bits

Develop an Application

3.9 SETTINGS DIALOG, INFO TAB

When you select Debugger>Settings or Programmer Settings, you will open the Starter Kit Settings dialog.

Currently, there is only one (Info) tab on this dialog, displaying the following information:

• Firmware Version: The version of firmware on the starter kit board.

• Debug Exec Version: The version of the debug executive that is loaded into the

dsPIC33F device program memory to enable debug operation.

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

NOTES:

dsPIC

DIGITAL SIGNAL CONTROLLERS

Chapter 4. Hardware

This chapter provides a functional overview of the MPLAB Starter Kit for dsPIC® Digital Signal Controllers and identifies the major hardware components. Topics covered include:

• Audio Functional Overview

• Debug Functional Overview

• Board Components

4.1 AUDIO FUNCTIONAL OVERVIEW

The block diagram shown in Figure 4-1 illustrates the mainstream operation of the starter kit.

FIGURE 4-1: STARTER KIT BLOCK DIAGRAM

LINE/MIC

MICROPHONE

LINE INPUT

SELECT

LINE/MICROPHONE

AMPLIFIER

3 db to 23 db

MPLAB STARTER KIT FOR

USER’S GUIDE

ANTI-

ALIASING

LOW-PASS

FILTER

AN0

HEADPHONES

-33 db to 12 db

AN4

DCI

I2C™

SPI

OC1

dsPIC33F Device

HEADPHONE

AMPLIFIER

OUTPUT

SELECT

LOWPASS

FILTER

TEMPERATURE

SENSOR

AUDIO

CODEC

Out

4 Mbit

FLASH

MEMORY

4.1.1 Speech Sampling

The incoming audio signal can come from a line input or a condenser microphone. The speech sampling input is jumper selected (J7). The selected signal is amplified by a non-inverting AC amplifier (Line/Microphone Amplifier) and routed to the ADC module on the dsPIC33F device through an anti-aliasing filter. This sixth-order Sallen-Key low-pass filter has a cut-off frequency of 3300 Hz. The output of the anti-aliasing filter is connected to input AN0 of the ADC module on the device. If the input to the amplifier is a condenser microphone, a bias voltage provides a working supply voltage for the microphone. The line input does not require this bias voltage.

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

The amplifier has a variable gain from 3 db to 23 db, which can be adjusted to control microphone sensitivity or boost a low line-input signal. The output of the amplifier is biased at 1.65V.

4.1.2 Speech Playback

The mainstream speech playback interface processes the PWM digital signal from the Output Compare module of the dsPIC33F device. A low-pass filter demodulates the PWM signal as shown in Figure 4-2. The low-pass filter behaves like an integrator whose output signal amplitude depends on the duty cycle of the input PWM waveform. The PWM frequency should be an integral multiple of the audio sampling rate.

FIGURE 4-2: PWM DEMODULATION

PWM SIGNAL FROM OCPWM LOW-PASS FILTER DEMODULATED AUDIO SIGNAL

The output of the low-pass filter feeds the headphone amplifier The headphone amplifier drives an audio headphone. This amplifier can drive up to 75 mW into a 32 ohm headphone. The amplifier uses a digital volume control that is controlled by I/O lines from the dsPIC33F device.

4.1.3 Codec

The audio codec can be used for a higher-end audio application. The input to the audio codec is the output of the line/microphone pre-amplifier. The output feeds the headphone amplifier. The codec must interact with the application program running on the dsPIC33F device. Commands from the application program control the codec operating parameters (such as communication protocol, sampling rate, volume control, level control, filter settings, etc.). Command information is exchanged over the Inter-Integrated Circuit™ (I

C™) module on the device.

The codec converts the incoming audio signal to a digital signal for the Digital Converter Interface (DCI) module of the dsPIC33F device. Audio output from the application program is sent to the codec via the DCI module. The codec converts this digital signal to audio for the headphone amplifiers.

4.1.4 4 Mb Serial Flash Memory

The starter kit includes 4 Mb serial Flash memory that can be used for storing data. The memory interfaces with the SPI bus on dsPIC33F device and might typically be used by applications that require storage of speech samples for playback purposes.

4.2 DEBUG FUNCTIONAL OVERVIEW

The block diagram shown in illustrates the debugging/programming operation of the starter kit.

FIGURE 4-3: STARTER KIT DEBUG BLOCK DIAGRAM

Hardware

3.3V LDO Regulator

ICSP™

dsPIC33F

Device

Status

LEDs

12 MHz Crystal

USB Mini-B

Jack

PIC18F67J50 Device

SPI

Serial EEPROM

25LC010A

The starter kit, with its built-in debugger/programmer, provides an all-in-one solution for debugging and programming applications using MPLAB IDE. Also, no additional external power supply is needed as power is supplied by the host PC’s USB port.

The starter kit's debugging/programming operations are controlled by a PIC18F67J50 MCU running at 48 MHz. The PIC18F67J50's built-in USB engine provides the communications interface between the starter kit and the host PC.

Power to the starter kit is provided via USB whose nominal 5 volt unregulated supply is regulated by a Microchip MC1727 3.3 volt low-dropout (LDO) linear regulator. Proper starter kit main system power is indicated by the green LED ‘D1’.

The PIC18F67J50 MCU accomplishes debugging or programming of the target dsPIC33FJ256GP506 by controlling the target’s MCLR PGD1/EMUD1 signals. Target power is switched on/off via a low V

, PGC1/EMUC1, and

CE saturation PNP

transistor configured as a high-side switch. Target clocking is also provided by the PIC18F67J50 MCU.

A Microchip 25LC010A serial EEPROM is used to store the starter kit’s serial number and debug control information.

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

4.3 BOARD COMPONENTS

Figure 4-4 identifies the key starter kit hardware components.

FIGURE 4-4: STARTER KIT

D2 D3 D4

A1 A2 A3 A4 A5 A6 A7 A8

Ref Component Ref Component

D1 Mini-B USB Connector (J1) A5 Output Select Jumper (J6)

D2 MCP1727 (U1) A6 Codec (U9)

D3 STATUS LED – Debug (D2) A7 Headphone Amplifier (U11)

D4 STATUS LED – System Power (D1) A8 Line/Microphone Input Select Jumper (J7)

D5 PIC18F67J50 MCU (U2) A9 Headphone Output Jack (J8)

D6 Low Vce Saturation PNP Transistor Switch (Q1) A10 Line/Microphone Input Phone Jack (J9)

D7 25LC010A Serial EEPROM (U3) A11 User LEDs (D3,D4 and D5)

A1 Flash Memory (U5) A12 Microphone Gain Control (R56)

A2 Digital Signal Control (U6) A13 Line/Microphone Pre-Amplifier (U10:A)

A3 Temperature Sensor (U7) A14 Anti-Aliasing Low-Pass Filter (U10:B,C,D)

A4 PWM Low Pass Filter (U8:A,B) A15 User Switches (S2 and S1)

D# = Debug components A# = Audio components

A12A13A14A15

A11

A10

Hardware

4.3.1 Debug Components

The following components support the debug function of the starter kit. See Appendix A. “Schematics” for debug schematics.

4.3.1.1 MINI-B USB CONNECTOR (J1)

Provides system power and bidirectional communication between the host PC and starter kit.

4.3.1.2 MCP1727 (U1)

3.3V Linear regulator. Regulates the USB unregulated voltage to 3.3 volts (with respect to V

SS) and supplies the starter kit with system power.

4.3.1.3 STATUS LED – DEBUG (D2)

When lit, indicates that communication between the starter kit and MPLAB IDE has been successfully established.

4.3.1.4 STATUS LED – SYSTEM POWER (D1)

When lit, indicates that the starter kit is powered via the USB.

4.3.1.5 PIC18F67J50 MCU (U2)

Controls the programming/debugging operations of the target dsPIC33FJ256GP506 digital signal controller.

4.3.1.6 LOW Vce SATURATION PNP TRANSISTOR SWITCH (Q1)

Provides target power (via high-side switching) to the dsPIC33FJ256GP506 (and ancillary circuitry) via control by the PIC18F67J50 programming/debugging MCU.

4.3.1.7 25LC010A SERIAL EEPROM (U3)

Provides nonvolatile parameter storage for the PIC18F67J50 MCU.

4.3.2 Audio Components

The following components support the audio portion of the starter kit. See Appendix A. “Schematics” for audio schematics.

4.3.2.1 FLASH MEMORY (U5)

The starter kit includes a serial Flash memory chip (Ref A1). The power supply for U5 is provided by regulator U4. The regulator provides the required amount of current for flash programming operation.

4.3.2.2 DIGITAL SIGNAL CONTROL (U6)

The dsPIC33F256GP506 digital signal controller (Ref A2) provides the computation and processing resource for application development on the starter kit. This DSC features 256 KB of program flash and 16 KB RAM. The application can either use the on-chip FRC or the external 12 MHz signal as clock source.

4.3.2.3 TEMPERATURE SENSOR (U7)

The starter kit includes a temperature sensor (Ref A3) that interfaces to the ADC module on the dsPIC33F device. The temperature sensor is a Microchip TC1047.

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

4.3.2.4 PWM LOW PASS FILTER (U8:A,B)

The PWM signal from the Output Compare module on the dsPIC33F device on the board is demodulated by the PWM low-pass filter (Ref A4). This fourth-order filter uses two op-amps (U8:A and U8:B) on the MCP6022 quad op-amp IC.

4.3.2.5 OUTPUT SELECT JUMPER (J6)

The Output Select Jumper (Ref A5) determines whether the input signal for the Headphone Amplifiers comes from the PWM filter or the audio codec. Default setting is CODEC.

4.3.2.6 CODEC (U9)

The starter kit includes an audio codec (Ref A6) that interfaces to the DCI module (data interface) and I the output of the Line/Microphone Amplifier (MIC2).

The codec is a Wolfson WM8510 and uses a 12 MHz clock signal generated by U2 for clocking.

4.3.2.7 HEADPHONE AMPLIFIER (U11)

The Headphone Amplifier (Ref A7) is a National Semiconductor LM4811 70-mW stereo amplifier with digital volume control. The input to the amplifier is controlled by the setting of Output Select Jumper J6. The output of the amplifier is available at Headphone stereo jack (J8).

Gain is controlled by the logic levels applied through the device I/O ports to the CLK and UP/DN pins of U11. Each time the CLK line goes logic high, the gain increases or decreases by 3 dB, depending on the logic level of UP/DN line. The gain can be adjusted over a range of +12 db to -33 db in 16 discrete gain settings.

4.3.2.8 LINE/MICROPHONE INPUT SELECT JUMPER (J7)

The Line/Microphone Input Select jumper (Ref A8) determines if the Microphone/Line Pre-Amplifier (U10-A) operates as a line amplifier or a microphone amplifier. If the MIC option is selected, a bias voltage of +3.3V is applied to the Microphone/Line Input Socket (J9). Default setting is MIC.

4.3.2.9 HEADPHONE OUTPUT JACK (J8)

C bus (control interface) of the dsPIC33F device. It is AC coupled to

The Headphone jack (Ref A9) is a 3.5 mm stereo connector. A 32-ohm headphone can be connected to this socket.

4.3.2.10 LINE/MICROPHONE INPUT PHONE JACK (J9)

The Line/Microphone Input (Ref A10) is a 3.5 mm mono input phone jack (SJ3504). This connection accepts either a condenser microphone or a line level signal.

4.3.2.11 USER LEDS (D3,D4 AND D5)

The starter kit features three general purpose LEDs which are connected to the I/O ports on the dsPIC33F device. The user application can use these LEDs for indication purposes.

Hardware

4.3.2.12 MICROPHONE GAIN CONTROL (R56)

MIC ADJ Potentiometer R56 (Ref A12) controls the gain of the Line/Microphone Pre-Amplifier (U10:A). The default setting is with the arrow on the potentiometer pointing to the arrow on the board.

Note: Setting the gain too high can cause the output of the amplifier to saturate

and clip.

4.3.2.13 LINE/MICROPHONE PRE-AMPLIFIER (U10:A)

The Microphone/Line Pre-amplifier (Ref A13) is implemented using one of the four op-amps on the MCP6024 quad op-amp IC (U10). The output of this non-inverting AC amplifier is biased at 1.65V. The gain of the amplifier is controlled by Potentiometer R56, as given by Equation 4-1.

EQUATION 4-1: INPUT PRE-AMPLIFIER GAIN

R56 R50+()

Gain 1

4.3.2.14 ANTI-ALIASING LOW-PASS FILTER (U10:B,C,D)

⎛⎞

------------- ------------ ------

⎝⎠

R44

The Anti-Aliasing Low-Pass filter uses three of the four operational amplifiers on the MCP6024 quad op-amp IC (U10). The output of the Line/Microphone Pre-Amplifier (Ref A14) uses an anti-aliasing low-pass sixth order Sallen-Key structure to filter the signal and provide a cut-off frequency of 3300 Hz.

4.3.2.15 USER SWITCHES (S2 AND S1)

The starter kit features two press switches which are connected to the I/O ports on the dsPIC33F device. The function of these switches is defined by the user application.

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

NOTES:

MPLAB STARTER KIT FOR

dsPIC

DIGITAL SIGNAL CONTROLLERS

USER’S GUIDE

Appendix A. Schematics

The following schematic diagrams are included in this appendix:

Debug

• Figure A-1: Debug Input and Control Schematic – Part 1

• Figure A-2: Debug Input and Control Schematic – Part 2

• Figure A-3: USB Interface/Target Power Switching Schematic

Audio

• Figure A-4: Speech Processing Schematic

• Figure A-5: Flash Memory Schematics

• Figure A-6: Output Compare Module PWM Filters Schematic

• Figure A-7: Audio Codec Schematic

• Figure A-8: Audio Input Schematic

• Figure A-9: Audio Output Schematic

• Figure A-10: User LEDs, User Switches and Temp Sensor Schematics

FIGURE A-1: DEBUG INPUT AND CONTROL SCHEMATIC – PART 1

PIC18F67J50

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

FIGURE A-2: DEBUG INPUT AND CONTROL SCHEMATIC – PART 2

PIC18F67J50 Bypass/Decoupling Capacitors

Serial EEPROM

Status LED - Debug

FIGURE A-3: USB INTERFACE/TARGET POWER SWITCHING SCHEMATIC

USB Interface (Bus Powered)

3.3V LDO Linear Regulator

Status LED System Power

Host MCU Switchable

3.3V Regulated Supply

FIGURE A-4: SPEECH PROCESSING SCHEMATIC

dsPIC33FJ256GP506

Schematics

FIGURE A-5: FLASH MEMORY SCHEMATICS

4 Mbit High Speed SPI Serial Flash Memory 4 Mb (512k x 8)

Flash Memory

3.3V Regulator

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

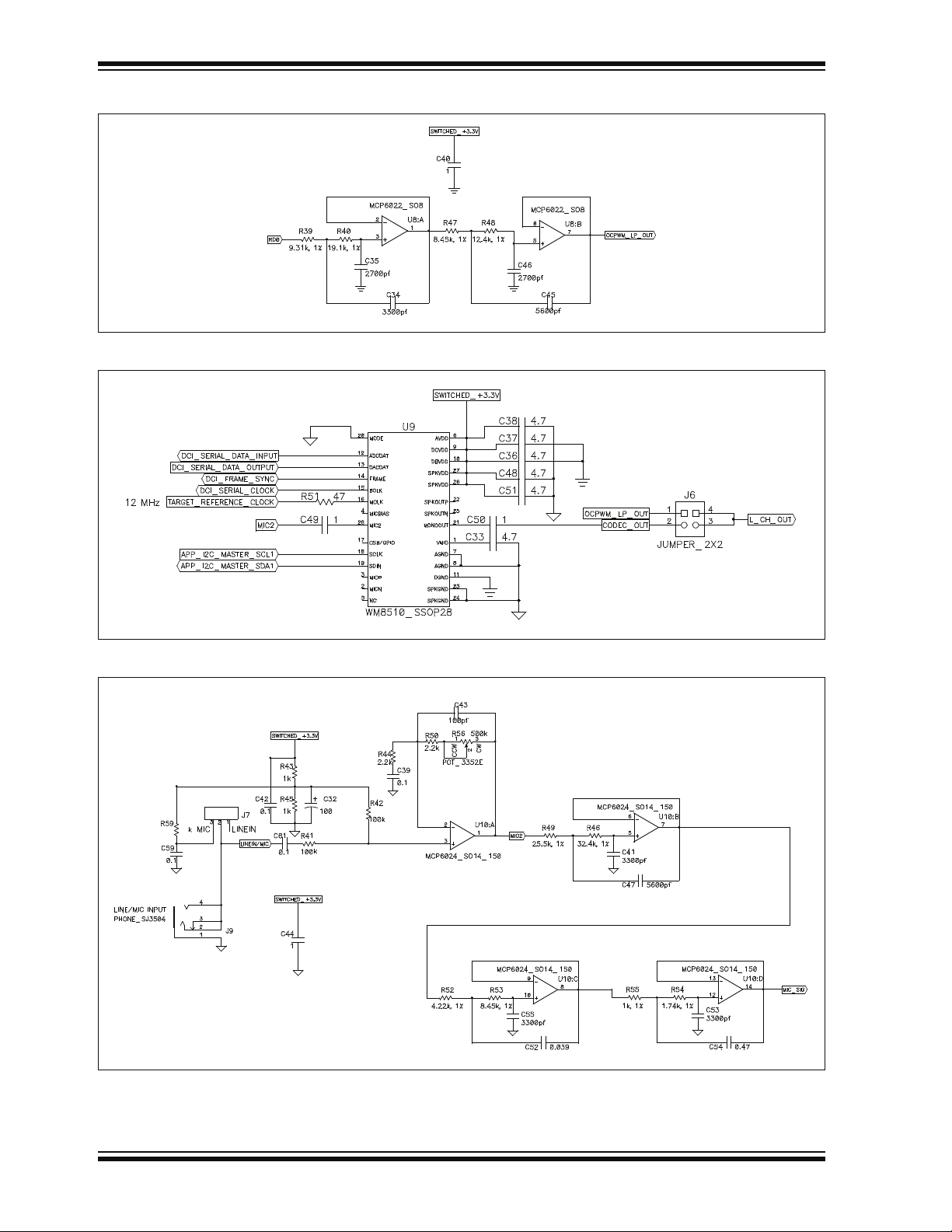

FIGURE A-6: OUTPUT COMPARE MODULE PWM FILTERS SCHEMATIC

FIGURE A-7: AUDIO CODEC SCHEMATIC

FIGURE A-8: AUDIO INPUT SCHEMATIC

MIcrophone/Line Input Pre-Amplifier

Anti-Aliasing Filter

Schematics

FIGURE A-9: AUDIO OUTPUT SCHEMATIC

Power Amplifier for Headphone

FIGURE A-10: USER LEDS, USER SWITCHES AND TEMP SENSOR SCHEMATICS

User LEDs

User Switches

Temperature Sensor

MPLAB Starter Kit for dsPIC® DSCs User’s Guide

NOTES:

dsPIC

MPLAB STARTER KIT FOR

DIGITAL SIGNAL CONTROLLERS

USER’S GUIDE

Index

Audio Codec Schematic........................................... 34

Audio I/O Schematics .........................................34

, 35

Bias Voltage............................................................. 23

Board Components.................................................. 26

Breakpoints .............................................................. 17

Codec....................................................................7, 24

Configuration Bits..................................................... 21

Customer Notification Service.................................... 4

Customer Support...................................................... 5

Debug ...................................................................7, 25

Executive .......................................................... 16

Input and Control Schematic .......................31, 32

Reserved Resources ........................................ 20

Setup ................................................................ 16

Digital Volume Control ............................................. 24

Documentation

Conventions........................................................ 2

Layout ................................................................. 1

Flash Memory .......................................................... 24

Flash Memory Schematic......................................... 33

Flow Chart................................................................ 11

G.711 μ-law algorithm.............................................. 10

Halt........................................................................... 17

Hardware Installation ............................................... 15

Headphone ................................................................ 7

Host Computer Requirements.................................... 8

Install........................................................................ 15

Internet Address......................................................... 4

Line Input ................................................................. 23

Manufacturers’ Data Sheets ...................................... 7

Microchip Internet Web Site ....................................... 4

Microphone ................................................................ 7

MPLAB IDE...........................................................7

, 15

OCPWM Filters Schematic ...................................... 34

Playback................................................................... 24

Programmer ............................................................. 20

PWM .......................................................................... 7

Reading, Recommended ........................................... 3

Reserved Resources................................................ 20

Reset........................................................................ 17

Run........................................................................... 17

Schematic Diagrams................................................ 31

Serial EEPROM ....................................................... 25

Software Installation................................................. 15

Speech Processing Schematic ................................ 33

Speech Sampling..................................................... 23

Speech Sampling Interface Schematic .............. 31

Step.......................................................................... 17

, 32

Target Power Switching Schematic ......................... 32

Temperature Sensor Schematic .............................. 33

Troubleshooting ....................................................... 21

Unable to Enter Debug Mode................................... 21

USB...................................................................... 7

USB Interface Schematic......................................... 32

, 25

Warranty Registration ................................................ 2

Watch Window ......................................................... 17

WWW Address........................................................... 4

WORLDWIDE SALES AND SERVICE

AMERICAS

Corporate Office

2355 West Chandler Blvd. Chandler, AZ 85224-6199 Tel: 480-792-7200 Fax: 480-792-7277 Technical Support: http://support.microchip.com Web Address: www.microchip.com

Atlanta

Duluth, GA Tel: 678-957-9614 Fax: 678-957-1455

Boston

Westborough, MA Tel: 774-760-0087 Fax: 774-760-0088

Chicago

Itasca, IL Tel: 630-285-0071 Fax: 630-285-0075

Dallas

Addison, TX Tel: 972-818-7423 Fax: 972-818-2924

Detroit

Farmington Hills, MI Tel: 248-538-2250 Fax: 248-538-2260

Kokomo

Kokomo, IN Tel: 765-864-8360 Fax: 765-864-8387

Los Angeles

Mission Viejo, CA Tel: 949-462-9523 Fax: 949-462-9608

Santa Clara

Santa Clara, CA Tel: 408-961-6444 Fax: 408-961-6445

Toronto

Mississauga, Ontario, Canada Tel: 905-673-0699 Fax: 905-673-6509

ASIA/PACIFIC

Asia Pacific Office

Suites 3707-14, 37th Floor Tower 6, The Gateway Harbour City, Kowloon Hong Kong Tel: 852-2401-1200 Fax: 852-2401-3431

Australia - Sydney

Tel: 61-2-9868-6733 Fax: 61-2-9868-6755

China - Beijing

Tel: 86-10-8528-2100 Fax: 86-10-8528-2104

China - Chengdu

Tel: 86-28-8665-5511 Fax: 86-28-8665-7889

China - Hong Kong SAR

Tel: 852-2401-1200 Fax: 852-2401-3431

China - Nanjing

Tel: 86-25-8473-2460 Fax: 86-25-8473-2470

China - Qingdao

Tel: 86-532-8502-7355 Fax: 86-532-8502-7205

China - Shanghai

Tel: 86-21-5407-5533 Fax: 86-21-5407-5066

China - Shenyang

Tel: 86-24-2334-2829 Fax: 86-24-2334-2393

China - Shenzhen

Tel: 86-755-8203-2660 Fax: 86-755-8203-1760

China - Wuhan

Tel: 86-27-5980-5300 Fax: 86-27-5980-5118

China - Xiamen

Tel: 86-592-2388138 Fax: 86-592-2388130

China - Xian

Tel: 86-29-8833-7252 Fax: 86-29-8833-7256

China - Zhuhai

Tel: 86-756-3210040 Fax: 86-756-3210049

ASIA/PACIFIC

India - Bangalore

Tel: 91-80-4182-8400 Fax: 91-80-4182-8422

India - New Delhi

Tel: 91-11-4160-8631 Fax: 91-11-4160-8632

India - Pune

Tel: 91-20-2566-1512 Fax: 91-20-2566-1513

Japan - Yokohama

Tel: 81-45-471- 6166 Fax: 81-45-471-6122

Korea - Daegu

Tel: 82-53-744-4301 Fax: 82-53-744-4302

Korea - Seoul

Tel: 82-2-554-7200 Fax: 82-2-558-5932 or 82-2-558-5934

Malaysia - Kuala Lumpur

Tel: 60-3-6201-9857 Fax: 60-3-6201-9859

Malaysia - Penang

Tel: 60-4-227-8870 Fax: 60-4-227-4068

Philippines - Manila

Tel: 63-2-634-9065 Fax: 63-2-634-9069

Singapore

Tel: 65-6334-8870 Fax: 65-6334-8850

Taiwan - Hsin Chu

Tel: 886-3-572-9526 Fax: 886-3-572-6459

Taiwan - Kaohsiung

Tel: 886-7-536-4818 Fax: 886-7-536-4803

Taiwan - Taipei

Tel: 886-2-2500-6610 Fax: 886-2-2508-0102

Thailand - Bangkok

Tel: 66-2-694-1351 Fax: 66-2-694-1350

EUROPE

Austria - Wels

Tel: 43-7242-2244-39 Fax: 43-7242-2244-393

Denmark - Copenhagen

Tel: 45-4450-2828 Fax: 45-4485-2829

France - Paris

Tel: 33-1-69-53-63-20 Fax: 33-1-69-30-90-79

Germany - Munich

Tel: 49-89-627-144-0 Fax: 49-89-627-144-44

Italy - Milan

Tel: 39-0331-742611 Fax: 39-0331-466781

Netherlands - Drunen

Tel: 31-416-690399 Fax: 31-416-690340

Spain - Madrid

Tel: 34-91-708-08-90 Fax: 34-91-708-08-91

UK - Wokingham

Tel: 44-118-921-5869 Fax: 44-118-921-5820

01/02/08

MICROCHIP MPLAB Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Chapter 1. Introduction

1.1 OVERVIEW

1.2 OPERATIONAL REQUIREMENTS

1.3 BOARD SETUP

Chapter 2. Speech Record and Playback Demo

2.1 RUNNING THE DEMO

2.2 UNDERSTANDING THE DEMO

2.3 EXAMINING DEMO SOFTWARE FLOW

2.4 OTHER DEMO CODE EXAMPLES

Chapter 3. Develop an Application

3.1 INSTALLING THE HARDWARE AND SOFTWARE

3.2 SETTING UP AN EXAMPLE APPLICATION FOR DEBUG

3.3 RUNNING THE EXAMPLE APPLICATION

3.4 DEBUGGING THE EXAMPLE APPLICATION

3.5 PROGRAMMING THE DEBUGGED APPLICATION

3.6 CREATING OTHER dsPIC DSC APPLICATIONS

3.7 DETERMINING DEVICE SUPPORT AND RESERVED RESOURCES

3.8 TROUBLESHOOTING

3.9 SETTINGS DIALOG, INFO TAB

Chapter 4. Hardware

4.1 AUDIO FUNCTIONAL OVERVIEW

4.2 DEBUG FUNCTIONAL OVERVIEW

4.3 BOARD COMPONENTS

Appendix A. Schematics

FIGURE A-3: USB INTERFACE/TARGET POWER SWITCHING SCHEMATIC

FIGURE A-4: SPEECH PROCESSING SCHEMATIC

FIGURE A-5: FLASH MEMORY SCHEMATICS

FIGURE A-6: OUTPUT COMPARE MODULE PWM FILTERS SCHEMATIC

FIGURE A-7: AUDIO CODEC SCHEMATIC

FIGURE A-8: AUDIO INPUT SCHEMATIC

FIGURE A-9: AUDIO OUTPUT SCHEMATIC

FIGURE A-10: USER LEDS, USER SWITCHES AND TEMP SENSOR SCHEMATICS

Index

WORLDWIDE SALES AND SERVICE
