MCP9700 Temperature-to-Voltage

Converter PICtail™ Demo Board

User’s Guide

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.

• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.

• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property.

• Microchip is willing to work with the customer who is concerned about the integrity of their code.

• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are comm itted t o continuously improving the code protection features of our products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Micro chip’s products as c ritical componen ts in life support systems is not authorized except with express written approval by Microchip. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights.

Trademarks

The Microchip name and logo, the Microchip logo, Accuron, dsPIC, K

EELOQ, microID, MPLAB, PIC, PICmicro, PICST ART,

PRO MATE, PowerSmart, rfPIC, and SmartShunt are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

AmpLab, FilterLab, Migratable Memory, MXD EV, MXLAB, PICMASTER, SEEVAL, SmartSensor and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Analog-for-the-Digital Age, Application Maestro, dsPICDEM, dsPICDEM.net, dsPICworks, ECAN, ECONOMONITOR, FanSense, FlexROM, fuzzyLAB, In-Circuit Serial Programming, ICSP, ICEPIC, MPASM, MPLIB, MPLINK, MPSIM, PICkit, PICDEM, PICDEM.net, PICLAB, PICtail, PowerCal, PowerInfo, PowerMate, PowerTool, rfLAB, rfPICDEM, Select Mode, Smart Serial, SmartTel, Total Endurance and WiperLock are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip T echnology Incorporated in the U.S.A.

All other trademarks mentioned herein are property of their respective companies.

Printed on recycled paper.

Microchip received ISO/TS-16949:2002 quality system certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona and Mountain View, California in October 2003. The Company’s quality system processes and procedures are for its PI Cmicro devices, Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip’s quality system for the design and manufacture of development systems is ISO 9001:2000 certified.

8-bit MCUs, KEELOQ

code hopping

MCP9700 TEMPERATURE-TO-VOLTAGE

CONVERTER PICtail™ DEMO BOARD

USER’S GUIDE

Table of Contents

Preface ...........................................................................................................................1

Chapter 1. Product Overview ....................................................................................... 5

1.1 Introduction .....................................................................................................5

1.2 What is the MCP9700 Temperature-to-Voltage Converter PICtail™ Demo

Board? ...................................................................................................... 5

1.3 What the MCP9700 Temperature-to-Voltage Converter PICtail™ Demo

Board Kit Includes ....................................................................................5

Chapter 2. Installation and Operation .........................................................................7

2.1 Introduction .....................................................................................................7

2.2 Features ..... .. ............................. ................ ............... ................ ...................... 7

2.3 Getting St a rt ed ................................. ............... ................ ............... ................ 7

Appendix A. Schematic and Layouts ........................................................................13

A.1 Introduction .................................................................................................. 13

A.2 Board Sche m a t ic .......... .. ................ ............... ................ ............................ . 1 4

A.3 Board – Top La y er ... ............... ............................. ............... ....................... 14

A.4 Board – Silk-screen Layer ..........................................................................15

A.5 Board – Bottom Layer ....... ............................ ............................. ............... . 1 5

Appendix B. Bill-Of-Materials (BOM) ......................................................................... 17

Worldwide Sales and Service ....................................................................................18

MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board User’s Guide

NOTES:

MCP9700 TEMPERATURE-TO-VOLTAGE

CONVERTER PICtail™ DEMO BOARD

USER’S GUIDE

Preface

NOTICE TO CUSTOMERS

All documentation becomes dated, and this manual is no exception. Microchip tools and documentation are constantly evolving to meet customer needs, so some actual dialogs and/or tool descriptions may differ from those in this document. Please refer to our web site (www.microchip.com) to obtain the latest documentation available.

Documents are identified with a “DS” number. This number is located on the bottom of each page, in front of the page number. The numbering convention for the DS number is “DSXXXXXA”, where “XXXXX” is the document number and “A” is the revision level of the document.

For the most up-to-date information on development tools, see the MPLAB Select the Help menu, and then Topics to open a list of available on-line help files.

IDE on-line help.

INTRODUCTION

This chapter contains general information that will be useful to know before using the MCP9700 Temperature-to-Volt age Converter PICtail™ Demo Board. Items discussed in this chapter include:

• Document Layout

• Conventions Used in this Guide

• Recommended Reading

• The Microchip Web Site

• Customer Support

• Document Revision History

DOCUMENT LAYOUT

This document describes how to use the MCP9700 T emperature-to-Voltage Converter PICtail™ Demo Board User’s Guide. The manual layout is as follows:

• Chapter 1. “Product Overview” – Important information about the MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board.

• Chapter 2. “Installation and Operation” – This chapter includes instructions on how to get started, with a detailed description of each of the board’s functions.

• Appendix A. “Schematic and Layouts” – Shows the schematic and layout diagrams for the MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board.

• Appendix B. “Bill-Of-Materials (BOM)” – Lists the parts used to build the MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board.

MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board User’s Guide

CONVENTIONS USED IN THIS GUIDE

This manual uses the following docum entat io n conven tion s:

DOCUMENTATION CONVENTIONS

Description Represents Examples

Arial font:

Italic characters Referenced books MPLAB

Emphasized text ...is the only comp ile r...

Initial caps A window the Output window

A dialog the Settings dialog A menu selection select Enable Programmer

Quotes A field name in a window or

dialog

Underlined, italic text with right angle bracket

Bold characters A dialog button Click OK

Text in angle brackets < > A key on the keyboard Press <Enter>, <F1>

Courier font:

Plain Courier Sample source code #define START

Italic Courier A variable argument file.o, where file can be

Square brackets [ ] Optional arguments mpasmwin [options]

Curly brackets and pipe character: { | }

Ellipses... Replaces r epeated text var_name [,

A menu path File>Save

A tab Click the Power tab

Filenames autoexec.bat File paths c:\mcc18\h Keywords _asm, _endasm, static Command-line options -Opa+, -Opa- Bit values 0, 1 Constants 0xFF, ’A’

Choice of mutually exclus ive arguments; an OR selection

Represents code supplied by user

“Save project before build”

any valid filename

file [options]

errorlevel {0|1}

var_name...]

void main (void) { ... }

IDE User’s Guide

Chapter 1. Product Overview

1.1 INTRODUCTION

This chapter provides an overview of the MCP9700 T emperature-to-Voltage Converter PICtail™ Demo Board and covers the following topics:

• What is the MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board?

• What the MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board Kit includes

1.2 WHAT IS THE MCP9700 TEMPERA TURE-TO-VOLTAGE CONVERTER PICTAIL™ DEMO BOARD?

The MCP9700 T emperature-to-Voltage Converter PICtail™ Demo Board demonstrates how to interface the MCP9700 to a PICmicro Flash Starter Kit as a platform. A PIC16F676 14-pin, Flash-based, 8-bit CMOS microcontoller device is included with the demo board that can be used with the PICkit™ 1 Flash Starter Kit, along with firmware that provides the interface to the MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board and the voltage-to-temperature conversion routines.

The MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board can also be used as a “stand-alone” module to quickly add thermal sensing capablity to any existing application. This basic sensor functionality is implemented on a small Printed Circuit Board (PCB) and an interface via a standard 100 mil header.

microcontroller using the PICkit™ 1

1.3 WHAT THE MCP9700 TEMPERATURE-TO-VOLTAGE CONVERTER PICTAIL™ DEMO BOARD KIT INCLUDES

This MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board Kit includes:

• The MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board

• MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board User’s Guide, DS51542

• AN981, “Interfacing a MCP9700 Analog Output Temperature Sensor to a PICmicro

• PIC16F676 14-pin, Flash-based, 8-bit CMOS Microcontroller

• PIC16F676 Firmware (00059R1.HEX)

Microcontroller”, DS00981

MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board User’s Guide

NOTES:

Chapter 2. Installation and Operation

2.1 INTRODUCTION

The MCP9700 T emperature-to-Voltage Converter PICtail™ Demo Board demonstrates how to interface the MCP9700 to a microcontroller, for use by the system designer as an example of how to integrate an analog temperature sensor into their system.

2.2 FEATURES

The MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board has the following features:

•Small PCB layout

• Standard 100 mil 14-pin header (P1) for easy interface to PICkit™ 1 Flash Starter Kit or custom application

2.3 GETTING STARTED

MCP9700 TEMPERATURE-TO-VOLTAGE

CONVERTER PICtail™ DEMO BOARD

USER’S GUIDE

This section describes how to quickly set up the MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board and PICkit 1 Flash Starter Kit. A block diagram of the setup is presented in Figure 2-1. Refer to AN981, “Interfacing a MCP9700 Analog Output Temperature Sensor to a PICmicro information on the MCP9700 T emperature-to-Voltage Converter PICtail™ Demo Board and the 00059R1.HEX firmware.

PICkit™ 1 Flash Starter Kit

PICmicro

Flash

MCU

USB

LED Array

ADC

GND

Microcontroller” (DS00981), for detailed

MCP9700

Temperature

Sensor

OUT

+5V

MCP9700 PICtail™

Daughter Board

D4D5D6D7 D0D1D2D3

FIGURE 2-1: MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board Block Diagram.

MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board User’s Guide

2.3.1 Hardware Setup

1. Connect the P1 header of the MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board to the J3 connector on the PICkit 1 Flash Starter Kit board. Refer to Figure 2-2 for proper orientation of the MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board and Figure 2-3 for the simplified board schematic.

2. Insert the PIC16F676 into the Evaluation socket of the PICkit 1 Flash Starter Kit board.

3. Connect the PICkit 1 Flash Starter Kit USB cable from the USB port of the PC to the USB port (J1) on t he PIC kit 1 Fl ash Starter K it boa rd. +5V p ower is suppli ed to the PICkit 1 Flash Starter Kit board via the USB cable. The green POWER LED and the red BUSY LED will turn on, indicating that power is being supplied to the board.

Expansion Header (J3)

USB Cable

LED D7

MCP9700 PICtail™ Daughter Board

LED D0

Insert PIC16F676

PICkit™ 1 Flash Starter Kit

FIGURE 2-2: MCP9700 PICtail™ Daughter Board and PICkit™ 1 Flash Starter Kit.

PICkit™ 1

Flash Starter Kit

+5V

To ADC

RC0

J3 13

MCP9700 PICtail™ Daughter Board

(SC70-5)

OUT

0.1 µF

GND

FIGURE 2-3: Simplified MCP9700 PICtail™ Daughter Board Schematic.

Installation and Operation

2.3.2 Programming the PIC16F676

1. Download and install the PICkit 1 Flash Starter Kit software to your PC.

2. Copy the 00059R1.HEX file, supplied on the CD that came with this kit, to your

PC.

3. Once the PICkit 1 Flash Starter Kit is started, the main window will be displayed

on the PC, as indicated in Figure 2-4.

FIGURE 2-4: PICkit™ 1 Flash Starter Kit GUI Window on the PC.

4. Toggle device power to off by unchecking the Device Power box under Board

Controls in the PICkit 1 Flash Starter Kit window (Figure 2-4). The BUSY LED

on the PICkit 1 Flash Starter Kit board will turn off once the device power is turned off.

5. Click on the Erase button in the window to ensure that the PIC16F676 device has

been erased.

6. From the File pull down menu, select Import HEX. A file window will appear.

Select and open “00059R1.HEX”.

7. Click on the Write Device button in the PICkit 1 Flash Starter Kit window. The

PIC16F676 device will be written to with the 00059R1.HEX firmware. When completed, the status bar at the bottom of the window will indicate Write Successful.

8. Toggle the device power on by checking the Device Power box under Board

Controls in the PICkit 1 Flash Starter Kit window . The BUSY LED on the PICkit 1 Flash Starter Kit board will turn on once the device power is turned on. Some of the red LEDs (D7-D0) will turn on as well.

MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board User’s Guide

At this point, the PIC16F676 is reading the temperature data from the MCP9700 and displaying the temperature on the eight red LEDs (D7-D0) on the PICkit 1 Flash Starter Kit board. The ten’s digit of the temperature data is represented by bits D7-D4, with D7 being defined as the Most Significant bit (MSb). The one’s digit is defined by bits D3-D0, with D3 serving as the MSb.

The temperature can be displayed in degrees Celsius or Fahrenheit. The board defaults to the temperature being displayed in Celsius. To display the temperature in Fahrenheit, press the SW1 push button switch on the PICkit 1 Flash Starter Kit board. The display will change back to Celsius once the SW1 push button switch is released.

Table 2-1 provides a list of the LED patterns that correspond to the BCD coding representation of the temperature measurement.

TABLE 2-1: BCD CODE REPRESENTATION ON PICkit™ 1 FLASH STARTER

KIT LEDS

Binary

0000 0 OFF OFF OFF OFF 0001 1 OFF OFF OFF ON 0010 2 OFF OFF ON OFF 0011 3OFFOFFONON 0100 4 OFF ON OFF OFF 0101 5 OFF ON OFF ON 0110 6 OFF ON ON OFF 0111 7 OFF ON ON ON 1000 8ONOFFOFFOFF 1001 9ONOFFOFFON

BCD

Number

For example, a temperature reading of 75

D7 D3

D6 D2

F will be displayed by turning on LEDs D6,

D5 D1

D4 D0

D5, D4, D2 and D0 (LEDs D7, D3 and D1 will be turned off), as indicated in Figure 2-5.

Installation and Operation

MCP9700 Temp Sensor

Demo Board

Temperature

Displayed in

BCD

D7 D6 D5 D4

D3 D2 D1 D0

BUSY

PICkit™ Flash

Starter Kit Board

POWER

FIGURE 2-5: PICkit™ 1 Flash Starter Kit LED Display of 75°F.

The temperature display will change when the temperature of the MCP9700 is varied. A simple example of this can be seen by pressing your finger on the MCP9700 device (U1) mounted on the MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board. More dramatic changes can be seen by applying heat to the MCP9700 with a hair dryer, hot air gun or by cooling the device down.

Refer to the MCP9700 data sheet, “Low-Power Voltage Output Temperature Sensor” (DS21942), for more information on the MCP9700 and AN981, “Interfacing a MCP9700 Analog Output Temperature Sensor to a PICmicro information on the MCP9700 T emperature-to-Voltage Converter PICtail™ Demo Board and 00059R1.HEX firmware.

Microcontroller”, for more

MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board User’s Guide

NOTES:

Appendix A. Schematic and Layouts

A.1 INTRODUCTION

This appendix contains the following schematics and layouts for the MCP9700 Temperature-to-Voltage Converter PICtail Demo Board:

• Board Sc hematic

• Board – Top Layer

• Board – Silk-screen Layer

• Board – Bottom Layer

MCP9700 TEMPERATURE-TO-VOLTAGE

CONVERTER PICtail™ DEMO BOARD

USER’S GUIDE

MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board User’s Guide

A.2 BOARD SCHEMATIC

P1 P2 P3

HDR1X14

VOUT

GND

VOUT

VDD

MCP9700_SC70

RA5

RA4

RA3

RC5

RC4

RC3

RA0

RA1

RA2

RC0

RC1

RC2

+5V

GND

TP3

HDR1X14

+5V

0.1 μF C1

TP1

VOUT

+5V

TP2

PICkit™ 1 Flash Starter Kit Expansion Header J3

HDR1X14

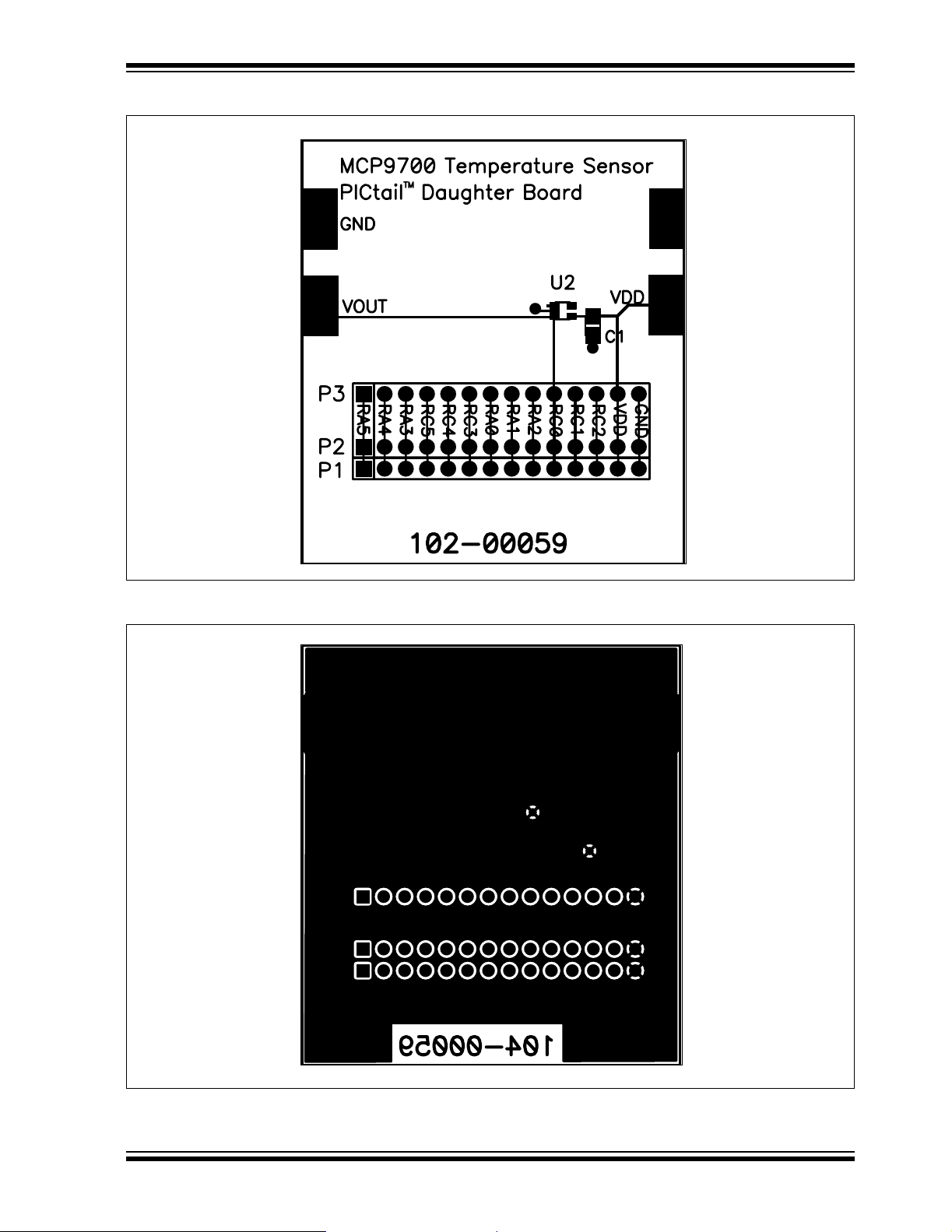

A.3 BOARD – TOP LAYER

A.4 BOARD – SILK-SCREEN LAYER

Schematic and Layouts

A.5 BOARD – BOTTOM LAYER

MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board User’s Guide

NOTES:

MCP9700 TEMPERATURE-TO-VOLTAGE

CONVERTER PICtail™ DEMO BOARD

Appendix B. Bill-Of-Materials (BOM)

TABLE B-1: BILL-OF-MATERIALS (BOM)

Reference

Designator

C1 1 Cap., 0.1 µF, 25V, Ceramic, X7R 0805 Panasonic P1 1 Conn Hdr Brkway .100 40pos RT/A AMP/

U1 1 MCP9700 Tiny Analog Temperature Sensor Microchip

Quantity Description Manufacturer

USER’S GUIDE

-ECG ECJ-2VB1E104K

Tyco™

Electronics

Technology Inc.

Manufacturer

Part Number

4-103765-0

MCP9700T-E/LT

WORLDWIDE SALES AND SERVICE

AMERICAS

Corporate Office

2355 West Chandler Blvd. Chandler, AZ 85224-6199 Tel: 480-792-7200 Fax: 480-792-7277 Technical Support: http://support.microchip.com Web Address: www.microchip.com

Atlanta

Alpharetta, GA Tel: 770-640-0034 Fax: 770-640-0307

Boston

Westborough, MA Tel: 774-760-0087 Fax: 774-760-0088

Chicago

Itasca, IL Tel: 630-285-0071 Fax: 630-285-0075

Dallas

Addison, TX Tel: 972-818-7423 Fax: 972-818-2924

Detroit

Farmington Hills, MI Tel: 248-538-2250 Fax: 248-538-2260

Kokomo

Kokomo, IN Tel: 765-864-8360 Fax: 765-864-8387

Los Angeles

Mission Viejo, CA Tel: 949-462-9523 Fax: 949-462-9608

San Jose

Mountain View, CA Tel: 650-215-1444 Fax: 650-961-0286

Toronto

Mississauga, Ontario, Canada Tel: 905-673-0699 Fax: 905-673-6509

ASIA/PACIFIC

Australia - Sydney

Tel: 61-2-9868-6733 Fax: 61-2-9868-6755

China - Beijing

Tel: 86-10-8528-2100 Fax: 86-10-8528-2104

China - Chengdu

Tel: 86-28-8676-6200 Fax: 86-28-8676-6599

China - Fuzhou

Tel: 86-591-8750-3506 Fax: 86-591-8750-3521

China - Hong Kong SAR

Tel: 852-2401-1200 Fax: 852-2401-3431

China - Shanghai

Tel: 86-21-5407-5533 Fax: 86-21-5407-5066

China - Shenyang

Tel: 86-24-2334-2829 Fax: 86-24-2334-2393

China - Shenzhen

Tel: 86-755-8203-2660 Fax: 86-755-8203-1760

China - Shunde

Tel: 86-757-2839-5507 Fax: 86-757-2839-5571

China - Qingdao

Tel: 86-532-502-7355 Fax: 86-532-502-7205

ASIA/PACIFIC

India - Bangalore

Tel: 91-80-2229-0061 Fax: 91-80-2229-0062

India - New Delhi

Tel: 91-11-5160-8631 Fax: 91-11-5160-8632

Japan - Kanagawa

Tel: 81-45-471- 6166 Fax: 81-45-471-6122

Korea - Seoul

Tel: 82-2-554-7200 Fax: 82-2-558-5932 or 82-2-558-5934

Singapore

Tel: 65-6334-8870 Fax: 65-6334-8850

Taiwan - Kaohsiung

Tel: 886-7-536-4818 Fax: 886-7-536-4803

Taiwan - Taipei

Tel: 886-2-2500-6610 Fax: 886-2-2508-0102

Taiwan - Hsinchu

Tel: 886-3-572-9526 Fax: 886-3-572-6459

EUROPE

Austria - Weis

Tel: 43-7242-2244-399 Fax: 43-7242-2244-393

Denmark - Ballerup

Tel: 45-4450-2828 Fax: 45-4485-2829

France - Massy

Tel: 33-1-69-53-63-20 Fax: 33-1-69-30-90-79

Germany - Ismaning

Tel: 49-89-627-144-0 Fax: 49-89-627-144-44

Italy - Milan

Tel: 39-0331-742611 Fax: 39-0331-466781

Netherlands - Drunen

Tel: 31-416-690399 Fax: 31-416-690340

England - Berkshire

Tel: 44-118-921-5869 Fax: 44-118-921-5820

03/01/05

Microchip MCP9700 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Chapter 1. Product Overview

1.1 INTRODUCTION

1.2 WHAT IS THE MCP9700 TEMPERA TURE-TO-VOLTAGE CONVERTER PICTAIL™ DEMO BOARD?

1.3 WHAT THE MCP9700 TEMPERATURE-TO-VOLTAGE CONVERTER PICTAIL™ DEMO BOARD KIT INCLUDES

Chapter 2. Installation and Operation

2.1 INTRODUCTION

2.2 FEATURES

2.3 GETTING STARTED

FIGURE 2-1: MCP9700 Temperature-to-Voltage Converter PICtail™ Demo Board Block Diagram.

FIGURE 2-2: MCP9700 PICtail™ Daughter Board and PICkit™ 1 Flash Starter Kit.

FIGURE 2-3: Simplified MCP9700 PICtail™ Daughter Board Schematic.

FIGURE 2-4: PICkit™ 1 Flash Starter Kit GUI Window on the PC.

Appendix A. Schematic and Layouts

A.1 INTRODUCTION

Appendix B. Bill-Of-Materials (BOM)

TABLE B-1: BILL-OF-MATERIALS (BOM)
