13-Bit Differential Input, Low Power A/D Converter

MCP3302/04

with SPI™ Serial Interface

Features

• Full Differential Inputs

• MCP3302: 2 Differential or 4 Single ended Inputs

• MCP3304: 4 Differential or 8 Single ended Inputs

• ±1 LSB max DNL

• ±1 LSB max INL (MCP3302/04-B)

• ±2 LSB max INL (MCP3302/04-C)

• Single supply operation: 2.7V to 5.5V

• 100 ksps sampling rate with 5V supply voltage

• 50 ksps sampling rate with 2.7V supply voltage

• 50 nA typical standby current, 1 µA max

•450µA max active current at 5V

• Industrial temp range: -40°C to +85°C

• 14 and 16-pin PDIP, SOIC and TSSOP packages

• MXDEV

Evaluation kit available

Applications

• Remote Sensors

• Battery Operated Systems

• Transducer Interface

Package Types

PDIP, SOIC, TSSOP

CH0 CH1 CH2 CH3

NC NC

DGND

1 2 3 4 5

6 7

V 13 12 11 10

REF

AGND

CLK

OUT

/SHDN

MCP3302

General Description

The Microchip Technology Inc. MCP3302/04 13-bit A/D converters feature full differential inputs and low power consumption in a small package that is ideal for battery powered systems and remote data acquisition applications. The MCP3302 is programmable to provide two differential input pairs or four single ended inputs. The MCP3304 is programmable and provides four differential input pairs or eight single ended inputs.

Incorporating a successive approximation architecture with on-board sample and hold circuitry, these 13-bit A/D converters are specified to have ±1 LSB Differential Nonlinearity (DNL); ±1 LSB Integral Nonlinearity (INL) for B-grade and ±2 LSB for C-grade devices. The industry-standard SPI™ serial interface enables 13-bit A/D converter capability to be added to any PICmicro microcontroller.

The MCP3302/04 devices feature low current design that permits operation with typical standby and active

currents of only 50 nA and 300 µA, respectively. The

devices operate over a broad voltage range of 2.7V to

5.5V and are capable of conversion rates of up to 100 ksps. The reference voltage can be varied from 400 mV to 5V, yielding input-referred resolution

between 98 µV and 1.22 mV.

The MCP3302 is available in 14-pin PDIP, 150 mil SOIC and TSSOP packages. The MCP3304 is available in 16-pin PDIP and 150 mil SOIC packages. The full differential inputs of these devices enable a wide variety of signals to be used in applications such as remote data acquisition, portable instrumentation and battery operated applications.

PDIP, SOIC

MCP3304

14 13 12

11 10

REF

AGND

CLK

OUT

CS/SHDN

DGND

CH0 CH1

CH2

3 4

CH3 CH4

CH5

CH6

CH7

 2002 Microchip Technology Inc. DS21697B-page 1

MCP3302/04

Functional Block Diagram

REF

CH0 CH1

CH7

Input

Channel

Mux

Sample

& Hold

Circuits

CDAC

Comparator

AGND

13-Bit SAR

DGND

Control Logic

CS/SHDN

CLK

Shift

OUT

* Channels 5-7 available on MCP3304 Only

DS21697B-page 2  2002 Microchip Technology Inc.

MCP3302/04

1.0 ELECTRICAL CHARACTERISTICS

Maximum Ratings*

VDD........................................................................ 7.0V

All inputs and outputs w.r.t. V

Storage temperature .......................... -65°C to +150°C

Ambient temp. with power applied ..... -65°C to +125°C

Maximum Junction Temperature ....................... 150°C

ESD protection on all pins (HBM)......................... > 4kV

*Notice: Stresses above those listed under “Maximum ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

.....-0.3V to VDD +0.3V

PIN FUNCTION TABLE

Name Function

CH0-CH7 Analog Inputs

DGND Digital Ground

/SHDN Chip Select / Shutdown Input

OUT

CLK Serial Clock

AGND Analog Ground

REF

Serial Data In

Serial Data Out

Reference Voltage Input

+2.7V to 5.5V Power Supply

ELECTRICAL SPECIFICATIONS

Electrical Characteristics: Unless otherwise noted, all parameters apply at VDD = 5V, VSS = 0V, and V

input configuration (Figure 3-4) with fixed common mode voltage of 2.5V. All parameters apply over temperature with T

= -40°C to +85°C (Note 7). Conversion speed (F

AMB

Parameter Symbol Min Typ Max Units Conditions

Conversion Rate

Maximum Sampling Frequency F

Conversion Time T

Acquisition Time T

DC Accuracy

Resolution 12 data bits + sign bits

Integral Nonlinearity INL —

Differential Nonlinearity DNL — ±0.5 ±1 LSB Monotonic over temperature

Positive Gain Error -3 -0.75 +2 LSB

Negative Gain Error -3 -0.5 +2 LSB

Offset Error -3 +3 +6 LSB

Note 1: This specification is established by characterization and not 100% tested.

2: See characterization graphs that relate converter performance to V 3: V

= 0.1V to 4.9V @ 1 kHz.

4: V

=5V

5: Maximum clock frequency specification must be met. 6: V

REF

7: TSSOP devices are only specified at 25°C and +85°C. 8: For slow sample rates, see Section 6.2.1 for limitations on clock frequency.

±500 mV @ 1 kHz, see test circuit Figure 3-3.

P-P

= 400 mV, VIN = 0.1V to 4.9V @ 1 kHz

SAMPLE

CONV

ACQ

) is 100 ksps with F

SAMPLE

—— 100kspsNote 8

— — 50 ksps V

13 CLK

1.5 CLK

±0.5

—

±1

±1 ±2

REF

CLK

level.

= 21*F

periods

LSB LSB

SAMPL E

MCP3302/04-B MCP3302/04-C

= 5V. Full differential

REF

= V

= 2.7V, VCM =1.35V

REF

 2002 Microchip Technology Inc. DS21697B-page 3

MCP3302/04

ELECTRICAL SPECIFICATIONS (CONTINUED)

Electrical Characteristics: Unless otherwise noted, all parameters apply at VDD = 5V, VSS = 0V, and V

= 5V. Full differential

REF

input configuration (Figure 3-4) with fixed common mode voltage of 2.5V. All parameters apply over temperature with T

= -40°C to +85°C (Note 7). Conversion speed (F

AMB

) is 100 ksps with F

SAMPLE

CLK

= 21*F

SAMPL E

Parameter Symbol Min Typ Max Units Conditions

Dynamic Performance

Total Harmonic Distortion THD — -91 — dB Note 3

Signal to Noise and Distortion SINAD — 78 — dB Note 3

Spurious Free Dynamic Range SFDR — 92 — dB Note 3

Common Mode Rejection CMRR — 79 — dB Note 6

Channel to Channel C rosstalk CT — > -110 — dB Note 6

Power Supply Rejection PSR — 74 — dB Note 4

Reference Input

Voltage Range 0.4 — V

Current Drain —

—

100

0.001

VNote 2

150

µA µACS

= VDD = 5V

Analog Inputs

Full Scale Input Span CH0 - CH7 -V

REF

—V

Absolute Input Voltage CH0 - CH7 -0.3 — V

REF

+ 0.3 V

Leakage Current — 0.001 ±1 µA

Switch Resistance R

Sample Capacitor C

SAMPLE

—1 — kΩ See Figure 6-3

— 25 — pF See Figure 6-3

Digital Input/Output

Data Coding Format Binary Two’s Complement

High Level Input Voltage V

Low Level Input Voltage V

High Level Output Voltage V

Low Level Output Voltage V

Input Leakage Current I

Output Leakage Current I

Pin Capacitance CIN, C

OUT

0.7 V

——0.3 VDDV

4.1 — — V IOH = -1 mA, VDD = 4.5V

—— 0.4 VIOL = 1 mA, VDD = 4.5V

-10 — 10 µAV

—— 10 pFT

—— V

= VSS or V

OUT

= 25°C, F = 1 MHz, Note 1

AMB

Note 1: This specification is established by characterization and not 100% tested.

2: See characterization graphs that relate converter performance to V 3: V

= 0.1V to 4.9V @ 1 kHz.

4: V

=5V

5: Maximum clock frequency specification must be met. 6: V

REF

7: TSSOP devices are only specified at 25°C and +85°C.

±500 mV @ 1 kHz, see test circuit Figure 3-3.

P-P

= 400 mV, VIN = 0.1V to 4.9V @ 1 kHz

REF

level.

8: For slow sample rates, see Section 6.2.1 for limitations on clock frequency.

DS21697B-page 4  2002 Microchip Technology Inc.

ELECTRICAL SPECIFICATIONS (CONTINUED)

MCP3302/04

Electrical Characteristics: Unless otherwise noted, all parameters apply at VDD = 5V, VSS = 0V, and V

= 5V. Full differential

REF

input configuration (Figure 3-4) with fixed common mode voltage of 2.5V. All parameters apply over temperature with T

= -40°C to +85°C (Note 7). Conversion speed (F

AMB

) is 100 ksps with F

SAMPLE

CLK

= 21*F

SAMPL E

Parameter Symbol Min Typ Max Units Conditions

Timing Specifications:

Clock Frequency (Note 8) F

Clock High Time T

Clock Low Time T

Fall To First Rising CLK Edge T

Data In Setup time T

Data In Hold Time T

CLK Fall To Output Data Valid T

CLK Fall To Output Enable T

Rise To Output Disable T

CLK

SUCS

DIS

0.105

0.105——

210 — — ns Note 5

100 — — ns

50 — — ns

—— 50 ns

—— 125

— — 100 ns See test circuits, Figure 3-1

2.1

1.05

200

MHz MHz

VDD = 5V, F V

= 2.7V, F

SAMPLE

= 100 ksps

nsnsVDD = 5V, see Figure 3-1

= 2.7V, see Figure 3-1

nsnsVDD = 5V, see Figure 3-1

= 2.7V, see Figure 3-1

Note 1

Disable Time T

Rise Time T

OUT

CSH

475 — — ns

— — 100 ns See test circuits, Figure 3-1

Note 1

Fall Time T

OUT

— — 100 ns See test circuits, Figure 3-1

Note 1

Power Requirements:

Operating Voltage V

Operating Current I

Standby Current I

DDS

2.7 — 5.5 V

— —

300 200

450

—

µAV

—0.05 1 µACS = V

, V , V

= 5V, D

REF

= 2.7V, D

REF

= 5.0V

OUT

Temperature Ranges:

Specified Temperature Range T

Operating Temperature Range T

Storage Temperature Range T

-40 — +85 °C

-65 — +150 °C

Thermal Package Resistance: Thermal Resistance, 14L-PDIP θ Thermal Resistance, 14L-SOIC θ Thermal Resistance, 14L-TSSOP θ Thermal Resistance, 16L-PDIP θ Thermal Resistance, 16L-SOIC θ

—70 — °C/W

—108 — °C/W

—100 — °C/W

—70 — °C/W

—90 — °C/W

Note 1: This specification is established by characterization and not 100% tested.

2: See characterization graphs that relate converter performance to V 3: V

= 0.1V to 4.9V @ 1 kHz.

4: V

=5V

5: Maximum clock frequency specification must be met. 6: V

REF

±500 mV @ 1 kHz, see test circuit Figure 3-3.

P-P

= 400 mV, VIN = 0.1V to 4.9V @ 1 kHz

REF

level.

7: TSSOP devices are only specified at 25°C and +85°C. 8: For slow sample rates, see Section 6.2.1 for limitations on clock frequency.

= 50 ksps

unloaded

 2002 Microchip Technology Inc. DS21697B-page 5

MCP3302/04

CSH

SUCS

CLK

OUT

MSB IN

FIGURE 1-1: Timing Parameters

Null Bit

Sign BIT

DIS

LSB

DS21697B-page 6  2002 Microchip Technology Inc.

MCP3302/04

2.0 TYPICAL PERFORMANCE CURVES

Note: The graphs and tables provided following this note are a statistical summary based on a limited number of

samples and are provided for informational purposes only. The performance characteristics listed herein are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified operating range (e.g., outside specified power supply range) and therefore outside the warranted range.

Note: Unless otherwise indicated, V

0.8

0.6

0.4

0.2

-0.2

INL (LSB)

-0.4

-0.6

-0.8

-1

0 50 100 150 200

SAMPLE

= 100 ksps, F

Positive INL

Negative INL

Sample Rate (ksps)

CLK

= 21*F

= V

SAMPLE

REF

FIGURE 2-1: Integral Nonlinearity (INL) vs. Sample Rate

1.5

0.5

INL (LSB)

-0.5

-1

-1.5

-2

012345

Positive INL

Negative INL

REF

(V)

= 5V, Full differential input configuration, V

, TA = 25°C.

VDD=V

=2.7V

REF

0.8

0.6

0.4

0.2

INL (LSB)

-0.2

-0.4

-0.6

-0.8

-1

0 10203040506070

Positive INL

Negative INL

Sample Rate (ksps)

FIGURE 2-4: Integral Nonlinearity (INL) vs. Sample Rate (V

= 2.7V

1.5

0.5

INL(LSB)

-0.5

-1

-1.5

-2

00.511.522.53

= 2.7V)

Positive INL

Negative INL

REF

= 0V,

(V)

FIGURE 2-2: Integral Nonlinearity (INL) vs. V

REF.

0.8

0.6

0.4

0.2

-0.2

INL (LSB)

-0.4

-0.6

-0.8

-1

-4096 -3072 -2048 -1024 0 1024 2048 3072 4096

Code

FIGURE 2-3: Integral Nonlinearity (INL) vs. Code (Representative Part).

FIGURE 2-5: Integral Nonlinearity (INL) vs. V

REF (VDD

0.8

0.6

0.4

0.2

-0.2

INL (LSB)

-0.4

-0.6

-0.8

-1

-4096 -3 072 -204 8 -1 024 0 1024 204 8 3 072 4096

VDD=V F

SAMPLE

= 2.7V)

=2.7V

REF

= 50 ksps

Code

FIGURE 2-6: Integral Nonlinearity (INL) vs. Code (Representative Part, V

= 2.7V).

 2002 Microchip Technology Inc. DS21697B-page 7

MCP3302/04

Note: Unless otherwise indicated, V

0.8

0.6

0.4

0.2

-0.2

INL (LSB)

-0.4

-0.6

-0.8

-1

-50 -25 0 25 50 75 100 125 150

SAMPLE

= 100 ksps, F

Positive INL

Negative INL

Temperature(°C)

CLK

= 21*F

= V

SAMPLE

REF

FIGURE 2-7: Integral Nonlinearity (INL) vs. Temperature.

0.8

0.6

0.4

0.2

-0.2

DNL (LSB)

-0.4

-0.6

-0.8

-1

0 50 100 150 200

Positive DNL

Negative DNL

Sample Rate (ksps)

= 5V, Full differential input configuration, V

, TA = 25°C.

VDD=V

=2.7V

REF

0.8

0.6

0.4

0.2

-0.2

INL (LSB)

-0.4

-0.6

-0.8

= 50 ksps

SAMPLE

Positive INL

Negative INL

-1

-50-250 255075100125150

Temperature (°C)

FIGURE 2-10: Integral Nonlinearity (INL) vs. Temperature (V

VDD=V

=2.7V

REF

0.8

0.6

0.4

0.2

-0.2

DNL (LSB)

-0.4

-0.6

-0.8

-1

0 10203040506070

= 2.7V).

Positive DNL

Negative DNL

Sample Rate (ksps)

= 0V,

FIGURE 2-8: Differential Nonlinearity (DNL) vs. Sample Rate.

1.5

0.5

DNL(LSB)

-0.5

-1

-1.5

-2

0123456

Positive DNL

Negative DNL

(V)

REF

FIGURE 2-9: Differential Nonlinearity (DNL) vs. V

REF

FIGURE 2-11: Differential Nonlinearity (DNL) vs. Sample Rate (V

VDD=2.7V

= 50 ksps

SAMPLE

1.5

0.5

DNL (LSB)

-0.5

-1

-1.5

-2

0 0.5 1 1.5 2 2.5 3

Positive DNL

Negative DNL

(V)

REF

= 2.7V).

FIGURE 2-12: Differential Nonlinearity (DNL) vs. V

REF (VDD

= 2.7V).]

DS21697B-page 8  2002 Microchip Technology Inc.

MCP3302/04

Note: Unless otherwise indicated, V

0.8

0.6

0.4

0.2

-0.2

DNL (LSB)

-0.4

-0.6

-0.8

-1

-4096 -3072 -2048 -1024 0 1024 2048 3072 4096

SAMPLE

= 100 ksps, F

Code

CLK

= 21*F

= V

SAMPLE

FIGURE 2-13: Differential Nonlinearity (DNL) vs. Code (Representative Part).

0.8

0.6

0.4

0.2

-0.2

DNL (LSB)

-0.4

-0.6

-0.8

-1

-50 -25 0 25 50 75 100 125 150

Posit ive DNL

Negaitive DNL

Temperature (°C)

= 5V, Full differential input configuration, V

REF

, TA = 25°C.

VDD=V

=2.7V

REF

0.8

= 50 ksps

SAMPLE

0.6

0.4

0.2

-0.2

DNL (LSB)

-0.4

-0.6

-0.8

-1

-4096 -3 072 -204 8 -1024 0 1024 204 8 3072 409 6

FIGURE 2-16: Differential Nonlinearity (DNL) vs. Code (Representative Part, V

= 2.7V).

VDD=V

=2.7V

REF

0.8

0.6

0.4

0.2

-0.2

DNL (LSB)

-0.4

-0.6

-0.8

= 50 ksps

SAMPLE

-1

-50 -25 0 25 50 75 100 125 150

Code

Positive DNL

Negative DNL

Temperature (°C)

= 0V,

FIGURE 2-14: Differential Nonlinearity (DNL) vs. Temperature.

-1

Positive Gain Error (LSB)

-2

-3

0123456

VDD=5V F

SAMPLE

= 100 ksps

REF

(V)

FIGURE 2-15: Positive Gain Error vs.

REF

FIGURE 2-17: Differential Nonlinearity (DNL) vs. Temperature (V

Offset Error (LSB)

= 2.7V

SAMPLE

0123456

= 50 ksps

V F

SAMPLE

= 5V

= 100 ksp s

FIGURE 2-18: Offset Error vs. V

REF

= 2.7V).

(V)

REF

 2002 Microchip Technology Inc. DS21697B-page 9

MCP3302/04

Note: Unless otherwise indicated, V

-0.2

-0.4

-0.6

-0.8

-1

-1.2

-1.4

VDD=V

Positive Gain Error (LSB)

-1.6

-1.8

-50 0 50 100 150

SAMPLE

=2.7V

REF

= 50 ksps

SAMPLE

= 100 ksps, F

Temperature (°C)

CLK

VDD=V F

SAMPLE

= 21*F

=5V

REF

= 100 ksps

= V

SAMPLE

FIGURE 2-19: Positive Gain Error vs. Temperature.

100

SNR (db)

110100

Input Frequency (kHz)

VDD=V F

SAMPLE

VDD=V F

SAMPLE

=5V

REF

= 100 ksp s

=2.7V

REF

= 50 ksps

= 5V, Full differential input configuration, V

REF

, TA = 25°C.

3.5

2.5

1.5

Offset Error (LSB)

0.5

-50 0 50 100 150

FIGURE 2-22: Offset Error vs. Temperature.

VDD=V

=2.7V

REF

= 50 ksps

SAMPLE

SINAD (dB)

110100

= 0V,

VDD=V

REF

= 100 ksp s

SAMPLE

VDD=V

=2.7V

REF

= 50 ksps

SAMPLE

Temperature (°C)

Input Frequency (kHz)

=5V

VDD=V F

SAMPLE

=5V

REF

= 100 ksps

FIGURE 2-20: Signal to Noise Ratio (SNR) vs. Input Frequency.

-10

-20

-30

-40

-50

THD (dB)

-60

-70

-80

-90

-100

VDD=V

=2.7V

REF

= 50 ksps

SAMPLE

110100

Input Frequency (kHz)

VDD=V F

SAMPLE

=5V

REF

= 100 ksp s

FIGURE 2-21: Total Harmonic Distortion (THD) vs. Input Frequency.

FIGURE 2-23: Signal to Noise and Distortion (SINAD) vs. Input Frequency.

VDD=V F

SAMPLE

=2.7V

REF

= 50 ksps

SINAD (dB)

-40 -35 -30 -2 5 -20 -15 -10 -5 0

VDD=V F

SAMPLE

=5V

REF

= 100 ksps

Input Signal Level (dB)

FIGURE 2-24: Signal to Noise and Distortion (SINAD) vs. Input Signal Level.

DS21697B-page 10  2002 Microchip Technology Inc.

MCP3302/04

= 21*F

= 100 ksps

SAMPLE

= V

SAMPLE

REF

Note: Unless otherwise indicated, V

ENOB (rms)

012345

SAMPLE

= 100 ksps, F

VDD=2.7V

= 50 ksps

SAMPLE

(V)

REF

CLK

VDD=5V F

FIGURE 2-25: Effective Number of Bits (ENOB) vs. V

100

SFDR (dB)

110100

REF

VDD=V F

SAMPLE

=2.7V

REF

= 50 ksps

Input Frequency (kHz)

VDD=V F

SAMPLE

=5V

REF

= 100 ksps

= 5V, Full differential input configuration, V

, TA = 25°C.

12.8

12.6

12.4

12.2

ENOB (rms)

11.8

11.6

11.4

11.2

110100

VDD=V

=2.7V

REF

= 50 ksps

SAMPLE

Input Frequency (kHz)

FIGURE 2-28: Effective Number of Bits (ENOB) vs. Input Frequency.

-30

-35

-40

-45

-50

-55

PSR(dB)

-60

-65

-70

-75

-80

1 10 100 1000 10000

Ripple Frequency (kHz)

= 0V,

VDD=V

=5V

REF

= 100 ksps

SAMPLE

0.1 µF Bypass Capacitor

FIGURE 2-26: Spurious Free Dynamic Range (SFDR) vs. Input Frequency.

-10

-20

-30

-40

-50

-60

-70

-80

-90

-100

Amplitude (dB)

-110

-120

-130

-140

-150

0 10000 20000 30000 40000 50000

Frequency (Hz)

FIGURE 2-27: Frequency Spectrum of 10 kHz Input (Representative Part).

FIGURE 2-29: Power Supply Rejection (PSR) vs. Ripple Frequency.

-10

-20

-30

-40

-50

-60

-70

-80

-90

-100

Amplitude (dB)

-110

-120

-130

-140

-150 0 5000 10000 15000 20000 25000

Frequency (Hz)

FIGURE 2-30: Frequency Spectrum of 1 kHz Input (Representative Part, V

= 2.7V).

 2002 Microchip Technology Inc. DS21697B-page 11

MCP3302/04

Note: Unless otherwise indicated, V

450

400

350

300

250

(µA)

200

150

100

22.533.544.555.56

FIGURE 2-31: I

600

500

400

300

(µA)

200

100

0 50 1 00 150 200

SAMPLE

= 100 ksps, F

VDD (V)

vs. VDD.

VDD=V

=5V

REF

VDD=V

=2.7V

REF

Sample Rate (ksps)

CLK

= 21*F

= V

SAMPLE

= 5V, Full differential input configuration, V

REF

, TA = 25°C.

120

100

(µA)

REF

22.533.544.555.56

FIGURE 2-34: I

120

VDD=V

REF

0 5 0 100 150 200

(µA)

REF

100

VDD (V)

vs. VDD.

REF

=5V

VDD=V

=2.7V

REF

Sample Rate (ksps)

= 0V,

FIGURE 2-32: I

400

350

300

250

200

(µA)

150

100

-50 0 50 100 150

FIGURE 2-33: I

vs. Sample Rate.

VDD=V

=5V

REF

= 100 ksps

SAMPLE

VDD=V

=2.7V

REF

= 50 ksps

SAMPLE

Temperature (°C)

vs. Temperature.

FIGURE 2-35: I

100

(µA)

REF

-50 0 50 100 150

FIGURE 2-36: I

vs. Sample Rate.

REF

VDD=V

REF

SAMPLE

VDD=V F

SAMPLE

Temperature (°C)

vs. Temperature.

REF

=5V

= 100 ksps

=2.7V

REF

= 50 ksps

DS21697B-page 12  2002 Microchip Technology Inc.

MCP3302/04

Note: Unless otherwise indicated, V

(pA)

DDS

22.533.544.555.56

FIGURE 2-37: I

100

(nA)

DDS

0.1

0.01

0.001

-50 -25 0 25 50 75 100

FIGURE 2-38: I

3.5

2.5

1.5

0.5

Negative Gain Error (LSB)

-0.5

-1

0123456

SAMPLE

= 100 ksps, F

(V)

vs. VDD.

DDS

Temperature (°C)

vs. Temperature.

DDS

VDD=5V

= 100 ksps

SAMPLE

(V)

REF

CLK

= 21*F

= V

SAMPLE

= 5V, Full differential input configuration, V

REF

, TA = 25°C.

1.5

VDD=V

=2.7V

SAMPLE

REF

= 50 ksps

0.5

-0.5

-1

Negative Gain Error (LSB)

-1.5

-2

-50 0 50 100 150

FIGURE 2-40: Negative Gain Error vs. Temperature.

Common Mode Rejection Ration(dB)

1 10 100 1000

FIGURE 2-41: Common Mode Rejection vs. Frequency.

= 0V,

VDD=V

=5V

REF

= 100 ksps

SAMPLE

Temperature (°C)

Input Frequency (kHz)

FIGURE 2-39: Negative Gain Error vs. Reference Voltage.

 2002 Microchip Technology Inc. DS21697B-page 13

MCP3302/04

3.0 TEST CIRCUITS

1.4V

Ω

CL = 100 pF

MCP330X

OUT

Tes t Poi nt

2.63V

1kΩ

20 kΩ

5VP-P

1kΩ

1/2

1kΩ

MCP602

5V ±500 mV To VDD on DUT

P-P

FIGURE 3-1: Load Circuit for T

Test Po i n t

MCP330X

OUT

Ω

100 pF

Voltage Waveforms for T

OUT

Waveform 1*

OUT

Waveform 2†

*Waveform 1 is for an output with internal conditions such that the output is high, unless disabled by the output control.

†Waveform 2 is for an output with internal conditions such that the output is low, unless disabled by the output control.

VDD/2

DIS

Waveform 2

DIS

TEN Waveform

Waveform 1

DIS

, TF, TDO.

DIS

90%

10%

FIGURE 3-3: Power Supply Sensitivity Test Circuit (PSRR).

REFVDD

VDD = 5V

0.1 µF

VCM = 2.5V

P-P

IN(+)

IN(-)

= 5V

REF

1µF

0.1 µF

MCP330X

FIGURE 3-4: Full Differential Test Configuration Example.

P-P

IN(+)

IN(-)

REF

MCP330X

= 2.5V

1µF

0.1µF

REFVDD

VDD = 5V

0.1µF

= 2.5V

FIGURE 3-2: Load circuit for T

DIS

and

FIGURE 3-5: Pseudo Differential Test Configuration Example.

DS21697B-page 14  2002 Microchip Technology Inc.

MCP3302/04

4.0 PIN DESCRIPTIONS

The descriptions of the pins are listed in Table 4-1.

TABLE 4-1: PIN FUNCTION TABLE

Name Function

CH0-CH7 Analog Inputs

DGND Digital Ground

/SHDN Chip Select / Shutdown Input

OUT

CLK Serial Clock

AGND Analog Ground

REF

4.1 CH0-CH7

Analog input channels. These pins have an absolute voltage range of V differential input range is defined as the absolute value of (IN+) - (IN-). This difference can not exceed the value of V occur.

4.2 DGND

Serial Data In

Serial Data Out

Reference Voltage Input

+2.7V to 5.5V Power Supply

- 0.3V to V

- 1 LSB or digital code saturation will

REF

+ 0.3V. The full scale

4.6 Serial Clock (CLK)

The SPI clock pin is used to initiate a conversion and to clock out each bit of the conversion as it takes place. See Section 6.2 for constraints on clock speed. See Figure 7-2 for serial communication protocol.

4.7 AGND

Ground connection to internal analog circuitry. To ensure accuracy, this pin must be connected to the same ground as DGND. If an analog ground plane is available, it is recommended that this device be tied to the analog ground plane in the circuit. See Section 6.6 for more information regarding circuit layout.

4.8 Voltage Reference (V

This input pin provides the reference voltage for the device, which determines the maximum range of the analog input signal and the LSB size.

The LSB size is determined according to the equation shown below. As the reference input is reduced, the LSB size is reduced accordingly.

EQUATION

LSB Size =

2 x V

8192

REF

)

Ground connection to internal digital circuitry. To ensure accuracy this pin must be connected to the same ground as AGND. If an analog ground plane is available, it is recommended that this device be tied to the analog ground plane in the circuit. See Section 6.6 for more information regarding circuit layout.

4.3 Chip Select/Shutdown (CS/SHDN)

The CS/SHDN pin is used to initiate communication with the device when pulled low. This pin will end a conversion and put the device in low power standby when pulled high. The CS between conversions and cannot be tied low for multiple conversions. See Figure 7-2 for serial communication protocol.

/SHDN pin must be pulled high

4.4 Serial Data Input (DIN)

The SPI port serial data input pin is used to clock in input channel configuration data. Data is latched on the rising edge of the clock. See Figure 7-2 for serial communication protocol.

4.5 Serial Data Output (D

The SPI serial data output pin is used to shift out the results of the A/D conversion. Data will always change on the falling edge of each clock as the conversion takes place. See Figure 7-2 for serial communication protocol.

OUT

)

When using an external voltage reference device, the system designer should always refer to the manufacturer’s recommendations for circuit layout. Any instability in the operation of the reference device will have a direct effect on the accuracy of the ADC conversion results.

4.9 V

The voltage on this pin can range from 2.7 to 5.5V. To

ensure accuracy, a 0.1 µF ceramic bypass capacitor

should be placed as close as possible to the pin. See Section 6.6 for more information regarding circuit layout.

 2002 Microchip Technology Inc. DS21697B-page 15

MCP3302/04

5.0 DEFINITION OF TERMS

Bipolar Operation - This applies to either a differential

or single ended input configuration, where both positive and negative codes are output from the A/D converter. Full bipolar range includes all 8192 codes. For bipolar operation on a single ended input signal, the A/D converter must be configured to operate in pseudo differential mode.

Unipolar Operation - This applies to either a single ended or differential input signal where only one side of the device transfer is being used. This could be either the positive or negative side, depending on which input (IN+ or IN-) is being used for the DC bias. Full unipolar operation is equivalent to a 12-bit converter.

Full Differential Operation - Applying a full differential signal to both the IN(+) and IN(-) inputs is referred to as full differential operation. This configuration is described in Figure 3-4.

Pseudo-Differential Operation - Applying a single ended signal to only one of the input channels with a bipolar output is referred to as pseudo differential oper- ation. To obtain a bipolar output from a single ended input signal the inverting input of the A/D converter must be biased above V in Figure 3-5.

Integral Nonlinearity - The maximum deviation from a straight line passing through the endpoints of the bipolar transfer function is defined as the maximum integral nonlinearity error. The endpoints of the transfer function are a point 1/2 LSB above the first code transition (0x1000) and 1/2 LSB below the last code transition (0x0FFF).

Differential Nonlinearity - The difference between two measured adjacent code transitions and the 1 LSB ideal is defined as differential nonlinearity.

Positive Gain Error - This is the deviation between the last positive code transition (0x0FFF) and the ideal voltage level of V

-1/2 LSB, after the bipolar offset error

REF

has been adjusted out.

Negative Gain Error - This is the deviation between the last negative code transition (0X1000) and the ideal voltage level of -V

REF

error has been adjusted out.

Offset Error - This is the deviation between the first positive code transition (0x0001) and the ideal 1/2 LSB voltage level.

Acquisition Time - The acquisition time is defined as the time during which the internal sample capacitor is charging. This occurs for 1.5 clock cycles of the external CLK as defined in Figure 7-2.

Conversion Time - The conversion time occurs imme- diately after the acquisition time. During this time, suc- cessive approximation of the input signal occurs as the 13-bit result is being calculated by the internal circuitry. This occurs for 13 clock cycles of the external CLK as defined in Figure 7-2.

. This operation is described

-1/2 LSB, after the bipolar offset

Signal to Noise Ratio - Signal to Noise Ratio (SNR) is defined as the ratio of the signal to noise measured at the output of the converter. The signal is defined as the rms amplitude of the fundamental frequency of the input signal. The noise value is dependant on the device noise as well as the quantization error of the converter and is directly affected by the number of bits in the converter. The theoretical signal to noise ratio limit based on quantization error only for an N-bit converter is defined as:

EQUATION

SNR 6.02N 1.76+()dB=

For a 13-bit converter, the theoretical SNR limit is

80.02 dB.

Total Harmonic Distortion - Total Harmonic Distortion (THD) is the ratio of the rms sum of the harmonics to

the fundamental, measured at the output of the converter. For the MCP3302/04, it is defined using the first 9 harmonics, as is shown in the following equation:

EQUATION

THD(-dB) 20 log–

+++ ++

------------------------- ------------ ------------- ------------- -----------

..... V

Here V1 is the rms amplitude of the fundamental and V through V9 are the rms amplitudes of the second through ninth harmonics.

Signal to Noise plus Distortion (SINAD) - Numeri- cally defined, SINAD is the calculated combination of SNR and THD. This number represents the dynamic performance of the converter, including any harmonic distortion.

EQUATION

SINAD(dB) 20 log 10

EffectIve Number of Bits - Effective Number of Bits (ENOB) states the relative performance of the ADC in

terms of its resolution. This term is directly related to SINAD by the following equation:

SNR 10⁄()10THD 10⁄()–

EQUATION

ENOB N()

For SINAD performance of 78 dB, the effective number of bits is 12.66.

Spurious Free Dynamic Range - Spurious Free Dynamic Range (SFDR) is the ratio of the rms value of

the fundamental to the next largest component in ADC’s output spectrum. This is, typically, the first harmonic, but could also be a noise peak.

SINAD 1.76–

------------------------ ----------=

6.02

DS21697B-page 16  2002 Microchip Technology Inc.

MCP3302/04

6.0 APPLICATIONS INFORMATION

6.1 Conversion Description

The MCP3302/04 A/D converters employ a conventional SAR architecture. With this architecture, the potential between the IN+ and IN- inputs are simultaneously sampled and stored with the internal sample circuits for 1.5 clock cycles. Following this sampling time, the input hold switches of the converter open and the device uses the collected charge to produce a serial 13-bit binary two’s complement output code. This conversion process is driven by the external clock and must include 13 clock cycles, one for each bit. During this process, the most significant bit (MSB) is output first. This bit is the sign bit and indicates if the IN+ or INinput is at a higher potential.

Comp

CDAC

13-Bit SAR

Shift

OUT

IN+

IN-

Hold

SAMP

6.2 Driving the Analog Input

The analog input of the MCP3302/04 is easily driven, either differentially or single ended. Any signal that is common to the two input channels will be rejected by the common mode rejection of the device. During the charging time of the sample capacitor, a small charging current will be required. For low source impedances, this input can be driven directly. For larger source impedances, a larger acquisition time will be required due to the RC time constant that includes the source impedance. For the A/D Converter to meet specification, the charge holding capacitor (C given enough time to acquire a 13-bit accurate voltage level during the 1.5 clock cycle acquisition period.

An analog input model is shown in Figure 6-3. This model is accurate for an analog input, regardless if it is configured as a single ended input, or the IN+ and INinput in differential mode. In this diagram, it is shown that the source impedance (R sampling switch (R

) impedance, directly affecting the

) adds to the internal

time that is required to charge the capacitor (C Consequently, a larger source impedance with no additional acquisition time increases the offset, gain and integral linearity errors of the conversion. To overcome this, a slower clock speed can be used to allow for the longer charging time. Figure 6-2 shows the maximum clock speed associated with source impedances.

2.5

SAMPLE

) must be

SAMPLE

FIGURE 6-1: Simplified Block Diagram.

2.0

1.5

1.0

0.5

Maximum Clock Frequency (MHz)

0.0

100 1000 10000 10000 0

Source Resistance (ohms)

FIGURE 6-2: Maximum Clock Frequency vs. Source Resistance (R

) to maintain ±1 LSB

INL.

 2002 Microchip Technology Inc. DS21697B-page 17

MCP3302/04

CHx

Legend

LEAKAGE

SAMPLE

CHx

signal source

source impedance

input channel pad

input pin capacitance

threshold voltage

leakage current at the pin

due to various junctions

sampling switch

sampling switch resist or

sample/hold capacitance

7pF

= 0.6V

LEAKAGE

±1 nA

Sampling Switch

= 1 kΩ

SAMPLE

= DAC capacitance = 25 pF

FIGURE 6-3: Analog Input Model.

6.2.1 MAINTAINING MINIMUM CLOCK SPEED

When the MCP3302/04 initiates, charge is stored on the sample capacitor. When the sample period is complete, the device converts one bit for each clock that is received. It is important for the user to note that a slow clock rate will allow charge to bleed off the sample cap while the conversion is taking place. For the MCP330X devices, the recommended minimum clock speed during the conversion cycle (T

) is 105 kHz. Failure to

CONV

meet this criteria may induce linearity errors into the conversion outside the rated specifications. It should be noted that during the entire conversion cycle, the A/D converter does not have requirements for clock speed or duty cycle, as long as all timing specifications are met.

6.3 Biasing Solutions

For pseudo-differential bipolar operation, the biasing circuit (shown in Figure 6-4) shows a single ended input AC coupled to the converter. This configuration will give a digital output range of -4096 to +4095. With

the 2.5V reference, the LSB size equal to 610 µV.

Although the ADC is not production tested with a 2.5V reference as shown, linearity will not change more than

0.1 LSB. See Figure 2-2 and Figure 2-9 for DNL and

INL errors versus V between the high pass corner and the acquisition time. The value of C will need to be quite large in order to

at VDD = 5V. A trade-off exists

REF

bring down the high pass corner. The value of R will

need to be 1 kΩ, or less, since higher input impedances

require additional acquisition time. Using the RC values in Figure 6-4, we have a 100 Hz corner frequency. See Figure 2-12 for relation between input impedance and acquisition time.

VDD = 5V

0.1 µF

10 µF

1kΩ

1µF

IN+

IN-

OUT

MCP1525

MCP330X

REF

0.1 µF

FIGURE 6-4: Pseudo-differential biasing circuit for bipolar operation.

Using an external operation amplifier on the input allows for gain and also buffers the input signal from the input to the ADC allowing for a higher source impedance. This circuit is shown in Figure 6-5.

DS21697B-page 18  2002 Microchip Technology Inc.

MCP3302/04

6.4 Common Mode Input Range

VDD = 5V

0.1 µF

MCP330X

REF

0.1 µF

1kΩ

1 µF

10 kΩ

MCP6021

1MΩ

1 µF

IN+

IN-

OUT

MCP1525

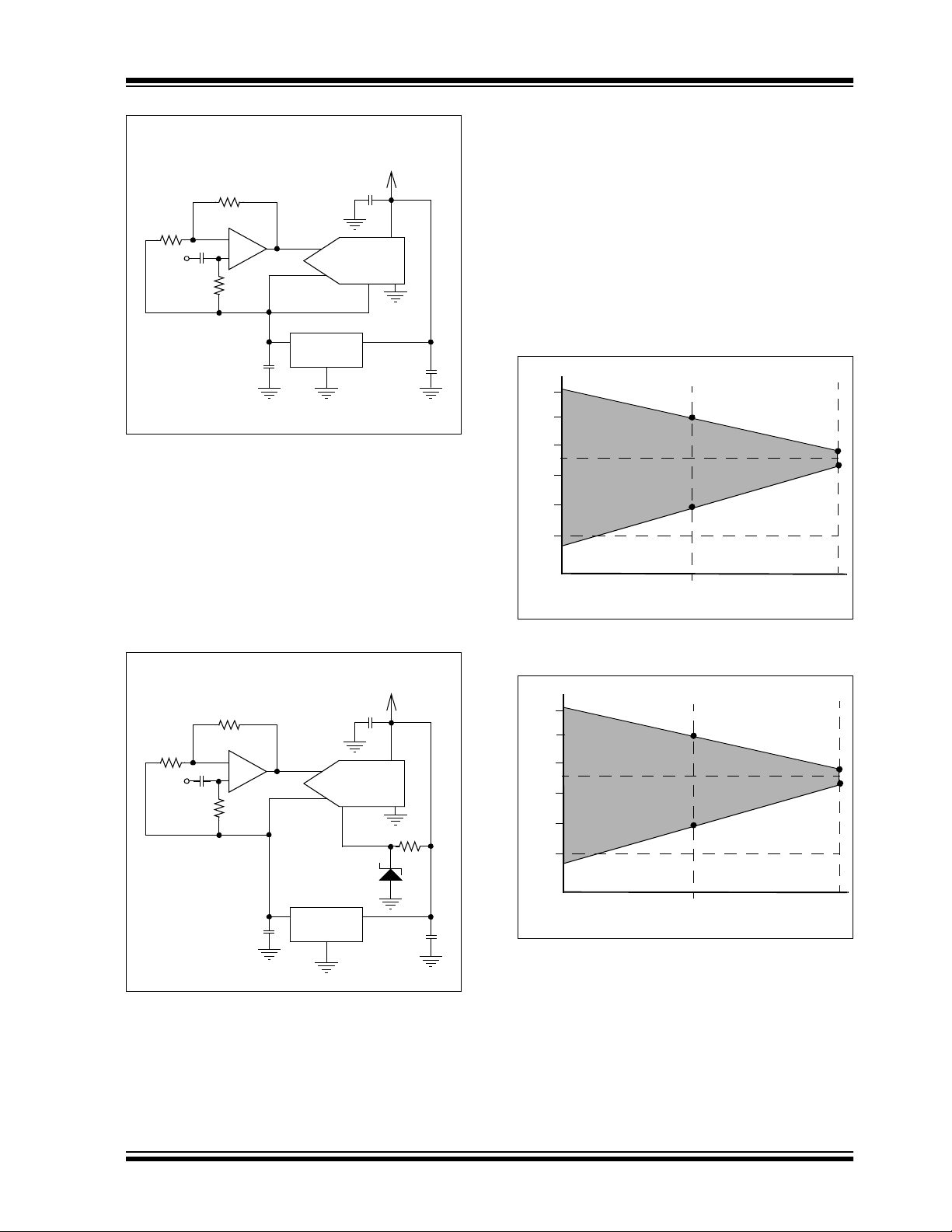

FIGURE 6-5: Adding an amplifier allows for gain and also buffers the input from any high impedance sources.

This circuit shows that some headroom will be lost due to the amplifier output not being able to swing all the way to the rail. An example would be for an output swing of 0V to 5V. This limitation can be overcome by supplying a V mode voltage. Using a 2.048V reference for the A/D converter while biasing the input signal at 2.5V solves the problem. This circuit is shown in Figure 6-5.

1kΩ

that is slightly less than the common

REF

1µF

10 kΩ

MCP606

1MΩ

1µF

IN+

IN-

OUT

MCP1525

0.1 µF

MCP330X

REF

2.048V

VDD = 5V

10 kΩ

0.1 µF

The common mode input range has no restriction and is equal to the absolute input voltage range: V V

+ 0.3V. However, for a given V

REF

-0.3V to

, the common mode voltage has a limited swing, if the entire range of the A/D converter is to be used. Figure 6-7 and Figure 6-8 show the relationship between V common mode voltage swing. A smaller V wider flexibility in a common mode voltage. V

REF

allows for

REF

and the

levels, down to 400 mv, exhibit less than 0.1 LSB change in DNL and INL. For characterization graphs that show this performance relationship, see Figure 2-9 and Figure 2-12.

= 5V

Common Mode Range (V)

-1

0.25

1.0

4.05V

2.8V

2.3V

0.95V

2.5

(V)

REF

4.0

5.0

FIGURE 6-7: Common Mode Input Range of Full Differential Input Signal versus V

REF

4.05V

0.95V

1.25

(V)

Common Mode Range (V)

-1

0.25

0.5

2.0

REF

= 5V

2.8V

2.3V

2.5

FIGURE 6-8: Common Mode Input Range versus V

for Pseudo Differential Input.

REF

FIGURE 6-6: Circuit solution to overcome amplifier output swing limitation.

 2002 Microchip Technology Inc. DS21697B-page 19

MCP3302/04

6.5 Buffering/Filtering the Analog Inputs

Inaccurate conversion results may occur if the signal source for the A/D converter is not a low impedance source. Buffering the input will overcome the impedance issue. It is also recommended that an analog filter be used to eliminate any signals that may be aliased back into the conversion results. This is illustrated in Figure 6-9, where an op amp is used to drive the analog input of the MCP3302/04. This amplifier provides a low impedance source for the converter input and a low pass filter, which eliminates unwanted high frequency noise. Values shown are for a 10 Hz Butterworth Low Pass filter.

Low pass (anti-aliasing) filters can be designed using Microchip’s interactive FilterLab will calculate capacitor and resistor values, as well as determine the number of poles that are required for the application. For more information on filtering signals, see Application Note 699 “Anti-Aliasing Analog Filters for Data Acquisition Systems”.

4.096V

Reference

7.86 kΩ

0.1 µF

2.2 µF

14.6 kΩ

1µF

MCP1541

MCP601

software. FilterLab

1µF

REF

IN+

MCP330X

IN-

10 µF

0.1 µF

6.6 Layout Considerations

When laying out a printed circuit board for use with analog components, care should be taken to reduce noise wherever possible. A bypass capacitor from V to ground should always be used with this device and should be placed as close as possible to the device pin.

A bypass capacitor value of 0.1 µF is recommended.

Digital and analog traces on the board should be separated as much as possible, with no traces running underneath the device or the bypass capacitor. Extra precautions should be taken to keep traces with high frequency signals (such as clock lines) as far as possible from analog traces.

Use of an analog ground plane is recommended in order to keep the ground potential the same for all devices on the board. Providing V

connections to

devices in a “star” configuration can also reduce noise by eliminating current return paths and associated errors (see Figure 6-10). For more information on layout tips when using the MCP3302/04, or other ADC devices, refer to Application Note 688, “Layout Tips for 12-Bit A/D Converter Applications”.

Connection

Device 4

Device 1

FIGURE 6-9: The MCP601 Operational Amplifier is used to implement a 2nd order antialiasing filter for the signal being converted by the MCP3302/04.

Device 2

FIGURE 6-10: V

traces arranged in a

Device 3

‘Star’ configuration in order to reduce errors caused by current return paths.

DS21697B-page 20  2002 Microchip Technology Inc.

6.7 Utilizing the Digital and Analog Ground Pins

The MCP3302/04 devices provide both digital and analog ground connections to provide another means of noise reduction. As shown in Figure 6-11, the analog and digital circuitry are separated internal to the device. This reduces noise from the digital portion of the device being coupled into the analog portion of the device. The two grounds are connected internally through the sub-

strate which has a resistance of 5 -10 Ω.

If no ground plane is utilized, then both grounds must be connected to V available, both digital and analog ground pins should be connected to the analog ground plane. If both an analog and a digital ground plane are available, both the digital and the analog ground pins should be connected to the analog ground plane, as shown in Figure 6-11. Following these steps will reduce the amount of digital noise from the rest of the board being coupled into the A/D Converter.

on the board. If a ground plane is

MCP3302/04

Digital Side

-SPI Interface

-Shift Register

-Control Logic

DGND

Substrate

5 - 10

Analog Ground Plane

Analog Side

-Sample Cap

-Capacitor Array

-Comparator

Ω

AGND

0.1 µF

FIGURE 6-11: Separation of Analog and Digital Ground Pins.

 2002 Microchip Technology Inc. DS21697B-page 21

MCP3302/04

7.0 SERIAL COMMUNICATIONS

7.1 Output Code Format

The output code format is a binary two’s complement scheme, with a leading sign bit that indicates the sign of the output. If the IN+ input is higher than the INinput, the sign bit will be a zero. If the IN- input is higher, the sign bit will be a ‘1’.

The diagram shown in Figure 7-1 shows the output code transfer function. In this diagram, the horizontal axis is the analog input voltage and the vertical axis is the output code of the ADC. It shows that when IN+ is equal to IN-, both the sign bit and the data word is zero. As IN+ gets larger with respect to IN-, the sign bit is a zero and the data word gets larger. The full scale output code is reached at +4095 when the input [(IN+) - (IN-)] reaches V two’s complement output codes will be seen with the sign bit being a one. Some examples of analog input levels and corresponding output codes are shown in Table 7-1.

- 1 LSB. When IN- is larger than IN+, the

REF

0 + 1111 11 11 1111 (+4095) 0 + 1111 11 11 1110 (+4094)

Output

Code

TABLE 7-1: BINARY TWO’S

COMPLEMENT OUTPUT CODE EXAMPLES.

Analog Input Levels

Full Scale Positive

(IN+)-(IN -)=V

(IN+)-(IN-) = V

IN+ = (IN-) +2 LSB 0 0000 0000 001 0 +2 IN+ = (IN-) +1 LSB 0 0000 0000 000 1 +1

IN+ = (IN-) - 1 LSB 1 1111 1111 1111 -1 IN+ = (IN-) - 2 LSB 1 1111 1111 1110 -2

(IN+)-(IN-) = V

Full Scale Negative

(IN+)-(IN-) = V

-1 LSB 0 1111 1111 1111 +4095

REF

-2 LSB 0 1111 1111 1110 +4094

REF

IN+ = IN- 0 0 000 0000 000 0 0

-2 LSB 1 0000 0000 0001 -4095

REF

-1 LSB 1 0000 0000 0000 -4096

REF

Sign

Bit

Binary Data

Positive Full

Scale Output = V

REF

-1 LSB

Decimal

DATA

0 + 0000 000 0 0011 (+3) 0 + 0000 000 0 0010 (+2) 0 + 0000 000 0 0001 (+1)

0 + 0000 000 0 0000 (0)

-V

REF

IN+ < IN-

Negative Full

Scale Output = -V

REF

FIGURE 7-1: Output Code Transfer Function.

IN+ > IN-

1 + 1111 111 1 1111 (-1) 1 + 1111 111 1 1110 (-2) 1 + 1111 111 1 1101 (-3)

1 + 0000 00 00 0001 (-4095) 1 + 0000 00 00 0000 (-4096)

Analog Input

Voltage

IN+ - IN-

REF

DS21697B-page 22  2002 Microchip Technology Inc.

MCP3302/04

7.2 Communicating with the MCP3302 and MCP3304

Communication with the MCP3302/04 devices is done using a standard SPI-compatible serial interface. Initiating communication with either device is done by bringing the CS was powered up with the CS high and back low to initiate communication. The first clock received with CS a start bit. The SGL/DIFF determine if the conversion will be done using single ended or differential input mode. Each channel in single ended mode will operate as a 12-bit converter with a unipolar output. No negative codes will be output in single ended mode. The next three bits (D0, D1 and D2) are used to select the input channel configuration. Table 7-2 and Table 7-3 show the configuration bits for the MCP3302 and MCP3304, respectively. The device will begin to sample the analog input on the fourth rising edge of the clock after the start bit has been received. The sample period will end on the falling edge of the fifth clock following the start bit.

After the D0 bit is input, one more clock is required to complete the sample and hold period (D care” for this clock). On the falling edge of the next clock, the device will output a low null bit. The next 13 clocks will output the result of the conversion with the sign bit first, followed by the 12 remaining data bits, as shown in Figure 7-2. Note that if the device is operating in the single ended mode, the sign bit will always be transmitted as a ‘0’. Data is always output from the device on the falling edge of the clock. If all 13 data bits have been transmitted, and the device continues to receive clocks while the CS output the conversion result, LSB, first, as shown in Figure 7-3. If more clocks are provided to the device while CS transmitted), the device will clock out zeros indefinitely.

If necessary, it is possible to bring CS leading zeros on the D often done when dealing with microcontroller-based SPI ports that must send 8 bits at a time. Refer to Section 7.3 for more details on using the MCP3302/04 devices with hardware SPI ports

line low (see Figure 7-2). If the device

pin low, it must be brought

low and D

bit follows the start bit and will

is held low, the device will

is still low (after the LSB first data has been

line before the start bit. This is

high will constitute

is a “don’t

low and clock in

TABLE 7-2: CONFIGURATION BITS FOR

THE MCP3302

Control Bit

Selections

Single

*D2 is don’t care for MCP3302

D2* D1 D0

/Diff

1 X 0 0 single ended CH0

1 X 0 1 single ended CH1

1 X 1 0 single ended CH2

1 X 1 1 single ended CH3

0 X 0 0 differential CH0 = IN+

0 X 0 1 differential CH0 = IN-

0 X 1 0 differential CH2 = IN+

0 X 1 1 differential CH2 = IN-

Input

Configuration

Channel

Selection

CH1 = IN-

CH1 = IN+

CH3 = IN-

CH3 = IN+

TABLE 7-3: CONFIGURATION BITS FOR

THE MCP3304

Control Bit

Selections

SinglE

/Diff

D2 D1 D0

1 0 0 0 single ended CH0

1 0 0 1 single ended CH1

1 0 1 0 single ended CH2

1 0 1 1 single ended CH3

1 1 0 0 single ended CH4

1 1 0 1 single ended CH5

1 1 1 0 single ended CH6

1 1 1 1 single ended CH7

0 0 0 0 differential CH0 = IN+

0 0 0 1 differential CH0 = IN-

0 0 1 0 differential CH2 = IN+

0 0 1 1 differential CH2 = IN-

0 1 0 0 differential CH4 = IN+

0 1 0 1 differential CH4 = IN-

0 1 1 0 differential CH6 = IN+

0 1 1 1 differential CH6 = IN-

Input

Configuration

Channel

Selection

CH1 = IN-

CH1 = IN+

CH3 = IN-

CH3 = IN+

CH5 = IN-

CH5 = IN+

CH7 = IN-

CH7 = IN+

 2002 Microchip Technology Inc. DS21697B-page 23

MCP3302/04

SUCS

CLK

SAMPLE

CSH

SAMPLE

OUT

Start

SGL/

DIFF

HI-Z

D1D2 D0

ACQ

Null

Bit

SB†

B11 B10 B9 B8

Don’t Care

CONV

B6 B5 B4 B3 B2 B1 B0 *

DATA

Start

* After completing the data transfer, if further clocks are applied with CS low, the A/D Converter will output LSB first data, followed by zeros indefinitely. See Figure 7-3 below.

** T

: during this time, the bias current and the comparator power down while the reference input becomes

DATA

a high impedance node, leaving the CLK running to clock out the LSB-first data or zeros.

†

When operating in single ended mode, the sign bit will always be transmitted as a ‘0’.

FIGURE 7-2: Communication with MCP3302/04 (MSB first Format).

SAMPLE

SUCS

CLK

Power Down

SGL/ DIFF

HI-Z

CSH

Start

OUT

SGL/ DIFF

HI-Z

D0D1D2

Null

B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11

SB† SB*

Bit

Don’t Care

HI-Z

(MSB)

ACQ

CONV

DATA

* After completing the data transfer, if further clocks are applied with CS low, the A/D Converter will output zeros indefinitely.

** T

: During this time, the bias circuit and the comparator power down while the reference input becomes

DATA

a high impedance node, leaving the CLK running to clock out LSB first data or zeroes.

†

When operating in single ended mode, the sign bit will always be transmitted as a ‘0’.

FIGURE 7-3: Communication with MCP3302/04 (LSB first Format).

DS21697B-page 24  2002 Microchip Technology Inc.

7.3 Using the MCP3302/04 with Microcontroller (MCU) SPI Ports

With most microcontroller SPI ports, it is required to send groups of eight bits. It is also required that the microcontroller SPI port be configured to clock out data on the falling edge of clock and latch data in on the rising edge. Because communication with the MCP3302 and MCP3304 devices may not need multiples of eight clocks, it will be necessary to provide more clocks than are required. This is usually done by sending ‘leading zeros’ before the start bit. For example, Figure 7-4 and Figure 7-5 show how the MCP3302/04 devices can be interfaced to a MCU with a hardware SPI port. Figure 7-4 depicts the operation shown in SPI Mode 0,0, which requires that the SCLK from the MCU idles in the ‘low’ state, while Figure 7-5 shows the similar case of SPI Mode 1,1, where the clock idles in the ‘high’ state.

As shown in Figure 7-4, the first byte transmitted to the A/D Converter contains 6 leading zeros before the start bit. Arranging the leading zeros this way produces the 13 data bits to fall in positions easily manipulated by the MCU. The sign bit is clocked out of the A/D Converter on the falling edge of clock number 11, followed by the remaining data bits (MSB first). After the second eight clocks have been sent to the device, the MCU receive buffer will contain 2 unknown bits (the output is at high impedance for the first two clocks), the null bit, the sign bit and the 4 highest order bits of the conversion. After the third byte has been sent to the device, the receive register will contain the lowest order eight bits of the conversion results. Easier manipulation of the converted data can be obtained by using this method.

Figure 7-5 shows the same situation in SPI Mode 1,1, which requires that the clock idles in the high state. As with mode 0,0, the A/D Converter outputs data on the falling edge of the clock and the MCU latches data from the A/D Converter in on the rising edge of the clock.

MCP3302/04

 2002 Microchip Technology Inc. DS21697B-page 25

MCP3302/04

MCU latches data from A/D Converter on rising edges of SCLK

SCLK

1 2 3 4 5 6 7 8 9 10111213141516

Data is clocked out of A/D Converter on falling edges

Start

SGL/ DIFF

17 18 19 20 21 22 23 24

Don’t Care

OUT

MCU Transmitted Data (Aligned with falling edge of clock)

MCU Received Data (Aligned with rising edge of clock)

? = Unknown Bits? = Unknown Bits X = Don’t Care Bits

HI-Z

Start

Bit

00001 XXXXXDO

????????

Data stored into MCU receive register after transmission of first 8 bits

SGL/ DIFF

D1D2

NULL

Data stored into MCU receive register after transmission of second 8 bits

B11 B10 B9 B8 B7 B6 B5 B4 B3 B2

BIT

(Null)

B1 B 0

XXXXXX

B7 B6 B5 B4 B3 B2 B1 B0B11 B10 B9 B8

Data stored into MCU receive register after transmission of last 8 bits

FIGURE 7-4: SPI Communication with the MCP3302/04 using 8-bit segments (Mode 0,0: SCLK idles low).

SCLK

OUT

MCU Transmitted Data (Aligned with falling edge of clock) MCU Received Data (Aligned with rising edge of clock)

? = Unknown Bits X = Don’t Care Bits

MCU latches data from A/D Converter on rising edges of SCLK

1234567 8

Data is clocked out of A/D Converter on falling edges

SGL/

DIFF

HI-Z

Start

Bit

00001 XXXXXDO

???????? ??

Data stored into MCU receive register after transmission of first 8 bits

SGL/ DIFF

D1D2

D0D1Start

10 11 12 13 14 15 16

NULL

Data stored into MCU receive register after transmission of second 8 bits

B11 B10 B9 B8 B6 B5 B4 B3 B2 B1 B0

BIT

(Null)

17 18 19 20 21 22 23 24

Don’t Care

XXX XXXXX

B7 B6 B5 B4 B3 B2 B1 B0B11 B10 B9 B8

Data stored into MCU receive register after transmission of last 8 bits

FIGURE 7-5: SPI Communication with the MCP3302/04 using 8-bit segments (Mode 1,1: SCLK idles high).

DS21697B-page 26  2002 Microchip Technology Inc.

8.0 PACKAGING INFORMATION

8.1 Package Marking Information

14-Lead PDIP (300 mil) Example:

MCP3302/04

XXXXXXXXXXXXXX XXXXXXXXXXXXXX

YYWWNNN

14-Lead SOIC (150 mil)

XXXXXXXXXXX XXXXXXXXXXX

YYWWNNN

14-Lead TSSOP (4.4mm) †

XXXXXXXX

YYWW

NNN

MCP3302-B

I/P

0125NNN

Example:

MCP3302-B

XXXXXXXXXXX

0YWWNNN

Example:

3302-C

IYWW

NNN

†Please contact Microchip Factory for B-Grade TSSOP devices

Legend: XX...X Customer specific information*

YY Year code (last 2 digits of calendar year) WW Week code (week of January 1 is week ‘01’) NNN Alphanumeric traceability code

Note: In the event the full Microchip part number cannot be marked on one line, it will

be carried over to the next line thus limiting the number of available characters for customer specific information.

* Standard marking consists of Microchip part number, year code, week code, traceability code (facility code,

mask rev#, and assembly code). For marking beyond this, certain price adders apply. Please check with your Microchip Sales Office.

 2002 Microchip Technology Inc. DS21697B-page 27

MCP3302/04

Package Marking Information (Continued)

16-Lead PDIP (300 mil) (MCP3304) Example:

XXXXXXXXXXXXXX XXXXXXXXXXXXXX

YYWWNNN

16-Lead SOIC (150 mil) (MCP3304)

XXXXXXXXXXXXX XXXXXXXXXXXXX

YYWWNNN

MCP3304-B

I/P

YYWWNNN

Example:

MCP3304-B

XXXXXXXXXX

IYWWNNN

Legend: XX...X Customer specific information*

YY Year code (last 2 digits of calendar year) WW Week code (week of January 1 is week ‘01’) NNN Alphanumeric traceability code

Note: In the event the full Microchip part number cannot be marked on one line, it will

be carried over to the next line thus limiting the number of available characters for customer specific information.

* Standard marking consists of Microchip part number, year code, week code, traceability code (facility code,

mask rev#, and assembly code). For marking beyond this, certain price adders apply. Please check with your Microchip Sales Office.

DS21697B-page 28  2002 Microchip Technology Inc.

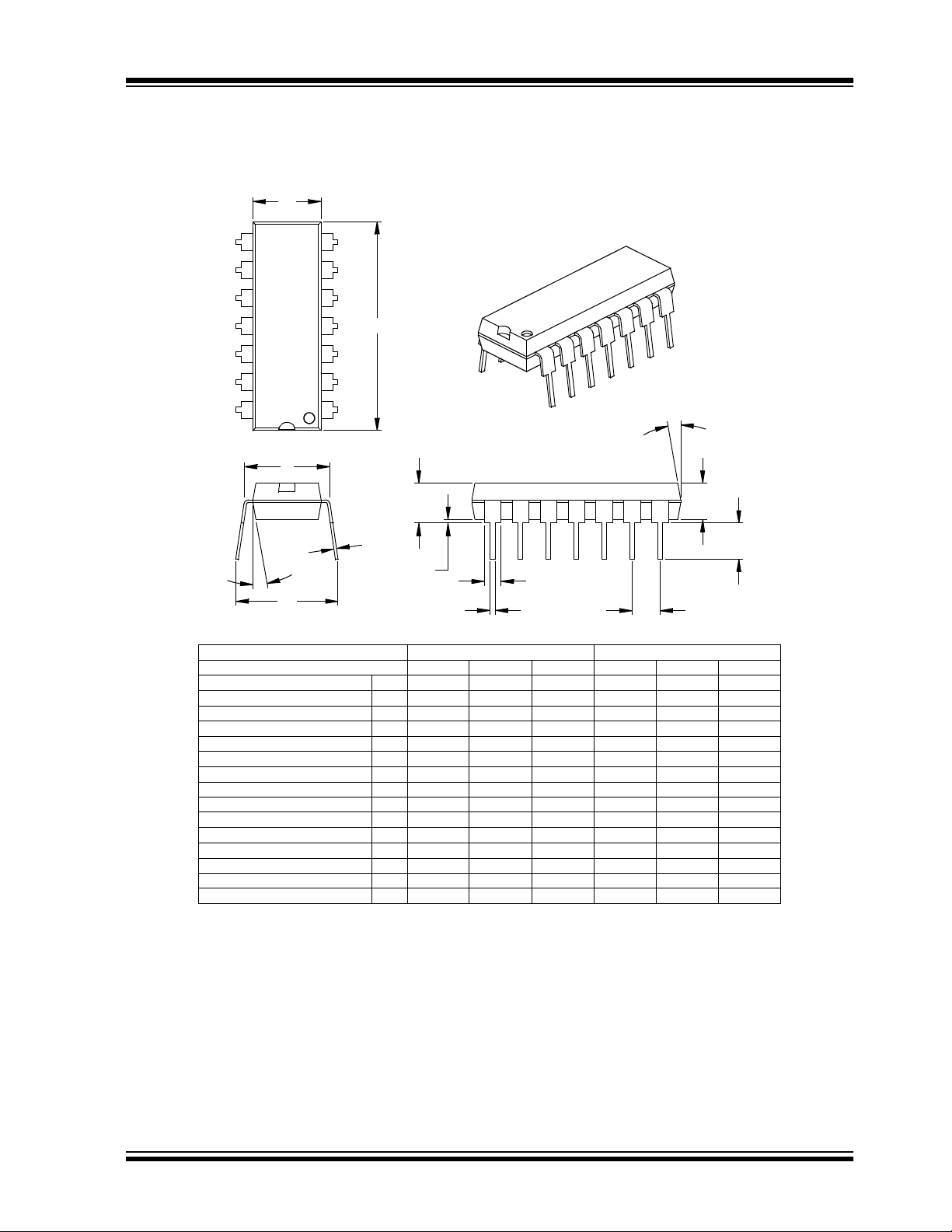

14-Lead Plastic Dual In-line (P) – 300 mil (PDIP)

MCP3302/04

Number of Pins Pitch Top to Seating Plane A .140 .155 .170 3.56 3.94 4.32 Molded Package Thickness A2 .115 .130 .1 45 2.92 3.30 3.68 Base to Seating Plane A1 .015 0.38 Shoulder to Shoulder Width E .300 .313 .325 7.62 7.94 8.26 Molded Package Width E1 .240 .250 .260 6.10 6.35 6.60 Overall Length D .740 .750 .760 18.80 19.05 19.30 Tip to Seating Plane L .125 .130 .135 3.18 3.3 0 3.43 Lead Thickness Upper Lead Width B1 .045 .058 .070 1.14 1.46 1.78 Lower Lead Width B .014 .018 .022 0.36 0.46 0.56 Overall Row Spacing § eB .310 .370 .430 7.87 9.40 10.92 Mold Draft Angle Top Mold Draft Angle Bottom

* Controlling Parameter

§ Significant Characteristic Notes:

Dimensions D and E1 do not include m old flash or protrusions. Mold flash or protrusions shall not exceed .010” (0.254mm) per side. JEDEC Equivalent: MS-001 Drawing No. C04-005

Dimension Limits MIN NOM MAX MIN NOM MAX

Units INCHES* MILLIMETERS

n p

.008 .012 .015 0 .20 0.29 0.38

5 10 15 5 10 15 5 10 15 5 10 15

14 14

.100 2.54

 2002 Microchip Technology Inc. DS21697B-page 29

MCP3302/04

14-Lead Plastic Small Outline (SL) – Narrow, 150 mil (SOIC)

45°

Number of Pins Pitch

Foot Angle Lead Thickness

Mold Draft Angle Top Mold Draft Angle Bottom

* Controlling Paramete r

§ Significant Characteristic

Notes: Dimensions D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed .010” (0.254mm) per side. JEDEC Equivalent: MS-012 Drawing No. C04-065

n p

048048

MILLIMETERSINCHES*Units

1.27.050

MAXNOMMINMAXNOMMINDimension Limits

1414

1.751.551.35.069.061.053AOverall Height

1.551.421.32.061.056.052A2Molded Package Thickness

0.250.180.10.010.007.004A1Standoff §

6.205.995.79.244.236.228EOverall Width

3.993.903.81.157.154.150E1Molded Package Width

8.818.698.56.347.342.337DOverall Length

0.510.380.25.020.015.010hChamfer Distance

1.270.840.41.050.033.016LFoot Len gth

0.250.230.20.010.009.008

0.510.420.36.020.017.014BLead Width 1512015120 1512015120

DS21697B-page 30  2002 Microchip Technology Inc.

14-Lead Plastic Thin Shrink Small Outline (ST) – 4.4 mm (TSSOP)

MCP3302/04

Number of Pins Pitch

Foot Angle Lead Thickness

Mold Draft Angle Top Mold Draft Angle Bottom

* Controlling Parameter

§ Significant Characteristic

Notes: Dimensions D and E1 do not include mo ld flash or protrusions. Mold flash or protrusions shall not exceed .005” (0.127mm) per side. JEDEC Equivalent : MO-153 Drawing No. C04-087

n p

MILLIMETERS*INCHESUnits

0.65.026

A2A1

MAXNOMMINMAXNOMMINDimension Limits

1414

1.10.043AOverall Height

0.950.900.85.037.035.033A2Molded P ackage Thickness

0.150.100.05.006.004.002A1Standoff §

6.506.386.25.256.251.246EOverall Width

4.504.404.30.177.173.169E1Molded Package Width

5.105.004.90.201.197.193DMolded Package Length

0.700.600.50.028.024.020LFoot Len gth 840840

0.200.150.09.008.006.004

0.300.250.19.012.010.007B1Lead Width

10501050 10501050

 2002 Microchip Technology Inc. DS21697B-page 31

MCP3302/04

16-Lead Plastic Dual In-line (P) – 300 mil (PDIP)

Number of Pins Pitch

Lead Thickness

Mold Draft Angle Top Mold Draft Angle Bottom

* Controlling Parameter

§ Significant Characteristic Notes:

Dimensions D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed .010” (0.254mm) per side. JEDEC Equivalent: MS-001 Drawing No. C04-017

n p

0.38.015A1Base to Seating Plane

MILLIMETERSINCHES*Units

2.54.100

MAXNOMMINMAXNOMMINDimension Limits

1616

4.323.943.56.170.155.140ATop to Seating Plane

3.683.302.92.145.130.115A2Molded P ackage Thickness

8.267.947.62.325.313.300EShoulder to Shoulder Width

6.606.356.10.260.250.240E1Molded Package Width

19.3019.0518.80.760.750.740DOverall Length

3.433.303.18.135.130.125LTip to Seating Plane

0.380.290.20.015.012.008

1.781.461.14.070.058.045B1Upper Lea d Width

0.560.46.036.022.018.014BLower Lea d Width

10.929.407.87.430.370.310eBOverall Row Spacing § 1510515105 1510515105

DS21697B-page 32  2002 Microchip Technology Inc.

16-Lead Plastic Small Outline (SL) – Narrow 150 mil (SOIC)

45°

MCP3302/04

Number of Pins Pitch

Foot Angle Lead Thickness

Mold Draft Angle Top Mold Draft Angle Bot tom

* Controlling Parameter

§ Significant Cha racteristic

Notes: Dimensions D and E1 do not include m old flash or protrusions. Mold flash or protrusions shall not exceed .010” (0.254mm) per side. JEDEC Equivalent: MS-012 Drawing No. C04-108

n p

α β

MILLIMETERSINCHES*Units

1.27.050

048048

MAXNOMMINMAXNOMMINDimension Limits

1616

1.751.551.35.069.061.053AOverall Height

1.551.441.32.061.057.052A2Molded Package Thickness

0.250.180.10.010.007.004A1Standoff §

6.206.025.79.244.237.228EOverall Width

3.993.903.81.157.154.150E1Molded Package Width

10.019.919.80.394.3 90. 386DOverall Length

0.510.380.25.020.015.010hChamfer Distance

1.270.840.41.050.033.016LFoot Length

0.250.230.20.010.009.008

0.510.420.33.020.017. 013BLead Width 1512015120 1512015120

 2002 Microchip Technology Inc. DS21697B-page 33

MCP3302/04

NOTES:

DS21697B-page 34  2002 Microchip Technology Inc.

MCP3302/04

ON-LINE SUPPORT

Microchip provides on-line support on the Microchip World Wide Web (WWW) site.

The web site is used by Microchip as a means to make files and information easily available to customers. To view the site, the user must have access to the Internet and a web browser, such as Netscape or Microsoft Explorer. Files are also available for FTP download from our FTP site.

Connecting to the Microchip Internet Web Site

The Microchip web site is available by using your favorite Internet browser to attach to:

www.microchip.com

The file transfer site is available by using an FTP service to connect to:

ftp://ftp.microchip.com

The web site and file transfer site provide a variety of services. Users may download files for the latest Development Tools, Data Sheets, Application Notes, User's Guides, Articles and Sample Programs. A variety of Microchip specific business information is also available, including listings of Microchip sales offices, distributors and factory representatives. Other data available for consideration is:

• Latest Microchip Press Releases

• Technical Support Section with Frequently Asked Questions

• Design Tips

• Device Errata

• Job Postings

• Microchip Consultant Program Member Listing

• Links to other useful web sites related to Microchip Products

• Conferences for products, Development Systems, technical information and more

• Listing of seminars and events

Systems Information and Upgrade Hot Line

The Systems Information and Upgrade Line provides system users a listing of the latest versions of all of Microchip's development systems software products. Plus, this line provides information on how customers can receive any currently available upgrade kits.The Hot Line Numbers are:

1-800-755-2345 for U.S. and most of Canada, and

1-480-792-7302 for the rest of the world.

013001

 2002 Microchip Technology Inc. DS21697B-page 35

MCP3302/04

READER RESPONSE

It is our intention to provide you with the best documentation possible to ensure successful use of your Microchip product. If you wish to provide your comments on organization, clarity, subject matter, and ways in which our documentation can better serve you, please FAX your comments to the Technical Publications Manager at (480) 792-4150.

Please list the following information, and use this outline to provide us with your comments about this Data Sheet.

To :

RE: Reader Response

From:

Application (optional):

Would you like a reply? Y N

Device:

Questions:

1. What are the best features of this document?

2. How does this document meet your hardware and software development needs?

3. Do you find the organization of this data sheet easy to follow? If not, why?

Technical Publications Manager

Name

Company

Address

City / State / ZIP / Country

Telephone: (_______) _________ - _________

MCP3302/04

Literature Number:

Total Pages Sent

FAX: (______) _________ - _________

DS21697B

4. What additions to the data sheet do you think would enhance the structure and subject?

5. What deletions from the data sheet could be made without affecting the overall usefulness?

6. Is there any incorrect or misleading information (what and where)?

7. How would you improve this document?

8. How would you improve our software, systems, and silicon products?

DS21697B-page 36  2002 Microchip Technology Inc.

MCP3302/04

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office.

PART NO. X /XX

DeviceXGrade

Device: MCP3302: 13-Bit Serial A/D Converter

Grade: B = ±1 LSB INL

Temperature Range: I = -40°C to +85°C

Package: P = Plastic DIP (300 mil Body), 14-lead, 16-lead

Range

MCP3302T: 13-Bit Serial A/D Converter (Tape and Reel) MCP3304: 13-Bit Serial A/D Converter MCP3304T: 13-Bit Serial A/D Converter (Tape and Reel)

C=±2LSB INL

SL = Plastic SOIC (150 mil Body), 14-lead, 16-lead ST = Plastic TSSO P (4.4mm), 14-lead

PackageTemp era tur e

Examples:

a) MCP3302-BI/P: ±1 LSB INL, Industrial Tem-

perature, PDIP package

b) MCP3302-BI/SL: ±1 LSB INL, Industrial

Temperature, SOIC package

c) MCP3302-CI/ST: ±2 LSB INL, Industrial

Temperature, TSSOP package

a) MCP3304-BI/P: ±1 LSB INL, Industrial

Temperature, PDIP package

b) MCP3304-BI/SL: ±1 LSB INL, Industrial

Temperature, SOIC package

Sales and Support

Data Sheets

Products supported by a preliminary Data Sheet may have an errata sheet describing minor operational differences and recommended workarounds. To determine if an errata sheet exists for a particular device, please contact one of the following:

1. Your local Microchip sales office

2. The Microchip Corporate Literature Center U.S. FAX: (480) 792-7277

3. The Microchip Worldwide Site (www.microchip.com)

Please specify which device, revision of silicon and Data Sheet (include Literature #) you are using.

New Customer Notification System

 2002 Microchip Technology Inc. DS21697B-page37

MCP3302/04

NOTES:

DS21697B-page 38  2002 Microchip Technology Inc.

MCP3302/04

Information contained in this publication regarding device applications and the like is intended through suggestion only and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. No representation or warranty is given and no liability is assumed by Microchip Technology Incorporated with respect to the accuracy or use of such information, or infringement of patents or other intellectual property rights arising from such use or otherwise. Use of Microchip’s products as critical components in life support systems is not authorized except with express written approval by Microchip. No licenses are conveyed, implicitly or otherwise, under any intellectual property rights.

Trademarks

The Microchip name and logo, the Microchip logo, FilterLab, K

EELOQ

, microID, MPLAB, PIC, PICmicro, PICMASTER, PICSTART, PRO MATE, SEEVAL and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

dsPIC, ECONOMONITOR, FanSense, FlexROM, fuzzyLAB, In-Circuit Serial Programming, ICSP, ICEPIC, microPort, Migratable Memory, MPASM, MPLIB, MPLINK, MPSIM, MXDEV, PICC, PICDEM, PICDEM.net, rfPIC, Select Mode and Total Endurance are trademarks of Microchip Technology Incorporated in the U.S.A.

Serialized Quick Turn Programming (SQTP) is a service mark of Microchip Technology Incorporated in the U.S.A.

All other trademarks mentioned herein are property of their respective companies.

Printed on recycled paper.

Microchip received QS-9000 quality system certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona in July 1999 and Mountain View, California in March 2002. The Company’s quality system processes and procedures are QS-9000 compliant for its PICmicro devices, Serial EEPROMs, microperipherals, non-volatile memory and analog products. In addition, Microchip’s qua lity system for the design and manufacture of development systems is ISO 9001 certified.

8-bit MCUs, KEEL

code hopping

 2002 Microchip Technology Inc. DS21697B-page 39

ORLDWIDE SALES AND SERVICE

AMERICAS

Corporate Office

2355 West Chandler B lvd. Chandler, AZ 85224-6199 Tel: 480-792-7200 Fax: 480-792-7277 Technical Support: 480-792-7627 Web Address: http://www.microchip.com

Rocky Mountain

2355 West Chandler B lvd. Chandler, AZ 85224-6199 Tel: 480-792-7966 Fax: 480-792-4338

Atlanta

500 Sugar Mill Road, Suite 200B Atlanta, GA 30350 Tel: 770-640-0034 Fax: 770-640-0307

Boston

2 Lan Drive, Suit e 120 Westford, MA 01886 Tel: 978-692-3848 Fax: 978-692-3821

Chicago

333 Pierce Road, S uite 180 Itasca, IL 60143 Tel: 630-285-0071 Fax: 630-285-0075

Dallas

4570 Westgrove Drive, Suite 160 Addison, TX 75001 Tel: 972-818-7423 Fax: 972-818-2924

Detroit

Tri-Atria Office Building 32255 Northwestern Highway, Suite 190 Farmington Hills, MI 48334 Tel: 248-538-2250 Fax: 248-538-2260

Kokomo

2767 S. Albright Road Kokomo, Indiana 46902 Tel: 765-864-8360 Fax: 765-864-8387

Los Angeles

18201 Von Karman, Suite 10 90 Irvine, CA 92612 Tel: 949-263-1888 Fax: 949-263-1338

New York

150 Motor Parkwa y, Suite 202 Hauppauge, NY 11788 Tel: 631-273-5305 Fax: 631-273-5335

San Jose

Microchip Technology Inc. 2107 North First S treet, Suite 590 San Jose, CA 95131 Tel: 408-436-7950 Fax: 408-436-7955

Toro nto

6285 Northam Drive, Suite 108 Mississauga, Ontario L4V 1X5, Canada Tel: 905-673-0699 Fax: 905-673-6509

ASIA/PACIFIC

Australia

Microchip Technology Australia Pty Ltd Suite 22, 41 Rawson Street Epping 2121, NSW Australia Tel: 61-2-9868-6733 Fax: 61-2-9868-6755

China - Beijing

Microchip Technology Consulting (Shanghai) Co., Ltd., Beijing Liaison Office Unit 915 Bei Hai Wan Tai Bldg. No. 6 Chaoyangmen Beidajie Beijing, 100027, No. China Tel: 86-10-852821 00 Fax: 86-10-852 82104

China - Chengdu

Microchip Technology Consulting (Shanghai) Co., Ltd., Chengdu Liaison Office Rm. 2401, 24th Floor, Ming Xing Financial Tower No. 88 TIDU Street Chengdu 610016, China Tel: 86-28-867662 00 Fax: 86-28-867 66599

China - Fuzhou

Microchip Technology Consulting (Shanghai) Co., Ltd., Fuzhou Liaison Office Unit 28F, World Trade Plaza No. 71 Wusi Road Fuzhou 350001, China Tel: 86-591-75035 06 Fax: 86-591-7503521

China - Shanghai

Microchip Technology Consulting (Shanghai) Co., Ltd. Room 701, Bldg. B Far East International Plaza No. 317 Xian Xia Road Shanghai, 200051 Tel: 86-21-6275-5700 Fax: 86-21-6275-5060

China - Shenzhen

Microchip Technology Consulting (Shanghai) Co., Ltd., Shenzhen L iaison Office Rm. 1315, 13/F, Shenzhen Kerry Centre, Renminnan Lu Shenzhen 518001, Ch ina Tel: 86-755-23503 61 Fax: 86-755-2366086

China - Hong Kong SAR

Microchip Technology Hongkong Ltd. Unit 901-6, Tower 2, Metroplaza 223 Hing Fong Road Kwai Fong, N.T., Hong Kong Tel: 852-2401-120 0 Fax: 852-2401-3431

India

Microchip Technology Inc. India Liaison Office Divyasree Chambers 1 Floor, Wing A (A3/A4) No. 11, O’Shaugnessey Road Bangalore, 560 025, India Tel: 91-80-229006 1 Fax: 91-80-2290 062

Japan

Microchip Technology Japan K.K. Benex S-1 6F 3-18-20, Shinyokohama Kohoku-Ku, Yokohama-shi Kanagawa, 222-0033, Japan Tel: 81-45-471- 6166 Fax: 81-45-471-6122

Korea

Microchip Technology Korea 168-1, Youngbo Bldg. 3 Floor Samsung-Dong, Kangnam-Ku Seoul, Korea 135-882 Tel: 82-2-554-7200 Fax: 82-2-558-593 4

Singapore

Microchip Technology Singapore Pte Ltd. 200 Middle Road #07-02 Prime Centre Singapore, 188980 Tel: 65-6334-8870 Fax: 65-6334-8850

Ta iw an

Microchip Technology (Barbados) Inc., Taiwan Branch 11F-3, No. 207 Tung Hua North Road Taipei, 105, Taiwan Tel: 886-2-2717-7175 Fax: 886-2-2545-0139

EUROPE

Denmark

Microchip Technology Nordic ApS Regus Business Centre Lautrup hoj 1-3 Ballerup DK-2750 Denmark Tel: 45 4420 9895 Fax: 45 4420 9910

France

Microchip Technology SARL Parc d’Activite du Moulin de Massy 43 Rue du Saule Trapu Batiment A - ler Etage 91300 Massy, France Tel: 33-1-69-53-63-20 Fax: 33-1-69-30-90-79

Germany

Microchip Technology GmbH Gustav-Heinemann Ring 125 D-81739 Munich, Germany Tel: 49-89-627-144 0 Fax: 49-89-627-144-44

Italy

Microchip Technology SRL Centro Direzionale Colleoni Palazzo Taurus 1 V. Le Colleoni 1 20041 Agrate Brianza Milan, Italy Tel: 39-039-65791-1 Fax: 39-039-6899883

United Kingdom

Microchip Ltd. 505 Eskdale Road Winnersh Triangle Wokingham Berkshire, England RG41 5TU Tel: 44 118 921 5869 Fax: 44-118 921-5820

Austria

Microchip Technology Austria GmbH Durisolstrasse 2 A-4600 Wels Austria Tel: 43-7242-2244-399 Fax: 43-7242-2244-393

05/16/02

DS21697B-page 40  2002 Microchip Technology Inc.

WWW.ALLDATASHEET.COM

All Datasheets cannot be modified without permission.

This datasheet has been download from :

www.AllDataSheet.com

100% Free DataSheet Search Site.

Free Download.

No Register.

Fast Search System.

www.AllDataSheet.com

MICROCHIP MCP3302, MCP3304 Technical data

Specifications and Main Features

Frequently Asked Questions

User Manual

1.0 ELECTRICAL CHARACTERISTICS

ELECTRICAL SPECIFICATIONS

FIGURE 1-1: Timing Parameters

2.0 TYPICAL PERFORMANCE CURVES

FIGURE 2-1: Integral Nonlinearity (INL) vs. Sample Rate

FIGURE 2-3: Integral Nonlinearity (INL) vs. Code (Representative Part).

FIGURE 2-7: Integral Nonlinearity (INL) vs. Temperature.

FIGURE 2-8: Differential Nonlinearity (DNL) vs. Sample Rate.

FIGURE 2-13: Differential Nonlinearity (DNL) vs. Code (Representative Part).

FIGURE 2-14: Differential Nonlinearity (DNL) vs. Temperature.

FIGURE 2-19: Positive Gain Error vs. Temperature.

FIGURE 2-22: Offset Error vs. Temperature.

FIGURE 2-20: Signal to Noise Ratio (SNR) vs. Input Frequency.

FIGURE 2-21: Total Harmonic Distortion (THD) vs. Input Frequency.

FIGURE 2-23: Signal to Noise and Distortion (SINAD) vs. Input Frequency.

FIGURE 2-24: Signal to Noise and Distortion (SINAD) vs. Input Signal Level.

FIGURE 2-28: Effective Number of Bits (ENOB) vs. Input Frequency.

FIGURE 2-26: Spurious Free Dynamic Range (SFDR) vs. Input Frequency.

FIGURE 2-29: Power Supply Rejection (PSR) vs. Ripple Frequency.

FIGURE 2-40: Negative Gain Error vs. Temperature.

FIGURE 2-41: Common Mode Rejection vs. Frequency.

FIGURE 2-39: Negative Gain Error vs. Reference Voltage.

3.0 TEST CIRCUITS

FIGURE 3-3: Power Supply Sensitivity Test Circuit (PSRR).

FIGURE 3-4: Full Differential Test Configuration Example.

FIGURE 3-5: Pseudo Differential Test Configuration Example.

4.0 PIN DESCRIPTIONS

TABLE 4-1: PIN FUNCTION TABLE

4.1 CH0-CH7

4.2 DGND

4.6 Serial Clock (CLK)

4.7 AGND

4.3 Chip Select/Shutdown (CS/SHDN)

4.4 Serial Data Input (DIN)

5.0 DEFINITION OF TERMS

6.0 APPLICATIONS INFORMATION

6.1 Conversion Description

6.2 Driving the Analog Input

FIGURE 6-1: Simplified Block Diagram.

FIGURE 6-3: Analog Input Model.

6.3 Biasing Solutions

FIGURE 6-4: Pseudo-differential biasing circuit for bipolar operation.

6.4 Common Mode Input Range

FIGURE 6-6: Circuit solution to overcome amplifier output swing limitation.

6.5 Buffering/Filtering the Analog Inputs

6.6 Layout Considerations

6.7 Utilizing the Digital and Analog Ground Pins

FIGURE 6-11: Separation of Analog and Digital Ground Pins.

7.0 SERIAL COMMUNICATIONS

7.1 Output Code Format

FIGURE 7-1: Output Code Transfer Function.

7.2 Communicating with the MCP3302 and MCP3304

FIGURE 7-2: Communication with MCP3302/04 (MSB first Format).

FIGURE 7-3: Communication with MCP3302/04 (LSB first Format).

7.3 Using the MCP3302/04 with Microcontroller (MCU) SPI Ports

FIGURE 7-4: SPI Communication with the MCP3302/04 using 8-bit segments (Mode 0,0: SCLK idles low).

FIGURE 7-5: SPI Communication with the MCP3302/04 using 8-bit segments (Mode 1,1: SCLK idles high).

8.0 PACKAGING INFORMATION

8.1 Package Marking Information
