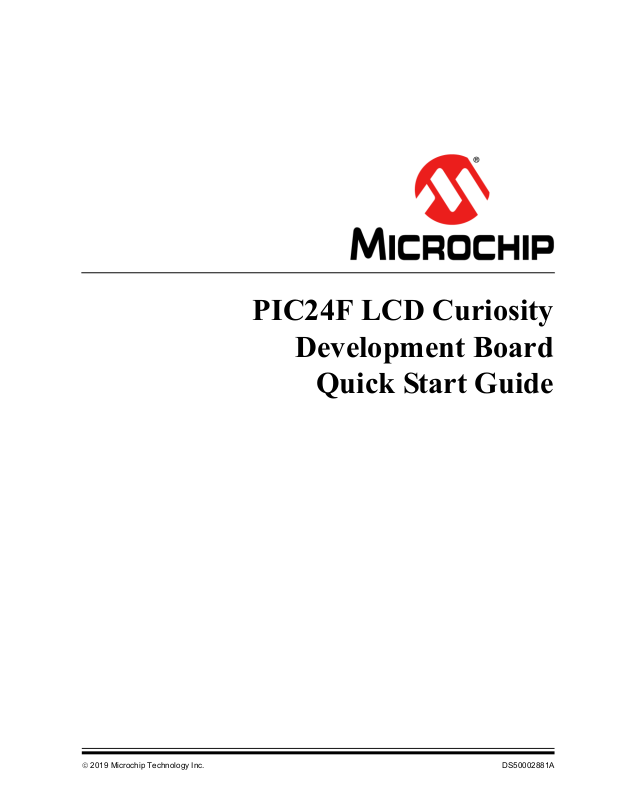

MICROCHIP DM240017 User guide

PIC24F LCD Curiosity

Development Board

Quick Start Guide

 2019 Microchip Technology Inc. DS50002881A

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.

• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the
intended manner and under normal conditions.

• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our
knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data
Sheets. Most likely, the person doing so is engaged in theft of intellectual property.

• Microchip is willing to work with the customer who is concerned about the integrity of their code.

• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not
mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our
products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts
allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device
applications and the like is provided only for your convenience
and may be superseded by updates. It is your responsibility to
ensure that your application meets with your specifications.
MICROCHIP MAKES NO REPRESENTATIONS OR
WARRANTIES OF ANY KIND WHETHER EXPRESS OR
IMPLIED, WRITTEN OR ORAL, STATUTORY OR
OTHERWISE, RELATED TO THE INFORMATION,
INCLUDING BUT NOT LIMITED TO ITS CONDITION,
QUALITY, PERFORMANCE, MERCHANTABILITY OR
FITNESS FOR PURPOSE. Microchip disclaims all liability
arising from this information and its use. Use of Microchip
devices in life support and/or safety applications is entirely at
the buyer’s risk, and the buyer agrees to defend, indemnify and
hold harmless Microchip from any and all damages, claims,
suits, or expenses resulting from such use. No licenses are
conveyed, implicitly or otherwise, under any Microchip
intellectual property rights unless otherwise stated.

Trademarks

The Microchip name and logo, the Microchip logo, Adaptec,
AnyRate, AVR, AVR logo, AVR Freaks, BesTime, BitCloud, chipKIT,
chipKIT logo, CryptoMemory, CryptoRF, dsPIC, FlashFlex,
flexPWR, HELDO, IGLOO, JukeBlox, KeeLoq, Kleer, LANCheck,
LinkMD, maXStylus, maXTouch, MediaLB, megaAVR, Microsemi,
Microsemi logo, MOST, MOST logo, MPLAB, OptoLyzer,
PackeTime, PIC, picoPower, PICSTART, PIC32 logo, PolarFire,
Prochip Designer, QTouch, SAM-BA, SenGenuity, SpyNIC, SST,
SST Logo, SuperFlash, Symmetricom, SyncServer, Tachyon,
TempTrackr, TimeSource, tinyAVR, UNI/O, Vectron, and XMEGA
are registered trademarks of Microchip Technology Incorporated in
the U.S.A. and other countries.

APT, ClockWorks, The Embedded Control Solutions Company,
EtherSynch, FlashTec, Hyper Speed Control, HyperLight Load,
IntelliMOS, Libero, motorBench, mTouch, Powermite 3, Precision
Edge, ProASIC, ProASIC Plus, ProASIC Plus logo, Quiet-Wire,
SmartFusion, SyncWorld, Temux, TimeCesium, TimeHub,
TimePictra, TimeProvider, Vite, WinPath, and ZL are registered
trademarks of Microchip Technology Incorporated in the U.S.A.

Adjacent Key Suppression, AKS, Analog-for-the-Digital Age, Any
Capacitor, AnyIn, AnyOut, BlueSky, BodyCom, CodeGuard,
CryptoAuthentication, CryptoAutomotive, CryptoCompanion,
CryptoController, dsPICDEM, dsPICDEM.net, Dynamic Average
Matching, DAM, ECAN, EtherGREEN, In-Circuit Serial
Programming, ICSP, INICnet, Inter-Chip Connectivity, JitterBlocker,
KleerNet, KleerNet logo, memBrain, Mindi, MiWi, MPASM, MPF,
MPLAB Certified logo, MPLIB, MPLINK, MultiTRAK, NetDetach,
Omniscient Code Generation, PICDEM, PICDEM.net, PICkit,
PICtail, PowerSmart, PureSilicon, QMatrix, REAL ICE, Ripple
Blocker, SAM-ICE, Serial Quad I/O, SMART-I.S., SQI,
SuperSwitcher, SuperSwitcher II, Total Endurance, TSHARC,
USBCheck, VariSense, ViewSpan, WiperLock, Wireless DNA, and
ZENA are trademarks of Microchip Technology Incorporated in the
U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in
the U.S.A.
The Adaptec logo, Frequency on Demand, Silicon Storage
Technology, and Symmcom are registered trademarks of Microchip
Technology Inc. in other countries.
GestIC is a registered trademark of Microchip Technology Germany
II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in
other countries.
All other trademarks mentioned herein are property of their
respective companies.

© 2019, Microchip Technology Incorporated, All Rights Reserved.

For information regarding Microchip’s Quality Management Systems,
please visit www.microchip.com/quality.

ISBN: 978-1-5224-4667-5

DS50002881A-page 2  2019 Microchip Technology Inc.

PIC24F LCD CURIOSITY

DEVELOPMENT BOARD

QUICK START GUIDE

Table of Contents

Preface ........................................................................................................................... 5

Chapter 1. Overview....................................................................................................... 9

1.1 Introduction ..................................................................................................... 9

Chapter 2. Board Power-up......................................................................................... 11

2.1 Powering Up the Board ................................................................................ 11

Chapter 3. Getting Started........................................................................................... 13

3.1 Getting Started with the PIC24F LCD Curiosity Development Board ........... 13

3.1.1 USB Powered Mode .................................................................................. 13

3.1.2 Battery-Powered Mode .............................................................................. 13

Appendix A. Schematics ............................................................................................. 15

A.1 PIC24F LCD Curiosity Development Board Schematics ............................. 15

Appendix B. LCD Operation........................................................................................ 21

Worldwide Sales and Service .................................................................................... 24

 2019 Microchip Technology Inc. DS50002881A-page 3

PIC24F LCD Curiosity Development Board Quick Start Guide

NOTES:

DS50002881A-page 4  2019 Microchip Technology Inc.

PIC24F LCD CURIOSITY

DEVELOPMENT BOARD

QUICK START GUIDE

Preface

NOTICE TO CUSTOMERS

All documentation becomes dated, and this manual is no exception. Microchip tools and
documentation are constantly evolving to meet customer needs, so some actual dialogs
and/or tool descriptions may differ from those in this document. Please refer to our website
(www.microchip.com) to obtain the latest documentation available.

Documents are identified with a “DS” number. This number is located on the bottom of each
page, in front of the page number. The numbering convention for the DS number is
“DSXXXXXXXXA”, where “XXXXXXXX” is the document number and “A” is the revision level
of the document.

For the most up-to-date information on development tools, see the MPLAB
Select the Help menu, and then Topics to open a list of available online help files.

®

IDE online help.

INTRODUCTION

This chapter contains general information that will be useful to know before using the
PIC24F LCD Curiosity Development Board. Items discussed in this chapter include:

• Document Layout

• Conventions Used in this Guide

• Recommended Reading

• The Microchip Website

• Product Change Notification Service

• Customer Support

• Document Revision History

DOCUMENT LAYOUT

This user’s guide provides an overview of the PIC24F LCD Curiosity Development
Board. The document is organized as follows:

• Chapter 1. “Overview” – This chapter introduces the PIC24F LCD Curiosity

Development Board and provides a brief overview of its various features.

• Chapter 2. “Board Power-up” – This chapter describes how to power up the

board and the main circuit elements of the board.

• Chapter 3. “Getting Started” – This chapter describes the modes of operation

for the PIC24F LCD Curiosity Development Board.

• Appendix A. “Schematics” – This appendix provides schematic diagrams for

the PIC24F LCD Curiosity Development Board.

• Appendix B. “LCD Operation” – This appendix describes the pin and LCD

segment assignments.

 2019 Microchip Technology Inc. DS50002881A-page 5

PIC24F LCD Curiosity Development Board Quick Start Guide

CONVENTIONS USED IN THIS GUIDE

This manual uses the following documentation conventions:

DOCUMENTATION CONVENTIONS

Description Represents Examples

Arial font:

Italic characters Referenced books MPLAB® IDE User’s Guide

Emphasized text ...is the only compiler...

Initial caps A window the Output window

A dialog the Settings dialog
A menu selection select Enable Programmer

Quotes A field name in a window or

dialog

Underlined, italic text with
right angle bracket

Bold characters A dialog button Click OK

N‘Rnnnn A number in verilog format,

Text in angle brackets < > A key on the keyboard Press <Enter>, <F1>

Courier New font:

Plain Courier New Sample source code #define START

Italic Courier New A variable argument file.o, where file can be

Square brackets [ ] Optional arguments mcc18 [options] file

Curly brackets and pipe
character: { | }

Ellipses... Replaces repeated text var_name [,

A menu path File>Save

A tab Click the Power tab

where N is the total number of
digits, R is the radix and n is a
digit.

Filenames autoexec.bat
File paths c:\mcc18\h
Keywords _asm, _endasm, static
Command-line options -Opa+, -Opa-
Bit values 0, 1
Constants 0xFF, ‘A’

Choice of mutually exclusive
arguments; an OR selection

Represents code supplied by
user

“Save project before build”

4‘b0010, 2‘hF1

any valid filename

[options]

errorlevel {0|1}

var_name...]

void main (void)
{ ...
}

DS50002881A-page 6  2019 Microchip Technology Inc.

RECOMMENDED READING

This quick start guide describes how to use the PIC24F LCD Curiosity Development
Board. The device-specific data sheet contains current information on programming
the specific microcontroller devices. The following Microchip document is
recommended as a supplemental reference resource:

PIC24FJ128GL306 Family Data Sheet (DS30010198)

Refer to this document for detailed information on the PIC24FJ128GL306 16-bit
general purpose family of MCUs with integrated segmented LCD controller. Reference
information found in this data sheet includes:

• Device memory maps

• Device pinout and packaging details

• Device electrical specifications

• List of peripherals included on the devices

and are available for download from the Microchip website (www.microchip.com).

THE MICROCHIP WEBSITE

Microchip provides online support via our website at www.microchip.com. This website
is used as a means to make files and information easily available to customers.
Accessible by using your favorite Internet browser, the website contains the following
information:

• Product Support – Data sheets and errata, application notes and sample

programs, design resources, user’s guides and hardware support documents,
latest software releases and archived software

• General Technical Support – Frequently Asked Questions (FAQs), technical

support requests, online discussion groups, Microchip consultant program
member listing

• Business of Microchip – Product selector and ordering guides, latest Microchip

press releases, listing of seminars and events; and listings of Microchip sales
offices, distributors and factory representatives

Preface

PRODUCT CHANGE NOTIFICATION SERVICE

Microchip’s customer notification service helps keep customers current on Microchip
products. Subscribers will receive e-mail notification whenever there are changes,
updates, revisions or errata related to a specified product family or development tool of
interest.

To register, access the Microchip website at www.microchip.com, click on Product
Change Notification and follow the registration instructions.

 2019 Microchip Technology Inc. DS50002881A-page 7

PIC24F LCD Curiosity Development Board Quick Start Guide

CUSTOMER SUPPORT

Users of Microchip products can receive assistance through several channels:

• Distributor or Representative

• Local Sales Office

• Corporate Application Engineer (CAE)

• Embedded Solutions Engineer (ESE)

• Field Application Engineer (FAE)

Customers should contact their distributor, representative or Embedded Solutions
Engineer (ESE) for support. Local sales offices are also available to help customers.
A listing of sales offices and locations is included in the back of this document.

Technical support is available through the website at:

http://www.microchip.com/support.

DOCUMENT REVISION HISTORY

Revision A (June 2019)

This is the initial release of this document.

DS50002881A-page 8  2019 Microchip Technology Inc.

1.1 INTRODUCTION

The PIC24F LCD Curiosity Development Board (DM240017) is a demonstration,
development and experimentation platform based on the PIC24FJ128GL306
low-power, low-cost microcontroller featuring integrated segmented LCD controller.
The board has a built-in programmer/debugger and provides all the hardware
necessary to get started developing a complete embedded application. Some key
features of the board include:

• PIC24FJ128GL306 16-bit microcontroller with 128-Kbyte Flash, 8-Kbyte RAM and
up to 256 segments

• PICkit™ On-Board (PKOB) circuit implements basic programming/debugging
ability

• On-board 5-character LCD panel with backlight (8 commons, 56 segments)

•MCLR

• Red/Green/Blue (RGB) LED plus two general purpose indicator LEDs

• Digital temperature sensor (TC77)

• 10k potentiometer

• 32.768 kHz Secondary Oscillator (SOSC) for RTCC

• Female headers for access to microcontroller I/O pins

• Coin cell battery socket and reverse battery protection for optional battery
operation

• USB-UART serial communication bridge (MCP2221A) to interface with
USB host/PC

PIC24F LCD CURIOSITY

DEVELOPMENT BOARD

QUICK START GUIDE

Chapter 1. Overview

Reset button plus two general purpose push buttons

Note: The USB-UART connector does not power the board.

• Two mikroBUS™ interfaces for hardware expansion:

- Supports a wide variety of add-on click boards™ from MikroElektronica

(www.mikroe.com)

 2019 Microchip Technology Inc. DS50002881A-page 9

PIC24F LCD Curiosity Development Board Quick Start Guide

NOTES:

DS50002881A-page 10  2019 Microchip Technology Inc.

Chapter 2. Board Power-up

2.1 POWERING UP THE BOARD

The board is intended to be powered through the Micro-B USB connector (USB1) in the
upper left of the board. The USB-UART USB connector does not power the board. A
MIC5528 linear regulator (U5) generates the +3.3V rail used by the PIC24FJ128GL306
microcontroller. The board can be powered by a CR2032 coin cell inserted into the B1
battery housing. Default jumper J9 setup is 2 and 3; this configuration can be left for
power switching between the USB and the battery operation modes.

To measure the power consumption of the board, a meter can be placed between
pins 2 and 3 of jumper J9 (that goes to the battery housing). To measure the current of
the CPU, cut the trace on the bottom of the board under jumper J1 and place a meter
between the two pins.

Note: The USB-UART USB connector does not power the board.

PIC24F LCD CURIOSITY

DEVELOPMENT BOARD

QUICK START GUIDE

 2019 Microchip Technology Inc. DS50002881A-page 11

PIC24F LCD Curiosity Development Board Quick Start Guide

NOTES:

DS50002881A-page 12  2019 Microchip Technology Inc.

PIC24F LCD CURIOSITY

DEVELOPMENT BOARD

QUICK START GUIDE

Chapter 3. Getting Started

3.1 GETTING STARTED WITH THE PIC24F LCD CURIOSITY DEVELOPMENT BOARD

The preprogrammed “out-of-box” demo project for the PIC24F LCD Curiosity
Development Board has two main modes of operation: USB powered and
battery-powered.

3.1.1 USB Powered Mode

In USB Powered mode, via the upper left micro-USB port, there are several different
Display modes. Pressing the S2 button will cycle between each of the Display modes
during USB operation. The Display modes are listed below.

1. Toggles between the text, “PIC24” and “LCD”. Toggling is done automatically by
the LCD module using the Alternate Display mode of the module.

2. Displays the 12-bit value of the potentiometer.

3. Displays the build time of the project. Note that this is the build time of the
build_time.c file. A clean/build will update the time.

4. Displays the current temperature measured by the TC77 on the board. LCD
Alternate Display mode toggles between Celsius and Fahrenheit.

Note: The backlight only operates while in USB mode.

The potentiometer will change the intensity of the RGB LED channel that is currently
active. Switch S1 will change which channel is currently active.

A COM port can be opened to view the data through the USB/UART bridge. All the
above data are displayed on the screen (time, temperature, potentiometer, etc.). The
serial port needs to be set to 19200 baud, 8-bit, no parity, one stop, no flow control.

3.1.2 Battery-Powered Mode

If the USB power is disconnected, the board can run from a battery backup and will go
into Battery-Powered mode. In order to run in Battery-Powered mode, a CR2032 needs
to be inserted in the B1 battery housing and jumper J9 needs to short between pins 2
and 3. Minimal external components are necessary to enable Battery mode, while one
built-in software function will enable Sleep mode.

In Battery-Powered mode, the moon icon is displayed to indicate that it is in
Battery-Powered mode. The battery status icon indicates the current battery status.

The time will be displayed on the screen. The “:” blinks using the LCD module’s blink
feature, while the core is still in Sleep mode. The CPU does not need to wake-up to
update the screen for the “:”.

The CPU wakes up once a minute in this mode to update the time on the screen. LED1
will blink while the CPU is awake. The CPU will also wake-up when the USB power is
detected.

All other functionality from the USB mode is disabled.

Note: The backlight only operates while in USB mode.

 2019 Microchip Technology Inc. DS50002881A-page 13

PIC24F LCD Curiosity Development Board Quick Start Guide

NOTES:

DS50002881A-page 14  2019 Microchip Technology Inc.

PIC24F LCD CURIOSITY

DEVELOPMENT BOARD

QUICK START GUIDE

Appendix A. Schematics

A.1 PIC24F LCD CURIOSITY DEVELOPMENT BOARD SCHEMATICS

The schematics for the PIC24F LCD Curiosity Development Board are shown in

Figure A-1 (Microcontroller), Figure A-2 (I/O Access),
Figure A-3 (Programmer/Debugger) and Figure A-4 (PKOB Buffers).

 2019 Microchip Technology Inc. DS50002881A-page 15

DS50002881A-page 16  2019 Microchip Technology Inc.

Designed with

Altium.com

820R
0603
1%

R9

820R
0603
1%

R10

1 4

2 3

S2

1 4

2 3

S1

10k
1%

R3

10k
1%

R1

3V3

12

DNP

J1

Net Tie

NT1

RED

LED1

RED

LED2

2

1

43

GREEN

RED

BLUE

5

6

LED3

LED_RGB

RB1_PGC1

RB0_PGD1

14

23

S4

VPP/MCLR

V

DD

GND

ICSPCLK

NC

ICSPDAT

1
2
3
4
5
6

HDR-2.54 Male 1 X6 STAGGERED

DNP

J2

Current

measurement

point

(Local VDD/VSS Bypass/Decoupling for U1)

MCLR

General Purpose LEDs

RGB LED

Buttons

Potentiometer

32.768 kHz Oscillator

2

1

3

10k

20%

R17

MCLR

MCLR

RG6_RSTB

3V3

I2C Pull-ups (DNP)

Note: Notpopulated, typically installed on
mikroBUSdaughter boards instead.

DNP

R21

DNP

R22

mikroBUS™ Interface A

3V3

1k

R14

mikroBUS™ Interface B

3V3

1k

R19

MCLR
Reset
Button

RG7_VLCAP1

RG9_RGB_RED

RE5_LCDBIAS2

RB5_PWMB

RB3_SEG4

RB8_COM7

RB15_ANB

RF3_TXB

RD9_RXA
RD10_TXA

RB2_VSENSE

RB6_LCDBIAS3

100R 06031%

R20

0.1 μF
25V 0603

C4

0.1 μF
25V 0603

C13

0.1 μF
25V
0603

C2

0.1 μF
25V 0603

C3

0.1 μF
25V
0603

C12

1k
0603

1%

R4

1k
0603

1%

R2

RD8_INTB

330R

R12

330R

R13

330R

R11

Programming/Debug (alsoconnects to

PKOB4 circuit output)

0.1

μF

25V
0603

C7

0.1

μF

25V
0603

C8

0.1

μF

25V
0603

C9

0.1 μF
25V
0603

C11

5V

5V

RB13_SEG19

RA0_POT

RB7_RGB_BLUE

RB9_COM6

RB11_TC77CS
RB12_SEG18

RB14_ANA

RF6_INTA

RG3_PWMA

RG2_SEG28

RC12_LED1

RC15_LED2

RD11_CSB

RD0_S2
RD1_S1
RD2_MISO
RD3_MOSI
RD4_SCK

RB10_COM5

10 μF
25V
0805

C10

16V

1 μF

0603

C5

10 μF

25V

0805

C15

RG8_VLCAP2 RE6_LCDBIAS1

RE7_LCDBIAS0

RB4_RGB_GREEN

RB1_PGC1

RB0_PGD1

RF4_SDA
RF5_SCL

RF4_SDA

RF5_SCL

RF5_SCL

RF5_SCL
RF4_SDA

RF4_SDA

RF2_RXB

32.768 kHz

X4

RC13_SOSCIRC14_SOSCO

RC14_SOSCO

RC13_SOSCI

RD1_S1

RD0_S2

RD5_RSTA
RD6_SEG25
RD7_SEG26

RA0_POT

RF0_SEG27
RF1_COM4

RE0_COM3
RE1_COM2
RE2_COM1
RE3_COM0
RE4_CSA

RD2_MISO

RD2_MISO

RD3_MOSI

RD3_MOSI

RD4_SCK

RD4_SCK

RD11_CSB

RE4_CSA

RD8_INTB

RF6_INTA

RD10_TXA

RD9_RXA

RB5_PWMB

RG3_PWMARB14_ANA

RB15_ANB

RD5_RSTA

RF2_RXB

RF3_TXB

RG6_RSTB

RC12_LED1

RC15_LED2

RB7_RGB_BLUE

RB4_RGB_GREEN

RG9_RGB_RED

330R

R5

AN

1

RST

2

CS

3

SCK

4

MISO

5

MOSI

6

+3.3V

7

GND

8

PWM

16

INT

15

RX

14

TX

13

SCL

12

SDA

11

+5V

10

GND

9

J3

AN

1

RST

2

CS

3

SCK

4

MISO

5

MOSI

6

+3.3V

7

GND

8

PWM

16

INT

15

RX

14

TX

13

SCL

12

SDA

11

+5V

10

GND

9

J8

100R
0603

1%

R7

U1VDD

VCAP

15 pF
50V
0603
5%

C21

15 pF
50V
0603
5%

C22

PIC24FJ128GL306-I/PT

LCDBIAS2/RE5

1

LCDBIAS1/RE6

2

LCDBIAS0/RE7

3

SEG0/C1IND/RP21 /RG6

4

V

LCAP1

/C1INC/C2INC/C3INC/RP26/RG 7

5

V

LCAP2

/C2IND/RP19/RG8

6

MCLR

7

SEG1/C2INC/RP27/RG9

8

VSS

9

VDD

10

PGC3/SEG2/AN5/C1 INA/RP18/ASCL1/OCM 1A/RB5

11

PGD3/SEG3/AN4/C1 INB/RP28/ASDA1/OCM 1B/RB4

12

SEG4/AN3/C2INA/RB3

13

SEG5/AN2/C2INB/RP13 /RB2

14

PGC1/SEG6/CVREF -/AN1/AN1-/RP1 /RB1

15

PGD1/SEG7/VREF+/CV REF+/AN0/RP0/RB0

16

PGC2/LCDBIAS3/AN6 /RP6/RB6

17

PGD2/AN7/RP7/T1 CK/RB7

18

AVDD

19

AVSS

20

COM7/SEG31/AN 8/RP8/RB8

21

COM6/SEG30/AN 9/RP9/RB9

22

TMS/COM5/SEG2 9/CVREF/AN10/RP15/RB1 0

23

TDO/AN11/RB11

24

VSS

25

VDD

26

TCK/SEG18/AN1 2/RB12

27

TDI/SEG19/AN1 3/RB13

28

SEG8/AN14/RP14 /OCM1C/RB14

29

SEG9/AN15/RP29/OCM1D/RB15

30

SEG10/RP10/SDA2/RF4

31

SEG11/RP17/SCL2 /RF5

32

SEG12/RP16/RF3

33

SEG40/RP30/RF2

34

RP5/INT0/RF6

35

SEG47/RP31/SDA1/OCM1F/RG3

36

SEG28/SCL1 /RG2

37

VDD

38

OSCI/CLKI/RC12

39

OSCO/CLKO/RC15

40

VSS

41

SEG13/RP2/RD8

42

SEG14/RP4/RD9

43

SEG15/C3IND/RP3 /RD10

44

SEG16/C3INC/RP12/RD1 1

45

SEG17/RP11 /RD0

46

SOSCI/RC13

47

SOSCO/SCLKI/RPI37/PW RLCLK/RC14

48

SEG20/RP24 /RD1

49

SEG21/RP23 /RD2

50

SEG22/RP22 /RD3

51

SEG23/RP25 /RD4

52

SEG24/RP20 /RD5

53

SEG25/C3INB/RD6

54

SEG26/C3INA/RD7

55

VCAP

56

AN16/RA0

57

SEG27/RF0

58

COM4/SEG48/O CM1E/RF1

59

COM3/RE0

60

COM2/RE1

61

COM1/RE2

62

COM0/RE3

63

SEG63/HLVDIN/RE4

64

U1

U1U5VDD

U1U5VDD

U1U5VDD

U1VDD

U1U5VDD

FIGURE A-1: MICROCONTROLLER SCHEMATIC

PIC24F LCD Curiosity Development Board Quick Start Guide

 2019 Microchip Technology Inc. DS50002881A-page 17

Designed with

Altium.com

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20
22

2123

24

25

26

27

28

29

30

31

32

33

34

35

36

HDR-2.54Female 2x18

J11

3V3

I/O Pin Access Headers

USB-UART Interface

ID

4

VBUS

1

GND

5

D-

2

D+

3

0

USB Micro-B TH/SMT

J16

U9D_P

U9D_N

U9D_P

U9D_N

VDD

1

GP0

2

GP1

3

RST

4

UART RX

5

UART TX

6

GP2

7

GP3

8

SDA

9

SCL

10

VUSB

11

D-

12

D+

13

VSS

14

MCP2221A

U9

1k

0603

1%

R75

460.8 Kbaud max

0.1 μF
25V

C33

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20
22

2123

24

25

26

27

28

29

30

31

32

33

34

35

36

HDR-2.54Female 2x18

J12

3V3

Power Status (Green)

LED5

5V

Power Supply

470R
0603
1%

R18

2.2 μF
10V
0603

C23

2.2 μF
10V
0603

C39

VOUT

1

VOUT

2

GND

3

EN

4

NC

5

VIN

6

MIC55283V3

U12

5V

SI/O

4

SCK

3

VSS

2

CS

1

VDD

5

TC77

U5

RF2_RXB
RF3_TXB

RD4_SCK RB11_TC77CS

RD2_MISORD3_MOSI

1k
0603

1%

R16

0.1 μF
25V
0603

C1

TC77 Temperature Sensor

TP LOOP Black

DNP

TP1

123

J9

_J9

BumponHemisphere Black

PAD1 PAD2 PAD3 PAD4

3V3

U1U5VDD

10k
1%

R6

3V3

0.1 μF
25V

C31

3V3

10k
0603
1%

R48

36k
0603

1%

R47

1

3

2

MMBT3904

Q1

1

3

2

MMBT3904

Q2

16V
1 μF
0603

C30

3V3

4.7k
0603

R49

RG2_SEG28

RF0_SEG27

RF1_COM4

RE0_COM3

RE1_COM2

RE2_COM1

RE3_COM0

RD6_SEG25

RD7_SEG26

RB3_SEG4

RB8_COM7

RB13_SEG19

RB9_COM6

RB12_SEG18

RB10_COM5

LCD Connections

RE5_LCDBIAS2

RB5_PWMB

RB3_SEG4

RB8_COM7

RB15_ANB

RD9_RXA RD10_TXA

RB2_VSENSE

RB6_LCDBIAS3

RD8_INTB

RB13_SEG19

RB7_RGB_BLUE

RB9_COM6

RB11_TC77CS

RB12_SEG1 8
RB14_ANA

RC12_LED1

RC15_LED2

RD11_CSB RD0_S2

RD1_S1RD2_MISO
RD3_MOSIRD4_SCK

RB10_COM5

RE6_LCDBIAS1 RE7_LCDBIAS0

RB4_RGB_GREEN

RB1_PGC1

RB0_PGD1

RC14_SOSCO RC13_SOSCI

RD5_RSTARD6_SEG25
RD7_SEG26

RE0_COM3 RE1_COM2

RE2_COM1 RE3_COM0

RE4_CSA

RG6_RSTB RG7_ VLCAP1

RG9_RGB_RED

RF3_TXB
RF6_INTA

RG3_PWMA RG2_SEG28

RG8_VLCAP2

RF4_SDA
RF5_SCL
RF2_RXB

RF0_SEG27 RF1_COM4

MCLR

RA0_POT

U1VDD

VCAP

3V3

3V3

5V

1

2

3

BAT54C

D1

Reverse protection

1 μF
50V
0603

C46

RG7_VLCAP1

RG8_VLCAP2

1 μF
50V
0603

C47

1 μF
50V
0603

C49

1 μF
50V
0603

C50

1 μF
50V
0603

C51

RE7_LCDBIAS0 RE6_LCDBIAS1

RE5_LCDBIAS2 RB6_LCDBIAS3

MBR0530T1G

D2

36k
0603

1%

R8

20k
0603
1%

R15

RB2_VSENSE

CR2032

12

HOLDER 1xCR2032

B1

LCD11LCD22LCD33LCD44LCD55LCD66LCD77LCD8

8

K

17

A

16

LCD99LCD1010LCD1111LCD1212LCD1313LCD1414LCD15

15

VLM7333-01LCD1

5V

LCD Capacitors

U1U5VDD

22R
0603
1%

R50

FIGURE A-2: I/O ACCESS SCHEMATIC

Schematics

DS50002881A-page 18  2019 Microchip Technology Inc.

D_P

D_N

+t

500 mA Polyfuse

1210

TH1

ID

4

VBUS

1

GND

5

D-

2

D+

3

0

USB MICRO-B FEMALE

J20

PICkit™ On-Board 4

PKOB USB Interface

3V3

DSC6011JI1A-012.0000

0.1 μF
25V

0603

C28

STB

1

GND2OUT

3

VDD

4

12.00 MHz

X3

ATSAME70N21B-ANT

PA0/PWMC0_PWMH0/TIOA0/A17/BA1

72

PA1/PWMC0_PWML0/TIOB0/A18

70

PA2/PWMC0_PWMH1/DATRG

66

PA3/TWD0/LONCOL1/PCK2

64

PA4/TWCK0/TCLK0/UTXD1

55

PA5/WMC1_PWML3/ISI_D4/URXD1

52

PA7/XIN32

24

PA8/XOUT32

25

PA9/URXD0/ISI_D3/PWMC0_PWMFI0

54

PA10/UTXD0/PWMC0_PWMEXTRG0/RD

46

PA11/QCS/PWMC0_PWMH0/PWMC1_PWML0

44

PA12/QIO1/PWMC0_PWMH1/PWMC1_PWMH0

48

PA13/QIO0/PWMC0_PWMH2/PWMC1_PWML1

27

PA14/QSCK/PWMC0_PWMH3

34

PA15/D14/TIOA1/PWMC0_PWML3

33

PA16/D15/TIOB1/PWMC0_PWML2

30

PA17/QIO2/PCK1/PWMC0_PWMH3

16

PA18/PWMC1_PWMEXTRG1/PCK2/A14

15

PA19/PWMC0_PWML0/A15

14

PA20/PWMC0_PWML1/A16/BA0

13

PA21/RXD1/PCK1/PWMC1_PWMFI0

21

PA22/RK/PWMC0_PWMEXTRG1/NCS2

26

PA23/SCK1/PWMC0_PWMH0/A19

31

PA24/RTS1/PWMC0_PWMH1/A20

38

PA25/CTS1/PWMC0_PWMH2/A23

40

PA26/DCD1/TIOA2/MCDA2

42

PA27/DTR1/TIOB2/MCDA3

50

PA28/DSR1/TCLK1/MCCDA

79

PA30/PWMC0_PWML2/PWMC1_PWMEXTRG0

82

PA31/SPI0_NPCS1/PCK2/MCDA1

83

PB0/PWMC0_PWMH0/RXD0

12

PB1/PWMC0_PWMH1/GTSUCOMP/TXD0

11

PB2/CANTX0/CTS0

17

PB3/CANRX0/PCK2/RTS0

20

PB4/TDI/TWD1/PWMC0_PWMH2

74

PB5/TDO/TWCK1/PWMC0_PWML0

77

PB6/SWDIO/TMS

57

PB7/SWCLK/TCK

63

PB8/XOUT

98

PB9/XIN

99

PB12/ERASE/PWMC0_PWML1/GTSUCOMP

61

PB13/PWMC0_PWML2/PCK0/SCK0

100

PD0/GTXCK/PWMC1_PWML0/SPI1_NPCS1

1

PD1/GTXEN/PWMC1_PWMH0/SPI1_NPCS2

92

PD2/GTX0/PWMC1_PWML1/SPI1_NPCS3

91

PD3/GTX1/PWMC1_PWMH1/UTXD4

89

PD4/GRXDV/PWMC1_PWML2/TRACED0

88

PD5/GRX0/PWMC1_PWMH2/TRACED1

87

PD6/GRX1/PWMC1_PWML3/TRACED2

85

PD7/GRXER/PWMC1_PWMH3/TRACED3

84

PD8/GMDC/PWMC0_PWMFI1

80

PD9/GMDIO/PWMC0_PWMFI2/AFE1_ADTRG

78

PD10/PWMC0_PWML0/TD

71

PD11/GRX2/PWMC0_PWMH0/GTSUCOMP

69

PD12/GRX3/CANTX1/SPI0_NPCS2

65

PD13/GCOL/SDA10

62

PD14/GRXCK/SDCKE

59

PD15/GTX2/RXD2/NWR1/NBS1

75

PD16/GTX3/TXD2/RAS

56

PD17/GTXER/SCK2/CAS

53

PD18/NCS1/SDCS/RTS2/URXD4

49

PD19/NCS3/CTS2/UTXD4

47

PD20/PWMC0_PWMH0/SPI0_MISO/GTSUCOMP

45

PD21/PWMC0_PWMH1/SPI0_MOSI/TIOA11

43

PD22/PWMC0_PWMH2/SPI0_SPCK/TIOB11

41

PD24/PWMC0_PWML0/RF/TCLK11

37

PD25/PWMC0_PWML1/SPI0_NPCS1/URXD2

35

PD26/PWMC0_PWML2/TD/UTXD2

36

PD27/PWMC0_PWML3/SPI0_NPCS3/TWD2

32

PD28/URXD3/CANRX1/TWCK2

51

PD30/UTXD3

23

PD31/QIO3/UTXD3/PCK2

2

HSDP

95

HSDM

94

NRST

58

TST

60

JTAGSEL

73

VREFP

9

VREFN

6

VBG

97

U4A

UTIL_SDA

UTIL_SCL

ERASE

VPP_ON

VPP_GND

4.7k
0402
1%

R23

4.7k
0402
1%

R24

3V3

VDD_GND

PKOB4_SWDIO
PKOB4_SWCLK

PKOB4_TDO

DATA_EN

CLK_EN

PG_SYSTEM

((U)PDI_RXD1)

PDI_SCK1

((U)PDI_TXD1)

(TAUX_TAR)

(SPI0_NPCS0)

D_P
D_N

PKOB4_nRST

ICSP_SPI0_SPCK

ICSP_SPI0_MOSI

ICSP_SPI0_MISO

(ICSP_SDO)

(ICSP_SDI)

(ICSP_SCK)

(TDI_IN)
(TMS_IN)
(TAUX_IN)

MOSI
SCK

MISO

SCK_IN

CLK_EN
DATA_EN

ICSP™

ICSP

ISP_SPI1_MOSI

(TDI_TAR)

ISP_SPI1_SPCK

(SCK_IN)

SPI1_NPCS0

(TMS_TAR)

5.62k
0402
1%

R25

3V3

USB_VBIAS

STATUS

ACTIVE

TVDD_GOOD

ICSP_FORCE_SPI_SS

CTS0_SPI1_SS

ISP_SPI_SS

5V0_nUSBFLT

5V0_USBGOOD

TAUX_DIR

TDI_DIR

TMS_DIR

DW_TX

DW_RX

(DW_RX)

STRONG_PULLUP_EN

XIN

ISP_SPI1_MISO

PDI_RXD1

PDI_TXD1

TIOA0

PKOB4_REV0
PKOB4_REV1
PKOB4_REV2
PKOB4_REV3
PKOB4_REV4

3V3

DATA_EN

DGI_I2C_SCL

DGI_I2C_SDA

DGI_IO1

DGI_IO0

DGI_IO2
DGI_IO3

ISP_SPI1_SPCK

SYS_ID1

SYS_ID2

SYS_ID4

SYS_ID3

DGI_IO3_DIR
DGI_IO2_DIR
DGI_IO1_DIR

DGI_IO0_DIR

CLK_EN

ICSP_SPI0_SPCK

ICSP_SPI0_MOSI

ICSP_SPI0_MISO

STREAM_TXD2

STREAM_RXD2

STREAM_SCK2

VBUS_DETECT

VCP_UART_TX

VCP_UART_RX

VCP

VCP

ATSAME70N21B-ANT

VDDOUT

4

VDDIN

5

VDDIO

19

VDDIO

28

VDDIO

68

VDDIO

81

VDDCORE

18

VDDCORE

22

VDDCORE

39

VDDCORE

76

VDDPLL

86

VDDUTMII

93

VDDUTMIC

96

VDDPLLUSB

90

GND

3

GND

7

GND

8

GND

10

GND

29

GND

67

U4B

VDDCORE

3V3

3V3

VDDCORE

FB1

VDDCORE

3V3

FB2

4.7 μF
0603
16V

C34

3V3 VDDCORE

VDDIO Bypass Caps VDDCORE Bypass Caps

XIN

24LC256

A0

1

SDA

5

A2

3

A1

2

WP

7

Vss

4

SCL

6

VCC

8

U2

3V3

UTIL_SCL

UTIL_SDA

DNP

1
2

J4

3V3

ERASE

4.7 μF
0603
16V

C38

3V3

16V
1 μF
0603

C27

XIN

D_P
D_N

3V33V3

SWD

3V3

3V3

(TDI_PGD)

(TAUX)

(TDO_SWO)

(NMCLR)

(VDD_VIOREF)

(TMS_SWDIO)

DNP

1
2
3
4
5
6
7
8

J5

(TCK_PGC_SWDCLK)

100k
0402
1%

R26

100k
0402
1%

R27

100k
0402
1%

R28

PKOB4_SWDIO

PKOB4_SWCLK

PKOB4_nRST

PKOB4_TDO

PKOB4_nRST

UTIL_SDA
UTIL_SCL

3V3

31.6k
0402
1%

R43

TVDD_GOOD

47k
0402
1%

R44

ERASE

10k
0402

1%

R31

3V3

10k
0402
1%

R29

3V3

31.6k
0402

1%

R45

47k
0402
1%

R46

VBUS_DETECT

VBUS_DETECT

CLK_EN

DATA_EN

74LVC1G3157

B2

1

GND

2

B13A

4

VCC

5

S

6

U3

ICSP_FORCE_SPI_SS

SPI1_NPCS0

CTS0_SPI1_SS

ISP_SPI_SS

3V3

PKOB4_SWCLK

PKOB4_SWDIO

PKOB4_TDO

5V

0.1 μF
25V
0603

C14

0.1 μF
25V
0603

C16

0.1 μF
25V
0603

C17

0.1 μF
25V
0603

C18

0.1 μF
25V
0603

C19

0.1 μF
25V
0603

C20

0.1 μF
25V
0603

C24

0.1 μF
25V
0603

C25

0.1 μF
25V
0603

C41

0.1 μF
25V
0603

C37

0.1 μF
25V
0603

C36

0.1 μF
25V
0603

C35

0.1 μF
25V
0603

C32

0.1 μF
25V
0603

C40

PKOB Revision 1
Reserved for PKOB4

FIGURE A-3: PROGRAMMER/DEBUGGER SCHEMATIC

PIC24F LCD Curiosity Development Board Quick Start Guide

 2019 Microchip Technology Inc. DS50002881A-page 19

74LVC1T45GW

DIR

5

A

3

B

4

GND

2

VCCA1VCCB

6

U6

3V3

330R

0402 1%

R34

330R

0402 1%

R35

74LVC1T45GW

DIR

5

A

3

B

4

GND

2

VCCA1VCCB

6

U7

3V3

330R

0402 1%

R36

CLK_EN

DATA_EN

330R

0402 1%

R37

22R
0603
1%

R41

22R
0603
1%

R40

MOSI

SCK

MISO

SCK_IN

CLK_EN

DATA_EN

ICSP

ICSP

ICSP_SPI0_SPCK

ICSP_SPI0_MOSI
ICSP_SPI0_MISO

ISP_SPI1_SPCK

ICSP_SPI0_MOSI

ICSP_SPI0_MISO

ICSP_SPI0_SPCK

(ICSP_SCK)

(SCK_IN)

(ICSP_SDO)

(ICSP_SDI)

ISP_SPI1_SPCK

4.7k
0402
1%

R38

4.7k

0402

1%

R39

VPP/MCLR

DATA_EN

CLK_EN

3.3k
0402
1%

R32

3.3k
0402
1%

R33

VPP_ON

74LVC1T45GW

DIR

5

A

3

B

4

GND

2

VCCA1VCCB

6

U8

1k
0603
1%

R42

3V3

RB1_PGC1

RB0_PGD1

MCLR

10k
0402
1%

R30

Target ICSP™ Signals

PICkit™ On-Board 4 (buffers)

CLK_EN

DATA_EN

0.1 μF
25V

0603

C45

0.1 μF
25V
0603

C26

0.1 μF
25V
0603

C29

0.1 μF
25V
0603

C42

0.1 μF
25V

0603

C44

0.1 μF
25V

0603

C43

U1U5VDD

U1U5VDD

U1U5VDD

10k
0402
1%

R51

To Application VPP/MCLR

FIGURE A-4: PICkit™ ON-BOARD (PKOB) BUFFERS SCHEMATIC

To Application PGD

To Application PGC

Schematics

PIC24F LCD Curiosity Development Board Quick Start Guide

NOTES:

DS50002881A-page 20  2019 Microchip Technology Inc.

PIC24F LCD CURIOSITY

DEVELOPMENT BOARD

QUICK START GUIDE

Appendix B. LCD Operation

Backlight operation is dependent on the USB-5V supply; the LCD backlight is disabled
during Battery-Operated mode.

Pin assignment and LCD segment assignment are shown in Figure B-1.

FIGURE B-1: MECHANICAL DRAWING AND SEGMENT ASSIGNMENT (DIMENSIONS IN mm)

 2019 Microchip Technology Inc. DS50002881A-page 21

PIC24F LCD Curiosity Development Board Quick Start Guide

LCD panel pin and segment assignment is shown in Tab le B -1 .

TABLE B-1: LCD PANEL PIN AND SEGMENT ASSIGNMENT

PIN COM1 COM2 COM3 COM4 COM5 COM6 COM7 COM8

1COM1— — — — — — —

2—COM2——————

3——COM3—————

4 ———COM4— — ——

5 ————COM5— ——

6 —————COM6——

7 ————— —COM7—

8 ————— — —COM8

91A1F1E1D2A2F2E2D

10 1B 1G 1C DP1 2B 2G 2C DP2

11 4A 4F 4E DP3 3A 3F 3E COL1

12 4B 4G 4C 4D 3B 3G 3C 3D

13 X4 X1 DP5 5H 5G 5P 5F DP4

14 X5 5A 5K 5L 5I 5O 5N 5E

15 X3 X6 5B 5M 5C 5J 5D DP6

DS50002881A-page 22  2019 Microchip Technology Inc.

NOTES:

LCD Operation

 2019 Microchip Technology Inc. DS50002881A-page 23

Worldwide Sales and Service

AMERICAS

Corporate Office

2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: [phone]
Fax: [phone]
Technical Support:

http://www.microchip.com/
support

Web Address:

www.microchip.com

Atlanta

Duluth, GA
Tel: [phone]
Fax: [phone]

Austin, TX

Tel: [phone]

Boston

Westborough, MA
Tel: [phone]
Fax: [phone]

Chicago

Itasca, IL
Tel: [phone]
Fax: [phone]

Dallas

Addison, TX
Tel: [phone]
Fax: [phone]

Detroit

Novi, MI
Tel: [phone]

Houston, TX

Tel: [phone]

Indianapolis

Noblesville, IN
Tel: [phone]
Fax: [phone]
Tel: [phone]

Los Angeles

Mission Viejo, CA
Tel: [phone]
Fax: [phone]
Tel: [phone]

Raleigh, NC

Tel: [phone]

New York, NY

Tel: [phone]

San Jose, CA

Tel: [phone]
Tel: [phone]

Canada - Toronto

Tel: [phone]
Fax: [phone]

ASIA/PACIFIC

Australia - Sydney

Tel: [phone]

China - Beijing

Tel: [phone]

China - Chengdu

Tel: [phone]

China - Chongqing

Tel: [phone]

China - Dongguan

Tel: [phone]

China - Guangzhou

Tel: [phone]

China - Hangzhou

Tel: [phone]

China - Hong Kong SAR

Tel: [phone]

China - Nanjing

Tel: [phone]

China - Qingdao

Tel: [phone]

China - Shanghai

Tel: [phone]

China - Shenyang

Tel: [phone]

China - Shenzhen

Tel: [phone]

China - Suzhou

Tel: [phone]

China - Wuhan

Tel: [phone]

China - Xian

Tel: [phone]

China - Xiamen

Tel: [phone]

China - Zhuhai

Tel: [phone]

ASIA/PACIFIC

India - Bangalore

Tel: [phone]

India - New Delhi

Tel: [phone]

India - Pune

Tel: [phone]

Japan - Osaka

Tel: [phone]

Japan - Tokyo

Tel: [phone]

Korea - Daegu

Tel: [phone]

Korea - Seoul

Tel: [phone]

Malaysia - Kuala Lumpur

Tel: [phone]

Malaysia - Penang

Tel: [phone]

Philippines - Manila

Tel: [phone]

Singapore

Tel: [phone]

Taiwan - Hsin Chu

Tel: [phone]

Taiwan - Kaohsiung

Tel: [phone]

Taiwan - Taipei

Tel: [phone]

Thailand - Bangkok

Tel: [phone]

Vietnam - Ho Chi Minh

Tel: [phone]

EUROPE

Austria - Wels

Tel: [phone]
Fax: [phone]

Denmark - Copenhagen

Tel: [phone]
Fax: [phone]

Finland - Espoo

Tel: [phone]

France - Paris

Tel: [phone]
Fax: [phone]

Germany - Garching

Tel: [phone]

Germany - Haan

Tel: [phone]

Germany - Heilbronn

Tel: [phone]

Germany - Karlsruhe

Tel: [phone]

Germany - Munich

Tel: [phone]
Fax: [phone]

Germany - Rosenheim

Tel: [phone]

Israel - Ra’anana

Tel: [phone]

Italy - Milan

Tel: [phone]
Fax: [phone]

Italy - Padova

Tel: [phone]

Netherlands - Drunen

Tel: [phone]
Fax: [phone]

Norway - Trondheim

Tel: [phone]

Poland - Warsaw

Tel: [phone]

Romania - Bucharest

Tel: [phone]

Spain - Madrid

Tel: [phone]
Fax: [phone]

Sweden - Gothenberg

Tel: [phone]

Sweden - Stockholm

Tel: [phone]

UK - Wokingham

Tel: [phone]
Fax: [phone]

DS50002881A-page 24  2019 Microchip Technology Inc.

05/14/19
