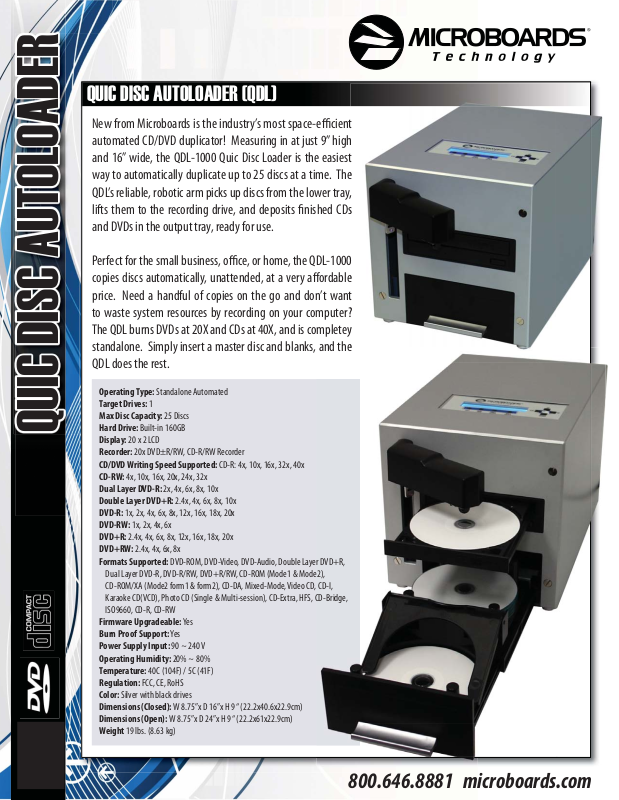

QUIC DISC AUTOLOADER (QDL)
222444
New from Microboards is the industry’s most space-e cient
automated CD/DVD duplicator! Measuring in at just 9” high
and 16” wide, the QDL-1000 Quic Disc Loader is the easiest
way to automatically duplicate up to 25 discs at a time. The
QDL’s reliable, robotic arm picks up discs from the lower tray,
lifts them to the recording drive, and deposits nished CDs
and DVDs in the output tray, ready for use.
Perfect for the small business, o ce, or home, the QDL-1000
copies discs automatically, unattended, at a very a ordable
price. Need a handful of copies on the go and don’t want
to waste system resources by recording on your computer?
¸
The QDL burns DVDs at 20X and CDs at 40X, and is completey
standalone. Simply insert a master disc and blanks, and the
QDL does the rest.
Operating Type: Standalone Automated
Target Drives: 1
Max Disc Capacity: 25 Discs
QUIC DISC AUTOLOADER
Hard Drive: Built-in 160GB
Display: 20 x 2 LCD
Recorder: 20x DVD±R/RW, CD-R/RW Recorder
CD/DVD Writing Speed Supported: CD-R: 4x, 10x, 16x, 32x, 40x
CD-RW: 4x, 10x, 16x, 20x, 24x, 32x
Dual Layer DVD-R: 2x, 4x, 6x, 8x, 10x
Double Layer DVD+R: 2.4x, 4x, 6x, 8x, 10x
DVD-R: 1x, 2x, 4x, 6x, 8x, 12x, 16x, 18x, 20x
DVD-RW: 1x, 2x, 4x, 6x
DVD+R: 2.4x, 4x, 6x, 8x, 12x, 16x, 18x, 20x
DVD+RW: 2.4x, 4x, 6x, 8x
Formats Supported: DVD-ROM, DVD-Video, DVD-Audio, Double Layer DVD+R,
Dual Layer DVD-R, DVD-R/RW, DVD+R/RW, CD-ROM (Mode1 & Mode2),
CD-ROM/XA (Mode2 form1 & form2), CD-DA, Mixed-Mode, Video CD, CD-I,
Karaoke CD(VCD), Photo CD (Single & Multi-session), CD-Extra, HFS, CD-Bridge,
ISO9660, CD-R, CD-RW
Firmware Upgradeable: Yes
Burn Proof Support: Yes
Power Supply Input: 90 ~ 240 V
Operating Humidity: 20% ~ 80%
Temperature: 40C (104F) / 5C (41F)
Regulation: FCC, CE, RoHS
Color: Silver with black drives
Dimensions (Closed): W 8.75”x D 16”x H 9 “ (22.2x40.6x22.9cm)
Dimensions (Open): W 8.75”x D 24”x H 9 “ (22.2x61x22.9cm)
Weight 19 lbs. (8.63 kg)
24
800.646.8881 microboards.com
