MicroBoards Technology PF-2 User Manual
PF-2 PrintFactory
Users Manual
Microboards Technology LLC Version 1.1
www.microboards.com
Microboards Technology PF-2 PrintFactory
2
Microboards Technology PF-2 PrintFactory
Table of Contents
Chapter 1 Introduction............................................................................................................................4
Chapter 2 Printer Description..................................................................................................................5
Front Panel Indicators and Buttons.......................................................................................................5
What’s Included....................................................................................................................................5
Chapter 3 Installation...............................................................................................................................6
Installing Ink Cartridges.......................................................................................................................6
Supported Ink Cartridges..................................................................................................................6
Ink cartridge troubleshooting............................................................................................................ 6
Loading / Replacing Ink Cartridges.................................................................................................. 6
Installing Disc Guide and Output Bin ..................................................................................................7
Connecting to a Computer.................................................................................................................... 7
Parallel Port ......................................................................................................................................7
USB Port...........................................................................................................................................7
Installing the Printer Driver..................................................................................................................8
USB Port and Parallel Port...............................................................................................................8
Windows 2000 install procedures:....................................................................................................8
Windows XP install procedures: ....................................................................................................11
Multiple Printers............................................................................................................................. 14

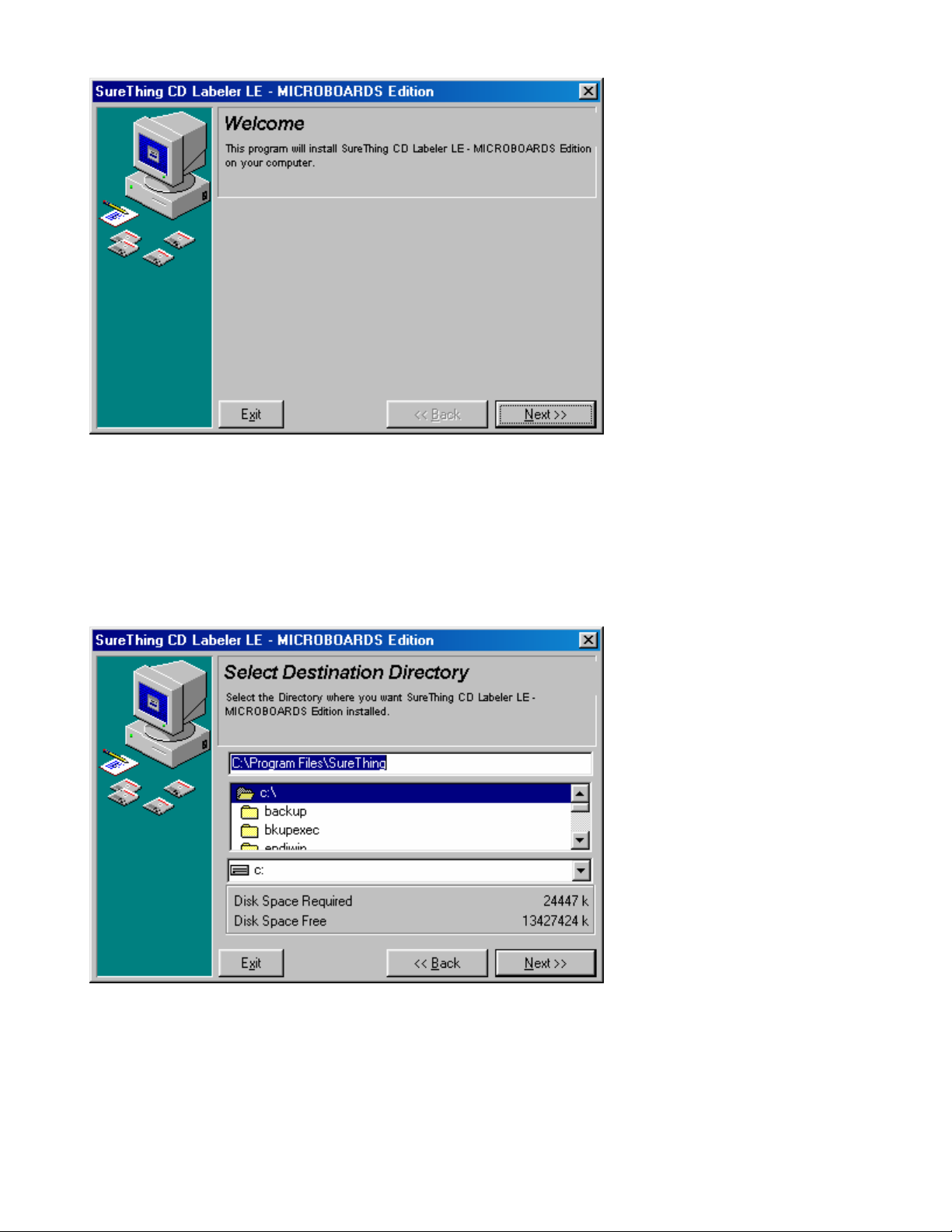

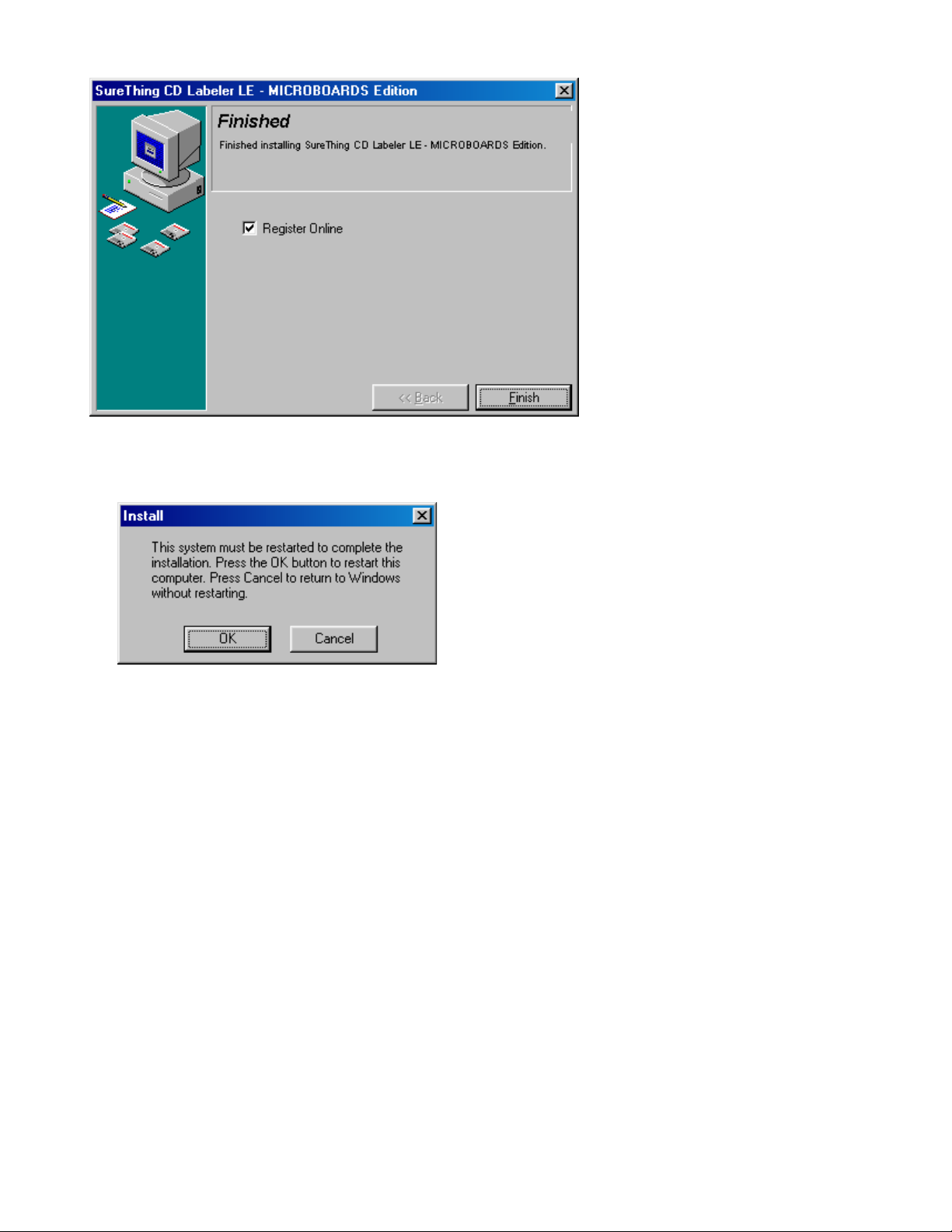

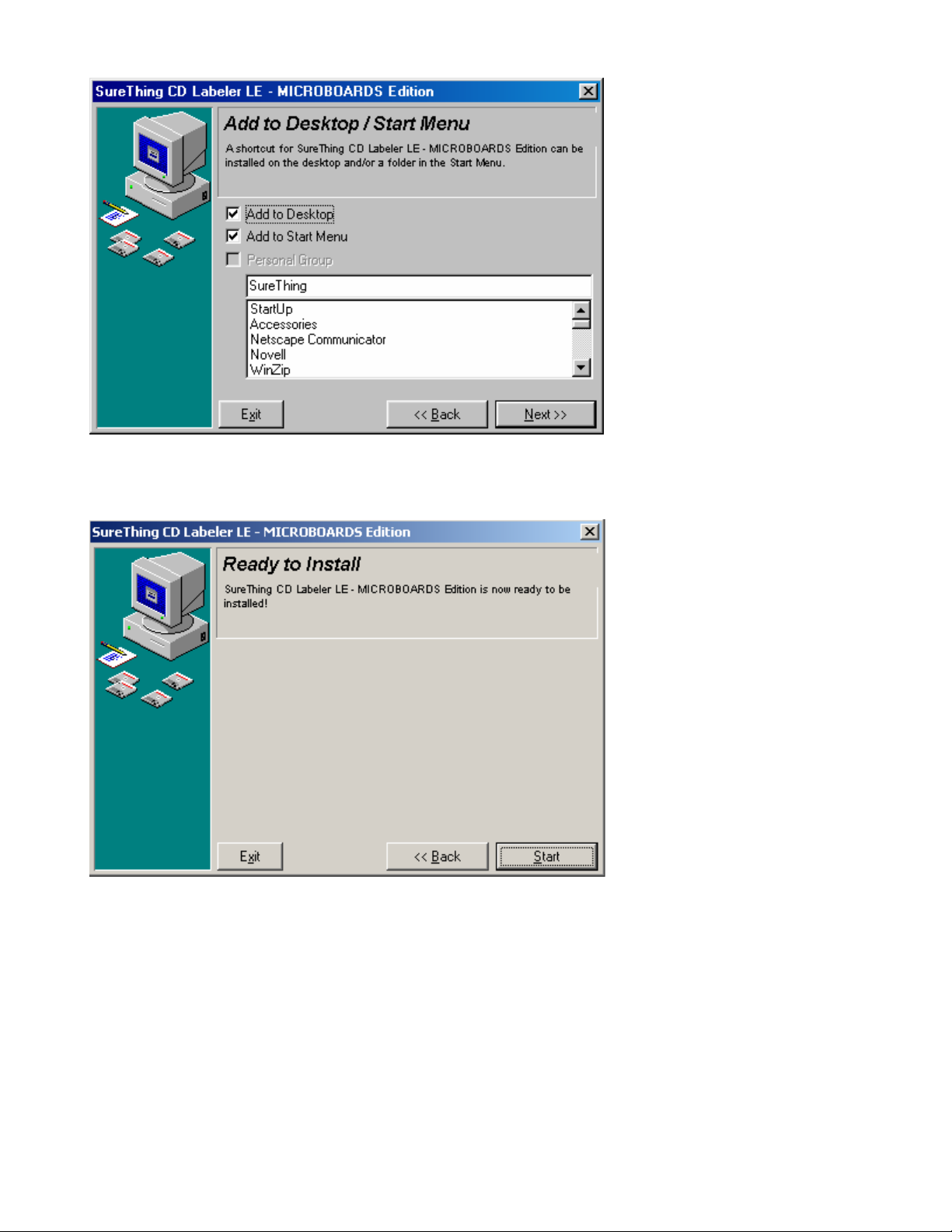

Installing SureThing CD Labeler Software........................................................................................15
Chapter 4 Using the Printer ................................................................................................................... 19
Test and Alignment.............................................................................................................................19
Print Test Disc ................................................................................................................................ 19

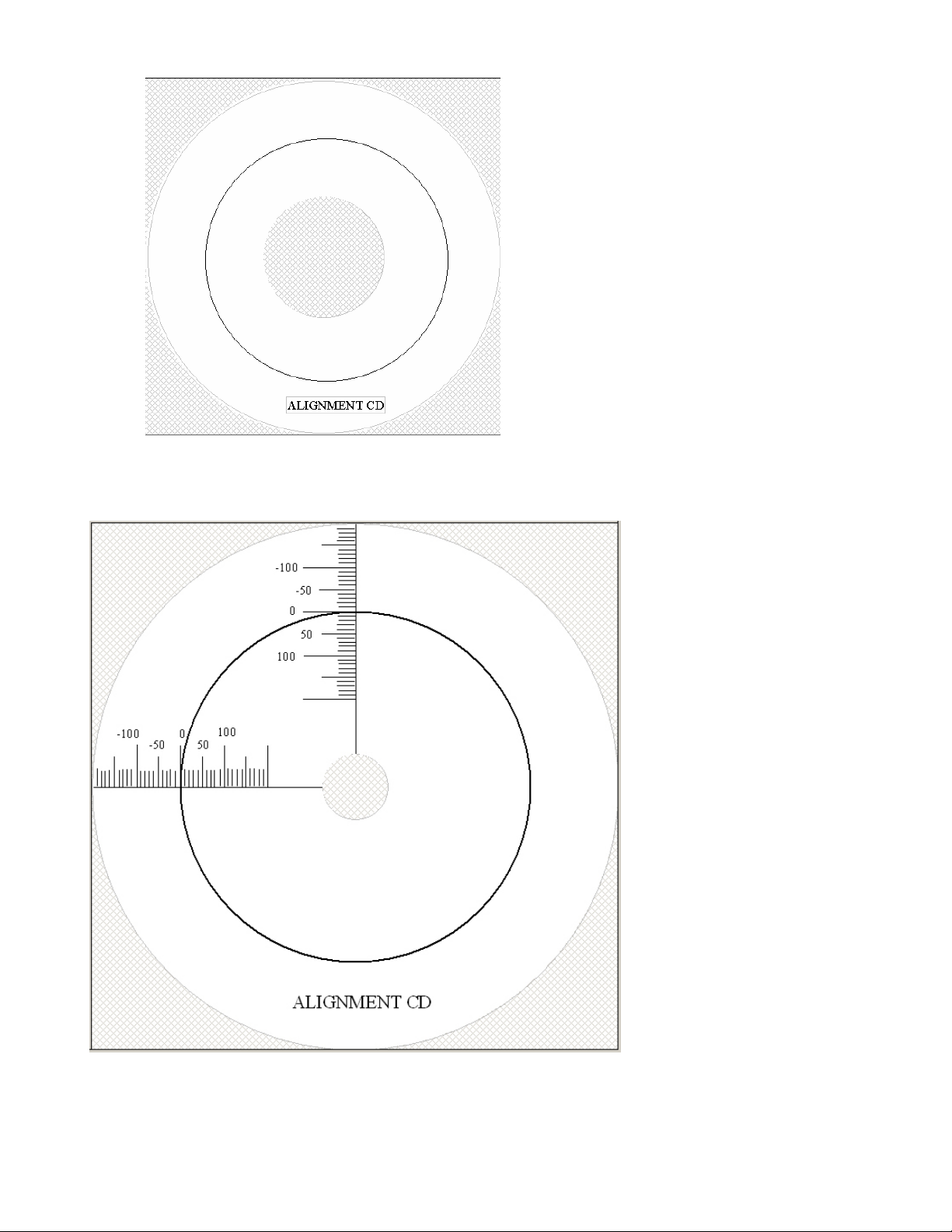

Align Disc.......................................................................................................................................20

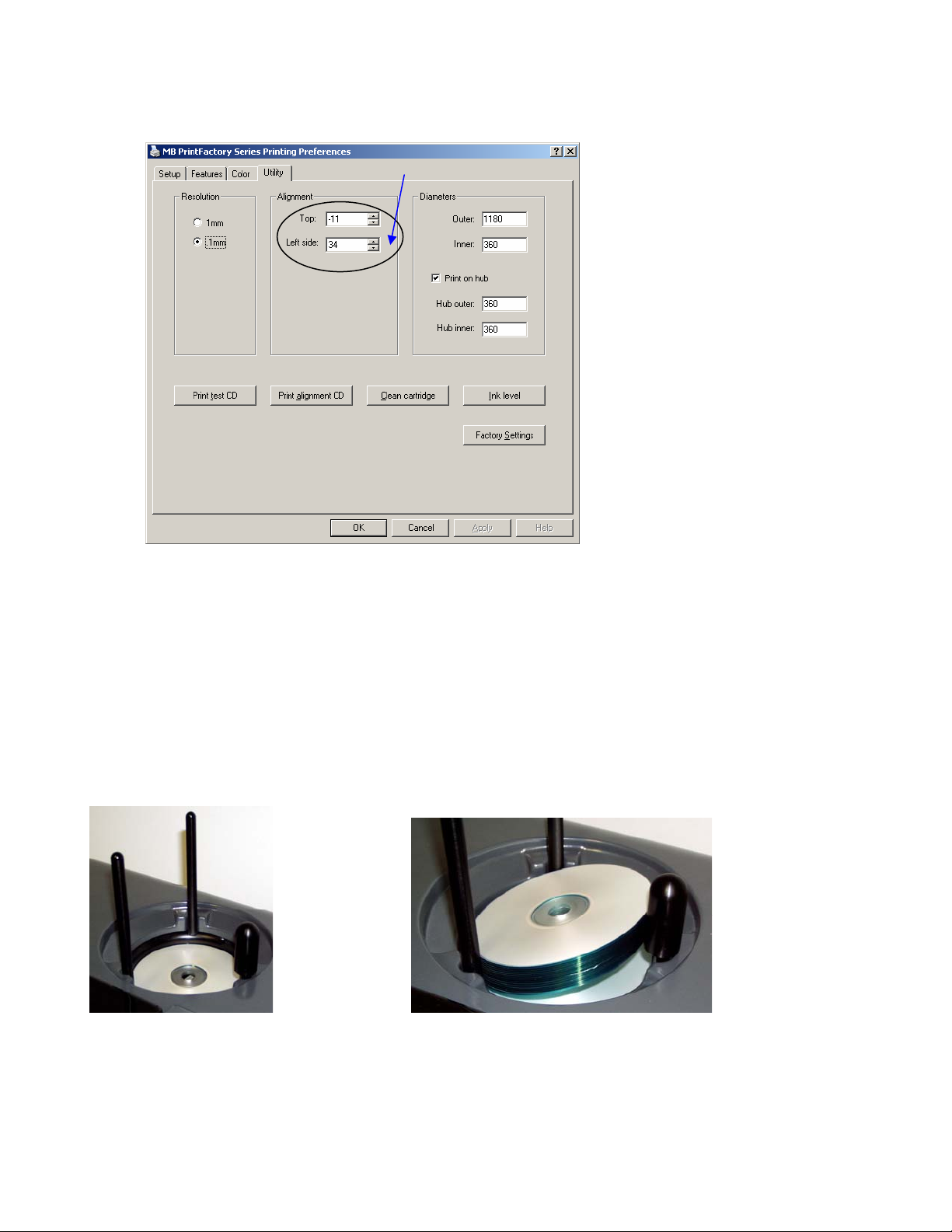

Loading Discs.....................................................................................................................................23

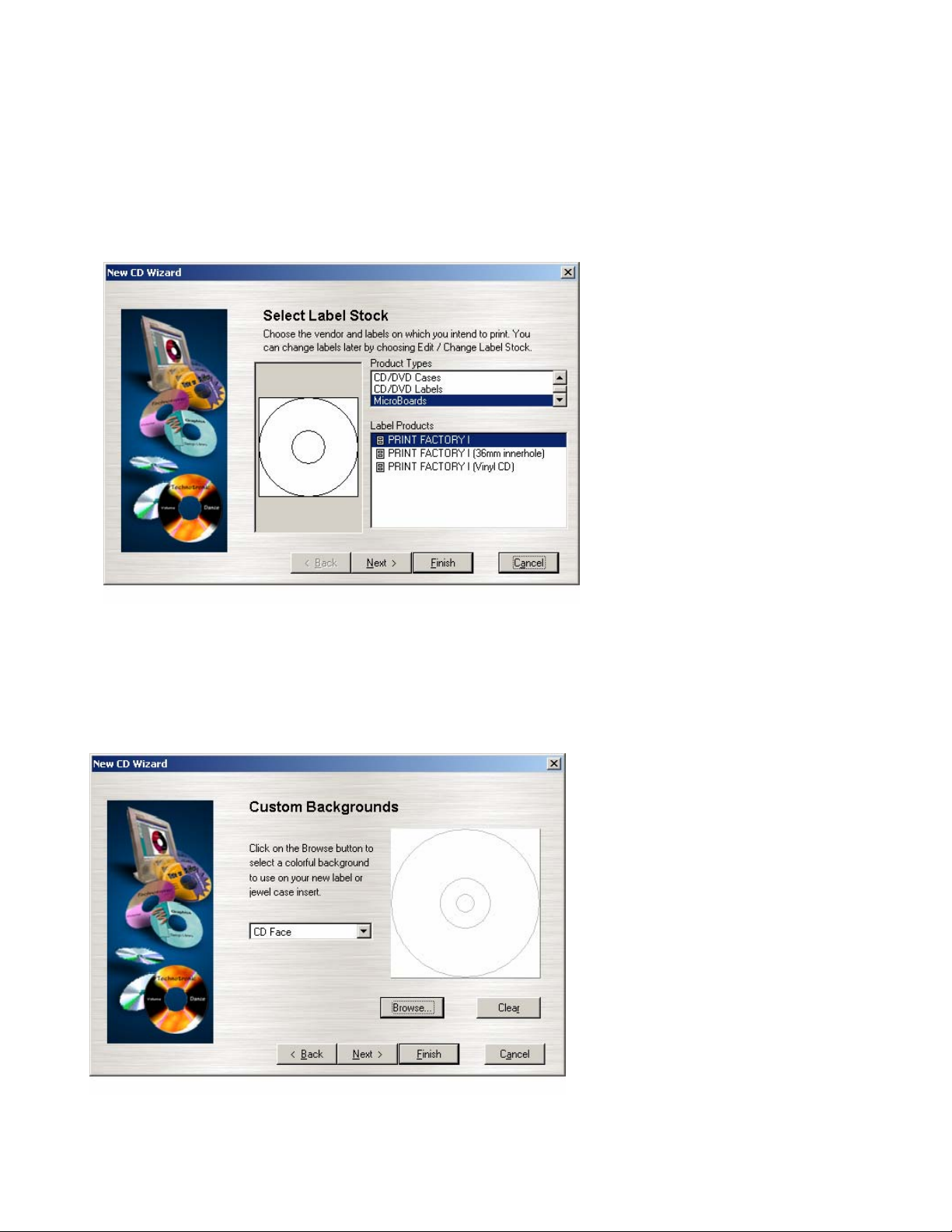

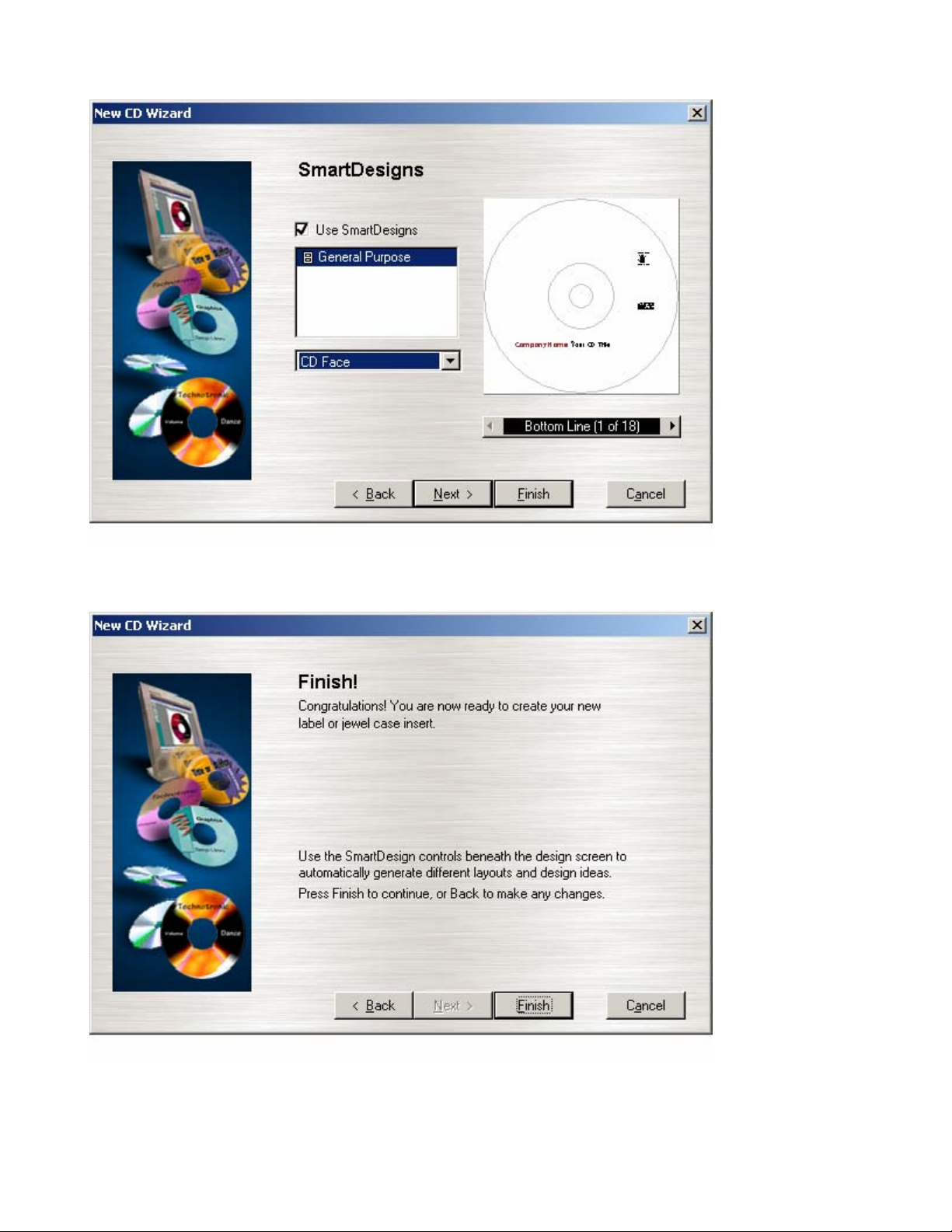

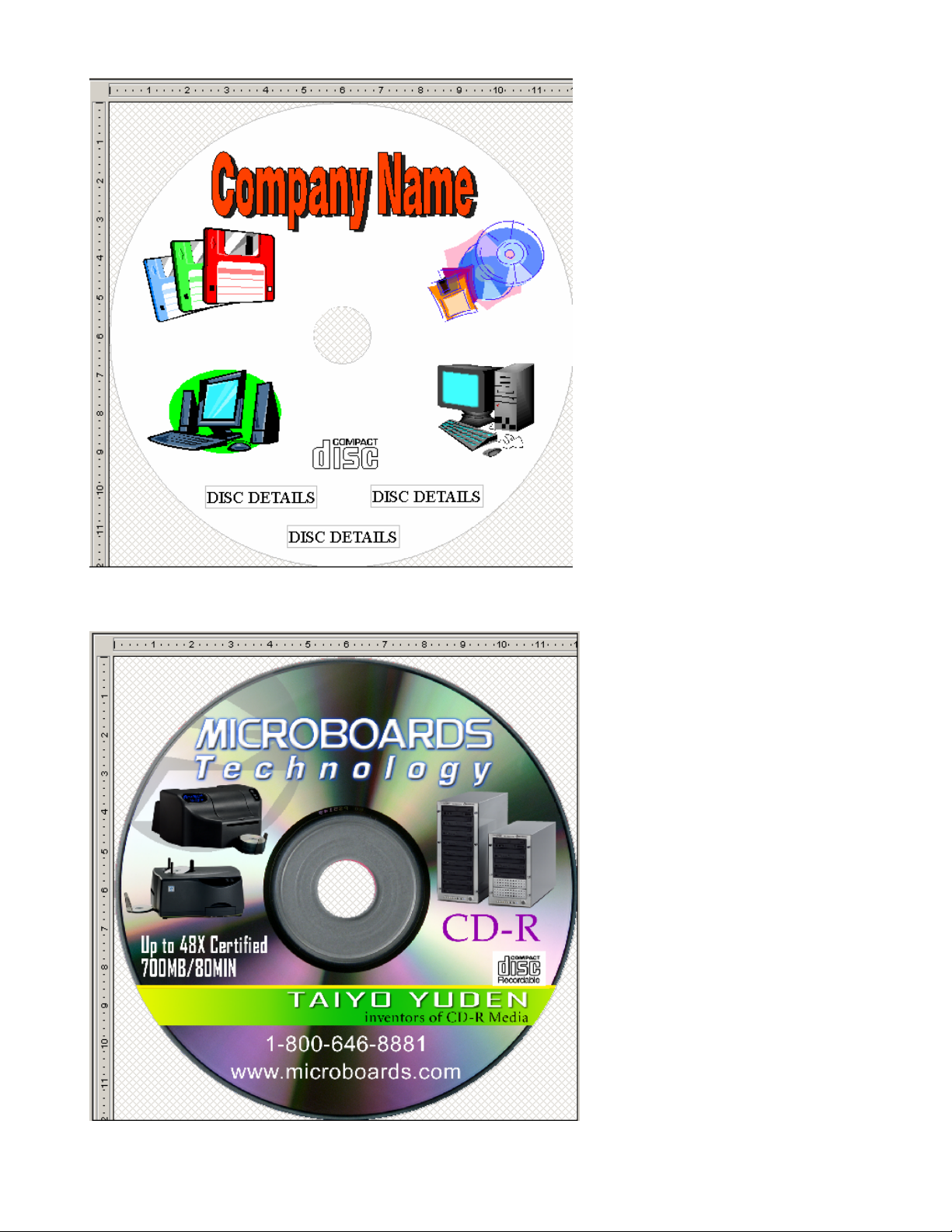

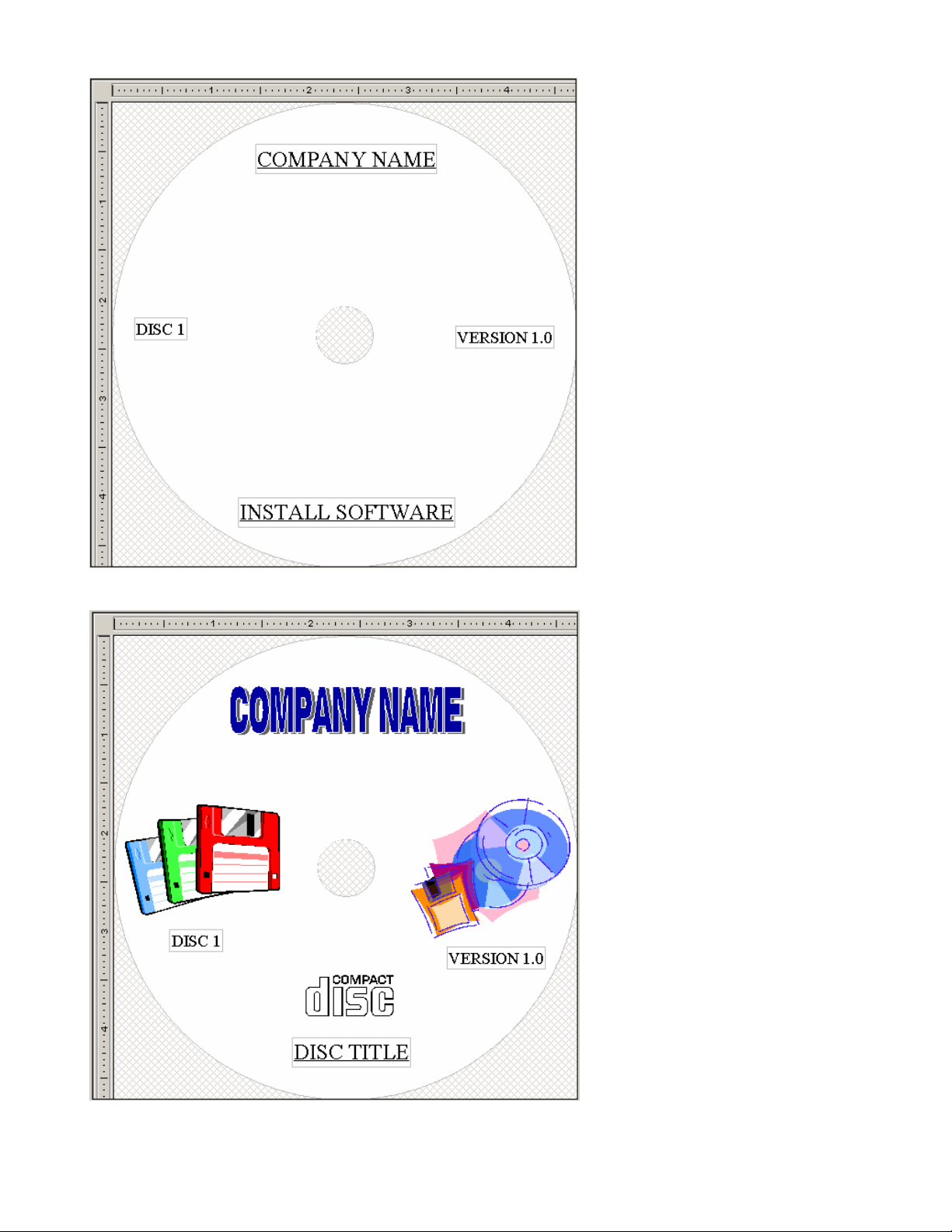

Printing Discs......................................................................................................................................24
Printing on Verbatim Vinyl CD-R discs............................................................................................. 28
Chapter 5 Printer Properties...................................................................................................................30

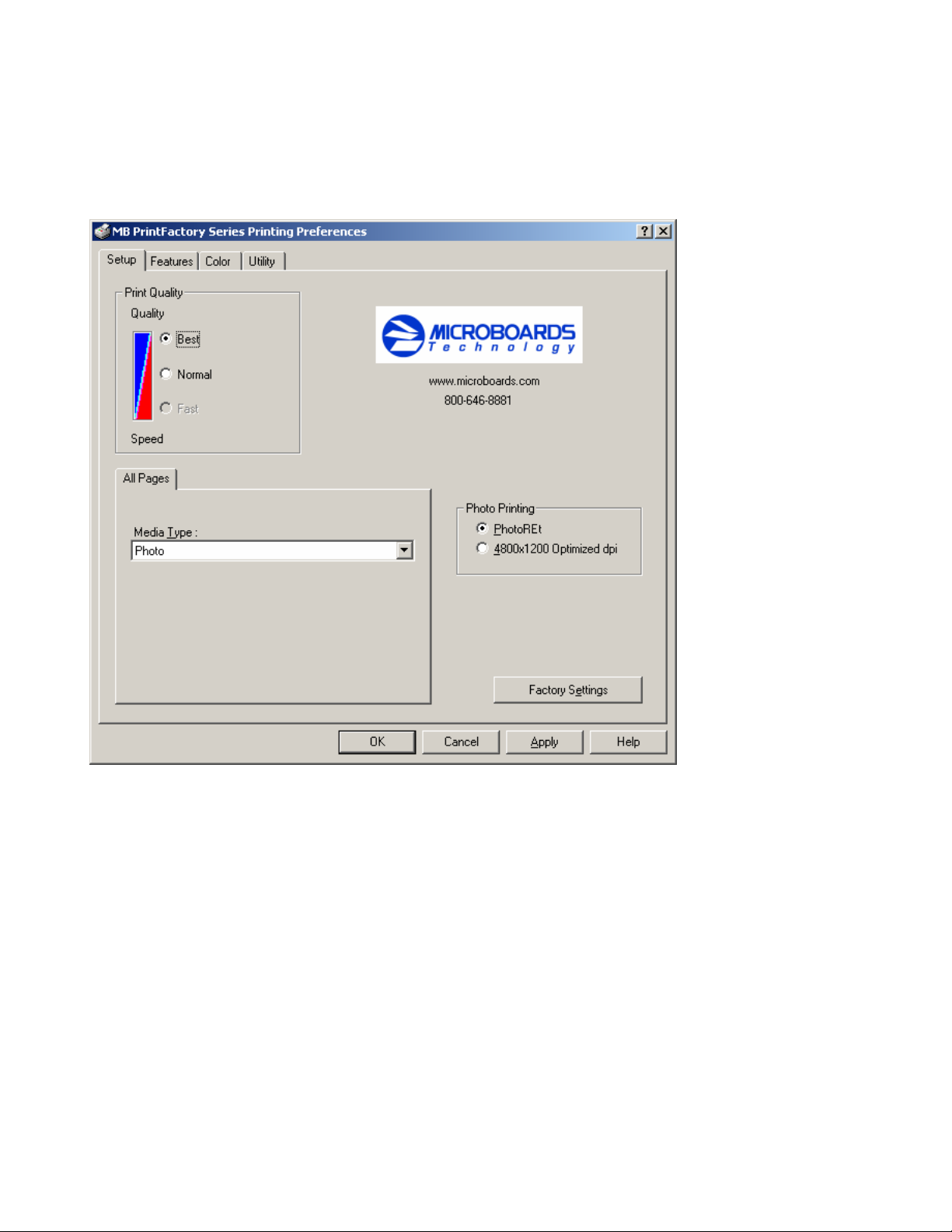

Setup Tab............................................................................................................................................ 30
Printing Recommendations............................................................................................................. 30

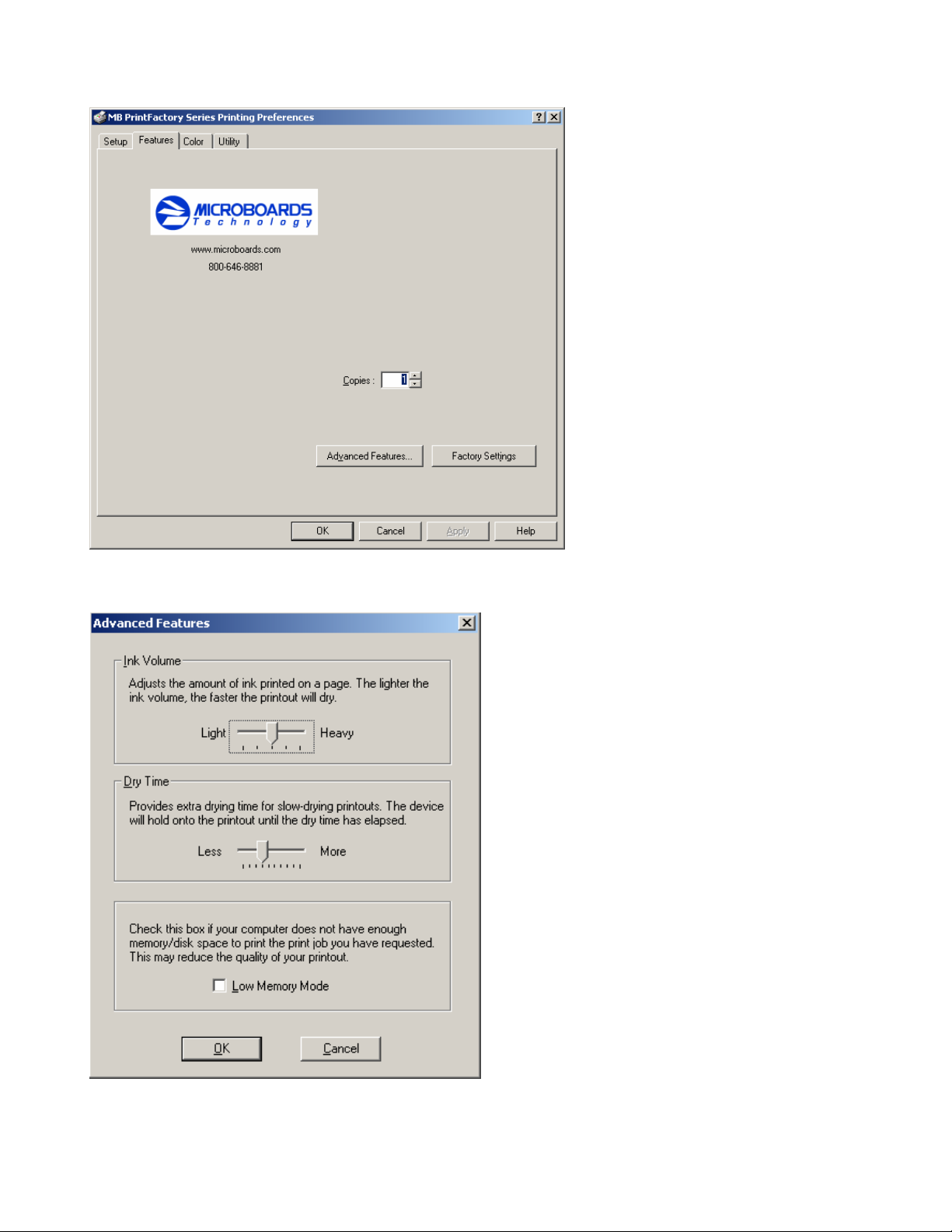

Features Tab........................................................................................................................................33
Color Tab............................................................................................................................................ 34

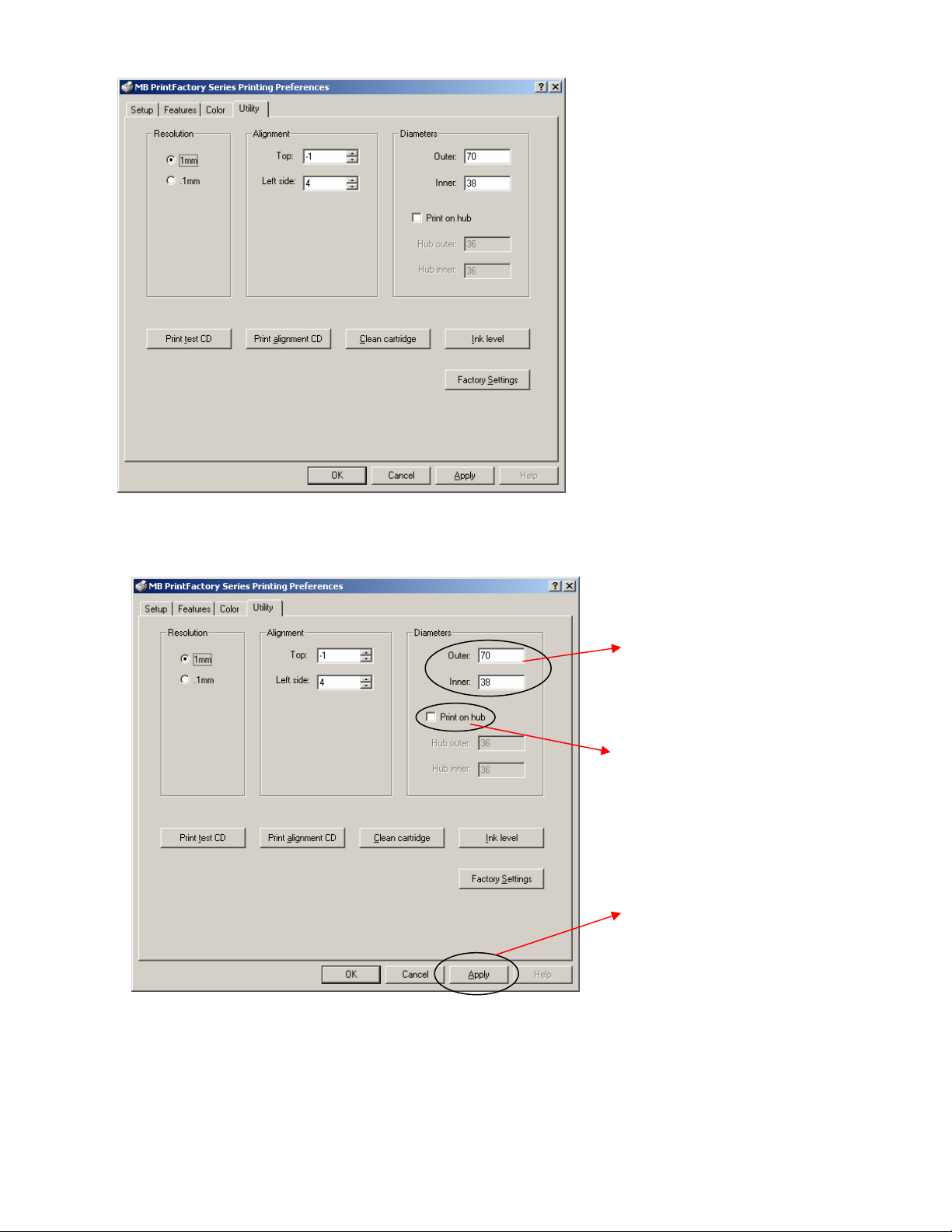

Utility Tab........................................................................................................................................... 34

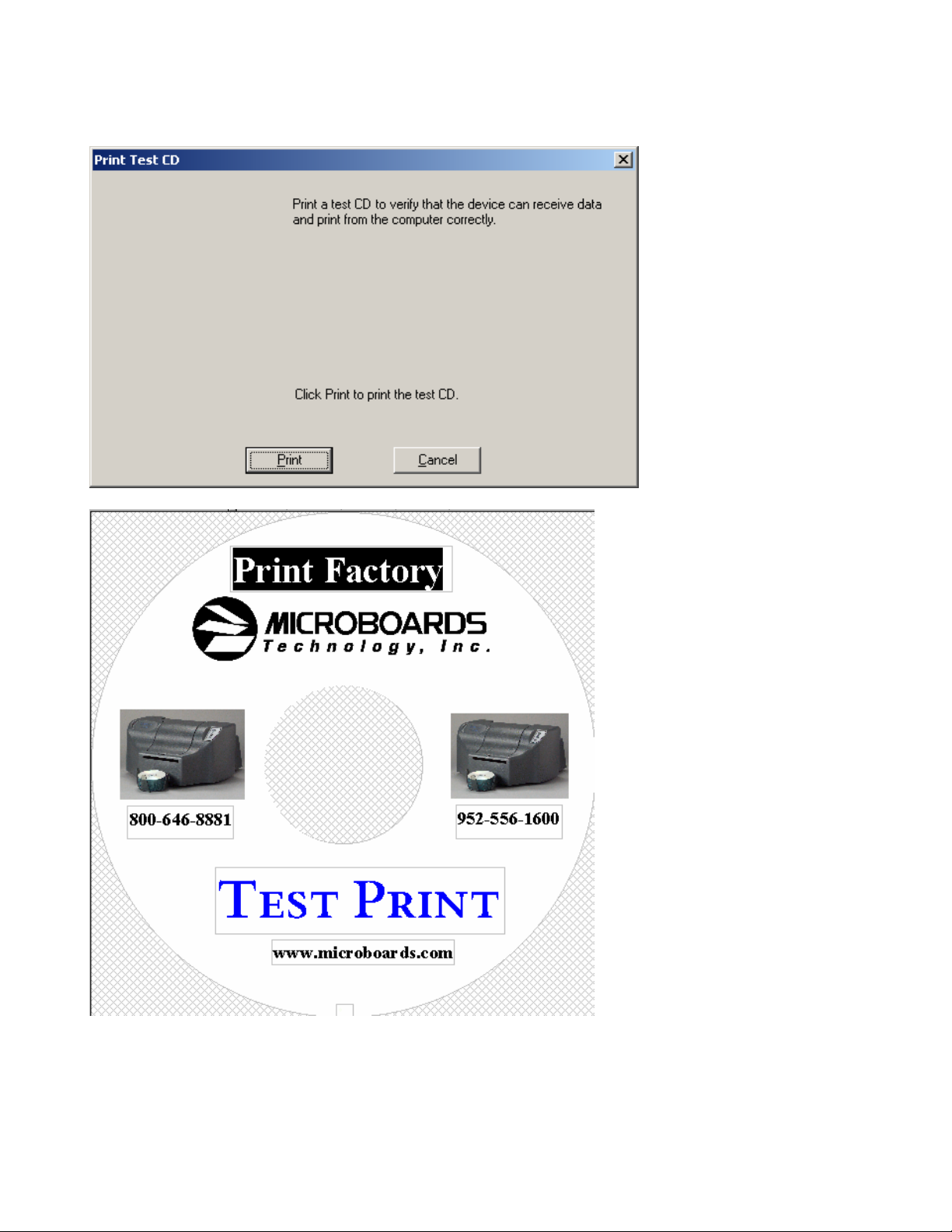

Print test CD ...................................................................................................................................35

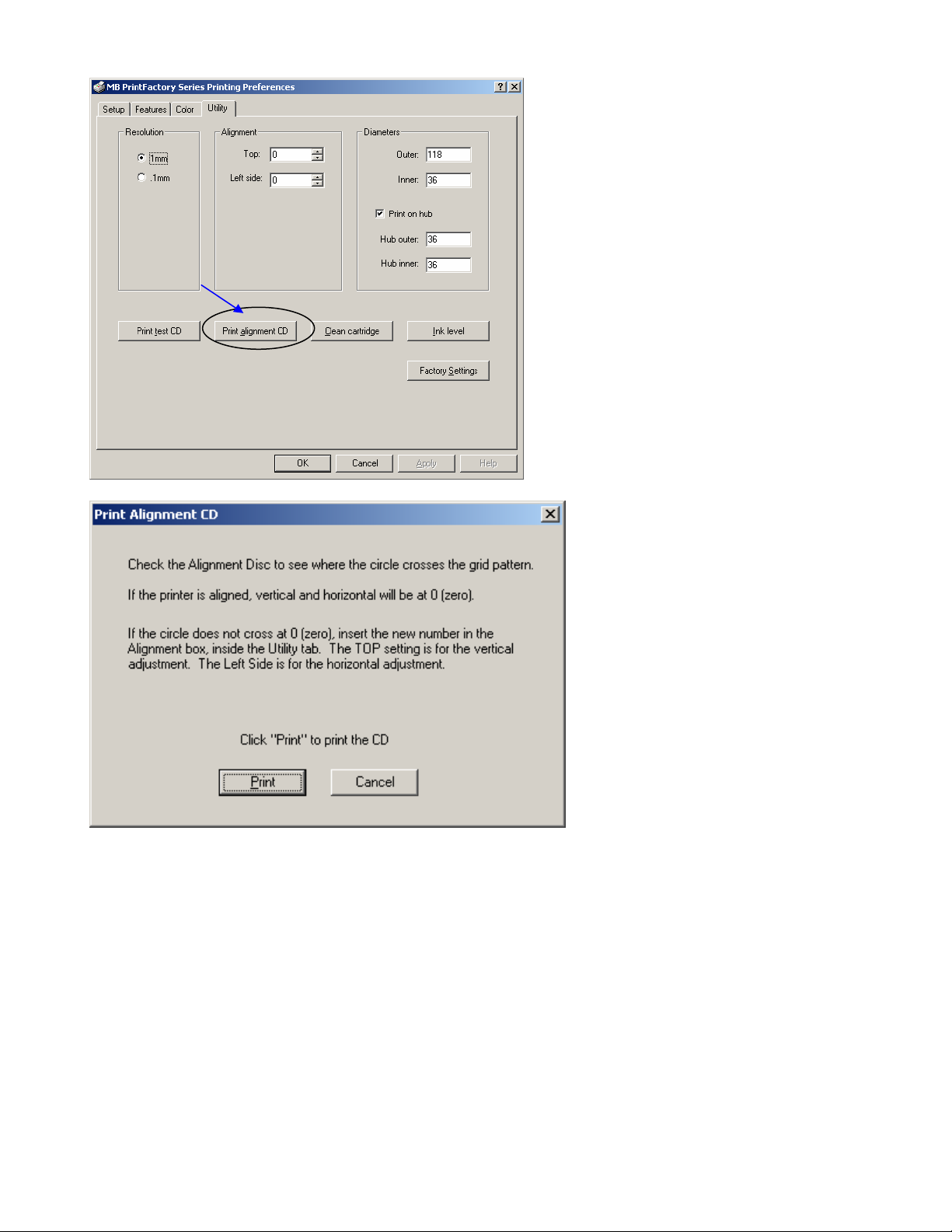

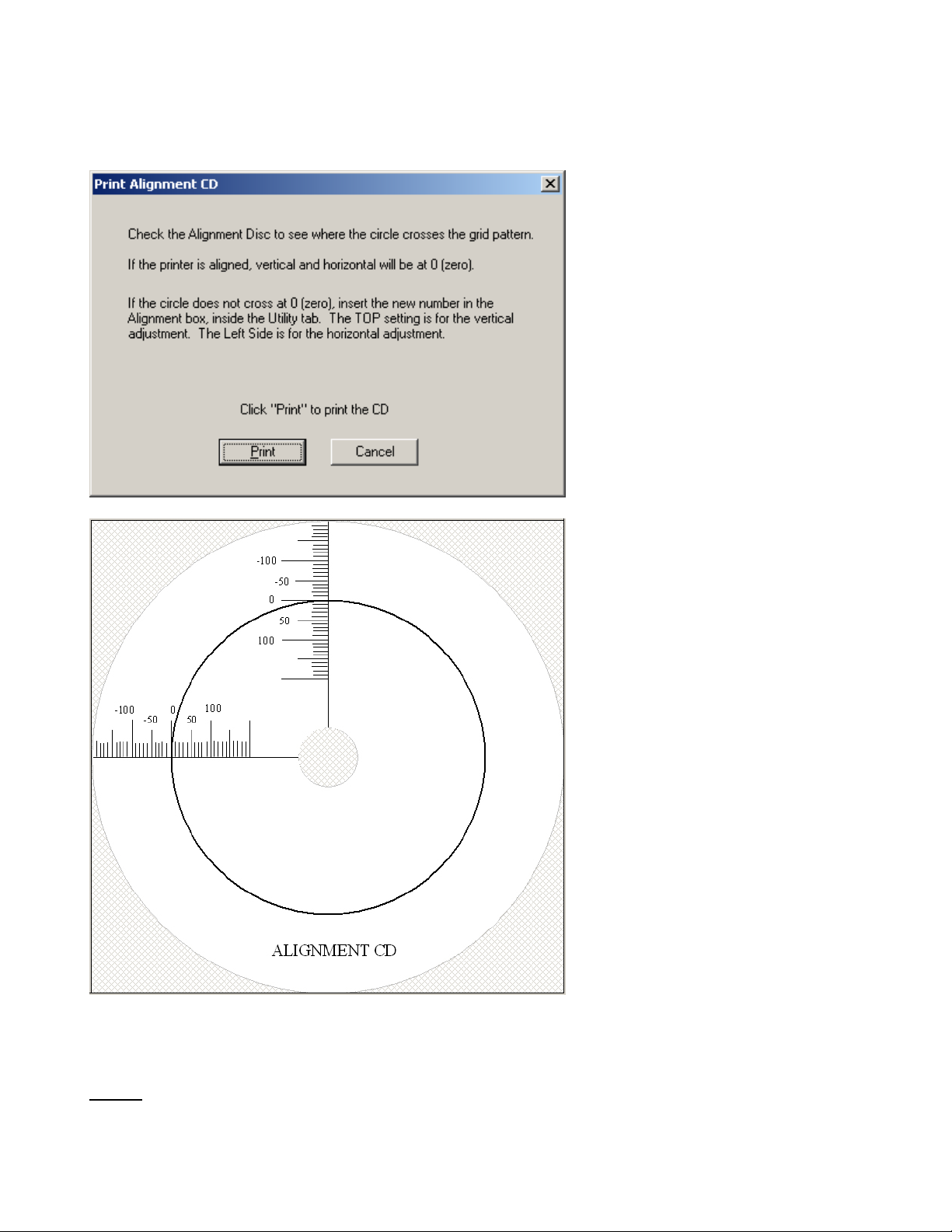

Print Alignment CD........................................................................................................................36

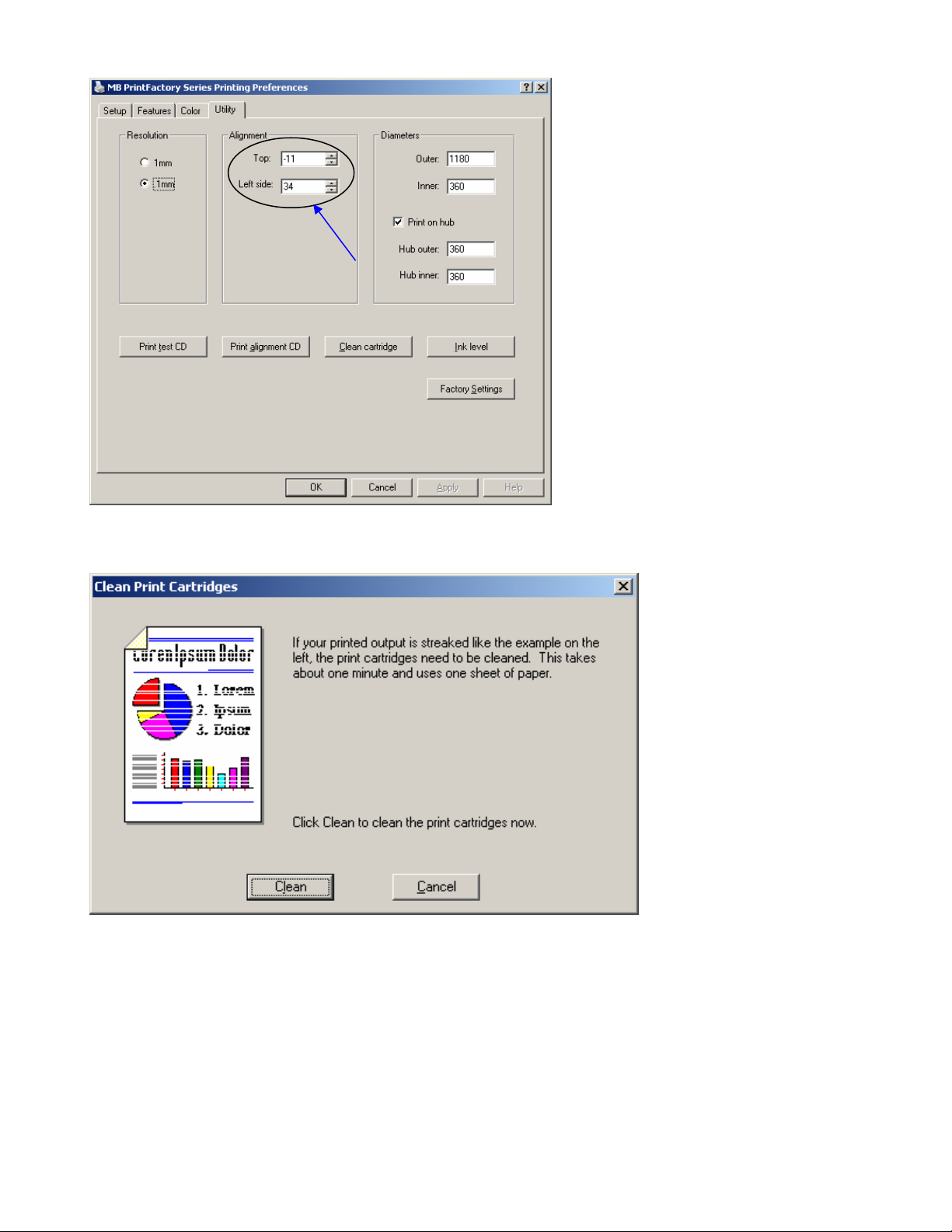

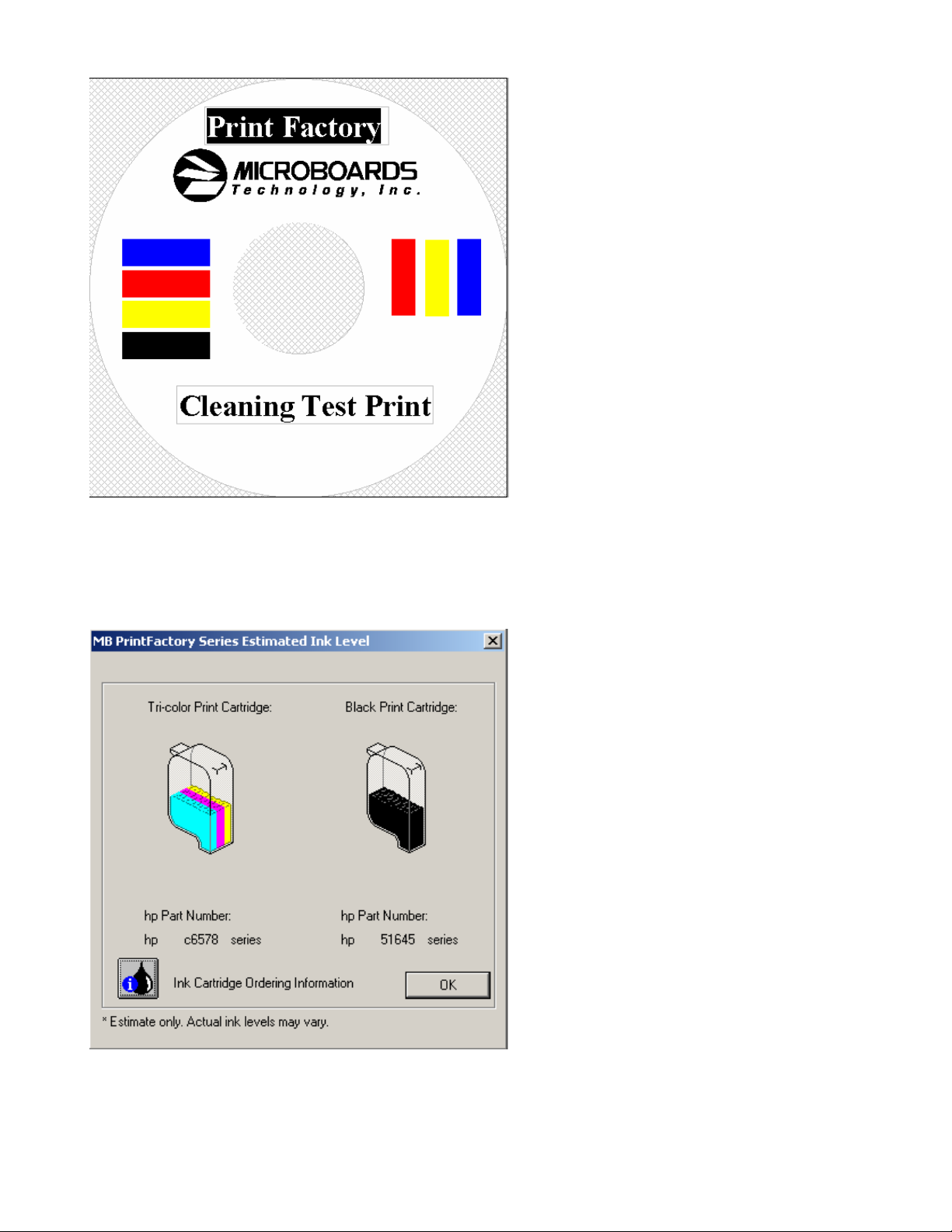

Clean Cartridge...............................................................................................................................37
Ink Level.........................................................................................................................................38
Chapter 6 Solve a Problem....................................................................................................................39
Chapter 7 Product Specifications...........................................................................................................40
Chapter 8 Contact Information.............................................................................................................. 41
3
Microboards Technology PF-2 PrintFactory
Chapter 1 Introduction
PF-2 PrintFactory is an automated CD-R and DVD-R printing solution. PF-2 PrintFactory
combines Microboards' patented autoloading system with Hewlett Packard's inkjet printer
engine, giving the highest output possible. PF-2 PrintFactory has a 100-disc capacity, making
the task of printing large numbers of discs fast, easy and hands-free.
Fully Integrated Automation
Microboards combined their patented autoloading system with HP's new inkjet printer engine
to give users the highest output possible, both in image resolution and print speed. Since PF2 PrintFactory is an autoloading printer, no calibration of robotics or manual feeding of discs
is required. PF-2 PrintFactory connects by USB or Parallel interface to the computer, and
comes with label design software.
Flexibility and Speed for Any Application
While the PF-2 PrintFactory was designed to fill a need in the high-volume arena, it also has
the ability to print at 4800 x 1200 dpi on both DVD and CD media. With the included design
software, users can enjoy its benefits whether making a few discs or a few hundred. The PF2 PrintFactory is capable of producing up to 200 discs per hour.
4
Microboards Technology PF-2 PrintFactory
Chapter 2 Printer Description
Front Panel Indicators and Buttons

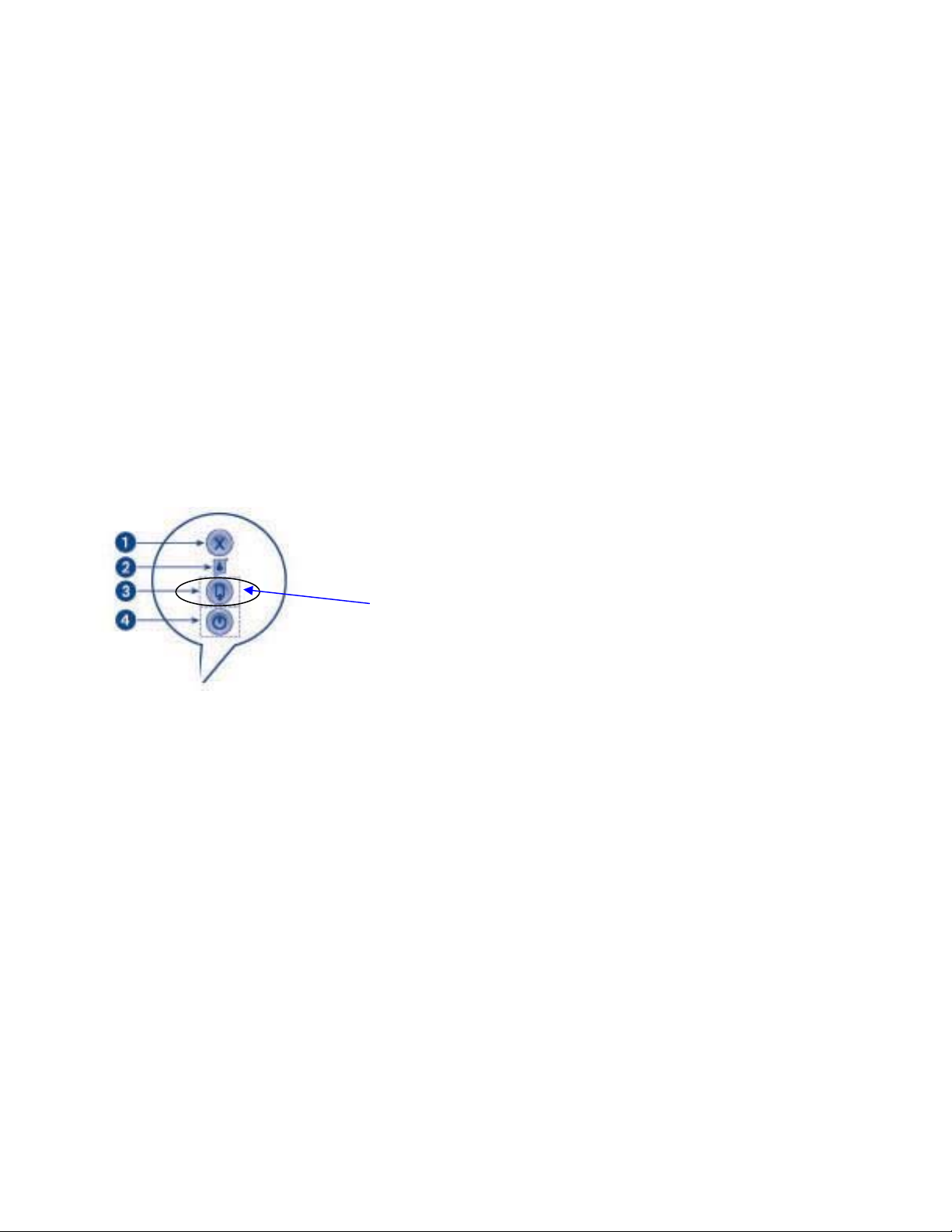

1) Cancel Button – Pressing the Cancel button cancels the current print job.
2) Print Cartridge Status Light – The light inside the Print Cartridge Status symbol flashes when a
print cartridge is low on ink or incorrectly installed, or the printer’s cover is open.
3) Resume Button and Light – The Resume light flashes when an action is required, such as
loading a disc or clearing a jam. When the action is completed, press the resume button to
continue printing.
4) Power Button and Light – The Power button turns the printer on and off. It may take a few
seconds for the printer to turn on after you press the Power button. The green light next to the
Power button flashes when the printer is processing.
NOTE: The AC power switch located on the back of the printer must be turned on first, in
order to supply power to the Front Panel.
What’s Included
When unpacking your PF-2 PrintFactory system, the following items should be included:
PF-2 PrintFactory printing system
Power Cord
Alignment CD’s
Blank Printable CD’s
Users Manual (This document)
Microboards PF-2 PrintFactory CD (Includes Windows 2000/XP drivers and SureThing Label
software)
Black Ink cartridge (HP C8842A)
Color Ink cartridge (Microboards PRF19ML)
USB Printer Cable
100 Disc output guide and 100 disc spindle
If any of these items are missing, please contact your distributor or Microboards Technology Technical
Support department at 952-556-1639.
5
Microboards Technology PF-2 PrintFactory
Chapter 3 Installation
Once your PF-2 PrintFactory system is unpacked and you have verified that everything is included,
you are ready to install the printer.
Installing Ink Cartridges
Supported Ink Cartridges
The PF-2 PrintFactory uses a color and black ink cartridge. The color ink cartridge comes in two sizes,
38 ml and 19 ml. The 38 ml cartridge is a Microboards PRF38ML. The 19 ml cartridge is a
Microboards PRF19ML. These cartridges are available from any Microboards reseller.
The black ink that comes with the system is HP part number C8842A, Versatile Black Ink. This is a
fast drying black ink, designed for coated surfaces, like an inkjet printable CD or DVD.
Standard black ink cartridges, are also supported, but can take longer to dry. The HP 45 black ink
cartridge is used. The HP part number is 51645A. It is recommended to run in Photo mode only when
using the standard black ink cartridge. Running a standard black at Normal or fast Normal can cause
the text to not print evenly.
*Refill kits or non-Microboards ink cartridges are not recommended for use in the PF-2 PrintFactory
system. Use of these types of cartridges will cause the printer to fail. Use of these types of cartridges
will void the warranty.
Changing these settings is done in the Printer Preferences, described in Chapter 5.
Ink cartridge troubleshooting
If the PF-2 PrintFactory system stops printing and the red LED indicator is lit on the front of the
system, the printer does not recognize the color ink cartridge. This can be caused by using an
unsupported ink cartridge. The color ink cartridge must be a Microboards PRF19ML or PRF38ML.
Loading / Replacing Ink Cartridges
The PF-2 PrintFactory system ships with a Microboards PRF19ML color cartridge and a C8842A
black ink cartridge.
highly recommend using the C8842A black cartridge for printing on CD or DVD discs. The HP
51645A black cartridge is supported with the printer, but should only be used in PHOTO mode. It can
take longer for the black ink to dry when using the HP 45 cartridge.
1) Plug in the AC power cord to the back of the printer and into a power source.
2) Turn on the power switch located on the back of the printer.
The black ink cartridge is specifically designed for fast drying applications. We
6
Microboards Technology PF-2 PrintFactory
3) Press the Power button to turn on the printer.
4) Open the top cover. The print cartridge cradle moves to the center of the printer.
5) Raise the cradle latch.
6) If replacing an ink cartridge, lift the old cartridge out of the cradle.
7) Remove the new print cartridge from its packaging and carefully remove the plastic tape.
Hold the print cartridge so that the copper strip is at the bottom.
Black Cartridge
Pull tab to remove the plastic tape.
8) Push the print cartridge firmly into the cradle.
9) Secure the cradle latch.
Color Cartridge
Installing Disc Guide and Output Bin
• To install the output bin, slide the output bin in place.
Align the two holes in the output bin with the holes on the
Front of the printer (numbers 1 and 2).
• Secure the output bin with the two thumb screws.
• The output bin should now be securely in place.
• Next, slide in the 100 disc output spindle into place
(number 3).
• The unit is now ready for operation.
Connecting to a Computer
You have two options when connecting to a computer, USB and Parallel. You will need to decide
which method is available on your computer. Follow the instructions listed below.
Parallel Port
Confirm that your PC is turned off.
Plug the printer cable into the back of the printer.
Use the locking clips to secure the connection.
Plug the other end of the cable into the parallel port on the back of the PC.
Secure the connection by screwing in the two posts.
Proceed to “Installing the printer driver” to complete the installation.
USB Port
Confirm the PC is turned off.
Plug the small end of the USB cable into the back of the printer.
Install the larger end of the USB cable into an available USB port on the PC.
Confirm that both ends are securely in place.
Proceed to “Installing the printer driver” to complete the installation.
7
Microboards Technology PF-2 PrintFactory
Installing the Printer Driver
USB Port and Parallel Port
The install procedure is the same for both the Parallel and USB port connections. Windows 2000 and
Windows XP will find the new hardware at boot up and step you through the installation process.
1. Once you have the printer connected to your PC, as described on the previous page, in the
Connecting to a Computer USB Port or Parallel Port, turn on the power to the printer and then
to your computer.
2. When the system boots up, the computer will state that it has found new hardware.
Windows 2000 install procedures:
3. Click the Next button.
8
Microboards Technology PF-2 PrintFactory
4. Place the PF-2 PrintFactory driver CD into your CD/DVDROM drive.
5. Select the Search for a suitable driver for my device option and click Next.
6. Check the CD-ROM drives box and click Next.
9
Microboards Technology PF-2 PrintFactory
7. The install file will be found on the CDROM drive. Click Next.
8. The Digital Signature screen will appear. Click Yes at the bottom of the screen.
9. The driver files will now be copied to the hard drive.
10
Microboards Technology PF-2 PrintFactory
10. Once installation is complete, click on Finish.
Windows XP install procedures:
1. Place the PF-2 PrintFactory driver CD into your CD/DVDROM drive.
2. Select the Install from a list or specific location option and click Next.
11
Microboards Technology PF-2 PrintFactory
3. Check the Search removable media box and click Next.
4. The Digital Signature screen will appear. Click Continue Anyway at the bottom of the screen.
5. The driver files will now be copied to the hard drive.
12
Microboards Technology PF-2 PrintFactory
6. Once installation is complete, click on Finish.

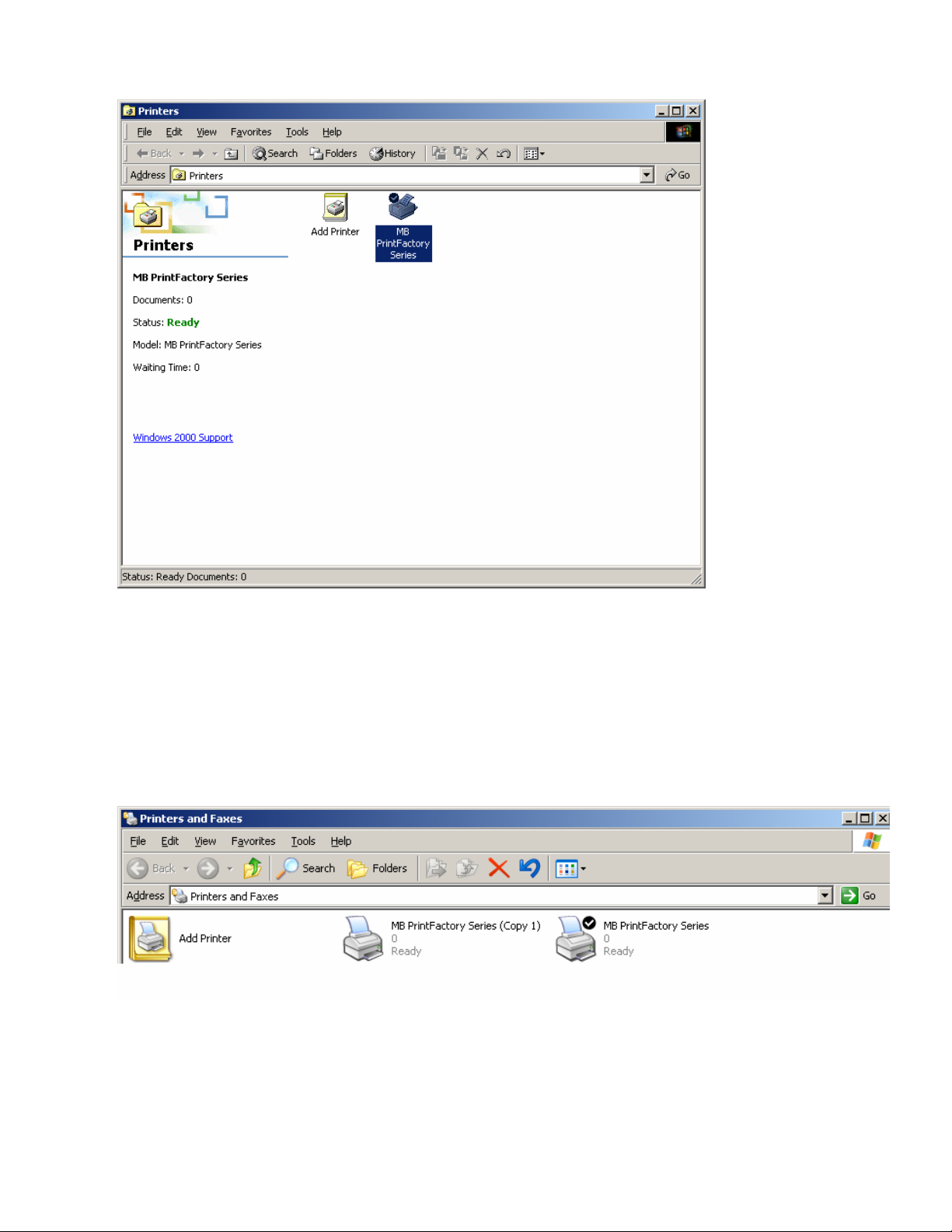

7. The printer is now installed and ready for use. To confirm installation, you can Click on Start,
and select Settings and then Printers.
8. You should see the new printer now installed.
13
