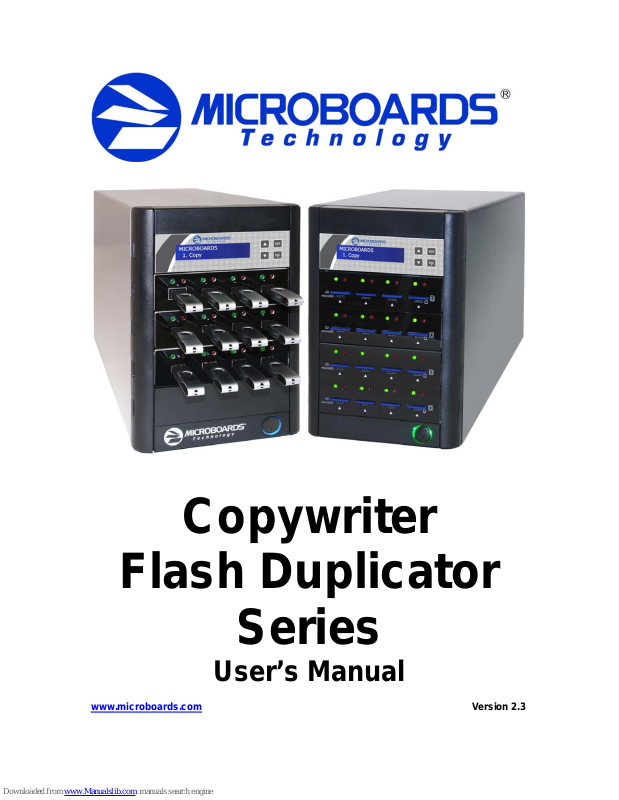

MicroBoards Technology Flash Duplicator User Manual
Copywriter
Flash Duplicator
Series
User’s Manual
www.microboards.com Version 2.3
Microboards Technology, LLC
2
Compact Flash Duplicator
Table of Contents
Introduction ......................................................................................................................... 5
What’s Included .............................................................................................................. 5
Installation........................................................................................................................... 5
Loading and Unloading Flash Cards ................................................................................... 5
USB Flash (USB models only) ...................................................................................... 5
SD Flash (SD models only) ........................................................................................... 5
MicroSD Flash (SD models only) .................................................................................. 5
Main Menu Flowchart......................................................................................................... 7
Main Menu .......................................................................................................................... 8
Copy ................................................................................................................................ 8
Async Copy ..................................................................................................................... 8
Compare .......................................................................................................................... 8
Copy & Compare ............................................................................................................ 9
Erase ................................................................................................................................ 9
Copy Mode...................................................................................................................... 9
Setup ............................................................................................................................. 10
Language ................................................................................................................... 10
Read Error Skip......................................................................................................... 10
Write Error Skip ........................................................................................................ 10
Size Tolerance ........................................................................................................... 10
Buzzer ....................................................................................................................... 10
Screen Saver.............................................................................................................. 10
Utilities .......................................................................................................................... 11
Device Info ................................................................................................................ 11
System Info ............................................................................................................... 11
Measure Speed .......................................................................................................... 11
Verify Source ............................................................................................................ 11
Rebuild Source .......................................................................................................... 11
Load Default ............................................................................................................. 11
Update Firmware ...................................................................................................... 11
Save ........................................................................................................................... 11
Manage Accounts .......................................................................................................... 12
View User ................................................................................................................. 12
Create User ................................................................................................................ 12
Delete User ................................................................................................................ 12
Password on Bootup ................................................................................................. 12
Shutdown ...................................................................................................................... 12
Troubleshooting and Frequently Asked Questions ........................................................... 13
Specifications .................................................................................................................... 14
Contact Information .......................................................................................................... 14
Appendix 1: List of Functions ......................................................................................... 15
Appendix 2: LED Indicators ............................................................................................ 15
3
Microboards Technology, LLC
4
Compact Flash Duplicator
Introduction
Make fast copies of flash cards using the Copywriter Flash Duplicator series. This series is
available in 7, 11, or 15 copy configurations, with a model for USB duplication and a model for
SD/MicroSD duplication.
The Copywriter Flash Duplicator offers both Synchronous and Asynchronous duplication. In
Synchronous mode, all drives are inserted and copied to at the same time. When duplicating in
Asynchronous mode, duplication starts on each drive as the drive is recognized, allowing you to
remove and replace individual drives as the duplication process is completed to continue
duplicating without additional user action.
What’s Included
When unpacking your Copywriter Flash Duplicator system, the following items should be
included:
• Copywriter Flash Duplicator
• Users Manual (this document) and Starter Kit
• Power Cord
If any of these items are missing, please contact your distributor or Microboards Technology
Technical Support.
Please have the Model and Serial Number of your Copywriter Flash Duplicator available when
contacting Technical Support.
Installation
• Connect the power cable to the Copywriter Flash Duplicator and plug in to a
protected power outlet strip or UPS power supply.
• Turn on power to the duplicator.
• The system will go through initialization and then display: 1. Copy.
• The system is now ready to use.
Loading and Unloading Flash Cards
You should never unload any card that is in use by the duplicator. If the green LED above the
port is flashing, the card is in use.
USB Flash (USB models only)
To load USB flash cards, slide the card into the port. If it does not slide in easily, flip the USB
card over and try again.
To unload USB flash cards, simply pull them out of the port.
SD Flash (SD models only)
To load SD flash cards, slide the card into the upper, wide port with the circuit side down until the
card clicks into place. If the green LED above the card port fails to light after a moment, unload
the card, flip it over, over and try again.
To unload SD flash cards, push in and release each card. The ports will slightly eject the cards.
MicroSD Flash (SD models only)
To load MicroSD flash cards, slide the card into the lower, narrow port with the circuit side up. If
the green LED above the card port fails to light after a moment, flip the card over and try again.
To unload MicroSD flash cards, simply pull them out of the port.
