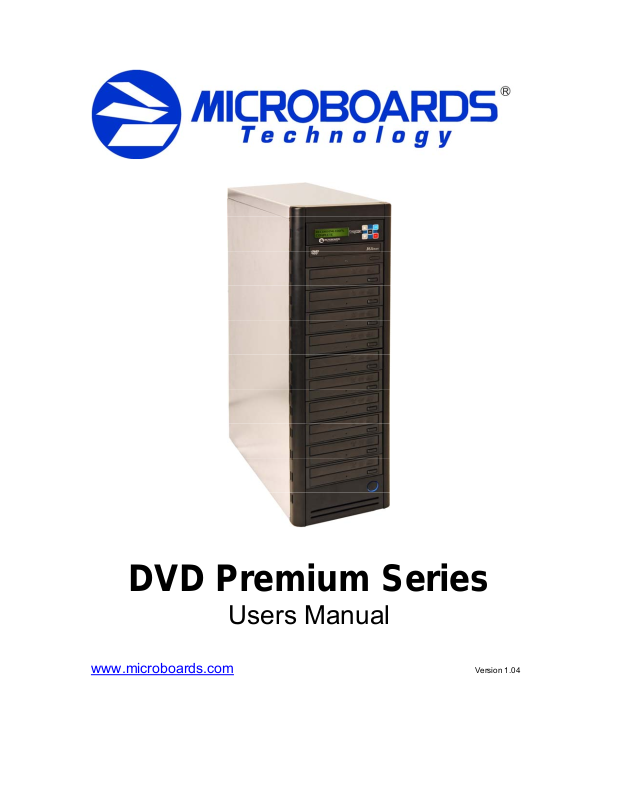

MicroBoards Technology DPA2G12 User Manual
DVD Premium Series
Users Manual
www.microboards.com Version 1.04
DVD Premium Series MICROBOARDS TECHNOLOGY, LLC
2
DVD Premium Series MICROBOARDS TECHNOLOGY, LLC
TABLE OF CONTENTS
System Overview..................................................................................................5
Unpacking your system.........................................................................................5
Microboards Statement Regarding Improper Duplication .....................................5
Installation Requirements .....................................................................................6
Main Menu ............................................................................................................7
Copy Disc to Disc..................................................................................................7
Simulation Disc to Disc .........................................................................................7
Erasing RW media ................................................................................................8
Setup Menu ..........................................................................................................9
Mode Select................................................................................................10
DVD WR Speed..........................................................................................10
CD WR Speed ............................................................................................10
ISRC Check ................................................................................................10
Auto Run.....................................................................................................10
Copy Quantity .............................................................................................10
Session Mode .............................................................................................10
Reader Select .............................................................................................10
Drive Inquiry................................................................................................10
F/W Version ................................................................................................10
F/W Update.................................................................................................10
Log..............................................................................................................10
Error Codes ........................................................................................................11
Specifications...................................................................................................... 18
Supported Formats .............................................................................................18
Firmware Updates...............................................................................................18
Technical Support ...............................................................................................18
3
DVD Premium Series MICROBOARDS TECHNOLOGY, LLC
4
DVD Premium Series MICROBOARDS TECHNOLOGY, LLC
System Overview
The DVD Premium Series employs up to 10 General Purpose DVD-+R/DL recorders.
An intuitive, menu driven
display and 5-button control
interface provide one-touch
operation for the novice user
while providing advanced
features for the professional.
Advanced Features:
• Stand-Alone DVD-+R/RW/DL / CD-R duplicator
• One Touch duplication
• Auto Run option
• Speed selectable (1x to 16x for DVD-+R and 4x to 48x for CD-R)
• Supports writing to DVD-+R/RW/DL, CD-R/RW
• Copy and Verify
• Counter feature allows the user to input how many discs need to be copied and
• Automatically detects DVD or CD masters
• Simulation mode to ensure recording stability
• Easy-to-read, two-line display for status and error reporting
• Updates easily installed through DVD/CD reader
the keeps track of the total discs completed.
COPY START
(DISC to DISC)
Unpacking your system
When unpacking your duplicator, confirm the following items are included:
• DVD Premium Series duplicator
• Power cable
• Starter Kit (includes User’s Manual and Warranty information)
If any of these items are missing, please contact or Microboards Technology Technical Support at
952-556-1639.
IMPORTANT: Please keep all the packing for your DVD Premium Series duplicator. If your unit
ever needs to be sent in for service, it must be returned in the original packing or the warranty will
be voided.
Microboards Statement Regarding Improper Duplication
Microboards Technology fully supports the right of any business, organization, group, or
individual to protect their property from unlicensed, unauthorized, or illegal duplication.
As a user of our equipment, we expect you to support that right as well.
Microboards Technology is neither responsible nor liable for the infringement of any laws
regarding the illegal duplication of property. Microboards Technology products are in no way
intended to encourage or condone such duplication.
5
DVD Premium Series MICROBOARDS TECHNOLOGY, LLC
Installation Requirements
System Setup
• Connect the power cable to the DVD Premium Series tower and plug in to a protected
power outlet strip or UPS power supply.
• Turn on power to the tower. The system is now ready to use.
Install your DVD Premium Series duplicator in the following environment:
• On a level and stable surface
• In a well ventilated location
• Temperature and humidity
• Temperature: 5-40°
• Humidity: 20-80%RH (no dew formation)
Do not install it in the following places:
Under direct sunlight (If the machine is exposed to sunlight, the light should be blocked
by a curtain or blind.)
A dusty location
A place where there is a lot of vibration
Near open flame
A place where the temperature and humidity change drastically
Near a heating device such as a heater or furnace
A location where air from an air conditioner blows directly onto the unit
Near a container filled with water such as a vase
In winter during times of low humidity or in a location where static electricity is
generated, use an anti-static-electricity mat or humidifier to prevent static electricity.
Power supply
Use house current as the power source for the unit.
Do not use an outlet near a motor driven appliance (i.e. air conditioner, copying
machine).
Use an outlet with stable power supply voltages.
Do not overload an outlet. Do not use a service outlet from a PCs or other office
machine.
Wire the power cord properly.
Do not touch the power cord with a wet hand.
Be careful not to damage the power cord.
Inspect the power cord periodically.
In the event that the power cord is damaged, replace the power cord.
Be sure to use a tool such as the screwdriver to change the 115/230V Switch.
Do not use your finger.
6
