MicroBoards Technology CWR-424-52 User Manual

Download

CWR-424-52

www.microboards.com

CD Duplicator

USER’S MANUAL
Version 2.0
Table of Contents
System Overview
Advanced Features: .............................................................. 3
Unpacking your system
Setting up the CWR-424-52 duplicator
Copy Process
Using Audio Masters: ............................................................. 4
Write Speeds:................................................................... 5
Speed Table .................................................................... 5
Copy Job Completes
Changing Process Mode
Meaning of LED’s
...................................................................................................................................3
.......................................................................................................................3
........................................................................................4
..........................................................................................................................................4
............................................................................................................................6
....................................................................................................................6
...................................................................................................................................7
Copy Mode Process
Error Display during Copying
Test Copy Mode Process
Error Display during Test Copying
.............................................................................................................................7
............................................................................................................8
...................................................................................................................9
...............................................................................................10
Error Display in Additional System Modes
Specifications:
Supported Formats:
Firmware Update
Contact Information
.......................................................................................................................................11
............................................................................................................................11
..................................................................................................................................11
.............................................................................................................................11
................................................................................10
2

System Overview

The CWR-424-52 is a professional, high-speed CD recordable duplicator engineered for the rackmount
environment. Microboards Technology has applied their expertise in tower CD duplication to develop this
sleek, black rackmount system to meet the demands of the Pro Audio user and information systems
professional alike. The CWR-424-52 automatically detects the format of the master CD and the four
recorders write at a blazing 52x speed to allow for high volume duplication. Features of the CWR-424-52
include a recording simulation mode to ensure your master can be copied safely. A simple, two-button
interface allows the recording speed to be adjusted to slower speeds for use with media not certified for
high-speed duplication. Taiyo Yuden media is suggested for high-speed 52x duplication.

Advanced Features:

4 (52x) CD recorders for high output
•
One touch start for CD to CD duplication
•
Selectable recording speeds up to 52x for recording stability
•
Easy to read LED interface for copy status and error reporting
•
Simulation mode to ensure recording stability
•
Black 4U rackmount enclosure for aesthetic integration with current equipment
•
Updates easily installed through CD reader

Unpacking your system

When unpacking your duplicator, confirm the following items are included:
CWR-424-52 duplicator
•
Power cable
•
Quick Start Guide
•
Microboards Documentation CD
•
Blank CD-R media
•
If any of these items are missing, please contact your distributor or Microboards Technology Technical
Support at 952-556-1639.
IMPORTANT: Please keep all the packing for your CWR-424-52 duplicator. If your unit ever needs to be
sent in for service, it must be returned in the original packing or the warranty will be voided.
3

Setting up the CWR-424-52 duplicator

Set up the CWR-424-52 duplicator with the following conditions:
• 19” Rack mount position or
•
On a level and stable surface
•
In a well ventilated location
•
Temperature and humidity:
o Temperature: 5-40° C
o Humidity: 20-80%RH (no dew formation)
Do not locate the CWR-424-52 duplicator:
Under direct sunlight (If the machine is exposed to sunlight, the light should be blocked by
a curtain or blind.)
In a place where there is a lot of vibration
Near open flame
In a place where the temperature and humidity change drastically
Near a heating device such as a heater or furnace
In a location where air from an air conditioner blows directly onto the unit
Near a container filled with water such as a vase
In a dusty location
o
Dust and dirt can decrease the productivity of the duplicator dramatically. It is very
important to keep the system in a clean and dust free environment.
In winter during times of low humidity or in a location where static electricity is
generated, use an anti-static-electricity mat or humidifier to prevent static electricity
.

Copy Process

The advantage of the CWR-424-52 is the quick and easy operation to burn CD information.
You can burn CD-R’s by pressing the button only once with the CWR-424-52 as follows;
Turn on CWR-424-52, and it begins to initialize.
o The LED’s turn on, one at a time and then go off, leaving the 1st mode light on.
o Insert a Master disc into the Master drive and blank discs into writers.
o Wait for ten seconds until the drives are ready.
o Press the ‘START’ button (press it once).
o The copy process begins.
Refer to the “LED’s Status” and “Copy Mode Process” sections for details.

Using Audio Masters:

When copying Audio masters with a large number of tracks, the system can take 3 to 5 minutes to
4
analyze the master. The reader drive will blink slowly during this process.

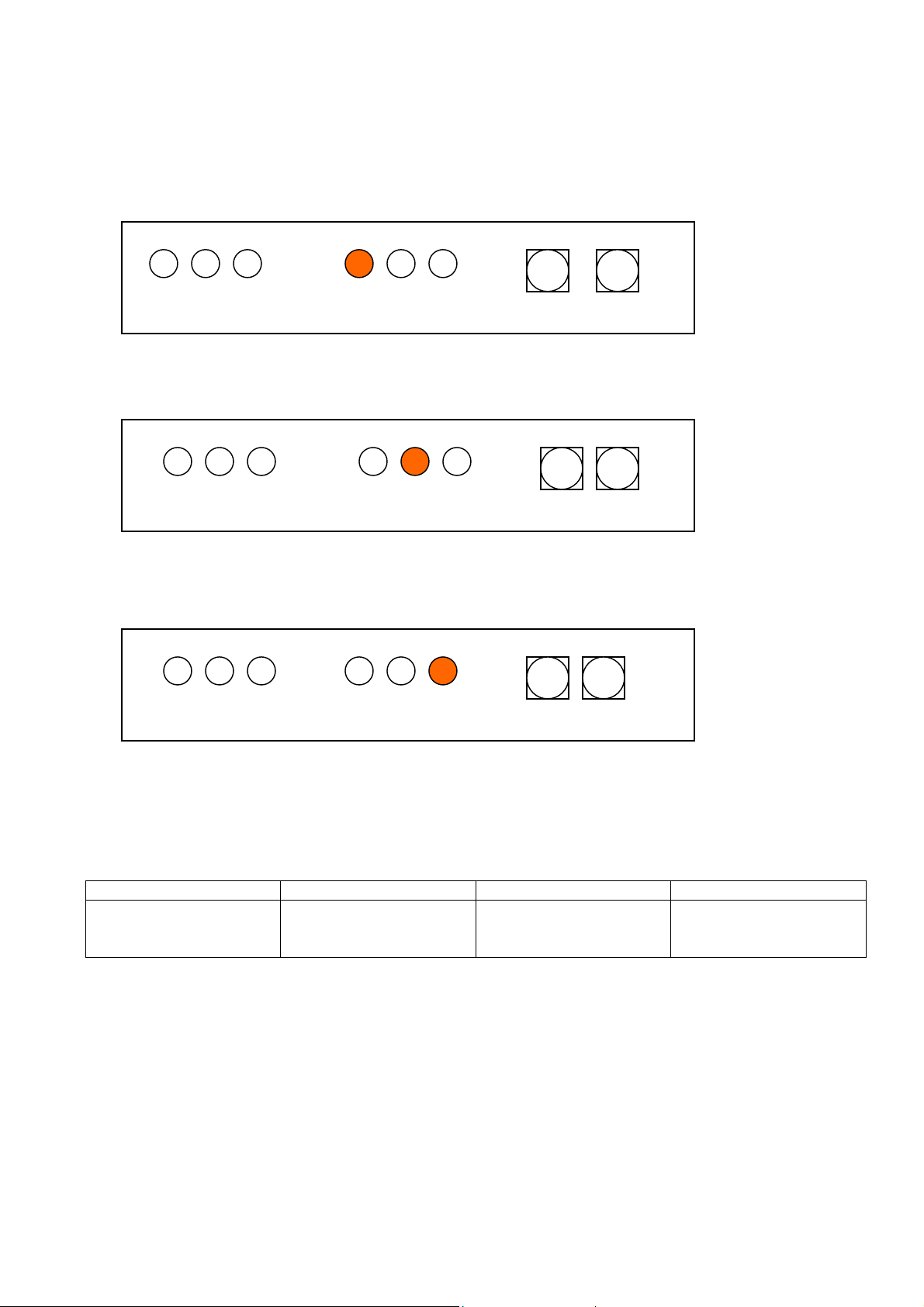

Write Speeds:

• FAST – It copies at maximum speed of 52x*.
Status
• MEDIUM – It copies at 40x*.
Status
• SLOW - It copies at 8x*.
Status
Mode Mode
Mode
Mode
Mode
Mode Start
Star
Star
*See table below for record speed limitations

Speed Table

CD-ROM Mode 1 CD-DA Audio CD-ROM XA CD to CD Copy Fast = 52x
Medium = 40x Slow = 8x
CD-ROM XA format includes CD ROM XA Form1 and Form 2, CD Extra, Video CD
Fast = 52x Medium = 40x Slow = 8x
5
Fast = 40x Medium = 24x Slow = 8x

Copy Job Completes

The CWR-424-52 automatically ejects the drive trays after the copy finishes successfully.
The Master disc does not eject. You can use any or all of the four recorders to make copies.
The CWR-424-52 ALARMS (beeps) when an error occurs with the media and/or drive.
Discs will not be ejected and the error alarm beeps until you press the open tray button on the
drive(s) that have failed. The drives that record correctly will eject the disc when completed.
The display will show the error code. Once the trays are opened manually after the error, the
error code is cleared.

Changing Process Mode

CWR-424-52 has two process modes.
1) “Copy” mode: Copies the data from the Master CD to the blank CD-R disc(s).
Refer to the “Copy Process” section (page 4) for operations.
2) “Test copy” mode: Simulates copying the data from the Master CD to the blank disc(s). No
data is actually written to the CD-R media. After the “test copy” has completed, the system
returns to “Copy” mode.
How to change the process mode:
Press the start button 1) “Actual copy” with single “short beep”.
Press the Start button and after one beep release the button.
The unit will start the copy process. Status LED solid.
2) “Test-copy” with two “short beeps”.
Hold down the Start button until the system beeps twice.
There will be a single beep, a pause, then 2 beeps. Release
the Start button after the 2 beeps and the system will start the
test copy. Status LED blinks.
Holding down the Start button until the system beeps a single
time again, will put the system back in “Copy” mode .
6

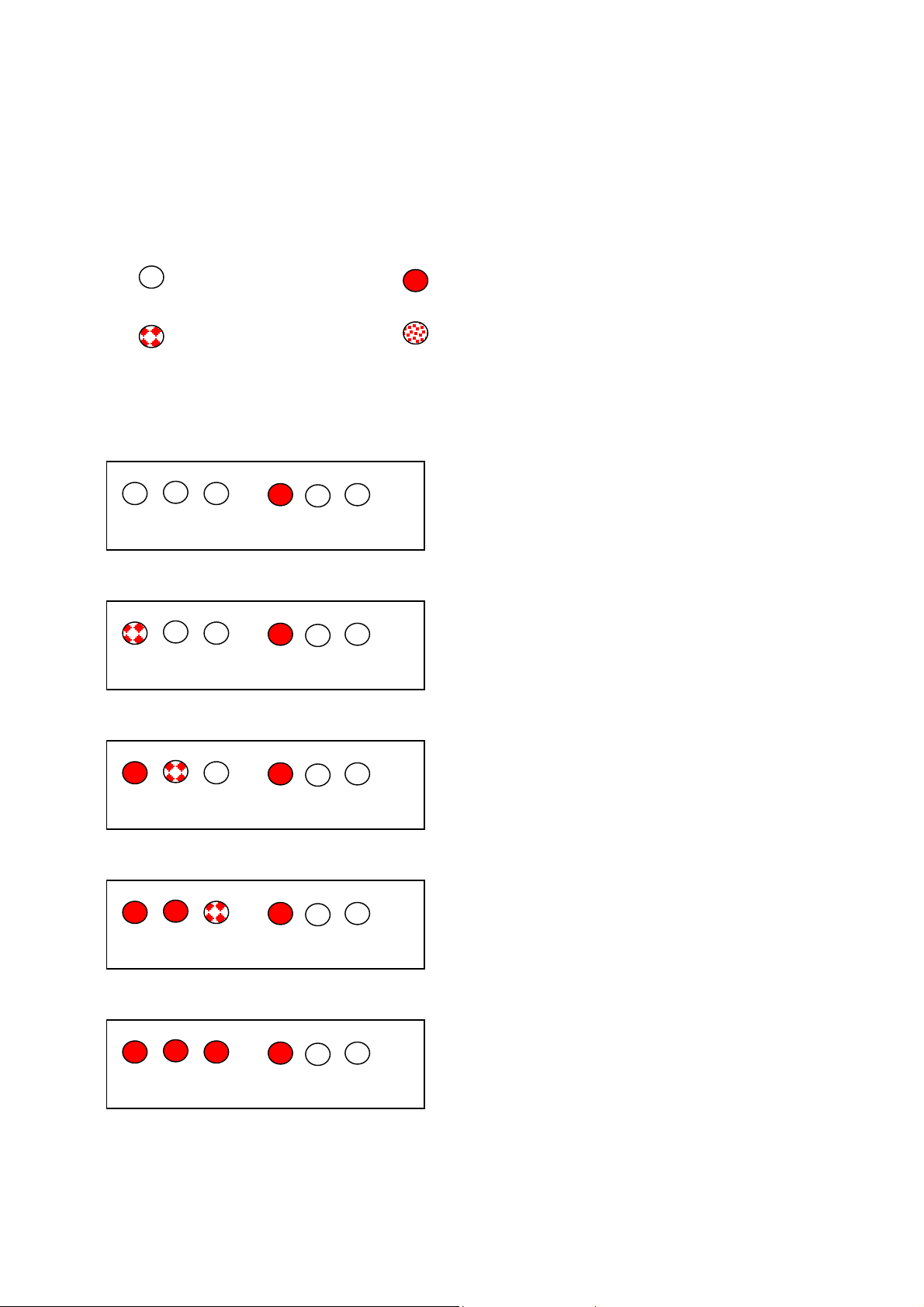

Meaning of LED’s

Listed below are the different states of the Status LED’s These indicate the status of the
CWR-424-52 system.
Light off
Slow blink
Light on
Quick blink

Copy Mode Process

1.
Status
Mode
2.
Copying process is between 0%~30% complete
Status
Mode
Ready to copy
(Fast Speed).
.
3.
Copying process is between 31%~60%
Status
4.
Mode
complete
.
Copying process is between 61%~100%
Status
A
5.
Mode
complete.
single “short beep” indicates the copying
process is complete. It returns to the display 1.,
Mode Status
after ten seconds.
7

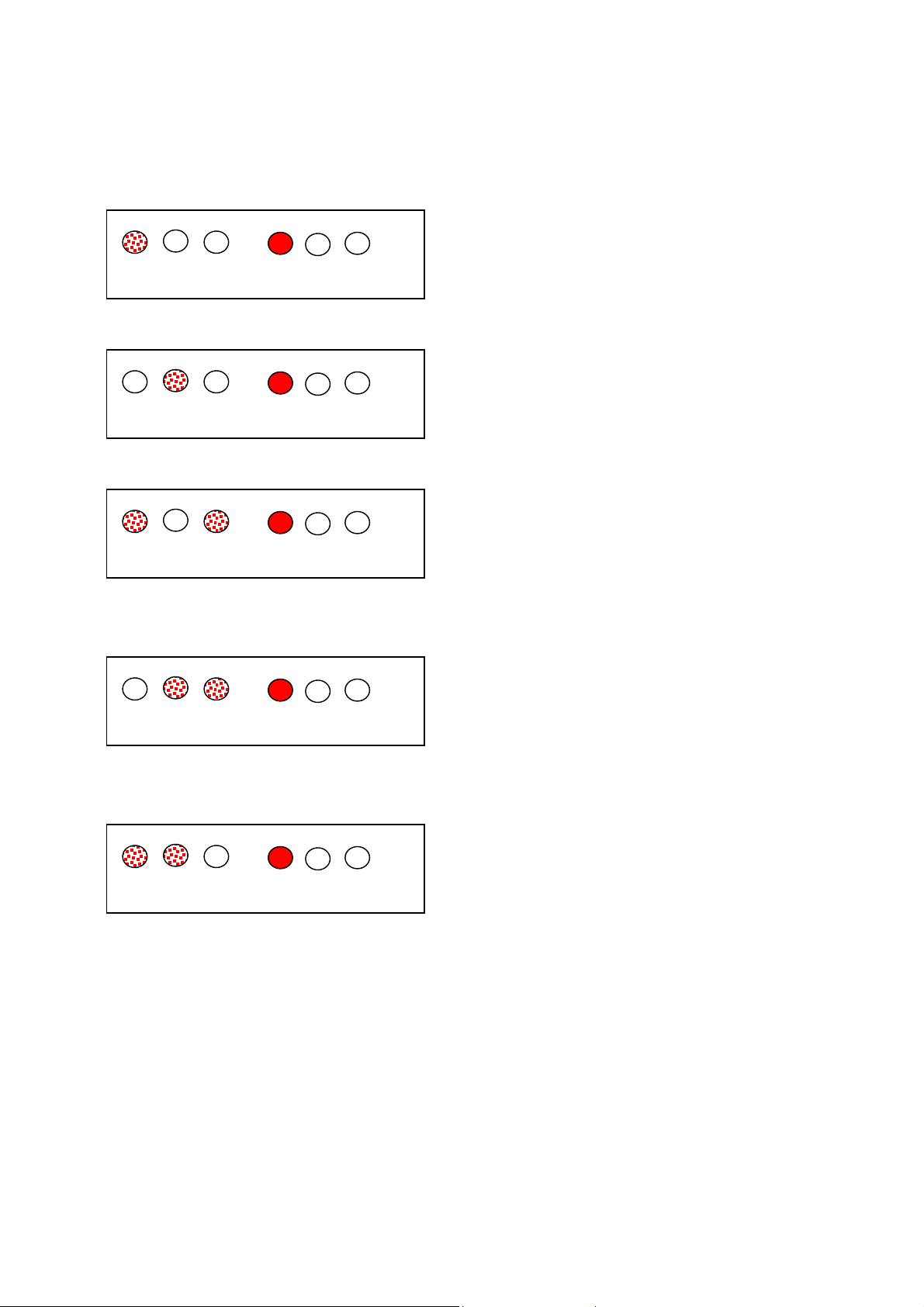

Error Display during Copying

1.
A repeating “long beep”, indicates an error
reading the Master disc. The Master disc is
2.
Mode Status
unreadable. Try using another master disc.
A repeating “long beep”, indicates the CD-R disc
in the recorder drive is not blank. Try using a
Mode Status
3.
different blank disc.
A repeating “long beep”, indicates an error
reading the master disc or a write error writing to
Status
Mode
the CD-R media. Try using a different blank disc
or different master disc.
4.
A repeating “long beep”, indicates a write error.
Writing to the CD-R disc failed. Try using another
Status
Mode
blank disc.
5.
A repeating “long beep”, indicates a write error.
Writing to the CD-R disc failed due to a buffer
Status
Mode
underrun. Try using a different master disc. The
reader drive could also be the cause of the error.
8

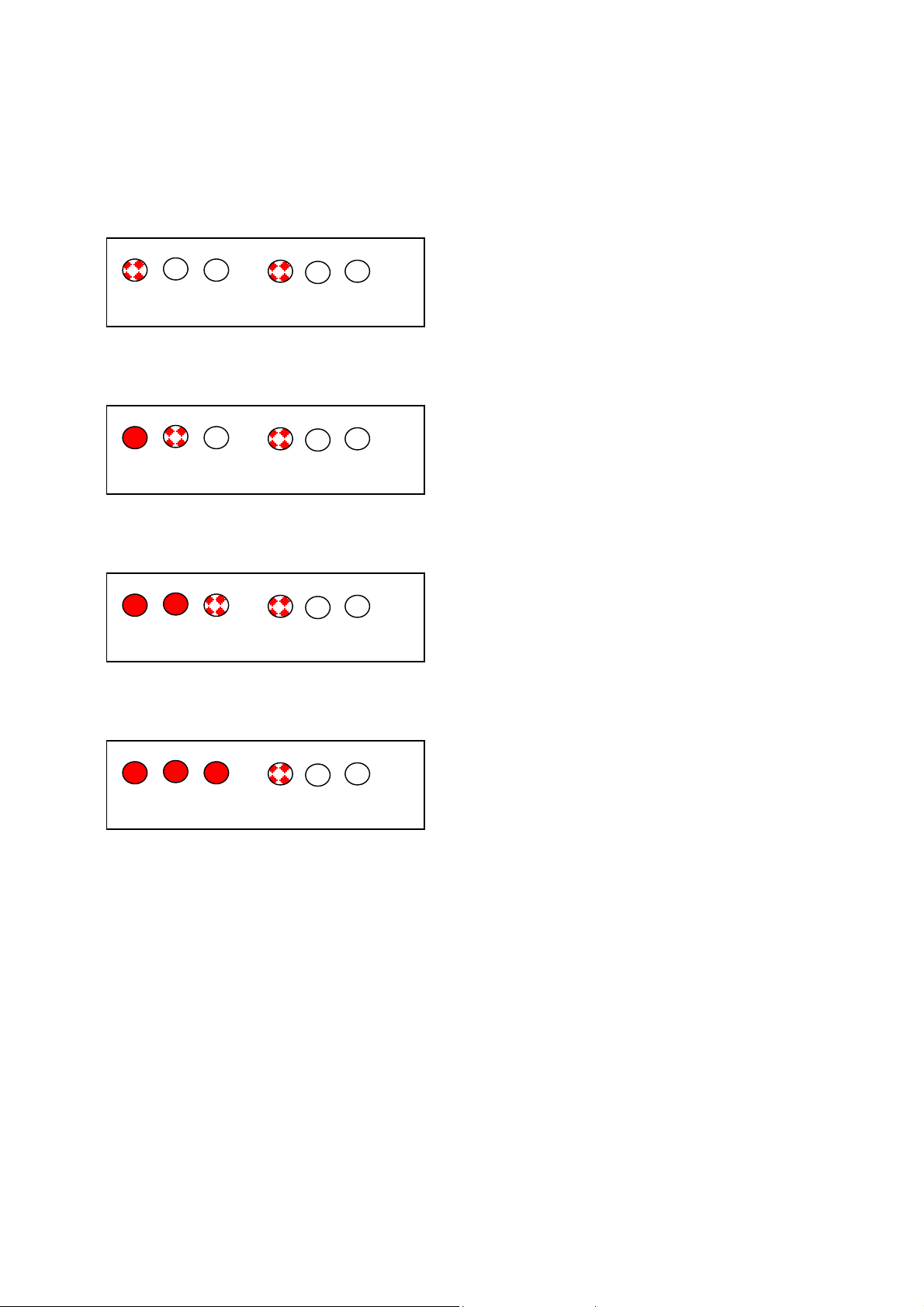

Test Copy Mode Process

1.
Test copying process between 0%~30%
Mode
Mode Status
complete (fast speed).
Test copying process between 31%~60%
complete.
2.
Status
3.
4.
Test copying process between 61%~100%
Mode Status
complete.
Test copy complete. A single “short beep”
indicates the test is complete. The controller
Mode Status
returns to the status shown in figure 1 on page 7.
9

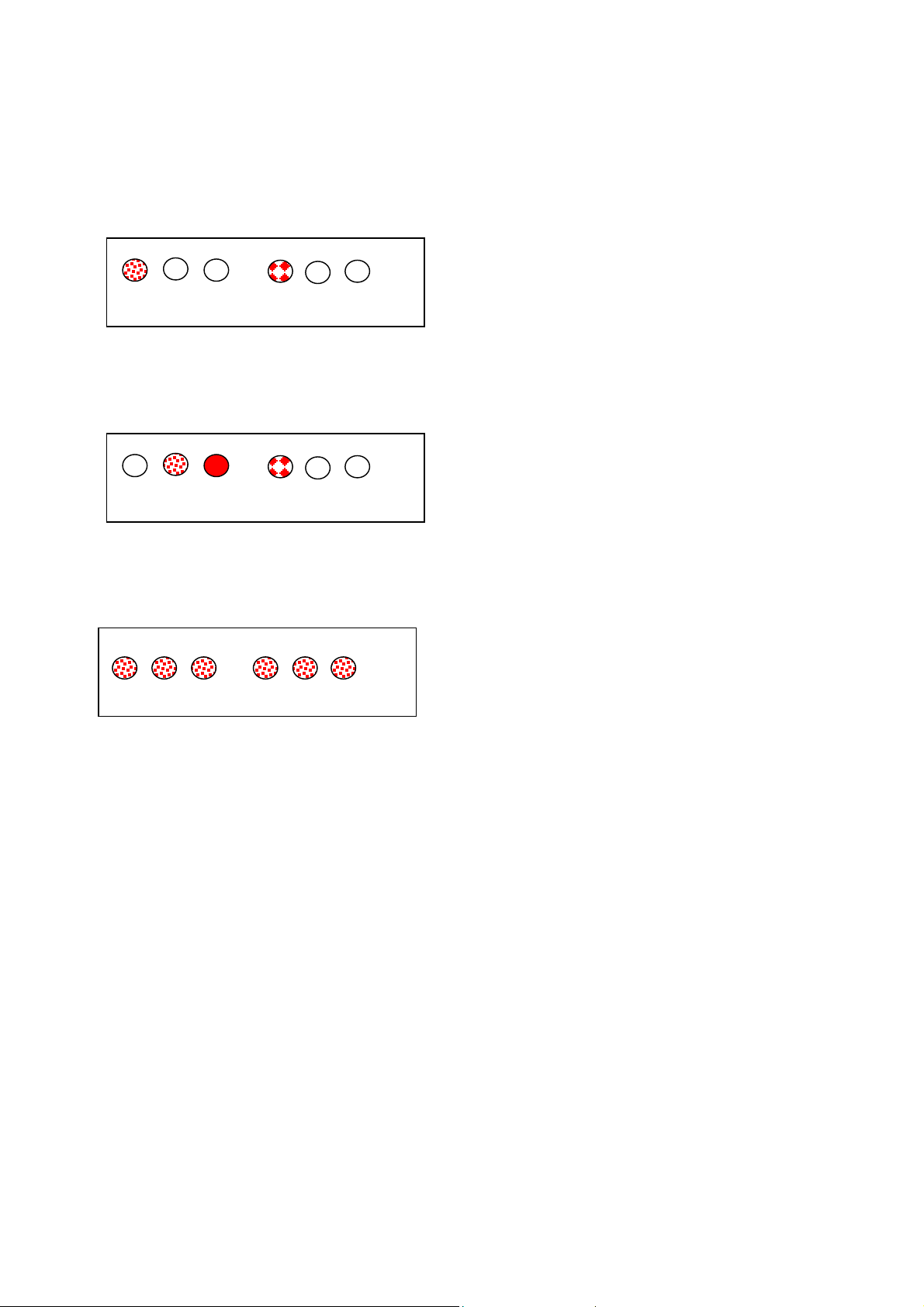

Error Display during Test Copying

1.
A repeating “long beep”, indicates an error
reading the master disc. Try using another
2.
Mode Status
Status
Mode
master disc.
A repeating “long beep”, indicates an error with
the blank CD-R disc. Try using another CD-R
disc in the recorder.

Error Display in Additional System Modes

Status
Mode
System error.
10
CWR-424-52 Microboards Technology LLC

Specifications:

CD Recorder Drive: 52x CD-RW speed selectable drive
Power Source: 115V/230V 50-60Hz switchable power supply
Weight: 42 pounds
Dimensions: 19” (W) x 18” (D) x 7” (H)
Power supply: 250W
Environment: Temperature: 40°C (104°F) / 5°C (41°F)
Humidity: 20% - 80%

Supported Formats:

CD-DA , Mixed Mode, ISO9660, Hybrid, CD-ROM Mode1/Mode2, CD-I, CD-ROM XA Form1/form2 , HFS,
UFS,CD-EXTRA (CD-PLUS)

Firmware Update

Occasionally it may be necessary to load new or updated firmware on to the CWR-424-52 duplicator. You will be sent a CD containing the firmware program. Please follow these steps to load the disc.
• Hold down the YES button and turn on power to the system.
• The system will beep once.
• Release the YES button.
• The Reader drive will eject.
• Please the firmware CD into the Reader drive and close the tray.
• The Status lights will blink as the firmware program is being loaded.
• Once the firmware is loaded, the Reader drive will eject the disc.
• Remove the firmware disc from the Reader and close the tray.
• The CWR-424-52 duplicator will now reboot and be ready for use with the new
firmware program running.

Contact Information

For technical questions or support issues, please contact your dealer. You may also reach Microboards
Technology technical support at PH: 952-556-1639, FAX: 952-556-1620, by email at or on the web at
http://www.microboards.com
.
