Page 1
Cartridge Machine
USER MANUAL
2019
Page 2
INDEX
Safety Notice
Machine Overview
The Grip
The Body
Connecting your Machine
Adjusting Needle Depth
Additional Information
Troubleshooting
3
4
5
6
7
8
9
10
Page 3
USER MANUAL
SAFETY NOTICE
TECHNICAL DATA
CLASS III SYMBOL
A Class III appliance is designed to be powered by a separated/safety
extra-low voltage (SELV) power source. The voltage from a SELV supply is
low enough that under normal conditions, a person can safely come into
contact with it without risk of electrical shock. The extra safety features
built into Class I and Class II appliances are therefore not required. For
medical devices, compliance with Class III is not considered sufcient
protection. Therefore, more stringent regulations apply to such equipment.
Operating Voltage: 4-9.5 V DC
Current: .3 A
Stitch Frequency: 25 -160 Hz
Stroke: 2.3 mm
Connection: AIR Mini DC cable
Drive: Brush DC motor & drive
Operating Mode: Continious operation
Ambient Temperature: +10 - +35 °C / 50 - 95°F
Relative Humidity: 30 to 75%
Dimensions (Ø X L): 24 x 117 mm
Weight: Approx. 3.7oz / 106g
BARRIER PROTECTING YOUR MACHINE
Although the grip is autoclavable, we strongly suggest the use of barrier products to protect your
machine. For a visual demonstration of variouis barrier protection methods, please visit our YouTube
channel at YouTube.com/fkirons.
“This machine is not to be used by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge”
3
Page 4
USER MANUAL

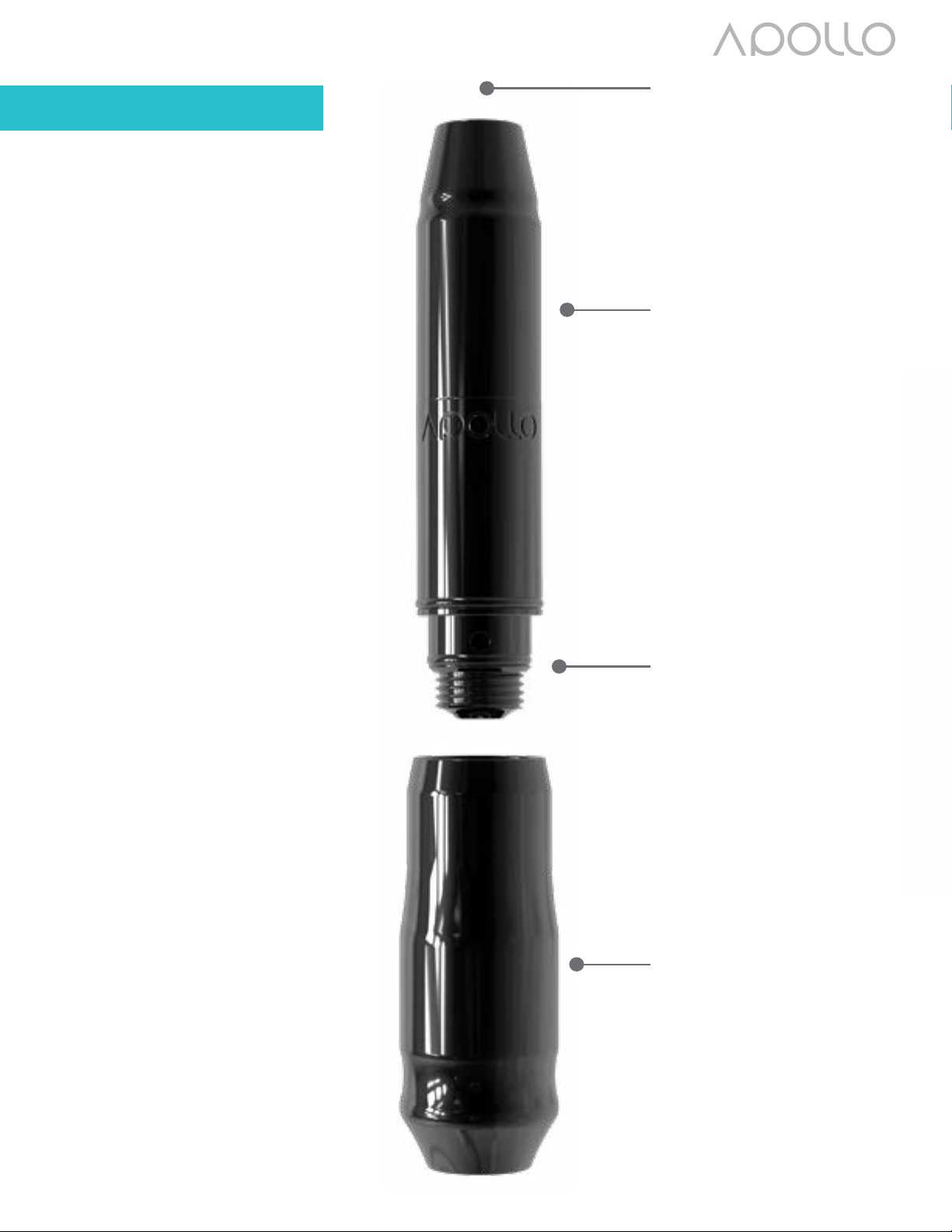

MACHINE OVERVIEW
RCA connectivity
Powerful 6W
MotorBolt system
specically designed
to meet the demands
of Micropigmentation
THE APOLLO
Changing SMP
Forever
he rst pen style machine
T
providing artists full control
of parameters that unleash
their creative vision. Compatible
with most power supplies
on the market, the Bellar is
Adjustable needle
depth system
Ergonomic grip design
for Micropigmentation
a tool solution for all your
Micropigmentation (MP) needs.
4
Page 5
USER MANUAL

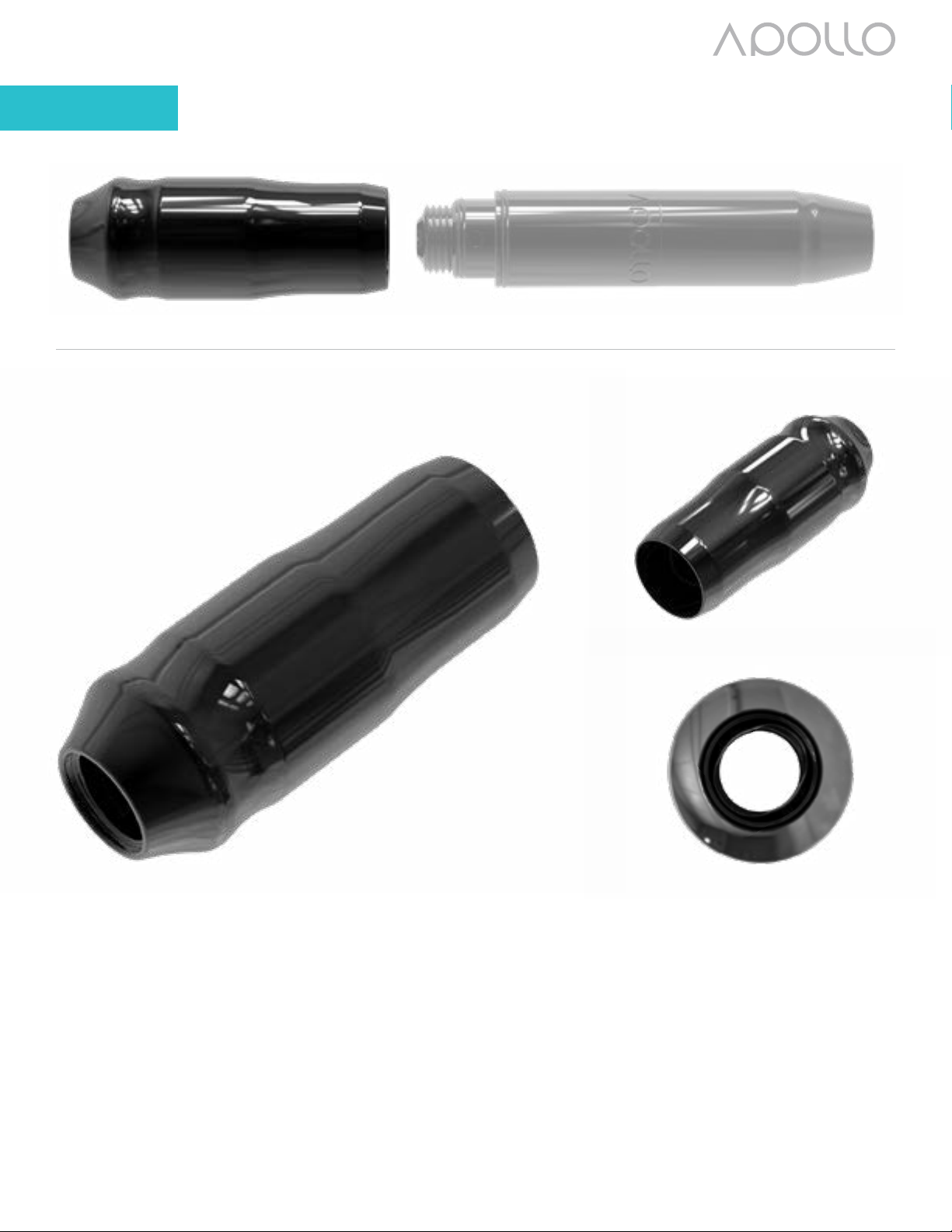

THE GRIP
Apollo Grip
Autoclavable Ergonomic Grip design Compatible with most membrane needle
cartridges on the market
THE GRIP
he Apollo offers artists
T
an ergonomic grip design
and never-before-seen full
machine control. The standard
grip tapers from 24mm to
21mm. Other grip options may
be available. The Grip is crafted
from a solid rod of 6061 T6
aircraft-grade aluminum. This
polished and anodized grip is
5
steam sterilization safe, cold
sanitation solutions safe and
autoclave safe.
Page 6
USER MANUAL

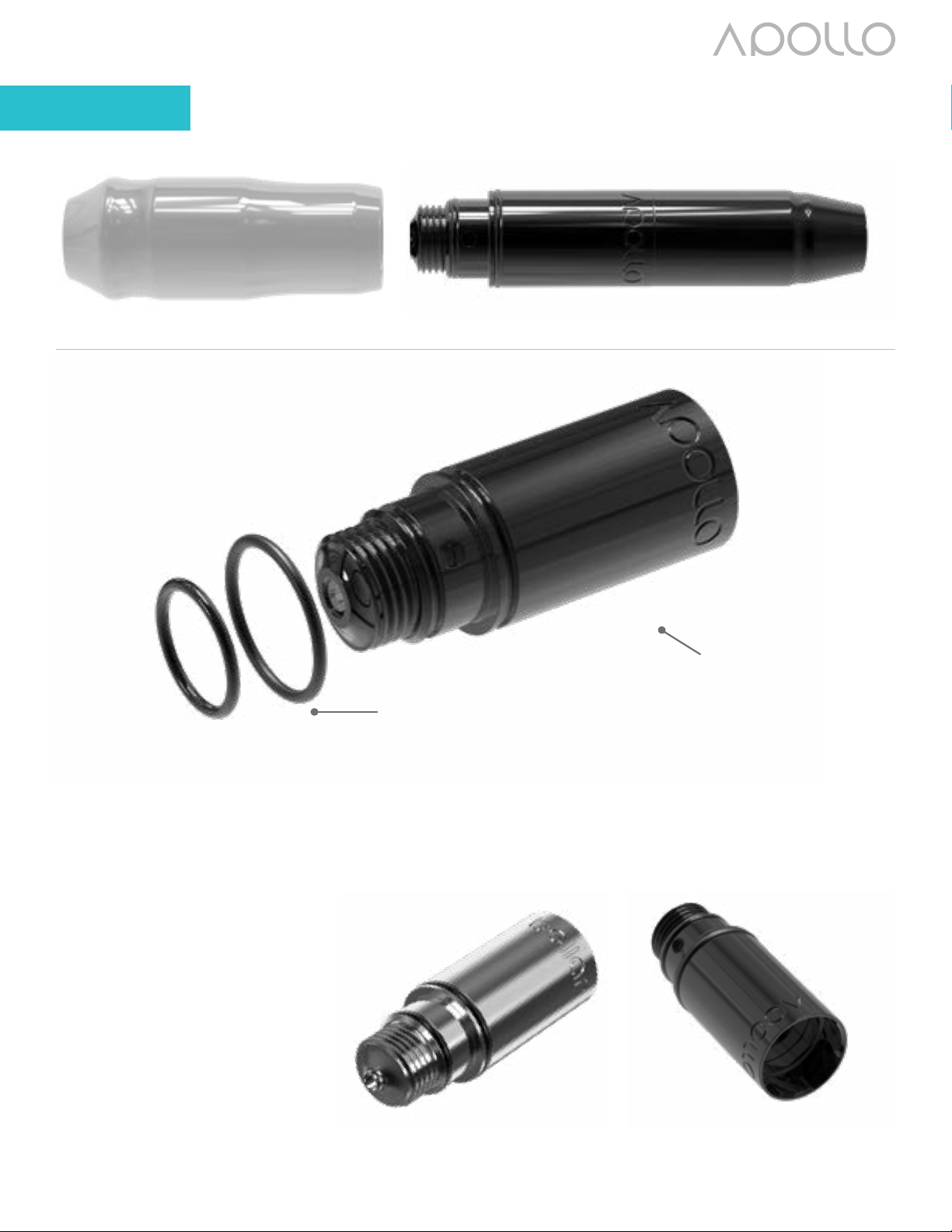

THE BODY
Apollo Body
THE BODY
he Body is the core of
T
the machine that houses
all the machine components.
Constructed from a solid rod
of 6061 T6 aircraft- grade
aluminum, this module should
be sanitized by wiping it with
cold sterilization solutions
only. Caution: Do not introduce
Apollo Body
Stabilizing Friction O-Rings
any types of liquid inside the
system.
Body isometric view Body posterior view
6
Page 7
USER MANUAL

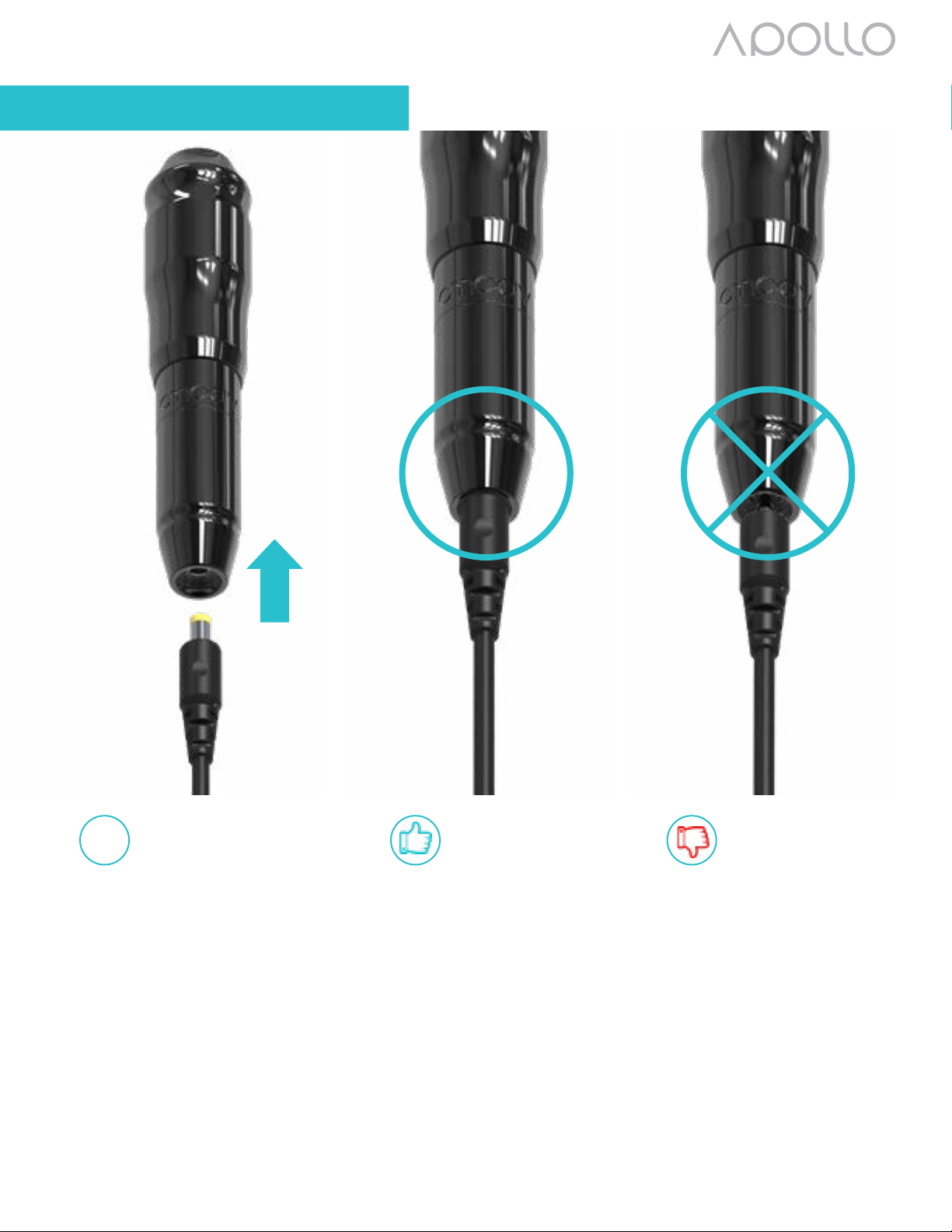

CONNECTING YOUR MACHINE
Plug the AIR mini DC cord
1
into the Xion DC connector
HOW TO
CONNECT
YOUR
MACHINE
Best connection Improper connection
Insert the AIR mini DC (xxmm
x 1.7mm) into the back of
the MotorBolt and connect
to a Power Supply. The RCA
connector jack is concealed
by the MotorBolt housing.
7
Only use AIR mini DC cord
provided with the machine and
sold by any of our companies.
(Microbeau, DarkLab, FK
Irons)
Page 8
USER MANUAL

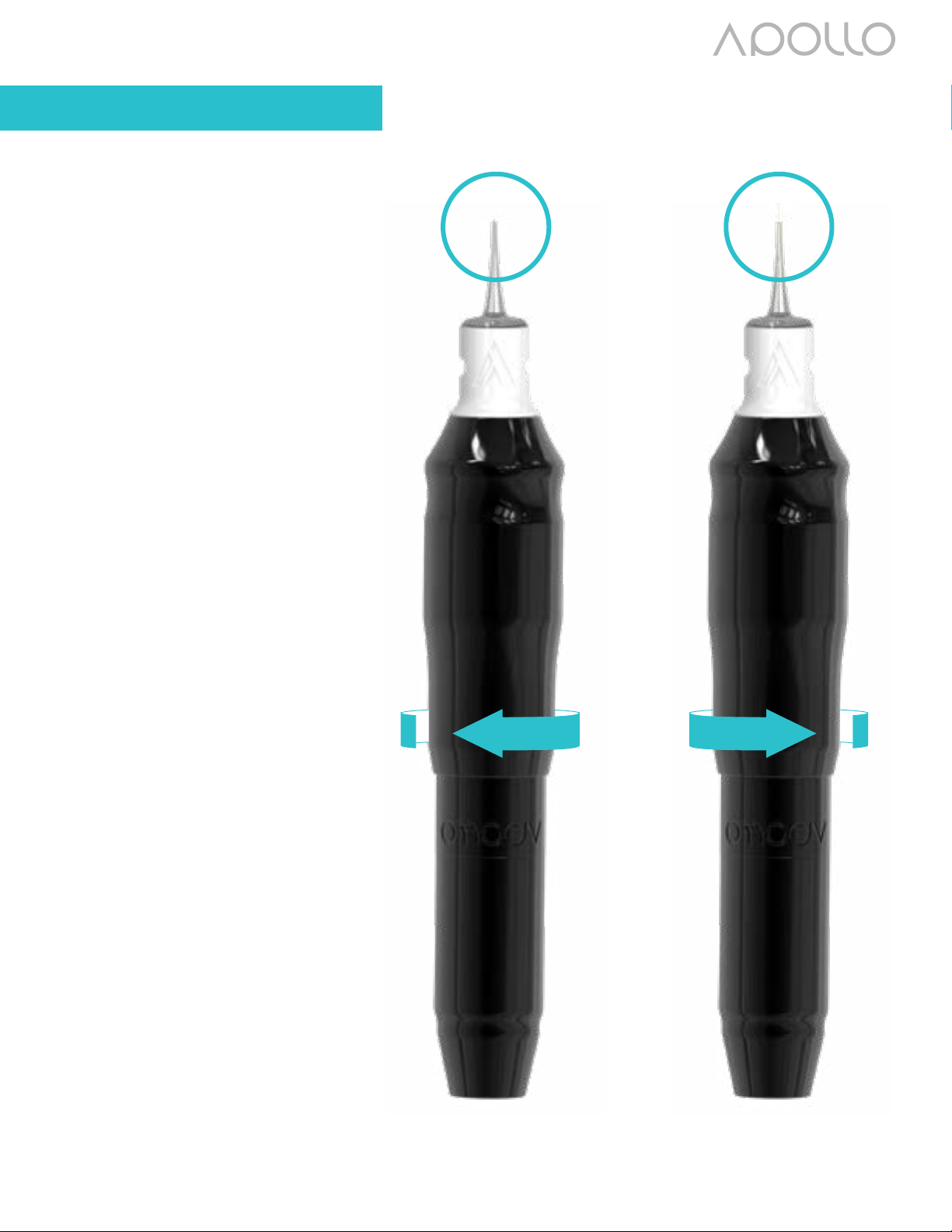

ADJUSTING NEEDLE DEPTH
Increases needle depth decreases needle depth
ADJUSTING
NEEDLE
DEPTH
o adjust needle depth,
T
hold the machine body
and MotorBolt while turning
the Grip. A counterclockwise
turn decreases depth, while a
clockwise turn increases depth
(also known as needle hang).
Each time you turn the grip it
allows you to set your needle
precisely without involuntarily
turning while tattooing.
Turning the Grip as the arrow direction
show increases needle depth
Turning the Grip as the arrow direction
show decreases needle depth
8
Page 9
USER MANUAL
ADDITIONAL INFORMATION
VOLTAGE PARAMETERS
While voltage is a parameter that will vary from artist to artist, this machine has been tested
to operate at a minimum voltage of around 4 Volts with a maximum voltage of 9.5 Volts.
Depending on the type of needle conguration or brand you use, feel free to adjust the voltage to
obtain the desired performance.
Note: Exceeding 9.5 Volts is not recommended.
ACCEPTED NEEDLES
Use cartridge needles with internal membrane. This will avoid accidental contamination inside your
machine. Fluids such as ink, water or oil inside the machine will void warranty of the device, and may
require replacement of internal parts.
MAINTENANCE
• Apollo is sold pre-lubricated from the factory and does not require internal lubrication.
• Prevent any type of external elements from entering inside the machine as they will disrupt the
motion of the component and contaminate lubrication.
• The grip of the machine is autoclavable. Use only steam autoclaves at temperatures no higher
than 270° Fahrenheit or 132.222° Celsius. Add a hint of ointment or PTFE grease around internal
opening of grip or on stabilizing friction O-rings for optimal functionality after autoclaving. Refer
to page 5 for additional information.
• Machine Body and MotorBolt can be sanitized from the outside with cold sterilization products.
• Never spray the surface directly to prevent fluids from entering the machine. Always use pads or
disposable paper towels to apply sterilization products.
WARRANTY
• All the housing components (Grip, Machine Body and MotorHousing) are covered by a
lifetime warranty.
• Internal parts are subject to wear and the motor itself will be covered by a 1-year warranty from
the date of purchase.
• Motor warranty is void if motor shows signs of being dropped, internal fluids enter the motor
and/or motor shows signs of being tampered with in any way.
9
Page 10
USER MANUAL
ADDITIONAL INFORMATION
HANDY TIPS
The following tips will help you get the most out of your Apollo and avoid potential issues:
• Always secure your machine. Dropping the machine can cause damage to the magnets, bearings
and motor brushes.
• Use only cartridges with membranes to avoid contamination.
• Do not exceed the suggested voltage.
• Always use power supplies with at least 1Amp of current supply.
• Rinse your needle frequently to avoid pigment drying up and slowing down your cartridges.
• When rinsing your needle, ensure to dip only the tip of the cartridge to avoid fluids back flow.
• Inspect your needles prior to use.
• Use only quality cables. A good connection will ensure consistent performance.
• Avoid scratching the surface of the embodiments.
• Use only FDA-approved cold sterilization solutions for disinfection.
• Do not lubricate machine unless instructed otherwise.
• Store your machine in a secure place.
TROUBLESHOOTING
1.- Machine manufacturer
FK Irons: 1771 NW 79th Avenue, Doral, Florida 33126
2.- Servicing your machine
Just like any mechanical device subject to use, FK Irons strongly suggests that you service
your product at least once a year to ensure that a proper diagnosis of all working parts is
conducted. This ensures the optimal condition of all working parts including internal machine
clean up and fresh lubrication. Routine servicing will ensure that your machine remains
functioning like the very rst day. Service is subject to fees.
3.- Warning
Disconnect machine from any power before making any adjustments.
For service inquiries, please contact [email protected].
For additional tips and tutorials, please visit Youtube.com/fkirons
10
