About this documentation
This manual provides detailed information about the hardware and software features of the Corvus-eco controller.
This includes specifications, fu
nctions, installation and con-
nector description.
The Venus-1 programming language is described in a separate part of the controller documentation.
Manual Corvus-eco
7
Symbols in this documentation
To clarify the content following symbols are used.
Symbol Description
Warning.
This information must be
observed strictly.
Important information.
Indicates that this function can be
enab
led with a release code.
This function must be installed from
the factory personal or experts.
Venus-1 commands are indicated
with th
is formatting style.
TABLE 1:Symbols and their meaning
Option
Venus-1
Option
Chapter 1
Manual Corvus-eco
Introduction 8
Introduction
Manual Corvus-eco
Introduction 9
Presentation of the controller
Corvus-eco

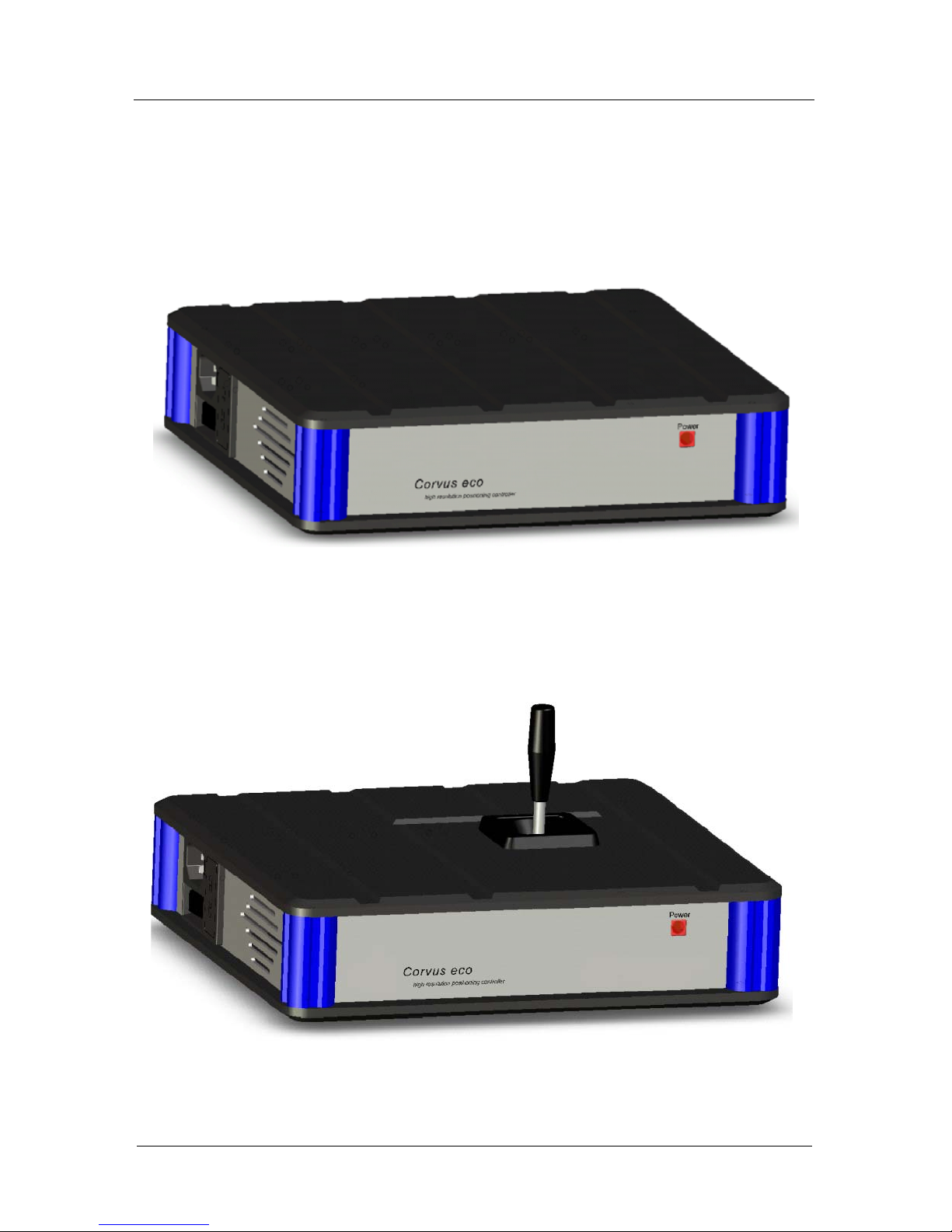

Corvus eco with a built in joystick
Manual Corvus-eco
Introduction 10
Technology
Corvus-eco is a complete high resolution stepping motor controller/driver combination for alternatively 2 or 3 axes.
Corvus-eco is equipped with a 32-bit, 133MHz Risc processor
working with a Real-Time-Operating-System (RTOS) for scalable performance and high precision synchronized control.
For Closed Loop control a digital PID control loop updates all
axes with a
cycle time of 250 µs for precise and accurate positioning.
A extremely micro-step resolu
tion up to 690.000 steps/rev.
provides ultra-smooth stepper positioning capability and a
very constant velocity profile tracking for challenging positioning applications.
Low impedance MosFet motor drivers guarantee high motor
performance
and a cool driver electronics.
Motion types
Corvus-eco provides point-to-point, jogging, linear interpolated moving and also velocity controlled moves with the possibility of on the fly velocity updates.
Software limits can be s
et to improve the systems safety.
A advanced limit switch teach-in procedure determines the
working
range and ensures the precision of homing.
Resolution, velocity and acceleration
The elaborated controller technology enables a low-noise
positioning and an extremely high stepping resolution. In the
progra
mmable mode, a positioning resolution of 1,5 nm is
achieved.
The resolution in the joystick mode is 23.2 fm (femtometer).
Due to the high computing power Corvus-eco has a high
speed
and acceleration dynamic from 15nm/s until 25mm/s
(pitch =1mm.)
Linear- or sin²-accelerations modes are also supported.
Options
Corvus-eco is supplied with a great variety of options.
See Table 2, “Function survey,” page 12.
Manual Corvus-eco
Introduction 11
Communication
RS-232 or USB
Programming
Corvus-eco is programmed with ASCII command language
Venus-1. For easy motion programming the controller supports native units such as µm, mm, inch, m, mm/s, mm/s²
Manual operation
For manual operation a analog joystick interface is provided.
Additionally Corvus-eco is available with a build in joystick.
Firmware update
To keep the Corvus-eco firmware always up to date the
controller firmware can be easily updated.
Manual Corvus-eco
Introduction 12
Function survey
The following table summarizes the functions of the Corvuseco motion controller/driver.
Standard: Basic configuration.
Option / Code: Release code required.
Option / Hardware: Additional hardware required.
Option / Code / Hardware: Additional hardware required + release code required.
Features Standard / Option
• Axis-1, Axis-2 • Standard
• Axis-3 • Option / Code
• 24V motor driver voltage • Standard
• Max. motor phase current: 1.5A • Standard
• Max. motor driver resolution: 1.5nm • Standard
• Motor revolution (200 step motor): 15 rev/s • Standard
• Motor revolution (200 step motor): 25 rev/s • Option / Code
• Joystick operation for external joystick • Standard
• Joystick operation with internal joystick • Special order code
• ASCII command language • Standard
• Motion macro execution • Standard
• Error correction 1D, open loop and closed loop • Standard
• Sin²- acceleration (s-curve) • Standard
• Closed Loop (RS422 inputs) • Option / Code
• Closed Loop (1Vss inputs) • Option / Code / Hardware
• 2 Limit switch inputs • Standard
• Digital I/O, 3 inputs / 3 outputs • Option / Code
• Trigger out function, max. 4 kHz, resolution=250µs • Option / Hardware
• Position capture input, max. 1.000 position data • Option / Code
• Motor enable/disable input • Option / Hardware
• Firmware update capability • Standard
• RS-232 interface • Standard
• USB interface • Option / Hardware
Table 2. Function survey
Chapter 2
Manual Corvus-eco
Starting up 13
Starting up
Manual Corvus-eco
Starting up 14
Safety notice
The controller is developed, produced, checked and documented in consideration of the relevant standards.
If it is used according to the regulations, there is no danger for
person
s and things.
The use according to the regulati
ons implies that the device
is solely used in the way that is described in this documentation and that the stated safety advices are followed.
In no event will the manufacturer be liable for direct, indirect,
specia
l, incidental, or consequential damages arising out the
use of inability to use the product or documentation, even if
advised of the possibility of such damages.
Manual Corvus-eco
Starting up 15
Declaration by the manufacturer
The company
PI miCos GmbH
Freiburger Strasse 3
0
D-79427 Eschbach
declares that the product:
Corvus-eco
intended use:
Position
ing Controller
meet the fo
llowing directives and standards:
Directive 73/23/EEC
Directive 89/336/EEC
Electrical Apparatus Electromag. compatibility
Low Voltage Directive
European Standards:
EN61010-1 (08.2002)
EN61326-1
EN61000-3-2, EN61000-3-3
Remarks:
Initial operation of th
e Corvus-eco controller sold by us is not
permitted until it has been assured that the machine/system,
in which our Controller is installed, complies with the EU machine guidelines.
Lucius Amelung (Managing Director)
Eschbach, 06.06.2006
Manual Corvus-eco
Starting up 16

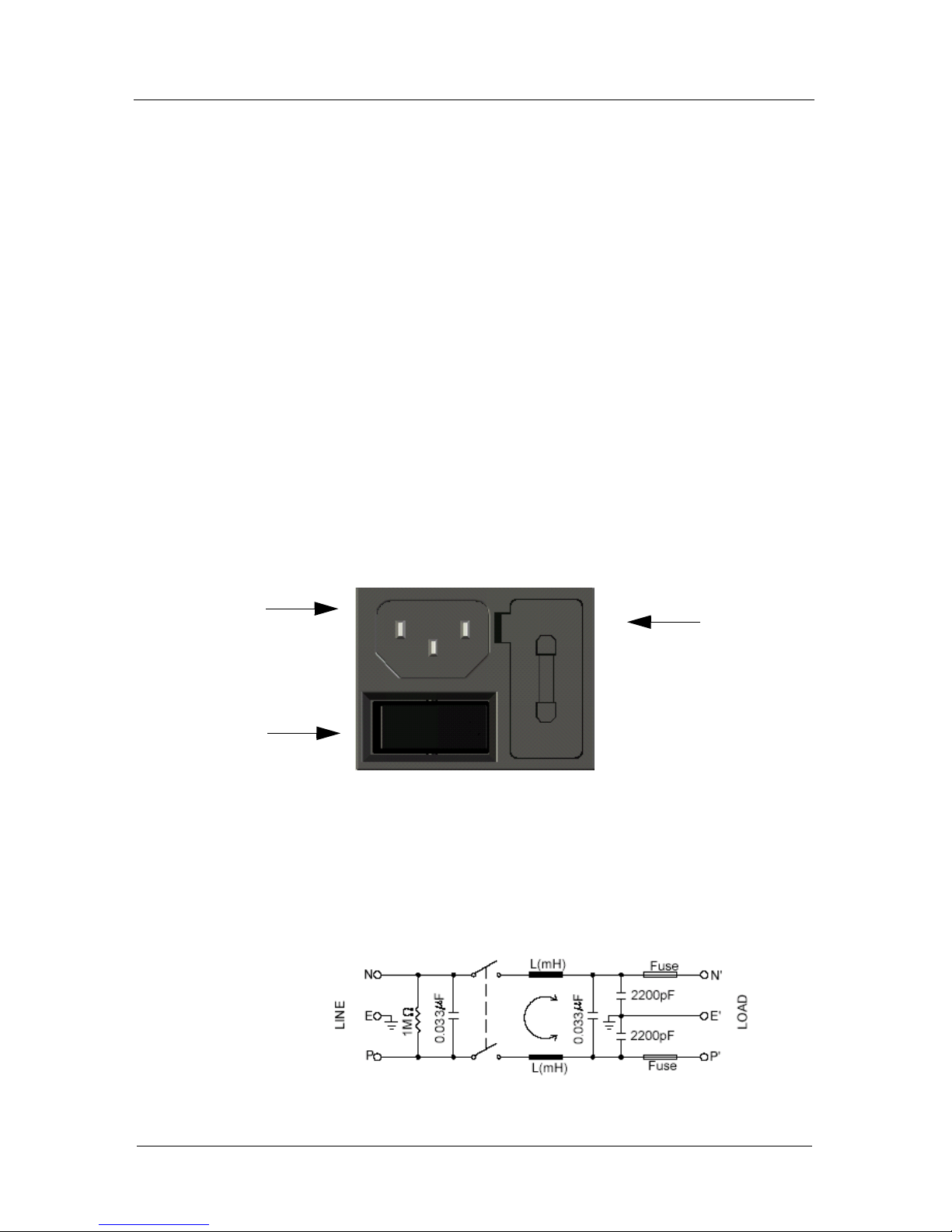

Mains supply
Universal input voltage
Corvus-eco is ready for connection to the mains.
The integrated power supply unit has a wide range voltage input which ad
apts the controller automatically to input voltages
from AC 90V up to AC 250V.
Mains protection
The mains side is protected by a standard 250V/ 3A fuse
It is located in the power entry modu
le and accessible from
the outside.
Line filter
A line filter protects the controller from common-mode and
differential -mode interferences.
Mains switch
Fuse
AC Power connector
Manual Corvus-eco
Starting up 17
Motor connection
Axes designation and assignment
Motor connectors are designated as Axis-1, Axis-2, Axis-3.
They consequental were not labeled as X-Y-Z because this
assign
ment is determined by the application.
The controller is equipped with two axes by default.
Axis-3 is optional available.
Motor types
Corvus-eco supports 2-Phase DC stepping motors with
step angle 0.9 or 1.8°. Maximum phase current = 1.5A
We recommend Hybrid motors. This motors have 200 rotor
teeth and rotate at 1.80 step angles. Other hybrid motors are
available in 0.9ºand 3.6º step angle configurations. Because
they exhibit high static and dynamic torque and run at very
high step rates, hybrid motors are used in a wide variety of industrial applications.

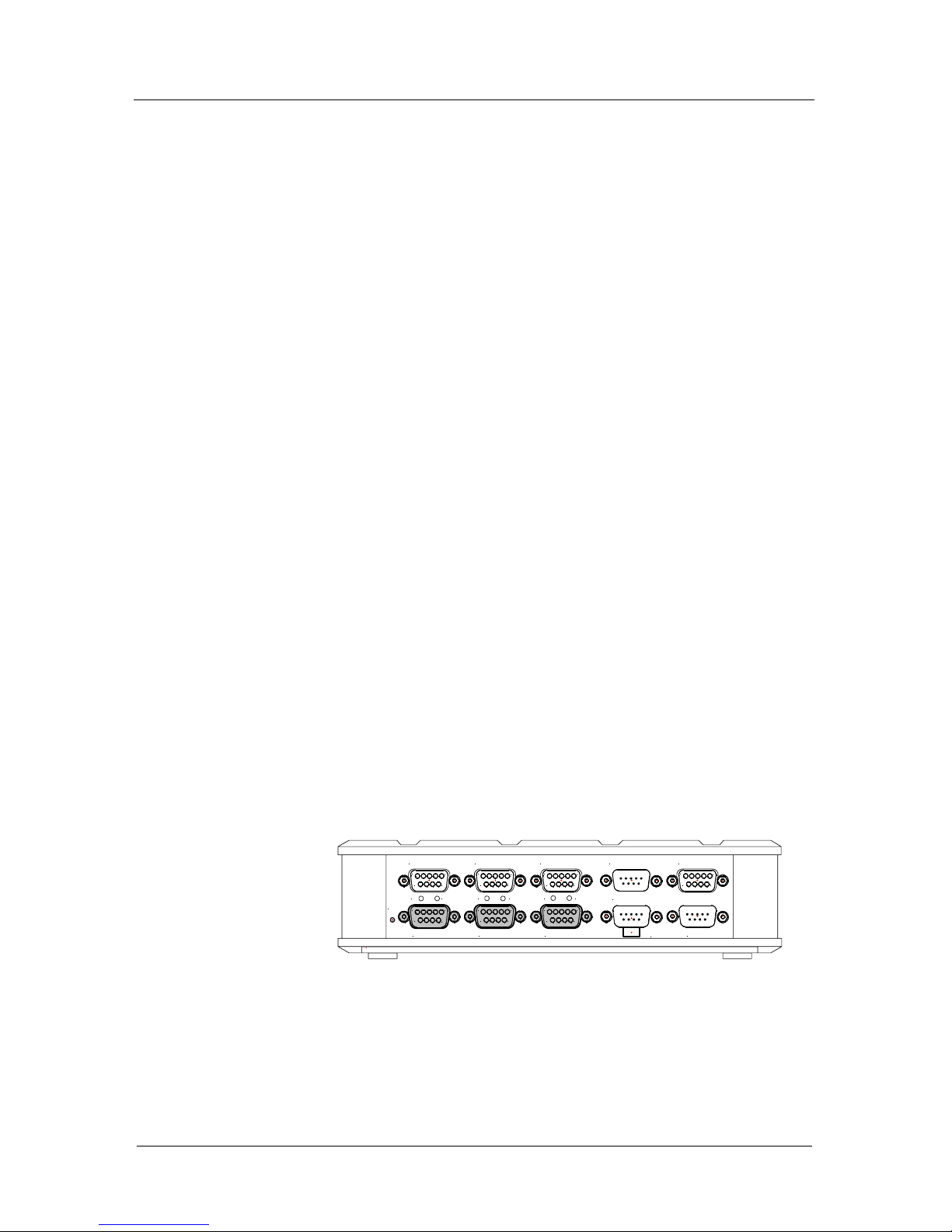

Figure 1: Corvus-eco motor connectors
5
1
9
6
5
1
9
6
5
1
9
6
5
1
9
6
5
1
9
6
5
1
9
6
5
1
9
6
C
Joystick
Motor Axis-2
RS-232 / Host
Encoder Axi s-2 Encoder Axis-3
Encoder Axis-1
S
Motor Axis-1
USB
Motor Axis-3
RS-232 / Service
Input / Output
C CSS
Cycle
Manual Corvus-eco
Starting up 18
Motor characteristics
The following stepper motor parameters are important.
• Step Angle
• Current per Phase
• Resistance per Phase
• Inductance per Phase
• Lead Wires
The motor torque during operation depends on the speed and
has to be taken from the motor characteristic curve.
Typical values:
Step Angle
Current per
Phase
Resistance
per Phase
0.9°, 1.8°, 3.6° up to 1.5A up to 10R
Inductance
per Phase
Lead wires
up to 5mH 4 / 8
Manual Corvus-eco
Starting up 19
Motor wirings

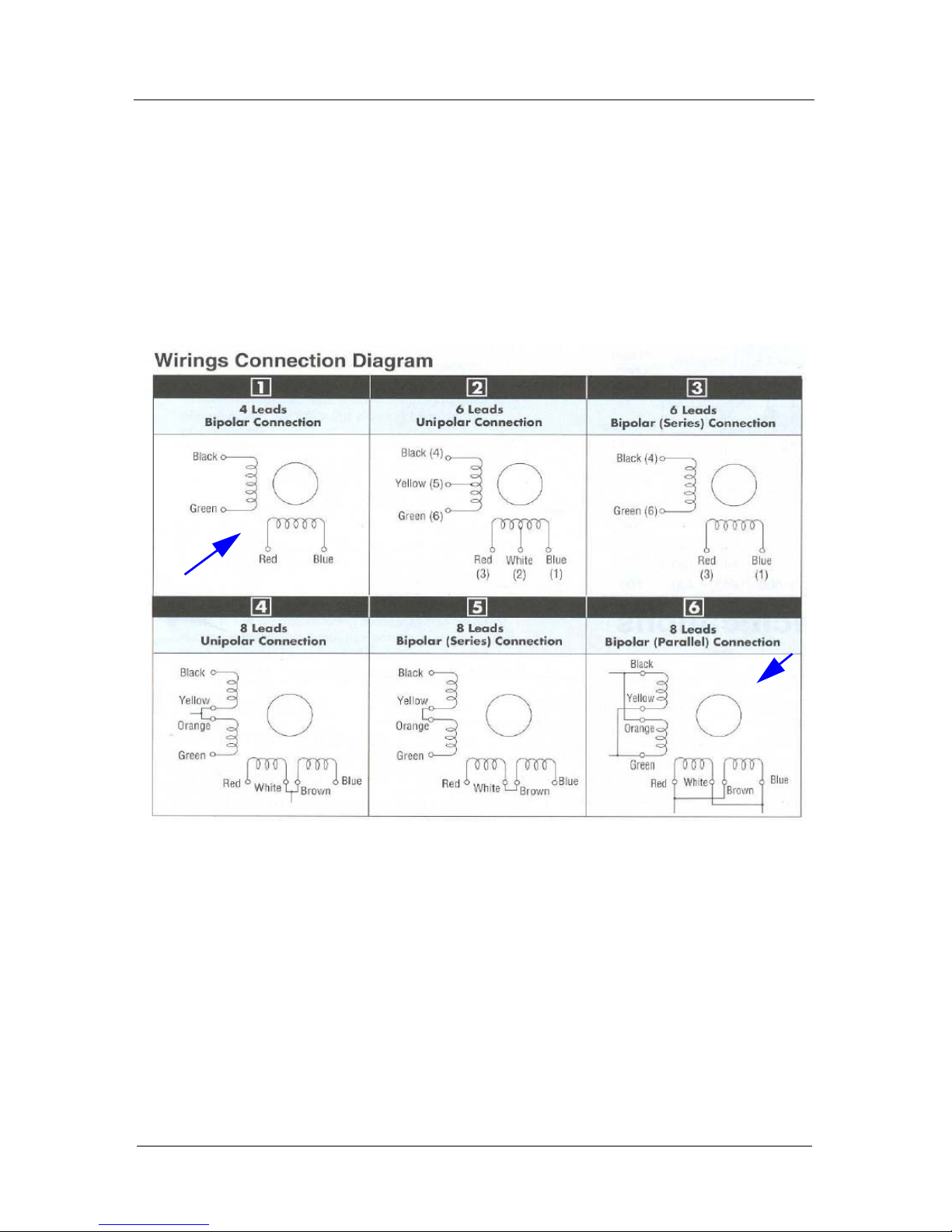

Following table shows different motor wirings.
We recommend Type 1 and Type 6.
The diagrams are taken from a "Oriental Motor" data
sheet.
Manual Corvus-eco
Starting up 20

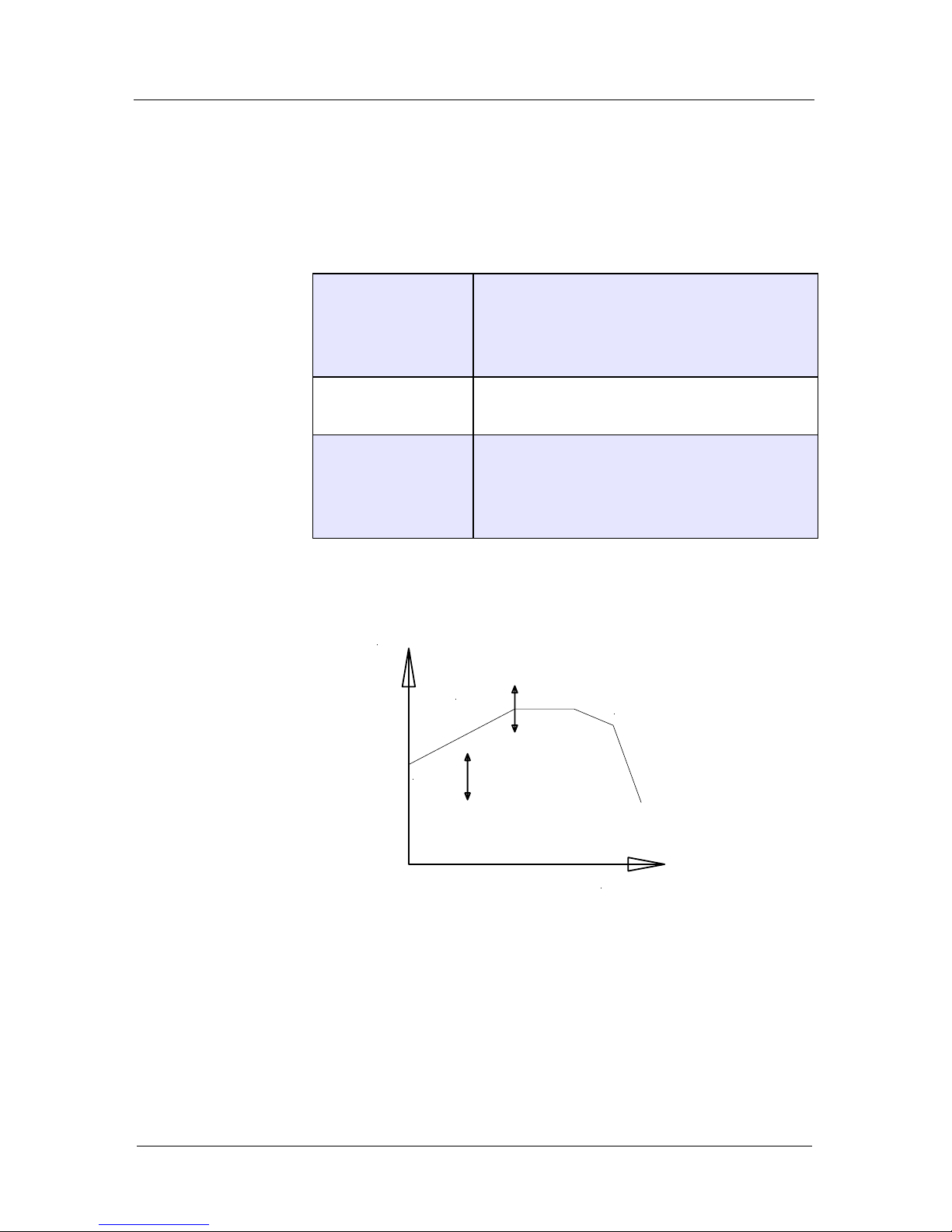

Commands to adapt the controller to different motor types
To adapt the motor driver to the motors the following
Venus-1 commands are provided:
More informations see in the Venus-1 manual.
Above diagram describe the typical stepper motor behavior.
The motor torque depends in the BEMF (back-el
ectromotiveforce) area on the revolutions / torque characteristic of the
motor.
At lower and medium step rates the settings of umotmin and
umotgrad are dominant for the motor characteristic.
setumotmin
Determines the phase current if the
motor stand-still.
This affects the holding torque and power consumption at the motors.
setumotgrad
Determines the phase current and
moving torque if the motor is moving.
setpolepairs
Adapts controller to polepairs of the
different motor types.
0.9° Hybridmotor polepairs = 100
1.8° Hybridmotor polepairs = 50
revolution / s
Phase current
umotmin
umotgrad
BEMF area
Manual Corvus-eco
Starting up 21
Measures against system resonances
The combination of a motor and the involved mechanical
drive components are forming a typical spring/mass system
that can oscillate if the damping of the mechanics is insufficient.
Stepper motors resonance appearances are possible. In a
worst
case situation the stepping motor will stall with a
whistling sound.
An effective countermeasure against this kind of resonances
are da
mping elements which are for typically installed on the
extended motor shaft.
For precision position tasks we always recommend the use of
th
is damping measure.
A cause for resonances are often overdimensioned motors. In
this case we suggest to reduce the torque via the motor parameter umotmin/umotgrad or choosing a more suitable
motor.

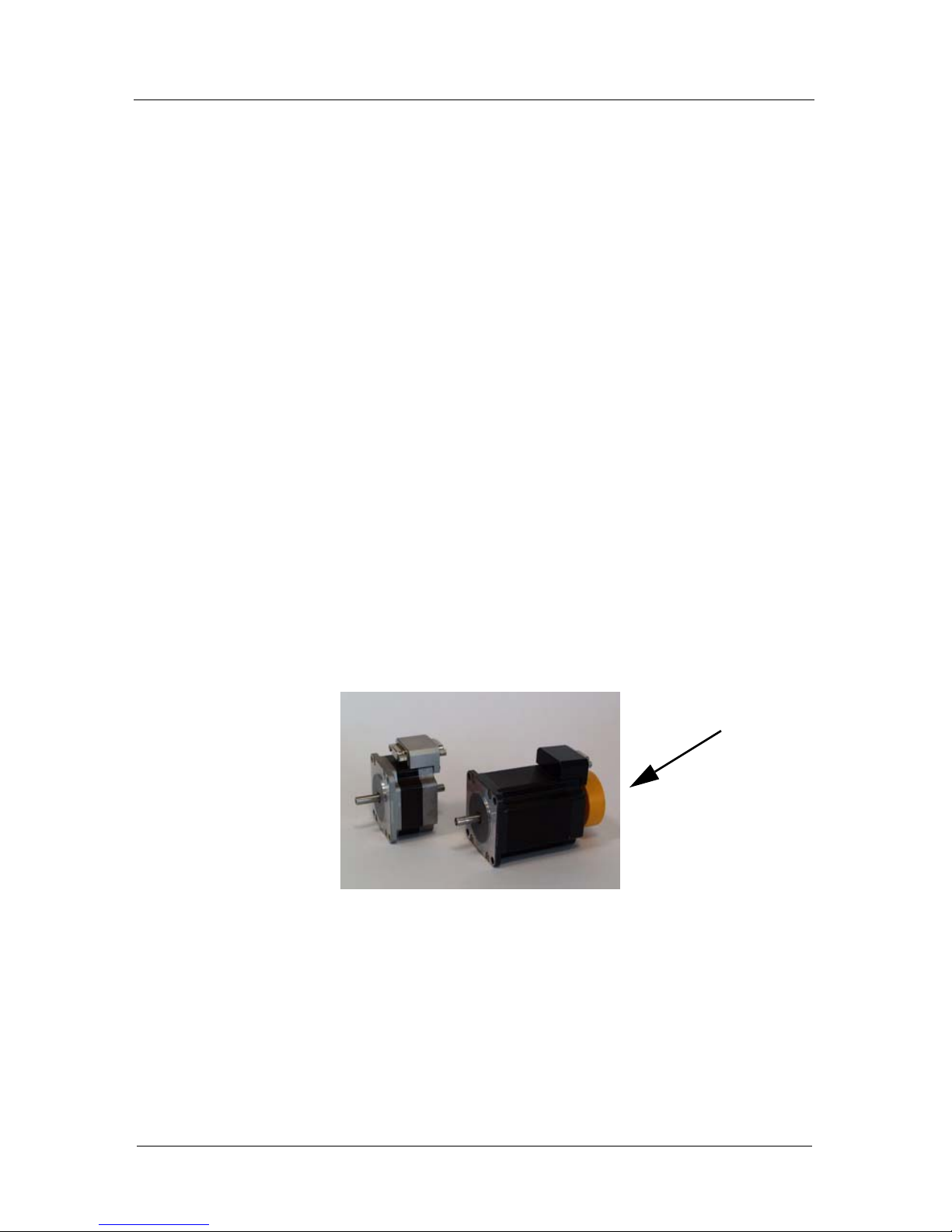

Figure 2: Motor with and without damper
damper
Manual Corvus-eco
Starting up 22
Motor cable
If the motor cables are in-house produced, cable cross-section, cable length and shielding have to be considered.
The cable cross-section has to be adapted to the phase current.
The cable cross-section should be calculated based on
the maximum phase current per motor phase.
For cables longer than 4m it can b
e necessary to adapt cable
losses by a modified configuration of the motor parameters
setumotmin and setumotgrad.
For the EMC-compatible fitting of
the cable, a total shielding
is prescribed whereby the cable shield is connected to the
housing.
The DSUB-9 motor connector should have a metal case. The
fa
sten nuts of the DSUB connectors of the controller are
equipped with an UNC4-40 thread.
Upon request we manufacture motor cables according to
cu
stomer´s demands.
An incorrect wiring of the motor connection can damage
the co
ntroller.

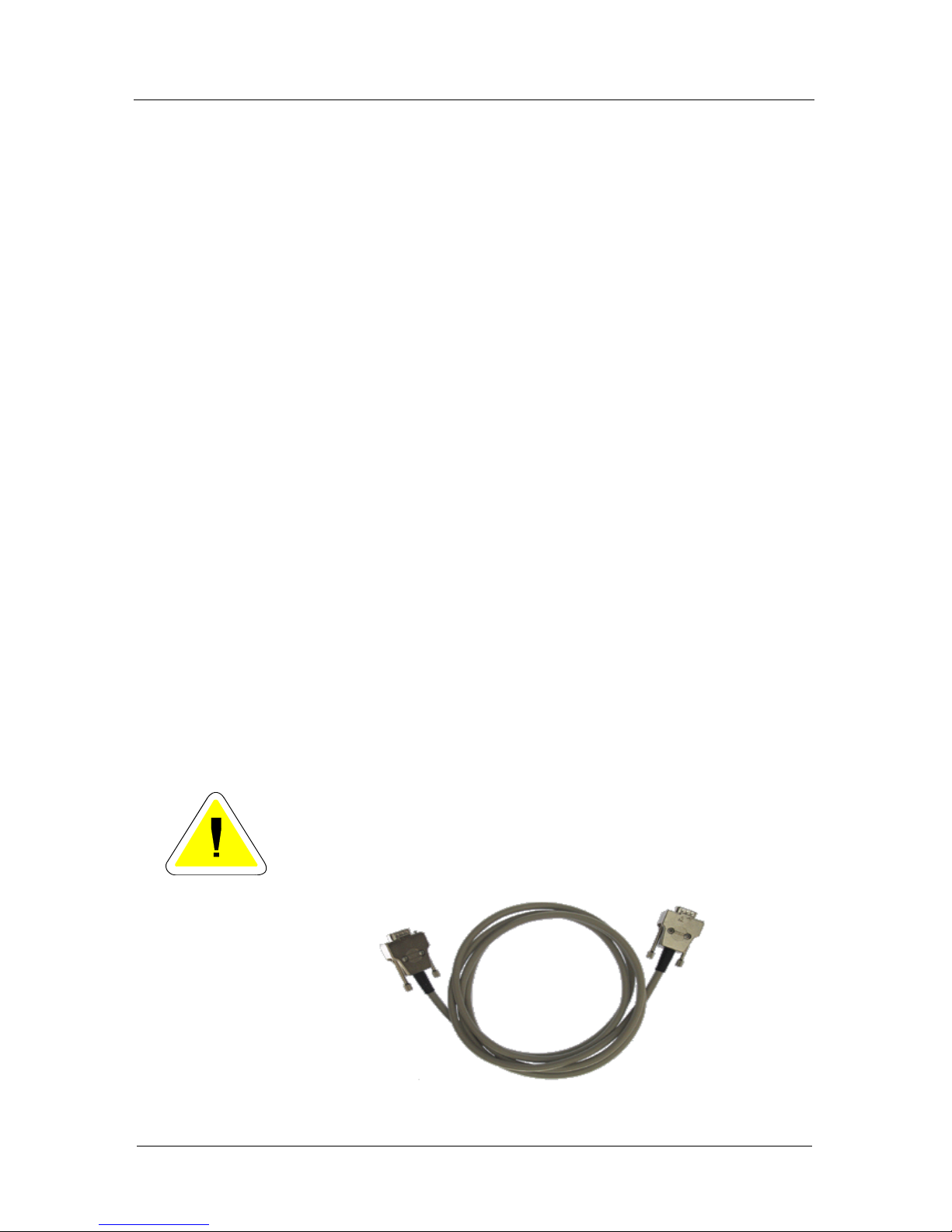

Figure 3: Shielded motor cable with metal connector housing
Manual Corvus-eco
Starting up 23
Limit switches
Limit switch inputs
Corvus-eco provides 2 limit switch inputs for each axis.
The inputs are situated at the motor connector. The switch inputs are de
signated due to their function as cal limit switch
input or as rm limit switch input.
The limit switch function is directly li
nked to these inputs; no
other function can be assigned to them.

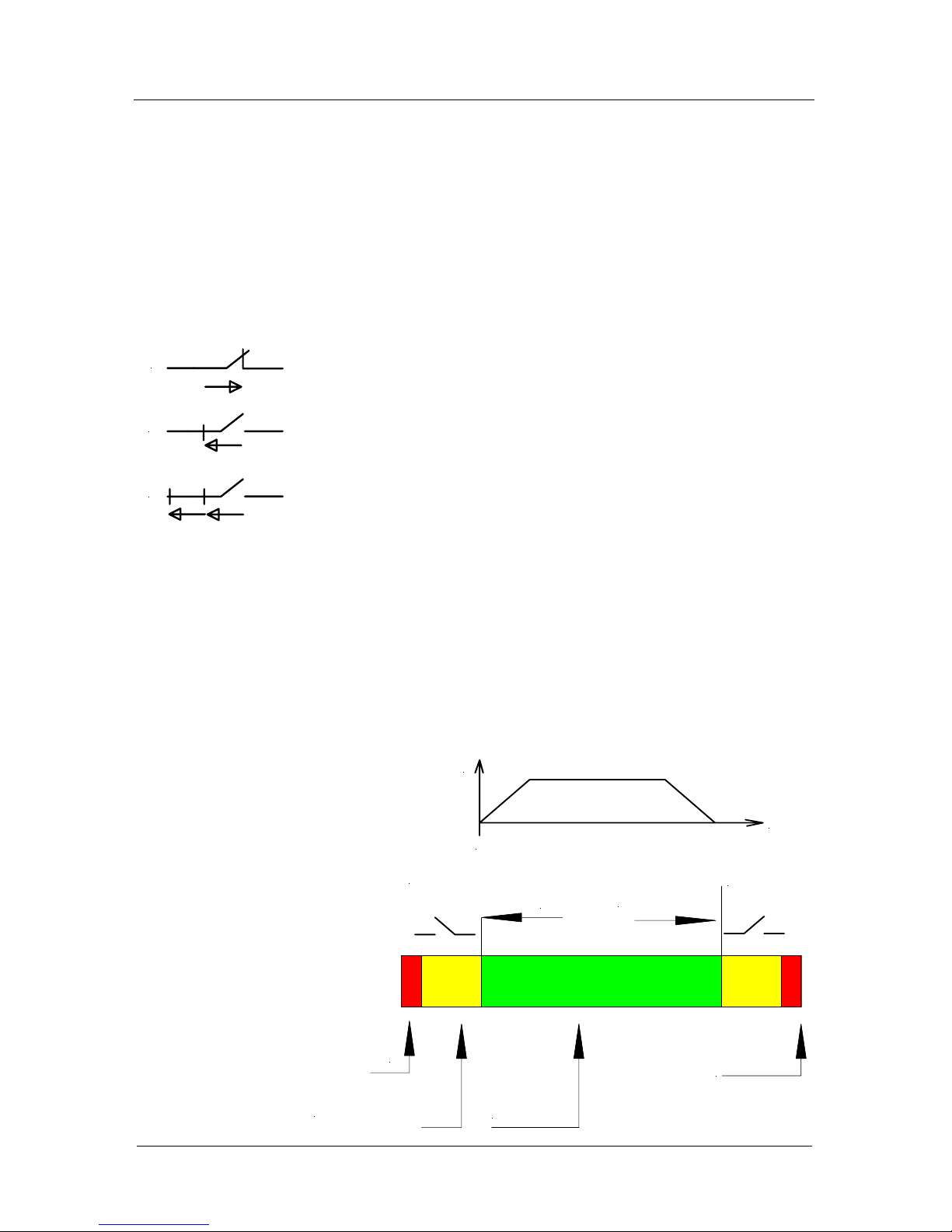

Limit switch functions
Following limit switch functions are available:
• teach-in of lower limit switches
(Venus-1 command cal)
The controller moves all axes simultaneously in negative
direction until the cal limit sw
itches are reached.
• teach-in of upper limit switches
(Venus-1 command rm)
The controller moves all axes simultaneously in positive
direction until the rm limi
t switches are reached.
• teach-in the limits of a single axis
The controller moves a selected axis to the cal or rm limit
switch. Details see chapter "Functions"
Limit switch types
Corvus-eco supports the following limit switch types:
• mechanical switches
• inductive proximity switches
• photo sensors
5V (default) or 12V (upon request) are also available at the
motor connector to supply the switches.
Manual Corvus-eco
Starting up 24

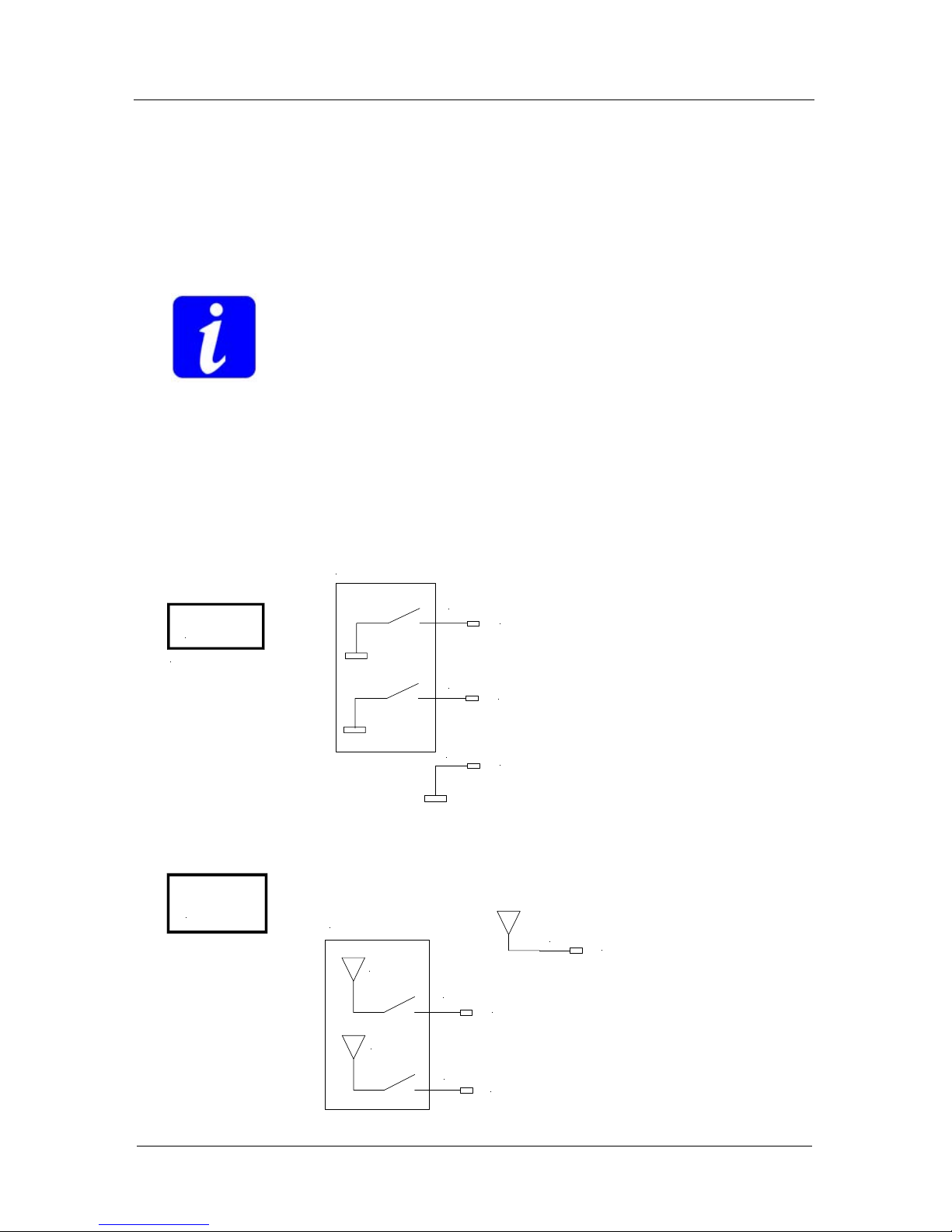

Limit switch wiring
Corvus-eco supports NPN and PNP limit switch wiring.
Default setting is NPN.
The settings NPN to PNP can only be changed from the
factory personal or from authorized experts.
Function of limit switch types:
• NPN = the limit switch closes or opens to Ground
• PNP = the limit switch closes or opens to VCC
The function op
ener or closer is determined with the Venus-1
command setsw.
NPN
factory settin
g
cal-limit switch input
rm-limit switch input

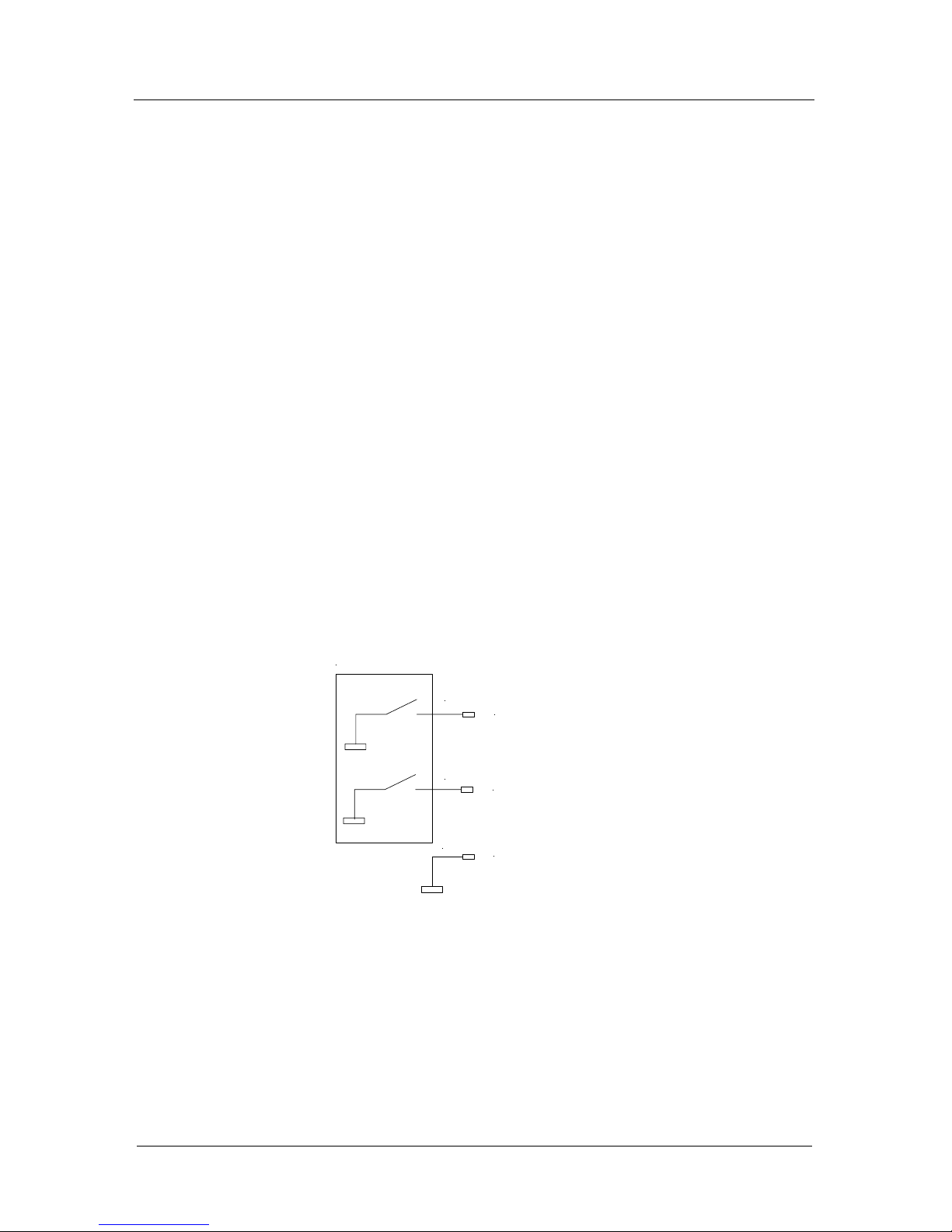

6
7
5
GND
Limit switches
PNP
cal-limit switch input
rm-limit switch input
6
7
8
VCC
VCC
VCC
Limit switches
Manual Corvus-eco
Starting up 25
Joystick operation
General remarks
For joystick operation the controller is working independent
from a host control unit (subject the controller settings must
not be changed)
Motor moving is controlled from the deflection of the joystick
axes, this a
llows a very sensitive and intuitive positioning of
the motors.
Joystick axes assignment
The axis of the joystick are assigned to the axis of the controller as follows:

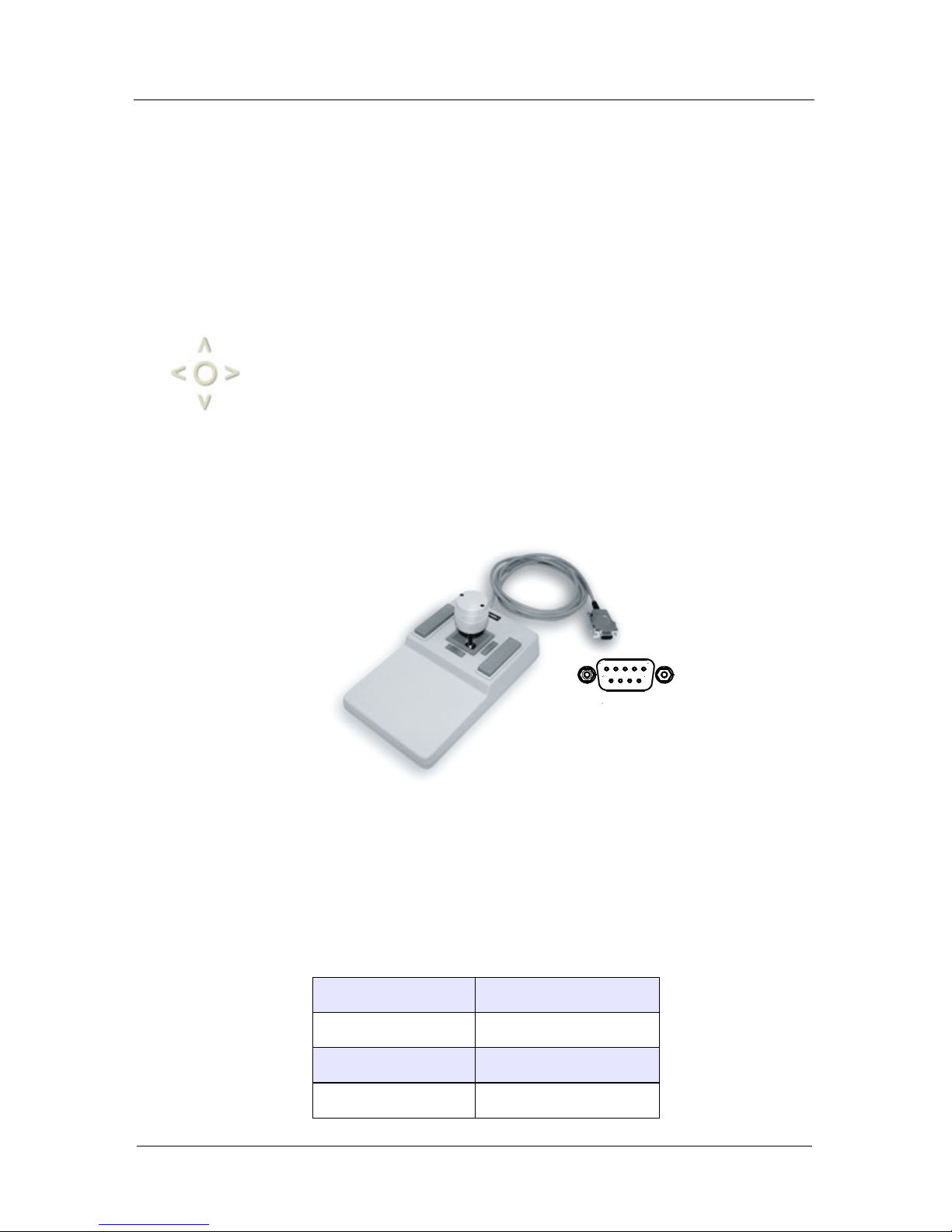

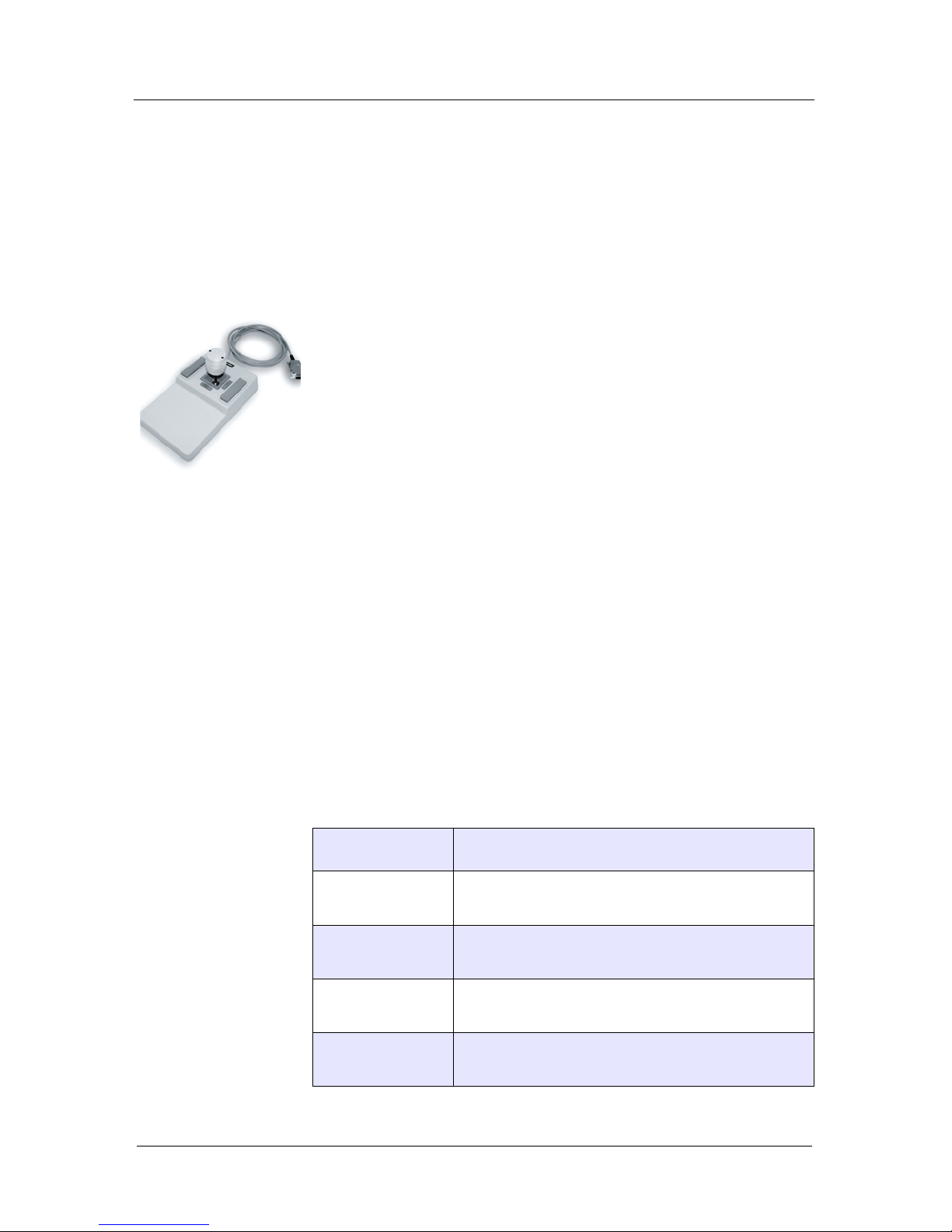

Figure 4: FJ Joystick with speed buttons
Joystick axes Controller axes
X-Knob Axis-1
Y-Knob Axis-2
Z-Knob Axis-3
+X-X
+Y
-Y
Z
Joystick
6
1
9
5
Manual Corvus-eco
Starting up 26
Joystick button speed
Two parallel wired push buttons are provided at the joystick to
activate a second joystick velocity.
This velocity is valid as long as one buttons is pressed.
The second joystick speed can be
defined with the Venus-1
command setnjoyspeed
Relevant Venus-1 commands for the joystick operation
Command Description
setjoyspeed max. joystick velocity
valid for all axes
setnjoyspeed max. joystick velocity
each axis separately
setjoybsp
eed max. joystick velocity if button is pressed
valid for all axes
setmanaccel manual acceleration
valid for all axes
Manual Corvus-eco
Starting up 27
Notices for the joystick mode
•
During power up the zero value of the joystick axes
are checked. Due this, the joystick axes may not be
deflected this time.
If the zero value of a joystick axis is out of a determined value, the manual mode for this axis is disabled.
• If the joystick is disconnected during a manual posi-
tioning, the axes are stopped immediately.
The joystick mode remains active.
• For safety reasons the joystick will be switched off
automatically if a programmed move is performed.
Afterwards the joystick has to be switched on.
Manual Corvus-eco
Starting up 28
Programmed mode
For program controlled operation a programming host has to
be connected with the controller.
Corvus-eco provides the following programming interfaces:
• RS-232 interface
It is not necessary to install a driver to communicate with
the Corvus-eco RS-232 interface.
• USB interface
This communication assumes a driver installation.
The installation procedure for Windows 2000 and Windows
XP is described in this manual.
Manual Corvus-eco
Starting up 29
Initial operation of the RS-232 connection
Testing the RS-232 connection
•
Testing with WinPos
WinPos16 LT is added for free to each
controller. It is qualified
to execute all functions of the controller and can be used to
check the RS-232 connection.
Procedure step by step:
•
Connect RS-232 cable to PC and controller
• Switch on the controller
• Start WinPos

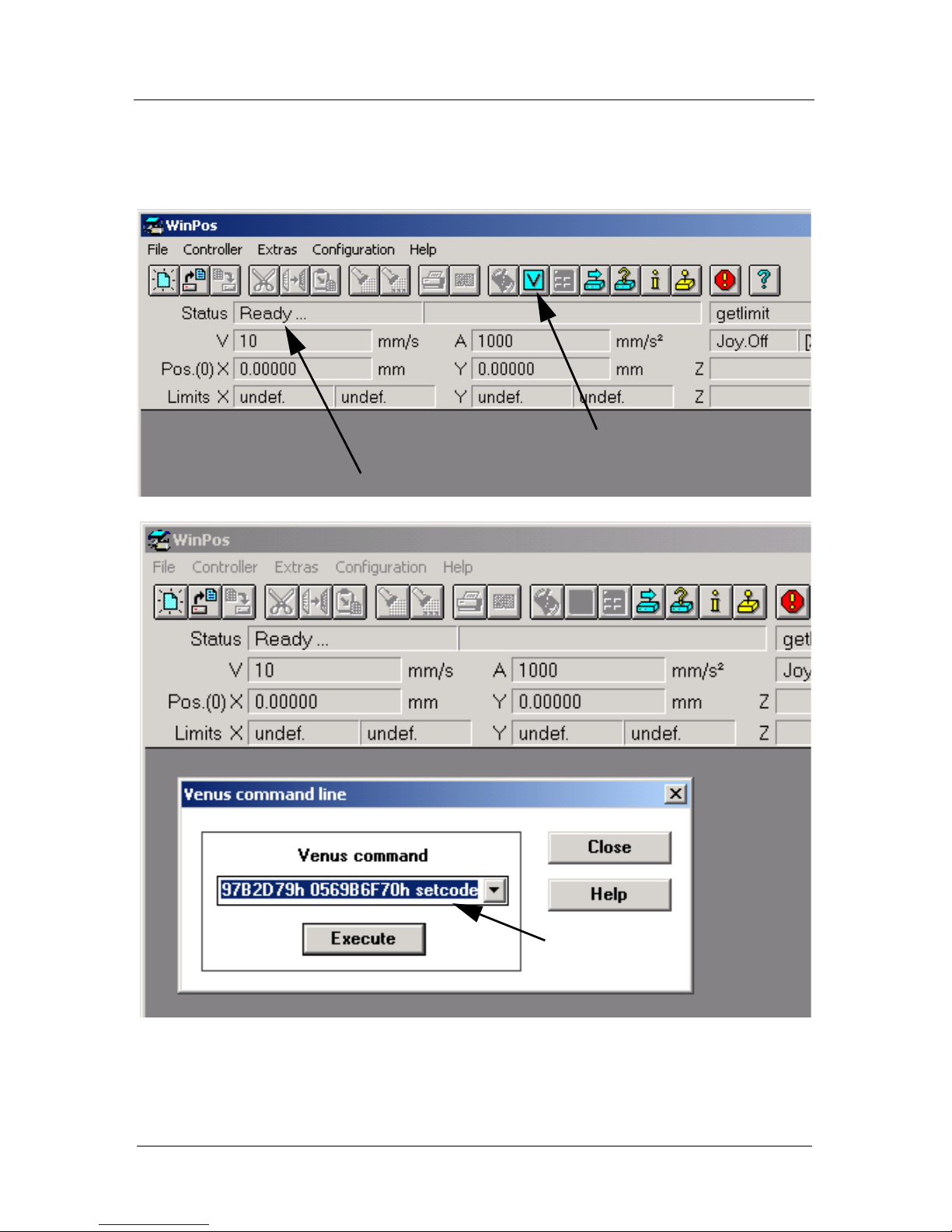

• Select Com Port, choose correct port settings

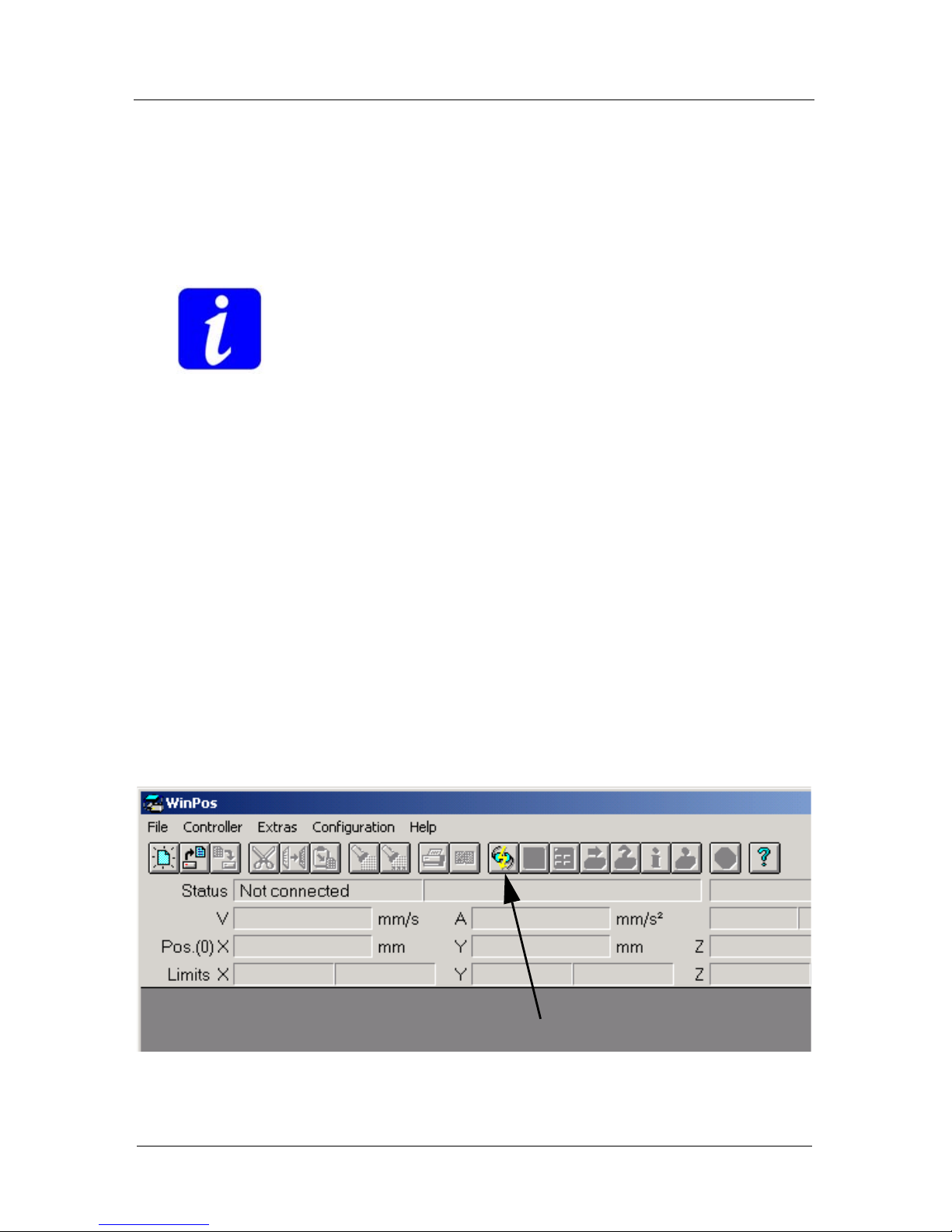

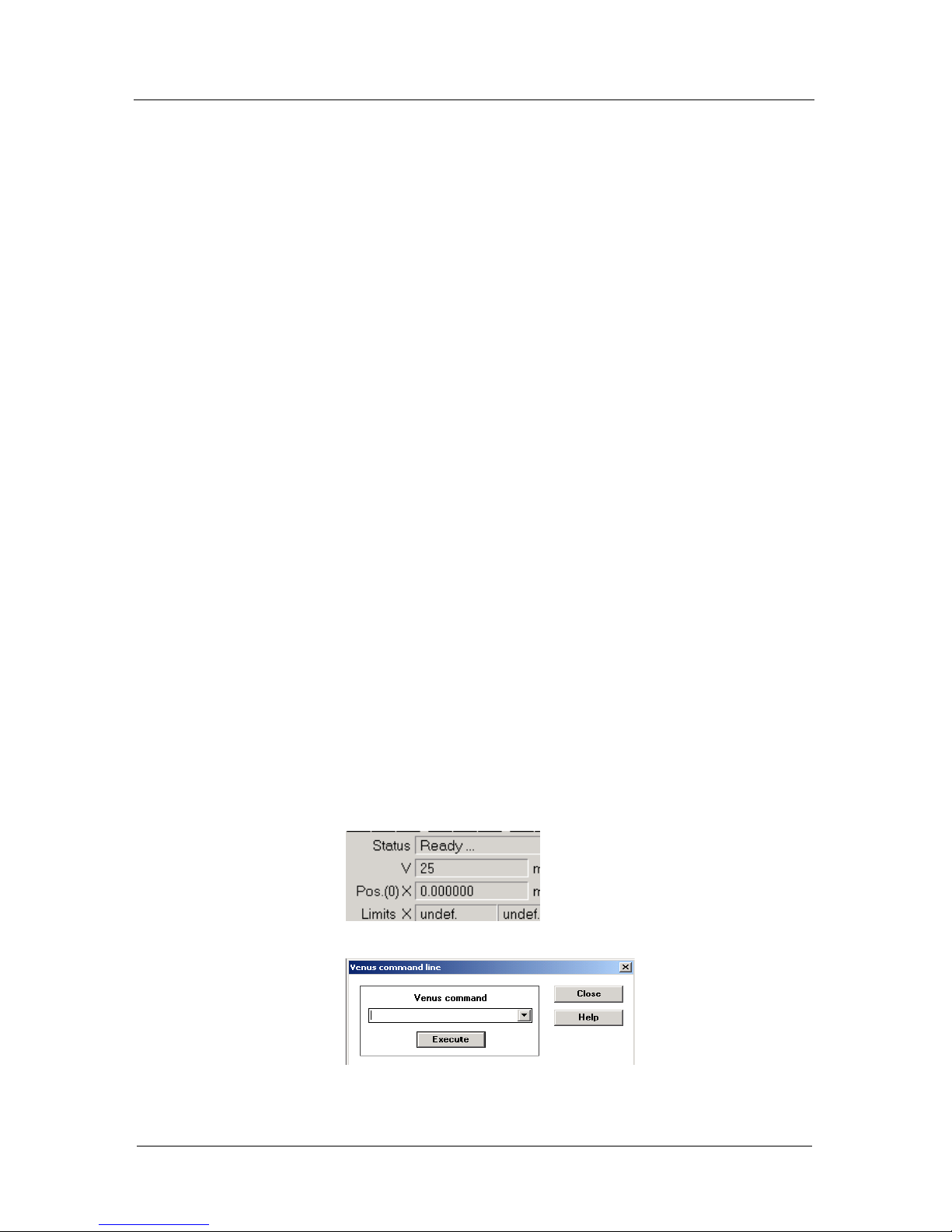

"Connecting" WinPos
WinPos automatically communicates with the controller
while it is reading the controller settings.
If Status "Ready" is displayed, the RS-232 communication is well established.
• It is now possible to open the Venus command line to
execute Venus-1 commands.
Details see in the WinPos manual.
Manual Corvus-eco
Starting up 30
Trouble shooting
•
The RS-232 cable, included in the delivery, should
preferably be used. If the cable is in-house produced
the correct wiring has to be ensured. See connection

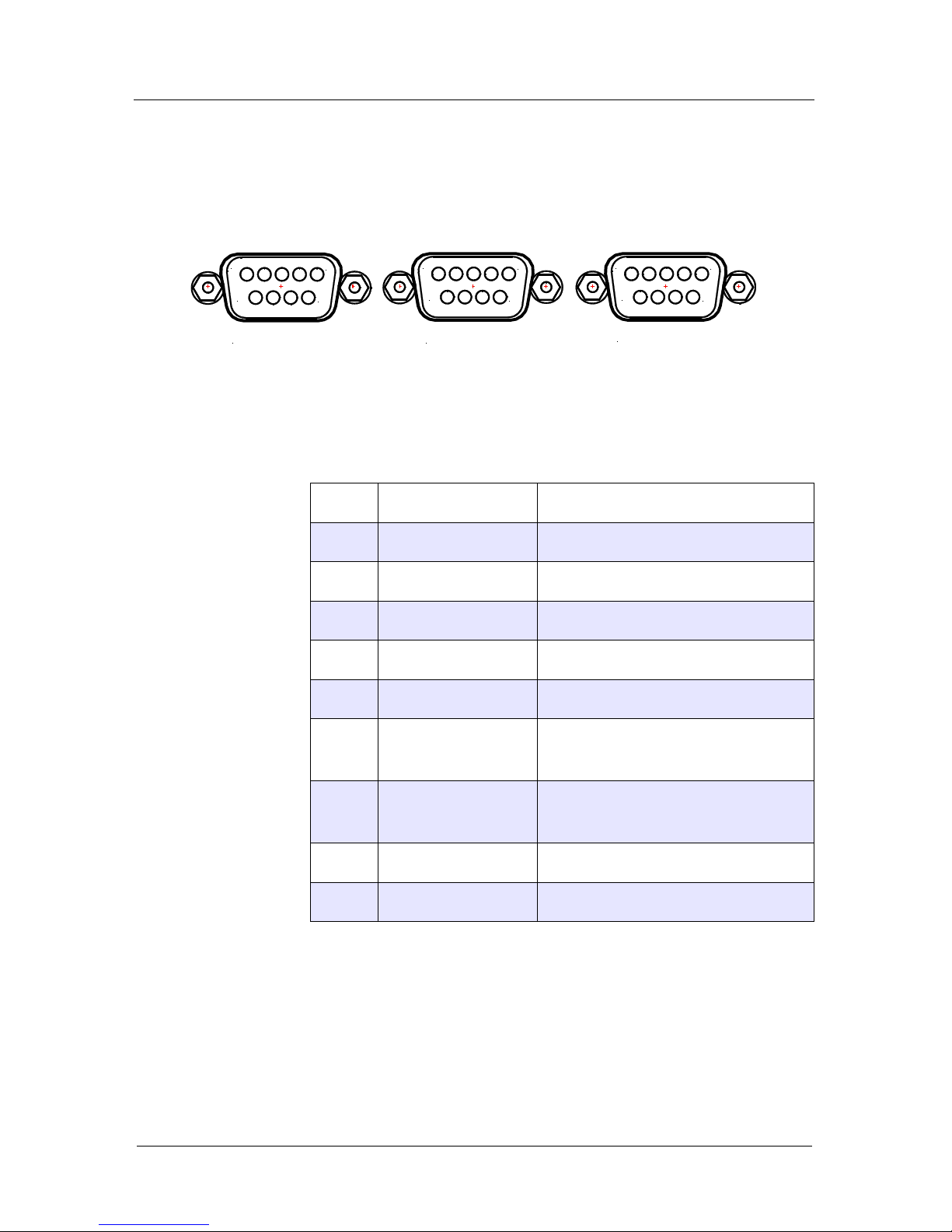

diagram in Chapter "Connectors"
• The interface configurations of the control unit has to
correspond accurately with the following settings.
• If the delivered RS-232 cable is used with an additional
interface adapter, please verify if this adapter does not
modify the RS-232 wiring.
• The serial interface of the control unit may not be
occupied by other programs.
• Data bits • 8
• Stop bits • 1
• Parity • no
• Handshake • no
• Baudrate • 57600
Manual Corvus-eco
Starting up 31
USB-Interface
USB interface driver
Corvus-eco is equipped with an internal USB to RS-232 interface that uses the well established controller chip FT232AM
(FT232BL) from FDI.
To operate with this interface a virtual Com Port must be insta
lled.
Virtual COM port (VCP) drivers cause the USB device to appea
r as an additional COM port available to the PC. Application software can access the USB device in the same way as
it would access a standard COM port.
VCP drivers are available which allow the FT232BL device to
work with the
following operating systems:
• Windows XP x64
• Windows Server 2003 x64
• Windows XP
• Windows Server 2003
• Windows 2000
• Windows ME
• Windows 98
• Linux
• Mac OS X
• Mac OS 9
• Mac OS 8
• Windows CE.NET (Version 4.2 and greater)
Driver link
The following link provides actual drivers:
http://www.ftdichip.com/Drivers/VCP.htm
Manual Corvus-eco
Starting up 32
Installing VCP drivers for Windows 2000
To install VCP drivers for a FT232AM device under
Windows 2000, follow the instructions below:
• If a device of the same type has been installed on your
machine before and the drivers that are about to be
installed are different from those installed already, the
original drivers need to be uninstalled.
• Download the latest available VCP drivers from the
FTDI website and unzip them to a location on your PC.

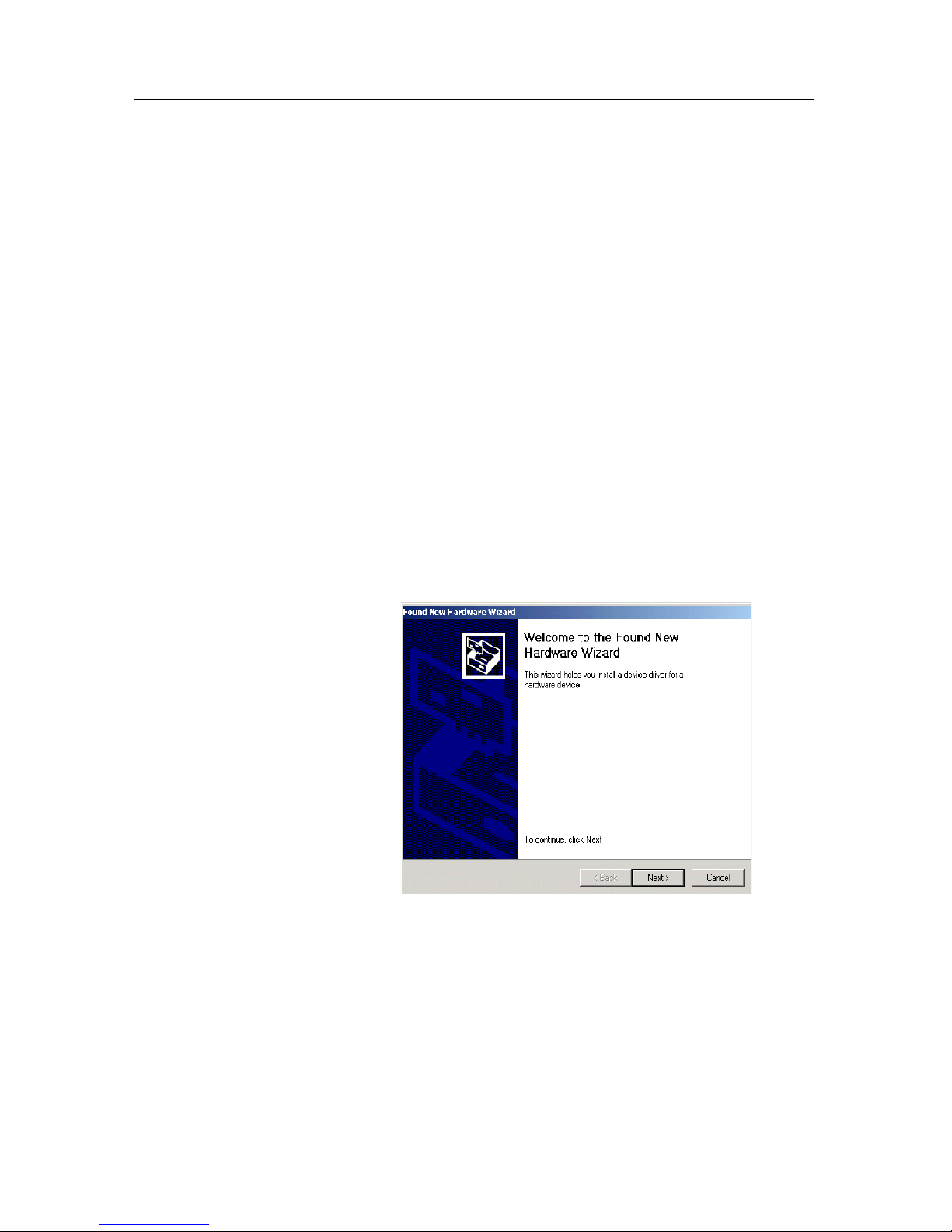

• Connect the Corvus-eco to a spare USB port on your
PC. This will launch the Windows Found New
Hardware Wizard. Click "Next" to proceed with the
installation.
Manual Corvus-eco
Starting up 33

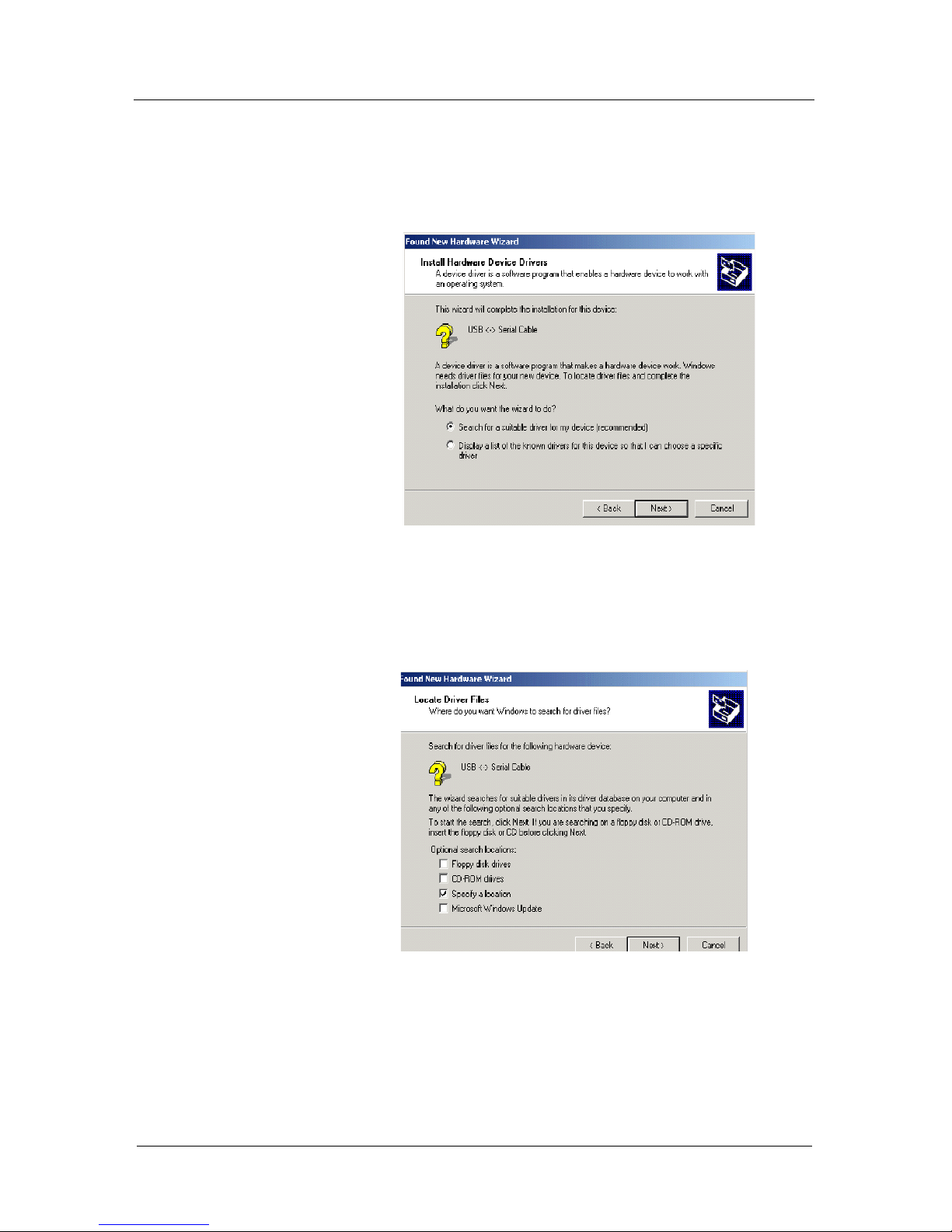

• Select "Search for a suitable driver for my device (rec-
ommended)" as shown below and then click "Next".
• Check the box next to "Specify a location" and
uncheck all others as shown below.
Manual Corvus-eco
Starting up 34

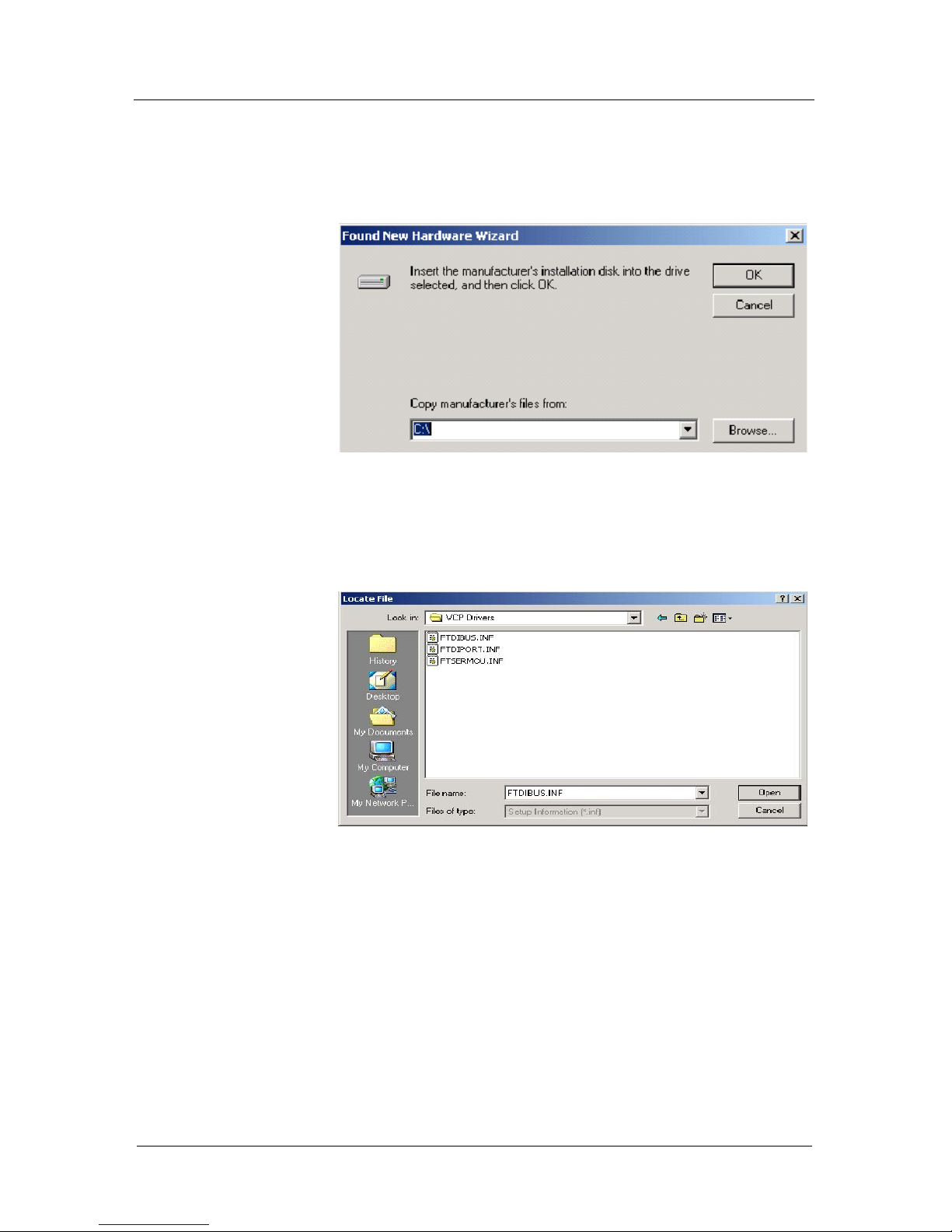

• Clicking "Next" displays a dialog box for you to enter
to the location of the drivers.
• Click "Browse" to display an open file dialog box.
Manual Corvus-eco
Starting up 35

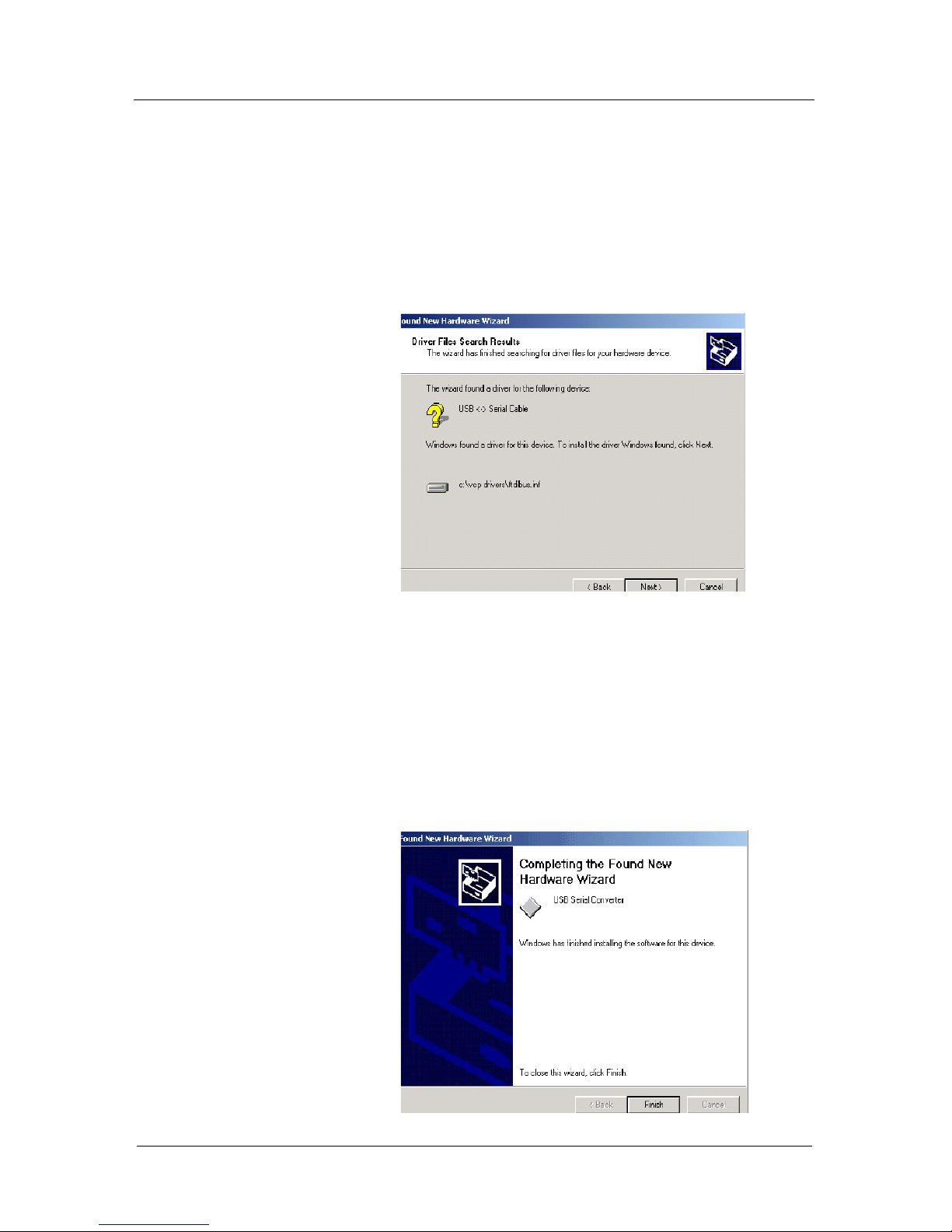

• Locate the folder containing the latest drivers down-
loaded from the FTDI website above and click "Open",
then click "OK". The PC autoselects the correct INF
file, in this case
FTDIBUS.INF. Once Windows has found the required
driver.INF file, click "Next" to proceed.
• Windows should then display a message indicating
that the installation was successful. Click "Finish" to
complete the installation. This has installed the serial
converter. The COM port emulation driver must be
installed after this has completed.
Manual Corvus-eco
Starting up 36
• After clicking "Finish", the Found New Hardware Wiz-
ard will continue by installing the COM port emulation
driver. The procedure is the same as that above for
installing the serial converter driver, except the PC will
autoselect the FTDIPORT.INF file.

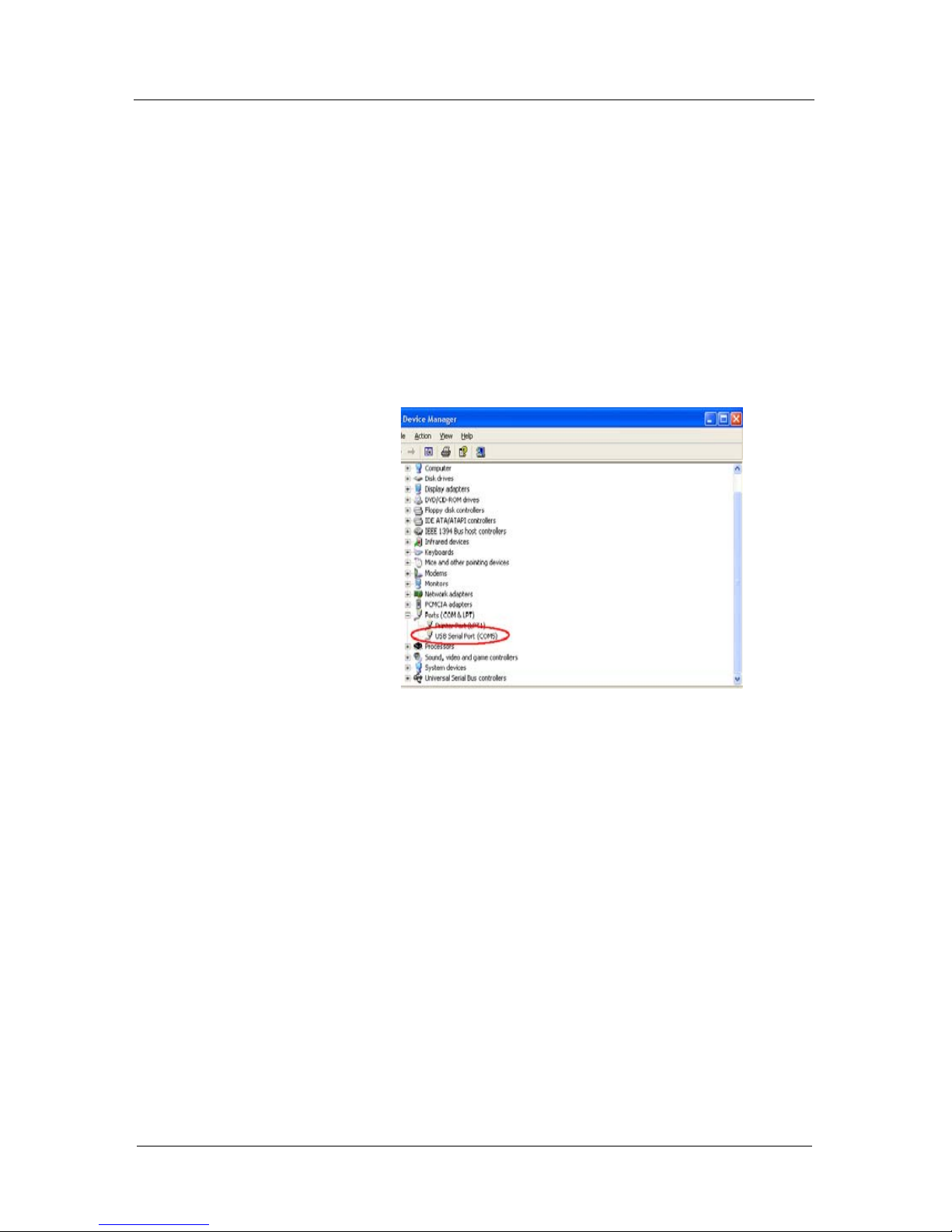

• Open the Device Manager (located in "Control
Panel\System" then select the "Hardware" tab and
click "Device Manager…") and select "View > Devices
by Type". The device appears as an additional COM
port with the label "USB Serial Port".
Manual Corvus-eco
Starting up 37
Installing VCP drivers for Windows XP
To install VCP drivers for a, FT232AM device under
Windows XP and XP SP1, follow the instructions below:
• If a device of the same type has been installed on your
machine before and the drivers that are about to be
installed are different from those installed already, the
original drivers need to be uninstalled.
• Download the latest available VCP drivers from the
FTDI website and unzip them to a location on your PC.
• If you are running Windows XP or Windows XP SP 1,
temporarily disconnect your PC from the Internet. This
can be done by either removing the network cable
from your PC or by disabling your network card by
going to the "Control Panel\Network and Dial-Up Connections", right clicking on the appropriate connection and selecting "Disable" from the menu. The connection can be re-enabled after the installation is complete. This is not necessary under Windows XP
• SP 2 if configured to ask before connecting to Win-
dows Update. Windows XP SP 2 can have the settings
for Windows Update changed through "Control
Panel\System" then select the "Hardware" tab and
click "Windows Update".
• Connect the Corvus-eco to a spare USB port on your
PC. This will launch the Windows Found New Hardware Wizard. If there is no available Internet connection or Windows XP.
SP 2 is configured to ask before connecting to Windows Update, the screen below is shown. Select "No,
not this time" from the options available and then click
"Next" to proceed with the installation. If there is an
available Internet connection, Windows XP will silently
connect to the Windows Update website and install
any suitable driver it finds for the device in preference
to the driver manually selected.
Manual Corvus-eco
Starting up 38

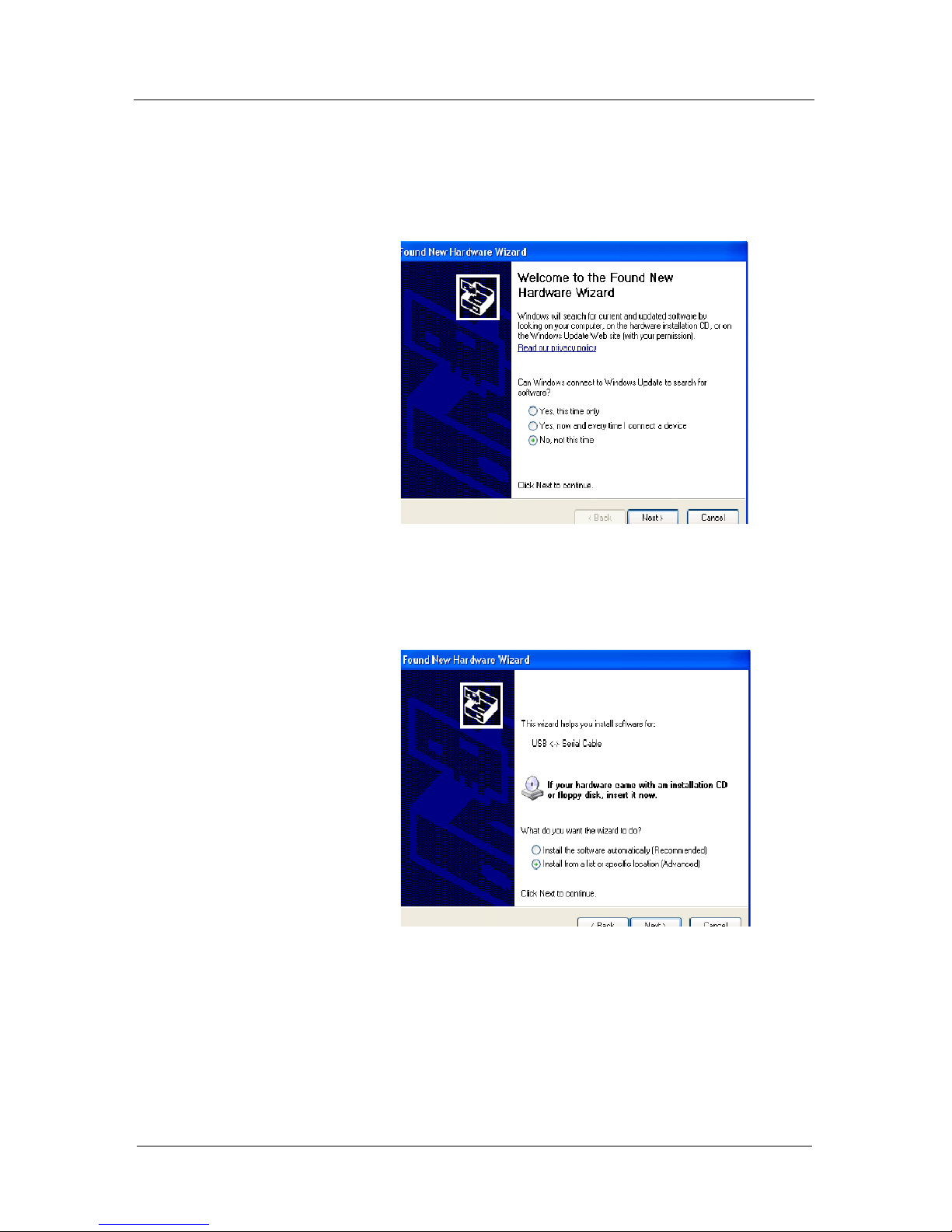

• Select "Install from a list or specific location
(Advanced)" as shown below and then click "Next".
Manual Corvus-eco
Starting up 39

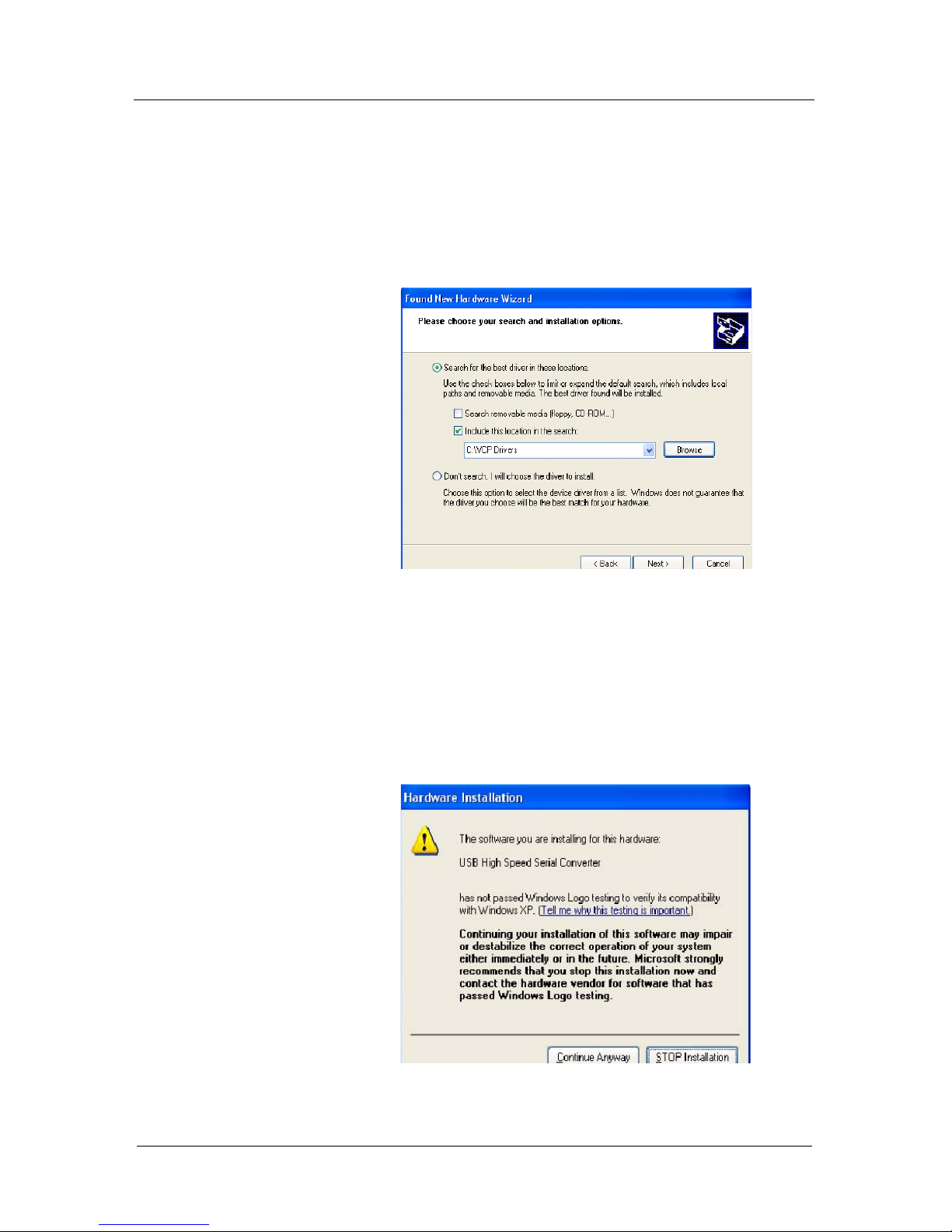

• Select "Search for the best driver in these locations"
and enter the file path in the combo-box ("C:\VCP Drivers" in the example below) or browse to it by clicking
the browse button. Once the file path has been entered
in the box, click next to proceed.
• If Windows XP is configured to warn when unsigned
(non-WHQL certified) drivers are about to be installed,
the following screen will be displayed. Click on "Continue Anyway" to continue with the installation. If Windows XP is configured to ignore file signature warnings, no message will appear.
Manual Corvus-eco
Starting up 40

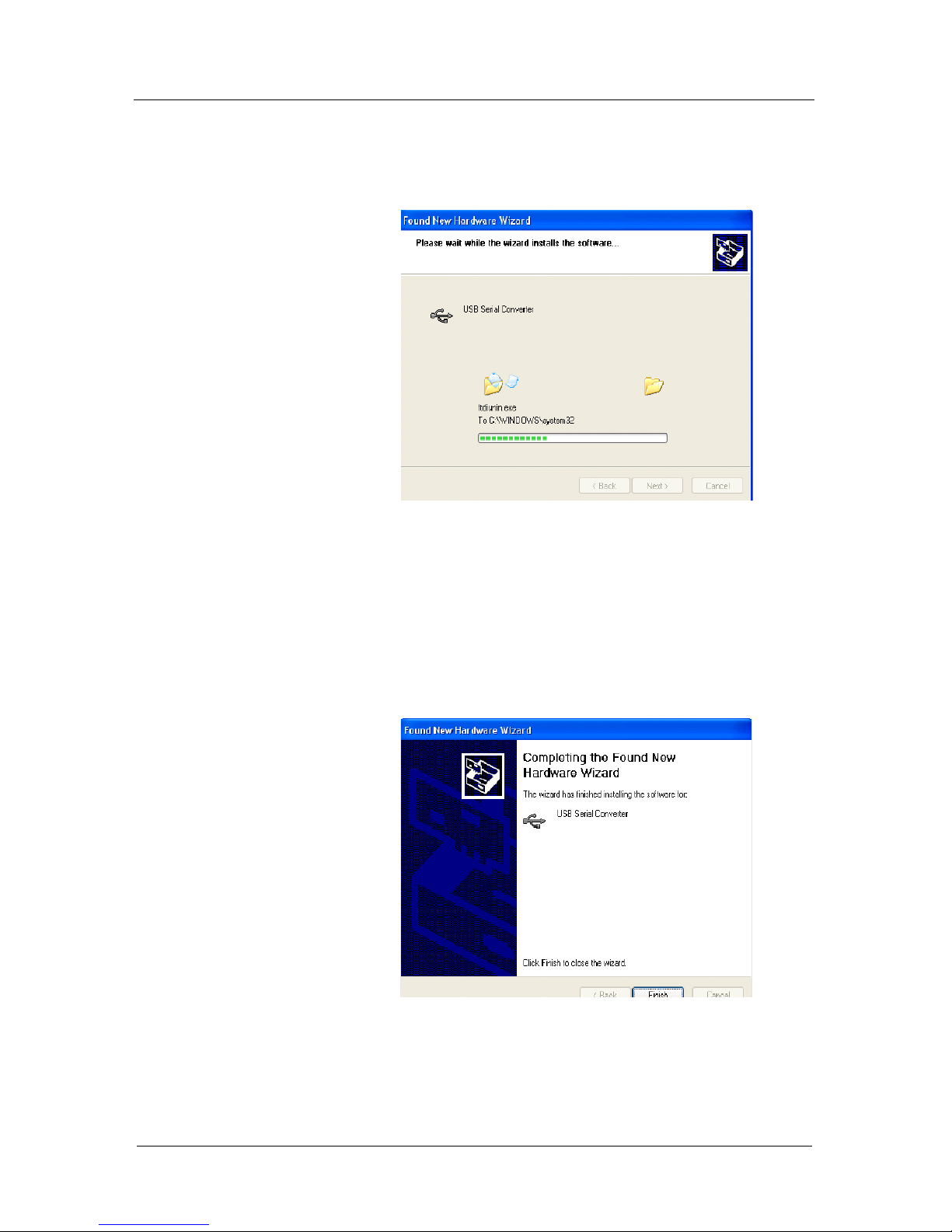

• The following screen will be displayed as Windows XP
copies the required driver files.
• Windows should then display a message indicating
that the installation was successful. Click "Finish" to
complete the installation. This has installed the serial
converter. The COM port emulation driver must be
installed after this has completed.
Manual Corvus-eco
Starting up 41
• After clicking "Finish", the Found New Hardware Wiz-
ard will continue by installing the COM port emulation
driver. The procedure is the same as that above for
installing the serial converter driver.

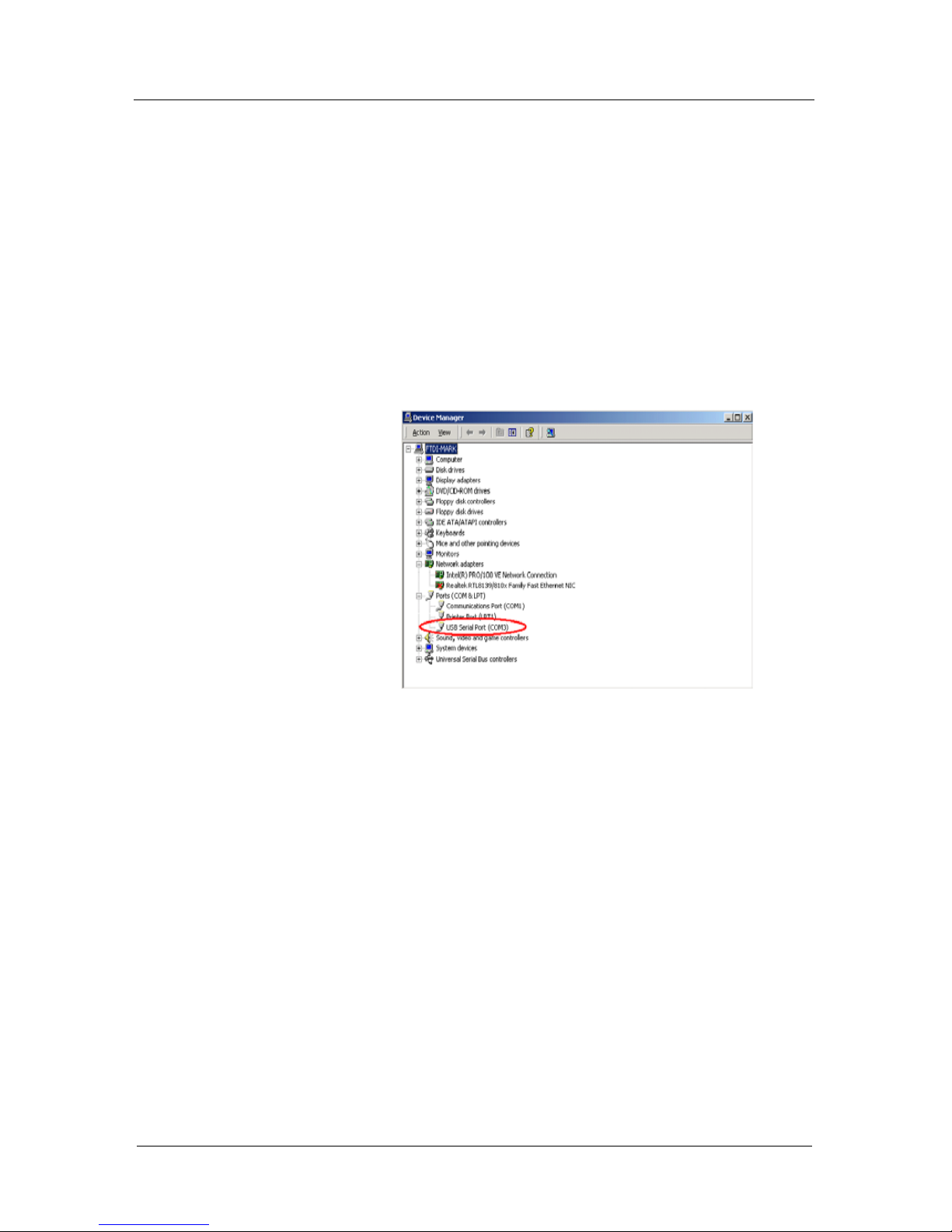

• Open the Device Manager (located in "Control
Panel\System" then select the "Hardware" tab andclick "Device Manger") and select "View > Devices by
Type". The device appears as an additional COM port
with the label "USB Serial Port".
Manual Corvus-eco
Starting up 42
Chapter 3
Manual Corvus-eco
Functions 43
Functions
Manual Corvus-eco
Functions 44
Programming mode
Corvus-eco is programmed via the RS-232 or USB interface.
The command language is Venus-1.
The principle of the host control
There are reading commands and writing commands.
Writing commands execute the activities. Reading commands are u
sed to check the controller configuration resp. the
current state.
An automatic status reply message
can be generated by a
combination of commands, see example.
During a positioning task is executed, the status of the controller and the current coordinates can be replied.
The Venus-1 command language is described in a second
part of the Corvus-eco documentation.
Manual Corvus-eco
Functions 45

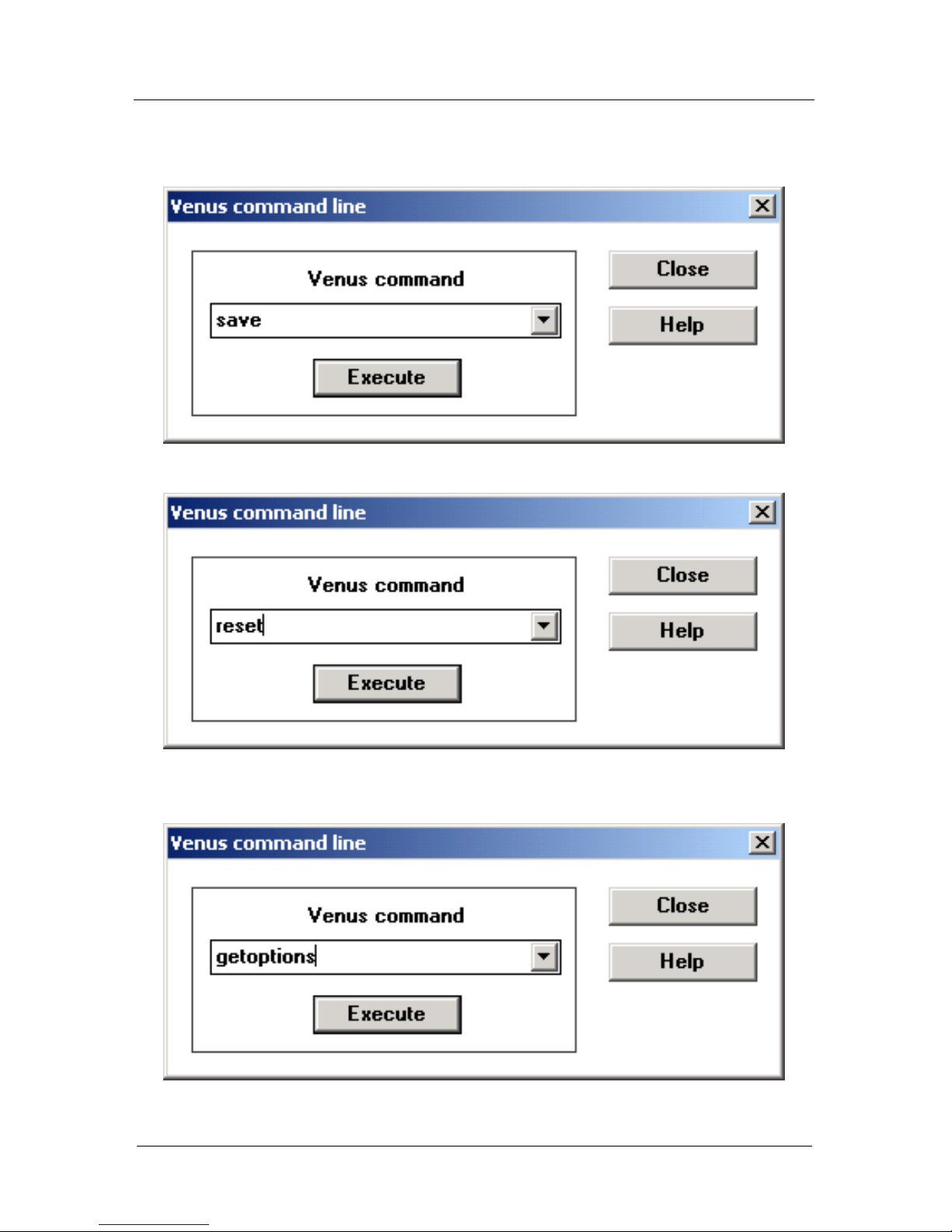

Venus-1 controller commands (examples)
System commands
save parameters:
save
restart controller:
reset
Configuration commands
[parameter] _ [axis index] _ [command] _
Example: switching on the 2
nd
axis
1 2 setaxis
Positioning commands
[axis 1] [axis 2] [axis 3] move
Example:
Absolute move, all axes are moved to the coordinates below
1.204 4.01 3.4 move
Relative move,
0.001 0.002 0.001 r
Status commands
System status:
st
Status of the digital inputs:
getin
Actual position read out
pos
More information see in manual "Venus-1 command langua
ge"
Manual Corvus-eco
Functions 46
Automatic status reply
The following command sequence must be sent to the contro
ller to cause the controller to send a status reply
automatically.
Example:
10 12 4 m // move to the desired coordinates
0 0 0 r
// no operation command, locks interpreter
until it is executed
st
// command will reply status
if interpreter is unlocked
Manual Corvus-eco
Functions 47
Motion control functions
Linear interpolation
In the programmed positioning mode the axes are linear interpolated and a so-called vector move is executed.
In doing so, the involved axes are synchronized that
way that
the time of acceleration and the time of deceleration are
equal.

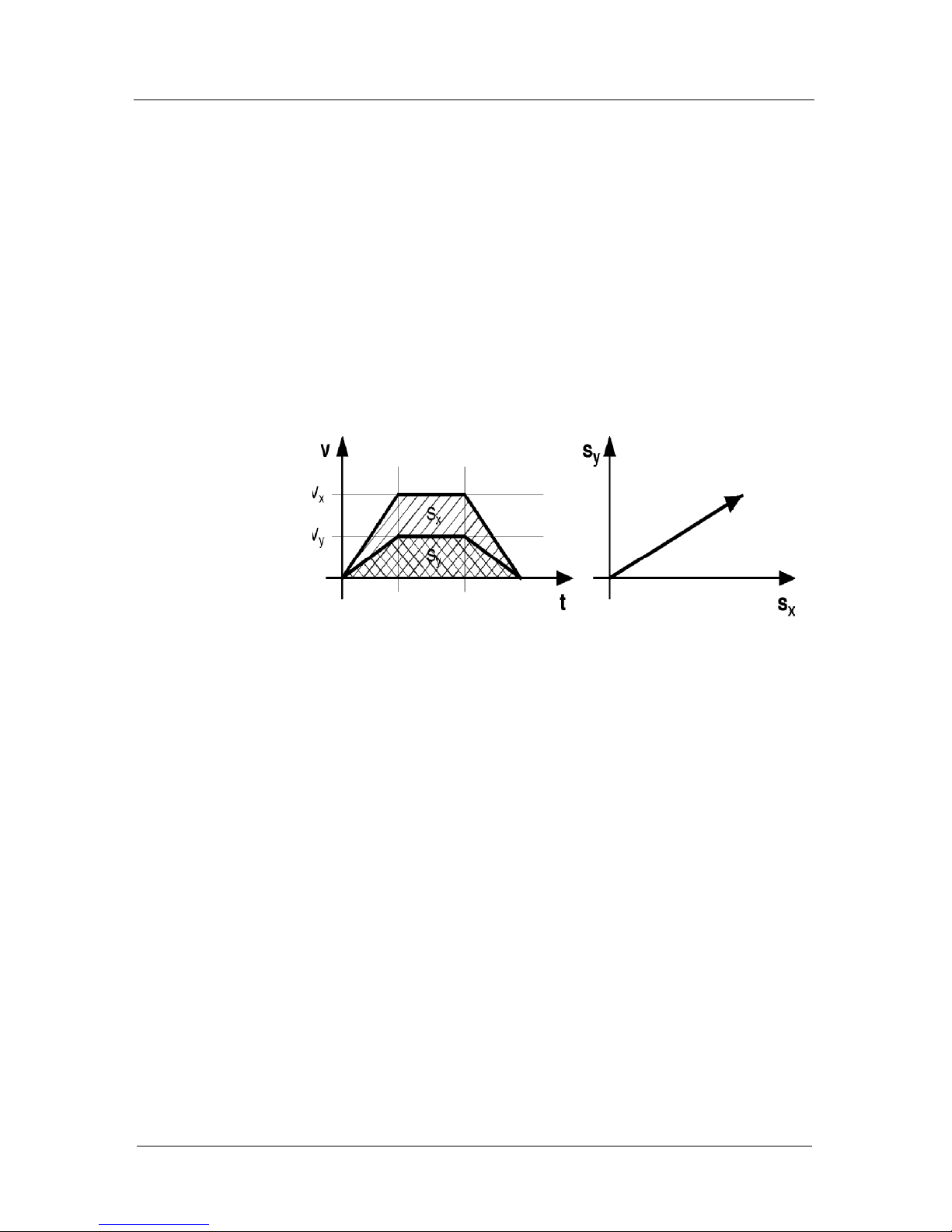

A cross table with the axes x and y
executes thereby a
straight movement.
Velocity and acceleration
The settings of the velocity and the acceleration always refers
to the axis with the longest moving distance. It is also called
the limiting axis.
The velocity of the other axes v
is a result of the ratio of the
moving distance of these axes to the moving distance of the
limiting axis s
lim
The acceleration of the other axes is a result of their maximum velocities.
v
s
s
lim
--------- v
lim
Þ=
Manual Corvus-eco
Functions 48

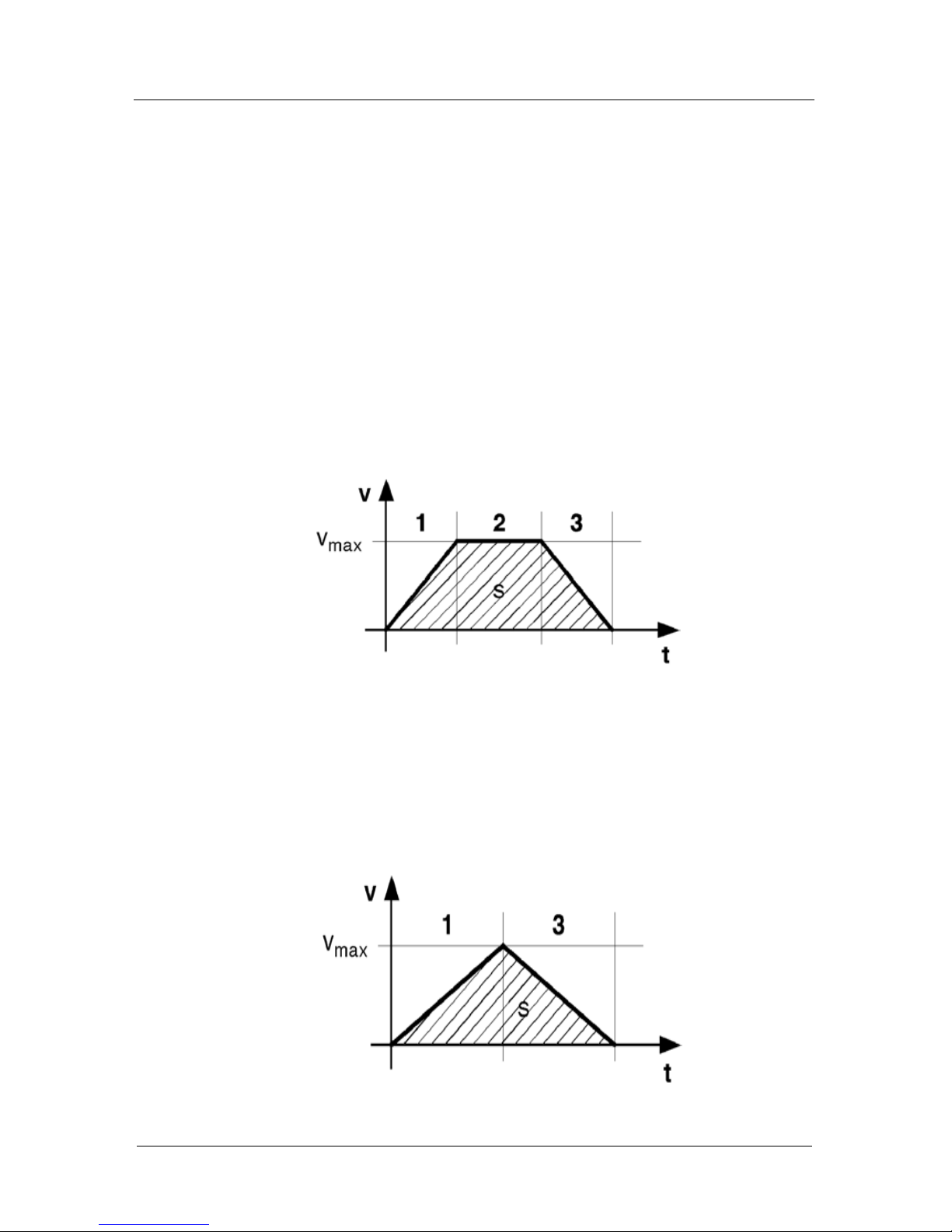

Velocity profile of a linear acceleration function
The movement profile of a programmed move which is produced with a linear acceleration function has the form of a trapezium. The area under the curve corresponds to the covered
distance s and the pitch of the curve corresponds to the acceleration a .
See v/t graph below.
• 1 = accelerated move
• 2 = continuos move
• 3 = decelerated move
Movement profile of short distances
The graph below shows the positioning of a short distance. It
can not always be guaranteed here that the axis reaches it’s
maximum velocity.
The movement profile has the form of a isosceles triangle.
Manual Corvus-eco
Functions 49

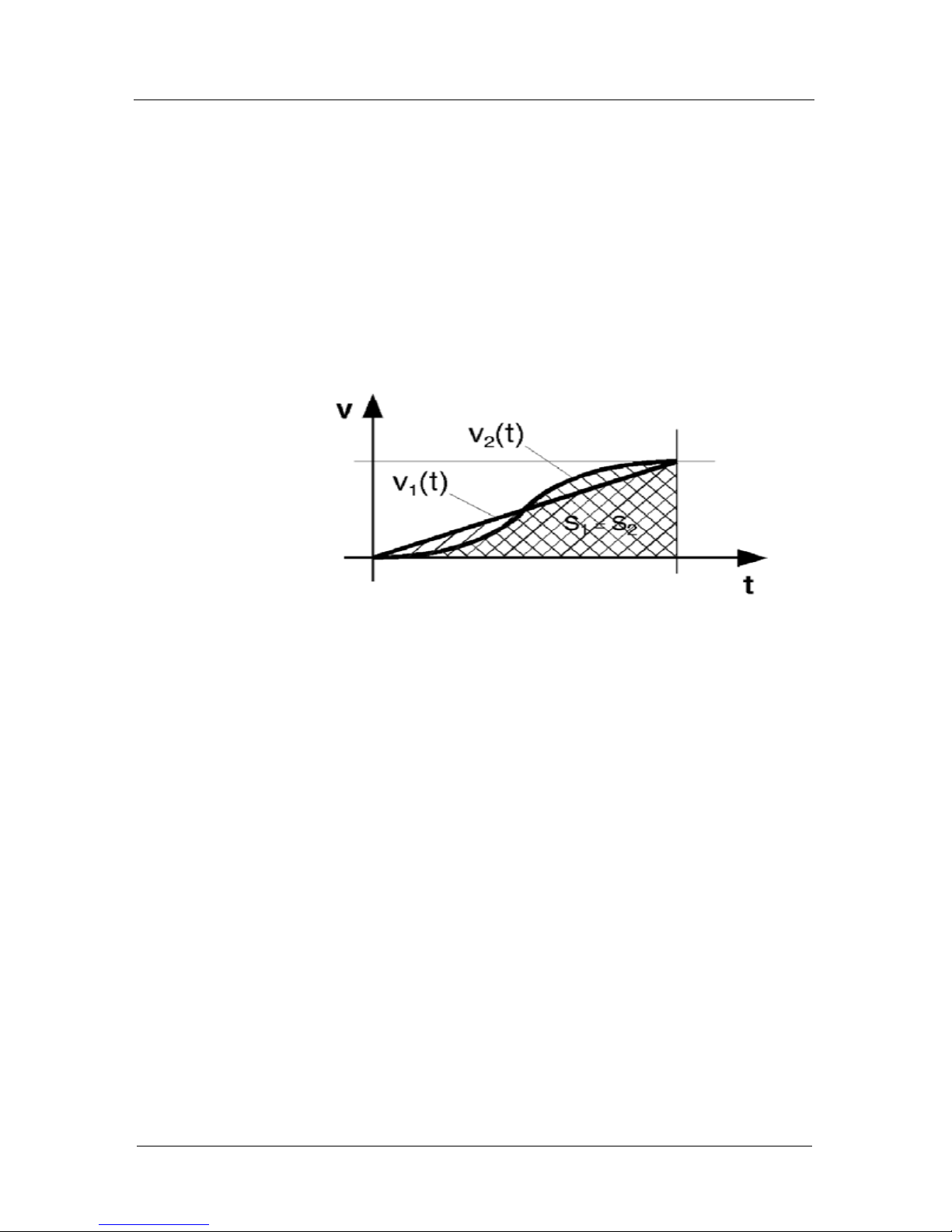

Movement profile of the sin²-acceleration function
For the sin²-acceleration the torque is not provided abruptly
but in form of a sine curve. A very soft start and deceleration
of the motor is achieved with this profile.
Because the acceleration is raised in the lower speed range
it
does not lead to an extension of the positioning process.
Manual Corvus-eco
Functions 50
Positioning with the joystick
The joystick mode allows a very sensitive positioning of the
axes with an analog joystick.
This movement is velocity controlled and caused by the deflection of the joystick.
The larger the deflectio
n, the larger the velocity. In joystick
mode the axes can be moved independently.
The position resolution with the joystick is enormous.
The internal calculation works with 32 bit and reaches
a resolution of theoretically 23
.2 fm (femtometer).
Joystick button speed
The two parallel wired push buttons of the joystick can switch
to a freely definable second joystick velocity.
This velocity is valid as lon
g as one of the buttons are
pressed.
Relevant commands:
Command Description
setjoyspeed max. joystick velocity
valid for all axes
setnjoyspeed max. joystick velocity
each axis separately
setjoybsp
eed max. joystick velocity if button is pressed
valid for all axes
setmanaccel manual acceleration
valid for all axes
Manual Corvus-eco
Functions 51
Notices for the joystick mode
•
During power up the zero values of the joystick axes
are checked. Due this, the joystick axes may not be
deflected this time.
If zero value of a joystick axis is out of a determined
value, the manual mode for this axis is disabled.
• If the joystick is disconnected during a manual posi-
tioning, the axes are stopped immediately.
The joystick mode remains active.
• For safety reasons the joystick will be switched off
automatically if a programmed move is performed.
Afterwards the joystick has to be switched on.
Manual Corvus-eco
Functions 52
Closed-Loop function
This function enables the operation in a feedback control
mode.
Therefore the actual position is moni
tored by a measuring
system and looped back to the controller.
Depending on the type of the measuring system the function
has the following advantages.
• Increasing the repeatability
• Improvement of the absolute accuracy
• Step monitoring
• Load compensation during the movement and a standstill
• Improved controlling behavior
• Supports fast and high precise positioning procedures
using the closed loop function " in-window "
• Enables high precision measuring functions
• Increases precision of the "trigger out function"
• Increases precision of the "position capture function"
Supported measuring systems
Corvus supports the following measuring system
s:
• Digital encoder (RS422 differential)
• Analog encoder (1 Vpp differential)
• Marzhauser MR 500 measuring system
Manual Corvus-eco
Functions 53
Digital encoder interface
The interface supports square wave pulse trains and their inverted pulse trains. The encoder interface is also provided
with a reference signal input.
Technical data:
Encoder signal input RS422 differential
Encoder index input
RS422 differential
Max. input frequency 20 MHz
Max. input resolution
0.233 nm (233fm)
Option
Manual Corvus-eco
Functions 54
Analog encoder interface with sin/cos module
Each axis can be supplied with a sin/cos module. This module
is a independent hardware data interface for sinusoidal
encoder signals. The input signal is internal multiplied.
The modules are available with a 12 Bit or 16 Bit data acquisition in
terface.
Technical data:
To calculate the maximum positioning resolution of the
sin/cos module, the cycle time of the measurement signal period must
be divided by the multiplication factor.
The driver electronics supports a resolution up to 1nm
Input signal 1Vpp, differential
Reference mark
1 Vpp, differential
Max. input frequency 500 kHz
Multiplication factor
of signal interpolation
12 Bit module: 12,865
16 Bit module: 205,884
Option
Option
Manual Corvus-eco
Functions 55
Status LED´s
Related commands:
Cycle LED Status
active
Hardware ok
not active Hardware error
Sensor LED Status
active
No sensor available or sensor error
not active Sensor ok
Command Description
setcloop
enables closed loop mode
setscaleinterface configurates sin/cos module
setclperiode
adapts to the encoder types
setclfactor adapts to the encoder types
setscaletype
configurates sin/cos modules
setclpara configurates PID controller
refmove
executes moves to reference
mark
1
6
9
5
S
C
Sensor
Cycle
Manual Corvus-eco
Functions 56
Limit switches
Corvus-eco provides two hardware limits for each axis.
This limits a very useful to
protect the mechanical system.
In the following the limit switch
teach-in procedure is de-
criped. See also in Chapter "Installation".
• Programmed broadcast limit-switch teach-in
All axes are moved to the limits simultaneously.
• Programmed single axis limit-switch teach-in
The limit teach-in can be performed for each axis
separately.
• Manual teach-in
Limit-switch teach-in by the use of a joystick.

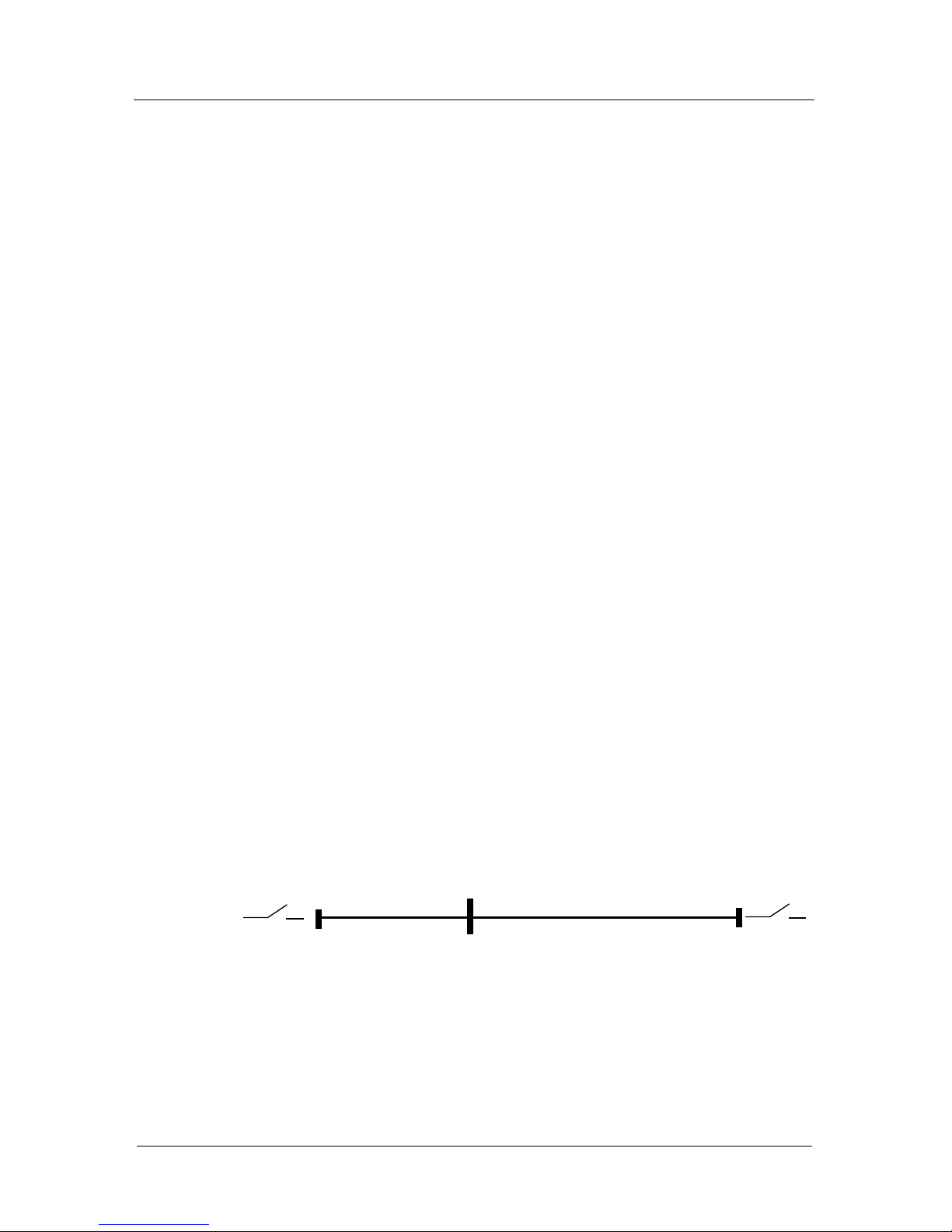

limit switch input (cal)
limit switch input (rm)
6
7
5
GND
User limit switches
Manual Corvus-eco
Functions 57
Broadcast limit-switch teach-in
With the Venus-1 commands cal and rm all active axis are
moved synchronous to the "cal" or "rm" limit switches.
Synchronous means the axes are starting at the same time to
move simultaneous to
the minus (cal) or plus direction (rm).
If the limit switches of one direction are switched, the axes are
moving automatically in the opposite direction until the switches are released. At this point the limit-switch teach in of one
direction is complete.
The limit-switch movement can be ab
orted with the command
Ctrl+c.
During the broadcast limit-switch teach
-in the Venus-1 command interpreter is blocked, no other commands except the
abort command Ctrl+c will be executed.
Nevertheless the controller continues to receive commands in
it´s
command FIFO. These commands are successive exe-
cuted after a limit-switch teach-in procedure is completed.
Manual Corvus-eco
Functions 58
Single axis limit-switch teach-in
With the Venus-1 single axis command ncal and nrm the
limit-switch teach-in can be performed for each axis
separately.
Contrary to the broadcast limit-switch teach
-in, the Venus-1
interpreter is not blocked during the limit-switch procedure.
Related Venus-1 commands:
Command Description
cal
moves all axes to the minus limitswitch direction
ncal moves a single axis to the minus
limit-switch direction
rm
moves all axes to plus limitswitch direction
nrm moves a single axis to the plus
limit-switch direction
setcalvel
setting-up the velocities of the
"cal" limit-switch procedure
setncalvel setting-up the velocities of a "cal"
single axis limit-switch procedure
setrmvel
setting-up the velocities of the
"rm" limit-switch procedure
setnrmvel setting-up the velocities of a "rm"
single axis limit-switch procedure
Manual Corvus-eco
Functions 59

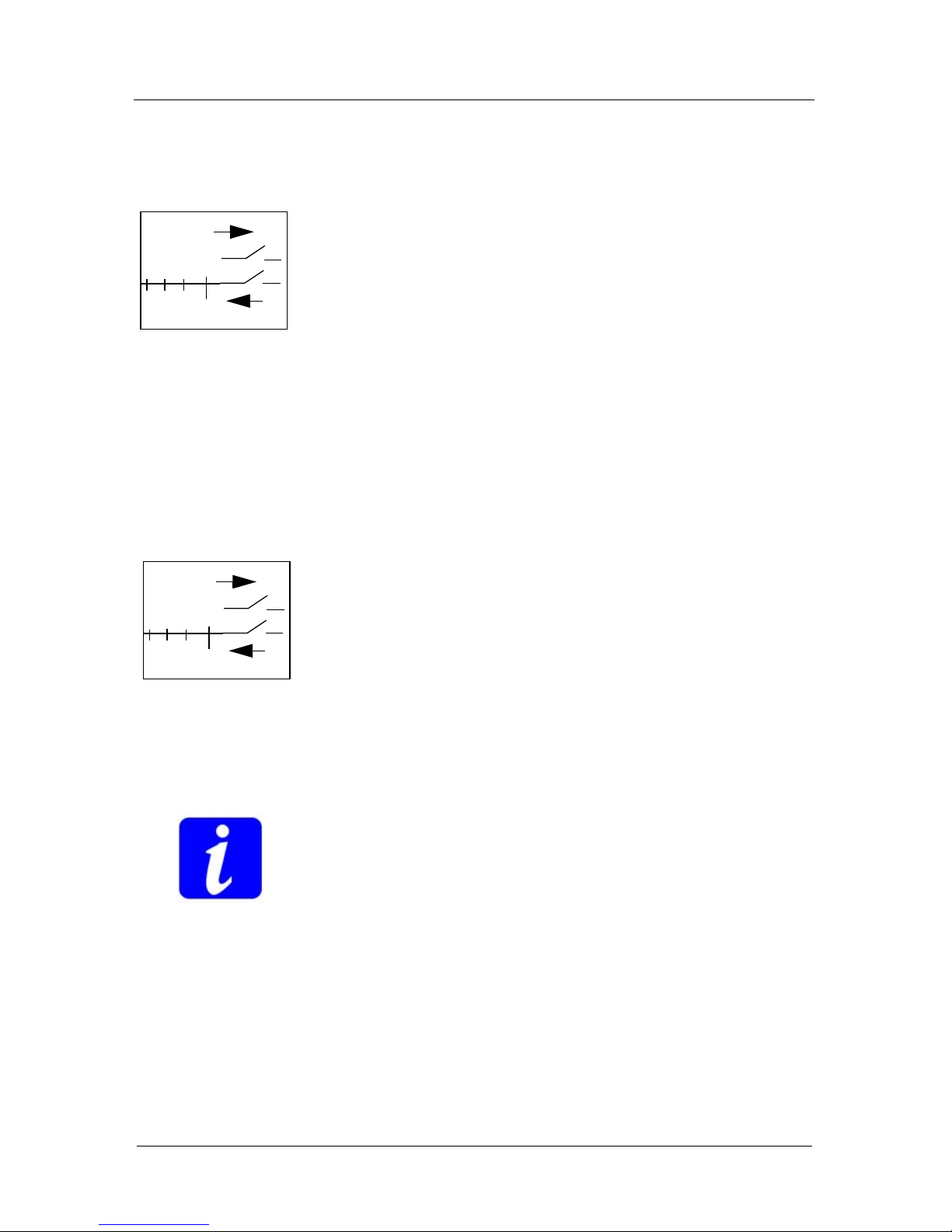

Programmed limit-switch teach-in in detail
In the following pages the procedure of the programmed limit
switch teach-in is described in detail.
The procedure is divided in at least two successive movements for each axis.
1. The axis moves to the limit switch until the limit switch is
activated.
2. The axis moves in the opposite directio
n until the limit
switch is released.
3. If defined an additional move is performed to the opposite
direction (see command s
etcalswdist).
If the limit-switch teach-in pro
cedure is performed for each direction, the working area is determined. In regular conditions
further on all movements will be ramped down and terminated
at the limit borders without activating the limit switches again.
1
2
3
cal-switch
rm-switch
Distance defined with
setcalswdist
Run out area
working area
lower limit
upper limit
Mechanical hard limit
s
v
0
Manual Corvus-eco
Functions 60
Limit register, position counter and motor direction
With command cal or ncal the controller moves in minus
direction to the cal limit-switch(es).
The cal limit-switch procedure defines the origin while the position counter and the
lower limit register is cleared to zero. The upper limit register
is set to it´s maximum value of 16.383mm.
After teaching-in the cal limit-switch, a movement to coordinates l
ess than zero is only possible if the cal limit-switch is
disabled and the lower limit value is changed to negative values with the command setlimit.
The origin can be changed subsequently with the command
setp
os.
With command rm
or nrm the controller moves in plus
direction to the rm lim
it switch(es).
The rm limit-switch procedure, re
gisters the maximum work-
ing range to the rm limit-switch.
After teaching-in the rm limit-switch,
a movement to coordinates upper than the registered maximum range is only possible, if the rm limit-switch is disabled and the range limit value
is changed to larger values with command setlimit.
For safety reasons it is not possible to save the registered limit
switch coordinates permanently.
0
-
+
100
+
-
Manual Corvus-eco
Functions 61
Manually teaching-in the limits
The limits can be determined manually by the use of the joystick. This procedure is similar to the programmed limit-switch
teach-in.
Limit switch teach-in with the joystick in detail
The axis must be manually moved until the limit-switch is
active, then moved out of the switch u
ntil it is inactive. At this
point the limit is registered.
If all limits are teached-in, the working area is determined. In
regular conditions further on all movements will be ramped
down and terminated at the limits, without activating the limit
switches again.
Point of origin if limits are manually determined
Contrary to the programmed limit-switch movement, the manual teach-in does not clear the position counter.
The origin is automatically set to zero at power up and can be
chang
ed individually with the command setpos.
It is also possible to change the limits with command
setlim
it.
cal
rm
0
-24
+123
Manual Corvus-eco
Functions 62
Important notices
•
To determine the limits in the programmed mode, it is
essential to execute the cal or ncal procedure first,
because this procedure clears the position counter and the
limit registers.
• The velocities to execute the limit switch movements has
to be chosen very carefully because:
The motors are interrupted immediately if the limitswitches are activated, this causes a back electromotive
force (bemf) that can reset the controller
To much speed can bring the axis in collision with the
the mechanical limits.
To achieve a good repeatability of the determined limit
coordinates, especially the velocity for moving out of the
limit-switches should be chosen as small as possible.
• The broadcast limit switch teach-in procedure blocks the
Venus-1 interpreter for all other commands except Ctrl+c.
• For safety reasons the determined limits can not be stored
permanently.
• Software limits can be defined additionally. See command
setnlimit.
Manual Corvus-eco
Functions 63
Digital inputs / outputs
For individual controlling tasks Corvus is supplied with an input/output interface with 3 digital inputs and 3 digital outputs.

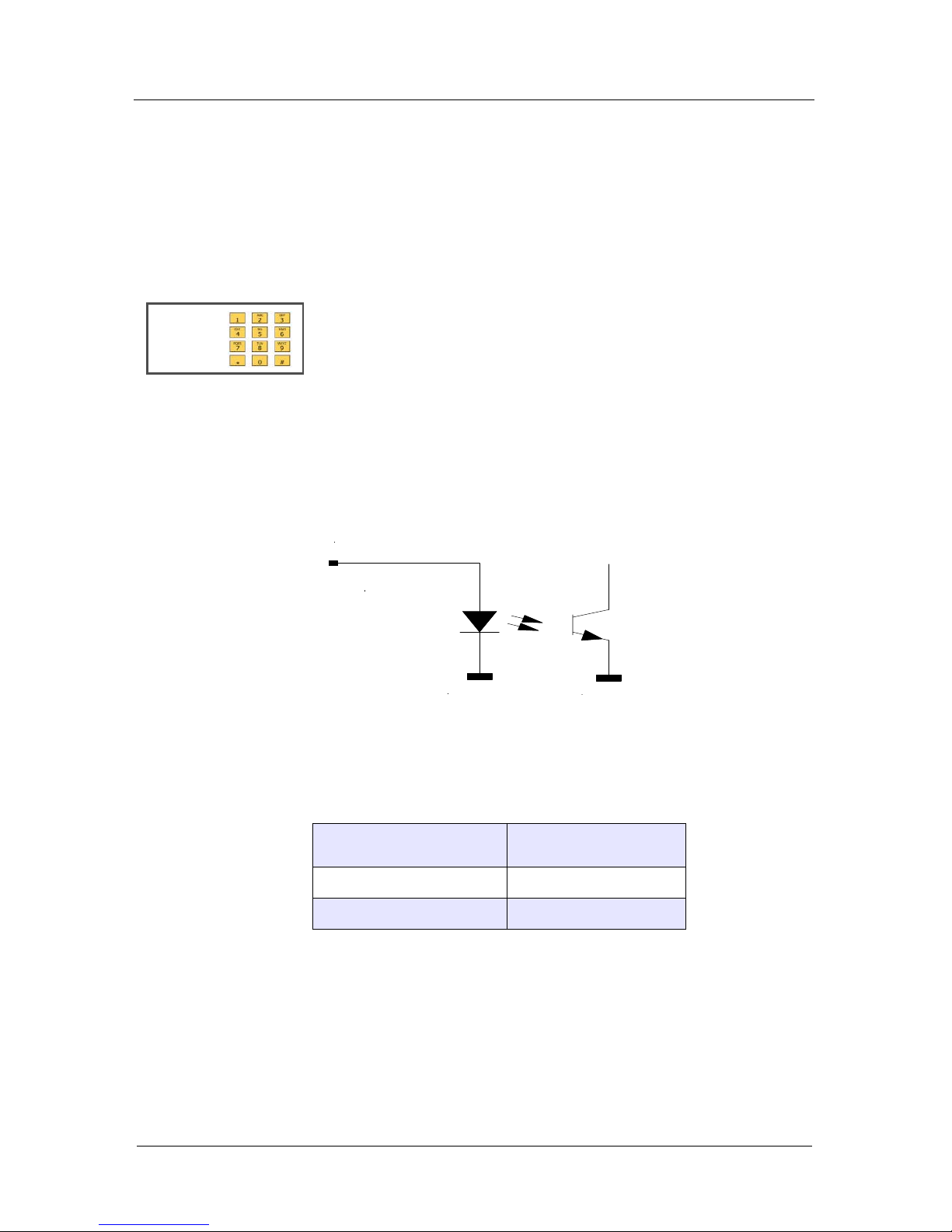

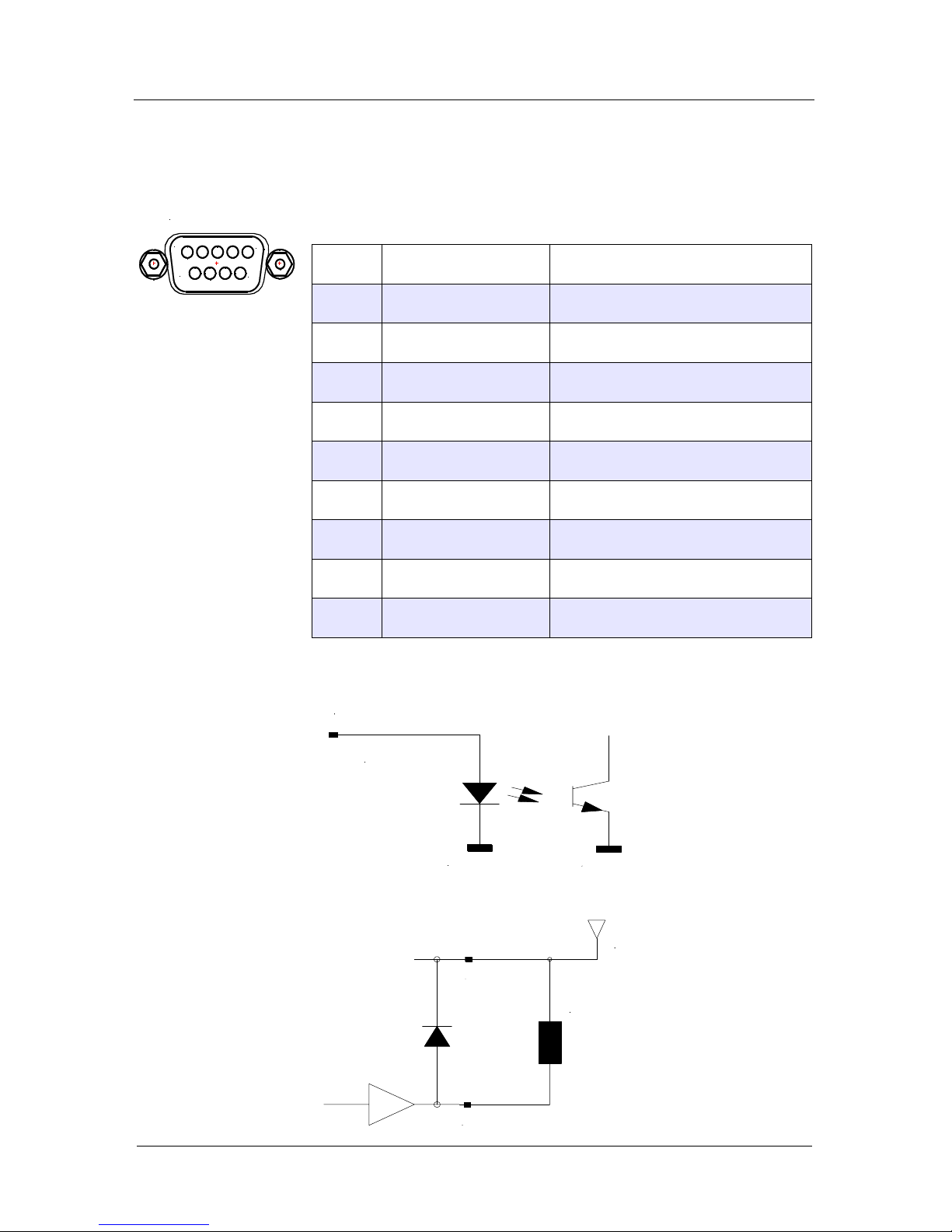

Input circuit
The input voltage range of the digital inputs is between
0 to 24V.
The inputs are optically isolated but not DC-isolated.
Technical data:
Input voltage Identified as
0 - 2 V
0
3 - 24 V 1
Option
DGND
DGND
Input
0-24V
Manual Corvus-eco
Functions 64

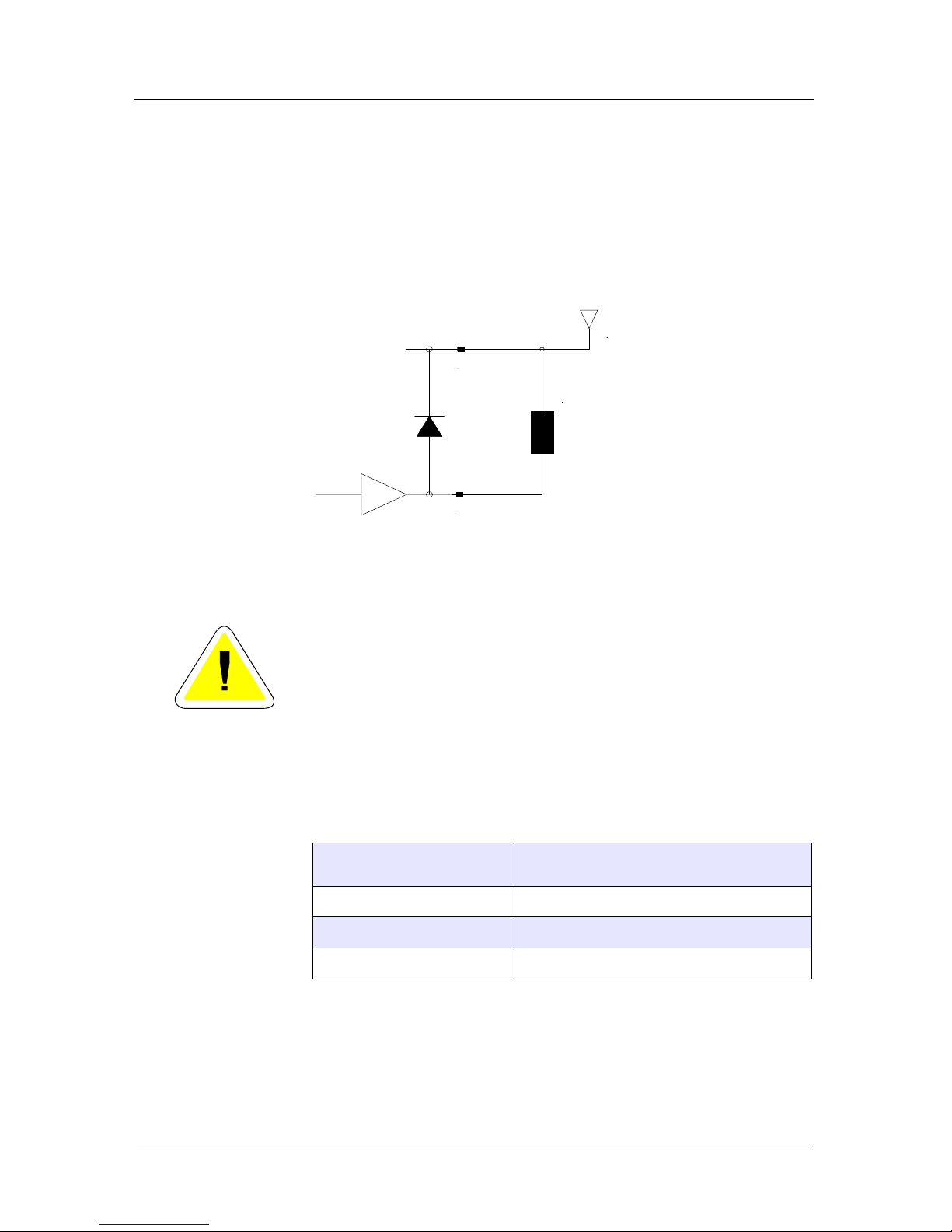

Output circuit
The output driver has a darlington circuit with open-collector
output which is also qualified for switching inductive loads.
The maximum current capacity of each output is 500 mA.
The total output current of all outputs may not exceed
100
0 mA.
Related Venus-1 commands:
Command Description
setout
generates signal output
getin input signal detection
setinfunc
safety function configuration
Output
SPNG
Load
Vcc
5V - 35V
Manual Corvus-eco
Functions 65
Input / output functions
The following functions are realised with the digital
inputs/output interface at co
nnector "input/output"
Output signal generation
The command setout generates digital output signal at
Pin´s 4, 8, 9.
Input signal detection
The command getin reads the binary state of the data inputs
at Pin‘s 2, 6, 7.
Safety function
The function setinfunc uses an input signal (Pin 4,8,9) to
lock a specified axis completely or restrict their moving range
depending on the direction.
This function is works independe
ntly from the limit-switch
function.
Manual Corvus-eco
Functions 66
User output voltages
To supply external devices, Corvus-eco provides the uservoltages +5V or +12V. These voltages are protected with a
electronic fuse.
The fuse elements are self-resetable this means the electric
circuit
is closed again after a while when the overload situa-
tion is removed.
Technical data:
User voltage Max. output current
5V (default)
1A
12V (upon request) 0.3A
Chapter 4
Manual Corvus-eco
Technical data 67
Technical data
Manual Corvus-eco
Technical data 68
Specifications
Number of axes • 2 or 3
Phase current • 0.2A...1,5A
Velocity max.
Velocity min.
• 15 mm/s (if pitch = 1mm)
• 15.26 nm/s
Acceleration max.
Acceleration min.
• 1m/s²
• 15.26 nm/s²
Supported motors • Stepper motor, 2-phases or 3-phases
Programming
• ASCII command language Venus-1
• Windows user interface (WinPos)
• Software library (dll)
Resolution
programming mode
• 1.5 nm
Resolution
joystick mode
• 0.233 nm
Positioning modes
• Absolute, relative, vector, error correction
• speed controlled with on the fly velocity updates
• Limit move algorithm
• Origin move algorithm
Acceleration modes • linear (trapezoid), sin² s-curve)
Processor • 32 Bit Risc Processor
Operating system • Real Time Operating System (RTOS)
Motor driver • Digital, MOS-FET technology
Communication
• RS-232 up to 57600 Baud
• USB (option)
Limits
• 2 x limit switch inputs for each axis (isolated)
• 1x origin switch input
• Voltage setting to supply switches: 5V
(12 V upon request)
Input/Outputs
(Option)
• 3 x digital inputs
• 3 x digital outputs
Manual Corvus-eco
Technical data 69
User Output power
• +5V, 1000 mA (default)
• +12V, 300 mA (upon request)
Closed Loop interface
• 1Vpp
• RS422 quadrature
RS422 inputs
• 3 Channel differential, incremental, RS422
• Multiplication factor: x4
• Encoder index pulse consideration
• Input frequency 20 MHz.
1Vpp inputs
• 3 Channel differential, incremental 1Vpp.
• Multiplication factor: x12,865 or x205,884
• Encoder index pulse consideration
• Input frequency max. 500 kHz
Safety functions
• Motor disable interface
• Isolated relay contact
Accessories
• Analog joystick interface with 2 or 3 axes
• Analog joystick with display
• Digital encoder handwheel
• Handheld Terminal
Trigger Out Function
• Position synchronized output (PSO)
• Trigger rate max. 4kHz
• Resolution 250µs
Position capture input
• Position capture after trigger input event
• Max. position memory: 1.000 coordinates
• Max. event capture frequency: 2 kHz
• Max. trigger position resolution: 500µs x velocity
Dimensions • L x W x H: 215 x 225 x 55 (mm)
Motor driver voltage • 24V
Standards • RoHS certified
Manual Corvus-eco
Technical data 70

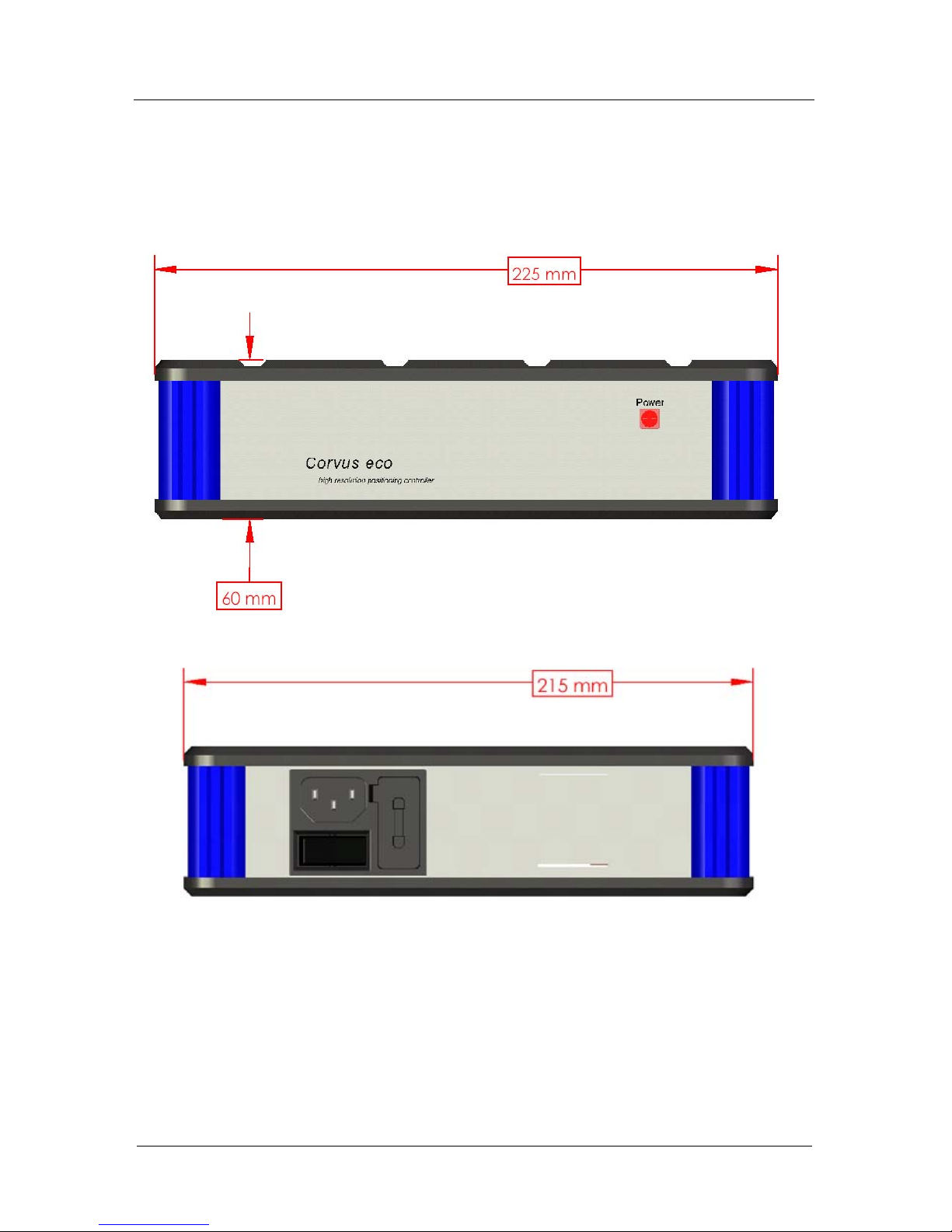

Layout and dimensions
Chapter 5
Manual Corvus-eco
Releasing options 71
Releasing options
Manual Corvus
Releasing options 72
Releasing options
Corvus-eco is equipped with a various number of options
which can be easily released from the customer with a so
called release code.
Informations to purchase a release code
To purchase an option following informations are essential.
1. Serial number of the controller
The number is fit at the bottom side of the Corvus-eco
chassis.
Model:
Corvus-eco
S/N:
Voltage:
Power:
0604-0243
90-250V
Serial number: 0604-0243
Manual Corvus
Releasing options 73
2. Actual released options
The already released options are labeled on the rear side of
th
e controller. The options index can also readout with the
command ge
toptions
Options
Axis-3
High speed (25 rev./s)
Input/Output
Axis-1 Closed loop
RS-422 1Vss MR
Axis-1 Closed loop
RS-422 1Vss MR
Axis-1 Closed loop
RS-422 1Vss MR
Manual Corvus
Releasing options 74
Fill out form for release code requests
Controller type
Serial number
Desired option
Already released
options
current index
(getoptions)
Date
TABLE 1: Fill out form for release code requests
Options
Axis-3
High speed (25 rev./s)
Input/Output
A
xis-1 Closed Loop
RS422 1Vss MR
A
xis-2 Closed Loop
RS422 1Vss MR
A
xis-3 Closed Loop
RS422 1Vss MR
Manual Corvus
Releasing options 75
Installation procedure
To install an option use WinPos16.
WinPos16 LT is added for free to each controller.
Before using WinPos, please check if your WinPos version is
able to release options.
WinPos Version 1.1 with venusco
m.dat* dated 14.07.2003
or newer should be used.
*venuscom.dat is found in the WinPos directory.
Installation step by step
•
Connect serial line with Host and controller
• Switch on the controller
• Start WinPos
• Establish a proper communication between WinPos and
the controller.
• Open Venus command input line
• Input release code and send it with command setcode
• Input command save and send it to store release code
• Input command reset and send it to restart the controller
• Verify released code with command getoptions
Connect controller
Manual Corvus
Releasing options 76
Controller connected
Venus-1 command line
Release Code
with command
setcode
Manual Corvus
Releasing options 77
Manual Corvus
Releasing options 78
Option index table
With the command getoptions the already released
options are replied as a bit coded decimal number from
0 to 1023 as shown in the following table.
Example:
Options: 3 rd. Axis, Input/Output
getoptions = 8 +
1 = 9
Option
getoptions
Index
Bit
3 rd. Axis 1 D0
not used 2 D1
not used 4 D2
Input / output 8 D3
not used 16 D4
not used 32 D5
Closed loop axis 1 64 D6
Closed loop axis 2 128 D7
Closed loop axis 3 256 D8
High speed 512 D9
TABLE 2: Option index table
Manual Corvus
Releasing options 79
Troubleshooting
•
After releasing the option doesn‘t work
Check if the option is released. Use command ge
toptions.
Before you try again to release the option, please make sure
that your release code is correct. A wrong code will disable all
options.
In most cases you got the code via
E-mail. It is a reasonable
way to copy the number from the E-mail into the clipboard and
insert it directly in the Venus command line.
- Don‘t forget to send command save after setc
ode.
- Don‘t forget to send command reset after s
ave.
• During releasing with WinPos you got the message
"unknown command setcode"
You are using an older WinPos Version. Ask you dealer for
WinPos Version 1.1 with "venuscom.dat"
date code: 14.07.2003 or newer.
Manual Corvus
Releasing options 80
Chapter 6
Manual Corvus-eco
Firmware update 81
Firmware update
Manual Corvus
Firmware update 82
Firmware update
The Firmware update can be easily accomplished with the
ITK Update Tool. This is a self-explanatory tool that guides
you through the process in three steps.
Update procedure in three steps
1. All controller settings will be read from the controller and
stored to disk.
2. A new firmware download is performed.
3. The settings are read from the disk and stored to the
controller again.
What do you need to update the controller

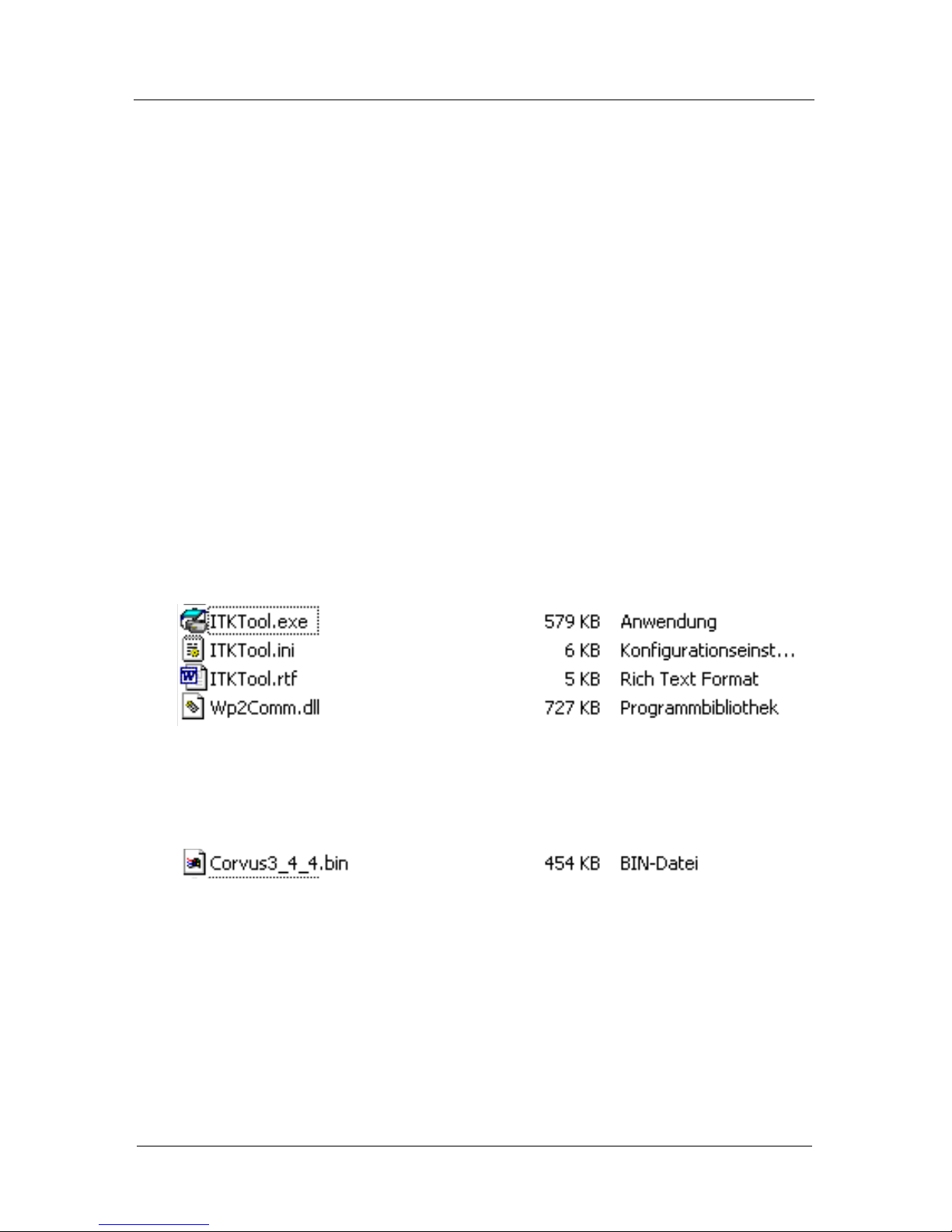

1. Update Tool with following files:
2. New Firmware.bin file
This file can be uploaded from the home pa
ge of your dealer
or can send you via E-mail.
3. Computer with a 115 kBaud
RS-232 interface
The update is executed via the RS-232 Service line.
The baudrate for parameter upload is selectable.
The firmware download is executed with a fixed baudrate
of 115kBaud.
4. Socket wrench (5mm)
Tool to remove the cover of the D-type connector
"RS-232 Service" at the controller.
Manual Corvus
Firmware update 83
Update Tool
Manual Corvus
Firmware update 84
Chapter 7
Manual Corvus-eco
Connectors 85
Connectors
Manual Corvus-eco
Connectors 86

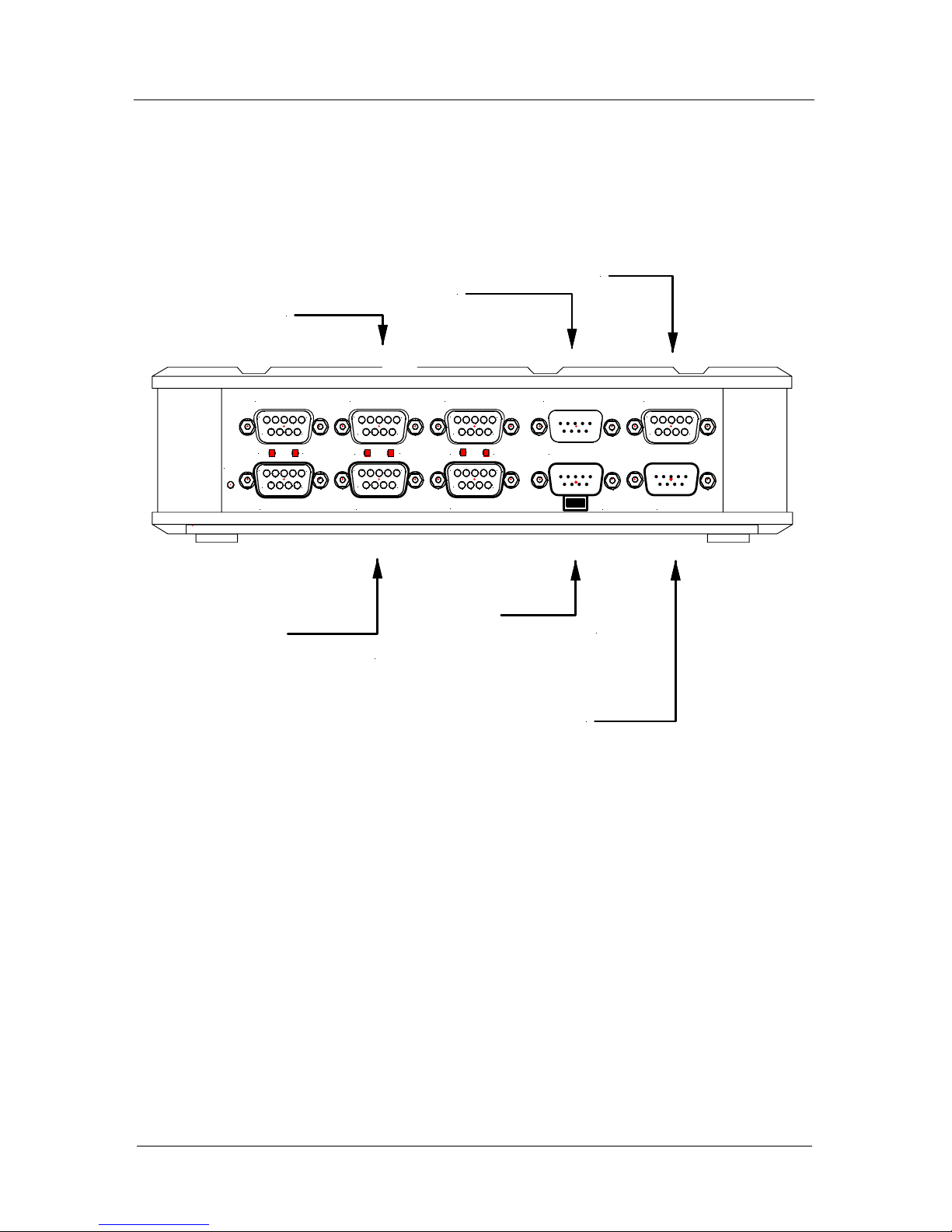

Connectors overview
5
1
9
6
5
1
9
6
5
1
9
6
5
1
9
6
5
1
9
6
5
1
9
6
5
1
9
6
C
Joystick
Motor Axis-2
RS-232 / Host
Encoder Axi s-2 Encoder Axis-3
Encoder Axis-1
S
Motor Axi s-1
USB
Motor Axis-3
RS-232 / Service
Input / Output
C C
S
S
Cycle
Closed Loop interface
Firmware update interface
I/O connector
Motor connectors /limit switches
RS-232 / USB interface
Joystick input
Manual Corvus-eco
Connectors 87
Motor and limit switch connectors
Motor control output and limit switch input a combined in this
connectors.
* factory setting: 5V
The settings can only be changed from the factory personal
or from authorized experts
Pin Name
Description
1 Ph 1A Motor Phase 1A
2 Ph 1B Motor Phase 1B
3 Ph 2A Motor Phase 2A
4 Ph 2B Motor Phase 2B
5 GND Ground
6cal
Limit switch input
(negative direction)
7 rm
Limit switch input
(positive direction)
8 * User 5V (12V) Output voltage 5V (12V)
9
TABLE 3. Motor connector
5
1
9
6
5
1
9
6
5
1
9
6
Motor Axis-2
Motor Axis-1
Motor Axis-3
Manual Corvus-eco
Connectors 88

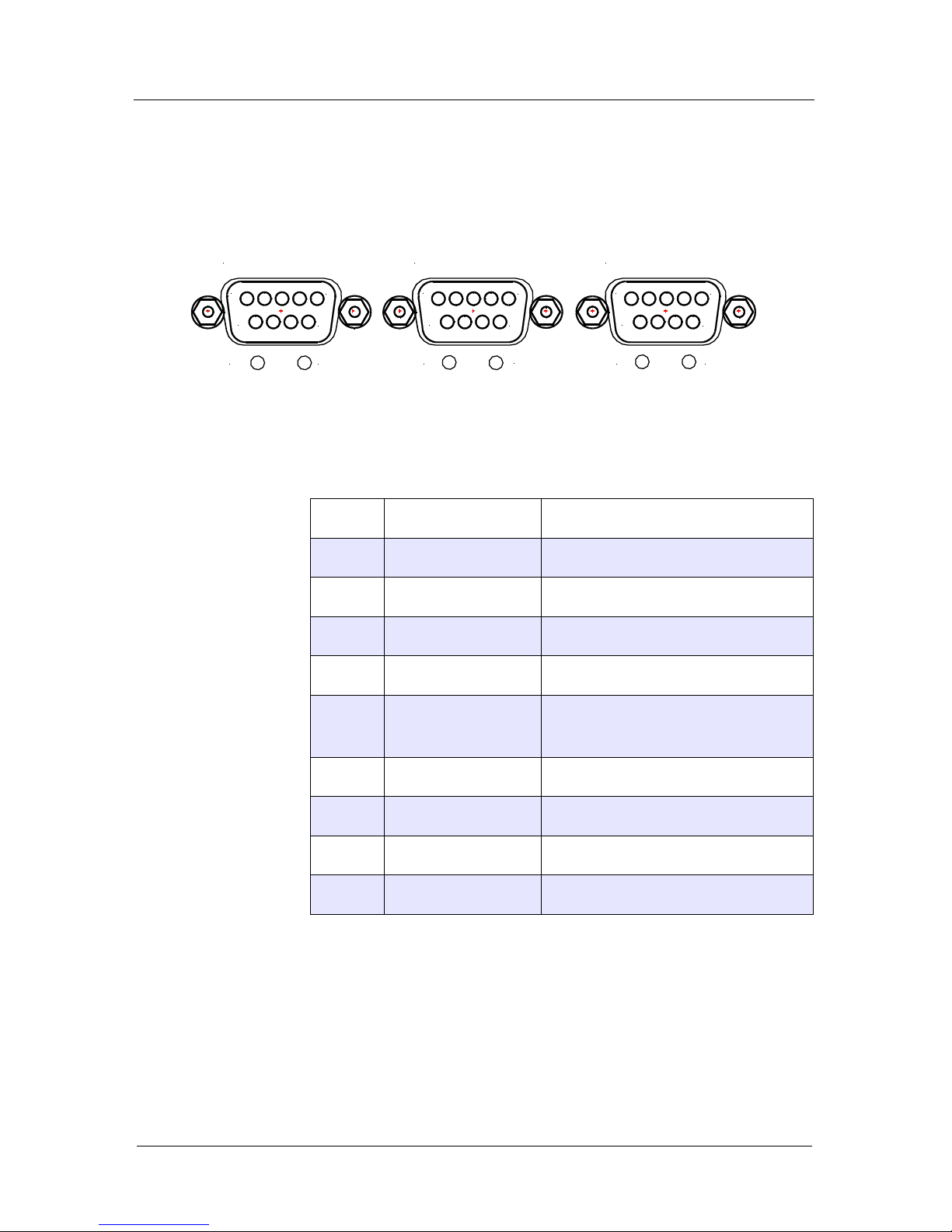

Digital encoder input
Supports closed loop control with digital RS422 encoders.
*Corvus eco provides the encoder sup
ply for each encoder;
the value is fixed.
Pin Name
Function
1 Ua 1 Channel A (positive)
2 Ua 2 Channel B (positive)
3 Ua 0 Reference (positive)
4DGND GND
5 User 5V*
Encoder supply
User output (max. 1000mA)
6 Ua 1- Channel A (negative)
7 Ua 2- Channel B (negative)
8 Ua 0- Reference (negative)
9 Error Encoder error
TABLE 4. Digital encoder input
5
1
9
6
5
1
9
6
5
1
9
6
C
Encoder Axis-2
Encoder Axis-3Encoder Axis-1
S
C C
S
S
Manual Corvus-eco
Connectors 89

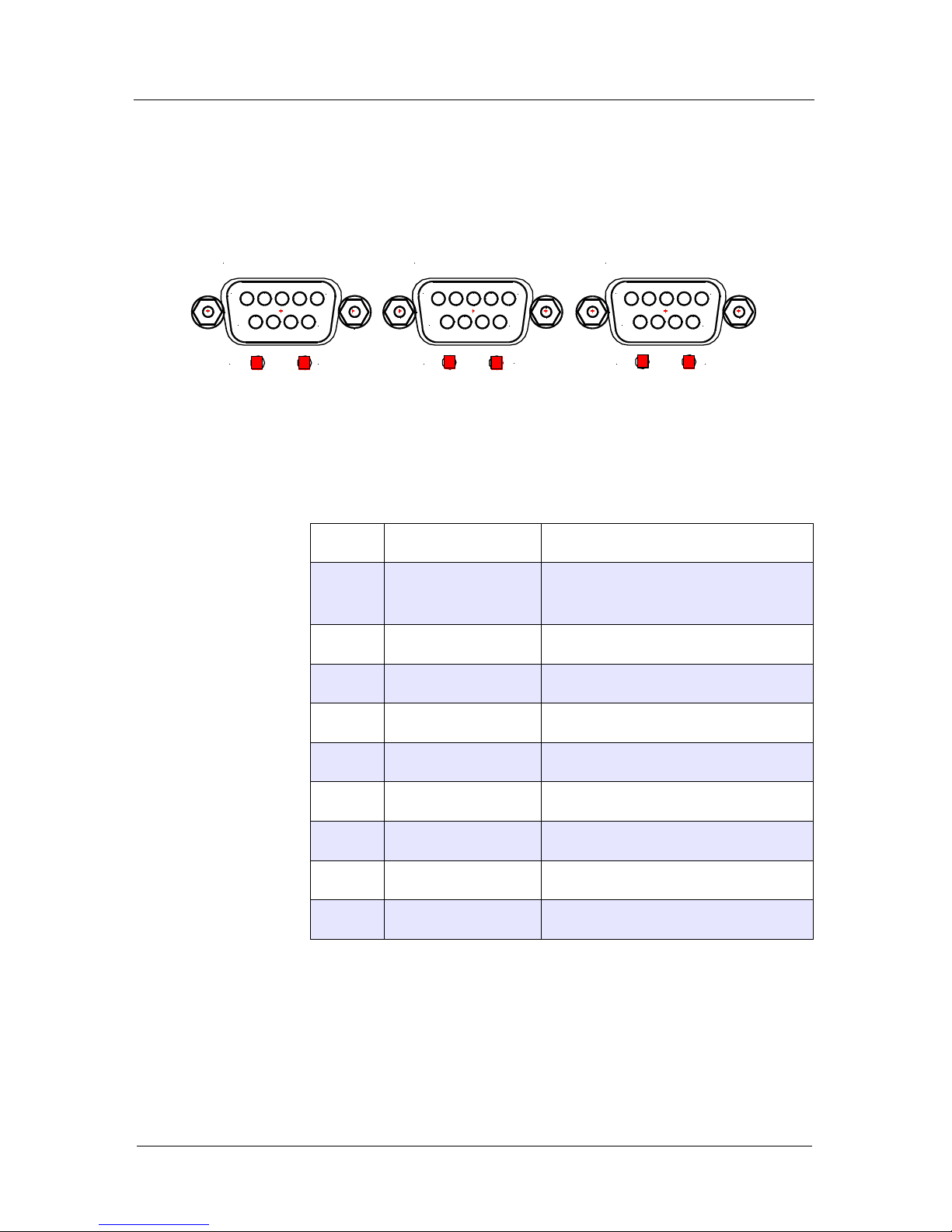

Analog encoder input
Supports closed loop control with standard analog measurement systems 1Vpp.
Connector chassis = Digital GND
*Corvus-eco provides the encoder supply for each encoder;
the value is fixed. Stability has to be achieved for longer
supply lines.
Pin Name
Function
1 +5V analog
Encoder supply
Analog Vcc
2 Event Event
3 Ua 1 + sin +
4 Ua 1 - sin -
5 Ua 2 + cos +
6 Ua 2 - cos -
7 Ua 0 + Reference (positive)
8 Ua 0 - Reference (negative)
9 AGND Analog ground
TABLE 5. Analog encoder input
5
1
9
6
5
1
9
6
5
1
9
6
C
Encoder Axis-2
Encoder Axis-3Encoder Axis-1
S
C C
S
S
Manual Corvus-eco
Connectors 90
Digital input / output
Pin Name Function
1 DGND Digital GND
2 Input 2 Input 2 (0-24V)
3 User +5V User output
4 Output 2 Output 2 (0-24V)
5 SPNG SPNG
6 Input 1 Input 1 (0-24V)
7 Input 3 Input 3 (0-24V)
8 Output 3 Output 3 (0-24V)
9 Output 1 Output 1 (0-24V)
TABLE 6. Digital input/output
5
1
9
6
Input / Outpu
t
DGND
DGND
Input
0-24V
Output
SPNG
Load
Vcc
5V - 35V
Manual Corvus-eco
Connectors 91

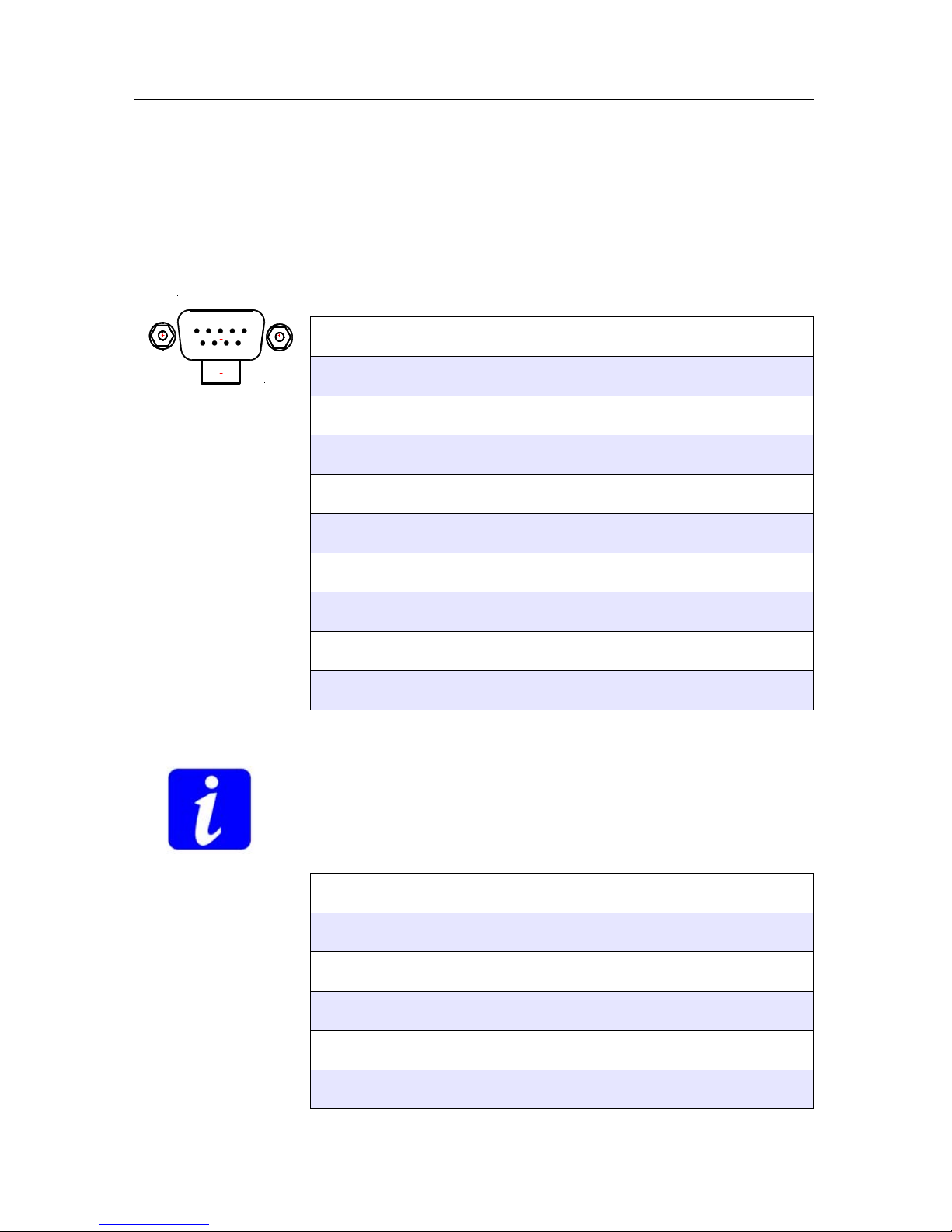

RS-232 / USB programming interface
This interface is used for the standard programming mode
T
The RS-232 interface is workin
g without flow control.
The handshake signals RTS and CTS are not supported.
DTR and DSR are internal connected.
Pin Name
Function
1 nc nc
2 RxD Corvus data input
3 TxD Corvus data output
4 DTR Connected with Pin6
5 GND GND
6 DSR Connected with Pin4
7 RTS
8CTS
9
TABLE 7. RS-232 programming interface
Pin Name Function
1 VCC USB +5V
2 D- Corvus data input
3 D+ Corvus data output
4nc
5 GND GND
TABLE 8. USB connector
RS-232 / Host
USB
Manual Corvus-eco
Connectors 92

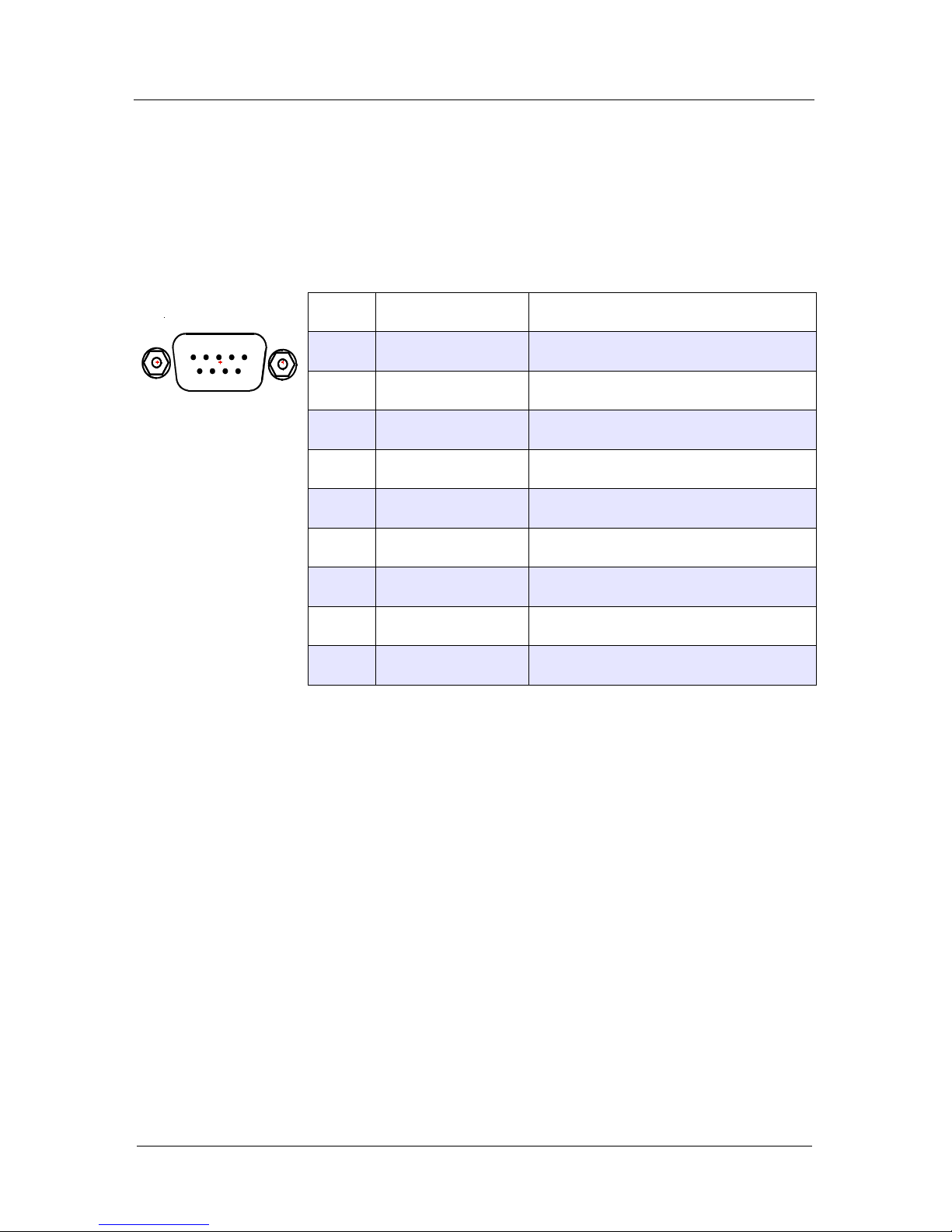

RS-232 Service interface
Pin Name Function
1 nc nc
2 RxD Corvus Data input
3 TxD Corvus Data output
4 DTR Connected with Pin6
5 GND
6 DSR Connected with Pin4
7
8
9
TABLE 9. RS-232 service interface
RS-232 / Service
Manual Corvus-eco
Connectors 93

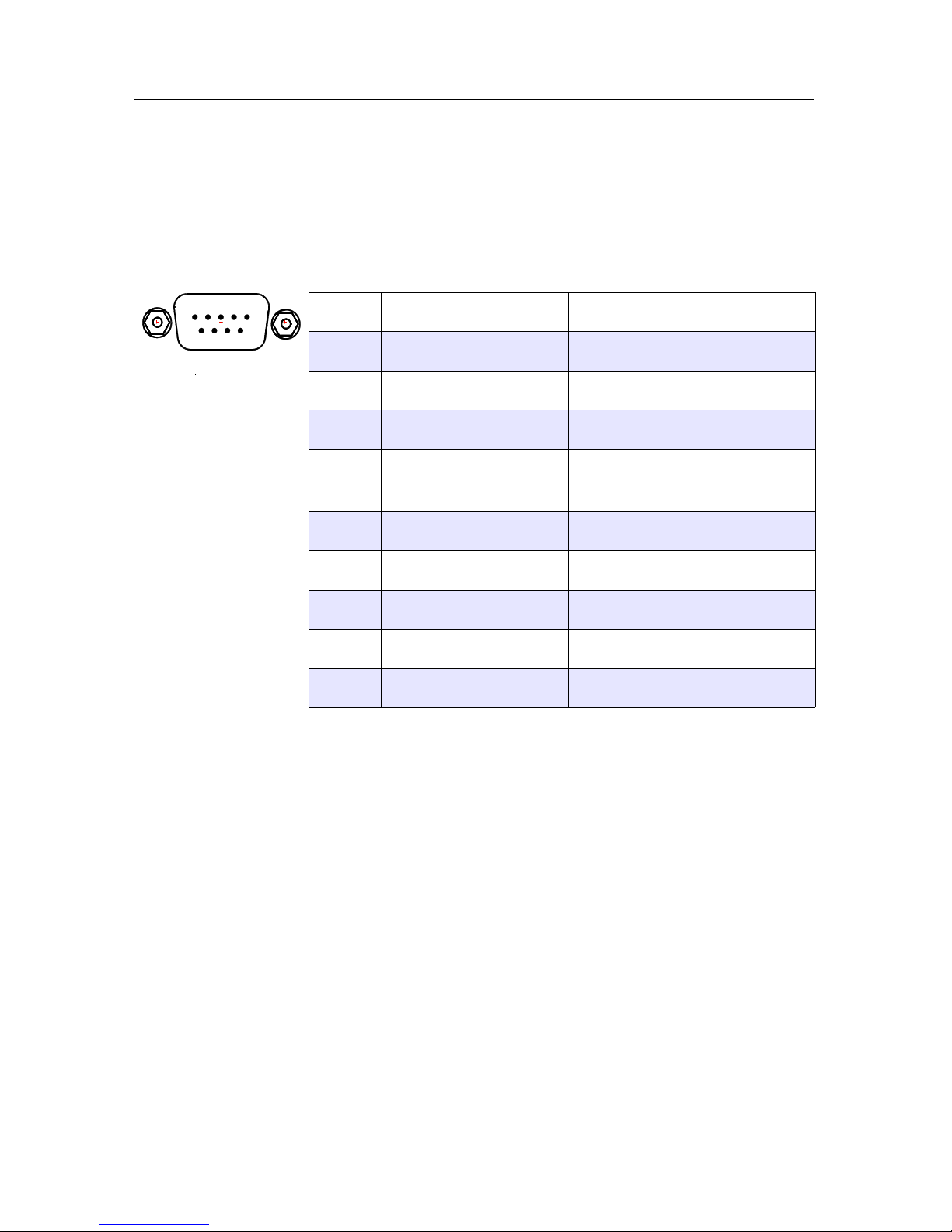

Joystick interface
Pin Name Function
1 Axis-1 (X) Analog input 0-3.3V
2 Axis-2 (Y) Analog input 0-3.3V
3 Axis-3 (Z) Analog input 0-3.3V
4
Joystick enable Enable input
GND = enables joystick
5 +5V (User) User output
6 SW Joystick button
7 GND GND
8 AGND analog GND
9 3.3V (analog) Power
TABLE 10. Joystick interface
Joystic
k
Manual Corvus-eco
Connectors 94
Your notices:
Loading...
