Michelin MPX 120 L User Manual

02/04/2014

Version:

Model MPX 120 L

Serial number:

Code:

13760

schuko230 V - 50 Hz

5

6

7

14

1813

19

8

20

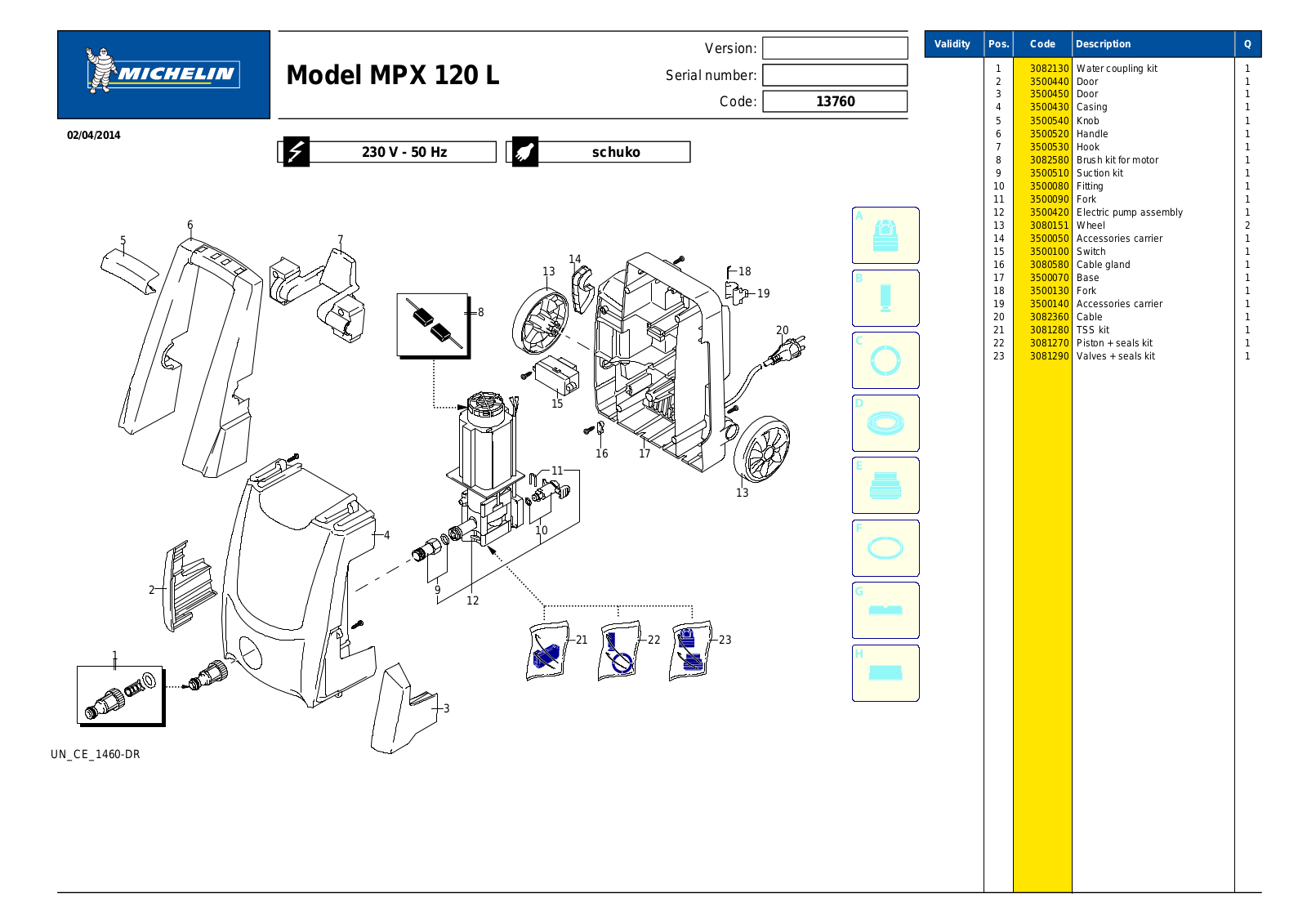

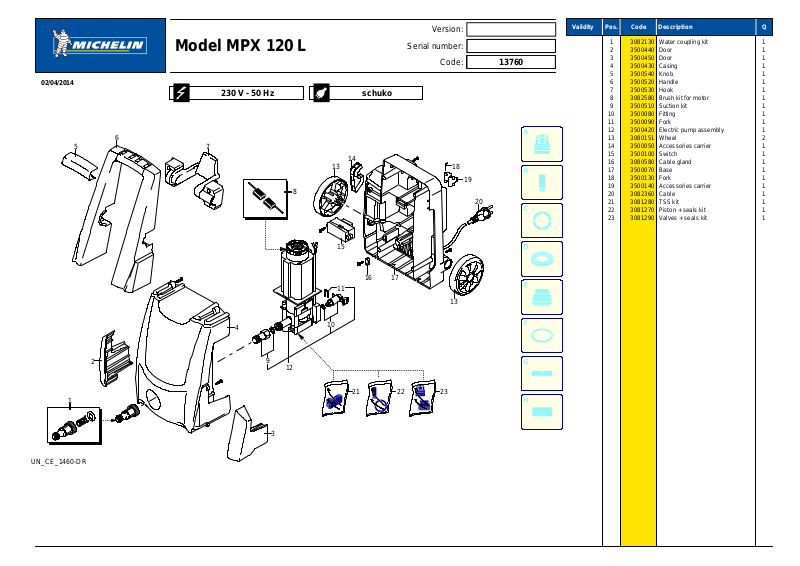

1 3082130 Water coupling kit 1
2 3500440 Door 1
3 3500450 Door 1
4 3500430 Casing 1
5 3500540 Knob 1
6 3500520 Handle 1
7 3500530 Hook 1
8 3082580 Brush kit for motor 1

9 3500510 Suction kit 1
10 3500080 Fitting 1
11 3500090 Fork 1
12 3500420 Electric pump assembly 1
13 3080151 Wheel 2
14 3500050 Accessories carrier 1
15 3500100 Switch 1
16 3080580 Cable gland 1
17 3500070 Base 1
18 3500130 Fork 1
19 3500140 Accessories carrier 1
20 3082360 Cable 1
21 3081280 TSS kit 1
22 3081270 Piston + seals kit 1
23 3081290 Valves + seals kit 1

QPos. Code DescriptionValidity

15

1716

11

13

1

UN_CE_1460-DR

4

2

9

12

10

232221

3

02/04/2014

Model MPX 120 L

2

Version:

Serial number:

Code:

13760

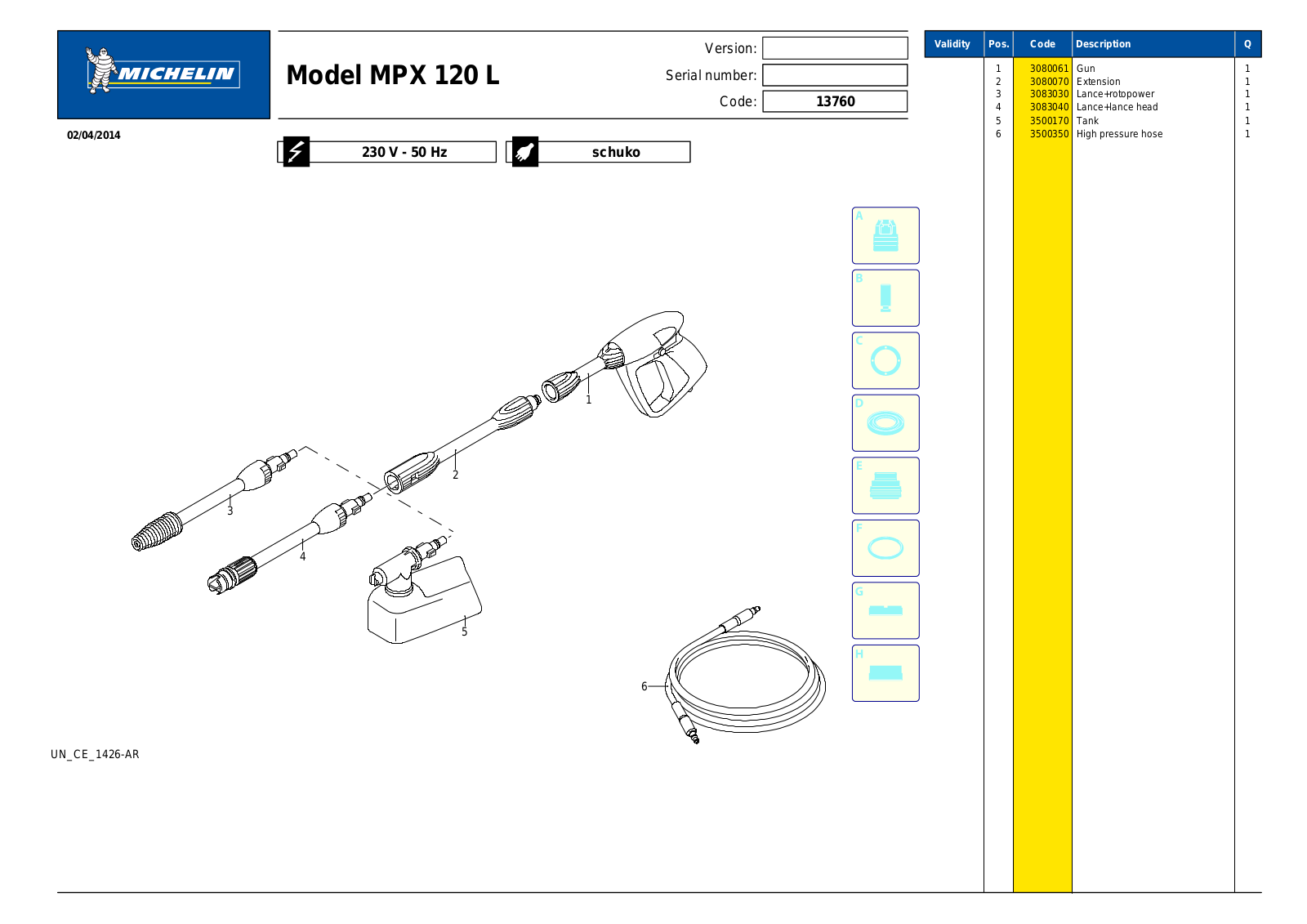

1 3080061 Gun 1

2 3080070 Extension 1

3 3083030 Lance+rotopower 1

4 3083040 Lance+lance head 1

5 3500170 Tank 1

6 3500350 High pressure hose 1

QPos. Code DescriptionValidity

schuko230 V - 50 Hz

1

UN_CE_1426-AR

3

4

5

6
