Page 1
11/03/2019
9
7
11
17
18
21
222313
151519
212425262728UN_CE_2553-CL
20126 3535
5
1
2
16293
4
343839

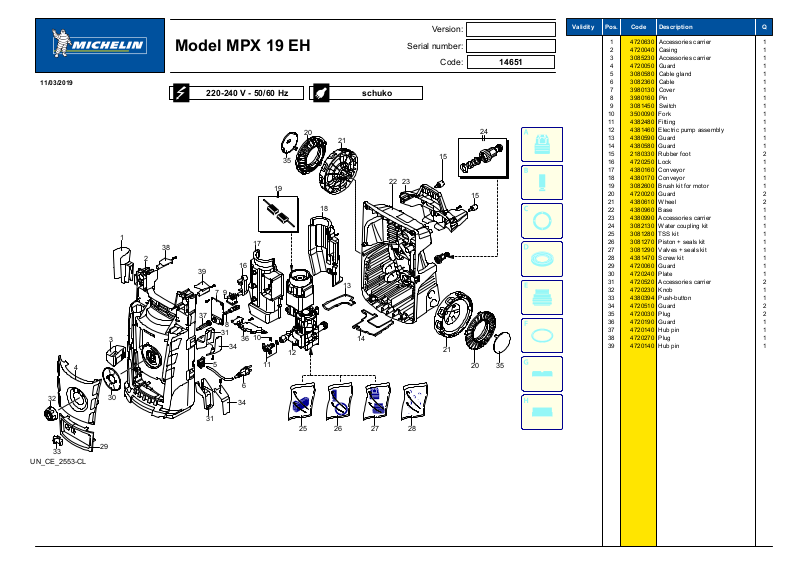

Model MPX 19 EH
37
8
31
34
36
10
20
14
Version:
Serial number:
Code:
14651
schuko220-240 V - 50/60 Hz
1 4720630 Accessories carrier 1
2 4720040 Casing 1
3 3085230 Accessories carrier 1
4 4720050 Guard 1
5 3080580 Cable gland 1
6 3082360 Cable 1
7 3980130 Cover 1
8 3980160 Pin 1
9 3081450 Switch 1
10 3500090 Fork 1
11 4382480 Fitting 1
12 4381460 Electric pump assembly 1
13 4380590 Guard 1
14 4380580 Guard 1
15 2180330 Rubber foot 2
16 4720250 Lock 1
17 4380160 Conveyor 1
18 4380170 Conveyor 1
19 3082600 Brush kit for motor 1
20 4720020 Guard 2
21 4380610 Wheel 2
22 4380960 Base 1
23 4380990 Accessories carrier 1
24 3082130 Water coupling kit 1
25 3081280 TSS kit 1
26 3081270 Piston + seals kit 1
27 3081290 Valves + seals kit 1
28 4381470 Screw kit 1
29 4720060 Guard 1
30 4720240 Plate 1
31 4720520 Accessories carrier 2
32 4720230 Knob 1
33 4380394 Push-button 1
34 4720510 Guard 2
35 4720030 Plug 2
36 4720190 Guard 1
37 4720140 Hub pin 1
38 4720270 Plug 1
39 4720140 Hub pin 1
QPos. Code DescriptionValidity
32
30
31
33
Page 2
11/03/2019
UN_CE_2504-MM
1
9 1011
6
5
Model MPX 19 EH
Version:
Serial number:
Code:
14651
schuko220-240 V - 50/60 Hz
1 4720090 Knob 1
2 4720080 Handle 1
3 4720110 Pipe 2
4 4720120 Guide 2
5 4720260 Guard 1
6 4720130 Guard 1
7 4720100 Hook 1
8 4821020 Spring 1
9 4820410 Cover 1
10 4720160 Bracket 1
11 4101680 Plate 2
12 4102120 Support 2
13 4720150 Bracket 1
14 4101750 Hub pin 1
15 4101660 Lever 1
16 4101672 Knob 1
QPos. Code DescriptionValidity
2
12
3
3
12
11
13
14
15
16
4
4
7
8
Page 3
11/03/2019
9
UN_CE_1791-AP
4
8
Model MPX 19 EH
7
Version:
Serial number:
Code:
14651
schuko220-240 V - 50/60 Hz
1
1 4381483 Gun 1
2 4381493 Extension 1
3 4100800 Lance head 1
4 4381810 Lance head 1
5 4381500 Tank 1
6 3500360 High pressure hose 1
7 3083700 O-ring 2
8 3083370 O-ring 2
9 3083400 O-ring 2
QPos. Code DescriptionValidity
2
5
3
8
7
9
6
