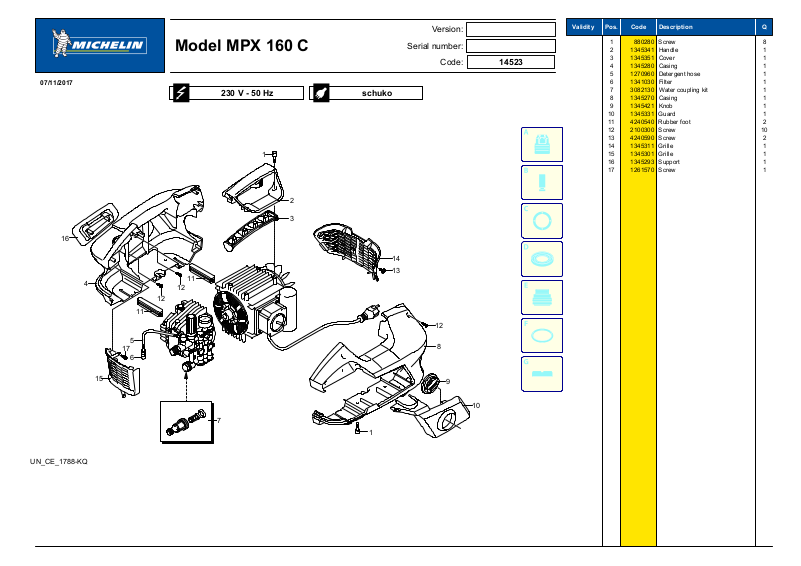

Page 1
07/11/2017
UN_CE_1788-KQ
12
1
2
111110
9
15
16
QPos. Code DescriptionValidity
Model MPX 160 C
Version:
Serial number:
Code:
14523
schuko230 V - 50 Hz
1 880280 Screw 8
2 1345341 Handle 1
3 1345351 Cover 1
4 1345280 Casing 1
5 1270960 Detergent hose 1
6 1341030 Filter 1
7 3082130 Water coupling kit 1
8 1345270 Casing 1
9 1345421 Knob 1
10 1345331 Guard 1
11 4240540 Rubber foot 2
12 2100300 Screw 10
13 4240590 Screw 2
14 1345311 Grille 1
15 1345301 Grille 1
16 1345293 Support 1
17 1261570 Screw 1
3
14
13
4
12
12
17
5
8
6
7
1
Page 2
07/11/2017
UN_CE_1792-LQ
777879
A
72
46
47
50
51
52
53
565438
40
41
1 2 3
5
7
8
121718
27
28
29
31
33
32
14
22
37
61
6263666768
70
737475
103481
48
49
30
45
44
47
43
Model MPX 160 C
64
57
69
82
58
59
60
16
65
36
6
4
55
71
42
39
76
24
21
20
19
26
25
23
9
11
80
Version:
Serial number:
Code:
14523
schuko230 V - 50 Hz
B
C
D
35
11
9
13
15
13
F
1 2900120 Fitting 1
2 740290 O-ring 1
3 2901110 Injector 1
4 800560 O-ring 2
5 3780450 Spring 1
6 2901070 Shutter 1
7 1460430 O-ring 1
8 1345160 Head 1
9 1349058 Valve 6
10 480560 O-ring 1
11 1465720 O-ring 6
12 1344800 Plug 2
13 1344790 Fork 6
14 850850 Screw 4
15 620301 Plug 1
16 2320180 Hose tail 1
17 1342701 Seat 1
18 600180 O-ring 1
19 1460151 Piston 1
20 2021900 Piston 1
21 1080190 O-ring 1
22 600180 O-ring 1
23 1080401 Ring 1
24 820510 O-ring 1
25 740290 O-ring 1
26 1344870 Piston guide 1
27 1343450 Wobble plate 1
28 1460190 Spring 1
29 1980220 Wobble plate 1
30 1080070 Pin 1
31 1344881 Insert 1
32 1980470 Screw 1
33 1060120 Nut 1
34 1345020 Plug 1
35 41851 Pressure gauge 1
36 1344890 Plug 1
37 2560870 O-ring 1
38 3200690 Gasket 3
39 770260 O-ring 3
40 1345190 Piston guide 3
41 1260440 Water seal 3
42 1344760 Ring 3
43 1344050 Pump body 1
44 1345210 Bushing 1
45 1040710 O-ring 1
46 1344060 Cover 1
47 1260780 Screw 8
48 1981770 Plug 1
49 1349000 Plug 1
50 880111 Key 1
51 1341070 Bearing 1
52 480890 Ring 1
53 111120 Ring 1
54 1341080 Ring 1
55 1340060 Connecting-rod 3
56 1340080 Pin 3
57 1340070 Piston 3
58 1260460 Oil seal 3
59 600180 O-ring 3
60 1341010 Plate 3
61 1342740 Piston 3
62 1341020 Washer 3
QPos. Code DescriptionValidity
Page 3
07/11/2017
UN_CE_1792-LQ
777879
A
72
46
47
50
51
52
53
565438
40
41
1 2 3
5
7
8
121718
27
28
29
31
33
32
14
22
37
61
6263666768
70
737475
103481
48
49
30
45
44
47
43
Model MPX 160 C
64
57
69
82
58
59
60
16
65
36
6
4
55
71
42
39
76
24
21
20
19
26
25
23
Version:
Serial number:
Code:
14523
schuko230 V - 50 Hz
B
C
63 850670 Screw 3
64 1340170 Shaft 1
65 1120680 O-ring 1
66 600180 O-ring 1
67 2022040 Pin 1
68 2021630 Spring 1
69 2021650 Washer 1
70 1260820 O-ring 1
71 1344830 Fitting 1
72 42580 TSS Retrofit kit 1
73 1560520 Spring 1
74 1250280 Ball 1
75 480480 O-ring 1
76 1344620 Fitting 1
77 1349501 Pump assembly 1
78 1349131 Head assembly 1
79 42690 Valve kit adjustment 1
80 1345040 Plug 3
81 1981780 Knob 1
82 3200700 Ring 1
A 43032 Valve kit 1
B 2623 Piston kit 1
C 42696 Oil seal kit 1
D 43033 Water seal kit 1
F 42697 Water seal kit 1
QPos. Code DescriptionValidity
D
35
11
9
13
15
F
9
11
80
13
Page 4
07/11/2017
Model MPX 160 C
3
4
5
2
6
7
Version:
Serial number:
Code:
14523
schuko230 V - 50 Hz
1
1 1260300 Fan 1
2 1340350 Seal 1
3 1345180 Screw 4
4 1345140 Shield 1
5 1340340 Bearing 1
6 1269100 Clamp 1
7 1340780 Gasket 1
8 2000210 Screw 2
9 2900420 Switch 1
10 3780170 Box 1
11 1261560 Screw 4
12 1982190 Capacitor 1
13 1982550 Clamp 1
14 2021480 Gland 2
15 2029752 TSS box assembly 1
16 2022201 Fork 1
17 4240690 Cable 1
18 44722 Motor 1
19 1462900 Gland 1
QPos. Code DescriptionValidity
UN_CE_0910-MQ
8 9
17
15
16
14
11
10
19
14
12
13
18
Page 5
07/11/2017
UN_CE_2128-CN
4 1 2 3 5
Model MPX 160 C
Version:
Serial number:
Code:
14523
1 43801 Gun 1
2 41806 Lance 1
3 2000770 O-ring 1
4 3960920 High pressure hose 1
5 391000 O-ring 1
QPos. Code DescriptionValidity
schuko230 V - 50 Hz
