Page 1
Hidden Parts
1
1
2
2
3
3
4
18
19
19
20
15
1212
14
11
13
11
25 24
5
21
7
6
8
1
9 32
10
26
31
13
16
17
17
12
11
11
33

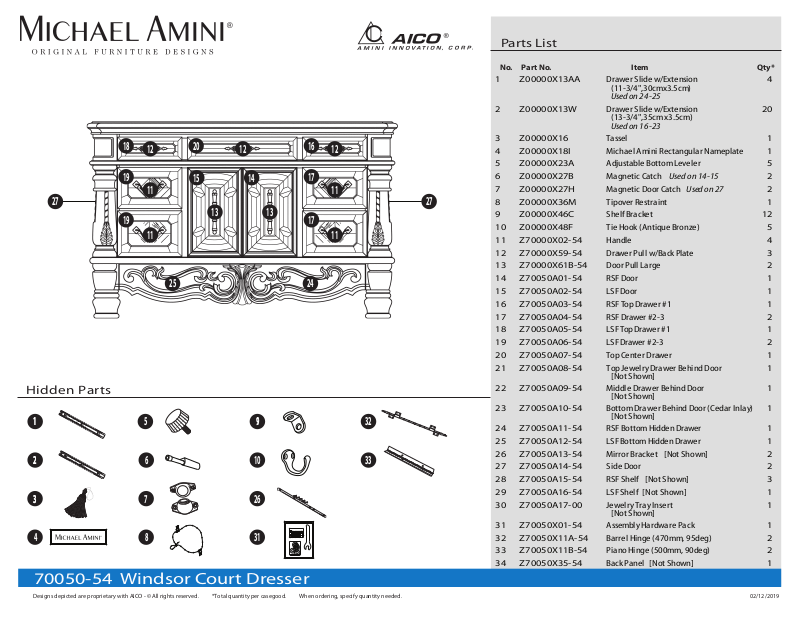

Parts List
No. Part No. Item Qty*
1 Z00000X13AA 4
2 Z00000X13W 20
3 Z00000X16 Tassel 1
4 Z00000X18I Michael Amini Rectangular Nameplate 1
5 Z00000X23A Adjustable Bottom Leveler 5
6 Z00000X27B Magnetic Catch 2
7 Z00000X27H Magnetic Door Catch 2
2727
8 Z00000X36M Tipover Restraint 1
9 Z00000X46C Shelf Bracket 12
10 Z00000X48F Tie Hook (Antique Bronze) 5
11 Z70000X02-54 Handle 4
12 Z70000X59-54 Drawer Pull w/Back Plate 3
13 Z70000X61B-54 Door Pull Large 2
14 Z70050A01-54 RSF Door 1
15 Z70050A02-54 LSF Door 1
16 Z70050A03-54 RSF Top Drawer #1 1
17 Z70050A04-54 RSF Drawer #2-3 2
18 Z70050A05-54 LSF Top Drawer #1 1
19 Z70050A06-54 LSF Drawer #2-3 2
20 Z70050A07-54 Top Center Drawer 1
21 Z70050A08-54 1
22 Z70050A09-54 1
23 Z70050A10-54 1
24 Z70050A11-54 RSF Bottom Hidden Drawer 1
25 Z70050A12-54 LSF Bottom Hidden Drawer 1
26 Z70050A13-54 2
27 Z70050A14-54 Side Door 2
28 Z70050A15-54 3
29 Z70050A16-54 1
30 Z70050A17-00 1
31 Z70050X01-54 Assembly Hardware Pack 1
32 Z70050X11A-54 Barrel Hinge (470mm, 95deg) 2
33 Z70050X11B-54 Piano Hinge (500mm, 90deg) 2
34 Z70050X35-54 1
Drawer Slide w/Extension
(11-3/4",30cmx3.5cm)
Used on 24-25
Drawer Slide w/Extension
(13-3/4",35cm x3.5cm)
Used on 16-23
Used on 14-15
Used on 27
Top Jewelry Drawer Behind Door
[Not Shown]
Middle Drawer Behind Door
[Not Shown]
Bottom Drawer Behind Door (Cedar Inlay)
[Not Shown]
Mirror Bracket [Not Shown]
RSF Shelf [Not Shown]
LSF Shelf [Not Shown]
Jewelry Tray Insert
[Not Shown]
Back Panel [Not Shown]
70050-54 Windsor Court Dresser
Designs depicted are proprietary with AICO - © All rights reserved. *Total quantity per casegood. When ordering, specify quantity needed.
02/12/2019
