Miccus Mini-jack TX User Manual

User Manual

Music Transmitter

Bluetooth® Wireless

www.miccus.com

Mini-jack TX

2

Table of Contents

• Introduction ....................................................... 3

• Technical Data ................................................... 3

• Contents of Package ........................................ 4

• Getting Acquainted ..........................................4

• Charging .............................................................4

• Turning the mini-jack Tx On/Off ................... 5

• Pairing the mini-jack Tx ................................... 5

• The Pairing Process ..........................................5

• Playing Music ......................................................6

• Visual Indicators ................................................7

• Troubleshooting ................................................ 7

• Support ............................................................... 8

• FCC Information ..............................................9

3

Introduction

The Miccus® Mini-jack TX is a stereo audio
transmitter that offers the latest in Bluetooth®
wireless technology.

-The mini-jack provides wireless streaming for
any existing audio source. such as your PC,
iPod®, TV, CD/DVD player etc. Stream your
music to other Bluetooth enabled devices such
as headphones, speakers or the Home RTX
and Mini-jack RX.

- Compatible with stereo headphone and line
outputs (3.5mm).

- Simple and easy pairing, no codes to enter.

Technical Data:

• Bluetooth v2.0, Class 2: 33’ (10 m)

• Bluetooth stereo audio prole: A2DP

• Frequency: 2.4 GHz

• 1/8” (3.5 mm) stereo connector

• Sleep mode for saving energy

• Operation time: up to 7 hours

• Dimensions: L 48mm/1.9in x W

• 29mm /1.2in x H 12mm/0.5in

Contents of Package:

• Miccus® Mini-jack TX

• USB Charging Cable

• User Manual

4

If contents are missing or damaged, contact the
merchant or contact us at [e-mail]

Getting Acquainted

Charging

1. Using the supplied USB cable, connect the small
end to the mini-USB input of the mini-jack.

2. Connect the other end of the cable to the
to the USB input on your PC, laptop or
USB power supply.

3. When charging is complete the red LED

light will automatically turn off. A full charge
should Allow for 7 hours of playback time.

Turning the mini-jack On/Off

Turning on: Press and hold the On/Off button

for 3 seconds until the blue LED begins ashing.

Turning off: Press and hold the on/off button

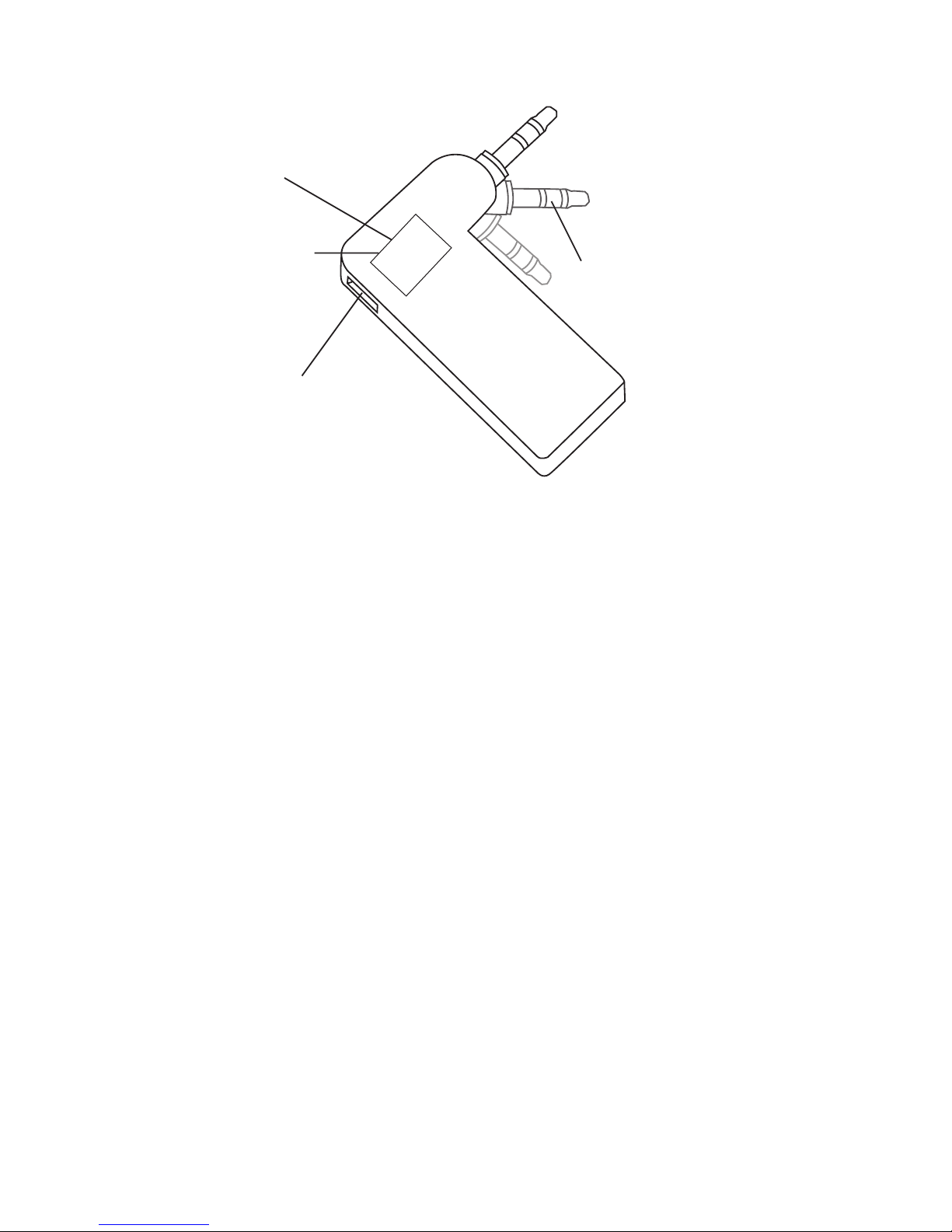

On/Off Button

90° swivel 3.5mm
connector

Mini USB
charger connection

LED indicator
(under button)

5

for about 5 seconds; the red LED will ash

once and the mini-jack will power off.
Note: Read the user guide of your music player or

mobile phone to nd out how to turn it On/Off.

Pairing the mini-jack

“Pairing” is establishing a wireless connection
between the Miccus® Mini-jack TX transmitter
and any compatible receiver.

In order for music streaming to begin, the
Miccus® Mini-jack TX must pair itself with a
receiver featuring Bluetooth wireless technology.

Note: Before pairing, make sure that both the
Miccus® Mini-jack TX and the receiving device
are fully charged.

The Pairing Process

For initial pairing, we recommend both devices
be within 4ft. (1m) of each other.

1. Turn the receiver on and make sure it
is in pairing mode. (Please refer to your
receiver’s user guide).

2. For the Mini-jack TX, press and hold the
button for 8 seconds or until the red and

blue LED are ashing indicating pairing

mode. Now set them next to each other
and within 10 - 30 seconds they should pair
with each other.

6

3. When the mini-jack is paired to your receiver,

the indicator light will ash only blue.

After pairing your Miccus® Mini-jack TX and
receiver, it will not be necessary to repeat
each time they are used together. For all
future uses, both devices should automatically
connect when powered on. However with
some receivers it maybe necessary to press

the Mini-jack TX button briey which initiates

a start playback command to the receiving
device.

Note: The Miccus® Mini-jack TX only pairs
with receivers that have a factory PIN-Code
equal to ‘0000’, ‘1234’ or ‘8888’.
The Mini-jack TX can only be paired to one
device at a time.
If you wish to use the Miccus® Mini-jack TX
with another receiver, you must restart the
pairing process with the new device.

Playing Music

1. Insert the Miccus® Mini-jack TX into the
headphone jack of the source device (e.g.:
MP3 player, CD player, cell phone, stereo,
etc.). Make sure the volume is turned up on
your source device.

2. Verify that the receiver is turned on and
