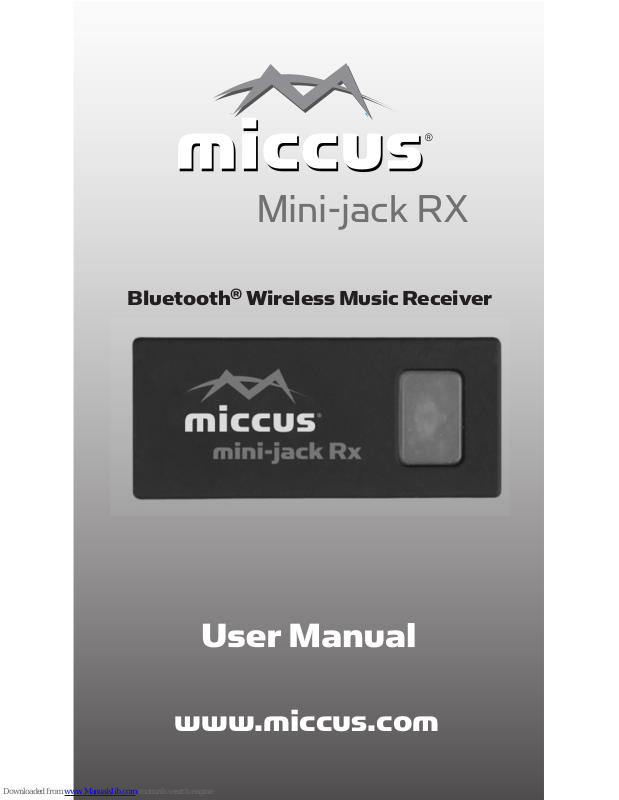

Miccus Mini-jack RX User Manual

Bluetooth® Wireless Music Receiver

www.miccus.com

Mini-jack RX

2

Table of Contents

• Introduction ........................................................2

• Technical Data ....................................................2

• Contents of Package .........................................3

• Getting Acquainted ............................................3

• Charging ...............................................................4

• Turning the Mini-jack RX On/Off ...................4

• Pairing the Mini-jack RX ...................................4

• Playing Music .......................................................5

• Visual Indicators ................................................. 6

• Troubleshooting .................................................6

• Support ................................................................7

• FCC Information ................................................8

Introduction

The Miccus® Mini-jack RX is designed to receive
music from mobile phones or transmitters that
feature Bluetooth® wireless technology. The
Mini-jack RX can be used with almost any audio
receiver with an audio input jack, including
automobiles. Listen to music from your
smartphone or MP3 player on your existing
home or car audio system.

Technical Data:

• Bluetooth v2.1, Class 2: 33’ (10 m)

• Bluetooth stereo audio prole: A2DP

• Frequency: 2.4 GHz

3

• Certied CE and FCC

• 3.5 mm stereo audio output

• Sleep mode for power conservation

• Power supply: charges via mini-USB cable

• Operation time: up to 7 hours

• Dimensions: L 48mm/1.9in x
W 20mm /0.8in x H 12mm/0.5in

Contents of Package:

• Miccus® Mini-jack RX

• USB cable

• 3.5mm stereo cable

• 3.5mm stereo Y cable to RCA

• 3.5mm stereo adapter

• User Manual

If contents are missing or damaged, contact the
merchant or contact us at [e-mail]

Getting Aquainted

3.5mm stereo output

charger

4

Charging

1. Using the supplied USB cable, connect the small
end to the mini-USB input of the Mini-jack RX.

2. Connect the other end to the USB input
of your PC, laptop or USB power converter.

The mini-jack’s LED light will glow red during

charging.

3. When charging is nished, the red LED will

turn off. A full charge will provide up to 8
hours of play time.

Turning the Mini-jack RX On/Off

1. To turn on, press and hold the center button

for 3 seconds until the blue LED ashes.

2. To Turn off, press and hold the center button

for 5 seconds or until the red LED ashes.

3. USB power will also cause the Mini-jack
to turn on and look for the last connected
device. This is useful in automobile
applications where the Mini-jack RX comes
on when the car is started.

Note: For more information about using
Bluetooth® wireless please consult the User
guide of your phone or other

5

Pairing the Mini-jack RX

1. To enter pairing mode, press and hold the
on/off button for 8 seconds or until both

red and blue LEDs ash.

2. Search for the Miccus® Mini-jack RX on
your mobile phone or compatible transmitter.
To complete pairing some devices require a
pass key or code, use “0000.”

3. The devices should now recognize each other

and pair. The LED on the Mini-jack RX will
slowly ash blue after successful pairing.

4. Once successfully paired, the devices can
be powered off. To re-connect simply power
them both on, no need to pair again.

Note: If you wish to use the Miccus® Mini-jack
RX with another phone you must
restart the pairing process with the new device.

Playing Music

1. Using the supplied audio cables and adaptors,
connect the Mini-jack RX to the auxiliary
(AUX) input of your home or car stereo.

2. Make sure the transmitter (Miccus® mini­jack TX, mobile phone, or compatible
source) is turned on and paired with the
Mini-jack RX and that the devices are no
more than 33’ (10m) apart.

6

3. The blue LED on the Mini-jack RX will ash

slowly, indicating a connection.

4. Press “play” and the music will be sent
wirelessly to the Miccus® Mini-jack RX.

Note: If you cannot hear the music,
Make sure your stereo system is set to AUX

input or whichever input is the corresponding
input to the Mini-jack RX.

a. Check and make sure the volume is not

turned down or muted.

Visual Indicators

State of the device State of the LED

Pairing mode

The red and blue
LED ash alterna­tively

Connected and
playing

The blue LED

ashes once every
3 seconds

Sleep mode

The blue LED

ashes once every
5 seconds

Charging Solid red

Charging and con­nected

Solid red with slow
ashing blue
