WEJ ELECTRONIC CO.,LTD

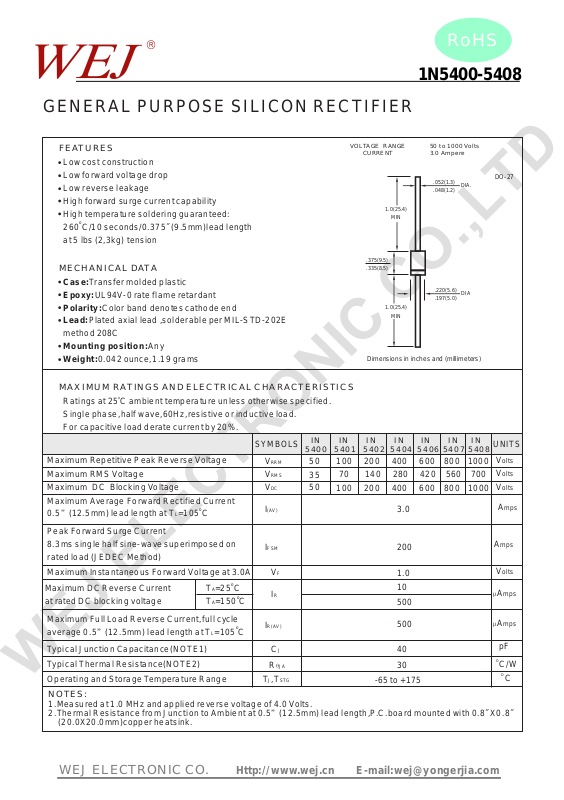

1N5400-5408
GENERAL PURPOSE SILICON RECTIFIER
RoHS
FEATURES
Low cost construction
Low forward voltage drop
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:
o
260 C/10 seconds/0.375 (9.5mm)lead length
at 5 lbs (2,3kg) tension
MECHANICAL DATA
Transfer molded plastic
Case:
UL94V-0 rate flame retardant
Epoxy:
Color band denotes cathode end
Polarity:
Plated axial lead ,solderable per MIL-STD-202E
Lead:
method 208C
Any
Mounting position:
0.042 ounce,1.19 grams
Weight:
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase,half wave,60Hz,resistive or inductive load.
For capacitive load derate current by 20%.
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
0.5 (12.5mm) lead length at T =105 C” L
o
＂
SYMBOLS UNITS
VRRM
VRMS
VDC
o
I(AV)
IN IN IN IN IN IN IN
5400 5401
50
35
50
VOLTAGE RANGE
CURRENT
.375(9.5)
.335(8.5)
Dimensions in inches and (millimeters)
5402
100
200
70
140
100
200
50 to 1000 Volts
3.0 Ampere
.052(1.3)
.048(1.2)
1.0(25.4)
MIN
.220(5.6)
600
420
600
.197(5.0)
800
560
800
1.0(25.4)
MIN
5404 5406 5407 5408
400
280
400
3.0
DIA.
DIA
1000
700
1000
DO-27
Volts
Volts
Volts
Amps
Peak Forward Surge Current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
Maximum Instantaneous Forward Voltage at 3.0A
Maximum DC Reverse Current
at rated DC blocking voltage
Maximum Full Load Reverse Current,full cycle
average 0.5 (12.5mm) lead length at T =105 C” L
Typical Junction Capacitance(NOTE1)
Typical Thermal Resistance(NOTE2)
Operating and Storage Temperature Range
NOTES:
1.Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts.
2.Thermal Resistance from Junction to Ambient at 0.5 (12.5mm) lead length,P.C.board mounted with 0.8 X0.8
(20.0X20.0mm)copper heatsink.
o
T =25 C
A
T =150 C
A
o
IFSM
VF
o
IR
IR(AV)
CJ
R JA
T ,TJ STG
” ＂ ＂
200
1.0
10
500
500
40
30
-65 to +175
Amps
Volts
Amps
Amps
pF
O
C/W
O
C
WEJ ELECTRONIC CO.
Http:// www.wej.cn E-mail:[email protected]
Page 2
WEJ ELECTRONIC CO.,LTD
RoHS
1N5400-5408
FIG.1-TYPICAL FORWARD CURRENT
DERATING CURVE
3.0
2.0
Single Phase
(A)
AVERAGE FORWARD CURRENT,
Half Wave 60Hz
1.0
Resistive or
Inductive Load
0.375 (9.5mm) Lead Length＂
0
0 25 50 75 100105 125 150 175
LEAD TEMPERATURE,( C)
o
FIG.3-TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
100
10
(A)
1.0
o
j
0.1
T=25 C
Pulse Width=300us
1% Duty Cycle
INSTANTANEOUS FORWARD CURRENT,
0.01
0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8
INSTANTANEOUS FORWARD VOLTAGE,(V)
FIG.2-MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
200
8.3ms Single Half Sine-Wave
(JEDEC Method) T=Tmaxj j
100
CURRENT,(A)
PEAK FORWARD SURGE
1 Cycle
0
1 2 4 6 8 10 20 40 60 80100
NUMBER OF CYCLES AT 60 Hz
FIG.4-TYPICAL REVERSE
CHARACTERISTICS
20
10
o
T=100 Cj
1.0
(uA)
0.1
o
T=25 Cj
0.01
INSTANTANEOUS REVERSE CURRENT,
0 20 40 60 80 100 120 140
PERCENT OF RATED PEAK
REVERSE VOLTAGE,(%)
FIG.5-TYPICAL JUNCTION CAPACITANCE
100
10
o
T=25 C
j
f=1MHz
V =50mVp-p
sig
JUNCTION CAPACITANCE,(pF)
1
0.1 1.0 10 100
REVRESE VOLTAGE,(V)
WEJ ELECTRONIC CO.
Http:// www.wej.cn E-mail:[email protected]
