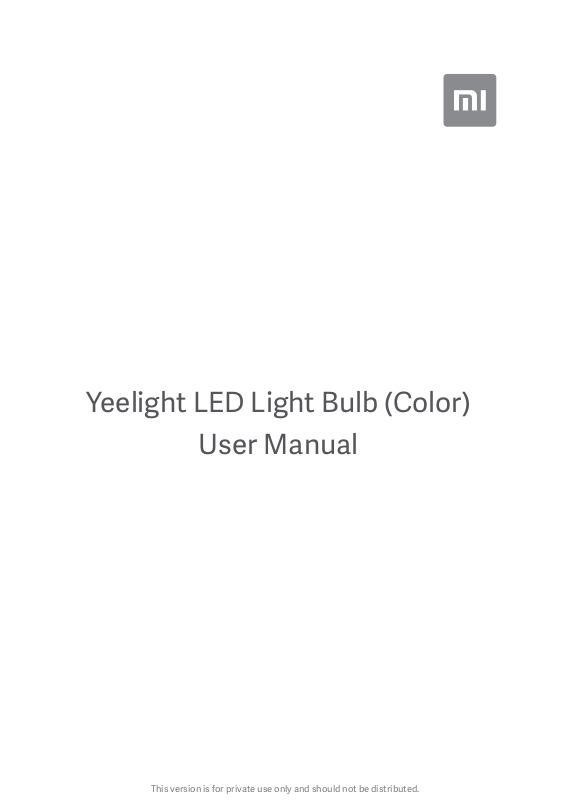

Yeelight LED Light Bulb (Color)
User Manual
This version is for private use only and should not be distributed.
Specifications
Model: YLDP03YL
Lamp holder: E26
Rated power: 9.1 W
Luminous flux: 600 lumens
Rated input: 120 V ~ 60 Hz 0.13 A
Color temperature range: 1700 K - 6500 K
Color range: 16 million colors
Wireless connectivity:
Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Life expectancy: approx. 25,000 h
Operating temperature: 14 °F ~ 104 °F
Operating humidity: 0% - 85% RH
Size: 2.17 x 4.72 inch
FCC ID: 2ABEU-YLDP03YL
01
This version is for private use only and should not be distributed.
Installation Steps
01 Install the Light Bulb
Install the light bulb and turn on the power.
Note: 1. Make sure that the power is off when installing, removing, or examining the
light bulb.
2. Do not use this product in a lamp with a dimmer (e.g. a desk lamp with a round
dimmer switch) to avoid damaging the product.
3. Do not use this product in a damp environment.
4. Do not use the light bulb in a narrow and ill-ventilated lamp shade as it may
cause weak signals or heat dissipation issues.
02
This version is for private use only and should not be distributed.
02 Download the App
Scan the QR code below or go to App store to download the Yeelight App.
03 Use the App
Open the app and operate it in accordance with the instructions provided in the app.
* Make sure that the Wi-Fi network is available and is able to access the Internet properly.
03
This version is for private use only and should not be distributed.
Product Features
Adjustable
brightness
Four lighting
modes
16M colors Adjustable color
temperature
Night light
On/Off timer
Off-delay timer
Mobile control
Firmware
upgrade
04
This version is for private use only and should not be distributed.
FCC Compliance Statement
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. This device
complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
05
This version is for private use only and should not be distributed.
Warning
1. Before using this product, please make sure that your voltage is appropriate for this
product’s working voltage. Using this product with a voltage other than the one specified
may damage the product and cause safety hazards.
2. Do not disassemble this product, as the light diodes can cause damage to the eyes.
3. The light bulb will heat up when working.
Do not use it in a confined holder for an extended period of time. Ensure sufficient ventilation for the light bulb to allow for heat dissipation.
4. The optical radiation of this LED light product complies with the “Exemptions and
Requirements” of IEC 62471-2006.
5. For indoor use only.
6. Disconnect power before installation to prevent risk of electronic shock.
7. Do not use where directly exposed to water.
8. Do not use with dimmers.
9. The light source of this product is nonchangable light diodes (LED).
06
This version is for private use only and should not be distributed.
How to Restore to Factory Seings
Use the light switch to turn the light bulb on and off five times (on for two seconds, off for
two seconds). The light bulb will display a circling multi-colored effect, then automatically
reset itself and display a white light aer five seconds. This shows that the light bulb has
been restored to its factory seings.
List of Functional Faults
Light bulb does not come on when
connected to power
Light bulb blinks abnormally
Functional
Faults
A lack of color or unable to change color
Problems with the light bulb preventing the app
from connecting to or controlling it
A malfunction that affects use or safety due to a
compromised product structure (other than those
caused by a user)
07
This version is for private use only and should not be distributed.
Please read this manual carefully before using the product
Manufacturer: Qingdao Yeelink Information Technology Co., Ltd.
Address: F10-B4, Bldg B, International Innovation Park,
#1 Keyuanwei Rd, Laoshan District, Qingdao City
Website: hp://www.mi.com/en/
Go to www.mi.com to learn more.
