Mi True Wireless Earbuds Basic 2
User Manual
Read this manual carefully before use, and retain
it for future reference.
Product Overview
Charging Case
Micro USB
Charging Port
Charging
Pins
Charging Indicator
Earbuds
L S
Indicator
Microphone
M
Charging Contact Points
The earbuds come with the size M of ear tips
inalled, you can switch t o size S or L if t he
inalled size does not suit your ear.
Wearing
Gently insert the earbud into the ear canal, make
sure it is not easy to sway when shaking your head.
Charging
Before using the device, please tear o the
protective film from the earbuds' contact points
to fully charge them and their charging case.
Protective Film
Connect the charging cable to charge the earbuds
and the charging case simultaneously.
The indicator is red while charging, and changes
1 minute.
Turning On
Once you remove the earbud from the charging
case, it automatically turns on.
In case the earbuds are not in the charging case
and turned o, press and hold the multi-function
Press and hold
for 1 second
Indicator is white
for 1 second
Turning O
Once you place the earbud into the charging
case, it automatically turns o.
When the earbud is turned on, press and hold
indicator turns red.
Press and hold
for 5 seconds
Indicator is red for
about 2 seconds
Connection
Automatic Connection:
Remove both earbuds from the charging case
1.
simultaneously, and wait for the earbuds to
automatically turn on. The indicator turns
white and then changes into quickly blinking
white and red alternately, which means the
earbuds are connecting with each other. When
white, please enable the Bluetooth function on
your device and search for "Mi True Wireless
EBs Basic 2" to connect.
2. Once your device and earbuds are successfully
connected, your earbuds will automatically
connect to the previously paired device (the
Bluetooth is enabled) when they are turned on.
Note: If you cannot pair the earbuds, place them
back in the case and repeat the previous eps.
Switch between single and dual earbud:
When both earbuds are connected successfully,
they are in dual-earbud mode. Place one of the
earbuds back into the charging case and close
its lid, the other earbud will automatically enter
the single-earbud mode. Remove the earbud
from the charging case, the dual-earbud mode
will automatically be reored again.
Reset Earbuds
If the earbuds cannot connect properly, please
carry out the following eps to reset: Remove
the earbuds from the charging case, and make
sure they are turned o. Press and hold the multi-
seconds until the indicator alternately blinks red
and place the earbuds back in the charging case.
Once the earb uds are reset successfully, th e
connection between your device and the earbuds
are cleared, you should pair them with your
device again.
Function Overview
The following functions can be used on
both earbuds:

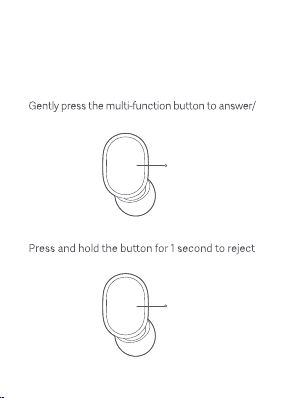

Answer/End calls
end calls.
Press
Reject a call
a call.
Press and hold
for 1 second
Play/Pause Music
the music while using the earbuds.
Press
Turn On Voice Assiant
the voice assiant while using the earbuds.
Note: The function of voice assiant and quick
wake-up mu be supported and enabled on
your device.
Double press
Answer a Second Call/Switch between Calls
second incoming call during an ongoing call.
between the two calls.
Switch between Earbuds and Device
During a call, press and hold the multi-function
earbuds and your phone.
Mute/Unmute
unmute the earbuds during an ongoing call.
Precautions
Warning
1. Do not disassemble, repair or modify the product
for any reason, as this may cause fire or even
completely deroy the product.
2. Do not expose the product to environments
where the temperature is too low or too high
(below 0°C or above 45°C).
3. Keep the indicators away from the eyes of
children and animals while using the earbuds.
4. Do not use this product during thunderorms.
Thunderorms may cause the produ ct to
malfunction and increase the risk of electric
shocks.
5. Do not wipe and clean the earbuds or their
case with alcohol or other volatile liquids.
6. Avoid any contact with liquids.
7. Excessive sound pressure from the earbuds
can cause hearing loss.
Illurations of product, accessories, and user
interface in the user manual are for reference
purposes only. The actual product and functions
may vary due to product enhancements.
Note
1. If the product has not been us ed for more
than 2 weeks, it is recommended to charge
the product before use.
2. Only use certified chargers supplied by qualified
manufacturers.
3. Continuous use of the earbuds for a long time
is detrimental to one's hearing. Do not use
the earbuds at a high volume for any extended
period.
4. Using earbuds can reduce the perception of
external sounds. Do not use earbuds in
environments that may threaten safety. It is
recommended to only use a single earbud
when outdoors.
Due to th e connection characteriics of the
Bluetooth signal, in dense environments with
2.4 GHz electromagnetic signal interferences,
there m ay be occasional disconnects or no
sound.
Specifications
Name: Mi True Wireless Earbuds Basic 2
Model: TWSEJ061LS
Bluetooth Operating Frequency:
2402-2480 MHz (For EU)
Max RF Output Power: < 20 mW
Earbuds
Dimensions: 26.65 × 16.4 × 21.6 mm
Net Weight: Approx. 4.1 g (per earbud)
Wireless Range:
10 m (in an obacle-free environment)
Charging Time: Approx. 1.5 h
Music Playback Time: Approx. 4 h (earbuds only);
approx. 12 h (charging case)
Standby Time: Approx. 150 h
Input: 5 V 100 mA
Wireless Connectivity: Bluetooth 5.0
Bluetooth Profiles: HFP/A2DP/HSP/AVRCP
Charging Case
Dimensions: 62 × 40 × 27.2 mm
Input: 5 V 500 mA Output: 5 V 150 mA
Charging Time: Approx. 2 h
Storage Temperature: 0 °C to 45 °C
Operating Temperature: 0 °C to 45 °C
Service Life: 1 year
EU DECLARATION OF CONFORMITY
Hereby, Qianxing Inc., declares that the radio
equipment type TWSEJ061LS is in compliance
with Directive 2014/53/EU. The full text of the
EU declaration of co nformity is available at
the following internet address:
declaration.html
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTE RIES ACCORDING
TO THE INSTRUCTIONS
Direct current
To indicate on the rating plate that the equipment
is suitable for direct current only; to identify
relevant terminals.
To prevent possible hearing damage，
do not lien at high volume levels
for long periods.
WEEE Information
All products bearing this symbol are wae
electrical and electronic equipment (WEEE
as in directive 2012/19/EU) which should
not be mixed with unsorted household
wae. Inead, you should protect human health
and the environment by handing over your wae
equipment to a designated collection point for
the recycling of wae electrical and electronic
equipment, appointed by the government or local
authorities. Correct disposal and recycling will
help prevent potential negative consequences
to the environment and human health. Please
contact the inaller or local authorities for more
information about the location as well as terms
and conditions of such collection points.
To avoid the potential eects on the environment
and human health as a result of the presence of
hazardous subances in electrical and electronic
equipment, end users of electrical and electronic
equipment should underand the meaning of
the crossed out wheeled bin symbol. Do not
dispose of WEEE as unsorted municipal wae
and have to collect such WEEE separately.
that can defeat a safeguard (such as catching fire,
explosion, leakage of corrosive electrolyte etc);
in an extremely high temperature surrounding
environment that can result in an explosion or
the leakage of flammable liquid or gas; and a
that may result in an explosion or the leakage of
flammable liquid or gas.
For further information, please go to www.mi.com
Manufactured for: Xiaomi Communications Co., Ltd.
Manufactured by: Chongqing Qianxing
Technology Co., Ltd.
(a Mi Ecosyem company)
Address: No. 60 Indurial Main Avenue, Pulv
Sub-dirict, Tongliang Dirict, Chongqing
Municipality, China.
Importer:
Beryko s.r.o.
Na Roudné 1162/76, 301 00 Plzeň
www.beryko.cz
