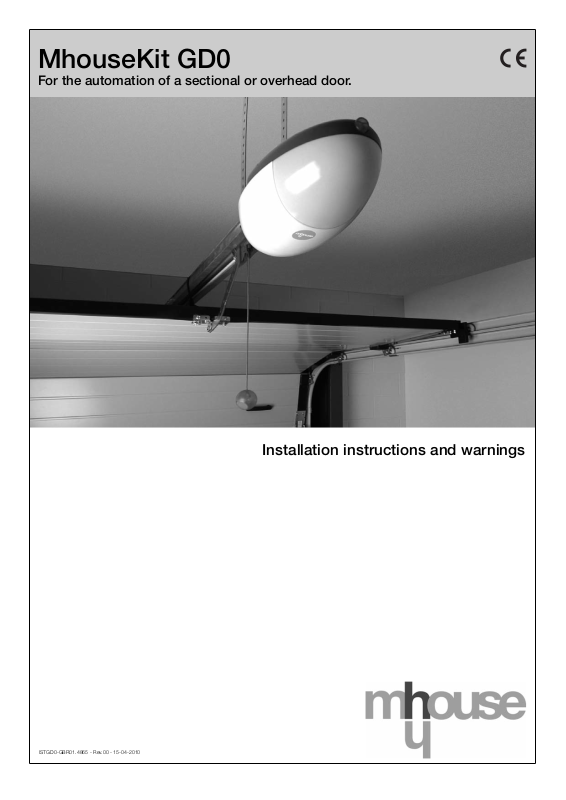

mhouse GD0 User Manual

MhouseKit GD0

For the automation of a sectional or overhead door.

ISTGD0-GBR01.4865 - Rev.00 - 15-04-2010

Installation instructions and warnings

WARNINGS

STEP 1 4

PRODUCT DESCRIPTION

STEP 2 5

2.1 - Applications 5

2.2 - Description of the automation 5

2.3 - Description of devices 5

- 2.3.1 - GD0K Electromechanical Gearmotor 6

- 2.3.2 - PH0 photocells (optional) 6

- 2.3.3 - KS1 key-operated selector switch (optional) 7

- 2.3.4 -

FL1 flashing light with incorporated aerial (optional)

7

- 2.3.5 - TX4 radio transmitter 7

INSTALLATION

STEP 3 7

3.1 - Preliminary checks 7

- 3.1.1 - Operating limits 9

- 3.1.2 - Tools and Materials 9

- 3.1.3 - List of cables 10

3.2 - Preparing the Electrical System 10

- 3.2.1 - Connection to the Electrical Mains 10

3.3 - Installation of the Various Devices 11

- 3.3.1 - Guide assembly 11

- 3.3.2 - Fixing of the gearmotor to the guide 11

- 3.3.3 - Fixing of the gearmotor to the ceiling 12

- 3.3.4 - Power Supply Connection 13

- 3.3.5 - KS1 key-operated selector switch (optional) 14

- 3.3.6 - FL1 flashing light (optional) 14

- 3.3.7 - Electrical connections to the GD0K control unit 15

3.4 - Power Supply Connection 16

3.5 - Initial checks 16

- 3.5.1 -

Recognition of the door’s open and closed positions

17

- 3.5.2 - Testing the radio transmitter 17

3.6 - Regulations 17

- 3.6.1 - Selecting door speed 17

- 3.6.2 - Selecting the type of operating cycle 17

3.7 - Testing and Commissioning 18

- 3.7.1 - Testing 18

- 3.7.2 - Commissioning 18

MAINTENANCE

STEP 4 18

PRODUCT DISPOSAL 18

ADDITIONAL INFORMATION

STEP 5 19

5.1 - Advanced Adjustments 19

- 5.1.1 - Adjusting the Parameters with the Radio Transmitter 19

- 5.1.2 - Checking the Adjustments with the Radio Transmitter 19

5.2 - Optional Accessories 19

5.3 - Adding or Removing Devices 20

- 5.3.1 - Phototest output 20

- 5.3.2 - STOP Input 20

5.4 - Memorization of Radio Transmitters 20

- 5.4.1 - Memorization Mode 1 20

- 5.4.2 - Memorization Mode 2 21

- 5.4.3 - Remote memorization 21

- 5.4.4 - Deleting a Radio Transmitter 21

- 5.4.5 - Deleting all the Radio Transmitters 21

5.5 - Troubleshooting 21

5.6 - Diagnostics and Signals 22

- 5.6.1 - Photocells 22

- 5.6.2 - Flashing and courtesy lights 22

- 5.6.3 - Control Unit 23

TECHNICAL CHARACTERISTICS

STEP 6 24

TECHNICAL DOCUMENTATION

STEP 7 I

7.1 - Operating guide I

- 7.1.1 - Safety regulations I

- 7.1.2 - Door Control I

- 7.1.3 - Maintenance Operations to Be Performed by the User I

- 7.1.4 - Replacing the Remote Control Battery II

- 7.1.5 - Lamp replacement II

CE Declaration of Conformity of GD0 Components III

CE Declaration of Conformity of Power Operated Sectional or Overhead Door IV

3

CONTENTS

WARNINGS

4

• In the event that liquid substances have penetrated inside the
automation devices, immediately disconnect the power supply and
contact the MHOUSE customer service department. The use of GD0
in these conditions can be dangerous.

•Keep all components of GD0 away from heat sources and open
flames; these could damage the components and cause malfunc­tions, fire or dangerous situations.

• Connect the gearmotor only to a power supply line equipped with
safety grounding system.

• All operations requiring the opening of the protection shell of GD0
device must be performed with the gearmotor disconnected from
the power supply; if the disconnection device is not identifiable, post
the following sign on it: “WARNING: MAINTENANCE WORK IN
PROGRESS”.

• In the event that any automatic switches or fuses are tripped, you
must identify the failure and eliminate it before you reset them.

• If a failure occurs that cannot be solved using the information pro­vided in this manual, refer to the MHOUSE customer service depart­ment.

Particular warnings concerning the suitable use of this product in relation
to the “Machine Directive” 2006/42/CE :

• This product comes onto the market as a “machine component” and is
therefore manufactured to be integrated to a machine or assembled with
other machines in order to create “a machine”, under the directive
2006/42/CE, only in combination with other components and in the man­ner described in the present instructions manual. As specified in the direc­tive 2006/42/CE the use of this product is not admitted until the manufac­turer of the machine on which this product is mounted has identified and
declared it as conforming to the directive 2006/42/CE.

Particular warnings concerning the suitable use of this product in relation
to the “Low Voltage” Directive 2006/95/CE:

• This product responds to the provisions foreseen by the “Low Voltage”
Directive if used in the configurations foreseen in this instructions manual
and in combination with the articles present in the Mhouse S.r.l. product
catalogue. If the product is not used in configurations or is used with oth­er products that have not been foreseen, the requirements may not be
guaranteed; the use of the product is prohibited in these situations until
the correspondence to the requirements foreseen by the directive have
been verified by those performing the installation.

Particular warnings concerning the suitable use of this product in relation
to the “Electromagnetic Compatibility” Directive 2004/108/CE:

• This product has been subjected to tests regarding the electromagnetic
compatibility in the most critical of use conditions, in the configurations
foreseen in this instructions manual and in combination with articles pres­ent in the Mhouse S.r.l. product catalogue. The electromagnetic compati­bility may not be guaranteed if used in configurations or with other prod­ucts that have not been foreseen; the use of the product is prohibited in
these situations until the correspondence to the requirements foreseen by
the directive have been verified by those performing the installation.

STEP 1

Important installer and user safety instructions

• If this is the first time that you install a GD0 sectional or overhead door
automation system we recommend that you dedicate some of your time
to reading this manual. You should read it before you start installing the
system, so you don’t have to rush to finish the work.

Keep all the components of the GD0 system handy so that you can read,
check and verify all the information contained in this manual. However, do
not carry out the adjustment and memorization stages otherwise, during
the actual installation of the products, you will have to deal with settings
that differ from the original factory ones.

• When reading this manual, pay special attention to the sections marked
by the following symbol:

these sections are particularly important for safety.

• Store this manual safely for future use.

• This manual, as well as the design and manufacture of the devices that
make up GD0, comply fully with the standards and regulations in force.

• Considering the hazards that may exist during the installation and oper­ation of GD0, it is necessary that also the installation be carried out in
strict compliance with current legislation, standards and regulations, par­ticularly:

• This manual contains important information regarding personal
safety; before you start installing the components, it is important that
you read and understand all the information contained herein. Do not
proceed with the installation if you have doubts of any sort; if neces­sary, refer to the MHOUSE customer service department for clarifica­tions.

• Follow all installation instructions

• Before you start with the installation, make sure that each single
GD0 device is suitable for the intended automation purposes; pay
special attention to the data provided in chapter 6 “Technical Char­acteristics”. If even a single device is not suitable for the intended
application, do not proceed with the installation.

• Before you start with the installation, check whether additional
devices or materials are needed to complete the automation with
GD0 based on the specific application requirements.

• The GD0 automation system must not be installed outdoors

• The GD0 automation system must not be used until the automation
has been commissioned as described in paragraph 3.7.2 “Commis­sioning”.

• The GD0 automation system cannot be considered as a suitable
intrusion protection system. If you require efficient protection you
need to integrate GD0 with other devices.

• The packing materials for GD0 must be disposed of in compliance
with local regulations.

• Do not make modifications to any components unless provided for
in this manual. This type of operations will only cause malfunctions.
MHOUSE disclaims any liability for damage resulting from modified
products.

• Components must never be immersed in water or other liquids.
Also during installation, do not allow liquids to enter the gearmotor
or other open devices.

STEP 2

2.1 – APPLICATIONS

GD0 is a set of components designed for the automation of sectional or
overhead doors in residential applications.

Any applications other than those described above or under differ­ent conditions from those specified in this manual are forbidden.

GD0 operates with electric power. In the event of a power failure, the gear­motor can be released using a suitable cord in order to move the door
manually.

PRODUCT DESCRIPTION

5

2.2 – DESCRIPTION OF THE AUTOMATION

To clarify a few terms and aspects of a sectional or overhead door au to ­mation system:
In Figure 1 we provide an example of a typical GD0 application:

A) FL1 flashing light with incorporated aerial (optional)
B) KS1 key-operated selector switch (optional)
C) Pair of PH0 photocells (optional)
D) Mechanical stops
E) GD0K gearmotor

2.3 – DESCRIPTION OF DEVICES

GD0 can consist of the devices shown in figure 2; make immediately sure
that they correspond to the contents of the package and verify the integri­ty of the devices.

Note: to adapt GD0 to local regulations, the contents of the package may
vary; an exact list of the contents is shown on the outside of the package
under the “Mhousekit GD0 contains” heading.

Component and accessories list:

A)

GD0K electromechanical gearmotor with incorporated control
unit

B) head with pinion

C) carriage and release cord

D) 6 m belt

E) leaf bracket

F) 3 m guide in 3 sections

G) 2 coupling profiles

H) 2 ceiling-mounted brackets

1

A

B

E

D

C

I) Various small parts: mechanical stops, screws, washers, etc.

See tables 1, 2, 3 and 4

(*)

L)

1 TX4 radio transmitter

M) PH0 pair of wall-mounted photocells

N) KS1 key-operated selector switch

O) FL1 flashing light with incorporated aerial.

* The screws required for mounting GD0 are not supplied as they

depend on the type of material and its thickness.

2.3.1 – GD0K Electromechanical Gearmotor

GD0K is an electromechanical gearmotor consisting of a 24V direct cur­rent motor. It features a mechanical release mechanism with cord that
allows you to move the door manually in the event of a power failure.

The gearmotor is fixed to the ceiling with the relative mounting brackets.

The control unit actuates the gearmotors and provides for the control of
the supply of the different components; it features an electronic board
with incorporated radio receiver.

The control unit can actuate the gearmotor with two speeds: “slow” and
“fast”.

The three P1, P2 and P3 buttons [B] and the corresponding LED’s are
used to program the control unit.

A numbered terminal block is present for the electrical connections [A]. A
LED status signal is present in correspondence with the STOP input.

The connection to the power supply is very easy: just insert the plug in a
power outlet.

6

2

ab c d

ef gh

ilmn

o

TABLE 1

List of small parts for a GD0K

M6 self-tapping nuts

M6 x14 screws

6.3x38 tcei screws

4.2x9.5 screws

6x18 screw

R05 washers

Cable membrane

Mechanical stops

Q.ty

4 pcs

2 pcs

4 pcs

2 pcs

1 pcs

2 pcs

1 pc

2 pcs

3

A

B

TABLE 2

List of small parts for PH0

HI LO 4X9.5 screw

3.5X25 self-tapping screw 3,5X25

s 5 c nylon screw anchor

Q.ty

4 pcs

4 pcs

4 pcs

2.3.2 – PH0 photocells (optional)

The pair of PH0 wall-mounted photocells, once they are connected to the
control unit, enables the detection of obstacles found on the optical axis
between the transmitter (TX) and the receiver (RX).

7

4

2.3.3 – KS1 key-operated selector switch (optional)

The KS1 key-operated two-position selector switch enables door control
without using the radio transmitter. It is equipped with internal light for
locating in the dark.

There are two commands, which depend on the direction of rotation of
the key: “OPEN” and “STOP”; then the key, which is spring loaded,
returns to the centre position.

TABLE 3

List of small parts for KS1

HI LO 4X9.5 screw

3.5X25 self-tapping screw

s 5 c nylon screw anchor

Q.ty

2 pcs

4 pcs

4 pcs

5

2.3.4 – FL1 flashing light with incorporated aerial (optional)

The flashing light is controlled by the control unit and signals danger when
the door is moving. Inside the flashing light there is also the aerial for the
radio receiver.

TABLE 4

List of small parts for FL1

4.2X32 self-tapping screw

s 6 c nylon screw anchor

Q.ty

4 pcs

4 pcs

6

2.3.5 – TX4 radio transmitter

The radio transmitter is used for the remote control of the door opening
and closing manoeuvres. It features four buttons that can all be used for
the 4 types of command to a single automation unit, or to control up to 4
different automation units.

The transmission of the command is confirmed by the LED [A]; an eyelet
[B] allows them to be hung on a keyring.

7

B

A

INSTALLATION

STEP 3

The installation must be carried out by qualified and skilled per­sonnel in compliance with the directions provided in chapter 1
“WARNINGS”.

3.1 – PRELIMINARY CHECKS

GD0 must not be used to power a door that is not efficient and safe.
It cannot solve defects resulting from incorrect installation or poor
maintenance of the door.

WARNING: incorrect installation could cause serious damage.

Before proceeding with the installation you must:

• Make sure that the door movement does not hinder roads or public
footpaths.

• After the motor has been installed, remove unnecessary cables or
chains and turn off any unneeded equipment

• Make sure that the weight and dimensions of the door fall within
the specified operating limits (Chapter 3.1.1). If they do not, GD0
cannot be used.

• Make sure that the structure of the door is suitable for automation
and in compliance with regulations in force.

• Make sure that there are no points of greater friction in the opening
or closing travel of the door.

• Make sure that the mechanical structure of the door is sturdy
enough and that there is no risk of derailing out of the guide.

• Make sure that the door is well balanced: it must not move by itself
when it is placed in any position.

• Make sure that the installation area is compatible with the size of
the gearmotor and that it is safe and easy to release it.

• Make sure that the mounting positions of the various devices are
protected from impacts and that the mounting surfaces are suffi­ciently sturdy.

8

• Make sure that the mounting surfaces of the photocells are flat and
that they enable the proper alignment between TX and RX.

• Make sure that the minimum and maximum clearances specified in
fig. 8 are observed.

• Pay attention in particular to the methods for securing the head of
the guide and the brackets to the ceiling. The head of the guide will
have to bear all the strain of opening and closing the door; the ceil­ing-mounted brackets will have to bear all the weight of GD0. In both
cases, the wear and deformations that may occur in time must be
taken into consideration.

• The gearmotor should be mounted so that it coincides with the
centre of the door, or is slightly off-centre, e.g. in order to mount the
OSCILLATING ARM next to the handle (Figure 9).

9

8

C

2970 mm D 410 mm

B 0÷400 mm

A 40÷400 mm

260 mm260 mm

• Make sure that, in the position corresponding to the door, or slight­ly to the side, (see positions “A” and “B”) the conditions are suitable
for mounting the head of the guide; in particular, the material should
be sufficiently sturdy and compact.

Make sure that GD0 can be mounted on the ceiling along position
“C” using the mounting brackets.

If the door to be automated is an overhead type with springs or
counterweights, it will be necessary to install an OSCILLATING ARM,
which must be mounted next to the handle (Figure 9).

• Make sure that distance [E] in Figure 10, i.e. the minimum distance
between the upper side of the guide and the maximum point
reached by the upper edge of the door, is no shorter than 65 mm and
no longer than 300 mm, otherwise GD0 cannot be installed.

If the door closes a room that has no other means of access, we rec­ommend installation of the EXTERNAL RELEASE KIT, otherwise a
simple power failure will prevent access to the room (figure 11 and
11a).

Note: the oscillating arm and external release kit are supplied with
the related assembly instructions.

11

10

B

0÷400 mm

E 65÷300 mm

9

3.1.1 – Operating limits

Chapter 6 “Technical Characteristics” provides the fundamental data
needed to determine whether all the GD0 components are suitable for the
intended application.

In general GD0 is suitable for the automation of sectional and overhead
doors for residential applications having the following maximum dimen­sions:

Sectional doors: 240 cm max. height - 370cm (8.8m2) max. width - max­imum torque 55 kg.

Overhead garage doors non-protruding: 220 cm max. height - 350 cm
(7.7m2) max. width - maximum torque 55 kg.

12

Overhead garage doors protruding: 280 cm max. height - 350 cm (9.8m2)
max. width - maximum torque 55 kg.

The shape of the door and the climatic conditions (e.g. presence of strong
wind) may reduce this maximum limit. In this case it is necessary to meas­ure the torque needed to move the door under the worst conditions, and
to compare it to the data provided in the technical characteristics chart for
the GD0 gearmotor.

3.1.2 – Tools and Materials

Make sure you have all the tools and materials needed to install
the system; make sure that they are in good condition and servicea­ble according to current safety standards. See examples in figure 12.

11a

EXTERNAL MANUAL RELEASE

1) Fit the lever

[A] Lever

[B] Black screw

2) Fit the steel cable

[C] Sheath

[D] Steel cable

[E] Clamp

B

A

E

C

D

10

13

Note 1 – For the PHOTO, STOP and OPEN cables, there are no special contraindications to the use of a single cable that groups together multi­ple connections; for example, the STOP and OPEN inputs can be connected to the KS1 selector switch using a single 4x0.25mm2cable.

WARNING: the cables used must be suitable for the type of installation; for example, an H03VV-F type cable is recommended
for indoor applications.

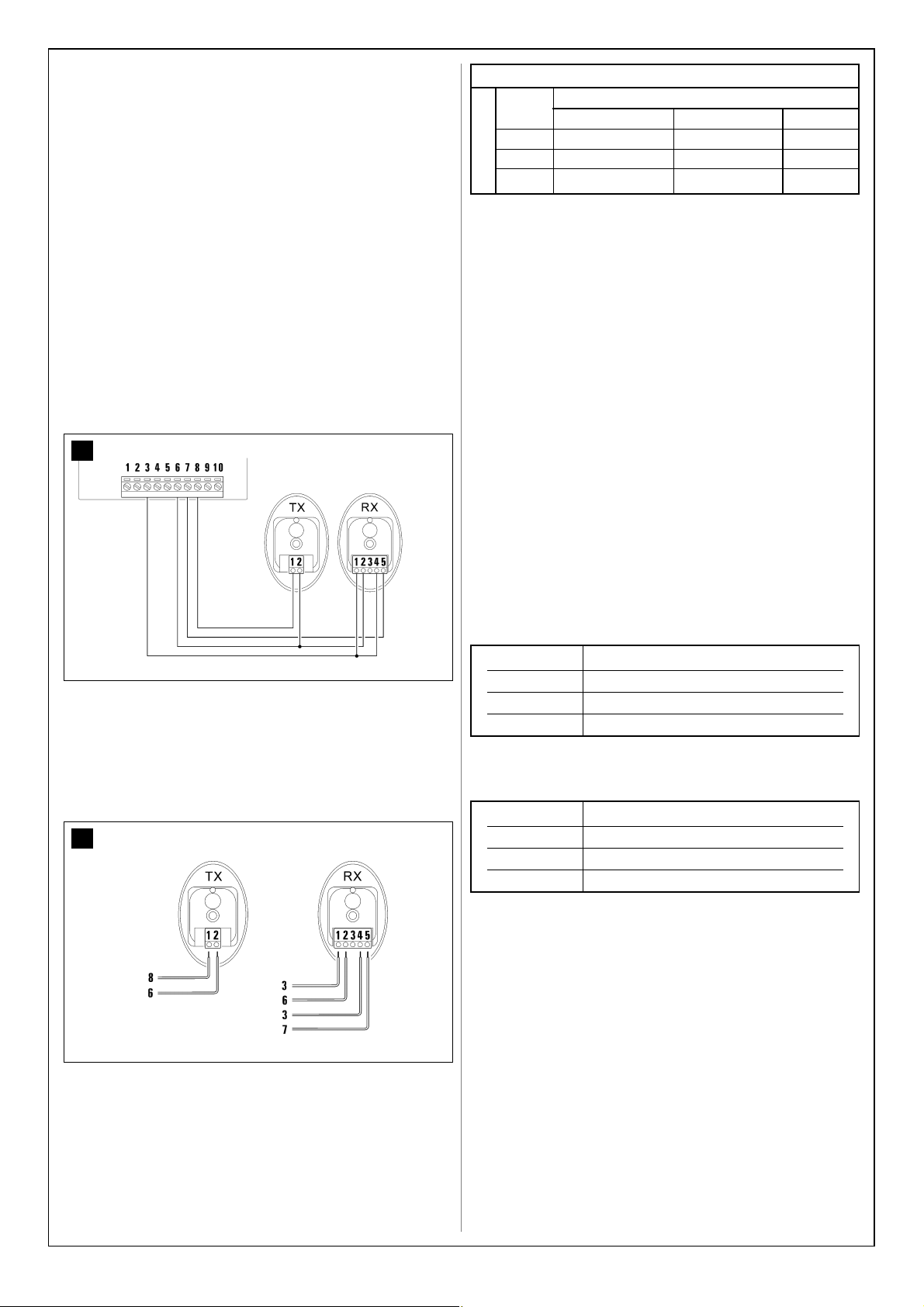

Table 5: List of cables

Connection

[A] STOP input

[B] OPEN input

[C] FOTO input

[D] FLASH light output

[E] Radio aerial

Maximum length allowed

20 m (note 1)

20 m (note 1)

20 m (note 1)

20 m

20 m (recommended less than 5m)

Cable type

2 x 0,25 mm2 cable

2 x 0,25 mm2 cable

TX 2 x 0,25 mm

2

cable

RX 3x 0,25 mm2 cable

2 x 0,25 mm2 cable

RG58 type shielded cable

3.1.3 – List of cables

The cables required for the installation of GD0 may vary depending on the type and quantity of devices to be installed; figure 13 shows the cables need­ed for a typical installation; no cable is supplied with GD0.

E

D

B

A

C

C

3.2 – PREPARING THE ELECTRICAL SYSTEM

With the exception of the plug and the power cable, the rest of the system
uses extra-low voltage (approx. 24V); the wiring can therefore be done by
personnel that is not properly qualified, provided that all the instructions in
this manual are carefully observed.
After selecting the position of the various devices (refer to figure 13) you
can start preparing the conduits for the electrical cables connecting the
devices to the control unit.
The shock-resistant conduits are designed to protect the electrical cables
and prevent accidental breakage.
Install any fixed control close to the door but away from moving parts and
at a height of 1.5m.

3.2.1 – Connection to the Electrical Mains

Although the connection of GD0 to the electrical mains is beyond the sco­pe of this manual, we wish to remind you that:

• The power supply line must be laid and connected by a qualified
professional electrician.

• Have a suitably protected 16A “schuko” outlet installed, where you
can plug in GD0.

• Make sure that the power supply cable does not hang over moving
parts or hazardous areas.

• The electric line must be grounded and protected against short cir­cuits; a bipolar disconnection device must also be present with con­tact separation of at least 3mm, which allows the power supply to be
disconnected during the installation and maintenance of the GD0.

3.3 – INSTALLATION OF THE VARIOUS DEVICES

The GD0 installation is made up of three parts:

- Guide assembly (see paragraph 3.3.1).

- Fixing of the gearmotor to the guide (see paragraph 3.3.2).

- Fixing of the gearmotor to the ceiling (see paragraph 3.3.3).

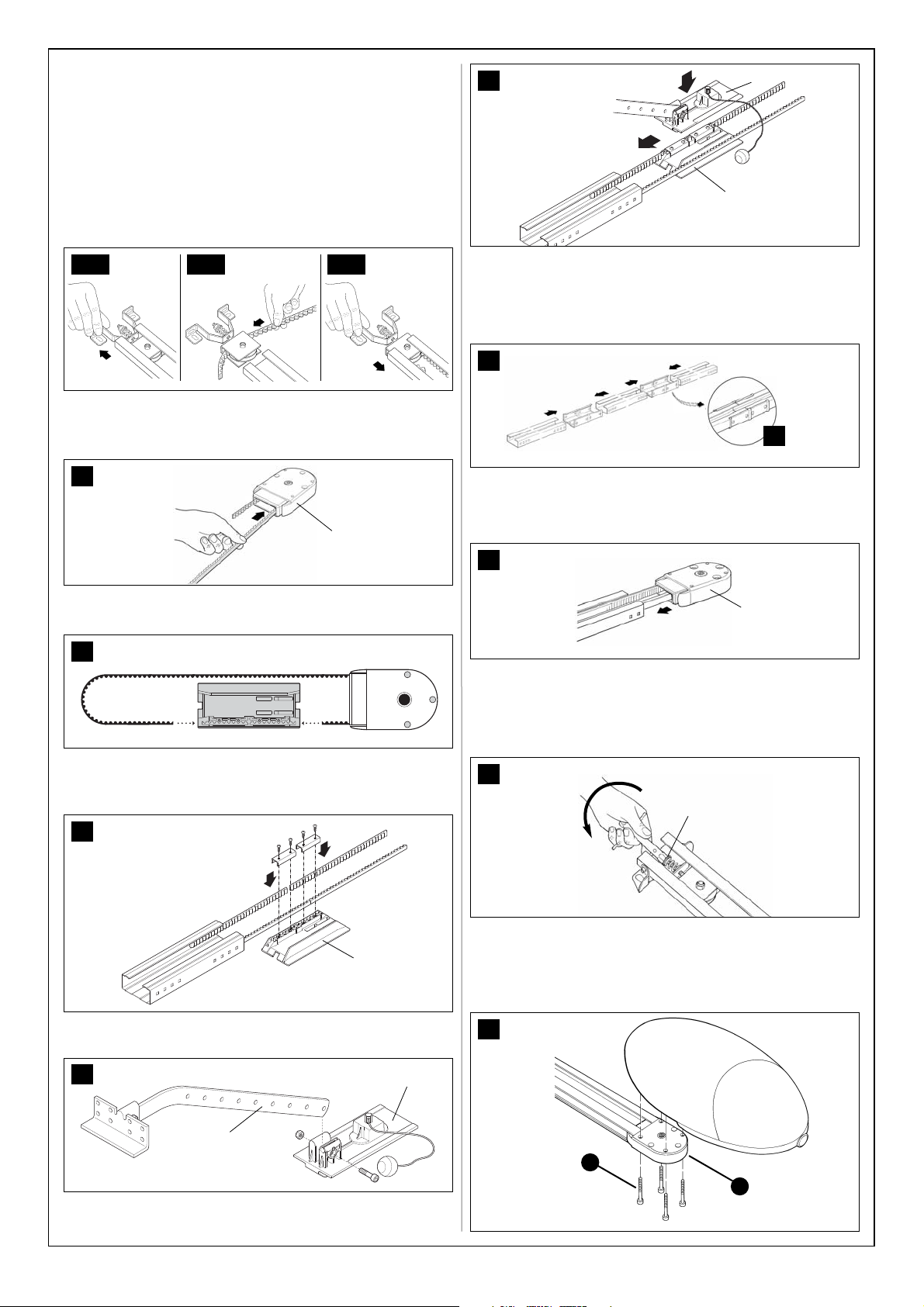

3.3.1 – Guide assembly

The guide supplied with the GD0 must be assembled as follows:

1. Referring to figure 14, remove the belt tensioner device (14a); insert

one end of the belt into the pulley (14b); reintroduce the belt tensioner
device into the guide (14c).

2. Pass the same end of the belt through the head (B), as in figure 15.

Note – Make sure that the belt is correctly positioned: it must be with the
teeth facing inwards, straight and without twists.

3. Turn the lower section of the carriage so that the grooves correspond

with the two ends of the belt, as in figure 16.

4. Position both ends of the belt into all of the shaped slots of the lower

carriage (C). Secure the ends of the belt with the 2 screws (V4.2x9.5)
and 2 washers (R05), as in figure 17.

5. Fix the belt guide (D) to the upper carriage (E) with the V6x18 screw

and related M6 nut, as in figure 18.

6. Insert the upper carriage (E)into the lower carriage (C) and place the

entire carriage assembly inside the guide, as in figure 19.

14a

11

7.

With the aid of a hammer, assemble the three pieces of the guide enga­ging them into the connection brackets (F) with force, as in figures 20
and 21.

Important – the guides must slide into the brackets until they click into
position.

8. Carefully position the belt into the guide, making sure that it is not

twisted.

9. Fix the head (B) into the free end of the guide with force, as in figure 22.

10. Finally, tension the belt with the adjustment screw (H) of the belt ten-

sioner device, as in figure 23.

Warning - the gear-motor could break if the belt is too taut and if it is
too slack, it could cause unpleasant noise.

15

B

16

17

C

18

D

E

19

20

22

21

B

C

E

23

H

14b 14c

3.3.2 – Fixing of the gearmotor to the guide

1 Couple the GD0K gearmotor’s shaft extension with the head of the
guide [B], then secure them using the four M6.3x38 screws [I],

24

B

I

5 Using a ladder, drill the marked positions and place the brackets over

the holes which have just been drilled and, using suitable screws and
plugs, secure the brackets.

6 Make sure that the guide is perfectly horizontal, then cut the excess of
the brackets using a hacksaw.

7

With the door closed, pull the cord and release the carriage [E] from

the guide.

8 Slide the carriage until the door mounted bracket [D] shown in Fig-

ure 32 is positioned on the upper edge of the door, exactly perpendi­cular to the guide [G].

Next, secure the door mounted bracket [D] with screws or rivets. Use
screws or rivets that are suitable for the door material, making sure
that they are capable of bearing all the strain resulting from opening
and closing the door.

The gearmotor can be rotated in three different positions

3.3.3 – Fixing of the gearmotor to the ceiling

1 Observing the A, B and C positions shown in Figure 8, mark the 2 fas-

tening points for the guide’s front bracket in the centre of the garage door
(or slightly off-centre – Figure 11).
Depending on the type of material, the front bracket can be fastened
using rivets, anchors or screws (Figure 26). If positions A, B, and C (figure

8) allow it, the bracket can be fastened directly to the ceiling.

2 After drilling the holes, leave the head of the gearmotor on the ground,
lift the guide from the front and secure it with two screws, anchors or riv­ets depending on the type of surface.

3 Secure the mounting brackets [L], using the screws [M] and nuts [N],
and choosing the hole that is closest to the established position B (see
Figure 8)

4 Using a ladder, lift the gearmotor and position the brackets against the
ceiling. Mark the drilling points, then put the gearmotor back on the
ground.

12

27

N

M

Position B

L

25

26

28

29

30

31

32

E

G

D

3 Press the lens in order to separate the two shells.

4 Breach two of the four holes [B] at the bottom with a screwdriver.

5 Position the photocell at the point where the conduit arrives; the hole at

the bottom [D] should match the point where the cables come out of the
wall; mark the drilling points using the bottom as reference.

6 Drill the holes in the wall using a hammer drill with a 5 mm bit and insert
the 5 mm screw anchors.

7 Secure the bottom with the screws [C] .

8 Connect the electric cable to the appropriate TX and RX terminals. See

paragraph 3.3.7 for electrical connections “Electrical connections to the
GD0K control unit” and 5.3.1 “Phototest output”.

9 Secure the cover shell [E] using the two screws [F] and a Phillips screw-
driver. Then insert the glass [G], pressing it gently to close it.

9 Loosen the screws in the two mechanical stops, then place the front
mechanical stop [O] before the carriage (Figure 33). Push the carriage
hard in the closing direction and, in the reached position, tighten the
screw firmly [P].

10 Open the door manually to the desired open position, then place the
rear mechanical stop [Q] near the carriage (Figure 34), and secure it tight­ening the screw firmly [R].

11 Make sure that the release cord can be activated at a height less than

1.8m.

3.3.4 – PH0 Photocells (optional)

1 1 Select the position of the two elements that make up the photocell (TX

and RX) observing the following directions:

Position them at a height of 20-25 cm from the ground, on both sides of
the area to be protected and as close as possible to the edge of the door.
With sectional doors, the photocells can be mounted outside, whereas
with overhead doors they can only be mounted inside (outside they would
obstruct the movement of the door)

• Point transmitter TX towards receiver RX, with a maximum tolerance of 5°.

• In the selected locations there must be a conduit for threading the
cables.

2 Remove the front glass [A] by prising it out with a slotted tip screwdriv­er applied to the bottom.

13

33

34

35

36

37

A

B

B

C

D

B

O

P

Q

R

38

39

E

F

G

8 To insert the shell on the bottom you need to turn the key. After you

have inserted it, turn the key back to the centre position.

9 Secure the body [C] using the two screws [D] and a Phillips screw-

driver. Finally insert the glass [E], pressing it gently to close it (Figure 44).

3.3.6 – FL1 flashing light (optional)

1 Determine the position of the flashing light: it should be near the door

and easy to see; it can be secured to a horizontal as well as vertical sur­face.

2 Slide out the diffuser [A] from the bottom by pressing the two buttons [B].

3 Separate the lamp holder with the aerial from the base.

4 Breach the four holes for the screws and the hole for the passage of the

cables in the bottom or side, depending on the installation position, using
a screwdriver.

5 Mark the drilling points using the bottom as reference and make sure
that the hole in the bottom matches the outlet for the cables.

14

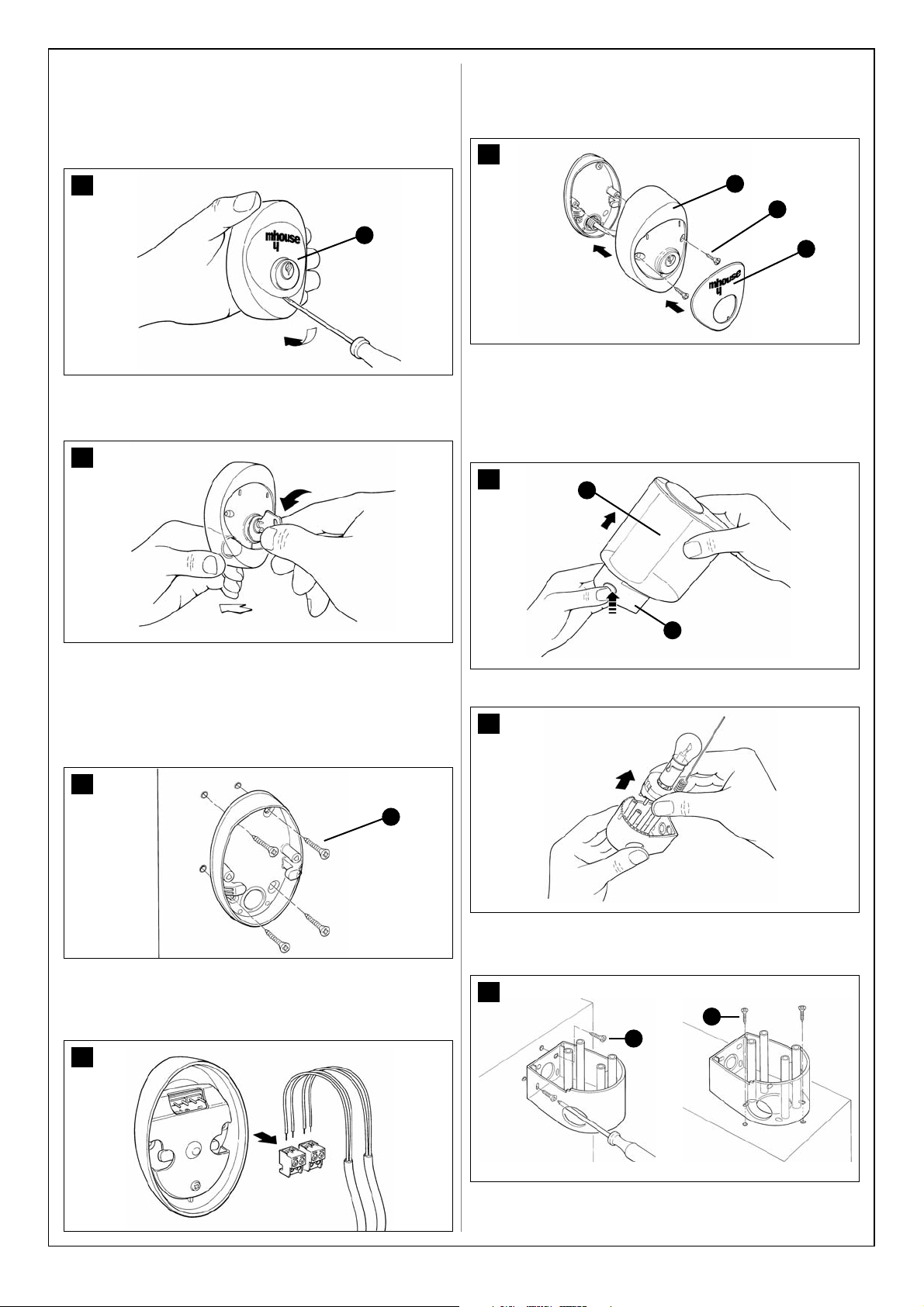

3.3.5 – KS1 key-operated selector switch (optional)

1 Determine the position of the selector switch; it must be installed out-

doors, alongside the gate and at a height of approx. 80 cm, so that it can
be used by people of different height.

2 Remove the front glass [A] by prising it out with a slotted tip screwdriv­er applied to the bottom.

3 To separate the bottom from the shell you need to insert the key and
keep it turned, then pull with a finger inserted in the hole for the passage
of the cables.

4 Breach the four holes at the bottom with a screwdriver; mark the drilling
points using the bottom as reference; make sure that the hole in the bot­tom matches the outlet for the cables.

5 Drill the holes in the wall using a hammer drill with a 5 mm bit and insert
the 5 mm screw anchors.

6

Secure the bottom using the four screws [A].

7 Connect the electric cables to the appropriate OPEN and STOP ter-

minals, as shown in figure 43. It is not necessary to observe any
polarity. The terminals can be removed in order to facilitate the opera­tions; make the connections and then reinsert them.

40

A

41

42

A

43

44

E

D

C

45

46

A

B

C

C

47

6 Drill the holes in the wall using a hammer drill with a 6 mm bit and insert
the 6 mm screw anchors.

7 Secure the bottom with the screws [C].

8 Connect the electrical cables to the appropriate FLASH and “aerial” ter-

minals as shown in figure 48. You do not need to observe any polarity on
the FLASH terminal; however, for the connection of the shielded cable to
the aerial, connect the braid as shown in figure 49. The terminals can be
removed in order to facilitate the operations; make the connections and
then reinsert them (Figure 50).

9 Fit the lamp holder on the base and press it down until it snaps into
position.

10 Slide in the diffuser, pressing the buttons and fitting it on the bottom.
Rotate it in the desired direction then press it down until the two buttons
snap into their seat.

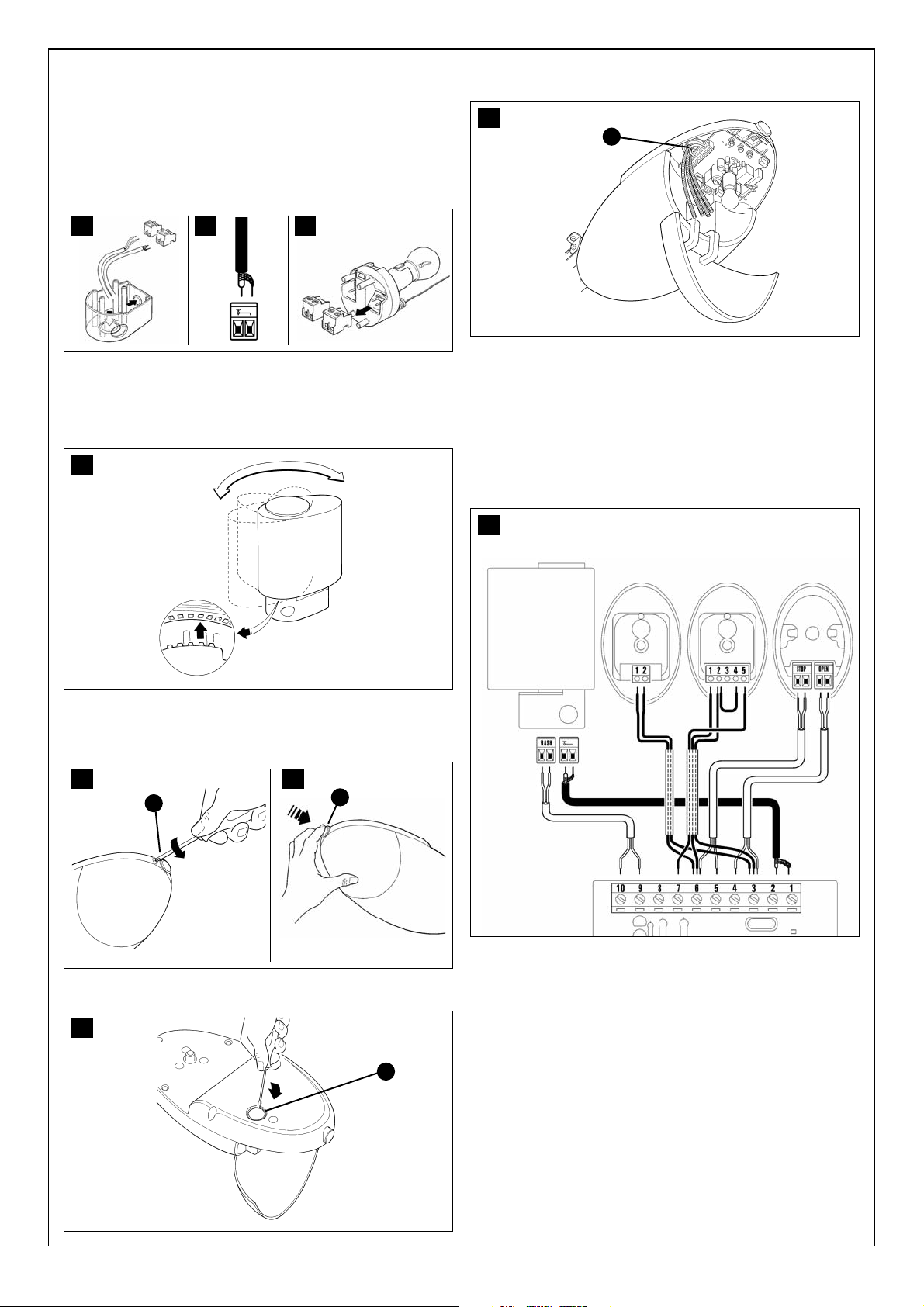

3.3.7 – Electrical connections to the GD0K control unit

1 Unscrewing screw [A] and pushing button [B], open the lid.

2 Remove the circular part [C] with a screwdriver, as in fig. 54.

15

56

FL1

TX RXPH0 KS1

3 Cut the rubber membrane [D] so that the cables can pass and insert it
in the hole [C].

4 Use Fig. 56 and the connection description in Table 6 as reference.

• if using the PH0 photocell, remove the small piece of wire between ter­minals 3 and 7 and make the connections as in Fig. 56.

• if using the flashing light aerial, remove the piece of wire, which is con­nected to terminal 2, and connect the RG58 type shielded cable.

5 When the connections have been completed secure the cables using
suitable clamps.

6 To close the cover, turn and push until a click is heard. Secure the
screw [A].

52

A

B

54

53

C

55

D

48 49 50

51

16

Terminals

1-2

3-4

5-6

3-7

6-8

9-10

Functions

Aerial

OPEN

STOP

FOTO

Phototest

Flashing light

Description

Radio receiver aerial connection input. The FL1 has a built-in aerial, alternatively an
external aerial can be used or the small piece of wire that is already connected to the
terminal can be left, which acts as an aerial.

Input for manoeuvre control devices; “Normally Open” type contacts can be connected.

Input for the devices which block or eventually stop the manoeuvre in progress. Con­tacts like “Normally Closed”, “Normally Open” or constant resistance devices can be
connected using special procedures on the input. Additional information on STOP can
be found in paragraph “5.3.2 STOP input”.

Input for safety devices such as PH0 photocells. Cut-in during closure, inverting the
manoeuvre.
“Normally Closed” contacts can be connected. The PHOTO input is factory set short­circuited by means of a jumper between inputs 3 and 7 of the terminal. Additional infor­mation on PHOTO can be found in paragraph “3.3.4 PH0 Photocells (optional)”.

All safety devices are controlled each time a manoeuvre is performed and the manoeu­vre is only performed if the test has a positive outcome. This is possible by means of a
special connection; the “TX” photocell transmitters are powered separately in respect to
the “RX” receivers. Additional information on connections can be found in paragraph
“5.3.1 Phototest output”.

An FL1 flashing light with a 12V 21W car bulb can be connected to this output. During
the manoeuvre the unit flashes at intervals of 0.5 s.

TABLE 6

3.4 – POWER SUPPLY CONNECTION

The connection of the GD0 control unit to the mains must be

made by a qualified electrician.

To carry out tests, insert the plug for GD0K in a power outlet; if necessary,
use an extension cord.

3.5 – INITIAL CHECKS

As soon as the control unit is energized, you should check the following:

1 Make sure that the LED [A] flashes regularly, with about one flash per
second.

2 If the system is equipped with the PH0 photocells, make sure that the
SAFE LED [B] shown in figure 59 flashes (on both TX and RX). The type of
flashing is irrelevant, it depends on other factors; what matters is that it is
not always off or always on.

3 If the system is equipped with the KS1 key-operated selector switch,
make sure that the night light [C] is on.

4 If the above conditions are not satisfied, you should immediately switch
off the power supply to the control unit and check the cable connections
more carefully. For more useful information see also chapters 5.5 “Trou­bleshooting” and 5.6 “Diagnostics and Signals”.

57

58

A

59

60

B

C

3.6 – REGOLATIONS

3.6.1 – Selecting door speed

The door can be opened and closed at two speeds: “slow” or “fast”.

To switch from one speed to the other press the P2 button [B] momen-
tarily; the corresponding P2 LED [A] will light up or go off; if the LED is off
the speed is “slow”, if the LED is on the speed is “fast”.

3.6.2 – Selecting the type of operating cycle

The opening and closing of the door can take place according to different
operating cycles:

• single cycle (semiautomatic): the door opens with a command and stays
open until the next command is given, causing it to close.

• complete cycle (automatic closing): the door opens with a command
and then closes automatically after a short time (for the time, see para­graph 5.1.1 “Adjusting the parameters with the radio transmitter”).

To switch from one operating cycle to the other, press the P3 button [B]
momentarily; the corresponding LED P3 [A] will light up or go off; if the
LED is off the cycle is “single”, if the LED is on the cycle is “complete”.

3.5.1 – Recognition of the door’s open and closed positions

The opening and closing positions of the door must be recognised by the
control unit. In this phase, the door stroke from the mechanical closing
stop to the mechanical opening stop is detected. In addition to the posi­tions, the STOP input configuration and the presence or non-presence of
the PHOTO input “Phototest” mode connection are also detected and
memorised in this phase.

1 Make sure that the carriage is attached.

2 Press key P3 [A] on the control unit and hold it down for at least three

seconds, then release the key (Figure 61).

• Wait until the control unit has completed the recognition stage: closing,
opening and re-closing of the door.

• If any device is triggered during the recognition stage, or the P3 key is
pressed, the recognition stage will be immediately interrupted. In this case
it must be repeated from the beginning.

• During the recognition stage the courtesy light will flash just like the
flashing light.

3 An error has occurred if the LEDs P2 and P3 [B] are flashing at the end
of the recognition stage. See paragraph 5.5 “Troubleshooting”.

4 Press button 1 of the “TX4” transmitter to perform a complete opening
manoeuvre. Then push it again to perform a complete closing manoeuvre.
The control unit memorises the necessary force throughout the travel dur­ing these two manoeuvres.

It is important that these two first manoeuvres are not interrupted by any
commands. If the manoeuvres are not completed, repeat the recognition
procedure starting from step 1.
The position recognition stage can be repeated at any time in the future
(for instance, if one of the mechanical stops is moved); just repeat starting
from step 1.

WARNING: if the belt is not tightened properly, during the search
for the positions it may slip on the pinion. If this happens, stop the
leaning procedure by pressing key P3 and stretch the belt by tight­ening the nut [D]. Then repeat the recognition procedure starting
from step 1.

3.5.2 – Testing the radio transmitter

To test the transmitter just press one of its 4 keys, make sure that the red
LED flashes and that the automation carries out the related command.
The command associated to each button depends on how it has been
memorized (see paragraph 5.4 “Memorization of Radio Transmitters”).
The transmitter supplied has already been memorized and when you
press the buttons the following commands are transmitted:

17

61

B

A

62

D

63

T1

T2

T3

T4

64

A

B

Button T1 “OPEN” command

Button T2 “Open partially” command

Button T3 “Open only” command

Button T4 “Close only” command

65

B

A

18

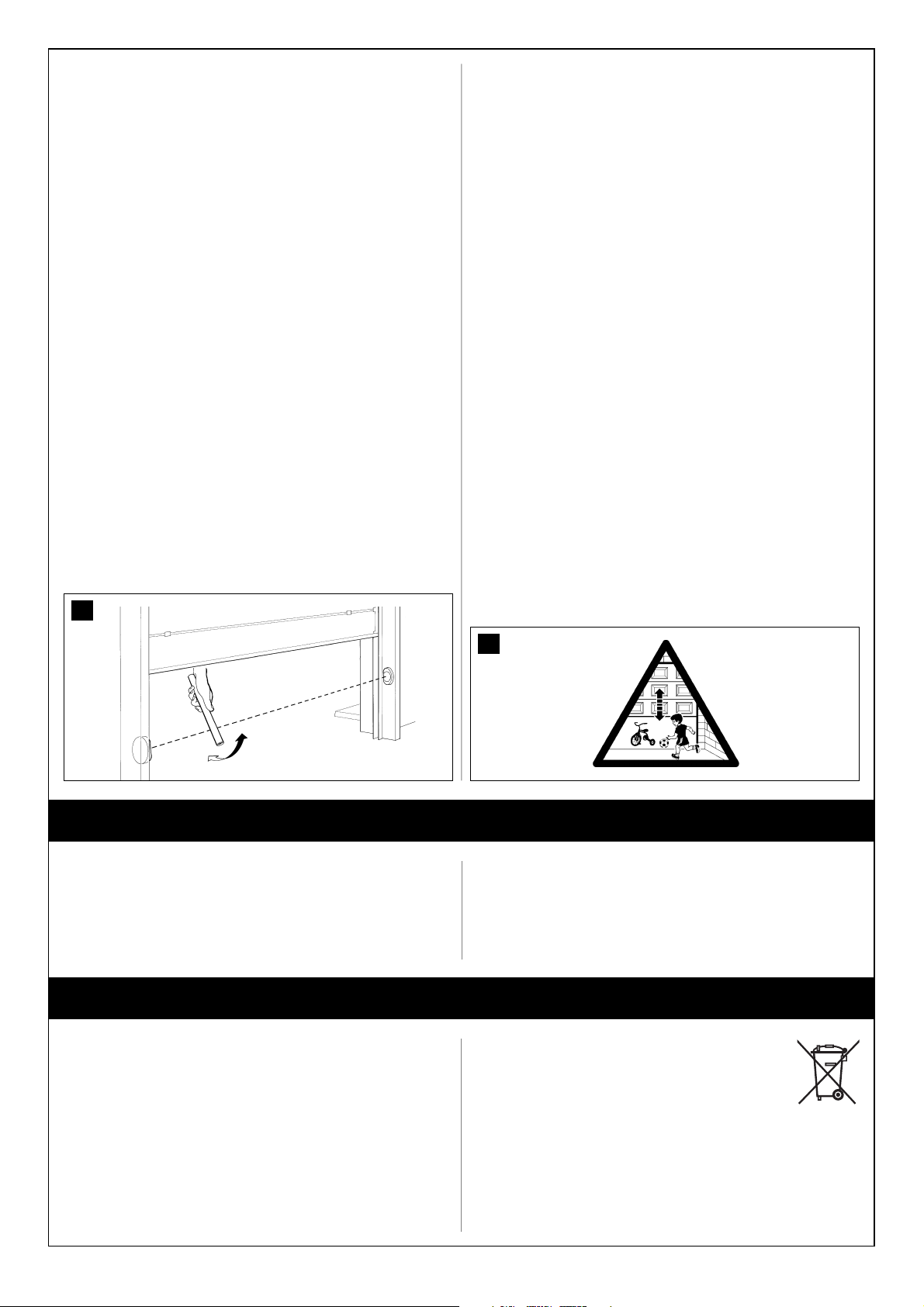

PRODUCT DISPOSAL

waste is strictly prohibited. Separate the waste into cate­gories for disposal, according to the methods established by
current legislation in your area, or return the product to the
retailer when purchasing a new version.

Important! – Local legislation may impose heavy fines in
the event of illegal disposal of this product.

Disposal of buffer battery (if present)

Important! – Even if discharged, the batteries may contain pollutant sub­stances and therefore must NEVER be disposed of in normal waste col­lection points.

Dispose of according to separate waste collection methods as envisaged
by current local standards.

This product is an integral part of the automation system it controls
and must be disposed of along with it.

As in the case of installation, likewise at the end of product lifetime the dis­assembly and scrapping operations must be performed by qualified per­sonnel.

This product is made of various types of material, some of which can be
recycled while others must be scrapped. Seek information on the recycling
and disposal methods envisaged by the local regulations in your area for this
product category.

Important! – Some parts of the product may contain polluting or haz­ardous substances which, if released to the environment, may cause seri­ous damage to the environment or to human health.

As indicated by the symbol alongside, disposal of this product with domestic

MAINTENANCE

months) that all the devices are perfectly efficient.
To this end, carry out all the tests and checks described in paragraph

3.7.1 “Testing” and the operations described in paragraph 7.3.3 “Mainte­nance Operations to Be Performed by the User”.

If other devices are present, follow the directions provided in the corre­sponding maintenance schedule.

STEP 4

The maintenance operations must be performed in strict compli­ance with the safety directions provided in this manual and accord­ing to the applicable legislation and standards.

The devices used for the GD0 automation system do not require any spe­cial maintenance. However, periodically make sure (at least once every six

3.7 – TESTING AND COMMISSIONING

These are the most important operations, designed to guarantee the
maximum safety and reliability of the automation system.

The testing procedure can also be used as a periodic check of the
devices that make up the automation.

The testing and commissioning operations must be performed
by qualified and experienced personnel who must establish what
tests should be conducted based on the risks involved, and verify
the compliance of the system with applicable regulations, legislation
and standards, in particular with all the provisions of EN standard
12445 which establishes the test methods for sectional and over­head door automation systems.

3.7.1 – Testing

1 Make sure that the provisions contained in chapter 1 “WARN­INGS” have been carefully observed.

2 Using the selector switch (if provided) or the radio transmitter, test the

opening and closing of the door and make sure that the door moves in the
intended direction.

The test should be carried out a number of times to make sure that the
door moves smoothly, that there are no points of excessive friction and
that there are no defects in the assembly or adjustments.

3 Check the proper operation of all the safety devices, one by one (photo­cells, sensitive edges, etc.). In particular, each time a device is activated
the “ECSBus” LED on the control unit flashes for a longer time, confirming
that the control unit recognizes the event.

4 To check the photocells (if provided) pass a 5 cm diameter, 30 cm long
cylinder on the optical axis, first near TX, then near RX and finally at the
mid-point between them and make sure that in all these cases the device
is triggered, switching from the active to the alarm status and vice-versa;
finally, that it causes the intended action in the control unit, for example
that it causes the reversal of the movement during the closing manoeuvre

5 Measure the impact force according to EN standard 12445. If “motor
force” control is used to assist the system for the reduction of the impact
force, try to find the adjustment that gives the best results.

6 Ensure that the entire mechanism is correctly adjusted and that the
automation system inverts the manoeuvre when the door collides with a
50 mm high object on the floor.

7 Ensure that the automation prevents or blocks the opening manoeuvre
when the door is loaded with a mass of 20 Kg, fixed in the middle of the
doors lower edge.

3.7.2 – Commissioning

The commissioning operations can be performed only after all the
tests have been successfully carried out. Partial commissioning or
implementation of “temporary” conditions are not permitted.

1 Prepare the technical documentation for the automation, which must

include at least: assembly drawing (e.g. figure 1), wiring diagram (e.g. fig­ure 56), analysis of hazards and solutions adopted, manufacturer’s decla­ration of conformity of all the devices installed. For GD0 use Annexe 1 “EC
Declaration of Conformity of the GD0 components”

2 Post a label on the door providing at least the following data: type of
automation, name and address of manufacturer (person responsible for the
“commissioning”), serial number, year of manufacture and “CE” marking.

3 Fill out the declaration of conformity and deliver it to the owner of the
automation system; for this purpose you can use Annexe 2 “EC Declara­tion of Conformity”.

4 Prepare the operating guide and deliver it to the owner of the automa­tion system; Annexe 3 “OPERATING GUIDE” can be used as an example.

5 Prepare the maintenance schedule and deliver it to the owner of the
automation system; it must provide directions regarding the maintenance
of all the automation devices.

6 Post a permanent label or sign detailing the operations for the release
and manual manoeuvre (use the figures in Annex 3 “Operating guide”).

7 Before commissioning the automation system inform the owner regard­ing dangers and hazards that are still existing.

8 Post a permanent label or sign with this image on the door (minimum
height 60 mm) with inscription WARNING – RISK OF CRUSHING.

66

67

19

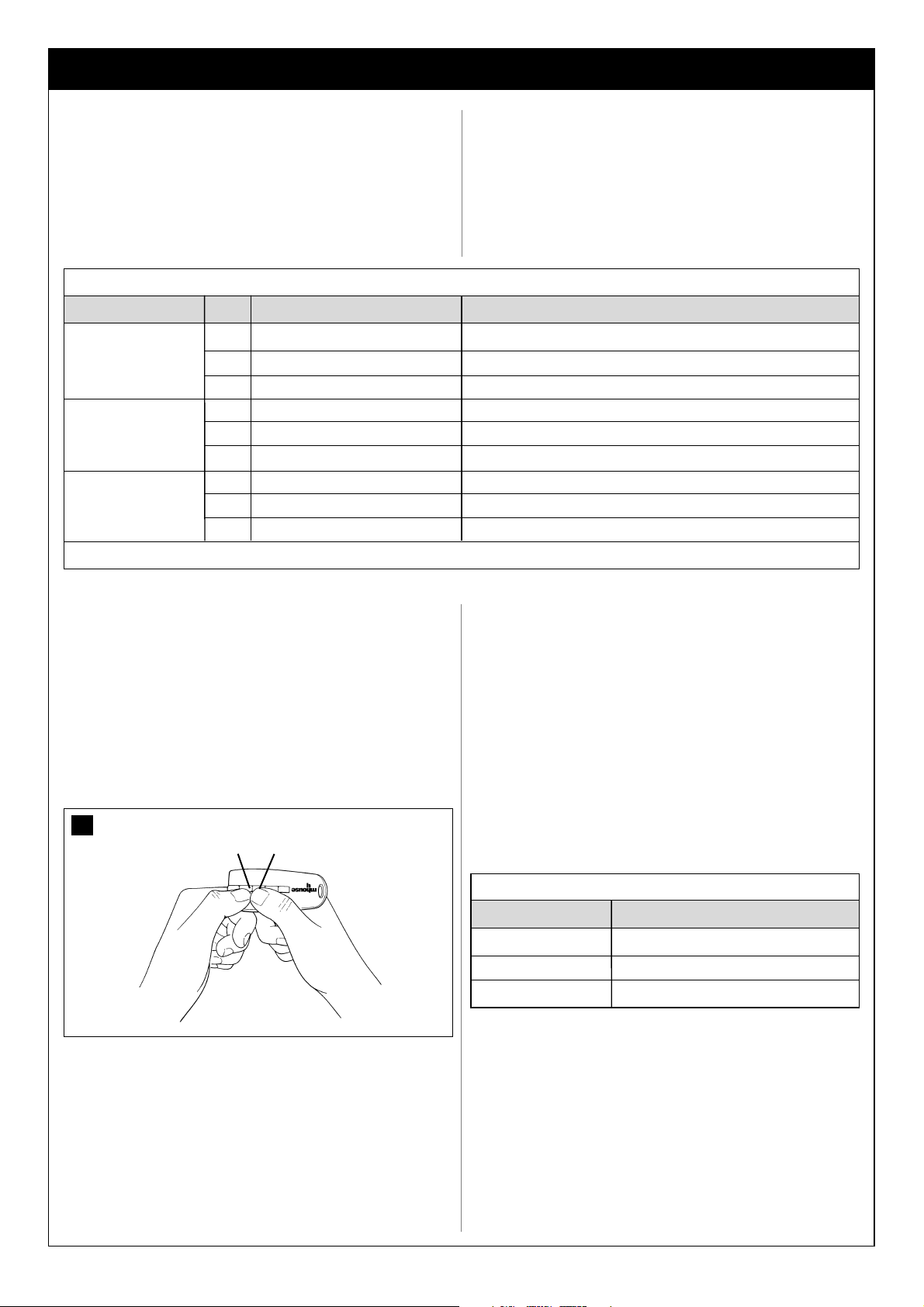

ADDITIONAL INFORMATION

1) Pause time: time during which the door remains open (in the automatic
closing mode).

2) “OPEN” function: sequence of movements associated to each “OPEN”
command.

3) Motor force: maximum force beyond which the control unit recognizes
an obstacle and reverses the movement.

STEP 5

The following chapters describe different ways of customizing GD0 to
make it suitable for specific application requirements.

5.1 – ADVANCED ADJUSTMENTS

5.1.1 – Adjusting the Parameters with the Radio Transmitter

The radio transmitter can be used to adjust certain control unit operation
parameters: there are four parameters and each of them can have four
different values:

Parameter

Pause time

“OPEN” function

Motor force

N°

1°

2°

3°

1°

2°

3°

1°

2°

3°

Action: operation to be performed at point 3 in the adjustment phase

Press button T1 once

Press button T1 twice

Press button T1 three times

Press button T2 once

Press button T2 twice

Press button T2 three times

Press button T3 once

Press button T3 twice

Press button T3 three times

TABLE 7

Setting

15s

30s (*)

60s

“Open”-“Stop”-“Close”-“Stop”

“Open”-“Stop”-“Close”-“Open” (*)

“Open”-“Open”-“Open” (opening only)

Low

Medium

High (*)

The parameter adjustment operation can be performed using a radio
transmitter, provided it is memorized in mode 1 like the one supplied. If
no transmitter memorized in Mode 1 is available, you can memorize one
just for this phase and delete it immediately afterwards (see paragraph

5.4.1 “Mode 1 memorization” and paragraph 5.4.4 “Deleting a radio
transmitter”).

WARNING: when using the transmitter to make adjustments you need to
give the control unit time to recognize the radio command; this means
that the buttons must be pressed and released slowly, held down for at
least one second, then released for one second and so on.

1 Press buttons T1 and T2 on the radio transmitter simultaneously for at
least 5s.

2 Release the two buttons.
3 Within 3 seconds, perform the action described in Table 7 based on the

parameter to be modified.

Example: to set the pause time at 60 s.

1

st

Press buttons T1 and T2 and hold them down for at least 5s

2

nd

Release T1 and T2

3t

h

Press button T1 three times

All the parameters can be adjusted as required without any contraindica­tion; only the adjustment of the “motor force” requires special care:

• Do not use high force values to compensate for points of abnormal fric-

68

T1 T2

tion on the door. Excessive force can compromise the operation of the
safety system or damage the door.

• If the “motor force” control is used to assist the impact force reduction
system, measure the force again after each adjustment in compliance
with EN standard 12445.

• The weather conditions may affect the movement of the door, therefore
periodic re-adjustments may be necessary.

5.1.2 – Checking the Adjustments with the Radio Transmitter

With a radio transmitter memorized in Mode 1 you can check the values
set for each parameter at any time by following the sequence described
below:

1 Press buttons T1 and T2 on the radio transmitter simultaneously for at
least 5s.

2 Release the two buttons.

3 Within 3 seconds, perform the action described in Table 8 based on the

parameter to be checked.

4 Release the button when the flashing light starts flashing.

5 Count the flashes and, based on their number, check the corresponding

value in table 7.

Example: If the flashing light flashes three times after you have pressed
T1 and T2 for 5s and then button T1, the pause time is set at 60s.

5.2 – OPTIONAL ACCESSORIES

In addition to the devices featured in GD0, other ones are available as
optional accessories designed to enhance the automation system and
improve its safety and performances.

GA1: OSCILLATING ARM accessory that enables the system to open
overhead-type doors.

Parameter

Pause time

“OPEN” function

Motor force

Action

Press button T1 and hold it down

Press button T2 and hold it down

Press button T3 and hold it down

TABLE 8

(*) Original factory setting

Note 1. The NO and NC combination can be obtained by placing the two
contacts in parallel, and placing in series to the NC contact an 8.2K

Ω

resistance (therefore, the combination of 3 devices is also possible: NO,
NC and 8.2KΩ).

Note 2. Any number of NO devices can be connected to each other in
parallel.

Note 3. Any number of NC devices can be connected to each other in
series.

Note 4. Only two devices with 8.2K

Ω

constant resistance output can be
connected in parallel; if needed, multiple devices must be connected “in
cascade” with a single 8.2KΩtermination resistance.

Warning: if the STOP input is used to connect devices with safety
functions, only the devices with 8.2KΩ constant resistance output
guarantee the fail-safe category 3.

During the recognition stage of the opening and closing positions of the
door, the control unit recognizes the type of device connected to the
STOP input; subsequently it commands a STOP whenever a change
occurs in the recognized status.

5.4 – MEMORIZATION OF RADIO TRANSMITTERS

The control unit contains a radio receiver for TX4 transmitters; the one
included in the package is pre-memorized and operative. If you wish to
memorize a new radio transmitter you have two choices:

• Mode 1: in this “mode” the radio transmitter is used to its fullest extent,
i.e. all the buttons execute a pre-established command (the transmitter
supplied with GD0 is memorized in Mode 1). It is obvious that in Mode 1 a
radio transmitter can be used to command a single automation, i.e.:

• Mode 2: one of the four commands available can be associated to each
button. This mode, used properly, allows you to command 2 or more dif­ferent automations; for example:

Each transmitter is, of course, a separate unit, and while some are mem­orized in mode 1 others can be memorized in mode 2 on the control unit.

The overall memory capacity is 150 units; memorization in mode 1 takes
up one unit for each transmitter while mode 2 takes up one unit for each
button

Warning: since the memorization procedures are timed (10s), you
must read the instructions in the following paragraphs before you
proceed with their execution.

5.4.1 – Memorization Mode 1

1 Press button P1 [B] for at least 3s.

When the P1 LED [A] goes off, release the button.

2 Within 10s, press any button on the radio transmitter to be memorized

and hold it down for at least 3s.

If the memorization procedure is successful, the “P1” LED will flash 3
times.

3 If there are other transmitters to be memorized, repeat step 2 within the
next 10s, otherwise the memorization stage will terminate automatically.

20

GU1: MANUAL RELEASE KIT accessory that enables the manual open-

ing of the door even in the event of power failures.

For information on the new accessories, refer to the MHOUSE catalogue
or visit the site www.mhouse.biz.

5.3 – ADDING OR REMOVING DEVICES

Devices can be added to or removed from the GD0 automation system at
any time.

Do not add any devices until you have made sure that they are
perfectly compatible with GD0; for further information contact
MHOUSE Customer Service.

5.3.1 – Phototest output

This control unit is equipped with the “Phototest” function that increases
the reliability of the safety devices, making it possible to achieve “catego­ry 2” according to the EN 954-1 (edit. 12/1998) regarding the control unit
and safety photocells.

Whenever a manoeuvre is begun, the relative safety devices are checked
and only if everything is in order will the manoeuvre start. If the test has a
negative outcome (photocell blinded by the sun, short-circuited cable
etc.), the fault is recognised and the manoeuvre is not performed.

To add a pair of photocells, remove the jumper and connect as follows.

The photocell transmitter power is taken between terminals 8-6 of the
“Phototest” output and not from the services output. The maximum cur­rent that can be used on the “Phototest” output is 100mA.

Activate the synchronism as described in the Photocell instructions, in the
event there are two pairs of photocells that could interfere with one another.

5.3.2 – STOP Input

STOP is the input that causes the immediate interruption of the manoeu­vre (with a short reverse run). Devices with output featuring normally open
“NO” contacts (like the KS1 selector switch) and devices with normally
closed “NC” contacts, as well as devices with 8.2KΩ constant resistance
output, like sensitive edges, can be connected to this input. Multiple
devices, even of different type, can be connected to the STOP input if
suitable arrangements are made.

To do this, proceed as described in the following table:

69

70

1stdevice type:

NO NC 8,2 KΩ

NO In parallel (note 2)(note 1) In parallel

NC (note 1) In series (note 3) In series

8,2KΩ In parallel In series (note 4)

TABLE 9

second device type:

Button T1 “OPEN” command

Button T2 “Partial opening” command

Button T3 “Open only” command

Button T4 “Close only” command

Button T1 “Open only” command automation N° 1

Button T2 “Close only” command automation N° 1

Button T3 “OPEN” command automation N° 2

Button T4 “OPEN” command automation N° 2

21

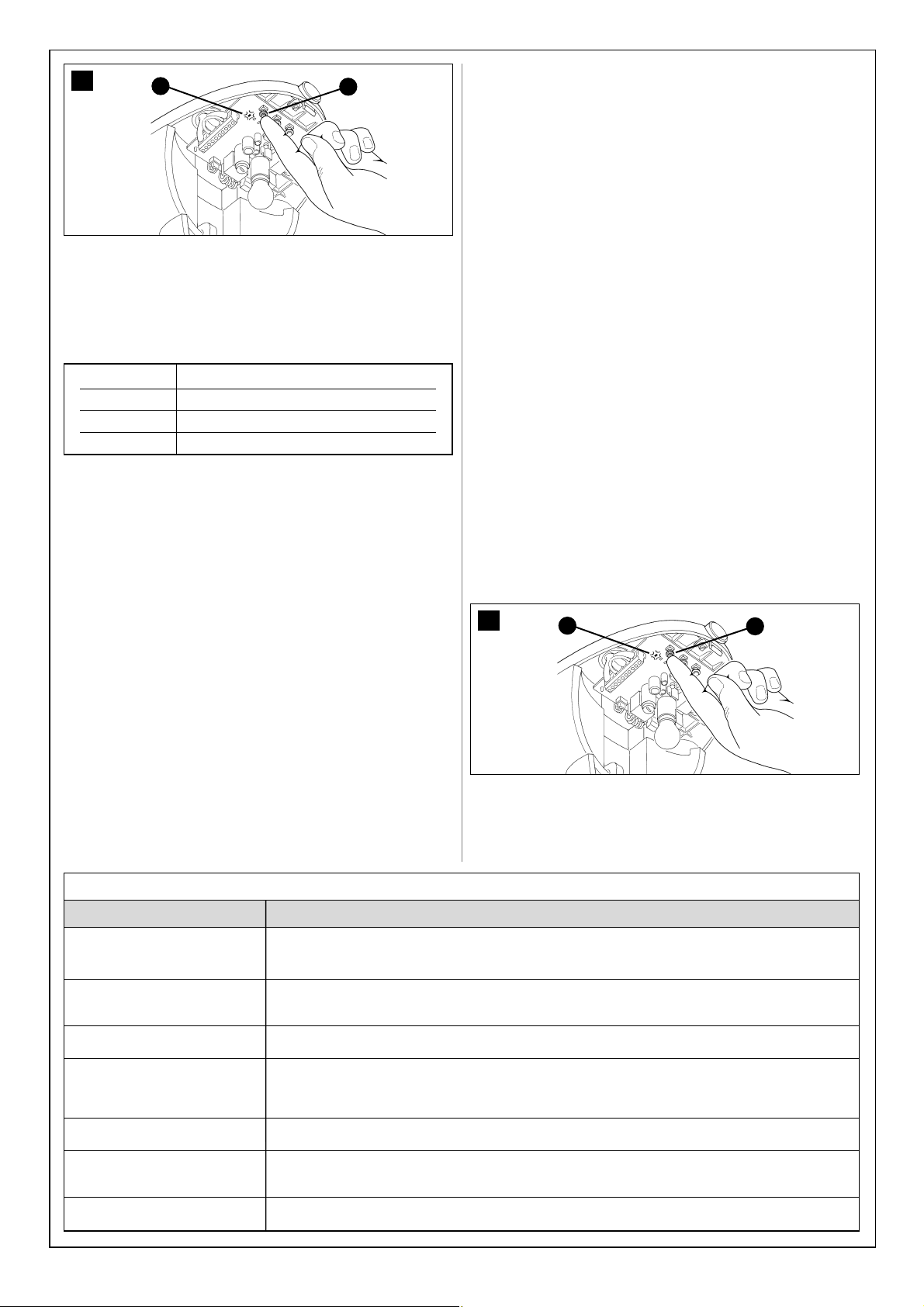

3 Press the button on the NEW radio transmitter once slowly.

At this point the NEW radio transmitter will be recognized by the control
unit and will assume the characteristics of the OLD one.

If there are other transmitters to be memorized, repeat all the steps above
for each new transmitter.

5.4.4 – Deleting a Radio Transmitter

Only if the system features a radio transmitter, you can delete it from the
memory by proceeding as follows.

If the transmitter is memorized in Mode 1, only one deletion procedure will
be needed and at step 3 you can press any button. If the transmitter is
memorized in Mode 2, one deletion procedure will be needed for each key
memorized.

1 Press the P1 button [B] (figure 71) on the control unit and hold it down.
2 Wait until the P1 LED [A] lights up, then, within three seconds:
3 Press the key on the radio transmitter to be deleted and hold it down for

at least three seconds. If the deletion procedure is successful, the P1 LED
will flash rapidly five times. If the P1 LED flashes only once slowly, it means
that the deletion procedure has not been successful because the trans­mitter is not memorized.

4 If there are other transmitters to be deleted, press the P1 key and repeat
step 3 within ten seconds, otherwise the deletion procedure will be termi­nated automatically.

5.4.5 – Deleting all the Radio Transmitters

With this operation all the memorized transmitters are deleted.

1 Press the P1 button [B] on the control unit and hold it down.
2 Wait until the P1 LED [A] lights up, then wait until it goes off, then wait

until it has flashed 3 times.

3 Release the P1 button precisely upon the third flash.
4 Wait approximately 4 s for the deletion process to be completed; during

this time the LED will flash very quickly.
If the procedure is successful, after a few moments the “P1” LED will flash

slowly 5 times.

5.5 – TROUBLESHOOTING

The following table contains instructions to help you solve malfunctions or
errors that may occur during the installation stage or in case of failure.

5.4.2 – Memorization Mode 2

With the memorization in mode 2 of the radio transmitter, any one of the
four commands (“OPEN”, “Open partially”, “Open only” and “Close only”)
can be associated to each button.

In Mode 2 each button requires a separate memorization stage.

1 Press button P1 (figure 71) on the control unit as many times as the num­ber corresponding to the desired command, according to the following table:

2 Make sure that the P1 LED makes as many quick flashes as the number
corresponding to the selected command.

3 Within 10 s, press the desired button on the radio transmitter to be
memorized, and hold it down for at least 2 s.

If the memorization procedure is successful, the “P1” LED will flash 3 times
slowly.

4 If there are other transmitters to be memorized for the same type of
command, repeat step 3 within the next 10s, otherwise the memorization
stage will terminate automatically.

5.4.3 – Remote memorization

A new radio transmitter can be memorized in the control unit without
directly operating the buttons on it. You need to have an “OLD” pre-mem­orized operational radio transmitter. The “NEW” radio transmitter to be
memorized will inherit the characteristics of the OLD one, i.e. if the OLD
radio transmitter was memorized in Mode 1, the NEW one will also be
memorized in Mode 1. In this case, during the memorization stage you can
press any key on the two transmitters. If, on the other hand, the OLD trans­mitter was memorized in Mode 2 you must press the button on the OLD
transmitter which corresponds to the desired command, and the button on
the NEW transmitter to which you wish to associate that command.

Holding the two transmitters, position yourself within the operating range
of the automation and perform the following operations:

1 Press the button on the NEW radio transmitter and hold it down for at least
5s, then release it.

2 Press the button on the OLD radio transmitter 3 times slowly.

1 time “OPEN” command

2 times “Partial opening” command

3 times “Open only” command

4 times “Close only” command

71

A

B

72

A

B

Symptoms

The radio transmitter does not
emit any signal (the LED [A]
does not light up)

The manoeuvre does not start
and the LED OK LED [B] does
not flash

The manoeuvre does not start
and the courtesy light [F] is off.

The manoeuvre does not start
and the courtesy light flashes a
few times.

The manoeuvre starts but inverts
immediately

The manoeuvre is carried out but
the flashing light does not work

The manoeuvre is carried out but
the courtesy light does not work.

Probable cause and possible solution

• Check to see if the batteries are exhausted, if necessary replace them (paragraph 7.3.4 “Replacing the
Remote Control Battery”).

• Make sure that the power cord is properly plugged into the mains outlet

• Check to see if the fuses [D] or [E] are blown; if necessary, identify the reason for the failure and then

replace the fuses with others having the same current rating and characteristics.

• Make sure that the commands are actually received. If the command correctly arrives to the control unit,
the “OK” LED will make two long flashes.

• Make sure that the STOP input is active, i.e. that the “STOP” LED [C] comes on. If this does not happen,
check the devices connected to the STOP input.

• The photocell test which is performed at the starting of each manoeuvre is not successful; check the pho­tocells, also according to Table 11 (Paraghraph 5.6.1 “Photocells”).

• The selected force is too low to move the door. Check for possible obstacles and if necessary select a
higher force as described in chapter 5.1 “Advanced adjustments”.

• Make sure that there is voltage between the flashing light terminals 9 and 10 (being intermittent, the volt­age value is not important: approximately 10-30Vac); if there is voltage, the problem is due to the lamp; in
this case replace the lamp with one having the same characteristics.

• Replace the lamp [F] with one having the same characteristics.

TABLE 10

22

5.6 – DIAGNOSTICS AND SIGNALS

A few devices issue special signals that allow you to recognize the operat­ing status or possible malfunctions.

5.6.1 – Photocells

The photocells are equipped with a “SAFE” LED [A] (Figure 74) that allows
you to check the operating status at any time.

“SAFE” LED

Always Off

Slow flash

Rapid flash

Always on

MEANING

Signal OK= No obstacle

Weak signal = No obstacle

Poor signal = No obstacl

No signal = Obstacle present

ACTION

All OK

Improve centring

Check centring, cleanliness and surroundings

Remove obstacle

TABLE 11

STATUS OUTPUT

Active

Active

Active

Alarm

more frequent (half a second); the light flashes twice with a second’s
pause between flashes. The diagnostic flashing itself is signalled by the
courtesy light.

5.6.2 – Flashing and courtesy lights

During the manoeuvre the flashing light flashes once every second, while
the courtesy light is always on; when something is wrong the flashes are

74

A

Quick flashes

2 flashes
1 second’s pause
2 flashes

3 flashes
1 second’s pause
3 flashes

4 flashes
1 second’s pause
4 flashes

Status

Triggering of a photocell

Activation of the “motor force” limiting device

Activation of the STOP input

Action

At the starting of the manoeuvre, one or more photocells do not
enable it; check to see if there are any obstacles.
If there is an obstacle impeding the movement no action is
required.

During the movement, the door experienced excessive friction;
identify the cause.

During the movement the STOP input was activated; identify the
cause.

TABLE 12

73

E

A

C

B

D

F

23

LED OK [A]

Off

On

One flash every second

2 long flashes

Series of flashes separated
by a pause

Status

Malfunction

Serious malfunction

Everything OK

The status of the inputs has changed

Action

Make sure there is power supply; check to see if there are blown
fuses; identify the cause of the malfunction and then replace
blown fuses with others having the same characteristics.

There is a serious malfunction; try switching off the control unit for
a few seconds; if the condition persists it means there is a mal­function and the electronic board has to be replaced.

Normal operation of control unit

This is normal when there is a change in one of the inputs: OPEN,
STOP, triggering of photocells or the radio transmitter is used.

TABLE 13

It corresponds to the flashing and courtesy light’s signal. (See Table 12)

LED STOP [B]

Off

On

One flash every second

Status

Cutting in of the STOP input

Everything OK

No device has been memorized or an error
has occurred in the memorised devices

Action

Check the devices connected to the STOP input

STOP input active

There may be faulty devices; check and, if necessary, try repeat­ing the recognition process (see paragraph 3.5.1 “Recognition of
door’s opening and closing positions”).

LED P1 [C]

Off

ON

Series of quick flashes,
from 1 to 4

Status

Everything OK

Memorization in Mode 1

Memorization in Mode 2

Action

No memorization in progress

This is normal during memorization in mode 1 which lasts maxi­mum 10s

This is normal during memorization in mode 2 which lasts maxi­mum 10s

LED P2 [D]

Off

On

One flash every second

2 flashes per second

Status

Everything OK

Everything OK

The recognition phase has not been per ­formed or there is a data error in the me ­mory

Device recognition stage in progress

Action

“Slow” speed selected

“Fast” speed selected

Repeat the position recognition procedure again (see paragraph

3.5.1. “Recognition of the door’s open and closed positions”)

It indicates that the search for the connected devices is under
way (this stage lasts a few seconds at the most)

LED P3 [E]

Off

On

One flash every second

2 flashes per second

Status

Everything OK

Everything OK

The recognition phase has not been per ­formed or there is a data error in the me ­mory

Action

Cyclic operation

Complete cyclic operation

Repeat the position recognition procedure again (see paragraph

3.5.1. “Recognition of the door’s open and closed positions”)

Position recognition procedure in progress

5.6.3 – Control Unit

On the control unit there is a set of LED’s each of which can give special
indications both during normal operation and in case of malfunctions.

75

C

E

B

A

D

24

TECHNICAL CHARACTERISTICS

Model GD0K

DESCRIPTION

Type

Adopted technology

Peak thrust
[corresponds to the force
necessary to move a leaf]
Nominal torque
[corresponds to the force
necessary to keep a leaf moving]
Speed under no load
[corresponds to if “Fast” speed is
programmed]
Nominal torque speed
[corresponds to if “Fast” speed is
programmed]
Maximum frequency of cycles
Maximum continuous cycle time
Working Limits

Power supply GD0
Power supply GD0/V1
Max. absorbed power
Insulation class
Emergency power supply
Flashing light output
Courtesy light
“PHOTO” input
“OPEN” input
“STOP” input

Radio aerial input
Maximum cable length

Remote control possibility

TX4 transmitters memorized
Range of TX4 transmitters

Programmable functions

Self-programmed functions

Operating ambient
temperature
Not suitable for use in acid, saline
or potentially explosive atmosphere
Mounting
Protection class
Dimensions / weight

STEP 6

The product GDX... is produced by Nice S.p.a. (TV) I. Mhouse is a commercial trademark owned by Nice S.p.a.
Nice S.p.a., in order to improve its products, reserves the right to modify their technical characteristics at any time without prior notice. In any case, the

manufacturer guarantees their functionality and fitness for the intended purposes.
Note: all the technical characteristics refer to a temperature of 20°C.

DATA

Electromechanical gearmotor for automated sectional and overhead doors incorporating a control
unit complete with radio receiver for “TX4” transmitters.
24Vdc motor, helical teeth reduction gear; drive guide with timing belt and mechanical release A
transformer inside the motor but separated from the control unit reduces mains voltage to the
nominal voltage of 24Vdc used by the automation system.

9.9Nm
[550N]

4.95Nm
[275N]

103rpm

[0.14m/s]

The control unit allows 2 speeds to be programmed equal to approx. 100% - 60%.

52rpm

[0.07m/s]

30 complete cycles per day (the control unit allows up to a maximum of 10 cycles per hour)
4 minutes (the control unit limits the continual function to 4 minutes at nominal torque)
Its structural characteristics make it suitable for use on sectional and overhead door with counter­weights within the following parameters:

- Sectional doors: 240cm max. high - 300cm (7.2 m

2

) max. wide - maximum torque 55kg

- Overhead doors: 240cm max. high - 270cm (6.48m2) max. wide - maximum torque 55kg
230Vac (±10%) 50/60Hz
120Vac (±10%) 50/60Hz

200W

1 (a safety grounding system is required)

--­For visual signalling devices with 12V lamp, maximum 21W
12V lamp maximum 10 WBA15 socket (automotive type lamp), stays on 60s after the manoeuvre
For safety devices such as the PH0 photocell
For normally open contacts (the closing of the contact causes the “OPEN” command)
For normally open contacts and/or for 8.2KΩ constant resistance, or normally closed contacts
with recognition of the “normal” status (any variation from the memorized status causes the
“STOP” command)
52Ω for RG58 or similar type of cable
Mains power supply: 30m; inputs/outputs: 20m with aerial cable preferably shorter than 5m
(observe the directions regarding the minimum gauge and type of cable)
with TX4 transmitters, the control unit can receive one or more of the following commands:
“OPEN”, “Open partially”, “Open only” and “Close only”
Up to 150 if memorized in mode 1
From 10 to 50 m without aerial, from 50 to 100 m with aerial incorporated in the FL1 flashing light.
The range can vary if there are obstacles or electromagnetic disturbances, and is affected by the
position of the receiving aerial incorporated in the flashing light.
“Cycle” or “Complete cycle” operation (automatic closing) “Slow” or “fast” motor speed.
The pause time in the “complete cycle” mode can be set at 15, 30, 60 seconds.
The type of pedestrian opening can be selected from 4 modes. The sensitivity of the obstacle
detection system can be selected from 3 levels.
The operation of the “Open” command can be selected from 3 modes
Automatic detection of the type of “STOP” device (NO or NC contact or 8.2KΩ resistance) Auto­matic detection of door length and calculation of deceleration points

-20 ÷ 50°C

NO

Horizontal

IP40

390 x 210 x h 130mm / 3kg

25

PH0 Photocells (optional)

DESCRIPTION

Type

Adopted technology
Detection capacity

TX transmission angle
RX reception angle
Useful capacity

Power supply/output

Maximum absorption
Maximum cable length
Operating ambient temperature
Use in acid, saline or potentially explosive
atmosphere
Mounting
Protection class
Dimensions / weight (TX e RX)

DATA

Presence detector for automated gates and doors (type D according to EN standard 12453) con­sisting of a “TX” transmitter and an “RX” receiver.
Optical, by means of direct TX-RX interpolation with modulated infrared ray.
O

paque objects located on the optical axis between TX and RX, larger than 50mm and moving slower than

1.6m/s

approx. 20°

approx. 20°
Up to 10m for maximum TX-RX misalignment of ± 5° (the device can signal an obstacle even in
the case of adverse weather conditions)
without jumper 24Vac/Vcc limits 18-35Vcc, 15-28Vac
with jumper 12Vac/Vcc limits 10-18Vcc, 9-15Vac
25 mA RX, 30mA TX = 55 mA per torque
Up to 20 m (observe the directions regarding the minimum gauge and type of cable)

-20 ÷ 50°C

No

Vertical, wall-mounted

IP44

95 x 65 h 25mm / 65g

KS1 Key-Operated Selector Switch (optional)

DESCRIPTION

Type

Adopted technology

Tamper-proof

Security lock
Power supply/contacts

Operating ambient temperature
Use in acid, saline or potentially explosive
atmosphere
Mounting
Protection class
Dimensions / weight

DATA

Key-operated double switch suitable for control of automatic gates and doors. Illuminated for
night operation.
Activation protected by a lock, the insertion and clockwise turning of the key causes the closing of
a contact, the counter-clockwise turning of the key causes the closing of the second contact;
spring-loaded for return of key to the middle position.
Il The selector switch can be opened to access the connections only by inserting the key and
turning it in either direction.
Key with 450 different key numbers.
The device can only be connected to the “OPEN” input terminals 3-4 and 5-6 “STOP” of the
MHOUSE automation control units to which the command signals are sent and draws the power
supply for night lighting.

-20 ÷ 50°C

NO

Vertical, wall-mounted

IP44

95 x 65 h 36mm / 135g

FK1 Flashing light (optional)

DESCRIPTION

Type

Adopted technology
Lamp
Power supply/contacts

Operating ambient temperature
Use in acid, saline or potentially explosive
atmosphere
Mounting
Protection class
Dimensions / weight

DATA

Flashing signalling light for automatic gates and doors.
The device incorporates a receiving aerial for remote control.
Visual signalling device with 12V 21W lamp, controlled by MHOUSE automation control units.
12V 21W BA15 socket (automotive type lamp).
The device can only be connected to the “FLASH” output terminals 9-10 and “ARIEL” input 1-2 of
the MHOUSE automation control units.

-20 ÷ 50°C

NO

Horizontal surface-mounted or vertical wall-mounted

IP44

120 x 60 h 170mm / 285g

26

TX4 transmitters

DESCRIPTION

Type
Adopted technology
Frequency
Coding
Buttons

Irradiated power
Power supply
Battery life

Operating ambient temperature
Use in acid, saline or potentially explosive
atmosphere
Protection class
Dimensions / weight

DATA

Radio transmitters for remote control of automatic sectional and overhead doors
AM OOK coded modulation of radio carrier

433.92 Mhz
Rolling code with 64 Bit code (18 billion million combinations)
4, each button sends a command and can be used for the different controls of the same control
unit or to control different control units.

approx. 0,0001W

6V +20% -40% with two CR2016 type lithium batteries
3 years, estimated on the basis of 10 commands/day, each lasting 1s at 20°C (at low tempera­tures the efficiency of the batteries decreases)

-20 ÷ 50°C

No

IP40 (suitable for use indoors or in protected environments)

72 x 31 h 11mm / 18g

(*) This item must be drafted by the person who has programmed the sys­tem.

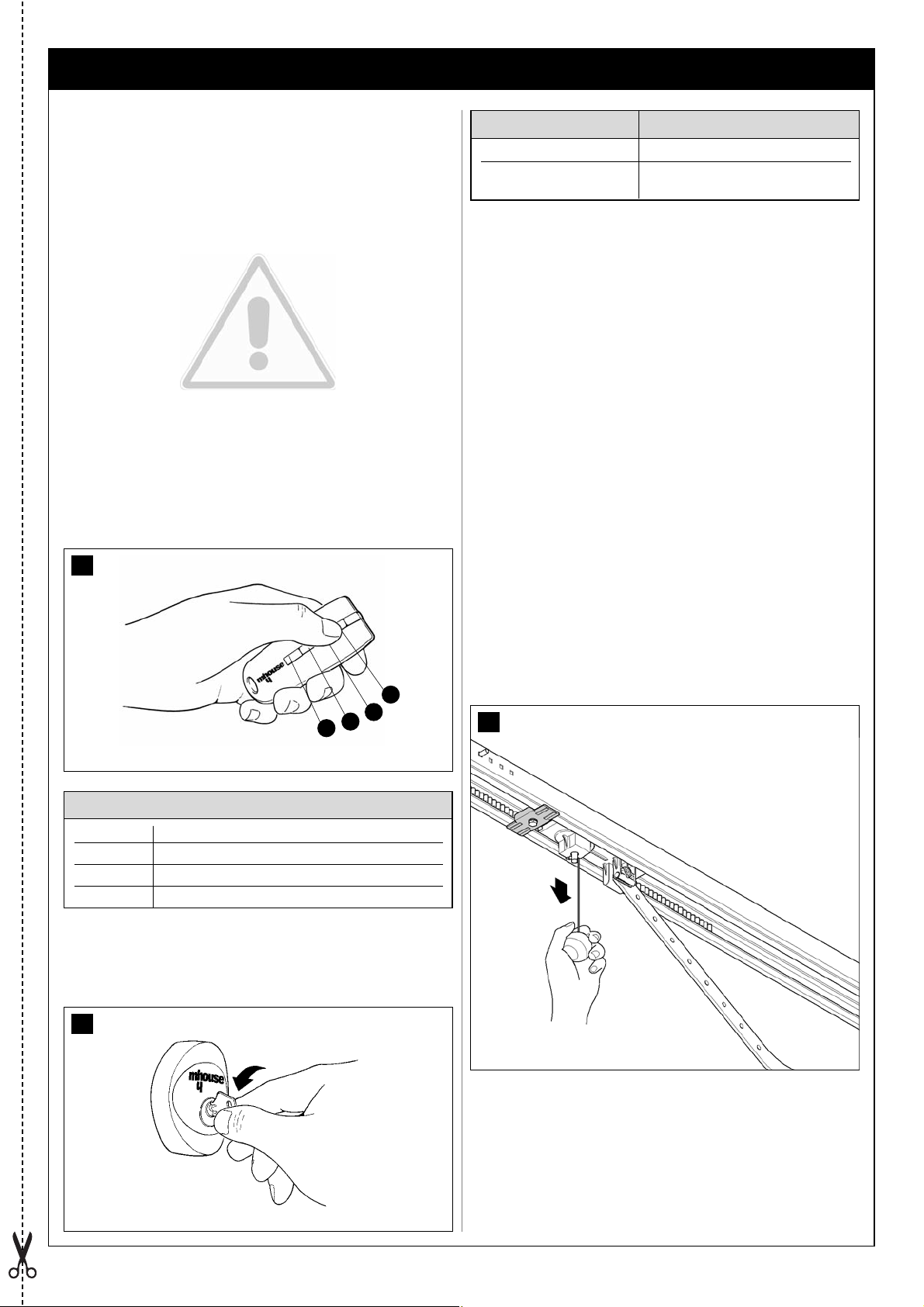

Control with safety devices out of order

If the safety devices are out of order or malfunctioning, it is still possible to
control the door.

1 Operate the gate control device (remote control or key-operated selec­tor switch). If the safety devices enable the operation, the door will open
normally, otherwise: actuate the control again within 3 seconds and keep
it actuated.

2 After approximately 2s the gate will start moving in the “man present”
mode, i.e. so long as the control is maintained the gate will keep moving;
as soon as the control is released the door will stop.

If the safety devices are out of order the automation must be repaired as
soon as possible.

Gearmotor release

The gearmotor is equipped with a mechanical system which allows the
door to be opened and closed manually (i.e. as if GD0 were not present).

The manual operation must be resorted to in case o power failures or sys­tem malfunctions.

1 Pull the release cord until you hear the carriage being released.

2 At this point you can move the door manually.

3 To restore the functionality of the automation system, move the door

back in position until you hear the carriage being engaged.

The activation of the manual release may cause an uncontrollable
movement of the door if the springs are weak or broken, or if the
door is off-balance.

7.1.3 – Maintenance Operations to Be Performed by the User

The operations that must be periodically performed by the user are listed
below.

• Use a slightly damp cloth (not wet) to clean the surface of the
devices. Do not use any substances containing alcohol, benzene,
diluents or other flammable substances. The use of these sub­stances could damage the devices, start fires or generate electric
shocks.

I

STEP 7

This guide should be stored in an accessible location and made available
to all users of the automation.

7.1.1 – Safety regulations

• Keep an eye on the moving door and keep at a safe distance until
the door has completely opened or closed; do not cross the opening
until the door has completely opened and stopped.

• Do not allow children to play near the door or with its controls.

• Keep the transmitter out of the reach of children.

• Stop using the automation system immediately if you notice any­thing abnormal (strange noise or jerky movements); failure to
observe this warning may result in serious danger and accidents.

• Do not touch any components while they are moving.

• Have periodic checks made according to the instructions provided
in the maintenance schedule.

• Maintenance operations and repairs can only be performed by
qualified technicians.

7.1.2 – Door Control

With radio transmitter

The radio transmitter is ready for use and the four buttons have the fol­lowing functions:

(*) This table must be prepared by the person who has programmed the
system:

With selector switch (optional accessory)

The selector switch has two positions, with automatic return to the centre.

OPERATING GUIDE

76

T1

T2

T3

T4

Function (*)

T1 Button

T2 Button

T3 Button

T4 Button

77

Action

Rotated to the right: “OPEN”

Rotated to the left: “STOP”

Function

(*)

It stops the movement of the
sectional or overhead door

78

II

• Disconnect the power supply to the automation before you pro­ceed to remove leaves and debris, to prevent anyone from activating
the door.

• Periodically check the system, especially cables, springs and sup­ports, for possible imbalance or signs of ware or damage. Do not use
the automation system if repair or adjustment is necessary, in as
much that a fault or an incorrectly balanced door could cause injury.

7.1.4 – Replacing the Remote Control Battery

If the range of the remote control is significantly diminished and the light
emitted by the LED is feeble, the remote control battery is probably
exhausted. The remote control houses two CR2016 type lithium batteries.
To replace them proceed as follows:

1 Open the bottom by pulling it.

2 Insert a small pointed tool in the slit and prise the batteries out.

3 Insert the new battery, observing the polarity (the “+” symbol towards

the bottom ).

4 Close the bottom until it clicks.

The batteries contain polluting substances: do not dispose of them
together with other waste but use the methods established by local
regulations.

7.1.5 – Lamp replacement

Before proceeding, disconnect GD0 from the power supply.

1 Unscrewing screw [A] and pushing button [B], open the lid.

2 Push the lamp up and rotate to remove. Insert a new 12V / 10W lamp

with BA15 socket.

79

80

83

81

82

A

B

III

CE declaration of conformity

and declaration of incorporation of ‘partly completed machinery’

Declaration in accordance with the Directives: 1999/5/EC (R&TTE), 2006/95/EC (LVD); 2004/108/EC (EMC); 2006/42/EC (MD)

GD0 is produced by NICE S.p.a. (TV) I; MHOUSE is a commercial trademark owned by Nice S.p.a

Note - The contents of this declaration correspond to declarations in the official document deposited at the registered offices of Nice S.p.a. and in particular to the last
revision available before printing this manual. The text herein has been re-edited for editorial purposes. A copy of the original declaration can be requested from Nice
S.p.a. (TV) I.

Number: 213/GD0 Revision: 2 Language: EN

Manufacturer’s Name: NICE S.p.A.
Address: Via Pezza Alta n° 13, 31046 Rustignè di Oderzo (TV) Italy
Person authorised to draw up
technical documentation: Mr. Oscar Marchetto
Type of product: electromechanical gearmotor with built-in control unit
Model / Type: GD0
Accessories: TX4, PH0, KS1, FL1

The undersigned, Luigi Paro, in the role of Managing Director, declares under his sole responsibility, that the product specified
above conforms to the provisions of the following directives:

• DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND COUNCIL of 9 March 1999 regarding radio equipment and
telecommunications terminal equipment and the mutual recognition of their conformity according to the following harmonised
standards:

• Health protection: EN 50371:2002;

• Electrical safety: EN 60950-1:2006

• Electromagnetic compatibility: EN 301 489-1 V1.8.1:2008; EN 301 489-3 V1.4.1:2002

• Radio range: EN 300 220-2 V2.3.1:2010

• Directive 2006/95/EC OF THE EUROPEAN PARLIAMENT AND COUNCIL of 12 December 2006 regarding the approximation of
member state legislation related to electrical material destined for use within specific voltage limits, according to the following
harmonised standards:
EN 60335-1:2002 + A1:2004 + A11:2004 + A12:2006 + A2:2006 + A13:2008
EN 60335-2-95:2004

• DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND COUNCIL of 15 December 2004 regarding the approxima­tion of member state legislation related to electromagnetic compatibility, repealing directive 89/336/EEC, according to the fol­lowing standards:
EN 61000-6-2:2005, EN 61000-6-3:2007

The product also complies with the following directives according to the requirements envisaged for “quasi machinery”::
Directive 2006/42/EC THE EUROPEAN PARLIAMENT AND COUNCIL of 17 May 2006 regarding machinery and which amends

directive 95/16/EC (recasting) according to the following harmonised standards:

• It is hereby declared that the pertinent technical documentation has been compiled in compliance with appendix VII B of direc-

tive 2006/42/EC and that the following essential requirements have been observed: 1.1.1- 1.1.2- 1.1.3- 1.1.5- 1.2.1- 1.2.2-

1.2.6- 1.3.1- 1.3.2- 1.3.3- 1.3.4- 1.3.7- 1.4.3- 1.5.1- 1.5.4- 1.5.5- 1.5.6- 1.5.7- 1.5.8- 1.5.10- 1.5.11- 1.5.13-1.5.14- 1.5.15-

1.5.16- 1.6.1- 1.6.2- 1.6.3- 1.6.4- 1.7.1- 1.7.1.1- 1.7.1.2- 1.7.3- 1.7.4- 1.7.4.1- 1.7.4.2- 1.7.4.3.

• The manufacturer undertakes to transmit to the national authorities, in response to a motivated request, all information regarding

the “quasi-machine", while maintaining full rights to the related intellectual property.

• Should the “quasi machine” be put into service in a European country with an official language other than that used in this decla-

ration, the importer is obliged to arrange for the relative translation to accompany this declaration.

• The “quasi-machine” must not be used until the final machine in which it is incorporated is in turn declared as compliant, if appli-

cable, with the provisions of directive 2006/42/EC.

The product also complies, within the constraints of applicable parts, with the following standards:
EN 13241-1:2003, EN 12445:2002, EN 12453:2002, EN 12978:2003

Oderzo, 17.03.10

Luigi Paro

(Managing Director)

IV

DICHIARACTION CE OF CONFORMITY

According to Directive 2006/42/CE, ANNEXE II, part A (CE declaration of conformity for machines)

This document must be printed in the official language of the country where the product is installed.

The undersigned / Company

(company name of the person responsible for commissioning of the power-operated sectional or up-and-over door)

(address)

Declares under his/her sole responsibility that:

The automation: ❏ power operated sectional

❏ overhead door

Serial number:

Year of manufacture:

Location (address):

it complies with all provisions concerning the following directives:

2006/42/CE Machine Directive

2004/108/CE Electromagnetic Compatibility Directive

2006/95/CE Low Voltage Directive

99/5/CE “R&TTE” Directive

and the provisions of the following harmonised standards:

EN 12445 “Industrial, commercial and garage doors and gates.

Safety in use of power operated doors - Test methods”

EN 12453 “Industrial, commercial and garage doors and gates.

Safety in use of power operated doors - Requirements”

Name Signature

(of the person authorised to write the declaration)

Date Location

Name Address

(of the person authorised to prepare the technical documentation)

Mhouse is a commercial trademark owned by Nice S.p.a.

Nice S.p.a.
Via Pezza Alta, 13 - Z.I. Rustignè

31046 Oderzo (TV), Italia
Tel. [phone]
Fax [phone]
