MGG Solar Powered LED Lighting System
Operator’s Manual for Model SP-001

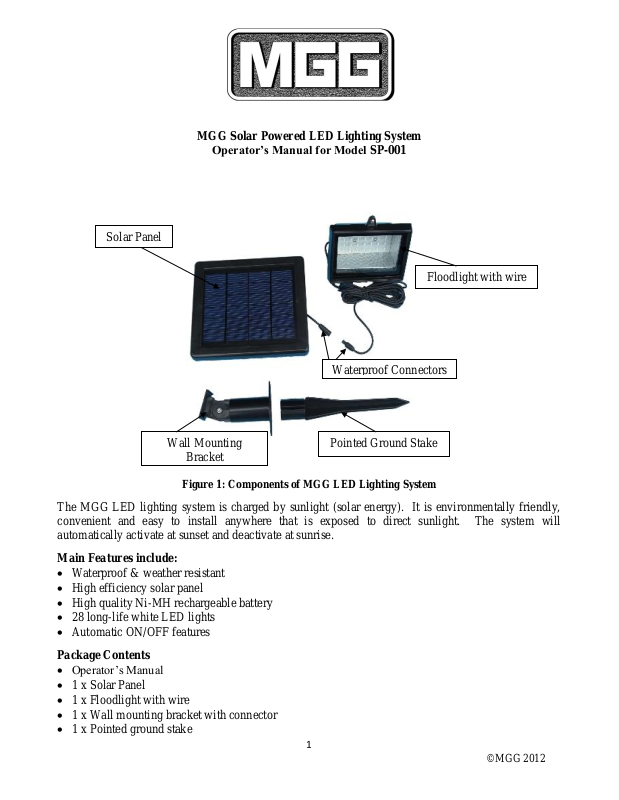

Figure 1: Components of MGG LED Lighting System
The MGG LED lighting system is charged by sunlight (solar energy). It is environmentally friendly,
convenient and easy to install anywhere that is exposed to direct sunlight. The system will
automatically activate at sunset and deactivate at sunrise.
Main Features include:
Waterproof & weather resistant
High efficiency solar panel
High quality Ni-MH rechargeable battery
28 long-life white LED lights
Automatic ON/OFF features
Package Contents
Operator’s Manual
1 x Solar Panel
1 x Floodlight with wire
1 x Wall mounting bracket with connector
1 x Pointed ground stake
1
©MGG 2012
Warranty
Waterproof Connector
Switch
Site for Wall-Mounting Bracket
MGG Solar Powered LED Lighting Systems are warranted against faulty manufacture for a period of
12 months. This is a “return to base” warranty and if the unit cannot be repaired immediately it will be
replaced with a new one. The customer will cover the cost of returning the unit to MGG and MGG will
cover the cost of returning the repaired/replaced unit to the customer.
MGG Operator’s Manual
This manual is designed to ensure you achieve optimum results from your MGG Solar Powered LED
Lighting System. To ensure maximum output with minimal complications, we advise you to read the
guidelines carefully and install the unit as per the instructions.
Contents
Installing the MGG Solar Powered LED Lighting System
- Siting the Solar Panel
- Installing the Floodlight
- Turning the system ON
Caution
Maintenance
- Solar Panel
- Solar Battery
Contact information
Installing the MGG Solar Powered LED Lighting System
Siting the Solar Panel
i) Choose a location that receives maximum sunlight during daytime hours. Avoid shaded areas.
ii) Ideally, the Solar Panel should be positioned NORTH-facing in the southern hemisphere and
SOUTH-facing in the northern hemisphere. The Solar Panel and Floodlight are both waterproof and
weather-resistant and should not be affected by exposure to rain, snow or alterations in temperature.
iii) Avoid locations which are close to other light sources e.g. street lights, porch lights, which will
interfere with the automatic activation at sunset and deactivation at sunrise.
iv) The Solar Panel can be wall-mounted using the Wall-Mounting Bracket, as shown in Figure 1,
which slides onto the reverse side of the Solar Panel, see Figure 2. Alternatively, it can be
positioned in the ground by adding the Pointed Ground Stake to the Wall-Mounting Bracket. This
can then be pushed into soft earth until it is firmly in place.
©MGG 2012
Figure 2: Reverse-side of Solar Panel
2
Installing the Floodlight
Position the Floodlight in the desired place using the wall bracket provided. It may be mounted onto a
wall or a wooden stake to keep it above ground level.
Turning the system on
Once fully installed, attach the waterproof connector of the Solar Panel to that of the Floodlight – see
Figure 1. Press the switch on the reverse of the Solar Panel – see Figure 2. The system is now
functioning.
NB: Charge the battery for at least 8 hours BEFORE first use.
Caution
Ensure the switch is turned ON when the light is required to work
The Floodlight will not work satisfactorily if it is mounted close to existing lights such as porch or
street lights which may prevent the automatic ON/OFF function of the LED lighting system
For optimum effectiveness, ensure the Solar Panel is sited in an area which receives maximum
sunlight during daytime hours. Avoid shaded areas
Position the Solar Panel to face the North in the southern hemisphere and the South in the northern
hemisphere
Maintenance
For a safe reliable solar security lighting system, we recommend you follow these helpful tips:
Solar Panel
The solar panel must be cleaned regularly to prevent accumulation of dust/dirt and scratches
developing on the surface
Solar battery
The AA Ni-MH 2000mAh battery included in this product is rechargeable. However, like all
rechargeable batteries, it will eventually need to be replaced as follows:
i) On the Solar Panel box, unscrew the 6 connecting screws and remove base plate
ii) Remove existing battery and replace with a new AA Ni-MH rechargeable battery of similar capacity
iii) Replace base plate and screws
NB: If the Solar Powered LED Lighting System is to be stored, or is not in use for a prolonged period
of time, the battery must be removed to avoid permanent damage to it.
Contact Information
Should you have any questions or concerns please do not hesitate in contacting the team at MGG:
Website: www.MGG.co.nz
Email: info@MGG.co.nz
