Pulsar
TM
EX20 / EX30
EXB20/30
Manuel d'utilisation
User Manual
Manual de instrucciones
…
!
…
+
–
…
…
%
+
–
…
…
%
Pulsar EX20
Thank you for purchasing the EX
Uninterruptible Power Supply.
The EX has been designed to provide
many years of trouble-free operation.
Please review the manual which has
been prepared to provide you with all
the necessary information concerning
the installation and use of your EX.
For service call 1-800-523-0142.
Sincerely,
MGE UPS SYSTEMS
Federal Communications
Commission (FCC) Statement
Note: this equipment has been tested and
found to comply with Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when equipment is operated in
a residential environment. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed and
used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Properly shielded
and grounded cables and connectors must
be used in order to meet FCC emission
limits.
Nous vous remercions pour l’achat de
l'Alimentation sans interruption EX.
Nous vous invitons à lire ce manuel en
souhaitant qu’il apporte tous les
éléments nécessaires à l’installation et
à l’utilisation de votre onduleur EX.
Appelez le numéro de téléphone 714513-7349.
Nous vous prions d’agréer, Madame,
Monsieur, nos sentiments les meilleurs.
MGE UPS SYSTEMS
Le agradecemos la compra del SAI EX.
Lo invitamos a leer este manual
esperando que éste le brindará todos
los elementos necesarios para la
instalación y la utilización de su SAI
EX.
Contáctenos al siguiente número de
teléfono 714-513-7349.
Le saludamos a Ud. muy cordialmente.
MGE UPS SYSTEMS
0
Pulsar EX : 51032278XT/AB
MGE UPS SYSTEMS
note
c this equipment has been tested and found to comply with Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
service and factory repair - call 1 - 800 - 523 - 0142
c direct questions about the operation, repair, or servicing of this equipment to MGE UPS SYSTEMS, Inc. Customer Support Services. Include
the part number, assembly number, and serial number of the unit in any correspondence. Should you require factory service for your equipment,
contact MGE UPS SYSTEMS, Inc. Customer Support Services and obtain a Return Materials Authorization (RMA) prior to shipping your unit.
Never ship equipment to MGE UPS SYSTEMS, Inc. without first obtaining an RMA.
proprietary rights statement
c the information in this manual is the property of MGE UPS SYSTEMS, Inc., and represents a proprietary article in which MGE UPS SYSTEMS,
Inc., retains any and all patent rights, including exclusive rights of use and/or manufacture and/or sale. Possession of this information does not
convey any permission to reproduce, print, or manufacture the article or articles shown herein. Such permission may be granted only by specific
written authorization, signed by an officer of MGE UPS SYSTEMS, Inc.;
c IBM, PC-AT, ES/9000, and AS/400 are trademarks of International Business Machines Corporation. Other trademarks that may be used herein
are owned by their respective companies and are referred to in an editorial fashion only.
two years warranty policy
c MGE UPS SYSTEMS, Inc. (herein after referred to as MGE) warrants Topaz and Pulsar equipment manufactured by MGE to be free from
defects in materials and workmanship for a period of two years from date of purchase. If within such period purchaser discovers defective item
and promptly notifies MGE in writing, MGE shall repair or replace the item at the Company's option. This warranty shall not apply:
v to equipment not manufactured by MGE,
v to equipment repaired or altered by others than MGE,
v to equipment subjected to negligence, accident, or damage by circumstances beyond MGE's control, or to improper operations, maintenance,
or storage, or to other than normal use or service.
With respect to equipment not manufactured by MGE, the Warranty obligations of MGE shall in all respects conform and Warranties do not cover
reimbursement for labor, transportation, removal, installation, or other expenses which may be incurred in connection with repairs or replacement.
Except as may be expressly provided in an authorized writing by MGE, MGE shall not be subject to any other obligations or liabilities whatsoever
with respect to equipment manufactured by MGE or service rendered by MGE. After Sales Service Support Line: 1-800-523-0142.
MGE UPS SYSTEMS
Pulsar EX : 51032278XT/AB
MGE UPS SYSTEMS, Inc.
51032278XT/AB
Postal address:
1660 Scenic Avenue
Costa Mesa, CA 92626
714-557-1636
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions for Models EX20 / EX30 / EXB20/30 that should be followed
during installation and maintenance of the UPS batteries.
c This equipment can be operated by any
individual, with no previous training;
c CAUTION: Risk of electric shock, even
with unit disconnected from AC power
source. Hazardous voltage still may be
present through operation from battery.
The battery supply should be disconnected
at the plus and minus terminals using the
quick disconnect connectors of the battery
when maintenance or service work inside
the UPS is necessary.
c The UPS contains voltages which are
potentially hazardous. All repairs should
be performed by qualified service
personnel only;
c do not attempt to power the UPS from
any receptacle other than a 2-pole 3-wire
grounded receptacle;
c do not place Pulsar near water or in
environment of excessive humidity;
c do not allow liquids or any foreign objects
to get inside Pulsar;
c do not block air vents in the back of
Pulsar;
c do not plug household appliances such as
hair dryers to Pulsar receptacles;
c do not place Pulsar in direct sunlight or
close to heat-emitting source;
MGE UPS SYSTEMS
c the AC power receptacle should be near
the equipment and easily accessible. To
isolate Pulsar from AC input, remove the
input power cord from the AC power
receptacle;
c if Pulsar is to be stored for a long time, it
is recommended to recharge the batteries
(by connecting AC power source to Pulsar,
switch "ON" or "OFF"), once a month for 24
hours to avoid a full batteries discharge;
c Pulsar contains batteries that should be
disposed of or recycled in accordance with
local applicable laws;
c prior to installation, store Pulsar in a dry
location;
c storage temperatures must be between
–4°F (-20°C) and +113°F (+45°C);
c servicing of batteries should be performed
or supervised by personnel knowledgeable
of batteries and the required precautions.
Keep unauthorized personnel away from
batteries;
c when replacing the batteries, use the
same number and the following type of
batteries:
v Pulsar EX20: 8 x 12V - 6.5Ah,
v Pulsar EX30 : 8 x 12V - 7.2Ah;
c ~ : alternating current supply symbol;
Pulsar EX : 51032278XT/AB
c CAUTION: do not dispose of battery or
batteries in a fire. The battery may explode;
c CAUTION: do not open or mutilate the
battery or batteries, released electrolyte is
harmful to the skin and eyes. It may be toxic;
c CAUTION: a battery can present a risk of
electric shock and high short circuit current.
The following precautions should be
observed when working with batteries:
v remove watches, rings or other metal
objects,
v use tools with insulated handles,
v wear rubber gloves, boots and safety
glasses;
c please dispose of the packaging in
accordance with the applicable legislation.
i
ENGLISH
introduction
In critical situations, count on MGE UPS
SYSTEMS Pulsar EX20 and EX30
uninterruptible power supplies (UPS). Their
protection keeps your data intact and
accessible.
Pulsar EX20 and EX30 UPSs ensure top
quality power around the clock, and continue
operations during power failures. An
intelligent microprocessor detects any
operating anomalies of the UPS and triggers
an alarm if corrective action is necessary.
In addition to the high-technology aspect of
these UPSs, you can count on backup from
our staff, a team of specialists, around the
corner from you, throughout the world. It’s
no accident that MGE UPS SYSTEMS is the
world leader in UPS protection. The UPS
shall provide power factor correction to
prevent harmonic distorsions and current
created by non-linear critical loads from
polluting the incoming AC line.
UPS includes:
c batteries,
c power factor correction / battery charger,
c DC to DC converter,
c DC to AC Converter,
c bypass switch,
c input/output filters.
The MGE Pulsar UPS is capable of
providing the following modes of operation:
c ON LINE MODE which is the primary
mode of operation in which the critical load
is continuously supplied by the inverter and
protected from all forms of power line
disturbances:
AC
IN
EMI
filter
power
factor
corrector
rectifier
charger
DC / DC
micro
control and
DC to AC
inverter
monitored
batteries
critical
system
c BYPASS MODE which is a default mode
in the event of an inverter failure or overload
in which the critical load is supplied AC
through EMI/RFI filter:
AC
IN
EMI
filter
power
factor
corrector
rectifier
charger
DC / DC
micro
control and
DC to AC
inverter
monitored
batteries
critical
system
application of Pulsar EX20 and
EX30:
Network servers and interconnection
devices are very sensitive to electrical
disturbances of all types, including outages,
voltage sags, brownouts, spikes, etc. The
origins of the disturbances also vary,
ranging from atmospheric phenomena, to
nearby devices generating interference such
as elevators, photocopy machines and
machine tools, not to mention human errors,
like the accidental pulling out of power cords
or tripping of circuit breakers. The
consequences of these disturbances on
computer systems range from data losses to
hardware damage (power supplies, hard
disks).
Pulsar EX20 and EX30 are specially
designed to protect network servers and all
other interconnection devices that are
sensitive to electrical disturbances.
Pulsar EX20 and EX30 add fault-tolerance
to the utility supplying your sensitive
equipment.
Pulsar EX20 and EX30 are designed as
compact units and feature very quiet
operation. They can be installed under a
desk, and can also be installed in a rack
(see "options").
Pulsar EX20 and EX30 provide a stable
supply of clean power, long back-up time
during a utility outage (see table) and vast
information and control possibilities
according to the configuration selected.
Pulsar EX20 and EX30 On-Line technology
provides maximum protection and
availability of your workstations, server, and
network communication devices.
Pulsar EX20 and EX30 offer many functions
and characteristics designed to simplify
power management:
c automatic battery test carried out
periodically. In the event of a fault, a LED
provides advance warning for battery
replacement;
iv
Pulsar EX : 51032278XT/AB MGE UPS SYSTEMS

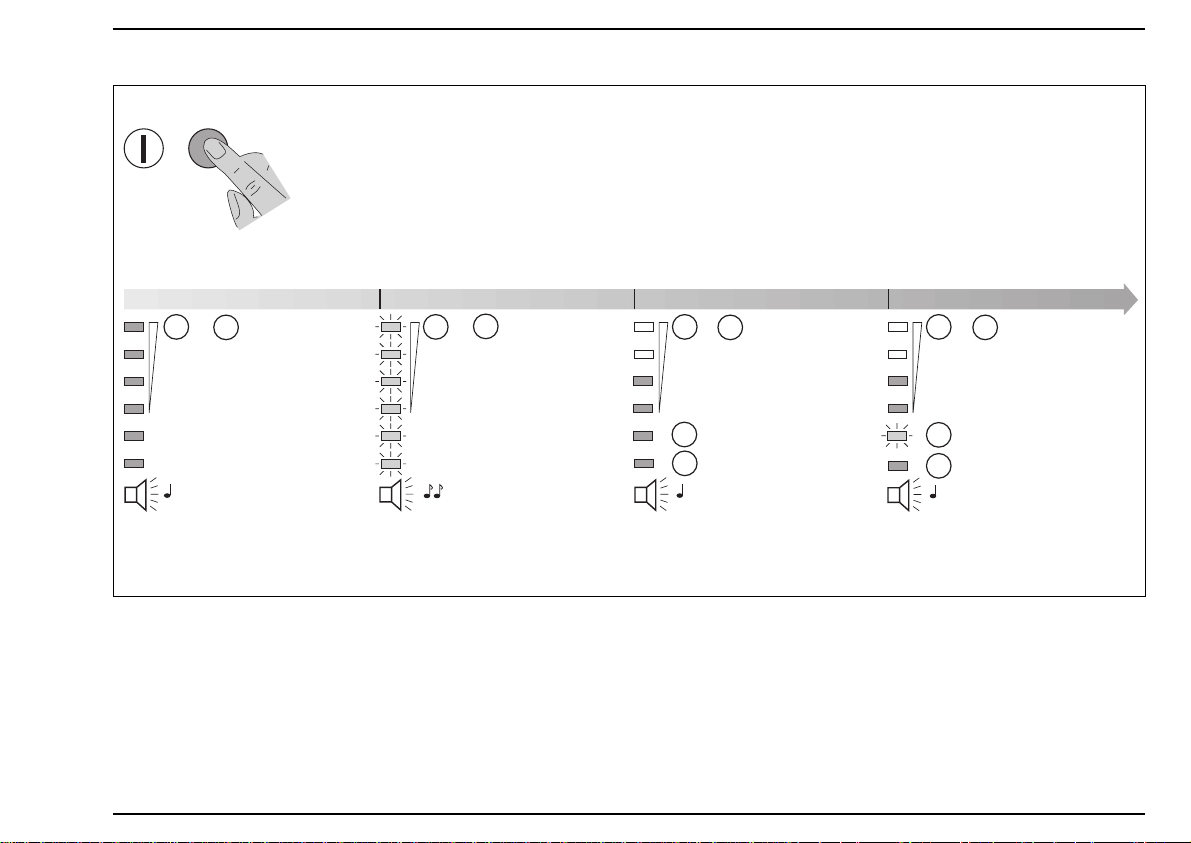

c front panel LEDs signal all types of faults
and alarms;
c Bar graph continuously indicates the
battery charge level or the critical load
power level;
c Pulsar EX20 and EX30 are environment
friendly: all components are recyclable and
an electronic power-saver device reduces
power consumption if the UPS is not active
for a period exceeding 5 minutes while on
battery back-up;
c EX Driver software provides rapid startup
of Pulsar EX20 and EX30 using the EX
Tuner configuration module. This module
adapts Pulsar EX20 and EX30 to user
preferences (battery test frequency, startup
and shutdown sequences, setting of battery
thresholds, etc.). Operation and monitoring
are ensured by the UPS Manager 3.1
module operating under Windows 3.1.
EX Driver connects to the RS 232 port on
the Pulsar EX20 and EX30 (see
"communication" section for further details);
c Solution-PacTM is a CD-ROM which
contains all the tools needed to supervise
your UPS.
options
c rack installation kit: this kit is used to
install Pulsar EX20 and EX30 in a 19-inch
rack;
c UM Sensor environment measurement
unit: compatible with SNMP and UPS
Manager 2 Unix and OS/2, or Solution
PacTM, this unit measures the temperature
and the relative humidity in the room where
the Pulsar is installed. Eight relay contacts
are provided to transmit signals to an
administration platform, in the form of
voltage-free contacts to enable monitoring of
(fire alarm, climate control fault, intrusion,
etc.);
c battery extension module: Pulsar
EXB20/30 battery extension modules
lengthen the battery time of the Pulsar
EX20/EX30 to meet your requirements;
c isolation transformer: input line cord
plugs into the Pulsar EX30 output
receptacle. Rating is 120V AC input, 208V/
240V AC 2.75 kVA output;
c maintenance bypass switch: enables
the user to continue supplying ac power to
the load while performing routine or
emergency maintenance.
additional communications
options:
c communication cables: these cables are
used for the file-closing utilities offered by a
number of network operating systems. They
are available for Novell NetWare, Microsoft
Lan Manager and Windows NT, IBM Lan
Server, Artisoft LANtastic, Banyan Vines,
Apple System 7, IBM AS400 and many
others;
c UPS Manager 2 communication
software: this software can be used for
automatic file closing on one or more
servers, as well as for remote UPS
shutdown and interrogation of all Pulsar
EX20 and EX30 operating parameters. It is
available for Novell NetWare, Microsoft Lan
Manager, IBM Lan Server, the main Unix
systems on the market (SCO, AIX, HP/UX,
OSF 1, etc.) VAX UMS and many others;
c SNMP administration: Merlin Gerin has
the most complete offering for the
administration of a group of UPSs using the
SNMP protocol with different networkconnection modules (UM Link adaptor or
proxy UM Agent software), supervision
modules (dedicated software under
Windows UM View or application for NMS
platforms such as HP OpenView or Novell
NMS) and a file-closing module (UM Client).
The MGE UPS SYSTEMS offering complies
with RFC 1628 specifications (IETF) and
was certified by the InterWorking Labs
during the Test Summit in June 1994;
c SNMP card: this card, inserted into your
unit, makes your UPS SNMP-compatible in
any environment;
c status information card: this option
provides you with 5 voltage-free contacts: on
battery, on by-pass, low battery, load on
UPS.
Contact your dealer for further information
on these options.
MGE UPS SYSTEMS
Pulsar EX : 51032278XT/AB
v
software supplied with
Pulsar EX20 and EX30
To meet the different operating
environments of your UPS, Pulsar EX
includes 2 MGE UPS SYSTEMS software
programs:
c EX-Driver software for Windows (on 3.5"
diskettes);
c Solution-PacTM network software (on CD-
ROM).
EX-Driver for Windows
EX Driver for Windows provides
communication with the UPS from a simple
Windows workstation. EX-Driver is
compatible with Windows 3.1x and Windows
95, for communication with the UPS via a
serial connection for various needs:
c personalization of the UPS operating
mode: the EX-Tuner utility, can be used to
change certain UPS operating parameters if
the standard factory settings are not ideal for
the operating conditions.
It is possible to modify the output voltage,
battery-test frequency, startup and shutdown
sequences, operation of automatic by-pass,
etc.;
c UPS monitoring from a Windows
workstation and system safety:
EX-Driver, UPS Manager 3 software, can
display the UPS status, warn the user if a
problem arises, and provide automatic
shutdown.
The many possibilities available include:
v supervision of operating parameters
through a graphic interface (display of
battery charge level, remaining battery time
and UPS load level). These values can be
recorded periodically in a log file,
v messages to the user in case of power
outage or UPS problem and recording of
events in a log file,
v during long-term power outages,
automatic shutdown of the system and of
the UPS, followed by automatic restart of the
UPS (system reboot) on return of utility
power,
v PowerShareTM functions.
Solution-PacTM for networks and
multi-station systems
Novell Netware, Windows NT, OS/2 Lan
Server, SCO Unix, etc.)
Protection by UPS is only complete and
effective if combined with powerful software
functions which warn users and the operator
of any power supply problem, automate
system shutdown, supervise and remotely
control the UPSs. MGE UPS SYSTEMS
created Solution-PacTM for this purpose.
Solution-PacTM combines all these functions
in a single CD-ROM, usable in local or
remote mode (SNMP), and covering the
main network environments.
Solution-PacTM is the ideal solution for
protecting networks and multistation
systems.
Solution-PacTM on a single CD-ROM
contains everything needed to safeguard
one or more systems and to supervise one
or more UPSs from a local or remote station.
Solution-PacTM includes SNMP UM-Agent,
UM-Client system shutdown software, and
UM-Console supervision software.
Solution-PacTM is a powerful and upgradable
software tool which provides all the
supervision, control and safety functions
associated with a UPS:
v graphic display of the UPS,
v remote control of the UPS and output
receptacles,
v user alarm of problems,
v recording of events in log files,
v automatic system shutdown and restart,
v local or remote supervision of UPSs and
ancillary devices,
v transmission of UPS information and
alarms to any SNMP supervisor.
vi
Pulsar EX : 51032278XT/AB MGE UPS SYSTEMS
general contents / sommaire général / sumario general
Pulsar presentation............................................................................................................................. 3
présentation de Pulsar
presentación de Pulsar
english....................................................................................................................................................................... 11
getting started / operation
français.................................................................................................................................................................... 19
mise en service / exploitation
español..................................................................................................................................................................... 27
puesta en servicio / explotación
Pulsar EX20 / EX30 / EXB20/30 presentation
présentation de Pulsar EX20 / EX30 / EXB20/30
presentación de Pulsar EX20 / EX30 / EXB20/30
MGE UPS SYSTEMS
Pulsar EX : 510322378T/AB
1
Pulsar EX : 51032278XT/ABMGE UPS SYSTEMS
2
Pulsar EX20/EX30 Pulsar EX20/EX30
front view / vue avant / vista delantera rear view / vue arrière / vista trasera
11
8
U-TALK
SITE WIRING
FAULT
CIRCUIT
BREAKER
30A/125V-T
INPUT
EXT. BATTERY
Vac OUT
I max. 30A
96V == 20A
Vac OUT
I max 15A
…
…
…
…
…
…
1a
1b
!
+
–
1c
10
1d
%
+
–
1e
%
1f
2
10
6
3
15A 120V-T
15A 120V-T
15A 120V-T
Pulsar EXB20/30
rear view / vue arrière / vista trasera
PLACE
14
STAMP
HERE
16
18
19
MGE UPS SYSTEMS
ATTN: CUSTOMER SUPPORT SERVICES
1660 SCENIC AVENUE
12
13
Volt: 96Vdc == 20A
CIRCUIT
BREAKER
120Vdc/40A
7a
s
s
e
r
p
r
?
e
t
s
e
FUSE
s
s
e
r
p
r
?
e
t
s
e
FUSE
s
s
e
r
p
r
?
e
t
s
e
FUSE
7b
7c
Volt: 96Vdc == 20A
21
20
22
COSTA MESA, CA 92626
solution-pac
17
9
5
23
3
Pulsar EX : 51032278T/AB MGE UPS SYSTEMS
4
Pulsar EX : 51032278T/AB
MGE UPS SYSTEMS
contents
getting started ..................................................................................................................12
location......................................................................................................................................12
preliminary checks ....................................................................................................................12
connections ............................................................................................................................... 12
communication .......................................................................................................................... 13
operation ............................................................................................................................. 14
starting up with utility power present ......................................................................................... 14
starting up with out utility power ................................................................................................ 15
operation on battery ..................................................................................................................16
overload .................................................................................................................................... 17
operating anomalies..................................................................................................................17
MGE UPS SYSTEMS Pulsar EX: E-51032278XT/AB
11
P
120VT
getting started
location
c observe the safety rules indicated at the
beginning of this document.
preliminary checks
c check that the "on/off" button " " on the
front is not pushed in;
c check that rating shown on the rating label
corresponds to the input voltage
specification and power requirement of the
load.

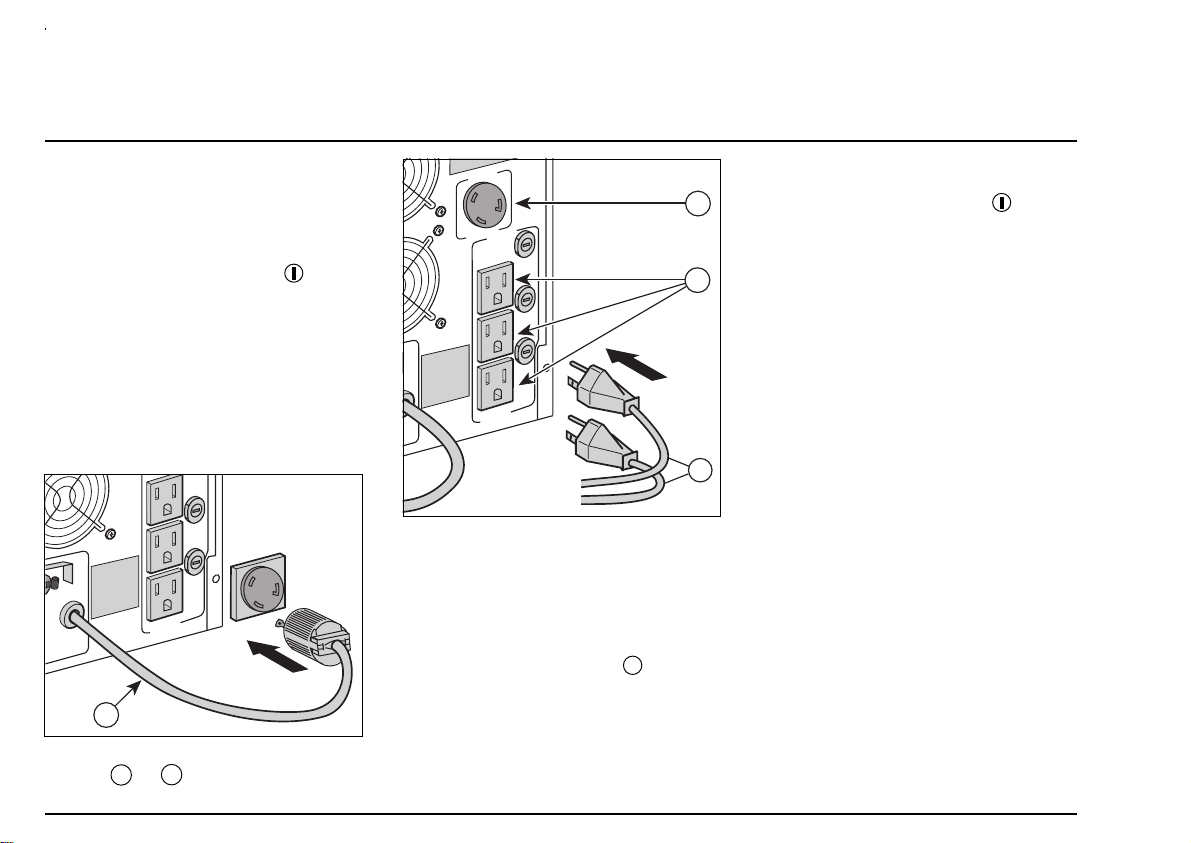

connections
c connect the AC input cord to the utility
power outlet.
IT
ER
V-T
INPUT
5
c connect the computer loads to output
sockets 7a or 7b .
I max 15A
15A
15A 120V-T
15A 120V-T
p
?
t
FUSE
p
?
t
FUSE
s
s
e
r
r
e
s
e
s
s
e
r
r
e
s
e
utility power
receptacle
Vac OUT
7a
s
s
e
r
I max. 30A
p
Vac OUT
r
?
e
t
s
e
FUSE
15A 120V-T
s
s
e
r
p
r
?
e
t
s
e
FUSE
15A 120V-T
s
s
e
r
p
r
?
e
t
s
e
FUSE
15A 120V-T
UT
I max 15A
to computer
7b
8
loads
Note 1: following connection, the battery
automatically charges, whenever plugged in.
Note 2: the batteries will provide full back-up
time after approximatively 8 hours of
recharge time.
Note 3: if site wiring fault LED 8 is lit and
buzzer sounds, line/neutral connections are
reversed.
c connection of the Pulsar EXB20/30
battery extension module (optional):
v check that the button "on/off" " " on the
front of the Pulsar EX20/EX30 is not pushed
in,
v disconnect the input connection cord,
v flip the circuit-breaker of the battery unit to
the right (position "O"),
v connect the battery connection cord to the
DC connector of the battery module and
connect to the Pulsar EX20/EX30,
v if the installation has 2 battery modules,
connect the second cord to the DC
connector of the second module and to the
first module,
v the use of connectors is strictly limited to
connecting the battery modules to the
Pulsar EX20/EX30. Any other connection to
these connectors is prohibited and risks
damaging the battery, not covered by
warranty,
v to start, flip the battery circuit-breaker to
the left (position "I"),
v if your installation is operated with MGE
UPS SYSTEMS software, update your
battery configuration with EX Tuner.
12 Pulsar EX: E-51032278XT/AB MGE UPS SYSTEMS
communication
c the U-Talk communication port, at the rear
of the Pulsar, delivers information in the
form of an RS232 series link supported by
the communication protocol exclusive to
MGE UPS SYSTEMS.
The Solution-PacTM programs use the data
made available by this protocol.
standard port
0V
With the EX Driver software program you
can set up Pulsar EX to suit your user
conditions (EX Tuner), supervise your UPS
and safeguard your system (UPS Manager
3.1). To install EX Driver, connect the serial
cable supplied to COM1 to COM4 (set up by
EX Tuner) series port of your computer
equipped with Windows 3.1 on the one end,
and to the serial Pulsar EX connector on the
other end. Insert the disk and type A:\Install.
Follow the installation instructions on the
screen. You may then use 2 software
programs :
v EX Tuner to set up Pulsar EX,
v UPS Manager 3.1 to supervise and
safeguard your system.
RD TD
5432
9876
1
11
option 1
c status information card: after the card is
installed in the rear of the Pulsar,
communication port transmits the status
information on a SUB-D 9-pin female
connector using the following pinouts:
1- ground,
2- remote power off,
4- normal operation,
5- common,
6- operation on utility power,
7- low battery warning,
8- load supplied by UPS,
9- operation on battery.
0V
876
n.o.0Vn.o.
n.o.
0V
0V
1
12
5432
9
n.c.
n.o.
0V
Relay breaking capacity:
Vmax = 25V DC
Imax = 10mA
n.o. : normally open,
n.c. : normally closed.
optional board for installation.
c switch ON: normal operation,
c switch OFF: unit stops immediatly.
5432
9
S1
1
876
12
option 2
c SNMP card: after the card is installed in
the rear of the Pulsar, the communication
port transmits information supported by the
SNMP protocol on an RJ45 or BNC
connector.
Contact your sales agent for further details.
Note for remote power off information:
Remove first J1 jumper on the status
information board, then link your remote
power off switch S1 between pins 2 and 5.
Follow instructions from user's manual of the
MGE UPS SYSTEMS Pulsar EX: E-51032278XT/AB
13
operation
starting up with utility power present
indicator lights testpress button "on/off" :
automatic sequence:
1a to 1f on
1 s beep
output off output off
1a to 1f flashing
several beeps
device and battery test
to
1a
1e
1f
your load is supported
by the battery
indicating the
1d
remaining battery
time percentage
(here 50%)
on
on
silence
normal operation
17 s7 s5 s0 s
1a
1e
1f
UPS is on utility power
to
1d
off
on
silence
indicating the
recharge
percentage of the
battery (here 50%)
14 Pulsar EX: E-51032278XT/AB MGE UPS SYSTEMS
starting up with out utility power
automatic sequence:
1a to 1f on
indicator lights testpress "on/off" button:
1a to 1f flashing
device and battery test
1a
1e
1f
1 s beep
output off output off
MGE UPS SYSTEMS Pulsar EX: E-51032278XT/AB
several beeps
your load is supported
by the battery
to
indicating the
1d
remaining battery
time percentage
(here 50%)
on
on
3 s beep
normal operation on battery
17 s7 s5 s0 s
1a
1e
1f
UPS is on utility power
indicating the
to
1d
remaining autonomy
percentage
(here 50%)
flashing
on
1 beep every 10 s
15
operation on battery
no utility power
break in utility power
1a
1e
1f
your load is supported
by the battery
indicating the
to
1d
remaining battery
time: here, between
75 and 87%
flashing
on
1 beep every 10 s
warning alarm at low
battery
x mn0 mn
1a
to off
1c
flashing
1d
flashing
1e
on
1f
1 beep every 3 s
you have less than 12% battery time
remaining: power down your load, Pulsar
will soon switch off automatically
Pulsar switches off
automatically
x + ε mn
1a
1f
to off
silence
UPS output "off"
return of utility power load charge percentage
At whatever point the utility power
returns, Pulsar switches to normal
operation:
1a to 1d indicating the battery
1e indifferent
1f on
your load is supplied by the utility power
(on line)
recharge percentage: here,
between 12 and 25%
silence
Note 1:
The "function" button is to deactivate or
activate the audio warning device when
operating on battery, or when site wiring
fault occured.
Note 2:
The "function" button allows you to force a
transfer on bypass (push three times within
5 seconds) and to come back on normal
operation (push again three times within 5
seconds).
If utility power is present, hold alarm
silence button in:
1a to 1d indicating the load charge
1e off
1f on
percentage: here 50%
silence
16 Pulsar EX: E-51032278XT/AB MGE UPS SYSTEMS
overload
utility power present
operating anomalies
device fault
battery fault
1a flashing
1d flashing
1e off
1f on
1 beep every second
automatic load transfer to bypass
no utility power present
1a flashing
1e flashing
1f on
1 beep every second
Pulsar switches off automatically after a
length of time which depends on the level
of overload.
Note: overload occurs if the load
consumption is greater than the rated power
of Pulsar.
To acknowledge the fault, release the "on/
off" button, temporarily disconnected Pulsar
from the wall socket (check input cord),
disconnect loads and re-start Pulsar.
1b flashing
1d flashing
1e off
1f on
1 beep every second
vv
v automatic load transfer to bypass,
vv
vv
v switch off Pulsar (release "on/off" button),
vv
disconnect from the wall socket (check input
cord), and check that Pulsar has not shortcircuited (disconnect all loads),
vv
v if necessary, change one of the fuses 7c ,
vv
vv
v re-start Pulsar.
vv
battery low
1a to 1f off
…
continuous beep
after the start-up sequence, if the audio
warning device sounds continuously,
recharge your battery for 8 hours.
Note: if the previous symptoms persist,
contact technical support.
A battery test is carried out while Pulsar, is in
start-up mode, then automatically every 7
days (interval times adjustable using EX
Driver). If a battery fault is detected, the
following occurs:
1c flashing
1e off
1f on
1 beep every second
recharge your battery for 8 hours.
operation on bypass
1a and 1b indifferents
1d flashing
1e off
1f on
1 beep every second
see "overload" and "device fault" section
Note:
This operating mode provides temporary
inverter fault tolerance.
MGE UPS SYSTEMS Pulsar EX: E-51032278XT/AB
17
18 Pulsar EX: E-51032278XT/AB MGE UPS SYSTEMS
Loading...
