MGE UPS Systems Pulsar Evolution 1500, Pulsar Evolution 500, Pulsar Evolution 2200, Pulsar Evolution 3000, Pulsar Evolution 800 Brochure & Specs
...
THE UNINTERRUPTIBLE POWER PROVIDER
www.mgeups.com
MGE UPS SYSTEMS

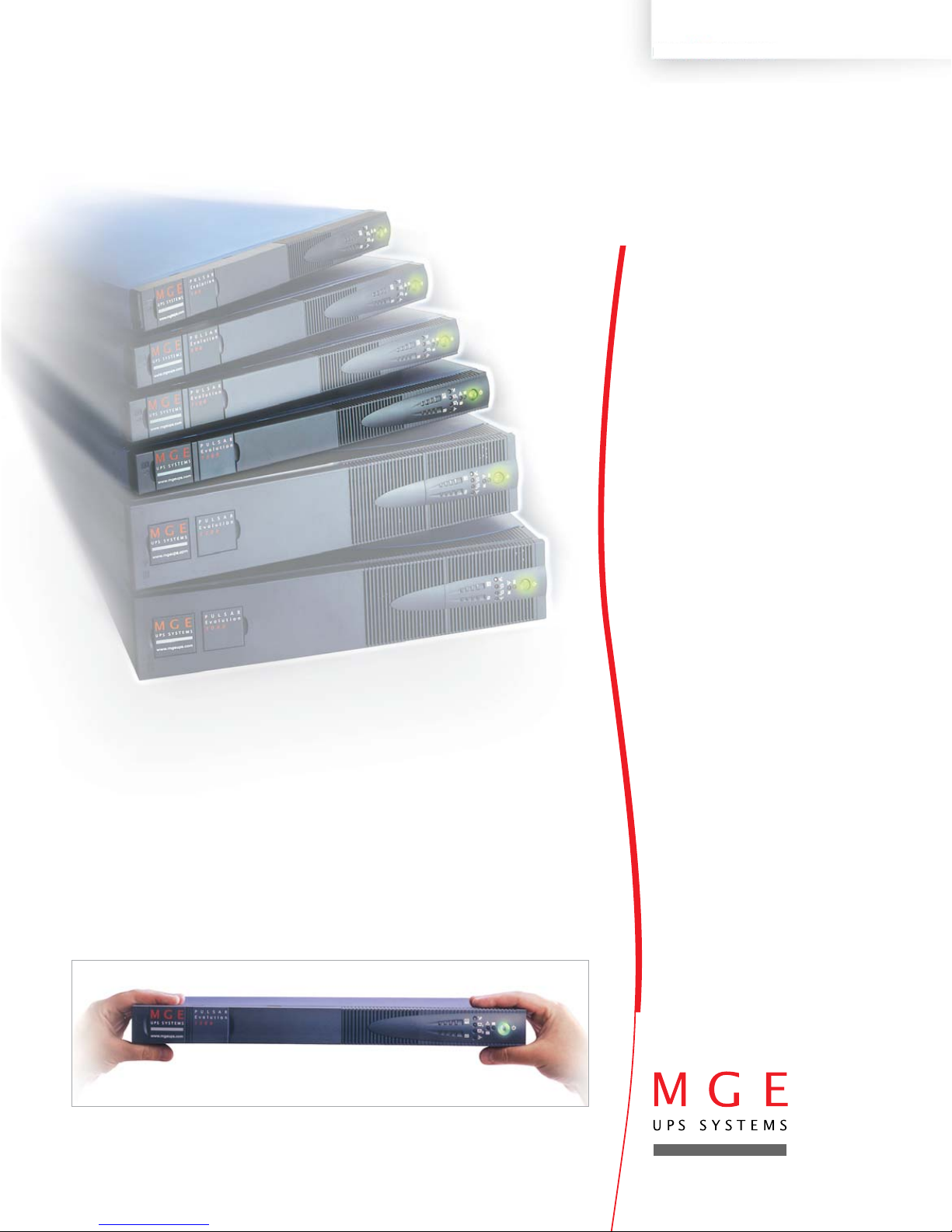

Pulsar Evolution
500 to 3000 VA
High Density Power Protection
for Servers, Storage Systems
and Networking Equipment
Advanced Features
◗ Compact design – just
1U of rack space up
to 1500 VA
◗ High Frequency
line interactive technology
with sinewave output
◗ Wide Input voltage
tolerances
Pulsar Evolution Rack and Tower UPSs offer network administrators
the high-availability power solution they need in the most compact
footprint on the market. With its optional extended back up times,
the Pulsar Evolution offers superior power protection for the next
generation of networking applications.
◗ Extended battery
runtimes with 2U
battery extension
modules
◗ Hot-swappable batteries
◗ Standard USB and Serial
communications
◗ SNMP and web-based
remote supervision
◗ Programmable outlets
for remote reboot
◗ Wide range of installation
possibilities
The Right Model for Your Application
The evolution of computer networks is moving towards
increasingly critical applications requiring ever-higher
equipment densities. The result is a growing need for
ultra-reliable, ultra-compact power protection solutions.
Designed with the evolution of computer networks in mind,
MGE UPS SYSTEMS meets these increasing demands with
the new Pulsar Evolution, the ideal high-density
power protection solution for networking equipment,
rack-optimized servers, traditional rack and tower servers and
network storage systems.
Pulsar Evolution Tower: 800/1100/1500 VA
Pulsar Evolution 1U Rack: 500/800/1100/1500 VA
Pulsar Evolution 2U Rack: 2200 and 3000 VA
Battery Run Times
(in minutes)
Model 20% Load 50% Load 70% Load 100% Load
Evolution 500 40 13 7.5 4.5
Evolution 800 45 17 10 6
Evolution 1100 42 16 9.5 5.5
Evolution 1500 55 17 10 6
Evolution 2200 55 17 10 6
Evolution 3000 60 20 12 7
3000 + 1 EXB 170 68 47 30
3000 + 2 EXB 280 120 77 54
3000 + 3 EXB 475 177 120 77
Performance and High Availability
Superior Performance
and Power Quality
Using new high frequency line-interactive
technology, the Pulsar Evolution delivers a
sinewave output, correcting voltage variations and offering wide input voltage tolerances (up to 150V – 294V).
Software, included with every UPS, allows
you to adjust the main operating parameters, such as input and output voltages, to
ensure compatibility in all conditions.
Ultra High Availability
Hot-swappable batteries are standard in all
Pulsar Evolution UPSs making access quick
and easy from the front of the UPS, greatly
reducing the risk of downtime. Battery
extension modules can be added to the
2200 and 3000 VA models in either tower
or rack configurations for extra-long backup times~over four hours! In addition, the
2 to 4 programmable outlets on each UPS
can be used to reset network devices
remotely and allocate longer backup times
to the most critical equipment.
Extended
Backup Times
Pulsar Evolution 2200 and 3000 UPSs
allow for 1 to 3 battery extension modules
in either tower or rack configurations for
critical applications requiring extended back
up times. For applications requiring more
than four hours, the Pulsar Evolution
3000XL comes equipped with a super
charger allowing for up to 12 battery
module extensions or custom battery
configurations.
